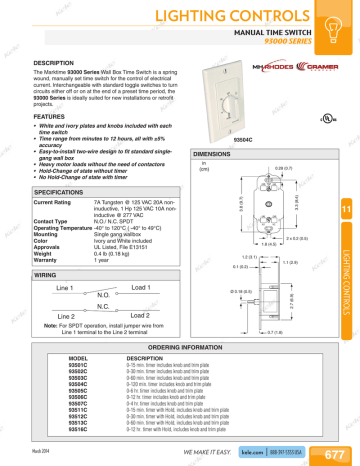

93000 Series Catalog Page
NEW!
NEW!
LIGHTING CONTROLS
MANUAL TIME SWITCH
93000 SERIES
DESCRIPTION
The Marktime 93000 Series Wall Box Time Switch is a spring
wound, manually set time switch for the control of electrical
current. Interchangeable with standard toggle switches to turn
circuits either off or on at the end of a preset time period, the
93000 Series is ideally suited for new installations or retrofit
projects.
FEATURES
• White and ivory plates and knobs included with each
time switch
• Time range from minutes to 12 hours, all with ±5%
accuracy
• Easy-to-install two-wire design to fit standard singlegang wall box
• Heavy motor loads without the need of contactors
• Hold-Change of state without timer
• No Hold-Change of state with timer
93504C
DIMENSIONS
in
(cm)
0.28 (0.7)
3.8 (9.7)
3.3 (8.4)
SPECIFICATIONS
Current Rating
7A Tungsten @ 125 VAC 20A noninuductive, 1 Hp 125 VAC 10A noninductive @ 277 VAC
Contact Type
N.O./ N.C. SPDT
Operating Temperature-40° to 120°C ( -40° to 49°C)
Mounting
Single gang wallbox
Color
Ivory and White included
Approvals
UL Listed, File E13151
Weight
0.4 lb (0.18 kg)
Warranty
1 year
2 x 0.2 (0.5)
1.8 (4.5)
1.1 (2.9)
WIRING
Load 1
2.7 (6.9)
Ø 0.18 (0.5)
N.O.
N.C.
Line 2
Load 2
Note: For SPDT operation, install jumper wire from
Line 1 terminal to the Line 2 terminal
LIGHTING CONTROLS
1.2 (3.1)
0.1 (0.2)
Line 1
11
0.7 (1.8)
ORDERING INFORMATION
MODEL
93501C
93502C
93503C
93504C
93505C
93506C
93507C
93511C
93512C
93513C
93516C
March 2014
DESCRIPTION
0-15 min. timer includes knob and trim plate
0-30 min. timer includes knob and trim plate
0-60 min. timer includes knob and trim plate
0-120 min. timer includes knob and trim plate
0-6 hr. timer includes knob and trim plate
0-12 hr. timer includes knob and trim plate
0-4 hr. timer includes knob and trim plate
0-15 min. timer with Hold, includes knob and trim plate
0-30 min. timer with Hold, includes knob and trim plate
0-60 min. timer with Hold, includes knob and trim plate
0-12 hr. timer with Hold, includes knob and trim plate
