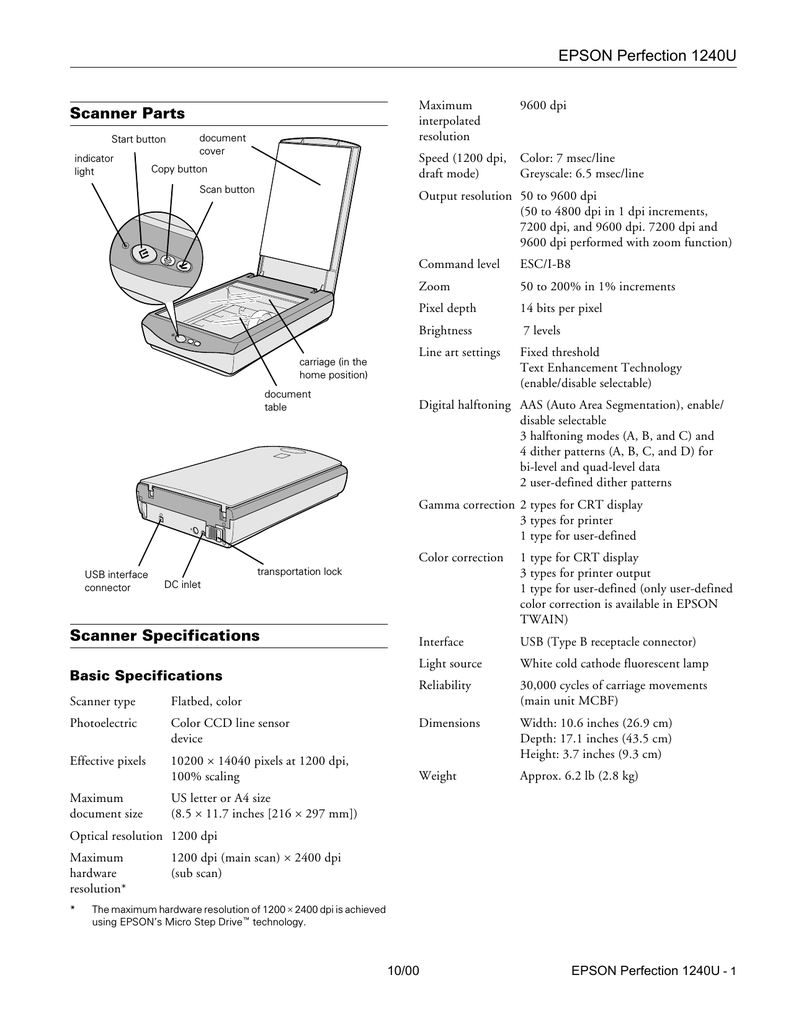

Epson 1240U Specifications

EPSON Perfection 1240U
Scanner Parts
Start button
indicator
light
document
cover
Copy button
Scan button
Maximum
interpolated
resolution
9600 dpi
Speed (1200 dpi,
draft mode)
Color: 7 msec/line
Greyscale: 6.5 msec/line
Output resolution 50 to 9600 dpi
(50 to 4800 dpi in 1 dpi increments,
7200 dpi, and 9600 dpi. 7200 dpi and
9600 dpi performed with zoom function)
carriage (in the
home position)
document
table
Command level
ESC/I-B8
Zoom
50 to 200% in 1% increments
Pixel depth
14 bits per pixel
Brightness
7 levels
Line art settings
Fixed threshold
Text Enhancement Technology
(enable/disable selectable)
Digital halftoning AAS (Auto Area Segmentation), enable/
disable selectable
3 halftoning modes (A, B, and C) and
4 dither patterns (A, B, C, and D) for
bi-level and quad-level data
2 user-defined dither patterns
Gamma correction 2 types for CRT display
3 types for printer
1 type for user-defined
USB interface
connector
1 type for CRT display
3 types for printer output
1 type for user-defined (only user-defined
color correction is available in EPSON
TWAIN)
Interface
USB (Type B receptacle connector)
Light source
White cold cathode fluorescent lamp
Reliability
30,000 cycles of carriage movements
(main unit MCBF)
Dimensions
Width: 10.6 inches (26.9 cm)
Depth: 17.1 inches (43.5 cm)
Height: 3.7 inches (9.3 cm)
Weight
Approx. 6.2 lb (2.8 kg)
DC inlet
Scanner Specifications
Basic Specifications
Scanner type
Flatbed, color
Photoelectric
Color CCD line sensor
device
Effective pixels
10200 × 14040 pixels at 1200 dpi,
100% scaling
Maximum
document size
Color correction
transportation lock
US letter or A4 size
(8.5 × 11.7 inches [216 × 297 mm])
Optical resolution 1200 dpi
Maximum
hardware
resolution*
*
1200 dpi (main scan) × 2400 dpi
(sub scan)
The maximum hardware resolution of 1200 × 2400 dpi is achieved
using EPSON’s Micro Step Drive™ technology.
10/00
EPSON Perfection 1240U - 1
EPSON Perfection 1240U
Configuration
Electrical
Input voltage range DC 24 V
Rated input
current
0.8 A
Power
consumption
Approx. 20 W, operating
approx. 10 W, standby
Note:
Element
Description
Configuration
Characteristics: Self-powered
Remote wake up feature: Not supported
Maximum power consumption from VBUS: 2mA (5V)
Interface
No alternate setting
Number of endpoints used by this interface
(excluding endpoint 0): 2
Check the label on the back of the scanner for voltage
information.
Class: Vendor specific
Endpoint 1
Bulk IN transfer
Environmental
Temperature
Maximum data transfer size: 64 bytes
Endpoint 2
Operation: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Maximum data transfer size: 64 bytes
String
Descriptor
Humidity
(without
condensation)
Operation: 10% to 80%
Storage: 10% to 85%
Operating
conditions
Ordinary office or home conditions; avoid
extreme dust, direct sunlight, and strong
light sources.
Full Speed mode (12Mbit/s) of Universal
Serial Bus Specification Revision 1.1
Connector type
One receptacle (Type B)
Connector pin arrangement
UL 1950
CSA C22.2 No. 950
EMC FCC part 15 subpart B class B
CSA C108.8 class B
EN 60950
EMC EN 55022 (CISPR Pub 22) class B
AS/NZS 3548 class B
EMC Directive 89/336/EEC
EN 55022 Class B
EN 50082-1
IEC 60801-2
IEC 60801-3
IEC 60801-4
USB Interface
Interface type
Universal Serial Bus Specification
Revision 1.1
2 - EPSON Perfection 1240U
Pin number
Signal
1
VCC
2
–DATA
3
+DATA
4
GND
Initialization
methods
CE marking
230 V model
1: Manufacturer: “EPSON”
Electrical
standard
Safety Standards
230 V model
Language ID: US English
2: Product: “Perfection 1240U”
Safety Approvals
120 V model
Bulk OUT transfer
Connector
The scanner can be initialized (returned to
a fixed set of conditions) in the following
ways:
Hardware
initialization
* The scanner is plugged in.
Software
initialization
* Software sends the ESC @ (initialize the scanner)
command.
* The USB cable is unplugged from the USB port on the
scanner.
* The scanner receives a Bus Reset from the USB
interface.
AC Adapter Specifications
Basic Specifications (Model A110B)
Temperature
41 to 95° F (5 to 35° C)
Dimensions
2.3 × 4.3 × 3.4 inches
(5.8 × 10.8 × 3.4 cm)
Weight
Approx. 0.55 lb (0.25 kg, without AC
plug)
10/00
EPSON Perfection 1240U
Electrical
Temperature
Operation: 41 to 95 °F (5 to 35 °C)
Storage: –13 to 140 °F (–25 to 60 °C)
Operation: 10% to 80%
Storage: 10% to 85%
Rated input
voltage
100 to 120 V
Rated input
current
0.7 A (input AC 100 V)
Humidity
(without
condensation)
Rated output
voltage
DC 24 V
Operating
conditions
Ordinary office or home conditions; avoid
extreme dust, direct sunlight, and
strong light sources.
Rated output
current
0.8 A
Document
specifications
Rated frequency
50 to 60 Hz
Input frequency
range
49.5 to 60.5 Hz
Transparencies up to 4 × 5 inches
(negative film, positive film)
35 mm strip film (negative, positive)
35 mm slides (negative, positive)
Brownie size strip film (120/220 size,
6 cm x 9 cm)
Safety Approvals
Using EPSON Smart Panel
CE marking
230 V model
Low Voltage Directive 73/23/EEC
EN 60950
EMC Directive 89/336/EEC
EN 55022 Class B
EN 50082-1
IEC 60801-2
IEC 60801-3
IEC 60801-4
Follow these steps to use EPSON Smart Panel™ to scan your
document or photo:
1. Place your original document(s) face down on the
document table.
2. Do one of the following to open the Smart Panel:
❏ Press the ] Start button on your scanner.
❏ Click the
❏ Open the Apple menu and select EPSON SMART
PANEL.
The ] Start button is set to open the Smart Panel by
default. However, you can assign the ] Start button to
Optional Transparency Unit
Specifications
The transparency unit (B813172), also called a film adapter,
allows you to scan positive and negative transparent
materials —35 mm slides, filmstrips, and film up to 4 × 5
inches in size.
automatically open any of the Smart Panel operations.
3. Click the icon for your desired scanning application. The
window for that option appears and lets you adjust settings
for your scan. Follow the on-screen steps for each option.
The transparency unit comes bundled with the EPSON
Perfection 1240U PHOTO.
Dimensions
Width: 8.7 inches (222 mm)
Depth: 12.0 inches (305 mm)
Height: 1.4 inches (36 mm)
Weight
1.5 lb (0.7 kg)
Maximum
readable area
Smart Panel icon on the Windows taskbar.
If you select Copy or Photo Print, make sure your
printer is turned on and the correct paper type and
size is loaded in your printer. You can use Photo Print
only with an EPSON Stylus® Color or EPSON Stylus
Photo printer.
3.6 × 4.6 inches ([93 × 118 mm]
size of 4 × 5-inch film holder opening)
Electrical
Supply voltage: DC 24 V ±10% V
Rated current: 0.5 A
Reliability
10,000 hours for light source
10/00
EPSON Perfection 1240U - 3
EPSON Perfection 1240U
For detailed instructions on using each of the Smart Panel applications, read your electronic manual for EPSON Smart Panel.
send photos or documents by
e-mail (requires a modem and
e-mail service)
Optical character recognition (OCR) converts a
scanned text image into text that you can edit
in a word processing program
make copies of
printed pages and
photos
gives you an easy way
to reprint your photos in
any size you want
automatically scans your
image and then opens it in
any supported application
program on your computer
scans your image
automatically and then
opens it in Adobe®
PhotoDeluxe®
select EPSON Smart Panel or a Smart Panel
application to use with the ] Start button
Selecting TWAIN Settings
The illustration below shows the different settings you can adjust in the EPSON TWAIN window, and the preferred order you
should adjust them in. Detailed descriptions are given in the electronic Reference Guide. Manually adjust settings in the EPSON
TWAIN window in the following order:
3 Automatically set the
scan area for your image
using Auto Locate
1 Select the basic settings:
Document Source
Image Type
Destination
4 Size or scale the image
(be sure to increase the
Resolution if you
increase the size or
scale)
5 Customize your settings
and configuration, and
use color management
2 Preview your image
6 Scan the image into your
application
7 Close the EPSON
TWAIN window
The most important thing to remember when scanning is to select the correct image type and best resolution for your scan. For
more detailed information on making settings in EPSON TWAIN driver, see the electronic Reference Guide.
4 - EPSON Perfection 1240U
10/00
EPSON Perfection 1240U
Light and Buttons
Scanner Models
The scanner has one indicator light and three buttons. Light
status and button functions are described in the tables below.
The scanner is available in two models.
EPSON Perfection 1240U includes:
EPSON Perfection 1240U scanner
USB cable
indicator light
AC adapter and power cable
Start button
Scanner Software CD-ROM that includes:
Copy button
Scan button
Scanner indicator light
Light
Color
Status
Flashing
Green
The scanner is initializing or busy scanning.
On
Green
The scanner is ready to scan images.
On
Red
The scanner has received incorrect commands
from your scanning software.
Off
Red
—
ScanSoft® TextBridge® Pro
❏
EPSON Software™ Film Factory™ Lite
❏
EPSON Smart Panel
❏
ArcSoft™ PhotoPrinter™ 2000 Pro
❏
ArcSoft Panorama Maker™ 2000
❏
Monaco Systems™ MonacoEZcolor™ (software offer)
❏
Electronic manuals (EPSON Perfection 1240U Reference Guide
[HTML], EPSON Smart Panel User’s Guide [PDF])
Scanner Basics guide
EPSON Perfection 1240U PHOTO includes:
EPSON Perfection 1240U scanner
Transparency unit
USB cable
AC adapter and power cable
The scanner may not be properly connected to
the computer. Unplug the scanner and USB
connector, and then plug them back in.
Scanner Software CD-ROM that includes:
❏
EPSON TWAIN driver for Windows and Macintosh
❏
ScanSoft TextBridge Pro
If this doesn’t eliminate the error, one of the
following may be the problem:
❏
EPSON Software Film Factory Lite
❏
EPSON Smart Panel
❏
❏
ArcSoft PhotoPrinter 2000 Pro
❏ The scanner is malfunctioning.
❏
ArcSoft Panorama Maker 2000
Consult your dealer or EPSON.
❏
Monaco Systems MonacoEZcolor (software offer)
❏
Electronic manuals (EPSON Perfection 1240U Reference Guide
[HTML], EPSON Smart Panel User’s Guide [PDF])
The fluorescent lamp needs to be replaced.
The scanner or AC adapter is unplugged.
Adobe PhotoDeluxe CD-ROM (Home Edition, Windows version 4.0,
Macintosh version 2.0)
Scanner buttons
Button
Function
]
Lets you scan directly to EPSON Smart Panel or a
Smart Panel application.
Start
EPSON TWAIN driver for Windows® and Macintosh®
❏
Adobe PhotoDeluxe CD-ROM (Home Edition, Windows version 4.0,
Macintosh version 2.0)
When this error occurs, try to rescan the
document. The scanner returns to normal when
it receives correct commands. Normally you do
not need to reset the scanner when this type of
error occurs.
Flashing
❏
t Copy
Scan directly to the Copy utility in EPSON Smart Panel
and print on an EPSON ink jet printer.
s Scan
Scan directly to Adobe PhotoDeluxe.
Adobe Photoshop ® LE CD-ROM
Scanner Basics guide
10/00
EPSON Perfection 1240U - 5
EPSON Perfection 1240U
Related Documentation
CPD-10861
EPSON Perfection 1240U Scanner Basics
—
Reference Guide (HTML)
—
EPSON Smart Panel User’s Manual
(PDF)
TM-640/1240
EPSON Perfection 640U/1240U Service
Manual
PL-PERF1240
EPSON Perfection 1240U Parts List
PL-PER1240PH
EPSON Perfection 1240U PHOTO Parts
List
PL-B813172
Transparency Unit Parts List
6 - EPSON Perfection 1240U
10/00

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
