Instrumentation

Instrumentation
Process
Automation

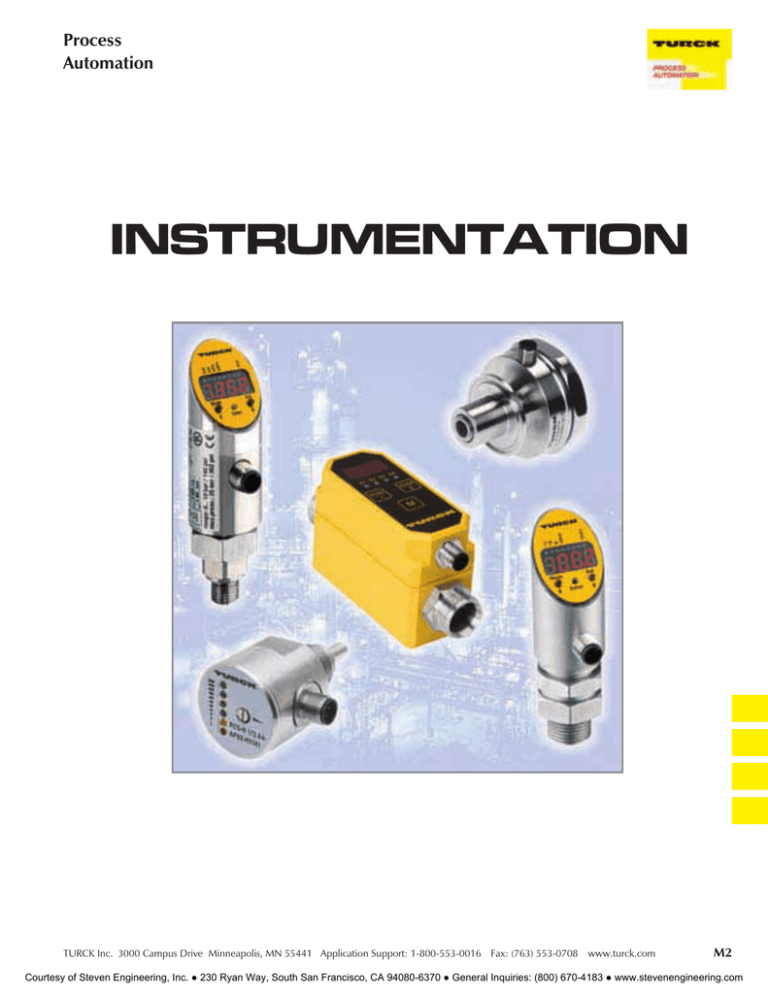

INSTRUMENTATION
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M2
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Pressure Selection Guide
Type
High Accuracy
Pressure Sensors
Programmable Flush Mount
Pressure Sensors
Pages
M13 - M20
M21 - M22
Type
Transmitters (scaled in psi)
Transmitters (scaled in bar)
Pages
M23 - M24
M25 - M28
Pressure Sensors with Diaphragm Seals*
Type
Sanitary
General Purpose
Chemical Resistant
Flush Mount
Accessories
Pages
M29 - M30
M31 - M32
M32
M33
M34 - M35
* Sold as a complete unit with pressure sensors and pressure transmitters only
M3
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
TURCK Pressure Controls Offer a Flexible Solution to Any Pressure Application
Designed with Features to Meet your Needs
The complete line of TURCK pressure controls present a wide range of pressure-sensing products that have been designed
for versatility and efficiency in a variety of pressure monitoring applications. Our electronic pressure controls are well suited
for use in pneumatic and hydraulic systems where there is a need to monitor, measure or control the pressure of both liquids
and gases. If your application requires pressure monitoring, TURCK pressure controls are the right choice
for you.
Solid State Reliability
The piezo-resistive measuring cells offer an extremely high overpressure resistance, which in turn produces a pressure control
that is remarkably stable. The robust housings and ceramic piezo-resistive measuring cells combined with solid-state
reliability give these controls a 10 million-cycle rating. The high shock and vibration resistance allow these devices to
function safely and reliably even in the harshest of environmental conditions.
Pressure Controls from
TURCK for Multiple Applications
TURCK pressure controls can be used in a wide variety of applications with either liquids or gases. Whether it's control in
hydraulic systems or monitoring of pressure in welding guns, TURCK pressure controls are designed to provide reliable data
in your harshest application.
Some common applications include:
•
Air Compressors
•
Hydraulic Clamping Systems
•
Bad Filter Detection
•
Vacuum for Pick-up and Transfer of Product
•
Pneumatic Systems
•
Hydraulic Accumulators
•
Injection Molding Machines
•
Press Machines
•
Automotive Welding Pressure
•
Machine Coolant
•
Pump Run Dry
Implementing process control into your system should not require a redesign of your process. Why not choose a sensor that
can be modified to meet your unique specifications? Robust, solid state, and available in several programmable styles - the
TURCK Pressure Controls have the flexibility to adapt and perform in many applications.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M4
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
A Pressure Sensor Designed with the Customer Applications in Mind
• High Accuracy
The PS400 and PS500 provide an accuracy rating of ±0.5 percent of full scale.
• Flexible Mounting Options
Multiple threaded connections and a unique coupling (PS500) make them
easy to mount in a variety of applications.
• Easy to Operate
Push buttons and enter keys for quick and easy programming.
• Robust Design
An environmental rating of IP 67 provide operational durability in harsh applications.
Simple Programming
The new high accuracy programmable pressure sensors combine high
accuracy and performance with simple programming, resulting in an
extremely user friendly sensor. The sensor is easily programmed via three
controls: two push buttons for scrolling through programming features, and
one recessed enter key. The push buttons are finger operated, and used to
make value selections in the menu or to scroll through the various menu
options. The recessed button is used to store selected values, and prevents
programmed values from being inadvertently altered.
The menu is clear and concise to allow parameters such as set points, reset
points, output functions, analog ranges, and a range of special options to be
programmed with ease. The menu also includes an optional electronic
lockout that disables the push buttons from functioning until the lockout is
removed.
M5
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Stock Reduction
The PS400 and PS500 sensors are specified with an accuracy of 0.5
percent exceeding what is required by the machine engineering sector.
The combination of high accuracy and flexible programming often allows a
single sensor to replace several conventional sensors (with varying sensing
ranges) resulting in a significant reduction in inventory. The LI2UPN8X
output version allows the user to select current analog output with 1 set
point or 2 set points. This allows 1 sensor to replace two part numbers.
Flexible Mounting Options
The high accuracy programable pressure sensors feature a large, bright,
4-digit, 7-segment LCD display with a constant indication of pressure in
either psi (pounds per square inch), bar, kPa (kilopascals), or MPa
(megapascals). This display is tilted at a 45° angle, and can be inverted
electronically for easy reading in a variety of applications. IO user
selectable units include: millibar, millimeters or mercury, inches of water,
feet of water, inch of #g Mercury, meter of water and kilograms per
square centimeter.
The PS400 and PS500 pressure sensors are encased in a compact, 34 mm diameter housing with various threaded
connections for simple, versatile installation. This allows several sensors to be mounted in close proximity to one another,
and is advantageous when space is at a premium. The PS500 series also features a process connection that allows the
housing to rotate 360 degrees for optimal viewing prior to locking the sensor in place. These features allow the PS400 and
PS500 pressure sensors to be utilized in a wide variety of applications.
Robust Design
The innovative PS400 and PS500 pressure sensors were designed to tolerate
tough applications. Stainless steel housing with an integrated stainless steel
M12 eurofast ® connector enables fast and reliable installation. The sensors
also offer a variety of stainless steel pressure connections including G1/4 and
1/4-18 NPT threads.
The sensors are highly resistant to overpressure and burst pressure, yet they
also incorporate a patented medium stop system that prevents leakage when
these levels are exceeded. The media stop system immediately seals the
sensor if the pressure cell has been damaged, and can prevent liquid leakage
if burst pressure is exceeded.
Noise Immune
The PS400 and PS500 programmable sensors offer a high level of protection
against interference from sources that produce high levels of EMI (such as
frequency converters and stepper motors) and other plant noise. These
features were incorporated to create a pressure sensor ideal for use virtually
anywhere.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M6
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Tough Industrial Pressure Transmitters
TURCK's industrial pressure transmitters combine the reliability of solid-state design with the durability of
Stainless Steel. The result is a pressure transmitter that provides accurate and dependable pressure
measurement in demanding applications. At the heart of the transmitter is a proven ceramic component
technology that provides long-term stability and a high tolerance to overpressure conditions. A patented
media stop, included with devices rated over 600 bar, contains the process media in the event that the burst
pressure is exceeded. The housing is constructed of Stainless Steel and provides an IP 67 level of protection.
The fluid connection is a standard G 1/4 or 1/4 NPT thread that works with all of TURCK's existing pressure
accessories. All of the transmitters include an M12x1 eurofast ® quick disconnect, making them compatible
with TURCK's extensive line of cordsets and junction boxes.
TURCK Pressure Sensors and Transmitters with Diaphragms Installed
Operation
In many pressure applications, there is a need to separate the pressure sensor from the media it is sensing via an isolation
device. TURCK offers a variety of diaphragm seals that are attached either directly or remotely to the pressure device to
provide this isolation. The diaphragms that TURCK offers are all manufactured and installed by PI Components, and are not
available as a separate item. This insures that the quality of the assembly is maintained for optimum accuracy.
The TURCK pressure sensor is attached into the top of the diaphragm housing, which is then filled with fluid. The sensor
receives the pressure hydraulically via this internal medium. The lower half of the diaphragm housing adapts to the process
connection, and is designed to contain the process medium as it acts against the thin membrane located between the
two housings.
Applications
TURCK offers the diaphragms in numerous wetted material options, as well as with many
different fill fluids to solve any application. Typical process applications that require the use
of a diaphragm include:
•
Sanitary Applications
•
Corrosive Processes
•
Viscous Applications
•
Applications Where Freezing Media Can Clog The Sensor
Pressure Transmitter with
S1605 Sanitary Diaphragm
M7
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Innovative Pressure Sensor and Diaphragm Solutions
TURCK is the market leader in providing innovative sensor solutions for industrial automation applications. TURCK's high
quality, high performance pressure sensors and pressure transmitters can be combined with multiple styles of diaphragms to
give our customers an infinite selection of unique pressure sensing solutions.
TURCK offers diaphragms in numerous wetted material options, as well as with many different fill fluids. This broad
selection provides custom sensing solutions for the most diverse pressure applications. Parts numbers should be developed
through your TURCK representative or application support. In general, the formula below illustrates how to configure a
custom sensor and diaphragm assembly.
Pressure Transmitter
PT010R-11-LI3-H1131
Diaphragm Modifier
+
S1693
New Part Number:
=
PT010R-11-LI3-H1131/S1693
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M8
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Pressure Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
Pressure Transmitter (scaled in psi)
PT
100psig
- 13 - LI3 - H1131
Style
Electrical Connection
PT = Pressure Transmitter
H1131 = 3-pin, M12 eurofast
Pressure Range
Output Circuitry
-30HG
= -30 to 0 in. Hg (vacuum)
LI3 = 8-33 VDC / 4-20 mA Loop Powered
15psig
= 0 to 15 psig (0 to 1 bar)
LU2 = 11.4-33 VDC / 0-10 V
30psig
= 0 to 30 psig (0 to 2 bar)
60psig
= 0 to 60 psig (0 to 4 bar)
100psig
= 0 to 100 psig (0 to 6.8 bar)
200psig
= 0 to 200 psig (0 to 13.7 bar)
300psig
= 0 to 300 psig (0 to 20.6 bar)
500psig
= 0 to 500 psig (0 to 34.4 bar)
750psig
= 0 to 750 psig (0 to 51.7 bar)
Fluid Connection
13 = 1/4 Male NPT
1000psig = 0 to 1000 psig (0 to 68.9 bar)
2000psig = 0 to 2000 psig (0 to 137.8 bar)
3000psig = 0 to 3000 psig (0 to 206.8 bar)
5000psig = 0 to 5000 psig (0 to 344.7 bar)
7500psig = 0 to 7500 psig (0 to 517 bar)
M9
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Pressure Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
Pressure Transmitter (scaled in bar)
PT 010 R - 11 - LI3 - H1131
Style
Electrical Connection
PT = Pressure Transmitter
H1131 = 3-pin, M12 eurofast ®
Pressure Range
Output Circuitry
01V = -1 to 0 bar (-14.5 to 0 psi) (vacuum)
LI3 = 8-33 VDC / 4-20 mA Loop Powered
0.5= 0 to 0.5 bar (0 to 7.25 psi)
LU2 = 11.4-33 VDC / 0-10 V
001 = 0 to 1 bar (0 to 14.5 psi)
002 = 0 to 1.6 bar (0 to 23.2 psi)
Fluid Connection
003 = 0 to 2.5 bar (0 to 36.25 psi)
11 = G1/4 BSPP
004 = 0 to 4 bar (0 to 58 psi)
13 = 1/4 NPT
006 = 0 to 6 bar (0 to 87 psi)
010 = 0 to 10 bar (0 to 145 psi)
016 = 0 to 16 bar (0 to 232 psi)
025 = 0 to 25 bar (0 to 362.5 psi)
Measurement Type
A = Absolute
R = Relative
040 = 0 to 40 bar (0 to 580 psi)
060 = 0 to 60 bar (0 to 860 psi)
100 = 0 to 100 bar (0 to 1450 psi)
160 = 0 to 160 bar (0 to 2320 psi)
250 = 0 to 250 bar (0 to 3625 psi)
400 = 0 to 400 bar (0 to 5800 psi)
600 = 0 to 600 bar (0 to 8700 psi)
High Accuracy Programmable Pressure Sensor Part Number Key
PS 010 R - 4 01 - 2UP8X - H1141
Style
Electrical Connection
PS = Pressure Sensor
H1141 = 4-pin, M12x1, eurofast
Pressure Range
Output Circuitry
01V = -1 to 0 bar (-14.5 to 0 psi) (vacuum)
2UP8X = 15-30 VDC/(2) N.O./N.C. PNP
001 = 0 to 1 bar (0 to 14.5 psi)
LIUP8X = 18-30 VDC/Analog Current and (1) N.O./N.C. PNP
003 = 0 to 3 bar (0 to 43.5 psi)
LUUP8X = 18-30 VDC/Analog Voltage and (1) N.O./N.C. PNP
010 = 0 to 10 bar (0 to 145 psi)
LIUPN8X = 18-30 VDC/Analog Current and
(1) N.O./N.C. PNP/NPN or (2) N.O./N.C. PNP/NPN
016 = 0 to 16 bar (0 to 232 psi)
025 = 0 to 25 bar (0 to 362.5 psi)
Fluid Connection
040 = 0 to 40 bar (0 to 580 psi)
01 = G1/4 female thread 1/4 BSPP with DIN 3845 seal
100 = 0 to 100 bar (0 to 1450 psi)
03 = 1/4-18 NPT male threads
250 = 0 to 250 bar (0 to 3625 psi)
400 = 0 to 400 bar (0 to 5800 psi)
Pressure Connection Style
Type of Pressure
4 = Fixed pressure connection
R = Relative (Gauge)
5 = Rotatable pressure connection
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M10
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
High Accuracy Programmable Pressure Sensor Specifications
Current Consumption . . . . . . . . . . . . . . . . ≤50 mA
Switching Frequency (Discrete) . . . . . . . . . . . ≤180 Hz
Minimum Hysteresis . . . . . . . . . . . . . . . . . ±0.5%
Display Reaction Time:
3 Selectable Modes . .
. . . . . . . . . . . . .
. . . . . . . . . . . . .
Wetted Parts . . . . . .
. . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Slow 600 ms update
Normal 200 ms update
Fast 50 ms update
Stainless Steel, Viton
Al2O3 Ceramic
Programmable Analog:
Analog Start Point . . . . . . . . . . . . . . . . . . Programmable from 0-75% of measuring range
Analog End Point . . . . . . . . . . . . . . . . . . . Programmable from 25-100% of measuring range
Time Delays:
Switching Delay . . . . . .
. . . . . . . . . . . . . . .
Power-On Effect . . . . . .
Reverse Polarity Protection
Transient Protection . . . .
Short-Circuit Protection . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Switch-on and switch-off delay adjustable from 0 to 50 seconds in
steps of 0.1 second
Per IEC 947-5-2
Yes
EN 60947-5-2
Yes
Temperature Ranges:
Ambient Temperature . . . . . . . . . . . . . . . . -40° to +80°C (-40° to +176°F)
Medium Temperature
Enclosure Rating . . .
Shock . . . . . . . . .
Vibration . . . . . . .
Burst Protection . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-25° to +85°C (-40° to +185°F)
Meets NEMA 4, 6, 12, 13 and IP 67
50 g per IEC 68-2-27
20 g (10-200 Hz) per IEC 68-2-6
patented media stop
Accuracy:
Repeatability . . . . . . . . . . . . . . . . . . . . . ≤±0.5% of measuring range
Zero Shift/Span Shift . . . . . . . . . . . . . . . . . ≤±0.15% of measuring range/°C
LED Function/Display:
Measuring Value/Programming . . . . . . . . . . . 4-digit 7-segment display
Status Display . . . . . . . . . . . . . . . . . . . . LEDs indicate output status and selected measuring units
EMC Information:
EN 61000-4-2 . .
EN 61000-4-3 . .
EN 61000-4-4 . .
EN 61000-4-5 . .
EN 61000-4-6 . .
M11
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ESD: 4 KD CK/ 8 KV AD
HF irradiated: 15 V/m
Burst: 2 KV
Surge: 500 V, 12 Ω
HF conducted: 10 V
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Programmable Pressure Specifications (Flush Mount)
Current Consumption . . . .
Short-Circuit Protection . . .
Reverse Polarity Protection .
Hysteresis (Set-Point Models)
Enclosure Rating . . . . . . .
Analog Adjustment:
PC001
4 mA . . . . . .
20 mA . . . . . .
PC016
4 mA . . . . . .
20 mA . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
≤50 mA
Yes
Yes
≤2% of measuring range
IP 65
. . . . . . . . . . . . . . . . . 0-12.6 psi
. . . . . . . . . . . . . . . . . 2.4-15 psi
. . . . . . . . . . . . . . . . . 0-198 psi
. . . . . . . . . . . . . . . . . 32-230 psi
Accuracy:
Linearity . . . . . . . . . . . . . . . . . . . . . . . ≤0.5% of measuring range
Repeatability . . . . . . . . . . . . . . . . . . . . . ≤1% of measuring range
Temperature Drift . . . . . . . . . . . . . . . . . . ≤0.02% of measuring range / °C
Temperature Range:
Ambient . . . . . . . . . . . . . . . . . . . . . . . -20° to +70°C (-4° to +158°F)
Medium . . . . . . . . . . . . . . . . . . . . . . . -20° to +80°C (-4° to +176°F)
LED Function / Display:
Measuring Value / Programming . . . . . . . . . . Rotatable, 3-digit, 7 segment display (psi)
Status Display . . . . . . . . . . . . . . . . . . . . LED's indicate output status
Pressure Transmitter Specifications
Medium Temperature . . .
Current Consumption . . .
Dynamic Response. . . . .
Short-Circuit Protection . .
Reverse Polarity Protection
Enclosure Rating . . . . . .
Housing Material . . . . .
Shock Resistance . . . . . .
Vibration Resistance . . . .
Wetted Parts . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
Zero Shift. . . . . . . . . .
Span Shift . . . . . . . . .
Voltage Output. . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-40°C to +150°C (-40°F to +302°F)
≤20 mA
<2 ms
Yes
Yes
IP 67
Stainless Steel 1.430 (AISI 303) / PBT
75 G, 11 ms per IEC 68-2-27
20 G, 15 mm per IEC 68-2-6
303 Stainless Steel (connection)
AL203 Ceramic (element)
Viton (seal)
<±0.015% of measuring range / °C
<±0.015% of measuring range / °C
>10 k Ω/ <100 nF
Current Output . . . . . . . . . . . . . . . . . . . ≤
supply voltage
= Ohm
0.02 A
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M12
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Pre
s
Ran sure
ge
( ps
ig)
Allo
wa
Ov ble
er
Pre
s
(ps sure
ig)
Housing
ID
Nu
mb
er
TURCK
Process Automation – Instrumentation
PS01VR-401-LI2UPN8X-H1141
PS001R-401-LI2UPN8X-H1141
PS003R-401-LI2UPN8X-H1141
PS010R-401-LI2UPN8X-H1141
PS016R-401-LI2UPN8X-H1141
PS025R-401-LI2UPN8X-H1141
PS040R-401-LI2UPN8X-H1141
PS100R-401-LI2UPN8X-H1141
PS250R-401-LI2UPN8X-H1141
PS400R-401-LI2UPN8X-H1141
M6832100
M6832101
M6832102
M6832103
M6832104
M6832105
M6832106
M6832107
M6832108
M6832109
-14.5 to 0
PS01VR-403-LI2UPN8X-H1141
PS001R-403-LI2UPN8X-H1141
PS003R-403-LI2UPN8X-H1141
PS010R-403-LI2UPN8X-H1141
PS016R-403-LI2UPN8X-H1141
PS025R-403-LI2UPN8X-H1141
PS040R-403-LI2UPN8X-H1141
PS100R-403-LI2UPN8X-H1141
PS250R-403-LI2UPN8X-H1141
PS400R-403-LI2UPN8X-H1141
4-Wire DC, 1/4-18 NPT Male Connection, PS01VR-503-LI2UPN8X-H1141
Rotatable Housing
PS001R-503-LI2UPN8X-H1141
PS003R-503-LI2UPN8X-H1141
PS010R-503-LI2UPN8X-H1141
PS016R-503-LI2UPN8X-H1141
PS025R-503-LI2UPN8X-H1141
PS040R-503-LI2UPN8X-H1141
PS100R-503-LI2UPN8X-H1141
PS250R-503-LI2UPN8X-H1141
PS400R-503-LI2UPN8X-H1141
4-Wire DC, G1/4 Female Connection
4-Wire DC, 1/4-18 NPT Male Connection
M13
Output
43.5
0 to 14.5
43.5
0 to 43.5
108.7
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
M6832180
M6832181
M6832182
M6832183
M6832184
M6832185
M6832186
M6832187
M6832188
M6832189
-14.5 to 0
43.5
M6832280
M6832281
M6832282
M6832283
M6832284
M6832285
M6832286
M6832287
M6832288
M6832289
0 to 14.5
43.5
0 to 43.5
108.7
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 43.5
108.7
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
Programmable Current:
4-20 mA, 20-4 mA, 0-20
mA, 20 mA
and
1 PNP/NPN N.O./N.C.
or
2 PNP/NPN N.O./N.C.
Programmable Current:
4-20 mA, 20-4 mA, 0-20
mA, 20 mA
and
1 PNP/NPN N.O./N.C.
or
2 PNP/NPN N.O./N.C.
Programmable Current:
4-20 mA, 20-4 mA, 0-20
mA, 20 mA
and
1 PNP/NPN N.O./N.C.
or
2 PNP/NPN N.O./N.C.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
18-30 VDC
18-30 VDC
18-30 VDC
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 43.5
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.90 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 43.5
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 43.5
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.90 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.60 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
Wi
ri
Dia ng
gra
m#
Ana
log
Loa
d
Set
po i
Acc nt
u
(of racy
full
sca
le)
Ana
log
Acc
u
(of racy *
full
*
sca
le)
Ma
ti
Co n g
rds
et
Sw
itc
Cu hing
rre
nt
ReS
Ran et poi
n
ge
( ps t
ig)
Voltage
Set
p
Ran oint
ge
( ps
ig)
Process
Automation
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
1
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
1
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Accuracy includes linearity, repeatability and hysteresis.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M14
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
M15
PS01VR-503-2UP8X-H1141
PS001R-503-2UP8X-H1141
PS003R-503-2UP8X-H1141
PS010R-503-2UP8X-H1141
PS016R-503-2UP8X-H1141
PS025R-503-2UP8X-H1141
PS040R-503-2UP8X-H1141
PS100R-503-2UP8X-H1141
PS250R-503-2UP8X-H1141
PS400R-503-2UP8X-H1141
M6831202
M6831205
M6831208
M6831211
M6831900
M6831901
M6831902
M6831220
M6831223
M6831903
PS01VR-503-LIUP8X-H1141
PS001R-503-LIUP8X-H1141
PS003R-503-LIUP8X-H1141
PS010R-503-LIUP8X-H1141
PS016R-503-LIUP8X-H1141
PS025R-503-LIUP8X-H1141
PS040R-503-LIUP8X-H1141
PS100R-503-LIUP8X-H1141
PS250R-503-LIUP8X-H1141
PS400R-503-LIUP8X-H1141
M6831246
M6831228
M6831233
M6831239
M6831914
M6831915
M6831916
M6831255
M6831260
M6831917
PS01VR-503-LUUP8X-H1141
PS001R-503-LUUP8X-H1141
PS003R-503-LUUP8X-H1141
PS010R-503-LUUP8X-H1141
PS016R-503-LUUP8X-H1141
PS025R-503-LUUP8X-H1141
PS040R-503-LUUP8X-H1141
PS100R-503-LUUP8X-H1141
PS250R-503-LUUP8X-H1141
PS400R-503-LUUP8X-H1141
M6831247
M6831229
M6831234
M6831240
M6831928
M6831929
M6831930
M6831256
M6831261
M6831931
Allo
w
Ov able
er
Pre
s
(ps sure
ig)
Part Number
Pre
s
Ran sure
ge
( ps
ig)
Housing
ID
Nu
mb
er
TURCK
Process Automation – Instrumentation
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
Output
Dual PNP
N.O. or N.C.
PNP
N.O. or N.C
and
Programmable
Current:
0-20 mA, 4-20 mA,
20-0 mA, 20-4 mA
PNP
N.O. or N.C.
and
Programmable
Voltage:
0-10 V, 0-5 V, 1-6 V,
10-0 V, 5-0 V, 6-1 V
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
15-30 VDC
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
N/A
±0.5%
N/A
0.73 to 14.5
0.29 to 14.07
≤200 mA
N/A
±0.5%
N/A
2.17 to 36.26
0.87 to 42.2
≤200 mA
N/A
±0.5%
N/A
7.25 to 145
2.90 to 140
≤200 mA
N/A
±0.5%
N/A
11.6 to 232
4.64 to 225
≤200 mA
N/A
±0.5%
N/A
18.13 to 362.5
7.25 to 351
≤200 mA
N/A
±0.5%
N/A
29 to 580
11.6 to 562
≤200 mA
N/A
±0.5%
N/A
72.5 to 1450
29 to 1406
≤200 mA
N/A
±0.5%
N/A
181 to 3625
72.5 to 3516
≤200 mA
N/A
±0.5%
N/A
290 to 5800
116 to 5626
≤200 mA
N/A
±0.5%
N/A
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
Wi
ri
Dia ng
gra
m#
Ana
log
Loa
d
Set
p
Acc oint
ura
c
(of
full y
sca
le)
Ana
l
Acc og
u
(of racy *
full
*
sca
le)
Ma
ti
Co n g
rds
et
Sw
itc
Cu hing
rre
nt
ReS
Ran et poi
n
ge
( ps t
ig)
Voltage
Set
p
Ran oint
ge
( ps
ig)
Process
Automation
Wiring Diagrams
1
1
Diagram 1
1
1
1
1
1
1
Diagram 2
1
1
Diagram 3
18-30 VDC
18-30 VDC
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≥2KΩ
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
7.25 to 145
2.90 to 140
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
11.60 to 232
4.64 to 225
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≥2 KΩ
±0.5%
≤±0.5%
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
2
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
3
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Accuracy includes linearity, repeatability and hysteresis.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M16
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
4-Wire DC, 1/4-18 NPT Male Connection,
Rotatable Housing
M17
PS01VR-403-2UP8X-H1141
PS001R-403-2UP8X-H1141
PS003R-403-2UP8X-H1141
PS010R-403-2UP8X-H1141
PS016R-403-2UP8X-H1141
PS025R-403-2UP8X-H1141
PS040R-403-2UP8X-H1141
PS100R-403-2UP8X-H1141
PS250R-403-2UP8X-H1141
PS400R-403-2UP8X-H1141
M6831962
M6831963
M6831964
M6831965
M6831966
M6831967
M6831968
M6831969
M6831970
M6831971
PS01VR-403-LIUP8X-H1141
PS001R-403-LIUP8X-H1141
PS003R-403-LIUP8X-H1141
PS010R-403-LIUP8X-H1141
PS016R-403-LIUP8X-H1141
PS025R-403-LIUP8X-H1141
PS040R-403-LIUP8X-H1141
PS100R-403-LIUP8X-H1141
PS250R-403-LIUP8X-H1141
PS400R-403-LIUP8X-H1141
M6831942
M6831943
M6831944
M6831945
M6831946
M6831947
M6831948
M6831949
M6831950
M6831951
PS01VR-403-LUUP8X-H1141
PS001R-403-LUUP8X-H1141
PS003R-403-LUUP8X-H1141
PS010R-403-LUUP8X-H1141
PS016R-403-LUUP8X-H1141
PS025R-403-LUUP8X-H1141
PS040R-403-LUUP8X-H1141
PS100R-403-LUUP8X-H1141
PS250R-403-LUUP8X-H1141
PS400R-403-LUUP8X-H1141
M6831952
M6831953
M6831954
M6831955
M6831956
M6831957
M6831958
M6831959
M6831960
M6831961
Allo
w
Ov able
er
Pre
ss
(ps ure
ig)
Part Number
Pre
s
Ran sure
ge
( ps
ig)
Housing
ID
Nu
mb
er
TURCK
Process Automation – Instrumentation
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
Output
Dual PNP
N.O. or N.C.
PNP
N.O. or N.C.
and
Programmable
Current:
0-20 mA, 4-20 mA,
20-0 mA, 20-4 mA
PNP
N.O. or N.C.
and
Programmable
Voltage:
0-10 V, 0-5 V, 1-6 V,
10-0 V, 5-0 V, 6-1 V
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
15-30 VDC
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
N/A
±0.5%
N/A
0.73 to 14.5
0.29 to 14.07
≤200 mA
N/A
±0.5%
N/A
2.17 to 36.26
0.87 to 42.2
≤200 mA
N/A
±0.5%
N/A
7.25 to 145
2.9 to 140
≤200 mA
N/A
±0.5%
N/A
11.60 to 232
4.64 to 225
≤200 mA
N/A
±0.5%
N/A
18.13 to 362.5
7.25 to 351
≤200 mA
N/A
±0.5%
N/A
29 to 580
11.6 to 562
≤200 mA
N/A
±0.5%
N/A
72.5 to 1450
29 to 1406
≤200 mA
N/A
±0.5%
N/A
181 to 3625
72.5 to 3516
≤200 mA
N/A
±0.5%
N/A
290 to 5800
116 to 5626
≤200 mA
N/A
±0.5%
N/A
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
Wi
ri
Dia ng
gra
m#
Ana
log
Loa
d
Set
P
Acc oint
ura
c
(of
full y
sca
le)
Ana
l
Acc og
u
(of racy *
full
*
sca
le)
Ma
ti
Co n g
rds
et
Sw
itc
Cu hing
rre
nt
ReS
Ran et Poi
n
ge
( ps t
ig)
Voltage
Set
P
Ran oint
ge
( ps
ig)
Process
Automation
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
1
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
2
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
3
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
1
Diagram 2
1
Diagram 3
18-30 VDC
18-30 VDC
0.73 to 14.5
0.29to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
0.73 to 14.50
0.29 to 14.07
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Accuracy includes linearity, repeatability and hysteresis.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M18
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
4-Wire DC, G1/4 Female Connection
4-Wire DC, G1/4 Female Connection
4-Wire DC, G1/4 Female Connection
M19
PS01VR-401-2UP8X-H1141
PS001R-401-2UP8X-H1141
PS003R-401-2UP8X-H1141
PS010R-401-2UP8X-H1141
PS016R-401-2UP8X-H1141
PS025R-401-2UP8X-H1141
PS040R-401-2UP8X-H1141
PS100R-401-2UP8X-H1141
PS250R-401-2UP8X-H1141
PS400R-401-2UP8X-H1141
M6831201
M6831204
M6831207
M6831210
M6831213
M6831215
M6831217
M6831219
M6831222
M6831225
PS01VR-401-LIUP8X-H1141
PS001R-401-LIUP8X-H1141
PS003R-401-LIUP8X-H1141
PS010R-401-LIUP8X-H1141
PS016R-401-LIUP8X-H1141
PS025R-401-LIUP8X-H1141
PS040R-401-LIUP8X-H1141
PS100R-401-LIUP8X-H1141
PS250R-401-LIUP8X-H1141
PS400R-401-LIUP8X-H1141
M6831245
M6831227
M6831231
M6831237
M6831243
M6831249
M6831251
M6831253
M6831259
M6831263
PS01VR-401-LUUP8X-H1141
PS001R-401-LUUP8X-H1141
PS003R-401-LUUP8X-H1141
PS010R-401-LUUP8X-H1141
PS016R-401-LUUP8X-H1141
PS025R-401-LUUP8X-H1141
PS040R-401-LUUP8X-H1141
PS100R-401-LUUP8X-H1141
PS250R-401-LUUP8X-H1141
PS400R-401-LUUP8X-H1141
M6831828
M6831800
M6831232
M6831238
M6831820
M6831836
M6831844
M6831254
M6831858
M6831264
Allo
w
Ov able
er
Pre
ss
(ps ure
ig)
Part Number
Pre
s
Ran sure
ge
( ps
ig)
Housing
ID
Nu
mb
er
TURCK
Process Automation – Instrumentation
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
-14.5 to 0
43.5
0 to 14.5
43.5
0 to 36.26
101.5
0 to 145
362.5
0 to 232
580
0 to 362
942
0 to 580
1450
0 to 1450
3625
0 to 3625
9064
0 to 5800
13,053
Output
Dual PNP
N.O. or N.C.
PNP
N.O. or N.C.
and
Programmable
Current:
0-20 mA, 4-20 mA,
20-0 mA, 20-4 mA
PNP
N.O. or N.C.
and
Programmable
Voltage:
0-10 V, 0-5 V, 1-6 V,
10-0 V, 5-0 V, 6-1 V
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
15-30 VDC
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
N/A
±0.5%
N/A
0.73 to 14.5
0.29 to 14.07
≤200 mA
N/A
±0.5%
N/A
2.17 to 36.26
0.87 to 42.2
≤200 mA
N/A
±0.5%
N/A
7.25 to 145
2.9 to 140
≤200 mA
N/A
±0.5%
N/A
11.6 to 232
4.64 to 225
≤200 mA
N/A
±0.5%
N/A
18.13 to 362.5
7.25 to 351
≤200 mA
N/A
±0.5%
N/A
29 to 580
11.6 to 562
≤200 mA
N/A
±0.5%
N/A
72.5 to 1450
29 to 1406
≤200 mA
N/A
±0.5%
N/A
181 to 3625
72.5 to 3516
≤200 mA
N/A
±0.5%
N/A
290 to 5800
116 to 5626
≤200 mA
N/A
±0.5%
N/A
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
Wi
ri
Dia ng
gra
m#
Ana
log
Loa
d
Set
P
Acc oint
ura
c
(of
full y
sca
le)
Ana
l
Acc og
u
(of racy *
full
*
sca
le)
Ma
ti
Co n g
rds
et
Sw
itc
Cu hing
rre
nt
ReS
Ran et Poi
n
ge
( ps t
ig)
Voltage
Set
P
Ran oint
ge
( ps
ig)
Process
Automation
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
1
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
2
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
4.4T-*
3
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
Diagram 2
1
1
Diagram 3
18-30 VDC
18-30 VDC
0.73 to 14.5
0.29 to 14.07
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≤500 Ω
±0.5%
≤±0.5%
-14.5 to -0.73
-14.07 to -0.29
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
0.73 to 14.5
0.29 to 14.07
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
2.17 to 36.26
0.87 to 42.2
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
7.25 to 145
2.9 to 140
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
11.6 to 232
4.64 to 225
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
18.13 to 362.5
7.25 to 351
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
29 to 580
11.6 to 562
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
72.5 to 1450
29 to 1406
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
181 to 3625
72.5 to 3516
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
290 to 5800
116 to 5626
≤200 mA
≥2 kΩ
±0.5%
≤±0.5%
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Accuracy includes linearity, repeatability and hysteresis.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M20
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
4-Wire DC, Flush Mount
PC001-N3/4A4P-2AP8X-H1141
PC016-N3/4A4P-2AP8X-H1141
M6831391
M6831393
0 to 14.5
72.5
72.5
0 to 232
696
696
Ou
tpu
t
ID Number
Min
im
Bur um
st
Pre
ssu
re (
psi
)
Part Number
Allo
w
Ov able
erp
(ps ress
ure
i)
Housing Style
Pre
s
R a n sure
ge
(ps
i
)
TURCK
Process Automation – Instrumentation
Dual
PNP
N.O./N.C.
3-Wire DC, Flush Mount
PC001-N3/4A4P-LIX-H1141
PC016-N3/4A4P-LIX-H1141
M6831392
M6831390
0 to 14.5
72.5
72.5
0 to 232
696
696
4-20 mA
Conversion: 1 bar = 14.5038 psi
Material
Housing
Sensing Element
Cable Connector
Pressure Connection
O-ring Seal
M21
PBT
Ceramic
303 Stainless Steel
316 Stainless Steel (No. 1.4305)
Viton
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
0.2 to 15
≤200 mA
N/A
≤3
≤3
N/A
2 to 230
≤200 mA
N/A
≤3
≤3
N/A
RK 4.4T-*
RK 4.4T-*
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Ana
log
Loa
d
Dis
pla
Acc y
ura
cy*
*
Set
p
Acc oint
ura
cy*
*
Ana
log
Acc
ura
cy*
*
Sw
itc
Cu hing
rre
nt
nt
po i
Set
Vol
tag
e
Process
Automation
Wiring Diagrams
1
1
19.2-28.8
VDC
Diagram 1
Diagram 2
N/A
N/A
≤500 Ω
≤3
N/A
≤0.5
N/A
N/A
≤500 Ω
≤3
N/A
≤0.5
RK 4.4T-*
RK 4.4T-*
2
2
19.2-28.8
VDC
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** % of rated overall range.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M22
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Gauge Pressure Transmitter, 1/4 Male NPT Connection
Gauge Pressure Transmitter, 1/4 Male NPT Connection
PT-30HG-13-LI3-H1131
PT15psig-13-LI3-H1131
PT30psig-13-LI3-H1131
PT60psig-13-LI3-H1131
PT100psig-13-LI3-H1131
PT200psig-13-LI3-H1131
PT300psig-13-LI3-H1131
PT500psig-13-LI3-H1131
PT750psig-13-LI3-H1131
PT1000psig-13-LI3-H1131
PT2000psig-13-LI3-H1131
PT3000psig-13-LI3-H1131
PT5000psig-13-LI3-H1131
PT7500psig-13-LI3-H1131
PT-30HG-13-LU2-H1131
PT15psig-13-LU2-H1131
PT30psig-13-LU2-H1131
PT60psig-13-LU2-H1131
PT100psig-13-LU2-H1131
PT200psig-13-LU2-H1131
PT300psig-13-LU2-H1131
PT500psig-13-LU2-H1131
PT750psig-13-LU2-H1131
PT1000psig-13-LU2-H1131
PT2000psig-13-LU2-H1131
PT3000psig-13-LU2-H1131
PT5000psig-13-LU2-H1131
PT7500psig-13-LU2-H1131
ID Number
H6831455
H6831456
H6831457
H6831458
H6831459
H6831460
H6831461
H6831462
H6831463
H6831464
H6831465
H6831466
H6831467
H6831468
H6831469
H6831470
H6831471
H6831472
H6831473
H6831474
H6831475
H6831476
H6831477
H6831478
H6831479
H6831480
H6831481
H6831482
Ou
tpu
t
Housing Style
Sca
le
Pre d
ssu
R a n re
ge
TURCK
Process Automation – Instrumentation
0 to -30 in. HG
0 to 15 psi
0 to 30 psi
0 to 60 psi
0 to 100 psi
0 to 200 psi
0 to 300 psi
0 to 500 psi
4-20 mA
Loop
Powered
0 to 750 psi
0 to 1000 psi
0 to 2000 psi
0 to 3000 psi
0 to 5000 psi
0 to 7500 psi
0 to 30 in. HG
0 to 15 psi
0 to 30 psi
0 to 60 psi
0 to 100 psi
0 to 200 psi
0 to 300 psi
0 to 500 psi
0-10 VDC
0 to 750 psi
0 to 1000 psi
0 to 2000 psi
0 to 3000 psi
0 to 5000 psi
0 to 7500 psi
Conversion: 1 bar = 14.5038 psi
Material
Housing
Sensing Element
Media Stop
Cable Connector
Pressure Connection
O-ring Seal
M23
303 Stainless Steel
AL203 Ceramic
PPS
303 Stainless Steel / PBT
303 Stainless Steel
Viton
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
8-33 VDC
11.4-33
VDC
60 in HG
≤0.5% Full Scale
1/4 NPT
45 psi
≤0.5% Full Scale
1/4 NPT
90 psi
≤0.5% Full Scale
1/4 NPT
150 psi
≤0.5% Full Scale
1/4 NPT
250 psi
≤0.5% Full Scale
1/4 NPT
500 psi
≤0.5% Full Scale
1/4 NPT
750 psi
≤0.5% Full Scale
1/4 NPT
1250 psi
≤0.5% Full Scale
1/4 NPT
1875 psi
≤0.5% Full Scale
1/4 NPT
2500 psi
≤0.5% Full Scale
1/4 NPT
5000 psi
≤0.5% Full Scale
1/4 NPT
7500 psi
≤0.5% Full Scale
1/4 NPT
12,500 psi
≤0.5% Full Scale
1/4 NPT
15,000 psi
≤0.5% Full Scale
1/4 NPT
60 in HG
≤0.5% Full Scale
1/4 NPT
45 psi
≤0.5% Full Scale
1/4 NPT
90 psi
≤0.5% Full Scale
1/4 NPT
150 psi
≤0.5% Full Scale
1/4 NPT
250 psi
≤0.5% Full Scale
1/4 NPT
500 psi
≤0.5% Full Scale
1/4 NPT
750 psi
≤0.5% Full Scale
1/4 NPT
1250 psi
≤0.5% Full Scale
1/4 NPT
1875 psi
≤0.5% Full Scale
1/4 NPT
2500 psi
≤0.5% Full Scale
1/4 NPT
5000 psi
≤0.5% Full Scale
1/4 NPT
7500 psi
≤0.5% Full Scale
1/4 NPT
12,500 psi
≤0.5% Full Scale
1/4 NPT
15,000 psi
≤0.5% Full Scale
1/4 NPT
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Flu
id
Co
nne
Typ ctio
n
e
Acc
ura
cy*
*
Allo
w
Ov able
er
Pre
ssu
re
Vol
tag
e
Process
Automation
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
Diagram 2
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Total of linearity, hysteresis and repeatability.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M24
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Gauge Pressure Transmitter, 4-20 mA Output,
1/4 Male NPT Connection
Gauge Pressure Transmitter, 0-10 V Output,
1/4 Male NPT Connection
PT01VR-13-LI3-H1131
PT001R-13-LI3-H1131
PT002R-13-LI3-H1131
PT003R-13-LI3-H1131
PT004R-13-LI3-H1131
PT006R-13-LI3-H1131
PT010R-13-LI3-H1131
PT016R-13-LI3-H1131
PT025R-13-LI3-H1131
PT040R-13-LI3-H1131
PT060R-13-LI3-H1131
PT100R-13-LI3-H1131
PT160R-13-LI3-H1131
PT250R-13-LI3-H1131
PT400R-13-LI3-H1131
PT600R-13-LI3-H1131
PT01VR-13-LU2-H1131
PT001R-13-LU2-H1131
PT002R-13-LU2-H1131
PT003R-13-LU2-H1131
PT004R-13-LU2-H1131
PT006R-13-LU2-H1131
PT010R-13-LU2-H1131
PT016R-13-LU2-H1131
PT025R-13-LU2-H1131
PT040R-13-LU2-H1131
PT060R-13-LU2-H1131
PT100R-13-LU2-H1131
PT160R-13-LU2-H1131
PT250R-13-LU2-H1131
PT400R-13-LU2-H1131
PT600R-13-LU2-H1131
ID Number
H6831496
H6831497
H6831498
H6831499
H6831500
H6831501
H6831502
H6831503
H6831504
H6831505
H6831506
H6831507
H6831508
H6831509
H6831510
H6831511
H6831512
H6831513
H6831514
H6831515
H6831516
H6831517
H6831518
H6831519
H6831520
H6831521
H6831522
H6831523
H6831524
H6831525
H6831526
H6831527
Ou
tpu
t
Housing Style
Sca
le
Pre d
ssu
Ran r e
ge
(ba
r
)
TURCK
Process Automation – Instrumentation
-1 to 0
0 to 1
0 to 2
0 to 3
0 to 4
0 to 6
0 to 10
0 to 16
0 to 25
4-20 mA
Loop
Powered
0 to 40
0 to 60
0 to 100
0 to 160
0 to 250
0 to 400
0 to 600
-1 to 0
0 to 1
0 to 2
0 to 3
0 to 4
0 to 6
0 to 10
0 to 16
0 to 25
0-10 VDC
0 to 40
0 to 60
0 to 100
0 to 160
0 to 250
0 to 400
0 to 600
Conversion: 1 bar = 14.50377 psi
Material
Housing
Sensing Element
Media Stop
Cable Connector
Pressure Connection
O-ring Seal
M25
303 Stainless Steel
AL203 Ceramic
PPS
303 Stainless Steel / PBT
303 Stainless Steel
Viton
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
8-33 VDC
11.4-33
VDC
3
≤0.3% Full Scale
1/4 NPT
3
≤0.3% Full Scale
1/4 NPT
5
≤0.3% Full Scale
1/4 NPT
7
≤0.3% Full Scale
1/4 NPT
12
≤0.3% Full Scale
1/4 NPT
15
≤0.3% Full Scale
1/4 NPT
25
≤0.3% Full Scale
1/4 NPT
40
≤0.3% Full Scale
1/4 NPT
62
≤0.3% Full Scale
1/4 NPT
100
≤0.3% Full Scale
1/4 NPT
150
≤0.3% Full Scale
1/4 NPT
250
≤0.3% Full Scale
1/4 NPT
400
≤0.3% Full Scale
1/4 NPT
625
≤0.3% Full Scale
1/4 NPT
1000
≤0.3% Full Scale
1/4 NPT
1200
≤0.3% Full Scale
1/4 NPT
3
≤0.3% Full Scale
1/4 NPT
3
≤0.3% Full Scale
1/4 NPT
5
≤0.3% Full Scale
1/4 NPT
7
≤0.3% Full Scale
1/4 NPT
12
≤0.3% Full Scale
1/4 NPT
15
≤0.3% Full Scale
1/4 NPT
25
≤0.3% Full Scale
1/4 NPT
40
≤0.3% Full Scale
1/4 NPT
62
≤0.3% Full Scale
1/4 NPT
100
≤0.3% Full Scale
1/4 NPT
150
≤0.3% Full Scale
1/4 NPT
250
≤0.3% Full Scale
1/4 NPT
400
≤0.3% Full Scale
1/4 NPT
625
≤0.3% Full Scale
1/4 NPT
1000
≤0.3% Full Scale
1/4 NPT
1200
≤0.3% Full Scale
1/4 NPT
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Flu
id
Co
nne
Typ ctio
n
e
Acc
ura
cy*
*
Allo
w
Ov able
er
Pre
ss
(ba ure
r)
Vol
tag
e
Process
Automation
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
Diagram 2
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Total of linearity, hysteresis and repeatability.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M26
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Gauge Pressure Transmitter, G 1/4 Female Connection
Gauge Pressure Transmitter, G 1/4 Female Connection
Absolute Pressure Transmitter, G 1/4 Female Connection
PT01VR-11-LI3-H1131
PT0.5R-11-LI3-H1131
PT001R-11-LI3-H1131
PT002R-11-LI3-H1131
PT003R-11-LI3-H1131
PT004R-11-LI3-H1131
PT006R-11-LI3-H1131
PT010R-11-LI3-H1131
PT016R-11-LI3-H1131
PT025R-11-LI3-H1131
PT040R-11-LI3-H1131
PT060R-11-LI3-H1131
PT100R-11-LI3-H1131
PT160R-11-LI3-H1131
PT250R-11-LI3-H1131
PT400R-11-LI3-H1131
PT600R-11-LI3-H1131
PT01VR-11-LU2-H1131
PT001R-11-LU2-H1131
PT002R-11-LU2-H1131
PT003R-11-LU2-H1131
PT004R-11-LU2-H1131
PT006R-11-LU2-H1131
PT010R-11-LU2-H1131
PT016R-11-LU2-H1131
PT025R-11-LU2-H1131
PT040R-11-LU2-H1131
PT060R-11-LU2-H1131
PT100R-11-LU2-H1131
PT160R-11-LU2-H1131
PT250R-11-LU2-H1131
PT400R-11-LU2-H1131
PT600R-11-LU2-H1131
PT001A-11-LI3-H1131
PT002A-11-LI3-H1131
PT003A-11-LI3-H1131
ID Number
H6831433
H6831495
H6831434
H6831435
H6831436
H6831437
H6831438
H6831432
H6831439
H6831440
H6831441
H6831442
H6831443
H6831444
H6831445
H6831446
H6831447
H6831454
H6831483
H6831484
H6831485
H6831486
H6831452
H6831487
H6831488
H6831489
H6831490
H6831491
H6831492
H6831453
H6831451
H6831493
H6831494
H6831449
H6831450
H6831448
Ou
tpu
t
Housing Style
Sca
le
Pre d
ssu
R a n re
ge
(b
ar)
TURCK
Process Automation – Instrumentation
-1 to 0
0 to 0.5
0 to 1
0 to 2
0 to 3
0 to 4
0 to 6
0 to 10
0 to 16
0 to 25
4-20 mA
Loop
Powered
0 to 40
0 to 60
0 to 100
0 to 160
0 to 250
0 to 400
0 to 600
-1 to 0
0 to 1
0 to 2
0 to 3
0 to 4
0 to 6
0 to 10
0 to 16
0 to 25
0-10 VDC
0 to 40
0 to 60
0 to 100
0 to 160
0 to 250
0 to 400
0 to 600
0 to 1
0 to 2
0 to 3
4-20 mA
Loop
Powered
Conversion: 1 bar = 14.5038 psi
Material
Housing
Sensing Element
Media Stop
Cable Connector
Pressure Connection
O-ring Seal
M27
303 Stainless Steel
AL203 Ceramic
PPS
303 Stainless Steel / PBT
303 Stainless Steel
Viton
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
8-33 VDC
11.4-33
VDC
3
≤0.3% Full Scale
G 1/4
1.5
≤0.5% Full Scale
G 1/4
3
≤0.3% Full Scale
G 1/4
5
≤0.3% Full Scale
G 1/4
7
≤0.3% Full Scale
G 1/4
12
≤0.3% Full Scale
G 1/4
15
≤0.3% Full Scale
G 1/4
25
≤0.3% Full Scale
G 1/4
40
≤0.3% Full Scale
G 1/4
62
≤0.3% Full Scale
G 1/4
100
≤0.3% Full Scale
G 1/4
150
≤0.3% Full Scale
G 1/4
250
≤0.3% Full Scale
G 1/4
400
≤0.3% Full Scale
G 1/4
625
≤0.3% Full Scale
G 1/4
1000
≤0.3% Full Scale
G 1/4
1200
≤0.3% Full Scale
G 1/4
3
≤0.3% Full Scale
G 1/4
3
≤0.3% Full Scale
G 1/4
5
≤0.3% Full Scale
G 1/4
7
≤0.3% Full Scale
G 1/4
12
≤0.3% Full Scale
G 1/4
15
≤0.3% Full Scale
G 1/4
25
≤0.3% Full Scale
G 1/4
40
≤0.3% Full Scale
G 1/4
62
≤0.3% Full Scale
G 1/4
100
≤0.3% Full Scale
G 1/4
150
≤0.3% Full Scale
G 1/4
250
≤0.3% Full Scale
G 1/4
400
≤0.3% Full Scale
G 1/4
625
≤0.3% Full Scale
G 1/4
1000
≤0.3% Full Scale
G 1/4
1200
≤0.3% Full Scale
G 1/4
3
≤0.3% Full Scale
G 1/4
5
≤0.3% Full Scale
G 1/4
7
≤0.3% Full Scale
G 1/4
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
RK
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
4T-*/S618
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Flu
id
Co
nne
Typ ctio
n
e
Acc
ura
cy*
*
Allo
w
Ov able
er
Pre
s
( b a sure
r)
Vol
tag
e
Process
Automation
1
Wiring Diagrams
Diagram 1
1
1
1
1
1
1
Diagram 2
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
8-33 VDC
See page M10 - M12 for additional pressure specifications.
See pages M29 - M33 for diaphragm seals.
See pages M34 - M35 for pressure accessories.
* Length in meters.
** Total of linearity, hysteresis and repeatability.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M28
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Sanitary Diaphragm
PC.../S1604
Sta
nda
rds
Ma
xi
Wo mum
r
Pre king
ssu
at 1 re
00°
F
Fill
Flu
id
Up
p
Ho er
usi
ng
Dia
phr
agm
Part Number
Low
e
Ho r
usi
ng
Housing Style
Pro
c
Co ess
nne
ctio
n
TURCK
Process Automation – Instrumentation
1.5 in. Tri-clamp
316 L
316 L
316 L
Neobe M20
600 psi
3A 37-01
2.0 in. Tri-clamp
316 L
316 L
316 L
Neobe M20
600 psi
3A 37-01
1.5 in. Cherry-Burrel
316 L
316 L
316 L
Neobe M20
250 psi
3A 37-01
2.0 in. Cherry-Burrel
316 L
316 L
316 L
Neobe M20
250 psi
3A 37-01
PT.../S1604
PS.../S1604
Sanitary Diaphragm
PC.../S1605
PT.../S1605
PS.../S1605
Sanitary Diaphragm
PC.../S1691
PT.../S1691
PS.../S1691
Sanitary Diaphragm
PC.../S1692
PT.../S1692
PS.../S1692
Diaphragm seals must be ordered factory assembled with any TURCK pressure sensor or pressure transmitter.
For optional fill fluids and materials see page M36 at the end of this section.
M29
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Sanitary Diaphragm
PC.../S1693
Sta
nda
rds
Ma
xi
Wo mum
r
Pre king
ssu
at 1 re
00°
F
Fill
Flu
id
Up
p
Ho er
usi
ng
Dia
phr
agm
Part Number
Low
e
Ho r
usi
ng
Housing Style
Pro
c
Co ess
nne
ctio
n
Process
Automation
1.5 in. Bevel Seat
316 L
316 L
316 L
Neobe M20
250 psi
3A 37-01
2.0 in. Bevel Seat
316 L
316 L
316 L
Neobe M20
250 psi
3A 37-01
Anderson Long Shell
316 L
316 L
316 L
Neobe M20
200 psi
3A 37-01
Anderson Short Shell
316 L
316 L
316 L
Neobe M20
200 psi
3A 37-01
PT.../S1693
PS.../S1693
Sanitary Diaphragm
PC.../S1694
PT.../S1694
PS.../S1694
Sanitary Diaphragm
PC.../S1689
PT.../S1689
PS.../S1689
Sanitary Diaphragm
PC.../S1695
PT.../S1695
PS.../S1695
Diaphragm seals must be ordered factory assembled with any TURCK pressure sensor or pressure transmitter.
For optional fill fluids and materials see page M36 at the end of this section.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M30
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Fully Welded Diaphragm Seal
PC.../S1685
Ma
xi
Wo mum
r
Pre king
ssu
at 1 re
00°
F
Fill
Flu
id
Up
p
Ho er
usi
ng
Dia
phr
agm
Part Number
Low
e
Ho r
usi
ng
Housing Style
Pro
c
Co ess
nne
ctio
n
TURCK
Process Automation – Instrumentation
1/4 NPT Female
316 L
316 L
316 L
Silicone DC200
2500 psi
1/4 NPT Female
316 L
316 L
316 L
Silicone DC200
2500 psi
1/2 NPT Female
316 L
316 L
316 L
Silicone DC200
2500 psi
1/2 NPT Female
316 L
316 L
Carbon
Silicone DC200
2500 psi
PT.../S1685
PS.../S1685
Fully Welded Diaphragm Seal, Clean Out Port PC.../S1593
PT.../S1593
PS.../S1593
General Purpose, Welded Diaphragm
PC.../S1049
PT.../S1049
PS.../S1049
General Purpose, Welded Diaphragm,
Flush Port
PC.../S1700
PT.../S1700
PS.../S1700
Steel
Diaphragm seals must be ordered factory assembled with any TURCK pressure sensor or pressure transmitter.
For optional fill fluids and materials see page M36 at the end of this section.
M31
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
General Purpose, Welded Diaphragm
PC.../S1701
1/2 NPT Female
316 L
316 L
Carbon
Ma
xi
Wo mum
r
Pre king
ssu
at 1 re
00°
F
Fill
Flu
id
Up
p
Ho er
usi
ng
Dia
phr
agm
Part Number
Low
e
Ho r
usi
ng
Housing Style
Pro
c
Co ess
nne
ctio
n
Process
Automation
Silicone DC200
2500 psi
Silicone DC200
2500 psi
Steel
PT.../S1701
PS.../S1701
General Purpose, Welded Diaphragm,
Flush Port
PC.../S1702
PT.../S1702
PS.../S1702
1/2 NPT Female
316 L
316 L
Carbon
Chemical Resistant, Welded Diaphragm
PC.../S1731
1/2 NPT Female
PVC
Hastelloy C276
316 L
Silicone DC200
200 psi
1/2 NPT Female
PVC
Hastelloy C276
Carbon
Silicone DC200
200 psi
Steel
PT.../S1731
PS.../S1731
Chemical Resistant, Welded Diaphragm
PC.../S1733
PT.../S1733
Steel
PS.../S1733
Diaphragm seals must be ordered factory assembled with any TURCK pressure sensor or pressure transmitter.
For optional fill fluids and materials see page M36 at the end of this section.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M32
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Flush Mount Diaphragm
PC.../S1704
Ma
xi
Wo mum
r
Pre king
ssu
at 1 re
00°
F
Fill
Flu
id
Up
p
Ho er
usi
ng
Dia
phr
agm
Part Number
Low
e
Ho r
usi
ng
Housing Style
Pro
c
Co ess
nne
ctio
n
TURCK
Process Automation – Instrumentation
1-1/2 NPT Male
316 L
316 L
316 L
Silicone DC200
5000 psi
2 NPT Male
316 L
316 L
316 L
Silicone DC200
3000 psi
PT.../S1704
PS.../S1704
Flush Mount Diaphragm
PC.../S1705
PT.../S1705
PS.../S1705
Diaphragm seals must be ordered factory assembled with any TURCK pressure sensor or pressure transmitter.
For optional fill fluids and materials see page M36 at the end of this section.
M33
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Accessories
Adapter, G1/4 to G1/2
(316 Stainless Steel)
.945 [24.0] across flats
Adapter, G1/4 to 1/2NPT
(316 Stainless Steel)
.748 [19.0] across flats
Adapter, G1/4 to 3/8NPT
(316 Stainless Steel)
.945 [24.0] across flats
PCV-G1/2A4
PCV-N1/2A4
PCV-N3/8A4
(M6835012)
(M6835013)
(M6835020)
Adapter, G1/4 to G1/4
(316 Stainless Steel)
.748 [19.0] across flats
Adapter, G1/4 to 1/4 NPT
(316 Stainless Steel)
.748 [19.0] across flats
Adapter, G1/4 to G1/8
(316 Stainless Steel)
.748 [19.0] across flats
PCV-G1/4A4
PCV-N1/4A4
PCV-G1/8A4
(M6835011)
(M6835022)
(M6835014)
Adapter, G1/4 to 1/8NPT(316
Stainless Steel)
.748 [19.0] across flats
Adapter, G1/4 to 7/16 SAE
(316 Stainless Steel)
.748 [19.0] across flats
PCV-N1/8A4
PCV-S7/16A4
(M6835021)
(A9136)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M34
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Accessories
M35
Mounting Bracket Kit (Aluminum)
Mounting Bracket (Aluminum)
PCS-AB-KIT
PCS-MBT
(A5121)
(A5120)
Heat Sink (316 Stainless Steel)
Clear Cap
PCS-G1/4A4
PS-COVER
(M6835015)
(A9232)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Diaphragm Seal Optional Materials
Optional Fill Fluids
Diaphragm Fill Fluids
Application Range ( C)
Specific Gravity at 25 C
Silicone DC200-10CS
-45 to 205
0.93
Viscosity at 25 C
10
Silicone DC 704
0 to 315
1.07
39
Silicone DC 710
5 to 345
1.11
500
Flurolube FS-5
-40 to 150
1.88
7.8
Halocarbon Oil 6.3
-40 to 235
1.88
10.6
Halocarbon Oil 4.2
-45 to 175
1.85
6.5
Neobee-20
-15 to 205
0.92
9.8
Optional Materials
Housing Material
Wetted
304 SS (304)
304L SS (304L)
316 SS (316)
316Ti SS
Carbon Steel (STL)
Carpenter 20 (C20)
Non-Wetted
Nickel 200 (NICK)
PVC
Tantalum (TANT)
Teflon-25%GF (TFGF) (+1500°F max.)
Titanium GR.4 (TIT)
Zirconium 702 (ZIRC)
Hast-C22 (HAS2)
Hastelloy B-2 (HASB)
Hastelloy C-276 (HASC)
Inconel 600 (INC)
Inconel 625 (I625)
Monel 400 (MON)
304 SS (304)
316 SS (316)
Carbon Steel (STL)
Monel 400 (MON)
Diaphragm Material
Wetted
304L SS (304L)
316L SS (316L)
321 SS (321)
Buna N (NBR) (1250 psi; +2500°F)
Carpenter 20 (C20)
(for anti-stick purposes only)
Gold (GOLD)
Hast - C22 (HAS2)
Hastelloy B-2 (HASB)
Hastelloy C-276 (HASC)
Inconel 600 (INC)
Kalrez 1050LF (KALR)
Kel-F (KELF) (1250 psi; +4000°F)
Monel 400 (MON)
Nickel 200 (NICK)
Nickel 201 (N201)
Silver (SILV)
Tantalum (TANT)
Teflon Coated Metal
Teflon (TFE) (1250 psi; +3500°F)
Titanium GR4 (TIT)
Viton A (VIT) (1250 psi; +3500°F)
Zirconium 702 (ZIRC)
Gasket Material
Wetted
Grafoil (GRAF)
Non-Asbestos (4401)
PTFE (3510) (-400°F to +2000°F)
PTFE (K2) (-500°F to +4500°F)
O-Ring Material
Wetted
Buna N (NBR) (-100°F to +2500°F)
Kalrez (KALR)
Teflon (TFE) (-400°F to +3500°F)
Viton A (VIT) (-100°F to +3500°F)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M36
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Pressure Conversion(1)
From / To
PSI
KPA
inches(2)
inH2O
mmH2O
inches(3)
inHg
mm Hg
Bars
m Bars
Kg/cm2
gm/cm2
PSI
1
6.8948
27.7620
705.1500
2.0360
51.7149
0.0689
68.9470
0.0703
70.3070
KPA
0.1450
1
4.0266
102.2742
0.2953
7.5006
0.0100
10.0000
0.0102
10.197
inH2O
0.0361
0.2483
1
25.4210
0.0734
1.8650
0.0025
2.4864
0.0025
2.5355
mmH2O
0.0014
0.0098
0.0394
1
0.0028
0.0734
0.0001
0.0979
0.00001
0.0982
inHg
0.4912
3.3867
13.6195
345.936
1
25.4000
0.0339
33.8639
0.0345
34.532
mm Hg
0.0193
0.1331
0.5362
13.6195
0.0394
1
0.0013
1.3332
0.0014
1.3595
Bars
14.5040
100.000
402.180
10215.0
29.5300
750.060
1
1000
1.0197
1019.72
m Bars
0.0145
0.1000
0.4022
10.2150
0.0295
0.7501
0.001
1
0.0010
1.0197
Kg/cm2
14.2233
97.9047
394.408
10018.0
28.9590
735.559
0.9000
980.700
1
1000
0.0142
0.0979
0.3944
10.0180
0.0290
0.7356
0.0009
0.9807
0.001
1
2
gm/cm
(1) Example:
1 mm Hg = 0.5362 inH2O = 1.3332 mBars
97 mm Hg = 97(0.5362) = 52.0114 inH2O
97 mm Hg = 97(1.332) = 129.3204 mBars
(2) at 60°F
(3) at 32°F
M37
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Notes:
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M38
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Flow Monitor Selection Guide
M39
Type
Digital Readout Flow Monitor
Plastic Self Contained
Stainless Steel Self Contained
Pages
M53 - M60
M61 - M62
M63 - M64
Type
Self Contained Inline
Remote Probe
Remote Amplifier/
Signal Processors
Accessories
Pages
M65 - M66
M67 - M70
M71 - M74
M75 - M76
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
A Variety of Flow Sensors for All of Your Flow Applications
The rugged design and high repeatability of TURCK flow sensors bring a new level of reliability to flow monitoring. Many
sensors have an enclosure rating of IP 67, in addition to a pressure resistance of 1450 psi, while other models are able to
withstand aggressive materials such as acids and caustics. TURCK flow sensors are available as in-line models, self-contained
devices, or probe styles (with a separate signal processor), and are able to perform in many different media, such as liquids,
gases and airflow. TURCK flow monitors have a temperature gradient of 250°C/minute, which allows them to respond
rapidly to changes in temperature and makes them especially suited to applications such as monitoring coolant flow to weld
tips. Our wide range of flow products offer a solution to many flow applications.
Solid State with No Moving Parts
All TURCK flow sensors are solid-state devices that operate on the calorimetric principle. With this technology there are no
moving parts that may break off or become lodged in the pipeline. Often in impure or "dirty" flow applications, mechanical
devices tend to become frozen or stuck in the "open" position making TURCK electronic sensors a much better choice in
these applications. No matter how demanding your application, you now have a solution that installs easily, performs
dependably, and does not require expensive downtime.
Product Features
•
All wetted parts are made of Stainless Steel, Titanium, Hastelloy or Teflon
•
Omni-directional monitoring allows you to monitor the flow in any direction
•
Automatic temperature compensation allows for sudden shifts in flow temperature within specified extremes
TURCK offers longer probe lengths for use in applications where there is
a larger pipe, or long standoff, in many different probe style flow sensors.
These probes are available in 20 millimeter increments with a maximum
length of 220 millimeters. Consult factory for more information.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M40
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
TURCK: Delivering Advanced Automation Products
As the market for automation components continues to evolve and requires smarter, smaller, more robust sensing and
productivity products, TURCK is rising to meet these challenges with a complete offering of automation components.
Established as the industry's leading brand in proximity sensors, the TURCK name is synonymous with high-quality, rugged
sensing products. Now users can expect that same quality in an expanded offering of automation products that will help
improve their processes and profits.
A Digital Read Out Flow Sensor for Your Flow Monitoring Applications
The rugged design and high repeatability of TURCK's Digital Read Out (DRO) flow sensor brings a new level of reliability to
flow monitoring. This self-contained, fully programmable sensor allows for both flow and temperature monitoring, and
features a highly visible three-digit display that can alternate between flow rate and media temperature when required.
The DRO flow monitor allows the user to program set points specific to an
application, and can be programmed to perform in many different media,
such as water, glycol and Galden HT110. If the fluid is a glycol/water mix, the
percentage of glycol can be selected so that the monitor can adjust to each
unique application without the need for factory calibration. The DRO flow
monitor has an adjustable filter to smooth out a variety of erratic flow
conditions, and is able to monitor changes in flow as low as 0.2 gallons per
minute (GPM) or as fast as 12 GPM.
This unique flow monitor can be programmed with two different set points to
reflect flow rate. It can be programmed to have one set point monitor flow
and one point monitor temperature. A model with 4 set points is also
available, where two points monitor flow and two points monitor
temperature. And an analog current monitor is available with one set point.
The DRO flow monitor also features programmable on and off time delay
functions, and allows the user to define hysteresis for both the flow and
temperature set points. It is manufactured with a standard eurofast ® M12
connector, has a pressure rating of 145 psi, and can be ordered with a
number of different fluid connections; making the DRO flow monitor an
economical solution for your demanding flow applications.
Typical Applications:
M41
•
Weld Tip Protection
•
Transformer Cooling
•
Semiconductor Chamber Cooling
•
Hot Roller Coolant
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Solid-State with No Intrusive or Moving Parts
The DRO flow monitor is an in-line device that approximates flow rate without disrupting the flow. Typical flow monitors
often need to be installed by a specialist so that the monitor is precisely oriented to the direction of flow. These devices are
also prone to material build up, which can affect the accuracy of the monitor.
The DRO flow monitor is a solid-state device that operates on the calorimetric principle, resulting in a sensor with no moving
parts that can break or become lodged in the pipeline. This technology, combined with the in-line mounting of the sensor,
allows the DRO flow monitor to perform dependably in a variety of demanding applications without concern for flow
restriction or expensive downtime.
Product Features
•
Selectable Media Inputs
•
Flow/Temperature Readout
•
User Programmable Set Points
•
User Programmable Keypad
•
Mounts Directly Into Pipeline
•
3 Digit - Highly Visible Display
•
Adjustable On and Off Delay
•
Adjustable Filtering
•
Low Pressure Drop
•
Solid-State Device
•
Stainless Steel Wetted Parts
•
Password Protected Programming
Digital Readout
Selectable Media
•
Water
•
Deionized Water
•
Ethylene Glycol (0-70%)
•
Galden ® HT110
•
Galden ® HT135
LI-UP8X
Analog / 1 PNP Switchpoint
4-20 mA Flow
1 Flow or Temperature
2UP8X
2 PNP Switchpoints
1 Flow
1 Flow or Temperature
4UP8X
4 PNP Switchpoints
2 Flow
2 Temperature
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M42
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Flow Monitor Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
Insertion Probe Sensor
FCS - N1/2 A4P - AP8X - H1141
Special Option Codes
Sensor Type
Electrical Connection
FCS
H1141 = eurofast ®
= Insertion Probe Flow Sensor
FCTS = Flow Sensor with
Temperature Alarm
H1140 = eurofast
Fluid Connection
B3141 = microfast ®
N1/2
= 1/2 NPT
B3151 = microfast
N3/4
= 3/4 NPT
G1/4
= G1/4 (1/4 BSPP)
G1/2
= G1/2 (1/2 BSPP)
B1151 = minifast ®
Circuitry
2AP8X = Dual N.O. PNP
AP8X = N.O. PNP
GL1/2 = G1/2 (1/2 BSPP with additional threading)
50
= 1.5 inch Tri-clamp
AN8X = N.O. NPN
ARX
Housing
A4
= 316 Stainless Steel Housing and Probe
A2P
= 303 Stainless Steel Probe with PBT Housing
A4P
= 316 Stainless Steel Probe with PBT Housing
AL
= 303 Stainless Steel Probe
HB
= Hastelloy B
= N.O. Relay
RRX
= N.C. Relay
LIX
= 4-20 mA
NA
= Remote (requires MK or MS 96)
NAEX = Intrinsically Safe
HC22 = Hastelloy C22
T
= Dyflor (PVDF)
TN
= Titanium w/B3 Coating
Special Option Codes
/A
Modifier
/A = Airflow
/L
Probe Length
/L = Probe Length in mm
/D..
D Number
/D100 = +120°C (+248°F)
/D500 = 500 Bar Rating
M43
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Flow Monitor Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
Inline Flow Sensor
FCI - TC D04 A4P - AP8X - H1141
Special Option Codes
Sensor Type
Electrical Connection
FCI = Inline Flow Sensor
H1141 = eurofast ®, 4-pin
H1140 = eurofast, 4-pin
Fluid Connection
H1160 = eurofast, 6-pin
TC
= Tubing Connection
N1/8
= 1/8 NPT
Circuitry
N1/4
= 1/4 NPT
AP8X = N.O. PNP
N3/4
= 3/4 NPT
AN8X = N.O. NPN
Blank = G1/4
ARX
Inline Diameter (millimeters)
= N.O. Relay
RRX
= N.C. Relay
LIX
= 4-20 mA
NA
= Remote (requires MK or MS 96)
D03
= 3 mm
D04
= 4 mm
D06
= 6 mm
D08
= 8 mm
D09
= 9 mm
Housing
D10
= 10 mm
A4
= 316 Stainless Steel
= 11 mm
A4P
= 316 Stainless Steel with PBT Housing
= 20 mm
CTP
= Ceramic / PTFE / PBT
D11
D20
NAEX = Intrinsically Safe
2ARX = Dual N.O. Relay
HC22 = Hastelloy C22
Special Option Codes
/D..
D Number
/D038 = 3/8 in. Tubing Connection
/D201 = 3/8 in. Tubing Connection, Digital Readout, water or water/glycol mix
/D203 = 3/8 in. Tubing Connection, Digital Readout, water only
/D205 = 1/2 in. Tubing Connection, Digital Readout, water or water/glycol mix
/D209 = 3/4 in. Tubing Connection, Digital Readout, water or water/glycol mix
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M44
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Flow Monitor Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
FTCI - 3/8 D10 A4P - 2UP8X -
Special Option Codes
Sensor Type
Electrical Connection
FTCI =Inline Flow and
Temperature Sensor
H1141 = eurofast ®
Fluid Connection
3/8 = 3/8" swage
1/2 = 1/2" swage
3/4 = 3/4" swage
H1160 = eurofast
Circuitry
2UP8X = Dual PNP N.O./N.C.
4UP8X = 4 PNP N.O./N.C.
LI-UP8X = 1 PNP N.O./N.C. and 4-20 mA
Inline Diameter
D10 = 10 mm
D15 = 15 mm
Housing
A4P = 316 Stainless Steel with PBT
M45
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
DRO Flow - DC
Time Delay Before Availability . . . . . . . . . . . . 2-15 seconds (8 seconds typical)
Response Time . . . . . . . . . . . . . . . . . . . . 0.5-3 seconds
Maximum Temperature Gradient . . . . . . . . . . . 250°C / min.
Plastic Self Contained Insertion Probe - DC
Time Delay Before Availability . . . . . . . . . . . . 2-15 seconds (8 seconds typical)
Response Time . . . . . . . . . . . . . . . . . . . . 1-15 seconds (2 seconds typical)
Maximum Temperature Gradient . . . . . . . . . . . 250°C / min.
Stainless Steel Self Contained Insertion Probe - DC
Time Delay Before Availability . . . . . . . . . . . . 2-15 seconds (8 seconds typical)
Response Time . . . . . . . . . . . . . . . . . . . . 1-15 seconds (2 seconds typical)
Maximum Temperature Gradient . . . . . . . . . . . 250°C / min.
Self Contained Inline - DC
Time Delay Before Availability . . . . . . . . . . . . 5-15 seconds (8 seconds typical)
Response Time . . . . . . . . . . . . . . . . . . . . 0.5-3 seconds
Maximum Temperature Gradient . . . . . . . . . . . 400°C / min.
Remote Insertion Probe - DC
Time Delay Before Availability . . . . . . . . . . . . 2-15 seconds (8 seconds typical)
Response Time . . . . . . . . . . . . . . . . . . . . 1-13 seconds (2 seconds typical)
Maximum Temperature Gradient . . . . . . . . . . . 250°C / min.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M46
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Set-up – Operating and Display Functions
Self Contained
Insertion Probe
6 LEDs for flow rate status indication:
4 x green: degree of set point
overrange
(1, 2, 3, or 4 green
LEDs are lit)
1 x yellow: flow is at/above set point
1 x red:
flow is below set point
Sealing screw (on front of device)
covers the potentiometer for
switch point adjustment
Potentiometer for adjustment of
flow switch point
(with analog devices the
potentiometer is used to set the
measuring range)
≥20 mA
>16 mA
>12 mA
>8 mA
>4 mA
≤4 mA
Processor MK96
LED display for flow rate status indication:
4 x green: degree of set point
overrange
(1, 2, 3, or 4 green
LEDs are lit)
Potentiometer (coarse) for
operating range adjustment
Potentiometer for fine adjustment
of switch point value
1 x yellow: flow is at/above set point
1 x red:
flow is below set point
≥20 mA
>16 mA
>12 mA
>8 mA
>4 mA
≤4 mA
M47
Analog versions
Potentiometer for adjusting the
4 mA to the medium
Potentiometer for adjusting the
span to 20 mA
(not all applications may reach 20 mA)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Set-up – Operating and Display Functions
Processor MS96
6 LEDs for flow rate status indication:
4 x green: degree of set point
overrange
(1, 2, 3, or 4 green
LEDs are lit)
1 x yellow: flow is at/above set point
1 x red:
flow is below set point
Potentiometer (coarse) for
operating range adjustment
Red LED illuminates when flow is at or
above preset temperature
Potentiometer for temperature
set-point adjustment
(from -20°C to +100°C)
Potentiometer to set switch-off delay
time which affects the flow monitoring
output (terminals 6 - 8)
Potentiometer for fine adjustment
of switch point value
6 LEDs for flow rate status indication:
Self Contained Inline
4 x green: degree of set point
overrange
(1, 2, 3, or 4 green
LEDs are lit)
Potentiometer for adjustment of
flow switch point
1 x yellow: flow is at/above set point
1 x red:
flow is below set point
≥20 mA
>16 mA
>12 mA
>8 mA
>4 mA
≤4 mA
Analog versions
Potentiometer for adjusting the
4 mA to the medium
Potentiometer for adjusting the
span to 20 mA
(not all applications may reach 20 mA)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M48
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Principles of Operation
TURCK flow controls use no mechanical parts to monitor the flow speed of liquids and gasses. These solid state flow
switches operate on the calorimetric principle: the measure of heat transfer from an object to a fluid.
The TURCK solid state flow monitors use two temperature dependent resistors similar to RTDs. One of the resistors (R1)
monitors the temperature of the surrounding fluid. The other resistor (R2) is connected to a heating element. The heating
element heats R2 to a temperature that is slightly above the surrounding fluid temperature. When there is no fluid flow, the
difference in resistance between R1 and R2 is a fixed value. As fluid moves over the flow monitor probe, heat is conducted
away from the heating element causing the temperature on R2 to decrease. This heat loss changes the difference in
resistance between R1 and R2.
The resistance difference is measured by a Wheatstone bridge circuit. A change in resistance difference causes a change in
the bridge voltage. The flow set point is determined by comparing the bridge voltage to a reference voltage.
R1 - Monitors fluid temperature
R2 - Heated by heating element
R3 - Internal resistor
R4 - Internal resistor
Operating Range
Heat loss on the heating element will likewise determine the sensitivity of the monitor. The heat loss becomes a function of
flow velocity and thermal conductivity of the fluid. The lower the thermal conductivity of the fluid, the faster the fluid has to
flow to be detected.
Flow monitor operating ranges vary from one type of fluid to the other. These operating ranges are proportional to the speed
of the fluid that the monitor can detect.
At the same flow rate compared to water, air can conduct away from the heating element only a fraction of the heat. For
example, for A2/A4 stainless steel insertion type monitors the operating range for air flow is from 2 to 30 m/s, and for water
from 1 to 150 cm/s. For oil, the range is between the 3 to 300 cm/sec.
M49
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Response Time
Temperature Gradient
The temperature gradient of a fluid indicates the change in fluid temperature within a specified time (unit of measure:
°C (°F)/min). The temperature gradient of a device defines the maximum temperature rise that can be compensated by the
monitor without malfunction.
The monitor has the ability to compensate for sudden thermal shifts within the specified extremes. Sudden temperature
changes exceeding the specified tolerances (temperature error) may cause the device to malfunction. Only when the
monitor has adapted to the new temperature, will it provide an accurate measurement.
The temperature gradient for TURCK flow controls is 250°C/min. - 15 times higher than standard flow devices which makes
for a particularly accurate switch-point stability during variations in temperature.
The sensitivity to temperature rise of TURCK flow monitors has been reduced to a minimum (<12 s) and can accurately be
determined in advance. This characteristic is the result of the optimum calorimetric principle and special monitors
construction.
Time Delay Before Availability
The availability is the time required, after power has been applied, for the flow monitor to reach a stable operating condition.
The availability provides for the time needed to energize the flow monitor and the time needed for the flow monitor to
stabilize at the fluid’s temperature.
Response Time
The switch on time is the time required for the flow monitor to detect and indicate that the flow speed is increasing. The
switch off time is the time required for the flow monitor to detect and indicate that the flow speed is decreasing.
Effects of Housing Material
The switch on time, the switch off time and the temperature gradient of the flow monitor is dependent on the housing
material. The Teflon ® flow monitors have a low thermal conductivity causing a slower response time to fluid temperature
changes and to changes in the flow speed.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M50
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Mounting Instructions
Areas of turbulent flow occur whenever there is a change in the pipe construction (e.g. pipe inlets, pipe outlets, pipe elbows).
To avoid an inaccurate output, the following guidelines should be observed:
A) Pay special attention to the minimum distance (a³4xd) to tube bend and intersections.
B) Flow monitor must be mounted from below in applications where medium does not completely fill the pipe.
C) If a possibility of deposit build-up exists, mount the flow monitor at the side of the pipe.
A)
B)
C)
Proper Orientation for TURCK Flow Monitors
Airflow
M51
Self Contained Inline
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Proper Orientation for TURCK Flow Monitors
Self-Contained Metal Housing
Self-Contained Plastic Housing
Dual Tipped
Remote Insertion Probe
FL
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
OW
www.turck.com
M52
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Inline Flow Monitor, Digital Readout,
3/8" Tubing Connection
Inline Flow Monitor, Digital Readout,
1/2" Tubing Connection
Inline Flow Monitor, Digital Readout,
3/4" Tubing Connection
FTCI-3/8D10A4P-2UP8X-H1141
FTCI-1/2D10A4P-2UP8X-H1141
FTCI-3/4D15A4P-2UP8X-H1141
ID Number
M6870806
0.2 to 4
M6870807
M6870808
0.2 to 5
1 to 12
Ou
tp
Tem ut 2:
or perat
u
Flo
w re
Part Number
Ou
tp
Flo ut 1:
w
Housing Style
Flo
w
De
tec
Ran tion
ge
(GP
M)
Tem
Mo perat
ur
n
Ran i t o r i n e
g
ge
(°F)
TURCK
Process Automation – Instrumentation
+14 to +194
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
+14 to +194
+14 to +194
Compatible Fluids: Water, Deionized Water, Ethylene Glycol (0-70%), Galden ® HT110, Galden ® HT135
Material
Housing
Wetted Parts
O-Ring
M53
PBT
316 Ti Stainless Steel
FKM
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
tion
)
290
3/8" swage
0 to +60
IP 65
RK 4.4T-*
1
≤100
200
290
1/2" swage
0 to +60
IP 65
RK 4.4T-*
1
≤100
200
290
3/4" swage
0 to +60
IP 65
RK 4.4T-*
1
tec
Pro
Ma
ti
Co n g
rds
et
200
tion
Pre
s
R a t sure
ing
(ps
i
≤100
Flu
id
Co
nne
c
Sw
itc
Cu hing
rre
nt
Cu
rr
Co ent
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
Wiring Diagrams
Diagram 1
21.6-26.4 VDC
21.6-26.4 VDC
21.6-26.4 VDC
* Length in Meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M54
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Inline Flow Monitor, Digital Readout,
3/8" Tubing Connection
Inline Flow Monitor, Digital Readout,
1/2" Tubing Connection
Inline Flow Monitor, Digital Readout,
3/4" Tubing Connection
FTCI-3/8D10A4P-4UP8X-H1160
FTCI-1/2D10A4P-4UP8X-H1160
FTCI-3/4D15A4P-4UP8X-H1160
ID Number
M6870814
0.2 to 4
M6870815
M6870813
0.2 to 5
1 to 12
Ou
tp
Tem ut 3 &
per
4
atu :
re
Part Number
Ou
tp
Flo ut 1&
w
2:
Housing Style
Flo
w
De
tec
Ran tion
ge
(GP
M)
Tem
Mo perat
ur
n
Ran i t o r i n e
g
ge
(°F)
TURCK
Process Automation – Instrumentation
+14 to +194
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
PNP
N.O./N.C.
+14 to +194
+14 to +194
Compatible Fluids: Water, Deionized Water, Ethylene Glycol (0-70%), Galden ® HT110, Galden ® HT135
Material
Housing
Wetted Parts
O-Ring
M55
PBT
316 Ti Stainless Steel
FKM
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
tion
)
290
3/8" swage
0 to +60
IP 65
RKC 6T-*
1
≤100
200
290
1/2" swage
0 to +60
IP 65
RKC 6T-*
1
≤100
200
290
3/4" swage
0 to +60
IP 65
RKC 6T-*
1
tec
Pro
Ma
ti
Co n g
rds
et
200
tion
Pre
s
R a t sure
ing
(ps
i
≤100
Flu
id
Co
nne
c
Sw
itc
Cu hing
rre
nt
Cu
rr
Co ent
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
Wiring Diagrams
Diagram 1
21.6-26.4 VDC
21.6-26.4 VDC
21.6-26.4 VDC
* Length in Meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M56
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Inline Flow Monitor, Digital Readout,
3/8" Tubing Connection
Inline Flow Monitor, Digital Readout,
1/2" Tubing Connection
Inline Flow Monitor, Digital Readout,
3/4" Tubing Connection
FTCI-3/8D10A4P-LI-UP8X-H1141
FTCI-1/2D10A4P-LI-UP8X-H1141
FTCI-3/4D15A4P-LI-UP8X-H1141
M6870809
0.2 to 4
M6870810
M6870811
0.2 to 5
1 to 12
e
ID Number
Ou
tp
Flo ut 2:
w
Part Number
Ou
tp
Tem ut 1:
per
atu
r
Housing Style
Flo
w
De
tec
Ran tion
ge
(GP
M)
Tem
Mo perat
ur
n
Ran i t o r i n e
g
ge
(°F)
TURCK
Process Automation – Instrumentation
+14 to +194
PNP
N.O./N.C.
Analog
4-20 mA
PNP
N.O./N.C.
Analog
4-20 mA
PNP
N.O./N.C.
Analog
4-20 mA
+14 to +194
+14 to +194
Compatible Fluids: Water, Deionized Water, Ethylene Glycol (0-70%), Galden ® HT110, Galden ® HT135
Material
Housing
Wetted Parts
O-Ring
M57
PBT
316 Ti Stainless Steel
FKM
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
tion
)
290
3/8" swage
0 to +60
IP 65
RK 4.4T-*
1
≤100
200
290
1/2" swage
0 to +60
IP 65
RK 4.4T-*
1
≤100
200
290
3/4" swage
0 to +60
IP 65
RK 4.4T-*
1
tec
Pro
Ma
ti
Co n g
rds
et
200
tion
Pre
s
R a t sure
ing
(ps
i
≤100
Flu
id
Co
nne
c
Sw
itc
Cu hing
rre
nt
Cu
rr
Co ent
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
Wiring Diagrams
Diagram 1
21.6-26.4 VDC
21.6-26.4 VDC
21.6-26.4 VDC
* Length in Meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M58
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Inline Flow Monitor, Digital Readout,
3/8" Tubing Connection
FCI-D10A4P-2ARX-H1160/D201
ID Number
M6870679
0.2 - 4 GPM
0.2 - 4 GPM
Ou
tpu
t
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
Flo
w
De
te
Ran ction
g
(gly e
col
/wa
ter
)
Tem
p
e
Mo rat
ur
n
Ran i t o r i n e
g
ge
(°F)
TURCK
Process Automation – Instrumentation
0 to +212
Dual
Relay
N.O.
FCI-D10A4P-2ARX-H1160/D203
M6870680
0.2 - 4 GPM
N/A
(Water only)
0 to +212
Dual
Relay
N.O.
Inline Flow Monitor, Digital Readout,
1/2" Tubing Connection
FCI-D10A4P-2ARX-H1160/D205
M6870681
0.2 - 5 GPM
0.2 - 5 GPM
0 to +212
Dual
Relay
N.O.
Inline Flow Monitor, Digital Readout,
3/4" Tubing Connection
FCI-D15A4P-2ARX-H1160/D209
M6870684
1 - 12 GPM
1 - 12 GPM
0 to +212
Dual
Relay
N.O.
Material
Wetted Parts:
Housing:
O-ring:
M59
316 Stainless Steel
PBT
FKM
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Pro
tec
tion
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
Op
e
Temrating
(flu p. (°C
)
id)
)
tion
Flu
id
Co
nne
c
Pre
s
R a t sure
ing
(ps
i
Loa
d
Cu
rre
Ana nt/
log
Loa
d
Vol
tag
e
Process
Automation
≤0.5 A at 30 VDC
≤1 A at 36 VAC
290
3/8" swage
0 to +60
-10 to +95
IP 65
RKC 6T-*
1
≤0.5 A at 30 VDC
≤1 A at 36 VAC
290
3/8" swage
0 to +60
0 to +80
IP 65
RKC 6T-*
1
≤0.5 A at 30 VDC
≤1 A at 36 VAC
290
1/2" swage
0 to +60
-10 to +95
IP 65
RKC 6T-*
1
≤0.5 A at 30 VDC
≤1 A at 36 VAC
290
3/4" swage
0 to +60
-10 to +95
IP 65
RKC 6T-*
1
Wiring Diagrams
Diagram 1
21.6-26.4
VDC
21.6-26.4
VDC
21.6-26.4
VDC
21.6-26.4
VDC
* Length in Meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M60
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
FCS-N1/2A4P-AP8X-H1141
Self-Contained Plastic Housing
ID Number
M6871032
1-150 cm/sec.
Ou
tpu
t
Part Number
Flo
w
De
tec
Ran tion
ge
(oil
)
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
TURCK
Process Automation – Instrumentation
3-300 cm/sec.
PNP
N.O.
FCS-N1/2A4P-2AP8X-H1140
Self-Contained Plastic Housing,
Dual Set points
M6871009
1-150 cm/sec.
3-300 cm/sec.
Dual
PNP
N.O.
Self-Contained Plastic Housing,
Flow and Temperature Set points
FTCS-N1/2A4P-2AP8X-H1140
M6871036
1-150 cm/sec.
Temperature
0 to +80°C
3-300 cm/sec.
Temperature
0 to +80°C
Dual
PNP
N.O.
Additional specifications on pages M46.
Accessories on page M75 - M76.
Technical data on pages M77 - M79.
Material
Housing
Cable Connector
Wetted Parts
M61
PBT
303 Stainless Steel
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
1450
1/2 NPT
-25 to +70
-20 to +80
IP 65
RK 4T-*
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
tion
≤400 mA
tec
Sw
itc
Cu hing
rre
Ana nt/
log
Loa
d
Pre
ssu
R a t re
ing
(ps
i)
Flu
id
Co
nne
ctio
n
Op
era
T e m ting
( a m p. ( ° C
bie )
nt)
Op
e
Temrating
(flu p. (°C
)
id)
≤60 mA
Pro
Cu
rre
Co nt
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
1
19.2-28.8
VDC
Wiring Diagrams
Diagram 1
Diagram 2
≤60 mA
≤400 mA
1450
1/2 NPT
-25 to +70
-20 to +80
IP 65
RK 4.4T-*
2
≤60 mA
≤400 mA
1450
1/2 NPT
-25 to +70
-20 to +80
IP 65
RK 4.4T-*
3
Diagram 3
19.2-28.8
VDC
19.2-28.8
VDC
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M62
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Self-Contained 316 Stainless Steel Housing
FCS-N1/2A4-AP8X-H1141
ID Number
M6871004
1-150 cm/sec.
Ou
tpu
t
Part Number
Flo
w
De
tec
Ran tion
ge
(oil
)
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
TURCK
Process Automation – Instrumentation
3-300 cm/sec.
PNP
N.O.
FCS-N1/2A4-AN8X-H1141
M6871010
1-150 cm/sec.
3-300 cm/sec.
NPN
N.O.
FCS-N1/2A4-ARX-H1140
M6871035
1-150 cm/sec.
3-300 cm/sec.
Relay
N.O.
Self-Contained 316 Stainless Steel Housing
FCS-G1/2A4-AP8X-H1141
M6870004
3-300 cm/sec.
3-300 cm/sec.
PNP
N.O.
Self-Contained 316 Stainless Steel Housing
FCS-G1/4A4-ARX-H1140
M6870102
3-300 cm/sec.
3-300 cm/sec.
Relay
N.O.
FCS-50A4-AP8X-H1141/D014
DC Self Contained Sanitary,
316L Stainless Steel Housing
M6872025
1-150 cm/sec.
3-300 cm/sec.
PNP
N.O.
Additional specifications on pages M46.
Accessories on page M75 - M76.
Technical data on pages M77 - M79.
Material
Cable Connector
Wetted Parts
M63
303 Stainless Steel
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
-25 to +80
-20 to +80
IP 67
RK 4T-*
1
≤70 mA
≤400 mA
1450
1/2 NPT
-25 to +80
-20 to +80
IP 67
RK 4T-*
2
tec
Pro
)
Flu
id
Co
nne
c
Wi
ri
Dia ng
gra
m#
1/2 NPT
Ma
ti
Co n g
rds
et
1450
tion
Pre
s
R a t sure
ing
(ps
i
≤400 mA
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
Op
e
Temrating
(flu p. (°C
)
id)
Sw
itc
Cu hing
rre
/An nt
alo
gL
oad
≤70 mA
tion
Cu
rre
Co nt
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
Wiring Diagrams
Diagram 1
19.2-28.8
VDC
19.2-28.8
VDC
Diagram 2
≤70 mA
≤1 A at 60 VDC
1450
1/2 NPT
-25 to +80
-20 to +80
IP 67
RK 4.4T-*
3
≤70 mA
≤400 mA
1450
G 1/2
-25 to +80
-20 to +80
IP 67
RK 4T-*
1
≤70 mA
≤1 A at 60 VDC
1450
G 1/4
-25 to +80
-20 to +80
IP 67
RK 4.4T-*
3
≤70 mA
≤400 mA
1450
1.5 in.
Tri-clamp
-20 to +80
**(+100)
20 to +80
IP 67
RKV 4T-*
1
19.2-28.8
VDC
Diagram 3
19.2-28.8
VDC
19.2-28.8
VDC
21.6-26.4
VDC
* Length in meters.
** Sensor may be heated to 100°C for 10 minutes without damage.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M64
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Inline Flow Monitor, PBT Housing
FCI-TCD04A4P-ARX-H1140
ID Number
M6870626
1-200 ml/min.
Ou
tpu
t
Part Number
Flo
w
De
tec
Ran tion
ge
(oil
)
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
TURCK
Process Automation – Instrumentation
Consult Factory
Relay
N.O.
FCI-TCD04A4P-AP8X-H1141
M6870656
1-200 ml/min.
Consult Factory
PNP
N.O.
Inline Flow Monitor, PBT Housing
FCI-D04A4P-AP8X-H1141
M6870640
15-1000 ml/min.
Consult Factory
PNP
N.O.
Inline Flow Monitor, PBT Housing
FCI-D08A4P-ARX-H1140/D038
M6870647
100-6000 ml/min.
Consult Factory
Relay
N.O.
Inline Flow Monitor, PBT Housing
FCI-D10A4P-AP8X-H1141
M6870642
100-6000 ml/min.
Consult Factory
PNP
N.O.
FCI-D10A4P-ARX-H1140
M6870644
100-6000 ml/min.
Consult Factory
Relay
N.O.
Additional specifications on pages M46.
Accessories on page M75 - M76.
Technical data on pages M77 - M79.
Material
Housing
Cable Connector
Wetted Parts
M65
PBT
303 Stainless Steel
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
tion
tec
Pro
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
Op
e
Temrating
(flu p. (°C
)
id)
tion
)
Flu
id
Co
nne
c
Pre
s
R a t sure
ing
(ps
i
Sw
itc
Cu hing
rre
Ana nt/
log
Loa
d
Cu
rre
Co nt
nsu
(m mpt
A)
ion
Vol
tag
e
Process
Automation
≤50 mA
≤1 A at 30 VDC
≤1 A at 36 VAC
14.5
4 mm Tube
0 to +60
0 to +60
IP 67
RK 4.4T-*
1
≤50 mA
≤200 mA
14.5
4 mm Tube
0 to +60
0 to +60
IP 67
RK 4T-*
2
Wiring Diagrams
Diagram 1
21.6-26.4
VDC
Diagram 2
21.6-26.4
VDC
≤50 mA
≤200 mA
290
G 1/4
0 to +60
0 to +80
IP 67
RK 4T-*
2
≤50 mA
≤1 A at 30 VDC
≤1 A at 36 VAC
290
3/8
Compression
0 to +60
0 to +80
IP 67
RK 4.4T-*
1
≤50 mA
≤200 mA
290
G 1/4
0 to +60
0 to +80
IP 67
RK 4T-*
2
≤50 mA
≤1 A at 30 VDC
≤1 A at 36 VAC
290
G 1/4
0 to +60
0 to +80
IP 67
RK 4.4T-*
1
21.6-26.4
VDC
21.6-26.4
VDC
21.6-26.4
VDC
21.6-26.4
VDC
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M66
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Remote Insertion Probe, Stainless Steel Housing
FCS-N1/2A4-NA
ID Number
M6871309
1-150 cm/sec.
Ou
tpu
t
Part Number
Flo
w
De
tec
Ran tion
ge
(oil
)
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
TURCK
Process Automation – Instrumentation
3-300 cm/sec.
Remote
Amplifier
Remote Insertion Probe, Stainless Steel Housing
FCS-N1/2A4-NA-H1141
M6871303
1-150 cm/sec.
3-300 cm/sec.
Remote
Amplifier
Remote Insertion Probe, Stainless Steel Housing
FCS-N3/4A4-NA-H1141
M6871304
1-150 cm/sec.
3-300 cm/sec.
Remote
Amplifier
Additional specifications on pages M46.
Accessories on page M75 - M76.
Technical data on pages M77 - M79.
Material
Housing
Cable Connector
Wetted Parts
M67
316 Ti Stainless Steel
303 Stainless Steel
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Remote
Amplifier
1450
1/2 NPT
-25 to +80
-25 to +80
IP 67
Ma
ti
Co ng
rd,
Len Cab
gth le
/Jac
ket
Wi
ri
Dia ng
gra
m#
tion
tec
Pro
Op
e
Temrating
(flu p. (°C
)
id)
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
tion
Flu
id
Co
nne
c
Sw
itc
Cu hing
rre
/An nt
alo
gL
oad
Pre
s
R a t sure
ing
(ps
i)
Vol
tag
e
Process
Automation
2M/PVC
1
Remote
Amplifier
Wiring Diagrams
Diagram 1
Diagram 2
Remote
Amplifier
1450
1/2 NPT
-25 to +80
-25 to +80
IP 67
RK 4.4T-*
2
Remote
Amplifier
1450
3/4 NPT
-25 to +80
-25 to +80
IP 67
RK 4.4T-*
2
Remote
Amplifier
Remote
Amplifier
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M68
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Remote Insertion Probe, Intrinsically Safe,
Stainless Steel Housing
FCS-N1/2A4-NAEX-H1141
ID Number
M6871322
1-100 cm/min.
Ou
tpu
t
Part Number
Flo
w
De
tec
Ran tion
ge
(oil
)
Housing Style
Flo
w
De
tec
Ran tion
g
(wa e
ter
)
TURCK
Process Automation – Instrumentation
3-200 cm/min.
Remote
Amplifier
Remote Insertion Probe, Intrinsically Safe,
Stainless Steel Housing
FCS-N1/2A4-NAEX
M6871423
1-100 cm/min.
3-200 cm/min.
Remote
Amplifier
Remote Insertion Probe, Intrinsically Safe,
Stainless Steel Housing
FCS-G1/4A4-NAEX
M6870315
1-100 cm/min.
3-200 cm/min.
Remote
Amplifier
Remote Insertion Probe, Intrinsically Safe,
Stainless Steel Housing
FCS-GL1/2A4-NAEX/D500
M6870431
1-100 cm/min.
3-200 cm/min.
Remote
Amplifier
Additional specifications on pages M46.
Accessories on page M75 - M76.
Technical data on pages M77 - M79.
Material
Housing
Cable Connector
Wetted Parts
M69
316 Ti Stainless Steel
303 Stainless Steel
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Remote
Amplifier
1450
1/2 NPT
-25 to +85
-25 to +85
IP 67
Ma
ti
Co ng
rd,
Len Cab
gth le
/Jac
ket
Wi
ri
Dia ng
gra
m#
Pro
tec
tion
Op
e
Temrating
(flu p. (°C
)
id)
Op
e
Temrating
( a m p. ( ° C
bie )
nt)
ion
ect
Flu
id
Co
nn
Sw
itc
Cu hing
rre
/An nt
alo
gL
oad
Pre
s
R a t sure
ing
(ps
i)
Vol
tag
e
Process
Automation
RK 4.41T-*
1
Remote
Amplifier
Wiring Diagrams
Diagram 1
Diagram 2
Remote
Amplifier
1450
1/2 NPT
-25 to +85
-25 to +85
IP 68
2M/PUR
2
Remote
Amplifier
1450
G 1/4
-25 to +85
-25 to +85
IP 68
2M/PUR
2
Remote
Amplifier
7250
GL 1/2
-25 to +85
-25 to +85
IP 68
2M/PUR
2
Remote
Amplifier
Remote
Amplifier
Remote
Amplifier
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M70
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Housing Style
Part Number
MK96-11-R/24VDC
Remote Amplifiers
ID Number
M7525090
Features
Output
N.O. Relay Outputs
Relay
N.O.
MK96-VP01
M7525002
Complimentary PNP Outputs
Short-Circuit and Reverse
Polarity Protection
Dual Potentiometer
Complementary
PNP
MK96-VN01
M7525003
Complimentary NPN Outputs
Short-Circuit and Reverse
Polarity Protection
Dual Potentiometer
Complementary
NPN
MK96-LI01
M7525004
Non-Linear 4-20 mA
Dual Potentiometer
4-20 mA
Non-linear
Material
Housing
M71
PC/ABS
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Wi
ri
Dia ng
gra
m#
Sw
itc
Cu hing
rre
/An nt
alo
gL
oad
Pro
tec
tion
tio
Cu
rr
Co e n t
nsu
mp
n
Mo
unt
in
Vol
tag
e
g
Process
Automation
DIN 50022
or 50035
≤70 mA
IP 20
DIN 50022
or 50035
≤65 mA
IP 20
400 mA
2
DIN 50022
or 50035
≤65 mA
IP 20
400 mA
3
DIN 50022
or 50035
≤100 mA
IP 20
≤500 Ω
4
2 A at 60 VDC
Wiring Diagrams
1
Diagram 1
19.2-28.8
VDC
Diagram 2
19.2-28.8
VDC
Diagram 3
19.2-28.8
VDC
Diagram 4
19.2-28.8
VDC
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M72
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Housing Style
Part Number
MS96-11Ex-R/115VAC
Signal Processors
MS96-11Ex-R/24VDC
MS96-12R/115VAC
Signal Processors
MS96-12R/24VDC
ID Number
M5231202
M5231207
M5231000
M5231007
Features
Intrinsically Safe
Zone 1 [EExib] 11C
Wire-break
Dual Potentiometer
Off Delay
Intrinsically Safe
Zone 1 [EExib] 11C
Wire-break
Dual Potentiometer
Off Delay
Flow and Temp. Control
Wire-break
Dual Potentiometer
Off Delay
Flow and Temp. Control
Wire-break
Dual Potentiometer
Off Delay
Output
Relay
N.O./N.C.
Relay
N.O./N.C.
Dual
Relay
N.O./N.C.
Dual
Relay
N.O./N.C.
Material
Housing
M73
PC/ABS
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
DIN 50022
≤75 mA
IP 20
≤4 A at 250 VAC
Wi
ri
Dia ng
gra
m#
Sw
itc
Cu hing
rre
nt
Pro
tec
tion
tio
Cu
rr
Co e n t
nsu
mp
n
Mo
unt
in
Vol
tag
e
g
Process
Automation
Wiring Diagrams
1
Diagram 1
103.5-126.5
VAC
DIN 50022
≤125 mA
IP 20
≤4 A at 250 VAC
1
21.6-26.4
VDC
Diagram 2
DIN 50022
≤90 mA
IP 20
≤2 A at 60 VDC
2
DIN 50022
≤120 mA
IP 20
≤2 A at 60 VDC
2
103.5-126.5
VAC
21.6-26.4
VDC
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M74
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Flow Accessories
Adapter G1/4 to 1/8 in. Tubing
(316 Stainless Steel)
Adapter G1/4 to 1/4 in. Tubing
(316 Stainless Steel)
Adapter G 1/4 to 3/8 in. Tubing
(316 Stainless Steel)
FSV-SS-1/8X1/4
FSV-SS-1/4X1/4
FSV-SS-3/8X1/4
(A2535)
(A2534)
(A2533)
Adapter G1/4 to 1/2 in. Tubing
(316 Stainless Steel)
Adapter M16 to 3/8 in. Tubing
(316 Stainless Steel)
Adapter M12 to 6 mm Tubing
(316 Stainless Steel)
FSV-SS-1/2X1/4
FSV-D3/8-M16
FSV-D06/M12
(A2536)
(M6873005)
(M6873002)
Adapter M12 to 8 mm Tubing
(316 Stainless Steel)
Adapter M16 to 10 mm Tubing
(316 Stainless Steel)
Adapter M16 to 12 mm Tubing
(316 Stainless Steel)
FSV-D08/M12
FSV-D10/M16
FSV-D12/M16
(M6873004)
(M6873001)
(M6873003)
Mounting Bracket
FCI-BP
(A9181)
M75
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Flow Accessories
Pipe Tee
(316 Stainless Steel)
Pipe Tee
(316 Stainless Steel)
Pipe Tee
(Stainless Steel)
3/8 A4-AK
1/2 A4-AK
N1/2-G1/2-SST
(A6000)
(A3420)
(A6060)
Pipe Tee
(Brass)
G 1/4 Gasket
G 1/2 Gasket
N1/2-G1/2-BT
FD-G1/4AFM30/34
FD-G1/2AFM30/34
(A6050)
(M6875010)
(M6875013)
FSV-SS 3/8 KIT (2 sets)
FSV-SS 1/2 KIT (2 sets)
FSV-SS 3/4 KIT (2 sets)
(A9184)
(A9185)
FSV-SS 3/8 TS-NPT
FSV-SS 3/4 TS-NPT
FSV-SS 1/2 TS-NPT
(A9307)
(A9306)
(A9183)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
(A9305)
www.turck.com
M76
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Liquid Flow Conversion Chart (Water)
Flow velocity to flow volume for schedule 40 pipes of various sizes.
M77
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Gas Flow Conversion Chart
Flow velocity to flow volume for schedule 40 pipes of various sizes.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M78
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Response Time
Graph 1
Temperature Gradient for Stainless Steel Housing
Graph 1 can be used to determine if the TURCK flow monitor
can compensate for a temperature change to a sensed
medium. The dotted line in the graph indicates that a 10°C
change has occurred in a time period of 5 seconds. Points
(5,10) intersect in the “No False Output” region of the graph.
This example illustrates an acceptable degree of temperature
change in the application. As a result, the flow monitor can
compensate for the fluid temperature change.
Fahrenheit = (1.8X°C) + 32
Flow Conversions
The calorimetric principle is dependent on the fluid speed, and not the volumetric flow rate.
On the following pages are conversion charts from flow speed to volumetric flow rate.
M79
SCFM
= 1.0737 X ID2 X FSM
GPM
= 0.0803 X ID2 X FS
FT/S
= 0.0328 X FS
FT/S
= 3.2808 X FSM
GPM:
Gallons per minute
FT/S:
Feet per second
ID:
Inner Diameter of pipe in inches
FS:
Flow Speed of fluid in cm/s
FSM:
Flow Speed of fluid in m/s
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Notes:
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M80
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Temperature Sensors Selection Guide
M81
Type
TS400/TS500 Temp Sensors
Temperature Probes
Thermowells
Compression Fittings
Pages
M87 - M88
M91 - M92
M94 - M95
M96
Type
TS400/TS500 Accessories
Self Contained Temperature Monitors
Pages
M97 - M98
M101 - M102
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Precise, Reliable Temperature Sensors for Process Automation
Accurately determining temperature is one of the most important tasks in processing and manufacturing industries. Precision,
reliability and interface flexibility are just some of the characteristics that make a great temperature sensor. TURCK's new
TS400 and TS500 temperature sensor series provide all these traits and more, and adhere to the high standards consistent
with all TURCK products.
TS400 and TS500 temperature sensors incorporate design elements that equate to real
advantages in your applications. The TS400 and TS500 sensor series are platinum resistance
temperature detectors (RTDs), commonly referred to as a Pt-100. Pt-100’s are known to be
highly precise, repeatable, and provide extremely short response times.
Pt-100’s contain a platinum wire that is wrapped around a core or patterned as a thin film on a
substrate so that it experiences minimal differential expansion or other strains. As the
temperature changes, the controller measures the change in the electrical resistance of the
platinum wire. Specifically, the hotter the wire becomes, the higher the value of electrical
resistance. Pt-100 RTDs have a nominal resistance of 100 ohms at 0°C with an accuracy of
0.4°C at 50°C. The sensor’s operating range varies from -50 to 500°C (-58 to 932°F).
Quality
TS400 and TS500 sensors were designed to handle harsh manufacturing
environments.
•
High immunity to electromagnetic interference
•
Reliable and accurate
•
Compact design
•
Robust stainless steel housing
•
IP 67 environmental protection to increase operational durability
User-Friendly
TS400 and TS500 sensors were designed with the user in mind.
•
Simple push-button programming
•
Recessed button stores selected values and helps prevent
unintentional operational errors
•
The entire display can be inverted electronically
•
The TS500 version can be rotated 320 degrees
•
Does not require regular maintenance calibration
•
M12 eurofast ® connection promotes easy integration in
existing applications
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M82
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Flexible
TS400 and TS500 use state of the art technology to bring you a sensor
that facilitates operational efficiency.
•
Remote or direct mountable
•
Compact, robust housing
•
4-pin M12 eurofast ® connection
•
Compatible with 4-wire probes
•
Displays output in °C, °F, K and ohms
Benefits
TS400 and TS500 temperature sensors allow you to realize
immediate benefits in your application.
•
May be implemented in nearly all factory or process
automation applications
•
Housing design permits sensors to be mounted directly
next to each other or in restrictive places
•
Large, bright LED display
•
Versions with multiple outputs available; all are easy to
program and use
How to Order TS400 and TS500 Sensors and Accessories
1. Determine your desired output and select the TS model that meets your needs.
2. Select the appropriate probe for your application.
a) Questions? Call 1-800-554-7769.
3. Choose remote or direct mounting.
a) For direct mounting with TP 203 and TP 206, order the stabilizer
(STA-3 or STA-6).
b) For remote mounting, order a mating cordset (RK 4.4T-*-RS 4.4T).
Direct Mounting
4. Select a process connection.
a) For thermowells, order one length shorter than the length of probe you
selected in step 2.
b) If no thermowell is selected, a compression fitting is needed for mounting the
probe. (Note: The TP 104A does not require a process connection.)
* Length in meters.
Remote Mounting
M83
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Direct Mounting Sensor
Remote Mounting Sensor
Stabilizer
Thermowell
Remote Cordset
Probe
Probe
Compression
Fitting
Accessories
Stabilizer
(use with TP 203A .. & TP 206A ..)
Remote Cordset
(RK 4.4T-*-RS 4.4T)
Probe Options
TP 104A ..
Process Connection Options
TP 306A ..
TP 203A ..
or TP 206A ..
Compression Fitting
(CF)
Thermowell
THW … TRI
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
Thermowell
THW … N
www.turck.com
M84
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
TS400/TS500 Temperature Sensor Part Number Key
TS - 400 - LI 2U PN 8 X - H1141
Style
Connection
TS = Temperature Sensor
H1141 = 4-pin, M12x1, eurofast ® connector
With LED Display
Housing
400 = Adjustable, with display, non-rotatable
500 = Adjustable, with display, rotatable
Analog Output
LI = Current analog output
LU = Voltage analog output
Switching Output
2U = 2 x programmable N.O./N.C. mode
U = 1 x programmable N.O./N.C. mode
M85
Operational Voltage
8 = 15-30 VDC (switching outputs)
8 = 18-30 VDC (switching and analog outputs)
Output Logic
PN = PNP/NPN configurable transistor switching output
P = PNP transistor switching output
N = NPN transistor switching output
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
TS400/TS500 Technical Data
Operating Voltage . . . . .
. . . . . . . . . . . . . . .
No-Load Current . . . . . .
SELV. PELV . . . . . . . . .
Short-Circuit Protection . .
Reverse Polarity Protection
Insulation Class . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
15-30 VDC (switching outputs)
18-30 VDC (switching and analog output)
≤50 mA
According to EN 50178
Yes
Yes
III
Switching Output
Switching Frequency . . . .
Output Function . . . . . .
Voltage Drop at Ie . . . . .
Rated Operational Current
Switching Point Distance .
. . . . . . . . . . . . . . .
Reset Points . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
≤180 Hz
2 x PNP or NPN, N.C./N.O. programmable
≤2 V
0.2 A
0.2 K
-49.8° to +500°C (-58° to +932°F)
-50° to +499.8°C (-58° to +932°F)
Analog Current Output
Current Output . . . . . . . . . . . . . . . . . . . 4-20 mA, 0-20 mA, 20-4 mA, 20-0 mA programmable
Response Time. . . . . . . . . . . . . . . . . . . . <100 ms
Load . . . . . . . . . . . . . . . . . . . . . . . . . ≥0.5 kΩ
Analog Voltage Output
Voltage Output. . . . . . . . . . . . . . . . . . . . 0-10 V, 0-5 V, 1-6 V, 10-0 V, 5-0 V, 6-1 V programmable
Response Time. . . . . . . . . . . . . . . . . . . . <100 ms
Load . . . . . . . . . . . . . . . . . . . . . . . . . ≥2 kΩ
Temperature Sensor Accuracy
Switching Output
Switching Point Accuracy . . . . . . . . . . . . . . ≤ ± 0.2 K
Repetition Accuracy . . . . . . . . . . . . . . . . . ≤ ± 0.1 K
Analog Output Accuracy (Lin.+Hys.+Rep.) . . . . . ≤ ± 0.2 K
Temperature Sensor Housing
Housing Material . . . . . . . . . . . . .
Electrical Connection . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
Sensor Connection . . . . . . . . . . . .
Coupling Nut Size (with tightening torque)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Stainless steel/plastic 1.4404 (AISI 316L)/PC
Connector M12x1 (eurofast ®), 4-pin with integrated high-speed
connection technology.
Connector M12x1 (eurofast), 4-pin
SW 30 (max. 35 Nm)
Display
Temperature Display . . . . .
Switch State Display . . . . . .
Measured Value/Programming
. . . . . . . . . . . . . . . . .
Display of Temperature Unit .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4-digit 7-segment display can be rotated by 180° and switched off
2 x LED yellow
Switch/release points; hysteresis/window mode; N.O./N.C.; unit of
display; peak value memory
4 x LED green (°C, °F, K, Ω)
EMC
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
ESD 4 kV CD / 8 kV AD
HF radiated: 15 V/m2
Burst 2 kV
Surge 1 kV, 42 Ω
HF conducted: 10 V
Ambient Conditions
Medium Temperature
Ambient Temperature
Storage Temperature
Degree of Protection
Vibration Resistance .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Directly connected -50° to 150°C (otherwise see temperature probes)
-40° to +80°C (-40° to +176°F)
-40° to +80°C (-40° to +176°F)
IP 67
20 g (10-2000 Hz) according to IEC 68-2-6
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M86
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Part Number
Temperature Sensor for 4-wire PT100
ID Number
Tem
Ran perat
ure
g
Dir e –
ect
Housing
Tem
Ran perat
ure
g
Rem e –
ote
TURCK
Process Automation – Instrumentation
Output
TS-400-2UP8X-H1141
M6840001
Dual PNP
N.O./N.C.
TS-400-LIUP8X-H1141
M6840002
Dual NPN
N.O./N.C.
TS-400-LUUP8X-H1141
M6840003
1 PNP N.O./N.C. and
Programmable Current
TS-400-2UN8X-H1141
TS-400-LIUN8X-H1141
M6840004
M6840005
-50° to 500°C
(-58° to 932°F)
-50° to 150°C
(-58° to 302°F)
1 NPN N.O./N.C. and
Programmable Current
1 PNP N.O./N.C. and
Programmable Voltage
TS-400-LUUN8X-H1141
M6840006
1 NPN N.O./N.C. and
Programmable Voltage
Temperature Sensor for 4-wire PT100,
320° Rotatable Housing
TS-400-LI2UPN8X-H1141
M6840007
1 PNP/NPN N.O./N.C. and
Programmable Current or
1 PNP/NPN N.O./N.C.
TS-500-2UP8X-H1141
M6840009
Dual PNP
N.O./N.C.
TS-500-LIUP8X-H1141
M6840010
Dual NPN
N.O./N.C.
TS-500-LUUP8X-H1141
M6840011
1 PNP N.O./N.C. and
Programmable Current
TS-500-2UN8X-H1141
TS-500-LIUN8X-H1141
M6840012
M6840013
-50° to 500°C
(-58° to 932°F)
-50° to 150°C
(-58° to 302°F)
1 NPN N.O./N.C. and
Programmable Current
1 PNP N.O./N.C. and
Programmable Voltage
TS-500-LUUN8X-H1141
M6840014
1 NPN N.O./N.C. and
Programmable Voltage
TS-500-LI2UPN8X-H1141
M6840015
1 PNP/NPN N.O./N.C. and
Programmable Current or
1 PNP/NPN N.O./N.C.
For remote probes use cordset RK 4.4T-*-RS 4.4T. * Length in meters.
See page M98 for additional cordset information.
M87
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
15-30 VDC
15-30 VDC
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Ana
log
Loa
d
Voltage
Sw
itc
Cu hing
rre
nt (
m
A)
Process
Automation
≤200
N/A
≤200
N/A
RK 4.4T-*
1
≤200
≤500 Ω
RK 4.4T-*
2
≤200
≤500 Ω
RK 4.4T-*
2
≤200
≤500 Ω
RK 4.4T-*
3
≤ 200
≤500 Ω
RK 4.4T-*
3
≤200
≤500 Ω
RK 4.4T-*
4
≤200
N/A
RK 4.4T-*
1
≤200
N/A
RK 4.4T-*
1
≤200
≤500 Ω
RK 4.4T-
2
≤200
≤500 Ω
RK 4.4T-*
2
≤200
≤500 Ω
RK 4.4T-*
3
≤200
≤500 Ω
RK 4.4T-*
3
≤200
≤500 Ω
RK 4.4T-*
4
RK 4.4T-*
Wiring Diagrams
1
Diagram 1
18-30 VDC
Diagram 2
18-30 VDC
18-30 VDC
Diagram 3
18-30 VDC
18-30 VDC
Diagram 4
15-30 VDC
15-30 VDC
18-30 VDC
18-30 VDC
18-30 VDC
18-30 VDC
18-30 VDC
* Length in meters.
Simple Mounting
After the sensor is mounted, the actual processor unit is
attached and fixed using a coupling nut. The sensor can
still be rotated and aligned in all directions.
TS500 shown.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M88
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Temperature Probes Part Number Key
TP - 1 - 03A - G1/8 - H1141 - L013
Insertion Depth
Style
TP = Temperature Probe
Connection
Probe Type
H1141 = 4-pin, M12x1, eurofast connector
1 = Probe with process connection
2 = Probe for compression fitting or thermowell
Process Connection
3 = Cable sensor
G1/8 = G1/8" male thread
TRI3/4 = 3/4" tri-clamp
Probe Diameter
DN25K = DN25 hygienic fitting DIN11851
03A = 3 mm outer probe diameter
CF = Compression fitting
04A = 4 mm outer probe diameter
Temperature Probes Technical Data
Probe (TP-104A ..)
Temperature Operating Range
Ambient Temperature . . . . .
Measuring Element . . . . . .
Response Time . . . . . . . .
Output Function . . . . . . . .
Reverse Polarity Protection . .
Degree of Protection . . . . .
Housing Material . . . . . . .
Housing Quality . . . . . . . .
Sensor Material . . . . . . . .
Sensor Quality . . . . . . . . .
Pressure Rating (psi) . . . . .
Connection . . . . . . . . . .
Mechanical Connection . . . .
M89
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-50° to 120°C (-58° to +248°F)
-20° to 90°C (-4° to +194°F)
Pt100, DIN EN 60751, Class A
t0.5 = 3 s; t0.9 = 10 s in water at 0.2 m/s
4-wire
Yes
IP 67
Plastic/Stainless steel
1.4404 (AISI 316L)
Stainless steel
1.4404 (AISI 316L)
580.15
Connector, M12x1 (eurofast ®)
Tri-Clamp 3/4"; DN25 hygienic fitting according to DIN 11851
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Temperature Probes Technical Data
Probe (TP-203 .. / TP-206 ..)
Temperature Operating Range
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
Ambient Temperature . . . . .
Measuring Element . . . . . .
Response Time . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
Output Function . . . . . . . .
Reverse Polarity Protection . .
Degree of Protection . . . . .
Housing Material . . . . . . .
Housing Quality . . . . . . . .
Sensor Material . . . . . . . .
Sensor Quality . . . . . . . . .
Pressure Rating (psi) . . . . .
Connection . . . . . . . . . .
Mechanical Connection . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-30° to +500°C (-22° to 932°F)
≤350°C accuracy class A (662°F)
≥350°C accuracy class B (662°F)
-20° to 90°C (-4° to +194°F)
Pt100, DIN EN 60751, Class A
203: t0.5 = 1.5 s; t0.9 = 6 s
206: t0.5 = 6 s; t0.9 = 15 s
306: t0.5 = 8 s; t0.9 = 20 s
4-wire
Yes
IP 67
Stainless steel/plastic
1.4404 (AISI 316L) mineral insulated
Stainless steel
1.4404 (AISI 316L)
1450.38
Connector, M12x1 (eurofast ®)
For compression fittings or thermowells
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
-50° to +105°C (-58° to +221°F)
-20° to +90°C (-4° to +194°F)
Pt100, DIN EN 60751, Class A
t0.5 = 8 s; t0.9 = 20 s in water at 0.2 m/s
4-wire
Yes
IP 67
Plastic/Stainless steel
TPE (thermoplastic elastomer)
Stainless steel
1.4404 (AISI 316L)
217.56
Connector, M12x1 (eurofast)
For compression fittings or thermowells or for direct mounting
Probe (TP-306A ..)
Temperature Operating Range
Ambient Temperature . . . . .
Measuring Element . . . . . .
Response Time . . . . . . . .
Output Function . . . . . . . .
Reverse Polarity Protection . .
Degree of Protection . . . . .
Housing Material . . . . . . .
Housing Quality . . . . . . . .
Sensor Material . . . . . . . .
Sensor Quality . . . . . . . . .
Pressure Rating (psi) . . . . .
Connection . . . . . . . . . .
Mechanical Connection . . . .
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M90
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Pt100 Temperature Probe, 3/4" Tri-Clamp, Ø8 mm
Pt100 Temperature Probe, Ø3 m
Pt100 Temperature Probe, Ø6 mm
Part Number
ID Number
Len
gth
(m
m)
Housing Style
Tem
Ran perat
ge ure
Temperature Probes
TP-104A-TRI3/4-H1141-LO35
M9910429
TP-104A-TRI3/4-H1141-L100
M9910430
TP-203A-CF-H1141-L100
M9910402
100
TP-203A-CF-H1141-L150
M9910403
150
TP-203A-CF-H1141-L200
M9910482
200
TP-203A-CF-H1141-L250
M9910404
250
TP-203A-CF-H1141-L300
M9910474
TP-206A-CF-H1141-L100
M9910475
100
TP-206A-CF-H1141-L150
M9910476
150
TP-206A-CF-H1141-L200
M9910477
200
TP-206A-CF-H1141-L300
M9910478
300
35
-50° to +120°C
(-58° to +248°F)
-30° to +350°C
(-22° to +662°F)
100
300
For technical data see page M89 - M90.
Mating cordset for remote connections; RK 4.4T-*-RS 4.4T. * Length in meters.
See page M97 for additional cordset information.
M91
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Part Number
®
Pt100 Cable Probe, 4-Pin M12x1 eurofast , Ø8 mm
ID Number
TP-306A-CF-H1141-L1000
M9910479
TP-306A-CF-H1141-L2000
M9910480
)
(m
gth
Len
Housing Style
Tem
Ran perat
ge ure
Temperature Probes
1
-50° to 105°C (-58° to
2
221°F)
TP-306A-CF-H1141-L5000
M9910481
5
For technical data see page M90.
Rotatable Display
TS400 and TS500 sensors may also be installed
horizontally. The display may be electronically
inverted 180 degrees by software incorporated
within the sensor.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M92
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Thermowell Part Number Key
THW - 3 - G1/8 - A4 - L013
Insertion Depth
Thermowell
Probe Diameter
Material
3 = 3 mm outer diameter
A4 = Stainless steel AISI316L
6 = 6 mm outer diameter
Process Connection
G1/8 = G1/8" male thread
N1/8 = 1/8" NPT male thread
G1/4 = G1/4" male thread
N1/4 = 1/4" NPT male thread
G1/2 = G1/2" male thread
N1/2 = 1/2" NPT male thread
TRI3/4 = 3/4" tri-clamp
DN25K = DN25 hygienic fitting thread DIN 11851
Compression Fittings Part Number Key
CF - M - 3 - G1/8 - A4
Compression Fitting
Material
A4 = Stainless steel AISI316L
Compression Ring Material
M = AISI316L
Operational Voltage
G1/8 = G1/8" male thread
P = PTFE
N1/8 = 1/8" NPT male thread
Probe Diameter
3 = 3 mm outer diameter
G1/4 = G1/4" male thread
N1/4 = 1/4" NPT male thread
6 = 6 mm outer diameter
M93
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Thermowell, 1/8" Male NPT
Thermowell, 3/4" Tri-Clamp
M9910447
1/2" NPT
50
3 mm
5800
THW-3-N1/2-A4-L100
M9910448
1/2" NPT
100
3 mm
5800
THW-3-N1/2-A4-L150
M9910449
1/2" NPT
150
3 mm
5800
THW-3-N1/2-A4-L250
M9910450
1/2" NPT
250
3 mm
5800
THW-3-N1/4-A4-L050
M9910416
1/4" NPT
50
3 mm
5800
THW-3-N1/4-A4-L100
M9910420
1/4" NPT
100
3 mm
5800
THW-3-N1/4-A4-L150
M9910424
1/4" NPT
150
3 mm
5800
THW-3-N1/4-A4-L200
M9910428
1/4" NPT
200
3 mm
5800
THW-3-N1/8-A4-L050
M9910414
1/8" NPT
50
3 mm
5800
THW-3-N1/8-A4-L100
M9910418
1/8" NPT
100
3 mm
5800
THW-3-N1/8-A4-L150
M9910422
1/8" NPT
150
3 mm
5800
THW-3-N1/8-A4-L200
M9910426
1/8" NPT
200
3 mm
5800
THW-3-TRI3/4-A4-L035
M9910433
3/4" Tri-Clamp
35
3 mm
5800
THW-3-TRI3/4-A4-L050
M9910451
3/4" Tri-Clamp
50
3 mm
580
THW-3-TRI3/4-A4-L100
M9910452
3/4" Tri-Clamp
100
3 mm
580
THW-3-TRI3/4-A4-L150
M9910453
3/4" Tri-Clamp
150
3 mm
580
THW-3-TRI3/4-A4-L250
M9910454
3/4" Tri-Clamp
250
3 mm
580
Part Number
ID Number
)
Pre
s
R a t sure
ing
(ps
i
Thermowell, 1/4" Male NPT
Co
m
Pro patib
le
be
Thermowell, 1/2" Male NPT
THW-3-N1/2-A4-L050
Pro
c
Co ess
nne
ctio
n
Housing Style
Len
gth
(m
m)
Thermowells
Note: Material is AISI 316L/1.4404
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M94
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
M9910463
1/2" NPT
50
6 mm
5800
THW-6-N1/2-A4-L100
M9910464
1/2" NPT
100
6 mm
5800
THW-6-N1/2-A4-L150
M9910465
1/2" NPT
150
6 mm
5800
THW-6-N1/2-A4-L250
M9910466
1/2" NPT
250
6 mm
5800
THW-6-TRI3/4-A4-L050
M9910467
3/4" Tri-Clamp
50
6 mm
5800
THW-6-TRI3/4-A4-L100
M9910468
3/4" Tri-Clamp
100
6 mm
580
THW-6-TRI3/4-A4-L150
M9910469
3/4" Tri-Clamp
150
6 mm
580
THW-6-TRI3/4-A4-L250
M9910470
3/4" Tri-Clamp
200
6 mm
580
Part Number
ID Number
)
Pre
s
R a t sure
ing
(ps
i
Thermowell, 3/4" Tri-Clamp
Co
m
Pro patib
le
be
Thermowell, 1/2" Male NPT
THW-6-N1/2-A4-L050
Pro
c
Co ess
nne
ctio
n
Housing Style
Len
gth
(m
m)
Thermowells
Note: Material is AISI 316L/1.4404
M95
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Compression Fitting, 1/4" Male NPT
Compression Fitting, 1/8" Male NPT
Compression Fitting, 1/4" Male NPT
Compression Fitting, 1/2" Male NPT
Tem
Ran perat
ge ure
CF-M-3-N1/4-A4
M9910408
Ø3 mm
Metal
350°C (662°F)
580
CF-P-3-N1/4-A4
M9910412
Ø3 mm
PTFE
100°C (212°F)
87
CF-M-3-N1/8-A4
M9910406
Ø3 mm
Metal
350°C (662°F)
580
CF-P-3-N1/8-A4
M9910410
Ø3 mm
PTFE
100°C (212°F)
87
CF-M-6-N1/4-A4
M9910484
Ø3 mm
Metal
350°C (662°F)
580
CF-P-6-N1/4-A4
M9910486
Ø6 mm
PTFE
100°C (212°F)
87
CF-M-6-N1/2-A4
A0950
Ø6 mm
Metal
350°C (662°F)
580
Part Number
Pre
s
R a t sure
ing
(ps
i
ID Number
Co
m
Pro patib
le
b
Dia e
me
ter
Housing Style
Co
m
F i t t press
i n g ion
)
Compression Fittings
Note: Material is AISI 316L/1.4404
Mounts in Compact Spaces
With a housing diameter of 34 mm,
multiple temperature sensors can fit
in tight spaces.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M96
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Stabilizer Accessories for Direct Mounting
M97
Stabilizer for 3 mm Temperature Probe
Stabilizer for 6 mm Temperature Probe
STA-3
(M6835024)
STA-6
(M6830523)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
4-Wire eurofast ® Cordsets, Standard Plug Body
• Straight Male and Female
Connectors
• NEMA 1, 3, 4, 6P and IEC IP 68
Protection
• 250 VAC/300 VDC, 4 A
Housing Style
Part Number
Cable
Features
Pinout
Female
RK ..**
RK 4.4T-*
AWM PVC Grey
4x22 AWG
flexlife ®
105°C
5.2 mm OD
Cable #RF50516-*M
RS ..**
1.
2.
3.
4.
BN
WH
BU
BK
Male
RK 4.4T-*-RS 4.4T
*
Length in meters. Standard cable lengths are 2, 4, 6, 8 and 10 meters. Consult factory for other lengths.
** Standard coupling nut material is nickel plated brass "RK .."; "RKK .." indicates nylon and "RKV .." indicates 316 stainless steel.
Extension Example:
RK
4.4T - 2 - RS
4.4T
RK .. - RS ..
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M98
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Self-Contained Temperature Monitors
The TURCK temperature monitor with digital readout is a fully programmable device that is easy to set up for a wide variety
of applications. The self-contained temperature-monitoring device has two independently adjustable switching points or a
single switch point with a separate analog output. The monitor can be used for limit-value monitoring or window functions.
The TC01 sensor has an adjustable hysteresis, and can also be programmed to measure temperature in degrees Fahrenheit or
degrees Celsius. These devices feature a highly visible digital display and a sensor housing that can be rotated to allow the
viewing of temperature data from any direction. The 24 VDC devices include integral circuitry that protects against
Short-Circuit damage, and a G1/2 threaded fitting for easy installation. They operate in temperatures from
-40° to +120°C (-40° to +248°F).
Principles of Operation
The temperature sensors employ a calorimetric principle to provide continuous and
accurate temperature analysis of liquid or paste-like media. They are ideal for temperature
analysis in many industries including automotive, welding, hydraulic power units,
beverage/brewery, plastics, pumps, pulp/paper, and semiconductor.
Operating Modes
If an over-range of a certain temperature is to be monitored, select the Hysteresis-function.
In this mode, a limit value must be set. If the temperature exceeds this value, the output
either activates or de-activates, depending on the selected output function. A Hysteresis
value is assigned to the limit value, which determines the differential between the switch-on or switch-off value. It is also
possible to delay the switch-on and switch-off times. If the window-function is selected as the operating mode, the switching
output activates when the adjusted limit temperature is reached (beginning of window range) and de-activates when the end
value (defined by the window width value) is reached. The switch-on and switch-off delay may also be used in this operating
mode.
M99
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Temperature Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
TC01 N 1/2 A4P 2AP8X H1140
Connection
Style
H1140 = eurofast ®
TC01 = Temperature
Output Function
Connection
2AP8X = (2) PNP discrete outputs
G 1/2 = British parallel 1/2
LIAP8X = 4-20 mA Analog w/PNP discrete output
N 1/2 = 1/2 inch NPT
Material
A4P
= 316 stainless steel probe with PBT housing
Temperature General Specifications
Operating Voltage . . . . . . . . . .
Current Consumption . . . . . . . .
Voltage Drop at Imax . . . . . . . . .
Temperature Range . . . . . . . . .
Medium Temperature Range . . . .
Measuring Range . . . . . . . . . .
Tolerance Range . . . . . . . . . . .
Switch Point Accuracy . . . . . . . .
Display Resolution . . . . . . . . . .
Programmable Ranges . . . . . . . .
Hysteresis Range. . . . . . . . . . .
Window Range . . . . . . . . . . . .
Switch-on and Switch-off Delay Time
LED Indications/ Display . . . . . . .
at Limit Value S1/S2. . . . . . . .
Display Resolution (3-digit). . . .
Protection . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
21.6 - 26.4 VDC (including ripple)
≤70 mA
≤2.5 VDC
-20 to +60°C (-4 to +140°F)
-40 to +120°C (-40 to +248°F)
-40 to +120°C (-40 to +248°F)
±2.5°C (0° to +80°C: ±1°C) ±36.5°F (+32° to +176°F: ±33.8°F)
±3% of full scale
0.1°C (-9.9° to +99.9°C: 0.1°C) ±36.5°F (+33.8°F +14°F to +210°F: +32°F)
-39° to +120°C (-38° to +248°F), 0.5°C/step
+0.5° to +99.5°C (+32.9° to +211.1°F), 0.5°C/step (0.9°F/step)
+0.5° to +99.5°C (+32.9° to +211.1°F), 0.5°C/step (0.9°F/step)
0 to 50 s (0.5 s/step)
3-digit 7-segment display
Yellow (2x)
+0.1°C (+32.1°F)
IP 65
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M100
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Part Number
Self-Contained Temperature Controls, PBT Housing
TC01-G1/2A4P-2AP8X-H1140
Ou
tpu
t
TURCK
Process Automation – Instrumentation
ID Number
M6877001
Dual PNP
N.O./N.C.
TC01-G1/2A4P-LIAP8X-H1140
M6877002
PNP
N.O./N.C.
and 4-20 mA
Self-Contained Temperature Controls, PBT Housing
TC01-N1/2A4P-2AP8X-H1140
M68777005
Dual PNP
N.O./N.C.
TC01-N1/2A4P-LIAP8X-H1140
M6877004
PNP
N.O./N.C.
and 4-20 mA
Material
Housing
Probe
M101
PBT
316 Ti Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
-20 to +60
-40 to +120
G 1/2
RK 4.4T-*
Wi
ri
Dia ng
gra
m#
Ma
ti
Co n g
rds
et
Pro
c
Co ess
nne
ctio
n
Vol
tag
e
Tem
Me perat
ur
a
Ran suring e
ge
(°C
)
200 mA
Op
e
Temrating
(°C perat
ure
)
Sw
itc
Cu hing
rre
/An nt
alo
gL
oad
1450
)
Pre
s
R a t sure
ing
(ps
i
Process
Automation
1
Wiring Diagrams
Diagram 1
21.6-26.4
VDC
Diagram 2
1450
200 mA/<500 Ω
-20 to +60
-40 to +120
G 1/2
RK 4.4T-*
2
1450
200 mA
-20 to +60
-40 to +120
1/2 NPT
RK 4.4T-*
1
1450
200 mA/<500 Ω
-20 to +60
-40 to +120
1/2 NPT
RK 4.4T-*
2
21.6-26.4
VDC
21.6-26.4
VDC
21.6-26.4
VDC
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M102
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Level Selection Guide
M103
Type
levelprox ®
levelprox Mounting Accessories
Pages
M107 - M108
M109
Type
EZ-track ® Level Probe
Level Probe Accessories
Probe Holder
Level Control Monitor
Pages
M113 - M116
M117 - M118
M123 - M124
M125 - M128
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
levelprox ®
levelprox is a unique, non-invasive ultrasonic sensing solution that provides
accurate media detection through metal container walls. levelprox mounts to
the outside of a container with no compromise to structural integrity, and is
ideal for high pressure, hazardous or sterile applications.
All it takes to reliably detect the presence of liquid through a metal container is
to program the empty and full conditions into the levelprox using a simple
teach button. The sensor generates a high frequency ultrasonic pulse that is
transferred into the container wall through a coupling gel. As the pulse enters
the container wall it is influenced by the containers contents. levelprox
analyzes this pulse and compares it to the conditions that were programmed
into the memory of the sensor.
With Dual Operating Modes, levelprox Provides
Reliable Detection in Even the Toughest Applications:
Reverb Mode: evaluates the ultrasonic
pulse as it reverberates within the container
wall. This pulse travels through the
container wall until it reaches the inner
wall. The reverb mode works great when
the liquid to be detected has a low
viscosity, leaving little or no coating on the
container wall. The reverb mode should
also be utilized when stirring devices are
used inside the container.
Echo mode: evaluates the ultrasonic pulse
as it travels through the liquid and echoes
off of the opposite container wall. Highly
viscous liquids can be reliably detected
with the echo mode. The mode looks past
the layers of product that can coat the
inside of a container to give the true level
of the product.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M104
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
levelprox ®
Dual Mode T50
The T50 dual-mode levelprox features a robust 316L stainless steel housing with an
integrated sanitary connection. The sensors construction and non-invasive operation make
it the perfect choice for applications in food, beverage and pharmaceutical industries. The
integrated Tri-Clamp mounting flange maintains proper orientation to the tank wall and
also protects the coupling during washdown operations.
The M30 dual-mode levelprox is ideal for level detection applications where stainless steel
sanitary fittings are not required. The M30 delivers non-invasive detection without the
additional expense of a sanitary housing. Its 30 mm barrel can be easily mounted using a
welding adapter or a metal strap kit.
Dual Mode M30
Mounting accessories are available for the T50 and M30 sensors for welding, bonding and
strapping levelprox sensors to most common containers.
Recommended Operating Mode
Application
Reverb
Echo
Yes
No
Liquids that leave a film on container wall
No
Yes
Liquid with internal mixing devices
Yes
No
Containers with internal coating
No
Yes
Containers greater than 6 ft. across
Yes
No
Aerated liquid
Yes
No
Liquids contaminated with solids
Mounting Accessories
levelprox Specifications
Switching Delay . . . . . . . . . .
Rated Operational Current (DC) Ie.
No-load Current Io . . . . . . . . .
Overload Trip Point . . . . . . . .
Max. Voltage Drop at 200 mA . . .
Switching Frequency . . . . . . . .
Time Delay Before Availability. . .
Protection Class . . . . . . . . . .
Housing Material . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
Operation Temperature . . . . . .
Supply Voltage Indication . . . . .
Switching status indication . . . .
Error Indication . . . . . . . . . .
Alarm Indication . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
Approvals . . . . . . . . . . . . .
M105
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1-10 second (adjustable via DIP-switches)
≤200 mA
≤60 mA
>270 mA
≤2.5 V
1 Hz
≤2 s
IP 68
T50: 316L stainless (A41.4404)
M30: Chrome plated brass
-25° to +70°C (-13° to +158°F)
Green LED
Yellow LED
Red LED flashing and alarm output on
Red LED
Flashing Green LED indicates alarm off
Class I, Division 2
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Mounting the T50 levelprox ®
Mounting
One of the most critical procedures in any levelprox application is the mounting of the sensor. Reliable
operation of the sensor requires a mount that is rigidly fixed and properly oriented to the container wall.
Below you will find some important tips for mounting a levelprox.
Surface Preparation
The surface of the tank plays an important role ensuring proper operation of the sensor. The surface finish and structural
integrity of the container wall need to be evaluated when selecting a mounting location for the sensor. The surface finish
should be smooth and free of rust, paint, and coatings that could affect the sound transmission of the sensor. The area of the
tank where the sensor will mount should be in good condition, i.e. no pitting, dents, welded joints, internal structures etc. If
you are using a weld-on mount, be aware that excessive heat from the welder can distort thin walled containers.
Mounting the Sensor
The levelprox needs to make solid contact with the container wall for proper operation. Ideally the clamping adapter should
be mounted perpendicular to the container wall. In the case of a round container, the sensor should be mounted so that the
transducer is pointing at the center axis. TURCK offers several mounting options designed to keep the sensor optimally
coupled with the wall of the container.
Installation
Included with every TURCK levelprox is a small container of coupling gel. This gel is required for the sensor to efficiently
pass the ultrasonic pulses into the container wall. Before installing the sensor on the container, remember to apply a
generous amount of the gel to the sensors transducer surface.
Container Wall
levelprox Sensor
Welded
Connection
Clamping
Adapter
Clamping
Seal
Clamping
Collar
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M106
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Smooth Cylindrical T50 Style
LPRE-T50-UP6X3-H1151
M1606201
1-15 mm
100-2000 mm**
Stainless Steel
Ou
tpu
t
ID Number
Pro
gra
mm
ing
Part Number
Min
\
Co Max
nta
Dia iner
me
ter
Housing Style
Co
nt
Wa ainer
ll
Thi
ckn
ess
TURCK
Process Automation – Instrumentation
Push button
or external
teach wire
5-Wire DC
PNP
Standard M30 Style
LPRE-M30-AP6X2-H1141
M1606203
1-15 mm
100-2000 mm**
Nickel Brass
VB2-SP1
4-Wire DC
PNP
Additional specifications on page M105.
Accessories on page M109.
** 2000 mm (echo mode), no limit (reverberation mode).
TURCK levelprox sensors are FM approved for installation in Class I, Division 2 hazardous locations when installed per TURCK
control drawing Ni-1.005 (www.turck.com/fmcd).
M107
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
≤200
≤±5 mm
-25 to +70
IP 67
SS
Sho
r
Pro t-Circ
tec uit
tion
Rev
.
Pro Polar
tec i t y
tion
Wi
re B
Pro rea
tec k
tion
Ma
ting
Co
rd
Len , Cab
gth le
/Jac
ket
Wi
r in
Dia g
gra
m#
Ho
usi
ng
Pro
te
Cla ction
ss
Op
e
Temrating
p. (
°C)
Sw
itc
Cu hing
rre
nt (
mA
)
Min
. Re
Acc
pea
u
(m racy t
m)
Vol
tag
e
Process
Automation
Yes
Yes
Yes
RK 4.5T-*
1
Wiring Diagrams
Diagram 1
15-30 VDC
Diagram 2
≤200
≤±5 mm
-25 to +70
IP 67
CPB
Yes
Yes
Yes
RK 4.4T-*
2
15-30 VDC
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M108
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Mounting Accessories for T50
Part
Number
ID
Number
LP-MS-T50-S
M6900253
T50 Weld Kit
Part
Number
ID
Number
LP-MS-T50-K
M6900255
T50 Epoxy Mounting Kit
Designed to mount the T50
sensor to flat sided containers.
Can also be used for mounting
to large diameter round
containers.
Designed for mounting the
T50 sensor to flat sided
containers. Kit is ideal for
applications where welding is
not possible.
Includes: Clamping Adapter,
Clamp, and Gasket
Includes:
Clamping Adapter, General
Purpose Epoxy, Clamp,
Gasket, and Locator Buttons
Part
Number
Clamping Adapter
LP-Clamping Adapter-*
Individual Pieces
Custom machined weld-on
clamping adapter to fit round
containers.
Part Number
ID Number
LP-OKS1110**
Note: Clamp and gasket need
to be purchased separately,
see table on right.
LP-MZ-T50-SR**
LPMZ-T50-CS
LP-MZ-T50-D**
Description
M6900296
Coupling Gel
A5316
Sanitary Clamp
M6900365
A5315
Clamping Adapter
Gasket
* Indicates the container
diameter in meters.
Mounting Accessories for M30
Part
Number
ID
Number
VB2-SP1
Push Button
A3501-29
ID
Number
LP-MZ-M30-T50
A5317
ID
Number
LP-MZ-M30-SB
A5321
M30 Weld Mount
Mounting Bracket can be
strapped or welded to
container. Perfect for
applications that don't require
washdown.
The VB2-SP1 is used for
programming and mode
selection of the M30 levelprox
Part
Number
Part
Number
M30 Sanitary Adapter
Allows the M30 to be mounted
using T50 Accessories. Use with
LP-Clamping Adapter-* in
applications that are subjected to
washdown.
* Indicates the container
diameter in meters.
Part
Number
ID
Number
LP-MZ-M30-B250
LP-MZ-M30-B500
LP-MZ-M30-B1000
M30 Straps
A5320
A5319
A5322
Use with LP-MZ-M30-SB to
mount the M30 using straps.
Constructed of stainless steel with
lengths available:
250 cm, 500 cm, and 1000 cm
Includes:
Two stainless steel straps
** Accessories that can also be used on M30 style levelprox.
M109
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
EZ-track ® Liquid Level Probe
The EZ-track line from TURCK is a line of magnetostrictive linear displacement transducers. These devices detect the
position of an external magnet along the active stroke of the sensor without causing any wear on the sensor parts. Because
there are no parts to wear or break, the sensors can offer better performance over a longer life than competing technologies.
They also offer an alternative when a continuous, absolute reading is necessary in the application.
The EZ-track R16 Liquid Level Sensor is a programmable, two-wire loop
powered intrinsically safe probe that is ideal for continuous level monitoring
in a variety of liquids and tank designs. The R16 sensor uses magnetostrictive
technology to monitor the position of a magnetic float along the active stroke
of the sensing tube, which is then converted into a configurable 4-20 mA
output. The IP 68 rated R16 liquid level sensors are available in a rigid 316
stainless steel housing or a flexible PVDF design. The probe lengths vary
between 18 and 288 inches. The stainless steel version is also available in an
optional Food Grade or 3A Rated Sanitary finish probe for use in an array of
food service, dairy and beverage applications. A variety of floats, fittings, and
accessories are available to fit virtually any application requirement.
All of the electronics for the R16 sensor are incorporated within the 5/8 inch
sensing rod, which eliminates the need for an electronics enclosure at the top
of the sensor. This feature when ordered with the standard 4-pin minifast ®
quick disconnect, offers greater mounting options, and a faster, more reliable
installation. The R16 liquid level sensor has a resolution of 0.02 inches of full
scale, and an accuracy of 0.1% over the programmable monitoring span,
making it the ideal sensor for applications where continuous level position is
required.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M110
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
R16 Level Probe Part Number Key
Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.
LT
E - R 16 -
LI
- Ex -
/ 3A
Sensor Family
Special Approvals
LT = Linear Transducer
3A = 3A approved sensor with
non-removable 3
Measurement
Connector Type
Length of span
D
= Dual 3/4 inch NPT
Length Units
B1140 = 4-pin, minifast 4
E = Inches
S
= Single 3/4 in. NPT 2
Housing Style
Intrinsically Safe
R = Rod Style
Ex
* must be connected to appropriate barrier
Rod Diameter
Diameter in mm
Output Type
Probe Style
0 = 4 to 20 mA
S = Sanitary - 240 grit finish
1 = 20 to 4 mA
F = Food Grade - 180 grit finish
Output Configuration
P = PVDF
LI = Current
3 = 316 stainless steel (standard finish)
Flange Adapter
Blank = No Adapter 1
20 = 2 inch Tri-clamp 4
25 = 2.5 inch Clamp 4
30 = 3 inch Tri-clamp 4
40 = 4 inch Tri-clamp 4
C = 3 inch Dead Band 2
1
Available on probe styles 3 or P only.
2
Available on probe styles P only.
3
Available on probe styles S only.
4
Not available on probe style P.
M111
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
PVDF Probe Specifications
Output . . . . . . . . .
Span . . . . . . . . . .
Repeatability . . . . . .
. . . . . . . . . . . . .
Resolution . . . . . . .
. . . . . . . . . . . . .
Operating Temperature
Null Zone . . . . . . .
Dead Zone . . . . . . .
. . . . . . . . . . . . .
Operational Voltage . .
Current Consumption .
Enclosure Rating . . . .
Non-linearity . . . . . .
Reading Rate . . . . . .
Rod Diameter . . . . .
Pressure . . . . . . . .
Electronics . . . . . . .
Rod . . . . . . . . . . .
Agency Approvals . . .
FM-Approval . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 to 20 mA, 20 to 4 mA
7 to 288 in.
0.014 in. + 0.5% of programmable span typical;
max 0.014 in. + 0.4% of programmable span
0.25% of programmable span or 0.02 in.,
whichever is greater
-20° to +70°C (-4° to +158°F)
12 in.
6 to 8 in. (span 7 in. to 126 in.: 6 in.;
span 127 in. to 288 in.: 8 in.)
13.5-30 VDC
Loop Powered
IP 69
0.1% of programmable span
40 ms
0.625 in. (15.9 mm)
145 psi
PVDF
PVDF
FM
Class I, Div 1, Group C and D
Class II, Div 1, Group E, F, and G
Class I, Zone 0 or 1, Groups IIA or IIB
Stainless Steel Probe Specifications
Output . . . . . . . . .
Span . . . . . . . . . .
Repeatability . . . . . .
. . . . . . . . . . . . .
Resolution . . . . . . .
. . . . . . . . . . . . .
Operating Temperature
Null Zone . . . . . . .
Dead Zone . . . . . . .
Operational Voltage . .
Current Consumption .
Enclosure Rating . . . .
Non-linearity . . . . . .
Reading Rate . . . . . .
Rod Diameter . . . . .
Pressure . . . . . . . .
Electronics . . . . . . .
Rod . . . . . . . . . . .
Agency Approvals . . .
FM-Approval . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4 to 20 mA, 20 to 4 mA
10 to 288 inches
0.014 in. + 0.5% of programmable span typical;
max 0.014 in. +0.4% of span
0.25% of programmable span / 0.02 in.,
whichever is greater
-20° to +70°C (-4° to +158°F)
8 in.
2 in.
13.5 to 30 VDC
Loop Powered
IP 69
0.1% of programmable span
40 ms
0.625 in. (15.9 mm)
1015 psi
Stainless Steel 316L
Stainless Steel 316L
FM
Class I, Div 1, Group C and D
Class II, Div 1, Group E, F, and G
Class I, Zone 0 or 1, Groups IIA or IIB
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M112
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Ou
tp
Cu ut
rre
nt
TURCK
Process Automation – Instrumentation
Part Number
Stainless Steel Level Probe, minifast Connection
®
LT***E-R16-3LI0-EX-B1140
4-20 mA
Loop
Powered
LT***E-R16-3LI1-EX-B1140
20-4 mA
Loop
Powered
Stainless Steel Level Probe, Dual 3/4 NPT Connection
LT***E-R16-3LI0-EX-D
4-20 mA
Loop
Powered
LT***E-R16-3LI1-EX-D
20-4 mA
Loop
Powered
Stainless Steel Level Probe, minifast Connection, Tri-clamp Adapter
LT***E-R16-3**LI0-EX-B1140
LT***E-R16-S**LI0-EX-B1140
LT***E-R16-F**LI0-EX-B1140
LT***E-R16-3**LI1-EX-B1140
LT***E-R16-S**LI1-EX-B1140
LT***E-R16-F**LI1-EX-B1140
Stainless Steel Level Probe, Dual 3/4 NPTConnection, Tri-clamp Adapter
4-20 mA
Loop
Powered
20-4 mA
Loop
Powered
LT***E-R16-3**LI0-EX-D
4-20 mA
Loop
Powered
LT***E-R16-3**LI1-EX-D
20-4 mA
Loop
Powered
* Float ordered separately, see page M118.
** For flange dimensions, see page M117.
TURCK 'R16' level probes are FM approved as intrinsically safe for installation in Class I, Division 1 hazardous locations when
installed per TURCK control drawing IS-1.111 (www.turck.com/fmcd).
M113
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
13.5-30
VDC
Ma
ti
Co ng
rd,
Len Cab
gth le
/Jac
ket
Wi
ri
Dia ng
gra
m#
Age
n
Ap cy
pro
val
Co
nn
T y p ectio
n
e
)
Pre
s
R a t sure
ing
(ps
i
Vol
tag
e
Pro
b
(Fin e Styl
ish e
)
Process
Automation
316 Stainless Steel
1015
4-pin minifast
FM
RKM 46-*M
1
316 Stainless Steel
1015
4-pin minifast
FM
RKM 46-*M
1
Wiring Diagrams
Diagram 1
Diagram 2
13.5-30
VDC
316 Stainless Steel
1015
Dual 3/4 NPT
FM
2M/PVC
2
316 Stainless Steel
1015
Dual 3/4 NPT
FM
2M/PVC
2
RKM 46-*M
RKM 46-*M
RKM 46-*M
1
1
316 Stainless Steel
1015
4-pin minifast
FM
Sanitary (316 SS w/240 grit)
1015
4-pin minifast
FM
Food Grade (316 SS w/180 grit)
1015
4-pin minifast
FM
13.5-30
VDC
1
1
316 Stainless Steel
1015
4-pin minifast
FM
Sanitary (316 SS w/240 grit)
1015
4-pin minifast
FM
Food Grade (316 SS w/180 grit)
1015
4-pin minifast
FM
RKM 46-*M
RKM 46-*M
RKM 46-*M
316 Stainless Steel
1015
Dual 3/4 NPT
FM
2M/PVC
2
316 Stainless Steel
1015
Dual 3/4 NPT
FM
2M/PVC
2
13.5-30
VDC
1
1
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M114
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Ou
tpu
t
TURCK
Process Automation – Instrumentation
Part Number
Stainless Steel Level Probe, minifast Connection, Tri-clamp Adapter,
Non-removable Float
®
LT***E-R16-S**LI0-EX-B1140/3A
4-20 mA
Loop
Powered
LT***E-R16-S**LI1-EX-B1140/3A
20-4 mA
Loop
Powered
PVDF Level Probe, Dual 3/4 NPT Connection
LT***E-R16-PLI0-EX-D
4-20 mA
Loop
Powered
LT***E-R16-PLI1-EX-D
20-4 mA
Loop
Powered
PVDF Level Probe, Single 3/4 NPT Connection
LT***E-R16-PLI0-EX-S
LT***E-R16-PCLI0-EX-S
LT***E-R16-PLI1-EX-S
LT***E-R16-PCLI1-EX-S
4-20 mA
Loop
Powered
20-4 mA
Loop
Powered
* Float ordered separately, see page M118.
** For flange dimensions, see page M117.
TURCK 'R16' level probes are FM approved as intrinsically safe for installation in Class I, Division 1 hazardous locations when
installed per TURCK control drawing IS-1.111 (www.turck.com/fmcd).
M115
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
13.5-30
VDC
Ma
ti
Co ng
rd,
Len Cab
gth le
/Jac
ket
Wi
ri
Dia ng
gra
m#
Age
n
Ap cy
pro
val
)
Co
nn
T y p ectio
n
e
Pre
s
R a t sure
ing
(ps
i
Vol
tag
e
Pro
be
(Fin Style
ish
)
Process
Automation
Sanitary (316 SS w/240 grit)
1015
4-pin minifast
3A, FM
RKV 46-*M
1
Sanitary (316 SS w/240 grit)
1015
4-pin minifast
3A, FM
RKV 46-*M
1
Wiring Diagrams
Diagram 1
Diagram 2
13.5-30
VDC
13.5-30
VDC
PVDF
145
Dual 3/4 NPT
FM
2M/PVC
2
PVDF
145
Dual 3/4 NPT
FM
2M/PVC
2
2M/PVC
2M/PVC
2
2M/PVC
2M/PVC
2
PVDF
145
Single 3/4 NPT
FM
PVDF
145
Single 3/4 NPT
FM
PVDF
145
Single 3/4 NPT
FM
PVDF
145
Single 3/4 NPT
FM
2
2
* Length in meters.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M116
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
All dimensions shown as: Inches [mm]
Flange Options
Flange, 2 inch Tri-clamp
Flange, 2.5 inch Tri-clamp
Flange, 3 inch Tri-clamp
Flange, 4 inch Tri-clamp
Level Probe Accessories
Junction Box
Tube Coupling
TC-R16-SS
(LT0305)
TB-R16S
(LT0294)
M117
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Level Probe Accessories
Bushing (316 Stainless Steel)
Float Kit (316 Stainless Steel)
Specific Gravity = 0.54
Thickness = 0.05 mm
BU-R16-2x3/4 NPT-SS
(LT0306)
FK-R16-205-SSES
Float Kit (316 Stainless Steel)
(LT0299)
Float Kit (Nitrophyl)
Specific Gravity = 0.40
Specific Gravity = 0.61
Thickness = 0.05 mm
Thickness = 0.05 mm
FK-R16-183-SSES
(LT0296)
FK-R16-202-NSH
(LT0297)
Float Kit (316 Polished Stainless Steel)
Float Kit (PVDF)
Specific Gravity = 0.61
Specific Gravity = 0.65
Thickness = 0.05 mm
FK-R16-207-PPS
(LT0298)
FK-R16-183-SSFE
Weight Kit (316 Stainless Steel)
For use on PVDF probes 145-288 inches long.
WK-R16 Weight Kit
(LT0295)
(LT0302)
Probe Foot (ECTFE)
PF-R16
(LT0292)
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M118
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
R16 Level Probe Worksheet
Liquid to be measured _____________________
Fluid Properties (check all that apply)
Customer
___________________________
___ Turbulent
___ Foam
Phone Number
___ Solids
Product Build-Up Yes ____ No _____
___________________________
Temperature Range _________°F to _______°F
Pressure Range ________ to ________
Date
Viscosity Range _______ to _______
___________________________
Specific Gravity ________
4 mA Starting Point Top___
Project
Bottom ___
Approvals Required
UL___
___________________________
CSA___ FM___ 3A___ Food Grade___
Tank Location Indoors____
Outdoors____
Tank Material _____________________________________________
Quantity
___________________________
Additional Comments ______________________________________
_________________________________________________________
*Allow overhead clearance for installation and removal of sensor.
M119
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Conductive Level Probes and Controllers
TURCK offers liquid level probes for use in conjunction with our Level control Monitors to provide a simple solution for
liquid level applications. The resistance between the terminals is measured to determine the level of the medium in the
tank.
Level Controllers
The level control logic is built in to the controller which offers a variety of options to fit any application.
•
Adjustable Sensitivity
•
Single Set-points
•
Multiple Inputs
•
On/Off Delay
•
Programmable Outputs
These devices can be used in applications to control the filling and draining of a tank or as high and low level alarms. The
level controller is able to differentiate between a variety of liquids, as well as distinguishing between liquid and foam. Many
of the monitors have adjustable on and off-delays for use in turbulent liquid level applications, as well as the necessary logic
to control overflow monitoring.
Level Probes and Probe Holders
TURCK also offers stainless steel probes, and stainless steel holders with ceramic insulators. The probes are used to provide
single-point level control, while the holders are sealed to withstand applications up to 2500 psi at +70°F (+21°C). These
parts provide reliable liquid level control in a wide variety of applications.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M120
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
MK91-121-R.. and MK91-12-R.. Specifications
Galvanic Isolation . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
Probe Voltage . . . . . . . . . . . . . . .
Sensitivity Ranges (Switching Thresholds)
- Range 1 . . . . . . . . . . . . . . . . . .
- Range 2 . . . . . . . . . . . . . . . . . .
- Range 3 . . . . . . . . . . . . . . . . . .
- Range 4 . . . . . . . . . . . . . . . . . .
Hysteresis . . . . . . . . . . . . . . . . .
Switch-on Delay . . . . . . . . . . . . . .
Switch-off Delay . . . . . . . . . . . . . .
Contact Material . . . . . . . . . . . . . .
Switching Capacity . . . . . . . . . . . . .
Protection . . . . . . . . . . . . . . . . .
Mounting. . . . . . . . . . . . . . . . . .
Operating Temperature . . . . . . . . . .
Line Frequency (AC) . . . . . . . . . . . .
Ripple (DC) . . . . . . . . . . . . . . . .
. . . . . between input, output and supply circuits,
. . . . . test voltage 2.5 kVrms
. . . . . 0.02-5 VPP/150 Hz (delta)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
0.2-1 kΩ
0.8-4 kΩ
2.5-15 kΩ
10-100 kΩ
approx. 10%
0-20 s (adj.)
0-20 s (adj.)
silver alloy + 3 μ Au
≤500 VA / 60 W
IP 20
DIN 50022 or pull-out tabs
-25° to +60°C (-13° to +140°F)
48-62 Hz
≤10%
MK91-R11.. Specifications
Galvanic Isolation . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
Switching Point Deviation in
Supply Voltage Range . . . . .
Operating Characteristics at: . .
- Rectangular Signal . . . . . . .
- Amplitude of Electrode Voltage
- Amplitude of Electrode Current
Contact Material . . . . . . . . .
Switching Capacity . . . . . . . .
Protection . . . . . . . . . . . .
Mounting. . . . . . . . . . . . .
Operating Temperature . . . . .
Line Frequency (AC) . . . . . . .
Ripple (DC) . . . . . . . . . . .
M121
. . . . . . . . . . between input and output circuit,
. . . . . . . . . . insulation test voltage 4 kV/8 mm
. . . . . . . . . . input circuit and supply voltage galvanically connected
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
≤1%
V = 24 V, RM = 40 k
f = 1 Hz
±2 V
±50 μA
silver alloy + 3μ Au
≤500 VA / 60 W
IP 20
DIN 50022 or pull-out tabs
-25° to +60°C (-13° to +140°F)
48-62 Hz
≤10%
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
MS91-12-R.. Specifications
Galvanic Isolation . . . . . . . . . . . . .
Probe Voltage . . . . . . . . . . . . . . .
Sensitivity Ranges (Switching Thresholds)
- Range 1 . . . . . . . . . . . . . . . . . .
- Range 2 . . . . . . . . . . . . . . . . . .
- Range 3 . . . . . . . . . . . . . . . . . .
- Range 4 . . . . . . . . . . . . . . . . . .
Hysteresis . . . . . . . . . . . . . . . . .
Switch-on /Switch-off Delay . . . . . . . .
Contact Material . . . . . . . . . . . . . .
Switching Capacity . . . . . . . . . . . . .
Protection . . . . . . . . . . . . . . . . .
Mounting. . . . . . . . . . . . . . . . . .
Operating Temperature . . . . . . . . . .
Line Frequency (AC) . . . . . . . . . . . .
Ripple (DC) . . . . . . . . . . . . . . . .
. . . . . between input, output and supply circuits
. . . . . typ. 5 VPP/100 Hz (delta)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
0.1-1 kΩ
0.5-5 kΩ
2-20 kΩ
10-100 kΩ
10%
0.1-15 s (adj.
AgCdO
≤500 Va/60 W
IP 20
DIN 50022 or pull-out tabs
-25° to +60°C (-13° to +140°F)
48-62 Hz
≤10%
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M122
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
ID Number
ion
ect
Flu
id
Co
nn
Part Number
Ma
xi
Pre mum
s
(p s s u r e
i)
Housing Style
Nu
m
Pro ber o
bes f
TURCK
Process Automation – Instrumentation
Probe Holder
WCC-1138
A3365
1
2500
3/8 NPT
Probe Holder
WCT-2
A3375
2
2500
1 in. NPT
For use with Amplifiers on pages M125 - M128.
Material
Probe Holders
Insulators
Probes
M123
303/304 Stainless Steel
Ceramic
304 Stainless Steel
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Part Number
Stainless Steel Probes
1/ 4 -20 THD
ID Number
Ma
ter
ial
Process
Automation
91-SSP
1 Ft.
A3000
304 Stainless Steel
91-SSP
91-SSP
91-SSP
91-SSP
91-SSP
2
3
4
5
6
A3002
A3004
A3006
A3008
A3010
304 Stainless Steel
Ft.
Ft.
Ft.
Ft.
Ft.
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
304 Stainless Steel
LENGTH
(See Part Number)
For use with Amplifiers on pages M125 - M128.
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M124
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Part Number
Level Control Monitor with Fixed Switch Point
MK91-R11/24VDC
ID Number
M7525202
Fea
tur
Ou
tpu
t
es
TURCK
Process Automation – Instrumentation
Single Level
Controller
10 second delay
(1) SPDT
Relay
Level Control Monitor, Potentiometer/Jumper Programmable
MK91-121-R/24VDC
M7545087
MK91-121-R/115VAC
M7545082
Dual Level
Controller,
Adjustable Delay
(2) SPDT
Relays/Parallel
MK91-121-R/230VAC
M7545080
Additional specifications on pages M121.
Material
Housing
M125
PC/ABS
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
≤3 A
40 kΩ
Fixed
≤20 mA at 24 VDC
Approx. 5%
Pow
GN
Ou
tpu
t LE
D
Wi
r in
g
Dia
gra
m#
er L
ED
is
res
ste
Hy
Cu
rr
Co ent
nsu
mp
tion
Sw
itch
Poi
nt
Sw
itc
Cu hing
rre
nt
Vol
tag
e
Process
Automation
YE
1
19-29 VDC
Wiring Diagrams
Diagram 1
Diagram 2
≤3 A
0.2-100 kΩ
≤1.5 W
Approx. 10%
GN
YE
2
≤3 A
0.2-100 kΩ
3 VA/<15 mARMS
Approx. 10%
GN
YE
2
≤3 A
0.2-100 kΩ
3 VA/<15 mARMS
Approx. 10%
GN
YE
2
20-28 VDC
98-126 VAC
184-264 VAC
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M126
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Housing Style
Part Number
Level Control Monitor 24 VDC, Dip-Switch Programmable
ID Number
MK91-12-R/24VDC
M7545077
MK91-12-R/115VAC
M7545072
Fea
tur
Ou
tpu
t
es
TURCK
Process Automation – Instrumentation
Dual Level
Controller,
Adjustable Time
Delay
(2) SPDT
Relays/Parallel
Level Control Monitor, Potentiometer/Jumper Programmable
MK91-12-R/230VAC
M7545070
MS91-12-R/24VDC
M5220700
MS91-12-R/115VAC
M5221000
Dual Level
Controller,
Adjustable Time
Delay
(2) SPDT
Relays
MS91-12-R/230VAC
M5220000
Additional specifications on page M122.
Material
Housing
M127
PC/ABS
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Pow
Ou
tpu
t LE
D
Wi
r in
g
Dia
gra
m#
er L
ED
is
res
ste
Hy
Cu
rr
Co ent
nsu
mp
tion
Sw
itch
Poi
nt
Sw
itc
Cu hing
rre
nt
Vol
tag
e
Process
Automation
≤3 A
0.2-100 kΩ
≤1.5 W
Approx. 10%
GN
YE
1
≤3 A
0.2-100 kΩ
3 VA/<15 mARMS
Approx. 10%
GN
YE
1
≤3 A
0.2-100 kΩ
3 VA/<15 mARMS
Approx. 10%
GN
YE
1
≤4 A
0.1-100 kΩ
≤3.6 W
Approx. 10%
GN
YE
2
≤4 A
0.1-100 kΩ
≤5 VA
Approx. 10%
GN
YE
2
≤4 A
0.1-100 kΩ
≤5 VA
Approx. 10%
GN
YE
2
Wiring Diagrams
Diagram 1
20-28 VDC
98-126 VAC
Diagram 2
184-264 VAC
20-28 VDC
98-126 VAC
184-264 VAC
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M128
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
TURCK
Process Automation – Instrumentation
Level Detection Application Examples
Control for Pump-in "Filling" a Tank
The MK91-12-R will start a pump or open a fill valve
when the liquid drops below the MIN level probe and
will remain on until the MAX level probe is reached.
The relay then de-energizes and stays off until the MIN
level is reached. The pump or valve does not cycle
constantly, as would be the case if only one sensor
were used.
Time
MAX
MIN
On
On
Off
Off
On
Example Application using MK91-12-R/...
Control for Pump-out "Draining" a Tank
The MK91-12-R will start a pump when the liquid
reaches the MAX level probe and remain on until the
MIN level probe is reached.
The relay then de-energizes and stays off until the MAX
level is reached. The pump or valve does not cycle
constantly, as would be the case if only one sensor were
used.
Time
MAX
MIN
On
On
Off
Off
On
Example Application using MK91-12-R/...
M129
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Process
Automation
Notes:
TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-553-0016 Fax: (763) 553-0708
www.turck.com
M130
Courtesy of Steven Engineering, Inc. ● 230 Ryan Way, South San Francisco, CA 94080-6370 ● General Inquiries: (800) 670-4183 ● www.stevenengineering.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
