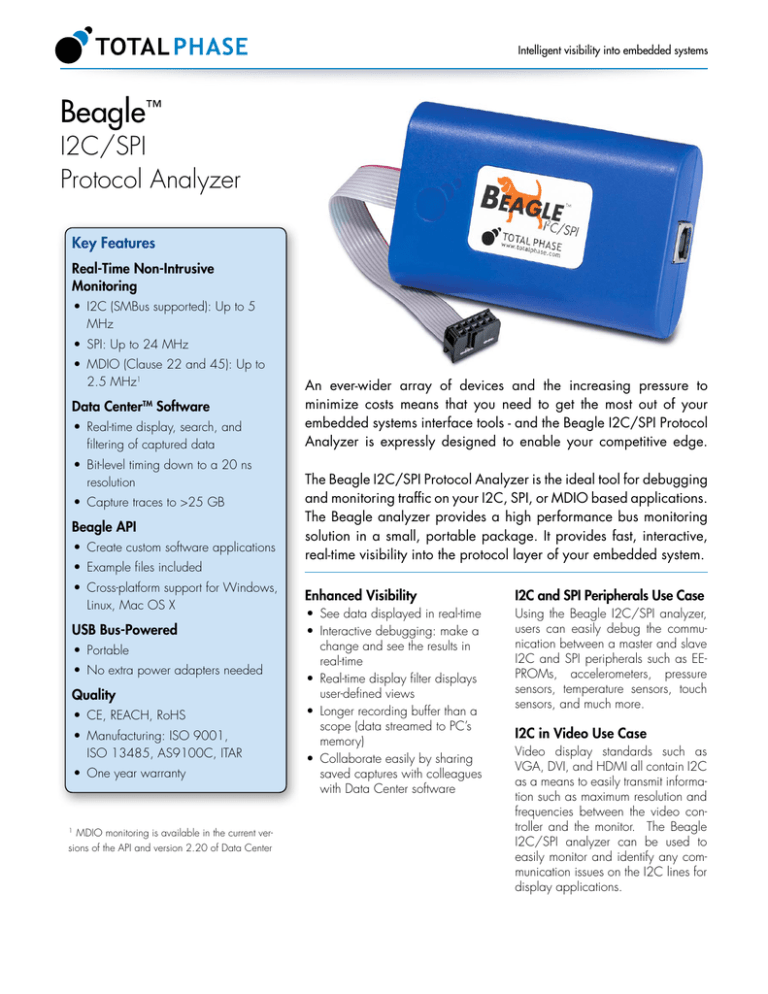

Intelligent visibility into embedded systems
Beagle™
I2C/SPI
Protocol Analyzer
Key Features
Real-Time Non-Intrusive
Monitoring
• I2C (SMBus supported): Up to 5
MHz
• SPI: Up to 24 MHz
• MDIO (Clause 22 and 45): Up to
2.5 MHz1
Data CenterTM Software
• Real-time display, search, and
filtering of captured data
• Bit-level timing down to a 20 ns
resolution
• Capture traces to >25 GB
Beagle API
• Create custom software applications
• Example files included
• Cross-platform support for Windows,
Linux, Mac OS X
USB Bus-Powered
• Portable
• No extra power adapters needed
Quality
• CE, REACH, RoHS
• Manufacturing: ISO 9001,
ISO 13485, AS9100C, ITAR
• One year warranty
1
MDIO monitoring is available in the current versions of the API and version 2.20 of Data Center
An ever-wider array of devices and the increasing pressure to
minimize costs means that you need to get the most out of your
embedded systems interface tools - and the Beagle I2C/SPI Protocol
Analyzer is expressly designed to enable your competitive edge.
The Beagle I2C/SPI Protocol Analyzer is the ideal tool for debugging
and monitoring traffic on your I2C, SPI, or MDIO based applications.
The Beagle analyzer provides a high performance bus monitoring
solution in a small, portable package. It provides fast, interactive,
real-time visibility into the protocol layer of your embedded system.
Enhanced Visibility
I2C and SPI Peripherals Use Case
• See data displayed in real-time
• Interactive debugging: make a
change and see the results in
real-time
• Real-time display filter displays
user-defined views
• Longer recording buffer than a
scope (data streamed to PC’s
memory)
• Collaborate easily by sharing
saved captures with colleagues
with Data Center software
Using the Beagle I2C/SPI analyzer,
users can easily debug the communication between a master and slave
I2C and SPI peripherals such as EEPROMs, accelerometers, pressure
sensors, temperature sensors, touch
sensors, and much more.
I2C in Video Use Case
Video display standards such as
VGA, DVI, and HDMI all contain I2C
as a means to easily transmit information such as maximum resolution and
frequencies between the video controller and the monitor. The Beagle
I2C/SPI analyzer can be used to
easily monitor and identify any communication issues on the I2C lines for
display applications.
Beagle™ I2C/SPI Protocol Analyzer
Applications
Sensors
Video
Accelerometers
Pressure
Temperature
Light
VGA
DVI
HDMI
Industrial and Home
Automation
Motor controls
Lighting controls
Audio Processing‌
Codecs
Signal Processing
Specifications
Software
Hardware
The Data Center Software is a bus monitoring software
application that displays captured USB, I2C, SPI, and
CAN bus data in true real-time through the Beagle™ line
of hardware protocol analyzers and the Komodo™ line
of CAN interfaces.
™
Data Center Software Features
• LiveDisplay™ technology allows for real-time
interactive display and analysis of I2C (SMBus
decoding supported), SPI, or MDIO traffic
• LiveFilter™ and LiveSearch™ tools allow for real-time
interactive filtering and searching
• Collaborate easily by sharing capture files
• Export saved capture files to CSV format
Beagle API and LabVIEW Support
• Create custom applications using the flexible,
powerful, and well-documented Beagle API
• 32- and 64-bit support for C/C++/C#, Python,
.NET, VB.Net, VB 6
• LabVIEW Instrument drivers
Operating Systems Supported (32-bit and 64-bit)
• Windows: XP, Vista, 7, 8, 8.1
• Linux: Red Hat, SuSE, Ubuntu, Fedora, Arch,
CentOS, Debian
• Mac OS X: 10.4-10.9
Target Data Monitoring
I2C: Up to 5 MHz
SPI: Up to 24 MHz
MDIO: Up to 2.5 MHz
Target Bus Interface
I2C, SPI, MDIO
Host Bus Interface
USB 2.0
Type B receptacle
Target Bus Cable
10-pin ribbon cable
1.27 mm (0.05”) pitch
130.175 mm (5 1/8”) length
Target Bus Connector
Type: 2x5 IDC female, 2.54 mm (0.10”) pitch
Pinout: Power: GND (2,10), NC/+5V (4,6)
I2C: SCL (1), SDA (3)
SPI: MISO (5), SCLK (7), MOSI (8), SS (9)
MDIO: MDC (7), MDIO (8)
DC Characteristics
Target Power: +5V, 25 mA max
I2C/SPI/MDIO Signal: 3.3V, 10 mA
Dimensions (W x D x L)
55.6 x 22.2 x 89 mm (2.19” x 0.87” x 3.5”)
Weight
64 g (0.14 lbs)
Operating Temperature
10 to 35 oC (50 to 95 oF)
Ordering information
Beagle I2C/SPI Protocol Analyzer
Part Number
Country of Origin
HTS
ECCN
TP320121
USA
9030890100
EAR99
Data Center
+1 (408) 850-6501
| [email protected] | www.totalphase.com
©2014 Total Phase, Inc. All rights reserved.
R20140321
