ct132-br

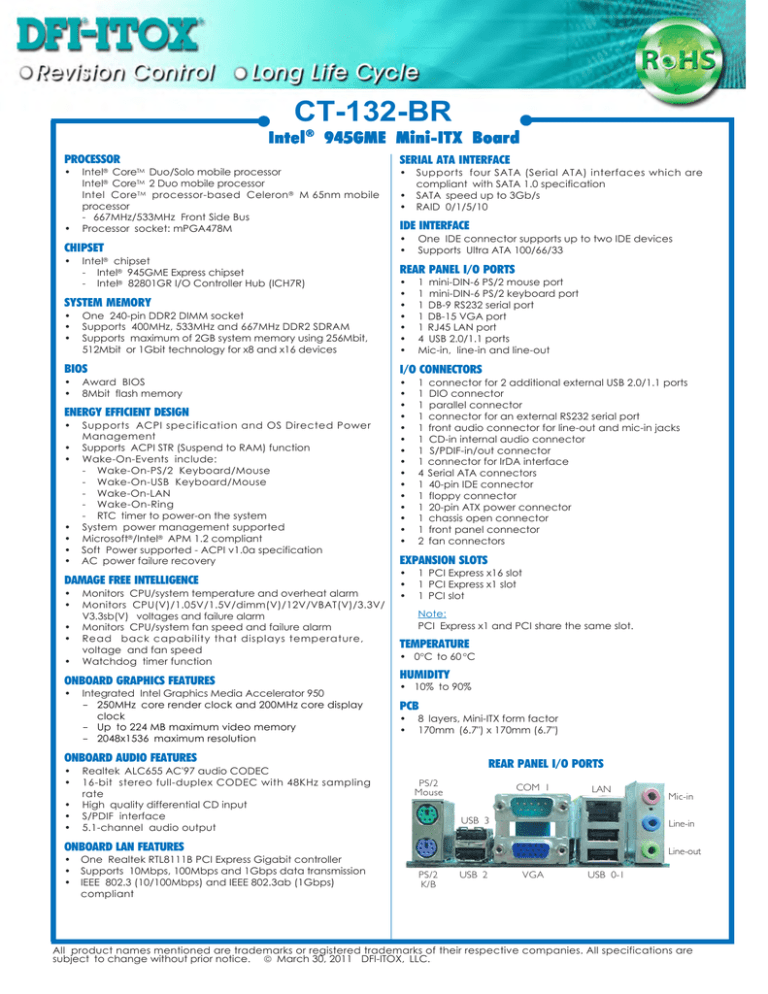

CT-132-BR
Intel ® 945GME Mini-ITX Board
PROCESSOR
•
•
Intel® CoreTM Duo/Solo mobile processor
Intel® CoreTM 2 Duo mobile processor
Intel Core TM processor-based Celeron ® M 65nm mobile
processor
- 667MHz/533MHz Front Side Bus
Processor socket: mPGA478M
CHIPSET
•
Intel® chipset
- Intel® 945GME Express chipset
- Intel® 82801GR I/O Controller Hub (ICH7R)
SYSTEM MEMORY
•
•
•
One 240-pin DDR2 DIMM socket
Supports 400MHz, 533MHz and 667MHz DDR2 SDRAM
Supports maximum of 2GB system memory using 256Mbit,
512Mbit or 1Gbit technology for x8 and x16 devices
BIOS
•
•
Award BIOS
8Mbit flash memory
ENERGY EFFICIENT DESIGN
•
•
•
•
•
•
•
Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-LAN
- Wake-On-Ring
- RTC timer to power-on the system
System power management supported
Microsoft®/Intel® APM 1.2 compliant
Soft Power supported - ACPI v1.0a specification
AC power failure recovery
DAMAGE FREE INTELLIGENCE
•
•
•
•
•
Monitors CPU/system temperature and overheat alarm
Monitors CPU(V)/1.05V/1.5V/dimm(V)/12V/VBAT(V)/3.3V/
V3.3sb(V) voltages and failure alarm
Monitors CPU/system fan speed and failure alarm
Read back capability that displays temperature,
voltage and fan speed
Watchdog timer function
ONBOARD GRAPHICS FEATURES
•
Integrated Intel Graphics Media Accelerator 950
- 250MHz core render clock and 200MHz core display
clock
- Up to 224 MB maximum video memory
- 2048x1536 maximum resolution
SERIAL ATA INTERFACE
•
•
•
Supports four SATA (Serial ATA) interfaces which are
compliant with SATA 1.0 specification
SATA speed up to 3Gb/s
RAID 0/1/5/10
IDE INTERFACE
•
•
One IDE connector supports up to two IDE devices
Supports Ultra ATA 100/66/33
REAR PANEL I/O PORTS
•
•
•
•
•
•
•
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 DB-9 RS232 serial port
1 DB-15 VGA port
1 RJ45 LAN port
4 USB 2.0/1.1 ports
Mic-in, line-in and line-out
I/O CONNECTORS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1
1
1
1
1
1
1
1
4
1
1
1
1
1
2
connector for 2 additional external USB 2.0/1.1 ports
DIO connector
parallel connector
connector for an external RS232 serial port
front audio connector for line-out and mic-in jacks
CD-in internal audio connector
S/PDIF-in/out connector
connector for IrDA interface
Serial ATA connectors
40-pin IDE connector
floppy connector
20-pin ATX power connector
chassis open connector
front panel connector
fan connectors
EXPANSION SLOTS
•
•
•
1 PCI Express x16 slot
1 PCI Express x1 slot
1 PCI slot
Note:
PCI Express x1 and PCI share the same slot.
TEMPERATURE
• 0oC to 60 oC
HUMIDITY
• 10% to 90%
PCB
•
•
8 layers, Mini-ITX form factor
170mm (6.7") x 170mm (6.7")
ONBOARD AUDIO FEATURES
•
•
•
•
•
Realtek ALC655 AC'97 audio CODEC
16-bit stereo full-duplex CODEC with 48KHz sampling
rate
High quality differential CD input
S/PDIF interface
5.1-channel audio output
REAR PANEL I/O PORTS
PS/2
Mouse
COM 1
LAN
USB 3
Line-in
ONBOARD LAN FEATURES
•
•
•
One Realtek RTL8111B PCI Express Gigabit controller
Supports 10Mbps, 100Mbps and 1Gbps data transmission
IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps)
compliant
Mic-in
Line-out
PS/2
K/B
USB 2
VGA
USB 0-1
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice. © March 30, 2011 DFI-ITOX, LLC.
