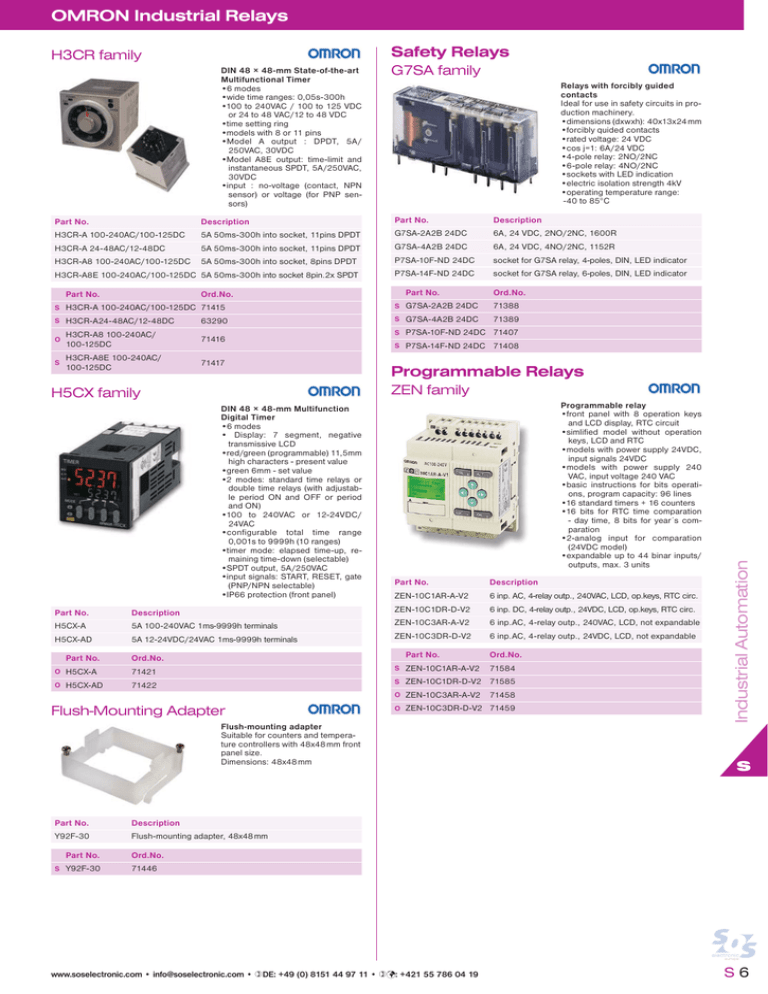

OMRON Industrial Relays
Safety Relays
H3CR family
DIN 48 × 48-mm State-of-the-art
Multifunctional Timer
•6 modes
•wide time ranges: 0,05s-300h
•100 to 240VAC / 100 to 125 VDC
or 24 to 48 VAC/12 to 48 VDC
•time setting ring
•models with 8 or 11 pins
•Model A output : DPDT, 5A/
250VAC, 30VDC
•Model A8E output: time-limit and
instantaneous SPDT, 5A/250VAC,
30VDC
•input : no-voltage (contact, NPN
sensor) or voltage (for PNP sensors)
G7SA family
Relays with forcibly guided
contacts
Ideal for use in safety circuits in production machinery.
•dimensions (dxwxh): 40x13x24 mm
•forcibly quided contacts
•rated voltage: 24 VDC
•cos j=1: 6A/24 VDC
•4-pole relay: 2NO/2NC
•6-pole relay: 4NO/2NC
•sockets with LED indication
•electric isolation strength 4kV
•operating temperature range:
-40 to 85°C
Part No.
Description
Part No.
Description
H3CR-A 100-240AC/100-125DC
5A 50ms-300h into socket, 11pins DPDT
G7SA-2A2B 24DC
6A, 24 VDC, 2NO/2NC, 1600R
H3CR-A 24-48AC/12-48DC
5A 50ms-300h into socket, 11pins DPDT
G7SA-4A2B 24DC
6A, 24 VDC, 4NO/2NC, 1152R
5A 50ms-300h into socket, 8pins DPDT
P7SA-10F-ND 24DC
socket for G7SA relay, 4-poles, DIN, LED indicator
H3CR-A8E 100-240AC/100-125DC 5A 50ms-300h into socket 8pin.2x SPDT
P7SA-14F-ND 24DC
socket for G7SA relay, 6-poles, DIN, LED indicator
Part No.
Ord.No.
Part No.
Ord.No.
S H3CR-A 100-240AC/100-125DC 71415
S G7SA-2A2B 24DC
71388
S H3CR-A24-48AC/12-48DC
S G7SA-4A2B 24DC
71389
63290
H3CR-A8 100-240AC/
O
100-125DC
71416
H3CR-A8E 100-240AC/
S
100-125DC
71417
DIN 48 × 48-mm Multifunction
Digital Timer
•6 modes
• Display: 7 segment, negative
transmissive LCD
•red/green (programmable) 11,5mm
high characters - present value
•green 6mm - set value
•2 modes: standard time relays or
double time relays (with adjustable period ON and OFF or period
and ON)
•100 to 240VAC or 12-24VDC/
24VAC
•configurable total time range
0,001s to 9999h (10 ranges)
•timer mode: elapsed time-up, remaining time-down (selectable)
•SPDT output, 5A/250VAC
•input signals: START, RESET, gate
(PNP/NPN selectable)
•IP66 protection (front panel)
Description
H5CX-A
5A 100-240VAC 1ms-9999h terminals
H5CX-AD
5A 12-24VDC/24VAC 1ms-9999h terminals
Part No.
71421
O H5CX-AD
71422
Flush-Mounting Adapter
Programmable relay
•front panel with 8 operation keys
and LCD display, RTC circuit
•simlified model without operation
keys, LCD and RTC
•models with power supply 24VDC,
input signals 24VDC
•models with power supply 240
VAC, input voltage 240 VAC
•basic instructions for bits operations, program capacity: 96 lines
•16 standard timers + 16 counters
•16 bits for RTC time comparation
- day time, 8 bits for year´s comparation
•2-analog input for comparation
(24VDC model)
•expandable up to 44 binar inputs/
outputs, max. 3 units
Part No.
Description
ZEN-10C1AR-A-V2
6 inp. AC, 4-relay outp., 240VAC, LCD, op.keys, RTC circ.
ZEN-10C1DR-D-V2
6 inp. DC, 4-relay outp., 24VDC, LCD, op.keys, RTC circ.
ZEN-10C3AR-A-V2
6 inp.AC, 4-relay outp., 240VAC, LCD, not expandable
ZEN-10C3DR-D-V2
6 inp.AC, 4-relay outp., 24VDC, LCD, not expandable
Part No.
Description
Y92F-30
Flush-mounting adapter, 48x48 mm
Part No.
Ord.No.
S ZEN-10C1AR-A-V2
71584
S ZEN-10C1DR-D-V2
71585
O ZEN-10C3AR-A-V2
71458
O ZEN-10C3DR-D-V2 71459
Flush-mounting adapter
Suitable for counters and temperature controllers with 48x48 mm front
panel size.
Dimensions: 48x48 mm
S Y92F-30
71408
Programmable Relays
Part No.
Ord.No.
O H5CX-A
S P7SA-14F-ND 24DC
ZEN family
H5CX family
Part No.
S P7SA-10F-ND 24DC 71407
Industrial Automation
H3CR-A8 100-240AC/100-125DC
S
Ord.No.
71446
www.soselectronic.com • [email protected] • DE: +49 (0) 8151 44 97 11 • : +421 55 786 04 19
S6
