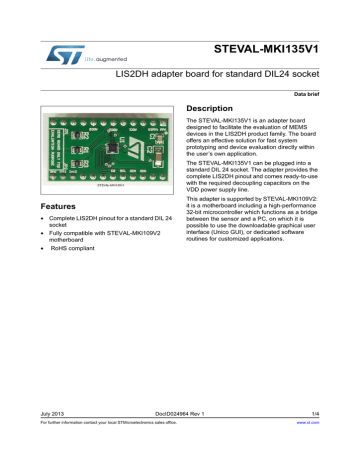

STEVAL-MKI135V1 LIS2DH adapter board for standard DIL24 socket Description

STEVAL-MKI135V1 LIS2DH adapter board for standard DIL24 socket Description
STEVAL-MKI135V1
LIS2DH adapter board for standard DIL24 socket
Data brief
Description
The STEVAL-MKI135V1 is an adapter board
designed to facilitate the evaluation of MEMS
devices in the LIS2DH product family. The board
offers an effective solution for fast system
prototyping and device evaluation directly within
the user’s own application.
The STEVAL-MKI135V1 can be plugged into a
standard DIL 24 socket. The adapter provides the
complete LIS2DH pinout and comes ready-to-use
with the required decoupling capacitors on the
VDD power supply line.
Features
• Complete LIS2DH pinout for a standard DIL 24
socket
• Fully compatible with STEVAL-MKI109V2
motherboard
•
This adapter is supported by STEVAL-MKI109V2:
it is a motherboard including a high-performance
32-bit microcontroller which functions as a bridge
between the sensor and a PC, on which it is
possible to use the downloadable graphical user
interface (Unico GUI), or dedicated software
routines for customized applications.
RoHS compliant
July 2013
DocID024964 Rev 1
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
Schematic diagram
1
STEVAL-MKI135V1
Schematic diagram
Figure 1. STEVAL- MKI135V1 schematic circuit
3
4
ADC2
ADC3
12
R0
ADC3
ADC1
13
ADC2
ADC1
R0
R2
Vdd
U1
LIS2DH
GND
SDA
GND
SDO
GND
CS
Vdd/IO
SDO
CS
R1
7
2
5
+ C2
10uF
SCL
INT1
SDA
C1
100nF
1
INT2
SCL
6
Vdd
14
R3
R0
Vdd
JP1
Vdd/IO
11
ADC1
10
ADC2
9
ADC3
8
Vdd
1
2
3
4
5
6
7
8
9
10
11
12
JP2
24
23
22
21
20
19
18
17
16
15
14
13
SDO
SDA
SCL
CS
INT2
INT1
INT1
INT2
Header 12Header 12
Vdd/IO
AM17539v1
2/4
DocID024964 Rev 1
STEVAL-MKI135V1
2
Revision history
Revision history
Table 1. Document revision history
Date
Revision
08-Jul-2013
1
Changes
Initial release.
DocID024964 Rev 1
3/4
4
STEVAL-MKI135V1
