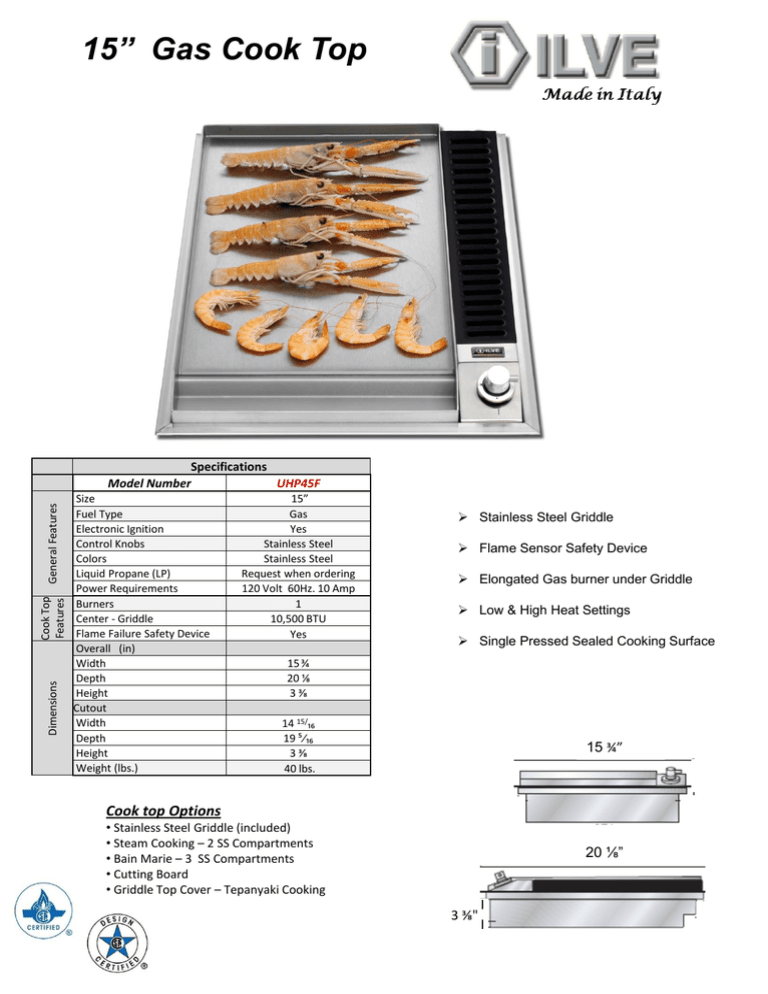

15” Gas Cook Top Specifications Model Number UHP45F

15”  Gas Cook Top Specifications Model Number UHP45F
15” Gas Cook Top
Dimensions
Cook Top
Features
General Features
Specifications
Model Number
UHP45F
Size
Fuel Type
Electronic Ignition
Control Knobs
Colors
Liquid Propane (LP)
Power Requirements
Burners
Center - Griddle
Flame Failure Safety Device
Overall (in)
Width
Depth
Height
Cutout
Width
Depth
Height
Weight (lbs.)
15”
Gas
Yes
Stainless Steel
Stainless Steel
Request when ordering
120 Volt 60Hz. 10 Amp
1
10,500 BTU
Yes
 Stainless Steel Griddle
 Flame Sensor Safety Device
 Elongated Gas burner under Griddle
 Low & High Heat Settings
 Single Pressed Sealed Cooking Surface
15 ¾
20 ⅛
3⅜
14 15/₁₆
19 ⁵⁄₁₆
3⅜
40 lbs.
15 ¾”
Cook top Options
• Stainless Steel Griddle (included)
• Steam Cooking – 2 SS Compartments
• Bain Marie – 3 SS Compartments
• Cutting Board
• Griddle Top Cover – Tepanyaki Cooking
20 ⅛”
3 ⅜"
