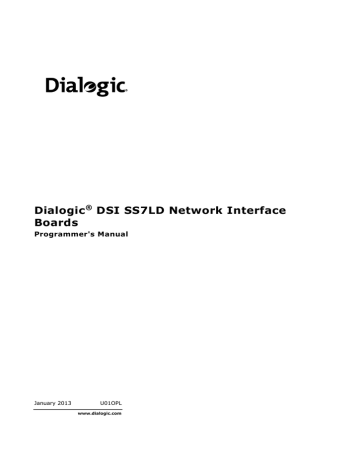

SS7LD Programmer's Manual

SS7LD Programmer's Manual

Dialogic

Boards

®

DSI SS7LD Network Interface

Programmer's Manual

January 2013 U01OPL

www.dialogic.com

Copyright and Legal Notice

Copyright © 2010-2013 Dialogic Inc. All Rights Reserved. You may not reproduce this document in whole or in part without permission in writing from Dialogic Inc. at the address provided below.

All contents of this document are furnished for informational use only and are subject to change without notice and do not represent a commitment on the part of Dialogic Inc. and its affiliates or subsidiaries (“Dialogic”). Reasonable effort is made to ensure the accuracy of the information contained in the document. However, Dialogic does not warrant the accuracy of this information and cannot accept responsibility for errors, inaccuracies or omissions that may be contained in this document.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH DIALOGIC® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED,

BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN

A SIGNED AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC ASSUMES NO LIABILITY WHATSOEVER, AND DIALOGIC DISCLAIMS

ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY INTELLECTUAL

PROPERTY RIGHT OF A THIRD PARTY.

Dialogic products are not intended for use in certain safety-affecting situations. Please see http://www.dialogic.com/company/termsof-use.aspx for more details.

Due to differing national regulations and approval requirements, certain Dialogic products may be suitable for use only in specific countries, and thus may not function properly in other countries. You are responsible for ensuring that your use of such products occurs only in the countries where such use is suitable. For information on specific products, contact Dialogic Inc. at the address indicated below or on the web at www.dialogic.com.

It is possible that the use or implementation of any one of the concepts, applications, or ideas described in this document, in marketing collateral produced by or on web pages maintained by Dialogic may infringe one or more patents or other intellectual property rights owned by third parties. Dialogic does not provide any intellectual property licenses with the sale of Dialogic products other than a license to use such product in accordance with intellectual property owned or validly licensed by Dialogic and no such licenses are provided except pursuant to a signed agreement with Dialogic. More detailed information about such intellectual property is available from Dialogic’s legal department at 1504 McCarthy Boulevard, Milpitas, CA 95035-7405 USA. Dialogic encourages all users of its

products to procure all necessary intellectual property licenses required to implement any concepts or applications and does not condone or encourage any intellectual property infringement and disclaims any responsibility related thereto.

These intellectual property licenses may differ from country to country and it is the responsibility of those who develop the concepts or applications to be aware of and comply with different national license requirements.

Dialogic, Dialogic Pro, Dialogic Blue, Veraz, Brooktrout, Diva, Diva ISDN, Making Innovation Thrive, Video is the New Voice,

VisionVideo, Diastar, Cantata, TruFax, SwitchKit, SnowShore, Eicon, Eiconcard, NMS Communications, NMS (stylized), SIPcontrol,

Exnet, EXS, Vision, PowerMedia, PacketMedia, BorderNet, inCloud9, I-Gate, ControlSwitch, NaturalAccess, NaturalCallControl,

NaturalConference, NaturalFax and Shiva, among others as well as related logos, are either registered trademarks or trademarks of

Dialogic Inc. and its affiliates or subsidiaries. Dialogic's trademarks may be used publicly only with permission from Dialogic. Such permission may only be granted by Dialogic’s legal department at 1504 McCarthy Boulevard, Milpitas, CA 95035-7405 USA. Any authorized use of Dialogic's trademarks will be subject to full respect of the trademark guidelines published by Dialogic from time to time and any use of Dialogic’s trademarks requires proper acknowledgement.

The names of actual companies and products mentioned herein are the trademarks of their respective owners.

This document discusses one or more open source products, systems and/or releases. Dialogic is not responsible for your decision to use open source in connection with Dialogic products (including without limitation those referred to herein), nor is Dialogic responsible for any present or future effects such usage might have, including without limitation effects on your products, your business, or your intellectual property rights.

Publication Date: January 2013

Document Number: U01OPL

2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Revision History

Issue

3

Date

10-Jan-13

2

1

13-Jun-11

17-Dec-10

Description

Addition of drop and insert functionality with MVD_MSG_RESETSWX and

MVD_MSG_SC_CONNECT messages.

General updates including monitoring modes, T1/E1 configuration (on a per board basis), return status values and addition of 8 link license.

GA release.

Initial release.

Note: The current version of this guide can be found at: http://www.dialogic.com/support/helpweb/signaling

Contents

Revision History ............................................................................................................ 3

1 Introduction ........................................................................................................ 5

1.1

Related Information ................................................................................................................ 5

2 Specification ........................................................................................................ 6

2.1

Product Identifier .................................................................................................................... 6

2.2

Capacity ................................................................................................................................ 6

2.3

Host Interface ........................................................................................................................ 7

2.4

T1/E1 Digital Trunk Interfaces .................................................................................................. 7

2.5

CT bus Interface ..................................................................................................................... 7

2.6

Protocol Resource Support ....................................................................................................... 7

2.7

Visual Indicators ..................................................................................................................... 8

2.8

Power Requirements ............................................................................................................... 9

2.9

Physical Specification .............................................................................................................. 9

2.10

Environmental Specification ..................................................................................................... 9

2.11

Safety, EMC and Telecommunications Specifications ................................................................. 10

2.12

Reliability ............................................................................................................................ 10

2.13

Software Licenses ................................................................................................................. 10

2.13.1

Run Modes ............................................................................................................... 11

2.14

Regulatory and Geographic Considerations .............................................................................. 11

3 Configuration and Operation ............................................................................. 13

3.1

Board Code File .................................................................................................................... 13

3.2

Running MTP3 and ISUP ........................................................................................................ 13

3.2.1

Running MTP3 .......................................................................................................... 14

3.2.2

Running ISUP ........................................................................................................... 14

3.3

Monitoring ........................................................................................................................... 14

3.4

Using the Dialogic

®

SyncRoute Connector ................................................................................ 15

3.5

Switching Timeslots between LIUs .......................................................................................... 15

3.5.1

Cross Connect Operation using Messages .................................................................... 16

3.5.2

Interconnecting LIUs using STREAM_XCON .................................................................. 16

4 Message Reference ............................................................................................ 18

4.1

Message Summary Table ....................................................................................................... 19

4.2

Software Module IDs for SS7LD Board ..................................................................................... 21

4.3

Message Status Summary ...................................................................................................... 22

3

Contents

4.4

General Configuration Messages ............................................................................................. 23

4.4.1

SSD_MSG_RESET - SSD Reset Request ....................................................................... 24

4.4.2

SSD_MSG_RST_BOARD - Board Reset Request ............................................................ 25

4.4.3

SSD_MSG_BOARD_INFO - Board Information Request .................................................. 26

4.4.4

MGT_MSG_CONFIG0 - Board Configuration Request...................................................... 28

4.4.5

MGT_MSG_L1_CONFIG - Layer 1 Configuration Request ................................................ 30

4.4.6

MGT_MSG_L1_END - Layer 1 Configuration End ........................................................... 32

4.5

Hardware Control Messages ................................................................................................... 33

4.5.1

LIU_MSG_CONFIG - LIU Configuration Request ............................................................ 34

4.5.2

LIU_MSG_CONTROL - LIU Control Request .................................................................. 37

4.5.3

LIU_MSG_R_CONFIG - LIU Read Configuration Request................................................ 38

4.5.4

LIU_MSG_R_CONTROL - LIU Read Control Request ....................................................... 39

4.5.5

MVD_MSG_CNFCLOCK - Configure Clock Request ......................................................... 41

4.5.6

MVD_MSG_CLOCK_PRI - Configure Clock Priority Request ............................................. 44

4.5.7

MVD_MSG_RESETSWX - Reset Switch Request............................................................. 45

4.5.8

MVD_MSG_SC_CONNECT - Connect Request ............................................................... 46

4.6

Signaling Interface Messages ................................................................................................. 49

4.7

Event Indication Messages ..................................................................................................... 50

4.7.1

SSD_MSG_STATE_IND - Board Status Indication .......................................................... 51

4.7.2

MVD_MSG_CLK_IND - Clock Event Indication ............................................................... 52

4.7.3

MVD_MSG_LIU_STATUS - LIU Status Indication ........................................................... 53

4.7.4

DVR_MSG_TRACE_MASK - Set Trace Mask Request ...................................................... 54

4.8

Status Request Messages ...................................................................................................... 57

4.8.1

LIU_MSG_R_STATE – LIU Read State Request ............................................................. 58

4.8.2

LIU_MSG_R_STATS - LIU Read Statistics Request......................................................... 59

4.8.3

MVD_MSG_R_CLK_STATUS – Clock Status Request ...................................................... 61

4.8.4

MGT_MSG_R_BRDINFO - Read Board Info Request ....................................................... 62

4.8.5

DVR_MSG_R_L1_STATS - Link Statistics Request ......................................................... 64

Appendix A.

Protocol Configuration Using Discrete Messages .................................... 66

A.1

Protocol Configuration Using Individual Messages ..................................................................... 66

A.2

Monitoring Configuration Using Individual Messages .................................................................. 69

Tables

Table 1. Dialogic ® DSI SS7LD Software Licenses ................................................................................ 11

Table 2. Link License Resource Requirements ..................................................................................... 11

Table 3. Message Summary ............................................................................................................. 19

Table 4. DSI SS7LD Board Software Module IDs ................................................................................. 21

Table 5. Message Status Responses .................................................................................................. 22

Figures

Figure 1. End Bracket Showing Connectors and User LEDs ..................................................................... 8

Figure 2. Physical Location of SyncRoute Connector ............................................................................ 15

Figure 3. Drop and Insert ................................................................................................................ 17

Figure 4. Protocol Configuration Message Sequence Diagram ............................................................... 68

4

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

1

1.1

Introduction

Dialogic

®

DSI SS7LD Network Interface Boards are specialized T1/E1 SS7 signaling boards suitable for use in PCI Express form factor systems. The boards use the common Dialogic

®

DSI software API to the application that enables applications to be ported easily between hardware architectures.

The boards provide a hardware platform to enable running Dialogic

®

DSI Protocol

Stacks for the realization of Signaling System Number 7 signaling nodes. In addition, the DSI SS7LD Boards can be used to build low cost monitoring applications. The boards can be used under the Linux, Solaris SPARC and Solaris x86 operating systems.

This manual is the Programmer’s Manual for the Dialogic

®

DSI SS7LD range of network interface boards. It is targeted for system developers who are integrating the boards and who have chosen to develop applications that use the underlying DSI Protocol

Stack. The manual includes information on the operation of the boards and the SS7 software stack.

The manual should be used in conjunction with the Dialogic

®

Distributed Signaling

Interface Components - Software Environment Programmer’s Manual and the

appropriate Installation Guide and Regulatory Notice for the board. These and other supporting documentation, including the Programmer’s Manuals for the individual protocol modules, are listed in Section 1.1, Related Information.

Note: Users of the Dialogic

®

DSI SS7MD, DSI SPCI4, and DSI SPCI2S Network Interface Boards should refer to separate documentation that covers those boards.

Related Information

Refer to the following for related information:

Dialogic

®

Distributed Signaling Interface Components - Software Environment

Programmer’s Manual

Dialogic

®

DSI SS7LD Network Interface Board Installation Guide

Dialogic

®

DSI SS7LDH4Q Network Interface Board Regulatory Notices

Dialogic

®

SS7 Protocols MTP2 Programmer’s Manual

Dialogic

®

SS7 Protocols MTP3 Programmer’s Manual

Dialogic

®

SS7 Protocols ISUP Programmer's Manual

Dialogic

®

DSI Protocol Stacks SNMP User Manual

Dialogic

®

DSI Protocol Stacks - Host Licensing User Guide

Current software and documentation supporting Dialogic

® product data sheets and information on Dialogic

®

DSI SS7LD Boards as well as

DSI SS7 product and services is available at http:www.dialogic.com/support/helpweb/signaling .

5

2 Specification

2

2.1

2.2

Specification

This section provides information about the physical specification and capacity of the product:

• Product Identifier

• Capacity

• Host Interface

• T1/E1 Digital Trunk Interfaces

• CT bus Interface

• Protocol Resource Support

• Visual Indicators

• Power Requirements

• Physical Specification

• Environmental Specification

• Safety, EMC and Telecommunications Specifications

• Reliability

• Software Licenses

• Regulatory and Geographic Considerations

Product Identifier

The Dialogic

®

DSI SS7LD Network Interface Board product family includes a single PCI

Express form factor board with the following designation:

Dialogic

®

DSI SS7LD Network Interface Board - SS7LDH4Q

Within this document, the generic term “SS7LD” is used to cover the SS7LDH4Q product.

Capacity

The capacity of the DSI SS7LDH4Q board is described as follows:

Digital interfaces

— Four T1 or E1 (software selectable per board)

SS7 links

Able to terminate up to 4 Q.703 Low Speed Links (LSL) at 64kbit/s, 56kbit/s or

48kbit/s or monitor up to 8 simplex Q.703 LSL (eg. up to 4 links duplex).

Dialogic

®

DSI Protocol Stacks

MTP2 on board; other protocols are host-based.

MTP3 and ISUP optionally run as host-based protocols embedded within the ssdl binary.

6

2.3

2.4

2.5

2.6

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Host Interface

The DSI SS7LDH4Q board has a x1 PCI Express connector. It can be installed in x1, x4, x8, or x16 PCI Express slots.

T1/E1 Digital Trunk Interfaces

The properties of the four T1/E1 digital trunk interfaces are as follows:

• Standard

— Four interfaces software configurable as either T1 or E1 on a per board basis.

— High impedance software selectable on a per port basis

• Pulse mask

— T1: ANSI T1.403

— E1: ITU-T G.703

• Data rate

— T1: 1544 kbits/s ± 50 ppm

— E1: 2048 kbits/s ± 50 ppm

• Frame format

— T1: D3/D4 and ESF

— E1: E1 and E1-CRC4

• Line codes

— T1: B8ZS and AMI

— E1: HDB3 and AMI

• Connector type

— RJ-48C

CT bus Interface

The board supports the Dialogic

®

SyncRoute Connector which is a 16-pin SyncRoute

Connector providing Limited H.100 computer telephony capabilities allowing a common telecom clock to be shared across multiple boards. The SyncRoute bus supports the clock/frame sync synchronization and clock fall back features of the CT bus.

Protocol Resource Support

When used in a signaling node, the DSI SS7LDH4Q board supports the Message

Transfer Part (MTP) running on the board and optionally other protocols including

MTP3, ISUP, TUP, SCCP, TCAP, MAP, INAP and IS41 running on the host. The protocols

are enabled by software licenses. See Section 2.13, “Software Licenses” on page 10.

The DSI SS7LDH4Q board supports passive monitoring of HDLC format data links including, for example, SS7, LAPB, LAPD, ISDN, and DPNSS. In this mode, the received messages are directly reported to the application. For more information on

link monitoring, see Section 3.3 “Monitoring” on page 14.

7

2 Specification

2.7

It is possible to use monitor and receive-transmit protocol operations concurrently on the same signaling board.

Visual Indicators

The DSI SS7LDH4Q board includes the following visual indicators:

General Network Interface Alarm LED: When lit (yellow), indicates that an alarm condition is present on one or more of the trunks. When unlit, alarm conditions are cleared.

Reset/Power LED: When lit (green), indicates that board power is good. When unlit, either power has not been applied to the board, or the board has detected that one or more of the on-board-generated voltages are not correct.

When lit (red), it indicates that the board is in a reset state due to either PCIe Reset from the edge connector being active or one or more of the on-board-generated voltages are not correct.

Figure 1. End Bracket Showing Connectors and User LEDs

8

2.8

2.9

2.10

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Power Requirements

Power requirements are described as follows:

• +12 VDC power

0.25 A max.

• +3.3 VDC power

1.8 A max.

• Power dissipation

8.94 W max.

Physical Specification

Form factor

x1 lane, standard height, half length PCIe board

Dimensions

Board

Length

Height

Packaged

Length

Width

Height

Weight

Board

Packaged board

167.65 mm (6.60 inches)

111.15 mm (4.376 inches)

270 mm (10.7 inches)

225 mm (8.9 inches)

40 mm (1.6 inches)

122 grams

340 grams

Environmental Specification

Environmental specification is described as follows:

• Operating temperature range

+0°C to +55°C

• Storage temperature range

-20°C to +70°C

• Humidity

Non-operating 50% to 85% relative humidity, for 25º C – 70º C.

• Altitude

0 to 15,000 ft

• Vibration

0.1 g, 5 to 100 Hz

9

2 Specification

2.11

2.12

2.13

• Shock

Packaged equipment drop test 36 in (914 mm)

Safety, EMC and Telecommunications Specifications

Safety, EMC and telecommunications specification information is provided by the following:

• Dialogic

®

DSI SS7LDH4Q Network Interface Board Regulatory Notices

Supplied with each product and provides a list of the specifications to which the DSI

SS7LDH4Q board conforms.

• International Declaration of Conformity

See http://www.dialogic.com/declarations.

• Country-Specific Approvals

See the Global Product Approvals list at http://www.dialogic.com/declarations.

Alternatively, contact your Dialogic technical sales representative for more information.

Reliability

Product reliability is described by:

• MTBF Predication

190,000 hours per Telcordia Issue I, Method I, Case I

• Warranty

See Dialogic

®

Telecom Products Warranty Information at http://www.dialogic.com/warranties.

Software Licenses

The DSI SS7LD code file supports different MTP2 link densities on the board. These are enabled using a Host Software License that is to be ordered at the same time as the hardware. The Host Software License licenses a specific number of link resources on the host that may be shared between boards in the same chassis.

For details on how to activate the host license, please refer to Dialogic

®

DSI Protocol

Stacks - Host Licensing User Guide U32SSS see section 1.1 Related Information.

A combination of link types (provided they are supported by the board’s run mode) may be configured by the host (on any board) provided the required link resources are available. A configured link’s resources are freed when either the link is unconfigured or the board on which the link is currently active is reset.

The following table shows the available licenses:

10

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Table 1. Dialogic

®

DSI SS7LD Software Licenses

Software License

SS7SBLDISUP1K

SS7SBLDISUP2K

SS7SBLDISUP4K

SS7SBLDISUP4K8L

Code

ISUP (Small)

ISUP (Regular)

ISUP (Large)

ISUP

Maximum

Number of

Link Sets

2

4

4

8

Capacity

Maximum

Number of

Routes

Maximum

Number of

Circuit

Groups

64

64

64

64

44

64

128

128

Maximum

Numbers of Circuits

1024

2048

4096

4096

The number of link resources required for each link type is shown below:

Table 2. Link License Resource Requirements

Link Type

LSL (64Kb / 56Kb / 48Kb)

Monitored LSL

Resources Required

1

0.5

2.13.1 Run Modes

The run_mode parameter in either the SS7_BOARD command or the Board Reset

Request message is used to set the operating mode for the ss7l binary and must be the same for all boards within the system.

In the event that the user wishes to change the run mode, it is necessary to restart gctload so that ssdl is restarted.

The following table shows the protocol that will run within ssdl for each run mode. If not running within ssdl then the user can run the protocol as a stand-alone host binary. All protocols that run embedded within ssdl use their own message queue so they require a LOCAL entry in the system.txt file.

Run Mode

MTP2

MTP

ISUP

Protocols running embedded within ssdl

None

MTP3

MTP3 and ISUP

Optional Host Protocols

MTP3, ISUP, SCCP etc

ISUP, SCCP etc

SCCP etc

2.14 Regulatory and Geographic Considerations

Certain functions of the Dialogic

®

DSI SS7LD Network Interface Board, although implemented in hardware, have selectable options that are configured by the software.

A user or integrator must consider the requirements of the application when choosing these settings, but must also consider any local regulatory requirements for the intended deployment location to provide a compliant overall system. As an aid to this process, the table below details some of the areas where the correct selection of configuration options may be required.

11

2 Specification

T1/E1 Ports

Configuration Area

Interface type

Pulse shape

Line code

Frame format

CRC/E-bit operation

CT Bus

Links

Clock priorities

Master/Slave configuration

Bus termination

Link termination or monitoring mode

Configuration Options

liu_type parameter in LIU_CONFIG command liu_type parameter in LIU_CONFIG command line_code parameter in LIU_CONFIG command frame_format parameter in LIU_CONFIG command

CRC_mode parameter in LIU_CONFIG command flags parameter in SS7_BOARD command and options parameter in LIU_CONFIG command flags parameter in SS7_BOARD command flags parameter in SS7_BOARD command

MTP_LINK or MONITOR_LINK commands

Note: For details on these configuration commands please refer to Dialogic

®

Interface Components - Software Environment Programmer’s Manual

Distributed Signaling

12

3

3.1

3.2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Configuration and Operation

Before attempting software configuration, you should gain an understanding of the flexibility of the protocol stack, the run-time options that exist and the mechanisms

that are used to select specific features. These are explained in the Dialogic

®

Distributed Signaling Interface Components - Software Environment Programmer’s

Manual which also describes the basic principles of modules and message passing.

This section provides additional detail on the board-specific product options which are available.

This section provides information about:

Board Code File

Running MTP3 and ISUP

Monitoring

Using the Dialogic

®

SyncRoute Connector

Switching Timeslots between LIUs

Board Code File

The firmware for the SS7LD board is contained within a code file called ss7.dc7 and must be downloaded to the board at run time. The host-based ssdl utility manages this download operation.

The code file is distributed as part of the Dialogic

® be downloaded from the Dialogic website.

DSI Development Package and can

The use of the code file requires a host license which enables the software to run on the board, details on how to use a Host License are given in the Dialogic

®

Distributed

Signaling Interface Components Host Licensing User Guide.

Running MTP3 and ISUP

The Dialogic

Dialogic

®

®

DSI MTP2 Layer protocol module runs on the SS7LD board. The

DSI MTP3 and the Dialogic

®

DSI ISUP Layer protocol modules may be run either as individual host protocols, which need to be separately licensed, or as embedded protocols within the ssdl binary using a ‘bundled license’. The use of the embedded MTP3 and ISUP binaries provided a lower cost solution for low density deployments.

Other SS7 protocol modules (eg. TUP, SCCP, TCAP, MAP, INAP and IS41) are not embedded within the ssdl binary and need to be run separately.

When running MTP3 or ISUP embedded within ssdl, the run_mode should be set to

MTP3 or ISUP and it is NOT necessary (or appropriate) to have a FORK_PROCESS command for the MTP3 or ISUP host binaries.

When running MTP3 and ISUP as separate host binaries run_mode must be set to

MTP2 and a FORK_PROCESS command must be used for MTP3 and ISUP host binaries.

13

3 Configuration and Operation

3.2.1 Running MTP3

Whether MTP3 is running as an individual host binary or embedded within ssdl it is always necessary to declare MTP3 as a LOCAL module in the system.txt configuration file as follows:

LOCAL 0x22 * MTP3 module

It is not necessary (or appropriate) to use the REDIRECT command for MTP3 when using the SS7LD board.

3.2.2 Running ISUP

When using the ISUP protocol, whether ISUP is running as an individual host binary or embedded within ssdl it is always necessary to declare ISUP as a LOCAL module in the system.txt configuration file as follows:

LOCAL 0x23 * ISUP module

It is not necessary (or appropriate) to use the REDIRECT command for ISUP when using the SS7LD board.

Note: For further information on system.txt files refer to the Dialogic

®

Distributed Signaling

Interface Components - Software Environment Programmer’s Manual.

3.3 Monitoring

The board can be used in receive only mode for the purposes of passive monitoring of the signaling traffic.

In this mode the board is able to monitor many HDLC based signaling protocols including SS7, LAPB, Q.921 (ISDN PRI) and DPNSS. The protocol should have a minimum frame length (excluding flags) of 5 octets and a maximum of 278 octets, and must use the CRC polynomial (x16 + x12 + x5 + 1). When operating in monitoring mode, the 3rd and successive identical frames may be filtered.

It is possible to monitor and terminate SS7 links on the same signaling board.

For receive only operation, the board allows the T1/E1 interfaces to be configured in any of the following modes:

 Normal terminated impedance

 High impedance

 Protected Monitoring Point mode (preferred mode of operation for monitoring).

The use of a Protective Monitoring Point provides increased protection to the signal being monitored. When using High Impedance mode care should be taken to avoid long cable runs as this can result in poor signal quality due to signal reflections.

Configuration details are described in section 4.5.1 LIU_MSG_CONFIG - LIU

Configuration Request on page 34).

14

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

3.4 Using the Dialogic

®

SyncRoute Connector

The Dialogic

®

DSI SS7LDH4Q Network Interface Boards have a SyncRoute connector which permits multiple boards within a single system to be synchronized from a single

clock source. The clock source is selected using the MVD_MSG_CNFCLOCK message

and clock priority is set using the MVD_MSG_CLOCK_PRI message.

If you are connecting multiple boards via the SyncRoute bus connector, the bus signal should be terminated on the boards that are located at the ends of the cable. All other boards should be left in their factory default configuration with the SyncRoute termination pins not linked.

To terminate the SyncRoute, install a link clip over the pair of JP7 pins.

Figure 2. Physical Location of SyncRoute Connector

3.5 Switching Timeslots between LIUs

The Dialogic

®

DSI SS7LD Boards support multiple T1/E1 Line Interface Units (LIUs).

The onboard signaling processor handles the SS7 signaling timeslots, while the remaining circuits (voice or data bearer circuits) can optionally be switched to another onboard LIU for distribution to other boards.

Communication between the application and the board is message-based. Initial configuration is typically handled by the s7_mgt protocol configuration utility that takes commands from the config.txt protocol configuration file and generates the necessary configuration messages for the board. Subsequent operation is entirely message driven, with messages being passed in both directions between the board and the application.

15

3 Configuration and Operation

3.5.1

3.5.2

One of the roles of the application is to control the dynamic switching between LIUs.

This section provides details of how to interface with the cross connect switch, including the initial (static) configuration and the subsequent (dynamic) switching. The operation of the switching interface is described using:

 MVD_MSG_SC_CONNECT messages.

 STREAM_XCON config.txt commands.

Note: The use of the STREAM_XCON command and others is explained in the DSI Software

Environment Programmer’s Manual.

Cross Connect Operation using Messages

The application controls initialisation and dynamic changes to switching by sending the

MVD_MSG_SC_CONNECT message to the board. The message is used to make a

connection between a specified timeslot in a source stream and a specified timeslot in the local stream.

The message may be used to set:

 Fixed pattern on local timeslot.

 Simplex local timeslot to local timeslot.

 Duplex local timeslot to local timeslot.

 Remove duplex local timeslot to local timeslot.

Multiple messages should be used to cross connect between LIUs, one per timeslot.

Connections may be removed using the MVD_MSG_RESETSWX message. Use of this

message will reset all connections previously established.

Interconnecting LIUs using STREAM_XCON

Interconnection of two Line Interface Units (LIUs) on the board is also supported through the STREAM_XCON command which controls the cross connect switch on the signaling board, enabling the cross connection of timeslots between any two LIUs within the board. This command simplifies the cross connection enabling a group of timeslots on one LIU to be directly mapped to the same numbered timeslots on a second LIU on the same board using a single command. A typical usage of the

STREAM_XCON command is shown in Figure 3 which implements Drop and Insert functionality.

16

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Figure 3. Drop and Insert

Dialogic® DSI SS7 Network

Interface Board

Signaling

Processor

Signaling processor processes signaling timeslot 16

LIU 0

LIU 1

Stream A

Media timeslots 1-15, 17-31

Signaling on timeslot 16

LIU 2

PSTN or TDM

PBX

LIU 3

Stream B

Media timeslots 1-15, 17-31 connected to the media board

Media Board

E.g. Dialogic® DNI/1210

Digital Network Interface

Board

Stream C

No signaling, stream connected directly to the media board

Use a single STREAM_XCON command to cross-connect the input and output timeslot. The timeslot mask selects which timeslots are cross-connected (0xfffefffe).

Example s7_mgt configuration command:

STREAM_XCON 0 2 3 3 0xfffefffe 0

PSTN or TDM

PBX

17

4 Message Reference

4 Message Reference

This section describes the individual messages that may be sent to or received from a

Dialogic

®

DSI SS7LD Network Interface Board. Some messages are sent by the user's application software, while others are sent by utility programs such as the s7_mgt protocol configuration utility.

Prior to sending any message to the board, the application should call the

GCT_set_instance( ) library function to select which board the message will be sent to. After receiving a message from the board, the application should call the

GCT_get_instance( ) library function to determine which board the message came

from. These library functions are described in the Dialogic

®

Distributed Signaling

Interface Components - Software Environment Programmer’s Manual.

The various messages used are grouped in the following categories:

General Configuration Messages

Hardware Control Messages

Signaling Interface Messages

Event Indication Messages

Status Request Messages

The following section provides a summary of all messages used in this manual. The

format of the message header for all messages is detailed in the Dialogic

®

Distributed

Signaling Interface Components - Software Environment Programmer’s Manual.

18

4.1

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Message Summary Table

The following table lists, by message type, the messages described in this manual.

Table 3. Message Summary

0x2f0d

0x3200

0x3203

0x331b

0x3680

0x3681

0x3689

0x3e20

0x3e21

0x3e34

Message Type

0x0201

0x0202

0x0301

0x06a0

0x0e01

0x0e23

0x1213

0x1e36

0x1e37

0x1e38

0x1e39

0x2214

0x2215

0x2236

0x2e04

Mnemonic

MGT_MSG_SS7_STATE*

MGT_MSG_SS7_EVENT*

MGT_MSG_MTP_EVENT*

SSD_MSG_STATE_IND

MVD_MSG_LIU_STATUS

MVD_MSG_CLK_IND

Description

Link State Indication*

MTP2 Q.791 Event Indication*

MTP3 Q.752 Event Indication*

Board Status Indication

LIU Status Indication

Clock Event Indication

Confirmation of SS7_MSG_TRACE_MASK*

Confirmation of LIU_MSG_R_STATS

Confirmation of LIU_MSG_R_CONFIG

Confirmation of LIU_MSG_R_CONTROL

Confirmation of LIU_MSG_R_STATE

Confirmation of SS7_MSG_R_STATS*

Confirmation of SS7_MSG_R_STATE*

Confirmation of DVR_MSG_R_L1_STATS

Confirmation of

MVD_MSG_R_CLK_STATUS

Confirmation of MGT_MSG_R_BRDINFO

Confirmation of SS7_MSG_RESET*

Confirmation of SS7_MSG_CONFIG*

Confirmation of DVR_MSG_TRACE_MASK

Confirmation of SSD_MSG_RESET

Confirmation of SSD_MSG_RST_BOARD

Confirmation of SSD_MSG_BOARD_INFO

Confirmation of MVD_MSG_CNFCLOCK

Confirmation of MVD_MSG_CLOCK_PRI

Confirmation of LIU_MSG_CONFIG

19

4 Message Reference

0x6e04

0x6f0d

0x7200

0x7203

0x731b

0x7680

0x7681

0x7689

0x7e00

0x7e1f

0x7e20

0x7e21

0x7e34

0x7e35

0x7f10

0x3e35

0x3f10

0x3f17

0x3f18

0x5213

0x5e36

0x5e37

0x5e38

0x5e39

0x6136

0x6214

0x6215

0x631e

Message Type Mnemonic

SS7_MSG_TRACE_MASK*

LIU_MSG_R_STATS

LIU_MSG_R_CONFIG

LIU_MSG_R_CONTROL

LIU_MSG_R_STATE

DVR_MSG_R_L1_STATS

SS7_MSG_R_STATS*

SS7_MSG_R_STATE*

MTP_MSG_R_RT_STATUS*

MVD_MSG_R_CLK_STATUS

MGT_MSG_R_BRDINFO

SS7_MSG_RESET*

SS7_MSG_CONFIG*

DVR_MSG_TRACE_MASK

SSD_MSG_RESET

SSD_MSG_RST_BOARD

SSD_MSG_BOARD_INFO

MVD_MSG_RESETSWX

MVD_MSG_SC_CONNECT

MVD_MSG_CNFCLOCK

MVD_MSG_CLOCK_PRI

LIU_MSG_CONFIG

LIU_MSG_CONTROL

MGT_MSG_CONFIG0

Description

Confirmation of LIU_MSG_CONTROL

Confirmation of MGT_MSG_CONFIG0

Confirmation of MGT_MSG_L1_CONFIG

Confirmation of MGT_MSG_L1_END

Set Trace Mask Request*

LIU Read Statistics Request

LIU Read Configuration Request

LIU_MSG_R_CONTROL

LIU Read State Request

Link Statistics Request

MTP2 Link Statistics Request*

MTP2 Read State Request*

Route Status Request*

Clock Status Request

Read Board Info Request

MTP2 Module Reset Request*

MTP2 Link Configuration Request*

Set Trace Mask Request

SSD Reset Request

Board Reset Request

Board Information Request

Reset Switch Request

Connect Request

Configure Clock Request

Configure Clock Priority Request

LIU Configuration Request

LIU Control Request

Board Configuration Request

20

4.2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Message Type

0x7f17

0x7f18

0x830a

0x830b

0x8403

0x8404

0x8405

0x8f01

0xc30a

0xc30b

0xcf00

Mnemonic

MGT_MSG_L1_CONFIG

MGT_MSG_L1_END

MTP_MSG_PAUSE*

MTP_MSG_RESUME*

MTP_MSG_STATUS*

API_MSG_RX_IND*

MTP_MSG_ACT_SL*

MTP_MSG_DEACT_SL*

API_MSG_TX_REQ *

Description

Layer 1 Configuration Request

Layer 1 Configuration End

Confirmation of MTP_MSG_ACT_SL *

Confirmation of MTP_MSG_DEACT_SL *

MTP Pause Indication*

MTP Resume Indication*

MTP Status Indication*

Received Message Indication*

MTP Link Activation Request*

MTP Link Deactivation Request*

Message for Transmission Request*

* For more information about:

SS7_MSG_XXX messages, consult the Dialogic

®

SS7 Protocols MTP2 Programmer’s

Manual.

MTP_MSG_XXX messages, consult the Dialogic

®

SS7 Protocols MTP3 Programmer’s

Manual.

Software Module IDs for SS7LD Board

The following table details the software modules IDs for all modules running on the

SS7LD board:

Table 4. DSI SS7LD Board Software Module IDs

Mnemonic

MGMT_TASK_ID

MVD_TASK_ID

SS7_TASK_ID

DVR_ALT_TASK_ID

Value

0x8e

0x10

0x71

0x61

Description

SS7LD Board Management Module

SS7LD LIU and Switch Management Module

MTP2 Module

Signaling Driver Module

21

4 Message Reference

4.3 Message Status Summary

The following table shows the valid responses when a response request (rsp_req) is requested in a message.

Table 5. Message Status Responses

Mnemonic

SDE_MSG_OK

SDE_BAD_ID

SDE_BAD_STATE

SDE_BAD_SIG

SDE_UNEX_SIG

SDE_BAD_MSG

SDE_BAD_PARAM

SDE_NO_RESOURCES

SDE_INVALID_NC

SDE_INVALID_VERSION

SDE_LICENCE_ERR

Value

0x04

0x05

0x06

0x07

0x00

0x01

0x02

0x03

0x08

0x09

0x0e

Description

Success

Inappropriate or invalid id in request message

Message received in wrong state

Bad signal received

Unexpected signal received

Unsupported message received

Invalid parameters contained in message

Insufficient internal message resources

Invalid Network Context

Message version is invalid

Failure due to a licensing restriction

22

4.4

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

General Configuration Messages

General configuration messages are typically issued by the s7_mgt protocol configuration utility, in which case they need not, and should not, be generated by the user application software.

If the user elects not to use the s7_mgt protocol configuration utility, it is necessary for the application to build and send messages that:

 configure the ssdl module

 reset each board

 configure each board

 optionally configure additional routes

The messages in the general configuration category include:

SSD_MSG_RESET - SSD Reset Request

SSD_MSG_RST_BOARD - Board Reset Request

SSD_MSG_BOARD_INFO - Board Information Request

MGT_MSG_CONFIG0 - Board Configuration Request

MGT_MSG_L1_END - Layer 1 Configuration End

23

4 Message Reference

4.4.1 SSD_MSG_RESET - SSD Reset Request

Synopsis

Sets up ssd module run-time options at initialization time.

Note: When using the s7_mgt protocol configuration utility, this message is generated by s7_mgt and should not be generated by the user.

Format

type id src dst rsp_req hclass status err_info len

0

3

4

22

Offset

Field Name

3

1

18

2

Size

MESSAGE HEADER

Meaning

SSD_MSG_RESET (0x7680)

0

Sending module ID

SSD_module_ID

Used to request a confirmation.

0

0

0

24

PARAMETER AREA

Name

Reserved. Set to 0. mgmt_id

Reserved. Set to 0. num_boards

Description

This message is used during initialization by the application to reset the ssd module and set up its run-time parameters.

The confirmation message (if requested) indicates success with a status value of 0.

Parameters mgmt_id

The module ID of the management module to which SSD should send board status indications.

num_boards

The maximum number of boards that ssdl is required to manage. This should not exceed 16.

24

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

4.4.2 SSD_MSG_RST_BOARD - Board Reset Request

Synopsis

Reset a single board and download a code file.

Note: When using the s7_mgt protocol configuration utility, this message is generated by s7_mgt and should not be generated by the user.

Format

type id src dst rsp_req hclass status err_info len

0

2

6

24

26

28

Offset

Field Name

2

4

18

2

2

50

Size

MESSAGE HEADER

Meaning

SSD_MSG_RST_BOARD (0x7681) board_id

Sending module ID

SSD_module_ID

Used to request a confirmation.

0

0

0

26 or 78

PARAMETER AREA

Name

board_type

Reserved. Must be set to 0. code_file run_mode options code_file_ext

Description

This message is used by the application during initialization (or reconfiguration) to reset a board and download the code file that contains the operating software for the board. The download operation is supervised by the device driver that reads the binary format code file and transfers it to the board.

The confirmation message (if requested) indicates success with a status value of 0.

This implies that the reset operation has commenced, but does not imply completion.

The application should then wait until a Board Status Indication message is received

that indicates either successful completion of the reset and download operation or failure during the procedure.

Parameters board_type

The type of board to be reset. This must be set to 32 for SS7LD Boards.

code_file

Null terminated string giving the filename of the code file to be downloaded to the board.

25

4 Message Reference

4.4.3 run_mode

Run mode selects the protocols to be run within ssdl (subject to appropriate run-time licenses in place) and should be set to the value shown in the following table:

Value Optional Host Protocols

Run Mode

MTP2

MTP

ISUP

2

3

4

Protocols running embedded within ssdl

None

MTP3

MTP3 and ISUP

MTP3, ISUP, SCCP etc

ISUP, SCCP etc

SCCP etc

options

Bit 0 – Enable SNMP for this board.

Bit 3 – Setting this option forces timestamps to be monotonically increasing.

code_file_ext

This parameter is an alternative way of specifying the cofe file filename which allows longer filenames to be used. It should contain a null terminated filename (optuionally including the path). If the code_file parameter is set to a null value, the code_file_ext parameter will be used. If the code_file parameter is set to a value other than null, this will take precedence and the data in the code_file_ext parameter will be discarded.

SSD_MSG_BOARD_INFO - Board Information Request

Synopsis

Message used to retrieve information about the DSI SS7LD Board.

Format

Type

Id

Src

Dst rsp_req

Hclass

Status err_info

Len

0

4

6

10

12

16

36

Offset

Field Name

4

2

4

2

4

20

1

Size

MESSAGE HEADER

Meaning

SSD_MSG_BOARD_INFO (0x7689) board_id

Sending module ID

SSD_module_ID

Used to request a confirmation.

0

0

0

38

PARAMETER AREA

Name

ssdmode btype addrsw numsp subsysid sernum cur_temp

26

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

37 1 max_temp

Description

This message is used when a user application wants to obtain information about a DSI

SS7LD Board. This can happen at any time after the board has been reported as being present in the system. Typically, in PCI address mode (see ssd_mode below), this message may be sent by the user application to the ssdl module at system startup to determine the serial numbers of boards present within the system.

Parameters board_id

The board_id should be set to the logical board number, or, alternatively, if geographic addressing is enabled, to the board’s physical address as set using the on-board ADDR switch (SW1).

ssdmode

Specifies the geographic address mode in which the ssdl module is running. This was specified at system start-up.

The geographic address modes values are:

— 1: PCI address mode

— 3: Switch address mode

btype

The board type. For DSI SS7LD Boards, this parameter is set to 32.

addrsw

Value of the boards’ ADDR switch (SW1) as recorded at power on reset.

numsp

Number of signaling processors present on the board. For SS7LD boards this will always be 1.

subsysid

The boards subsystem id.

sernum

The serial number of the board.

cur_temp

Signed 8-bit value containing the current temperature of the board within the range -

128 to 127 degrees Celsius. Not supported for SS7LD value will be returned as 0.

max_temp

Signed 8-bit value containing the maximum temperature the board has reached since ssdl was last started. Value is within the range -128 to 127 degrees Celsius. Not supported for SS7LD value will be returned as 0.

27

4 Message Reference

4.4.4 MGT_MSG_CONFIG0 - Board Configuration Request

Synopsis

Message sent to a board immediately after starting the code running to provide physical configuration parameters.

Note: When using the s7_mgt protocol configuration utility, this message is generated by s7_mgt and should not be generated by the user.

Format

0

2

4

6 type id src dst rsp_req hclass status err_info len

Offset

Field Name

2

2

2

62

Size

MESSAGE HEADER

Meaning

0

0

0

68

MGT_MSG_CONFIG0 (0x7f10)

0

Sending module ID

MGMT_module_ID

Used to request a confirmation.

PARAMETER AREA

Name

config_type flags l1_flags

Reserved. Must be set to 0.

Description

This message must be the first message sent to the board once the SS7 software is running. It is used to configure layer1 modules on the board for operation. The message contains flags to permit various level 1 configurations. The physical link parameters are configured on a per link basis using the MGT_MSG_L1_CONFIG message.

The confirmation message (if requested) indicates success with a status value of 0. To verify that configuration is complete before subsequent messages are issued to the board, the user should request a confirmation message and check the status for success.

If the board is not licensed to run the requested software configuration, a status value of 0xfe is returned.

Parameters config_type

Set to 3 when using a DSI SS7LD Board. A separate link layer configuration message

should be sent for each link using MGT_MSG_L1_CONFIG message.

28

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

flags

Global flags with the following bit significance:

— Bit 15 is set to 1 for diagnostics purposes to cause the results of board configuration to be passed to the host. When set, all confirmation messages generated internally on the board during the configuration sequence are sent to the 0xdf module

ID on the host.

— All other bits are reserved for future use and should be set to 0.

l1_flags

Level 1 flags with the following bit significance:

— Bit 0 controls the layer 1 clock reference source. If set to 0, the clock is recovered from the onboard oscillator. If set to 1, the clock is recovered from one of the line

interfaces. Line interfaces can be individually configured with the LIU_MSG_CONFIG

message to explicitly be excluded from recovering the clock from the interface.

— Bit 6 and 7 together select the initial CT bus clocking mode as shown in the following table. The clocking mode can be modified subsequently and dynamically

using the MVD_MSG_CNFCLOCK message.

Bit 7 Bit 6 CT bus clocking mode

0 0

0 1

The CT bus interface is disabled - The board is electrically isolated from the other boards using the CT bus. The on-board clocks are synchronized to the source selected by bit 0 of this flags parameter.

Primary Master, A Channel - The board drives CT bus clock set A using the clock source selected by bit 0 of this flags parameter.

1

1

0

1

Secondary Master, B Channel - The board is configured to drive clock set

B in Secondary Master mode. The on-board clocks are synchronized to the

CT bus clock set A. It will automatically switch to become Primary Master if the board driving clock set A fails.

Slave, initially A Channel

– The board uses the CT bus clocks, which must be generated by another board on the CT bus. Initially the board recovers from clock set A, though will switch over automatically to recover from clock set B if set A fails.

— Bit 13 is set to 1 to cause the board to drive the CT_NETREF1 clocks on the CT bus.

The highest priority in-sync line interface is used as a clock source. If this bit is set to zero then CT_NETREF1 clock is not driven.

— All other bits are reserved and should be set to 0.

29

4 Message Reference

4.4.5 MGT_MSG_L1_CONFIG - Layer 1 Configuration Request

Synopsis

Message sent to a board after successful processing of the MGT_MSG_CONFIG0

message to configure the layer 1 links.

Note: When using the s7_mgt protocol configuration utility, this message is generated by s7_mgt and should not be generated by the user.

Format

type id src dst rsp_req hclass status err_info len

0

2

4

6

8

12

14

16

20

24

Offset

Field Name

2

4

2

2

2

2

2

4

4

16

Size

MESSAGE HEADER

Meaning

0

0

0

40

MGT_MSG_L1_CONFIG (0x7f17)

0

Sending module's module ID

MGMT_module_ID

Used to request a confirmation.

PARAMETER AREA

Name

Reserved. Set to 0. l1_resource_id data_rate link_source

Reserved. Set to 0. link_stream link_timeslot

Reserved. Set to 0. options

Reserved. Set to 0.

Description

This message is used after successful processing of the MGT_MSG_CONFIG0 message

to configure physical signaling links. It should only be sent after the

MGT_MSG_CONFIG0 message has been sent. The message should be sent once for

each signaling link to be configured.

Parameters

Configure the LSL timeslot rate:

l1_resource_id

Layer 1 (logical) resource identifier.

30

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

data_rate

Used for setting the link operation. The following table shows the permitted values and their meaning.

Value Data Rate

0

1

64 kbits/s

56 kbits/s

2 48 kbits/s

link_source

Configure the signaling source.

Set to 0 for DSI SS7LD Board.

link_stream

Signaling stream. This parameter is the physical identity of the T1/E1 line interface containing the signaling link. The value range is 0 to one less than the number of LIUs.

link_timeslot

Signaling timeslot. This field is used to configure conventional SS7 links. The valid range is 1 to 24 for a T1/J1 interface and 1 to 31 for an E1 interface.

options

A 32-bit value containing run-time options as follows:

Bit 0 - Set to 1 to disable automatic FISU generation. This is normally required for

Japanese MTP operation only.

All Other Bits - Must be set to 0.

31

4 Message Reference

4.4.6 MGT_MSG_L1_END - Layer 1 Configuration End

Synopsis

Message sent to a board to remove an existing layer 1 link that was previously

configured by sending an MGT_MSG_L1_CONFIG message.

Format

type id src dst rsp_req hclass status err_info len

0

2

Offset

Field Name

2

2

Size

MESSAGE HEADER

Meaning

MGT_MSG_L1_END (0x7f18)

0

Sending module's module ID

MGMT_module_ID

Used to request a confirmation.

0

0

0

4

PARAMETER AREA

Name

Reserved. Must be set to 0. l1_resource_id

Parameters

The MGT_MSG_L1_END message includes the following parameter:

l1_resource_id

Layer 1 (logical) resource identifier.

32

4.5

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Hardware Control Messages

Hardware control messages are used to control various hardware devices on the board, including the T1/E1 Line Interface Units (LIUs and the clocking mode for the board.

In a static configuration, these hardware blocks can be set up using the s7_mgt protocol configuration utility along with the appropriate commands in the config.txt protocol configuration file.

If dynamic control of the hardware is required (or the user has elected not to use s7_mgt), the user application must build and send at least some of the hardware control messages.

The messages in the hardware control category include:

LIU_MSG_CONFIG - LIU Configuration Request

LIU_MSG_CONTROL - LIU Control Request

LIU_MSG_R_CONFIG - LIU Read Configuration Request

LIU_MSG_R_CONTROL - LIU Read Control Request

MVD_MSG_CNFCLOCK - Configure Clock Request

MVD_MSG_CLOCK_PRI - Configure Clock Priority Request

MVD_MSG_RESETSWX - Reset Switch Request

MVD_MSG_SC_CONNECT - Connect Request

33

4 Message Reference

4.5.1 LIU_MSG_CONFIG - LIU Configuration Request

Synopsis

Message sent by the application to establish the operating mode for a Line Interface

Unit (LIU).

Note: When using the s7_mgt protocol configuration utility, this message is generated by s7_mgt as a result of the LIU_CONFIG command. It therefore need not be generated by the user.

Format

type id src dst rsp_req hclass status err_info len

0

1

2

3

4

5

11

12

18

19

21

Offset

Field Name

1

1

6

1

1

1

1

6

1

2

19

Size

MESSAGE HEADER

Meaning

0

0

0

40

LIU_MSG_CONFIG (0x7e34) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

PARAMETER AREA

Name

liu_type liu_code frame_format crc_mode build_out

Reserved. Must be set to 0. ais_gen

Reserved. Must be set to 0. sensitivity clk_opt

Reserved. Must be set to 0.

Description

This message is sent to the board to configure the operating mode of a Line Interface

Unit (LIU). All configuration parameters must be supplied in the message, that is, it is not possible to modify individual operating parameters in isolation. On receipt of the message, the board first verifies that the fitted hardware options support the requested operating mode and then initializes (or reinitializes) the LIU.

The confirmation message (if requested) indicates success with a status value of 0.

34

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Parameters

A description of the permitted parameter values are given below. When the board is initially configured, the LIUs are initialized to a disabled condition.

liu_type

The physical interface type according to the following table:

Value Description

1

3

4

5

Disabled (used to deactivate a LIU). In this mode, the LIU does not produce an output signal.

E1 120 ohm balanced interface

T1

E1

– Impedance based on hardware

(The SS7LD board supports only 120 ohm balanced interfaces for E1 but this value is supported for compatibility with other boards)

line_code

The line coding technique. The following table shows the permitted values and their meanings.

Value Description

1

2

4

HDB3 (E1 only)

AMI

B8ZS (T1)

frame_format

The frame format. The following table shows the permitted values and their meanings.

Value Description

4

7

1

2

E1 double frame (E1 only)

E1 CRC4 multiframe (E1 only)

D3/D4 (Yellow alarm = bit 2 in each channel (T1 only)

ESF (Yellow alarm in data link channel) (T1 only)

crc_mode

The CRC mode. The following table shows the permitted values and their meanings.

35

4 Message Reference

Value Description

1

2

4

CRC generation disabled

CRC4 enabled (frame_format must be set to 2)

CRC6 enabled (frame_format must be set to 7)

build_out

The following table shows the permitted values and their meanings.

Value Description

4

5

6

2

3

0

1

Setting for E1 devices

T1 default (T1 short haul)

T1 short haul 0 - 110 ft

T1 short haul 110

– 220 ft

T1 short haul 220

– 330 ft

T1 short haul 330

– 440 ft

T1 short haul 440

– 550 ft

T1 short haul 550

– 600 ft

T1 long haul LB0 (-0dB)

7

8

ais_gen

The (initial) mode used to generate the Alarm Indication Signal (Blue alarm). The user may subsequently modify the setting of the outgoing signal using the

LIU_MSG_CONTROL message. The following table shows the permitted values and

their meanings.

Value Description

1

2

Disabled; do not generate AIS/Blue alarm

Enabled; generate AIS/Blue alarm

sensitivity

The mode settings to configure the interface sensitivity for monitoring purposes. The following table shows the permitted values and their meanings.

36

4.5.2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Value Description

1

2

4

Terminated; normal impedance presented on the line

High impedance mode; set the LIU to high impedance for monitoring.

PMP mode; set the LIU sensitivity to operate with a Protected Monitoring Point.

clk_options

A 16-bit value containing clocking options for the LIU. This value provides the ability to override default LIU clocking options for each LIU. Default options are specified per

board within the MGT_MSG_CONFIG0 message.

— Bit 0 - Disable LIU clock recovery for this interface.

— All other bits set to 0.

LIU_MSG_CONTROL - LIU Control Request

Synopsis

Message sent by the application to dynamically control operation for a Line Interface

Unit (LIU). Allows setting of outgoing alarms and diagnostic loopbacks.

Format

0

1

2

3 type id src dst rsp_req hclass status err_info len

Offset

Field Name

1

1

1

13

Size

MESSAGE HEADER

Meaning

LIU_MSG_CONTROL (0x7e35) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

0

0

0

16

PARAMETER AREA

Name

ais_gen

Reserved for future use, must be set to 0 loop_mode

Reserved for future use, must be set to 0.

Description

This message is sent to the board to perform dynamic changes to the operation of the

Line Interface Unit (LIU). It allows the user to control the generation of AIS (Blue alarmand to activate various diagnostic loopback modes.

The confirmation message (if requested) indicates success with a status value of 0.

37

4 Message Reference

4.5.3

Parameters ais_gen

The mode used to generate the Alarm Indication Signal (Blue alarm). The following table shows the permitted values and their meanings.

Value Description

0

1

Do not change AIS/Blue alarm generation mode

Disabled; do not generate AIS/Blue alarm

2 Enabled; generate AIS/Blue alarm

loop_mode

The diagnostic loopback mode. The following table shows the permitted values and their meanings.

Value

2

4

0

1

Description

Do not change diagnostic loopback mode

Disabled - remove any diagnostic loop

Payload loopback

Local loopback

LIU_MSG_R_CONFIG - LIU Read Configuration Request

Synopsis

Message sent by the application to read back the current LIU configuration from the board.

38

4.5.4

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Format

type id src dst rsp_req hclass status err_info len

0

Offset

Field Name

40

Size

MESSAGE HEADER

Meaning

LIU_MSG_R_CONFIG (0x5e37) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

0

0

0

40

PARAMETER AREA

Name

Parameter area formatted in the same manner as the

LIU_MSG_CONFIG message.

All fields should be set to 0.

The confirmation message contains the board configuration details.

The user should set the fields to 0 and the module writes the current configuration parameters in the confirmation message.

Description

This message is sent to the board to read back the current operating configuration of the Line Interface Unit (LIU). The user should always request a confirmation message.

The confirmation message indicates success with a status value of 0 and contains the current configuration parameters in the parameter area of the message.

LIU_MSG_R_CONTROL - LIU Read Control Request

Synopsis

Message sent by the application to read back the current Line Interface Unit (LIU) control options from the board.

39

4 Message Reference

Format

type id src dst rsp_req hclass status err_info len

Field Name

Offset Size

0 16

MESSAGE HEADER

Meaning

LIU_MSG_R_CONTROL (0x5e38) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

0

0

0

16

PARAMETER AREA

Name

Parameter area formatted in the same manner as the

LIU_MSG_CONTROL message.

All fields should be set to 0. The confirmation message contains LIU control options.

The user should set the fields to 0 and the module writes the current control parameters in the confirmation message.

Description

This message is sent to the board to read back the current control parameters selected for a Line Interface Unit (LIU). The user should always request a confirmation message. The confirmation message indicates success when the status value of 0 and contains the current control parameters in the parameter area of the message.

40

4.5.5

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

MVD_MSG_CNFCLOCK - Configure Clock Request

Synopsis

Message sent to a DSI SS7LD Board to configure the clocking mode for the board.

Format

0

2

4

6

8 type id src dst rsp_req hclass status err_info len

Field Name

Offset

2

2

2

2

4

Size

MESSAGE HEADER

Meaning

MVD_MSG_CNFCLOCK (0x7e20)

0

Sending Module ID

MVD_TASK_ID used to request a confirmation

0

Status Response (if confirmation requested)

0

12

PARAMETER AREA

Name

bus_speed clk_mode pll_clk_src ref1_mode

Reserved. Set to zero

Description

This message is used to control the on-board clock circuitry. It allows the user to select the CT bus clocking mode and the reference clock sources for the local and bus reference clocks.

The confirmation message (if requested) indicates success by status of zero.

Parameters bus_speed

This parameter is used to set the CT bus speed; the permissible values are as follows:

Value

0

3

No change

8.192 MHz

Bus speed clk_mode

This parameter determines the clocking mode for the DSI SS7LD Board; the permissible values are as follows:

Value

0 No change

Clock Mode

41

4 Message Reference

4

10

11

12

1

2

3

CT bus Primary Master, driving Clock Set A

CT bus Secondary Master, driving Clock Set B

CT bus Slave, initially using Clock Set A

CT bus disabled

CT bus Primary Master, driving Clock Set B

CT bus Secondary Master, driving Clock Set A

CT bus Slave, initially using Clock Set B

When mode 4 is selected ("CT bus disabled"), the DSI SS7LD Board is electrically isolated from the other boards using the CT bus. The on-board clocks are synchronized to the configured pll_clk_src reference.

If the DSI SS7LD Board is configured to be Slave to the CT bus, then it automatically switches between using Clock Set A and Clock Set B if it detects a failure on the current clock set.

When a board is acting as Primary Master, it uses the clock reference set by the pll_clk_src parameter to drive the CT bus clock.

As Secondary Master, the pll_clk_src must be set to an appropriate source ready for use if the board acting as Primary Master stops driving the CT bus clock. Until this time, the on-board clocks on the Secondary Master board are synchronized to the CT bus clock provided by the Primary Master.

pll_clk_src

This parameter determines the source of the PLL reference clock, the permissible values are:

Value

0

1

5

7

PLL Clock Source

No change

Clock recovered from one of the line interfaces according to priority order.

Local reference oscillator

NETREF 1

The PLL clock is used as the reference when acting as CT bus Primary Master.

If the clock is to be recovered from one of the line interfaces, then the highest-priority in sync line interface is used as the reference. Each line interface is assigned a priority: by default liu_id=0 is the highest priority and liu_id=7 the lowest. The user may modify the priority order by sending the MVD_MSG_CLOCK_PRI message. If none of the interfaces are available for recovery, then the phase locked loop runs in holdover mode, outputting a clock with the same frequency as the last valid signal. When a valid signal returns, it waits for a short period to verify that it is stable and then automatically switches to use it as the clock reference.

If using one of the NETREF signals as the reference source, then another board in the system must be providing this reference by driving a clock source onto the appropriate

CT bus NETREF lines. If the NETREF signal is lost, the board continues with the PLL in holdover mode until another MVD_MSG_CNFCLOCK message is received to switch to a new mode.

42

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Note: If the NETREF signal recovers, it is still necessary to re-set the clock configuration and move out of holdover mode by sending MVD_MSG_CNFCLOCK and re-selecting the appropriate mode.

ref1_mode

This parameter determines whether the CT bus NETREF_1 clock is driven onto the CT bus by this board. The permissible values are as follows:

Value

0 No Change

NETREF_1 clock Mode

1 Drive NETREF_1 using clock recovered from highest priority line interface.

6 Tri-state (i.e., Not driven)

When the NETREF_1 signal is being driven then the clock source is the highest priority line interface. If no interface is available for clock recovery, then no signal is driven onto the bus.

Driving the NETREF_1 signal is independent of the clk_mode and pll_clk_src settings for this board.

Status Response

The confirmation message (if requested) indicates success by status of zero.

On error, the following status value can be found in the confirmation message.

Value

0xff

Mnemonic

None

Description

Request to configure clocking mode fails.

43

4 Message Reference

4.5.6 MVD_MSG_CLOCK_PRI - Configure Clock Priority Request

Synopsis

Message sent to SS7LD Board to configure the clock recovery priority order.

Format

0

1

2

3

4 type id src dst rsp_req hclass status err_info len

Field Name

Offset

1

1

1

1

12

Size

MESSAGE HEADER

Meaning

MVD_MSG_CLOCK_PRI (0x7e21)

0

Sending Module ID

MVD_TASK_ID used to request a confirmation

0

Status Response (if confirmation requested)

0

16

PARAMETER AREA

Name

liu0_pri liu1_pri liu2_pri liu3_pri

Reserved, set to 0.

Description

This message allows the user to specify a priority for each line interface. When configured to recover clock from the line interfaces, this priority is used to decide which line interface to use as the clock source. The highest priority in-sync line interface is used, with the board automatically moving through the list of clock sources as line interfaces lose synchronization or are deemed stable again. If no interfaces are in sync, the board remains in "holdover" mode, based on the last valid clock that was recovered.

The confirmation message (if requested) indicates success by status of zero.

Parameters

liun_pri

The relative priority for each LIU using the values taken from the following table:

44

4.5.7

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Value

0

1 … 32

255

Meaning

No change to the interface’s priority.

New priority value for the line interface. The value 1 indicates highest priority, 32 the lowest priority. If two interfaces are given the same priority, the lowest-numbered interface is used first.

Special value indicating that the line interface must not be used for clock recovery.

Status Response

The confirmation message (if requested) indicates success by status of zero.

On error, the following status value can be found in the confirmation message.

Value

0xff

Mnemonic

None

Description

Request to configure clock recovery priority order fails.

MVD_MSG_RESETSWX - Reset Switch Request

Synopsis

Resets the digital switch to its default state in accordance with the current board configuration.

Format

type id src dst rsp_req hclass status err_info len

Field Name

MESSAGE HEADER

Meaning

0

0

0

0

MVD_MSG_RESETSWX (0x7e00)

0

Sending module ID

MVD_module_ID

Used to request a confirmation.

Description

This message is sent to the board to reset the state of the digital cross connect switch.

The confirmation message (if requested) indicates success with a status value of 0. On receipt of the confirmation message, the operation to reset the switch is completed.

45

4 Message Reference

4.5.8 MVD_MSG_SC_CONNECT - Connect Request

Synopsis

Message sent to the board to control the switch path.

Format

type id src dst rsp_req hclass status err_info len

0

2

4

6

8

10

14

Offset

Field Name

2

4

2

2

2

2

2

Size

MESSAGE HEADER

Meaning

0

0

0

16

MVD_MSG_SC_CONNECT (0x7e1f)

0

Sending module ID

MVD_module_ID

Used to request a confirmation.

PARAMETER AREA

Name

local_stream local_slot mode source_stream source_slot

Reserved. Must be set to 0. pattern

Description

This message is sent to the board to control the cross connect switch. Several different actions can be performed depending on the value of the mode parameter. These include:

 Transmission of a fixed pattern on a specified timeslot

 Initialising a simplex connection between two LIUs

 Initialising a duplex connection between two LIUs.

 Removal of duplex connection between two LIUs

Attempting to use this message in a run mode where the cross connect switch is disabled will result in a failure return code.

The confirmation message (if requested) indicates success with a status value of 0.

Parameters

The parameters that can be included in the MVD_MSG_SC_CONNECT message depend

on the requested mode. The following table depicts the parameters that are required for each mode:

46

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Mode Required Parameters

10

11

12

13

local_ stream

Yes

Yes

Yes

Yes

local_slot source_ stream

Yes

Yes

Yes

Yes

0

Yes

Yes

Yes

source_ timeslot

0

Yes

Yes

Yes

pattern

Yes

0

0

0

local_stream

Defines which local stream to use. The local_stream parameter specifies the T1/E1 Line

Interface Unit (LIU) to be used as the output. Values for the LIU are in the range 0 to one less than the number of LIUs supported.

local_slot

Defines which local_stream timeslot to use. The valid range is 1 to 24 for a T1/J1 interface and 1 to 31 for an E1 interface.

mode

Determines the operating mode. The following table shows the permitted values and their meanings.

Value

10

11

12

13

Meaning

Generate a fixed pattern, for example an Idle pattern, on a local timeslot. The local_stream parameter specifies the liu_id, the local_slot parameter specifies the timeslot and the pattern parameter specifies the 8-bit data to be output on the timeslot.

Make a simplex connection between two local bus timeslots. The source_stream and source_slot parameters specify the source of the signal in terms of liu_id and timeslot, respectively. The local_stream and local_slot parameters specify the outgoing liu_id and timeslot, respectively.

Make a duplex connection between two local bus timeslots. The source_stream and source_slot parameters specify the source of the signal in terms of liu_id and timeslot, respectively. The local_stream and local_slot parameters specify the outgoing liu_id and timeslot, respectively

Remove a duplex connection between two local bus timeslots. Use the local_stream and local_slot parameters to specify one timeslot and the source_stream and source_slot parameters to specify the other.

source_stream

The source_stream parameter specifies the T1/E1 Line Interface Unit (LIU) to be used as the source. Values for the LIU are in the range 0 to one less than the number of

LIUs supported.

source_slot

Defines which source_stream timeslot to use. The valid range is 1 to 24 for a T1/J1 interface and 1 to 31 for an E1 interface.

47

4 Message Reference

pattern

The value of the fixed data to be generated. The value must be in the range 0 to 255.

Typical values are 0xff for an "all ones" idle pattern, or 0x2a for an ITU-T E1 idle pattern.

48

4.6

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Signaling Interface Messages

Signaling interface messages allow signaling links to be activated and deactivated by the user and provide a mechanism for communication between the MTP3 module and the user part module (for example, ISUP, TUP or SCCP). In many cases, the user part module is a Dialogic

®

DSI Protocol Stack so the user does not need to handle the MTP primitives as they pass directly between MTP3 and the user part module.

In the case that the user application is implementing the user part functionality, the

MTP primitives are applicable. See the Dialogic

Manual and the Dialogic

®

®

SS7 Protocols MTP2 Programmer’s

SS7 Protocols MTP3 Programmer’s Manual for more

information.

49

4 Message Reference

4.7 Event Indication Messages

Event indication messages are the mechanism by which protocol and software error events are reported to the application. These messages are generated asynchronously by different modules within the stack.

The messages in the event indication category include:

SSD_MSG_STATE_IND - Board Status Indication

MVD_MSG_CLK_IND - Clock Event Indication

MVD_MSG_LIU_STATUS - LIU Status Indication

DVR_MSG_TRACE_MASK - Set Trace Mask Request

50

4.7.1

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

SSD_MSG_STATE_IND - Board Status Indication

Synopsis

Message sent to the application on completion of the reset and download sequence or on detection of a board status event.

Format

type id src dst rsp_req hclass status err_info len

0

2

Offset

Field Name

2

2

Size

MESSAGE HEADER

Meaning

SSD_MSG_STATE_IND (0x06a0) board_id

SSD_module_ID (0x20) mgmt_id for SSD

Used to request a confirmation

0 event_type (see below)

0

4

PARAMETER AREA

Name

board_type failure_code

Description

This message is used to convey the status of a board reset operation (success or failure) to the user. The status is indicated in the status field of the message header.

The following table shows the possible event_type values:

event_type

Value

0x60

0x62

0x66

0x67

0x70

0x71

Meaning

Reset successful

Board failure

License validation failure

License appears corrupt

Message congestion toward board cleared

Message congestion toward board onset

Parameters board_type

Set to 32 for SS7LD.

51

4 Message Reference

4.7.2 failure_code

Value

0x0000

0x00d7

Meaning

undefined

Thermal failure

MVD_MSG_CLK_IND - Clock Event Indication

Synopsis

Message issued by the board to indicate on-board clocking related events.

Format

type id src dst rsp_req hclass status err_info len

Field Name

MESSAGE HEADER

Meaning

MVD_MSG_CLK_IND (0x0e23)

0

MVD_TASK_ID

0xdf

0

0 event_id

0

0

Description

This message is issued by the board to indicate events within the on-board clocking circuitry.

event_id

This field specifies the event that caused the indication to be generated:

event_id

1

2

3

4

5

6

Description

PLL entered hold-over mode

Issued by boards acting as primary or secondary clock master when its nominated clock reference becomes unavailable. The phase-lockedloop starts operating in “hold-over” mode, continuing to generate an on-board clock at the same frequency as the last valid reference signal.

PLL left hold-over mode

The nominated clock reference for a primary or secondary master board has become available and the is now being used as the input to the board’s clock circuitry.

CT bus clock set A fail

The CT bus clock set A signals are not being correctly driven.

CT bus clock set A recover

The CT bus clock set A signals are being driven.

CT bus clock set B fail

The CT bus clock set B signals are not being correctly driven.

CT bus clock set B recover

The CT bus clock set B signals are being driven.

52

4.7.3

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

event_id

7

Description

Master clock changeover

The board issuing this indication has automatically changed from secondary master to primary master role for the clock set it was configured to drive.

MVD_MSG_LIU_STATUS - LIU Status Indication

Synopsis

Message issued by the board to provide notification of changes in LIU status.

Format

type id src dst rsp_req hclass status err_info len

Field Name

MESSAGE HEADER

Meaning

MVD_MSG_LIU_STATUS (0x0e01) liu_id (in the range 0 to one less than the number of LIUs)

MVD_module_ID

MGMT_module_ID

0

0 liu_status (see below)

Reserved for future use.

0

Description

This message is issued by the board for every change of state on the trunk interface.

Parameters liu_id

The identity of the Line Interface Unit (LIU) to which the status indication applies.

liu_status

The LIU status. The following table shows the possible values and their meanings.

53

4 Message Reference

4.7.4

Value Mnemonic State

14

15

20

21

10

11

12

13

LIUS_SYNC_LOSS

LIUS_IN_SYNC

LIUS_AIS

LIUS_AIS_CLRD

LIUS_REM_ALARM

LIUS_REM_ALM_CLRD

LIUS_PCM_LOSS

LIUS_PCM_OK

Frame Sync Loss

Frame Sync OK

AIS Detected

AIS Cleared

Remote Alarm

Remote Alarm Cleared

PCM Loss

PCM Restored

DVR_MSG_TRACE_MASK - Set Trace Mask Request

Synopsis

Message issued to HDLC driver to cause per-link tracing of protocol primitives.

Format

0

4

8 type id src dst rsp_req hclass status err_info len

Offset

Field Name

4

4

4

Size

MESSAGE HEADER

Meaning

0

0

0

12

DVR_MSG_TRACE_MASK (0x731b) lower layer link id

Originating module_id

DVR_ALT_TASK_ID

Sending layer’s bit set if response required

PARAMETER AREA

Name

op_evt_mask

– Output event trace mask ip_evt _mask

– Input event trace mask

Reserved set to 0.

54

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Description

The driver module supports comprehensive tracing options on a per-link and perprimitive basis. The module can be configured to trace any message received or transmitted and a number of management events. This message is used to selectively enable tracing of events. It can be used at any time during operation and continues to be effective until the next Trace Mask Set Request is received for the same link.

Traced events are indicated to the management module using the

MGT_MSG_TRACE_EV Event Indication.

Parameters op_evt_mask

The output event trace mask. This is a 32-bit value with bits set to 1 to cause a trace message to be sent to the management module whenever a message is issued by the driver. Care should be taken when tracing messages because the system throughput may be reduced. The fields in the trace mask cause the events indicated in the following table to be traced.

Bit 31 Bit 30 Bit 29 Bit 28 Bit 27 Bit 26 Bit 25 Bit 24

Bit 23

Bit 15

Bit 22

Bit 14

Bit 21

Bit 13

Bit 20

Bit 12

Bit 19

Bit 11

Bit 18

Bit 10

Bit 17

Bit 9

Bit 16

Bit 8

Bit 7 Bit 6 Bit 5 Bit 4

SUERM

FAIL

AERM

FAIL

RDY

Key:

SUERM FAIL

– SUERM Failure Indication

AERM FAIL - AERM Failure Indication

RDY

– Ready

BUSY IND

– Busy indication

Bit 3

BUSY IND

RX IND

Bit 2 Bit 1

RX IND

– Receive message indication

Note: The shaded boxes relate to internal events within the board and are of limited use to the user.

Bit 0

55

4 Message Reference

ip_evt_mask

The input event trace mask. This is a 32-bit value with bits set to 1 to cause a trace message to be sent to the management module whenever a message is received by the driver. Care should be taken when tracing messages as system throughput is reduced. The fields in the trace mask cause the events indicated in the following table to be traced.

Bit 31

Bit 23

Bit 30

Bit 22

Bit 29

Bit 21

Bit 28

Bit 20

Bit 27

Bit 19

Bit 26

Bit 18

Bit 25

Bit 17

Bit 24

Bit 16

Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9

SUERM

STOP

Bit 1

Bit 8

SUERM

START

Bit 0 Bit 7 Bit 6 Bit 5 Bit 4

AERM

STOP

AERM

START

REP

NEXT SU

RTP

Key:

SUERM STOP

– SUERM Stop Request

SUERM START

– Start SUERM Request

AERM STOP

– AERM Stop Request

AERM START

REP NEXT SU

– Start AERM Request

– Reports next SU received

Bit 3 Bit 2

TM EXP

RTP

– Return to pool

TM EXP

– Timer expiry indication

TX REQ

– Transmit request

Note: The shaded boxes relate to internal events within the board and are of limited use to the user.

TX REQ

56

4.8

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Status Request Messages

Status request messages can be used to poll the status of modules or systems running on the board.

The messages in the status request category include:

LIU_MSG_R_STATE – LIU Read State Request

LIU_MSG_R_STATS - LIU Read Statistics Request

MVD_MSG_R_CLK_STATUS – Clock Status Request

MGT_MSG_R_BRDINFO - Read Board Info Request

DVR_MSG_R_L1_STATS - Link Statistics Request

57

4 Message Reference

4.8.1

Value

2

3

0

1

4

LIU_MSG_R_STATE – LIU Read State Request

Synopsis

Message sent by the application to read the current state of a Line Interface Unit

(LIU).

Format

type id src dst rsp_req hclass status err_info len

1

Offset

Field Name

1

Size

MESSAGE HEADER

Meaning

LIU_MSG_R_STATE (0x5e39) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

0

0

0

1

PARAMETER AREA

Name

state

Description

This message is sent to the board to read the current operating state of a Line

Interface Unit (LIU). The user should always request a confirmation message. The confirmation message indicates success with a status value of 0 and contains the current LIU state information in the parameter area of the message.

Parameters state

The current state of the LIU as shown in the following table.

Description

OK

PCM Loss

AIS

Sync Loss

Remote Alarm

58

4.8.2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

LIU_MSG_R_STATS - LIU Read Statistics Request

Synopsis

Message used to read back performance statistics associated with a Line Interface Unit

(LIU).

Format

type id src dst rsp_req hclass status err_info len

16

20

24

28

0

2

4

8

12

32

34

38

Offset

Field Name

4

4

4

4

2

2

4

4

4

2

4

4

Size

MESSAGE HEADER

Meaning

LIU_MSG_R_STATS (0x5e36) liu_id (in the range 0 to one less than the number of LIUs)

Sending module ID

MVD_module_ID

Used to request a confirmation.

0

0 to read statistics

1 to read statistics and reset counters

0

42

PARAMETER AREA

Name

version

Reserved. Must be set to 0. duration bit_errors code_violations frame_slips oos_transitions errored_seconds severely_errored_seconds prbs_status

Reserved. Must be set to 0.

Reserved. Must be set to 0.

Description

This message is used to collect performance statistics for a given Line Interface Unit

(LIU). A module requesting LIU statistic information is required to complete the version parameter of the message, request a response, and set all additional parameter values to zero.

The confirmation message shall feature a non-zero status in the event of an error. In the event of successful retrieval of information, the message parameter field shall contain LIU information as specified in the message format. The statistics can either be read and left unchanged, or read and reset in a single operation depending on the setting of the status field in the request message.

Typically, a managing application would be set up to periodically (for example, hourly or daily) read and reset the statistics and store the resulting information so that it can be accessed later for generation of performance reports for the line interface.

59

4 Message Reference

Parameters version

Version of the parameter area.

duration

The duration (in seconds) since the statistics were last reset.

bit_errors

A count of the actual number of bit errors detected by the framer device for the LIU.

The precise meaning of this parameter varies depending on the operating mode of the framer:

— For E1 operating modes, it is the number of errors detected in the frame alignment word.

— For T1 interfaces operating in D3/D4 frame format, it is the number of framing bit errors.

— For T1 interfaces operating in ESF format, it is the number of CRC6 errors.

Note: In general, the user should use the errored_seconds and severely_errored_seconds parameters instead since these parameters provide normalized values that have the same meaning for all modes of operation.

code_violations

A count of all the line code violations detected on the interface.

frame_slips

A count of the number of frame slips that have occurred on the interface.

oos_transitions

A count of the number of transitions from the in synchronization state to the out of synchronization state.

errored_seconds

The number of seconds since the statistics were last reset during which the interface contained errors. An errored second is any second during which the interface is out of synchronization, or there are frame slips, bit errors, or line code violations.

severly_errored_seconds

The number of severely errored seconds since the statistics were last reset. A severely

errored second is a second during which the interface is out of synchronization or the bit error rate exceeds 1 in 1,000.

prbs_status

The status of Pseudo Random Bit Sequence (PRBS) indications.

- 1 = PRBS is valid, the counts are correct.

- 3 = PRBS sequence is not synchronized.

60

4.8.3

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

MVD_MSG_R_CLK_STATUS – Clock Status Request

Synopsis

Message sent by the application to read the current clocking state.

Format

0

2

4

6

8 type id src dst rsp_req hclass status err_info len

Offset

Field Name

2

2

2

2

2

Size

MESSAGE HEADER

Meaning

MVD_MSG_R_CLK_STATUS (0x6e04)

0

Sending module’s Id

MVD_TASK_ID

Used to request a confirmation

0

0

0

10

PARAMETER AREA

Name

clk_mode status_a status_b pll_state liu_rec

Description

This message is sent to the board to read the current clocking state. The user should always request a confirmation message. The confirmation message indicates success with a status value of 0 and contains the current state in the parameter area of the message.

Parameters clk_mode

Indicates the current clock mode for the board as detailed in the following table.

Value

1

2

3

4

10

11

Clock Mode

CT Bus Primary Master, driving clock set A

CT Bus Secondary Master, driving clock set B

CT Bus Slave, initially using clock set A

CT Bus disabled

CT Bus Primary Master, driving clock set B

CT Bus Secondary Master, driving clock set A

61

4 Message Reference

4.8.4

12

status_a

CT Bus Slave, initially using clock set B

The following table shows the possible values and their meanings.

1

Value Description

CT clock set A OK

2

status_b

CT clock set A fail

The following table shows the possible values and their meanings.

1

Value Description

CT clock set B OK

CT clock set B fail 2

pll_state

Value Description

Configured as CT Bus slave, PLL not used. 0

1

5

7

Recovering from LIU specified in liu_rec parameter

Local reference oscillator

NETREF_1

9 PLL in holdover mode

liu_rec

If the PLL is recovering the clock from a line interface, this parameter indicates the liu_id (in the range 0 to one less than the number of LIUs) of the LIU being used as a reference. Otherwise, this parameter should be ignored.

MGT_MSG_R_BRDINFO - Read Board Info Request

Synopsis

Message used to request basic board information.

62

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Format

type id src dst rsp_req hclass status err_info len

5

26

30

50

54

0

1

2

4

55

56

Offset

Field Name

21

4

20

4

1

1

1

2

1

1

4

Size

MESSAGE HEADER

Meaning

MGT_MSG_R_BRDINFO (0x6f0d)

0

Sending module ID

MGMT_module_ID

Used to request a confirmation

0

0

0

60

PARAMETER AREA

Name

board_type board_rev

Reserved swb

Reserved

Dram_size bsn

Reserved current_temp max_temp

Reserved

Description

This message is provided to request a reply indicating the values of a number of attributes associated with the board. On receipt of this request, the module returns the message with the status "SUCCESS - 0" to the sender and includes the information requested.

Parameters board_type

The board type which is set to 32 for the SS7LD board.

board_rev

The board revision number. Currently 0.

swb

Geographic addressing switch setting, that is, the address at which the board will appear when the -o3 feature of ssdl is used.

dram_size

DRAM size in bytes.

bsn

The board’s production serial number (ASCII characters, null terminated).

63

4 Message Reference

4.8.5 current_temp

Signed 8-bit value containing the current temperature of the board within the range -

128 to 127 degrees Celsius.

max_temp

Signed 8-bit value containing the maximum temperature the board has reached since ssdl was last started. Value is within the range -128 to 127 degrees Celsius.

DVR_MSG_R_L1_STATS - Link Statistics Request

Synopsis

Retrieve link statistics.

Format

type id src dst rsp_req hclass status err_info len

Field Name

20

24

28

32

0

4

8

12

16

36

40

44

Offset

4

4

4

4

4

4

4

4

4

4

4

4

Size

MESSAGE HEADER

Meaning

DVR_MSG_R_L1_STATS (0x6136) l1_llid

Sending module ID module ID of onboard HDLC/SS7 driver

Used to request a confirmat ion, sending layer’s bit must be set.

0

0

– Read statistics

1

– Read statistics and reset

0

48

PARAMETER AREA

Name

duration abort_cnt

CRC_errs misaligned_frames. length_errs rx_overrun receiver_busy_cnt rx_frame_cnt rx_pre_filter_cnt tx_frame_cnt rx_pool_cnt. rx_busy_status

Description

This message provides the user with a number of statistics on a per link basis. If the user sends the message with a non zero status field, the statistics are reset to 0 after being read.

64

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Parameters duration

Duration in tenths of a second since the statistic counters were last reset.

about_cnt

The number of aborts received on the link.

CRC_errs

Number of CRC errors received on the link.

misaligned_frames

The number of misaligned frames (that is, frames that are not an integer multiple of 8 octets) received on the link.

length_errs

The number of received frames that were designated as either too long or too short for a configured protocol.

rx_overrun

The number of times that the receiver was forced to discard incoming frames as a result of there being no internal buffers available to receive the incoming data. This is a count of the number of events rather than a count of the number of frames discarded.

receiver_busy_cnt

The number of times the receiver has entered the busy state as a result of the number of internal buffers falling below a set threshold.

rx_frame_cnt

The number of (error-free) frames received on the link, excluding any duplicate frames that are discarded as a result of the internal filtering mechanism.

rx_pre_filter_cnt

The total number of (error-free) frames received on the link including any duplicate frames that are discarded as a result of the internal filtering mechanism.

tx_frame_cnt

The number of frames transmitted on the link excluding any repeated frames that are generated automatically (for example, repeated FISUs or LSSUs).

rx_pool_cnt

The number of message buffers currently available in the links internal receive pool.

rx_busy_status

Normally set to 0, but in the event of the receiver being in the a “busy” state (where the number of internal buffers falls below a fixed internal threshold), this field is set to

1.

65

4 Message Reference

Appendix A. Protocol Configuration Using Discrete

Messages

This appendix provides guidelines for protocol configuration using individual messages.

A.1 Protocol Configuration Using Individual Messages

As an alternative to using the s7_mgt protocol configuration utility it is possible to perform protocol configuration by building and sending messages directly to the board.

This approach means that it is necessary to write some application code to handle configuration, but has the advantage that the application can, if required, reconfigure the board without restarting the application.

Communication with the board is achieved by sending and receiving messages. The configuration sequence is described below. The application should allocate a message structure using the getm( ) library function and send it to the board using the

GCT_send( ) library function. The application should periodically call the GCT_receive(

) or GCT_grab( ) library functions to receive messages from the board. The

GCT_receive( ) function blocks until a message is available, while the GCT_grab( ) function returns immediately. Once the application has finished processing the received message, it should release the message structure back to the system by calling the relm( ) library function. The library functions are described in the Software

Environment Programmer's Manual.

To configure the board using individual messages, the following sequence should be

used. The message sequence is shown diagrammatically in Figure 4. Protocol

Configuration Message Sequence Diagram.

1. Build and send an SSD Reset Request (SSD_MSG_RESET ) to the SSD module.

This message contains the parameters required to initialize the SSD module.

2. Then build and send a Board Reset Request (SSD_MSG_RST_BOARD ) for each

board in the system. This message contains the address (or identifier) of the board and the name of the code file. It causes the board to be reset and the code file downloaded. For each board, the application should wait until a Board Status

Indication (SSD_MSG_STATE_IND) is received and inspect the status field to

determine if the reset operation was successful. On failure, the user should check carefully the ssdm parameters and try again.

3. Build and send a Board Configuration Request (MGT_MSG_CONFIG0) to the

onboard management task (MGMT_TASK_ID) to configure the basic board parameters. When using Dialogic

®

DSI SS7MD Boards, the value of the config_type parameter in the Board Configuration Request must be set to 3. For this version of the message, the automatic configuration of MTP parameters is not supported.

Wait for the confirmation message and check the status.

4. To set up the LIU and port for the T1/E1 ports, the LIU Configuration Request should be used. Wait for the confirmation message for each LIU and check the status.

For each link in the system:

5. Build and send a Layer 1 Configuration Request (MGT_MSG_L1_CONFIG) to set up

the physical configuration parameters for the link. This message should be sent to the onboard management module. Wait for the confirmation message and check the status.

66

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

6. Build and send an MTP2 Link Configuration Request (SS7_MSG_CONFIG) to set up the MTP2 configuration parameters. See the MTP2 Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

7. Build and send an MTP3 Module Reset Message (MTP_MSG_RESET) to reset the

MTP3 module. See the MTP3 Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

8. Build and send an MTP3 Module Configuration Request (MTP_MSG_CONFIG) to set up configuration parameters that relate to the MTP3 environment (number of link sets and links to support, module_ids for user part modules etc.). See the MTP3

Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

For each link set perform the following:

9. Build and send an MTP3 Link Set Configuration Request (MTP_MSG_CNF_LINKSET) to set up configuration parameters for the individual link set (for example, local and adjacent point codes and the number of links in the link set). See the MTP3

Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

For each link in the link set perform the following:

10. Build and send an MTP3 Signaling Link Configuration Request

(MTP_MSG_CNF_LINK) to set up configuration parameters for the individual link.

See the MTP3 Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

11. For each destination that needs to be accessed (including all adjacent signaling points), build and send an MTP Route Configuration Request

(MTP_MSG_CNF_ROUTE) to set up configuration parameters for the route. See the

MTP3 Programmer’s Manual for the message definition. Wait for the confirmation message and check the status.

12. Proceed now with the User Part configuration procedure. Once this is complete, issue an MTP Link Activation Request (MTP_MSG_ACT_SL) for each link in the system as required to bring the link into service.

Further links, link sets and routes may be dynamically added at runtime using the same message sequences.

67

4 Message Reference

Figure 4. Protocol Configuration Message Sequence Diagram

USER_MGT

SSD

On-Board

MGT

MTP3

Geographic

Addressing only

SSD_MSG_RESET (0x7680)

(0x3680)

SSD_MSG_BOARD_INFO (0x7689)

(0x3689)

SSD_MSG_RST_BOARD (0x7681)

(0x3681)

SSD_MSG_STATE_IND (0x06a0)

MGT_MSG_CONFIG0 (0x7f10)

(0x3f10)

LIU_MSG_CONFIG (0x7e34)

(0x3e34)

MGT_MSG_L1_CONFIG (0x7f17)

(0x3f17)

SS7_MSG_CONFIG (0x7203)

(0x3203)

MTP_MSG_RESET (0x7300)

(0x3300)

MTP_MSG_CONFIG (0x7303)

(0x3303)

MTP_MSG_CNF_LINKSET (0x7310)

(0x3310)

MTP_MSG_CNF_LINK (0x7311)

(0x3311)

MTP_MSG_CNF_ROUTE (0x7312)

(0x3312)

MTP_MSG_SL_ACT (0xc30a)

(0x830a)

MTP2

MTP2

CTSWX

Repeated per board

Repeated per LIU

Repeated per Link

Per System

Repeated per

Linkset

Repeated per

Route

68

A.2

Dialogic

®

DSI SS7LD Network Interface Boards Programmer's Manual Issue 3

Monitoring Configuration Using Individual Messages

To configure the Dialogic

®

DSI SS7LD Network Interface Board for monitoring using individual messages, proceed as follows:

1. Build and send an SSD Reset Request to the SSD module. This contains the parameters to initialize the SSD module.

2. Build and send a Board Reset Request for each board in the system. This message contains the address (or identifier) of the board and the name of the code file. It causes the board to be reset and the code file downloaded. For each board, the application should wait until a Board Status Indication is received and inspect the status field to determine if the reset operation was successful. On failure, the user should check carefully the parameters and try again.

3. Build and send a Board Configuration Request (MGT_MSG_CONFIG0) to the

onboard management task (MGMT_TASK_ID) to configure the basic board parameters. When using DSI SS7LD Boards, the value of the config_type parameter in the Board Configuration Request must be set to 3. For this version of the message, the automatic configuration of MTP parameters is not supported.

Wait for the confirmation message and check the status.

4. To set up the LIU and port for the T1/E1 ports, the LIU Configuration Request

(LIU_MSG_CONFIG) should be used. For monitoring, the high_Z parameter must

be set to 2. Wait for the confirmation message for each LIU and check the status.

For each link in the system:

5. Build and send a Layer 1 Configuration Request (MGT_MSG_L1_CONFIG) to set up

the physical configuration parameters for the link. This message should be sent to the onboard management module. Wait for the confirmation message and check the status.

6. Build and send an MTP2 Link Configuration Request (SS7_MSG_CONFIG) to set up

the MTP2 configuration parameters for monitoring operation. See the Dialogic

®

SS7 Protocols MTP2 Programmer’s Manual for the message definition. Wait for the

confirmation message and check the status.

69

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
