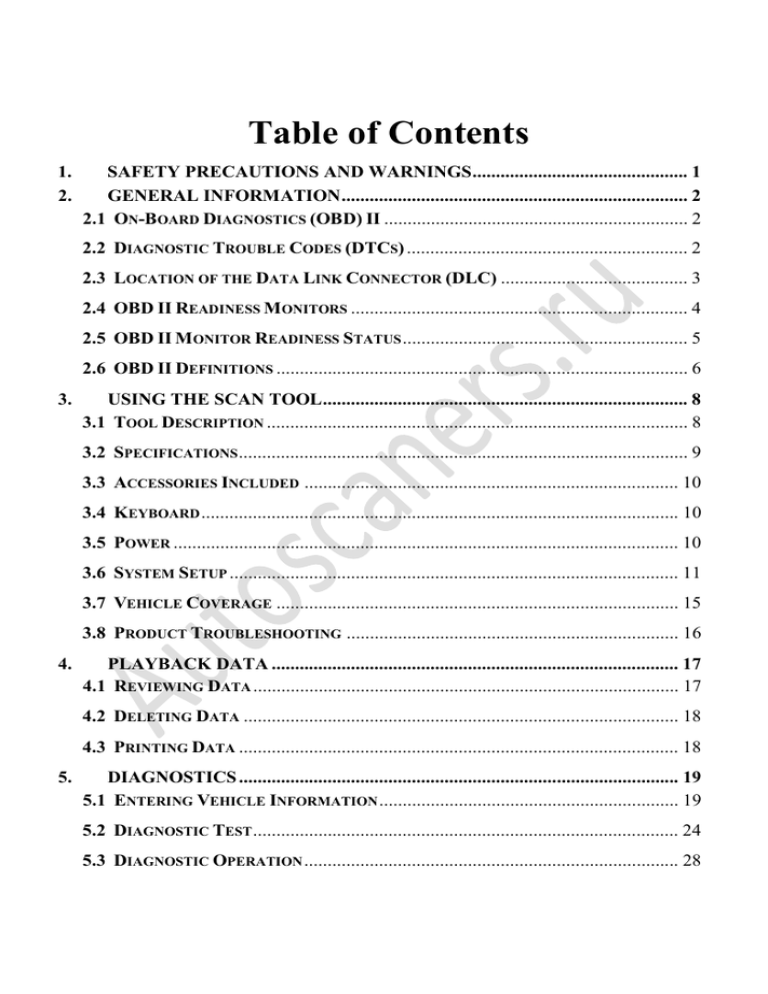

Table of Contents

1. SAFETY PRECAUTIONS AND WARNINGS.............................................. 1

2. GENERAL INFORMATION.......................................................................... 2

2.1 O

N

-B

OARD

D

IAGNOSTICS

(OBD) II ................................................................. 2

2.2 D

IAGNOSTIC

T

ROUBLE

C

ODES

(DTC

S

) ............................................................ 2

2.3 L

OCATION OF THE

D

ATA

L

INK

C

ONNECTOR

(DLC) ........................................ 3

2.4 OBD II R

EADINESS

M

ONITORS

........................................................................ 4

2.5 OBD II M

ONITOR

R

EADINESS

S

TATUS

............................................................. 5

2.6 OBD II D

EFINITIONS

........................................................................................ 6

3. USING THE SCAN TOOL.............................................................................. 8

3.1 T

OOL

D

ESCRIPTION

.......................................................................................... 8

3.2 S

PECIFICATIONS

................................................................................................ 9

3.3 A

CCESSORIES

I

NCLUDED

................................................................................ 10

3.4 K

EYBOARD

...................................................................................................... 10

3.5 P

OWER

............................................................................................................ 10

3.6 S

YSTEM

S

ETUP

................................................................................................ 11

3.7 V

EHICLE

C

OVERAGE

...................................................................................... 15

3.8 P

RODUCT

T

ROUBLESHOOTING

....................................................................... 16

4. PLAYBACK DATA ....................................................................................... 17

4.1 R

EVIEWING

D

ATA

........................................................................................... 17

4.2 D

ELETING

D

ATA

............................................................................................. 18

4.3 P

RINTING

D

ATA

.............................................................................................. 18

5. DIAGNOSTICS .............................................................................................. 19

5.1 E

NTERING

V

EHICLE

I

NFORMATION

................................................................ 19

5.2 D

IAGNOSTIC

T

EST

........................................................................................... 24

5.3 D

IAGNOSTIC

O

PERATION

................................................................................ 28

6. OBDII DIAGNOSTICS ................................................................................. 35

6.1 R

EAD

C

ODES

.................................................................................................... 36

6.2 E

RASE

C

ODES

................................................................................................. 39

6.3 L

IVE

D

ATA

....................................................................................................... 41

6.4 F

REEZE

F

RAME

................................................................................................ 47

6.5 R

ETRIEVING

I/M R

EADINESS

S

TATUS

............................................................. 48

6.6 O2 M

ONITOR

T

EST

.......................................................................................... 51

6.7 O

N

-B

OARD

M

ONITOR

T

EST

............................................................................. 52

6.8 C

OMPONENT

T

EST

........................................................................................... 55

6.9 V

IEWING

V

EHICLE

I

NFORMATION

................................................................... 56

6.10 M

ODULES

P

RESENT

....................................................................................... 58

6.11 DTC L

OOKUP

................................................................................................ 59

7. OIL RESET .................................................................................................... 61

7.1. G

ENERAL

I

NFORMATION

................................................................................ 61

7.2. R

ESET

O

PERATION

.......................................................................................... 61

8. EPB .................................................................................................................. 69

8.1. EPB S

AFETY

................................................................................................... 69

8.2. EPB M

AINTENANCE

....................................................................................... 69

8.3. ABS M

AINTENANCE

....................................................................................... 78

9. PRINT DATA ................................................................................................. 81

10. SOFTWARE UPDATE.................................................................................. 83

10.1. R

EGISTER THE

T

OOL

............................................................................. 83

10.2.

U

PDATE

P

ROCEDURE

............................................................................. 84

10.3.

V

IEW OR

D

ELETE

P

ROGRAMS

............................................................... 86

11. WARRANTY AND SERVICE ...................................................................... 88

11.1. L

IMITED

O

NE

Y

EAR

W

ARRANTY

........................................................... 88

11.2.

S

ERVICE

P

ROCEDURES

.......................................................................... 88

1. Safety Precautions and Warnings

To prevent personal injury or damage to vehicles and/or the scan

tool, read this instruction manual first and observe the following

safety precautions at a minimum whenever working on a vehicle:

 Always perform automotive testing in a safe environment.

 Wear safety eye protection that meets ANSI standards.

 Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.

 Operate the vehicle in a well ventilated work area: Exhaust gases are poisonous.

 Put blocks in front of the drive wheels and never leave the vehicle unattended while running tests.

 Use extreme caution when working around the ignition coil, distributor cap, ignition wires and spark plugs. These components create hazardous voltages when the engine is running.

 Put the transmission in PARK (for automatic transmission) or

NEUTRAL (for manual transmission) and make sure the parking brake is engaged.

 Keep a fire extinguisher suitable for gasoline/chemical/ electrical fires nearby.

 Don’t connect or disconnect any test equipment while the ignition is on or the engine is running.

 Keep the scan tool dry, clean, free from oil/water or grease. Use a mild detergent on a clean cloth to clean the outside of the scan tool, when necessary.

1

2. General Information

2.1 On-Board Diagnostics (OBD) II

The first generation of On-Board Diagnostics (called OBD I) was developed by the California Air Resources Board (ARB) and implemented in 1988 to monitor some of the emission control components on vehicles. As technology evolved and the desire to improve the On-Board Diagnostic system increased, a new generation of On-Board Diagnostic system was developed. This second generation of On-Board Diagnostic regulations is called "OBD II".

The OBD II system is designed to monitor emission control systems and key engine components by performing either continuous or periodic tests of specific components and vehicle conditions. When a problem is detected, the OBD II system turns on a warning lamp (MIL) on the vehicle instrument panel to alert the driver typically by the phrase of “Check Engine” or “Service Engine Soon”. The system will also store important information about the detected malfunction so that a technician can accurately find and fix the problem. Here below follow three pieces of such valuable information:

1) Whether the Malfunction Indicator Light (MIL) is

commanded 'on' or 'off';

2) Which, if any, Diagnostic Trouble Codes (DTCs) are stored;

3) Readiness Monitor status.

2.2 Diagnostic Trouble Codes (DTCs)

OBD II Diagnostic Trouble Codes are codes that are stored by the on-board computer diagnostic system in response to a problem found in the vehicle. These codes identify a particular problem area and are intended to provide you with a guide as to where a fault might be occurring within a vehicle. OBD II Diagnostic Trouble Codes consists of a five-digit alphanumeric code. The first character, a letter,

identifies which control system sets the code. The other four characters, all numbers, provide additional information on where the

DTC originated and the operating conditions that caused it to set. Here below is an example to illustrate the structure of the digits:

2

2.3 Location of the Data Link Connector (DLC)

The DLC (Data Link Connector or Diagnostic Link Connector) is the standardized 16-cavity connector where diagnostic scan tools interface with the vehicle's on-board computer. The DLC is usually located 12 inches from the center of the instrument panel (dash), under or around the driver’s side for most vehicles. If Data Link

Connector is not located under dashboard, a label should be there telling location. For some Asian and European vehicles, the DLC is located behind the ashtray and the ashtray must be removed to access the connector. If the DLC cannot be found, refer to the vehicle’s service manual for the location.

3

2.4 OBD II Readiness Monitors

An important part of a vehicle’s OBD II system is the Readiness

Monitors, which are indicators used to find out if all of the emissions components have been evaluated by the OBD II system. They are running periodic tests on specific systems and components to ensure that they are performing within allowable limits.

Currently, there are eleven OBD II Readiness Monitors (or I/M

Monitors) defined by the U.S. Environmental Protection Agency

(EPA). Not all monitors are supported by all vehicles and the exact number of monitors in any vehicle depends on the motor vehicle manufacturer’s emissions control strategy.

Continuous Monitors -- Some of the vehicle components or systems are continuously tested by the vehicle’s OBD II system, while others are tested only under specific vehicle operating conditions. The continuously monitored components listed below are always ready:

1Misfire

2Fuel

System

3Comprehensive Components (CCM)

Once the vehicle is running, the OBD II system is continuously checking the above components, monitoring key engine sensors, watching for engine misfire, and monitoring fuel demands.

Non-Continuous Monitors -- Unlike the continuous monitors, many

emissions and engine system components require the vehicle to be operated under specific conditions before the monitor is ready. Thes

4

monitors are termed non-continuous monitors. For different ignition type engines, the available monitors are different too.

The following monitors are to be used for spark ignition engines only:

1) EGR System

2) O2 Sensors

3) Catalyst

4) Evaporative System

5) O2 Sensor Heater

6) Secondary air

7) Heated Catalyst

The following monitors are to be used for compression ignition engines only:

1) EGR System

2) NMHC Catalyst

3) NOx aftertreatment

4) Boost pressure system

5) Exhaust gas sensor

6) PM filter

2.5 OBD II Monitor Readiness Status

OBD II systems must indicate whether or not the vehicle’s PCM’s monitor system has completed testing on each component.

Components that have been tested will be reported as “Ready”, or

“Complete”, meaning they have been tested by the OBD II system.

The purpose of recording readiness status is to allow inspectors to determine if the vehicle’s OBD II system has tested all the components and/or systems.

The power-train control module (PCM) sets a monitor to “Ready” or

“Complete” after an appropriate drive cycle has been performed. The drive cycle that enables a monitor and sets readiness codes to “Ready” varies for each individual monitor. Once a monitor is set as “Ready” or “Complete”, it will remain in this state. A number of factors,

5

including erasing of diagnostic trouble codes (DTCs) with a scan tool or a disconnected battery, can result in Readiness Monitors being set to “Not Ready”. Since the three continuous monitors are constantly evaluating, they will be reported as “Ready” all of the time. If testing of a particular supported non-continuous monitor has not been completed, the monitor status will be reported as “Not Complete” or

“Not Ready.”

In order for the OBD monitor system to become ready, the vehicle should be driven under a variety of normal operating conditions.

These operating conditions may include a mix of highway driving and stop and go, city type driving, and at least one overnight-off period.

For specific information on getting your vehicle’s OBD monitor system ready, please consult your vehicle owner’s manual.

2.6 OBD II Definitions

Power-train Control Module (PCM) -- OBD II terminology for the on-board computer that controls engine and drive train.

Malfunction Indicator Light (MIL) -- Malfunction Indicator Light

(Service Engine Soon, Check Engine) is a term used for the light on the instrument panel. It is to alert the driver and/or the repair technician that there is a problem with one or more of vehicle's systems and may cause emissions to exceed federal standards. If the

MIL illuminates with a steady light, it indicates that a problem has been detected and the vehicle should be serviced as soon as possible.

Under certain conditions, the dashboard light will blink or flash. This indicates a severe problem and flashing is intended to discourage vehicle operation. The vehicle onboard diagnostic system can not turn the MIL off until necessary repairs are completed or the condition no longer exists.

DTC -- Diagnostic Trouble Codes (DTC) that identify which section of the emission control system has malfunctioned.

Enabling Criteria -- Also termed Enabling Conditions. They are the vehicle-specific events or conditions that must occur within the engine before the various monitors will set, or run. Some monitors require the vehicle to follow a prescribed “drive cycle” routine as part

6

of the enabling criteria. Drive cycles vary among vehicles and for each monitor in any particular vehicle.

OBD II Drive Cycle -- A specific mode of vehicle operation that provides conditions required to set all the readiness monitors applicable to the vehicle to the “ready” condition. The purpose of completing an OBD II drive cycle is to force the vehicle to run its onboard diagnostics. Some form of a drive cycle needs to be performed after DTCs have been erased from the PCM’s memory or after the battery has been disconnected. Running through a vehicle’s complete drive cycle will “set” the readiness monitors so that future faults can be detected. Drive cycles vary depending on the vehicle and the monitor that needs to be reset. For vehicle specific drive cycle, consult the vehicle’s Owner’s Manual.

Freeze Frame Data -- When an emissions related fault occurs, the

OBD II system not only sets a code but also records a snapshot of the vehicle operating parameters to help in identifying the problem. This set of values is referred to as Freeze Frame Data and may include important engine parameters such as engine RPM, vehicle speed, air flow, engine load, fuel pressure, fuel trim value, engine coolant temperature, ignition timing advance, or closed loop status.

7

3. Using the Scan Tool

3.1 Tool Description

1) CONNECTOR -- Connects the scan tool to the vehicle’s Data

Link Connector (DLC).

2) SD Card Slot Holds the System SD card.

3) LCD DISPLAY -- Indicates test results. TFT color display (320 x 240 dpi).

4) FUNCTION BUTTON – Corresponds with “buttons” on screen for executing commands.

8

5) ESC BUTTON -- Cancels a selection (or action) from a menu or returns to the previous screen.

6) HELP BUTTON -- Provides help information and Code

Breaker function.

7) UP SCROLL BUTTON -- Moves up through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves up through the current screen to the previous screens for additional data. When looking up DTC, it is used to change value of selected character.

8) DOWN SCROLL BUTTON -- Moves down through menu and submenu items in menu mode. When more than one screen of data is retrieved, moves down through the current screen to next screens for additional data. When looking up DTC, it is used to change value of selected character.

9) LEFT SCROLL BUTTON -- When look up DTC definitions, moves to previous character and views additional information on previous screens if DTC definition covers more than one screen; views previous screen or previous frames of recorded data. It is also used to view previous trouble code when viewing DTCs.

10) RIGHT SCROLL BUTTON -- When look up DTC definitions, moves to next character and view additional information on next screens if DTC definition covers more than one screen; views next screen or next frames of recorded data..

It is also used to view next trouble code when viewing DTCs.

11) OK BUTTON -- Confirms a selection (or action) from a menu.

12) External DC Power Port – Connects the 12 volt power adapter to power the tool when disconnected from the vehicle.

13) USB CONNECTOR -- Connects the scan tool to the PC for printing.

3.2 Specifications

9

1) Display: TFT color display (320 x 240 dpi)

2) Operating Temperature: 0 to 60°C (32 to 140 °F)

3) Storage Temperature: -20 to 70°C (-4 to 158 °F)

4) External Power: 12.0 to 18.0 V power provided via vehicle battery or adapter.

5) Dimensions:

Length

212 mm (8.35”)

Width

110.5 mm (4.35”)

Height

37.5 mm (1.48”)

6) Weight: 0.28kg(without wire) 0.484kg(with wire)

3.3 Accessories Included

1) User‟s Manual -- Instructions on tool operations.

2) CD -- Includes user’s manual, MaxiLink update software, and etc.

3) OBD2 cable -- Provides power to tool and communicates between tool and vehicle.

4) USB cable -- Used to upgrade the scan tool, and to print retrieved data.

5) SD card -- Contains the scan tool’s operation software and applications.

6) Carry case -- A nylon case to store the scan tool when not in use.

3.4 Keyboard

No solvents such as alcohol are allowed to clean the keypad or display.

Use a mild nonabrasive detergent and a soft cotton cloth. Do not soak the keypad as the keypad is not waterproof.

3.5 Power

Before using the scan tool, you must provide power to the scan tool.

There are two methods for providing power to the scan tool.



DC external power adapter.



Cable connection to vehicle.

10

During vehicle testing, power for the scan tool is usually provided through the vehicle cable connection. When the scan tool is not connected to a vehicle, the scan tool can be powered with an AC/DC external power adapter.

While the scan tool is powered via the vehicle Data Link Connector

(DLC), just follow the steps below to turn on the scan tool:

1) Connect the Cable to scan tool.

2) Find DLC on vehicle.

 

A plastic DLC cover may be found for some vehicles and you

need to remove it before plugging the OBD2 cable.

3) Plug the cable to the vehicle’s DLC.

4) Power up the scan tool , and wait for the Main Screen to appear.(Figure 3.1)

Figure 3.1

3.6 System Setup

The System Setup functions allow you to adjust default settings and view information about the scan tool.

1) Language: Selects the desired language.

2) Unit of measure: Sets the unit of measure to English or Metric.

3) Beep Set: Turns on/off beep.

4) LCD Test: Checks if the LCD display is working properly.

5) Key Test: Checks if the keyboard is working properly.

11

6) About: Provides information of the scan tool.



Settings of the unit will remain until change to the existing

settings is made.

To enter the Setup menu

From the Main Screen, use LEFT/RIGHT scroll button to select

Setup, and press the OK button. Following the instructions to do adjustments and settings could make your diagnosis more conveniently and easily. (Figure 3.2)

Figure 3.2

Language Setup



English is the default language.

1) From System Setup screen, use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select Language, and press the OK button.

2) Use the UP/DOWN scroll button to select the desired language and press the OK button to save your selection and return to previous screen. (Figure 3.3)

12

Figure 3.3

Unit of Measure



Metric is the default measurement unit.

1) From System Setup screen, use the LEFT/RIGHT scroll button to select EN/METRIC unit and press the OK button.

2) From Unit of Measure screen, use the LEFT/RIGHT scroll button to select the desired unit of measurement. (Figure 3.4 )

Figure 3.4

3) Press the OK button to save your selection and return to previous menu. Or, press the ESC button to exit without saving.

Beep Set



The default setting is Beep On.

13

1) From System Setup screen, use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select Beep and press the

OK button.

2) From Beep Set menu, use the LEFT/RIGHT scroll button to select ON or OFF to turn on/off the beep. (Figure 3.5)

Figure 3.5

3) Press the OK button to save your selection and return to previous menu. Or, press the ESC button to exit without saving.

Key Test

The Key Test function checks if the keyboard is working properly.

1) From System Setup screen, use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select Key Test, and press the OK button.

2) Press any key to start test. When you press a key, the edge around corresponding key on the screen should turn to red. Otherwise, the key is not functioning properly.

3) Double press ESC to return to previous menu.

LCD Test

The LCD Test function checks if the LCD display is working normally.

14

1) From System Setup screen, use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select LCD Test, and press the OK button.

2) Look for missing spots in the red, green, blue, black and white

LCD display.

3) When completed, press the ESC button to exit.

About

The About function allows viewing of some important information such as serial number and software version number of the scanner.

1) From System Setup screen, use the UP/DOWN scroll button and LEFT/RIGHT scroll button to select About and press the

OK button; wait for the About screen to appear.

2) View tool information on screen. (Figure 3.6) Press the ESC button to exit without saving.

Figure 3.6

3.7 Vehicle Coverage

On the basis of all OBD II compliant vehicles, including those

MaxiDiag Elite Series Scanner expands vehicle system coverage and offers more diagnostic power to the vehicle technicians. Featuring

expanded global vehicle coverage, the scan tool offers technicians a significant improvement on model years covered by supported manufactures. In addition to adding new vehicle coverage through

2012/2011, we’ve also worked backwards to include non-OBDII

15

vehicles, which can be diagnosed by setting up with optional OBDI adaptors.

copy of the official MaxiDiag Elite Software Release Note.

3.8 Product Troubleshooting

Vehicle Linking Error

A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Electronic Control Unit). You need to do the following to check up:

 Verify that the ignition is ON.

 Check if the scan tool’s connector is securely connected to the vehicle’s DLC.

 Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.

 Verify the control module is not defective.

Operating Error

If the scan tool freezes, then an exception occurs or the vehicle’s

ECU (Electronic Control Unit) is too slow to respond to requests.

You need to do the following to reset the tool:

 Reset the scan tool.

 Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.

Scan tool doesn‟t power up

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:

 Check if the scan tool’s connector is securely connected to the vehicle’s DLC;

 Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.

 Check vehicle battery to make sure it is still good with at least 8.0 volts.

16

4. Playback Data

The Playback Data function allows viewing data from last test

recorded by the scan tool.

NOTE: The amount of files that can be saved depends on the

space available in the SD card.

4.1 Reviewing Data

1) Use the LEFT/RIGHT scroll button to select Playback from

Main Screen (Figure 3.1), and press the OK button. Wait for the Scan screen to appear. (Figure 4.1)

2) Use the UP/DOWN scroll button to select the desired item from

Scan screen, and press the OK button.

Scan

1. UITrouble

/scan/MAKE/USA/FORD/

2. UIDatastream: complete list

/scan/make/EOBD/

3. UIFreeze

/scan/make/USA/

Delete Delete All

Figure 4.1

 

If no data from previously tested vehicle is recorded, a message

No data available!” shows on the screen.

3) Review selected data on screen. (Figure 4.2 )

17

Vehicle Specification

Vehicle: Mustang

Engine Type: Other

Capacity: 3.8L

Transmission: Manual

Fuel Type: Gasoline

Emission Level: Federal Emission

VIN:1FAFP40462F100819

PrefSuf:2R3APB VersionID:4612

Print

Figure 4.2

4.2 Deleting Data

By selecting Delete on the Scan screen, you are allowed to erase the selected data on the scan tool. Review the recordings thoroughly before erasing. You could also erase all recordings by select Delete

All.

NOTE: Don’t use Delete All unless you are definitely sure what

you are going to proceed.

4.3 Printing Data

Print option allows you to print the recorded files to your computer and then to the printer.

For more details, please refer to chapter 9. Print Data.

18

5. Diagnostics

NOTE: The screens shown below in this chapter are examples.

The screens actually appear vary by vehicle.

5.1 Entering Vehicle Information

Before using the scan tool to diagnose, you must input the vehicle information. There are generally three ways to input the vehicle information.



Vehicle information manual acquisition.



VIN code automatic acquisition.



VIN code manual acquisition.

The way to enter diagnostic procedure depends on vehicle being tested.

5.1.1 Vehicle Information Manual Acquisition

Follow these steps to enter the vehicle information and begin diagnostics. (Taking Ford as an example)

1) Turn on the scan tool and wait for the Main Screen to appear.

2) Select Scan icon in the Main Screen (Figure 3.1) and wait for the vehicle manufacturer screen. Choose the correct vehicle make.

Figure 5.1

19

Figure 5.2

3) Step by step, select the right options for your vehicle according to each screen that appears.

DAS

1. Start New Session

2. Manual Vehicle Entry

3. Vehicle selection

1. All other

Vehicle

Figure 5.3

Traction Assist

1. Not Equipped

2. Equipped

Figure 5.4

Transmission

1. ASM(Auto Shift Manual)

2. Powershift

3. Manual

4. Automatic

5. DPS6

Figure 5.6

Figure 5.5

4) Do this until the complete vehicle information is entered. Then the scan tool will ask your confirmation.

20

Vehicle Specification

Vehicle: Mustang

Engine Type: Other

Capacity: 3.8L

Transmission: Manual

Fuel Type: Gasoline

Emission Level: Federal Emission

Is this correct?

Yes no

Figure 5.7

5.1.2 VIN Code Automatic Acquisition

Some vehicles could identify the VIN code intelligently, saving customer’s time to input complex information. (Taking Renault as an example)

Figure 5.8

RENAULT

1. VIN acquisition

Figure 5.9

21

VIN acquisition

1.VIN CODE automatic acquisition

2.VIN CODE manual acquisition

3.Vehicle type manual acquisition

Figure 5.10

In this mode, the scan tool will communicate with the vehicle and read off the VIN code automatically. It will ask for your confirmation about the VIN code if ECU response received. If no response from the ECU, it will turn to manual mode. (Please see

VIN Code Manual Acquisition)

5.1.3 VIN Code Manual Acquisition

For some vehicles, both selecting the options manually and acquiring the VIN are available for you to enter the vehicle information.

(Taking Benz as an example)

Figure 5.11

In the Benz Cars menu, choose the item “2. Select by entering

VIN” and you can enter the VIN code directly.

22

Cars

1.Vehicle record and abbreviation

2.Select by entering VIN

3.All model series

4.A-Class

5.B-Class

6.C-Class/CLK

7.E-Class/CLS

Figure 5.12

Select by entering VIN

If the chassis number does not

Match the vehicle, enter VIN as a

17-digit code.

Example:WDBNG70J02A123456

Finish Show Esc

Figure 5.13

When you choose to enter VIN directly, a pop-up soft keyboard is used to input VIN code. (Figure 5.14)

To pop up the keyboard, press the Function button corresponding to

Show. Use UP/DOWN scroll button and LEFT/RIGHT scroll button to select digit and character, and then press OK button to confirm. Use Backspace button to delete the previous digit or character. When finished, press the Function button corresponding to

Finish to proceed. The scan tool will identify the VIN code and turn to diagnostic procedure.

23

Figure 5.14

5.2 Diagnostic Test

After you have entered the correct vehicle information, the diagnostic testing selection will display as below:

Select An Option

1. Auto Scan

2. Control Unit

3. Vehicle Information

Figure 5.15

5.2.1 Auto Scan

Depending on the scan tool model, Auto Scan function will carry out an overall scan to check the status of all systems or four systems

(engine, transmission, airbag and ABS) on the vehicle being tested.

Selecting Auto Scan will lead to retrieve the trouble codes in each system of the vehicle one by one. It will take a few minutes to display.

Use the UP/DOWN scroll button to select Auto Scan from Main

Groups menu (Figure 5.15), and press the OK button.

24

100% Auto Scan

PCM- Powertrain

Control Module

Fault 1

Quick Erase Save Display DTC

Figure 5.16

User is allowed to check the details of each system, quickly erase

DTC, save the data, and display DTC from the Auto Scan menu screen. To select the options on the bottom, simply press the corresponding function button.



Save –You can save the Auto Scan information as “Vehicle

Record” so that you will not need to follow the vehicle selection process again on the same vehicle in later tests. For detailed instructions, please refer to 5.2.4 Save and retrieve files.



Quick Erase – By selecting this option, the scan tool will erase all displaying DTCs and once again read the data and check the latest status of the system. If the system did not repair, the trouble codes will keep on displaying.



Display DTC – This option allows you to read DTC definitions in the highlighted system. If more than one fault is detected in a system, the scan tool will display an option list for you to view different kind of DTCs or freeze frames.

1.CMDTCs(Continuous memory

Select Option

2.Freeze Frame-Mode 2

3.pending

Figure 5.17

25

In Auto Scan screen (Figure 5.16), pressing OK button will turn to diagnostic operation. For more details, refer to 5.3 Diagnostic

Operation.

To exit the Auto Scan option, press ESC button. The scan tool will display a message “Are you sure to quit?” to ask for your confirmation. Select Yes to quit, and select No to cancel command.

5.2.2 Control Unit

Control Unit function will list down all the systems that might be available on the vehicle for you to select to test. Select a system to display the function menu and start testing.

System Menu

1. ABS-Anti-Lock Brake/ Traction

Control Module

2. ACM-Audio Control Module

3. BEM-Body Electronic Module

4. FDIM-Front Display Interface

Module

5. HIM-HAVC Integrated Module

6. IPC-Instrument Panel Control

Figure 5.18

NOTE: The actual systems displayed in the System Menu

screen may be different from Figure 5.18 due to various vehicle

configurations.

5.2.3 Vehicle Information

Vehicle Information function allows you to view vehicle-specific information for Specifications, System Type and other Identification.

26

Vehicle Specification

Vehicle: Mustang

Engine Type: Other

Capacity: 3.8L

Transmission: Manual

Fuel Type: Gasoline

Emission Level: Federal Emission

VIN:1FAFP40462F100819

PrefSuf:2R3APB VersionID:4612

OK

Figure 5.19

5.2.4 Save and Retrieve Files

Save and Retrieve Files function will save the detected vehicle information. You can directly get the vehicle information next time.

Please follow the instructions above to finish the Auto Scan process

(Figure 5.15), and press the Function button corresponding to Save, and name the record on the Save Vehicle Record screen.

Save Vehicle Record

Input vehicle name:

Maximum length is 25 characters..

Show Esc Finish

Figure 5.20

To enter the diagnostic functions through the vehicle record option in future, please follow these steps:



Select Vehicle Data Recorder from the DAS menu.

27

DAS

1. Start New Session

2. Manual Vehicle Entry

3. Vehicle selection

4. Vehicle Data Recorder

Figure 5.21



Click on the vehicle file you desired to enter the diagnostic menu directly.

Vehicle Data Record

1. Ford1

2. Ford2

Figure 5.22

5.3 Diagnostic Operation

This function allows you to read and clear diagnostic trouble codes

(DTCs), read and save live data. (Taking Ford as an example)

5.3.1 Read Codes

The Read Codes procedure varies for each vehicle being tested. This section includes the following Read Codes procedures.

In the Function Menu screen (Figure 5.23), select Read Codes.

This will display the Read Codes menu screen. (Figure 5.24)

28

Function Menu

1. Read Codes

2. Erase Codes

3. Live Data

Figure 5.23

Read Codes

1. KOEO On Demand Self-test

2. KOER On Demand Self-test

3. Retrieve

CMDTCs(Continuous

Memory Diagnostic Trouble

Codes)

Figure 5.24

In the Read Codes menu, select one of the options to proceed. The screen will show as below.

Select options

1. CMDTCs

2. Freeze Frame-MODE2

3. Pending.

Figure 5.25

Select one of the DTC options to view detailed diagnostic trouble

code information.

29

CMDTCs

P0046

Battery voltage high

Status-60(No additional fault symptom available for this DTC).

P0098

Intake air temperature sensor 2

Circuit high input

Save

Figure 5.26

You can save the code results for later review by selecting Save option on the bottom. When you finished viewing the DTCs, press the ESC button to return to previous screen.

5.3.2 Erase Codes

After reading and / or reviewing the diagnostic trouble codes, take the following steps to erase codes from the vehicle. If Erase Codes is not an available menu option, consult the manufacturer’s service manual for the correct “clear code” method.

NOTE: This Erase Codes function clears the DTCs from the

selected ECU or provides instructions for how to manually clear

the codes from the ECU.

NOTE: Before performing this procedure, make sure the vehicle’s

ignition key is in the On (Run) position with the engine off.

To Erase DTCs, please follow these steps:

1. With the Function Menu screen displayed (Figure 5.23), click on Erase Codes. The scan tool displays an instruction message.

2. Follow the instructions on each screen that appears until the procedure is complete.

3. When finished, press any key to exit.

4. Use Read Codes function to check the codes again to see if

DTCs have been erased successfully. If any codes remain, it indicates that the vehicle needs maintenance. Please repeat the

Erase Codes steps after repairing the vehicle.

30

5.3.3 Live Data

Live Data function enables you to view the “real-time” live data, including the information of values (volts, rpm, temperature, speed etc.) and system status information (open loop, closed loop, fuel system, etc.) generated by vehicle sensors, switches and actuators.

NOTE: If the vehicle must be driven in order to perform a

troubleshooting procedure, ALWAYS have a second person help

you. One person should drive the vehicle while the other person

observes the Scan Tool data. It is dangerous to drive and operate

the Scan Tool at the same time because a serious traffic accident

might be caused.

1) To view live data, use the UP/DOWN scroll button to select

Live Data from Function Menu screen (Figure 5.27), and press

OK button. The screen will show as below.

………… ..



Live Data

MFF_RPM(Engine RPM)

□ MFF_SOAk(Engine Off Soak Time



Prior to Misfire)

VEHICLE SPEED SENSOR

Select All

1

2

Select Clear All

Figure 5.27



The number to the right of selected item indicates sequence of this item.



If you want to select the item, press Select button.



To select all the items on the screen, press Select All button. To clear all the selected items on the screen, press Clear All button.

2) Press the OK button to view the information.

31

Live Data

MFF_RPM(Engine RPM)

RPM km/h 0

837

VEHICLE SPEED SENSOR

Pause ︱ one Graphic︱ Save

Figure 5.28

The three keyboard function buttons work as below.

[One Graphic]: To view the live data waveform.

[Save]: Save the live data.

[Pause]: Suspend viewing and stop saving live data.

3) Press the Function button corresponding to One Graphic. The screen will show the live data waveform as Figure 5.29.

Figure 5.29

4) Press the Function button corresponding to Two Graphic, the screen will show two graphs as Figure 5.30.

32

Figure 5.30

5) Press the Function button corresponding to Merge Graph, the above two graphs will merge together as Figure 5.31.

Figure 5.31

NOTE: Merge Graph can be used to compare two related

parameters in graphic mode. It is especially convenient that you

could select two interacted parameter to merge and see their

relationship.

6) Select Text to return to the view the live data in text form

7) Select Save to record retrieved live data and graphs.

NOTE: The scan tool can only playback text data even though

the data is saved in graphic mode. Since what you are viewing

is “real time” Live Data, the data changes as the vehicle’s

operating conditions change.

33

 

When there is not enough memory space, a warning message prompting to delete previously recorded data.

Save Failure

Memory space not enough!

Erase previously recorded

Data?

Yes No

Figure 5.32



If you wish to delete the data, select Yes and save currently retrieved data in the SD card.



If you do not wish to delete the data, select No to return to previous screen.



Select Pause to suspend recording. You could resume the recording process again by selecting Continue.



You may review the saved data in Playback function.



Press ESC button to exit.

34

6. OBDII Diagnostics

The OBD II Diagnostics function is a fast-access option that allows you to carry out a quick test on the engine system of OBD II vehicles.

When more than one vehicle control module is detected by the

scan tool, you will be prompted to select the module where the

data may be retrieved. The most often to be selected are the

Power-train Control Module [PCM] and Transmission Control

Module [TCM].

CAUTION: Don’t connect or disconnect any test equipment with

ignition on or engine running.

1) Turn the ignition off.

2) Locate the vehicle’s 16-pin Data Link Connector

(DLC). 3) Plug the scan tool cable connector into the vehicle’s DLC. 4) Turn the ignition on. Engine can be off or running.

5) Turn on the scan tool. Select OBDII V1.10 from the

Main Screen. (Figure 3.1)

6) Press the OK button to wait for the Menu to appear. A sequence of messages displaying the OBDII protocols will be observed on the display until the vehicle protocol is detected.

 

If the scan tool fails to communicate with the vehicle’s ECU

(Engine Control Unit) more than three times, a “LINKING

ERROR!” message shows up on the display.

 Verify that the ignition is ON.

 Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC.

 Verify that the vehicle is OBD2 compliant.

 Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and repeat the procedure from step 5.



If the “LINKING ERROR” message does not go away, then

there might be problems for the scan tool to communicate with

35

the vehicle. Contact your local distributor or the

manufacturer’s customer service department for assistance.

7) View a summary of system status (MIL status, DTC counts, Monitor status) on screen. (Figure 6.1 ) Press ESC button for Diagnostic Menu (Figure 6.3) to come up.

MIL Status

Codes Found

System Status Monitors N/A

Monitors OK

Monitors INC

OFF

0

8

2

0

OK Save

Figure 6.1



If more than one module is detected, you will be prompted to select a module before testing. (Figure 6.2 )

Control Module

Module $10

Module $A4

Figure 6.2



Use the UP/DOWN scroll button to select a module and press the OK button.

6.1 Read Codes

Reading Codes can be done with the key on engine off (KOEO)

or with the key on engine running (KOER).

Stored Codes are also known as “hard codes”, which are fault

codes, or trouble codes that have been stored in the vehicle

computer memory because the faults have reoccurred for

36

more than a specified amount of key-cycles. These codes will

cause the control module to illuminate the malfunction

indicator light (MIL) when emission-related fault occurs.

Pending Codes are also referred to as “maturing codes” or

“continuous monitor codes”. They indicate problems that the

control module has detected during the current or last driving

cycle but are not considered serious yet. Pending Codes will

not turn on the malfunction indicator lamp (MIL). If the fault

does not occur within a certain number of warm-up cycles, the

code clears from memory.

Permanent Codes are DTCs that are "confirmed" and are

retained in the non-volatile memory of the computer until the

appropriate monitor for each DTC has determined that the

malfunction is no longer present and is not commanding the

MIL on. Permanent DTC shall be stored in non-volatile

memory and may not be erased by any diagnostic services or

by disconnecting power to ECU.

1) Use UP/DOWN scroll button to select Read Codes from

Diagnostic Menu and press OK button. (Figure 6.3 )

Diagnostic Menu

1.System Status

2.Read Codes

3.Erase Codes

4.Live Data

5.Freeze Frame

6.I/M Readiness

7.O2 Monitor Test

8.On-Board Monitor Test

Figure 6.3

2) Use the UP/DOWN scroll button to select Stored Codes,

Pending Codes or Permanent Codes from the Read Codes menu and press the OK button. (Figure 6.4 )

37

Read Codes

1.Stored Codes

2.Pending Codes

3.Permanent Codes

Figure 6.4



If there is not any Diagnostic Trouble Code, the display indicates

No (pending) codes are stored in the module!” Wait a few seconds or press any key to return to previous screen.

NOTE: Permanent Codes function is available for merely

vehicles supporting the CAN protocols.

3) View DTCs and their definitions on screen.

4) If more than one DTC is found, use the UP/DOWN scroll button to check all the codes.



If retrieved DTCs contain any manufacturer specific or enhanced codes, a “Manufacturer specific codes are found! Press any key to select vehicle make!” message comes up prompting you to select vehicle manufacturer to view DTC definitions. Use

UP/DOWN scroll button to select manufacturer and then press

OK button to confirm.

Vehicle Manufacturer

BUICK

BMW

CADILLAC

CHEVROLET

CHRYSLER

FORD

Figure 6.5

38



If the manufacturer of your vehicle is not listed, use the

UP/DOWN scroll button to select Other and press the OK button.

6.2Erase Codes

CAUTION: Erasing the Diagnostic Trouble Codes may allow the

scan tool to delete not only the codes from the vehicle’s on-board

computer, but also “Freeze Frame” data and manufacturer

specific enhanced data. Further, the I/M Readiness Monitor Status

for all vehicle monitors is reset to Not Ready or Not Complete

status. Do not erase the codes before the system has been checked

completely by a technician.

NOTE: Erasing codes does not mean that trouble codes in

ECU have been eliminated completely. As long as there is

fault with the vehicle, the trouble codes keeps on presenting.

This function is performed with key on engine off (KOEO). Do

not start the engine.

1) Use the UP/DOWN scroll buttons to select Erase Codes from

Diagnostics Menu and press the OK button. (Figure 5.3)

2) After you have pressed OK button, a message will come up asking you to check the ignition and engine status. (Figure 6.6)

Erase Codes

Ignition on and engine stopped?

Yes No

.

Figure 6.6



If you do not want to proceed with erasing codes, press ESC button or select NO to exit and return to previous screen.

39



If you press Yes function button or OK button, a warning message will come up asking your confirmation. (Figure 6.7)

Erase Codes

DTCs and Freeze Data will be lost

Do you wish to continue?

Yes No .

Figure 6.7

3) Press the OK button to confirm.



If the codes are cleared successfully, an “Erase Done!” confirmation message shows on the display.( Figure 6.8)

Erase Codes

Erase Done!

Press any key to continue

.

Figure 6.8



If the codes are not cleared, then an “Erase Failure. Turn Key on with Engine off!” message appears. (Figure 6.9)

Erase Codes

Erase Failure.

Turn Key on with

Engine Off!

Press any key to continue

Figure 6.9

40

4)

Press any button to return to Diagnostic Menu.

6.3 Live Data

In this function, you can not only read the live data but also record data for later review.

Viewing Data

The View Data function allows viewing of live or real time PID

data of vehicle‟s computer module(s).

1) To view live data, use the UP/DOWN scroll button to select Live

Data from Diagnostic Menu and press the OK button. (Figure

6.3)

2) Wait a few seconds while the scan tool validates the PID MAP.

(Figure 6.10)

Live Data

Reading PID.01

- Please Wait -

Figure 6.10

A. Viewing Complete List

1) To view complete set of data, use UP/DOWN scroll button to select Complete List from Live Data menu and press the OK

button. (Figure 6.11)

41

………………… Live Data .

1. Complete List

2. Custom List

Figure 6.11

2) View live PIDs on the screen. Use the UP/DOWN scroll button for more PIDs if additional information is available on more than one page.( Figure 6.12)

Complete List

Numbers of DTCs

Fuel system 1 status

Fuel system 2 status

Calculated load value

Engine coolant temperature

Pause Graphics

Figure 6.12

0

OL

--

0.0

-40

0

%

C

Save



If the “Graphics” on the bottom appears when a PID is highlighted, graphic information is available. Select

Graphics to view graph. (Figure 6.13). PID name, current value, maximum and minimum values are displayed on the screen.

42

Figure 6.13



If the “Merge Graph” on the bottom appears when a PID is selected to view, merged graph information is available.

(Figure 6.14)

NOTE: Merge Graph can be used to compare two related

parameters in graphic mode, which is especially convenient in

the Custom List option where you could select two interacted

parameter to merge and see their relationship.

Figure 6.14



Select Text to return to text viewing of PID data.



Select Save to record retrieved live data and PID graphs.



Select Pause to suspend viewing. You could resume the viewing process again by selecting Start.

43

3) Press the ESC button to return to previous menu.

B. Viewing Custom List

1) To view customized PID data, use the UP/DOWN scroll button to select Custom List from Live Data menu and press the OK button. (Figure 6.11)

2) Use the UP/DOWN scroll button to move up and down to the desired items and click Select button to confirm. The selected parameters are marked with solid squares. (Figure 6.15)

………… ..



Custom

Numbers of DTCs

List

Fuel system 1 status



Fuel system 2 status



Calculated load value

1

2



Engine coolant temp

Select All Clear Clear all

Figure 6.15



The number to the right of selected item indicates sequence of this item.



If you want to deselect the item, press Clear button.



To select all the items on the screen, press Select All button.

To clear all the selected items on the screen, press Clear All button.

3) Press the OK button to view selected PIDs on screen.

44

Custom List

Numbers of DTCs

Fuel system 1 status

0

OL

Pause Graphics Save

Figure 6.16

4) Press the OK button to view selected PIDs on screen.

Recording Data

The Record Data function allows recording vehicle modules‟

Parameter Identification (PID) data to help diagnose

intermittent vehicle problems. You could save data files to the

SD card and then use the Playback function to view the saved

files.

NOTE: The length of time for each frame varies per vehicle.

Generally, one frame of data is about 1/4 second, or 4 frames per

second.

1) To record live data, with the live data screen displaying, select

Save on the bottom. The scan tool will start timing to record retrieved live data and PID graphs.



If you record live data under text mode, following screen shows::

Complete List

Numbers of DTCs

Fuel system 1 status

Fuel system 2 status

Calculated load value

0

OL

--

0.0

%

Engine coolant temperature

-40 0

C

Pause Graphics Saving 94

Figure 6.17

45



If you record live data under graph mode, following screen shows:

Figure 6.18

NOTE: The scan tool can only playback text data even though

the data is saved in graphic mode.

2) When there is not enough memory space, a warning message prompting to delete previously recorded data.

Save Failure

Memory space not enough!

Erase previously recorded

Data?

Yes No

Figure 6.19



If you wish to delete the data, select Yes and save currently retrieved data in the SD card.



If you do not wish to delete the data, select No to return to previous screen.

3) Select Pause to suspend recording. You could resume the recording process again by selecting Start.

46

4) You may review the saved data in Playback function.

5) Press ESC button to exit.

6.4 Freeze Frame

Freeze Frame Data allows the technician to view the vehicle‟s

operating parameters at the moment a DTC (Diagnostic Trouble

Code) is detected. For example, the parameters may include

engine speed (RPM), engine coolant temperature (ECT), or

vehicle speed sensor (VSS) etc. This information will aid the

technician by allowing the parameters to be duplicated for

diagnostic and repair purposes.

1) To view freeze frame data, use the UP/DOWN scroll button to select Freeze Frame from Diagnostic Menu and press the OK button. (Figure 6.3 )

2) Wait a few seconds while the scan tool validates the PID MAP.

3) If retrieved information covers more than one screen, use the

DOWN scroll button, as necessary, until all the data have been shown up. (Figure 6.20)

Freeze Frame

DTC that caused required freeze frame data storage

Fuel system 1 status

Fuel system 2 status

Calculated load value

Engine coolant temperature

Save

P0193

OL

--

0.0

-40

0

%

C

Figure 6.20



If there is no available freeze frame data, an advisory message

No freeze frame data stored!” shows on the display.

47

4) Select Save to record freeze frame. A confirming message “Save

success!” shows on the display and scan tool return to previous menu.

5) If you don’t want to save the freeze frame data, press ESC button to return to previous screen.

6.5Retrieving I/M Readiness Status

I/M Readiness function is used to check the operations of the

Emission System on OBD2 compliant vehicles. It is an excellent

function to use prior to having a vehicle inspected for

compliance to a state emissions program.

CAUTION - By clearing trouble codes you also clear the readiness

status for the individual emission system readiness tests. In order

to reset these monitors, the vehicle must be driven through a

complete drive cycle with no trouble codes in memory. Times for

reset vary depending on vehicle.

Some latest vehicle models may support two types of I/M

Readiness tests:

A. Since DTCs Cleared - indicates status of the monitors since the

DTCs are erased.

B.

This Drive Cycle - indicates status of monitors since the beginning of the current drive cycle.

An I/M Readiness Status result of “NO” does not necessarily

indicate that the vehicle being tested will fail the state I/M

inspection. For some states, one or more such monitors may be

allowed to be “Not Ready” to pass the emissions inspection.

“OK” -- Indicates that a particular monitor being checked has completed its diagnostic testing.

“INC” -- Indicates that a particular monitor being checked has

not completed its diagnostic testing.

“N/A” -- The monitor is not supported on that vehicle.

48

1) Use the UP/DOWN scroll button to select I/M Readiness from

Diagnostic Menu and press OK button. (Figure 6.3)

2) Wait a few seconds while the scan tool validates the PID MAP.

3) If the vehicle supports both types of tests, then both types will be shown on the screen for selection. (Figure 6.21)

.

…………… I/M Readiness

1.Since DTCs Cleared

2.This Drive Cycle

Figure 6.21

4) Use the UP/DOWN scroll button, as necessary, to view the status of the MIL light (“ON” or “OFF) and the following monitors:

For spark ignition engines:



MIS -- Misfire Monitor



FUEL -- Fuel System Monitor



CCM -- Comprehensive Component Monitor



EGR EGR System Monitor



O2S -- O2 Sensors Monitor



CAT -- Catalyst Monitor



EVAP -- Evaporative System Monitor



HTR -- O2 Sensor Heater Monitor



AIR -- Secondary Air Monitor



HCAT -- Heated Catalyst Monitor

For compression ignition engines:



MIS -- Misfire Monitor

49



FUEL -- Fuel System Monitor



CCM -- Comprehensive Component Monitor



EGR EGR System Monitor



HCCAT -- NMHC Catalyst Monitor



NCAT -- NOx Aftertreatment Monitor



BP -- Boost Pressure System Monitor



EGS -- Exhaust Gas Sensor Monitor



PM -- PM Filter Monitor

Since DTCs cleared

MIL Status

Misfire Monitoring

Fuel system monitoring

Comprehensive component monitoring

Catalyst monitoring

Heated catalyst monitor

OFF

N/A

OK

OK

N/A

N/A

Figure 6.22

5) If the vehicle supports readiness test of “This Drive Cycle”, a screen of the following displays: (Figure 6.23)

This Drive Cycle

MIL Status

Misfire Monitoring

Fuel system monitoring

Comprehensive component monitoring

OFF

N/A

OK

OK

F m o n r e 6 .

g N/A

Heated catalyst monitor N/A

6) Use the UP/DOWN scroll button for more PIDs if additional information is available on more than one page. Or use the

LEFT/RIGHT scroll button to view PIDs in the previous/next page.

50

7) Press the ESC button to return to Diagnostic Menu.

6.6 O2 Monitor Test

OBD2 regulations set by SAE require that relevant vehicles

monitor and tests on the oxygen (O2) sensors to identify problems

related to fuel efficiency and vehicle emissions. These tests are not

on-demand tests and they are done automatically when engine

operating conditions are within specified limits. These test results

are saved in the on-board computer's memory.

The O2 Monitor Test function allows retrieval and viewing of O2

sensor monitor test results for the most recently performed tests

from the vehicle's on-board computer.

The O2 Monitor Test function is not supported by vehicles which

communicate using a controller area network (CAN). For O2

Monitor Test results of CAN-equipped vehicles, see chapter

“On-Board Mon. Test”.

1) Use the UP/DOWN scroll button to select O2 Monitor Test from Diagnostic Menu and press OK button. (Figure 6.3)

2) Wait a few seconds while the scan tool validates the PID MAP.

3) Use the UP/DOWN scroll button to select O2 sensor from O2

Monitor Test menu and press OK button. (Figure 6.24)

.......... ..

O2 Monitor Test …

1.O2 Bank1 Sensor1

2.O2 Bank1 Sensor2

3.O2 Bank2 Sensor1

4.O2 Bank2 Sensor2

Figure 6.24



If the vehicle does not support the mode, an advisory message will be displayed on the screen. (Figure 6.25)

51

…………….

O2 Monitor Test …………..

The selected mode is not supported!

Press any key to continue .

Figure 6.25

4) View test results of selected O2 sensor. (Figure 6.26)

… ……… .

O2 Bank1 Sensor2 .

Rich-Lean Threshd V

Lean-Rich Threshd V

Low for Switch (V)

High for Switch (V)

Rich-Lean Threshd S

Lean-Rich Threshd S

Figure 6.26

5) Use the UP/DOWN scroll button to view more screens of data if additional information is available in more than one page.

6) Press the ESC button to return to the previous menu.

6.7 On-Board Monitor Test

The On-Board Monitor Test is useful after servicing or after

erasing a vehicle‟s control module memory. The On-Board

Monitor Test for non-CAN-equipped vehicles retrieves and

displays test results for emission-related power train components

and systems that are not continuously monitored. The On-Board

Monitor Test for CAN-equipped vehicles retrieves and displays

test results for emission-related power train components and

systems that are and are not continuously monitored. Test and

components IDs are determined by the vehicle manufacturer.

In this test, there are typically a minimum value, a maximum value, and a current value for each monitor. By comparing the current value

52

with the minimum and maximum value, the scan tool will determine if it is OK.

1) Use the UP/DOWN scroll button to select On-Board Monitor

Test from Diagnostic Menu and press the OK button. (Figure

6.3)

2) Wait a few seconds while the scan tool validates the PID MAP.

3) The scan tool will prompt you to select the vehicle make. (If you have selected the vehicle before, the Vehicle Manufacturer screen would not appear again)

Vehicle Manufacturer

BUICK

BMW

CADILLAC

CHRYSLER

FORD

GM

Figure 6.27

4) After you select the vehicle manufacturer, the scan tool shows the On-Board Monitors tests for specific monitoring systems.

5) From On-Board Monitor Test menu, use the UP/DOWN scroll button to select a test to view and press the OK button. (Figure

6.28)

On-Board Monitor Test

1. Test $01 Data

2. Test $03 Data

3. Test $10 Data

4. Test $21 Data

5. Test $22 Data

6. Test $25 Data

Figure 6.28

53



If the vehicle under test does not support the mode, an advisory message will be displayed on the screen. (Figure

6.29)

On-Board Monitor Test

The selected mode is not supported

Press any key to continue

Figure 6.29



For CAN-equipped vehicles, test selections can be as below:

On-Board Monitor Test ..

1. EGR Monitor

2. Mis-Fire Monitor Data

3. Mis-Fire Cylinder 1 Data

4. Mis-Fire Cylinder 2 Data

5. Mis-Fire Cylinder 3 Data

6. Mis-Fire Cylinder 4 Data

Figure 6.30

6) Use the UP/DOWN scroll button to select the desired monitor from On-Board Monitor Test menu and press the OK button.

7) View test data on screen.

ID

Module

Test Value

Min Limit

Test $01 Data

11

$10

0400

0200

Max Limit

Status

Figure 6.31

54

----

OK



For CAN-equipped vehicles, test results displayed can be as below:

ID

Module

Test Value

Min Limit

Max Limit

Status

Flow Test

11

$10

0.10

0.00

95.0

OK

%

%

%

Figure 6.32

8) Press ESC button to return to the previous menus.

6.8 Component Test

The Component Test function allows initiating a leak test for the

vehicle's EVAP system. The scan tool itself does not perform the

leak test, but commands the vehicle's on-board computer to start

the test. Different vehicle manufacturers might have different

criteria and methods for stopping the test once it has been started.

Before starting the Component Test, refer to the vehicle service

manual for instructions to stop the test.

1) Use the UP/DOWN scroll button to select Component Test from

Diagnostic Menu and press the OK button. (Figure 6.3)

2) Wait for the scan tool to display the Component Test menu.

Component Test

1.EVAP Sys. Leak Test

Figure 6.33

55

3) If the test has been initiated by the vehicle, a confirmation message will be displayed on the screen.

Component Test

Command Sent!

Press any key to continue

Figure 6.34



Some vehicles do not allow scan tools to control vehicle systems or components. If the vehicle under test does not support the EVAP Leak Test, an advisory message is displayed on the screen.

.............

Component Test

The selected mode is not supported

Press any key to continue

Figure 6.35

4) Wait a few seconds or press any key to return to previous screen.

6.9 Viewing Vehicle Information

The Vehicle Info. function enables retrieval of Vehicle

Identification No. (VIN), Calibration ID Nos. (CINs),

Calibration Verification Nos. (CVNs) and In-use Performance

Tracking on 2000 and newer vehicles that support Mode 9.

1) Use UP/DOWN scroll button to select Vehicle Info. from the

Diagnostic Menu and press OK button. (Figure 6.3)

56

2) An advisory message comes up to remind you. Wait a few seconds or press any key to continue.

Vehicle Info.

Turn key on with engine off !

Press any key to continue

Figure 6.36

3) Wait for the scan tool to display the Vehicle Info. menu.

Vehicle Info.

1.Vehicle ID Number

2.Caibration ID

3.Cal. Verf. Number

Figure 6.37



If the vehicle does not support this mode, a message shows on the display warning that the mode is not supported.

4) From Vehicle Info. menu, use the UP/DOWN scroll button to select an available item to view and press the OK button.

5) View retrieved vehicle information on screen.

57

VIN 1FAFP40462F100819

Vehicle ID Number

Esc

Figure 6.38

6) Press the ESC button to return previous menu

6.10 Modules Present

The Modules Present function allows viewing of the module IDs

and communication protocols for OBD2 modules in the vehicle.

1) Use the UP/DOWN scroll button to select Modules Present from Diagnostic Menu and press OK button. (Figure 6.3)

2) View modules present with their IDs and communication protocols.

Modules Present

Protocol

SAE J1850 PWM

ID

$10

Save

Figure 6.39

3) Select Save to save the modules data and return to previous menu. Or press ESC button to exit.

58

6.11 DTC Lookup

The DTC Lookup function allows user to search definitions of

DTC stored in built-in DTC library.

1) Use the UP/DOWN scroll button to select DTC Lookup from

Diagnostic Menu and press OK button. (Figure 6.3)

2) Wait for the scan tool to display the DTC Lookup screen.

DTC Lookup

Only PCBU can be the first letter to be put in. Only 0~9,a~f for the rest letters...

Finish Show

Figure 6.40

Esc

3) Select Show and a soft keyboard will pop up. Use

LEFT/RIGHT button and UP/DOWN button to move to the desired character, then press OK button to confirm.

4) After you input the DTC code, select Finish and the scan tool will display this code’s definition on screen.

Yes

Input Dialog Box

P0005

Do you want to save and continue?

No

Figure 6.41

5) Press Yes or OK button to proceed. The scan tool will display

DTC definition as below.

59

Trouble Codes

P0005

Fuel Shutoff Valve A Control

Circuit/Open

Save

Figure 6.42



Use the LEFT/RIGHT scroll button to view the previous / next DTC.



Select Save to record code definition.



For manufacturer specific codes, you need to select a vehicle make on an additional screen to look for DTC definitions.



If definition could not be found (SAE or Manufacturer

Specific), the scan tool displays “Please refer to vehicle

service manual!

6) Press No or ESC button to return to previous menu.

60

7. Oil Reset

7.1. General Information

The Engine Oil Life System calculates when to change the engine

oil and filter based on vehicle use. An oil change is required

whenever indicated by the display and according to the

recommended maintenance schedule. Whenever the oil is

changed, reset the system so it can calculate when the next oil

change is required. If a situation occurs where the oil is changed

prior to a service indicator being turned on, also reset the

system.

IMPORTANT: Always reset the engine oil life to 100% after

every oil change.

NOTE: All required work must be carried out before the

service indicators are reset. Failure to do so may result in

incorrect service values and cause DTCs to be stored by the

relevant control module.

NOTE: For some vehicles, the scan tool can perform added

functionality to reset additional service lights (maintenance

cycle, service interval). Taking BMW as an example, its

service reset function includes engine oil, spark plugs,

front/rear brakes, coolant, particle filter, brake fluid,

microfilter, vehicle inspection, exhaust emission inspection

and vehicle check.

All software screens shown in this manual are examples, actual test screens may vary for each vehicle being tested. Observe the menu titles and onscreen instructions to make correct option selections.

7.2. Reset Operation

1. Turn the ignition on but do not start the engine.

2. Turn on the scan tool and wait for the Main Screen to appear.

3. Select Oil Reset icon in the Main Screen (Figure 3.1) and wait for the vehicle manufacturer screen. Choose the correct vehicle make.

61

There are two ways to perform the reset service.

A. Manual Reset

Almost all Asian vehicles and most American and European vehicles can be reset manually by technicians.

NOTE: In this manner, the scan tool will not communicate

with the vehicle being tested.

To finish this procedure, please follow these steps (Taking Ford as an example):

1) From the vehicle make screen, select Ford and press OK button.

Figure 7.1

2) Step by step, select the right options for your vehicle according to each screen that appears.

Model

1.Ford

2.Lincoln

3.Mercury

Figure 7.2

62

1.2005

2.2003-2004

3.1998-2002

Year

Figure 7.3

3) After entering the vehicle information, the scan tool displays manual reset message as below.

Manual Reset

1.Select Press Reset At Oil

Change from the setup control for the current display mode.

2.Press Reset Control to reset

Oil change.

OK

Figure 7.4

4) Follow the instructions to reset the service manually.

5) Press ESC button to exit.

B. Auto Reset

Most American and European vehicles can be reset automatically by the scan tool.

NOTE: In this manner, the scan tool will communicate with

the vehicle being tested. If there is a linking error, please

refer to 3.8 product troubleshooting.

To finish this procedure, please follow these steps (Taking

PEUGEOT as an example):

1) From the vehicle make screen, select PEUGEOT and press OK button.

63

Figure 7.5

2) Step by step, select the right options for your vehicle according to each screen that appears.

PEUGEOT

1.206/206MUX

2.206+

3.20

7

4.30

7

5.30

8

6.40

6

Figure 7.6

3) After you have entered the vehicle information, the oil reset screen will display as below.

System

1.Instrument panel

2.BSI

Figure 7.7

64

4) The Instrument Panel option enables you to finish oil reset service in one step by resetting the ECU to default values automatically. The procedures work as below.



In the Oil Reset menu, select Service Zero Reset function and press OK button.

Oil Reset

1.Service Zero Reset

Figure 7.8



The tool will automatically begin resetting the vehicle ECU to default values.

Service Zero Reset

Check the resetting of the maintenance to zero.

Cancel

Figure 7.9



When the resetting is finished, the tool will display a confirmation message.

Service Zero Reset

Operation Completed.

Press any key to continue

Figure 7.10

65

5) The BSI option enables you to finish oil reset service automatically and manually. The procedures work as below.



In the Oil Reset menu, select Resetting to zero of the

service mileage function and press OK button.

1.Resetting to zero of the service mileage

Oil Reset

2.Maintenance

Figure 7.11



The tool will reset the oil service to zero automatically.

Resetting to zero

Maintenance mileage zero reset carried out.

Press any key to continue

Figure 7.12



In the Oil Reset menu (Figure 7.11), select Maintenance function and press OK button. The screen will display the preset maintenance information of the vehicle. The information items vary with different vehicles.

Maintenance

Period before service

(months)

First maintenance threshold

6 china

Maintenance limit(km)

Finish Edit

Figure 7.13

66

7400

ESC

 For the First maintenance threshold, you have two choices.

Select the correct option and press OK button to save the change.

1.China

2.Another country

Figure 7.14

 For the Period before service or Maintenance limit, press

Edit key on the bottom to pop up a soft keyboard to facilitate your input.

Figure 7.15

The three keyboard function keys work as below.

Finish --- When you finished the input, select this key to confirm your input and exit.

Pre. --- Moves a space to the left.

Backspace --- Uses this key to erase the previous digit or character when typing.

67

NOTE: The data you input must be in the reasonable range,

which is defined by the preset values in ECU. If you enter a data

out of range, the tool will display a warning message.

Figure 7.16

 When you have finished your configuration, select Finish key on the bottom of the screen, then the tool will begin the oil reset service.

Maintenance

Configuration carried out.

Press any key to continue

Figure 7.17

68

8. EPB

This electric parking brake (EPB) function has a multitude of

uses to maintain the electronic braking systems safely and

effectively. The applications include deactivating/activating the

brake control system, assisting with brake fluid control, brake

diagnostics, opening and closing brake pads, setting brakes after

disc or pad replacement and also reading and clearing EPB/SBC

trouble codes. It is also capable of retrieving Fault Codes

information from the ECU.

8.1. EPB Safety

It may be dangerous to perform electric parking brake (EPB) system maintenance, so before you begin the service work, please keep these rules in mind.



Ensure that you are fully familiar with the braking system and its operation before commencing any work.



The EPB control system may be required to be deactivated before carrying out any maintenance/diagnostic work on the brake system. This can be done from the tool menu.



Only carry out maintenance work when the vehicle is stationary and on level ground.



Ensure that the EPB control system is reactivated after the maintenance work has been completed.

NOTE: Autel accepts no responsibility for any accident or

injury arising from the maintenance of the Electric Parking

Brake system.

8.2. EPB Maintenance

1) Turn the ignition off.

2) Release the park brake and make sure the car is properly blocked.

3) Connect the tool to vehicle and power on.

69

4) Turn the ignition on.

5) Select EPB icon in the Main Screen (Figure 3.1) and wait for the vehicle manufacturer screen. Choose the correct vehicle make. (Take PEUGEOT as an example)

Figure 8.1

6) After you have selected the vehicle make, the electric parking brake system screen will display as below.

1.EPB

2.ABS

System

Figure 8.2

7) In the electric parking brake system screen, use the UP/DOWN button to select EPB to enter EPB system. In the EPB diagnostic function, the tool can read codes, erase codes, record live data, read ECU information, perform active test, and perform special function. For the functions already being

described before, please refer to chapter 5. OBDII Diagnostics for details.

70

Diag. Menu

1. Read Codes

2. Erase Codes

3. Live Data

4. Active Test

5. ECU Information

6. Special Function

Figure 8.3

Special Function

1) In the Diagnostic Menu (Figure 8.3), use the UP/DOWN button to select Special Function to do the EPB test, which includes Brake cable replacement and Electric parking

brake replacement.

EPB

1.Brake cable replacement

2.Electric parking brake replacement.

Figure 8.4

2) In the EPB screen, use the UP/DOWN button to select Brake

cable replacement. The screen shows as below.

Brake cable replacement

1.Put in fitting/removal position

2.Cable tensioning

3.Electric parking brake calibration.

Figure 8.5

71

In the Brake cable replacement screen, the tool can perform three functions.

A. Put in fitting or removal position

This function enables you to fit in or remove the brake cable safely and easily. It will take a few seconds to execute this command.

Put in fitting/removal position

Activation in progress!

OK

Figure 8.6

When the job is done successfully, the tool will display a message to confirm.

Put in fitting/removal position

Positioning done.

To replace or remove the brake cables, refer to the mechanical schedule "Removal-replacement: electric parking brake primary and secondary cables"

Press any key to continue

Figure 8.7

If the job fails to finish, the tool will display a message to remind user of a problem. After you exit the diagnosis program, please repair the problem immediately.

72

Put in fitting/removal position

Activation done, a problem occurred during the operation.

B. Cable tensioning

Press any key to continue

Figure 8.8

Once the brake cable is fit in, you would use this function to adjust its tension. It will take a few seconds to execute this command.

Cable tensioning

Activation in progress!

OK

Figure 8.9

When the job is done successfully, the tool will display a message to confirm.

Cable tensioning

Cable tensioning done.

Now calibrate the Electric parking brake (see “Electric parking brake replacement” menu)

Press any key to continue

Figure 8.10

73

If the job fails to finish, the tool will display a message to remind user of a problem. After you exit the diagnosis program, please repair the problem immediately.

Cable tensioning

Activation done, a problem occurred during the operation.

Press any key to continue

Figure 8.11

C. Electric parking brake calibration

When both functions above have completed successfully, you still need to calibrate the electric parking brake system.

This function is to check if the EPB is working correctly, which should be performed after work has been completed on the EPB or vehicle braking system. It will remove any air gap from the brake pads and check the EPB pressure.

After you select this function, the tool will automatically work in the following procedure.

Electric parking brake calibration

Activation in progress!

OK

Figure 8.12

74

Electric parking brake calibration

Please wait! The tool should stop and restart the communication with the Electric parking brake

ECU.

Figure 8.13

Electric parking brake calibration

Restart communication

Figure 8.14

When the job is done successfully, the tool will display a message to confirm.

Electric parking brake calibration

Electric parking brake cable calibration done!

Press any key to continue

Figure 8.15

If the job fails to finish, the tool will display a message to remind

user of a problem. After you exit the diagnosis program, please repair the problem immediately.

75

Electric parking brake calibration

Activation done, a problem occurred during the operation.

Press any key to continue

Figure 8.16

3) In the EPB screen, use the UP/DOWN button to select

Electric parking brake replacement. The screen shows as below.

Electric parking brake replacement

1.Put in fitting/removal position

2.Cable tensioning

3.Electric parking brake calibration.

Figure 8.17

In the Electric parking brake replacement screen, the tool can also perform three functions, which details could refer to the same functions described in the Brake cable replacement menu above.

Active Test

During an active test, the tool is used for outputting commands to the

ECU in order to drive the actuators. This test determines the integrity of the system or parts by monitoring the operation of the actuators or by reading the EPB ECU data.

To carry out an active test, please follow these steps.

1. Follow the instructions above to display the Diag. menu screen.(Figure 8.3)

76

2. Select Active Test and a list of possible tests appear. The test items in the list vary with different vehicles.

Active

1.Apply electric parking brake

2.Release electric parking brake

Figure 8.18

3. Select a test and the tool will display an information screen as

The 'apply electric parking brake' operation is used to test

the operation of the brake cables statically. If you start the

actuator test, you must wait for the component to stop

operating before starting another actuator test. Press 'OK'

to apply the electric parking brake or press 'Cancel' to go

back to the list of possible operation.” Select OK to continue or Cancel to exit.

4. The tool may display information during and after the test. The information varies by vehicle.

Apply electric parking brake

Listen to the noise of the

Electric motor!

OK

Figure 8.19

5. When the test is finished, there may be three results displaying on the screen.

77



The test is finished successfully.



The test is stopped by the user.



The test did not finish.

In the first condition, the tool will display an information screen as

The operation was performed correctly. Put the vehicle on a

vehicle lift and check that the rear wheels are locked. Check that

the 'Electric parking brake on' message is display on the control

panel and that the LED illuminates on the control panel.”

In the second condition, the tool will display an information screen as “Operation of the actuator test was stopped by the user. Press

„Cancel' to go back to the list of possible operations.

In the third condition, the tool will display an information screen as

The actuator test did not finish operating. Please perform the

following check: Read the faults to resolve any possible faults

relating to the electric motor or to the cables.”

IMPORTANT: Make sure that the components to be tested are

not physically damaged and are well assembled.

WARNING: Please stop repairing the components to be tested

before the test starts and keep a certain distance during the test.

8.3. ABS Maintenance

In the System menu (Figure 8.2), use UP/DOWN button to select

ABS to do ABS maintenance. The scan tool displays as below:

Diag. Menu

6. Read Codes

7. Erase Codes

8. Live Data

9. Active Test

10. ECU Information

6. Special Function

Figure 8.20

78

In the ABS diagnostic function, the tool can read codes, erase codes, record live data, read ECU information, perform active test, and perform special function. For the functions already being described before, please refer to chapter 5. OBDII Diagnostics for details.

Special Function

1) In the Diagnostic Menu (Figure 8.20), use the UP/DOWN button to select Special Function to do the ABS test. The scan tool displays as below.

EPB

1.Reactivation of automatic application

2.Deactivation of automatic application

Figure 8.21

2) In the EPB menu, select the desired function and press OK button. If the operation is finished successfully, the scan tool will display a confirmation message. Otherwise, it will display a message to remind user of a problem. After you exit the diagnosis program, please repair the problem immediately.

Active Test

1) In the Diagnostic Menu (Figure 8.20), use the UP/DOWN button to select Active Test to do the actuator test. The scan tool displays as below.

79

Active

1.ABS/ASR recirculation pump

2.Left front intake solenoid valve

3.Right front intake solenoid valve

4.Left rear intake solenoid valve

5.Right rear intake solenoid valve

6.Switching solenoid valve 1

7.Switching solenoid valve 2

Figure 8.22

2) In the Active menu, use the UP/DOWN button to select the desired actuator to begin test. If the selected actuator works correctly, the tool will display a confirmation message as below (Figure 8.23). Otherwise, it will display a message to remind user of a problem. After you exit the diagnosis program, please repair the problem immediately.

Active

Operation completed!

No fault detected!

Press any key to continue

Figure 8.23

80

9. Print Data

The Print Data function allows printing out diagnostic data

recorded by the scan tool or customized test reports by

connecting the scan tool to a PC or laptop with the USB cable

supplied.



To print out retrieved data, you need the following tools:

MaxiDiag



Elite Series scan tool

A PC or laptop with USB ports

A USB cable

1) Install Autel PC Suit through the included CD, or download the applications in our website: www.maxidas.com or our distributors’ site.

2) Connect the scan tool to computer with the USB cable supplied.

3) Run Autel Printer software on computer.

4) Select Playback function in Main Screen of the scan tool. In

Scan screen, use the UP/DOWN scroll button to select the files you want to print. Wait for the reviewing window to display

(Figure 4.2), then select Print function on the bottom. The selected file will be uploaded to your computer. For more detailed instructions, please refer to 4. Playback Data.

5) The Autel Printer will show as below.

Figure 9.1

81

6) The selected data will display on the textbox of Autel Printer.

By selecting the function buttons on the right, you could execute the following operations:



Print – Print all data in the textbox to a printer connected to your computer.



Edit – Once clicked, the software will automatically open an

NOTEPAD window with all recorded data showing on.



Copy – Copy all data in the textbox to the clipboard.



Clear – Delete all data in the textbox.



Exit – Quit the operation.

7) You are also allowed to edit, copy, and delete the data in the

Autel Printer window.

NOTE: The scan tool can only print text data even though the

data is saved in graphic mode.

82

10.Software Update

This function allows you to update the scan tool software

through a computer.

10.1. Register the Tool

User would update the scan tool ONLY after you had registered the tool on our website: www.maxidas.com. Then you could download software, update online, retrieve information and get warranty service.

NOTE: Prior to registration, please confirm your network is

working properly.

1. Log on the website www.maxidas.com

.

2. Click on the Update tool bar at the top of the screen, and then select User Register. Or, click on the Updates column in the lower right corner of the screen, and select Register.

3. The screen of Register Information appears. Please read through the instructions, and click on Agree to continue.

4. Put in the Product Serial No. and Register Password, and click on Next. (Figure 10.1)

5. Follow the instructions on screen to finish the registration.

NOTE: Please use the About function to find out the Product

Serial No. and Register Password. For details, please refer to

the Section 3.6 System Setup.

83

Figure 10.1

10.2. Update Procedure

Autel frequently releases software updates that you can download.

The Update feature makes it very easy to determine and get exactly what you need.

1. Install Autel PC Suit through the included CD, or download the applications in our website: www.maxidas.com or our distributors’ site.

2. Make sure that your computer is connected to the Internet.

3. Load the SD card of the scan tool to your PC.

4. Run the update option in Autel PC Suit software. Wait for the

Log In window to pop up. (Figure 8.2)

Figure 10.2

84

5. Put in the user name and password and wait for the Update window to display. If you forget your password unintentionally, you may always click the [Forget password?] to link to our website and find your password back.

6. In the Update window, select the items you want to install.

Usually, you should install all available updates.

Figure 10.3

Generally, there are two ways to update programs:

Batch updating



Select the programs that you would update by clicking on the check boxes next to those items. Then click the Update

Selected Items button on the right side of screen.



Or, click on the SELECT ALL checkbox on the right side of screen and all updatable items will be selected automatically.

Then click the Update Selected Items button on the right side of screen.



Check the updating process by observing the upper left progress bar [downloading] and upper right progress bar [installing]. You may also find progress information in the Status column of updated items.



Anytime you could click the Pause button on the right side of screen to suspend all progresses, and the state of those suspended items would change to STOPPED.



To resume updating process, you may need to select those

85

suspended items again, then click the Update Selected Items button. The progress will resume from the break point.



When the downloading is completed, the downloaded programs will be installed automatically. The new version will replace the old version.

Single updating



Find the desired updating item and click the INSTALL button in the same line. With updating in progress, the INSTALL button changes to STOP.

 

Check the updating process by observing the upper left progress bar [downloading] and upper right progress bar [installing]. You may also find progress information in the Status column of updated items.

 

Anytime you could click the Pause button in the line to suspend this progress, and the state of this item would change to

STOPPED.

 

To resume updating process, click the INSTALL button in the line again. The progress will resume from the break point.

 

When the downloading is completed, the downloaded program will be installed automatically. The new version will replace the old version.

10.3. View or Delete Programs

To view the list of installed programs or to delete an installed program, please follow these steps:

 

Click on the Installed Programs tag entry and the page will show the list of programs installed.



Select the program(s) that you would delete.

Batch delete: Select the programs that you would delete by

clicking on the check boxes to the left of those items. Then click the DELETE button on the right side of screen.

Single delete: Click the UNINSTALL button in the line of your would-be-deleted program.

86

 

A window asking “Are you sure to delete the software?” will pop up for your confirmation.

Figure 10.4

 

Click on Yes to delete the program(s) selected, or on No to cancel the action.

 

The deleted program will automatically add to the end of program list in the UPDATE page in case you would like to install again.

Theoretically, all programs in latest versions will be automatically compatible with the older versions, but if your scan tool do have a compatible problem and want to retrieve the older version for some programs, you may need to delete them first then install the older version again. Choose older version from the pull-down menu of program version.

Figure 10.5

87

11.Warranty and Service

11.1. Limited One Year Warranty

Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:

1) The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.

2) This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer’s Service Center.

3) Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

4) All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.

11.2. Service Procedures

If you have any questions, please contact your local store, distributor or visit our website at www.auteltech.com.

If it becomes necessary to return the scan tool for repair, contact your local distributor for more information.

88

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
