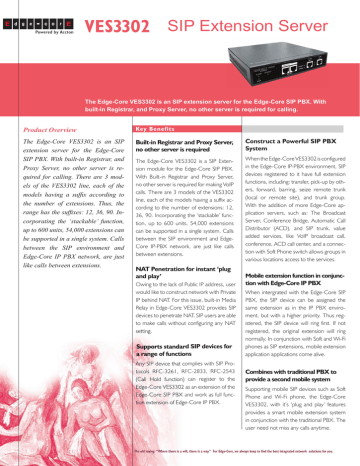

VES3302 SIP Extension Server
The Edge-Core VES3302 is an SIP extension server for the Edge-Core SIP PBX. With
built-in Registrar, and Proxy Server, no other server is required for calling.
Product Overview
Key Benefits
The Edge-Core VES3302 is an SIP
extension server for the Edge-Core
SIP PBX. With built-in Registrar, and
Proxy Server, no other server is required for calling. There are 3 models of the VES3302 line, each of the
models having a suffix according to
the number of extensions. Thus, the
range has the suffixes: 12, 36, 90. Incorporating the ‘stackable’ function,
up to 600 units, 54,000 extensions can
be supported in a single system. Calls
between the SIP environment and
Edge-Core IP PBX network, are just
like calls between extensions.
Built-in Registrar and Proxy Server,
no other server is required
Construct a Powerful SIP PBX
System
The Edge-Core VES3302 is a SIP Extension module for the Edge-Core SIP PBX.
With Built-in Registrar and Proxy Server,
no other server is required for making VoIP
calls. There are 3 models of the VES3302
line, each of the models having a suffix according to the number of extensions: 12,
36, 90. Incorporating the ‘stackable’ function, up to 600 units, 54,000 extensions
can be supported in a single system. Calls
between the SIP environment and EdgeCore IP-PBX network, are just like calls
between extensions.
When the Edge-Core VES3302 is configured
in the Edge-Core IP-PBX environment, SIP
devices registered to it have full extension
functions, including: transfer, pick-up by others, forward, barring, seize remote trunk
(local or remote site), and trunk group.
With the addition of more Edge-Core application servers, such as: The Broadcast
Server, Conference Bridge, Automatic Call
Distributor (ACD), and SIP trunk, value
added services, like VoIP broadcast call,
conference, ACD call center, and a connection with Soft Phone switch allows groups in
various locations access to the services.
NAT Penetration for instant ‘plug
and play’
Owing to the lack of Public IP address, user
would like to construct network with Private
IP behind NAT. For this issue, built-in Media
Relay in Edge-Core VES3302 provides SIP
devices to penetrate
trate NAT. SIP users are able
tra
to make calls without configuring any NAT
setting.
Supports standard SIP devices for
a range of functions
Any SIP device that complies with SIP Protocols RFC-3261, RFC-2833, RFC-2543
(Call Hold function) can register to the
Edge-Core VES3302 as an extension of the
Edge-Core SIP PBX and work as full function extension
ion of Edge-Core IP PBX.
Mobile extension function in conjunction with Edge-Core IP PBX
When intergrated with the Edge-Core SIP
PBX, the SIP device can be assigned the
same extension as in the IP PBX enviroment, but with a higher priority. Thus registered, the SIP device will ring first. If not
registered, the original extension will ring
normally. In conjunction with Soft and Wi-Fi
phones as SIP extensions, mobile extension
application applications come alive.
Combines with traditional PBX to
provide a second mobile system
Supporting mobile SIP devices such as Soft
Phone and Wi-Fi phone, the Edge-Core
VES3302, with it’s ‘plug and play’ features
provides a smart mobile extension system
in conjunction with the traditional PBX. The
user need not miss any calls anytime.
The old saying: “Where there is a will, there is a way.” For Edge-Core, we always keep to find the best integrated network solutions for you.
Specifications
TEL 886-3-5053801
Physical Ports
●
Ethernet Port: 2
●
Call Hold
●
CDR Port: 1
●
Secretarial Intercept Function
●
Console Port: 1
●
E-mail : [email protected]
Conference Call
www.edge-core.com
Data/Voice Performance
●
VoIP Broadcast Call
●
DND (Do Not Disturb)
●
Dialer
●
Work with traditional IP-PBX
●
Stackable and Networking function
FAX 886-3-5790398
No.1, Creation Rd. III, Science-based Industrial Park,
Hsinchu 30077, Taiwan R.O.C
●
Voice Compression: G.711/G.723/G.729AB
●
Silence Suppression: VAD, CNG
●
Echo Cancellation: G.165, G.168 16ms
●
Adaptive jitter buffer management
●
Gain Control: (In/Out) +/-6db
●
Pocket Time: 40ms
●
Transport Protocol: RTP, RTCP
●
Call Control Protocol: SIP
●
FAX: T.30/T.38
Management
●
Web Configuration
●
Telnet Configuration
●
Phone set Configuration
●
FTP Remote Software Upgrade
Mechanical
PBX Function
● Auto Attendant (DISA)
●
●
●
Network Operator Group
●
Call Transfer
●
Call forward (Network forward / PSTN offnet
forward)
Barring Class
●
Call Pick Up Group
●
PSTN-IP-PSTN transit call
●
Auto Routing Control / Least Cost Routing
●
Line Group
●
Trunk Group
●
Trunk Class
●
Automatic Trunk Selection
●
Specific Trunk Selection
●
Abbreviation Dialing
●
Call Hold Music
●
CDR (Call Detail Record) for billing
●
Call Park
Power Requirements
●
●
Dimension : 172 x 35 x 176 mm
LED Indicator: Power, Alarm,
Registered, Time Server, Stun,
Link/Act, 100Mbps
●
●
●
Power Type: External Power Adaptor
Nominal Input Voltage: 100VAC ~
240VAC
Input Frequency: 50/60Hz
Power Consumption: 12W
Environmental
Temperature:
● Operating T
Temperature:0° ~50° C
(Standard Operating)
● Storage Temperature:-10° to 70° C (Non
Operating)
Standard Protocol
RFC-3261
● RFC-2833
● RFC-2543
●
Ordering Information
Powered by
VES3302-12 12 Extensions Server
VES3302-36 36 Extensions Server
VES3302-90 90 Extensions Server
* future s pecification
