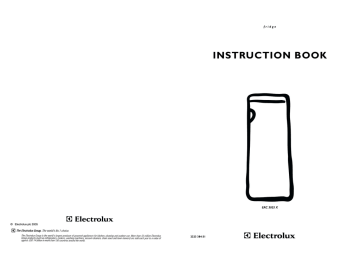

INSTRUCTION BOOK
ERC 3025 X
© Electrolux plc 2005
2223 384-31
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
Do not place carbonated or fizzy drinks in the
freezer.
•
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
•
•
•
•
•
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Maintenance and Cleaning
•
Do not allow children to tamper with the controls or
play with the product.
•
•
Keep all packaging well away from children.
Servicing
General Safety
•
•
•
•
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
•
Frozen food must NOT be re-frozen once it has
thawed out.
2
Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always insist
on genuine spare parts.
At the end of the Appliance
Life
•
When disposing of your appliance, use an
authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
Disposal of old Appliances
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
10
Before use
4
Installation
11
Setting the temperature
4
Positioning
11
Fresh food refrigeration
4
Shelf holders
11
Normal operating sounds
4
Electrical Connection
12
Positioning the inner shelves
5
Positioning the door shelves
5
Rear Spacers
13
Health and Safety Guidelines
5
Door Reversal
13
Maintenance and Cleaning
6
Internal cleaning
6
External cleaning
6
When the appliance is not in use
6
Changing the light bulb
6
Defrosting
6
Something not working
7
Service and Spare Parts
8
Customer Care
8
Guarantee Conditions
9
3
OPERATION
Rear spacers
Before using
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
In the bag with the documentation, there are two
spacers which must be fitted as shown in the figure.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
Control panel
MAX
min
D594
ON
Door reversal directions
A
1. Disconnect from the electricity supply.
B
2. Gently lay the fridge on its back with the top held
away from the floor by 5-8 cm (2-3 inches) of
packing;
A - Pilot light
B - Thermostat control
Plug in the appliance and switch on at the mains
supply. Turn the thermostat control knob (B) to a
medium setting. The pilot light (A) will illuminate.
Leave the appliance for approximately 4 hours to
allow the correct temperature to be reached before
placing food inside.
To switch off the appliance turn the thermostat
control knob to position “O” .
Setting the temperature
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To operate the appliance proceed as follows:
To help you use your refrigerator correctly, here are
some more useful hints:
Position min = minimum coldness
Position max = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable.
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
F
F
D
4. remove the bottom hinge (E) by unscrewing its
three fixing screws;
The temperature within the appliance is controlled by
the thermostat control knob situated at the top of the
appliance.
Turn the thermostat control beyond the «■» position.
F
3. Remove the ventilation grill (D).
To Start the Appliance
Allow the appliance to stand for 2 hours after
installation.
E
E
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on the glass shelf
above the salad crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crisper(s).
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
5. Slide out the fridge door from pin (G), unscrew
the latter and then refit it on the opposite side;
F
6. remove the two plugs of the door (where
available), discovering the holes for the hinge
pins, assemble them on the opposite side;
7. reassemble the door;
8. using a 10 mm spanner, unscrew the hinge pin
(E) and reassemble it on the opposite side of the
hinge;
G
9. reassemble the lower hinge (E) on the opposite
side, using the screws previously removed. Slide
the hole cover (F) out of the ventilation grille (D)
by pushing it in the direction of the arrow and
reassemble it on the opposite side;
10.refit the ventilation grille (D), clipping it into place;
11. Unscrew the handle. Refit it on the opposite side
after having pierced the plugs with a punch.
Cover the holes left open with the plugs supplied
in the documentation pack.
Important
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
– position of the appliance
4
13
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
Positioning the inner shelves
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre .
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
D338
This appliance complies with the following
E.E.C. Directives:
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.
To do this proceed as shown in the diagram.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
13 AMP. FUSE
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
•
13 AMP
GREEN & YELLOW
HEALTH AND SAFETY GUIDELINES
BROWN
BLUE
D207
CORD CLAMP
•
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
•
«E» or the earth symbol
yellow.
•
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
12
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.
•
Remove suspect food from your refrigerator and
clean (refer to “Maintenance and Cleaning).
•
Never allow spillages to dry and harden.
•
Keep the refrigerator door closed as much as
possible.
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
•
Do not push food together too much, try to allow
air to circulate around each item.
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
•
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
•
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a place as cool as possible in order that it
can then be placed in the refrigerator as soon as
possible).
•
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
•
Do not store food uncovered.
5
MAINTENANCE AND CLEANING
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate, which
is located at the left on the inside of the appliance.
Defrosting
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
The following table shows which ambient temperature is
correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry atmosphere, out of direct
sunlight and away from extreme temperature e.g. not next
to a boiler or radiator, or in a very cold room e.g. an
outhouse, where the temperatures may fall below 10°C
(50°F). If these temperatures are exceeded i.e. colder or
warmer, then the appliance may not operate correctly.
Important
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
6
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the centre
of the V shaped drip collector at the back of the
refrigerator compartment behind the fruit and vegetable
drawer. Use the defrost cleaner provided which you will
find already inserted into the discharge hole.
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
B
NP007
You should also ensure that air can circulate freely around
the back and the top of the cabinet. There must also be at
least 100 mm (4”) distance between the top of the cabinet
and any overhanging kitchen furniture (A). Ideally, the
appliance should not be positioned beneath overhanging
furniture (B).
There should also be a gap of 25 mm either side of the
appliance. Do not obstruct the space underneath. The
back of the cabinet may be placed close to the wall but
must not touch it. DO NOT install in places with restricted
ventilation.
D037
A
10 mm
press on the rear hook and at the same time slide the
cover in the direction indicated by the arrow.
Unscrew the bulb and replace it with one of the same
power (the maximum power is shown on the light
diffuser) available from your nearest Service Force
Centre.
Replace the light cover by sliding it into its original
position.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see diagram.
PR259
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Positioning
Clean the drain hole of the water trough at regular
intervals and make sure that the drain hole is never
obstructed, so that the defrost water may flow freely.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it
is recommended that the outer casing of this
appliance is only cleaned with warm water with a
little washing-up liquid added.
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions”.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED CLEANING
PRODUCTS OR WAX POLISHES, TO CLEAN
THE INTERIOR AS THESE WILL DAMAGE THE
SURFACE AND LEAVE A STRONG ODOUR.
External cleaning
Warning
100 mm
Internal cleaning
Changing the light bulb
10 mm
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
INSTALLATION
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet using
your fingers or a spanner (see figure).
D200
A
Shelf holders
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
B
C
Move the shelf retainers in the direction of the arrow,
raise the shelf from the rear and push it forward until
it is freed and remove the retainers.
11
TECHNICAL SPECIFICATIONS
SOMETHING NOT WORKING
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Electrolux Service Force Centre, check the following points:
DIMENSIONS
Height
160
cm
Width
60
cm
Depth
62,5 cm
Symptom
Solution
No power to the appliance
Check there is power at the socket.
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
Check there is not a power cut by checking the
household lights.
TOTAL POWER ABSORBED
110 W
Check the fuse has not blown.
AVERAGE DAILY UNITS ELECTRICITY *
0.47 kWh
The light does not come on
GROSS CAPACITY
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
Fridge
294 l
NET CAPACITY
Check the door light switch is not jammed.
The temperature in the fridge is too high
Fridge
291 l
Check the thermostat control knob on the front panel
is turned to the correct setting relative to ambient
conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
The compressor runs continuously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the door is closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Noise
Refer to normal operating sounds.
Water under the salad crispers
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If, after the above checks, there is still a fault, call your local Service Force Centre.
In guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
10
7
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
For Customer Service in Ireland please
contact us at the address below:
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
Electrolux Group (Irl) Ltd
This guarantee is in addition to your statutory and other legal rights.
Long Mile Road
Dublin 12
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Republic of Ireland
Exclusions
Telephone : +353 (0)1 4090753
This guarantee does not cover:
Email: [email protected]
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working.’
When you contact the Service Force Centre you will need to give the following details:
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
European Guarantee
5.
The purchase date
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
or general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Products of Electrolux manufacture which are not marketed by Electrolux.
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Customer Care Department
Electrolux Major Appliances
Addington Way
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
08705 950 950 *
Sweden
Stockholm
+46 (0)20 78 77 50
*
UK
Luton
+44 (0)8705 950 950
Ireland
Dublin
+353 (0)1 4090753
Luton
Bedfordshire
LU4 9QQ
8
calls to this number may be recorded for training purposes.
9
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:-
0870 5 929929
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Electrolux, undertake that if within 12 months of the date of the purchase this Electrolux appliance or any
part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
For Customer Service in Ireland please
contact us at the address below:
All service work under this guarantee must be undertaken by an Electrolux Service Force Centre. Any appliance
or defective part replaced shall become the Company’s property.
Electrolux Group (Irl) Ltd
This guarantee is in addition to your statutory and other legal rights.
Long Mile Road
Dublin 12
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Republic of Ireland
Exclusions
Telephone : +353 (0)1 4090753
This guarantee does not cover:
Email: [email protected]
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
Before calling out an engineer, please ensure you have read the details under the heading ‘Something Not
Working.’
When you contact the Service Force Centre you will need to give the following details:
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
European Community (EC) or European Free Trade Area.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
1.
Your name, address and post code
2.
Your telephone number
3.
Clear and concise details of the fault
4.
The model and serial number of the appliance (found on the rating plate)
European Guarantee
5.
The purchase date
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee
service calls.
CUSTOMER CARE DEPARTMENT
or general enquiries concerning your Electrolux appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter or telephone at the address below or visit our website
at www.electrolux.co.uk
Products of Electrolux manufacture which are not marketed by Electrolux.
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of
use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
Customer Care Department
Electrolux Major Appliances
Addington Way
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service Organisation is aware of your move and able to look
after you and your appliances.
France
Senlis
+33 (0)3 44 62 20 13
Germany
Nürnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800117511
08705 950 950 *
Sweden
Stockholm
+46 (0)20 78 77 50
*
UK
Luton
+44 (0)8705 950 950
Ireland
Dublin
+353 (0)1 4090753
Luton
Bedfordshire
LU4 9QQ
8
calls to this number may be recorded for training purposes.
9
TECHNICAL SPECIFICATIONS
SOMETHING NOT WORKING
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Electrolux Service Force Centre, check the following points:
DIMENSIONS
Height
160
cm
Width
60
cm
Depth
62,5 cm
Symptom
Solution
No power to the appliance
Check there is power at the socket.
POWER SUPPLY VOLTAGE AND FREQUENCY
220-240 V / 50 Hz
Check there is not a power cut by checking the
household lights.
TOTAL POWER ABSORBED
110 W
Check the fuse has not blown.
AVERAGE DAILY UNITS ELECTRICITY *
0.47 kWh
The light does not come on
GROSS CAPACITY
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
Fridge
294 l
NET CAPACITY
Check the door light switch is not jammed.
The temperature in the fridge is too high
Fridge
291 l
Check the thermostat control knob on the front panel
is turned to the correct setting relative to ambient
conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
* This figure is based on standard test results in accordance with European Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is located.
The compressor runs continuously
Adjust the thermostat control knob to give correct
temperature control. See “Setting the temperature”.
Check that the door is closed.
Large quantities of food have recently been placed in
the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Noise
Refer to normal operating sounds.
Water under the salad crispers
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If, after the above checks, there is still a fault, call your local Service Force Centre.
In guarantee customers should ensure that the above checks have been made as the engineer will make a
charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for any in-guarantee service calls.
10
7
MAINTENANCE AND CLEANING
Should the interior light fail to work, first switch off
the appliance and disconnect from the electricity
supply, then replace the bulb as follows;
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
You MUST ensure that the appliance is switched
OFF.
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate, which
is located at the left on the inside of the appliance.
Defrosting
The refrigerator automatically defrosts every time the
compressor stops. The water is discharged, via the
pipe, into a tray located at the back of the appliance
above the compressor, where it evaporates.
The following table shows which ambient temperature is
correct for each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry atmosphere, out of direct
sunlight and away from extreme temperature e.g. not next
to a boiler or radiator, or in a very cold room e.g. an
outhouse, where the temperatures may fall below 10°C
(50°F). If these temperatures are exceeded i.e. colder or
warmer, then the appliance may not operate correctly.
Important
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
6
To avoid defrost water overflowing into the fridge,
periodically clean the water discharge hole in the centre
of the V shaped drip collector at the back of the
refrigerator compartment behind the fruit and vegetable
drawer. Use the defrost cleaner provided which you will
find already inserted into the discharge hole.
Remember to wash the defrost cleaner in hot soapy
water at regular intervals. Dry throughly before
replacing.
B
NP007
You should also ensure that air can circulate freely around
the back and the top of the cabinet. There must also be at
least 100 mm (4”) distance between the top of the cabinet
and any overhanging kitchen furniture (A). Ideally, the
appliance should not be positioned beneath overhanging
furniture (B).
There should also be a gap of 25 mm either side of the
appliance. Do not obstruct the space underneath. The
back of the cabinet may be placed close to the wall but
must not touch it. DO NOT install in places with restricted
ventilation.
D037
A
10 mm
press on the rear hook and at the same time slide the
cover in the direction indicated by the arrow.
Unscrew the bulb and replace it with one of the same
power (the maximum power is shown on the light
diffuser) available from your nearest Service Force
Centre.
Replace the light cover by sliding it into its original
position.
Once or twice a year dust the condenser (black grill)
and the compressor at the back of the appliance,
with a brush or vacuum cleaner, see diagram.
PR259
It must be possible to disconnect the appliance from
the mains power supply; the plug must therefore be
easily accessible after installation.
Positioning
Clean the drain hole of the water trough at regular
intervals and make sure that the drain hole is never
obstructed, so that the defrost water may flow freely.
Many proprietary kitchen surface cleaners
contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it
is recommended that the outer casing of this
appliance is only cleaned with warm water with a
little washing-up liquid added.
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
Important
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions
on “Door reversal directions”.
NEVER USE DETERGENTS, ABRASIVE
POWDERS, HIGHLY PERFUMED CLEANING
PRODUCTS OR WAX POLISHES, TO CLEAN
THE INTERIOR AS THESE WILL DAMAGE THE
SURFACE AND LEAVE A STRONG ODOUR.
External cleaning
Warning
100 mm
Internal cleaning
Changing the light bulb
10 mm
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
INSTALLATION
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet using
your fingers or a spanner (see figure).
D200
A
Shelf holders
Your appliance is equipped with shelf retainers that
make it possible to secure the shelves during
transportation.
To remove them proceed as follows:
B
C
Move the shelf retainers in the direction of the arrow,
raise the shelf from the rear and push it forward until
it is freed and remove the retainers.
11
Electrical connections
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.
For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.
Positioning the inner shelves
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.
The walls of the refrigerator have runners so that
shelves can be positioned as desired.
A replacement cover/carrier must be obtained from
your local Electrolux Service Force Centre .
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
-
73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
-
89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.
Important
D338
This appliance complies with the following
E.E.C. Directives:
Positioning the door shelves
To permit storage of food packages of various sizes,
the door shelves can be adjusted in height.
To do this proceed as shown in the diagram.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:
13 AMP. FUSE
Because of consumer demand, preservatives have been removed from many pre-prepared foods. This
together with the changes in shopping habits to a once-a-week shop, mean that safe handling and
storage of food is even more important than ever.
The following tips should help you to ensure that the food in your home is in as perfect condition as
possible.
•
13 AMP
GREEN & YELLOW
HEALTH AND SAFETY GUIDELINES
BROWN
BLUE
D207
CORD CLAMP
•
Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
•
«E» or the earth symbol
yellow.
•
or coloured green and
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
12
Keep the time between buying chilled food and
placing it in your fridge as short as possible. Tests
showed that the temperature of 1 litre of orange
juice rose to 22°C in an hour between the
supermarket and home. It then took 11 hours to
get down to 7°C in the refrigerator.
•
Remove suspect food from your refrigerator and
clean (refer to “Maintenance and Cleaning).
•
Never allow spillages to dry and harden.
•
Keep the refrigerator door closed as much as
possible.
Store eggs in the egg rack provided in the
refrigerator door. Discard any broken or chipped
eggs.
•
Do not push food together too much, try to allow
air to circulate around each item.
Regularly check the refrigerator door seal to
ensure that it is clean and free from debris.
•
Always wash your hands with soapy water and
dry them with a clean towel before handling food.
•
Keep work surfaces clean and avoid cross
contamination by not using the same work
surface or knife, without washing them thoroughly
in between.
Cool cooked food as quickly as possible but do
NOT place in the refrigerator until cool. (Leave
food in a place as cool as possible in order that it
can then be placed in the refrigerator as soon as
possible).
•
Do NOT mix raw and cooked meat, they must be
in separate containers. Take care not to let the
meat juices drip onto other food. If the meat does
drip, remove everything and clean thoroughly.
•
Do not store food uncovered.
5
OPERATION
Rear spacers
Before using
Do not use soap or detergent as the smell may
linger. Dry thoroughly.
Remove all securing tapes. Wash inside the
appliance with lukewarm water and bicarbonate of
soda (5 ml to 0.5 litre of water).
In the bag with the documentation, there are two
spacers which must be fitted as shown in the figure.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
Control panel
MAX
min
D594
ON
Door reversal directions
A
1. Disconnect from the electricity supply.
B
2. Gently lay the fridge on its back with the top held
away from the floor by 5-8 cm (2-3 inches) of
packing;
A - Pilot light
B - Thermostat control
Plug in the appliance and switch on at the mains
supply. Turn the thermostat control knob (B) to a
medium setting. The pilot light (A) will illuminate.
Leave the appliance for approximately 4 hours to
allow the correct temperature to be reached before
placing food inside.
To switch off the appliance turn the thermostat
control knob to position “O” .
Setting the temperature
Important
During prolonged periods of abnormally hot weather,
if the thermostat is set on too high a number, the
cooling system may operate continuously and the
fridge cooling plate may not defrost. Turning the knob
to a lower number will cause the automatic
defrosting to resume.
Fresh food refrigeration
To obtain the best performance, do not store warm
food or evaporating liquids in the refrigerator; do
cover or wrap the food, particularly if it has a strong
flavour.
Do not cover the shelves with any protective
material, such as paper, cardboard or plastic, which
may obstruct the air circulation through them.
To operate the appliance proceed as follows:
To help you use your refrigerator correctly, here are
some more useful hints:
Position min = minimum coldness
Position max = maximum coldness
Turn the thermostat dial to the required position.
The intermediate position is usually the most
suitable.
The thermostat setting can vary as the temperature
inside the refrigeration compartment depends on the
following factors:
– room temperature
– how often the door is opened
– how much food is stored
F
F
D
4. remove the bottom hinge (E) by unscrewing its
three fixing screws;
The temperature within the appliance is controlled by
the thermostat control knob situated at the top of the
appliance.
Turn the thermostat control beyond the «■» position.
F
3. Remove the ventilation grill (D).
To Start the Appliance
Allow the appliance to stand for 2 hours after
installation.
E
E
Raw meat (beef, pork, lamb & poultry or chicken):
wrap in polythene bags and place on the glass shelf
above the salad crispers.
Meat can only be stored safely in this way for
one or two days at the most.
Fruit & vegetables: these should be thoroughly
cleaned and placed in the bottom salad crisper(s).
Butter & cheese: these should be placed in special
airtight containers or wrapped in aluminium foil or
polythene bags to exclude as much air as possible.
5. Slide out the fridge door from pin (G), unscrew
the latter and then refit it on the opposite side;
F
6. remove the two plugs of the door (where
available), discovering the holes for the hinge
pins, assemble them on the opposite side;
7. reassemble the door;
8. using a 10 mm spanner, unscrew the hinge pin
(E) and reassemble it on the opposite side of the
hinge;
G
9. reassemble the lower hinge (E) on the opposite
side, using the screws previously removed. Slide
the hole cover (F) out of the ventilation grille (D)
by pushing it in the direction of the arrow and
reassemble it on the opposite side;
10.refit the ventilation grille (D), clipping it into place;
11. Unscrew the handle. Refit it on the opposite side
after having pierced the plugs with a punch.
Cover the holes left open with the plugs supplied
in the documentation pack.
Important
After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer on a low setting.
Milk bottles: these should have a cap and should be
stored in the bottle rack on the door.
– position of the appliance
4
13
Disposal of old Appliances
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
CONTENTS
Instructions for the User
Important Safety Information
2
Instructions for the
Installer
Operation
4
Technical Specification
10
Before use
4
Installation
11
Setting the temperature
4
Positioning
11
Fresh food refrigeration
4
Shelf holders
11
Normal operating sounds
4
Electrical Connection
12
Positioning the inner shelves
5
Positioning the door shelves
5
Rear Spacers
13
Health and Safety Guidelines
5
Door Reversal
13
Maintenance and Cleaning
6
Internal cleaning
6
External cleaning
6
When the appliance is not in use
6
Changing the light bulb
6
Defrosting
6
Something not working
7
Service and Spare Parts
8
Customer Care
8
Guarantee Conditions
9
3
IMPORTANT SAFETY INFORMATION
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.
Installation
•
Do not place carbonated or fizzy drinks in the
freezer.
•
•
Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
•
Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
•
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
•
The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
•
•
•
•
•
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from the
manufacturer or its service agent.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Maintenance and Cleaning
•
Do not allow children to tamper with the controls or
play with the product.
•
•
Keep all packaging well away from children.
Servicing
General Safety
•
•
•
•
Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
The appliance must not be located close to
radiators or boilers.
Avoid prolonged exposure of the appliance to
direct sunlight.
Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances, unless they are approved for this
purpose by the manufacturer.
During Use
•
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs only.
•
Frozen food must NOT be re-frozen once it has
thawed out.
2
Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
•
This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
•
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Electrolux Service Force Centre and always insist
on genuine spare parts.
At the end of the Appliance
Life
•
When disposing of your appliance, use an
authorised disposal site.
•
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
fridge
INSTRUCTION BOOK
ERC 3025 X
© Electrolux plc 2005
2223 384-31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
