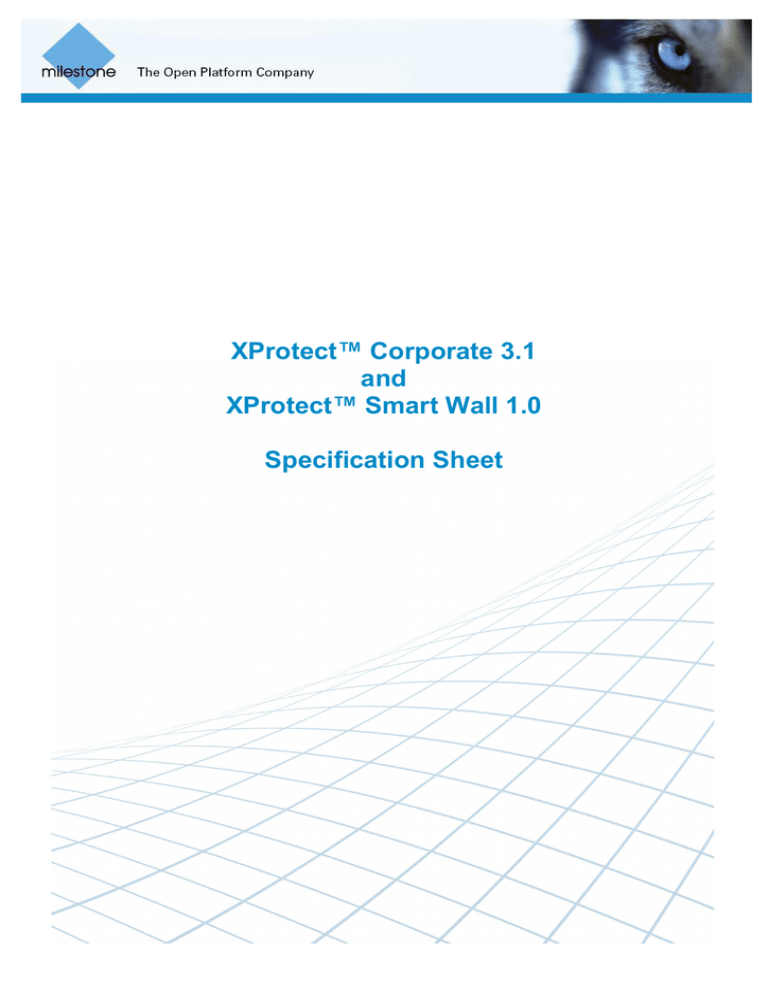

XProtect™ Corporate 3.1 and

XProtect™ Smart Wall 1.0

Specification Sheet

Contents

Feature Overview ................................................................................................................ 3

Integration Options ....................................................................................................................................... 3

Additional Main Features .............................................................................................................................. 3

Key Features .................................................................................................................................................. 3

Detailed Product Features ................................................................................................... 4

Recording Server/Failover Server .................................................................................................................. 4

Management Server/Failover Server and Client .......................................................................................... 5

XProtect Smart Client .................................................................................................................................... 7

XProtect Remote Client ................................................................................................................................. 8

XProtect Smart Wall Add-On Product Option ...................................................................... 9

Minimum System Requirements ........................................................................................ 10

XProtect Corporate Clients .......................................................................................................................... 10

XProtect Corporate Servers ......................................................................................................................... 10

Miscellaneous .................................................................................................................... 11

Supported Languages .................................................................................................................................. 11

Licensing Structure ...................................................................................................................................... 11

2

Feature Overview

Key Features

Limitless multi-server and multi-site solution:

XProtect Corporate supports an unlimited number of cameras, servers, sites and users allowing you to grow your installation according to your needs.

Centralized management:

Full configuration of all devices, Recording Servers and users from a central manager console connected to the

Management Server holding all configuration settings in a Microsoft SQL database

Sequence Explorer:

Displaying sequences and time intervals in thumbnail pre-views , the Sequence Explorer gives unparalleled visual overview of recorded video combined with smooth navigation

Intuitive map function:

Multilayered map environment provides interactive access and control of the complete surveillance system, at-a-glance overview of the system integrity, and seamless drag-and-drop integration with the new Smart

Wall product option

Smart Wall – add-on video wall product option:

Flexible and hardware agnostic video wall option that is seamlessly integrated with XProtect’s management and

Smart Client environments

Overlay buttons

Intuitive control of cameras, camera-integrated devices and other integrated systems- directly from the camera view

Independent Playback

Instant and independent playback function allows you to independently playback recorded video for one or more cameras, while in live viewing or playback mode.

High availability - Failover Servers:

Redundancy options for Recording and Management servers ensure maximum system uptime continous system availability

Versatile rule system:

Set up scheduled or event-driven camera and output actions with numerous options including support for time profiles.

Multicast support:

Send one video stream to multiple Smart Clients. The infrastructure must support IGMP to reach remote networks.

Multistreaming support:

Establish two independent streams from a supported camera to the Recording Server with different resolutions, encodings and frame rates, for example a video stream optimized for live view and another optimized for recording.

Archiving - Optimized Recording Storage:

Unique data storage solution that combines superior performance and scalability with cost efficient long-term video storage

Additional Main Features

Automatic camera discovery: Enables fast discovery of more than 400 different IP-based video cameras and encoders from over 30 different vendors,

System configuration wizards: Guides the user through the process of adding cameras, defining rules, storage areas and archive areas.

Built-in Video Motion Detection: Independent of camera model supporting unlimited number of cameras simultaneously per server.

Multiple language support:

Let operators use the system in their native language with support for 20 different languages

Multi-channel, two-way audio:

Communicate with people at gates/entrances or broadcast messages to many people at once with multichannel, two-way audio

Fast evidence export:

Quickly deliver authentic evidence to public authorities by exporting video to various formats, including video from multiple cameras in encrypted native database format with viewer included

Thorough audit logs:

Full awareness of the system and user activity with comprehensive audit logs

Configure access privileges:

Ensure system consistency and global user management with single sign-on Microsoft

®

Active

Directory credentials and control privileges and allowed camera actions.

Fisheye camera support:

Supports 360° cameras with split views and digital PT Z

Integration Options

XProtect’s Open Software Development Kit (SDK) makes it possible to video enable your business processes, through seamless integration of third party applications, such as video analytics, access systems, etc.

Compatible with XProtect Transact that integrates video surveillance with ATM or POS cash register systems for managing loss prevention and fraud.

Compatible with XProtect Central for alarm overviews and operational status in larger video surveillance installations.

Integrate with access control systems, alarms, gates, building management systems, etc. using hardware I/O, internal events and TCP/IP events

Create, import and use HTML pages for navigation between views or to trigger a Smart Wall preset

Develop third party plug-ins for the Smart Client to expand with new functionality

3

Detailed Product Features

Recording Server/Failover Server

System

Simultaneous digital multi-channel MJPEG, MPEG4,

MPEG-4 ASP, MxPEG and H.264 video recording of IP cameras and IP video encoders without any software limitations on number of cameras per server

A failover server can be on standby for a single or a group of recording servers, with automatic synchronization of recordings back to the original recording server once it is back online

Two-way audio, transmitting client microphone input to remote speakers attached to IP devices

Route traffic between multiple connected cameras and multiple clients requesting live view, playback and export

Multicast one video stream to all Smart Clients. The infrastructure must support Internet Group Management

Protocol (IGMP) to reach remote networks

Multistream can establish two independent streams from a camera to the XProtect Corporate recording server with different resolutions, encodings and frame rates, dependent on camera capabilities

Secure high speed recording database holding JPEG images or MPEG4, MPEG-4 ASP, MxPEG or H.264 streams

Record 30+ frames per second per camera, limited only by hardware

Recording quality depends entirely on camera and video encoder capabilities - no software limitations

Multiple storage areas allow individual storage paths per camera. Recording capacity is limited only by disk space

Importing pre-alarm images recorded in camera or video encoder

Built-in, real-time, camera independent motion detection

The recording server runs as a Windows service under local system account or optional local Windows user or

Microsoft active directory account with run-as-a-service privileges

Port forwarding enables clients to access the recording servers from outside a Network Address Translation

(NAT) firewall

Support for both IPv4 and IPv6 addressing

PTZ

'Pass-thru' control of manual Pan-Tilt-Zoom (PTZ) operation from clients with user priority

Execute rule-based go-to preset position on events and patrolling

Resume patrolling after manual session timeout

I/O and Events

Support for devices with one or more input and output ports

Powerful rule processing engine for execution of start and stop actions triggered by events or time profiles

Archiving

Archive video data multiple times per day while recording is active, without data loss

Scheduled archiving allows moving video data from a fast disk system to be copied to either a slower disk system or to a network drive. The archived data is still online and available for clients

Setup and Management

Install the recording server from a web page on the management server. The recording server is completely managed from the management server and configuration changes are applied online while recording is in operation

Local recording server configuration is available for system restart during periods where the management server is inaccessible

Recording server manager is available in the local console notification area (icon tray) for status messages, start/stop of the service, and change of network settings

Client Access

Facilitate client access

Clients are authenticated and authorized at the management server, and use a session-limited access token to log on to the recording server

Alerting and Notification

Flexible alert system activated by rules

The system acts as an SNMP (Simple Network

Management Protocol) agent that can generate an

SNMP trap as a result of a rule activation.

Logs

Logging of system, event, audit, rule and alert entries to the management server at regular intervals with local caching during offline scenarios

4

Management Server/Failover Server and Client

System

Management server for initial client logon, system configuration and logging

Managent client for remote administration of recording servers, devices, security, rules & alerts and logging

All configuration and logs from the entire system are stored in a centralized Microsoft SQL database and accessed by the management server only

Failover solution for the Management Server provides a resilient system solution based on Windows Server

Clustering, ensuring high system availability

Management server manager is available in the local console notification area (icon tray) for status messages and to start/stop the service

The management server runs as a Windows service under local system account or optional local Windows user or Microsoft active directory account with run-as-aservice privileges

To register and validate your licenses, the system offers easy-to-use online activation via the Internet and alternatively, offline activation via e-mail for closed surveillance networks

Support for both IPv4 and IPv6 addressing

Recording Servers

Authorize installed recording servers for use with the system

Configure multiple primary storage areas for device recording

Set up multiple archiving schemes with individual storage area, scheduling and pre-configured retention time, setting how long to store data in the primary storage area and how long it should be retained in the archive before deletion

Devices

Wizard for automatic scanning IP network ranges for new devices including automatic model detection

Wizard for assisted discovery of single devices with automatic or manual model detection

Enable and disable devices – very useful if they are down for maintenance

Add a device or a group of devices to a storage area and set individual storage limitations by time or disk space

Apply a video archiving scheme per camera level to save data on a remote or less expensive disk system

Adjust brightness, color level, compression, maximum bit rate, resolution and rotation per camera or camera group

Set frames per second for streamed JPEG and MPEG-

4 and bit rate mode, and priority for MPEG-4 cameras

Select and configure multiple streams for a camera to be used for live viewing and recording. Each stream can be in different video format, FPS, resolution and quality

Optional preview window for immediate verification of video settings per camera or for a group of cameras

Assign camera shortcut number for easy operation by clients

Define multiple PTZ preset positions on the server

Import PTZ (Pan-Zoom-Tilt) preset positions from cameras

Define multiple PTZ patrolling schemes with adjustable wait time between shifts and customizable transitions with disabling of motion detection to avoid false alarms

Run multiple patrolling schedules per camera per day.

For example, different for day/night/weekend

PTZ scanning on supported devices. View or record while moving slowly from one position to another

Configure device events like motion detection with pre- and post-buffers, or input signal behavior options

Fine-tune motion detection sensitivity per camera and exclude multiple zones for areas of no interest to avoid false alarms

Rules, Time Profiles, Alerts & Notifications

Powerful Microsoft Outlook

®

-style rule system supports unlimited number of rules

Rule actions are triggered by event, time interval or a combination of event and time. Rules can optionally be stopped by event or after a certain time

Time profiles with reoccurring time selection and expire condition supporting unlimited number of time profiles

Trigger events:

- Plug-ins: Motion started, motion stopped

- Hardware: Audio falling, audio passing, audio rising, images received, input activated, input changed, input deactivated, motion started (HW), motion stopped

(HW), tampering, temperature, video lost

- Built-in: Communication error, communication started, communication stopped, feed overflow started, feed overflow stopped, live client feed requested, live client feed terminated, output activated, output changed, output deactivated, PTZ manual session started, PTZ manual session stopped, recording started, recording stopped, settings changed, settings changed error

- Recording server: Archive available, archive unavailable, database disk full, database repair, database storage area available, database storage area unavailable, failover started, failover stopped

- User-defined events: Allow clients and third-party systems to trigger a rule.

Start actions: Start recording, start feed, set live frame rate, set recording frame rate, start patrolling, pause patrolling, move to PTZ preset position, move to default

PTZ preset position, set output, send notification, make log entry, generate alert, start plug-in, stop plug-in, apply settings on device, send matrix command

Stop actions: Stop recording, stop feed, restore live frame rate, restore recording frame rate, stop patrolling, resume patrolling, move to PTZ preset position, move to default PTZ preset position, set output, start plug-in, stop plug-in, apply settings on device, send matrix command

5

Smart Wall start & stop actions (requires XProtect

Smart Wall product option); Set Smart Wall to preset layout, Set Smart Wall monitor layout and camera content

Time profiles with reoccurring time selection and expire condition supporting unlimited number of time profiles

Multi-recipient customizable e-mail notification with image and/or AVI attachment of incidents

Define custom alerts for use with third-party systems

Logging

Logs of system, event, audit, rule and alert entries are consolidated from all recording servers at regular intervals

Each log file has adjustable size and time limitations to avoid overloading the database

Security

Authenticate client access to recording servers based on Microsoft active directory or local Windows user accounts

Authenticate client access to XProtect Enterprise 6.x and newer Master and Slave servers based on

Microsoft active directory or basic user accounts

Authorize client access privileges per Microsoft active directory or local Windows user account/group

Authorization roles control user access to:

- Device: visibility of devices, live view, playback, AVI export, JPEG export, database export, sequences, smart search, input status, output control.

- PTZ: PTZ control, PTZ priority, PTZ preset control

- Application: manager, Smart Client/Remote Client, live/ playback/setup, status API, service registration API

- View groups privileges

- Enterprise Servers: Basic or Windows authentication details

- Privileges for the map feature and Smart Wall access

& control

Session-limited token system with auto-refresh grants access for clients to recording servers and devices

6

XProtect Smart Client

Live view

View live video or playback 1-100 camera recordings per PC-monitor/view from the same or different servers simultaneously

Live view digital zoom allows full view recordings while the operator digitally can zoom in to see details

Supports 32 different view layouts optimized for 4:3 and

16:9 display rations

Independent Playback capability allows for instant playback of recorded video for one or more cameras, while in live mode

Centralized storage of shared and private camera views, enables coherent access to views across the system

Update On Motion Only' optimizes CPU usage by allowing motion detection to control whether the image should be decoded and displayed or not. The visual effect is a still image in the view until motion is detected

Multiple computer monitor support provides a main window and any number of either floating windows or full screen views

Hotspot function lets you work in detail with a camera selected from a view containing multiple cameras

Carousel function allows a specified view to rotate between pre-defined cameras that are not necessarily present in the view at the same time. Operator can select default or custom display time for each camera and is able to manually switch to the next or previous camera in the carousel list

Matrix function views live video from multiple cameras in any view layout with customizable rotation paths, remotely controlled by computers sending Matrix remote commands

Send Matrix remote commands to display live video remotely on computers running the Matrix Monitor or the Smart Client with Matrix

Advanced video navigation includes fast/slow playback, jump to date/time, single step and video motion search

Import static or active HTML maps for fast navigation to cameras and to provide a good overview of premises

Hide HTML page toolbar in HTML page views

Activate Matrix via graphical maps of premises using

JavaScript or integrate with centralized access control systems

The operator can assign outputs, PTZ presets and views as actions to joystick buttons and as keyboard shortcuts. The actions are grouped to optimize overview.

Two-way audio support lets the Smart Client listen to live and recorded audio from a camera's microphone and outgoing audio to the cameras speaker, as well as transmitting operator microphone input to one or multiple camera speakers.

PTZ

Control PTZ cameras by using; o

PTZ preset positions o

PTZ Point-and-Click control o

PTZ zoom to a defined rectangle o

PTZ Control Pane o

Joystick

Take manual control of a PTZ camera that is running a patrolling scheme. After a timeout with no activity the camera reverts to its scheduled patrolling scheme.

Fisheye camera (Grandeye™/IPIX™) support for 1x2 or

2x2 'Quad View' for viewing all 360° at once

I/O & Events

Overlay buttons provides intuitive control of cameras, camera-integrated devices and other integrated systems- directly from the camera view

Manually trigger output port relay operation, for example control of gates

Manually trigger events by activating a server-defined event from a list

Audible alerts can be activated by motion detection or event occurrence per camera

Playback

Quick overview of recorded sequences, events and alerts

Independent Playback capability allows for independent playback of recorded video for one or more cameras

Smart Search lets you quickly search selected areas in the recorded video for motion. Within a camera image, you can mark single or multiple areas

Graphical timeline displays a scrollable view of recorded sequences by variable time spans for an excellent graphical overview of recorded images

Playback view digital zoom allows the operator to digitally zoom in to see details in the recorded video

Sequence Explorer

Separate window displaying sequences and time intervals in thumbnail pre-views, the Sequence Explorer gives unparalleled visual overview of recorded video combined with smooth navigation

Presents recorded sequences for individual cameras, or all cameras in a view

Seamlessly available in both Live and Playback modes

Smooth navigation with sliding preview and “drag-andthrow” function for video thumbnails

Instant playback of video sequences

Can be displayed on a second monitor (if available)

Map Function

Build-in map function in the XProtect Smart Client that provides intuitive overview of the system and offers integrated access to all system components

Map images can be in standard graphical file formats incl. jpg, gif, png, tif, etc.

Any number of layered maps – City, street, building, room, etc.

Instant camera preview on ‘mouse over’

7

Depiction of camera view-zones on map, with clickable

PTZ zones for instant PTZ control

Easy drag-and-drop and point-and-click definition of: cameras, servers, microphones, speakers, I/O devices, hot-zones for map hierarchies, camera view-zones and

PTZ camera presets position view zones

Integrated control of speakers, microphones, and events and output I/O control, including: doors, gates, light, access control systems etc.

Real-time status monitoring indication from all system components including cameras, I/O devices, system servers, etc.

Graphical at-the-glance visualization of the system status through color coding

Hierarchical propagation of status indications to higher ordered maps

Different level of status indications available (warning and errors)

System performance data for cameras and servers including camera resolution, FPS, network usage, disk space, etc.

Export and Print

Export in native database format; including a standalone Recording Viewer application for instant and easy viewing by authorities

Encryption & password protection option for exported recordings and files in the native database format

Create AVI files or save JPEG images

Print incident reports including image, surveillance details and free-text user comments

Setup and Management

Install the Smart Client from a web page on the management server

Notification about new updates at logon

Application Options allows users to adapt the layout and personalize the application to their particular preferences.

Authentication

System logon uses Microsoft active directory or local

Windows user account

Use current Windows logon for authentication

Auto-logon and auto-restore views

System

Support for both IPv4 and IPv6 addressing

Support for multicast streams with automatic switch to unicast if the network becomes unreliable

XProtect Remote Client

Live view and Playback

View live video for 1-16 cameras simultaneously from the same or different servers

Playback of up to 9 recorded videos with date, alert sequence or time searching

Advanced video navigation including fast/slow playback, jump to date/time, single step and video motion search

Individual views can be user-defined in various layouts: view or playback camera images from multiple servers simultaneously in the same view

Shared views can be managed centrally via the server with admin/user rights and user groups

Import static or active HTML maps for fast navigation to cameras and good premises overviews

Control output port relay operation, like control of gates

Quick overview of sequences with detected motion and preview window

I/O & Events

Quick overview of events/alerts

PTZ

Control PTZ cameras remotely, also using preset positions

Remote PTZ Point-and-Click control

Remote PTZ zoom to a marked rectangle

Take manual control over a PTZ camera that runs a patrolling scheme; after a timeout with no activity the camera reverts to its scheduled patrolling.

Fisheye camera (Grandeye™/IPIX™) support for 1x2 or

2x2 'Quad View' for viewing all 360° at once

Optional video compression in streaming from server to client gives better use of bandwidth

Export

Create AVI files or save JPEG images

Print incident reports with free-text user comments

Authentication

System logon using XProtect user name and password

System logon using Microsoft active directory user accounts

System

Thin browser based client that does not require any software installation

8

XProtect Smart Wall Add-On Product Option

System

Hardware agnostic - runs on standard servers and displays, no special Video Wall hardware or network configurations required

Flexible and seamlessly scalable – supports any numbers of Smart Walls with any number and any combination of monitors at any location

Management

Management of Smart Wall fully integrated with

XProtect Corporate's management client

Intuitive Smart Wall builder enables easy definition of numbers of Smart Walls, size and position of individual monitors

Smart Wall presets provides powerful control of the layout (camera grid) and actual camera content

All user actions are subject to assignment of user rights

Control

Dynamic user control of Smart Wall layout and content through manual drag-and-drop of cameras and views into the Smart Wall via the Smart Client

Automatic event driven control of Smart Wall layout and content based on rules, such as motion detection, I/O, integrated 3rd party applications, time, or video analytics events

Layout control enables instant insertion of a camera in a specific monitor and position, changes of the Smart

Wall monitor layout, setting of all (or some) of the monitors in the Smart Wall to a predefined layout and set of camera feeds

Intuitive integration with the map function enables easy drag-and-drop of cameras in to the Smart Wall from the map

View

Individual Smart Client users can view Smart Wall views as a part of the available view selection, which enables Smart Wall to be used as an operator collaboration tool

9

Minimum System Requirements

XProtect Corporate Servers

XProtect Corporate Recording / Failover Servers

3.1

HW Platform:

Minimum 2.4 GHz CPU and 1 GB RAM (2.4 MHz dual core processor and 2 GB RAM or more recommended)

Minimum 1 GB disk space available, excluding space needed for recordings

OS:

Microsoft

®

Windows

®

XP Professional

1

(32 or 64 bit*),

Windows Server 2003 (32 or 64 bit*), Windows Server

2008 R1 and R2 (32 or 64 bit*), Windows Vista™

Business (32 or 64 bit*), Windows Vista Enterprise (32 or 64 bit*), Windows Vista Ultimate (32 or 64 bit*),

Windows 7 Professional (32 or 64 bit*), Windows 7

Enterprise (32 or 64 bit*) and Windows 7 Ultimate (32 or

64 bit*)

Software:

Microsoft .NET 3.5 Framework SP1, or newer

XProtect Corporate Management Server 3.1

HW Platform:

Minimum 2.4 GHz CPU and 1 GB RAM (2 GB RAM or more recommended)

Minimum 1 GB disk space available, excluding space needed for SQL database and system configuration and logging data

OS:

Windows Server 2003 Standard Edition, or better (32 or

64 bit) and Windows Server 2008 R1 and R2 Standard

Edition, or better (32 or 64 bit). Enterprise or Datacenter

Editions required if the XProtect Corporate Management

Server is to be deployed in a redundant cluster setup.

N.B.

Please note that the support for Windows XP was discontinued with the release 3.0 of XProtect Corporate

Software:

Microsoft .NET 3.5 Framework SP1, or newer

Internet Information Server (IIS) 6.0, or newer

Microsoft SQL Express

2

2005/2008 Server or Microsoft

SQL 2005/2008 Server (local/networked)

XProtect Corporate Clients

XProtect Smart Client 5.0 and Smart Wall

HW Platform:

Minimum 2.4 GHz CPU, 1 GB RAM (more powerful CPU and higher RAM recommended for Smart Clients and

Smart Walls running high number of cameras and multiple views and displays)

Graphics Card:

AGP or PCI-Express, minimum 1024 x 768 (1280 x 1024 recommended), 16 bit colors

OS:

Microsoft Windows XP Professional (32 or 64 bit*),

Windows Server 2003 (32 or 64 bit*), Windows Server

2008 R1 and R2 (32 or 64 bit*), Windows Vista Business

(32 or 64 bit*), Windows Vista Enterprise (32 or 64 bit*),

Windows Vista Ultimate (32 or 64 bit*), Windows 7

Professional (32 or 64 bit*), Windows 7 Enterprise (32 or

64 bit*) and Windows 7 Ultimate (32 or 64 bit*)

Software:

DirectX 9.0 or newer required to run Playback Viewer application

Microsoft .NET 3.5 Framework SP1, or newer

XProtect Remote Client 3.6

HW Platform:

Minimum 2.4 GHz CPU, RAM 1 GB (2 GB or higher recommended on Microsoft Windows Vista)

OS:

Microsoft Windows XP Professional (32 or 64 bit*),

Windows Server 2003 (32 or 64 bit*), Windows Server

2008 R1 and R2 (32 or 64 bit*), Windows Vista

Business (32 or 64 bit*), Windows Vista Enterprise (32 or 64 bit*), Windows Vista Ultimate (32 or 64 bit*),

Windows 7 Professional (32 or 64 bit*), Windows 7

Enterprise (32 or 64 bit*) and Windows 7 Ultimate (32 or

64 bit*)

Software:

DirectX 9.0 or newer required to run Playback Viewer application

Microsoft Internet Explorer 7.0, or newer, 32 bit version required

XProtect Management Client 3.1

HW Platform:

Minimum 2.4 GHz CPU, 1 GB RAM

(2 GB or higher recommended on Microsoft Windows

Vista)

OS:

Microsoft Windows XP Professional (32 or 64 bit*),

Windows Server 2003 (32 or 64 bit*), Windows Server

2008 R1 and R2 (32 or 64 bit*), Windows Vista Business

(32 or 64 bit*), Windows Vista Enterprise (32 or 64 bit*),

Windows Vista Ultimate (32 or 64 bit*), Windows 7

Professional (32 or 64 bit*), Windows 7 Enterprise (32 or

64 bit*) and Windows 7 Ultimate (32 or 64 bit*)

Software:

Microsoft .NET 3.5 Framework SP1, or newer

DirectX 9.0, or newer

10

Miscellaneous

Supported Languages

XProtect

Smart Client 5.0

English, Arabic, Simplified Chinese, Traditional

Chinese, Czech, German, Danish, Spanish, French,

Hungarian, Italian, Japanese, Korean, Dutch, Polish,

Russian, Swedish, Turkish, Slovak, and Finnish

XProtect

Remote Client 3.6

English, German, French, Spanish, Simplified Chinese,

Japanese, Italian, Danish, and Swedish

XProtect Corporate Management Client 3.1

English

XProtect Smart Wall 1.0

Operator interface:

English, Arabic, Simplified Chinese, Traditional

Chinese, Czech, German, Danish, Spanish, French,

Hungarian, Italian, Japanese, Korean, Dutch, Polish,

Russian, Swedish, Turkish, Slovak and Finnish

Management interface:

English

Licensing Structure

Base Server License

An XProtect Corporate Base Server license is mandatory for installing the product

The Base Server license contains: o

One Management Server license o

Unlimited numbers of Recording Servers / Failover

Servers licenses o

Unlimited numbers of Smart Clients and Remote

Clients licenses

Camera Channel License

To connect to a camera, a license per camera channel is required. In total, for all copies of the product installed under this license, the product may only be used with as many cameras as you have purchased camera licenses for.

Camera Licenses can be purchased in any numbers. To extend the installation with additional Camera Licenses, the Base Server License number (SLC) is required when ordering.

Smart Wall Application License

XProtect Smart Wall is an add-on product to XProtect

Corporate and subject to separate licensing.

The XProtect Smart Wall Application License permits connection of unlimited numbers of Smart Walls (incl. physical displays) and camera feeds.

11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
