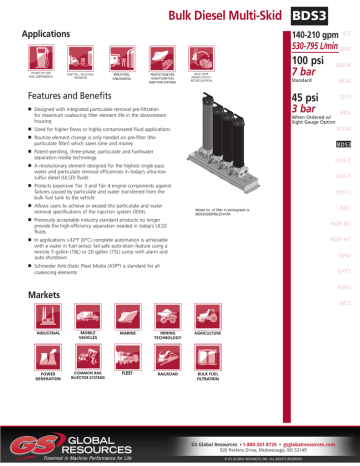

Bulk Diesel Multi-Skid BDS3 Applications 140-210 gpm ICF 530-795 L/min BDF 100 psi 7 bar BDFA Standard Features and Benefits 45 psi 3 bar ■■ Designed with integrated particulate removal pre-filtration for maximum coalescing filter element life in the downstream housing BDS3 ■■ Patent-pending, three-phase, particulate and fuel/water separation media technology LVH-C ■■ A revolutionary element designed for the highest single-pass water and particulate removal efficiencies in today’s ultra-low sulfur diesel (ULSD) fluids LVH-F ■■ Protects expensive Tier 3 and Tier 4 engine components against BDFC failures caused by particulate and water transferred from the bulk fuel tank to the vehicle ■■ Previously acceptable industry standard products no longer BDS BDS2 particulate filter) which saves time and money removal specifications of the injection system OEMs QCF When Ordered w/ Sight Gauge Option ■■ Sized for higher flows or highly contaminated fluid applications ■■ Routine element change is only needed on pre-filter (the ■■ Allows users to achieve or exceed the particulate and water BDA BDC Model no. of filter in photograph is: BDS339QPMLZ3VVM HDP-BC provide the high-efficiency separation needed in today’s ULSD fluids ■■ In applications >32°F (0°C) complete automation is achievable HDP-HT with a water in fuel sensor fail-safe auto-drain feature using a remote 5 gallon (18L) or 20 gallon (75L) sump with alarm and auto shutdown EPM ■■ Schroeder Anti-Static Pleat Media (ASP®) is standard for all EPTT coalescing elements EWU Markets BCC SCHROEDER INDUSTRIES | FUEL FILTRATION 51 BDS3 Bulk Diesel Multi-Skid Filter Housing Specifications Flow Rating: From 140 gpm to 210 gpm (530 to 795 L/min) for ULSD15 Inlet/Outlet Connection: SAE 32 Drain Connection Upper: 1/4" NPT Ball Valve Drain Connection Lower: 1/4" NPT Ball Valve Max. Operating Pressure: 100 psi (7 bar); 45 psi (3 bar) with water sight gauge Min. Yield Pressure: 400 psi (27.6 bar) without sight gauge Contact factory for use with sight gauge Rated Fatigue Pressure: Contact Factory Temperature range: -20°F to 165°F (-29°C to 74°C) with heater option 32ºF to 165ºF (0ºC to 74ºC) standard, with optional sight gauge or AWD option Bypass Indication: Particulate Filter (Lower indication options available) Particulate: 15 psi (1.03 bar) Bypass Valve Cracking: Particulate Filter Particulate: 20 psi ( 1.37 bar) Materials of Construction: Particulate Filter Porting Base: Anodized Aluminum Element Bowl: Epoxy Paint w/ High-phos Electroless Nickel Plating (Standard) Cap: Plated Steel Coalescing Filter Coalescing: 25 psi (1.7 bar) Coalescing Filter Coalescing: 30 psi ( 2 bar) Coalescing Filter Porting Base: Anodized Aluminum Element Bowl: Epoxy Paint w/ High-phos Electroless Nickel Plating (Standard) Cap: Plated Steel Weight: 596 Lbs. (270 kg) Element Change Clearance: 33.8” (858 mm) (Elements are sold with the housing) Metric dimensions in ( ). 52 SCHROEDER INDUSTRIES | FUEL FILTRATION Bulk Diesel Multi-Skid BDS3 ICF Element Particulate BDF Performance InformationBDFA Filtration Ratio per ISO 16889 Using APC calibrated per ISO 11171 Particulate Element βx (c) ≥ 200 βx (c) ≥ 1000 39QPMLZ1V <4.0 4.2 39QPMLZ3V <4.0 4.8 Coalescing Element C396Z5V Pressure Side Coalescing Max Flow Single Pass Water Removal Efficiency 70 gpm ≥ 99.5% Note: Based on ULSD15 with 27 Dynes/cm surface tension and 0.25% (2500 ppm) water injection Element Coalescing Performance Information Elements Sold with Housing Particulate Element Flow Direction: Outside In Element Nominal Dimensions: 6.0” (150 mm) O.D. x 37.80” (960 mm) long BDA QCF BDS BDS2 Coalescing Element Flow Direction: Inside Out Element Nominal Dimensions: 6.4” (163 mm) O.D. x 39.4” (1001 mm) long BDS3 LVH-C ∆Phousing ∆Pelement BDS ∆Phousing for fluids with sp gr= 0.86 ∆Pelement = flow x element ∆P factor x viscosity factor Note: Contact Factory for deltaP housing data El. ∆P factors @ 37 SUS (3 cSt). Pressure LVH-F Drop BDFC Information Based on BDC Flow Rate and HDP-BC Viscosity C396Z5V = .17 39QPMLZ1 = .01 39QPMLZ3 = .01 If working in units of bars & L/min, divide above factor by 54.9. HDP-HT Viscosity factor: Divide viscosity by 37 SUS (3 cSt). EPM EPTT EWU Notes BCC ∆Pfilter = ∆Phousing + ∆Pelement Exercise: Determine ∆P at 70 gpm (265 L/min) for BDS239QPMLZ3VVM Solution: ∆Phousing = 3.0 psi = [ 0.21 bar] ∆Pelement (39QPML) = 70 x 0.01 = 0.7 psi [.05 bar] ∆Pelement (C396) = 70 x 0.17 = 11.9 psi [.82 bar] ∆Ptotal= 3.0 + 0.7 + 11.9 = 15.6 psi [1.07 bar] SCHROEDER INDUSTRIES | FUEL FILTRATION 53 BDS3 Bulk Diesel Multi-Skid Filter Model Number Selection How to Build a Valid Model Number for a Schroeder BDS Housing Supplied with Element: BOX 1 BOX 2 BDS – BOX 3 – BOX 4 – BOX 5 – BOX 6 – Example: NOTE: One option per box BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BDS – 3 – 39QPMLZ3 – V – VM – = BDS339QPMLZ3VVM BOX 1 BOX 2 BOX 3 BOX 4 Filter Series No. of Coalescing Filters Particulate Filter Micron Rating Housing Seal Material 3 = 210gpm 39QPMLZ1 = 1μm BDS V = Viton® 39QPMLZ3 = 3μm BOX 5 BOX 6 Dirt Alarm® Sump Options VM = Visual Pop-Up w/ Manual Reset Omit = None (standard) H = Sump Heater S = Sight Gauge AWD5 = Auto water drain 5 gal tank w/ failsafe AWD20 = Auto water drain 20 gal tank w/ failsafe C = Cla-Val® Flow Control Valve (2" ANSI 150# flange) NOTES: Element Part Number Selection Optional sight gauge and AWD's for use only >32° F (0°C) Box 4. Viton® is a registered trademark of DuPont Dow Elastomers Filtration Ratio per ISO 16889 Using APC calibrated per ISO 11171 Particulate Element βx (c) ≥ 200 βx (c) ≥ 1000 39QPMLZ1V <4.0 4.2 39QPMLZ3V <4.0 4.8 Coalescing Element C396Z5V Pressure Side Coalescing Max Flow Single Pass Water Removal Efficiency 70 gpm ≥ 99.5% Note: Based on ULSD15 with 27 Dynes/cm surface tension and 0.25% (2500 ppm) water injection Particulate Element Flow Direction: Outside In Element Nominal Dimensions: 6.0” (150 mm) O.D. x 37.80” (960 mm) long Coalescing Element Flow Direction: Inside Out Element Nominal Dimensions: 6.4” (163 mm) O.D. x 39.4” (1001 mm) long Fluid Compatibility 54 Fuel Oils ■■ ULSD15, low sulfur diesel and high sulfur diesel ■■ Biodiesel blends ■■ Synthetic diesel and blends ■■ No. 2 fuel oil and heating oil SCHROEDER INDUSTRIES | FUEL FILTRATION
