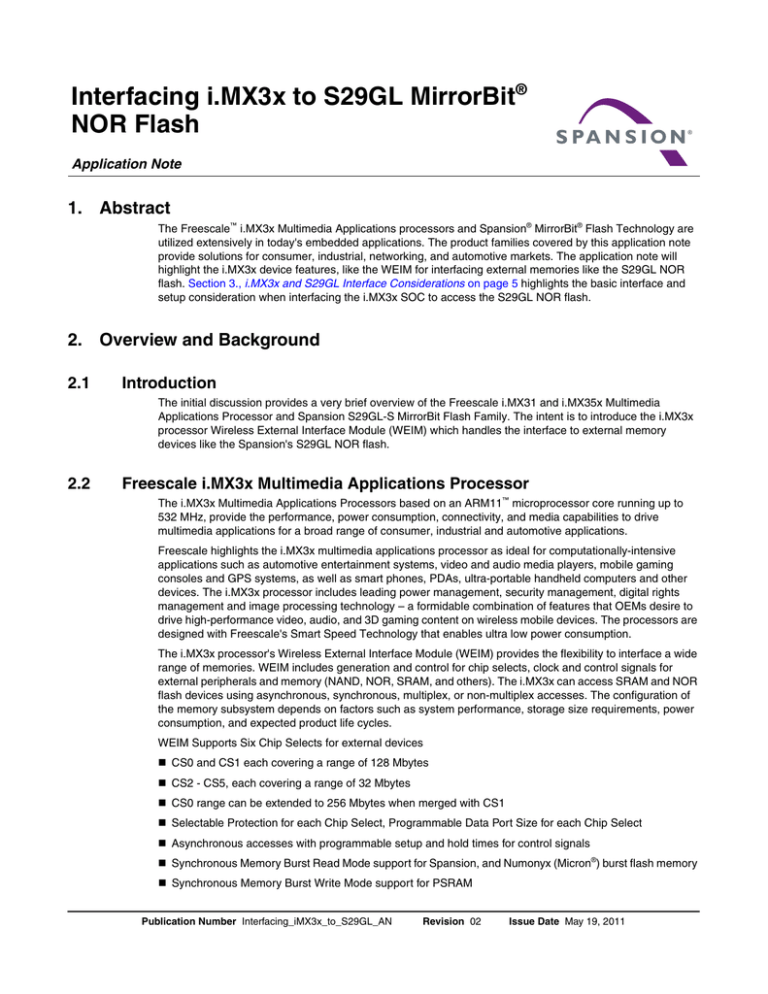

Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash

Application Note

1.

Abstract

The Freescale

i.MX3x Multimedia Applications processors and Spansion

®

MirrorBit

®

Flash Technology are utilized extensively in today's embedded applications. The product families covered by this application note provide solutions for consumer, industrial, networking, and automotive markets. The application note will highlight the i.MX3x device features, like the WEIM for interfacing external memories like the S29GL NOR flash.

Section 3., i.MX3x and S29GL Interface Considerations on page 5

highlights the basic interface and setup consideration when interfacing the i.MX3x SOC to access the S29GL NOR flash.

2.

Overview and Background

2.1

Introduction

The initial discussion provides a very brief overview of the Freescale i.MX31 and i.MX35x Multimedia

Applications Processor and Spansion S29GL-S MirrorBit Flash Family. The intent is to introduce the i.MX3x processor Wireless External Interface Module (WEIM) which handles the interface to external memory devices like the Spansion's S29GL NOR flash.

2.2

Freescale i.MX3x Multimedia Applications Processor

The i.MX3x Multimedia Applications Processors based on an ARM11

microprocessor core running up to

532 MHz, provide the performance, power consumption, connectivity, and media capabilities to drive multimedia applications for a broad range of consumer, industrial and automotive applications.

Freescale highlights the i.MX3x multimedia applications processor as ideal for computationally-intensive applications such as automotive entertainment systems, video and audio media players, mobile gaming consoles and GPS systems, as well as smart phones, PDAs, ultra-portable handheld computers and other devices. The i.MX3x processor includes leading power management, security management, digital rights management and image processing technology – a formidable combination of features that OEMs desire to drive high-performance video, audio, and 3D gaming content on wireless mobile devices. The processors are designed with Freescale's Smart Speed Technology that enables ultra low power consumption.

The i.MX3x processor's Wireless External Interface Module (WEIM) provides the flexibility to interface a wide range of memories. WEIM includes generation and control for chip selects, clock and control signals for external peripherals and memory (NAND, NOR, SRAM, and others). The i.MX3x can access SRAM and NOR flash devices using asynchronous, synchronous, multiplex, or non-multiplex accesses. The configuration of the memory subsystem depends on factors such as system performance, storage size requirements, power consumption, and expected product life cycles.

WEIM Supports Six Chip Selects for external devices

 CS0 and CS1 each covering a range of 128 Mbytes

 CS2 - CS5, each covering a range of 32 Mbytes

 CS0 range can be extended to 256 Mbytes when merged with CS1

 Selectable Protection for each Chip Select, Programmable Data Port Size for each Chip Select

 Asynchronous accesses with programmable setup and hold times for control signals

 Synchronous Memory Burst Read Mode support for Spansion, and Numonyx (Micron

®

) burst flash memory

 Synchronous Memory Burst Write Mode support for PSRAM

Publication Number Interfacing_iMX3x_to_S29GL_AN Revision 02 Issue Date May 19, 2011

A p p l i c a t i o n N o t e

 Support for multiplexed address / data bus operation

 Programmable Wait-State generator for each Chip Select

 Support for Big Endian and Little Endian modes of operation per access

Figure 2.1 i.MX35x Block Diagram i.MX35 Multimedia Applications Processor for Auto

System Control

JTAG/ICE TM

Bootstrap

System Reset

PLL and

Power Mgmt

CPU Complex

ARM1136 CPU

Smart Speed

Switch (MAX)

16 KB

I-cache

16 KB

D-cache

128 KB

L2-cache

Multimedia and

Human Interface

8 x 8 Keypad

32 KB Boot ROM

2 KB Secure RAM

Vector Floating

Point Unit

128 KB

SRAM

ASRC

OpenVG 1.1

2.5D Accel


Processing Unit

Inversion and

Rotation

Pre and Post

Processing

Camera I/F

Blending

Display Ctrl

External

Memory

SDRAM mSDRAMC mDDR

DDR2

NOR

SLC NAND

MLC NAND

Standard

System I/ O eDMA

3 x Timer

PWM

WD Timer

RTC

GPIO

Connectivity

2 x CSPI

2 x SSI/I

2

S

ESAI

3 x I 2 C

3 x UART

USB HS Host

FS-PHY or ULPI

USB HS OTG w/HS-PHY

S/PDIF/I/O

2 x FlexCAN

MLB

Ethernet

1-Wire

2 x SDIO/MMC

SDIO/

Memory Stick

PATA

CE-ATA

2 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash May 19, 2011

GUARD

AHB controls

AHB clock

(HCLK 133 MHz)

BOOT_CFG

[5:0]

BIGEND

AHB

HWDATA[31:0]

EIM

Config

A p p l i c a t i o n N o t e

Figure 2.2 WEIM Block Diagram

AHB

Capture

Bus

Controller

STATE

Output

Control

STROBE

WR_GUARD

IO_DIR

[3:0]

CS# [5:0]

RW#

OE#

EB# [3:0]

LBA#

BCLK

EIM

Clock

CONFIGURATION

Input

Capture

ECB#

DTACK#

Write

Data

Path

ADDR[25:16]

ADDR[15:0]/

M_DATA_OUT[15:0]

DATA_OUT[15:0]/

M_DATA_OUT[31:16]

AHB

HADDR[31:0] Addr

Path

Addr

Data

Mux

M_DATA_IN[15:0]

DATA_IN[15:0]/

M_DATA_IN[31:16]

AHB

HRDATA[31:0]

Read

Data

Path

BCLK_FB

2.3

Spansion S29GL MirrorBit NOR Flash Family

Spansion S29GL MirrorBit Flash Families are the leading price-performance flash memory technology for embedded applications. The S29GL MirrorBit technology enables designers to create innovative and cost-effective solutions. This product family offers densities from 32 Mb (4 MB) to 2 Gb (256 MB) with option to support 3.3V or 1.8V interfaces. The S29GL offers a V

IO

option separating the I/O from the main V

CC power supply which enables a direct interface with the i.MX3x family configured for 1.8V I/O. The S29GL family is characterized by extensive longevity and maintaining compatibility of new products with the previous generations. The S29GL also features a universal package footprint across devices densities for both BGA and TSOP packages. These features can be leveraged across a product line offering reduced cost and time-to-market. Other Spansion 1.8V S29WS/VS and MCP families can be adopted in the i.MX3x platforms.

May 19, 2011 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash 3

A p p l i c a t i o n N o t e

Spansion's latest S29GL-S Family offers the new Eclipse

architecture fabricated on 65 nm process technology. These devices offer a fast page access time of 15 ns and random access times that are comparable with previous generations. The MirrorBit Eclipse architecture enables high bandwidth programming up to 1.5 MB/s approximately 11x faster than previous generation NOR flash technologies. This makes these devices ideal for today's embedded applications requiring high density, and improved

read / program performance. Table 2.1

summarizes the feature comparison between the Eclipse S29GL-S and previous generations of S29GL MirrorBit products.

Table 2.1 Feature Comparison for S29GL MirrorBit Family

Feature

Density

V

CC

Temperature Range

Common Flash Interface (CFI)

Lithography Node

Page Read/Write Buffer

Program/ Erase BW

Secure Silicon Sector (OTP)

Security

Software Command Set

Power-on Reset

Bus Width

Embedded Operation Status

Erase Sector size

Notes:

1. GL-N information is provided for reference only.

2. GL-P is not recommended for new designs.

3. The Sector Size for the GL032N and GL064N is 64 kB.

S29GL-N 110 nm (1)

32 Mb - 512 Mb

2.7V - 3.6V

-40 to 85°C

-40 to 105°C (Read)

Yes

110 nm

8 / 16 word

~133 kB/s / 250 kB/s

256 byte OTP

ASP

Yes

500 ns x8 or x16

Data Polling

128 kB

(3)

S29GL-P 90 nm (2)

128 Mb - 1 Gb

2.7V - 3.6V

-40 to 85°C

Yes

90 nm

8 / 32 word

~133 kB/s/ 250 kB/s

256 byte OTP

ASP

GL-N Compatible

~35 µs x8 or x16

Data Polling

128 kB

S29GL-S Eclipse 65nm

128 Mb to 1 Gb

2.7V - 3.6V

-40 to 85°C

-40 to 105°C

Yes

65 nm

16 / 256 word

~1.5 MB/s / 655 kB/s

1024 byte:2x512 byte OTP

ASP; Write and Read protect

GL-P Compatible

~300 µs x16 only

Data Polling / Status Register

128 kB

Figure 2.3

is a typical Block Diagram for an S29GL Asynchronous / Page Mode access MirrorBit Flash.

4 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash May 19, 2011

V

CC

V

SS

RESET#

WE#

WP#

CE#

OE#

A p p l i c a t i o n N o t e

Figure 2.3 S29GL Asynchronous/Page Mode Block Diagram

RY/BY#

Sector Switches

Erase Voltage

Generator

V

IO

(V

CC

Q)

DQ15

DQ0

Input/Output

Buffers

State

Control

Command

Register

PGM Voltage

Generator

Chip Enable

Output Enable

Logic

Data

Latch

Y-Decoder

Y-Gating

V

CC

Detector

Timer

X-Decoder

Cell Matrix

S29GL-S

01G

512

256

128

A25 – A0

A24 – A0

A23 – A0

A22 – A0

3.

i.MX3x and S29GL Interface Considerations

This section considers the interface requirements for an i.MX35 and S29GL256S. Note the i.MX31 and i.MX35 each use the WEIM controller to interface to external memory devices. Note a particular i.MX3x device data sheet or reference manual should be referenced to determine the detailed interface options offered for that device.

3.1

Hardware Interface

As stated earlier, the i.MX3x WEIM is capable of supporting asynchronous, page, synchronous, multiplexed address/data and non-multiplex modes. This section discusses details for interfacing the i.MX35 and

S29GL256S to support asynchronous/page non-muxed accesses.

3.1.1

High Level i.MX35x to S29GL256S Interface

Figure 3.1

shows the signal interface from the i.MX35x WEIM bus to a S29GL256S 32-Mbyte NOR flash. The

i.MX35 NVCC_NAND, NVCC_EMI3, and NVCC_EMIx can be configured to support 3.3V or 1.8V interface options and the S29GL-S Family also supports V

IO

option also enable interfacing to 3.3V or 1.8V bus.

May 19, 2011 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash 5

6

A p p l i c a t i o n N o t e

Figure 3.1 Interface Diagram for i.MX35 to S29GL256S

3.1.2

3.1.3

A[23:0]

D[14:0]

D[15]

CS0#

(1)

OE#

RW#

ECB#

A[23:0]

D[14:0]

D15

CE#

OE#

WE#

RY/BY# iMX35x_WEIM

Pullup or

GPIO iMX35x

POR B

(2)

VIO Supply

3V Supply

GND

Notes:

1. CS0 required for boot.

2. RESET should be connected to same POR_B as i.MX35 (driven by external device).

WP#

RESET#

VIO

VCC

VSS

S29GL256S

Interface Diagram for i.MX35 to S29GL256S

The i.MX3x EMI I/O interface power supply should be set up according to external memory requirements.

Reference the iMX3x data sheet for additional details.

i.MX35x Detailed Connections to S29GL256S

Table 3.1

below shows detailed iMX35 to the S29GL256S signal interface and descriptions.

Table 3.1 Detailed Signal Interface i.MX35x to S29GL256S

i.MX35x

Signals

A23-A0

CS[0]

DATA_IN[15:0]

OE#

RW#

POR#

ECB#

S29GL256S

A23-A0

Description/Remarks

Word Access for 256 Mbit: S29GL256S

Additional GL flash memories can be connected to any of the WEIM chip-selects lines CS[0:5], sharing the other control signals, addresses and data.

The following address space limitation should be considered for the chip-select line.

CE#

DQ15-DQ0

OE#

WE#

WP#

RESET#

RY/BY#

CS[0] and CS[1] 1 Gbit/128 MBytes each

CS[2] … CS[5] 256 Mb/32 MBytes each

I/O Data Lines. The S29GL-S flash family are word mode accesses(X16).

Output Enable. At V

IL impedance (High-Z).

, causes outputs to be actively driven. At V

IH

, causes outputs to be high

Read/Write signal. It is active low during a write cycle, active high during a read cycle.

Write Protect Signal. It can be connected either to a jumper or to a GPIO of the i.MX35. When it is asserted low, either the highest or lowest sector is protected from undesired erase/program operations.

The reset signal is active low and it can be generated using several techniques from the i.MX reset module (e.g. POR# pin). The user needs to make sure that from the reset signal going low to the first valid access (CS# low) the reset timings meet data sheet specification.

The S29GL-S RY/BY# pin indicates if an embedded flash operation is in progress.

Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash May 19, 2011

A p p l i c a t i o n N o t e

Symbol

A26-A0

DQ15-DQ0

CE#

OE#

WE#

RESET#

WP#

RY/BY#

Table 3.2 S29GL-S Signal Description

Typ

Input

Input/Output

Input

Input

Input

Input

Input

Output

Input

Input

Input

Description

Address Inputs

A25-A0 for S29GL01GS

A24-A0 for S29GL512S

A23-A0 for S29GL256S

A22-A0 for S29GL128S

Data Inputs and Outputs

Chip Enable. At V

IL

, selects the device for data transfer with the host memory controller.

Output Enable. At V

IL

, causes outputs to be actively driven. At V

IH

, causes outputs to be high impedance (High-Z).

Write Enable. At V

IL

, indicates data transfer from host to device. At

V

IH

, indicates data transfer is from device to host.

Hardware Reset. At V

IL

, causes the device to reset control logic to its standby state, ready for reading array data.

Write Protect. At V

IL

, disables program and erase functions in the lowest or highest address 64 kword (128 kB) sector of the device. At

V

IH

, the sector is not protected. WP# has an internal pull up; When unconnected WP# is at V

IH

.

Read/Busy. Indicates whether an Embedded Algorithm is in progress or complete. At V

IL

, the device is actively engaged in an

Embedded Algorithm such as erasing or programming. At High-Z, the device is ready for read or a new command write – requires external pull-up resistor to detect the High-Z state. Multiple devices may have their RY/BY# outputs tied together to detect when all devices are ready.

Core Power Supply.

Versatile IO power supply.

Power supplies ground.

V

CC

V

IO

V

SS

3.2

i.MX3X Configuration Register Considerations

3.2.1

Assumptions and General Setup

 i.MX35x AHB Clock Frequency

 133 MHz

 i.MX35x Boot Configuration

 External non-muxed 16-bits wide data bus mode on CS0#

 S29GL256S device has an initial access time between 90 and 110 ns

The WEIM boot configuration is determined based on inputs to the device at power on reset and fuse settings. The main boot modes are controlled by dedicated boot pins, BOOT_MODE0 and BOOT_MODE1.

The device also uses a number of eFUSEs during the boot process to further determine specific boot mode and boot path. The fuse value can be determined by IIM or GPIO pins with the control of GPIO_BT_SEL fuse.

When the GPIO_BT_SEL fuse is cleared, the boot configuration fuse value is determined by GPIO pins as follows.

Upon power-on reset (POR_B) the i.MX35x processor samples the boot mode pins BMOD[1:0] as well as the state of internal boot mode fuses to determine the type of boot. In order to boot from the S29GL256S, the i.MX35 must be set to external boot - BMOD[1:0] - and the fuses must reflect boot from WEIM in 16 bit mode.

See “Chapter 7 - Boot” in the i.MX35x Reference Manual for detailed description of the fuse settings.

May 19, 2011 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash 7

8

A p p l i c a t i o n N o t e

Pin Name

BOOT_MODE0

BOOT_MODE1

CSI_D8 INPUT

CSI_D9 INPUT

CSI_D10 INPUT

CSI_D11 INPUT

CSI_VSYNC

eFUSE Name

N/A

N/A

BT_MEM_CTRL[0]

BT_MEM_CTRL[1]

BT_MEM_TYPE[0]

BT_MEM_TYPE[1]

BT_BUS_WIDTH

Setting at Boot

0 (External boot)

1

0 (WEIM)

0

0 (NOR)

0

0 (16 bit)

There are four WIEM configuration registers that directly affect WEIM access for CS0. The WEIM Control

Register, the Upper and Lower Chip Select 0 Control Registers, and the Chip Select 0 Additional Control register. All four registers are highlighted in the following sections.

The first register to take into consideration is the WCR. WCR defines the burst clock operations. The

S29GL256S flash does not require a burst clock. The WCR also defines if CS0 and CS1 address space merged. For a S29GL256S the default settings are appropriate.

CS configuration register are divided into three “Chip Select Configuration Registers” (CSCR) called “Upper”,

“Lower” and “Additional” of 32 bits each. The CSCR0-Upper register contains parameters of the burst/page mode read access and the wait-states to match the page access and initial random access time. The duration of one wait state is related to the i.MX3x AHB clock frequency (typ. 133 MHz, T

CK

= 7.52 ns). Note the

S29GL-S supports both asynchronous and 16-word page read accesses. The write cycle time duration is less critical than the read access time. No additional wait-states are required for the write cycle. In order to have a relaxed negation time of CS0# during back-to-back read and write, a negation time of 30 ns is recommended.

The CSCR0-Lower register contains parameters to define the OE# and CS0# assertion and negation during a cycle. The CS0# can be activated at the beginning of the read/write cycle and negated at the end. OE# can be asserted at the beginning of the read cycle and negated at the end as well. The register also contains the memory bank activation and the port size (data bus width) definition. The desired configuration is non-A/D mux 16-bit port. The CSCR0-Additional contains a definition of the A/D mux/demux bus configuration, too. It also defines the WE assertion/negation timings. No special settings are required. WE# can be asserted at the beginning of the write cycle and negated at the end. Similar approaches can be extended to other i.MX processors. Refer to the related user manuals for additional information.

Freescale offers i.MX3x evaluation kits already contain sample software providing examples for proper register configurations. Some changes may be required to match or optimize the S29GL256S timings read/write access timings.

3.2.2

Example Setup

The following provide a simple configuration setting setup for the i.MX35x and S29GL256S Configuration

Registers to enable asynchronous non-multiplexed flash accesses. Note the user may desire to modify these settings to optimize access times or to perform additional access modes such as Page Read Mode access.

3.2.2.1

i.MX35x WEIM Configuration Register

The WCR contains two parameters that define the burst clock operation and merged address operation.

Bit MSB 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

Value RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD

Bit 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

Value RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD 1 RSVD 0

Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash May 19, 2011

A p p l i c a t i o n N o t e

3.2.2.2

i.MX35x Chip Select 0 Upper Control Register

Bit

Value

Bit

Value

MSB

0

15

10

30

0

14

29

00

28

13 12

27

11

26

0000

25

10

01_011

9

24

8

23

00

22

7

0

6

21

0

5

000

20

0

4

19

3

18

0000

17

2 1

0000

16

0

3.2.2.3

i.MX35x Chip Select 0 Lower Control Register

Bit

Value

Bit

Value

MSB

0

15

30

0

14

0000

29

13

00

28

12

27

11

0

26 25

10

0000

9

101

24

8

23

7

00

22

6

0000

21

0

5

20

0

4

19

3

0

18

0000

17

2

0

1

0

16

0

0

3.2.2.4

i.MX35x Chip Select 0 Additional Control Register

As stated earlier, the default reset values for CSCR0A are appropriate to make non-multiplexed asynchronous accesses.

Bit

Value

MSB

Bit 15

Value MUM

30

EBRA

29

14 13

LAH

28 27

12 11

LBN

26

EBRN

25

10 9

LBA

24

8

23

7

DWW

22

RWA

21

6 5

DCT

20

4

19 18

RWN

17 16

3 2 1 0

WWU AGE CNC2 FCE

4.

Support Tools

Freescale and Spansion each offer extensive support for their product portfolios.

Freescale offers substantial product documentation and a number of i.MX3x Product Development Kits

(PDK), which provide a functional hardware platform and software solution to enable engineers to develop with the i.MX3x processor.

Spansion's Tool support including Product Documentation, SW Drivers, Simulation Models, Hardware

Development Tools, and other support items can be found at: http://www.spansion.com/Support/Pages/Support.aspx

5.

Conclusion

Freescale's i.MX3x Multimedia Applications processors and Spansion's S29GL-S MirrorBit Flash Technology are utilized extensively in today's embedded applications. The product families covered by this application note provide solutions for consumer, industrial, networking, and automotive markets. This application note provides a brief highlight of some of the devices key product features and outlines an example case illustrating the hardware and configuration consideration when interfacing i.MX35x SOC to the S29GL256S flash. The S29GL-S MirrorBit NOR flash family continues to provide cost effective innovative solutions while maintaining product compatibility and long term supporting strategy.

6.

References

 Freescale Data Sheet: MCIMX35 “MCIMX35 Datasheet”

 Freescale Application Note: MCIMX35RM “MCIMX35 Multimedia Applications Processor Reference

Manual”

 i.MX35 Board Initialization and Memory Mapping Using the Linux Target Image Builder (LTIB)

 Spansion S29GL-S Data Sheet

May 19, 2011 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash 9

A p p l i c a t i o n N o t e

7.

Revision History

Section

Revision 01 (January 12, 2011)

Revision 02 (May 19, 2011)

Global

Initial release

Updated for latest S29GL-S data sheet

Description

10 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash May 19, 2011

A p p l i c a t i o n N o t e

Colophon

The products described in this document are designed, developed and manufactured as contemplated for general use, including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured as contemplated (1) for any use that includes fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2) for any use where chance of failure is intolerable (i.e., submersible repeater and artificial satellite). Please note that Spansion will not be liable to you and/or any third party for any claims or damages arising in connection with above-mentioned uses of the products. Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-current levels and other abnormal operating conditions. If any products described in this document represent goods or technologies subject to certain restrictions on export under the Foreign Exchange and Foreign Trade Law of Japan, the US Export Administration Regulations or the applicable laws of any other country, the prior authorization by the respective government entity will be required for export of those products.

Trademarks and Notice

The contents of this document are subject to change without notice. This document may contain information on a Spansion product under development by Spansion. Spansion reserves the right to change or discontinue work on any product without notice. The information in this document is provided as is without warranty or guarantee of any kind as to its accuracy, completeness, operability, fitness for particular purpose, merchantability, non-infringement of third-party rights, or any other warranty, express, implied, or statutory. Spansion assumes no liability for any damages of any kind arising out of the use of the information in this document.

Copyright © 2011 Spansion Inc. All rights reserved. Spansion

®

, the Spansion logo, MirrorBit

®

, MirrorBit

®

Eclipse

, ORNAND

, EcoRAM

and combinations thereof, are trademarks and registered trademarks of Spansion LLC in the United States and other countries. Other names used are for informational purposes only and may be trademarks of their respective owners.

May 19, 2011 Interfacing i.MX3x to S29GL MirrorBit

®

NOR Flash 11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
