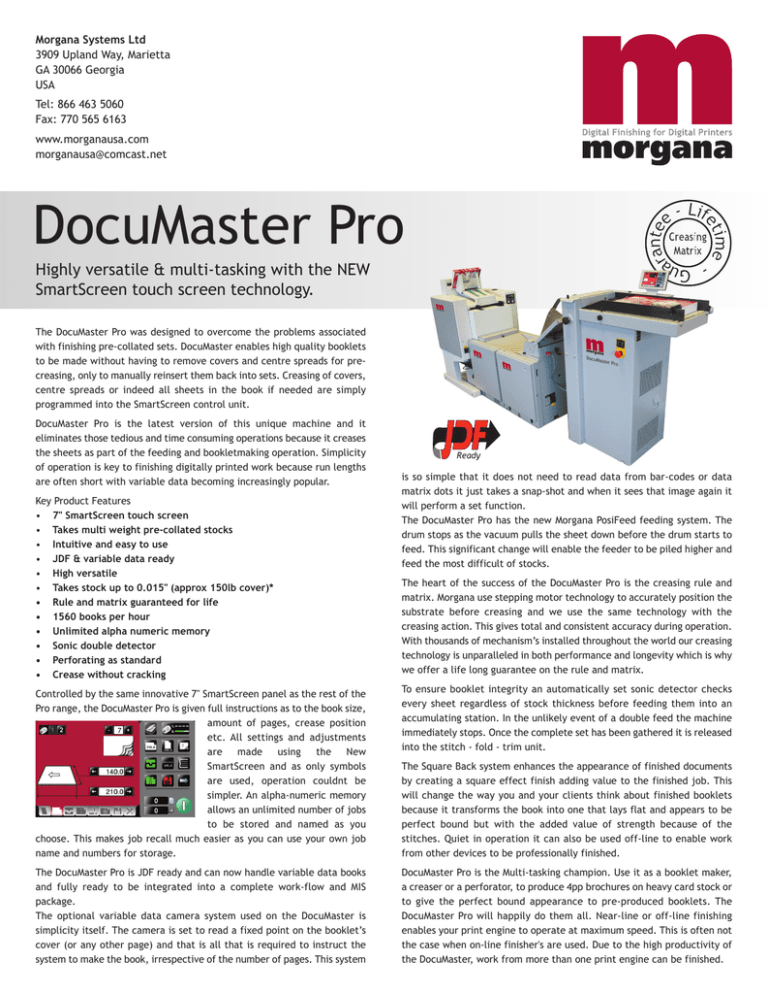

DocuMaster Pro
Highly versatile & multi-tasking with the NEW
SmartScreen touch screen technology.
The DocuMaster Pro was designed to overcome the problems associated
with finishing pre-collated sets. DocuMaster enables high quality booklets
to be made without having to remove covers and centre spreads for precreasing, only to manually reinsert them back into sets. Creasing of covers,
centre spreads or indeed all sheets in the book if needed are simply
programmed into the SmartScreen control unit.
DocuMaster Pro is the latest version of this unique machine and it
eliminates those tedious and time consuming operations because it creases
the sheets as part of the feeding and bookletmaking operation. Simplicity
of operation is key to finishing digitally printed work because run lengths
are often short with variable data becoming increasingly popular.
Key Product Features
• 7" SmartScreen touch screen
• Takes multi weight pre-collated stocks
• Intuitive and easy to use
• JDF & variable data ready
• High versatile
• Takes stock up to 0.015" (approx 150lb cover)*
• Rule and matrix guaranteed for life
• 1560 books per hour
• Unlimited alpha numeric memory
• Sonic double detector
• Perforating as standard
• Crease without cracking
Controlled by the same innovative 7" SmartScreen panel as the rest of the
Pro range, the DocuMaster Pro is given full instructions as to the book size,
amount of pages, crease position
etc. All settings and adjustments
SmartScreen and as only symbols
are used, operation couldnt be
simpler. An alpha-numeric memory
allows an unlimited number of jobs
to be stored and named as you
choose. This makes job recall much easier as you can use your own job
name and numbers for storage.
The DocuMaster Pro is JDF ready and can now handle variable data books
and fully ready to be integrated into a complete work-flow and MIS
The optional variable data camera system used on the DocuMaster is
simplicity itself. The camera is set to read a fixed point on the booklet’s
cover (or any other page) and that is all that is required to instruct the
system to make the book, irrespective of the number of pages. This system
is so simple that it does not need to read data from bar-codes or data
matrix dots it just takes a snap-shot and when it sees that image again it
will perform a set function.
The DocuMaster Pro has the new Morgana PosiFeed feeding system. The
drum stops as the vacuum pulls the sheet down before the drum starts to
feed. This significant change will enable the feeder to be piled higher and
feed the most difficult of stocks.
The heart of the success of the DocuMaster Pro is the creasing rule and
matrix. Morgana use stepping motor technology to accurately position the
substrate before creasing and we use the same technology with the
creasing action. This gives total and consistent accuracy during operation.
With thousands of mechanism’s installed throughout the world our creasing
technology is unparalleled in both performance and longevity which is why
we offer a life long guarantee on the rule and matrix.
To ensure booklet integrity an automatically set sonic detector checks
every sheet regardless of stock thickness before feeding them into an
accumulating station. In the unlikely event of a double feed the machine
immediately stops. Once the complete set has been gathered it is released
into the stitch - fold - trim unit.
The Square Back system enhances the appearance of finished documents
by creating a square effect finish adding value to the finished job. This
will change the way you and your clients think about finished booklets
because it transforms the book into one that lays flat and appears to be
perfect bound but with the added value of strength because of the
stitches. Quiet in operation it can also be used off-line to enable work
from other devices to be professionally finished.
DocuMaster Pro is the Multi-tasking champion. Use it as a booklet maker,
a creaser or a perforator, to produce 4pp brochures on heavy card stock or
to give the perfect bound appearance to pre-produced booklets. The
DocuMaster Pro will happily do them all. Near-line or off-line finishing
enables your print engine to operate at maximum speed. This is often not
the case when on-line finisher's are used. Due to the high productivity of
the DocuMaster, work from more than one print engine can be finished.
DocuMaster Pro
Highly versatile & multi-tasking with the NEW
SmartScreen touch screen technology.
technical specifications
Crease & Fold
Maximum speed A4 S.P.H. (crease only)
Maximum sheet size
L 24.8" x W 12.9"
Minimum sheet size
8.26" x 5.5"
Maximum paper thickness
0.015" (approx 150lb cover)* including laminated material
Minimum paper thickness
0.004" (approx 20lb bond)*
Maximum number of creases per sheet
Maximum number programmed applications
Unlimited alpha numeric
Maximum number of folds per sheet
Minimum incremental adjustment
L 106.2" x W 28.3" x H 46.6"
879.6 lb
Power requirement
240v 50/60hz
Maximum speed B.P.H.
Maximum sheet size
L 18" x W 12.5
Minimum sheet size
8.26" x 5.5"
Maximum cover thickness
0.014" (approx 120lb cover)*
Minimum inside sheet paper thickness
0.004" (approx 20lb bond)*
Maximum book thickness
22 sheets 0.004" (approx 20lb bond)*
Maximum number programmed applications
Unlimited alpha numeric
Maximum number of folds per sheet
Maximum staple pitch
Minimum staple pitch
Maximum trim
L 106.2" x W 28.3" x H 46.6"
879.6 lb
Power requirement
240v 50/60hz
Narrow creasing rule, Variable data camera system, Squareback
Note: the production speed varies according to material size and the number of crease/folds on the sheet
As part of our continued product improvement plan, specifications and information published here are subject to change without notice.
All specifications are dependent on application, type of stock, temperature, RH and print engine used.
Specifications quoted were measured on uncoated and unprinted stock.
E & OE.
