XL-DK225

VIDEO

/AUX

XL-DK225

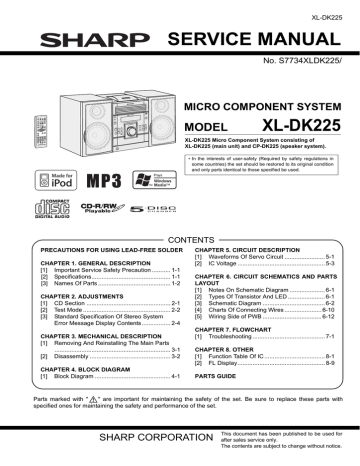

SERVICE MANUAL

No. S7734XLDK225/

MICRO COMPONENT SYSTEM

MODEL

XL-DK225

XL-DK225 Micro Component System consisting of

XL-DK225 (main unit) and CP-DK225 (speaker system).

• In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified be used.

CONTENTS

PRECAUTIONS FOR USING LEAD-FREE SOLDER CHAPTER 5. CIRCUIT DESCRIPTION

[1] Waveforms Of Servo Circuit ........................ 5-1

CHAPTER 1. GENERAL DESCRIPTION

[1] Important Service Safety Precaution ........... 1-1

[2] Specifications............................................... 1-1

CHAPTER 2. ADJUSTMENTS

CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS

LAYOUT

[1] Notes On Schematic Diagram ..................... 6-1

[2] Types Of Transistor And LED ...................... 6-1

[3] Standard Specification Of Stereo System

Error Message Display Contents ................. 2-4

CHAPTER 3. MECHANICAL DESCRIPTION

..................................................................... 3-1

[2] Disassembly ................................................ 3-2

CHAPTER 4. BLOCK DIAGRAM

[4] Charts Of Connecting Wires ...................... 6-10

[5] Wiring Side of PWB ................................... 6-12

CHAPTER 7. FLOWCHART

[1] Troubleshooting ........................................... 7-1

CHAPTER 8. OTHER

[1] Function Table Of IC .................................... 8-1

PARTS GUIDE

specified ones for maintaining the safety and performance of the set.

SHARP CORPORATION

– 1

This document has been published to be used for after sales service only.

The contents are subject to change without notice.

XL-DK225

PRECAUTIONS FOR USING LEAD-FREE SOLDER

1. Employing lead-free solder

"MAIN, POWER, SPEAKER, TRANSIT iPOD, DISPLAY, HEADPHONE, RE-FLASH, VOLUME LED, iPOD,

CD MP3 PWB" of this model employs lead-free solder.

The LF symbol indicates lead-free solder, and is attached on the PWB and service manuals. The alphabetical character following LF shows the type of lead-free solder.

Example:

Indicates lead-free solder of tin, silver and copper.

2. Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 C, were commend you to use a dedicated soldring bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

3. Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 C which is higher than the conventional lead solder by 40 C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the

PWB for extended period of time. However, since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corrected. Make sure to turn on and off the power of the bit as required.

If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.

When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Ref No.

PWB-A

Parts No.

92LPWB6895MANS

Description

MAIN (A1), POWER (A2), SPEAKER (A3), TRANSIT iPOD (A4)

PWB-B

PWB-C

PWB-D

92LPWB6894DPLS

92LPWB6894PODS

DISPLAY (B1), HEADPHONE (B2), RE-FLASH (B3), VOLUME LED (B4) iPOD

92LPWB6894CDUS CD MP3

XL-DK225

CHAPTER 1. GENERAL DESCRIPTION

[1] Important Service Safety Precaution

CAUTION : “These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so”.

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED

PROTECTION AGAINST FIRE

HAZARD, REPLACE ONLY WITH

SAME TYPE F801, F802, 3.15A, 125V/

F803, F804 2A, 125V/

F805 1.6A, 125V FUSES.

ATTENTION: POUR ASSURER

UNE LONGUE PROTECTION CONTRE

UN INCENDIE, REMPLACER SEULEMENT

PAR UN FUSIBLE DE

TYPE F801, F802, 3.15A, 125V/

F803, F804 2A, 125V/

F805 1.6A, 125V FUSES.

[2] Specifications

General

Power source

Power consumption

Dimensions

Weight

AC 120 V - 60 Hz

105 W

Width: 6-3/4" (175 mm)

Height: 9-1/2" (240 mm)

Depth: 12-1/5" (315 mm)

10.5 lbs (4.78 kg)

Amplifier

Output power

Output terminals

Input terminals

20 watts minimum RMS per channel into

6 ohms from 100 Hz to 20 kHz, 10% total harmonic distortion

Speakers: 6 ohms

Headphones: 16 - 50 ohms

(recommended: 32 ohms)

Subwoofer pre-out (audio signal):

200 mV/10 k ohms at 70 Hz

Video/Auxiliary (audio signal):

500 mV/47 k ohms

CD player

Type

Signal readout

D/A converter

Frequency response

Dynamic range

5-disc multi-play compact disc player

Non-contact, 3-beam semiconductor laser pickup

Multi bit D/A converter

20 - 20,000 Hz

90 dB (1 kHz)

Tuner

Frequency range

FM: 87.5 - 108 MHz

AM: 530 - 1,720 kHz

Speaker

Type

2-way type speaker system

2" (5 cm) tweeter

4-3/4" (12 cm) woofer

Maximum input power

40 W

Rated input power

20 W

Impedance

Dimensions

Weight

6 ohms

Width: 5-13/16" (148 mm)

Height: 10-1/4" (260 mm)

Depth: 6-7/8" (175.5 mm)

4.93 lbs. (2.24 kg)/each

XL-DK225

[3] Names Of Parts

Front panel

1. iPod Terminal

2. Disc Trays

3. Timer Indicator

4. Remote Sensor

5. Disc Stop Button

6. Disc or iPod Play or Pause Button

7. Power On/Standby Button

8. CD Button

9. Tuner (Band) Button

10. Video/Auxiliary/iPod Button

11. Headphone Jack

12. Volume Control

13. Disc Number Select Buttons

14. Disc Tray Open/Close Button

1 2

1

2

3 4 5 6 7

13 14

8

9 10 11

15

16

12

3

4

5

6

7

8

9

Display

1. Disc Number Indicators

2. MP3/WMA Folder Indicator

3. MP3/WMA Title Indicators

4. MP3 Indicator

5. WMA Indicator

6. Sleep Indicator

7. Timer Play Indicator

8. MP3/WMA Total Indicator

9. Daily Timer Indicator

10. FM Stereo Mode Indicator

11. FM Stereo Receiving Indicator

12. Memory Indicator

13. Extra Bass Indicator

14. Disc Repeat Play Indicator

15. Disc Pause Indicator

16. Disc Play Indicator

Rear panel

1. Speaker Terminals

2. AC Power Cord

3. FM 75 Ohms Antenna Jack

4. AM Antenna Ground Terminal

5. AM Loop Antenna Terminal

6. Video/Auxiliary (Audio Signal) Input Jacks

7. Video Out Jack

8. Cooling Fan

9. Subwoofer Pre-output Jack

Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Wire

1

2

3

4

1

2

3

4

5

6

11

7

8

9

12

10

16

15

17

13

14

18

20

23

19

21 22

XL-DK225

Remote control

1. Remote Control Transmitter

2. Disc Number Select Buttons

3. Disc Direct Search Buttons

4. Equalizer Mode Select Button

5. Extra Bass/Demo Button

6. Volume Up and Down Buttons

7. Power On/Stand-by Button

8. CD Button

9. Tuner (Band) Button

10. Video/Auxiliary/iPod Button

11. Disc Clear/Dimmer Button

12. Disc Stop Button

13. Memory Button

14. Disc Play or Pause Button

15. iPod Play or Pause Button

16. Tuning Up Button

17. CD Track Up or Fast Forward, Tuner Preset Up,

Time Up Button

18. CD Track Down or Fast Reverse, Tuner Preset Down,

Time Down Button

19. Tuning Down Button

20. Play Mode Button

21. Display Button

22. Folder Button

23. Clock/Timer Button

XL-DK225

CHAPTER 2. ADJUSTMENTS

[1] CD Section

1. CD SECTION

Adjustment

Since this CD system incorporates the following automatic adjustment functions, readjustment is not needed when replacing the pickup. Therefore, different PWBs and pickups can be combined freely.

Each time a disc is changed, these adjustments are performed automatically. Therefore, playback of each disc can be performed under optimum conditions.

Items adjusted automatically

1) Offset adjustment (The offset voltage between the head amplifier output and the VREF reference voltage is compensated inside the IC.)

* Focus offset adjustment

* Tracking offset adjustment

2) Tracking balance adjustment

3) Gain adjustment (The gain is compensated inside the IC so that the loop gain at the gain crossover frequency will be 0 dB.)

* Focus gain adjustment

* Tracking gain adjustment

2. CD ERROR CODE DESCRIPTION

Error

10*

11*

20*

21*

Explanation

CAM error. Can't detect CAM switch when CAM is moving.

When it detect cam operation error during initialize process.

TRAY error. Can't detect TRAY switch when TRAY is moving.

When it detect TRAY operation error during initialize process.

* 'CHECKING'

If Error is detected, 'CHECKING' will be displayed instead of 'ER-CD**'. 'ER-CD**' display will only be displayed when error had been detected for the 5 th times.

2 – 1

[2] Test Mode

Setting the test mode

During stand-by mode, press STOP button while pressing down the

3

button and

44

button. Then, press the CD button to enter the test mode.

\

Step

1

Step

2

Step

3

Step 4

Step

5

C D T E S T

OPEN/CLOSE operation is using manual.

<< / >> key input.

Laser ON.

<<

/

>> key input.

Focus ON

<< / >> key input.

CLV Servo ON

<< / >> key input.

Tracking Servo ON

<<

/

>> key input.

Reading Sub-code and Display

<<STOP>> key input.

STOP and return to Step 1

Hold down << CD >> key for more than 2 sec.

Start Auto Adjustment at current pick-up location.

<<STOP>> key input.

IL isn’t done

IL isn’t done

XL-DK225

2 – 2

XL-DK225

STOP and return to Step 1

Everytime << DISPLAY >> key input a) Focus Balance b) Focus Gain c) Tracking Balance d) Tracking Gain e) Focus Offset f) Tracking Offset g) RFRP

= FB : XX

= FG : XX

= TB : XX

= TG : XX

= FOFF : XX

= TOFF : XX

= RFRP : XX h) Focus Error

(RW Judgement) i) Focus Error

= RW : XX - XXXX

(Other than RW Judgement) = DA : XX - XXXX

<<STOP>> key input.

STOP and return to Step 1

Note

Sliding the PICKUP with << >>, << >> button can be set in STOP mode or play mode.

To cancel: Power OFF

2 – 3

XL-DK225

[3] Standard Specification Of Stereo System Error Message Display Contents

CD

Error Contents DISPLAY

CD Changer Mechanism Error. ‘ER-CD**’ (*)

Notes

10: CAM SW Detection NG during normal operation

11: CAM SW Detection NG during initialize process

20: TRAY SW Detection NG during normal operation

21: TRAY SW Detection NG during initialize process

TUNER

Focus Not Match/IL Time Over. ‘NO DISC’

PLL Unlock.

FM

87.50

MHz

PLL Unlock.

(*) CHECKING:

If CD changer mechanism error is detected, 'CHECKING' will be display instead of 'ER-CD**'. 'ER-CD**' will only be display when error had been detected for the 5 th

times.

Speaker abnormal detection and +B PROTECTION display

In case speaker abnormal detection or +B PROTECTION had occurred, the unit will automatically enter to stand-by mode and Timer indicator will flashing as below.

Example: In case of speaker abnormal

ON

TIMER

LED OFF

NO . 1

FLASHING

OFF

NO. 2

1 FRAME

OFF

ON

OFF

ON

NO. 1

FLASHING ON

OFF

NO. 2

OFF

(REPEAT)

OFF

NO. 1 : +B PROTECTION

NO. 2 : Speaker abnormal

BEFORE TRANSPORTING THE UNIT

The following process need to be taken after set tapering/parts replacement.

1. Press the POWER ON/STAND-BY button to enter stand-by mode.

2. While pressing down the

3

button and the number will be displayed as "X5U_10**".

4

button, press the button. The Micro Computer version

3. Press the

4

button until "WAIT"--> "FINISHED" appears.

4. Unplug the AC cord and the unit is ready for transporting.

2 – 4

XL-DK255

CHAPTER 3. MECHANICAL DESCRIPTION

[1] Removing And Reinstalling The Main Parts

1. CHANGER MECHANISM SECTION

Perform steps 1, 2, 9 and 10 of the disassembly method to remove the CD changer mechanism.

1.1 How to remove CD Disc (See Fig. 1-4)

1. When CD is at play position (Figure 1), rotate reduction gear C clock-wise as shown in Figure 2 until disc tray is at stock position, then rotate further to eject the disc tray so that CD can be removed from the tray.

Disc Tray

CD Disc

Guide Tray

Reduction gear D

Up Down

Figure 3

Gear up down board

CD Disc

CD at play position.

Mark 1

(DISC 1)

Mark 3

(DISC 3)

Mark 2

(DISC 2)

Mark 5

(DISC 5)

Mark 4

(DISC 4)

Figure 4

CD at stalk position.

Figure 1

Reduction gear C

Front Rear

Figure 2

2. In another case, if CD mechanism is at tray No.1

play position and to remove CD located in tray No.3, the procedure is as follows:

If the gear up down board is located at tray No.1

position, then rotate gear clock-wise until it is at stock postiiton. Rotate reduction gear D clockwise

(Figure 3) to move the CD mechanism to tray No.3

position. This is confirmed by checking the gear up down board position by the marking as indicated on the main chassis as shown in Figure 4.

3 – 1

XL-DK255

[2] Disassembly

Caution on disassembly

Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:

1) Take cassette tape and compact disc out of the unit.

2) Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.

3) Take off nylon bands or wire holders where they need to be removed when disassembling the unit.

After servicing the unit, be sure to rearrange the leads where they were before disassembling.

4) Take sufficient care on static electricity of integrated circuits and other circuits when servicing.

(A1)x2

3x12mm

(B1)x2

3x10mm

Top Cabinet

Front Panel

4

5

6

7

8

9

10

11

12

13

STEP

1

2

3

REMOVAL

Top Cabinet

Side Panel

(Left/Right)

CD Changer unit

14

PROCEDURE

1. Screw ............................ (A1) X 6

1. Screw ............................ (B1) X 8

1. Screw ............................(C1) X 2

2. Hook ..............................(C2) X 2

3. Socket ...........................(C3) X 3

4. Flat Cable ......................(C4) X 2

Rear Panel with

Speaker PWB

1. Screw ............................(D1) X 4

2. Socket ...........................(D2) X 1

3. Flat Cable ......................(D3) X 1

Front Panel

Main PWB

Power PWB

Speaker PWB

Display PWB

1. Screw ............................ (E1) X 3

2. Flat Cable ...................... (E2) X 2

3. Socket ........................... (E3) X 1

4. Hook .............................. (E4) X 2

1. Screw ............................ (F1) X 3

2. Socket ........................... (F2) X 2

1. Screw ............................(G1) X 4

1. Screw ............................(H1) X 2

1. Knob ...............................(J1) X 1

2. Nut ..................................(J2) X 1

3. Washer ...........................(J3) X 1

4. Screw .............................(J4) X 6

1. Screw ............................ (K1) X 2

1. Screw ............................ (L1) X 1

USB PWB / SUB PWB

Jack PWB

Re-Flash PWB

CD MP3 PWB

1. Screw ........................... (M1) X 1

1. Screw ............................(N1) X 3

2. Flat Cable ......................(N2) X 2

3. Socket ...........................(N3) X 1

CD Mechanism 1. Screw ............................ (P1) X 4

2. Screw ............................ (P2) X 4

FIGURE

1

1

2

2

3

3

3

4

5

5

5

6

7

7

8

Side Panel

(Right)

(A1)x2

3x12mm

(B1)x2

3x10mm

Rear Panel

(B1)x2

3x10mm

(C4)x2

(C3)x2

(B1)x2

3x10mm

Figure 1

CD MP3 PWB

CD Changer Unit

(C3)x1

Rear Panel

Speaker PWB

(D1)x4

3x10mm

Figure 2

(E1)x1

3x6mm

(F1)x1

3x6mm

(E4)x1

PULL

(F2)x1

(G1)x4

4x6mm

Power PWB

(E3)x1

PULL

(C1)x1

3x10mm

Hook

(C2)x1

(A1)x2

3x12mm

Side Panel

(Left)

Front Panel

(D2)x1

Front panel

Hook

(C2)x1

PULL

(C1)x1

3x10mm

(D3)x1

(E2)x2

Hook

(E4)x1

PULL

Note:

After removing the connector for the optical pickup from the connector, wrap the conductive aluminium foil around the front end of the connector so as to protect the optical pickup from electrostatic damage.

Main PWB

Figure 3

(F1)x2

3x10mm

(F2)x1

(E1)x2

3x10mm

3 – 2

XL-DK255

Rear Panel

(P2)x4

Special

(H1)x2

Ø3x10mm

CD Mechanism

CD Changer Unit

Speaker PWB

Display PWB

Figure 4

Front Panel

(J2)x1

(J4)x6

Ø 2.6x10mm

SUB PWB

USB PWB

(K1)x2

Ø 2.6x10mm

Jack PWB

(L1)x1

Special

Figure 5

Re-Flash PWB

(J3)x1

(J1)x1

Figure 8

STEP

1

REMOVAL

Woofer

2 Tweeter

PROCEDURE

1. Net Frame Ass’y............ (A1) X 1

2. Catching Holder............. (A2) X 4

3. Screw ............................ (A3) X 4

4. Screw ............................ (A4) X 4

1. Screw ............................ (B1) X 2

FIGURE

9, 10

10

Speaker Box

Net Frame Ass’y

(A1) x1

(M1)x1

Ø

3x10mm

Main Chassis

Figure 6

CD Changer

Unit

(A2)x4

(A3)x4

Ø 4x20mm

Figure 9

Front Board

(B1)x2

Ø 3x14mm

Tweeter Ring

Tweeter

(A4)x4

Ø 3.5x14mm

Woofer

Woofer Ring

(P1)x2

Ø 3x10mm

(N1)x3

Ø

3x10mm

Figure 7

(N2)x2

(P1)x2

Ø 3x10mm

(N3)x1

Figure 10

3 – 3

-MEMO-

XL-DK255

3 – 4

XL-DK225

CHAPTER 4. DIAGRAMS

[1] Main Block Diagram

Figure 4-1: MAIN BLOCK DIAGRAM (1/2)

4 – 1

Figure 4-2: MAIN BLOCK DIAGRAM (2/2)

4 – 2

XL-DK225

XL-DK225

[2] CD Block Diagram

Figure 4-3: CD BLOCK DIAGRAM (1/2)

4 – 3

Figure 4-4: CD BLOCK DIAGRAM (2/2)

4 – 4

XL-DK225

XL-DK225

CHAPTER 5. CIRCUIT DESCRIPTION

[1] Waveforms Of CD Circuit

1

IC1

22

FDO

2

IC1

23

TDO

1

IC1

22

FDO

5

IC1

25

SPDO

1

IC1

22

FDO

3

IC1

16

TE

PDOUT 0

6

IC1

7

IC1

1

IC1

28

27

22

PDOUT 1

FDO

3

IC1

16

TE

4

IC1

2

RFOUT

4

IC1

2

RFOUT

5 – 1

PIN

NO

1

2

3

4

5

8

9

6

7

[2] Voltage

VOLTAGE

0.55

0.01

0.01

1.11

0.36

0.26

0.01

0.26

0.34

0.54

0.02

1.63

0.76

0.70

0.59

0.70

1.63

3.27

1.63

1.63

1.63

1.63

1.63

0.01

0.52

PIN

NO

16

17

18

19

20

21

22

23

24

25

11

12

13

14

15

8

9

6

7

10

1

2

3

4

5

33

34

35

36

37

38

39

40

26

27

28

29

30

31

32

41

42

43

44

45

46

47

48

49

50

IC1

PIN

NO

VOLTAGE

PIN

NO

72

73

74

75

66

67

68

69

70

71

58

59

60

61

62

63

64

65

51

52

53

54

55

56

57

0.03

4.53

1.53

0.01

3.25

2.41

2.14

2.59

0.01

1.52

3.03

1.52

1.52

0.01

3.27

2.25

0.61

3.25

0.04

0.04

0.04

0.04

0.10

1.64

1.65

VOLTAGE

1.65

3.24

1.49

0.02

1.63

3.26

1.61

1.31

0.02

1.38

3.27

0.04

3.27

0.03

0.03

0.03

0.03

1.62

1.53

0.03

3.27

0.03

0.03

3.27

1.53

VOLTAGE

3.18

3.17

3.19

3.20

3.19

3.18

0.00

4.39

7.08

PIN

NO

10

11

12

13

14

15

16

17

18

VOLTAGE

3.27

1.63

1.63

1.63

1.63

1.63

1.63

1.62

1.62

IC2

24

25

26

27

PIN

NO

19

20

21

22

23

VOLTAGE

3.20

3.20

0.01

0.01

0.01

0.01

0.00

7.03

7.08

VOLTAGE

3.25

0.01

0.02

1.63

1.63

1.63

1.63

1.63

1.64

1.63

1.68

1.63

1.62

1.64

1.66

1.62

0.50

3.27

3.26

1.63

0.98

0.02

1.74

1.63

1.63

PIN

NO

91

92

93

94

95

96

97

98

99

100

83

84

85

86

87

88

89

90

76

77

78

79

80

81

82

PIN

NO

28

29

30

31

32

33

34

35

36

VOLTAGE

7.09

0.01

1.63

2.24

3.15

3.16

2.69

3.16

3.16

PIN

NO

E

C

B

Q1

VOLTAGE

3.26

0.89

4.37

PIN

NO

E

C

B

Q2

VOLTAGE

5.05

3.26

4.37

Q5

PIN

NO

E

C

B

VOLTAGE

5.08

5.05

4.37

Q8

PIN

NO

E

C

B

VOLTAGE

0.00

0.04

2.98

PIN

NO

E

C

B

Q3

VOLTAGE

1.48

3.26

2.17

PIN

NO

E

C

B

Q4

VOLTAGE

0.01

0.02

3.11

5 – 2

XL-DK225

XL-DK225

PIN

NO

28

29

30

31

32

33

24

25

26

27

18

19

20

21

22

23

14

15

16

17

7

8

5

6

1

2

3

4

9

10

11

12

13

38

39

40

41

42

34

35

36

37

47

48

49

50

43

44

45

46

VOLTAGE

(V)

IC701

PIN

NO

3.22

0.00

3.24

0.00

0.00

3.24

0.00

3.24

3.24

3.24

3.28

3.24

1.05

0.00

3.18

0.00

0.00

0.00

0.00

0.71

0.00

3.27

0.00

0.00

0.00

0.00

0.00

0.76

0.63

0.00

3.23

0.00

0.58

0.00

0.00

3.22

0.00

0.00

0.00

3.22

0.00

0.00

0.00

0.47

0.63

3.19

1.54

0.00

0.00

3.24

78

79

80

81

82

83

74

75

76

77

68

69

70

71

72

73

64

65

66

67

55

56

57

58

51

52

53

54

59

60

61

62

63

88

89

90

91

92

84

85

86

87

97

98

99

100

93

94

95

96

VOLTAGE

(V)

3.30

0.00

0.00

0.00

0.00

3.24

3.22

3.28

0.00

3.31

3.24

3.14

0.00

0.00

3.22

3.31

0.00

0.00

3.24

3.24

3.24

0.00

0.00

0.00

0.00

3.31

3.28

3.28

3.28

3.28

0.00

3.28

3.30

3.24

0.00

3.14

3.31

3.31

3.15

3.23

3.24

3.23

3.24

3.24

3.31

3.24

0.00

0.00

0.00

0.00

VOLTAGE

(V)

IC702

PIN

NO

-26.44

-28.78

-28.77

-28.77

-28.75

-28.77

-28.77

-21.70

-28.97

-26.40

-28.77

-28.76

-28.76

21.71

-24.06

-24.07

-24.07

-26.40

-26.40

-26.40

3.24

3.20

3.24

3.24

0.00

0.00

3.29

1.51

1.51

0.00

-24.10

-28.77

60

61

62

63

64

56

57

58

59

50

51

52

53

54

55

46

47

48

49

37

38

39

40

33

34

35

36

41

42

43

44

45

PIN

NO

28

29

30

31

32

24

25

26

27

18

19

20

21

22

23

14

15

16

17

7

8

5

6

1

2

3

4

9

10

11

12

13

PIN

NO

7

8

9

10

3

4

5

6

1

2

11

12

13

14

VOLTAGE

(V)

IC601

PIN

NO

4.62

4.62

4.63

4.63

4.62

4.62

4.63

4.65

4.61

4.65

4.61

4.65

4.65

4.64

21

22

23

24

15

16

17

18

19

20

25

26

27

28

VOLTAGE

(V)

4.65

0.00

0.00

4.64

4.64

0.00

0.00

0.00

4.63

9.28

0.00

4.65

4.65

4.63

VOLTAGE

(V)

-26.42

-26.42

-24.06

-14.67

-12.36

-28.76

-28.76

-28.76

-28.75

-26.45

-26.41

-26.41

-26.40

-26.40

-26.40

-26.40

-26.40

-28.77

-26.41

-26.40

-26.41

-24.06

-17.00

-26.40

-24.07

-9.89

-26.40

-9.98

-17.00

-12.34

-9.94

-26.40

5 – 3

PIN

NO

1

2

3

PIN

NO

3

4

5

1

2

IC703

VOLTAGE

(V)

3.30

3.30

0.00

-

-

PIN

NO

1

2

3

IC705

VOLTAGE

(V)

3.90

0.60

5.60

IC852

VOLTAGE

(V)

15.80

0.00

4.90

PIN

NO

IC854

VOLTAGE

(V)

1

2

3

5.60

0.60

13.90

PIN

NO

1

2

3

Q701

VOLTAGE

(V)

0.00

3.20

0.00

PIN

NO

1

2

3

Q801

VOLTAGE

(V)

-28.90

-29.50

-37.60

PIN

NO

1

2

3

Q902

VOLTAGE

(V)

0.00

3.30

0.00

PIN

NO

1

2

3

Q906

VOLTAGE

(V)

0.70

0.00

3.60

PIN

NO

1

2

3

PIN

NO

1

2

3

PIN

NO

1

2

3

PIN

NO

1

2

3

PIN

NO

1

2

3

IC853

VOLTAGE

(V)

3.30

0.00

5.10

Q603

VOLTAGE

(V)

0.00

0.00

0.70

Q702

VOLTAGE

(V)

0.00

3.20

0.00

Q841

VOLTAGE

(V)

0.80

0.00

0.00

Q903

VOLTAGE

(V)

0.00

3.10

0.00

PIN

NO

7

8

5

6

1

2

3

4

VOLTAGE

(V)

-0.10

-0.10

-

21.90

-20.70

0.00

0.00

23.10

IC901

PIN

NO

13

14

15

9

10

11

12

PIN

NO

3

4

1

2

VOLTAGE

(V)

5.10

13.00

16.40

0.00

IC851

PIN

NO

5

6

7

VOLTAGE

(V)

-23.00

0.00

0.00

-22.10

0.00

-0.10

-0.10

VOLTAGE

(V)

16.20

10.00

8.50

PIN

NO

1

2

3

Q604

VOLTAGE

(V)

0.00

0.00

0.70

PIN

NO

1

2

3

Q704

VOLTAGE

(V)

0.00

3.30

0.00

PIN

NO

1

2

3

Q860

VOLTAGE

(V)

0.00

3.50

0.00

PIN

NO

1

2

3

Q904

VOLTAGE

(V)

0.00

3.10

0.00

PIN

NO

1

2

3

Q608

VOLTAGE

(V)

2.20

2.20

0.00

PIN

NO

1

2

3

Q706

VOLTAGE

(V)

0.00

0.00

3.00

PIN

NO

1

2

3

Q901

VOLTAGE

(V)

0.00

3.40

0.00

PIN

NO

1

2

3

Q905

VOLTAGE

(V)

0.00

0.00

0.70

XL-DK225

5 – 4

XL-DK225

-MEMO-

5 – 5

XL-DK225

CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT

[1] Notes On Schematic Diagram

• Resistor:

To differentiate the units of resistors, such symbol as

K and M are used: the symbol K means 1000 ohm and the symbol M means 1000 kohm and the resistor without any symbol is ohm-type resistor.

Besides, the one with “Fusible” is a fuse type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this symbol P means pico-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression “capacitance/ withstand voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board

for this model are subject to change for improvement without prior notice.

• The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.

1. In the tuner section, indicates AM indicates FM stereo

2. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

REF. NO

SW701

SW702

SW703

SW704

SW705

SW706

SW707

SW708

SW709

SW710

SW711

SW712

VR701

DESCRIPTION

DISC4

DISC5

OPEN/CLOSE

DISC1

DISC2

DISC3

POWER ON/STAND-BY

PLAY/REPEAT

STOP

VIDEO/AUX/USB

TUNER (BAND)

CD

VOLUME

[2] Types Of Transistor And LED

POSITION

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

ON—OFF

MAX—MIN

FRONT

VIEW

B

(3)

TOP

VIEW

E C B

(S)(G)(D)

(1)(2)(3)

KTA1271 Y

KTA1274 Y

KIA78L05

KTC3199 GR

KTC3203 Y

E

(1)

KRA102 S

KRC107 S

KRC102 S

KRC104 S

KTA1504 GR

KTC3875 GR

KTA1544 T

KTC3265 Y

C

(2)

TOP VIEW

KDS184

FRONT

VIEW

A C A C

10XB60F

S4B05GM

TOP VIEW

HSS4148

FRONT

VIEW

TOP VIEW

1N4004S

DRL204F

MA111

FRONT

VIEW

343VC3F

503BC2E30

1 2 3

KIA7805A

6 – 1

XL-DK225

[3] Schematic Diagram

D

E

F

G

H

1

A

B

C

2 3 4

Figure 6-1: MAIN SCHEMATIC DIAGRAM (1/2)

6 – 2

5 6

7

8 9 10

Figure 6-2: MAIN SCHEMATIC DIAGRAM (2/2)

6 – 3

11 12

XL-DK225

XL-DK225

C

D

A

B

E

F

G

H

1

2 3 4

Figure 6-3: POWER SCHEMATIC DIAGRAM (1/2)

6 – 4

5 6

SPEAKER JACK PWB

XL-DK225

7

8 9 10

Figure 6-4: POWER SCHEMATIC DIAGRAM (2/2)

6 – 5

11 12

XL-DK225

D

E

F

G

H

1

A

B

C

SYSTEM MICOM REFLASH PWB

2 3 4

Figure 6-5: DISPLAY SCHEMATIC DIAGRAM (1/2)

6 – 6

5 6

7 8 9 10

Figure 6-6: DISPLAY SCHEMATIC DIAGRAM (2/2)

6 – 7

11 12

XL-DK225

XL-DK225

D

E

F

A

B

C

G

H

1 2 3 4

Figure 6-7: CD MP3 SCHEMATIC DIAGRAM (1/2)

6 – 8

5 6

7

8 9 10

Figure 6-8: CD MP3 SCHEMATIC DIAGRAM (2/2)

6 – 9

11 12

XL-DK225

XL-DK225

IPOD CONNECTION

RESISTOR WITH 1% TOLERANCE

D

E

F

G

H

1

A

B

C

2 3 4

Figure 6-9: iPOD SCHEMATIC DIAGRAM (1/2)

6 – 10

5 6

7

8

TO TRANSIT iPOD

9 10

Figure 6-10: iPOD SCHEMATIC DIAGRAM (2/2)

6 – 11

11 12

XL-DK225

XL-DK225

[4] Charts Of Connecting Wires

A

B

C

D

E

F

G

ANTENNA

FM

GND

AM

TUNER PACK

9

CNS601

9 8 7 6 5 4 3 2 1

FFC301

10

9 8 7 6 5 4 3 2 1

BI601

1

2 4 6 8

1 3 5 7 9

CNP301

9 1

2 4 6 8 10 12

1 3 5 7 9 11

CNPU3

11

TRANSIT iPOD

PWB-A4

1 12

2 4 6 8 10 12

1 3 5 7 9 11

CNPU4

1 2 3 4 5 6 7 8 9 10 11 12 CNPU5

1 2 3 4 5 6 7 8 9 10 11 12 iPOD PWB-C

1 2 3 4 5 6 7 8 9 10 11 12 13 BI101

CNP101

1

FROM EXTERNAL iPOD DEVICE

MAIN PWB -A1

WH

BK

WH

BK

WH

BK

WH

BK

WH

RD

WH

BK

WH

BK

WH

BK

WH

BK

WH

RD

BI902

5 4 3 2 1

FAN MOTOR

JK701

HEADPHONE PWB-B2

FROM

HEADPHONE

1

C N P 8 0 1

2 3 4 5 6 7 8 9 10

1 2 3 4 5 6

C N P 8 0 2

POWER PWB-A2

PT801

CNS902

4 3 2 1

SPEAKER PWB-A3

1 2 3 4

CNP902

R-CH L-CH

L-CH

R-CH

L-CH

R-CH

S P E A K E

S

R T R M

O 9 0 1

I N A L

CNS701 6 5 4 3 2 1

12

7 6 5 4 3 2 1

BI701

12

11 9 7 5 3 1

10 8 6 4 2

CNP705

1

TO

CD MP3 PWB-D

CNP6

F

MAI N

C N

1 10

1

2 4 6 8 10

3 5 7 9

CNP702

17

17 15

16

1 3

14

C

BI703

1 2

WH

RD

DISPLAY PWB-B1

BI702

9 8 7 6 5 4 3 2 1

VOLUME LED

PWB-B4

WH

BK

PT841

RD

WH

BK

WH

BK

WH

BK

WH

H

AC POWER SUPPLY CORD

AC 120V~60Hz

1

2 5 6 3 4

Figure 6-11: WIRING CONNECTION (1/2)

6 – 12

XL-DK225

FROM

DISPLAY PWB-B1

CNP702

F F C 7 0 5

12

1

1

12

11

10

9 7 5 3 1

8 6 4 2

CNP3

9 8 7 6 5 4 3 2 1

CNP5

2 4 6 8 10

1 3 5 7 9

CNP6

F F C 7 0 2

10

CD MP3 PWB-C

WH

GR

WH

GR

WH

RD

CNP1

1

2 4 6 8 10

3 5 7 9

12

11

14

13

16

15

FROM

MAIN PWB-A1

CNP701B

1 16

FFC1

0 2

17 1

17 15

16

13

14

11 9

12 10 8

7

6

5

4

3

2

1

CNP701A

FROM

EXTERNAL MICOM

DEVICE

-B1

1 2 3 4 5 6 7 8

CNPU2

1 2 3 4 5 6 7 8

CNPU1

RE-FLASH PWB-A4

1 16

TO

CD PICK-UP UNIT

7

8 9 10

Figure 6-12: WIRING CONNECTION (2/2)

6 – 13

11

COLOR TABLE

B R

B L

G Y

B K

BROWN

BLUE

GRAY

BLACK

G R GREEN

W H WHITE

R D RED

12

XL-DK225

[5] Wiring Side Of PWB

SPEAKER PWB-A3

R-CH

L-CH

L-CH

R-CH

MAIN PWB-A1

10 9 8 7 6 5 4 3 2 1

B C E

B C E

Lead-free solder indication

Lead-free solder is used in the MAIN PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-13: WIRING SIDE OF MAIN PWB (TOP VIEW) (1/2)

6 – 14

TRANSIT iPOD PWB-A4

1

2

3

4

5

6

7

8 10 12

9 11

1 2 3 4 5 6 7 8 9 10 11 12

1

2

3

4

5

6 8

7 9

1

2

3

4

5

6 8 1012

7 9 11

1 2 3 4 5 6 7 8 9 10 111213 14 15

5 4 3 2 1

Figure 6-14: WIRING SIDE OF MAIN PWB (TOP VIEW) (2/2)

6 – 15

VIDEO/AUX IN

L-CH and R-CH

VIDEO OUT

SUBWOOFER

PRE-CUT

XL-DK225

XL-DK225

MAIN PWB-A1

Lead-free solder indication

Lead-free solder is used in the MAIN PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-15: WIRING SIDE OF MAIN PWB (BOTTOM VIEW) (1/2)

6 – 16

Figure 6-16: WIRING SIDE OF MAIN PWB (BOTTOM VIEW) (2/2)

6 – 17

XL-DK225

XL-DK225

POWER PWB-A2

7

8

5

6

9

2

1

4

3

6 5 4 3 2 1

T.F.

B C E

8 9 10 11 12 13 14 15 16 17

BK

WH

POWER SUPPLY

AC 120V~60Hz

1

2

3

6 5 4 3 2 1

10 9 8 7 6 5 4 3 2 1

Lead-free solder indication

Lead-free solder is used in the POWER PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-17: WIRING SIDE OF POWER PWB

6 – 18

COLOR TABLE

W H

B K

WHITE

BLACK

-MEMO-

XL-DK225

6 – 19

XL-DK225

DISPLAY PWB-B1

51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 2

2 4 6 8 10 12 14 16

1 3 5 7 9 11 13 15 17

Lead-free solder indication

Lead-free solder is used in the DISPLAY PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-18: WIRING SIDE OF DISPLAY PWB (TOP VIEW) (1/2)

6 – 20

10

9

8

7

6

5

4

3

2

1

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

1 2 3 4 5 6 7 8 9

1

2 4 6 8 10 12

1 3 5 7 9 11

1 2 3

1 2 3 4 5 6 7

Figure 6-19: WIRING SIDE OF DISPLAY PWB (TOP VIEW) (2/2)

6 – 21

XL-DK225

XL-DK225

DISPLAY PWB-B1

1 2 3 4 5 6 7 8 9

10 11 12 13 14 15 16 17 18

19 20 21 22 23 24 25 26 27 2

Lead-free solder indication

Lead-free solder is used in the DISPLAY PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-20: WIRING SIDE OF DISPLAY PWB (BOTTOM VIEW) (1/2)

6 – 22

24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

XL-DK225

Figure 6-21: WIRING SIDE OF DISPLAY PWB (BOTTOM VIEW) (2/2)

6 – 23

XL-DK225

A

B

C

HEADPHONE PWB-B2

1 2 3 4 5

D

E

FROM

HEADPHONE

REFLASH PWB-B3 VOLUME LED PWB-B4

1 2

F

G

H

Lead-free solder indication

Lead-free solder is used in the HEADPHONE, REFLASH, VOLUME LED PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

1 2 3 4 5

Figure 6-22: WIRING SIDE OF HEADPHONE, REFLASH, VOLUME LED PWB (TOP VIEW)

6 – 24

6

XL-DK225

HEADPHONE PWB-B2

D

E

F

A

B

C

VOLUME LED PWB-B4

G

H

Lead-free solder indication

Lead-free solder is used in the HEADPHONE, VOLUME LED PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

1

2 3 4 5

Figure 6-23: WIRING SIDE OF HEADPHONE, VOLUME LED PWB (BOTTOM VIEW)

6 – 25

6

XL-DK225

iPOD PWB-C

Lead-free solder indication

Lead-free solder is used in the iPOD PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-24: WIRING SIDE OF iPOD PWB (TOP VIEW)

6 – 26

iPOD PWB-C

XL-DK225

Lead-free solder indication

Lead-free solder is used in the iPOD PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-25: WIRING SIDE OF iPOD PWB (BOTTOM VIEW)

6 – 27

XL-DK225

CD MP3 PWB-D

12 10 8

11 9 7 5

6 4 2

3 1

9 8 7 6 5 4 3 2 1

SCREW

TO CHASSIS

Figure 6-26: WIRING SIDE OF CD MP3 PWB (TOP VIEW) (1/2)

6 – 28

2 4 6 8 10 12

1 3 5 7 9 11 13

XL-DK225

3 2 1

1

2

3

4

5

6

7

8 10 12 14

9 11 13

6 8 10 12 14 16

7 9 11 13 15

Lead-free solder indication

Lead-free solder is used in the CD MP3 PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-27: WIRING SIDE OF CD MP3 PWB (TOP VIEW) (2/2)

6 – 29

CD MP3 PWB-D

XL-DK225

Lead-free solder indication

Lead-free solder is used in the CD MP3 PWB.

Refer to "Precautions for handling lead-free solder" for instructions and precautions.

Figure 6-28: WIRING SIDE OF CD MP3 PWB (BOTTOM VIEW) (1/2)

6 – 30

XL-DK225

Figure 6-29: WIRING SIDE OF CD MP3 PWB (BOTTOM VIEW) (2/2)

6 – 31

XL-DK225

CHAPTER 7. FLOWCHART

[1] Troubleshooting

1. When the CD does not function

The CD section may not operate when the objective lens of the optical pickup is dirty. Clean the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check the following items.

Remove the cabinet and follow the trouble shooting instructions.

"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

1.

CD optical pickup Lens cleaner disc

Parts code

UDSKA0004AFZZ

HOW TO USE

1.

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the brush on the CD cleaner disc which has the mark next to it.

2.

Place the CD cleaner disc onto the CD disc tray with the brush side down, then press the play button.

3.

You will hear music for about 20 seconds and the CD player will automatically stop.

If it still play continuously, press the stop button.

Cleaning fluid

CAUTION

The CD lens cleaner should be effective for 30-50 operations, however if the brushes become worn out earlier then please replace the cleaner disc.

If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft cloth.

Do not drink the cleaner fluid or allow it contact with the eyes. In the event of this happening then drink and / or rinse with clean water and seek medical advice.

The CD cleaner disc must not be used on car CD players or on computer CD-ROM drives.

All rights reserved. Unauthorized duplicating, broadcasting and renting this product is prohibited by law.

Cleaner disc

2. When a CD cannot be played

2.1. Pressing the CD operation key is accepted, but playback does not occur.

1) Focus-HF system check

2) Tracking system check

3) Spin system check

4) PLL system check

5) Others

7 – 1

(1) Focus-RF system check.

Although a CD is inserted and the cover is closed,

"NO DISC" is displayed.

Press the Tray1 CD Eject Button without inserting a disc, and try starting the playback operation.

1

IC1

22

FDO

2

IC1

23

TDO

Figure 1

1. Does the pickup move to the PICKUP-IN Switch (NSW1) position?

Yes

2. Does the focus (lens) move up and down?

(Waveform drawing Figure 1)

Yes

3. Is the laser lit?

4. Is the turntable rotating?

Yes

When a disc is loaded, start playback operation.

1. Is focus servo activated?

(Waveform drawing Figure 2)

Yes

2. Is the RF waveform normal?

(Waveform drawing Figure 3)

No Sled motor (NM2).

No Check the focus peripheral circuit.

No Check the laser diode driver Q1 peripheral circuit.

No Spindle motor (NM1).

No

No

Pins 5~9, 11, 18 19 and 22 on IC1

Check the laser diode driver Q1 peripheral circuit.

If the level is not normal.

XL-DK225

1

IC1

22

FDO

3

IC1

16

TE

4

IC1

2

RFOUT

Figure 2

Figure 3

7 – 2

XL-DK225

(2) Focus-RF system check.

Check the TE waveform at pin 16 on IC1.

If the waveform shown in Figure 4 appears and soon after NO

DISC appears?

No

"Initialization" is possible, but play is not possible?

"Initialization" is not possible.

No

Yes

The tracking servo is not activated.

Check the peripheral circuits at pins 15, 16 and 23 on IC1, and FFC1.

Yes

A normal jump operation cannot be completed or the beginning of the track cannot be found.

Check the around pin 23 on IC1.

Data cannot be read. Check the VCO-PLL (Pin26~30 on IC1) system.

3

IC1

16

TE

4

IC1

2

RFOUT

Figure 4

(3) Spin system check.

Press the OPEN/CLOSE switch without inserting a disc, and then try starting the play operation.

1. The turntable rotates a little?

(Waveform drawing Figure 5)

No

2. The turntable doesn't rotate.

Yes The spin driver circuit is OK.

Check around pin 25 on IC1, pins 1 and 2 on CNP2.

7 – 3

1

IC1

22

FDO

5

IC1

25

SPDO

Figure 5

(4) PLL system check.

When a disc is loaded, start play operation.

The RF waveform is normal, but the TOC data cannot be read.

Check the PDOUT waveform. (Figure 6)

Check around pins 26~30 on IC1.

PDOUT 0

6

IC1

7

IC1

1

IC1

28

27

22

PDOUT 1

FDO

Figure 6

XL-DK225

7 – 4

PARTS GUIDE

XL-DK225

MICRO COMPONENT SYSTEM

MODEL

XL-DK225

XL-DK225 Micro Component System consisting of

XL-DK225 (main unit) and CP-DK225 (speaker system).

[1] INTEGRATED CIRCUITS

[2] TRANSISTORS

[3] DIODES

[4] TRANSFORMERS

[5] COILS

[6] CRYSTALS / VIBRATORS

[7] CAPACITORS

[8] RESISTORS

CONTENTS

[9] OTHER CIRCUITRY PARTS

[10] CABINET PARTS /

CD MECHANISM PARTS

[11] SPEAKER BOX PARTS

[12] ACCESSORIES / PACKING

PARTS

[13] P.W.B. ASSEMBLY

(Not Replacement Item)

[14] OTHER SERVICE PARTS

specified ones for maintaining the safety and performance of the set.

SHARP CORPORATION

This document has been published to be used for after sales service only.

The contents are subject to change without notice.

XL-DK225

NO.

PARTS CODE

[3] DIODES

D1 VHDKDS184//-1

D104 VHDMA111///-1

D105 VHDMA111///-1

D603 VHDHSS4148+-1

D604 VHD1N4004S/-1

D605 VHD1N4004S/-1

D607 VHDMA111///-1

D608 VHDMA111///-1

D609 VHDMA111///-1

D610 VHDMA111///-1

D611 VHDMA111///-1

D613 VHDMA111///-1

D615 VHDMA111///-1

D701 VHDMA111///-1

D702 VHDMA111///-1

D705 VHD1N4004S/-1

D706 VHD1N4004S/-1

D707 VHDHSS4148+-1

D712 VHDMA111///-1

D713 VHDHSS4148+-1

D802 VHDTS4B05GM-1

D803 VHDGDRL204F-1

D804 VHDGDRL204F-1

D805 VHD1N4004S/-1

D806 VHD1N4004S/-1

D842 VHD1N4004S/-1

D843 VHD1N4004S/-1

D844 VHD1N4004S/-1

D845 VHD1N4004S/-1

D846 VHD1N4004S/-1

D847 VHD1N4004S/-1

D848 VHD1N4004S/-1

D849 VHD1N4004S/-1

D850 VHD1N4004S/-1

D853 VHD1N4004S/-1

D855 VHDHSS4148+-1

D856 VHDHSS4148+-1

D860 VHDHSS4148+-1

D861 VHDMA111///-1

D862 VHDMA111///-1

D863 VHDHSS4148+-1

D864 VHDHSS4148+-1

D868 VHDMA111///-1

[1] INTEGRATED CIRCUITS

IC1 VHiTC94A70FG2

IC2 VHiLA6261//-1

IC601 VHiR2S15904-1

IC701 RH-iXA158AW00

IC702 VHiM66005AHP1

IC703 VHiPST3227N1E

IC705 VHi6201P332-1

IC851 VHiAN80T53/-1

IC852 VHiKiA7805AP1

IC853 VHi6201P332-1

IC854 VHiKiA78L05-1

IC901 VHiSTK43205-1

[2] TRANSISTORS

Q1 VSKTA1504GR-1

Q2 VSKTA1271Y/-1

Q3 VSKTC3875GR-1

Q4 VSKRC104S//-1

Q5 VSKTA1544T/-1

Q8 VSKRC107S//-1

Q603 VSKTC3875GR-1

Q604 VSKTC3875GR-1

Q608 VSKRA102S//-1

Q610 VSKTC3875GR-1

Q611 VSKTC3875GR-1

Q612 VSKTC3875GR-1

Q613 VSKTC3875GR-1

Q614 VSKTA1504GR-1

Q701 VSKRC104S//-1

Q702 VSKRC104S//-1

Q704 VSKRC104S//-1

Q706 VSKRC102S//-1

Q801 VSKTA1274Y/-1

Q841 VSKTC3199GR-1

Q860 VSKRC104S//-1

Q901 VSKTC3875GR-1

Q902 VSKTC3875GR-1

Q903 VSKTC3875GR-1

Q904 VSKTC3875GR-1

Q905 VSKTC3265Y/-1

Q906 VSKTC3203Y/-1

PRICE

RANK

NEW

MARK

PART

RANK

AB

AB

AE

AB

AB

AB

AB

AB

AB

AC

AC

AB

AB

AB

AB

AB

AB

AB

AB

AB

AC

AB

AB

AD

AB

AB

AB

AB

AB

AB

AB

AB

AB

AB

AB

AB

AA

AC

AA

AG

AC

AC

AB

AC

AC

AC

AC

AC

AC

AC

AB

AB

AC

AC

AA

AB

AB

AC

AC

AB

AB

AB

AA

AA

AA

AC

AC

AA

AA

AC

BD

AN

AL

AS

AD

AE

AL

AF

AE

AF

AT

DESCRIPTION

CD MP3 Decorder

CD Driver

Audio Pro

System Microcomputer, IXA158AW

FL Driver

Reset IC

Voltage Regulator, 3.3V

Multi Regulator, AN80T53

Constant Voltage Regulator, KIA7805AP

Voltage Regulator, 3.3V

Constant Voltage Regulator, KIA78L05

Power IC, STK432-050

Silicon,KDS184

Silicon,MA111

Silicon,MA111

Silicon,DHSS4148

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DHSS4148

Silicon,MA111

Silicon,DHSS4148

Rectifier, 4B05GM

Silicon,RL204F

Silicon,RL204F

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DS1N4004S

Silicon,DHSS4148

Silicon,DHSS4148

Silicon,DHSS4148

Silicon,MA111

Silicon,MA111

Silicon,DHSS4148

Silicon,DHSS4148

Silicon,MA111

Silicon,PNP,KTA1504 GR

Silicon,PNP,KTA1271 Y

Silicon,NPN,KTC3875 GR

Digital,NPN,KRC104 S

Silicon,PNP,KTA1544 T

Digital,NPN,KRC107 S

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Digital,PNP,KRA102 S

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,PNP,KTA1504 GR

Digital,NPN,KRC104 S

Digital,NPN,KRC104 S

Digital,NPN,KRC104 S

Digital,NPN,KRC102 S

Silicon,PNP,KTA1274 Y

Silicon,NPN,KTC3199 GR

Digital,NPN,KRC104 S

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3875 GR

Silicon,NPN,KTC3265 Y

Silicon,NPN,KTC3203 Y

1

!

!

NO.

PARTS CODE

[3] DIODES

D905 VHDMA111///-1

D906 VHDMA111///-1

D907 VHDMA111///-1

D911 VHDHSS4148+-1

D912 VHDMA111///-1

D913 VHDMA111///-1

D914 VHDHSS4148+-1

D918 VHDMA111///-1

LED701 VHPSLR343VC3F

LED708 VHP503BC2E30Z

ZD801 VHEZJ6R2A++1E

ZD802 VHEZJ8R2A++1E

ZD803 VHEZJ30B+++1E

ZD805 VHEZJ15B+++1E

ZD860 VHEZJ11B+++1E

ZD861 VHEZJ6R8B++1E

[4] TRANSFORMERS

PT801 RTRNPA088AWZZ

PT841 RTRNP0483AWZZ

[5] COILS

FB1 RBLN-0061TAZZ

FB2 RBLN-0061TAZZ

L701 VP-DH220K0000

L702 VP-DH220K0000

L703 VP-DH470K0000

L901 RCILZA017AWZZ

L902 RCILZA017AWZZ

L903 VP-DH2R2K0000

[6] CRYSTALS / VIBRATORS

X1 RCRSP0020AWZZ

XL701 RCRSPA010AWZZ

XL702 RCRM-A002AWZZ

[7] CAPACITORS

C1 VCKYCY1CB104K

C2 VCEAZA1AW107M

C3 VCKYCY1CB104K

C4 VCEAZA1AW107M

C5 VCKYCY1CB104K

C6 VCKYCY1CB104K

C7 VCCCCY1HH470J

C8 VCKYCY1HB153K

C10 VCKYCY1CB104K

C11 VCKYCY1HB103K

C12 VCKYCY1HB103K

C13 VCKYCY1HB472K

C14 VCKYCY1CB104K

C15 VCEAZA1AW107M

C16 VCKYCY1CB104K

C17 VCKYCY1HB103K

C18 VCKYCY1CB104K

C19 VCCCCY1HH680J

C20 VCKYCY1HB153K

C21 VCKYCY1CB104K

C22 VCEAZA1AW107M

C23 VCKYCY1CB104K

C25 VCKYCY1HB333K

C26 VCKYCY1HB333K

C27 VCKYCY1CB104K

C28 VCCCCY1HH471J

C29 VCKYCY1CB104K

C30 VCCCCY1HH471J

C31 VCKYCY1HB473K

C32 VCKYCY1HB473K

C33 VCKYCY1CB104K

C34 VCCCCY1HH222J

C35 VCKYCY1CB104K

C36 VCKYCY1CB104K

C37 VCCCCY1HH150J

C38 VCCCCY1HH150J

C39 VCKYCY1CB104K

C40 VCEAZA1AW107M

C41 VCKYCY1CB104K

C42 VCEAZA1CW226M

C43 VCKYCY1CB104K

C44 VCKYCY1CB104K

C45 VCKYCY1HB103K

C46 VCKYCY1CB104K

C48 VCCCCY1HH101J

C49 VCCCCY1HH101J

C50 VCCCCY1HH101J

C51 VCCCCY1HH101J

C52 VCCCCY1HH101J

C53 VCCCCY1HH101J

PRICE

RANK

NEW

MARK

PART

RANK

BD

AL

AB

AA

AB

AA

AB

AB

AB

AA

AB

AA

AA

AB

AB

AB

AB

AB

AB

AA

AA

AA

AB

AB

AB

AA

AB

AB

AB

AB

AB

AB

AA

AA

AB

AB

AA

AB

AA

AA

AA

AA

AA

AA

AB

AB

AA

AA

AB

AB

AB

AC

AC

AG

AB

AB

AB

AB

AB

AB

AC

AC

AC

AA

AC

AC

AA

AC

AB

AB

AB

AB

AB

AB

AB

AB

AG

AE

AD

Silicon,MA111

Silicon,MA111

Silicon,MA111

Silicon,DHSS4148

Silicon,MA111

Silicon,MA111

Silicon,DHSS4148

Silicon,MA111

LED,Red,SLR343VC3F

LED,Blue,504BC2E30

Zener, 6.2V

Zener, 8.2V

Zener, 30V

Zener, 15V

Zener, 11V

Zener, 6.8V

Power ( Main )

Power ( Sub )

Chip Ferrite Core

Chip Ferrite Core

22µH,Peaking

22µH,Peaking

47µH,Peaking

0.29 µH

0.29 µH

2.2µH,Peaking

Crystal,16.93 MHz

Crystal,32.768 KHz

Resonator,9.83 MHz

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

0.1 µF,16V

47pF(CH),50V

0.015 µF,50V

0.1 µF,16V

0.01 µF,50V

0.01 µF,50V

0.0047 µF,50V

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

0.01 µF,50V

0.1 µF,16V

68pF(CH),50V

0.015 µF,50V

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

0.033 µF,50V

0.033 µF,50V

0.1 µF,16V

470pF(CH),50V

0.1 µF,16V

470pF(CH),50V

0.047 µF,50V

0.047 µF,50V

0.1 µF,16V

2200pF(CH),50V

0.1 µF,16V

0.1 µF,16V

15pF(CH),50V

15pF(CH),50V

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

22 µF,16V,Electrolytic

0.1 µF,16V

0.1 µF,16V

0.01 µF,50V

0.1 µF,16V

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

2

DESCRIPTION

XL-DK225

XL-DK225

NO.

PARTS CODE

[7] CAPACITORS

C54 VCKYCY1CB104K

C55 VCKYCY1CB104K

C56 VCKYCY1CB104K

C57 VCEAZA1AW107M

C58 VCKYCY1CB104K

C59 VCKYCY1CB104K

C60 VCEAZA1AW107M

C61 VCKYCY1CB104K

C62 VCKYCY1CB104K

C63 VCEAZA0JW108M

C64 VCKYCY1CB104K

C65 VCEAZA1AW107M

C66 VCKYCY1CB104K

C67 VCEAZA1AW227M

C69 VCEAZA1AW227M

C71 VCCCCY1HH101J

C72 VCCCCY1HH101J

C75 VCEAZA1HW106M

C76 VCEAZA1HW106M

C100 VCCCCY1HH101J

C101 VCKYCY1HB104K

C104 VCKYCY1HB104K

C105 VCKYCY1HB104K

C108 RC-EZD226AF1C

C110 VCKYCY1HB102K

C111 VCCCCY1HH101J

C112 VCKYCY1HB102K

C601 VCEAZA1CW227M

C602 VCKYCY1EF223Z

C603 VCEAZA1HW105M

C605 VCFYFA1HA683J

C606 VCFYFA1HA683J

C607 VCQYKA1HM332K

C608 VCQYKA1HM332K

C611 VCFYFA1HA124J

C612 VCFYFA1HA124J

C613 VCEAZA1HW105M

C614 VCEAZA1HW105M

C617 VCEAZA1HW105M

C618 VCEAZA1HW105M

C621 VCEAZA1HW105M

C622 VCEAZA1HW105M

C623 VCEAZA1HW105M

C624 VCEAZA1HW105M

C637 VCKYCY1HB102K

C638 VCKYCY1HB102K

C640 VCEAZA1HW226M

C641 VCKYCY1HB102K

C642 VCKYCY1HB102K

C646 VCKYCY1HB102K

C647 VCKYCY1HB102K

C648 VCEAZA1HW105M

C649 VCCCCY1HH101J

C650 VCCCCY1HH101J

C652 VCKYCY1HB221K

C653 VCKYCY1HB221K

C677 VCEAZA1EW476M

C678 VCKYCY1HB103K

C683 VCEAZA1HW105M

C684 VCEAZA1HW105M

C690 VCKYCY1HB391K

C691 VCKYCY1HB391K

C693 VCEAZA1HW105M

C694 VCEAZA1HW105M

C701 VCCCCY1HH150J

C702 VCCCCY1HH180J

C703 VCEAZU0JW108M

C704 VCCCCY1HH101J

C705 VCKYCY1HB103K

C706 RC-EZD475AF1H

C707 VCKYCY1HB103K

C708 VCKYCY1EF104Z

C709 RC-EZD106AF1C

C715 VCKYCY1CF105Z

C716 VCKYCY1CF105Z

C717 VCCCCY1HH151J

C718 VCKYCY1EF223Z

C719 RC-EZD476AF1C

C720 VCKYCY1HB102K

C721 VCKYCY1HB102K

C725 VCCCCY1HH271J

C726 VCEAZA1HW474M

C727 VCCCCY1HH820J

C728 VCEAZA1HW226M

C729 VCKYCY1EF104Z

C730 VCKYCY1HB103K

C731 VCCCCY1HH271J

C732 VCCCCY1HH271J

PRICE

RANK

NEW

MARK

PART

RANK

AB

AA

AB

AB

AA

AA

AB

AB

AA

AA

AA

AB

AA

AA

AA

AA

AB

AB

AB

AB

AA

AA

AB

AA

AA

AA

AB

AB

AB

AB

AB

AB

AA

AA

AA

AC

AB

AB

AB

AB

AA

AB

AB

AA

AB

AB

AB

AB

AB

AC

AB

AB

AB

AC

AC

AA

AB

AB

AB

AB

AB

AB

AB

AB

AB

AB

AB

AA

AB

AC

AA

AA

AA

AA

AC

AA

AA

AB

AA

AA

AA

AB

AA

AC

AA

AA

AA

AA

0.0033 µF,50V,Mylar

0.0033 µF,50V,Mylar

0.12 µF,50V,Thin Film

0.12 µF,50V,Thin Film

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

0.001 µF,50V

0.001 µF,50V

22 µF,50V,Electrolytic

0.001 µF,50V

0.001 µF,50V

0.001 µF,50V

0.001 µF,50V

1 µF,50V,Electrolytic

100pF(CH),50V

100pF(CH),50V

220 pF,50V

220 pF,50V

47 µF,25V,Electrolytic

0.01 µF,50V

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

390pF,50V

390 pF,50V

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

0.1 µF,16V

0.1 µF,16V

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

0.1 µF,16V

1000 µF,6.3V,Electrolytic

0.1 µF,16V

100 µF,10V,Electrolytic

0.1 µF,16V

220 µF,10V,Electrolytic

220 µF,10V,Electrolytic

100pF(CH),50V

100pF(CH),50V

10 µF,50V,Electrolytic

10 µF,50V,Electrolytic

100pF(CH),50V

0.1 µF,50V

0.1 µF,50V

0.1 µF,50V

22 µF,16V,Electrolytic

0.001 µF,50V

100pF(CH),50V

0.001 µF,50V

220 µF,16V,Electrolytic

0.022 µF,25V

1 µF,50V,Electrolytic

0.068 µF,50V,Thin Film

0.068 µF,50V,Thin Film

15pF(CH),50V

18pF(CH),50V

1000 µF,6.3V,Electrolytic

100pF(CH),50V

0.01 µF,50V

4.7 µF,50V,Electrolytic

0.01 µF,50V

0.1 µF,25V

10 µF,16V,Electrolytic

1 µF,16V

1 µF,16V

150pF(CH),50V

0.022 µF,25V

47 µF,16V,Electrolytic

0.001 µF,50V

0.001 µF,50V

270pF(CH),50V

0.47 µF,50V,Electrolytic

82pF(CH),50V

22 µF,50V,Electrolytic

0.1 µF,25V

0.01 µF,50V

270pF(CH),50V

270pF(CH),50V

3

DESCRIPTION

!

NO.

PARTS CODE

[7] CAPACITORS

C733 VCCCCY1HH271J

C734 VCEAZA1HW106M

C735 VCKYCY1EF104Z

C736 RC-EZD105AF1H

C737 VCEAZA1HW105M

C738 VCKYCY1EF104Z

C739 VCKYCY1HB222K

C740 VCKYCY1HB222K

C742 VCKYCY1HB222K

C743 RC-EZD107AF1A

C754 VCCCCY1HH101J

C755 VCCCCY1HH101J

C756 VCCCCY1HH101J

C757 VCCCCY1HH101J

C758 VCEAZA1HW106M

C801 VCEAZA1VW107M

C802 VCEAZA1HW476M

C803 VCEAZA1HW476M

C804 VCEAZA1JW227M

C805 VCEAZA2AW226M

C806 VCFYFA1HA104J

C807 VCFYFA1HA104J

C808 VCFYFA1HA224J

C809 VCFYFA1HA224J

C817 VCFYFA1HA104J

C818 VCFYFA1HA104J

C819 VCEAZA1EW108M

C841 VCEAZA0JW108M

C842 VCEAZA1EW477M

C843 VCQYKA1HM473K

C844 RC-KZ002LAWZZ

C854 VCEAZA1CW107M

C855 VCEAZA1HW106M

C856 VCEAZW1EW688M

C859 VCEAZA1EW226M

C860 VCEAZA1EW476M

C861 VCQYKA1HM223K

C864 VCEAZA1EW226M

C865 VCEAZA1EW226M

C866 VCEAZA1EW476M

C868 VCKYCY1CF105Z

C869 VCKYCY1CF105Z

C870 VCEAZA1HW106M

C874 VCFYFA1HA104J

C875 VCFYFA1HA104J

C876 VCFYFA1HA104J

C877 VCEAZA1EW476M

C878 VCKYCY1HB104K

C879 VCKYCY1HB104K

C901 VCEAZA1HW224M

C902 VCEAZA1HW224M

C903 VCKYCY1HB102K

C904 VCKYCY1HB102K

C905 VCCCCY1HH3R0C

C906 VCCCCY1HH3R0C

C907 VCKYCY1HB471K

C908 VCKYCY1HB471K

C909 VCEAZA1EW476M

C910 VCEAZA1EW476M

C911 VCKYCY1EF223Z

C912 VCKYCY1EF223Z

C913 VCEAZA1JW107M

C914 VCEAZA1JW107M

C915 VCEAZA1JW106M

C916 VCEAZA1JW106M

C921 VCEAZW1VW228M

C922 VCEAZW1VW228M

C925 VCEAZA1HW476M

C928 VCFYFA1HA104J

C929 VCFYFA1HA104J

C930 VCEAZA1HW476M

C931 VCEAZA1HW106M

C946 VCEAZA1HW104M

C960 VCEAZA1HW335M

CA3 VCCCCY1HH101J

[8] RESISTORS

FB704 VRS-CY1JB000J

J709 VRS-CY1JB000J

JP3 VRS-CY1JB000J

JP4 VRS-CY1JB000J

JP101 VRS-CY1JB000J

JP102 VRS-CY1JB000J

JP104 VRS-CY1JB000J

JP702 VRS-CY1JB000J

JP703 VRS-CY1JB000J

JP706 VRS-CY1JB000J

JP901 VRS-CY1JB000J

PRICE

RANK

NEW

MARK

PART

RANK

AA

AA

AB

AB

AB

AB

AC

AC

AA

AA

AA

AA

AB

AB

AB

AB

AB

AB

AB

AB

AC

AC

AC

AB

AC

AB

AL

AB

AB

AB

AB

AB

AB

AB

AH

AH

AB

AC

AC

AB

AB

AB

AB

AA

AC

AC

AE

AC

AD

AB

AC

AB

AB

AD

AC

AC

AC

AC

AC

AA

AB

AA

AA

AA

AA

AC

AC

AA

AC

AA

AB

AB

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

100 µF,16V,Electrolytic

10 µF,50V,Electrolytic

6800µF, 25V

22 µF,25V,Electrolytic

47 µF,25V,Electrolytic

0.022 µF,50V,Mylar

22 µF,25V,Electrolytic

22 µF,25V,Electrolytic

47 µF,25V,Electrolytic

1 µF,16V

1 µF,16V

10 µF,50V,Electrolytic

0.1 µF,50V,Thin Film

0.1 µF,50V,Thin Film

0.1 µF,50V,Thin Film

47 µF,25V,Electrolytic

0.1 µF,50V

0.1 µF,50V

0.22 µF,50V,Electrolytic

0.22 µF,50V,Electrolytic

0.001 µF,50V

0.001 µF,50V

3pF(CH),50V

3pF(CH),50V

470pF,50V

470pF,50V

47 µF,25V,Electrolytic

47 µF,25V,Electrolytic

0.022 µF,25V

0.022 µF,25V

100 µF,63V,Electrolytic

100 µF,63V,Electrolytic

10 µF,63V,Electrolytic

10 µF,63V,Electrolytic

2200 µF,50V,Electrolytic

2200 µF,50V,Electrolytic

47 µF,50V,Electrolytic

0.1 µF,50V,Thin Film

0.1 µF,50V,Thin Film

47 µF,50V,Electrolytic

10 µF,50V,Electrolytic

0.1 µF,50V,Electrolytic

3.3 µF,50V,Electrolytic

100pF(CH),50V

270pF(CH),50V

10 µF,50V,Electrolytic

0.1 µF,25V

1 µF,50V,Electrolytic

1 µF,50V,Electrolytic

0.1 µF,25V

0.0022 µF,50V

0.0022 µF,50V

0.0022 µF,50V

100 µF,10V,Electrolytic

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

100pF(CH),50V

10 µF,50V,Electrolytic

100 µF,35V,Electrolytic

47 µF,50V,Electrolytic

47 µF,50V,Electrolytic

220 µF,63V,Electrolytic

22 µF,100V,Electrolytic

0.1 µF,50V,Thin Film

0.1 µF,50V,Thin Film

0.22 µF,50V,Thin Film

0.22 µF,50V,Thin Film

0.1 µF,50V,Thin Film

0.1 µF,50V,Thin Film

1000 µF,25V,Electrolytic

1000 µF,6.3V,Electrolytic

470 µF,25V,Electrolytic

0.1 µF,50V,Mylar

4700 pF, 250V

4

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

DESCRIPTION

XL-DK225

XL-DK225

NO.

PARTS CODE

[8] RESISTORS

JP902 VRS-CY1JB000J

JP903 VRS-CY1JB000J

JP904 VRS-CY1JB000J

L101 VRS-CY1JB000J

R1 VRS-CY1JB562J

R2 VRS-CY1JB154J

R3 VRS-CY1JB334J

R4 VRS-CY1JB153J

R5 VRS-CY1JB473J

R6 VRS-CY1JB100J

R7 VRS-CY1JB223J

R8 VRS-CY1JB000J

R9 VRS-CY1JB000J

R10 VRS-CY1JB000J

R11 VRS-CY1JB000J

R14 VRS-CY1JB000J

R15 VRD-ST2CD103J

R16 VRS-CY1JB123J

R17 VRD-ST2CD123J

R18 VRD-ST2CD103J

R19 VRD-ST2CD392J

R20 VRS-CY1JB221J

R21 VRS-CY1JB101J

R22 VRS-CY1JB000J

R23 VRS-CY1JB105J

R24 VRS-CY1JB102J

R25 VRS-CY1JB102J

R26 VRD-ST2CD103J

R27 VRD-ST2CD221J

R28 VRD-ST2CD221J

R29 VRD-ST2CD221J

R30 VRD-ST2CD221J

R31 VRD-ST2CD221J

R32 VRD-ST2CD221J

R33 VRD-ST2CD221J

R34 VRS-CY1JB103J

R35 VRD-ST2CD101J

R36 VRD-ST2CD221J

R37 VRS-CY1JB103J

R38 VRS-CY1JB103J

R39 VRS-CY1JB101J

R40 VRS-CY1JB102J

R41 VRD-ST2CD102J

R42 VRD-ST2CD102J

R43 VRD-ST2CD102J

R44 VRD-ST2CD102J

R45 VRS-CY1JB472J

R46 VRS-CY1JB472J

R47 VRS-CY1JB562J

R48 VRS-CY1JB682J

R49 VRS-CY1JB102J

R50 VRS-CY1JB103J

R51 VRS-CY1JB682J

R52 VRD-ST2CD271J

R53 VRS-CY1JB471J

R54 VRS-CY1JB102J

R55 VRS-CY1JB103J

R56 VRS-CY1JB103J

R92 VRS-CY1JB102J

R93 VRS-CY1JB473J

R95 VRD-ST2CD103J

R96 VRD-ST2CD103J

R107 VRS-CY1JB101J

R110 VRS-CY1JB274D

R113 VRS-CY1JB101J

R115 VRS-CY1JB000J

R116 VRS-CY1JB562D

R117 VRS-CY1JB274D

R118 VRS-CY1JB102J

R119 VRS-CY1JB102J

R120 VRS-CY1JB104J

R121 VRS-CY1JB104J

R122 VRS-CY1JB104D

R123 VRS-CY1JB104D

R128 VRS-CY1JB104D

R129 VRS-CY1JB104D

R131 VRS-CY1JB154D

R132 VRS-CY1JB154D

R133 VRS-CY1JB154D

R134 VRS-CY1JB154D

R602 VRD-ST2CD102J

R603 VRD-ST2CD102J

R606 VRD-ST2CD562J

R607 VRD-ST2CD562J

R608 VRS-CY1JB822J

R609 VRS-CY1JB822J

R614 VRS-CY1JB333J

R615 VRS-CY1JB333J

PRICE

RANK

NEW

MARK

PART

RANK

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

220 ohms,1/6W

220 ohms,1/6W

220 ohms,1/6W

10 kohms,1/16W

100 ohms,1/6W

220 ohms,1/6W

10 kohms,1/16W

10 kohms,1/16W

100 ohms,1/16W

1 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

4.7 kohms,1/16W

4.7 kohms,1/16W

5.6 kohms,1/16W

6.8 kohms,1/16W

1 kohms,1/16W

10 kohms,1/16W

6.8 kohms,1/16W

270 ohms,1/6W

470 ohms,1/16W

1 kohms,1/16W

10 kohms,1/16W

10 kohms,1/16W

1 kohms,1/16W

47 kohms,1/16W

10 kohms,1/6W

10 kohms,1/6W

100 ohms,1/16W

270 kohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

5.6 kohms,1/16W

150 kohms,1/16W

330 kohms,1/16W

15 kohms,1/16W

47 kohms,1/16W

10 ohms,1/16W

22 kohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

10 kohms,1/6W

12 kohms,1/16W

12 kohms,1/6W

10 kohms,1/6W

3.9 kohms,1/6W

220 ohms,1/16W

100 ohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

1 Mohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

10 kohms,1/6W

220 ohms,1/6W

220 ohms,1/6W

220 ohms,1/6W

220 ohms,1/6W

100 ohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

5.6 kohms,1/16W

270 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

100 kohms,1/16W

100 kohms,1/16W

100 kohms,1/16W

100 kohms,1/16W

100 kohms,1/16W

100 kohms,1/16W

150 kohms,1/16W

150 kohms,1/16W

150 kohms,1/16W

150 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

5.6 kohms,1/6W

5.6 kohms,1/6W

8.2 kohms,1/16W

8.2 kohms,1/16W

33 kohms,1/16W

33 kohms,1/16W

5

DESCRIPTION

NO.

PARTS CODE

[8] RESISTORS

R704 VRD-ST2CD102J

R707 VRS-CY1JB681J

R708 VRS-CY1JB102J

R709 VRS-CY1JB102J

R711 VRS-CY1JB000J

R712 VRS-CY1JB102J

R713 VRS-CY1JB221J

R717 VRS-CY1JB103J

R718 VRS-CY1JB102J

R719 VRD-ST2CD101J

R720 VRD-ST2CD102J

R722 VRS-CY1JB103J

R725 VRS-CY1JB223J

R728 VRS-CY1JB102J

R731 VRS-CY1JB221J

R732 VRD-ST2CD221J

R733 VRS-CY1JB221J

R734 VRD-ST2CD221J

R735 VRD-ST2CD102J

R736 VRD-ST2CD271J

R737 VRD-ST2CD102J

R738 VRD-ST2CD272J

R739 VRS-CY1JB103J

R741 VRD-ST2CD102J

R746 VRD-ST2CD473J

R751 VRD-ST2CD102J

R752 VRS-CY1JB102J

R753 VRS-CY1JB102J

R754 VRS-CY1JB102J

R755 VRS-CY1JB102J

R756 VRS-CY1JB102J

R757 VRS-CY1JB102J

R616 VRS-CY1JB222J

R617 VRD-ST2CD222J

R618 VRD-ST2CD682J

R619 VRD-ST2CD682J

R620 VRS-CY1JB223J

R623 VRS-CY1JB332J

R625 VRS-CY1JB332J

R626 VRS-CY1JB474J

R627 VRS-CY1JB104J

R641 VRD-ST2CD822J

R642 VRD-ST2CD822J

R643 VRS-CY1JB103J

R644 VRS-CY1JB103J

R645 VRS-CY1JB472J

R646 VRS-CY1JB472J

R648 VRS-CY1JB472J

R649 VRS-CY1JB472J

R651 VRD-ST2CD222J

R652 VRD-ST2CD222J

R653 VRS-CY1JB222J

R654 VRS-CY1JB222J

R657 VRS-CY1JB103J

R658 VRS-CY1JB103J

R661 VRS-CY1JB822J

R662 VRS-CY1JB822J

R663 VRS-CY1JB472J

R664 VRS-CY1JB472J

R690 VRS-CY1JB153J

R691 VRS-CY1JB153J

R692 VRS-CY1JB273J

R693 VRS-CY1JB273J

R703 VRD-ST2CD102J

R758 VRS-CY1JB102J

R759 VRS-CY1JB102J

R760 VRS-CY1JB102J

R761 VRS-CY1JB102J

R762 VRS-CY1JB332J

R763 VRD-ST2EE181J

R764 VRS-CY1JB103J

R767 VRD-ST2CD102J

R770 VRD-ST2CD102J

R771 VRD-ST2CD102J

R772 VRD-ST2CD102J

R773 VRS-CY1JB102J

R774 VRS-CY1JB102J

R775 VRS-CY1JB102J

R776 VRS-CY1JB102J

R777 VRS-CY1JB102J

R778 VRS-CY1JB102J

R779 VRS-CY1JB102J

R780 VRS-CY1JB102J

R782 VRD-ST2CD102J

R783 VRD-ST2CD102J

R784 VRD-ST2CD102J

R785 VRS-CY1JB102J

R786 VRS-CY1JB102J

R787 VRS-CY1JB102J

PRICE

RANK

NEW

MARK

PART

RANK

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

6

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

3.3 kohms,1/16W

180 ohms,1/4W

10 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

2.2 kohms,1/16W

2.2 kohms,1/6W

6.8 kohms,1/6W

6.8 kohms,1/6W

22 kohms,1/16W

3.3 kohms,1/16W

3.3 kohms,1/16W

470 kohms,1/16W

100 kohms,1/16W

8.2 kohms,1/6W

8.2 kohms,1/6W

10 kohms,1/16W

10 kohms,1/16W

4.7 kohms,1/16W

4.7 kohms,1/16W

4.7 kohms,1/16W

4.7 kohms,1/16W

2.2 kohms,1/6W

2.2 kohms,1/6W

2.2 kohms,1/16W

2.2 kohms,1/16W

10 kohms,1/16W

10 kohms,1/16W

8.2 kohms,1/16W

8.2 kohms,1/16W

4.7 kohms,1/16W

4.7 kohms,1/16W

15 kohms,1/16W

15 kohms,1/16W

27 kohms,1/16W

27 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

680 ohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

1 kohms,1/16W

220 ohms,1/16W

10 kohms,1/16W

1 kohms,1/16W

100 ohms,1/6W

1 kohms,1/6W

10 kohms,1/16W

22 kohms,1/16W

1 kohms,1/16W

220 ohms,1/16W

220 ohms,1/6W

220 ohms,1/16W

220 ohms,1/6W

1 kohms,1/6W

270 ohms,1/6W

1 kohms,1/6W

2.7 kohms,1/6W

10 kohms,1/16W

1 kohms,1/6W

47 kohms,1/6W

1 kohms,1/6W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

DESCRIPTION

XL-DK225

!

!

!

!

XL-DK225

NO.

PARTS CODE

[8] RESISTORS

R914 VRN-VV3AAR15J

R915 VRS-CY1JB392J

R916 VRS-CY1JB392J

R917 VRN-VV3DAR22J

R918 VRN-VV3DAR22J

R919 VRN-VV3DAR22J

R920 VRN-VV3DAR22J

R921 VRG-ST2EC101J

R922 VRG-ST2EC101J

R923 VRS-CY1JB182J

R924 VRS-CY1JB182J

R925 VRD-ST2CD223J

R927 VRD-ST2EE223J

R928 VRD-ST2EE223J

R935 VRD-ST2CD563J

R936 VRD-ST2CD563J

R937 VRS-CY1JB563J

R940 VRD-ST2EE4R7J

R941 VRD-ST2EE4R7J

R942 VRD-RT2HD681J

R943 VRD-RT2HD681J

R946 VRS-CY1JB473J

R944 VRD-ST2CD152J

R945 VRD-ST2CD152J

R947 VRD-ST2CD153J

R949 VRS-CY1JB102J

R950 VRS-CY1JB683J

R956 VRD-ST2CD102J

R957 VRD-RT2HD681J

R958 VRD-RT2HD681J

R961 VRS-CY1JB333J

R962 VRS-CY1JB102J

R965 VRD-RT2HD822J

R966 VRD-RT2HD822J

R968 VRD-RT2HD681J

R974 VRS-CY1JB102J

R977 VRD-ST2CD153J

RA5 VRS-CY1JB470J

RA14 VRS-CY1JB000J

RA15 VRS-CY1JB000J

RA16 VRS-CY1JB000J

RD01 VRS-CY1JB182J

RD02 VRD-ST2CD222J

RD03 VRD-ST2CD332J

RD04 VRS-CY1JB562J

RD05 VRS-CY1JB103J

R788 VRS-CY1JB102J

R789 VRD-ST2CD102J

R790 VRD-ST2CD102J

R791 VRD-ST2CD102J

R792 VRS-CY1JB102J

R793 VRS-CY1JB102J

R794 VRS-CY1JB102J

R795 VRD-ST2CD102J

R798 VRS-CY1JB103J

R799 VRD-ST2CD102J

R801 VRD-ST2CD563J

R802 VRD-ST2CD333J

R803 VRD-ST2CD123J

R804 VRD-ST2EE470J

R805 VRD-ST2EE470J

R806 VRD-ST2CD473J

R807 VRD-ST2EE101J

R808 VRD-RT2HD222J

R841 VRD-ST2CD224J

R842 VRD-ST2CD102J

R843 VRD-ST2CD473J

R844 VRD-ST2EE820J

R853 VRS-CY1JB223J

R854 VRS-CY1JB332J

R858 VRD-ST2CD221J

R860 VRS-CY1JB103J

R863 VRD-RT2HD3R3J

R864 VRD-ST2CD223J

R890 RR-HZA003AWZZ

R891 VRS-CY1JB331J

R892 VRD-ST2CD100J

R901 VRS-CY1JB563J

R902 VRS-CY1JB563J

R903 VRS-CY1JB102J

R904 VRS-CY1JB102J

R905 VRS-CY1JB821J

R906 VRS-CY1JB821J

R907 VRS-CY1JB563J

R908 VRS-CY1JB563J

R909 VRS-CY1JB102J

R910 VRS-CY1JB102J

R913 VRN-VV3AAR15J

PRICE

RANK

NEW

MARK

PART

RANK

AB

AA

AA

AC

AC

AC

AC

AB

AB

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AD

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AB

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

1 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

1 kohms,1/6W

10 kohms,1/16W

1 kohms,1/6W

56 kohms,1/6W

33 kohms,1/6W

12 kohms,1/6W

47 ohms,1/4W

47 ohms,1/4W

47 kohms,1/6W

100 ohms,1/4W

2.2 kohms,1/2W

220 kohms,1/6W

1 kohms,1/6W

47 kohms,1/6W

82 ohms,1/4W

22 kohms,1/16W

3.3 kohms,1/16W

220 ohms,1/6W

10 kohms,1/16W

3.3 ohms,1/2W

22 kohms,1/6W

4.7 ohms,1/2W

330 ohms,1/16W

10 ohms,1/6W

56 kohms,1/16W

56 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

820 ohms,1/16W

820 ohms,1/16W

56 kohms,1/16W

56 kohms,1/16W

1 kohms,1/16W

1 kohms,1/16W

0.15 ohms,1W

0.15 ohms,1W

3.9 kohms,1/16W

3.9 kohms,1/16W

0.22 ohms,2W

0.22 ohms,2W

0.22 ohms,2W

0.22 ohms,2W

100 ohms,1/4W,Fusible

100 ohms,1/4W,Fusible

1.8 kohms,1/16W

1.8 kohms,1/16W

22 kohms,1/6W

22 kohms,1/4W

22 kohms,1/4W

56 kohms,1/6W

56 kohms,1/6W

56 kohms,1/16W

4.7 ohms,1/4W

4.7 ohms,1/4W

680 ohms,1/2W

680 ohms,1/2W

47 kohms,1/16W

1.5 kohms,1/6W

1.5 kohms,1/6W

15 kohms,1/6W

1 kohms,1/16W

68 kohms,1/16W

1 kohms,1/6W

680 ohms,1/2W

680 ohms,1/2W

33 kohms,1/16W

1 kohms,1/16W

8.2 kohms,1/2W

8.2 kohms,1/2W

680 ohms,1/2W

1 kohms,1/16W

15 kohms,1/6W

47 ohms,1/16W

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

0 ohms,Jumper,0.8x1.55mm,Green

1.8 kohms,1/16W

2.2 kohms,1/6W

3.3 kohms,1/6W

5.6 kohms,1/16W

10 kohms,1/16W

7

DESCRIPTION

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

NO.

PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

[8] RESISTORS

RD06 VRS-CY1JB182J

RD07 VRS-CY1JB222J

RD08 VRS-CY1JB182J

RD09 VRD-ST2CD222J

RP745 VRS-CY1JB272J

RP746 VRS-CY1JB272J

RP747 VRD-ST2CD102J

RP748 VRD-ST2CD102J

RP749 VRD-ST2CD102J

RP750 VRD-ST2CD102J

RP752 VRD-ST2EE1R5J

RP753 VRD-ST2EE1R5J

RP755 VRS-CY1JB103J

RP757 VRS-CY1JB104J

RP758 VRS-CY1JB224J

RP761 VRD-ST2CD103J

RP762 VRS-CY1JB103J

RP763 VRS-CY1JB151J

RP767 VRD-ST2EE331J

RP768 VRD-ST2CD333J

RP770 VRS-CY1JB272J

RP771 VRS-CY1JB272J

RP772 VRD-ST2CD272J

RP773 VRD-ST2CD272J

RP774 VRS-CY1JB103J

RP776 VRS-CY1JB103J

RP777 VRD-ST2CD103J

RP778 VRD-ST2CD103J

RP779 VRS-CY1JB272J

[9] OTHER CIRCUITRY PARTS

Bi101 QCNWNA849AWPZ

Bi601 QCNWNA587AWPZ

Bi701 QCNWNA056AWPZ

Bi702 QCNWN2715AWPZ

Bi703 QCNWNA848AWPZ

Bi801 QCNWNA847AWPZ

Bi902 QCNWNA551AWPZ

CNB1 QCNCWZO11AWZZ

CNP1 QCNCWYP16AWZZ

CNP2 QCNCM705FAFZZ

CNP3 QCNCWZY12AWZZ

CNP4 QCNCWZX11AWZZ

CNP5 92LCONE9P53254

CNP6 QCNCWZY10AWZZ

CNP101 QCNCWA046AW30

CNP301 QCNCWZX09AWZZ

CNP701A QCNCWZX17AWZZ

CNP701B QCNCWZY17AWZZ

CNP702 QCNCWZY10AWZZ

CNP703 92LCONE2P53253

CNP705 QCNCWZY12AWZZ

CNP708 QCNCW012EAWZZ

CNP801 QCNCM035KAWZZ

CNP802 92LCONE6P53253

CNP805 QCNCM049BAWZZ

CNP902 QCNCM035DAWZZ

CNP971 92LCONE2P53253

CNPU1 92LCONE8P53254

CNPU2 92LCONE8P53254

CNPU3 QCNCWYG12AWZZ

CNPU4 QCNCWYH12AWZZ

CNPU5 92LCONECP53254

CNS2A QCNWNA750AWPZ

CNS971 QCNWNA057AWPZ

F801 QFS-D322BSJNi

F802 QFS-D322BSJNi

F803 QFS-D202BSJNi

F804 QFS-D202BSJNi

F805 QFS-D162BSJNi

FFC1 QCNWN2700AWPZ

FFC4 QCNWN2701AWPZ

FFC301 QCNWNA844AWPZ

FFC701 QCNWNA753AWPZ

FFC702 QCNWNA810AWPZ

FFC705 QCNWNA758AWPZ

FH801 92LFSHOLD1652T

FH802 92LFSHOLD1652T

FH803 92LFSHOLD1652T

FH804 92LFSHOLD1652T

FH805 92LFSHOLD1652T

FH806 92LFSHOLD1652T

FH807 92LFSHOLD1652T

FH808 92LFSHOLD1652T

FH809 92LFSHOLD1652T

FH810 92LFSHOLD1652T

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AE

AE

AD

AC

AE

AD

AE

AB

AB

AB

AB

AD

AB

AC

AC

AD

AC

AQ

AC

AM

AH

AF

AG

AC

AM

AF

AC

AD

AD

AC

AB

AC

AC

AC

AC

AC

AC

AB

AC

AC

AD

AD

AD

AG

AC

AC

AC

AB

AB

AB

AB

AB

AB

AB

AB

1.8 kohms,1/16W

2.2 kohms,1/16W

1.8 kohms,1/16W

2.2 kohms,1/6W

2.7 kohms,1/16W

2.7 kohms,1/16W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1 kohms,1/6W

1.5 ohms,1/4W

1.5 ohms,1/4W

10 kohms,1/16W

100 kohms,1/16W

220 kohms,1/16W

10 kohms,1/6W

10 kohms,1/16W

150 ohms,1/16W

330 ohms,1/4W

33 kohms,1/6W

2.7 kohms,1/16W

2.7 kohms,1/16W

2.7 kohms,1/6W

2.7 kohms,1/6W

10 kohms,1/16W

10 kohms,1/16W

10 kohms,1/6W

10 kohms,1/6W

2.7 kohms,1/16W

DESCRIPTION

Connector Ass'y,13 / 13 Pin

Connector Ass'y,9 / 10 Pin

Connector Ass'y,6 / 7 Pin

Connector Ass'y,9 / 8 Pin with CNS702

Flat Wire, 2 Pin

Connector Ass'y,10 / 11 Pin

Connector Ass'y,4 / 5 Pin

Socket,11 Pin

Socket,16 Pin

Plug,6 Pin

Socket,12 Pin

Socket,11 Pin

Plug,9 Pin

Socket,10 Pin

Socket,30 Pin

Socket,9 Pin

Socket,17 Pin

Socket,17 Pin

Socket,10 Pin

Plug,2 Pin

Socket,12 Pin

Socket,12 Pin

Plug, 10 Pin

Plug,6 Pin

Plug,2 Pin

Socket,4 Pin

Plug,2 Pin

Plug,8 Pin

Plug,8 Pin

Plug,12 Pin

Plug,12 Pin

Plug,12 Pin

Connector Ass'y,6 Pin with CNS2B

Connector Ass'y,2 Pin ( FAN WIRE )

Fuse,3.15A,125V

Fuse,3.15A,125V

Fuse,2A,125V

Fuse,2A,125V

Fuse,1.6A,125V

Flat Cable,16 Pin

Flat Cable,11Pin

Flat Cable,9 Pin

Flat Cable,21 Pin

Flat Cable,10 Pin

Flat Cable,12 Pin

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

Fuse Holder

8

XL-DK225

!

!

XL-DK225

NO.

PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

[9] OTHER CIRCUITRY PARTS

FL701 VVKNA12MM54-1

FW901 QCNWNA277AWPZ

JK690 QSOCJ0224AWZZ

JK691 QSOCJ0120AWZZ

JK701 QJAKM0004AWZZ

JK953 QSOCJA010AWZZ

LG2 QLUGPA001AWZZ

LG3 QLUGPA001AWZZ

LG4 QLUGPA001AWZZ

LG5 QLUGPA001AWZZ

LUG1 QCNWNA863AWPZ

RL841 RRLYDA002AWZZ

RL914 RRLYD0016AWZZ

RX701 VHLK2013TH2E1

SO901 QTANA0423AWZZ

SW701 92LSWICHT1663T

SW702 92LSWICHT1663T

SW703 92LSWICHT1663T

SW704 92LSWICHT1663T

SW705 92LSWICHT1663T

SW706 92LSWICHT1663T

SW707 92LSWICHT1663T

SW708 92LSWICHT1663T

SW709 92LSWICHT1663T

SW710 92LSWICHT1663T

SW711 92LSWICHT1663T

SW712 92LSWICHT1663T

TP1 RTUNSA012AWZZ

VR701 QSW-ZA001AWZZ

WIRE_B QCNWN2593AWZZ

WTM901 QCNCW019EAWZZ

AF

AH

AC

AC

AC

AC

AC

AC

AZ

AE

AB

AB

AG

AE

AC

AC

AC

AC

AC

AC

AU

AC

AC

AD

AK

AC

AC

AC

AC

AC

DESCRIPTION

FL Display

Flat Wire, 5 Pin

Socket, VIDEO / AUX IN

RCA Jack

Headphone Jack

Socket, Sub Woofer Pre Out

Lug Terminal

Lug Terminal

Lug Terminal

Lug Terminal

Lug Wire

Relay,Power

Relay

Remote Sensor

Speaker Jack

Switch,Key Type [ DISC 4 ]

Switch,Key Type [ DISC 5 ]

Switch,Key Type [ OPEN/CLOSE ]

Switch,Key Type [ DISC 1 ]

Switch,Key Type [ DISC 2 ]

Switch,Key Type [ DISC 3 ]

Switch,Key Type [ POWER ON/STAND-BY ]

Switch,Key Type [ PLAY/REPEAT ]

Switch,Key Type [ STOP ]

Switch,Key Type [ VIDEO/AUX ]

Switch,Key Type [ TUNER / XM ]

Switch,Key Type [ CD ]

Tuner Pack

Volume ( Jog type )

Single Wire,White,80mm

Socket, 5 Pin

9

-MEMO-

XL-DK225

10

XL-DK225

[10] CABINET PARTS / CD MECHANISM PARTS

A

B

C

D

E

F

CD CHANGER

MECHANISM UNIT

229

609X2

225

205

206x5

CD MECHANISM

WITH CUSHION

609x2

301

304

303

303

602x4

302

208

217

613x2

609x2

613x2

PWB-C

209

608x3

203

201-3

226

PWB-B4

220

608

218

201-2

608x2

PWB-D

608x3

FL701

PWB-B2

602

608x2

613x2

219

PWB-B1

607x6

201

201-1

201-4

216

TUNER PACK

613x2

216

PWB-A4

207

231

616x2

613x8

PWB-A1

614x3

603x2

224x2

222

224x2

611x2

201-7

201-6

201-5

IC901

IC851

IC852

605x2

Silicon

Grease

604x2

202-3

606x2

202

202-4

202-2

202-1

613x2

PWB-A3

612x4

213

PWB-A2

215x4

215x6

608

214

223

G

227

210

615x2

216x2

613

613

221 212

230

PWB-B3

CAUTION : RING SPRING ASSY.INTO

FAN POSITION.

OK

RING GAP

NG

RING GAP

CAUTION : MUST VISUAL CHECK

AFTER FULLY INSERTED THE FAN TO

MOTOR.

( FOR REFERENCE ONLY )

GAP IS 4.9 mm BETWEEN FAN AND FAN

MOTOR BRACKET.

H

FAN RIB FAN RIB

FAN BLADE

FAN MOTOR BRACKET.

1 2 3 4 5

11

NO.

PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

!

!

!

[10] CABINET PARTS / CD MECHANISM PARTS

201 CCABA6896AW01

201-1 -----------------------

201-2 HDECQA392AWSA

201-3 HBDGB1001AWSA

201-4 JKNBZA182AWSA

201-5 JKNBZA183AWSA

201-6 HDECQA242AWSA

201-7 HDECQA241AWSA

202 -----------------------

202-1 LANGK0434AWFW

202-2 NFANP0001AWZZ

202-3 RMOTVA015AWZZ

202-4 92LCSPR1431C

203 92LCSPR1431C

205 GCAB-A052AWSB

206 GCOVAA137AWSA

207 GiTARA457AWSA

207 GITARA461AWSA

208 GiTASA140AWSB

209 GiTASA141AWSB

210 JKNBKA021AWSA

212 LBND-1011AWZZ

213 LBSHC0005AWZZ

214 LCHSMA071AWFW

215 92LFSHOLD1652T

216 PCUSG0022AWZZ

217 LCHSZA010AWZZ

218 LHLDZ9024AWZZ

219 LHLDZA047AWZZ

220 LHLDZA122AWZZ

221 92LNBAND1318A

222 PRDARA154AWFW

223 QACCDA002AWZZ

224 QLUGPA001AWZZ

225 TSPC-A800AWZZ

225 TSPC-A801AWZZ

226 -----------------------

227 -----------------------

229 CDCMECA6663SRC

230 LANGT0042AWFW

231 PSHEPA091AWZZ

301 KMECZA004AWZZ

302 PCUSG0004AWSA

303 PCUSGA099AWSA

304 PCUSG0001AWSA

602 LX-EZ0005AWF7

603 LX-JZ0010AFF7

604 LX-JZ0036AWF7

605 LX-JZ0037AWF7

606 XBBY720P04000

607 XEBY726P10000

608 XEBY730P10000

609 XEBY730P12000

610 LX-JZA019AWF7

611 XHBY730P06000

612 XHBY740P06000

613 XJBY730P10000

614 XJBY830P08000

615 XJSY730P10000

616 XJBY730P06000

-

AF

AD

AH

AA

AA

AS

AD

AX

-

AM

AD

AE

AE

AD

AH

AL

AL

AL

AL

AM

AA

AD

AP

AB

AA

AA

AA

AA

AB

AB

AB

AA

AB

AA

AA

AB

AD

AC

AD

AB

AB

AC

AC

AC

AD

AD

-

-

BK

AC

AB

AB

AN

AD

AC

AC

AA

AR

AN

Front Panel Ass'y

Front Panel

Panel, FL Display

Badge, SHARP

Button, Function, A

Button, Disc No.

Indicator, Volume Knob

Decoration, Panel

Fan Motor Ass'y

Bracket, Fan Motor

Rotary, Fan

Motor, Air Cooling Fan (M971)

Spring, Ring

Spring, Ring

Top Cabinet

Disc Tray Cover

Rear Panel [For America]

Rear Panel [For Canada]

Side Panel, Left

Side Panel, Right

Knob, VOLUME

Nylon Band

Bushing, AC Power Supply Cord

Chassis, Main

Holder, Fuse

Cushion, Leg

Chassis, Changer Unit

Holder, FL Display

Holder, LED

Holder, LED

Nylon Band, 80mm

Heat Sink, Main

AC Power Supply Cord

Lug (LG2-5)

Label, Specification [For America]

Label, Specification [For Canada]

Nut (Not Replacement Item )

Washer (Not Replacement Item )

Changer Mechanism Unit

Bracket, PWB Support

Sheet, PC

CD Mechanism Unit

Cushion

Cushion

Cushion

Screw, Special

Screw, M3 X10mm

Screw, Special

Screw, Special

Screw, M2 X4mm

Screw, M2.6 X10mm

Screw, M3 X10mm

Screw, M3 X12mm

Screw, Special

Screw, M3 X6mm

Screw, M4 X6mm

Screw, M3 X10mm

Screw, M3 X8mm

Screw, M3 X10mm

Screw, M3 X6mm

NOTE: FOR CD MECHANISM PARTS, ITEM NO. ARE 3XX

DESCRIPTION

XL-DK225

12

XL-DK225

[11] SPEAKER BOX PARTS

C

D

A

B

E

F

G

H

1

2 3

13

4 5 6

!

NO.

PARTS CODE

PRICE

RANK

NEW

MARK

PART

RANK

DESCRIPTION

[11] SPEAKER BOX PARTS

901 GBOXSA166AW01

902 CWAKPA010AW05

903 GITASA172AWSC

904 LHLDZ8002AWSB

905 PCUSGA020AWZZ

906 TSPC-A778AWZZ

907 HDECQA355AWSC

908 HDECQA354AWSC

909 XEBY730P14000

910 XEMY835P14000

911 XMBY840P20000

912 PCUSSA057AWZZ

913 PCUSSA058AWZZ

SP1,2 RSP-ZA257AWZZ

SP3,4 RSP-ZA256AWZZ

BP

AS

BC

AF

AB

AC

AH

AK

AB

AC

AC

AZ

AT

[12] ACCESSORIES / PACKING PARTS

92LFANT1535A

QANTL0010AWZZ

RRMCGA133AWSA

TINSEA191AWZZ

TINSZA282AWZZ

TINSKA029AWZZ

UACRTA008AW01

AF

AP

AR

AF

AD

AP

[13] P.W.B. ASSEMBLY ( Not Replacement Item )

PWB-A 92LPWB6895MANS

PWB-B 92LPWB6894DPLS

PWB-C 92LPWB6894PODS

PWB-D 92LPWB6894CDUS

-

-

-

-

[14] OTHER SERVICE PARTS

UDSKA0004AFZZ AZ

Wooden Box Ass'y

Net Frame Ass'y

Front Board

Catching Holder

Cushion, Leg

Label, Specification

Tweeter Ring

Woofer Ring

Screw, M3 x 14mm

Screw, M3.5 x 14mm

Screw, M4 x 20mm

Cushion, Top/Bottom

Cushion, Side

Woofer

Tweeter

FM Antenna

AM Loop Antenna

Remote Control

Operation Manual [For America]

Quick Guide [For America]

Operation Manual [For Canada]

Adaptor Accessories

Main A1 / Power A2 / Speaker A3 / Transit iPod A4

Display B1 / Headphone B2 / Reflash B3 / Volume LED B4 iPod

CD MP3

CD Optical Pickup Lens Cleaner Disc

XL-DK225

14

XL-DK225

[12] ACCESSORIES / PACKING PARTS

UNIT

PACKING METHOD (FOR U.S.A. ONLY)

Front Speaker(L/R)

Polyethylene Bag,Unit

SSAKH0094AWZZ

Polyethylene Bag,Speaker

SSAKHA087AWZZ

Packing,Add.,

Front Speaker,Top/Bottom

SPAKAA160AWZZ

Label,POP

TLABZA556AWZZ

Packing Add.,Unit,Top/Bottom

SPAKAA166AWZZ

Bottom

Label,POP

TLABZA538AWZZ

A

B

FM Antenna

AM Loop

Antenna

Polyethylene Bag,Accessories

SSAKAA011AWZZ

Adaptor Accessories

Remote Control

Operation Manual

Quick Guide

B

A

Packing Case

SPAKCA470AWZZ

F

R

O

N

Front of Packing Case

: Not Replacement Item

15

XL-DK225

XL-DK225

COPYRIGHT 2007 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

SHARP CORPORATION

Sharp-Roxy Corporation

Sungai Petani, Kedah,

Malaysia

Printed in Malaysia

A0702-1MX

RR

M

SC

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
