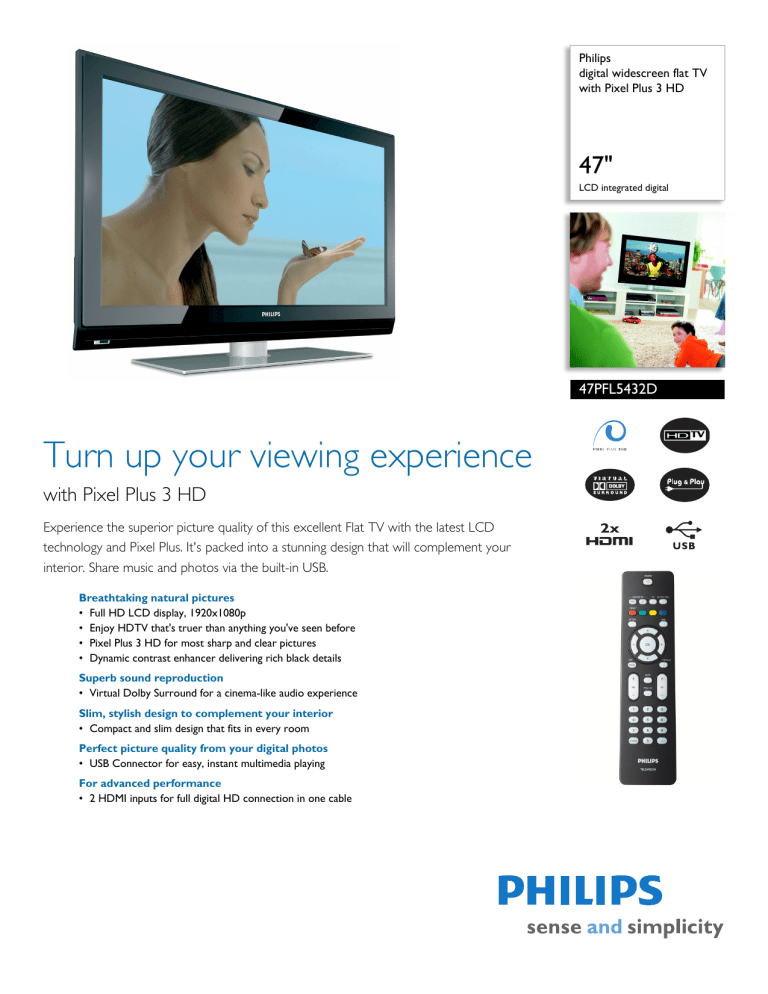

Philips
digital widescreen flat TV
with Pixel Plus 3 HD
47"
LCD integrated digital
47PFL5432D
Turn up your viewing experience
with Pixel Plus 3 HD
Experience the superior picture quality of this excellent Flat TV with the latest LCD
technology and Pixel Plus. It's packed into a stunning design that will complement your
interior. Share music and photos via the built-in USB.
Breathtaking natural pictures
• Full HD LCD display, 1920x1080p
• Enjoy HDTV that's truer than anything you've seen before
• Pixel Plus 3 HD for most sharp and clear pictures
• Dynamic contrast enhancer delivering rich black details
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Perfect picture quality from your digital photos
• USB Connector for easy, instant multimedia playing
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
47PFL5432D/37
Digital widescreen flat TV with Pixel Plus 3 HD
47" LCD integrated digital
Specifications
Picture/Display
list, Delta Volume per preset, Graphical User
Interface, On Screen Display, Side Control
• Remote Control: TV
• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Full screen, Movie expand
14:9, Movie expand 16:9, Super Zoom
• Teletext: Closed Captioning Full Text
•
•
•
•
•
•
•
•
Aspect ratio: 16:9
Brightness: 500 cd/m²
Contrast ratio (typical): 1100:1
Dynamic screen contrast: 5500:1
Response time (typical): 5 ms
Viewing angle: 176º (H) / 176º (V)
Diagonal screen size (inch): 47 inch
Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus 3 HD, Digital
Natural Motion, Dynamic contrast enhancement,
1080p 50/60Hz processing, 3/2 - 2/2 motion pull
down, 3D Combfilter, Active Control + Light
sensor, Jagged Line Suppression, Progressive Scan,
Widescreen Plus
• Screen enhancement: Anti-Reflection coated
screen
Multimedia Applications
• Multimedia connections: USB
• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures
Tuner/Reception/Transmission
•
•
•
•
Aerial Input: 75 ohm F-type
TV system: ATSC, NTSC
Video Playback: NTSC
Cable: Unscrambled Digital Cable -QAM
Connectivity
Supported Display Resolution
•
•
•
•
•
•
AV 1: Audio L/R in, CVBS in, S-Video, YPbPr
AV 2: Audio L/R in, CVBS
AV 3: Audio L/R in, YPbPr
AV 4: HDMI, Audio L/R in
AV 5: HDMI
Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB
• Other connections: Monitor out L/R (Cinch), S/
PDIF out (coaxial)
• Computer formats
Resolution
Refresh rate
640 x 480
60Hz
800 x 600
60Hz
1024 x 768
60Hz
1366 x 768
60Hz
• Video formats
Resolution
Refresh rate
480i
60Hz
480p
60Hz
720p
60Hz
1080i
60Hz
1080p
60Hz
Power
• Ambient temperature: 5 °C to 45 °C
• Mains power: AC 110 -240 V +/- 10%
Dimensions
• Color cabinet: High Gloss Black
• Set dimensions in inch (W x H x D):
45.6 x 29.6 x 4.6 inch
• Set dimensions with stand in inch (W x H x D):
45.6 x 32.3 x 12.8 inch
• Product weight (lb): 88.6 (with stand), 67.5 (without
stand)
• Box dimensions in inch (W x H x D):
49.2 x 32.9 x 10.9 inch
• Weight incl. Packaging (lb): 96.6
• VESA wall mount compatible: 600 x 400 mm
Sound
• Output power (RMS): 2 x 8W
• Sound Enhancement: Digital Signal Processing,
Dynamic Bass Enhancement, Graphic Equaliser
• Sound System: Virtual Dolby Digital
Loudspeakers
• Built-in speakers: 2
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Smart Clock
• Ease of Installation: Auto Program Naming,
Automatic Tuning System (ATS), Autostore, PLL
Digital Tuning, Plug & Play
• Ease of Use: Auto Volume Leveller (AVL), Channel
Accessories
• Included Accessories: Table top stand, Power cord,
Quick start guide, User Manual, Registration card,
Remote Control
•
Side
Rear connectors
AUDIO OUT
DIGITAL AUDIO
ANALOG AUDIO IN
HDMI 1 / HDMI 2 / HDMI 3
R
AUDIO
L
IN
R
OUT
L
SERVICE
UART
AV 3
AUDIO
DISPLAY
SYNC.
Y
Pb
Pr
L
VIDEO
L
AUDIO
L
AUDIO
R
R
DISPLAY
SYNCHRONIZED
AV 2
VIDEO
S VIDEO
AV 1
Y
Pb
R
Pr
Digital widescreen flat TV with Pixel Plus 3 HD
47PFL5432D/37
47" LCD integrated digital
Product highlights
Full HD LCD display 1920x1080p
This display has a resolution that is referred to as Full HD.
The state-of-the-art LCD screen technology has the full
high-definition widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the best possible
picture quality for HD input signals with up to 1080 lines.
It produces brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors. This vibrant
and sharp image will provide you with an enhanced viewing
experience.
HDTV
HDTV delivers exceptional picture quality and real movieviewing experience that makes television more dynamic,
truer than anything you've seen before. It is the latest and
best television signal available. It features picture quality
more than twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal, a television
must incorporate advanced signal input connectivity and
circuitry design.
Pixel Plus 3 HD
Pixel Plus 3 HD offers the unique combination of ultimate
sharpness, natural detail, vivid colors and smooth natural
motion on all qualities of HD, standard TV signals and
multimedia content, for high definition displays. Each pixel
of the incoming picture is enhanced to better match the
surrounding pixels, resulting in a more natural picture.
Artifacts and noise in all sources from multimedia to
standard TV and also in highly compressed HD are
detected and reduced ensuring that the picture is clean and
razor sharp.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It will create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed in
your television experience.
USB Multimedia Connector
The USB connector allows access to multimedia jpg, mp3
and alb files of most USB-sticks and most digital cameras
(USB 1.1 memory-class device). Plug the USB into the slot
at the side of the TV and access your photos or music files.
This makes you easily viewing and sharing your photos and
music.
2 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion to
an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but includes
digital audio. HDMI uses HDCP copy protection. With 2
HDMI inputs you can connect multiple HD sources, for
instance an HD settop box, and a Blu-ray player. Your TV
is fully prepared for the HD future.
Issue date 2008-10-27
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.15
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 26109
UPC: 6 09585 12341 0
www.philips.com
