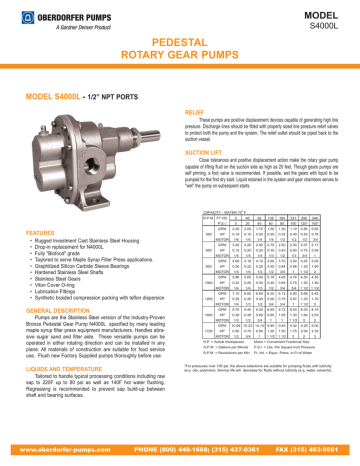

MODEL
S4000L
PEDESTAL
ROTARY GEAR PUMPS
MODEL S4000L - 1/2” NPT PORTS
RELIEF
These pumps are positive displacement devices capable of generating high line
pressure. Discharge lines should be fitted with properly sized line pressure relief valves
to protect both the pump and the system. The relief outlet should be piped back to the
suction vessel.
SUCTION LIFT
Close tolerances and positive displacement action make the rotary gear pump
capable of lifting fluid on the suction side as high as 20 feet. Though gears pumps are
self priming, a foot valve is recommended. If possible, wet the gears with liquid to be
pumped for the first dry start. Liquid retained in the system and gear chambers serves to
"wet" the pump on subsequent starts.
o
CAPACITY - WATER 70 F
R.P.M. FT.HD.
FEATURES
•
•
•
•
•
•
•
•
•
•
400
Rugged Investment Cast Stainless Steel Housing
Drop-in replacement for N4000L
Fully "Biofood" grade
Taylored to serve Maple Syrup Filter Press applications.
Graphitized Silicon Carbide Sleeve Bearings
Hardened Stainless Steel Shafts
Stainless Steel Gears
Viton Cover O-ring
Lubrication Fittings
Synthetic braided compression packing with teflon dispersion
GENERAL DESCRIPTION
Pumps are the Stainless Steel version of the Industry-Proven
Bronze Pedestal Gear Pump N4000L specified by many leading
maple syrup filter press equipment manufacturers. Handles abrasive sugar sand and filter aide. These versatile pumps can be
operated in either rotating direction and can be installed in any
plane. All materials of construction are suitable for food service
use. Flush new Factory Supplied pumps thoroughly before use.
600
800
1000
1200
1600
0
46
92
138
184
231
290
346
P.S.I.
0
20
40
60
80
100
125*
150*
GPM
2.30
2.00
1.75
1.55
1.30
1.10
0.85
0.65
HP
0.10
0.15
0.20
0.25
0.32
0.40
0.53
0.70
MOTOR
1/6
1/6
1/4
1/4
1/3
1/2
1/2
3/4
GPM
3.45
3.20
2.95
2.75
2.50
2.30
2.07
2.17
0.94
HP
0.15
0.20
0.25
0.35
0.40
0.60
0.75
MOTOR
1/4
1/4
1/4
1/3
1/2
1/3
3/4
1
GPM
4.65
4.18
4.10
3.90
3.70
3.50
3.25
3.05
1.60
HP
0.20
0.22
0.29
0.45
0.64
0.86
1.20
MOTOR
1/4
1/4
1/3
1/2
3/4
1
1 1/2
2
GPM
5.86
5.65
5.40
5.18
4.95
4.76
4.50
4.30
1.20
1.50
HP
0.22
0.25
0.30
0.45
0.65
0.75
MOTOR
1/4
1/4
1/3
1/2
3/4
3/4
GPM
7.10
6.85
6.60
6.35
6.12
5.90
5.68
5.45
HP
0.25
0.30
0.40
0.60
0.75
0.97
1.30
1.70
MOTOR
1/4
1/3
1/2
3/4
3/4
1
1 1/2
2
GPM
9.70
9.45
9.20
8.95
8.72
8.50
8.30
8.10
HP
0.30
0.39
0.60
0.80
1.05
1.30
1.64
2.05
MOTOR
1/3
1/2
3/4
1
1
1 1/2
2
2
9.85
9.63
9.42
9.20
9.00
GPM
1725
10.56 10.33 10.10
1 1/2 1 1/2
HP
0.50
0.75
0.90
1.20
1.50
1.75
2.00
2.32
MOTOR
1/2
3/4
1
1 1/2
1 1/2
2
2
3
H.P. = Actual Horsepower
Motor = Convenient Fractional Size
G.P.M. = Gallons per Minute
P.S.I. = Lbs. Per Square Inch Pressure
R.P.M. = Revolutions per Min.
Ft. Hd. = Equiv. Press. in Ft of Water
*For pressures over 100 psi, the above selections are suitable for pumping fluids with lubricity
(e.q. oils, polymers). Service life will decrease for fluids without lubricity (e.q. water, solvents).
LIQUIDS AND TEMPERATURE
Tailored to handle typical processing conditions including raw
sap to 220F up to 80 psi as well as 140F hot water flushing.
Regreasing is recommended to prevent sap build-up between
shaft and bearing surfaces.
www.oberdorfer-pumps.com
PHONE (800) 448-1668; (315) 437-0361
FAX (315) 463-9561
MODEL
S4000L
PEDESTAL
ROTARY GEAR PUMPS
EXPLODED VIEW AND PARTS LIST
S4000L
1
2*
3
4*
5*
6*
7
8
16
17
Repair
Packnut
Packing
Body Assy
Drive Gear Assy
Idle Gear Assy
Oring
Cover Assy
Screw
Dowel Pin
Grease Fitting
Kit *
1 Req'd
2 Req'd
2 Req'd
1 Req'd
1 Req'd
1 Req'd
1 Req'd
8 Req'd
2 Req'd
2 Req'd
1762-01
5479
9319SD1N-1-S
33199-1
33198-1
9797-041
9322SN5N-1-S
5385
8885
5390-01
12317
* Repair kit includes these items
DIMENSIONS
3/06
Specifications are subject to change without notice.
www.oberdorfer-pumps.com
PHONE (800) 448-1668; (315) 437-0361
FAX (315) 463-9561
