GH-432ATXR/432SR Specifications 4U Rackmount Chassis 19" Rackmount

GH-432ATXR/432SR Specifications 4U Rackmount Chassis 19" Rackmount

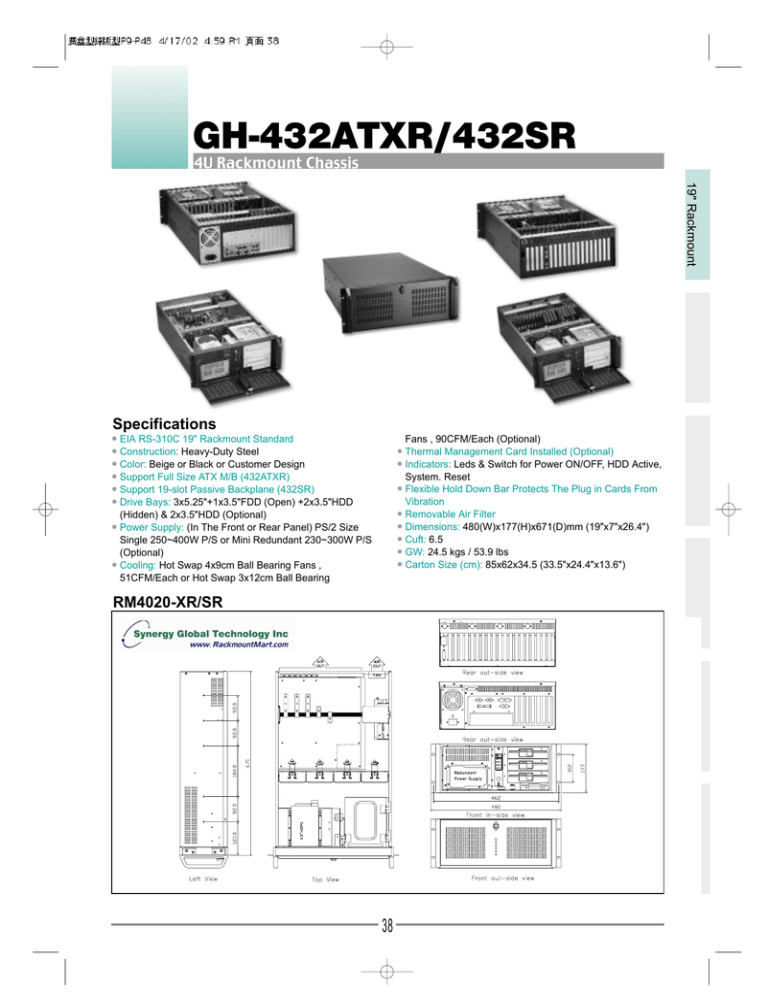

GH-432ATXR/432SR
4U Rackmount Chassis
19" Rackmount
Specifications
Fans , 90CFM/Each (Optional)
• Thermal Management Card Installed (Optional)
• Indicators: Leds & Switch for Power ON/OFF, HDD Active,
System. Reset
• Flexible Hold Down Bar Protects The Plug in Cards From
Vibration
• Removable Air Filter
• Dimensions: 480(W)x177(H)x671(D)mm (19"x7"x26.4")
• Cuft: 6.5
• GW: 24.5 kgs / 53.9 lbs
• Carton Size (cm): 85x62x34.5 (33.5"x24.4"x13.6")
• EIA RS-310C 19" Rackmount Standard
• Construction: Heavy-Duty Steel
• Color: Beige or Black or Customer Design
• Support Full Size ATX M/B (432ATXR)
• Support 19-slot Passive Backplane (432SR)
• Drive Bays: 3x5.25"+1x3.5"FDD (Open) +2x3.5"HDD
(Hidden) & 2x3.5"HDD (Optional)
• Power Supply: (In The Front or Rear Panel) PS/2 Size
Single 250~400W P/S or Mini Redundant 230~300W P/S
(Optional)
• Cooling: Hot Swap 4x9cm Ball Bearing Fans ,
51CFM/Each or Hot Swap 3x12cm Ball Bearing
RM4020-XR/SR
38
