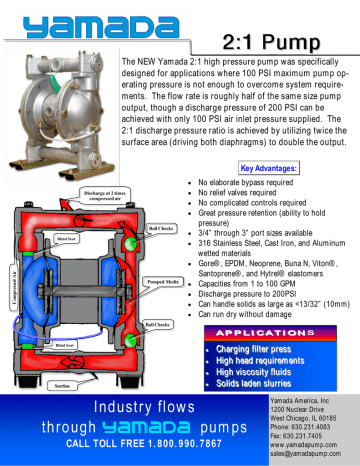

The NEW Yamada 2:1 high pressure pump was specifically
designed for applications where 100 PSI maximum pump operating pressure is not enough to overcome system requirements. The flow rate is roughly half of the same size pump
output, though a discharge pressure of 200 PSI can be
achieved with only 100 PSI air inlet pressure supplied. The
2:1 discharge pressure ratio is achieved by utilizing twice the
surface area (driving both diaphragms) to double the output.
Key Advantages:
•
•
•
•
Discharge at 2 times
compressed air
Ball Checks
Blind Seat
•
•
Compressed Air
•
Pumped Media
•
•
•
•
No elaborate bypass required
No relief valves required
No complicated controls required
Great pressure retention (ability to hold
pressure)
3/4” through 3” port sizes available
316 Stainless Steel, Cast Iron, and Aluminum
wetted materials
Gore®, EPDM, Neoprene, Buna N, Viton®,
Santoprene®, and Hytrel® elastomers
Capacities from 1 to 100 GPM
Discharge pressure to 200PSI
Can handle solids as large as <13/32” (10mm)
Can run dry without damage
Ball Checks
A
AP
PP
PL
L II C
CA
AT
T II O
ON
NS
Blind Seat
••
••
••
Suction
••
Charging filter press
High head requirements
High viscosity fluids
Solids laden slurries
Industry flows
through
pumps
CALL TOLL FREE 1.800.990.7867
Yamada America, Inc
1200 Nuclear Drive
West Chicago, IL 60185
Phone: 630.231.4083
Fax: 630.231.7405
www.yamadapump.com
[email protected]
Performance Data:
Performance curves are test based on normal temperatures (70°F) and fresh water. The discharge volume and
discharge head vary according to the viscosity, specific
gravity, etc.of the material to be transferred by air
pressure.
Your local distributor:
Note: Due to Yamada’s continued commitment to product improvement, specifications may change without notice.
Form# DM0402
