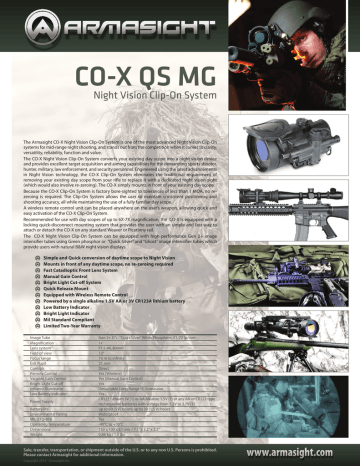

CO-X QS MG Night Vision Clip-On System

CO-X QS MG Night Vision Clip-On System
Night Vision Clip-On System
The Armasight CO-X Night Vision Clip-On System is one of the most advanced Night Vision Clip-On
systems for mid-range night shooting, and stands out from the competition when it comes to clarity,
versatility, reliability, function and value.
The CO-X Night Vision Clip-On System converts your existing day scope into a night vision device
and provides excellent target acquisition and aiming capabilities for the demanding sports shooter,
hunter, military, law enforcement, and security personnel. Engineered using the latest advancements
in Night Vision technology, the CO-X Clip-On System eliminates the traditional requirement of
removing your existing day scope from your rifle to replace it with a dedicated night vision sight
(which would also involve re-zeroing). The CO-X simply mounts in front of your existing day scope.
Because the CO-X Clip-On System is factory bore-sighted to tolerances of less than 1 MOA, no rezeroing is required. The Clip-On System allows the user to maintain consistent positioning and
shooting accuracy, all while maintaining the use of a fully familiar day scope.
A wireless remote control unit can be placed anywhere on the user’s weapon, allowing quick and
easy activation of the CO-X Clip-On System.
Recommended for use with day scopes of up to 6X-7X magnification, the CO-X is equipped with a
locking quick-disconnect mounting system that provides the user with an simple and fast way to
attach or detach the CO-X on any standard Weaver or Picatinny rail.
The CO-X Night Vision Clip-On System can be equipped with high-performance Gen 2+ image
intensifier tubes using Green phosphor or “Quick Silver” and “Ghost” image intensifier tubes which
provide users with natural B&W night vision displays.
Simple and Quick conversion of daytime scope to Night Vision
Mounts in front of any daytime scope, no re-zeroing required
Fast Catadioptic Front Lens System
Manual Gain Control
Bright Light Cut-off System
Quick Release Mount
Equipped with Wireless Remote Control
Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
Low Battery Indicator
Bright Light Indicator
Mil Standard Compliant
Limited Two-Year Warranty
Image Tube
Lens system
Field of view
Focus range
Exit Pupil
Remote Control
Variable Gain Control
Bright Light Cut-off
Infrared Illuminator
Low Battery Indicator
Power Supply
Battery life
Environmental Rating
Operating temperature
Gen 2+ QS - “QuickSilver” White Phosphore, 51-72 lp/mm
F1:1.44, 80mm
10 m to infinity
21 mm
Yes (Wireless)
Yes (Manual Gain Control)
Detachable Long Range IR Illuminator
CR123 Lithium 3V (1) or AA Alkaline 1.5V (1) or any AA or CR123 type
rechargeable batteries with voltage from 1.2V to 3.7V (1)
up to 60 (3 V) hours; up to 30 (1.5 V) hours
-40°C to +50°C
150 x 100 x 83 mm / 7.1” x 3.2” x 3.2”
0.88 kg / 1.5 lbs
Sale, transfer, transportation, or shipment outside of the U.S. or to any non U.S. Persons is prohibited.
Please contact Armasight for additional information.
Copyright 2014 - Armasight Inc.
