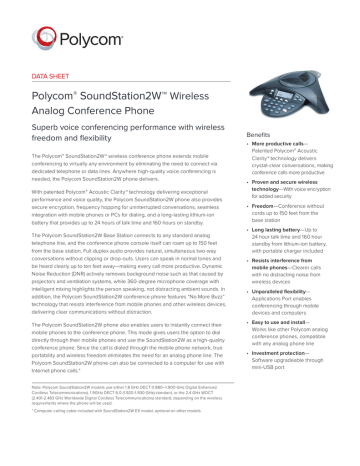

Polycom® SoundStation2W™ Wireless
Analog Conference Phone
Superb voice conferencing performance with wireless
freedom and flexibility
The Polycom® SoundStation2W ™ wireless conference phone extends mobile
conferencing to virtually any environment by eliminating the need to connect via
dedicated telephone or data lines. Anywhere high-quality voice conferencing is
needed, the Polycom SoundStation2W phone delivers.
With patented
Acoustic Clarity™ technology delivering exceptional
performance and voice quality, the Polycom SoundStation2W phone also provides
secure encryption, frequency hopping for uninterrupted conversations, seamless
integration with mobile phones or PCs for dialing, and a long-lasting lithium-ion
battery that provides up to 24 hours of talk time and 160 hours on standby.
The Polycom SoundStation2W Base Station connects to any standard analog
telephone line, and the conference phone console itself can roam up to 150 feet
from the base station. Full duplex audio provides natural, simultaneous two-way
conversations without clipping or drop-outs. Users can speak in normal tones and
be heard clearly up to ten feet away—making every call more productive. Dynamic
Noise Reduction (DNR) actively removes background noise such as that caused by
projectors and ventilation systems, while 360-degree microphone coverage with
intelligent mixing highlights the person speaking, not distracting ambient sounds. In
addition, the Polycom SoundStation2W conference phone features “No More Buzz”
technology that resists interference from mobile phones and other wireless devices,
delivering clear communications without distraction.
The Polycom SoundStation2W phone also enables users to instantly connect their
mobile phones to the conference phone. This mode gives users the option to dial
directly through their mobile phones and use the SoundStation2W as a high-quality
conference phone. Since the call is dialed through the mobile phone network, true
portability and wireless freedom eliminates the need for an analog phone line. The
Polycom SoundStation2W phone can also be connected to a computer for use with
Internet phone calls.*
Note: Polycom SoundStation2W models use either 1.8 GHz DECT (1.880–1.900 GHz Digital Enhanced
Cordless Telecommunications), 1.9GHz DECT 6.0 (1.920-1.930 GHz) standard, or the 2.4 GHz WDCT
(2.401-2.483 GHz Worldwide Digital Cordless Telecommunications) standard, depending on the wireless
requirements where the phone will be used.
* Computer calling cable included with SoundStation2W EX model, optional on other models
• M
ore productive calls—
Patented Polycom® Acoustic
Clarity™ technology delivers
crystal-clear conversations, making
conference calls more productive
• Proven and secure wireless
technology—With voice encryption
for added security
• Freedom—Conference without
cords up to 150 feet from the
base station
• Long lasting battery—Up to
24 hour talk time and 160 hour
standby from lithium-ion battery,
with portable charger included
• R
esists interference from
mobile phones—Clearer calls
with no distracting noise from
wireless devices
• Unparalleled flexibility—
Applications Port enables
conferencing through mobile
devices and computers
• Easy to use and install—
Works like other Polycom analog
conference phones, compatible
with any analog phone line
• Investment protection—
Software upgradeable through
mini-USB port
DATA SHEET Polycom SoundStation2W Specifications
Console specifications
Applications port
• 1.90 lbs (0.86 kg) (without battery)
• Four-foot mobile phone cable with
standard 3.5 mm headset plugs
• Four-foot computer calling cable to
connect to line-out and line-in ports
on computer*
• 12 V DC nominal; supplied by battery
or portable AC charger
Size (W x H)
Size (L x W x H)
• 14.5 x 12.25 x 2.5 in (36.8 x 31.1 x 6.4 cm)
Portable charger power supply size
and weight
• 2.2 x 2.85 x 1.85 in (5.59 x 7.24 x 4.7 cm)
• Weight—1.0 lbs (0.45 kg)
Wireless capability
• Wireless protocol
-- 1.8 GHz DECT (1.880–1.900 GHz)
-- 1.9 GHz DECT 6.0 (1.920–1.930 GHz)
-- 2.4 GHz WDCT (2.401–2.483 GHz)
• Digital spread spectrum with
frequency hopping
• Signal range: 150 ft (45 m) from
base station
• Dual diversity antennas
• Battery: Rechargeable lithium-Ion
battery pack
• Talk time: 12 hrs (basic version),
24 hrs (EX version)
• Standby time: Up to 80 hrs (basic
version), 160 hrs (EX version)
• Charge time: 4 hrs (basic version),
8 hrs (EX version)
• Signal strength and battery status
continuously displayed on LCD
• Portable console charger: 1Amp standard
110-240 V AC 50/60Hz power supply
• 64-bit voice encryption between console
and base station
• Aux out record feature activated via
console keypad
• Size (pixels): 132 x 65
• High-resolution backlit graphical LCD
Caller ID and phone book
• Support for multiple caller ID standards
• Bellcore type 1 (requires a telephone
company subscription for activation)
• British Telecom
• Phone book/speed dial list—up to
25 entries
• Console interfaces
• 1.8 GHz DECT, 1.9 GHz DECT 6.0,
or 2.4 GHz WDCT radio interface to
base station
• 2.5 mm connection port
(cable included)1,2
• Interface to charger
• Mini-USB port for software upgrades
• 2 expansion microphone connections
(EX version only)
• Console locking grommet (compatible
with standard laptop/PC security cables)
• Wall mounting fastening holes
Base station specifications
Size (L x W x H)
• 5.9 x 5.9 x 1.6 in (15.07 x 15.07 x 4.1 cm)
• Wall mountable
• 0.7 lbs (0.32 kg)
User interface
• 12-key telephone keypad
• On-hook/off-hook, conference,
mute, volume up/down keys, menu,
navigation keys
• 4 context-dependent soft keys including
redial and hold
• Power LED
• Call in progress LED
• Console locating button with audible
console feedback
Audio features
• Loudspeaker frequency response:
300-3300 Hz
• Volume: Adjustable to 94dBA SPL (peak)
volume at 1.0 m
• 3 cardioid microphones 300–3500 Hz
• Polycom ® Acoustic Clarity™ full duplex—
IEEE 1329 Type 1 at -2dB idle limit
• Up to 10 ft (3 m) microphone
pick-up range
• Gated microphones with intelligent
microphone mixing
• Dynamic noise reduction
• 110-240 V AC 50/60 Hz (power
supply included)
Base station power supply size
and weight
• 1.9 x 2.4 x 1.65 in (4.83 x 6.1 x 4.19 cm)
• Weight: 0.55 lbs (0.25 kg)
Base station audio auxiliary output
• Style: RCA jack
• Output activated from console menu to
ensure privacy
DATA SHEET Polycom SoundStation2W Specifications
Base station telco interface
Environmental requirements
• Network connection—2-wire RJ-11 analog
PBX or PSTN interface
• Speech mode
• Bandwidth 300–3300 Hz
• Network requirements—compatible
with standard PSTN and PBX networks,
analog or G.711 encoded
• Operating temperature: 40°–104° F
(5°–40° C)
• Relative humidity: 20%–85%
• Storage temperature: -22°–131° F
(-30°–55° C)
1 year
• Reverberation time: <0.54 seconds
• Noise level: <48 dBa
• Approx room size: 10 x 20 ft
• 2 cardioid expansion microphones
300–3500 Hz (for EX version only,
wired mics)
• 4-Cell battery pack with 24 hrs talk time
• 2-Cell battery pack with 12 hrs talk time
• Replacement portable console charger
• Replacement mobile phone
connector cable
• Replacement computer calling
connector cable
• IEC60950-1
• FCC Part 15.247
• ICES-003
• CE Mark (R and TTE Directive)
• A-Tick and C-Tick Marks
• RoHS Compliant
Recommended room conditions
SoundStation2W ships with
Country of origin
1. The 3.5 mm Mobile Device Cable is for devices
with 3.5 mm headset port with iPhone® style
wiring and wiring used by many Samsung, Sony
Mobile Communications and Nokia mobile
devices. Included with SoundStation2W EX
model, optional on other models
2. Computer calling cable included with
SoundStation2W EX model, optional on
other models
• Tabletop phone console with integrated
display and keypad
• Compact base station
• Rechargeable lithium-ion battery pack
• Portable console charger
• 4 ft (1.2 m) mobile device
connection cable1
• 4 ft (1.2 m) computer calling cable2
• Base station power cable
• 7 ft (2.1 m) base station telco cable
• User documentation (user guide CD,
quick installation guide)
