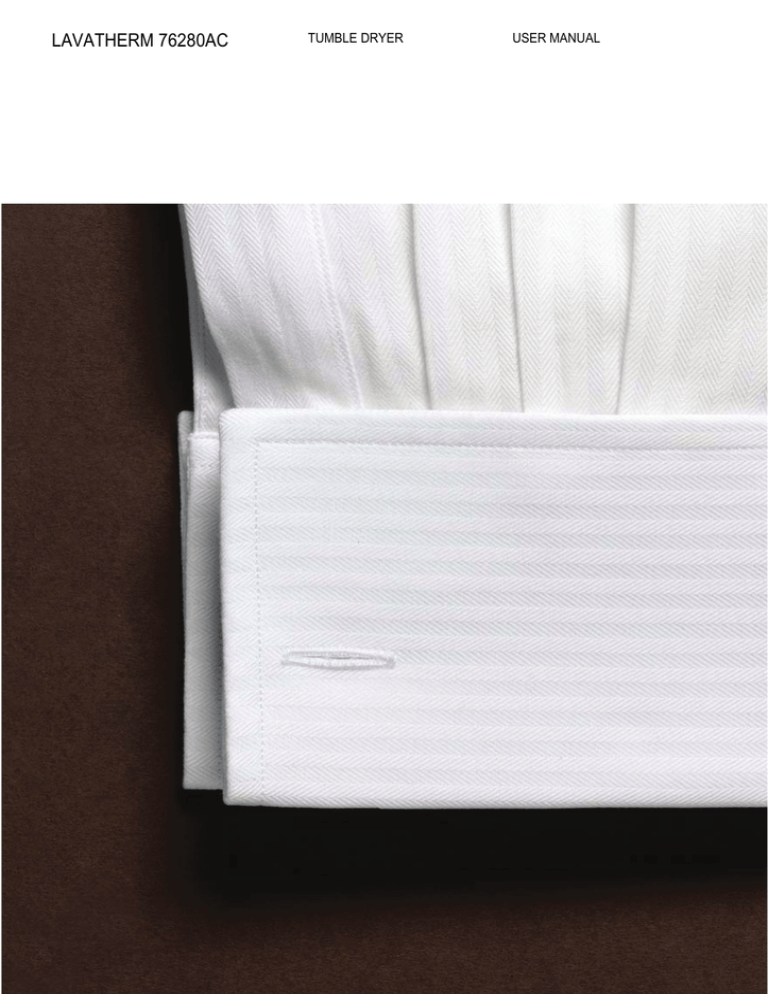

LAVATHERM 76280AC
TUMBLE DRYER
USER MANUAL
2
CONTENTS
4
5
7
8
9
11
11
12
14
17
19
25
27
28
CONDITIONS OF USE
SAFETY INFORMATION
ENVIRONMENT CONCERNS
PRODUCT DESCRIPTION
ACCESSORIES
CONTROL PANEL
BEFORE FIRST USE
PROGRAMMES
USING THE APPLIANCE
HINTS AND TIPS
CARE AND CLEANING
TROUBLE SHOOTER AND SERVICE
TECHNICAL INFORMATION
INSTALLATION
SERVICE
When contacting Service, ensure that
you have the following data available.
The information can be found on the
rating plate.
Model
PNC
Serial Number
The following symbols are used in this
user manual:
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice
ENGLISH
3
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please spend
a few minutes reading to get the very best from it.
ACCESSORIES AND CONSUMABLES
In the AEG webshop, you’ll find everything you need to keep all your AEG
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
Visit the webshop at:
www.aeg.com/shop
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
www.aeg.com
4
CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• Farm Houses
• By clients in serviced apartments,
holiday apartments and other residential type environments
ENGLISH
5
SAFETY INFORMATION
In the interest of your safety and to
ensure the correct use, before installing and first using the appliance,
read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation
and safety features. Save these instructions and make sure that they
remain with the appliance if it is
moved or sold, so that everyone using it through its life will be properly
informed on appliance use and safety.
•
•
•
•
- Read the instruction manual before the appliance use.
— Caution, risk of fire
•
GENERAL SAFETY
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Make sure that small children and
pets do not climb inside the drum.
To avoid this, please check into the
drum before using.
• Any objects such as coins, safety
pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be
placed into the machine.
• Items such as foam rubber (latex
foam), shower caps, waterproof textiles (if there is no special drying programme), rubber backed articles and
clothes or pillows fitted with foam
•
•
•
•
•
rubber pads must not be dried in the
tumble dryer.
Make sure that there is access to the
mains plug after the installation.
Always unplug the appliance after
use, cleaning and maintenance.
Under no circumstances should you
attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your
local Service Centre. Always insist on
genuine spare parts.
Items that have been soiled with substances such as cooking oil, acetone,
petrol, kerosene, spot removers, turpentine, waxes and wax removers
should be washed in hot water with
an extra amount of detergent before
being dried in the tumble dryer.
Danger of explosion: Never tumble
dry items that have been in contact
with inflammable solvents (petrol,
methylated spirits, dry cleaning fluid
and the like). As these substances are
volatile, they could cause an explosion. Only tumble dry items washed
with water.
Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard
and should not be placed in the tumble dryer.
If you have washed your laundry with
stain remover you must execute an
extra rinse cycle before loading your
tumble dryer.
Please make sure that no gas lighters
or matches have accidentally been
left in pockets of garments in case
they are loaded into the appliance
The condensed water is not suitable
to drink or to prepare food. It can
cause health problems to people and
pets.
Do not sit or lean on the load door.
The appliance can tilt.
6
WARNING!
• Risk of fire! To prevent from
the risk of self combustion
do not stop a tumble dryer
before the end of the drying cycle unless all items are
quickly removed and spread
out so that the heat is dissipated.
• Lint must not be allowed to
accumulate around the tumble dryer.
• Risk of electric shock! Do not spray
down the appliance with jets of water.
• The final part of a tumble dryer cycle
occurs without heat ( cool down cycle ) to ensure that the items are left
at a temperature that ensures that
items will not be damaged.
• The tumble dryer is not to be used if
industrial chemicals have been used
for cleaning.
• Ensure you have good ventilation in
the installation room to avoid the
back flow of gases into the room
from appliances burning other fuels,
including open fires.
• Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing
an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become
hot enough to catch fire. Piling,
stacking or storing oil-affected items
can prevent heat from escaping and
so create a fire hazard.
• If it is unavoidable that fabrics that
contain vegetable or cooking oil or
have been contaminated by hair care
products be placed in a tumble dryer
they should first be washed in hot
water with extra detergent - this will
reduce, but not eliminate, the hazard.
INSTALLATION
• This appliance is heavy. Be careful
when you move the appliance.
• When unpacking the appliance,
check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.
• All packaging must be removed before use. Dangerous damage can occur to the product and to property if
this is not adhered to. See relevant
section in the user manual.
• Any electrical work necessary to install this appliance must be done by
a qualified electrician or competent
person.
• The rear surface of the appliance
must be put against the wall
• If the appliance is installed on the
carpet or equivalent, adjust the feet.
Air must flow freely below the appliance.
• After the appliance installation, check
that the electrical supply cord is not
caught under or behind the dryer.
• If the tumble dryer is put on top of a
washing machine, it is mandatory to
use the stacking kit (optional accessory - see chapter: "ACCESSORIES").
USE
• This appliance is for domestic use
only. It must not be used for other
functions .
• Only dry fabrics which are applicable
to dry in the tumble dryer. Follow the
instructions on each piece of clothing
label.
• Do not dry unwashed items in the
tumble dryer.
• Do not put more load than recommended. Obey the maximum load
volume. See the related chapter in
the user manual.
• Clothes which are dripping wet must
not be put in the tumble dryer.
• Garments which have been in contact
with volatile petroleum products
should not be machine dried. If volatile cleaning fluids are used, care
should be taken to ensure that the
fluid is removed from the garment
before placing in the appliance.
ENGLISH
• Do not use the tumble dryer if the
power supply cable, the control panel, the working surface or the base
are damaged so that the inside of
the tumble dryer is accessible.
• Fabric softener or equivalent products must be used as specified by the
fabric softener manufacturer.
• Risk of fire! Do not dry damaged
items which contain padding or fillings (pillows, jackets, duvets, etc.).
The padding or fillings can be exposed and cause a fire.
CHILD SAFETY
• This machine is not intended for use
by young children or infirm persons
without supervision.
• Children often do not recognise the
hazards associated with electrical appliances. Children should be supervised to ensure that they do not play
with the appliance.
7
WARNING!
• Danger of suffocation! The
packaging components (e.g.
plastic film, polystyrene) can
be dangerous to children Keep them out of children’s
reach.
• Keep all detergents in a safe place
out of children’s reach.
• Make sure that children or pets do
not climb inside the drum.
DISCARD THE APPLIANCE
• Disconnect the mains plug from the
mains socket.
• Cut off the mains cable and discard
it.
• Discard the door catch. This prevents
children or pets to be closed in the
appliance. There is a risk of suffocation.
ENVIRONMENT CONCERNS
PACKAGING MATERIALS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
on the product or on its
The symbol
packaging indicates that this product
may not be treated as household
waste. Instead it should be taken to the
appropriate collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by inappropriate waste
handling of this product. For more
detailed information about recycling of
this product, please contact your local
council, your household waste disposal
service or the shop where you
purchased the product.
8
PRODUCT DESCRIPTION
1
2
12
11
10
9
8
7
3
6
4
5
1 Control panel
8 Rating plate
2 Load door (reversible)
9 Sliding button to open the con-
3 Airflow slots
4 Adjustable feet
5 Condenser door
6 Condenser cover
7 Lock knobs
denser door
10 Filter
11 Drum light
12 Water container
ENGLISH
9
ACCESSORIES
STACKING KIT
Read carefully the instructions supplied
with the kit.
PEDESTAL WITH THE DRAWER
Product name: SKP11
Available from your authorized dealer.
Stacking kit can be used only with the
washing machines specified in the leaflet. See leaflet attached.
Read carefully the instructions supplied
with the kit.
DRAINING KIT
Product name: PDSTP10.
Available from your authorized dealer.
To put the appliance higher at the level
which helps to easy load and remove
the laundry .
The drawer can be use for laundry storage e.g. : towels, cleaning products and
more.
Read carefully the instructions supplied
with the accessory.
DRYING RACK
Product name: DK11.
Available from your authorized dealer
Installation kit for draining of the condensed water into a basin, siphon, gully, etc. After installation the water container is drained automatically. The water container must stay in the appliance.
Installed hose must be a minimum of
50cm to a maximum of 1 m from floor
level. The hose cannot be in loop. If
possible decrease the length of the
hose.
Available from your authorized dealer
(can be attached to some types of tumble dryers)
10
Drying rack accessory can be used to
dry the following items safely:
• sport shoes
• wool
• soft toys
• lingerie
Read carefully the instructions supplied
with the kit.
ENGLISH
11
CONTROL PANEL
1
2
3
4
5
6
7
1 The programme dial
8
9
Symbol
2 The On/Off push button
4 The Dry Plus push button
delicate
5 The Delicate push button
6 The Anticrease push button
8 The Time Drying push button
Description
maximum extra
dryness
3 The programme indicators
7 The Buzzer push button
10 11 12
delay start
m/
m
anti-crease time
drying cycle
phase indicator
9 The Delay Start push button
10 The display
cooling cycle
phase indicator
11 The Start/Pause push button
12 The indication lamps: drain the wa-
crease guard cycle phase indicator
ter container, clean the filter, clean
the condenser
child lock activated
DISPLAY
cycle time indication
Symbol
Description
time programme
selection (10 min.
- 2h.)
-
default dryness
level
moderate extra
dryness
-
delay start selection (30 min. 20h.)
BEFORE FIRST USE
Clean the tumble dryer drum with a
moist cloth or set a short programme
(e.g. 30 minutes time programme) with
the load of moist cloths.
12
PROGRAMMES
Programmes
Load
1)
Properties
Available
functions
Cottons
Extra Dry
8 kg
To dry cotton clothing. Drying level: extra dry.
all except
Time Drying
Cupboard
Dry
8 kg
To dry cotton clothing. Drying level: cupboard dry.
all except
Time Drying
Iron Dry
8 kg
To dry cotton clothing. Drying level: applicable to iron.
all except
Time Drying
Jeans
8 kg
To dry leisure clothing such as
jeans, sweat-shirts of different material thicknesses (e.g. at the neck,
cuffs and seams).
all except
Time Drying
Bed Linen
3 kg
To dry bed linen such as: single
and double sheet, pillowcase,
bedspread.
all except
Time Drying
3 kg
To dry single or double duvet and
pillows (with feather, down or synthetic fillings).
all except
Anticrease
and Time
Drying2)
Time
8 kg
To dry laundry with the time set by
the user. The time value must be
related to the load. To dry one
item or small quantities of the
laundry we recommend to use
short times.
all except
Dry Plus
Extra Quick
Mixed
3 kg
To dry cotton and synthetic fabrics, uses low temperature.
Duvets
all except:
Delicate and
Time Drying
Synthetics
Extra Dry
To dry thick or multi-layered fab3,5 kg rics, e. g. pullovers, bedding, table
linen.
all except
Time Drying
Cupboard
Dry
To dry thin fabrics which are not ironed, e.g. easy care shirts, table
3,5 kg
linen, baby clothes, socks, lingerie
with bones or wires.
all except
Time Drying
Iron Dry
3,5 kg
To dry thin fabrics which are also
to be ironed, e.g. knitwear, shirts.
all except
Time Drying
Fabric
mark
ENGLISH
Programmes
Load
Available
functions
1)
Properties
1 kg
(or 5
shirts)
To dry easy care fabrics such as
shirts and blouses; for minimum
ironing effort. The results can vary
for different types of fabric and its
finish. Put fabrics in the tumble
dryer straight away. After the cycle, immediately remove dried
fabrics and put on a clothes hanger.
Active Wear
2 kg
To dry outdoor clothing, sports,
pile fabrics, waterproof and
breathable jackets, jacket teamed
with a removable fleece or inner
insulation.
Sports
2 kg
To dry sportswear, thin and light
fabrics, microfiber, polyester,
which are not ironed.
Delicates
3 kg
To dry delicate fabrics.
all except
Time Drying
1 kg
To refresh the clothes made of
wool . The clothes become soft
and cosy. We recommend to remove the clothes immediately after the programme end.
Buzzer ,
Time Drying
3), Delay
Start 2)
Easy Iron
Wool Refresh
1) maximum weight of dry clothes
2) Delicate activated by default
3) Only with the drying rack — see chapter ACCESSORIES
all except
Time Drying
2)
all except
Anticrease
and Time
Drying 2)
all except
Time Drying
2)
13
Fabric
mark
14
USING THE APPLIANCE
PREPARING THE LAUNDRY
LOADING THE LAUNDRY
Dry only the laundry applicable
to dry in this tumble dryer. Make
sure the laundry is able to be
dried in this tumble dryer.
Check the fabric mark on the
clothing.
Fabric Property
mark
Applicable to dry in the tumble dryer
Applicable to dry in the tumble dryer at standard temperature
Applicable to dry in the tumble dryer at decreased temperature
Not applicable to dry in the
tumble dryer
How to correctly prepare the laundry:
• close zips, button up duvet covers
and attach loose ties or ribbons (e.g.
ribbons of aprons) - laundry can tangle
• make sure the pockets are empty remove metal items (paper clips,
safety pins, etc.).
• turn items with 2 fabric layers inside
out (e.g. cotton lined anoraks, the
cotton fabric layer must be external).
Dry only:
• cotton and linen with Cottons programmes
• synthetic and mixtures with Synthetic
programmes
• separate strong coloured items from
light coloured items as colours may
bleed
• make sure to use the appropriate
programs with cotton jersey and knitwear as items may shrink
Do not put more laundry than
the maximum load which is 8kg.
1.
2.
3.
Pull the appliance door open
Load laundry loosely
Close the appliance door.
CAUTION!
Do not lock the laundry in between the appliance door and
rubber seal.
SWITCHING ON THE
APPLIANCE
Push the On/Off button to activate or
to deactivate the appliance. When the
appliance is on, some indications come
in to the view on the display.
AUTO OFF FUNCTION
To decrease the energy consumption,
the automatic stand-by function deactivates the appliance:
• if the Start/Pause button was not
pushed in the time of 5 minutes.
• after 5 minutes from the programme
end.
Push the On/Off button to activate the
appliance.
ENGLISH
SETTING A PROGRAMME
15
THE DRY PLUS FUNCTION
This function helps achieve dryer laundry. There are 3 possible selections:
- the default selection which is related to the programme.
— to get light dryness of laundry
— choose this selection to get
maximum dryness of clothes.
THE DELICATE FUNCTION
To dry more lightly, delicate and temperature sensitive textiles (e.g. acrylic,
viscose). For fabrics with the symbol
on the fabric label. Programme operates with decreased heat.
Use the programme dial to set the programme. The possible time to complete the program will be shown on the
display.
The drying time you see is related to the load of 5 kg for cotton and jeans programmes. For
the other programmes the drying time is related to the recommended loads. The drying time
of the cotton and jeans programmes with the load more
than 5 kg is longer.
SPECIAL FUNCTIONS
Together with the programme you can
set 1 or more special functions.
To activate or deactivate the function
push the applicable push button.
THE ANTICREASE FUNCTION
Extends anticrease phase (30 minutes)
at the end of the drying cycle to 90 minutes. This function prevents laundry
from creases. Laundry can be removed
during the anticrease phase.
THE BUZZER FUNCTION
When the buzzer function is activated
you can hear the buzzer at the:
• cycle end
• anti-crease phase start and end
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
THE TIME DRYING FUNCTION
Operates only with the Time programme. Lets the user set specific drying programs from 10 minutes to 2
hours in 10 minute incremental steps.
THE DELAY START FUNCTION
Allows the delay of drying programs from a minimum of 30 minutes to a maximum of 20 hours.
When the function is activated the LED
above the push button or symbol on
the display comes into view.
1.
2.
Set the drying programme and
functions.
Push the Dealy start button repeatadly until the required time is
16
3.
shown on the display (e.g.
if
the programme has to start after 12
hours.)
To activate the programme push the
Start/Pause button. The LED above the
push button changes the colour to red.
To activate the Delay start function,
push the Start/Pause button. The
time to start decreases on the display.
CHANGE A PROGRAMME
CHILD LOCK FUNCTION
The child lock can be set to prevent
children accidently setting a program.
The child lock function locks all push
buttons and the programme dial (this
function does not lock On/Off button).
To activate the child lock function push
the Dry Plus and Delicate buttons at the
same time until the symbol comes
into view on the display. To deactivate
push again the above buttons until the
symbol goes out of view.
You can activate the child lock function:
• before you push the Start/Pause button - the appliance cannot start
• after you push the Start/Pause button
- all the push buttons and the programme dial are deactivated
STARTING A PROGRAMME
To change a programme, push the On/
Off button to deactivate appliance.
Push the On/Off to activate the appliance and then set the programme
again.
AT THE END OF PROGRAMME
When the drying cycle is completed,
the symbol flashes on the display. If
the Buzzer function is on, an acoustic
signal sounds intermittently for one minute.
To remove the laundry:
1. Push the On/Off button for 2 seconds to deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
After each drying cycle:
• clean the filter
• drain the water container
(See chapter CARE AND CLEANING.)
ENGLISH
17
HINTS AND TIPS
ECOLOGICAL HINTS
• Do not use fabric softener to wash
and then dry. In the tumble dryer
laundry becomes soft automatically.
• Use the condensate as distilled water, e.g. for steam ironing. If necessary clean the condensate before (e.g.
with a coffee filter) to remove possible small pieces of fluff.
• Always keep the airflow slots on the
bottom of the appliance clear.
• Use the load volumes specified in the
programmes chapter.
• Make sure there is good air flow in
and around the appliance position.
• Clean the filter after each drying cycle.
• Ensure clothes are spun well in the
washing machine before putting
them in the dryer.
AVERAGE LAUNDRY WEIGHTS
bathrobe
1200 g
quilt cover
700 g
man’s work shirt
600 g
man’s pyjamas
500 g
sheet
500 g
tablecloth
250 g
man’s shirt
200 g
night dress
200 g
pillow case
200 g
towelling towel
200 g
blouse
100 g
ladies’ briefs
100 g
men’s underpants
100 g
napkin
100 g
tea towel
100 g
WATER HARDNESS AND
CONDUCTIVITY
Water hardness can be different for different locations. Water hardness has an
effect on the water conductivity and the
operation of the conductivity sensor in
the appliance. If you know the value of
the water conductivity you can adjust
the sensor to dry with the better results.
To change the sensor conductivity:
1. Turn the programme dial to available programme.
2. Push at the same time the Dry Plus
and the Anticrease buttons. Hold
down until one of the symbols go
into view on the display:
–
low conductivity <300
μS/cm
–
moderate conductivity
300-600 μS/cm
–
high conductivity >600
μS/cm
3. Push the Start Pause button again
and again until you set necessary
level.
4. To memorise this setting push the
same two buttons as specified in
point 2.
WATER CONTAINER FULL —
INDICATION
By default the indication LED is always
on. It comes into the view at the end of
the cycle or when the water container is
full. When you use an external equipment to drain the container, the LED
can be off.
To activate or deactivate the indication:
1. Turn the programme dial to available programme.
2. Push at the same time the Dry Plus
and Buzzer buttons and hold down
until you see the correct setting:
– the LED is off and the symbol
goes into the view - The
LED is permantly off
18
– the LED is on and the symbol
goes into the view - The
LED is activated
ENGLISH
19
CARE AND CLEANING
CLEANING THE FILTER
The filter collects the fluff. The
fluff occurs while the clothes are
dried in the tumble dryer.
At the end of each cycle the filter LED is
on to tell you that the filter must be
cleaned.
To clean the filter:
1.
Open the door.
2.
pull the filter up.
3.
Open the filter.
20
4.
Use a moist hand to clean the filter.
5.
If necessary clean the filter with
warm water using a brush.
Close the filter.
6.
Remove fluff from the filter socket.
For this a vacuum cleaner can be
used.
Put the filter inside the filter socket.
7.
CAUTION!
Do not operate the tumble dryer without the filter or with a
damaged or blocked filter.
Clean the filter after each drying
cycle. A clogged filter increases
the cycle time and causes higher
energy consumption.
DRAINING THE WATER
CONTAINER
Drain the water container after each
drying cycle.
If the water container is full, the programme breaks off automatically and
the drain container LED is on. To continue the programme, drain the water
container and press the start button.
To drain the water container automatically you can install draining accessory (see chapter: ACCESSORIES)
ENGLISH
21
To drain the water container:
WARNING!
Risk of poisoning. The condensed water is not applicable
to drink or to prepare food.
The condensed water can be
used as distilled water, e.g. for
steam ironing. If necessary filter
the condensed water (e.g. with a
coffee filter) to remove possible
residue and small pieces of fluff.
1.
Pull the water container.
2.
Move the water container in a horizontal position. Water will flow out
the top opening if not kept horizontal.
3.
Move the plastic connection out
and drain the water container into a
sink or equivalent receptacle.
4.
Move plastic connection in and install water container.
CLEANING THE CONDENSER
If the condenser LED is on, the condenser must be cleaned.
22
To clean the condenser:
1.
Open the loading door.
2.
Move the release button on the
bottom of the door opening and
open the condenser door.
3.
Turn the 2 locks to unlock the condenser lid.
4.
Lower the condenser lid.
ENGLISH
23
5.
Catch the handle and pull the condenser out from the bottom compartment. Move condenser horizontally to prevent remaining water
spilling.
6.
Clean the condenser in vertical position over a basin. Rinse through
with a hand shower.
7.
Clean the condenser filter. Rinse
through with a hand shower.
8.
Put the condenser back inside the
bottom compartment.
9.
Close the condenser lid.
10.
Lock the 2 locks until they snap.
11.
Close the condenser door.
24
CAUTION!
Do not operate the tumble dryer when the condenser is
blocked with fluff. This could
cause damage to the tumble
dryer. This also increases energy
consumption.
Do not use sharp objects to
clean the condenser. The damaged condenser could cause
leaks.
Do not operate the tumble dryer without the condenser.
CLEANING THE DRUM
WARNING!
Disconnect the appliance before you clean it.
Use a standard neutral soap detergent
to clean the inner surface of the drum
and drum ribs. Dry the cleaned surfaces
with a soft cloth.
CAUTION!
Do not use abrasive materials or
steel wool to clean the drum.
CLEANING THE CONTROL
PANEL AND HOUSING
Use a standard soap detergent to clean
the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents which
can cause corrosion to clean the
appliance.
ENGLISH
25
TROUBLE SHOOTER AND SERVICE
TROUBLESHOOTING
Problem1)
Possible cause
Remedy
The tumble dryer is not connected to mains supply.
Connect in at mains socket.
Check fuse in fuse box (domestic installation).
The loading door is opened.
The tumble
The On/Off button was not
dryer does
pushed.
not operate.
The Start/Pause button was not
pushed.
Unsatisfactory drying
results.
The door
does not
close.
Err (Error)
on the display.
No drum
light 5)
Close the loading door.
Push the On/Off button.
Push the Start/Pause button.
The appliance is in the standby
mode.
Push the On/Off button.
Incorrect programme selection.
Select applicable programme.2)
The filter is clogged.
Clean the filter. 3)
The Dry Plus function was in
minimum mode.
Change the Dry Plus function to
the moderate or maximum
mode.
The condenser is clogged.
Clean the condenser. 3)
Load is too big
Obey the maximum load volume.
The airflow grill is clogged.
Clean the airflow grill in the bottom of the appliance.
Dirt on the inner surface of the
drum.
Clean the inner surface of the
drum.
Too high water hardness.
Set applicable water hardness4).
The filter not locked in the position.
Put the filter in the correct position.
The laundry is locked between
the door and the seal.
Put the load correctly in the
drum.
You try to change the programme or the function after
the start of the cycle.
Turn the tumble dryer off and
on. Make the new selection.
The function you try to activate
is not applicable with the selected programme.
Turn the tumble dryer off and
on. Make the new selection.
Defective drum light.
Contact the service centre to replace the drum light.
26
Problem1)
Possible cause
Remedy
Abnormally
elapsing
time on the
display.)
The time to end is calculated on
The automatic procedure — this
the basis of the volume and
is not the appliance malfunction.
dampness of the laundry.
Programme
inactive.
The water container is full.
Drain the water container3) ,
push the Start/Pause button.
Too small laundry volume.
Do the selection of time programme. The time value must
be related to the load. To dry
one item or small quantities of
the laundry we recommend to
use short times.
The laundry is too dry.
Do the selection of time programme or higher drying level
(e.g. Extra Dry )
The filter is clogged.
Clean the filter.
Too high volume of the load.
Obey the maximum load volume.
The laundry not spun sufficiently.
Spin correctly the laundry.
Very high room temperature this is not the appliance malfunction.
If possible, lower the room temperature.
Drying cycle
too short.
Drying cycle
too long 6)
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on.
Make a selection of the new programme. Push the Start/Pause button. Does not operate? contact the service centre and give the error code.
2) follow the programme description — see PROGRAMMES chapter
3) see CARE AND CLEANING chapter
4) see section WATER HARDNESS in HINTS AND TIPS chapter
5) Only the tumble dryers with drum light.
6) Note: After maximum 5 hours the drying cycle ends automatically (see Drying cycle
complete section).
DRUM INTERNAL LAMP
This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
WARNING!
Do not look directly into the
beam of the lamp.
To replace the internal lamp,
contact the service centre.
Disconnect the mains plug from
the mains socket before the replacement of the internal lamp.
ENGLISH
TECHNICAL INFORMATION
height x width x depth
850 x 600 x 600 mm (maximal 640 mm)
drum volume
108 l
maximum depth with the load door
opened
1090 mm
maximum width with the load door
opened
950 mm
adjustable height
850 mm (+ 15 mm - feet regulation)
the appliance weight
43 kg
maximum load
8 kg
voltage
230-240 V
frequency
50 Hz
total power
2250 W
type of use
Domestic
permitted ambient temperature
+ 5°C to + 35°C
27
28
INSTALLATION
APPLIANCE POSITIONING
• The tumble dryer must be installed in
a clean position, where dirt does not
collect.
• Air must flow freely around the appliance. Make sure that the front airflow
slots in the bottom of the appliance
are not blocked .
• To keep vibration and noise at the
minimum, when the tumble dryer operates, it must be put on a stable and
flat surface.
• When the appliance is put in its permanent position, check it is fully level
with the aid of a spirit level. If it is
not, adjust the feet until it is.
• Do not remove the feet. Do not decrease the floor clearance through
thick carpets, plank of wood or piece
of wood. This can increase the heat
which can cause interference with the
operation of the appliance.
• The temperature of the hot
air insde the tumble dryer can
exceed 60 °C. The appliance
must not be installed on the
floor which is not resistant to
high temperatures.
• When the tumble dryer operates, the room temperature
must not be lower than +5 °C
and higher than +35 °C. This
can cause unwanted effect on
the performance of the appliance.
• If it is necessary to move the
appliance, it must be moved
vertically.
• The appliance must not be installed behind a lockable
door, a sliding door, a door
with a hinge on the opposite
side to that of the appliance
in such a way that a full opening of the tumble dryer is restricted.
It is possible to adjust the height of the
tumble dryer. To do that adjust the feet
(see picture).
15mm
UNPACKING
CAUTION!
Before use all parts of the transport
packaging must be removed.
To remove the polystyrene blockages:
1. Open the load door.
2. Pull plastic hose with the polystyrene blockages out from the drum.
INSTALLATION UNDER A
COUNTER
The appliance can be installed as freestanding or below the kitchen counter
with correct space (see picture).
ENGLISH
600 mm
> 850 mm
600 mm
THE LOAD DOOR REVERSAL
The load door can be installed by the
user in the opposite side. It can help to
easily put and remove the laundry or if
there is a limit to install the appliance.
(see separate leaflet).
ELECTRICAL CONNECTION
• Connect the machine to an earthed
socket, in accordance with current
wiring regulations.
29
• Make sure that the electrical data on
the rating plate agrees with the power supply.
• Always use a correctly installed
shockproof socket.
• Do not use multiple plugs and extension cables. There is a risk of fire.
• If the supply cord of this appliance is
damaged, it must be replaced by the
manufacturer, its service agent or
similarly qualified persons to avoid a
hazard.
• Make sure not to squash or cause
damage to the mains plug and cable
behind the appliance.
• Do not pull the mains cable to disconnect the appliance. Always pull
the mains plug.
• The plug must be dry.
30
This document sets out the terms
and conditions of the product warranties for AEG Appliances. It is an
important document. Please keep it
with your proof of purchase documents in a safe place for future reference should you require service for
your Appliance.
1. In this warranty
a) ‘acceptable quality’ as referred
to in clause 10 of this warranty
has the same meaning referred
to in the ACL;
b) ‘ACL’ means Trade Practices
Amendment (Australian Consumer Law) Act (No.2) 2010;
c) ‘Appliance’ means any AEG
product purchased by you accompanied by this document;
d) ‘ASC’ means AEG’ authorised
serviced centres;
e) AEG is the brand controlled by
Electrolux Home Products Pty
Ltd of 163 O’Riordan Street,
Mascot, NSW 2020, ABN 51 004
762 341 in respect of Appliances purchased in Australia and
Electrolux (NZ) Limited of 3-5
Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
f) ‘major failure’ as referred to in
clause 10 of this warranty has
the same meaning referred to in
the ACL and includes a situation when an Appliance cannot
be repaired or it is uneconomic
for Electrolux, at its discretion,
to repair an Appliance during
the Warranty Period;
g) ‘Warranty Period’ means:
– where the Appliance is used
for personal, domestic or
household use (i.e. normal
single family use) as set out in
the instruction manual, the
Appliance is warranted
against manufacturing defects in Australia and New
Zealand for 60 months, fol-
2.
3.
4.
5.
lowing the date of original
purchase of the Appliance;
– this Appliance is not designed for commercial use
and therefore no warranty applies in this case;
h) ‘you’ means the purchaser of
the Appliance not having purchased the Appliance for resale, and ‘your’ has a corresponding meaning.
This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any
non-excludable statutory warranties
in Australia or New Zealand.
During the Warranty Period AEG or
its ASC will, at no extra charge if
your Appliance is readily accessible
for service, without special equipment and subject to these terms
and conditions, repair or replace
any parts which it considers to be
defective. AEG or its ASC may use
remanufactured parts to repair your
Appliance. You agree that any replaced Appliances or parts become
the property of AEG. This warranty
does not apply to light globes, batteries, filters or similar perishable
parts.
Parts and Appliances not supplied
by AEG are not covered by this
warranty.
You will bear the cost of transportation, travel and delivery of the Appliance to and from AEG or its
ASC. If you reside outside of the
service area, you will bear the cost
of:
a) travel of an authorised representative;
b) transportation and delivery of
the Appliance to and from AEG
or its ASC,
In all instances, unless the Appliance is transported by AEG or an
AEG authorised representative, the
Appliance is transported at the
ENGLISH
6.
7.
8.
9.
owner’s cost and risk while in transit
to and from AEG or its ASC.
Proof of purchase is required before you can make a claim under
this warranty.
You may not make a claim under
this warranty unless the defect
claimed is due to faulty or defective
parts or workmanship. AEG is not
liable in the following situations
(which are not exhaustive):
a) the Appliance is damaged by:
– accident
– misuse or abuse, including
failure to properly maintain or
service
– normal wear and tear
– power surges, electrical storm
damage or incorrect power
supply
– incomplete or improper installation
– incorrect, improper or inappropriate operation
– insect or vermin infestation
– failure to comply with any additional instructions supplied
with the Appliance;
b) the Appliance is modified without authority from AEG in writing;
c) the Appliance’s serial number
or warranty seal has been removed or defaced;
d) the Appliance was serviced or
repaired by anyone other than
AEG, an authorised repairer or
ASC.
This warranty, the contract to which
it relates and the relationship between you and AEG are governed
by the law applicable where the
Appliance was purchased. Where
the Appliance was purchased in
New Zealand for business purposes
the Consumer Guarantee Act does
not apply.
To the extent permitted by law,
AEG excludes all warranties and liabilities (other than as contained in
this document) including liability for
10.
11.
12.
13.
14.
31
any loss or damage whether direct
or indirect arising from your purchase, use or non use of the Appliance.
For Appliances and services provided by AEG in Australia, the Appliances come with a guarantee by
AEG that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement
or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the
Appliance repaired or replaced if
the Appliance fails to be of acceptable quality and the failure does
not amount to a major failure. The
benefits to you given by this warranty are in addition to your other
rights and remedies under a law in
relation to the Appliances or services to which the warranty relates.
At all times during the Warranty Period, AEG shall, at its discretion,
determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim
applicable to it.
For Appliances and services provided by AEG in New Zealand, the
Appliances come with a guarantee
by AEG pursuant to the provisions
of the Consumer Guarantees Act,
the Sale of Goods Act and the Fair
Trading Act.
To enquire about claiming under
this warranty, please follow these
steps:
a) carefully check the operating instructions, user manual and the
terms of this warranty;
b) have the model and serial number of the Appliance available;
c) have the proof of purchase (eg
an invoice) available;
d) telephone the numbers shown
below.
You accept that if you make a warranty claim, AEG and its ASC may
exchange information in relation to
32
you to enable AEG to meet its obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in point 13 above
have been followed.
FOR SERVICE
or to find the address of
your nearest state service
centre in Australia
PLEASE CALL 1300 363
664
OR EMAIL customercare@aegaustralia.com.au
SERVICE AUSTRALIA
www.aeg.com/au
FOR SPARE PARTS
or to find the address of
your nearest state spare
parts centre in Australia
PLEASE CALL 13 13 50
OR EMAIL customercare@aegaustralia.com.au
For the cost of a local call (Aus-
For the cost of a local call (Aus-
tralia only)
tralia only)
FOR SERVICE
or to find the address of
your nearest authorised
service centre in New
Zealand
FREE CALL 0800 10 66
10
OR EMAIL customercare@electrolux.co.nz
(New Zealand only)
SERVICE NEW ZEALAND
FOR SPARE PARTS
or to find the address of
your nearest state spare
parts centre in New Zealand
FREE CALL 0800 10 66
20
OR EMAIL customercare@electrolux.co.nz
(New Zealand only)
ENGLISH
33
34
ENGLISH
35
www.aeg.com/shop
136916270-B-262011
Download PDF

advertising
