MAX9376
MAX9376EUB
Rev. A

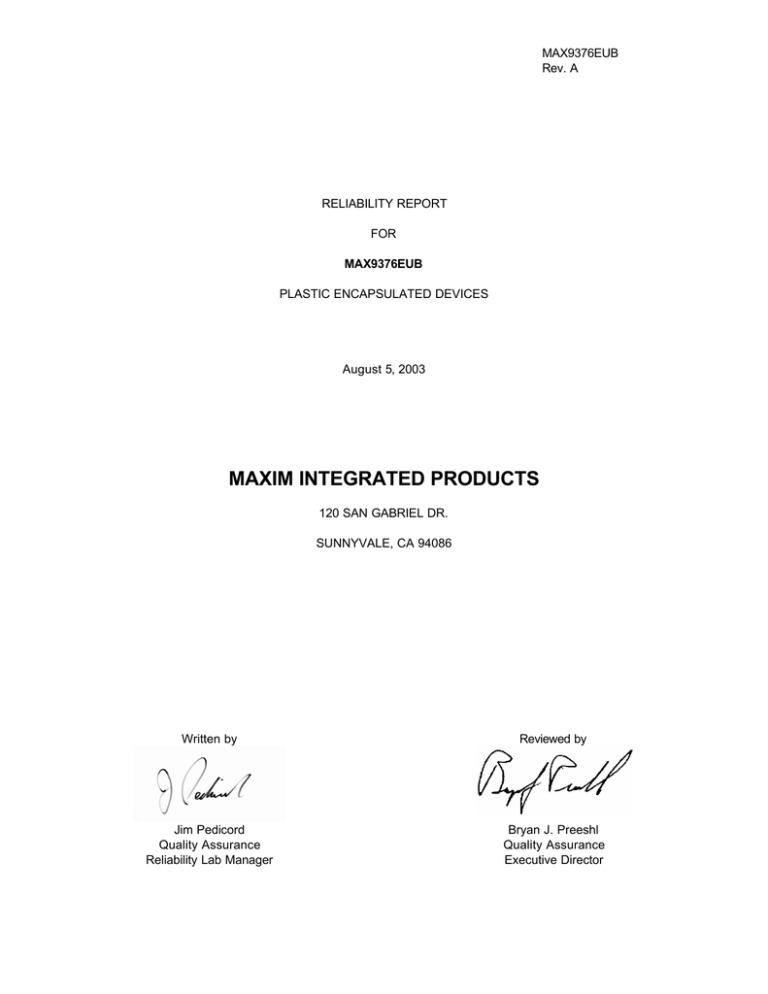

RELIABILITY REPORT
FOR
MAX9376EUB
PLASTIC ENCAPSULATED DEVICES
August 5, 2003
MAXIM INTEGRATED PRODUCTS
120 SAN GABRIEL DR.
SUNNYVALE, CA 94086
Written by
Reviewed by
Jim Pedicord
Quality Assurance
Reliability Lab Manager
Bryan J. Preeshl
Quality Assurance
Executive Director
Conclusion
The MAX9376 successfully meets the quality and reliability standards required of all Maxim products. In addition,
Maxim’s continuous reliability monitoring program ensures that all outgoing product will continue to meet Maxim’s quality
and reliability standards.
Table of Contents
I. ........Device Description
II. ........Manufacturing Information
III. .......Packaging Information
V. ........Quality Assurance Information
VI. .......Reliability Evaluation
IV. .......Die Information
.....Attachments
I. Device Description
A. General
The MAX9376 is a fully differential, high-speed, LVDS/anything-to-LVPECL/LVDS dual translator designed for signal
rates up to 2GHz. One channel is LVDS/anything-to-LVPECL translator and the other channel is LVDS/anything-toLVDS translator. The MAX9376's extremely low propagation delay and high speed make it ideal for various highspeed network routing and backplane applications.
The MAX9376 accepts any differential input signal within the supply rails and with minimum amplitude of 100mV.
Inputs are fully compatible with the LVDS, LVPECL, HSTL, and CML differential signaling standards. LVPECL
outputs have sufficient current to drive 50 transmission lines. LVDS outputs conform to the ANSI EIA/TIA-644
LVDS standard.
The MAX9376 is available in a 10-pin µMAX package and operates from a single +3.3V supply over the -40°C to
+85°C temperature range.
B. Absolute Maximum Ratings
Item
VCC to GND
Inputs (IN_, IN_)
IN to IN
Continuous Output Current
Surge Output Current
?JA in Still Air
Junction Temperature
Storage Temperature Range
ESD Protection
Human Body Model (IN_, IN_, OUT_, OUT_)
Soldering Temperature (10s)
Continuous Power Dissipation (TA = +70°C)
10-Pin µMAX
Derates above +70°C
10-Pin µMAX
Rating
-0.3V to +4.1V
-0.3V to (VCC + 0.3V)
±3.0V
50mA
100mA
+144°C/W
+150°C
-65°C to +150°C
=2kV
+300°C
155mW
6.9mW/°C
II. Manufacturing Information
A. Description/Function:
LVDS/Anything-to-LVPECL/LVDS Dual Translator
B. Process:
GST2 – High Speed Double Poly-Silicon Bipolar Process
C. Number of Device Transistors:
614
D. Fabrication Location:
Oregon, USA
E. Assembly Location:
Philippines, Malaysia or Thailand
F. Date of Initial Production:
June, 2003
III. Packaging Information
A. Package Type:
10-Pin uMAX
B. Lead Frame:
Copper
C. Lead Finish:
Solder Plate
D. Die Attach:
Silver-Filled Epoxy
E. Bondwire:
Gold (1.0 mil dia.)
F. Mold Material:
Epoxy with silica filler
G. Assembly Diagram:
# 05-9000-0510
H. Flammability Rating:
Class UL94-V0
I. Classification of Moisture Sensitivity
per JEDEC standard JESD22-112:
Level 1
IV. Die Information
A. Dimensions:
40 x 57 mils
B. Passivation:
Si3N4/SiO2 (Silicon nitride/ Silicon dioxide)
C. Interconnect:
Poly / Au
D. Backside Metallization:
None
E. Minimum Metal Width:
2 microns (as drawn)
F. Minimum Metal Spacing:
2 microns (as drawn)
G. Bondpad Dimensions:
5 mil. Sq.
H. Isolation Dielectric:
SiO2
I. Die Separation Method:
Wafer Saw
V. Quality Assurance Information
A. Quality Assurance Contacts:
B. Outgoing Inspection Level:
Jim Pedicord (Manager, Reliability Operations)
Bryan Preeshl (Executive Director)
Kenneth Huening (Vice President)
0.1% for all electrical parameters guaranteed by the Datasheet.
0.1% For all Visual Defects.
C. Observed Outgoing Defect Rate: < 50 ppm
D. Sampling Plan: Mil-Std-105D
VI. Reliability Evaluation
A. Accelerated Life Test
The results of the 150°C biased (static) life test are shown in Table 1. Using these results, the Failure
Rate (λ) is calculated as follows:
λ=
1
=
MTTF
1.83
192 x 9823 x 95 x 2
(Chi square value for MTTF upper limit)
Temperature Acceleration factor assuming an activation energy of 0.8eV
λ = 5.11 x 10-9
λ = 5.11 F.I.T. (60% confidence level @ 25°C)
This low failure rate represents data collected from Maxim’s reliability monitor program. In addition to
routine production Burn-In, Maxim pulls a sample from every fabrication process three times per week and subjects
it to an extended Burn-In prior to shipment to ensure its reliability. The reliability control level for each lot to be
shipped as standard product is 59 F.I.T. at a 60% confidence level, which equates to 3 failures in an 80 piece
sample. Maxim performs failure analysis on any lot that exceeds this reliability control level. The Burn-In Schematic
(Spec.# 06-6156) shows the static circuit used for this test.
Maxim also performs quarterly 1000 hour life test
monitors. This data is published in the Product Reliability Report (RR-B2A).
B. Moisture Resistance Tests
Maxim pulls pressure pot samples from every assembly process three times per week. Each lot sample
must meet an LTPD = 20 or less before shipment as standard product. Additionally, the industry standard
85°C/85%RH testing is done per generic device/package family once a quarter.
C. E.S.D. and Latch-Up Testing
The EC34-1 die type has been found to have all pins able to withstand a transient pulse of ±2000V, per MilStd-883 Method 3015 (reference attached ESD Test Circuit). Latch-Up testing has shown that this device
withstands a current of ±250mA.
Table 1
Reliability Evaluation Test Results
MAX9376EUB
TEST ITEM
TEST CONDITION
Static Life Test (Note 1)
Ta = 150°C
Biased
Time = 192 hrs.
FAILURE
IDENTIFICATION
PACKAGE
DC Parameters
& functionality
SAMPLE
SIZE
NUMBER OF
FAILURES
95
0
77
0
0
Moisture Testing (Note 2)
Pressure Pot
Ta = 121°C
P = 15 psi.
RH= 100%
Time = 168hrs.
DC Parameters
& functionality
uMAX
85/85
Ta = 85°C
RH = 85%
Biased
Time = 1000hrs.
DC Parameters
& functionality
77
DC Parameters
& functionality
77
Mechanical Stress (Note 2)
Temperature
Cycle
-65°C/150°C
1000 Cycles
Method 1010
Note 1: Life Test Data may represent plastic DIP qualification lots.
Note 2: Generic Package/Process data
0
Attachment #1
TABLE II. Pin combination to be tested. 1/ 2/
Terminal A
(Each pin individually
connected to terminal A
with the other floating)
Terminal B
(The common combination
of all like-named pins
connected to terminal B)
1.
All pins except VPS1 3/
All VPS1 pins
2.
All input and output pins
All other input-output pins
1/ Table II is restated in narrative form in 3.4 below.
2/ No connects are not to be tested.
3/ Repeat pin combination I for each named Power supply and for ground
(e.g., where VPS1 is VDD, VCC, VSS, VBB, GND, +VS, -VS, VREF, etc).
3.4
Pin combinations to be tested.
a.
Each pin individually connected to terminal A with respect to the device ground pin(s) connected
to terminal B. All pins except the one being tested and the ground pin(s) shall be open.
b.
Each pin individually connected to terminal A with respect to each different set of a combination
of all named power supply pins (e.g., VSS1, or VSS2 or VSS3 or VCC1 , or VCC2 ) connected to
terminal B. All pins except the one being tested and the power supply pin or set of pins shall be
open.
c.
Each input and each output individually connected to terminal A with respect to a combination of
all the other input and output pins connected to terminal B. All pins except the input or output pin
being tested and the combination of all the other input and output pins shall be open.
TERMINAL C
R1
R2
S1
TERMINAL A
REGULATED
HIGH VOLTAGE
SUPPLY
S2
C1
DUT
SOCKET
SHORT
TERMINAL B
TERMINAL D
Mil Std 883D
Method 3015.7
Notice 8
R = 1.5kΩ
C = 100pf
CURRENT
PROBE
(NOTE 6)
ONCE PER SOCKET
ONCE PER BOARD
CLOCK 1
50 Ohms
(200mW)
2 Ohms (25mW)
1
IN1
VCC
+3.3V
10
50 Ohms
2
/IN1\
OUT1
9
0.01 uF
50 Ohms
100 Ohms
(200mW)
3
OUT2
4
/OUT2\
5
GND
/OUT1\
8
IN2
7
/IN2\
6
10 uF
CLOCK 2
50 Ohms
(200mW)
51 Ohms
(100mW)
DEVICES: MAX 9376
PACKAGE: 10-uMAX
MAX. EXPECTED CURRENT = 60mA
DOCUMENT I.D. 06-6156
REVISION B
MAXIM
DRAWN BY: TEK TAN
NOTES: The PULSE VIH=1.5V, VIL=0.9V, Frequency = 100KHz.
The PULSE termination resistor is 50 OHMS, 200mW.
CLOCK 1 AND CLOCK 2 180 DEGREES PHASE DIFFERENCE.
TITLE: BI
Circuit (MAX9376) EC34
PAGE
2
