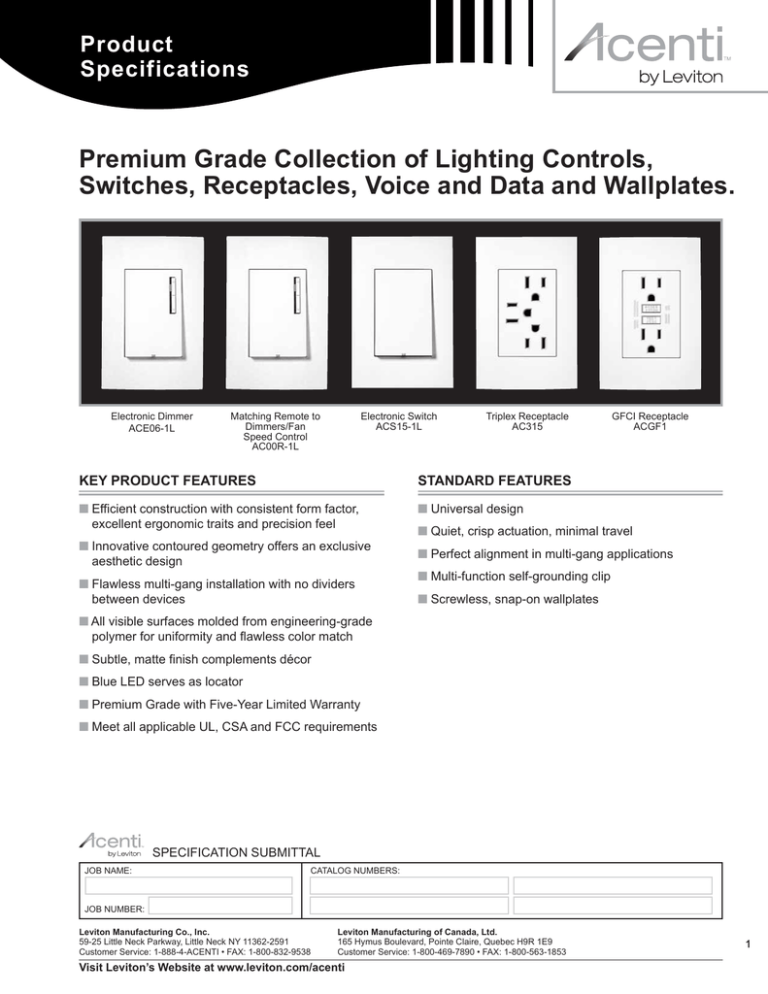

Product
Specifications
Premium Grade Collection of Lighting Controls,
Switches, Receptacles, Voice and Data and Wallplates.
Electronic Dimmer
ACE06-1L
Matching Remote to
Dimmers/Fan
Speed Control
AC00R-1L
Electronic Switch
ACS15-1L
Triplex Receptacle
AC315
KEY PRODUCT FEATURES
STANDARD FEATURES
Efficient construction with consistent form factor,
excellent ergonomic traits and precision feel
Universal design
Innovative contoured geometry offers an exclusive
aesthetic design
Flawless multi-gang installation with no dividers
between devices
GFCI Receptacle
ACGF1
Quiet, crisp actuation, minimal travel
Perfect alignment in multi-gang applications
Multi-function self-grounding clip
Screwless, snap-on wallplates
All visible surfaces molded from engineering-grade
polymer for uniformity and flawless color match
Subtle, matte finish complements décor
Blue LED serves as locator
Premium Grade with Five-Year Limited Warranty
Meet all applicable UL, CSA and FCC requirements
SPECIFICATION SUBMITTAL
JOB NAME:
CATALOG NUMBERS:
JOB NUMBER:
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
1
DIMMERS U R
For Single-Pole, 3-Way or More Applications
Description
Rating
Cat. No.
Description
(For Multigang Installation
see Derating Chart)
Rating
Cat. No.
(For Multigang Installation
see Derating Chart)
Incandescent with
LED Locator and
Brightness Display
600W-120VAC
ACI06-1L
Electronic
Low-Voltage
with LED Locator and
Brightness Display
600W-120VAC
ACE06-1L
Magnetic
Low-Voltage with
LED Locator and
Brightness Display
600VA-120VAC
ACM06-1L
Mark 10™ Powerline
or Tu-Wire™
Fluorescent Dimmer
with LED Locator and
Brightness Display
1000VA- 120VAC
ACX10-1L
Incandescent/Magnetic 1000W-120VAC Incandescent
Low-Voltage with
1000VA-120VAC Magnetic
LED Locator and
Low-Voltage
Brightness Display
ACM10-1L
Hi-lume® or Eco-10™
(Eco-Series)
Fluorescent Dimmer
with LED Locator and
Brightness Display
8A-120VAC
ACH08-1L
Electronic
Low-Voltage
with LED Locator and
Brightness Display
ACE04-1L
Quiet Fan Speed
Control with LED
Locator and
Speed Display
1.5A-120VAC
ACF01-1L
Rating
400W-120VAC
DIMMER REMOTES U R
Description
Rating
Cat. No.
Description
Coordinating
Dimmer Remote to
120VAC Dimmers/Fan
Speed Controls for
3-way or up to 10
location applications
(No LED)
120VAC
No load rating
AC00R-10
Matching Dimmer
120VAC
Remote to 120VAC
No load rating
Dimmers/Fan Speed
Control for 3-way or up
to 5 location applications,
with LED Locator and
Brightness Display
AC00R-1L
Cat. No.
ACENTI SWITCHES U R
2
Description
Rating
Cat. No.
Description
Rating
Cat. No.
Electronic Switch with
LED Locator
For single-pole,
3-way or more
applications
15A-120VAC
ACS15-1L
Matching Switch
Remote for 3-way
or up to 5 location
applications,
with LED Locator
120VAC
No load rating
AC0SR-1L
Coordinating Switch
Remote for 3-way or
up to 10 location
applications (No LED)
120VAC
No load rating
AC0SR-10
Single-Pole
Electromechanical
Switch with
LED Locator
20A-120VAC
AC201-1L
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
ACENTI RECEPTACLES U R
Description
Rating
Cat. No.
Description
15A Triplex Receptacle
15A-125V NEMA 5-15R
AC315
15A Duplex Receptacle 15A-125V NEMA 5-15R
Rating
AC215
Cat. No.
20A Triplex Receptacle
20A-125V NEMA 5-20R
AC320
20A Duplex Receptacle 20A-125V NEMA 5-20R
AC220
GFCI (GROUND FAULT CIRCUIT INTERRUPTER) RECEPTACLES U R
Description
Rating
Cat. No.
Description
Rating
Cat. No.
15A Duplex
GFCI Receptacle
15A-125V
NEMA 5-15R Receptacle,
20A-125V Feed-Through
ACGF1
20A Duplex
GFCI Receptacle
20A-125V
NEMA 5-20R Receptacle
20A-125V Feed-Through
ACGF2
SURGE RECEPTACLE U R
Description
Rating
Cat. No.
Duplex Receptacle
with Indicator Light
and Audible Alarm
15A-125V NEMA 5-15R
ACSSR
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
3
ACCESSORIES
Wallplates
Screwless, Snap-On Wallplates
Alignment plate and positioning pins ensure perfect alignment of devices and wallplates in multi-gang installations
For all Acenti devices
1-Gang
Engineering-Grade Polymer
Cat. No.
Brushed Stainless Steel
Cat. No.
1-Gang
2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
Blank wallplate insert
ACWP1
ACWP2
ACWP3
ACWP4
ACWP5
ACWP6
ACW14
1-Gang
2-Gang
3-Gang
4-Gang
5-Gang
6-Gang
ACWM1
ACWM2
ACWM3
ACWM4
ACWM5
ACWM6
2-Gang
3-Gang
1-Gang
4-Gang
5-Gang
6-Gang
VOICE AND DATA
QuickPort® Wallplate Inserts
Use with QuickPort® Snap-In connectors for data, audio and video applications
Compatible with complete line of Acenti screwless, snap-on wallplates
Description
Cat. No.
2-Port Insert
3-Port Insert
4-Port Insert
6-Port Insert
AC642
AC643
AC644
AC646
4-Port
ACENTI COLORS
All Acenti devices (except brushed stainless steel wallplates) are available in the following designer colors.
To order a color, add suffix indicated below to the catalog number.
Solid Colors: Alabaster (-W), Onyx (-E), Slate (-G)
Off-White Colors: Quartz (-Q), Sand (-S), Driftwood (-D), Natural (-A)
4
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
DERATING/MAXIMUM CAPACITY
Acenti controls do not have side sections. In multi-gang installations, fin removal is not required but devices must be
derated in accordance with the following charts.
ACI06 Incandescent (Minimum load: 40W)
Gang
Maximum Wattage
1
600W
2
600W
3 or more
500W
ACM06 Magnetic Low-Voltage (Minimum load: 40VA)
Gang
Maximum VA
Maximum Bulb Wattage with
75% efficient transformer
1
600VA
450W
2
600VA
450W
3 or more
500VA
425W
ACM10 Incandescent/Magnetic Low-Voltage (Minimum load: 40W/VA)
Gang
Incandescent
Maximum Wattage
Magnetic
Low-Voltage
Maximum VA
Magnetic Low-Voltage
Maximum Bulb Wattage with
75% efficient transformer
1
1000W
1000VA
750W
2
800W
800VA
600W
3 or more
650W
650VA
487W
ACE04 Electronic Low-Voltage
Gang
Maximum Wattage
1
400W
2
350W
3 or more
250W
ACE06 Electronic Low-Voltage
Gang
Maximum Wattage
1
600W
2
500W
3 or more
400W
ACX10 Mark 10™ Powerline or Tu-Wire™ Fluorescent
Gang
Maximum VA
1
1000VA
2
800VA
3 or more
650VA
ACH08 Hi-lume® or Eco-10™ (Eco-Series) Fluorescent Dimmer
8A
No derating required
ACF01 Quiet Fan Speed Control
1.5A
No derating required
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
5
DIMENSIONS
All Dimmers, Quiet Fan Speed Control, Electronic
Switch, Matching and Coordinating Dimmer and
Switch Remotes
ACM10-1L
ACE04-1L
ACE06-1L
ACX10-1L
ACH08-1L
ACF01-1L
Triplex Receptacle
1.80 (45.7)
AC201-1L
Duplex Receptacle
1.56 (39.7)
3.28 (83.3)
4.79 (121 7)
2.77 (70.4)
3.28 (83.3)
2.78 (70.7)
1.56 (39.7)
4.79 (121.7)
2.75 (69.8)
2.76 (70.2)
3.28 (83.3)
4.79 (121.7)
2.71 (68.8)
ACI06-1L
ACM06-1L
AC00R-1L
AC00R-10
ACS15-1L
AC0SR-1L
AC0SR-10
0.86
(21.9)
2.77 (70.4)
Dimmer with LEDs Shown
1.15
(29.1)
2.78 (70.7)
1.80 (45.7)
1.56 (39.7)
1.37 (34.8)
2.71 (68.8)
2.76 (70.2)
1.40 (35.6)
3.28 (83.3)
4.79 (121.7)
1.75 (44.5)
Electromechanical Switch
AC215
AC220
1.80 (45.7)
1.80 (45.7)
1.26 (31.9)
AC315 Shown
AC215 Shown
AC315
AC320
GFCI Receptacle
Surge Receptacle
ACGF1 Shown
6
1.23 (31.2)
2.78 (70.7)
1.80 (45.7)
ACSSR
ACGF1
ACGF2
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
3.28 (83.3)
4.79 (121.7)
2.70 (68.6)
2.78 (70.7)
3.28 (83.3)
4.79 (121.7)
1.80 (45.7)
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
2.69 (68.3)
1.56 (39.7)
1.56 (39.7)
1.24 (31.5)
DIMENSIONS
Voice & Data QuickPort® Wallplate Inserts
Wallplates
3.28 (83.4)
1.58 (40.1)
ACWP1, ACWM1
Single-Gang Shown
Add 1.81" (46.0mm) for each gang
in multi-gang wallplates
1.80 (45.7)
2.68 (68.1)
2.11 (53.6)
2.78 (70.7)
3.28 (83.3)
4.80 (121.9)
1.81 (46.0)
Typical Multi-Gang
2.78 (70.7)
Device Face
4.92 (124.9)
1.80 (45.7)
Device Face
0.21 (5.2)
AC642
2-Port shown
AC642 2-Port
AC644 4-Port
AC643 3-Port
AC646 6-Port
WIRING DIAGRAMS
Diagram 1
Diagram 2
Single-pole wiring for incandescent or magnetic
low-voltage dimmer.
Single-pole wiring for electronic low-voltage dimmer, Mark
10™ Powerline dimmer, fan speed control or switch.
Dimmer
Cat. Nos.
ACI06
ACM06
ACM10
Red Load
Black Hot
Yellow/Red Travel (capped)
or Terminal Unused
NOTES:
1) ACI06 and
ACM06 have
screw terminals, 120VAC
ACM10 has leads
2) Red and Black
leads (or terminals) are interNeutral
changeable
ELV Dimmer,
Mark 10™ Powerline,
Fan, or Switch
Cat. Nos.
ACE04
ACE06
ACX10
ACF01
ACS15
Red Load
Black Hot
Yellow/Red Travel
(capped)
Load
Green
Ground
120VAC
White
Neutral
Load
Green
Ground
Neutral
Diagram 3
Diagram 4
3-Way wiring for incandescent or magnetic low-voltage dimmer with Coordinating Remote.
Alternate 3-Way wiring for incandescent or magnetic lowvoltage dimmer with Coordinating Remote.
Cat. Nos.
ACI06
ACM06
ACM10
Coordinating
Remote
AC00R-10
Coordinating
Remote No LEDs
Dimmer
Red Travel 1
Black Load
Black Hot
Yellow/Red
Travel 2
120VAC
Green
Ground
Green
Ground
Coordinating
Remote No LEDs
Dimmer
Red Travel 1
Black Hot
Yellow/Red
Travel 2
Black Load
120VAC
Load
Green
Ground
Green
Ground
Load
Neutral
Neutral
NOTES:
1) ACI06 and ACM06 have screw
terminals, ACM10 has leads
2) Coordinating Remote AC00R-10
has screw terminals
Cat. Nos.
ACI06
ACM06
ACM10
Coordinating
Remote
AC00R-10
3) Black connections are interchangeable (see Diagram 4)
4) Silver terminal on Coordinating
Remote is unused
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
NOTES:
1) ACI06 and ACM06 have screw
terminals, ACM10 has leads
2) Coordinating Remote AC00R-10
has screw terminals
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
3) Black connections are interchangeable (see Diagram 3)
4) Silver terminal on Coordinating
Remote is unused
7
WIRING DIAGRAMS
Diagram 5
Diagram 6
3-Way wiring for electronic low-voltage dimmer, Mark 10™
Powerline dimmer, fan speed control or switch with
Coordinating Remote.
Red
3-Way wiring for incandescent or magnetic low-voltage
dimmer with Matching Remote.
Cat. Nos.
ACS15
Coordinating
Remote
AC0SR-10
Cat. Nos.
ACE04
ACE06
ACX10
ACF01
Coordinating
Remote
AC00R-10
ELV Dimmer,
Mark 10™ Powerline,
Fan, or Switch
Black
Red
Cat. Nos.
ACI06
ACM06
ACM10
Matching
Remote
AC00R-1L
Coordinating
Remote No LEDs
Yellow/Red
Travel
120VAC
Green
Ground
White
Neutral
Green
Ground
White
Neutral
Black
Matching
Remote w/LEDs
Dimmer
Black
Yellow/Red
Travel
Load
Green
Ground
Load
120VAC
White
Neutral
Neutral
2) Matching Remote AC00R-1L has
screw terminals
2) Black and Red terminals on
Coordinating Remotes are unused
Diagram 7
Diagram 8
3-Way wiring for electronic low-voltage dimmer, Mark 10™
Powerline dimmer, fan speed control or switch with Matching
Black
Red
Remote.
Single-pole wiring for Hi-lume® fluorescent dimmer
Cat. Nos.
ACS15
Matching
Remote
AC0SR-1L
Cat. Nos.
ACE04
ACE06
ACX10
ACF01
Matching
Remote
AC00R-1L
Cat. Nos.
ACH08
ELV Dimmer,
Mark 10™ Powerline,
Fan, or Switch
Black
Matching
Remote w/LEDs
Load
ACH08 Hi-lume®
Dimmer
Red
Orange "Signal"
Black
Black
Yellow/Red
Travel
Yellow/Red
Travel Capped
120VAC
120VAC
White
Neutral
Green
Ground
Neutral
NOTES:
1) ACI06 and ACM06 have screw
terminals, ACM10 has leads
NOTES:
1) Coordinating Remotes AC0SR-10
and AC00R-10 have screw
terminals
Black
Green
Ground
Hi-lume®
Ballast
Green
Ground
White
Neutral
Green
Ground
White
Neutral
Neutral
Neutral
NOTE:
Matching Remotes AC0SR-1L and AC00R-1L have screw terminals
Diagram 9
Diagram 10
3-Way wiring for Hi-lume® fluorescent dimmer with
Coordinating Remote.
3-Way wiring for Hi-lume® fluorescent dimmer with Matching
Remote.
Cat. Nos.
ACH08
Coordinating
Remote
AC00R-10
Red
ACH08 Hi-lume®
Dimmer
Cat. Nos.
ACH08
Matching
Remote
AC00R-1L
Red
Orange "Signal"
Black
Coordinating Remote
No LEDs
Hi-lume®
Ballast
Yellow/Red
Travel
Green
Ground
120VAC
White
Neutral
White
Neutral
Green
Ground
NOTES:
Matching
Remote
AC00R-1L has
screw terminals
Orange "Signal"
ACH08 Hi-lume®
Dimmer
Black
Yellow/Red
Travel
Hi-lume®
Ballast
White
Neutral
Neutral
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Matching Remote
w/ LEDs
Black
Green
Ground
White
Neutral
120VAC
Green
Ground
Neutral
NOTES:
1) Coordinating Remote AC00R-10 has screw terminals
2) Black and Red terminals on Coordinating Remote are unused
8
Black
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
WIRING DIAGRAMS
Diagram 11
Diagram 12
Single-pole wiring for 20A electromechanical switch
Triplex Receptacle Wiring
AC201
Cat. Nos.
AC201
Cat. Nos.
AC315
AC320
Triplex
Brass
Terminal
Silver
Terminal
Black Hot
Load
120VAC
Ground
Terminal
125V
Ground
Terminal
White Neutral
Neutral
Diagram 13
Diagram 14
GFCI Wiring
Duplex Receptacle Wiring
LOAD
Black
Cat. Nos.
ACGF1
ACGF2
To Downstream
Receptacle
Cat. Nos.
AC215
AC220
ACSSR
GFCI
White
Load Side,
Silver Terminal
Load Side,
BrassTerminal
Line Side,
Silver Terminal
Line Side,
BrassTerminal
Silver
Terminals
Brass
Terminals
White Neutral
Green
Ground
Screw
Black Hot
Black Hot
LINE
Ground
Terminal
125V
AC215, AC220, ACSSR Wiring
White Neutral
Silver
Terminals
Brass
Terminals
White Neutral 1
White Neutral 2
Green
Ground
Screw
Black Hot Line 2
Black Hot Line 1
AC215, AC220, Alternate Wiring —
Terminal Break-Off Fins removed
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
9
PART 1 — GENERAL
1.01 SUMMARY
A. Section Includes: Acenti-style switches, dimmers, fan speed control (and corresponding remote units), receptacles, wallplates and
related devices as specified herein for the areas indicated on the
drawings, specifications, and load schedule
B. Related Sections: Section 16570 (Dimming Controls), Section
16580 (Ballasts)
1.02 REFERENCES
A. Acenti Lighting Controls:
1. UL Standard 1472
2. CSA Standard C22.2 No. 184-M1988
3. IEC Level 4 Surge and Fast Transients
4. California Title 24
5. UL Standard 1472
6. FCC Part 15, Class B for Residential Compliance
7. MIL. STD 105 or ANSI Z1.4
8. UL Listed (File #E-31373)
9. CSA Certified (File #LR-3413)
B. Acenti Switches:
1. UL 20
2. NEMA WD-1 & WD-6
3. CSA Standard C22.1 No. 111
4. UL Listed (File #E-7458)
5. CSA Certified (File #LR-152105)
C. Acenti Receptacles
1. All Receptacles
a. NEMA WD-1 & WD-6
b. UL 498
c. CSA C22.2 No. 42
2. Triplex and Duplex Receptacles
a. UL Listed (File #E-13399)
b. CSA Certified (File #LR-152105)
3. Surge Protective Receptacles
a. UL Listed (File #E-13399)
b. CSA Certified (File #MC152105/LR-406)
4. GFCI Receptacles
a. UL 943 Class A (File #E-48380)
b. CSA Certified (File #LR-57811)
D.Wallplates
1. All wallplates
a. UL 514D (File #E-13397)
b. CSA C22-2 No. 42.1 (File #152105)
c. NEMA WD-1 & WD-6
1.06 WARRANTY
A. Manufacturer’s Warranty: All equipment shall be warranteed free of
defects in materials and workmanship.
1. Warranty Period: Five years from date of purchase
2. Owner Rights: Manufacturer’s warranty is in addition to, not a
limitation of, other rights the Owner may have under contract
documents.
PART 2 — PRODUCTS
2.01 ACCEPTABLE MANUFACTURERS
A. Leviton Manufacturing Co., Inc.
B. Unless otherwise noted, all basic components (dimmer, fan-speed
control, switch and corresponding remote units; receptacle; voice,
data and cable jack; and wallplates) shall be provided by one
manufacturer.
2.02 EQUIPMENT
1.03 SYSTEM DESCRIPTION
A. Permanently installed, wallbox mounted switches, dimmers and
corresponding remote units
B. Permanently installed, wallbox mounted fan-speed control and
corresponding remote units
C. Permanently installed, wallbox mounted receptacles, including
triplex, duplex, surge protective and GFCI
D. Permanently installed, wallbox mounted voice, data and cable jacks
E. Screwless, snap-on wallplates
1.04 SUBMITTALS
A. Submit manufacturer’s standard catalog data giving all product,
application, wiring, and installation information on all basic components and wallplates. Provide test data and/or samples for finish,
color and texture as required to demonstrate conformance with
PART 2 of this specification.
1.05 QUALITY ASSURANCE
A. Manufacturer shall have a minimum of 20 years continuous experience in the manufacture of wallbox-mounted dimming products.
10
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
B. Dimmers, switches and fan-speed control shall be UL Listed and
CSA approved specifically for each required load (tungsten, electronic low-voltage ballast, magnetic low-voltage ballast, Mark 10™
Powerline fluorescent, and Hi-lume® fluorescent). Manufacturer
shall provide file card or certificate upon request. Universal loadtype dimmers shall not be acceptable.
C. Source Limitations: To assure compatibility, all dimming controls
shall be obtained from a single source with complete responsibility
over all lighting controls, including accessory products. The use of
subcontracted component assemblers is not acceptable.
D. Manufacturer shall be ISO 9001 certified and provide a copy of the
certificate upon request.
A. Leviton Acenti Lighting Controls
1. Performance
a. Controls shall provide full-range, continuously variable
control of light intensity.
b. Dimmers requires 40W minimum load.
c. Controls shall fit in the Acenti wallplate opening only.
Controls shall be thin profile with no exposed heat sink/yoke
and shall fit in a single-gang 18 cubic-inch wallbox. All
controls shall have a matte finish.
d. Controls shall provide a blue LED Locator light that shall
illuminate when the lights are OFF to help users locate
control in the dark.
e. Controls shall provide a Dim/Bright bar that allows light level
(or fan speed) to be set by the user. A five-step blue LED
indicator shall be integrated in the Dim/Bright bar to show
relative lighting level. Push Pad with return-to-neutral design
shall provide preset ON/OFF control independent of
Dim/Bright bar.
f. Push Pad and Dim/Bright bar shall be ergonomically
designed for precise tactile quality with distinct actuation
confirmation.
g. Controls shall provide a default setting where Push Pad
preset ON switching returns lights to last selected level
when lights were ON.
h. Controls shall provide a Dim Lock feature that allows users
to program a customized preset ON level. With Dim Lock
active, lights shall switch ON to selected preset level regardless of last established light level (Default setting is with Dim
Lock OFF; it shall be activated by user if desired).
i. Controls shall provide a selectable fade rate for ON and OFF
switching. Default setting shall be 1.5 seconds for ON and
3.0 seconds for OFF.
j. Controls shall provide a 10 second delay-OFF from ON when
Push Pad is pressed and held.
k. Controls shall provide switching from OFF to maximum
brightness when Push Pad is pressed and held.
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
l. Controls shall provide the ability to change the selected
brightness level by pressing the Dim/Bright bar while the
lights are OFF. LED display shall show selected level and
lights shall not be turned ON.
m.Controls shall provide intuitive “house guest” feature allowing lights to be dimmed to OFF by pressing and holding the
Dim/Bright bar. Preset level shall not be changed.
n. Controls shall provide an adjustable minimum brightness
setting to accommodate lighting loads with a minimum turnon voltage.
o. Programmable settings for Dim Lock preset level, minimum
brightness level and fade rate shall not require tools or
wallplate removal.
p. Controls shall provide single-pole, 3-way, or multi-location
control with choice of remote dimmers.
q. Matching Remote AC00R-1L shall provide blue LED Locator
and LED Brightness display and shall provide 3-way or up to
5 location control. Matching Remote shall require neutral
connection.
r. Coordinating Remote AC00R-10 shall provide 3-way or up
to 10 location control. Coordinating Remote shall require
neutral connection in specific applications.
s. Controls shall provide air gap switch to totally disconnect
power from load during OFF condition. Air gap switch shall
be concealed during normal operation and shall be accessible without removing wallplate.
t. Within rated capacity, dimmers shall be available for direct
control of incandescent, electronic low-voltage, magnetic
low-voltage, Mark 10™ Powerline fluorescent, and Hi-lume®
or Eco-10™ (Eco-Series) fluorescent. Matching fan-speed
control and switches shall also be available.
u. Controls shall not require the removal of fins in multi-gang
installations. Controls shall be derated in multi-gang installations in accordance with manufacturer's specifications.
v. All Controls shall have a clear polycarbonate base.
w. Controls shall provide transient surge protection to IEC
Level 4.
x. Controls shall provide ESD protection to IEC 1000 4-2 Level
4 to protect against damage and memory loss due to static
discharges.
y. Dimmers shall provide RFI filtering for radio, audio, and
video equipment.
z. Controls shall incorporate power-failure memory. Should
power be interrupted and subsequently returned, the lights
or fans will come back on to the same levels set prior to the
power interruption.
aa.Controls shall operate in an ambient temperature range of
0°C (32°F) to 55°C (131°F).
2. Incandescent Dimmers
a. Dimmers shall have a maximum output of no less than 95%
of line voltage.
b. ACI06 shall provide 4 terminal screws for Line, Load,
Remote and Ground.
c. ACM10 rated for 1000W incandescent shall provide 4 wire
leads for Line, Load, Remote and Ground.
3. Electronic Low-Voltage (ELV) Dimmers
a. Dimmers shall contain circuitry specifically designed to
control the input of electronic (solid state) low-voltage transformers. Dimmers using standard phase control shall not be
acceptable.
b. ACE04 (400W) and ACE06 (600W) dimmers shall have a
resettable overload protection that automatically shuts off
when dimmer capacity is exceeded.
c. Dimmers shall provide 5 wire leads for Line, Load, Neutral,
Remote and Ground.
4. Magnetic Low-Voltage (MLV) Dimmer
a. ACM10 shall provide direct control of up to 1000VA of 120V
magnetic low-voltage load.
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
b. Dimmer shall contain circuitry specifically designed to
control and provide a symmetrical AC waveform to the
input of magnetic low voltage transformers per UL 1472
section 5.11.
c. Dimmer shall not cause a magnetic low voltage transformer
to operate above the transformers rated operating current or
temperature.
d. Dimmers shall have a maximum output of no less than 95%
of line voltage.
e. Dimmer shall provide 4 wire leads for Line, Load, Remote
and Ground.
5. Fluorescent Dimmers
a. Fluorescent dimmers shall provide direct control of
fluorescent dimming ballasts up to the manufacturer’s
specified rating.
b. ACX10 shall be rated 1000VA to control Mark 10™ Powerline
or Tu-Wire™ ballasts and provides 5 wire leads for Line,
Load, Neutral, Remote and Ground.
c. ACH08 shall be rated 8A to control Hi-lume® or Eco-10™
(Eco-Series) ballasts and provides 6 wire leads for Line,
Load, Neutral, Signal, Remote and Ground.
6. Fan-Speed Control
a. ACF01 Quiet Fan-Speed Control shall be rated 1.5A and provide Low-Medium-High speed settings plus OFF.
b. ACF01 shall provide microprocessor-controlled “kick-start”
to allow fan to go directly from OFF to any speed setting.
c. ACF01 shall provide 5 wire leads for Line, Load, Neutral,
Remote and Ground.
7. Switches
a. All switches shall be completely compatible with Acenti lighting controls and provide ON/OFF Push Pad ergonomically
designed for precise tactile quality with distinct actuation
confirmation.
b. All switches shall provide a blue LED locator light that
shall illuminate when the lights are OFF to help users locate
control in the dark.
c. ACS15 electronic switch shall be rated 15A 120V AC and
provide 5 screw terminals for Line, Load, Neutral, Remote
and Ground.
d. ACS15 electronic switch shall provide single-pole, 3-way, or
multi-location control with choice of remote dimmers.
e. Matching Remote Switch AC0SR-1L shall provide blue LED
locator and shall provide 3-way or up to 5 location control.
Matching Remote shall require neutral connection.
f. Coordinating Remote Switch AC0SR-10 shall provide 3-way
or up to 10 location control. Coordinating Remote shall
require neutral connection.
g. AC201 electromechanical switch shall be single-pole only
and rated 20A 120V AC with 3 screw terminals for Line, Load
and Ground.
B. Acenti Receptacles
1. All Leviton Acenti Receptacles shall be designed to perfectly
coordinate with Leviton Acenti Switches and Lighting Controls.
2. Acenti Triplex Receptacle shall provide unique space-saving
convenience by accepting three grounding plugs. AC315 Triplex
shall be rated 15A-125V (NEMA 5-15R), AC320 Triplex rated
20A-125V (NEMA 5-20R).
3. Acenti Triplex Receptacles shall fit into standard size singlegang wallbox.
4. Acenti Duplex Receptacles shall also be available.
5. ACSSR Acenti Duplex Surge Receptacle (15A-125V NEMA
5-15R) shall provide point-of-use surge protection for sensitive
electronic equipment.
a. Blue monitor/indicator light shall coordinate with all Acenti
blue LEDs and provide surge protection status at a glance.
b. Audible tone alert shall sound if surge protection is lost.
c. Surge Receptacle shall provide eight back-wire holes (two
for each line and load connection) and ground terminal for
easy installation.
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
11
d. Receptacle shall provide UL 1449 clamping level of 400V
peak for all modes and a maximum single-pulse surge
current rating of 26kA (Line-Neutral) and 13kA for (LineGround) and (Neutral-Ground).
6. ACGF1 (15A) and ACGF2 (20A) Acenti GFCI Receptacles shall
provide advanced ground fault protection with patented
lockout-action
a. GFCI RESET action shall be blocked if ground fault protection has been compromised, reducing the possibility of endusers incorrectly assuming that a reset GFCI is providing
protection when it is not.
b. Advanced “dead-face” safety design shall block power at the
GFCI receptacle face and at all downstream-connected
receptacles if the GFCI is improperly wired with a line-load
reversal. The GFCI cannot be reset unless it is correctly
wired from the line side.
c. GFCI shall not be reset if neutral is not present. The GFCI
shall be able to be tripped with TEST button under this
condition.
d. GFCI shall provide eight back-wire holes (two for each line
and load connection) and one back-wire ground terminal for
easy installation.
e. All GFCIs shall conform to UL 943 Class A GFCI requirements for trip time and resistance to electrical surges and
over-voltages.
7. Acenti QuickPort® Wallplate Inserts shall provide multimedia
connections.
a. Inserts shall allow use of Leviton snap-in QuickPort connectors for data, audio and video connections.
b. Inserts shall be available in 2-, 3-, 4- and 6-port configurations.
c. Leviton QuickPort connectors shall be FCC Part 68 compliant
and designed for mating with 4- or 6-conductor phone jacks,
Cat 5 rated jacks, coax connectors and other types of multimedia connections.
C. Acenti Wallplates
1. Plastic wallplates shall be manufactured from engineeringgrade polymer to provide matte finish and color consistency
with all Acenti devices.
2. Wallplates shall be screwless, snap-on design that completes
the distinct geometry of the Acenti installation.
3. Multi-gang wallplates shall provide a frameless design.
4. All Acenti wallplates shall include a steel alignment plate
that uses locating pins to form a “positioning nest” for the
Acenti device.
5. Wallplate shall accommodate irregular wall surfaces and ensure
a precise wallplate/device alignment in every installation.
6. Wallplates shall be available with a brushed stainless steel
finish to complement designer-style appliances.
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
Customer Service: 1-888-4-ACENTI • FAX: 1-800-832-9538
12
D. Standard Features
1. Acenti devices shall feature multi-function self-grounding clip
2. Mounting clips shall grip alignment pins to ensure precise
wallplate/device alignment.
3. Mounting clips shall provide self-grounding for Acenti device
when used with a properly grounded metal wallbox.
4. Mounting clips shall have contoured legs to provide superior
holding power for all Acenti screwless, snap-on wallplates.
5. Mounting clips shall be attached to device mounting strap
using TOX® fastening system. Fastening with conventional
spot-welding or riveting is not acceptable.
2.03 SOURCE QUALITY CONTROL
A. All dimming controls shall be 100% function tested at the time of
manufacture. Statistical sampling plan shall not be acceptable.
PART 3 — EXECUTION
3.01 INSTALLATION
A. Contractor shall furnish all devices (dimmers, switches, receptacles
& wallplate kits), labor and other services necessary for the proper
installation of the devices as indicated on the drawings and specified herein.
B. Contractor shall be responsible for derating lighting control capacity in multi-gang installations.
C. Devices shall be installed utilizing manufacturer’s recommended
application, wiring and installation instructions.
D. Contractor shall provide frameless wallplate covers per specification 2.02 for all devices ganged in a common box. Contractor shall
provide barriers within the box where required by code.
3.02 FIELD QUALITY CONTROL
A. Leviton technical hotline available 8:30AM–7:30PM E.S.T.
Monday–Friday: 1-888-4-ACENTI
B. Supplemental information shall be provided by Leviton’s website at
www.leviton.com/acenti
TOX® is a registered trademark of TOX PRESSOTECHNIK-L.L.C.
Tu-Wire™ and Eco-10™ (Eco-Series) are trademarks and Hi-lume® is a registered
trademark of Lutron Electronics, Inc.
Mark 10® Powerline is a registerd trademark of Advance Transformer
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Visit Leviton’s Website at www.leviton.com/acenti
© 2004 Leviton Manufacturing Co., Inc. All rights including Trade Dress Rights Reserved. U.S. & Foreign Patents Pending Acenti
is a trademark and QuickPort is a registered trademark of the Leviton Manufacturing Co., Inc.
B-1023/H4-5M rs
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
