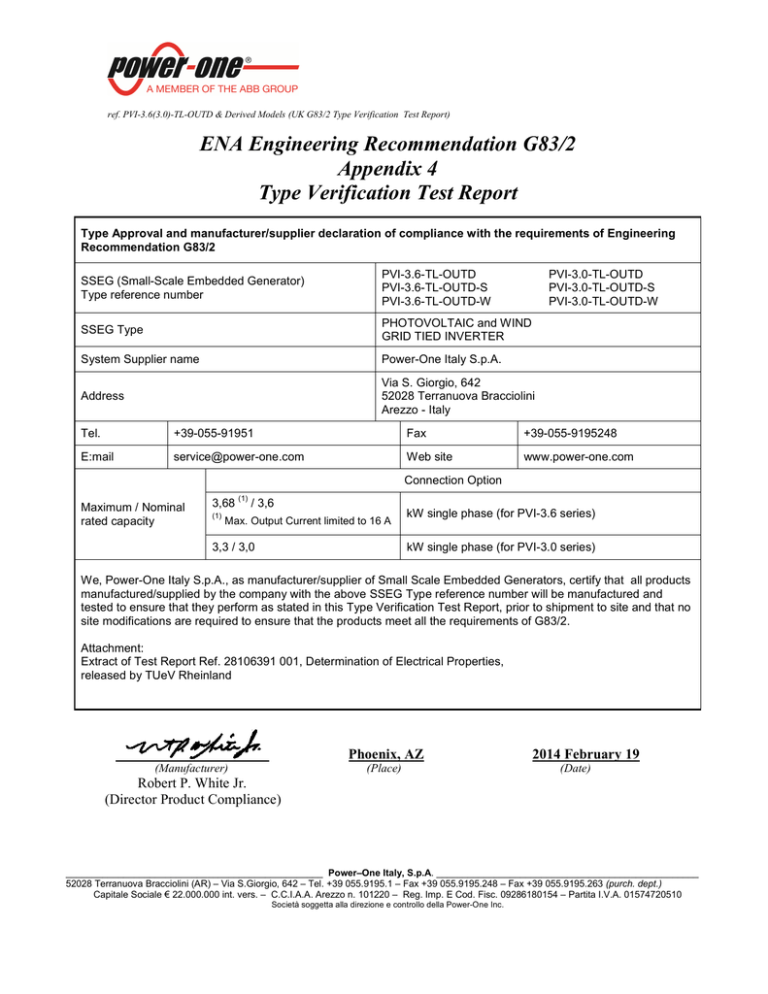

Powerone G83 PVI 3.0 3.6 4.2 OUTD

ref. PVI-3.6(3.0)-TL-OUTD & Derived Models (UK G83/2 Type Verification Test Report)

ENA Engineering Recommendation G83/2

Appendix 4

Type Verification Test Report

Type Approval and manufacturer/supplier declaration of compliance with the requirements of Engineering

Recommendation G83/2

SSEG (Small-Scale Embedded Generator)

Type reference number

SSEG Type

System Supplier name

Address

PVI-3.6-TL-OUTD

PVI-3.6-TL-OUTD-S

PVI-3.6-TL-OUTD-W

PHOTOVOLTAIC and WIND

GRID TIED INVERTER

PVI-3.0-TL-OUTD

PVI-3.0-TL-OUTD-S

PVI-3.0-TL-OUTD-W

Power-One Italy S.p.A.

Via S. Giorgio, 642

52028 Terranuova Bracciolini

Arezzo - Italy

Fax +39-055-9195248 Tel. +39-055-91951

E:mail [email protected]

Web site www.power-one.com

Connection Option

Maximum / Nominal rated capacity

3,68

(1)

/ 3,6

(1)

Max. Output Current limited to 16 A

3,3 / 3,0 kW single phase (for PVI-3.6 series) kW single phase (for PVI-3.0 series)

We, Power-One Italy S.p.A., as manufacturer/supplier of Small Scale Embedded Generators, certify that all products manufactured/supplied by the company with the above SSEG Type reference number will be manufactured and tested to ensure that they perform as stated in this Type Verification Test Report, prior to shipment to site and that no site modifications are required to ensure that the products meet all the requirements of G83/2.

Attachment:

Extract of Test Report Ref. 28106391 001, Determination of Electrical Properties, released by TUeV Rheinland

Phoenix, AZ

(Manufacturer) (Place)

2014 February 19

(Date)

Robert P. White Jr.

(Director Product Compliance)

_________________________________________________ Power–One Italy, S.p.A. __________________________________________________

52028 Terranuova Bracciolini (AR) – Via S.Giorgio, 642 – Tel. +39 055.9195.1 – Fax +39 055.9195.248 – Fax +39 055.9195.263 (purch. dept.)

Capitale Sociale € 22.000.000 int. vers. – C.C.I.A.A. Arezzo n. 101220 – Reg. Imp. E Cod. Fisc. 09286180154 – Partita I.V.A. 01574720510

Società soggetta alla direzione e controllo della Power-One Inc.

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Type of System:

System Manufacturer:

Manufacturer data:

Reference test report:

Measuring period:

Pacr:

(Rated AC Power)

Pacmax:

(Maximum AC output Power)

Software version

Seite 1 von 9

Page 1 of 9

Grid tied inverter

Power-One Italy S.p.A.

Via S. Giorgio 642, 52028

Terranuova Bracciolini (AR) - Italy

28106391 001

From 20

Th

January 2014 to 14

Th

February 2014

Models *

Pacr / Pacmax

PVI-3.6-TL-OUTD

PVI-3.6-TL-OUTD-S 3600 W / 3680 W **

PVI-3.6-TL-OUTD-W

PVI-3.0-TL-OUTD

PVI-3.0-TL-OUTD-S

PVI-3.0-TL-OUTD-W

3000 W / 3300 W

Booster (DC-DC)

Inverter (DC-AC)

MICRO (Supervisor)

Higher than A.3.3.6

Higher than B.3.4.B

Higher than C.0.3.5

Rated Voltage:

2-phase devices

230 V (Phase/ Neutral)

Remarks:

Note *: test performed on model PVI-3.6-TL-OUTD and PVI-3.0-TL-OUTD The test result found can be extended on all model of the same product family. All products are completely the same; identical software version and PCB control boards are installed; the difference is related only on output power set.

The family product model is made by the following products:

PVI-3.6-TL-OUTD-W ; PVI-3.6-TL-OUTD-S

PVI-3.0-TL-OUTD-W ; PVI-3.0-TL-OUTD-S

Tested model indicated in bold characters.

Note **:

Maximum output current limited to 16A up to a maximum output power of 3.68kW

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 2 von 9

Page 2 of 9

Power Quality. Harmonics. The requirement is specified in section 5.4.1, test procedure in Annex A or B 1.4.1 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

SSEG rating per phase (rpp)

Harmonic

At 45-55% of rated output

22

23

24

25

26

27

28

29

30

15

16

17

18

19

20

21

10

11

12

13

14

6

7

8

9

2

3

4

5

3,6

100% kW of rated output

NV=MV*3.68/rpp

Measured

Value (MV) in Amps

Normalised

Value (NV) in

Amps

Measured

Value (MV) in Amps

0,004

0,004

0,003

0,003

0,003

0,002

0,003

0,005

0,004

0,027

0,004

0,021

0,003

0,014

0,003

0,010

0,021

0,186

0,007

0,053

0,006

0,046

0,005

0,049

0,004

0,044

0,006

0,039

0,005

0,004

0,004

0,003

0,003

0,003

0,002

0,003

0,005

0,004

0,028

0,004

0,021

0,003

0,014

0,003

0,010

0,021

0,190

0,007

0,054

0,006

0,047

0,005

0,050

0,004

0,045

0,006

0,040

0,005

0,031

0,258

0,011

0,033

0,003

0,057

0,008

0,041

0,006

0,044

0,006

0,050

0,006

0,037

0,003

0,040

0,005

0,035

0,005

0,031

0,003

0,025

0,003

0,017

0,004

0,015

0,004

0,010

0,003

Normalised

Value (NV) in

Amps

Limit in BS

EN 61000-3-

2 in Amps

Higher limit for odd harmonics 21 and above

0,003

0,026

0,003

0,017

0,004

0,015

0,004

0,010

0,003

0,038

0,003

0,041

0,005

0,036

0,005

0,032

0,032

0,264

0,011

0,034

0,003

0,058

0,008

0,042

0,006

0,045

0,006

0,051

0,006

0,084

0,098

0,077

0,090

0,071

0,083

0,066

0,078

0,061

0,150

0,115

0,132

0,102

0,118

0,092

0,107

1,080

2,300

0,430

1,140

0,300

0,770

0,230

0,400

0,184

0,330

0,153

0,210

0,131

0,124

0,117

0,147

0,135

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

31

32

33

34

35

36

37

38

39

0,004

0,003

0,003

0,004

0,003

0,002

0,004

0,003

0,004

0,004

0,003

0,003

0,004

0,003

0,002

0,004

0,003

0,004

40 0,003 0,003 0,003

No Higher limit for odd harmonics 21 and above are applied

0,011

0,003

0,005

0,004

0,005

0,003

0,005

0,002

0,003

0,011

0,003

0,005

0,004

0,005

0,003

0,005

0,002

0,003

0,003

0,073

0,058

0,068

0,054

0,064

0,051

0,061

0,048

0,058

0,046

Seite 3 von 9

Page 3 of 9

0,109

0,102

0,096

0,091

0,087

Power Quality. Harmonics. The requirement is specified in section 5.4.1, test procedure in Annex A or B 1.4.1 (of reference document G83/2)

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

7

8

9

10

11

12

13

14

2

3

4

5

6

15

16

17

18

19

SSEG rating per phase (rpp)

Harmonic

At 45-55% of rated output

Measured

Value (MV) in Amps

Normalised

Value (NV) in

Amps

0,045

0,003

0,036

0,006

0,028

0,004

0,021

0,004

0,015

0,228

0,005

0,059

0,005

0,053

0,006

0,017

0,003

0,006

0,018

0,280

0,006

0,072

0,006

0,065

0,007

0,055

0,004

0,044

0,007

0,034

0,005

0,026

0,005

0,021

0,004

0,007

3,0 kW

0,054

0,005

0,045

0,006

0,042

0,005

0,042

0,007

0,020

0,445

0,005

0,075

0,003

0,064

0,005

0,044

0,004

0,033

0,066

0,006

0,055

0,007

0,052

0,006

0,052

0,009

0,025

0,546

0,006

0,092

0,004

0,079

0,006

0,054

0,005

0,040

NV=MV*3.68/rpp

100% of rated output

Measured

Value (MV) in Amps

Normalised

Value (NV) in

Amps

Limit in BS

EN 61000-3-

2 in Amps

Higher limit for odd harmonics 21 and above

1,080

2,300

0,430

1,140

0,300

0,770

0,230

0,400

0,184

0,330

0,153

0,210

0,131

0,150

0,115

0,132

0,102

0,118

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 4 von 9

Page 4 of 9

20

0,002 0,002 0,004

21

0,004 0,005 0,025

22

0,002 0,002 0,004

23

0,003 0,004 0,015

24

0,004 0,005 0,003

25

0,003 0,004 0,014

26

0,003 0,004 0,003

27

0,004 0,005 0,006

28

0,003 0,004 0,001

29

0,005 0,006 0,003

30

0,003 0,004 0,004

31

0,003 0,004 0,005

32

0,002 0,002 0,003

33

0,003 0,004 0,004

34

0,004 0,005 0,002

35

0,002 0,002 0,004

36

0,003 0,004 0,004

37

0,002 0,002 0,002

38

0,002 0,002 0,002

39

0,001 0,001 0,005

40

0,003 0,004 0,003

No Higher limit for odd harmonics 21 and above are applied

0,005

0,031

0,005

0,018

0,004

0,017

0,004

0,007

0,001

0,004

0,005

0,006

0,004

0,005

0,002

0,005

0,005

0,002

0,002

0,006

0,004

0,092

0,107

0,084

0,098

0,077

0,090

0,071

0,083

0,066

0,078

0,061

0,073

0,058

0,068

0,054

0,064

0,051

0,061

0,048

0,058

0,046

0,147

0,135

0,124

0,117

0,109

0,102

0,096

0,091

0,087

Power Quality. Voltage fluctuations and Flicker. The requirement is specified in section 5.4.2, test procedure in Annex A or B 1.4.3 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W dmax

1,004%

Starting dc

0% d(t)

0 dmax

1,004%

Stopping dc

0% d(t)

0

Pst

Running

0,243

Plt 2 hours

0,242 Measured Values

Normalised to standard impedance and 3.68kW for multiple units

Limits set under BS EN

61000-3-3

Test start date

N/A

4%

N/A

3,30%

03\10\2011

N/A

500ms

N/A N/A

3,30%

N/A

3.3%

500ms

1

Test end date

N/A N/A

0,65

03\10\2011

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 5 von 9

Page 5 of 9

Power quality. DC injection. The requirement is specified in section 5.5, test procedure in Annex A or B 1.4.4 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

Test power level

Recorded value as % of rated AC current

10%

3,0 mA

0,02 %

55%

2,0 mA

0,01 %

100%

3,0 mA

0,02 %

0,25 % Limit 0,25 % 0,25 %

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

Test power level

Recorded value(A)

10%

1,92 mA

55%

1,46 mA

100%

5,12 mA as % of rated AC current 0,02% 0,01% 0,04%

Limit 0,25% 0,25% 0,25%

Power quality. DC injection. The requirement is specified in section 5.6, test procedure in Annex A or B 1.4.2 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

216.2V 230V 253V

Measured value

Limit

0,9994

>0.95

0,9994

>0.95

0,9994

>0.95

Measured at three voltage levels and at full output. Voltage to be maintained within ±1.5% of the stated level during the test.

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

216.2V 230V 253V

Measured value

Limit

0,9988

>0.95

0,9986

>0.95

0,9988

>0.95

Measured at three voltage levels and at full output. Voltage to be maintained within ±1.5% of the stated level during the test.

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 6 von 9

Page 6 of 9

Protection. Frequency tests The requirement is specified in section 5.3.1, test procedure in Annex A or B 1.3.3 (of reference document G83/2)

Function

U/F stage 1

U/F stage 2

O/F stage 1

O/F stage 2

Function

U/F stage 1

U/F stage 2

O/F stage 1

O/F stage 2

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

47.5Hz

Setting

Frequency Time delay

20,05s

Frequency

47,45

Trip test

Time delay

20,04

“No trip tests”

Frequency

/time

47.7Hz/ 25s

Confirm no trip

No Trip

47Hz 0,55s 46,95 0,56 47.2Hz/ 19.98s

46.8Hz/ 0.48s

No Trip

No Trip

51.5Hz

52Hz

90,05s

0,55s

51,55

52,05

90,04

0,55

51.3Hz/95s

51.8Hz/ 89.98s

No Trip

No Trip

52.2Hz/ 0.48s

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

Setting Trip test

Frequency

47.5Hz

Time delay

20,05s

Frequency

47,45

Time delay

20,03

No Trip

“No trip tests”

Frequency

/time

47.7Hz/ 25s

Confirm no trip

No Trip

47Hz 0,55s 46,95 0,55 47.2Hz/ 19.98s No Trip

51.5Hz

52Hz

90,05s

0,55s

51,55

52,05

90,03

0,55

46.8Hz/ 0.48s

51.3Hz/ 95s

51.8Hz/ 89.98s

52.2Hz/ 0.48s

No Trip

No Trip

No Trip

No Trip

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 7 von 9

Page 7 of 9

Protection. Voltage tests The requirement is specified in section 5.3.1, test procedure in Annex A or

B 1.3.2 (of reference document G83/2)

Function

U/V stage 1

U/V stage 2

O/V stage 1

O/V stage 2

Function

U/V stage 1

U/V stage 2

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

Setting Trip test “No trip tests”

Voltage Time delay Voltage Time delay Voltage/Time Confirm no trip

200.1V 2.55s

199,93 2,59

204.1V/3.5s

184V 0.55s

184,06 0,60

188V/2.48s

262.2V 1.05s

261,90 1,07

180V/0.48s

258.2V/2.0s

273.7V 0.55s

273,18 0,59

269.7V/0.98s

277.7V/ 0.48s

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

Voltage

Setting

Time delay

Trip test

Voltage Time delay

No Trip

No Trip

No Trip

No Trip

No Trip

No Trip

“No trip tests”

Voltage/Time Confirm no trip

200.1V

184V

2.55s

0.55s

199,85

183,73

2,57

0,588

204.1V/3.5s

188V/2.48s

No Trip

No Trip

262.2V

273.7V

1.05s

0.55s

261,94

273,32

1,08

0,579

180V/0.48s

258.2V/2.0s

269.7V/0.98s

No Trip

No Trip

No Trip

O/V stage 1

O/V stage 2

277.7V/ 0.48s No Trip

Protection. Loss of Mains test. The requirement is specified in section 5.3.2, test procedure in

Annex A or B 1.3.4 (of reference document G83/2)

Note as an alternative, inverters can be tested to BS EN 62116. The following sub set of tests should be recorded in the following table.

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

Test Power and imbalance

Trip time. Limit is 0.5s

33%

-5% Q

Test 22

0,264

66% -

5% Q

Test 12

0,388

100%

-5% P

Test 5

0,432

33%

+5% Q

Test 31

0,345

66%

+5% Q

Test 21

0,133

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

100%

+5% P Test

10

0,397

Test Power and imbalance

Trip time. Limit is 0.5s

33%

-5% Q

Test 22

0,392

66% -

5% Q

Test 12

0,362

100%

-5% P

Test 5

0,348

33%

+5% Q

Test 31

0,369

66% 100%

+5% Q +5% P Test

Test 21 10

0,376 0,380

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 8 von 9

Page 8 of 9

Protection. Frequency change, Stability test The requirement is specified in section 5.3.3, test procedure in Annex A or B 1.3.6 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

Start Frequency Change End Frequency Confirm no trip

Positive Vector Shift 49.5Hz +9 degrees No trip

Negative Vector Shift

Positive Frequency drift

Negative Frequency drift

50.5Hz

49.5Hz

50.5Hz

- 9 degrees

+0.19Hz/sec

-0.19Hz/sec

51.5Hz

47.5Hz

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

No trip

No trip

No trip

Positive Vector Shift

Negative Vector Shift

Positive Frequency drift

Negative Frequency drift

49.5Hz

50.5Hz

49.5Hz

50.5Hz

+9 degrees

- 9 degrees

+0.19Hz/sec

-0.19Hz/sec

51.5Hz

47.5Hz

No trip

No trip

No trip

No trip

Protection. Re-connection timer. The requirement is specified in section 5.3.4, test procedure in

Annex A or B 1.3.5 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

Time delay setting

20s

Measured delay

35s

Checks on no reconnection when voltage or frequency is brought to just

At 266.2V outside stage 1 limits of table 1.

At 196.1V At 47.4Hz At 51.6Hz

Confirmation that the SSEG does not re-connect.

No reconnection No reconnection No reconnection No reconnection

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

Time delay setting

20s

Measured delay

35s

Confirmation that the SSEG does not re-connect.

Checks on no reconnection when voltage or frequency is brought to just outside stage 1 limits of table 1.

At 266.2V At 196.1V At 47.4Hz At 51.6Hz

No reconnection No reconnection No reconnection No reconnection

Type Verification Test Report (G83/2)

Extract of Test report: 28106391 001

“Determination of electrical properties”

Appendix 4 Type Verification Test Report (G83/2)

Seite 9 von 9

Page 9 of 9

Fault level contribution. The requirement is specified in section 5.7, test procedure in Annex A or B

1.4.6 (of reference document G83/2)

MODELs: PVI-3.6-TL-OUTD ; PVI-3.6-TL-OUTD-S ; PVI-3.6-TL-OUTD-W

For a Inverter SSEG

Time after fault

20ms

100ms

250ms

500ms

Time to trip

Volts

101,42

94,89

93,70

93,30

0,588

Amps

14,16

10,33

8,30

7,41

In seconds

MODELs: PVI-3.0-TL-OUTD ; PVI-3.0-TL-OUTD-S ; PVI-3.0-TL-OUTD-W

Time after fault

20ms

100ms

250ms

500ms

Time to trip

For a Inverter SSEG

Volts

83,48

43,06

32,65

28,31

0,582

Amps

14,28

8,21

5,34

3,91

In seconds

Self-Monitoring solid state switching. The requirement is specified in section 5.3.1, no specified test requirements.

Mechanical relay used.

This extract from the test report is only valid in conjunction with the test report no.: 28106391 001

NA

Type Verification Test Report (G83/2)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
