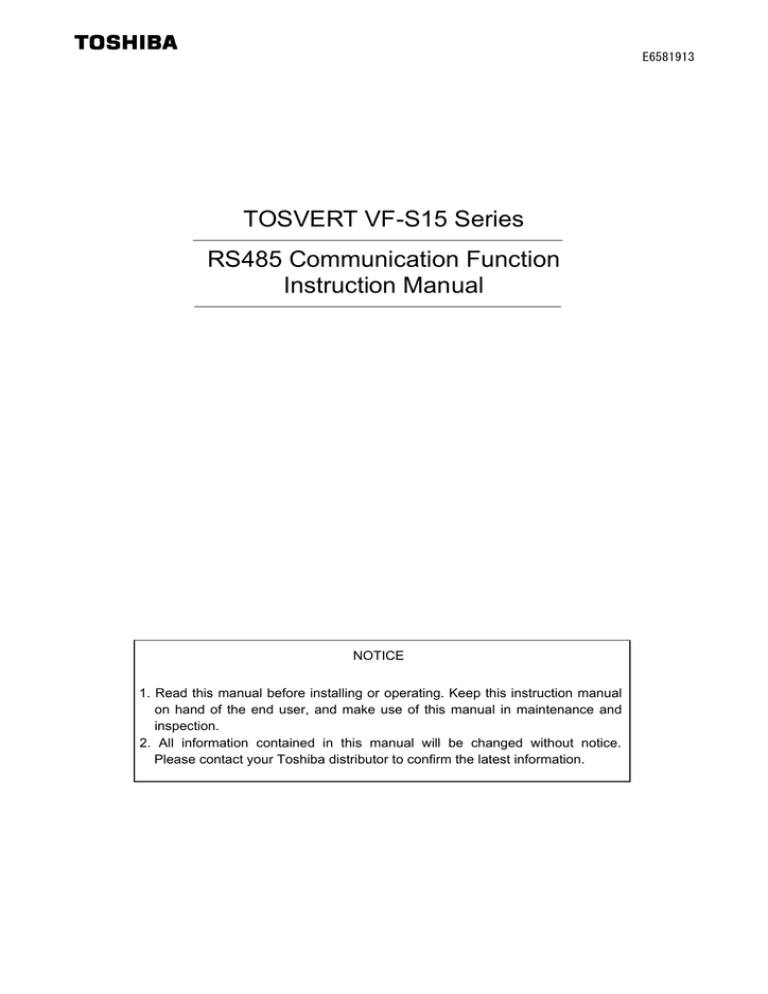

TOSVERT VF-S15 Series

RS485 Communication Function

Instruction Manual

NOTICE

1. Read this manual before installing or operating. Keep this instruction manual on hand of the end user, and make use of this manual in maintenance and inspection.

2. All information contained in this manual will be changed without notice.

Please contact your Toshiba distributor to confirm the latest information.

E6581913

E6581913

Read first

Safety precautions

This manual and labels on the inverter provide very important information that you should bear in mind to use the inverter properly and safely, and also to avoid injury to yourself and other people and damage to property.

Read the safety precautions in the instruction manual for your inverter before reading this manual

Mandatory action and strictly follow the safety instructions given.

CAUTION

Reference

 Insert an electromagnetic contactor between the inverter and the power supply so

Inverter’s that the machine can be stopped without fail from an external controller in case of an instruction manual emergency.

 Do not write the same parameter to the EEPROM more than 10,000 times. The life

Section 4.2

time of EEPROM is approximately 10,000 times.(Some parameters are not limited, “Commands”

please refer to the “9.Parameter data“)

When using the Toshiba inverter protocol and the data does not need to be records, use P command (the data is written only to RAM).

 About the handling of the inverter, please follow the Inverter’s instruction manual.

1

E6581913

Contents

1.

General outlines of the communication function ......................................................................................................... 3

2.

Data transmission specifications................................................................................................................................. 4

3.

Communication protocol ............................................................................................................................................. 5

3.1.

About the handling of received frames ............................................................................................................. 5

4.

Toshiba inverter protocol ............................................................................................................................................ 6

4.1.

Data transmission format.................................................................................................................................. 7

4.1.1.

Data transmission format used in ASCII mode ..................................................................................... 7

4.1.2.

Data transmission format used in binary mode ................................................................................... 10

4.1.3.

Transmission format of Block Communication .................................................................................... 13

4.2.

Commands ..................................................................................................................................................... 17

4.3.

Transmission errors........................................................................................................................................ 20

4.4.

Broadcast communication function................................................................................................................. 21

4.5.

Examples of the use of communication commands........................................................................................ 23

5.

Modbus RTU protocol............................................................................................................................................... 24

5.1.

Modbus RTU transmission format ................................................................................................................. 25

5.1.1.

Read command (03H)......................................................................................................................... 26

5.1.2.

Block Read command:Indirect (03H)................................................................................................ 27

5.1.3.

Block Read command:Direct (03H) .................................................................................................. 29

5.1.4.

Write command (06H, 10H) ................................................................................................................ 31

5.1.5.

Block Write command (10H) ............................................................................................................... 33

5.1.6.

Block Write and Read command (17H)............................................................................................... 35

5.1.7.

Identification command (2BH)............................................................................................................. 37

5.2.

CRC Generation............................................................................................................................................. 39

5.3.

Error codes..................................................................................................................................................... 40

6.

Inter-drive communication......................................................................................................................................... 41

6.1.

Speed proportional control ............................................................................................................................. 44

6.2.

Transmission format for inter-drive communication........................................................................................ 46

7.

Communication parameters...................................................................................................................................... 47

7.1.

Baud rate (f800), Parity (f801) ............................................................................................................ 49

7.2.

Inverter number (f802) ............................................................................................................................. 49

7.3.

Communication time-out detection (f803) (f804) (f808) ................................................................. 50

7.4.

Communication waiting time (f805) .......................................................................................................... 51

7.5.

Free notes (f880) ...................................................................................................................................... 51

8.

Commands and monitoring from the computer......................................................................................................... 52

8.1.

Communication commands (commands from the computer) ......................................................................... 52

8.2.

Monitoring from the computer......................................................................................................................... 56

8.3.

Utilizing panel (LEDs and keys) by communication ........................................................................................ 63

8.3.1.

LED setting by communication............................................................................................................ 63

8.3.2.

Key utilization by communication ........................................................................................................ 66

9.

Parameter data ......................................................................................................................................................... 67

Appendix 1 Table of data codes........................................................................................................................................ 71

Appendix 2 Response time ............................................................................................................................................... 72

Appendix 3 Type and Form (FB05) ................................................................................................................................... 73

Appendix 4 Troubleshooting.............................................................................................................................................. 74

Appendix 5 Connecting for RS485 communication ........................................................................................................... 75

2

E6581913

1. General outlines of the communication function

This manual explains the RS485 communications interface function provided for the TOSVERT

VF-S15 series of industrial inverters.

The TOSVERT VF-S15 series of inverters can be connected to a computer or a controller (hereinafter referred to as the computer) for data communications via USB converter (USB001Z).

By writing computer programs, you can monitor the operating status of the inverter, control its operation in various ways from the computer, and change and store parameter settings on storage devices.

The communication protocol is preparing the Toshiba inverter protocol and the Modbus RTU protocol. Please choose selection of a protocol with a communication protocol selection parameter

().

<Computer link>

By preparing the program (explained later), the following information can be exchanged between the computer and the inverter.

 Monitoring function (used to monitor the operating status of the inverter: Output frequency, current, voltage, etc.)

 Command function (used to issue run, stop and other commands to the inverter)

 Parameter function (used to set parameters and read their settings)

As for data communications codes, the TOSVERT VF-S15 series of inverters support the binary

(HEX) code, in addition to the JIS (ASCII) code. The communications function is designed on the assumption that the JIS (ASCII) code is used for communications between the inverter and the personal computer, and the binary (HEX) code for communications between the inverter and the microcomputer built into the controller. A communication number is used to access the desired data item.

* The smallest unit of information that computers handle is called a “bit (binary digit),” which represents the two numbers in the binary system: 1 or 0. A group of 16 bits is referred to as a “word,” which is the basic unit of information the VF-S15 series of inverters use for data communications.

One word can handle data items of 0 to FFFFH in hexadecimal notation (or 0 to 65535 in decimal notation).

BIT15

1 bit

3

E6581913

2. Data transmission specifications

Items Specifications

Transmission scheme Half-duplex

Synchronization scheme Start-stop synchronization

Communication baud rate 9600/19200*/38400 bps (selectable using a parameter)

*1

Communication protocol

*: Standard default setting

Toshiba inverter protocol * / Modbus RTU protocol (selectable using a parameter)

*1

Character transmission

Stop bit length

Error detecting scheme

<ASCII mode> JIS X 0201 8-bit (ASCII)

<Binary mode, Modbus RTU> Binary codes fixed to 8 bits

Received by inverter: 1 bit, Sent by inverter: 2 bits

*3

Parity

*2

: Even */Odd/Non parity (selectable using a parameter)

*1

, checksum(Toshiba inverter protocol), CRC(Modbus RTU protocol)

11-bit characters

*1

(Stop bit=1, with parity) format

Order of bit transmission Least significant bit sent first

Frame length Variable

*1: Changes to setting do not take effect until the inverter is turned back on or reset.

*2: JIS-X-0201 (ANSI)-compliant 8-bit codes are used for all messages transmitted in ASCII mode and vertical (even) parity bits specified by JIS-X-5001 are added to them. These even parity bits can be changed to odd parity bits by changing the parameter setting (a change to the parameter setting does not take effect until the inverter has been reset.)

*3: The following is the character transmission format.

Characters received: 11 bits (1 start bit + 8 bits + 1 parity bit + 1 stop bit)

START

BIT BIT0 BIT1 BIT2 BIT3 BIT4 BIT5 BIT6

The inverter receives one stop bit.

(The computer can be set so as to send 1, 1.5 or 2 stop bits.)

BIT7

PARITY STOP

BIT BIT

Characters sent: 12 bits (1 start bit + 8 bits + 1 parity bit + 2 stop bits)

START PARITY STOP STOP

BIT BIT0 BIT1 BIT2 BIT3 BIT4 BIT5 BIT6

The inverter sends two stop bits.

(The computer can be set so as to receive 1, 1.5 or 2 stop bits.)

BIT7 BIT BIT BIT

4

E6581913

3. Communication protocol

VF-S15 supports the Toshiba inverter protocol and a part of Modbus RTU protocol.

Select the desired protocol from in the following communication protocol selection parameters

(f829).

“Parameter Name f829, Communication Number. 0829”

Data Range: 0, 1 (Initial value: 0)

0: Toshiba inverter protocol (Includes inter-drive communication)

1: Modbus RTU protocol

* A parameter change is reflected when the inverter is reset, such as in power off.

3.1. About the handling of received frames

To send and receive data frames, a frame synchronization system for locating the start and end points of each frame is defined with time for which no data is sent (time interval equivalent to the time required to send 3.5 bytes of data).

If no data is sent for the time required to send 3.5 bytes of data at the current transmission speed

(approx. 4 ms or more at 9,600 bps or approx. 2 ms or more at 19,200 or approx. 1 ms or more at

38400) after receipt of a frame, the entire frame is assumed to have reached and information in it is analyzed. For this reason, an interval corresponding to at least 3.5 bytes of data must be placed between frames.

When two or more inverters on the same line are controlled individually one after another, the data flames are not only data from the computer to an inverter but also the response from an inverter to the computer. Therefore, an interval corresponding to at least 3.5 bytes should be placed between the time when the computer receives a response from an inverter and the time when it sends a frame to the next inverter. Otherwise the return frame received and the frame that is sent immediately after receipt of the return frame will be recognized as one frame and communication will not be carried out normally.

[Correct]

Frame A

Fram e A (1/2) Frame A (2/2)

Frame B

3.5 bytes or more

Note: An inverter cannot receive frame

B before it finishes analyzing the contents of frame A.

[Wrong]

If divided into two smaller frames, frame A cannot be received as a single fram e when the interval corresponds to less than 1.5 bytes of data.

Frame B

3.5 bytes or more

5

E6581913

4. Toshiba inverter protocol

Select “TOSHIBA” (f829=0) in the communication protocol selection parameters. “TOSHIBA”

(f829=0) is set for initial communication protocol selection of shipment setting. (See “3.

Communication protocol”.)

 Exchange of data between the computer and the inverter

In communication between the computer and the VF-S15 (hereinafter referred to as the inverter), the inverter is always placed in wait states and acts as a slave that operates on a request from the computer.

The judgment of ASCII mode or binary mode is automatically made with the start code.

ASCII mode

Binary mode

Start code

“(”

“2FH(/) ”

“CR” (carriage return)

Required

Not required

(1) If there is no transmission format or the inverter number that matches, an error occurs and no response is returned.

(2) When an inverter number is added behind the “(” communication will take place only in case of broadcast communication or if the number matches up with that assigned to the inverters.

(3) When a time-out period is specified with parameter f803 (communication time-out time), a time-out occurs if communication do not terminate normally within the specified time. With parameter f804 (communication time-out action), you can specify what the inverter should do if

a time-out occurs. For details, refer to Section 7.3.

(4) On executing the command received, the inverter returns data to the computer. For the response time, see Appendix 2, “Response time”.

Note:

Communication is not available for about one second (initialization) just after the power is supplied to the inverter. If the control power is shut down due to an instantaneous voltage drop, communication is temporarily interrupted.

6

E6581913

4.1. Data transmission format

4.1.1. Data transmission format used in ASCII mode

A communication number is used to specify a data item, all data is written in hexadecimal, and

JIS-X-0201 (ASCII (ANSI))-compliant transmission characters are used.

 Computer  Inverter

Omissible in one-to-one communication For the W and P commands only Omissible

(3.5bytes

Blank)

"("

(28H)

INV-NO

2 bytes

CMD

1 byte

Communication No.

4 bytes

DATA

0 to 4 bytes

"&"

(26H)

SUM

2 bytes

")"

(29H)

CR

(0DH)

(3.5bytes

Blank)

Checksum area

Omissible

1. “(“ (1 byte) : Start code in ASCII mode

2. INV-NO (2 bytes) : Inverter number (Omissible in one-to-one communication) ... 00 (30H, 30H) to 99 (39H,

39h), *(2AH)

The command is executed only when the inverter number matches up with that specified using a parameter.

(When * is specified in broadcast communication, the inverter number is assumed to match if all numbers except * match. When * is specified instead of each digit (two-digit number), all inverters connected are assumed to match.)

If the inverter number does not match or if the inverter number is of one digit, the data will be judged invalid and no data will be returned.

3. CMD (1 byte) : Command (For details, see the table below.)

4. Communication No.(4 bytes)

: Communication number (See “9. Parameter data”.)

5. Data (0 to 4 bytes) : Write data (valid for the W and P commands only)

6. “&” (1 byte) : Checksum discrimination code (omissible. When omitting this code, you also need to omit the checksum.)

7. Sum (2 bytes) : Checksum (omissible)

Add the ASCII-coded value of the last two digits (4 bits/digit) of the sum of a series of bits

(ASCII codes) from the start code to the checksum discrimination code.

Ex.: (R0000&??) CR

28H+52H+30H+30H+30H+30H+26H=160H

The last two digits represent the checksum. = 60

When omitting the checksum, you also need to omit the checksum discrimination code.

8. “)” (1 byte)

9. CR (1 byte)

: Stop code (omissible)

: Carriage return code

 Details of commands and data

CMD (1 byte)

R (52H): RAM read command

W (57H): RAM/EEPROM write command

P (50H) RAM write command

Write data (0 to 4 bytes) Hexadecimal number

No data

Write data (0 to FFFF)

Write data (0 to FFFF)

7

E6581913

 Inverter  computer

At time of broadcast communication, returning of data is not executed, except for the inverters to be returned, when the inverter number is not matched, and the inverter number has only one character.

This is because there will be a risk of that the returned data may be deformed.

 Data returned when data is processed normally (ASCII mode)

Omissible in one-to-one communication Omissible

(3.5bytes

Blank)

"("

(28H)

INV-NO

2 bytes

CMD

1 byte

Communication No.

4 bytes

DATA

0 to 4 bytes

"&"

(26H)

SUM

2 bytes

")"

(29H)

CR

(0DH)

(3.5bytes

Blank)

Checksum area

Omissible

1. “(“ (1 byte) : Start code in ASCII mode

2. INV-NO (2 bytes) : Inverter number (omitted if it is not found in the data received) ... 00 (30H, 30H) to 99 (39H,

39H)

If the inverter number matches up with that specified using a parameter, data will be returned to the computer. In broadcast communication, only the destination inverter (with a number matching up with the smallest effective number) returns data to the computer.

In broadcast communication, no data is returned from any inverters except the inverter bearing a number that matches up with the smallest effective number.

Ex.: (*2R0000) CR -> (02R00000000) CR

Data is returned from the inverter with the number 2 only, but no data is returned from inverters with the number 12, 22 ....

3. CMD (1 byte) : Command ... The command is also used for a check when an inverter is tripped.

When the inverter is normal condition... The uppercase letter R, W or P is returned, depending on the command received: R, W or P command.

When the inverter is tripped... The lowercase letter r, w or p is returned, depending on the command received: R, W or P command.

(The command received is returned with 20H added to it.)

4. Communication No.(4 bytes) :

The communication number received is returned.

5. Data (0 to 4 bytes) : Data ... The data read in is returned for the R command, while the data received is returned for the W and P commands. If the data received is composed of less than 4 digits, it will be converted into 4-digit data and returned.

Ex.: (W123412) CR

 (W12340012) CR

6. “&” (1 byte)

7. Sum (2 bytes)

: Checksum discrimination code (omitted if it is not found in the data received)

: Checksum ... Omitted if no checksum discrimination code is found in the data received.

ASCII-coded value of the last two digits (4 bits/digit) of the sum of a series of bits (ASCII codes) from the start code to the checksum discrimination code.

8. “)” (1 byte)

9. CR (1 byte)

: Stop code (omitted if it is not found in the data received)

: Carriage return code

8

E6581913

 Data returned when data is not processed normally (ASCII mode)

In case an error occurs, communication error command (4EH(N) or 6EH(n)) and the error type number is returned to the computer in addition to the checksum. At time of broadcast communication of the binary mode, returning of data is not executed except for the inverter to be returned (inverter number 00H) and when the inverter number is not matched. This is because there will be a risk that the returned data may be deformed.

Omissible Omissible

(3.5bytes

Blank)

“(“

(28H)

INV-NO

2 bytes

“N” or “n”

(4EH) (6EH)

DATA

4 bytes

"&"

(26H)

SUM

2 bytes

")"

(29H)

CR

(0DH)

(3.5bytes

Blank)

Checksum area

Omissible

“(“ (1 byte) : Start code in ASCII mode

“N” or “n” (1 byte) : Communication error command ... This is also used for the checking of inverter trip.

“N” is during normal condition and “n” is during trip.

INV-NO (2 bytes) : Inverter number (omitted if it is not found in the data received) ... 00 (30H, 30H) to 99 (39H,

39H)

If the inverter number matches up with that specified using a parameter, data will be returned to the computer. In broadcast communication, only the destination inverter (with a number matching up with the smallest effective number) returns data to the computer.

Data (4 bytes)

“)” (1 byte)

: Error code (0000~0004)

0000 ... Impossible to execute (Although communication is established normally, the command cannot be executed because it is to write data into a parameter whose setting cannot be changed during operation (e.g., maximum frequency) or the

EEPROM is faulty.)

0001 ... Data error (The data is outside the specified range or it is composed of too many digits.)

0002 ... Communication number error (There is no communication number that matches.)

0003 ... Command error (There is no command that matches.)

0004 ... Checksum error (The checksum result differs.)

: Stop code ... This code is omitted if it is not found in the data received.

 Examples:

(N0000&5C)

CR

... Impossible to execute (e.g., a change of maximum frequency data during operation)

(N0001&5D)

CR

... Data error (Data is outside the specified range.)

(N0002&5E)

CR

... No communication number (There is no communication number that matches.)

(N0003&5F)

CR

... There is no command that matches. (Commands other than the R, W and P commands)

(Ex.: L, S, G, a, b, m, r, t, w ...)

(N0004&60)

CR

... Checksum error (The checksum result differs.)

No data returned ... Format error or invalid inverter number

9

E6581913

4.1.2. Data transmission format used in binary mode

A communication number is used to specify a data item, data is written in hexadecimal form, and data in transmission characters are represented by binary codes (HEX codes).

 Computer  Inverter (binary mode)

Omissible in one-to-one communication No data for the 52H (R) command

(3.5bytes

Blank)

“/”

(2FH)

INV-NO

1 byte

CMD

1 byte

Communication No.

2 bytes

Checksum area

DATA

2 bytes

SUM

1 byte

Not omissible

(3.5bytes

Blank)

1. 2FH (“/”) (1 byte) : Start code in binary mode

2. INV-NO (2 bytes) : Inverter number (Omissible in one-to-one communication) ... 00H to 3FH, FFH

In case the inverter number is other than FFH (broadcast communication), command is executed only when the inverter number coincides with the one designated with the panel.

If the inverter number is not matched, it will be judged invalid and the data is not returned.

3. CMD (1 byte) : Command (For details, see the table below.)

52H (R) command: The size of the data following CMD is fixed to 3 bytes. (Communication number: 2 bytes, checksum: 1 byte)

57H (W), 50H (P) and 47H (G) commands: The size of the data following CMD is fixed to 5 bytes.

(Communication number: 2 bytes, data: 2 byte, checksum: 1 byte)

Any command other than the above is rejected and no error code is returned.

4. Communication No.(2 bytes)

: Communication number (See “9. Parameter data”.)

5. Data (2 bytes) : 0000H to FFFFH

57H (W) and 50H (P) commands: Write data (An area check is performed.)

47H (G) command: Dummy data (e.g., 0000) is needed.

52H (R) command: Any data is judged invalid. (No data should be added.)

6. Sum (2 bytes) : Checksum (not omissible) 00H to FFH

Value of the last two digits (1 byte) of the sum of a series of bits (codes) from the start code of the data returned to the data (or to the communication number for the 52H (R) command)

Ex.: 2F 52 00 ?? ... 2FH+52H+00H+00H=81H

The last two digits (??) represent the checksum= 81

 Details of commands and data

CMD (1 byte)

52H (R): RAM read command

57H (W): RAM/EEPROM write command

50H (P): RAM write command

47H (G): RAM read command (for two-wire networks)

Write data (2 bytes) Hexadecimal number

No data

Write data (0000H to FFFFH)

Write data (0000H to FFFFH)

Dummy data (0000H to FFFFH)

10

E6581913

 Inverter  computer (binary mode)

At time of broadcast communication of the binary mode, returning of data is not executed except for the inverter to be returned (inverter number 00H) and when the inverter number is not matched.

This is because there will be a risk that the returned data may be deformed.

 Data returned when data is processed normally (Binary mode)

Omissible

(3.5bytes

Blank)

“/”

(2FH)

INV-NO

1 byte

CMD

1 byte

Communication No.

2 bytes

Checksum area

DATA

2 bytes

SUM

1 byte

Not omissible

(3.5bytes

Blank)

1. 2FH (“/“) (1 byte) : Start code in binary mode

2. INV-NO (2 bytes) : Inverter number... 00H to 3FH (The inverter number is omitted if it is not found in the data received.)

If the inverter number matches up with that specified from the operation panel, data will be returned from the inverter. If the inverter number does not match, the data will be invalid and no data will be returned.

3. CMD (1 byte) : Command...The command is also used for a check when the inverter is tripped.

Under normal conditions...52H (R), 47H (G), 57H (W) or 50H (P) is returned, depending on the command received.

When the inverter is tripped...The lowercase letter 72H (r), 67H (g), 77H (w) or 70H (p) is returned with 20H added to it, depending on the command received.

4. Communication No. (4 bytes)

: The communication number received is returned.

5. Data (2 bytes) : Data ... 0000H to FFFFH

The data read is returned for the 52H (R) and 47H (G) commands, while the data written is returned for the 57H (W) and 50H (P) commands.

6. Sum (1 bytes) : Checksum (not omissible) 00H to FFH

Value of the last two digits (1 byte) of the sum of a series of bits (codes) from the start code to the data.

11

E6581913

2) Error Processing (Binary mode)

In case an error occurs, communication error command (4EH(N) or 6EH(n)) and the error type number is returned to the computer in addition to the checksum. At time of broadcast communication of the binary mode, returning of data is not executed except for the inverter to be returned (inverter number 00H) and when the inverter number is not matched. This is because there will be a risk that the returned data may be deformed.

(3.5bytes

Blank)

Omissible

“/”

(2FH)

INV-NO

1 byte

Norn

(4EH)(6EH)

DATA

2 bytes

SUM

1 byte

Checksum area Not omissible

(3.5bytes

Blank)

Norn (1 byte)

Data (2 bytes)

: Communication error command ... This command is also used for a check when the inverter is tripped.

4EH (N)” is returned under normal conditions, while “6EH (n)” is returned when the inverter is tripped.

: Error code (0000~0004)

0000 ... Impossible to execute (Although communication is established normally, the command cannot be executed because it is to write data into a parameter whose setting cannot be changed during operation (e.g., maximum frequency) or the

EEPROM is faulty.)

0001 ... Data error (The data is outside the specified range or it is composed of too many digits.)

0002 ... Communication number error (There is no communication number that matches.)

0004 ... Checksum error (The checksum result differs.)

No code returned ...Command error, format error (parity, overrun or framing error) or the inverter number does not match or an inverter in broadcast communication in the binary mode except for the inverter for data returning (the inverter numbered 00H).

 Examples:

2FH, 4EH, 00H, 00H, 7DH ... Impossible to execute (e.g., a change of maximum frequency data during operation)

2FH, 4EH, 00H, 01H, 7EH ... Data setting error (The data specified falls outside the specified range.)

2FH, 4EH, 00H, 02H, 7FH ... No communication number (There is no communication number that matches.)

2FH, 4EH, 00H, 04H, 81H ... Checksum error (The checksum result differs.)

12

E6581913

4.1.3. Transmission format of Block Communication

What is block communication?

Data can be written in and read from several data groups set in one communication by setting the type of data desired for communication in the block communication parameters (f870, f871, f875

to f879) in advance. Block communication can save the communication time.

Data is transmitted hexadecimal using the binary (HEX) code transmission characters. “Computer

→ inverter” is for writing only, while “Inverter → computer” for reply is for reading only.

 Computer → Inverter (Block Communication)

Omissible

(3.5bytes

Blank)

Start

Code

“/”

INV-NO CMD

“X”

Number of write data groups

1. 2FH(“/”) (1 byte) : Start code of binary mode

Number of writing data groups x 2 bytes

Number of read data groups

Write data1

High

Checksum Area

Write data1

Low

Write data2

High

Write data2

Low

SUM

(3.5bytes

Blank)

Not omissible

2. INV-NO (1 byte) : Inverter number. (Can be omitted in 1:1 communication): 00H to 3FH, FFH

Communication performs only when the inverter number is matched. Broadcast communication is FFH.

Communication data will be invalidated and data will not be returned either if the inverter number does not match.

3. CMD (1 byte) : ‘X’ (Block communication command)

4. Number of write data groups (1 byte)

: Specify the number of data groups to be written (00H to 02H).

If specified outside of the range, data will be treated as a format error and data will not be returned.

5. Number of read data groups (1 byte)

: Specify the number of data groups to be read (00H to 05H).

If specified outside of the range, data will be returned as “Number of read data groups = 0” when returned by the inverter.

6. Write data1 (2 bytes)

: Needed when the number of write data groups is larger than 1.

The data is written to the specified parameter selected by f870.

Dummy data is needed if the number of write data groups is larger than 1 even though

(none) is selected for f870.

7. Write data2 (2 bytes)

: Needed when the number of write data groups is 2.

The data is written to the specified parameter selected by f871.

Dummy data is needed if the number of write data groups is 2 even though (none) is selected for f871.

8. SUM (1 byte) : Checksum (Cannot be omitted) 00H to FFH

Lower two digits (1 byte) of total sum from start code (SUM value not included)

13

E6581913

 Block Write 1, 2

Select data, which is desired to be written in block communication, in block write Data 1 and 2 Parameters (f870, f871). This parameter becomes effective when the system is reset, such as when power is turned off. When the setting is completed, turn off and then on the power.

No. Block write data For data details, see:

-

1 Communication command 1 (FA00)

2 Communication command 2 (FA20)

3 Frequency command value (FA01)

4 Output data on the terminal board (FA50)

5 FM analog output (FA51)

6 Motor speed command (FA13)

“8.1. Command by communication”

* When “No selection” is specified in the parameters, no data will be written even though write data is specified.

 Block Read 1 to 5

Select read data, which is desired to be read in block communication, in block read data 1 and 5

Parameters (f875 to f879). This parameter becomes effective when the system is reset, such as when power is turned off. When the setting is completed, turn off and then on the power.

No. Block read data For data details, see:

-

1 Status information 1 (FD01)

2 Output frequency (FD00)

3 Output current (FD03)

4 Output voltage (FD05)

5 Alarm information (FC91)

6 PID feedback value (FD22)

7 Input terminal monitor (FD06)

8 Output terminal monitor (FD07)

9 Terminal VIA monitor (FE35)

10 Terminal VIB monitor (FE36)

11 Terminal VIC monitor (FE37)

12 Input voltage (FD04)

13 Motor speed (FE90)

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

* “0000” will be returned as dummy data, if “0 (No selection)” is selected for the parameter and

“read” is specified.

14

E6581913

 Inverter → Computer

At time of broadcast communication of the binary mode, returning of data is not executed except for the inverter to be returned (inverter number 00H) and when the inverter number is not matched.

This is because there will be a risk that the returned data may be deformed.

1) Normal processing

(3.5 bytes

Blank)

Omissible

Start

INV CMD

Code

“/”

No. “Y”

Number of Read

Data

Groups

1. 2FH “/” (1 byte)

2. INV-NO (1Byte)

Write

Status

Read data1 high

Read data1 low

Number of read data groups x 2 bytes

Read data2 high

Read data2

Checksum area

Start code in binary mode low

Inverter number・・・00H to 3FH

Read data3 high

Read data3 low

Read data4 high

Read data4 low

Read data5 high

Read data5 low

SUM

(3.5 bytes

Blank)

If the inverter number matches up with that specified from the operation panel, data will be returned from the inverter. If the inverter number does not match, the data will be judged invalid and no data will be returned.

Communication data will be invalidated and data will not be returned either if the inverter number does not match. (Inverter number is considered matched if it is omitted during reception)

:‘Y’ (Block communication command [monitoring]) 3. CMD(1Byte)

Lowercase letter ‘y’ is during inverter trip or inverter retry.

4. Number of read data groups (1 byte)

: Return the number of data groups to be read (00H to 05H).

5. Write status (1 byte) : Return 00H to 03H.

* Failing to write in the specified parameter in the number of write data groups, set “1” in the corresponding bit for the parameter failed to write. (See below.)

6. Read data1 - 5 (2 bytes)

Bit Position

Data Type

7 6 5

-

4 3 2 1 0

 

: Return according to the number of read data groups. “0000H” is returned as dummy

data if “0” is selected as a parameter.

Read data1: Data selected by f875. Read data2: Data selected by f876.

Read data3: Data selected by f877. Read data4: Data selected by f878.

Read data5: Data selected by f879.

7.SUM(1Byte) : Checksum (Cannot be omitted) 00H to FFH

Lower two digits (1 byte) of total sum from start code of return data to read data.

 Example

(When set as follows: f870 = 1 (Communication command 1), f871 = 3 (Frequency command value), f875 = 1 (Status information 1), f876 = 2 (Output frequency), f877 = 3 (Output current), f878 = 4 (Output voltage) and f879 = 5 (Alarm information)

Computer → Inverter:2F 58 02 05 C4 00 17 70 D9

Inverter → Computer:2F 59 05 03 00 00 00 00 00 00 00 00 00 00 90 (When parameter is not set)

Inverter → Computer:2F 59 05 00 40 00 00 00 00 00 00 00 00 00 CD CD (When parameter is set)

Inverter → Computer:2F 59 05 00 64 00 17 70 1A 8A 24 FD 00 00 3D (During operation at 60Hz)

15

E6581913

2) Error Processing (Binary mode)

In case an error occurs, communication error command (4EH(N) or 6EH(n)) and the error type number is returned to the computer in addition to the checksum.

(3.5bytes

Blank)

Omissible

“/”

(2FH)

INV-NO

1 byte

Norn

(4EH)(6EH)

DATA

2 bytes

SUM

1 byte

(3.5bytes

Blank)

Checksum area Not omissible

“N” or “n” (1 byte) : Communication error command. Also for check during an inverter trip (includes standing by for retrying and trip holding). “4EH (N)” is during normal condition, “6EH (n)” is during trip.

DATA (2 bytes) : Error code (0004)

0004 : Checksum error (The checksum does not match)

No return : Command error, format error (specified number of bytes is not received in 1sec, or parity error, overrun error or framing error), inverter number mismatch, and inverter number other than 00H in broadcast communication.

 Examples

Computer → Inverter : 2F 58 02 05 C4 00 17 70 D8

Inverter → Computer : 2F 4E 00 04 81 ... Checksum error

16

E6581913

4.2. Commands

Here are the communication commands available.

Command Function

W command Writes the data with the specified communication number. (RAM and EEPROM).

P command Writes the data with the specified communication number. (RAM).

R command Reads the data with the specified communication number.

G command

Reads the data with the specified communication number. (For binary mode only.

Dummy data is required for this command.)

S command Inter-drive communication command (For binary mode only.)

X command Block communication (Computer -> Inverter)

Y command Block communication (Inverter -> Computer)

W (57

H

)

(RAM

*1

/EEPROM

*2

write)

Mandatory action

This command is used to write new data into the parameter specified using it communication number. It writes data into the RAM and EEPROM. For parameters whose settings cannot be stored in the EEPROM (e.g., parameter with the communication number FA00), the W (57H) command writes data into the RAM only. It cannot be used to write data into read-only parameters (e.g., parameter with the communication number FD?? or FE??).

Each time an attempt to write data is made, the inverter checks if the data falls within the specified range. If this check reveals that the data falls outside the specified range, the inverter will reject it and return an error code.

- Ex.: Setting the deceleration time (communication number: 0010) to 10 sec.

<ASCII mode>

Computer

 Inverter Inverter

(W00100064)

CR

(W00100064)

CR

…(10

CR: Carriage return

0.1=100=0064H)

<Binary mode>

Computer

 Inverter Inverter

2F 57 00 10 00 64 FA 2F 57 00 10 00 64 FA …(10

0.1=100=0064H)

CAUTION

 Do not write the same parameter to the EEPROM more than 10,000 times. The life time of EEPROM is

approximately 10,000 times.(Some parameters are not limited, please refer to the “9. Parameter data“)

The lifetime of EEPROM is approximately 10,000 times. When using the Toshiba inverter protocol and the data does not need to be records, use P command (the data is written only to RAM).

 Explanation of terms

*1: The RAM is used to temporarily store inverter operation data. Data stored in the RAM is cleared when the inverter is turned off, and data stored in the EEPROM is copied to the RAM when the inverter is turned back on.

*2: The EEPROM is used to store inverter operation parameter settings, and so on. Data stored in the EEPROM is retained even after the power is turned off, and it is copied to the RAM when the inverter is turned on or reset.

17

E6581913

P (50

H

)

(RAM

*1

write)

This command is used to rewrite data into the parameter specified using a communication number.

It writes data into the RAM only. It cannot be used to write data into any read-only parameters. Each time an attempt to write data is made the inverter checks whether the data falls within the specified range. If this check reveals that the data falls outside the range, the inverter will reject it and return an error code.

- Ex.: Entering the emergency stop command (communication number: FA00) from the computer

<ASCII mode>

Computer

 Inverter Inverter

(PFA009000)

CR

(PFA009000)

CR …

Command priority, emergency stop command

<Binary mode>

Computer

Inverter

Inverter

2F 50 FA 00 90 00 09 2F 50 FA 00 90 00 09

R (52

H

)

(Data read)

This command is used to read the setting of the parameter specified using a communication number.

- Ex.: Monitoring the electric current (communication number: FE03)

<ASCII mode>

Computer

Inverter

Inverter

(RFE03)CR (RFE03077B)CR

<Binary mode>

Computer

Inverter

Inverter

2F 52 FE

03

82 2F 52 FE 03 07 7B 04

…Current: 1915 / 100 = 19.15%

G (47

H

)

(Data read)

This command is used to read the parameter data specified using a communication number. Although this command is used for the previous model to control the operation of two or more inverters in binary mode through two-wire RS485 network, the “R” command can also be used without problems for the VF-S15 series.

To use the “G” command, however, dummy data (2 bytes) is needed.

This command is available only in binary mode.

- Ex.: Monitoring the electric current (communication number: FE03)

Computer

 Inverter Inverter

2F 47 FE 03 00 00 77 2F 47 FE 03 07 7B F9

* In this example, the data 00H sent from the computer to the inverter is dummy data.

S (53

H

)/ s (73

H

)

Inter-drive communication command(RAM

*1

Write)

This command is for using frequency command value in % (1 = 0.01%), instead of in Hz, and is for synchronous-proportional operation in inter-drive communication. This command can also be used in ordinary computer link communications.

When writing in the frequency command value (FA01) is enabled and a parameter other than it is specified, a communication number error will result. Data is written in the RAMs only and at this time the data check such as an upper limit and lower limit checking is not carried out.

Data is not returned from the inverters while this command is used. This command can be used only in the binary mode.

For the details of the format, see “6.2. Transmission format for inter-drive communication”.

Use (%) as the unit for frequency command value specified by the command S, instead of (Hz), and the receiving side converts units for frequency values to “Hz” in accordance with the point conversion parameter. The conversion formula is shown below.

Frequency command value (Hz) =

Point 2 frequency (F813) − Point 1 frequency (F812)

Point 2 (F814) − Point 1 (F811)

− Point 1 (F811)) + Point 1 frequency (F812) x (Frequency command value (%)

18

E6581913

When Command “s” (lowercase letter) is received, the slave side judges that the master side is tripped and operates in accordance with the inter-drive communication parameter ().

For detail, see "7. Communication parameters".

- Examples: 50% frequency command

(If maximum frequency = Frequency for operation at 80Hz = 40Hz: 50% = 5000d = 1388H)

<Binary mode>

Master inverter → Slave inverter

2F 53 FA 01 13 88 18

Slave inverter → Master inverter

No return

X(58H)/Y (59H)

(Block Communication Command)

Data selected in the block communication write parameters (f870, ) is written in the RAM.

When returning data, data selected in block communication read parameters (f875 to f879) is read and is returned.

For detail, see "4.1.3. Transmission format of Block Communication ".

- Examples: 60Hz operation command from communication and monitoring (Monitoring when already operating at 60Hz)

(Parameter Setting: f870

= 1, = 3, f875 = 1, f876 = 2, f877 = 3, f878 = 4,

= 5

)

<Binary mode>

Computer → Inverter

2F 58 02 05 C4 00 17 70 D9

Inverter → Computer

2F 59 05 00 64 00 17 70 1A 8A 24 FD 00 00 3D

19

E6581913

4.3. Transmission errors

 Table of error codes

Error name

Impossible to execute

Data error

Communication number error

Command error

Description

The command is impossible to execute, though communication was established normally.

1 Writing data into a parameter whose setting cannot be changed during operation (e.g., maximum frequency)

*1

2 Writing data into a parameter while “init” is in progress

3 f700 (Parameter protection selection) is 2: Writing prohibited

(1+RS485 communication), 4: Reading prohibited (3+RS485 communication)

4 If f738(Password setting) was set to data, f738 can not set to data

Invalid data is specified.

There is no communication number that matches.

Checksum error

Format error

Receiving error

Error code

0000

0001

0002

The command specified does not exist.

The checksum does not match.

0003 (ASCII mode)

No code returned (Binary mode)

0004

The data transmission format does not match.

1 One-digit inverter number (ASCII mode)

2 The CR code is found in the designated position. (ASCII mode)

Ex.: Communication number of 4 digits or less. In the case of

(R11) CR, 11) CR is recognized as a communication number and the CR code is not recognized, with the result that a format error occurs.

No code returned

3 A code other then the stop code (“)”) is entered in the stop code position.

A parity, overrun or framing error has occurred.

*2

No code returned

*1: For parameters whose settings cannot changed during operation, see the inverter’s instruction manual.

*2: Parity error : The parity does not match.

Overrun error : A new data item is entered while the data is being read.

Framing error : The stop bit is placed in the wrong position.

* For the errors with “no code returned” in the above table, no error code is returned to avoid a data crash.

If no response is received, the computer side recognizes that a communication error has occurred. Retry after a lapse of some time.

* If the inverter number does not match, no processing will be carried out and no data will be returned, though it is not regarded as an error.

20

E6581913

4.4. Broadcast communication function

Broadcast communication function can transmit the command (write the data) to multiple inverters by one communication. Only the write (W, P) command is valid and the read (R, G) command is invalid. The inverters subject to the broadcast communication are the same to the independent communication; 0 to 99 (00H - 63H) in the ASCII mode, and 0 to 63 (00H - 3FH) in the binary mode.

To avoid data deforming, the inverters to return data will be limited.

 “Overall” broadcast communication (ASCII mode / Binary mode)

- ASCII Mode

If you enter two asterisks (**) in the inverter number position of the data transmission format, the computer will send the data simultaneously to all inverters (with an inverter number between 0 and

99 (00 to 63H)) on the network.

- Binary Mode

To put "FF" to the specified place of the inverter number in the communication format validates the broadcast communication and the command is transmitted to all the applicable inverters in the network (inverter numbers from 0 to 63 (00 to 3FH)).

<Inverter that returns data to the computer>

Data is returned from the inverter bearing the inverter number 00 only.

If you do not want inverters to return data, do not assign the number 00 to any inverter on the network.

 “Group” broadcast communication (ASCII mode only)

If you put “*?” in the inverter number position of the data transmission format, data will be sent simultaneously to all inverters bearing a number whose digit in the one’s place in decimal notation is”?”

If you put ”?*” in the inverter number position of the data transmission format, the data will be sent simultaneously to all inverters bearing a number whose digit in the ten’s place in decimal notation is”?”.

(“?”: Any number between 0 and 9.)

<Inverter that returns data to the computer>

Data is returned only from the inverter bearing the smallest number in the same group of inverters

(i.e., inverter whose number in the position of ”*” is 0).

If you do not want inverters to return data to the computer, do not assign a number having a 0 in the position of “*” to any inverter on the network.)

 Examples of broadcast communication

Ex: Set the frequency setting for communication to 60Hz.

Example of transmission of data from computer to inverter: (**PFA011770)

CR

Example of data returned from inverter to computer: (00PFA011770)

CR

Data is returned from the inverter numbered 00 only, while commands are issued to all inverters connected to the network.

Example of transmission of data from computer to inverters: (*9PFA011770)

CR

Example of data returned from inverter to computer: (09PFA011770)

CR

Data is returned only the inverter numbered 09 only, while commands are issued to a maximum of 10 inverters bearing the number 09, 19, 29, 39, ... or 99.

21

E6581913

Host computer

Block 1

Inverter No. 10 Inverter No.11

Inverter

Inverter

Inverter No.19

Inverter

Block 2

Inverter No.20 Inverter No.21

Inverter Inverter

Inverter No.29

Inverter

*1

*1: Error signal I/F

In broadcast communication, only the representative inverter in each block returns data to the computer. However, you can make the representative inverter in each block report the occurrence of a problem in the block. To do so, follow these steps.

Set the timer function so that, if a time-out occurs, the inverter will trip (Ex.: f803=3 (sec)), set the output terminal selection parameter (FL) so that trip information will be output through the output terminal (f132=10), and set the input terminal selection parameter (F) of the representative inverter in each block to “external input trip (emergency stop)” (f111=20, 21(Inversion)). Then, connect the input terminal (F, CC) of the representative inverter to the FL terminal (FLA, FLC) of each of the other inverters in the same block. In this setting, if an inverter trips, the representative inverter will come to an emergency stop, and as a result it will report the occurrence of a problem in its block to the computer. (If the representative inverter returns a lowercase letter in response to a command from the computer, the computer will judge that a problem has arisen in an inverter.) To examine details on the problem that has arisen, the computer accesses each individual inverter, specifying its communication number. To make the computer issue a command to all inverters in block 1 or block 2 shown in the figure above, specify “1*” or “2*”, respectively. In this system, inverter No. 10 will return data to the computer if a problem arises in block 1, or inverter No. 20 if a problem arises in block 2. For overall broadcast communication, specify “**”, in which case the inverter with the communication number “00” will return data to the computer.

In this example, if you want the computer to maintain communication without bringing an representative inverter to an emergency stop, set its input terminal selection parameter to “disabled

(f111=0) but not to “external input trip (emergency stop).” This setting causes the computer to check the setting of the input terminal information parameter (Communication No.=FE06, bit 0) of the representative inverter, and as a result enables the computer to detect the occurrence of a problem.

CAUTION:

Data from inverters will be deformed if inverters of the same number are connected on the network.

Never assign same single numbers to inverters on the network.

22

E6581913

4.5.

Examples of the use of communication commands

Here are some examples of the use of communication commands provided for the VF-S15 series of inverters.

Inverter numbers and checksum used in ASCII mode are omitted from these examples.

 Examples of communication

- To run the motor in forward direction with the frequency set to 60 Hz from the computer

<ASCII mode>

Computer

 Inverter Inverter

(PFA011770)

CR

(PFA011770)

CR

…Set the operation frequency to 60 Hz.

(60 / 0.01 Hz = 6000 = 1770H)

(PFA00C400)

CR

(PFA00C400)

CR

…Set to “forward run” with commands and frequency instruction from the computer enabled.

<Binary mode>

Computer

 Inverter Inverter

2F 50 FA 01 17 70 01 2F 50 FA 01 17 70 01

2F 50 FA 00 C4 00 3D 2F 50 FA 00 C4 00 3D

- To monitor the output frequency (during 60 Hz operation)

<ASCII mode>

Computer

 Inverter Inverter

(RFD00)

CR

(RFD001770)

CR

…Set the operation frequency to 60 Hz.

(60

0.01Hz=6000=1770H)

<Binary mode>

Computer

 Inverter Inverter

2F 52 FD 00 7E 2F 52 FD 00 17 70 05

- To monitor the status of the inverter

<ASCII mode>

Computer

 Inverter Inverter

(RFD01)

CR

(rFD010003)

CR

…For details on statuses, see “8.2. Monitoring from

the computer”. (Stop status, FL output status, trip status (r command))

<Binary mode>

Computer

 Inverter Inverter

2F 52 FD 01 7F 2F 72 FD 01 00 03 A2

- To check the trip code (when the inverter is tripped because of err5)

…For details on trip codes, see “Trip code monitor” in “8.2. Monitoring

from the computer”. (18H = 24d “err5” trip status)

<ASCII mode>

Computer

 Inverter Inverter

(RFC90)CR (rFC900018)CR

<Binary mode>

Computer

 Inverter Inverter

2F 52 FC 90 0D 2F 72 FC 90 00 18 45

23

E6581913

5. Modbus RTU protocol

The Modbus RTU protocol of VF-S15 supports only part of the Modbus RTU protocol. All data will be binary codes.

 Parameter Setting

 Protocol selection (f829)

Select “Modbus RTU (f829 = 1) in the communication selection parameters. “TOSHIBA”

(f829=0) is set for communication protocol selection in initial shipment setting. (See “3. Com-

munication protocol”.)

 Inverter number ( f802

)

Inverter numbers. 0 to 247 can be specified in the Modbus RTU. “0” is allocated to broadcast communication (no return). Set between 1 and 247.

<Related Parameter: Change and set as necessary> f800

: Baud rate f801

: Parity

 Data Exchange with Inverters

The inverters are always ready to receive messages and perform slave operation in response to computer requests.

A transmission error will result if the transmission format does not match. The inverters will not respond if a framing error, parity error, CRC error or an inverter number mismatch occurs. If no response is received, the computer side recognizes that a communication error has occurred.

Transmit data again.

(1) In case spacing for more than 3.5 bytes are provided before characters, all data immediately

preceding it will be aborted. (See “3.1. About the handling of received frames”.)

(2) Communication will be effective only when inverter numbers match or the communication mode is 0 (Broadcast communication). If there is no inverter number that matches or 0 (broadcast communication) is specified, no response is returned by any inverter.

(4) On executing the command received, the inverter returns data to the computer. For the response time, see Appendix 2, “Response time”.

(3) If no communication take place within the time specified using the timer function, the computer will assume that a communication error has occurred and trip the inverter. The timer function is

disabled when the inverter is turned on or initialized. For details, see “7.3. Communication

time-out detection”.

 Caution:

Communication is not possible for about one second after the power is supplied to the inverter until the initial setting is completed. If the control power is shut down due to an instantaneous voltage drop, communication is temporarily interrupted.

24

E6581913

5.1.Modbus RTU transmission format

(3.5bytes

Blank)

Modbus RTU sends and receives binary data without a frame-synchronizing start code and defines the blank time to recognize the start of a frame. Modbus RTU decides the data that is first received subsequently as the first byte of a frame after a blank time for 3.5 bytes at the on-going communication speed.

【Request format / Positive response】

Inverter

No.

Command

Data

1byte 1byte

CRC16 byte 1 byte

Blank)

1) Inverter No. (1 byte)

2) Command (1 byte)

: Specify an inverter number between 0 and 247 (00H to F7H).

Command processing will be executed only broadcast communication “0” and with those inverters that match set inverter numbers. Data will not be returned if “0”

(broadcast communication) and inverter numbers do not match. Don’t use the number between 248 and 255(F8H to FFH) for inverter option and shipment test.

: Set the command. Refer to section 5.1.7 from 5.1.1

Command

Decimal Hex

16

23

10H

17H

Read

03 03H

Block read

06 06H

Block write

Block write and read

Read the data with the specified communication number.

Block read communication (Indirect)

Block read communication (Direct)

Write the data with the specified communication number.

(RAM and EEPROM).

Block write communication (Indirect)

Block write and read communication

(Indirect)

Reads the Inverter information

(manufacture , type format , software version)

5.1.1

5.1.2

5.1.3

5.1.4.1

5.1.4.2

5.1.5

5.1.6

5.1.7

3) Data (variable length)

4) CRC (2 bytes)

(3.5bytes

Blank)

: Set the data requested by command.

: Set generation results of CRC in the order of low to high numbers. For the method

to generate CRC, see “5.2. CRC Generation”. Note that the setting sequence is

reversal to that of others.

Negative response】

Inverter

No.

Command Error code

See ”5.3. Error codes”.

CRC16 byte

1 byte Blank)

+ 80H

25

E6581913

5.1.1. Read command (03H)

 Computer → Inverter *The text size is 8 bytes fixed.

Inverter

No.

Command

Communication No.

Number of Data

Groups

CRC16 high low high low low high

03 00 01

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: Set the read command (03H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers.

4) Number of data groups (2 bytes) : Set the number of data words 0001 (fixed) in the order of high to low numbers.

5) CRC16 (2 bytes) : ---

 Inverter → Computer (Normal return) *The text size is 7 bytes fixed.

Inverter

No.

Command

Number of Data

Read data CRC16 high low low high

03 02

1) Inverter No. (1 byte) : ---

2) Command (1 byte) : Read command (03H fixed) will be returned.

3) Number of data : A number of data bytes (02H fixed) will be returned.

The number of data groups for transmission to the inverters is 2 bytes and 01H fixed.

4) Read data (2 bytes)

5) CRC16 (2 bytes)

: Returned in the order of read data (high) and (low).

: ---

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

83

1) Inverter No (1 byte) : ---

2) Command (1 byte)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: 83H fixed (Read command error) (Command + 80H)

: See ”5.3. Error codes”.

: ---

 Example: Reading output frequency (During 60Hz operation)

(Computer → inverter) 01 03 FD 00 00 01 B5 A6

(Inverter → computer) 01 03 02 17 70 B6 50

 Example: Data specification error

(Computer → inverter)

(Inverter → computer)

01 03 FD 00 00 02 F5 A7

01 83 03 01 31

26

E6581913

5.1.2. Block Read commandIndirect (03H)

Select the read data which is desired to be read in block communication to Block Communication

Read Data Parameters (f875 to f879). This parameter becomes effective when the system is reset, such as when power is turned off. When the setting is completed, turn off and then on the power.

No. Block read data For data details, see:

-

1 Status information 1 (FD01)

2 Output frequency (FD00)

3 Output current (FD03)

4 Output voltage (FD05)

5 Alarm information (FC91)

6 PID feedback value (FD22)

7 Input terminal monitor (FD06)

8 Output terminal monitor (FD07)

9 Terminal VIA monitor (FE35)

10 Terminal VIB monitor (FE36)

11 Terminal VIC monitor (FE37)

12 Input voltage (FD04)

13 Motor speed (FE90)

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

* “0000” will be returned as dummy data, if “0 (No selection)” is selected for the parameter and

“read” is specified.

 Computer → Inverter *The text size is 8 bytes fixed.

Inverter

No.

Command

Communication

No.

Number of Data

Groups

CRC16 high low high low low high

03

8

75 00 02-05

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: Set the read command (03H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers (1875H fixed).

4) Number of data groups (2 bytes) : Set the number of data words from 0002H to 0005H.

5) CRC16 (2 bytes) : ---

 Inverter → Computer *The text size is variable.

Inverter

No.

Command

Number of data

Read data 1 high low …

Read data 5 high low low high

CRC16

1) Inverter No. (1 byte)

2) Command (1 byte)

3) Number of data (1 bytes)

4) Read data 1 (2 bytes)

5) Read data 2 (2 bytes)

6) Read data 3 (2 bytes)

7) Read data 4 (2 bytes)

: ---

: Set the read command (03H fixed).

: The number of read data bytes will be returned. The number is from 04H to 0AH bytes. Note that the number of byte is variable.

: The data selected with f875 is read.

: The data selected with f876 is read.

: The data selected with f877 is read.

: The data selected with f878 is read.

27

8) Read data 5 (2 bytes) : The data selected with f879 is read.

9) CRC16 (2 bytes) : ---

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

83

1) Inverter No (1 byte)

2) Command (1 byte)

: ---

: 83H fixed (Read command error) (Command + 80H)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: See ”5.3. Error codes”.

: ---

 Example: Indirect block read of 5 words(During 60Hz operation)

< Parameter >

f802 (Inverter number) = 1

f829 (Selection of communication protocol) = 1: Modbus RTU

f875 (Block read data 1) =1: Ststus information 1

f876 (Block read data 2) = 2: Output frequency

f877 (Block read data 3) = 3: Output current

f878 (Block read data 4) = 4: Output voltage

f879 (Block read data 5) = 5: Alarm information

(Computer → inverter)

(Inverter → computer)

01 03 18 75 00 05 92 B3

01 03 0A E4 04 17 70 00 00 26 FF 00 80 58 00

 Example: Indirect block read of 2 words(During 60Hz operation and f875=1, f876=2)

(Computer → inverter) 01 03 18 75 00 02 D3 71

(Inverter → computer) 01 03 04 E4 04 17 70 83 16

 Example: Indirect block read of 2 words(During 60Hz operation and f875=0, f876=2)

(Computer → inverter) 01 03 18 75 00 02 D3 71

(Inverter → computer) 01 03 04 00 00 17 70 F4 27

 Example: Data error ( Number of word is wrong )

(Computer → inverter) 01 03 18 75 00 06 D2 B2

(Inverter → computer) 01 83 03 01 31

 Example: Data error ( Communication number is wrong )

(Computer → inverter) 01 03 18 76 00 02 23 71

(Inverter → computer) 01 83 03 01 31

E6581913

28

E6581913

5.1.3.Block Read commandDirect (03H)

The data of consecutive communication number from the specified communication number is read.

Eight data or less is read. When a consecutive communication number doesn't exist, the data of

8000H is sent back.

 Computer → Inverter *The text size is 8 bytes fixed.

Inverter

No.

Command

Communication

No.

Number of Data

Groups

CRC16 high low high low low high

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: Set the read command (03H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers.

Note: If communication number doesn’t exist, return the error to computer.

4) Number of data groups (2 bytes) : Set the number of data words from 0002H to 0008H.

5) CRC16 (2 bytes) : ---

 Inverter → Computer *The text size is variable.

Inverter

No.

Command

Number of data

Read data 1 high low

Read data 8 high low low high

CRC16

1) Inverter No. (1 byte)

2) Command (1 byte)

3) Number of data (1 bytes)

4) Read data 1 (2 bytes)

5) Read data 2 (2 bytes)

6) Read data 3 (2 bytes)

7) Read data 4 (2 bytes)

: ---

: Set the read command (03H fixed).

: A number of data bytes will be returned. The number of data groups for transmissions to the inverter is from 04 to 16 (04H – 10H) bytes. Note that the number of data returned by the inverters is variable.

: The data of specified communication number is read.

: The data of specified communication number + 1 is read.

: The data of specified communication number + 2 is read.

: The data of specified communication number + 3 is read.

8) Read data 5 (2 bytes)

9) Read data 6 (2 bytes)

: The data of specified communication number + 4 is read.

: The data of specified communication number + 5 is read.

10) Read data 7 (2 bytes) : The data of specified communication number + 6 is read.

11) Read data 8 (2 bytes) : The data of specified communication number + 7 is read.

12) CRC16 (2 bytes) : ---

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

83

1) Inverter No (1 byte) : ---

2) Command (1 byte)

3) Error code (1 byte)

: 83H fixed (Read command error) (Command + 80H)

: See ”5.3. Error codes”.

4) CRC16 (2 bytes) : ---

29

 Example: direct block read of 5 words

< Parameter >

f802 (Inverter number) = 1

f829 (Selection of communication protocol) = 1: Modbus RTU

f130 = 4

f131 = 6

f132 = 10

f133 : nonexistent

f134 : nonexistent

(Computer → inverter)

(Inverter → computer)

01 03 01 30 00 05 84 3A

01 03 0A 00 04 00 06 00 0A 80 00 80 00 A0 77

Note: When a consecutive communication number doesn't exist, the data of 8000H is sent back.

Please confirm the range of the parameter.

E6581913

30

E6581913

5.1.4. Write command (06H, 10H)

CAUTION

Mandatory action

 Do not write the same parameter to the EEPROM more than 10,000 times. The life time of EEPROM is

approximately 10,000 times. (Some parameters are not limited, please refer to the “9. Parameter data“)

5.1.4.1. Write command (06)

 Computer → Inverter *The text size is 8 bytes fixed.

Inverter

No.

Command Communication No.

Write Data CRC16 high low high low low high

06

1) Inverter No. (1 byte) : ---

2) Command (1 byte) : Set the write command (06H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers.

4) Write data (2 bytes)

5) CRC16 (2 bytes)

: Set in the order of high to low write data.

: ---

 Inverter → Computer (Normal return) *The text size is 8 bytes fixed.

Note: The return packet and the sending packet are same.

Inverter

No.

Command Communication No.

Write Data CRC16 high low high low low high

06

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

86

1) Inverter No (1 byte) : ---

2) Command (1 byte)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: 86H fixed (Read command error) (Command + 80H)

: See ”5.3. Error codes”.

: ---

 Example: Writing in frequency command value (FA01) (60Hz)

(Computer → inverter) 01 06 FA 01 17 70 E6 C6

(Inverter → computer) 01 06 FA 01 17 70 E6 C6

 Example: Communication number error

(Computer → inverter) 01 06 FF FF 00 00 89 EE

(Inverter → computer) 01 86 02 C3 A1

31

5.1.4.2. Write command (10H)

 Computer → Inverter *The text size is 11 bytes fixed.

Inverter

No.

Command Communication

No. number of word number of byte high low high low

Write Data CRC16

E6581913 high low low high

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: Set the write command (10H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers.

4) Number of word (2 bytes) : 0001H (fixed).

5) Number of byte (1 bytes) : 02H (fixed).

6) Write data (2 bytes)

7) CRC16 (2 bytes)

: Set in the order of high to low write data.

: ---

 Inverter → Computer (Normal return) *The text size is 8 bytes fixed.

Inverter

No.

Command Communication

No. number of word CRC16 high low high low low high

1) Inverter No. (1 byte)

2) Command (1 byte)

5) CRC16 (2 bytes)

: ---

: Set the write command (10H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers.

4) Number of word (2 bytes) : 0001H (fixed).

: ---

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

90

1) Inverter No (1 byte)

2) Command (1 byte)

: ---

: 90H fixed (Read command error) (Command + 80H)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: See ”5.3. Error codes”.

: ---

 Example( One word write ): Writing in frequency command value (FA01) (60Hz)

(Computer → inverter) 01 10 FA 01 00 01 02 17 70 F3 9A

(Inverter → computer) 01 10 FA 01 00 01 60 D1

32

E6581913

5.1.5. Block Write command (10H)

Select data, which is desired to be written in block communications, in Block Communication Write

Data 1 and 2 Parameters (f870, f871). This parameter becomes effective when the system is reset, such as when power is turned off. When the setting is completed, turn off and then on the power.

No. Block write data For data details, see:

-

1 Communication command 1 (FA00)

2 Communication command 2 (FA20)

3 Frequency command value (FA01)

4 Output data on the terminal board (FA50)

5 FM analog output (FA51)

6 Motor speed command (FA13)

“8.1. Command by communication”

* When “No selection” is specified in the parameters, no data will be written even though write data is specified.

 Computer → Inverter *The text size is 13 bytes fixed.

Inverter

No.

Command Communication

No. number of word number of byte high low high low

Write Data 1 Write Data 2 CRC16 high low high low low high

1) Inverter No. (1 byte) : ---

2) Command (1 byte) : Set the block write command (10H fixed).

3) Communication No. (2 bytes) : Set in the order of high to low numbers (1870H fixed).

4) Number of word (2 bytes) : 0002H (fixed).

5) Number of byte (1 bytes) : 04H (fixed).

6) Write data 1(2 bytes)

6) Write data 2(2 bytes)

: Set in the order of high to low write data 1.

The data is written to the specified parameter selected by f870.

: Set in the order of high to low write data 2.

The data is written to the specified parameter selected by f871.

: --- 8) CRC16 (2 bytes)

 Inverter → Computer (Normal return) *The text size is 8 bytes fixed.

Inverter

No.

Command Communication

No. number of word CRC16 high low high low low high

10 18 70 00 02

1) Inverter No. (1 byte)

2) Command (1 byte)

5) CRC16 (2 bytes)

: ---

: 10H (fixed).

3) Communication No. (2 bytes) : 1870H (fixed).

4) Number of word (2 bytes) : 0002H (fixed).

: ---

33

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

90

1) Inverter No (1 byte) : ---

2) Command (1 byte)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: 90H fixed (Read command error) (Command + 80H)

: See ”5.3. Error codes”.

: ---

Example: Set the operation frequency(FA01=60.00Hz) and forward run command value by RS485

< Parameter >

f802 (Inverter number) = 1

f829 (RS485 protocol selection) = 1: Modbus RTU

f870 (Block write data 1) = 1: Communication command 1

f871 (Block write data 2) = 3: Frequency command value

(Computer → inverter) 01 10 18 70 00 02 04 C4 00 17 70 6D AF

01 10 18 70 00 02 46 B3 (Inverter → computer)

Example: (Inverter is busy or f870,f871 is 0)

(Computer → inverter) 01 10 18 70 00 02 04 C4 00 17 70 6D AF

(Inverter → computer) 01 90 04 4D C3

Example: Communication number error

(Computer → inverter) 01 10 18 71 00 02 04 C4 00 17 70 AC 63

(Inverter → computer) 01 90 03 0C 01

Example: Data range error

(Computer → inverter)

(Inverter → computer)

01 10 18 70 00 03 04 C4 00 17 70 6C 7E

01 90 03 0C 01

E6581913

34

E6581913

5.1.6.Block Write and Read command (17H)

Select data, which is desired to be written in block communications, in Block Communication Write

Data 1 and 2 Parameters (f870, f871). Then, Select read data, which is desired to be read in block communication, in block read data 1 and 5 Parameters (f875 to f879).

This parameter becomes effective when the system is reset, such as when power is turned off.

When the setting is completed, turn off and then on the power.

No. Block write data For data details, see:

-

1 Communication command 1 (FA00)

2 Communication command 2 (FA20)

3 Frequency command value (FA01)

4 Output data on the terminal board (FA50)

“8.1. Command by communication”

5 FM analog output (FA51)

6 Motor speed command (FA13)

* When “No selection” is specified in the parameters, no data will be written even though write data is specified.

No. Block read data For data details, see:

-

1 Status information 1 (FD01)

2 Output frequency (FD00)

3 Output current (FD03)

4 Output voltage (FD05)

5 Alarm information (FC91)

6 PID feedback value (FD22)

7 Input terminal monitor (FD06)

8 Output terminal monitor (FD07)

9 Terminal VIA monitor (FE35)

10 Terminal VIB monitor (FE36)

11 Terminal VIC monitor (FE37)

12 Input voltage (FD04)

13 Motor speed (FE90)

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

“9. Parameter data”

“8.2. Monitoring from communication”

* “0000” will be returned as dummy data, if “0 (No selection)” is selected for the parameter and

“read” is specified.

 Computer → Inverter *The text size is 13 bytes fixed.

INV-NO CMD

Read communication No. high

17

8 low

Number of word high high

Communication low

No. low number of word low high

75 00 18 70 00 02

Number of byte

04

Write data 1 Write data 2 CRC16 high low high low low high

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: Set the block write and read command (17H fixed).

3) Read communication No. (2 bytes) : Set in the order of high to low numbers (1875H fixed).

4) Read number of word : Set the number of word from 2 to 5.

5) Write communication No. : Set in the order of high to low numbers (1870H fixed).

6) Write number of word : 0004H(fixed).

35

7) Write number of byte : 0002H(fixed).

8) Write data 1(2 bytes) : Set in the order of high to low write data 1.

The data is written to the specified parameter selected by f870.

9) Write data 2(2 bytes) : Set in the order of high to low write data 2.

The data is written to the specified parameter selected by f871.

10) CRC16 (2 bytes) : ---

 Inverter → Computer (Normal return) *The text size is variable.

Inverter

No.

Command

Number of data

Read data 1 high low …

Read data 8 CRC16 high low low high

1) Inverter No. (1 byte)

2) Command (1 byte)

: ---

: 10H (fixed).

3) Communication No. (2 bytes) : 1870H(fixed).

4) Number of word (2 bytes)

5) CRC16 (2 bytes)

: 0002H(fixed).

: ---

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

97

1) Inverter No (1 byte) : ---

2) Command (1 byte)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: 90H fixed (Read command error) (Command + 80H)

: See ”5.3. Error codes”.

: ---

E6581913

36

5.1.7. Identification command (2BH)

 Computer → Inverter *The text size is 7 bytes fixed.

Inverter

No.

Command

Type of

MEI

Read device ID

Object ID

2B 0E

(fixed) (fixed)

00-03

(variable)

00

(fixed)

CRC16 low high

1) Inverter No. (1 byte)

2) Command (1 byte)

3) Type of MEI (1 byte)

4) Read Device ID (1 byte)

: ---

: Set the Identification command (2BH fixed).

: 0EH fixed.

: 00-03H

5) Object ID (1 byte)

6) CRC16 (2 bytes)

: 00H fixed.

: ---

 Inverter → Computer (Normal return) *The text size is variable.

Inverter

No.

Command

Type of

MEI

Read Device

Id

Degree of conformity

Number of additional frames

(fixed) (fixed)

------ Id of object no.1

00-03

(variable)

00

(fixed)

01

(fixed)

Length of object no.1

07

(fixed)

00

(fixed)

------ Id of object no.2

01

(fixed)

Length of object no.2

0C

(variable)

Next object Id

00

(fixed)

Number of objects

03

(fixed)

Value of object no.1

“TOSHIBA”

(fixed)

Value of object no.2

“VFS15-2037PM”

(variable)

-----

-

Note: See Appendix 3.

------ Id of object no.3

02

(fixed)

------ CRC16

Length of object no.3

04

(fixed)

Value of object no.3(4 bytes)

“0100”

(variable)

The total response size is variable.

The three objects contained in the response correspond to the following objects:

Object no.1: Manufacturer name (”TOSHIBA”).

Object no.2: Device reference (ASCII string ; ex. :” VFS15-2037PM”). Note: See Appendix 3.

Object no.3: Device version (4-byte ASCII string; for example: “0100” for version 100).

------

------

------

E6581913

37

 Inverter → Computer (Abnormal return) *The text size is 5 bytes fixed.

Inverter

No.

Command Error Code

CRC16 low high

AB

1) Inverter No (1 byte)

2) Command (1 byte)

: ---

: ABH fixed (Read command error) (Command + 80H)

3) Error code (1 byte)

4) CRC16 (2 bytes)

: See ”5.3. Error codes”.

: ---

 Example: Reading Identification

Inverter No = 01H

Manufacturer name = “TOSHIBA”(7 bytes)

Device name = “VFS15-2037PM” (12 bytes)

Device version = “0100” (4 bytes)

(Computer → inverter) 01 2B 0E 01 00 70 77

(Inverter → computer) 01 2B 0E 01 01 00 00 03

00 07 54 4F 53 48 49 42 41

01 0C 56 46 53 31 35 2D 32 30 33 37 50 4D

02 04 30 31 30 30

13 45

E6581913

38

E6581913

5.2. CRC Generation

“CRC” is a system to check errors in communication frames during data transmission. CRC is composed of two bytes and has hexadecimal-bit binary values. CRC values are generated by the transmission side that adds CRC to messages. The receiving side regenerates CRC of received messages and compares generation results of CRC regeneration with CRC values actually received. If values do not match, data will be aborted.

 Flow

CRC generation

( )

CRC initial data: FFFF

Byte counter n = 0

Byte counter n < Length

Yes

CRC = (CRC XOR n bits)) th

send byte

(0 expanded to word (higher 8

No

Bit counter = 0

Bit counter < 8

No

Yes

C = (Remainder of CRC ÷ 2)

CRC >> 1

Is remainder (C) other than 0?

Yes

CRC=

(CRC XOR generating polynomial (A001))

Bit counter +1

No

Byte counter +1

End (Return CRC)

A procedure for generating a CRC is:

1, Load a 16–bit register with FFFF hex (all 1’s). Call this the CRC register.

2. Exclusive OR the first 8–bit byte of the message with the low–order byte of the 16–bit CRC register, putting the result in the CRC register.

3. Shift the CRC register one bit to the right (toward the

LSB), zero–filling the MSB. Extract and examine the

LSB.

4. (If the LSB was 0): Repeat Step 3 (another shift).

(If the LSB was 1): Exclusive OR the CRC register with the polynomial value A001 hex (1010 0000 0000 0001).

5. Repeat Steps 3 and 4 until 8 shifts have been performed. When this is done, a complete 8–bit byte will have been processed.

6. Repeat Steps 2 through 5 for the next 8–bit byte of the message. Continue doing this until all bytes have been processed.

7. The final contents of the CRC register is the CRC value.

8. When the CRC is placed into the message, its upper and lower bytes must be swapped as described below.

39

E6581913

5.3. Error codes

In case of the following errors, the return commands from the inverters are added 80h to the commands received by the inverters. The following error codes are used.

Error Code Description

01

- Command error

- Function code 43 supported but MEI Type not equal to 14

02

03

04

- Communication number error

- It tried to write to parameter with only reading.

- Data range error

- Fixed-data error

- Function code 43 and MEI Type 14 supported but invalid Read Device ID Code

(Read Device ID code > 3)

- Unable to execute

- Writing in write-disable-during-operation parameter

- Writing in parameter that is executing TYP

- F700 (Parameter protection selection) is 2:Writing prohibited (RS485), 4:Writing and Reading prohibited (RS485)

- If F738 (Password setting) was set to data, F738 can not set to data.

40

E6581913

6. Inter-drive communication

Inter-drive communication (communication between inverters) are used, for example, when performing speed proportional control of two or more inverters without using a PLC or computer. The command is instructed by the operation from the master inverter’s panel or analog input, etc.

With the Inter-drive communication function, the master inverter continues to transmit the data selected by the parameters to all the slave inverters on the same network. The master inverter uses the S command for outputting instructions to the slave inverters, and the slave inverters do not re-

turn the data. (See “4.2. Commands".) Network construction for a simple synchronized operation

and speed-proportional operation can be created by this function.

* If the master inverter trips, the slave inverters display the blinking error code “t” and come to a full stop (0Hz).

After the master inverter was reset, the blinking error code “t” is lost.

* With the communication time-out parameters f803 and f804, you can specify what the slave inverters should do (continue to operate, issue an alarm or trip) if a cable is broken or the master inverter is turned off during operation.

* To use the inter-drive communication function, select “Toshiba inverter protocol” ( =) in the communication protocol selection parameters. “Toshiba inverter protocol” (=) is

set for communication protocol selection in Shipment setting. (See “3. Communication proto-

col”.)

<Conceptual illustration (RS485 communication)>

Slave 1 (50Hz)

Master (60Hz)

Inverter

Inverter

Slave 2 (40Hz)

Inverter

Slave 3 (30Hz)

Inverter

<Notes>

Analog input

Speed command can be transmitted but the run / stop signal is not issued. Slave station should have an individual stop signal or the function to stop the action by the frequency reference. (Setting is necessary for f241:

Operation start frequency, f242: Operation start frequency hysteresis.)

For continuing the operation by the last received command value in the case of a communication breakdown, communications time-out time (f803) to trip the slave inverters. The master inverter does not trip even though the communication breakdown happens. To trip the master inverter, provide an interlock mechanism by installing an FL fault relay point or the like from the slave side.

41

E6581913

 Setting of parameter

●Protocol selection (f829) Shipment setting: 0 (TOSHIBA)

Protocol setting with all inverters (both master and slave inverters) engaged in inter-drive communication

0: Set the TOSHIBA.

* Inter-drive communication are disabled when Modbus RTU protocol is selected.

* This parameter is validated after resetting the inverter or rebooting the power supply.

● Setting of master and slave inverters for communication between inverters (setting of master and slave) (f806) ... Shipment setting = 0

Assign one master inverter in the network. Other inverters should be the slave inverters.

*Specify only one inverter as the master. In case two or more inverters are designated for the master inverter in the same network, data will collide.

- Setting to the master inverter

Set data desired for sending from the master side to the slave side.

3

: Master (transmission of frequency commands)

4

: Master (transmission of output frequency signals)

- Setting to the slave inverters

Set the desired action on the slave side that will be needed when the master trips.

0 : Slave (0 Hz command issued in case the master inverter fails)

(The output frequency is limited to the lower limit frequency.)

1 : Slave (Operation continued in case the master inverter fails)

Note: If the master inverter trips when an output frequency is specified for it, the operation frequency of the slave inverters become 0Hz because tripping of the master inverter causes its output frequency to drop to 0Hz.

2 : Slave (Emergency stop tripping in case the master inverter fails)

The way they make an emergency stop depends on the setting of f603 (emergency stop).

*This parameter is validated after resetting the inverter or rebooting the power supply.

 Communication waiting time (f805) ... Shipment setting = 0.00

- Setting to the master inverter

Specify a waiting time if you want the master to issue commands to slaves with a given delay.

● Frequency setting mode selection 1 (fm0d) ・・・ Shipment setting = 0: Setting dial 1

Designate a target of speed command input for the inverter to the parameter fmod.

- Setting to the master inverter

Select except RS485 communication (fm0d≠4).

- Setting to the slave inverters

Select RS485 communication (fm0d=4)

42

E6581913

 Relating communication parameters

Following parameters should be set or changed if necessary.

 Baud rate (f800)... Shipment setting = 4: 19200bps

Baud rate of all inverters in the network (master and slave) should be same network.

 Parity (f801) ... Shipment setting = 1: Even parity

Parity of all inverters in the network (master and slave) should be same network.

 Communication time-out time (f803) ... Shipment setting = 0.0

Operation is continued by the last received command value in the case of a communication breakdown. To stop the operation of inverter, provide a communication time-out time (ex. f803=1.0

second

) to the slave inverters. The master inverter does not trip even though the communication breakdown happens. To trip the master inverter, provide an interlock mechanism by installing a FL fault relay point or the like from the slave side.

 Frequency point selection (f810, f811-f814)

The command from master inveter can be performed by the parameter of the point setting.

See “6.1 Speed proportional control” for details.

 Setting example of parameters

Parameters relating to the master side (example) f806:3

Master (transmission of frequency commands (%)

(100% at FH)) f829:0

Selection of communication protocol

(Toshiba inverter protocol) f800:4 Baud rate

(ex. 19200bps) f801:1 Parity (Even parity) cmod:1 Example: Panel keypad fmod:2 Example: Terminal VIB

Parameters relating to the slave side (example)

Slave (0 Hz command issued in case the master inverter fails)

(Toshiba inverter protocol)

(f241:Run and stop of operation is controlled with the frequency reference value by setting the “run frequency”.) f811:

? Adjusted to the system Point 1 setting (%) f812:

? Ditto Point 1 frequency (Hz) f813:

? Ditto Point 2 setting (%) f814:

? Ditto Point 2 frequency (Hz)

43

E6581913

6.1. Speed proportional control

Proportional control of frequency can be performed in two ways: control by selecting frequency points and control by adjusting the ratio to the maximum frequency. This section explains proportional control of inverters by means of a master inverter (inter-drive communication), although the

VF-S15 series inverters are ready for proportional control by means of the “S” command even when they are operated under the control of a computer (computer-linked communication) (in the latter cases, read the master inverter as the computer).

Proportional control can also be performed in units of Hz using ordinary write commands (W and P commands) (frequency point selection only). For proportional control in units of %, however, the S command should be used.

* For proportional control by selecting frequency points, the gradient can be set variously according to the way each inverter is used. For proportional control by controlling the ratio to the maximum frequency, settings can be made easily without consideration of the rate at which the frequency is increased or decreased to the target frequency.

 Data sent by the master inverter to slave inverters in inter-drive communication mode (frequency command value)

fc (%)

Master side

Master fc

×

side

10000

FH

(1=0.01%)

* Fractions under 1 (0.01%) are omitted. Therefore, an error of 0.01% is introduced at the maximum.

 Conversion of the frequency command received by a slave inverter (when the “frequency point selection” option is not selected)

The value obtained by the following conversion calculation is written in RAM as a frequency command value.

fc ( Hz )

Slave receive data (%)

10000

Slave side FH

(1=0.01Hz)

* Fractions under 1 (0.01Hz) are omitted. Therefore, an error of 0.01Hz is introduced at the maximum.

[Diagram of speed proportional control]

<Outside> ← →<Inverter's internal computation>

* fc=frequency reference, FH=maximum frequency

Operation performed by the master (or use of S command)

Master send data=

Master fc

Master FH

1000

0

%

Operation performed by the slave

Data

(

Hz

)

Slave receive

10000 data

Slave FH

Hz

Point selection (f810)

Points not selected

Fc (Hz)

%

Hz

Point conversion

Setting 2 fc

(

(Hz) f814

Slave command

)

Setting 1 fc

( f812

)

Point1

( f811

)

Point2

(f813

)

(%)

Slave command=

Point 2 fc

Point2

Master command

Po int

Point1

1 fc

( Master command

-Point1)+P oint 1 fc

Hz

Points selected

Data= fc

Slave FH

10

000

%

 If the “Frequency point selection” function is disabled (f810=0)

44

E6581913

The operation frequency (frequency command value) of the inverters are calculated using the following equations, with the received data in the following equation used as the data received from the master inverter when inverters are operated under the control of a master inverter (inter-drive communication), or with the received data in the following equation used as the data received from the computer when inverters are operated under the control of a computer (computer-linked operation).

Slave recieve data (%)

Slave side FH fc ( Hz )

(Hz)

10000

Example: Unit:1=0.01Hz

Master (Fc)

Slave 1

Slave 2

Master send data

fc

Maximum frequency Operation frequency command value

100.00Hz (10000) 50.00Hz (5000)

90.00Hz (9000)

80.00Hz (8000)

(%)

Master side

Master fc

10000

side FH

45.00Hz (4500)

40.00Hz (4000)

5000

×

10000

10000

5000

50

%

Slave

Slave

1

2

:

: fc fc

(

(

Hz

Hz

)

)

5000

9000

10000

5000

800

0

10000

4500

4000

45

Hz

40

Hz

 If the “Frequency point selection” function is enabled (f810≠0)

When inverters are operated under the control of a mater inverter, the operation frequency (frequency command value) of the slave inverters are calculated using the following equations.

Just as the master inverter is calculated to the data, personal computer has to send the same data.

fc ( Hz )

Po int

2

frequency

Po int

2

Po

Po int int

1

1

frequency

Master command (%)

Po int

1

)+

Po int

1

frequency

Example: Units: Frequency unit 1 = 0.01Hz, Point setting unit 1 = 0.01% frequency ting

Point 1 frequency

Point 2 setting

Point 2 frequency

Frequency

(Fc)

(fh)

Master (Fc) 100.00Hz

(10000)

Slave 1 100.00Hz

(10000)

Slave 2 100.00Hz(1

0000)

(f811)

0.00%

(0)

0.00%

(0)

Data sent by the master inverter

Master send data : fc (%)

(f812)

0.00Hz

(0)

0.0Hz

(0)

Master side fc

10000

Master side FH

(f813)

100.00%

(10000)

100.00%(10

000)

5000

×

10000

10000

(f814)

90.00Hz

(9000)

80.00Hz

(8000)

5000

50

%

(5000)

45.00Hz

(4500)

40.00Hz

(4000)

Results of conversions to point frequency (for the equation used, see above.)

Slave

Slave

1

2

:

: fc fc

(

(

Hz

Hz

)

)

9000

10000

8000

10000

0

0

0

0

(

(

5000

5000

0

0

)

)

0

0

4500

4000

45

40

Hz

Hz

45

E6581913

6.2. Transmission format for inter-drive communication

Data type is handled in hexadecimal notation and the transmission characters are treated with the binary (HEX) code.

The transmission format is basically the same to the case of binary mode. S command is used and the slave inverters do not return the data.

 Master inverter → Slave inverter (Binary mode)

Omissible

(3.5bytes

Blank)

“/”

(2FH)

INV-NO

1 byte

CMD

1 byte

Communication No.

2 bytes

Checksum area

1) INV-NO (1 byte)

DATA

2 bytes

SUM

1 byte

Not omissible

(3.5bytes

Blank)

: Inverter number

This is always excluded at the master inverter side at time of inter-drive communication, and can be added when the user utilize this data for the purpose of proportional operation.

(When this code is added, only the inverter concerned will accept the data.)

2) CMD (1 byte) : Command

53H (“S”) or 73H (“s”) command ... command for inter-drive communication

When the master inverter is not tripping, this will be 53H (“S”).

When the master inverter is tripping, this will be 73H (“s”).

3) Communication number (2 bytes) :

Specify “FA01” for RS485 communication.

4) DATA (2 bytes) : Instruction data to slave (0 to 10000:100=1%)

As for the S command, see “4.2. Commands”, and see “6. Inter-drive communication function” for the communication

of inverters.

46

E6581913

7. Communication parameters

The settings of communication-related parameters can be changed from the operation panel and the external controller (computer). Note that there are two types of parameters: parameters whose settings take effect immediately after the setting and parameters whose settings do not take effect until the inverter is turned back on or reset.

Communication

Number.

Title Function Unit

Default setting

Valid Reference

0800 f800 Baud rate

0801 f801 Parity

3: 9600bps

4: 19200bps

5: 38400bps

0: Non parity

1: Even parity

2: Odd parity

0802 f802 Inverter number 0-247 1 0 Real time

Section

7.2

0803 f803

Communication time-out time

Communication

0804 f804 time-out action

0.0:Disabled

0.1-100.0s

0:Alarm only

1:Trip (Coast stop)

2:Trip (Deceleration stop)

0.1s

Section

0805 f805

Communication waiting time

0.00-2.00 0.01s

Setting of master

0806 f806 and slave for communication between inveters

0: Slave (0 Hz command issued in case the master inverter fails)

1: Slave (Operation continued in case the master inverter fails)

2: Slave (Emergency stop tripping in case the master inverter fails)

3: Master (transmission of frequency commands)

4: Master (transmission of output frequency signals)

0.00

Communication 0: Always

0808 f808 time-out detection 1: during communication condition 2:1+running

0810 f810

Frequency point selection

Communication

0811 f811 command point selection

Communication

0812 f812 command point 1 setting

0813 f813

Communication command point 1 frequency

Communication

0814 f814 command point 2 setting

Selection of

0829 f829 communication protocol

Number of motor

0856 f856 poles for communication

0:Disabled

1:Enabled

0: Toshiba inverter protocol

1: Modbus RTU protocol

- 0

0-fhHz 0.01Hz

0-fhHz 0.01Hz

1:2poles, 2:4poles, - 8:16poles -

Real

Section

6.13

7.3

60.0

2

Real time Section 8.1

47

Communication

Number.

Title Function

0870 f870 Block write data 1

0871 f871 Block write data 2

0875 f875 Block read data 1

0876 f876 Block read data 2

0877 f877 Block read data 3

0878 f878 Block read data 4

0879 f879 Block read data 5

0: No selection

1: Communication command 1

(FA00)

2: Communication command 2

(FA20)

3: Frequency command value

(FA01)

4: Output data on the terminal board (FA50)

5: FM analog output (FA51)

6: Motor speed command (FA13)

0: No selection

1: Status information 1 (FD01)

2: Output frequency (FD00)

3: Output current (FD03)

4: Output voltage (FD05)

5: Alarm information (FC91)

6: PID feedback value (FD22)

7: Input terminal monitor (FD06)

8: Output terminal monitor (FD07)

9: Terminal VIA monitor (FE35)

10:Terminal VIB monitor (FE36)

11:Terminal VIC monitor (FE37)

12:Input voltage (FD04)

13:Motor speed (FE90)

14:Torque (FD18)

0880 f880 Free notes 0-65535

Unit

Default setting

1 0

E6581913

Valid Reference

Section

4.1.3

5.1.2

5.1.5

5.1.6

Real time

Section

7.5

48

E6581913

7.1. Baud rate (f800), Parity (f801)

Communication baud rate and parity bit should be uniform inside the same network.

This parameter is validated by resetting the power supply.

7.2. Inverter number (f802)

This parameter sets individual numbers with the inverters.

Inverter numbers should not be duplicated inside the same network.

Receiving data will be canceled if inverter numbers specified in individual communication and set by a parameter do not match.

This parameter is validated from the communication after change

Data range: 0 to 247 (Initial value: 0)

Parameters can be selected between 0 and 247. Note that the communication protocols limit inverter numbers as follows:

● Toshiba inverter protocol ASCII mode: 0 to 99

● Toshiba inverter protocol Binary mode: 0 to 63

● Modbus RTU protocol: 0 to 247 (0: Broadcast communication)

49

E6581913

7.3. Communication time-out detection (f803) (f804) (f808)

The timer function is mainly used to detect a break in a cable during communication, and if no data is sent to an inverter within the preset time, this function makes the inverter trip () or issue an alarm (). With the communication time-out action parameter (), you can specify what the inverter should do (trip, issue an alarm or do nothing) if a time-out occurs.

 How to set the timer

By default, the communication time-out time parameter (f803) is set to 0.0 (Disabled).

* Timer adjustment range

0.1 sec. (01H) to 100.0 sec. (3E8H) / Timer off is 0.0 sec.

 How to start the timer

If the timer is set from the operation panel, it will start automatically the instant when communication is established for the first time after the setting.

If the timer is set from the computer, it will start automatically the instant when communication is established after the setting.

If the timer setting is stored in the EEPROM, the timer will start when communication is established for the first time after the power has been turned on.

Note that, if the inverter number does not match or if a format error occurs, preventing the inverter from returning data, the timer function will assume that no communication has taken place and will not start.

 How to specify what an inverter should do if a time-out occurs

By default, the communication time-out action parameter (f804) is set to 0 (Alarm only). The data of 1 is trip (err5) and coast stop. The data of 2 is trip (err5) after deceleration stop.

 Time-out detection condition

By default, the communication Time-out detection (f808) is set to 1 (When communication

-mode is selected).

When it is set to 0, it always detects time-out error.

When it is set to 2, it detects time-out error during communication-mode and running.

 How to disable the timer

Set 0.0 (Disabled) to the parameter (f803).

Ex.: To disable the timer function from the computer (To store the timer setting in the EEPROM)

Computer

 Inverter Inverter

(W08030)

CR

(W08030000)

CR

... Sets the timer parameter to 0 to disable it.

 Timer

Computer link PC

 INV

INV

Time-out period

 PC

PC

 INV The timer measures the time elapsed before the inverter acknowledges receipt of data after it acknowledged receipt of the previous data.

50

E6581913

7.4. Communication waiting time (f805)

Use this function for the following case:

When the data response from the inverter is too quick after the PC had sent the data to the inverter,

PC process cannot get ready to receive the data, or when the USB/RS485, RS485/RS232C converter is used, changeover of sending and receiving data takes much time in the converter process.

Functional specification:

A time for sending data is prolonged longer than the preset time (f805), until the inverter returns the data to the PC, after it finishes receiving the data (in case of an inter-drive communication, until the inverter returns the next data to the PC, after it has sent the data.) In case the inverter's processing capacity requires longer setting time, the value more than this time will be the set value. (The parameter makes the inverter wait for more than the set time.)

Setting range: 0.01 to 2.00 seconds (10ms to 2000ms)

If the set value is 0, this function becomes invalid and the interval time for sending data is set to the maximum capacity of the inverter. To obtain a quick response for sending data, set value 0.

Computer link

PC→INV

Time elapses more than transmission waiting time.

INV→PC

Inter-drive communication

Master INV to Slave INV

Time elapses more than the transmission waiting time.

Master INV to

Slave INV

7.5. Free notes (f880)

This parameter allows you to write any data, e.g., System number, Management information, which does not affect the operation of the inverter.

51

E6581913

8. Commands and monitoring from the computer

Across the network, instructions (commands and frequency) can be sent to each inverter and the operating status of each inverter can be monitored.

8.1. Communication commands (commands from the computer)

Communication command 1

(Communication Number : FA00)

Commands can be executed on inverter frequencies and operation stop through communication.

The VF-S15 series can enable command and frequency settings through communication irrespective of settings of the command mode selection (cmod) and frequency setting mode selection 1

(fmod). However, if “48 (49): Forced switching from communication to local is set by input terminal function selection (f1o4, f108, f110 to f115), a change to a command other than communication and to a frequency command is feasible through a contact on the terminal block.

Once the communication command (FA00) is set to enable communication command priority and frequency priority, both priorities will be enabled unless OFF is set, power is turned off or is reset, or factory default setting (typ) is selected. Emergency stop and PID control are always enabled even though communication command priority is not set.

Table 1 Data construction of communication commands (communication number: FA00) bit Specifications 0 1 Remarks

0 Preset speed operation frequencies 1

1 Preset speed operation frequencies 2

2 Preset speed operation frequencies 3

3 Preset speed operation frequencies 4

Preset speed operation is disabled or preset speed operation frequencies (1-15) are set by specifying bits for preset speed operation frequencies 1-4.

(0000: Preset speed operation OFF,

001-1111: Setting of preset speed operation frequencies (1-15))

4 Motor selection (1 or 2) (THR

2 selection)

5 PI D control

6 Acceleration/deceleration pattern selection (1 or 2)

(AD2 selection)

7 DC braking

8 Jog run

9 Forward/reverse run selection

10 Run/stop

11 Coast stop command

12 Emergency stop

Motor 1

(THR 1)

Normal operation

Acceleration/deceleration pattern 1 (AD1)

OFF

OFF

Forward run

Motor2

(THR2)

PI D OFF

Acceleration/deceleration pattern 2 (AD2)

Forced DC braking

Jog run

Reverse run

THR1 : pt=setting value, vl , vlv, vb, thr

THR2 :pt=0, f170, f171 , f172, f173

AD1 : acc, dec

AD2 : f500, f501

14 Frequency priority selection

15 Command priority selection

Stop

Standby

OFF

OFF

OFF

OFF

Run

Coast stop

Emergency stop Always enabled, “E” trip

Reset

Enabled

Enabled

No data is returned from the inverter.

Enabled regardless of the setting of fmod

Enabled regardless of the setting of cmod

Ex.: Forward run command used in two-wire RS485 communication (PFA008400) CR

1 is specified for bit 15 (communication command: enabled) and bit 10 (operation command).

BIT15 BIT0

FA00:

1 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0

8 4 0 0

Ex.: Reverse run command used in two-wire RS485 communication (PFA008600) CR, (PFA00C600) CR

8600H : To disable frequency instructions from the computer

C600H : To enable also frequency instructions from the computer

52

E6581913

Communication command 2

(Communication Number : FA20)

This command is enabled only when the communication command is enabled. Set Bit 15 of

Communication Command 1 (communication Number: FA00) to “1” (enable). When enabling the communication command by Communication Command 1, commands by communication can be given the priority irrespective of the setting of the command mode selection parameter (cm0d).

However, if “48 (49): Forced switching from communication to local is set by input terminal function selection (f1o4, f108, f110 to f115), the enabled command and frequency will be given the priority.

Once enabled, this setting will be enabled till disable is set (0 setting), power is turned off or is reset, or factory default setting (typ) is selected. Electric power quantity reset is always enabled even though communication command priority is not set.

Table 2 Data construction of communication command 2 (FA20)

Bit Function 0 1 Remarks

0 (Reserved)

1

Electric power quantity reset

2 (Reserved)

3 (Reserved)

4 (Reserved)

5 (Reserved)

6 (Reserved)

7

Maximum deceleration forced stop

-

OFF

-

-

-

-

-

-

Reset

-

-

-

-

-

Electric power quantity

(FE76, FE77) reset

Normal Enabled

8

9

Acceleration/deceleration pattern selection 1

Acceleration/deceleration pattern selection 2

00: Acceleration/deceleration 1

01: Acceleration/deceleration 2

10: Acceleration/deceleration 3

Select Acceleration/ deceleration 1 - 3 by combination of two bits

AD1: , 

AD2: , 

AD3: , 

10 (Reserved)

11 (Reserved)

12 OC stall level switch

13 (Reserved)

14 (Reserved)

15 (Reserved)

-

-

OC stall 1

-

-

-

-

-

OC stall 2

-

-

-

OC stall 1 : f601

OC stall 2 : f185

Note: Set 0 to reserved bit

Communication command 3

(Communication number: FA26)

The RY Terminal Output Hold Command and OUT Terminal Output Hold Commandare alway s enabled even though communication command priority is not set.

Table 3 Data construction of communication command 3 (FA26)

Bit Function 0 1

0

1

RY terminal output hold

OUT terminal output hold

OFF

OFF

Once it is turned on, a RY terminal holds that condition.

Once it is turned on, an OUT terminal holds that condition.

Remarks

Always enabled even if communication command is not enabled

Always enabled even if communication command is not enabled

2-15

(Reserved)

Note: Set 0 to reserved bit

- -

53

E6581913

Frequency setting from the computer

“Communication Number: FA01”

Setting range: 0 to maximum frequency (fh)

This frequency command value is enabled only when the frequency command by communication is enabled. To make frequency commands from the computer valid, set the frequency setting mode selection parameter (fmod) to RS485 communication (communication No. 0004: 3 (RS485 communication input) or select the “Command priority” option (bit 14 of FA00 : 1 (enabled)). In this case, frequency commands by communication will be enabled independent of fmod setting.

However, enabled commands and frequencies are given the priority if “48 (49): Forced switching from communication to local,” is set by input terminal function selection (f1o4, f108, f110 to f115).

Once enabled, this frequency setting will be enabled till disable is set (0 setting), power is turned off or is reset, or factory default setting (typ) is selected.

Set a frequency by communication hexadecimal in Communication Number FA01. (1=0.01Hz (unit))

Example: Operation frequency 80Hz command RS485 communication (PFA011F40)

CR

80Hz=80÷0.01=8000=1F40H

Motor speed command setting from the computer

(communication number: FA13)

Setting range: 0 to 24000min

-1

The number of motor poles is selected by to f856.

The motor speed command can be set from FA13.

The output frequency is converted from the motor speed command by the following calculation formula.

If the output frequency is more than fh, Inverter return the error to the computer and the motor speed command is ignored.

Output frequency [0.01Hz] = (Output motor speed [min

-1

] x poles [f856] ) ÷ 120

This frequency command is enabled only when the frequency command by communication is enabled by setting “RS485 communication (“4” for Communication Number 0004) by the speed command selection parameter (fmod) or setting command priority (Bit 14 of Communication Number

FA00 to “1” (enable)) by the communication command. In this case, frequency command by communication will be enabled independent of fmod setting. However, enabled commands and frequencies are given the priority if “48: Forced change from communication to local,” “52: Forced operation,” or “53: Fire speed” is set by input terminal function selection (f1o4, f108, f110 to f118).

Once enabled, this frequency setting will be enabled till disable is set (0 setting), power is turned off or is reset, or standard shipment setting (typ) is selected.

Set a speed by communication hexadecimal in Communication Number FA13. (1 = 1min

-1

(unit))

Example: f856=2: 4 poles, Speed command is 1800min

-1

(PFA130708) CR

60.00 Hz = (1800 min

-1

x 4 poles ) ÷ 120

54

E6581913

Output data on the terminal board (FA50)

The output data on the terminal board can be directly controlled with the computer.

To use this function, select functions from 92 to 95 in advance for the output terminal selection parameters f130, f131, f132. If bit 0 through bit1 of the data (FA50) is set with the computer, the specified data (0 or 1) can be output to the selected output terminal.

Data composition of output data on the terminal board (FA50)

Bit Output terminal function 0 1

0 OFF ON

1

Specified data output 1

(Output terminal no.: 92, 93)

Specified data output 2

(Output terminal no.: 94, 95)

OFF ON

- -

Note: Set 0 to reserved bit

Example of use: To control only the RY-RC terminal with the computer

To turn on the RY terminal, set the output terminal selection 1A parameter (f130) to 92

(Designated data output 1) and set 0001H to FA50.

FA50:

BIT15 BIT0

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

0

0

0 1

FM analog output (FA51)

The FM analog output terminal on each inverter can be directly controlled with the computer.

To use this function, set the FM terminal meter selection parameter (fmsl) to 18 (RS485 communication data).

This makes it possible to send out the data specified as FM analog output (FA51) through the FM analog output terminal. Data can be adjusted in a range of 0 to 100.0 (resolution of 10 bits).

For details, refer to “Meter setting and adjustment” of the inverter’s instruction manual.

Information for reset or not (FA87)

FA87 sets to ‘1’ by user-communication. If the inverter reset, FA80 set to ‘0’ by the inverter.

55

E6581913

8.2.Monitoring from the computer

This section explains how to monitor the operating status of the inverter from the computer.

Monitoring of the output frequency from the computer (FD00, FE00)

Output frequency (current status): “Communication Number FD00” (unit: 0.01Hz)

Output frequency (status immediately before the occurrence of a trip): “Communication Number

FE00” (unit: 0.01Hz)”

The current output frequency is read out in hexadecimal in units of 0.01Hz. For example, if the output frequency is 80Hz, 1F40H (hexadecimal number) is read out. Since the unit is 0.01Hz, 1F40H

(hexadecimal number) = 8000 (decimal number) x 0.01 = 80 (Hz)

Example: Monitoring of the output frequency (operation frequency: 50Hz) ・・・ (1F40H=8000d,

8000×0.1=80Hz)

Computer→Inverter Inverter→Computer

(RFD00)

CR

(RFD001F40)

CR

Monitoring of the output current with the computer (FD03, FE03)

Output current (current status): “Communication Number FD03” (unit: 0.01%)

Output current (status immediately before the occurrence of a trip): “Communication Number FE03”

(unit: 0.01%)

The current output current is read out in hexadecimal in units of 0.01%. For example, if the output current of an inverter with a current rating of 4.8A is 2.4A (50%), 1388H (hexadecimal number) is read out. Since the unit is 0.01%, 1388H (hexadecimal number) = 5000 (decimal number) x 0.01 =

50 (%)

Example: Monitoring of the output current (output current: 90%) ・ ・ ・ (2328H=9000d,

9000×0.01=90%)

Computer→Inverter Inverter→Computer

(FRD03)

CR

(RFD032328)

CR

The following items are also calculated in the same way.

• FD05 (output voltage)..........................................Unit: 0.01% (V)

• FD04 (DC voltage) ..............................................Unit: 0.01% (V)

56

E6581913

Input terminal block status (FD06, FE06)

Input terminal block status (current status): “Communication Number FD06”

Input terminal block status (status immediately before the occurrence of a trip): “Communication

Number FE06”

Using terminal function selection parameters, functions can be assigned individually to the terminals on the input terminal block.

If a terminal function selection parameter is set to 0 (no function assigned), turning on or off the corresponding terminal does not affect the operation of the inverter, so that you can use the terminal as you choose.

When using a terminal as a monitoring terminal, check beforehand the function assigned to each terminal.

Data composition of input terminal block status (FD06, FE06)

Bit Terminal name Function (parameter title) 0 1

0 F

1 R

2 RES

3 S1

4 S2

Input terminal function selection 1 (f111)

Input terminal function selection 2 (f112)

Input terminal function selection 2 (f113)

Input terminal function selection 4 (f114)

Input terminal function selection 5 (f115)

OFF ON

5 S3 *1

6 VIB *2

7 VIA *2

8 to15 (Undefined)

Input terminal function selection 6 (f116)

Input terminal function selection 7 (f117)

Input terminal function selection 8 (f118)

---

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

*2:S3 function when f147 is logic input.

*2:VIA / VIB function when f109 is logic input.

Example: Data set for FE06 when the F and RES terminals are ON = 0005H

--- ---

BIT15 bit0

0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1

0 0

0

5

57

E6581913

Output terminal block status (FD07, FE07)

Output terminal block status (current status): “Communication Number FD07”

Output terminal block status (status immediately before the occurrence of a trip): “Communication

Number FE07”

Using terminal function selection parameters, functions can be assigned individually to the terminals on the output terminal block.

When using a terminal as a monitoring terminal, check beforehand the function assigned to each terminal.

Data composition of output terminal block status (FD07, FE07)

Bit Terminal name Function (parameter title) 0 1

0

1

RY-RC

OUT

2 FL

3 to 15 (Undefined)

Output terminal function selection 1 (f130)

Output terminal function selection 2 (f131)

Output terminal function selection 3 (f132)

-

OFF ON

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

Example: Data set for FE07 when both the RY and FL terminals are ON = 0005H

- -

FE07:

BIT15 bit0

0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1

0 0 0 5

Monitoring of the analog input with the computer (FE35,FE36,FE37)

Terminal VIA monitor (current status): “Communication Number FE35” (unit: 0.01%)

Terminal VIB monitor (current status): “Communication Number FE36” (unit: 0.01%)

Terminal VIC monitor (current status): “Communication Number FE37” (unit: 0.01%)

These monitors can also be used as A/D converters irrespective of the inverter’s control.

Terminal VIA and Terminal VIC monitor are capable of reading the data from external devices in a range of 0.01 to 100.00% (unsigned data: 0H to 2710H).

Terminal VIB monitor is capable of reading the data from external devices in a range of -100.00 to

100.00% (signed data: D8F0H to 2710H).

If analog input mode is selected with the frequency setting mode selection parameter, however, keep in mind that any data entered via an analog terminal is regarded as a frequency command.

58

E6581913

Status information 1 (FD01, FE01)

Status information 1 (current status): “Communication Number FD01”

Status information 1 (status immediately before the occurrence of a trip): “Communication No. FE01”

Bit Specifications

0 Failure FL

1 Failure

2 Alarm

4 Motor section (1 or 2)

(THR 2 selection)

5 PID control OFF

6 Acceleration/deceleration pattern selection (1 or 2)

0

No output

1

Output in progress

Remarks

No alarm

Tripped

Alarm issued

Trip statuses include rtry and trip retention status.

Motor 1 (THR 1) Motor 2 (THR 2) THR1 : pt=setting value, vl

, vlv, vb, thr

THR2 :pt=0, f170, f171

, f172, f173

PID control permitted

PID control prohibited

Acceleration/ deceleration pattern 1 (AD 1)

Acceleration/ deceleration pattern 2 (AD 2)

AD1 :acc, dec

AD2 :f500, f501

7 DC braking

8 Jog run

9 Forward/reverse run

10 Run/stop

11 Coast stop (ST=OFF)

12 Emergency stop

OFF

OFF

Forward run

Stop

ST=ON

Not emergency stop status

Start-up process

Forced DC braking

Jog run

Reverse run

Run

ST=OFF

Emergency stop status

Standby 13 Standby ST=ON Standby: Initialization completed, not failure stop status, not alarm stop status (MOFF, LL forced stop), ST=ON, and RUN=ON

14 Standby Standby Standby: Initialization completed, not failure stop status, and not alarm stop status (MOFF, LL forced stop )

15 (Undefined) - -

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

59

E6581913

Status information 2 (FD42, FE42)

Status information 2 (current status): “Communication Number FD42”

Status information 2 (status immediately before the occurrence of a trip): “Communication No. FE42”

Bit Function 0 1 Remarks

0 (Undefined) - -

1 (Undefined)

2 (Undefined)

-

-

-

-

3 (Undefined)

4 (Undefined)

5 (Undefined)

6 (Undefined)

7 Maximum deceleration forced stop

-

-

-

-

-

-

-

-

Normal Operation tern selection1 tern selection2

10 (Undefined)

11 (Undefined)

12 OC stall level

13 (Undefined)

14 (Undefined)

15 (Undefined)

00:Acceleration/deceleration 1

01:Acceleration/deceleration 2

10:Acceleration/deceleration 3

-

AD1 :acc, dec

AD2 :f500, f501

AD3 :f510, f511

-

-

OC stall 1

-

-

-

-

OC stall 2

OC stall 1 : f601

OC stall 2 : f185

-

-

-

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

Status information 3 (FD49, FE49)

Status information 3 (current status): “Communication Number FD49”

Status information 3 (status immediately before the occurrence of a trip): “Communication No. FE49”

Bit Function 0 1 Remarks

0

1

RY terminal output hold

OUT terminal output hold

2 to 9 (Undefined)

11 Healthy signal

OFF

OFF

-

OFF

OFF

ON

ON

-

ON

ON This bit repeats On/off every second.

12 Acceleration/deceleration completion (RCH)

13 Specified speed reach (RCHF) f102

ON f101 , f102

OFF

OFF ON

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

60

Cumulative operation time alarm monitor (FE79)

Comulative operation time alarm monitor (current status): “Communication Number FE79”

E6581913

Bit Specifications 0 1

0 Fan life alarm Normal Alarm issued

1 Circuit board life alarm Normal Alarm issued

2 Main-circuit capacitor life alarm

3 User set alarm

4-15 (Undefined)

Normal

Normal

-

Alarm issued

Alarm issued

-

-

-

-

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

Output motor speed monitor (FD90, FE90)

Output motor speed monitor (current status): “Communication Number FD90” (unit: 1min

-1

)

Output motor speed monitor (status immediately before the occurrence of a trip): “Communication

Number FE90” (unit: 1min

-1

)

Ex.: Output motor speed monitor (during 60 Hz operation and 4 poles (f856=2: 4 poles )

... (0708H = 1800d, 1800min

-1

)

The number of motor poles is selected by f856.

The output moter speed is converted from the output frequency by the following calculation formula.

Output morter speed [min

-1

] = (120 x Output frequency [0.01Hz] ) ÷ poles [f856]

1800 min

-1

= (120 x 60.00Hz) ÷ 4 poles

Computer

 Inverter Inverter

(RFE90)

CR

Alarm

information

(FC91)

Alarm information monitor (current status): “Communication Number FC91”

Remarks

-

-

Bit Specifications

1

2

Inverter overload alarm

Motor overload alarm

Remarks

0 1

(Code displayed on the panel)

Normal Alarming

Normal Alarming c l

flickering

flickering

Normal Alarming

Normal Alarming

Normal Alarming

Normal Alarming

Normal Alarming l h p l

flickering

flickering

flickering

- flickering 6 Main module overload alarm

7 Low current alarm

9 Braking resistor overload alarm

10 Cumulative operation hours alarm

11 Option communication alarm

Normal Alarming

Normal Alarming

Normal

Normal

Alarming

Normal Alarming

Alarming

-

-

-

-

 flickering

12 Serial communication alarm

13 Main-circuit voltage error alarm

14 Regenerative power ride-though control

Normal

Normal

Alarming

Alarming

 flickering moff stopping

15 Stop at lower-limit frequency operation (sleep function) stopping

Note: The bit described “Undefined” is unstable. Don’t use the bit for the judgment.

flickering

61

E6581913

Trip code monitor (

current status:

FC90:

historic records:

FE10 to FE13,FD10 to FD13)

Code

Data

(hexadecimal number)

Data

(decimal number)

Description nerr oc1 oc2 oc3 ocl oca ephi epho op1 op2 op3

4

5

8

9

A

B

1

2

3

C

1 Over-current during acceleration

2 Over-current during deceleration

3 Over-current during constant speed operation

4 Over-current in load at startup

5 Arm overcurrent at start-up

8 Input phase failure

9 Output phase failure

10 Overvoltage during acceleration

11 Overvoltage during deceleration

12 Overvoltage during constant speed operation ol1 ol2 olr oh e eep1

F 15 Dynamic braking resistor overload trip

10 16 Overheat eep2 eep3 err2 err3 err4 err5 err7

12

13

14

15

16

17

18

1A

18 EEPROM fault 1

19 EEPROM fault 2

20 EEPROM fault 3

21 Main unit RAM fault

22 Main unit ROM fault

23 CPU fault 1

24 Communication time-out error

26 Current detector fault

1B

1C

1D

1E

20

27 Optional unit fault 1

28 Remote keypad disconnection fault

29 Low current operation fault

30 Undervoltage fault (main circuit)

32 Over-torque trip 1 e-19 e-20 e-21 e-23 e-26 ol3 e-31 e-32 ot2 e-37 e-39 otc3 err8 err9 uc up1 ot ef2 etn etyp e-13 oh2 sout e-18 utc3 etn1 etn2 etn3 e-27

32

33

34

35

37

29

2D

2E

2F

41 Inverter type error

45 Over speed fault

46 Thermal fault stopcommand from external device

47 Step-out (for PM motor drive only)

50 Analog input break detection fault

51 CPU communications error

52 Over torque boost fault

53 CPU fault 2

55 Optional unit fault 2

3A

3E

58 CPU fault 3

62 Main mudule overload

3F 63 Heavy cycle of main power ON/OFF

40 64 PTC fault

41 65 Over-torque trip 2

45 69 Servo lock fault

47 71 Auto-tuning error (PM motor)

48 72 Over-torque / Overcurrent fault

49 73 Small-torque / Small -current fault

54 84 Auto-tuning error 1

55

56

57

85 Auto-tuning error 2

86 Auto-tuning error 3

87 Internal circuit fault

62

E6581913

8.3.Utilizing panel (LEDs and keys) by communication

The VF-S15 can display data that is not related to the inverters through an external controller or other means. Input by key operations can also be executed. The use of inverter resources reduces the cost for the entire system.

8.3.1. LED setting by communication

Desired

LED information can be displayed by communication.

<How to Set>

Set the standard monitor display selection parameter to “communication LED setting

(f710=18).”

When in the standard monitor mode status, LED information is displayed according to the setting of

Communication Number FA65. (Set to Communication Number FA65 = 1 and initial data

“data” in shipment setting)

In case of an alarm while setting communication LEDs, the alarm display will alternately display specified LED data and alarm message.

For example, if an over-current alarm (alarm display “c”) occurs while “60.0” is displayed by this function, “c” and “60.0” will be displayed alternately.

Communication Parameter Name

Number.

FA65 Select display by communication

Range

Shipment setting

0: Numeric data (FA66, FA67, FA68)

1: ASCII data 1 (FA70, FA71, FA72, FA73,

FA74)

2: ASCII data 2 (FA75, FA76, FA77, FA78,

FA79)

1

0-9999 0 FA66 Numeric display data

(Enabled if FA65=0)

FA67 Decimal point position

(Enabled if FA65=0)

0

FA68

FA70

LED data 0 for unit

(Enabled if FA65=0)

ASCII display data 1, first digit from left

(Enabled if FA65=1)

0: No decimal point (xxxx)

1: First digit below decimal point (xxx.x)

2: Second digit below decimal point (xx.xx)

0:Hz off, % off, 1:Hz on, % off

2:Hz off, % on, 3:Hz on, % on

0 – 127 [0 – 7FH]

(See ASCII LED display code chart)

0

FA71

FA72

FA73

ASCII display data 1, second digit from left

(Enabled if FA65=1)

ASCII display data 1, third digit from left

(Enabled if FA65=1)

ASCII display data 1, fourth digit from left

(Enabled if FA65=1)

0 – 256 [0 – FFH]

(See ASCII LED display code chart)

0 – 256 [0 – FFH]

(See ASCII LED display code chart)

0 – 127 [0 – 7FH]

(See ASCII LED display code chart)

100 [64H]

(’d’)

65 [41H]

(’a’)

116 [74H]

(’t’)

65 [41H]

(’a’)

0

FA74 LED data 1 for unit

(Enabled if FA65=1)

FA75 ASCII display data 2, first digit from left

(Enabled if FA65=2)

FA76 ASCII display data 2, second digit from left

(Enabled if FA65=2)

FA77

FA78

FA79

ASCII display data 2, third digit from left

(Enabled if FA65=2)

ASCII display data 2, fourth digit from left

(Enabled if FA65=2)

LED data 2 for unit

(Enabled if FA65=2)

0:Hz off, % off, 1:Hz on, % off

2:Hz off, % on, 3:Hz on, % on

0 – 127 [0 – 7FH]

(See ASCII LED display code chart)

0 – 256 [0 – FFH]

(See ASCII LED display code chart)

0 – 256 [0 – FFH]

(See ASCII LED display code chart))

0 – 127 [0 – 7FH]

(See ASCII LED display code chart)

0:Hz off, % off, 1:Hz on, % off

2:Hz off, % on, 3:Hz on, % on

48 [30H]

(’0’)

48 [30H]

(’0’)

48 [30H]

(’0’)

48 [30H]

(’0’)

0

63

E6581913

Block Communication Function for LED Display

To display LED data for ASCII display that is synchronized to each digit, set data for each digit and validate this set data by display selection by communication (Communication Number FA65).

Synchronization can also be achieved by batch writing LED data parameters after changing the following block communication mode parameters and by sending data by block communication.

Writing in the block communication function will be writing in the RAM only due to the EEPROM life for write operations. The LED data will reset to the initial value “data“ when the power is turned off, in failure resetting or when standard shipment settings are set.

 Parameter Setting

“Block communication mode (Communication Number FA80)”

Setting range: 0, 1 (Initial value 0)

0: Block communication parameters (f870 - f879) is used

1: LED display ASCII data is used (When writing, ASCII display data 1 [Communication Number FA70 - FA74], when reading, LED data displayed before change)

*To validate LED data set by using LED display block communication, set standard monitor display selection to “communication LED select (f710 = 18) and display selection by communication to “ASCII data 1 (Communication Number FA65).

 Format

The format is the same as that used in the usual block communication mode. (For the detail infor-

mation, see “4.1.3. Transmission format of Block Communication”.) The block communication pa-

rameters (f870 - f879) will become invalid. Write data will become ASCII display data 1

(Communication Number :FA70 - FA74) fixed. LED display data that is actually being output will be read during reading. The specification range for write operations is 0 to 5.

 Example

Communication LED selection (f710 = 18) for standard monitor display selection.

ASCII data 1 (Communication Number: FA65 = 1) for display selection by communication.

LED display ASCII data (Communication Number: FA80 = 1) for the block communication mode.

Current LED display status is display of initial value “data”

PC → Inverter: 2F580505003000310032003300035A ・・・“0123” display command

Inverter → PC: 2F59050000640041007400410000E7 ・・・ “data” displayed before change

64

E6581913

ASCII LED display data code (00H-1FH are blank.)

Hex Code Display Char. Hex Code Display Char.

Hex Code Display Char.

Hex Code Display Char.

00H BLANK 20H BLANK SP 40H BLANK @ 60H BLANK `

08H BLANK 28H

09H BLANK 29H

0BH BLANK 2BH BLANK + 4BH

0DH BLANK 2DH - 4DH

K 6BH k

M 6DH m

0FH BLANK 2FH

/

10H

11H

12H

13H

14H

15H

16H

17H v

37H 7 57H BLANK W 77H BLANK w

18H

19H

1AH

1BH

1CH

38H 8 58H BLANK X 78H BLANK x

3AH BLANK : 5AH BLANK Z 7AH BLANK z

3BH BLANK ; 5BH

3CH

<

[

{

7CH BLANK |

1DH 3DH

1EH BLANK 3EH

= 5DH

] }

1FH BLANK 3FH BLANK ? 5FH

*Dots to show decimal points and other uses can be added by setting (80H) Bit 7 (highest bit).

Example: “0.” to display “60.0” can be added by “30H + 80H = B0H.”

65

E6581913

8.3.2.Key utilization by communication

The VF-S15 can use the panel keys on the inverters through external communication.

 Key Monitoring Procedure

Set panel key selection (Communication Number: FA10) to “1” to set the external key mode.

However, if communication duration is less than 1sec to avoid an inverter operation shutdown in communication disruption, communication must always be maintained, such as monitoring key data and LED data to automatically reset inverter operations to inverter key operation (FA10 = 0). Set to the external communication key mode (FA10 = 1) to disable the key function of the inverters so that inverter operation will not be affected by pressing of the keys on the inverters. By monitoring key information, which is input by the keys on the inverters in this condition, through inverter key data (Communication Number; FC01), the keys on the inverters can be operated through a controller and other devices.

* When the key mode is the external key mode, key operation as an inverter function is disabled and the inverters cannot be stopped by pressing the STOP key to stop inverter operation. Enable emergency stop through an external terminal or other device when an inverter stop is desired.

Panel Key Selection (Communication Number: FA10)

The panel key selection parameter (Communication Number; FA10) discriminates which keys are to be used, panel keys on the inverters or keys sent by external communication, as panel keys used in panel processing of the inverters.

Communication No.:FC01

Panel key data of inverters

FA10=”0”

Communication No.:FA11

FA10=”1”

External communication key data

Keys on inverters enabled (Communication Number; FA10 = 0):

Key data: Data of keys on inverters (Communication Number: FC01)

Communication No.:FC00

Key data for inverter control panel processing

Bit15 Bit14-Bit9 Bit8 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

- - - - ENT UP RUN

External keys enabled (Communication Number; FA10 = 1):

Key data: External key data (Communication Number: FA11)

Bit15 Bit14-Bit9 Bit8 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

Key monitoring (Communication Number: FC00): *Bit15 is always 1.

REM

EASY ENT MODE DOWN UP STOP RUN

Bit15 Bit14-Bit9

Bit8 Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

REM

EASY ENT MODE DOWN UP STOP RUN

66

E6581913

9.Parameter data

Explanation of parameters for VF-S15 series is described here. For communication purposes, see the parameter list on inverter's instruction manual regarding the communication number, adjustment range and so forth.

 Referring to the parameter list

<Example of excerpts from the inverter’s instruction manual>

Title

Communication

Minimum setting unit

(Panel/Communi

No. cation) auh

History function

- -

Default setting

-

Referenc e

4.3

5.1 aua auf

setting

Guidance function 0

5.2

3.5

5.3

6.14 aul istic selection

0:-

1:Constant torque characteristic (150%-60s)

2:Variable torque characteristic (120%-60s)

1/1

0 au1 tion/deceration

0:Disabled(manual setting)

1:Automatic

2:Automatic(only at acceleration) acc

0009 Acceleration time 1 0.0~3600 sec.

:

- The summary of parameter list relating to the communication is as follows.

1/1

0

0.1/0.1 10.0

5.4

5.4

(1) “Title” means the display on the inverter panel.

(2) “Communication number” is affixed to each parameter that is necessary for designating the parameter for communication.

(3) "Adjustment range" means a data range adjustable for a parameter, and the data cannot be written outside the range. The data have been expressed in the decimal notation. For writing the data through the communication function, take the minimum setting unit into consideration, and use hexadecimal system.

(4) "Minimum setup unit" is the unit of a single data (when the minimum setting unit is "-", 1 is equal to 1).

For example, the "minimum setting unit" of acceleration time (acc) is 0.1, and 1 is equal to 0.1s. For setting a data to 10 seconds, transmit 64h [10÷0.1=100d=64h] by communication.

If 0999 is equal to 2, the acceleration/deceleration time parameters acc, dec, f500, f501, f510, f511

can be set in units of 0.1 sec. If 0999 is equal to 1, these parameters can be set in units of 0.01 sec.

 Acceleration/deceleration setting time unit (0999)

Communication No. Function name Unit Adjustment range

0999 Acceleration/deceleration time unit

-

1: 0.01 sec. (0.01-360.00)

2: 0.1 sec. (0.1-3600.0)

Note: Don’t write the communication number of 0999. The acceleration/deceleration time unit is set by f519.

(5) When data is a negative number, it treats as an one's complement expression (ex. FFFFH is equal to ‘-1’).

67

E6581913

 Command

For those parameters that contain data only in the RAM and not in the EEPROM, their data return to initial values when the power is turned off, in failure resetting, or when standard shipment settings are set. Note that parameters without data storage in the EEPROMs will be written in the RAM only even if the command W (writing in EEPROMs and RAM) is executed.

 Commands Note: Data is expressed in decimal notation.

Communication

Number.(HEX)

Function

Adjustment Range

Min.

Setting

Unit

Initial

Value

Write

During

Operation

EEP

ROM

FA00 Communication command 1

(RS485) *

1

FA01 Frequency command value

(RS485) *

1

0 to 65535

0 to Max. frequency

(fh)

- 0 yes None

0.01Hz 0 yes None

FA03 Operation panel operation frequency

Low-limit frequency

(ll) to High-limit frequency (ul)

0.01Hz 0 yes Available

0:Remote

1:Local

- 0 Available

FA10

Panel key selection *

3

0: Main unit

1: Communication

- 0 None

FA11 External communication key data *

3

0 to 65535 - 0 yes None

FA13 Motor speed command (FA13) 0 to 24000min

-1

1min

-1

0 yes None

FA20 Communication command 2

(RS485) *

1

0 to 65535 - 0 yes None

FA26 Communication command 3 0 to 65535

FA50

O utput data on the terminal board *

2

FA51

FM analog output *

2

0 to 255

0 to 100.0

(resolution of 10 bits)

0 to 2 FA65 Select display by communication *

3

FA66

Numerical display data *

3

FA67

Decimal point position *

3

FA68

LED data for unit 0 *

3

-

1

0.1% 0 yes

-

0

0

1

0-9999 1

0 to 2

0 to 3

-

-

0

0 yes yes yes yes yes

None

None

None

Available

Available

Available

Available

FA70 ASCII display data 1

First digit from left *

3

FA71 ASCII display data 1

Second digit from left *

3

0 to 127

0 to 255

-

-

100

(’d’)

65

(’a’) yes yes

Available

Available

FA72 ASCII display data 1

Third digit from left

3

FA73 ASCII display data 1

Fourth digit from left *

3

FA74

LED data for unit1 *

3

0 to 255

0 to 127

-

-

116

(’t’)

65

(’a’) yes yes

Available

Available

FA75 ASCII display data 2

First digit from left *

3

FA76 ASCII display data 2

Second digit from left

FA77 ASCII display data 2

Third digit from left *

3

3

FA78 ASCII display data 2

Fourth digit from left *

3

FA79

LED data for unit 2 *

3

FA80

Block communication mode *

3

0 to 3

0 to 127

0 to 255

0 to 255

0 to 127

0 to 3

0 to 1

-

-

-

-

-

-

-

0

48

(’0’)

48

(’0’)

48

(’0’)

48

(’0’)

0

0 yes yes yes yes yes yes yes

Available

Available

Available

Available

Available

Available

Available

FA87 Reset information 0 to 255 - 0 yes None

1

:Enable the communication command or communication frequency setting before setting these

parameters are set. Otherwise, the parameters will not function. See “8.1. Command by

communication” for the method to enable them.

2

:See “8.1. Communication commands (command from the computer)” for the detail information.

3

:See “8.3. Utilizing panel (LEDs and keys) by communication” for the detail information.

 Monitor parameters *These Parameters are read-only (monitor-only) parameters.

68

E6581913

( 1 / 2 )

Communication No.

Current value

Trip data held

0999

FB05

FC00

FC01

-

-

-

-

Acceleration/deceleration time unit

Inverter capacity code

Monitor of key data (Effective data)

Monitor of inverter keypad data

FC90 - code

-

-

-

-

Chapter 9

Appendix 3

Refer to Section 8.3

-

FD01

FD02

FD04

FD06

FD07

FE11

FE12

FE13

FE08

FE10

FE11

FE12

FE13

FE14

FD32

FD33

FD34

FE35

FE36

FE37

FE40

FD40

FD41

FD42

FD49

FE56

FD22

FD23

FD24

FD25

FD26

FD27

FD28

-

-

FE42

FE49

-

-

-

-

-

-

-

-

FE01

FE02

FE04

FE06

FE07

-

-

-

-

-

-

-

-

-

Status information 1

Frequency command value

Input voltage (DC detection)

Input terminal information

Output terminal information

Past trip 6

Past trip 7

Past trip 8 (earliest)

CPU version 1 (application)

Past trip 1 (latest)

Past trip 2

Past trip 3

Past trip 4

Cumulative operation time

Estimated speed

FE22

FE23

PID feedback value

Motor overload factor (OL2 data)

FE24

FE25

Inverter overload factor (OL1 data)

PBR (Braking resistor) cumulative load factor

FE26

FE27

Motor load factor

Inverter load factor

FE28 Regenerative braking resistance load factor

-

-

-

-

-

-

-

-

0.01Hz

-

0.01Hz

0.01%

0.01%

0.01%

Refer to Section 8.2

-

-

-

1=1hour

1%

Refer to Section 8.2

0.01Hz

0.01Hz

0.01%

0.01%

0.01Hz

0.01%

0.01%

1%

1%

1%

0.01kW

0.01kW

1=1000times

Number of starting

Forward number of starting

Reverse number of starting

Terminal VIA monitor

Terminal VIB monitor

Terminal VIC monitor

FM output value

Pulse train output value

Cumulative fan operation time

Status information 2

Status information 3

Pulse train input value

0.01%

0.01% pps

1=10hour

-

- pps

Refer to Section 8.2

Refer to Section 8.2

69

Communication No.

Current value

Trip data held

FE73

FE76

FE77

-

-

-

CPU version 2 (motor)

Integral input power

Integral output power

FE79

FE80

FD90

-

-

FE90

Part replacement alarm information

Cumulative power ON time

Output motor speed monitor

E6581913

( 2 / 2 )

0.1A

0.1V

-

It depends on f749.

1=0.1kWh

1= 1kWh

1=10kWh

1=100kWh

1=1000kWh f749 f749 f749 f749 f749

=0

=1

=2

=3

=4

-

1=10hour min

-1

Refer to Section 8.2

Refer to Section 8.2

70

E6581913

Appendix 1 Table of data codes

 JIS (ASCII) codes

Higher orde

Lower order

0 1 2 3 4 5 6 7

0 NUL TC

7

(DLE) (SP) 0 @ P , p

1 TC

1

(SOH) DC

1

2 TC

2

(STX) DC

2

3 TC

3

(ETX) DC

3

4 TC

4

(EOT) DC

4

5 TC

5

(ENQ) TC

8

6 TC

6

(ACK) TC

9

(NAK) % 5 E U e u

(SYN) & 6 F V f v

7 BEL TC

10

8 FE

0

(ETB) ‘ 7 G W g w

(BS) CAN ( 8 H X h x

9 FE

1

A FE

2

(LF) SUB

) 0 I Y i y

* : J Z j z

B FE

3

(VT) ESC

C FE

4

D FE

5

(FF) IS

4

(CR) IS

E SO IS

3

2

+ ; K [ k {

(FS) . < L ¥ l |

(GS) - = M ] m }

(RS) . > N ^ n ~

F SI IS

1

DEL

CR: Carriage return

Ex.: Code 41 = Character A

71

E6581913

Appendix 2 Response time

The communication response time can be calculated from data communication time and inverter processing time. When wishing to know the communication response time, calculate using the following as a reference

Interval corresponding to 3.5 bytes

Data processing time of inverter

Data transmission time

PC

 Inverter

Response time

Data transmission time

Inverter

 PC

Data transmission time

Data transmissi on time

1 baud rate

 number of bytes transmitte d

 number of bits

* Number of bits = start bit + data frame length + parity bit + stop bit

* Minimum number of bits = 1 + 8 + 0 + 1 = 10 bits

* Maximum number of bits = 1 + 8 + 1 + 2 = 12 bits

<An example of the calculation of the transmission time: 19200 bps, 8 bytes, 11 bits>

Data transmissi on time

1

19200

8

11

4.6ms

Data processing time of inverter

Data processing time: maximum 10ms

Note: If it sets EEPROM, maximum become 50ms. See “9. Parameter data” about EEPROM.

72

Appendix 3 Type and Form (FB05)

 3-phase 240V class

Type and Form Voltage / Capacity

VFS15-2004PM-W

VFS15-2007PM-W

VFS15-2015PM-W

VFS15-2022PM-W

VFS15-2037PM-W

VFS15-2055PM-W

VFS15-2075PM-W

VFS15-2110PM-W

VFS15-2150PM-W

3ph 200/240V 0.4kW

3ph 200/240V 0.75kW

3ph 200/240V 1.5kW

3ph 200/240V 2.2kW

3ph 200/240V 3.7/4.0kW

3ph 200/240V 5.5kW

3ph 200/240V 7.5kW

3ph 200/240V 11kW

3ph 200/240V 15kW

 1-phase 240V class

3-phase 500V class

Type and Form Voltage / Capacity

VFS15S-2002PL-W

VFS15S-2004PL-W

VFS15S-2007PL-W

VFS15S-2015PL-W

VFS15S-2022PL-W

1ph 200/240V 0.2kW

1ph 200/240V 0.4kW

1ph 200/240V 0.75kW

1ph 200/240V 1.5kW

1ph 200/240V 2.2kW

Type and Form Voltage / Capacity

VFS15-4004PL-W

VFS15-4007PL-W

VFS15-4015PL-W

VFS15-4022PL-W

VFS15-4037PL-W

VFS15-4055PL-W

VFS15-4075PL-W

VFS15-4110PL-W

VFS15-4150PL-W

3ph 380/500V 0.4kW

3ph 380/500V 0.75kW

3ph 380/500V 1.5kW

3ph 380/500V 2.2kW

3ph 380/500V 3.7/4.0kW

3ph 380/500V 5.5kW

3ph 380/500V 7.5kW

3ph 380/500V 11kW

3ph 380/500V 15kW

E6581913

Inverter model (capacity) code (FB05)

Data

(hex)

Data

(decimal)

2

4

6

2

4

6

7

9

A

7

9

10

B

6C

6D

11

108

109

Inverter model (capacity) code (FB05)

Data

(hex)

Data

(decimal)

19

1A

1C

25

26

28

1E

1F

30

31

Inverter model (capacity) code (FB05)

Data

(hex)

Data

(decimal)

22

24

26

34

36

38

27

29

2A

39

41

42

2B

2C

2D

43

44

45

73

E6581913

Appendix 4 Troubleshooting

If a problem arises, diagnose it in accordance with the following table before making a service call.

If the problem cannot be solved by any remedy described in the table or if no remedy to the problem is specified in the table, contact your Toshiba distributer.

Communication will not take - Are both the computer and the inverter turned on? place. - Are all cables connected correctly and securely?

The state of transmission and reception can be checked in the state

An error code is returned. of communication of the status monitor function of inverter.

For details, please see inverter’s instruction manual.

- Are the same baud rate, parity and bit length set for every unit on the network?

- Is the line of network equipped with a terminator/bias resistance?

- Is the data transmission format correct?

- Does the data written fall within the specified range?

- Some parameters cannot be written during inverter operation.

Changing should be attempted when the inverter is in halt.

-f700 (Parameter protection selection) is 2: Writing prohibited

(1+RS485 communication), 4: Reading prohibited (3+RS485 com munication)

- If f738 (Password setting) was set to data, f738 can not set to data.

- Check the cable connection and the timer setting. The trip err5 and alarm t occur.

Frequency instructions from the computer have no effect.

- Is the frequency setting mode selection parameter set to “computer”?

Commands, including the run and stop commands, from the commuter have no effect.

- Is the command mode selection parameter set to “computer”?

A change to a parameter does not take effect.

Some communication-related parameters do not take effect until the inverter is reset. To make them take effect, turn the inverter off temporarily, and then turn it back on.

The setting of a parameter was changed, but it returns to its original setting when the inverter is turned off.

The setting of a parameter was changed, but the function doesn’t work.

When using the Toshiba inverter protocol, use the W command to write data into the EEPROM. If you use the P command that writes data into the RAMs only, the data will be cleared when the inverters are reset.

- Some parameters become effective after the drive is reset.

- The Modbus RTU protocol has usage restrictions.

Inverter’s instruction manual

Section 7.1

Appendix 5

Section 4.1

Section 5.1

Chapter 9

Inverter’s instruction manual

Section 7.3

Section 8.1

Inverter’s instruction manual

Chapter 7

Section 4.2

Chapter 7

74

Appendix 5 Connecting for RS485 communication

 Connector diagram for two-wire RS485 communication

E6581913

8pin

1pin

Signal name

RXD+/TXD+

RXD-/TXD-

Pin number

4

5

---

---

P24

(3)

6

1,2

7

 Pin assignment for two-wire RS485 communication example

* Never use pin-7 (P24).

Straight

P5

510

Master

CN1

Pin-4

Slave

RX D+/TXD+ RXD+/ TXD+

120

RX D-/TXD-

Pin-5

RXD-/ TXD-

510

Description

Same phase reception data (positive line)

Anti-phase reception data (negative line)

--- (Do not connect the cable.)

--- (Do not connect the cable.)

24V (Do not connect the cable.)

Straight

Slave

RXD+/TX D+

RXD-/TX D-

Straight

SG

Pin-8

(Pin-3)

Termination resistor / Bias resisters

120,510Ω-1/2W

SG

SG

Slave

RXD +/TXD+

RXD -/TXD-

120

SG

Termination resistor

120Ω-1/2W

75E

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
