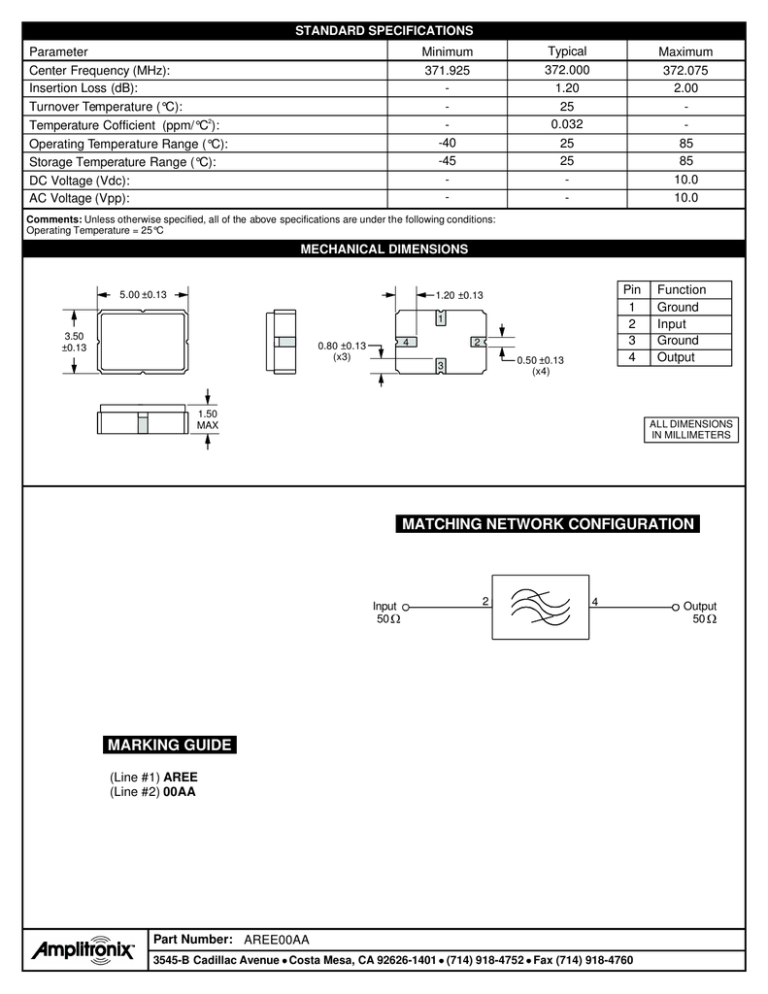

STANDARD SPECIFICATIONS
Parameter
Center Frequency (MHz):
Insertion Loss (dB):
Turnover Temperature (°C):
2
Temperature Cofficient (ppm/°C ):
Operating Temperature Range (°C):
Storage Temperature Range (°C):
DC Voltage (Vdc):
AC Voltage (Vpp):
Typical
372.000
1.20
25
0.032
25
25
-
Minimum
371.925
-40
-45
-
Maximum
372.075
2.00
85
85
10.0
10.0
Comments: Unless otherwise specified, all of the above specifications are under the following conditions:
Operating Temperature = 25°C
MECHANICAL DIMENSIONS
5.00 ±0.13
Pin
1
2
3
4
1.20 ±0.13
1
3.50
±0.13
4
0.80 ±0.13
(x3)
2
0.50 ±0.13
(x4)
3
1.50
MAX
Function
Ground
Input
Ground
Output
ALL DIMENSIONS
IN MILLIMETERS
MATCHING NETWORK CONFIGURATION
Input
50
2
4
MARKING GUIDE
(Line #1) AREE
(Line #2) 00AA
Part Number: AREE00AA
3545-B Cadillac Avenue Costa Mesa, CA 92626-1401 (714) 918-4752 Fax (714) 918-4760
Output
50
