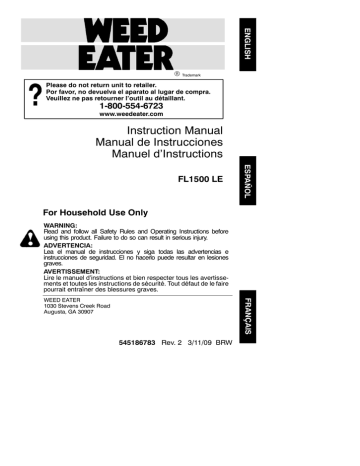

R

Trademark

Please do not return unit to retailer.

Por favor, no devuelva el aparato al lugar de compra.

Veuillez ne pas retourner l’outil au détaillant.

1-800-554-6723 www.weedeater.com

Instruction Manual

Manual de Instrucciones

Manuel d’Instructions

FL1500 LE

For Household Use Only

WARNING:

Read and follow all Safety Rules and Operating Instructions before using this product. Failure to do so can result in serious injury.

ADVERTENCIA:

Lea el manual de instrucciones y siga todas las advertencias e instrucciones de seguridad. El no hacerlo puede resultar en lesiones graves.

AVERTISSEMENT:

Lire le manuel d’instructions et bien respecter tous les avertissements et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves.

WEED EATER

1030 Stevens Creek Road

Augusta, GA 30907

545186783 Rev. 2 3/11/09 BRW

IDENTIFICATION OF SAFETY SYMBOLS

WARNING:

This unit can be dangerous! Careless or improper use can cause serious injury.

Read your operator’s manual carefully until you completely understand and can follow all warnings and safety rules before operating the unit.

Failure to do so can result in serious injury. Save operator’s manual.

The blower can throw objects violently. You can be blinded or injured.

Always wear hearing protection and safety glasses marked Z87. Always wear heavy, long pants, long sleeves, boots and gloves.

Hazard zone for thrown objects. Keep children, bystanders, and animals away from work area a minimum of 30 feet (10 meters) when starting or operating unit. Do not point blower nozzle in the direction of people or pets.

Secure hair above shoulder length. Do not wear jewelry, loose clothing, or clothing with loosing hanging straps, ties, tassels, etc. They can be caught in moving parts.

Always stop unit and disconnect spark plug before cleaning or servicing.

WARNING:

Fire hazard. Never mix, pour, or store gasoline or use the unit near a flame or sparks (including smoking, open flames, or work that can cause sparks).

-- 2 --

SAFETY RULES

WARNING:

Failure to follow all

Safety Rules and Precautions can result in serious injury.

KNOW YOUR UNIT

S

Read your instruction manual carefully until you completely understand and can follow all warnings and safety rules before operating the unit.

D

Restrict unit to users who understand and will follow all warnings and safety rules in this manual.

WARNING:

Inspect the area before starting the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

D

Use your unit as a blower for:

D

Sweeping debris or grass clippings from

D driveways, sidewalks, patios, etc.

Blowing grass clippings, straw, or leaves into piles, around joints, or between bricks.

PLAN AHEAD

D

D

D

D

D

D

Always wear eye protection when operating, servicing, or performing maintenance on unit.

Wearing eye protection will help to prevent rocks or debris from being blown or ricocheting into eyes and face which can result in blindness and/or serious injury. Eye protection should be marked ANSI Z87.

Always wear foot protection. Do not go barefoot or wear sandals.

Always wear respirator or face mask when working with unit in dusty environments.

Secure hair above shoulder length. Secure or remove jewelry, loose clothing, or clothing with loosely hanging straps, ties, tassels, etc.

They can be caught in moving parts.

Do not operate unit when you are tired, ill, upset, or if you are under the influence of alcohol, drugs, or medication.

Keep children, bystanders, and animals away from work area a minimum of 30 feet

(10 meters) when starting or operating unit.

Do not point blower nozzle in the direction of people or pets.

HANDLE FUEL WITH CAUTION, IT IS

HIGHLY FLAMMABLE

D

D

D

D

D

D

Eliminate all sources of sparks or flame (including smoking, open flames, or work that can cause sparks) in the areas where fuel is mixed, poured, or stored.

Mix and pour fuel in an outdoor area; store fuel in a cool, dry, well ventilated place; use an approved, marked container for all fuel purposes.

Do not smoke while handling fuel or while operating the unit.

Make sure the unit is properly assembled and in good operating condition.

Do not fill fuel tank while engine is running.

Avoid spilling fuel or oil. Wipe up fuel spills before starting engine.

-- 3 --

D

D

Move at least 10 feet (3 meters) away from fuel and fueling site before starting engine.

Always store gasoline in a container approved for flammable liquids.

OPERATE YOUR UNIT SAFELY

D

D

D

D

D

D

D

D

D

D

D

D

D

Inspect unit before each use for worn, loose, missing, or damaged parts. Do not use until unit is in proper working order.

Keep outside surfaces free from oil and fuel.

Never start or run engine inside a closed room, building or other unventilated area.

Breathing exhaust fumes can kill.

To avoid static electricity shock, do not wear rubber gloves or any other insulated gloves while operating unit.

Do not set unit on any surface except a clean, hard area while engine is running.

Debris such as gravel, sand, dust, grass, etc. could be picked up by the air intake and thrown out through discharge opening, damaging unit, property, or causing serious injury to bystanders or operator.

Avoid dangerous environments. Do not use in unventilated areas or where explosive vapors or carbon monoxide build up could be present.

Do not overreach or use from unstable surfaces such as ladders, trees, steep slopes, rooftops, etc. Keep firm footing and balance at all times.

Never place objects inside the blower tubes; always direct the blowing debris away from people, animals, glass, and solid objects such as trees, automobiles, walls, etc. The force of air can cause rocks, dirt, or sticks to be thrown or to ricochet which can hurt people or animals, break glass, or cause other damage.

Never run unit without the proper equipment attached. When using your unit as a blower, always install blower tube.

Check air intake opening and blower tube frequently, always with engine stopped and spark plug disconnected. Keep vents and discharge tubes free from debris which can accumulate and restrict proper air flow and cause damage to the unit.

Never use for spreading chemicals, fertilizers, or other substances which may contain toxic materials.

To avoid spreading fire, do not use near leaf or brush fires, fireplaces, barbecue pits, ashtrays, etc.

Use only for jobs explained in this manual.

MAINTAIN YOUR UNIT PROPERLY

D

D

Have all maintenance other than the recommended procedures described in the instruction manual performed by an authorized service dealer.

Disconnect spark plug before performing maintenance except for carburetor adjustments.

D

D

D

D

D

Use only recommended WEED EATER parts; use of any other parts may void your warranty and cause damage to your unit.

Empty the fuel tank before storing the unit.

Use up fuel left in carburetor by starting the engine and letting it run until it stops.

Do not use any accessory or attachment other than those recommended by the manufacturer for use with your unit.

Do not store the unit or fuel in a closed area where fuel vapors can reach sparks or an open flame from water heaters, electric motors or switches, furnaces, etc.

Store in a dry area out of reach of children.

WARNING:

The engine exhaust from this product contains chemicals known to the

State of California to cause cancer, birth defects or other reproductive harm.

SPECIAL NOTICE:

Exposure to vibrations through prolonged use of gasoline powered hand tools could cause blood vessel or nerve damage in the fingers, hands, and joints of people prone to circulation disorders or abnormal swelling. Prolonged use in cold weather has been linked to blood vessel damage in otherwise healthy people. If symptoms occur such as numbness, pain, loss of strength, change in skin color or texture, or loss of feeling in the fingers, hands, or joints, discontinue the use of this tool and seek medical attention. An anti- vibration system does not guarantee the avoidance of these problems. Users who operate power tools on a continual and regular basis must monitor closely their physical condition and the condition of this tool.

SPECIAL NOTICE:

This unit is equipped with a temperature limiting muffler and spark arresting screen which meets the requirements of California Codes 4442 and 4443. All

U.S. forest land and the states of California,

Idaho, Maine, Minnesota, New Jersey, Oregon, and Washington require by law that many internal combustion engines be equipped with a spark arresting screen. If you operate in a locale where such regulations exist, you are legally responsible for maintaining the operating condition of these parts. Failure to do so is a violation of the law. For normal homeowner use, the muffler and spark arresting screen will not require any service. After

50 hours of use, we recommend that your muffler be serviced or replaced by your authorized service dealer.

ASSEMBLY

NOTE:

It is normal for the fuel filter to rattle in the empty fuel tank.

ASSEMBLY

WARNING:

If received assembled, repeat all steps to ensure your unit is properly assembled and all fasteners are secure.

Follow all safety information in the manual and on the unit.

D

No tools are required for assembly.

BLOWER TUBE

D

Push the blower tube into the blower outlet until it snaps into place.

Blower Outlet

Blower Tube

OPERATION

KNOW YOUR BLOWER

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

UNIT. Compare the illustrations with your unit to familiarize yourself with locations of the various controls and adjustments. Save this manual for future reference.

Primer Bulb

Fuel Cap

Throttle Lever

Blower Tube

Choke

Lever

-- 4 --

THROTTLE LEVER

The throttle lever is used to select the desired engine speed and to stop the engine. To stop engine, move the throttle lever to the STOP position.

PRIMER BULB

The PRIMER BULB removes air from the carburetor and fuel lines and fills them with fuel.

This allows you to start the engine with fewer pulls on the starter rope. Activate the primer bulb by pressing it and allowing it to return to its original form.

CHOKE LEVER

The CHOKE helps to supply fuel to the engine to aid in cold starting. The CHOKE OFF position is used for full speed operation. The 1/2 position is used for a brief initial warm-up period and to set the engine at idle speed.

OPERATING POSITION

Eye

Protection

OPERATING TIPS

S

To reduce the risk of hearing loss associated with sound level(s), hearing protection is required.

S

Operate power equipment only at reasonable hours--not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 a.m. to 5:00 p.m.,

Monday though Saturday.

S

To reduce noise levels, operate power blowers at the lowest possible throttle speed to do the job.

S

To reduce noise levels, limit the number of pieces of equipment used at any one time.

S

Use rakes and brooms to loosen debris before blowing.

S

In dusty conditions, slightly dampen surfaces when water is available.

S

Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.

S

Watch out for children, pets, open windows, or freshly washed cars. Blow debris away safely.

S

Use the full blower tube extension so the air stream can work close to the ground.

S

After using blowers and other equipment,

CLEAN UP! Dispose of debris in trash receptacles.

BEFORE STARTING ENGINE

WARNING:

Be sure to read the fuel information in the safety rules before you begin. If you do not understand the safety rules, do not attempt to fuel your unit. Call

1-800-554-6723

.

FUELING ENGINE

WARNING:

Remove fuel cap slowly when refueling.

-- 5 --

HELPFUL TIP

To obtain the correct oil mix ratio, pour 3.2 ounces of

2--cycle synthetic oil into one gallon of fresh gas.

This engine is certified to operate on unleaded gasoline. Before operation, gasoline must be mixed with a good quality synthetic

2-cycle air-cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/WEED EATER brand synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by mixing 3.2 fluid ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. DO

NOT USE automotive oil or boat oil. These oils will cause engine damage. When mixing fuel, follow instructions printed on container. Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed.

Always read and follow the safety rules relating to fuel before fueling your unit.

CAUTION:

Never use straight gasoline in your unit. This will cause permanent engine damage and void the limited warranty.

FUEL REQUIREMENTS

This engine requires the use of minimum 87 octane [R+M]/2 clean gasoline.

IMPORTANT

Use of alcohol blended fuels (called gasohol or using ethanol or methanol) can cause major engine performance and durability problems.

WARNING:

Alternative fuels (not gasoline) such as E--15 (15% alcohol), E--20

(20% alcohol), E--85 (85% alcohol) are NOT classified as gasoline and are NOT approved for use in 2--stroke gasoline engines. Use of alternative fuels will cause problems such as: improper clutch engagements, overheating, vapor lock, power loss, lubrication deficiency, deterioration of fuel lines, gaskets and internal carburetor components, etc. Alternative fuels cause high moisture absorption into the fuel/oil mixture leading to oil and fuel separation.

TO STOP THE ENGINE

D

To stop the engine, move the throttle lever to the STOP position.

STARTING YOUR ENGINE

WARNING:

You MUST make sure the tube is secure before using the unit.

D

Fuel engine. Move at least 10 feet (3 me-

D ters) away from the fueling site.

Hold the unit in the starting position as shown. Make sure the blower end is directed away from people, animals, glass, and solid objects.

STARTING

POSITION

WARNING:

When starting engine, hold the unit as illustrated. Do not set unit on any surface except a clean, hard area when starting engine or while engine is running.

Debris such as gravel, sand, dust, grass, etc.

could be picked up by the air intake and thrown out through the discharge opening, damaging the unit or property, or causing serious injury to bystanders or the operator.

HELPFUL TIP

If your engine still does not start after following these instructions, please call

1--800--554--6723.

STARTING A COLD ENGINE (or a warm engine after running out of fuel)

1. Move throttle lever to the position.

2. Move choke lever to the FULL CHOKE position.

3. Slowly press the primer bulb 6 times.

Primer

Bulb

4. Pull starter rope sharply until engine attempts to run, but no more than 5 pulls.

5. Move choke lever to 1/2 CHOKE. Pull starter rope sharply until engine runs.

NOTE:

If engine has not started after 5 pulls, repeat all of the above steps.

6. After a 10 second warm-up, move the choke lever to CHOKE OFF.

NOTE:

Move throttle lever to the position for low speed.

7. To stop engine, move the throttle lever to the STOP position.

NOTE:

If engine does not stop, move choke lever to FULL CHOKE.

STARTING A WARM ENGINE

1. Move throttle lever to the position.

2. Move the choke lever to the CHOKE OFF position

.

3. Pull starter handle sharply until engine runs.

NOTE:

If engine does not run after 5 pulls, repeat STARTING A COLD ENGINE procedure.

DIFFICULT STARTING (or starting a flooded engine)

Flooded engines can be started by placing the choke lever in the CHOKE OFF position and the throttle lever to the position; then, pull the starter handle sharply to clear the engine of excess fuel. This could require pulling the starter handle many times depending on how badly the unit is flooded. If the unit still does not start, refer to TROUBLESHOOTING TABLE or call

1-800-554-6723

.

Throttle

Lever

Choke Lever

We recommend all maintenance, service and adjustments not listed in this manual be performed by an authorized service dealer.

HELPFUL TIP

IMPORTANT:

Have all repairs other than the recommended maintenance described in the instruction manual performed by an authorized service dealer.

If any dealer other than an authorized service dealer performs work on the product, WEED EATER may not pay for repairs under warranty. It is your responsibility to maintain and perform general maintenance.

MAINTENANCE

GENERAL RECOMMENDATIONS

The warranty on this unit does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain unit as instructed in this manual. Various adjustments will need to be made periodically to properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

S

Spark Plug Boot

S

Air Filter

S

Housing Screws

-- 6 --

CHECK FOR DAMAGED OR

WORN PARTS

Contact an authorized service dealer for replacement of damaged or worn parts.

S

Throttle Lever -- Ensure throttle lever functions properly by moving the throttle lever to the STOP position. Make sure engine stops; then restart engine and continue.

S

Fuel Tank -- Discontinue use of unit if fuel tank shows signs of damage or leaks.

INSPECT AND CLEAN UNIT AND

DECALS

S

After each use, inspect complete unit for loose or damaged parts. Clean the unit using a damp cloth with a mild detergent.

S

Wipe off unit with a clean dry cloth.

CLEAN AIR FILTER

Air Filter

Screw

Air Filter Cover

Cleaning the air filter:

A dirty air filter decreases engine performance and increases fuel consumption and harmful emissions. Always clean after every

5 hours of operation.

1. Clean the cover and the area around it to keep debris from falling into the carburetor chamber when the cover is removed.

2. Remove parts as illustrated.

NOTE:

Do not clean filter in gasoline or other flammable solvent. Doing so can create a fire hazard or produce harmful evaporative emissions.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Apply a few drops of oil to the filter; squeeze filter to distribute oil.

6. Replace parts.

REPLACE SPARK PLUG

Replace spark plug each year to ensure the engine starts easier and runs better. Set spark plug gap at 0.025 inch. Ignition timing is fixed, nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder and discard.

3. Replace with Champion RCJ-6Y spark plug and tighten securely with a 3/4 inch socket wrench.

4. Reinstall the spark plug boot.

INSPECT MUFFLER AND SPARK

ARRESTING SCREEN

WARNING:

The muffler on this product contains chemicals known to the

State of California to cause cancer.

As your unit is used, carbon deposits build up on the muffler and spark arresting screen and must be removed to avoid creating a fire hazard or affecting engine performance.

For normal homeowner use, the muffler and spark arresting screen will not require any service. After 50 hours of use, we recommend that your muffler be serviced or replaced by your authorized service dealer.

CARBURETOR ADJUSTMENTS

There is no screw for idle adjustment on your blower. The throttle lever is used to control engine speed. The throttle lever can be placed in one of four positions: STOP, IDLE or , FULL THROTTLE or , and one intermittent position. If your engine will not run properly or you require further assistance, contact an authorized service dealer or call

1--800--554--6723.

WARNING:

Perform the following steps after each use:

S

Allow engine to cool, and secure the unit before storing or transporting.

S

Store unit and fuel in a well ventilated area where fuel vapors cannot reach sparks or open flames from water heaters, electric motors or switches, furnaces, etc.

S

Store unit with all guards in place. Position unit so that any sharp object cannot accidentally cause injury.

S

Store unit and fuel well out of the reach of children.

SEASONAL STORAGE

Prepare unit for storage at end of season or if it will not be used for 30 days or more.If your unit is to be stored for a period of time:

S

Clean the entire unit before lengthy storage.

S

Store in a clean dry area.

S

Lightly oil external metal surfaces.

STORAGE

FUEL SYSTEM

Under FUELING ENGINE in the OPERA-

TION section of this manual, see message labeled IMPORTANT regarding the use of gasohol in your engine.

Fuel stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or fuel storage container. Follow the mix instructions found on stabilizer container. Run engine at least 5 minutes after adding stabilizer.

HELPFUL TIP

During storage of your gas/ oil mixture, the oil will separate from the gas.

We recommend that you shake the gas can weekly to insure proper blending of the gas and oil.

-- 7 --

ENGINE

S

Remove spark plug and pour 1 teaspoon of

40:1, 2-cycle engine oil (air cooled) through the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil.

S

Replace spark plug with new one of recommended type and heat range.

S

Clean air filter.

S

Check entire unit for loose screws, nuts, and bolts. Replace any damaged, broken, or worn parts.

S

At the beginning of the next season, use only fresh fuel having the proper gasoline to oil ratio.

OTHER

S

Do not store gasoline from one season to another.

S

Replace your gasoline can if it starts to rust.

TROUBLESHOOTING TABLE

WARNING:

Always stop unit and disconnect spark plug before performing any of the recommended remedies below other than remedies that require operation of the unit.

TROUBLE

CAUSE

Engine will not start.

1. Engine flooded.

2. Fuel tank empty.

3. Spark plug not firing.

4. Fuel not reaching carburetor.

REMEDY

1. See “Starting a Flooded Engine” in Operation section.

2. Fill tank with correct fuel mixture.

3. Install new spark plug.

4. Check for dirty fuel filter; replace.

Check for kinked or split fuel line; repair or replace.

5. Contact an authorized service dealer.

Engine will not idle properly.

5. Compression low.

1. Fuel not reaching carburetor.

1. Check for dirty fuel filter; replace.

Check for kinked or split fuel line; repair or replace.

2. Contact an authorized service dealer.

2. Carburetor requires adjustment.

3. Crankshaft seals worn.

4. Compression low.

Engine will not accelerate, lacks power, or dies under a load.

1. Air filter dirty.

2. Fuel not reaching carburetor.

3. Spark plug fouled.

3. Contact an authorized service dealer

4. Contact an authorized service dealer.

1. Clean or replace air filter.

2. Check for dirty fuel filter; replace.

Check for kinked or split fuel line; repair or replace.

3. Clean or replace spark plug and re-gap.

4. Contact an authorized service dealer.

Engine smokes excessively.

4. Carburetor requires adjustment.

5. Carbon build up.

6. Compression low.

1. Choke partially on.

2. Fuel mixture incorrect.

3. Air filter dirty.

4. Carburetor requires adjustment.

5. Contact an authorized service dealer.

6. Contact an authorized service dealer.

1. Adjust choke.

2. Empty fuel tank and refill with correct fuel mixture.

3. Clean or replace air filter.

4. Contact an authorized service dealer.

Engine runs hot.

1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires adjustment.

4. Carbon build up.

1. See “Fueling Engine” in Operation section.

2. Replace with correct spark plug.

3. Contact an authorized service dealer.

4. Contact an authorized service dealer.

-- 8 --

LIMITED WARRANTY

WEED EATER, a division of Husqvarna Consumer Outdoor Products N.A., Inc., warrants to the original consumer purchaser that each new

WEED EATER brand gasoline tool or attachment is free from defects in material and workmanship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase.

2 YEARS -- Parts and Labor, when used for household purposes.

90 DAYS -- Parts and Labor, when used for commercial, professional, or income producing purposes.

30 DAYS -- Parts and Labor, if used for rental purposes.

This warranty is not transferable and does not cover damage or liability caused by improper handling, improper maintenance or alteration, or the use of accessories and/or attachments not specifically recommended by WEED EATER for this tool. This warranty does not cover tune-up, spark plugs, filters, starter ropes, or blower tubes that will wear and require replacement with reasonable use during the warranty period.

This warranty does not cover pre--delivery setup or normal adjustments explained in the instruction manual. This warranty does not cover transportation costs.

In the event you have a claim under this warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this warranty, please contact:

WEED EATER, a division of Husqvarna

Consumer Outdoor Products N.A., Inc.

1030 Stevens Creek Road

Augusta, GA 30907

1--800--554--6723

In Canada, contact:

WEED EATER

850 Matheson Blvd. West

Mississauga, Ontario L5V 0B4

Giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS, AND YOU MAY HAVE OTH-

ER RIGHTS WHICH VARY FROM STATE TO

STATE.

NO CLAIMS FOR CONSEQUENTIAL OR

OTHER DAMAGES WILL BE ALLOWED,

AND THERE ARE NO OTHER EXPRESS

WARRANTIES EXCEPT THOSE EX-

PRESSLY STIPULATED HEREIN.

SOME STATES DO NOT ALLOW LIMITA-

TIONS ON HOW LONG AN IMPLIED WAR-

RANTY LASTS OR THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL OR CONSE-

QUENTIAL DAMAGES, SO THE ABOVE LIM-

ITATIONS OR EXCLUSION MAY NOT APPLY

TO YOU.

This is a limited warranty within the meaning of that term as defined in the Magnuson--Moss Act of 1975.

The policy of WEED EATER is to continuously improve its products. Therefore, WEED

EATER reserves the right to change, modify, or discontinue models, designs, specifications, and accessories of all products at any time without notice or obligation to any purchaser.

U.S. EPA/CALIFORNIA/ENVIRONMENT CANADA

EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OB-

LIGATIONS:

The U.S.

Environmental

Protection Agency, California Air Resources

Board, Environment Canada and WEED

EATER are pleased to explain the emissions control system warranty on your year 2009 and later small off--road engine. In California, all small off--road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. WEED EATER must warrant the emission control system on your small off--road engine for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of your small off--road engine. Your emission control system includes parts such as the carburetor, the ignition system and the fuel tank.

Where a warrantable condition exists, WEED

EATER will repair your small off--road engine at no cost to you. Expenses covered under warranty include diagnosis, parts and labor.

MANUFACTURER’S WARRANTY COV-

ERAGE: If any emissions related part on your engine (as listed under Emissions Control

Warranty Parts List) is defective or a defect in the materials or workmanship of the engine causes the failure of such an emission related part, the part will be repaired or replaced by

WEED EATER. OWNER’S WARRANTY RE-

SPONSIBILITIES: As the small off--road engine owner, you are responsible for the performance of the required maintenance listed in your instruction manual. WEED EATER recommends that you retain all receipts covering maintenance on your small off--road engine, but WEED EATER cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the small off--road engine owner, you should be aware that WEED

EATER may deny you warranty coverage if your small off--road engine or a part of it has

-- 9 --

failed due to abuse, neglect, improper maintenance, unapproved modifications, or the use of parts not made or approved by the original equipment manufacturer. You are responsible for presenting your small off--road engine to an

WEED EATER authorized repair center as soon as a problem exists. Warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center, call WEED

EATER at 1--800--554--6723, or send e-mail correspondence to [email protected]

HCOP--emission.com. WARRANTY COM-

MENCEMENT DATE: The warranty period begins on the date the small off--road engine is purchased. LENGTH OF COVERAGE:

This warranty shall be for a period of two years from the initial date of purchase. WHAT

IS COVERED: REPAIR OR REPLACE-

MENT OF PARTS. Repair or replacement of any warranted part will be performed at no charge to the owner at an approved WEED

EATER servicing center. If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center, call WEED

EATER at 1--800--554--6723, or send e-mail correspondence to [email protected]

HCOP--emission.com. WARRANTY PE-

RIOD: Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of “repair or replace as necessary” shall be warranted for 2 years.

Any warranted part which is scheduled for replacement as required maintenance shall be warranted for the period of time up to the first scheduled replacement point for that part.

DIAGNOSIS: The owner shall not be charged for diagnostic labor which leads to the determination that a warranted part is defective if the diagnostic work is performed at an approved WEED EATER servicing center.

CONSEQUENTIAL DAMAGES: WEED EAT-

ER may be liable for damages to other engine components caused by the failure of a warranted part still under warranty. WHAT IS NOT

COVERED: All failures caused by abuse, neglect, or improper maintenance are not covered.

ADD--ON OR MODIFIED PARTS: The use of add--on or modified parts can be grounds for disallowing a warranty claim. WEED EATER is not liable to cover failures of warranted parts caused by the use of add--on or modified parts.

HOW TO FILE A CLAIM: If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized service center, call WEED EATER at

1--800--554--6723, or send e-mail correspondence to [email protected] com. WHERE TO GET WARRAN-

TY SERVICE: Warranty services or repairs shall be provided at all WEED EATER service centers. Call: 1--800--554--6723 or send e-mail correspondence to emission.warranty

@HCOP--emission.com. MAINTENANCE,

REPLACEMENT AND REPAIR OF EMIS-

SION RELATED PARTS: Any WEED EAT-

ER approved replacement part used in the performance of any warranty maintenance or repair on emission related parts will be provided without charge to the owner if the part is under warranty. EMISSION CONTROL

WARRANTY PARTS LIST: Carburetor, air filter (covered up to maintenance schedule), ignition system: spark plug (covered up to maintenance schedule), ignition module, muffler including catalyst (if equipped), fuel tank. MAIN-

TENANCE STATEMENT: The owner is responsible for the performance of all required maintenance as defined in the instruction manual.

The information on the product label indicates which standard your engine is certified.

Example: (Year) EPA and/or CALIFORNIA.

This engine is certified to be emissions compliant for the following use:

Moderate (50 hours)

Intermediate (125 hours)

Extended (300 hours)

-- 10 --

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
