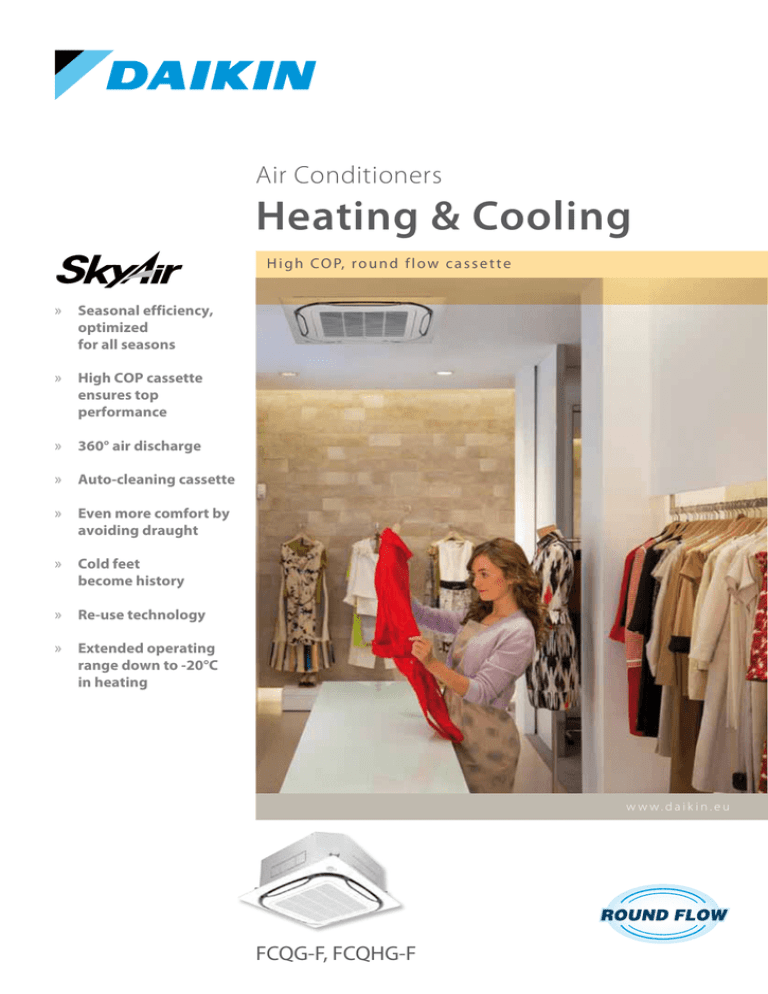

Air Conditioners
Heating & Cooling
H i g h CO P, r o u n d f l o w c a s s e t t e
»» Seasonal efficiency,
optimized
for all seasons
»» High COP cassette
ensures top
performance
»» 360° air discharge
»» Auto-cleaning cassette
»» Even more comfort by
avoiding draught
»» Cold feet
become history
»» Re-use technology
»» Extended operating
range down to -20°C
in heating
www.daik in.eu
FCQG-F, FCQHG-F
Next generation round flow
cassette sets the standard for
efficiency and comfort
Give your customers and guests whisper-quiet,
360° surround comfort with the Daikin round flow
cassette. And as part of the Daikin seasonal efficiency
line-up, the round flow cassette meets tomorrow’s
stricter energy requirements today. Plus, an optional
auto-cleaning panel, and presence and floor
sensors ensure optimum efficiency in all conditions.
So businesses like yours with long running hours
and high air conditioning loads can enjoy the lower
operating costs and increased comfort of tomorrow’s
technology, today.
Efficiency across the board
›› Ready for the seasonal efficiency challenge
The performance of the new Daikin Sky Air seasonal efficiency
lines are rated according to the new seasonal efficiency
standard. This guarantees that the rated performance
corresponds to the actual operating conditions of your
shop, office, restaurant or hotel.
Auto-cleaning panel assures
consistent top performance
The round flow cassette can be equipped with a special filter
that cleans itself once a day, ensuring consistent, optimum
efficiency. The dust collected during daily cleaning is stored in
a dust box that can hold up to 12 months of dust, with an indicator
light showing when dust box cleaning is required. Annual or
›› Great energy saving functions via new wired
controller
An enhanced wired controller BRC1E52A/B gives you access to
the full functionality of the FCQG and FCQHG round flow cassette.
bi-annual cleaning by in-house maintenance personnel, using
an ordinary vacuum cleaner, is all that is needed: no ladders, no
need to touch the cassette panel or come in contact with the dust.
Efficiency gains up to 50% compared to standard panels.
mid-season) plus a holiday function to disable the schedule timer.
›› Combining highest efficiency and year-round
comfort with a heat pump system
And the handy controller indicates kWh usage by day/month/
Air-to-air heat pumps obtain 75% of their output energy from
There are three programmable schedules (e.g. winter, summer,
year, allowing you to clearly monitor your energy use.
and inexhaustable. Of course, heat pumps also require electricity
Controller features:
››
››
››
››
››
››
Temperature range limit
Improved setback function
Support for presence and floor sensor
Off timer
kWh indication
3 weekly timers
renewable sources: the ambient air, which is both renewable
to run the system, but increasingly this electricity can also be
generated from renewable energy sources (solar energy, wind
energy, hydropower, biomass).
Wired remote control
BRC1E52A/B (optional)
Flexible installation
in suspended ceilings
›› Easy installation, blends with any interior
• The round flow cassettes are designed for easy
installation in suspended ceilings .
• The decorative front panel of the round flow cassette is
available in 2 colour schemes: white with white louvers
(RAL9010) , and white (RAL9010) with grey louvers.
›› Closable flaps for installation in corners or
along walls
The optional closure kit makes it possible to achieve 2-way, 3-way
and 4-way flow patterns, allowing the round flow cassette to be
installed in a corner, next to a wall or in a confined space. 23 different
air flow patterns are possible, and since the flaps can be easily closed
via the wired remote controller, you will never need to change
the unit’s location when rearranging your interior.
>
change room configuration/refurbishment
Perfect comfort for your customers and guests
›› 360° airflow for even temperatures and airflow
360° operation ensures even distribution of temperatures and airflow
›› Presence and floor sensor for intelligent energy
use and optimum comfort
throughout your office, restaurant or shop, with no dead spots.
An optional presence sensor saves you up to 27% more in
The vertical auto swing system automatically cycles the outflow
louvers up and down, enabling an even distribution of air and
temperature throughout the room. Three settings are possible:
standard, draught prevention and ceiling soiling prevention.
The latter ensures that air is never blown horizontal to the ceiling,
thus preventing soiling
energy use and allows the system to dynamically respond to
room occupancy. If the room is empty, air conditioning can be
automatically switched off. When the room is occupied, air flow
is directed away from occupants for draught-free comfort. And
the floor sensor ensures even temperature distribution between
ceiling and floor, so that cold feet are a thing of the past.
›› Whisper quiet
With sound levels down to 28dBA (the level of rustling leaves), your
customers and visitors can attend to their business undisturbed.
infrared
presence sensor
infrared
floor sensor
Cool or heat up to 9 rooms with a single outdoor unit
A single multi outdoor unit can power up to nine indoor units in different rooms. Of course, the climate of each room is individually controlled.
This assures top efficiency and optimum comfort for each separate space. For long or irregularly shaped rooms you can use up to four indoor
units powered by a single outdoor unit. All indoor units are controlled at the same time.
Seasonal efficiency:
optimised energy performance for all seasons
The Daikin seasonal efficiency outdoor and indoor units derive their name from the improved EU
standard for measuring energy efficiency. Seasonal efficiency ratings are part of Europe’s approach to
achieving its challenging environmental targets for 2020. The new seasonal efficiency rating scheme,
or SEER (Seasonal Energy Efficiency Ratio), will be mandatory after 2013 and measures environmental
performance in situations much closer to real life.
Where the old scheme measured efficiency at only one outdoor temperature and with equipment
running at full load, the new seasonal efficiency scheme measures efficiency across a range of outdoor
temperatures, under partial load situations and includes energy consuming auxiliary modes (such as
standby) that were ignored under the old scheme.
These new ratings reward designs that truly increase energy performance in real life situations.
Daikin is proud to be playing a leading role in developing and implementing this new standard,
and in integrating these new standards today, well before their required implementation in 2013.
Heating & Cooling
INDOOR UNIT
Cooling capacity
Heating capacity
Power input
Nom.
Nom.
Cooling
Heating
kW
kW
kW
kW
Nom.
Nom.
EER
COP
Annual energy consumption
Energy label
Cooling/Heating
Casing
Material
Dimensions
Unit
HeightxWidthxDepth
Weight
Unit
Model
Standard
Colour
decoration
Dimensions
HeightxWidthxDepth
panel
Weight
Model
White
Colour
decoration
Dimensions
HeightxWidthxDepth
panel
Weight
Model
Auto-cleaninig
decoration panel Colour
Dimensions
HeightxWidthxDepth
Weight
Fan - Air flow rate Cooling
High/Nom./Low
Heating
High/Nom./Low
Sound power
Cooling
High
level
Heating
High
Sound pressure
Cooling
High/Nom./Low
level
Heating
High/Nom./Low
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Power supply
Phase / Frequency / Voltage
kWh
mm
kg
FCQG35F
FCQG50F
FCQG60F
3.40 3
4.20 4
0.95
1.23
3.58
3.41
475
A/B
5.00 3
6.00 4
1.41
1.62
3.55
3.70
705
A/A
Galvanised steel plate
204x840x840
5.70 3
7.00 4
1.64
1.99
3.48
3.52
820
A/B
18
19
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10.3
12.6/10.7/8.7
12.6/10.7/8.7
mm
kg
mm
kg
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
mm
mm
mm
Hz / V
12.5/10.6/8.7
12.5/10.6/8.7
13.6/11.2/8.7
13.6/11.2/8.7
51
51
33/31/28
33/31/28
49
49
31/29/27
31/29/27
6.35
9.52
12.7
1~ / 50 / 220-240
(1) Energy label: scale from A (most efficient) to G (less efficient) (2) Annual energy consumption: based on average use of 500 running hours per year at full load (nominal conditions) (3) Cooling: indoor temp. 27°CDB, 19.0°CWB; outdoor temp. 35°CDB; equivalent piping
length: 5m; level difference: 0m (4) Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m; level difference: 0m (5) The sound power level is an absolute value indicating the power which a sound source generates. (6) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and that it is consequently not advised to install the BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
RXS35J
OUTDOOR UNIT
Dimensions
Weight
Fan
Unit
Unit
Air flow rate
HeightxWidthxDepth
Cooling
Heating
Sound power level
Sound pressure
level
Compressor
Operation range
Refrigerant
Piping
connections
Power supply
High
Low
Super low
High
Lo
Super low
Cooling
High
Cooling
High/Silent operation
Heating
High/Silent operation
Type
Cooling
Ambient
Min.~Max.
Heating
Ambient
Min.~Max.
Type
Liquid
OD
Gas
OD
Additional refrigerant charge
Level difference IU - OU
Max.
Phase / Frequency / Voltage
mm
kg
m³/min
m³/min
m³/min
m³/min
dBA
dBA
dBA
RXS50J
550x765x285
34
36.0
30.1
28.3
25.6
48.9
45.0
43.1
63
42.4
46.3
42.4
-
48/44
48/45
49/46
49/46
Hermetically sealed swing compressor
-10~46
-15~18
R-410A
°CDB
°CWB
mm
mm
kg/m
m
Hz / V
RXS60F
735x825x300
48
50.9
6.35
9.52
-
12.7
-
15
20
1~ / 50 / 220-240
Heating & Cooling
INDOOR UNIT
Cooling capacity
Heating capacity
Power input
Nom.
Nom.
Cooling
Heating
kW
kW
kW
kW
Nom.
Nom.
EER
COP
SEER
SCOP
Annual energy consumption
Energy label
Cooling/Heating
Casing
Material
Dimensions
Unit
HeightxWidthxDepth
Weight
Unit
Model
Standard
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
White
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
Auto-cleaninig
decoration panel Colour
Dimensions
HeightxWidthxDepth
Weight
Fan - Air flow rate Cooling
High/Nom./Low
Heating
High/Nom./Low
Sound power
Cooling
High
level
Heating
High
Sound pressure
Cooling
High/Nom./Low
level
Heating
High/Nom./Low
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Power supply
Phase / Frequency / Voltage
kWh
mm
kg
FCQG71F
FCQG100F
FCQG125F
FCQG140F
FCQG100F
6.8 3
7.5 4
2.01
1.89
3.39
3.97
5.81 6
4.13 6
1,005
9.5 3
10.8 4
2.45
2.60
3.87
4.15
5.99 6
3.93 6
1,225
12.0 3
13.5 4
3.22
3.72
3.73
3.63
5.69 6
3.84 6
1,610
13.4 3
15.5 4
4.17
4.30
3.21
3.61
2,085
9.5 3
10.8 4
2.45
2.60
3.87
4.15
5.99 6
3.93 6
1,225
204x840x840
21
mm
kg
mm
kg
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
mm
mm
mm
Hz / V
15.0/12.1/9.1
15.0/12.1/9.1
51
51
33/31/28
33/31/28
A/A
Galvanised steel plate
246x840x840
24
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10.3
22.8/17.6/12.4
26.0/19.2/12.4
22.8/17.6/12.4
26.0/19.2/12.4
54
58
54
58
37/33/29
41/35/29
37/33/29
41/35/29
9.52
15.9
1~ / 50 / 220-240
FCQG125F
FCQG140F
12.0 3
13.4 3
13.5 4
15.5 4
3.22
4.17
3.72
4.30
3.73
3.21
3.63
3.61
5.69 6
3.84 6
1,610
2,085
A/A
Galvanised steel plate
246x840x840
24
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10.3
22.8/17.6/12.4
26.0/19.2/12.4
22.8/17.6/12.4
26.0/19.2/12.4
54
58
54
58
37/33/29
41/35/29
37/33/29
41/35/29
9.52
15.9
1~ / 50 / 220-240
(1) Energy label: scale from A (most efficient) to G (less efficient) (2) Annual energy consumption: based on average use of 500 running hours per year at full load (nominal conditions) (3) Cooling: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB, 24°CWB;
equivalent piping length: 5m (4) Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m (5) Annual energy consumption is according to Energy labeling directive 2002/31/EC (6) SEER and SCOP are according to EN 14825
(7) The sound power level is an absolute value indicating the power which a sound source generates. (8) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and that it is consequently not advised
to install the BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
OUTDOOR UNIT
Dimensions
Weight
Fan
RZQG71L7V1
Unit
Unit
Air flow rate
HeightxWidthxDepth
Cooling
Heating
Sound power level Cooling
Nom.
Sound pressure
Cooling
Nom.
level
Heating
Nom.
Night quiet mode Level 1
Compressor
Type
Operation range Cooling
Ambient
Heating
Ambient
Refrigerant
Type
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Additional refrigerant charge
Level difference IU - OU
IU - IU
Power supply
Phase / Frequency / Voltage
Nom.
Nom.
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
Min.~Max. °CDB
Min.~Max. °CWB
Max.
Max.
mm
mm
mm
kg/m
m
m
Hz / V
990x940x320
78
59
49
64
48
50
43
RZQG100L7V1
RZQG125L7V1
RZQG140L7V1
RZQG100LY1
RZQG125LY1
1,430x940x320
102
70
66
50
52
84
62
67
51
53
45
Hermetically sealed swing compressor
-15.0~50.0
-20.0~15.5
R-410A
9.52
15.9
26
See installation manual 4P302555-1
30.0
0.5
1~ / 50 / 220-240
RZQG140LY1
1,430x940x320
101
69
52
70
84
62
67
51
66
50
52
69
52
53
45
Hermetically sealed swing compressor
-15.0~50.0
-20.0~15.5
R-410A
9.52
15.9
26
See installation manual 4P302555-1
30.0
0.5
3N~ / 50 / 380-415
(1) PED: assembly = category l : excluded from scope of PED due to article 1, item 3.6 of 97/23/EC (2) Equipment complying with EN/IEC 61000-3-12: European/international technical standard setting the limits for harmonic currents produced by equipment
connected to public low-voltage system with input current > 16A and ≤ 75A per phase
FCQG-F
Heating & Cooling
INDOOR UNIT
Cooling capacity
Heating capacity
Power input
Nom.
Nom.
Cooling
Heating
kW
kW
kW
kW
Nom.
Nom.
EER
COP
SEER
SCOP
Annual energy consumption
Energy label
Cooling/Heating
Casing
Material
Dimensions
Unit
HeightxWidthxDepth
Weight
Unit
Model
Standard
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
White
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
Auto-cleaninig
decoration panel Colour
Dimensions
HeightxWidthxDepth
Weight
Fan - Air flow rate Cooling
High/Nom./Low
Heating
High/Nom./Low
Sound power
Cooling
High
level
Heating
High
Sound pressure
Cooling
High/Nom./Low
level
Heating
High/Nom./Low
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Power supply
Phase / Frequency / Voltage
kWh
mm
kg
mm
kg
mm
kg
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
mm
mm
mm
Hz / V
FCQG71F
FCQG100F
FCQG125F
FCQG140F
FCQG100F
6.8 3
7.5 4
1.94
1.83
3.5
4.1
971
9.5 3
10.8 4
2.88
3.05
3.30
3.54
12.0 3
13.5 4
3.74
3.96
3.21
13.4 3
15.5 4
4.45
4.54
3.01
9.5 3
10.8 4
2.88
3.05
3.30
3.54
5.11 5
3.80 5
1,440
A/A
3.41
3.81 5
1,870
2,225
A/A
A/B
B/B
Galvanised steel plate
204x840x840
246x840x840
21
24
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10.3
15.0/12.1/9.1
22.8/17.6/12.4
26.0/19.2/12.4
15.0/12.1/9.1
22.8/17.6/12.4
26.0/19.2/12.4
51
54
58
51
54
58
33/31/28
37/33/29
41/35/29
33/31/28
37/33/29
41/35/29
9.52
15.9
1~ / 50 / 220-240
5.11 5
3.80 5
1,440
FCQG125F
FCQG140F
12.0 3
13.5 4
3.74
3.96
3.21
3.41
5.11 5
3.81 5
1,870
A/B
Galvanised steel plate
246x840x840
24
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10.3
22.8/17.6/12.4
22.8/17.6/12.4
54
58
54
58
37/33/29
41/35/29
37/33/29
41/35/29
9.52
15.9
1~ / 50 / 220-240
13.4 3
15.5 4
4.45
4.54
3.01
3.41
2,225
B/B
(1) Energy label: scale from A (most efficient) to G (less efficient) (2) Annual energy consumption: based on average use of 500 running hours per year at full load (nominal conditions) (3) Cooling: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB; equivalent
piping length: 5m; level difference: 0m (4) Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m; level difference: 0m (5) Annual energy consumption is according to Energy labeling directive 2002/31/EC (6) SEER and
SCOP are according to EN 14825 (6) The sound power level is an absolute value indicating the power which a sound source generates. (8) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and
that it is consequently not advised to install the BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
OUTDOOR UNIT
Dimensions
Weight
Fan
RZQSG71LV1
Unit
Unit
Air flow rate
Sound power level Cooling
Sound pressure
Cooling
level
Heating
Compressor
Operation range
Refrigerant
Piping
connections
Power supply
HeightxWidthxDepth
Cooling
Nom.
Heating
Nom.
Nom.
Nom./Silent operation
Nom.
Type
Cooling
Ambient
Heating
Ambient
Type
Liquid
OD
Gas
OD
Drain
OD
Additional refrigerant charge
Level difference IU - OU
IU - IU
Phase / Frequency / Voltage
mm
kg
m³/min
m³/min
dBA
dBA
dBA
Min.~Max. °CDB
Min.~Max. °CWB
Max.
Max.
mm
mm
mm
kg/m
m
m
Hz / V
770x900x320
67
52
48
65
49/47
51
RZQSG100LV1
RZQSG125LV1
990x940x320
81
76
77
83
69
53/49
57
70
54/49
58
RZQSG140LV1
1,430x940x320
102
83
62
69
53/49
54
Hermetically sealed swing compressor
-5.0~46
-15~15.5
R-410A
9.52
15.9
26
See installation manual 4PW72942-1
See installation manual 4P302555-1
15
30.0
0.5
1~ / 50 / 220-240
RZQSG100LY1 RZQSG125LY1 RZQSG140LY1
990x940x320
82
76
77
83
69
53
57
1,430x940x320
101
83
62
69
53
54
70
54
58
49
Hermetically sealed swing compressor
-5.0~46.0
-15.0~15.5
R-410A
9.52
15.9
26
See installation manual 4P302555-1
30.0
0.5
3N~ / 50 / 380-415
(1) PED: assembly = category l : excluded from scope of PED due to article 1, item 3.6 of 97/23/EC (2) Equipment complying with EN/IEC 61000-3-12: European/international technical standard setting the limits for harmonic currents produced by equipment
connected to public low-voltage system with input current > 16A and ≤ 75A per phase
Heating & Cooling
INDOOR UNIT
Cooling capacity
Heating capacity
Power input
Nom.
Nom.
Cooling
Heating
kW
kW
kW
kW
Nom.
Nom.
EER
COP
SEER
SCOP
Annual energy consumption
Energy label
Cooling/Heating
Casing
Material
Dimensions
Unit
HeightxWidthxDepth
Weight
Unit
Model
Standard
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
White
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
Auto-cleaninig
decoration panel Colour
Dimensions
HeightxWidthxDepth
Weight
Fan - Air flow rate Cooling
High/Nom./Low
Heating
High/Nom./Low
Sound power
Cooling
High
level
Heating
High
Sound pressure
Cooling
High/Nom./Low
level
Heating
High/Nom./Low
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Power supply
Phase / Frequency / Voltage
kWh
mm
kg
FCQHG71F
FCQHG100F
FCQHG125F
FCQHG140F
FCQHG100F
6.8 3
7.5 4
1.66
1.56
4.09
4.80
6.11 6
4.18 6
830
9.5 3
10.8 4
2.15
2.16
4.42
4.99
6.21 6
4.30 6
1,075
12.0 3
13.5 4
3.00
3.07
4.00
4.40
6.00 6
3.89 6
1,500
13.4 3
15.5 4
4.00
3.77
3.35
4.12
2,000
9.5 3
10.8 4
2.15
2.16
4.42
4.99
6.21 6
4.30 6
1,075
25
mm
kg
mm
kg
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
mm
mm
mm
Hz / V
21.2/16.7/12.2
21.2/16.7/12.2
53
53
36/33/29
36/33/29
A/A
Galvanised steel plate
288x840x840
26
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10
32.3/25.7/19.0
33.5/26.7/19.9
32.3/25.7/19.0
33.5/26.7/19.9
61
61
44/39/33
45/40/35
44/39/33
45/40/35
9.52
15.9
1~ / 50 / 220-240
10.3
33.5/27.3/21.1
33.5/27.3/21.1
45/41/37
45/41/37
FCQHG125F
FCQHG140F
12.0 3
13.4 3
13.5 4
15.5 4
3.00
4.00
3.07
3.77
4.00
3.35
4.40
4.12
6.00 6
3.89 6
1,500
2,000
A/A
Galvanised steel plate
288x840x840
26
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10
10.3
32.3/25.7/19.0
33.5/26.7/19.9
33.5/27.3/21.1
32.3/25.7/19.0
33.5/26.7/19.9
33.5/27.3/21.1
61
61
44/39/33
45/40/35
45/41/37
44/39/33
45/40/35
45/41/37
9.52
15.9
1~ / 50 / 220-240
(1) Energy label: scale from A (most efficient) to G (less efficient) (2) Annual energy consumption: based on average use of 500 running hours per year at full load (nominal conditions) (3) Cooling: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB; equivalent
piping length: 5m; level difference: 0m (4) Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m; level difference: 0m (5) Annual energy consumption is according to Energy labeling directive 2002/31/EC (6) SEER and
SCOP are according to EN 14825 (7) The sound power level is an absolute value indicating the power which a sound source generates. (8) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and
that it is consequently not advised to install the BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
OUTDOOR UNIT
Dimensions
Weight
Fan
Sound power level
Sound pressure
level
Compressor
Operation range
Refrigerant
Piping
connections
Power supply
RZQG71L7V1
Unit
Unit
Air flow rate
HeightxWidthxDepth
Cooling
Heating
Nom.
Nom.
Nom.
Level 1
Cooling
Cooling
Heating
Night quiet
mode
Type
Cooling
Ambient
Heating
Ambient
Type
Liquid
OD
Gas
OD
Drain
OD
Additional refrigerant charge
Level difference IU - OU
IU - IU
Phase / Frequency / Voltage
Nom.
Nom.
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
990x940x320
78
59
49
64
48
50
43
Min.~Max. °CDB
Min.~Max. °CWB
Max.
Max.
mm
mm
mm
kg/m
m
m
Hz / V
RZQG100L7V1
RZQG125L7V1
RZQG140L7V1
RZQG100LY1
RZQG125LY1
1,430x940x320
102
70
66
50
52
RZQG140LY1
1,430x940x320
101
84
62
67
51
69
52
53
45
Hermetically sealed swing compressor
-15.0~50.0
-20.0~15.5
R-410A
9.52
15.9
26
See installation manual 4P302555-1
30.0
0.5
1~ / 50 / 220-240
70
66
50
52
84
62
67
51
69
52
53
45
Hermetically sealed swing compressor
-15.0~50.0
-20.0~15.5
R-410A
9.52
15.9
26
See installation manual 4P302555-1
30.0
0.5
3N~ / 50 / 380-415
(1) PED: assembly = category l : excluded from scope of PED due to article 1, item 3.6 of 97/23/EC (2) with re-charging (3) Equipment complying with EN/IEC 61000-3-12: European/international technical standard setting the limits for harmonic currents
produced by equipment connected to public low-voltage system with input current > 16A and ≤ 75A per phase
RZQSG-LV1/LY1
RZQG-L7V1/LY1
Heating & Cooling
INDOOR UNIT
Cooling capacity
Heating capacity
Power input
Nom.
Nom.
Cooling
Heating
kW
kW
kW
kW
Nom.
Nom.
EER
COP
SEER
SCOP
Annual energy consumption
Energy label
Cooling/Heating
Casing
Material
Dimensions
Unit
HeightxWidthxDepth
Weight
Unit
Model
Standard
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
White
decoration
Colour
panel
Dimensions
HeightxWidthxDepth
Weight
Model
Auto-cleaninig
decoration panel Colour
Dimensions
HeightxWidthxDepth
Weight
Fan - Air flow rate Cooling
High/Nom./Low
Heating
High/Nom./Low
Sound power
Cooling
High
level
Heating
High
Sound pressure
Cooling
High/Nom./Low
level
Heating
High/Nom./Low
Piping
Liquid
OD
connections
Gas
OD
Drain
OD
Power supply
Phase / Frequency / Voltage
kWh
mm
kg
FCQHG71F
FCQHG100F
FCQHG125F
FCQHG140F
FCQHG100F
6.8 3
7.5 4
2.12
2.08
3.21
3.61
5.11
3.81
1,059
9.5 3
10.8 4
2.57
2.51
3.70
4.30
5.70 5
3.91 5
1,285
12.0 3
13.5 4
3.71
3.60
3.23
3.75
5.21 5
3.81 5
1,855
13.4 3
15.5 4
4.17
4.29
3.21
3.61
2,085
9.5 3
10.8 4
2.57
2.51
3.70
4.30
5.70 5
3.91 5
1,285
A/A
Galvanised steel plate
288x840x840
26
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10
32.3/25.7/19.0
33.5/26.7/19.9
32.3/25.7/19.0
33.5/26.7/19.9
61
61
44/39/33
45/40/35
44/39/33
45/40/35
9.52
15.9
1~ / 50 / 220-240
25
mm
kg
mm
kg
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
mm
mm
mm
Hz / V
21.2/16.7/12.2
21.2/16.7/12.2
53
53
36/33/29
36/33/29
10.3
33.5/27.3/21.1
33.5/27.3/21.1
45/41/37
45/41/37
FCQHG125F
FCQHG140F
12.0 3
13.4 3
13.5 4
15.5 4
3.71
4.17
3.60
4.29
3.23
3.21
3.75
3.61
5
5.21
3.81 5
1,855
2,085
A/A
Galvanised steel plate
288x840x840
26
BYCQ140D7W1
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7W1W
Pure White (RAL 9010)
60x950x950
5.4
BYCQ140D7GW1
Pure White (RAL 9010)
145x950x950
10
10.3
32.3/25.7/19.0
33.5/26.7/19.9
33.5/27.3/21.1
32.3/25.7/19.0
33.5/26.7/19.9
33.5/27.3/21.1
61
61
44/39/33
45/40/35
45/41/37
44/39/33
45/40/35
45/41/37
9.52
15.9
1~ / 50 / 220-240
(1) Energy label: scale from A (most efficient) to G (less efficient) (2) Annual energy consumption: based on average use of 500 running hours per year at full load (nominal conditions) (3) Cooling: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB;
equivalent piping length: 5m; level difference: 0m (4) Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 5m; level difference: 0m (5) Annual energy consumption is according to Energy labeling directive 2002/31/EC
(6) SEER and SCOP are according to EN 14825 (7) The sound power level is an absolute value indicating the power which a sound source generates. (8) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger
and that it is consequently not advised to install the BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.
OUTDOOR UNIT
RZQSG71LV1
Dimensions
Weight
Fan
Unit
Unit
Air flow rate
Sound power level
Sound pressure
level
Compressor
Operation range
Refrigerant
Piping
connections
Cooling
Cooling
Heating
Night quiet
mode
Type
Cooling
Heating
Type
Liquid
Gas
Drain
HeightxWidthxDepth
Cooling
Nom.
Heating
Nom.
Nom.
Nom./Silent operation
Nom.
Level 1
Ambient
Ambient
Min.~Max. °CDB
Min.~Max. °CWB
OD
OD
OD
mm
mm
mm
Additional refrigerant charge
Power supply
Level difference IU - OU
IU - IU
Phase / Frequency / Voltage
mm
kg
m³/min
m³/min
dBA
dBA
dBA
dBA
kg/m
Max.
Max.
RZQSG100LV1
770x900x320
67
52
48
65
49/47
51
RZQSG125LV1
990x940x320
81
76
77
83
69
53/49
57
70
54/49
58
RZQSG140LV1
1,430x940x320
102
83
62
69
53/49
54
Hermetically sealed swing compressor
-5.0~46
-15~15.5
76
77
83
69
53/57
70
54/58
RZQSG140LY1
1,430x940x320
101
83
62
69
53/54
49
Hermetically sealed swing compressor
-5.0~46.0
-15.0~15.5
R-410A
9.52
15.9
See installation manual 4P302555-1
26
30.0
0.5
1~ / 50 / 220-240
0.5
1~ / 50 / 220-240
m
m
Hz / V
RZQSG125LY1
990x940x320
82
-5.0~46.0
-15.0~15.5
R-410A
9.52
15.9
26
See installation
manual 4PW72942-1
15
RZQSG100LY1
See installation manual 4P302555-1
30.0
0.5
3N~ / 50 / 380-415
Daikin Europe N.V. participates in the Eurovent
Certification programme for Air conditioners
(AC), Liquid Chilling Packages (LCP) and Fan coil
units (FCU), Check ongoing validity of certificate
online: www.eurovent-certification.com or using:
www.certiflash.com
Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and refrigerants
has led to its close involvement in environmental issues.
For several years Daikin has had the intention to become
a leader in the provision of products that have limited
impact on the environment. This challenge demands the
eco design and development of a wide range of products
and an energy management system, resulting in energy
conservation and a reduction of waste.
Daikin products are distributed by:
The present leaflet is drawn up by way of information only and does not
constitute an offer binding upon Daikin Europe N.V.. Daikin Europe N.V. has
compiled the content of this leaflet to the best of its knowledge. No express or
implied warranty is given for the completeness, accuracy, reliability or fitness
for particular purpose of its content and the products and services presented
therein. Specifications are subject to change without prior notice. Daikin Europe
N.V. explicitly rejects any liability for any direct or indirect damage, in the broadest
sense, arising from or related to the use and/or interpretation of this leaflet.
All content is copyrighted by Daikin Europe N.V.
FSC
ECPEN12-110
Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende
ECPEN12-110 • 250 • 07 / 12 • Copyright Daikin
The present publication supersedes ECPEN11-110.
Printed on non-chlorinated paper. Prepared by La Movida, Belgium
Resp. Ed.: Daikin Europe N.V., Zandvoordestraat 300, B-8400 Oostende
(1) PED: assembly = category l : excluded from scope of PED due to article 1, item 3.6 of 97/23/EC (2) See separate drawing for electrical data (3) Equipment complying with EN/IEC 61000-3-12: European/international technical standard setting the limits for harmonic
currents produced by equipment connected to public low-voltage system with input current > 16A and ≤ 75A per phase
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
