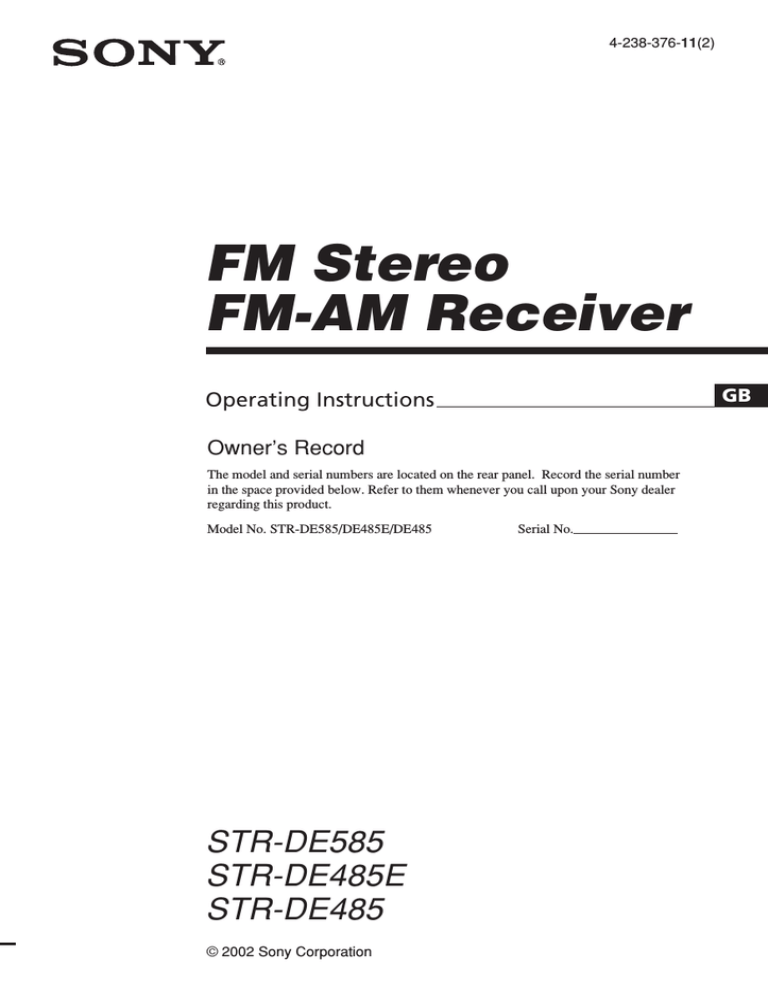

4-238-376-11(2)
FM Stereo
FM-AM Receiver
GB
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear panel. Record the serial number
in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. STR-DE585/DE485E/DE485
STR-DE585
STR-DE485E
STR-DE485
© 2002 Sony Corporation
Serial No.
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with newspapers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Don’t throw away the battery with
general house waste, dispose of it
correctly as chemical waste.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
For customers in the United States
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modification
not expressly approved in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.
For customers in Canada
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE
THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
ENERGY STAR® is a U.S. registered
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
WARNING
2GB
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
mark.
As an ENERGY STAR® partner, Sony
Corporation has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories.
** “DTS” and “DTS Digital Surround” are registered
trademarks of Digital Theater Systems, Inc.
Table of Contents
List of Button Locations and
Reference Pages
Other Operations
Naming preset stations and program
sources ........................................... 35
Recording ............................................ 35
Using the Sleep Timer ......................... 36
Adjustments using the SET UP
button ............................................ 36
Main unit ............................................... 5
Hooking Up the Components
Required cords ....................................... 6
Antenna hookups ................................... 7
Audio component hookups .................... 8
Video component hookups .................... 9
Digital component hookups ................. 10
Multi channel input hookups1) ............. 11
Other hookups ..................................... 12
Operations Using the Remote
RM-PP5063)
Before you use your remote ................ 38
Remote button description ................... 38
Selecting the mode of the remote ........ 41
Programming the remote ..................... 42
Hooking Up and Setting Up
the Speaker System
Speaker system hookups ..................... 13
Performing initial setup operations ..... 15
Multi channel surround setup .............. 15
Checking the connections .................... 20
Operations Using the Remote
RM-U3064)
Before you use your remote ................ 45
Remote button description ................... 45
Changing the factory setting of a
function button .............................. 48
Basic Operations
Selecting the component ..................... 21
Changing the display ........................... 22
Enjoying Surround Sound
Automatically decoding the input
audio signal ................................... 23
Selecting a sound field ........................ 23
Using only the front speakers
(2 Channel Stereo) ......................... 25
Enjoying stereo sound in multi channel
(Dolby Pro Logic II) ...................... 25
Understanding the multi channel
surround displays .......................... 26
Customizing sound fields .................... 27
GB
Additional Information
Precautions .......................................... 49
Troubleshooting ................................... 49
Specifications ...................................... 52
Tables of settings using SURR, LEVEL,
SET UP, BASS and TREBLE
buttons ........................................... 54
Adjustable parameters for each
sound field ..................................... 55
1)
STR-DE585 and STR-DE485 only
Models of area code CEL, CEK only.
3)
For STR-DE585 area code CA only.
4)
Except for STR-DE585 area code CA.
2)
Receiving Broadcasts
Storing FM stations automatically
(AUTOBETICAL)2) ...................... 30
Direct tuning ........................................ 30
Automatic tuning ................................. 31
Preset tuning ........................................ 31
Using the Radio Data System (RDS)2) .... 33
3GB
About This Manual
Note for the supplied remote
The instructions in this manual are for models
STR-DE585, STR-DE485E and STR-DE485. Check
your model number by looking at the lower right
corner of the front panel. In this manual, the
STR-DE585 is used for illustration purposes unless
stated otherwise. Any difference in operation is
clearly indicated in the text, for example,
“STR-DE485E only”.
For RM-PP506 (STR-DE585 area code
CA only)
The VIDEO 3, TV/SAT, AUX, PHONO,
AUDIO SPLIT, NIGHT MODE, EQ/TONE,
ON SCREEN, /10, /11, /12, 3RD, 2ND ROOM
and SOURCE buttons on the remote are not
available.
About area codes
For RM-U306 (STR-DE485E only)
The area code of the receiver you purchased is
shown on the lower portion of the rear panel (see
the illustration below).
The MULTI CH button on the remote is not
available.
Demonstration Mode
The demonstration will activate the first time you
turn on the power. When the demonstration
starts, the following message appears in the
display:
IMPEDANCE USE 8 – 16Ω
TER
FRONT
R
L
R
L
4-XXX-XXX-XX AA
Area code
Any differences in operation, according to the
area code, are clearly indicated in the text, for
example, “Models of area code AA only”.
“NOW DEMONSTRATION MODE IF
YOU FINISH DEMONSTRATION
PLEASE PRESS POWER KEY WHILE
THIS MESSAGE APPEARS IN THE
DISPLAY THANK YOU”
To cancel the demonstration
Tip
The instructions in this manual describe the controls
on the receiver. You can also use the controls on the
supplied remote if they have the same or similar
names as those on the receiver. For details on the use
of your remote, see
• pages 38-44 for RM-PP506 (STR-DE585 area code
CA only)
• pages 45-48 for RM-U306 (except for STR-DE585
area code CA)
4GB
Press ?/1 to turn the receiver off while the above
message is being displayed. The next time you
turn the receiver on, the demonstration will not
appear.
To view the demonstration
Hold down SET UP and press ?/1 to turn on the
power.
Notes
• Running the demonstration will clear the
receiver’s memory. For details on what will be
cleared, see “Clearing the receiver's memory”
on page 15.
• There will be no sound when the
demonstration mode is activated.
• You cannot cancel demonstration if you did
not press ?/1 while the above message is
being displayed. To cancel demonstration after
the above message appears, press ?/1 twice to
activate the demonstration again. Then, press
?/1 while the above message is being
displayed.
List of Button Locations and Reference Pages
Illustration number
Use this page to find the location of buttons
that are mentioned in the text.
NAME
8 (35)
R
Name of button/part
R
Reference page
Main unit
ALPHABETICAL ORDER
0–9
2 CH wh (25)
A–D
A.DEC wk (23–25)
AM (Except for models of area
code CEL, CEK) es (30, 31)
BASS +/– wg (29, 54)
CD ql (21)
CINEMA STUDIO EX A, B, C
9 (23, 24)
Digital Cinema Sound (indicator)
qs (23)
DIMMER ej (22)
DISPLAY 2 (22, 33, 51)
Display qa (22)
DVD/LD wa (21)
FM MODE (Models of area code
CEL, CEK only) ed, (Except for
models of area code CEL, CEK)
ef (31)
INPUT MODE qg (21)
IR (receptor) 4 (38, 45, 51)
LEVEL 0 (20, 27, 55)
M
MASTER VOLUME wd (20, 49)
MD/TAPE qj (21)
MEMORY eh (30, 32)
MENU +/– e; (16, 27, 35, 36)
MENU </> ea (16, 27, 35, 36)
MODE wj (24, 50)
MULTI CHANNEL DECODING
(indicator) (Except for
STR-DE485E) 7 (21)
MULTI CH IN (Except for
STR-DE485E) qf (21)
MUTING wf (21, 49)
E–L
PRESET/PTY SELECT +/–
(Models of area code CEL, CEK
only) 3 (32, 33)
PRESET TUNING +/– (Except
for models of area code CEL,
CEK) 3 (32, 53)
PTY (Models of area code CEL,
CEK only) ef (33)
SET UP 6 (4, 16, 36, 54)
SHIFT eg (32)
SLEEP (STR-DE485E only)qf
(36)
SURR qd (27, 54)
T–Z
List of Button Locations and Reference Pages
r
How to use this page
TREBLE +/– qh (29, 54)
TUNER ws (21, 30-32, 35)
TUNING +/– 5 (31)
VIDEO 1 qk (21)
VIDEO 2 w; (21)
BUTTON DESCRIPTIONS
ENTER wl (35)
FM (Except for models of area
code CEL, CEK) ed (30, 31)
FM/AM (Models of area code
CEL, CEK only) es (30, 31)
1
23
4
N–S
NAME 8 (35)
PHONES (jack) ek (21)
5
`/1 (power) 1 (4, 15, 20, 29,
30, 53)
6 7 8 90 qa qs qdqf qg qh qjqkqlw; waws
g
ek
ej
eh eg ef ed es ea e; wl wk wj wh
wg
wf
wd
5GB
Hooking Up the Components
Required cords
A Audio cord (not supplied)
White (L)
Red (R)
White (L)
Red (R)
B Audio/video cord (not supplied)
Yellow (video)
White (L/audio)
Red (R/audio)
Yellow (video)
White (L/audio)
Red (R/audio)
C Video cord (not supplied)
Yellow (video)
Yellow (video)
D Optical digital cord (not supplied)
Black
Black
E Coaxial digital cord (not supplied)
Orange
Orange
F Monaural audio cord (not supplied)
Black
Black
Before you get started
• Turn off the power to all components before making any connections.
• Do not connect the AC power cord until all of the connections are completed.
• Be sure to make connections firmly to avoid hum and noise.
• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on
the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.
• When you connect optical digital cords, insert the cord plugs straight in until they click into place.
• Do not bend or tie the optical digital cord.
6GB
Antenna hookups
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
MONITOR
AM
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
FM
75Ω
COAXIAL
Hooking Up the Components
AM loop antenna
(supplied)
FM wire antenna*
(supplied)
DVD/LD
IN
COAXIAL
L
AUDIO OUT
L
CENTER
R
R
FRONT SURROUND
SUB
WOOFER
MULTI CH IN
IN
CD
OUT
IN
AUDIO IN
AUDIO IN
MD / TAPE DVD// LD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
SUB
WOOFER
* The shape of the connector varies depending on the area code.
Notes on antenna hookups
• To prevent noise pickup, keep the AM loop
antenna away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it
as horizontal as possible.
7GB
Audio component hookups
MD/Tape deck
INPUT OUTPUT
LINE
LINE
L
A
A
ç
R
ç
OUT
IN
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
MONITOR
AM
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
FM
75Ω
COAXIAL
DVD/LD
IN
COAXIAL
L
AUDIO OUT
L
CENTER
R
R
FRONT SURROUND
SUB
WOOFER
MULTI CH IN
IN
OUT
A
OUTPUT
LINE
L
R
CD player
8GB
IN
AUDIO IN
AUDIO IN
MD / TAPE DVD// LD VIDEO 2
CD
AUDIO OUT AUDIO IN
VIDEO 1
SUB
WOOFER
Video component hookups
DVD or LD player
Hooking Up the Components
OUTPUT
AUDIO OUT
L
R
VIDEO
OUT
B
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
MONITOR
AM
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
FM
75Ω
COAXIAL
DVD/LD
IN
COAXIAL
L
AUDIO OUT
L
CENTER
R
SUB
WOOFER
IN
CD
MULTI CH IN
OUT
IN
B
B
AUDIO OUT AUDIO IN
VIDEO 1
SUB
WOOFER
IN
C
B
INPUT OUTPUT
OUTPUT
TV tuner,
satellite
tuner or
VCR
AUDIO IN
Ç
Ç
OUT
IN
AUDIO IN
MD// TAPE DVD// LD VIDEO 2
Ç
R
FRONT SURROUND
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
INPUT
VIDEO
IN
L
L
R
R
VCR
TV monitor
Note on video component
hookups
You can connect your TV’s audio output jacks
to the VIDEO 2 AUDIO IN jacks on the
receiver and apply sound effects to the audio
from the TV. In this case, do not connect the
TV’s video output jack to the VIDEO 2
VIDEO IN jack on the receiver. If you are
connecting a separate TV tuner (or satellite
tuner), connect both the audio and video output
jacks to the receiver as shown above.
9GB
Digital component hookups
Connect the digital output jacks of your DVD player and satellite tuner (etc.) to the receiver’s digital
input jacks to bring the multi channel surround sound of a movie theater into your home. To fully
enjoy multi channel surround sound, five speakers (two front speakers, two surround speakers, and a
center speaker) and a sub woofer are required. You can also connect an LD player with an RF OUT
jack via an RF demodulator, like the Sony MOD-RF1 (not supplied).
Notes
• You cannot connect an LD player’s DOLBY DIGITAL RF OUT jack directly to this unit’s digital input jacks.
You must first convert the RF signal to either an optical or coaxial digital signal. For details, see
“Troubleshooting” on page 49.
• All the OPTICAL and COAXIAL jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling
frequencies.
TV tuner,
satellite tuner or
DVD player*
OUTPUT
VIDEO
OUT
AUDIO
OUT
OUTPUT
L
DIGITAL
OPTICAL
R
D
B
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
MONITOR
AM
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
FM
75Ω
COAXIAL
DVD/LD
IN
COAXIAL
L
AUDIO OUT
L
CENTER
R
R
FRONT SURROUND
SUB
WOOFER
MULTI CH IN
IN
CD
OUT
IN
AUDIO IN
AUDIO IN
MD / TAPE DVD// LD VIDEO 2
E
AUDIO OUT AUDIO IN
VIDEO 1
SUB
WOOFER
B
OUTPUT
OUTPUT
DIGITAL
COAXIAL
VIDEO
OUT
AUDIO
OUT
L
DVD or LD player
(etc.)*
R
* Make either coaxial or optical connections. We recommend making coaxial connections instead of optical
connections.
10GB
Multi channel input hookups
STR-DE585 and STR-DE485 only
To fully enjoy multi channel surround sound, five speakers (two front speakers, two surround
speakers, and a center speaker) and a sub woofer are required. Refer to the operating instructions
supplied with your DVD player, multi channel decoder, etc., for details on the multi channel
hookups.
Notes
• When using the connections described below, adjust the level of the surround speakers and sub woofer from the
DVD player or multi channel decoder.
• See page 13 for details on speaker system hookup.
Hooking Up the Components
Although this receiver incorporates a multi channel decoder, it is also equipped with multi channel
input jacks. These connections allow you to enjoy multi channel software encoded in formats other
than Dolby Digital and DTS. If your DVD player is equipped with multi channel output jacks, you
can connect them directly to the receiver to enjoy the sound of the DVD player’s multi channel
decoder. Alternatively, the multi channel input jacks can be used to connect an external multi channel
decoder.
ANTENNA
DIGITAL
OPTICAL
VIDEO 2
IN
MONITOR
AM
VIDEO IN
VIDEO IN
VIDEO OUT
VIDEO IN
VIDEO OUT
FM
75Ω
COAXIAL
DVD/LD
IN
COAXIAL
L
AUDIO OUT
L
CENTER
R
R
FRONT SURROUND
SUB
WOOFER
IN
CD
MULTI CH IN
A A F
OUT
IN
AUDIO IN
AUDIO IN
MD// TAPE DVD// LD VIDEO 2
AUDIO OUT AUDIO IN
VIDEO 1
SUB
WOOFER
F
L
CENTER
R
FRONT
SURROUND
SUB
WOOFER
MULTI CH OUT
DVD player,
Multichannel decoder, etc.
11GB
Other hookups
SPEAKERS
SURROUND
R
L
R
IMPEDANCE USE 8 – 16Ω
CENTER
L
FRONT
R
L
R
L
b
To a wall outlet
AC power cord
Setting the voltage selector
If your receiver has a voltage selector on the
rear panel, check that the voltage selector is set
to the local power supply voltage. If not, use a
screwdriver to set the selector to the correct
position before connecting the AC power cord
to a wall outlet.
VOLTAGE SELECTOR
120V
12GB
240V
220V
Connecting the AC power
cord
Before connecting the AC power cord of this
receiver to a wall outlet, connect the speaker
system to the receiver (page 13).
Connect the AC power cord(s) of your audio/
video components to a wall outlet.
Hooking Up and Setting Up the Speaker System
Speaker system hookups
Required cords
A Speaker cords (not supplied)
(+)
(–)
(–)
Hooking Up and Setting Up the Speaker System
(+)
B Monaural audio cord (not supplied)
Black
Black
Active sub woofer
Front speaker
(R)
Front speaker
(L)
INPUT
AUDIO
IN
E
e
B
e
E
A
A
MONITOR
VIDEO OUT
SPEAKERS
SURROUND
R
L
IMPEDANCE USE 8 – 16Ω
CENTER
FRONT
R
L
R
L
AUDIO OUT
R
SUB
WOOFER
L
A
E
A
e E
Surround speaker
(R)
A
e E
Surround speaker
(L)
e
Center speaker
continued
13GB
Speaker system hookup (continued)
Notes
• Twist the stripped ends of the speaker cords about
10 mm (2/3 inch). Be sure to match the speaker
cord to the appropriate terminal on the components:
+ to + and – to –. If the cords are reversed, the
sound will be distorted and will lack bass.
• If you use speakers with low maximum input rating,
adjust the volume carefully to avoid excessive
output on the speakers.
To avoid short-circuiting the
speakers
Short-circuiting of the speakers may damage
the receiver. To prevent this, make sure to take
the following precautions when connecting the
speakers.
Make sure the stripped ends of each
speaker cord does not touch another
speaker terminal, the stripped end of
another speaker cord, or the metal parts of
the receiver.
Examples of poor conditions of the
speaker cord
Stripped speaker cord is touching another
speaker terminal.
14GB
Stripped cords are touching each other
due to excessive removal of insulation.
After connecting all the components,
speakers, and AC power cord, output
a test tone to check that all the
speakers are connected correctly.
For details on outputting a test tone,
see page 20.
If no sound is heard from a speaker while
outputting a test tone or a test tone is output
from a speaker other than the one whose name
is currently displayed on the receiver, the
speaker may be short-circuited. If this happens,
check the speaker connection again.
To avoid damaging your
speakers
Make sure that you turn down the volume
before you turn off the receiver. When you turn
on the receiver, the volume remains at the level
you turn off the receiver.
Performing initial setup
operations
Tip
To check the audio output during settings (to set up
while outputting the sound), check the connection
(page 20).
Before using your receiver for the first time,
adjust SET UP parameters so that the receiver
correspond to your system. For the adjustable
parameters, see the table on page 54. See pages
16–20 for speaker settings and pages 36-37 for
other settings.
Multi channel surround
setup
Clearing the receiver’s
memory
For the best possible surround sound, all
speakers should be the same distance from the
listening position (A).
Before using your receiver for the first time, or
when you want to clear the receiver’s memory,
do the following.
However, the receiver lets you place the center
speaker up to 1.5 meters (5 feet) closer (B)
and the surround speakers up to 4.5 meters (15
feet) closer (C) to the listening position.
This procedure is not necessary if the
demonstration activates when you turn on the
power.
1 Turn off the receiver.
2 Hold down ?/1 for 5 seconds.
The demonstration starts (page 4) and all of
the following items are reset or cleared:
• All preset stations are reset or cleared.
• All sound field parameters are reset to
their factory settings.
• All index names (of preset stations and
program sources) are cleared.
• All SET UP parameters are reset to
their factory settings.
• The sound field memorized for each
program source and preset stations are
cleared.
• The master volume is set to VOL MIN.
Hooking Up and Setting Up the Speaker System
Once you have hooked up the speakers and
turned on the power, clear the receiver’s
memory. Then specify the speaker parameters
(size, position, etc.) and perform any other
initial setup operations necessary for your
system.
Performing initial setup
operations
The front speakers can be placed from 1.0 to
12.0 meters (3 to 40 feet) from the listening
position (A).
You can place the surround speakers either
behind you or to the side, depending on the
shape of your room (etc.).
When placing surround speakers to your side
B
A
A
45°
C
C
90°
20°
continued
15GB
Multi channel surround setup
(continued)
When placing surround speakers behind you
Tip
The setting for Micro Satellite Speaker (MICRO SP.)
has been programmed to optimize the sound balance.
If you use Sony’s Micro Satellite Speakers, select
MICRO SP.
Caution
B
A
When you use Micro Satellite Speakers and the
speaker size is set to “LARGE”, you may not obtain
the correct soundstage. The speaker may also be
damaged at high volume position.
A
45°
C
C
Specifying the speaker
parameters
90°
1 Press SET UP.
2 Press MENU
20°
Note
Do not place the center speaker farther away from the
listening position than the front speakers.
Normal Speaker and Micro
Satellite Speaker
If you are using
Select
Normal Speakers
NORM. SP.
Micro Satellite Speakers
MICRO SP.
The speaker size and the sub woofer selection
has been preset to NORM. SP. You can adjust
the speaker size and sub woofer selection when
you select NORM. SP. (pages 17-18)
or MENU
to select
the parameter you want to adjust.
3 Press MENU + or MENU – to select the
setting you want.
The setting is entered automatically.
4 Repeat steps 2 and 3 until you have set
all of the parameters that follow.
Initial settings
Parameter
L
C
SL
SW
To select MICRO SP., turn off the power, then
turn on again while pressing LEVEL. (To reset
to NORM. SP., do the same procedure.)
When you select MICRO SP., the speaker size
and sub woofer selection has been configurated
as follows:
Speaker
Settings
FRONT
SMALL
CENTER
SMALL
SURROUND
SMALL
SUB WOOFER
YES
You cannot change the configuration if you select
MICRO SP.
16GB
L
C
R
(FRONT)
(CENTER)
SR
(SURROUND)
(SUB WOOFER) S.W. XXX
R
DIST. XX.X m (ft.)**
DIST. XX.X m (ft.)**
Initial setting
LARGE*
LARGE*
LARGE*
YES*
5.0 m (16 ft.)**
5.0 m (16 ft.)**
SL
SR
DIST. XX.X m (ft.)**
3.5 m (11 ft.)**
SL
SR
PL. XXX
BEHD.
SL
SR
HGT. XXX
LOW
*
You can set this parameter only when you select
NORM. SP.
** Models of area code U, CA only.
R )
x Front speaker size ( L
• If you connect large speakers that will
effectively reproduce bass frequencies, select
“LARGE”. Normally, select “LARGE”.
• When the front speakers are set to “SMALL”,
the center and surround speakers are also
automatically set to “SMALL” (unless
previously set to “NO”).
x Center speaker size (
C
)
SL
SR
)
• If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
surround channel bass frequencies from the sub
woofer or other “LARGE” speakers.
• If you do not connect surround speakers, select
“NO”.*3
Tip
• If you connect a large speaker that will
effectively reproduce bass frequencies, select
“LARGE”. Normally, select “LARGE”.
However, if the front speakers are set to
“SMALL”, you cannot set the center speaker to
“LARGE”.
*1–*3 correspond to the following Dolby Pro Logic
modes
*1 NORMAL
*2 PHANTOM
*3 3 STEREO
• If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
center channel bass frequencies from the front
speakers (if set to “LARGE”) or sub woofer.*1
Internally, the LARGE and SMALL settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the sub woofer or other “LARGE”
speakers.
However, since bass sounds have a certain amount of
directionality, it is best not to cut them, if possible.
Therefore, even when using small speakers, you can
set them to “LARGE” if you want to output the bass
frequencies from that speaker. On the other hand, if
you are using a large speaker, but prefer not to have
bass frequencies output from that speaker, set it to
“SMALL”.
If the overall sound level is lower than you prefer, set
all speakers to “LARGE”. If there is not enough bass,
you can use the BASS +/– to boost the bass levels. To
adjust the bass, see page 29.
• If you do not connect a center speaker, select
“NO”. The sound of the center channel will be
output from the front speakers.*2
Tip
Hooking Up and Setting Up the Speaker System
• If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
front channel bass frequencies from the sub
woofer.
x Surround speaker size (
• If you connect large speakers that will
effectively reproduce bass frequencies, select
“LARGE”. Normally, select “LARGE”.
However, if the front speakers are set to
“SMALL”, you cannot set the surround
speakers to “LARGE”.
continued
17GB
Multi channel surround setup
(continued)
x Sub woofer selection (
Tip
S.W. XXX)
SW
• If you connect a sub woofer, select “YES”.
• If you do not connect a sub woofer, select
“NO”. This activates the bass redirection
circuitry and outputs the LFE signals from other
speakers.
• In order to take full advantage of the Dolby
Digital bass redirection circuitry, we
recommend setting the sub woofer’s cut off
frequency as high as possible.
x Front speaker distance (
XX.X m (ft.))
L
R
DIST.
Set the distance from your listening position to
the front speakers (A on page 15).
x Center speaker distance (
XX.X m (ft.))
C
DIST.
Set the distance from your listening position to
the center speaker. Center speaker distance
should be set from a distance equal to the front
speaker distance (A on page 15) to a distance
1.5 meters (5 feet) closer to your listening
position (B on page 15).
x Surround speaker distance (
DIST. XX.X m (ft.))
SL
SR
Set the distance from your listening position to
the surround speakers. Surround speaker
distance should be set from a distance equal to
the front speaker distance (A on page 15) to a
distance 4.5 meters (15 feet) closer to your
listening position (C on page 15).
18GB
The receiver allows you to input the speaker position
in terms of distance. However, it is not possible to set
the center speaker further than the front speakers.
Also, the center speaker cannot be set more than
1.5 meters (5 feet) closer than the front speakers.
Likewise, the surround speakers can not be set further
away from the listening position than the front
speakers. And they can be no more than 4.5 meters
(15 feet) closer.
This is because incorrect speaker placement is not
conducive to enjoy surround sound.
Please note that, setting the speaker distance closer
than the actual location of the speakers will cause a
delay in the output of the sound from that speaker. In
other words, the speaker will sound like it is farther
away.
For example, setting the center speaker distance
1~2 m (3~6 feet) closer than the actual speaker
position will create a fairly realistic sensation of being
“inside” the screen. If you cannot obtain a satisfactory
surround effect because the surround speakers are too
close, setting the surround speaker distance closer
(shorter) than the actual distance will create a larger
sound stage.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
x Surround speaker position (
PL. XXX)*
SL
SR
This parameter lets you specify the location of
your surround speakers for proper
implementation of the Digital Cinema Sound
surround modes. Refer to the illustration below.
• Select “MID” if the location of your surround
speakers corresponds to section B.
• Select “BEHD.” if the location of your
surround speakers corresponds to section C.
90°
A
A
60°
30°
B
C
B
C
20°
x Surround speaker height (
HGT. XXX)*
SL
SR
This parameter lets you specify the height of
your surround speaker(s) for proper
implementation of the Digital Cinema Sound
surround modes. Refer to the illustration below.
The surround speaker position parameter is designed
specifically for implementation of the Digital Cinema
Sound modes with virtual elements.
With the Digital Cinema Sound modes, speaker
position is not as critical as other modes. All modes
with virtual elements were designed under the
premise that the surround speaker would be located
behind the listening position, but presentation remains
fairly consistent even with the surround speakers
positioned at a rather wide angle. However, if the
speakers are pointing towards the listener from the
immediate left and right of the listening position, the
sound fields with virtual elements will not be
effective unless the surround speaker position
parameter is set to “PL. SIDE”.
Nevertheless, each listening environment has many
variables, like wall reflections, and you may obtain
better results using “PL. BEHD.” or “PL. MID” if
your speakers are located high above the listening
position, even if they are to the immediate left and
right.
Therefore, although it may result in a setting contrary
to the “Surround speaker position” explanation, we
recommend that you playback multi channel surround
encoded software and listen to the effect each setting
has on your listening environment. Choose the setting
that provides a good sense of spaciousness and that
best succeeds in forming a cohesive space between
the surround sound from the surround speakers and
the sound of the front speakers. If you are not sure
which sounds best, select “PL. BEHD.” and then use
the speaker distance parameter and speaker level
adjustments to obtain proper balance.
Hooking Up and Setting Up the Speaker System
• Select “SIDE” if the location of your surround
speakers corresponds to section A.
Tip
continued
• Select “LOW” if the location of your surround
speakers corresponds to section A.
• Select “HIGH” if the location of your surround
speakers corresponds to section B.
B
B
60
A
A
30
* These parameters are not available when
“Surround speaker size ( SL SR )” is set to
“NO”.
19GB
Multi channel surround setup
(continued)
Adjusting the speaker level
Use the remote while seated in your listening
position to adjust the level of each speaker.
Note
The receiver incorporates a new test tone with a
frequency centered at 800 Hz for easier speaker level
adjustment.
1 Press ?/1 to turn on the receiver.
2 Press TEST TONE on the remote.
“T. TONE” appears in the display and you
will hear the test tone from each speaker in
sequence.
3 Adjust the LEVEL parameters so that
the level of the test tone from each
speaker sounds the same when you are
in your main listening position.
Press LEVEL to adjust the balance and
level of speakers. For details on the LEVEL
menu, see pages 27 and 28.
While adjusting, the test tone is output from
the speaker whose adjustment is performed.
4 Press TEST TONE again to turn off the
test tone.
Tip
You can adjust the level of all speakers at the same
time. Turn MASTER VOLUME on the main unit or
press MASTER VOL +/– on the remote.
Notes
• The test tone cannot be output when the receiver is
set to MULTI CH IN (STR-DE585 and
STR-DE485 only).
• The adjusted value are shown in the display during
adjustment.
• Although these adjustments can also be made via
the front panel using the LEVEL menu (when the
test tone is output, the receiver switches to the
LEVEL menu automatically), we recommend you
follow the procedure described above and adjust the
speaker levels from your listening position using the
remote.
20GB
Checking the connections
After connecting all of your components to the
receiver, do the following to verify that the
connections were made correctly.
1 Press ?/1 to turn on the receiver.
2 Turn on the component that you
connected (e.g., CD player or tape
deck).
3 Press the function button to select the
component (program source).
4 Start playing.
If you do not obtain normal sound output after
performing this procedure, see
“Troubleshooting” on page 49 and take the
appropriate measures to correct the problem.
Basic Operations
Selecting the component
Function buttons
Select
To
OPT IN
Specify the digital audio
signals input to the
DIGITAL OPTICAL input
jacks.
ANALOG
Specify the analog audio
signals input to the AUDIO
IN (L/R) jacks.
Press the function button to select the
component you want to use.
Press
Note
VCR
VIDEO 1 or VIDEO 2
TV tuner or satellite tuner
VIDEO 2
If 96 kHz digital signal is input, the tone, sound field
and surround parameters do not function.
DVD or LD player
DVD/LD
MD or Tape deck
MD/TAPE
CD player
CD
Built in tuner
TUNER
After turning on the component you selected,
select the component and play the program
source.
• After selecting VCR, DVD player, or LD
player, turn on the TV and set the TV’s video
input to match the component you selected.
Basic Operations
To select
MULTI CH IN
(STR-DE585 and STR-DE485 only)
Press MULTI CH IN to enjoy the audio source
connected to the MULTI CH IN jacks. You can
adjust balance and level of all the speakers. When
this function is on, the tone and surround effects
are turned off.
MULTI CHANNEL DECODING
Indicator
(STR-DE585 and STR-DE485 only)
INPUT MODE
Press INPUT MODE to select the input mode
for your digital components.
Each time you press the button, the input mode
of the currently selected component switches.
Select
To
AUTO IN
Give priority to digital
signals when there are both
digital and analog
connections. If there are no
digital signals, analog is
selected.
COAX IN
Specify the digital audio
signals input to the
DIGITAL COAXIAL input
jacks.
This indicator lights up when the unit is
decoding signals recorded in a multi channel
format.
MUTING
Press MUTING to mute the sound. The muting
function is canceled when you turn the power
on or turn the MASTER VOLUME clockwise
to turn the volume up.
PHONES
Use to connect headphones.
• When the headphones are connected, speaker
output is automatically canceled and “SP. OFF”
lights up in the display.
21GB
Changing the display
DISPLAY
Each time you press DISPLAY, the display
changes cyclically as follows:
Index name of the component* t Selected
component t Sound field applied to the
program source
When the tuner is selected
Index name of the preset station* or program
station name** t Frequency t Program type
indication** t Radio text** t Current
time** t Sound field applied to the band or
the preset station
* Index name appears only when you have assigned
one to the component or preset station (page 35).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
function.
** During RDS reception only. (Models of area code
CEL, CEK only. See page 33).
DIMMER
Press DIMMER repeatedly to adjust the
brightness of the display (3 steps).
However, when you press any button, the
display becomes the brightest setting
temporary.
22GB
Enjoying Surround Sound
You can take advantage of surround sound
simply by selecting one of the receiver’s preprogrammed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home. You can also
customize the sound fields to obtain the sound
you want by changing the surround parameter.
To fully enjoy surround sound, you must
register the number and location of your
speakers. See “Multi channel surround setup”
starting from page 15 to set the speaker
parameters before enjoying surround sound.
Press A.DEC.
“AUTO DEC.” appears in the display.
This mode automatically detects the type of
audio signal being input (Dolby Digital, DTS,
or standard 2 channel stereo) and performs the
proper decoding if necessary. This mode
presents the sound as it was recorded/encoded,
without adding any effects (e.g. reverberation).
However, if there are no low frequency signals
(Dolby Digital LFE, etc.) it will generate a low
frequency signal for output to the sub woofer.
Selecting a sound field
You can enjoy surround sound simply by
selecting one of the pre-programmed sound
fields according to the program you want to
listen to.
Display
Normal Surround
NORM.SURR.
Cinema Studio EX A
C.ST.EX A DCS
Cinema Studio EX B
C.ST.EX B DCS
Cinema Studio EX C
C.ST.EX C DCS
Hall
HALL
Jazz Club
JAZZ
Live Concert
CONCERT
Game
GAME
About DCS (Digital Cinema Sound)
The sound fields with DCS mark use DCS
technology. When these sound fields are
selected, “Digital Cinema Sound” indicator in
the display lights up.
Enjoying Surround Sound
Automatically decoding
the input audio signal
Sound field
In collaboration with Sony Pictures
Entertainment, Sony measured the sound
environment of their studios and integrated the
data of the measurement and Sony’s own DSP
(Digital Signal Processor) technology to
develop “Digital Cinema Sound”. In a home
theater, “Digital Cinema Sound” simulates an
ideal movie theater sound environment based
on the preference of the movie director.
Enjoying movies with Cinema
Studio EX
Cinema Studio EX is ideal for enjoying the
movie software encoded with multi channel
format, such as the Dolby Digital DVD. This
mode reproduces the sound characteristics of
Sony Pictures Entertainment’s studios.
Press CINEMA STUDIO EX A, B or C.
The selected sound field is indicated in the
display.
continued
23GB
Selecting a sound field (continued)
Tip
You can select Cinema Studio EX by pressing MODE
repeatedly.
x C.ST.EX A (Cinema Studio EX A)
Notes
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Cary Grant
Theater” cinema production studio. This is a
standard mode, great for watching most any
type of movie.
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
x C.ST.EX B (Cinema Studio EX B)
Selecting other sound fields
Reproduces the sound characteristics of the
Sony Pictures Entertainment “Kim Novak
Theater” cinema production studio. This mode
is ideal for watching science-fiction or action
movies with lots of sound effects.
The current sound field is indicated in the
display.
x C.ST.EX C (Cinema Studio EX C)
x NORM.SURR. (Normal Surround)
Reproduces the sound characteristics of the
Sony Pictures Entertainment scoring stage.
This mode is ideal for watching musicals or
classic films where music is featured in the
soundtrack.
Software with multi channel surround audio
signals is played back according to the way it
was recorded. Software with 2 channel audio
signals is decoded with Dolby Pro Logic to
create surround effects.
About Cinema Studio EX
x HALL
Cinema Studio EX consists of the following
three elements.
Reproduces the acoustics of a rectangular
concert hall.
• Virtual Multi Dimension
x JAZZ (Jazz Club)
Creates 5 sets of virtual speakers
surrounding the listener from a single pair of
actual surround speakers.
• Screen Depth Matching
In a movie theater, sound seems to come
from inside the image reflected on the movie
screen. This element creates the same
sensation in your listening room by shifting
the sound of the front speakers “into” the
screen.
• Cinema Studio Reverberation
Reproduces the reverberations peculiar to a
movie theater.
Cinema Studio EX is the integrated mode
which operates these elements simultaneously.
24GB
Press MODE repeatedly to select the
sound field you want.
Reproduces the acoustics of a jazz club.
x CONCERT (Live Concert)
Reproduces the acoustics of a 300-seat live
concert.
x GAME
Obtains maximum audio impact from video
game software.
To turn the surround effect off
Press A.DEC or 2CH.
Tips
Using only the front
speakers (2 Channel Stereo)
Press 2CH.
“2CH ST.” appears in the display.
This mode outputs the sound from the front left
and right speakers only. Standard 2 channel
(stereo) sources completely bypass the sound
field processing. Multi channel surround
formats are downmixed to 2 channel.
Enjoying stereo sound in
multi channel
(Dolby Pro Logic II)
(STR-DE585 only)
The receiver can reproduce the stereo sound in
multi channel through Dolby Pro Logic II. You
can activate the decoder using the SET UP
menu. For details, see pages 36-37.
Enjoying Surround Sound
• The receiver lets you apply the last selected sound
field to a program source whenever it is selected
(Sound Field Link). For example, if you listen to
CD with “JAZZ” as the sound field, change to a
different program source, then return to CD,
“JAZZ” will be applied again.
• You can identify the encoding format of program
sofware by looking at its packaging.
Dolby Digital discs are labeled with the
logo, and Dolby Surround encoded programs are
labeled with the
logo.
• When sound signals with a sampling frequency of
96 kHz are input, the sound signals are output in
stereo automatically, and the sound field is turned
off.
Notes
• No sound is output from the sub woofer when
“2CH ST.” is selected. To listen to 2 channel
(stereo) sources using the front left and right
speakers and a sub woofer, press A.DEC to select
“AUTO DEC.”
• When you select “Micro Satellite Speaker” (page
16), internal sound processor will automatically
redirect bass sound to sub woofer. If you want to
listen to two channel (stereo) sources under this
setting, we recommend that you choose “AUTO
DEC.” mode so that you can take advantage of
your sub woofer to obtain the correct bass signal.
25GB
Understanding the multi channel surround displays
qa
qs
1
2
3
5
4
a DIGITAL PRO LOGIC DTS MPEG STEREO MONO RDS
SW SP. OFF OPT COAX
D.RANGE
L C R
LFE
SL S SR
0
8
7
6
9
1 ; DIGITAL: Lights up when the receiver is
decoding signals recorded in the Dolby
Digital format.
6 D.RANGE: Lights up when dynamic range
compression is activated. See page 28 to
adjust the dynamic range compression.
2 PRO LOGIC: Lights up when the receiver
applies Pro Logic processing to 2 channel
signals in order to output the center and
surround channel signals. However, this
indicator does not light if the center and
surround speakers are set to “NO”, and
“AUTO DEC.” or “NORM.SURR.” is
selected.
7 COAX: Lights up when the source signal is a
digital signal being input through the
COAXIAL terminal.
Note
Pro Logic decoding does not function for MPEG
format signals.
3 DTS: Lights up when DTS signals are input.
Note
When playing a DTS format disc, be sure that
you have made digital connections and that
INPUT MODE is NOT set to “ANALOG”
(page 21).
4 MPEG: Lights up when MPEG signals are
input.
Note
Only the front 2 channels are compatible with
MPEG format. Multi channel surround sound is
downmixed and output from the front 2 channels.
5 Tuner indicators: Lights up when using the
receiver to tune in radio stations, etc. See
pages 30–34 for tuner operations.
Note
“RDS” only appears for models of area code
CEL, CEK only.
26GB
MEMORY
8 OPT: Lights up when the source signal is a
digital signal being input through the
OPTICAL terminal.
9 Playback channel indicators: The letters
(L, C, R, etc.) indicate the channels being
played back. The boxes around the letters
vary to show how the receiver downmixes the
source sound (based on the speakers settings).
When using sound fields like “C.ST.EX”, the
receiver adds reverberation based on the
source sound.
L (Front Left), R (Front Right), C (Center
(monaural)), SL (Surround Left), SR
(Surround Right), S (Surround (monaural or
the surround components obtained by Pro
Logic processing)).
Example:
Recording format (Front /Surround): 3/2
Output channel: Surround speakers absent
Sound Field: AUTO DEC.
L
SL
C
R
SR
0
LFE
: Lights up when the disc being
played back contains the LFE (Low
Frequency Effect) channel and when the
sound of the LFE channel signal is actually
being reproduced.
qa SW: Lights up when sub woofer selection is
set to “YES” (page 18) and the audio signal is
output from the SUB WOOFER jacks.
qs SP. OFF: Lights up when headphones are
inserted.
By adjusting the surround parameters and the
tone characteristics of the front speakers, you
can customize the sound fields to suit your
particular listening situation.
Once you customize a sound field, the changes
are stored in the memory indefinitely. You can
change a customized sound field any time by
making new adjustments to the parameters.
setting you want.
The setting is entered automatically.
Initial settings
Parameter
Initial setting
EFFECT
(depends on the sound field)
Effect level (EFFECT)
Lets you adjust the “presence” of the current
surround effect.
Adjusting the level
parameters
The LEVEL menu contains parameters that let
you adjust the balance and volumes of each
speaker. The settings are applied to all sound
fields.
1 Start playing a program source
encoded with multi channel surround
sound.
See the tables on page 55 for the parameters
available in each sound field.
2 Press LEVEL.
To get the most from multi
channel surround sound
3 Press MENU
Position your speakers and do the procedures
described in “Multi channel surround setup”
starting from page 15 before you customize a
sound field.
Enjoying Surround Sound
Customizing sound fields
3 Press MENU + or MENU – to select the
The button lights up and the first parameter
is displayed.
or MENU
to select
the parameter you want to adjust.
4 Press MENU + or MENU – to select the
setting you want.
The setting is entered automatically.
continued
Adjusting the surround
parameter
The SURR menu contains parameter that let
you customize various aspects of the current
sound field. The settings are stored individually
for each sound field.
1 Start playing a program source
encoded with multi channel surround
sound.
2 Press SURR.
The button lights up and the first parameter
is displayed.
27GB
Customizing sound field (continued)
• For LFE mix level, “0 dB” outputs the full LFE
signal at the mix level determined by the
recording engineer.
Initial settings
• To mute the sound of the LFE channel from the
sub woofer, select “OFF”. However, the low
frequency sounds of the front, center, or
surround speakers are output from the sub
woofer according to the settings made for each
speaker in the speaker setup (pages 15–18).
Parameter
L
R
Initial setting
BAL. L/R XXX*
BALANCE
CTR XXX dB*
0 dB
SUR.L. XXX dB*
0 dB
SUR.R. XXX dB*
0 dB
S.W. XXX dB*
0 dB
L.F.E. XXX dB
0 dB
D. RANGE
COMP. XXX
OFF
* The parameters can be adjusted separately for
MULTI CH IN (STR-DE585 and STR-DE485 only).
Front balance (
L
R
BAL. L/R XXX)
Lets you adjust the balance between front left
and right speakers.
Center level (CTR XXX dB)
Lets you adjust the level of the center speaker.
Surround left level (SUR.L. XXX dB)
D. RANGE
Lets you compress the dynamic range of the
sound track. This may be useful when you want
to watch movies at low volumes late at night.
We recommend using the “MAX” setting.
• To reproduce the sound track with no
compression, select “OFF”.
• To reproduce the sound track with the dynamic
range intended by the recording engineer, select
“STD”.
• To compress the dynamic range in small steps
to achieve the sound you desire, select “0.1”–
“0.9”.
Lets you adjust the level of the surround left
speaker.
• To reproduce a dramatic compression of the
dynamic range, select “MAX”.
Surround right level (SUR.R. XXX dB)
Note
Lets you adjust level of the surround right
speaker.
Dynamic range compression is possible with Dolby
Digital sources only.
Sub woofer level (S.W. XXX dB)
Lets you adjust the level of the sub woofer.
LFE (Low Frequency Effect) mix
level (L.F.E. XXX dB)
Lets you attenuate the level of the LFE (Low
Frequency Effect) channel output from the sub
woofer without effecting the level of the bass
frequencies sent to the sub woofer from the
front, center or surround channels via the
Dolby Digital or DTS bass redirection
circuitry.
28GB
Dynamic range compressor (
COMP. XXX)
Adjusting the bass and treble
The BASS +/– and TREBLE +/– button lets
you adjust the tone (bass or treble) of the front
speakers for optimum sound. You can adjust
the tone for each separate sound field.
1 Start playing a program source
encoded with multi channel surround
sound.
2 Press BASS +/– or TREBLE +/– to
adjust the tone.
The setting is stored automatically.
Parameter
Initial setting
BASS
0 dB
TREB.
0 dB
BASS (Bass)
Lets you adjust the bass tone.
TREB. (Treble)
Enjoying Surround Sound
Initial settings
Lets you adjust the treble tone.
Resetting customized sound
fields to the factory settings
1 If the power is on, press ?/1 to turn off
the power.
2 Hold down MODE and press ?/1.
“SF. CLR.” appears in the display and all
sound fields are reset at once.
29GB
Receiving Broadcasts
Notes
Before receiving broadcasts, make sure you
have connected FM and AM antennas to the
receiver (page 7).
Storing FM stations
automatically
(AUTOBETICAL)
(Models of area code CEL, CEK only)
This function lets you store up to 30 FM and
FM RDS stations in alphabetical order without
redundancy. Additionally, it only stores the
stations with the clearest signals.
If you want to store FM or AM stations one by
one, see “Presetting radio stations” on page 32.
1 Press ?/1 to turn off the receiver.
2 Hold down MEMORY and press ?/1 to
turn the receiver back on.
“AUTO-BETICAL SELECT” appears in
the display and the receiver scans and stores
all the FM and FM RDS stations in the
broadcast area.
For RDS stations, the tuner first checks for
stations broadcasting the same program,
then stores only the one with the clearest
signal. The selected RDS stations are sorted
alphabetically by their Program Service
name, then assigned a 2-character preset
code. For more details on RDS, see page 33.
Regular FM stations are assigned
2-character preset codes and stored after the
RDS station.
When done, “FINISH” appears in the
display momentarily and the receiver
returns to the normal operation.
• Do not press any button on the receiver or supplied
remote during autobetical operation.
• If you move to another area, repeat this procedure
to store stations in your new area.
• For details on tuning the stored stations, see page
32.
• If you move the antenna after storing stations with
this procedure, the stored settings may no longer be
valid. If this happens, repeat this procedure to store
the stations again.
Direct tuning
You can enter a frequency of the station you
want directly by using the numeric buttons on the
supplied remote. For details on the buttons used
in this section, see pages 38–44 for remote
RM-PP506 and pages 45–48 for remote
RM-U306.
1 Press TUNER on the remote.
The last received station is tuned in.
2 Press FM* or AM* to select the FM or
AM band.
3 Press D. TUNING on the remote.
4 Press the numeric buttons to enter the
frequency.
Example 1: FM 102.50 MHz
1 b 0 b 2 b 5 b 0
Example 2: AM 1350 kHz
(You don’t have to enter the last “0” when the
tuning scale is set to 10 kHz.)
1 b 3 b 5 b 0
If you cannot tune in a station and the
entered numbers flash
Make sure you’ve entered the right
frequency. If not, repeat steps 3 and 4.
If the entered numbers still flash, the
frequency is not used in your area.
* For models of area code CEL, CEK: FM/AM.
30GB
5 If you’ve tuned in an AM station, adjust
the direction of the AM loop antenna for
optimum reception.
6 Repeat steps 2 to 5 to receive another
station.
Automatic tuning
If you don’t know the frequency of the station
you want, you can let the receiver scan all
available stations in your area.
1 Press TUNER.
Tips
The tuning scale differs depending on the area code
as shown in the following table. For details on area
codes, see page 4.
The last received station is tuned in.
2 Press FM** or AM** to select the FM or
AM band.
3 Press TUNING + or TUNING –.
Press TUNING + to scan from low to high;
press TUNING – to scan from high to low.
The receiver stops scanning whenever a
station is received.
When the receiver reaches either end of
the band
Scanning is repeated in the same direction.
4 To continue scanning, press TUNING +
Area code
FM
AM
U, CA
100 kHz
10 kHz*
AU, SP, CEL, CEK, TW 50 kHz
9 kHz
E2/E3, MX, AR
9 kHz*
50 kHz
* The AM tuning scale can be changed (page 53).
or TUNING – again.
** For models of area code CEL, CEK: FM/AM.
Receiving Broadcasts
• If you do not remember the precise frequency, press
TUNING + or TUNING – after entering the value
close to the frequency you want. The receiver
automatically tunes in the station you want. If the
frequency seems to be higher than the entered value,
press TUNING +, and if the frequency seems to be
lower than the entered value, press TUNING –.
• If “STEREO” flashes in the display and the FM
stereo reception is poor, press FM MODE to change
to monaural (MONO). You will not be able to enjoy
the stereo effect, but the sound will be less distorted.
To return to stereo mode, press FM MODE again.
Preset tuning
After you have tuned in stations using Direct
Tuning or Automatic Tuning, you can preset
them to the receiver. Then you can tune in any
of the stations directly by entering its 2character preset code using the supplied
remote. Up to 30 FM or AM stations can be
preset. The receiver will also scan all the
stations that you have preset.
Before tuning to preset stations, be sure to
preset them by performing steps on “Presetting
radio stations” (page 32).
continued
31GB
Preset tuning (continued)
Tuning to preset stations
Presetting radio stations
You can tune the preset stations by either of the
following two ways.
1 Press TUNER.
The last received station is tuned in.
2 Tune in the station that you want to
preset using Direct Tuning (page 30) or
Automatic Tuning (page 31).
3 Press MEMORY.
“MEMORY” appears in the display for a few
seconds.
Do steps 4 to 6 before “MEMORY” goes out.
4 Press SHIFT to select a memory page
Scanning the preset stations
1 Press TUNER.
The last received station is tuned in.
2 Press PRESET TUNING +* or PRESET
TUNING –* repeatedly to select the
preset station you want.
Each time you press the button, the receiver
tunes in one preset station at a time, in the
corresponding order and direction as
follows:
nA1˜A2˜...˜A0˜B1˜B2˜...˜B0N
(A, B or C).
Each time you press SHIFT, the letter “A”,
“B”, or “C” appears in the display.
5 Press PRESET TUNING +* or PRESET
nC0˜...C2˜C1N
* For models of area code CEL, CEK: PRESET/PTY
SELECT + or PRESET/PTY SELECT –.
TUNING –* to select a preset number.
If “MEMORY” goes out before you press
the preset number, start again from step 3.
6 Press MEMORY again to store the
station.
If “MEMORY” goes out before you can
store the station, start again from step 3.
7 Repeat steps 2 to 6 to preset another
station.
* For models of area code CEL, CEK: PRESET/
PTY SELECT + or PRESET/PTY SELECT –.
To change a preset number to
another station
Do steps 1 to 6 to preset a new station to the
number.
32GB
Using the preset codes
Use the supplied remote to perform the
following operations. For details on the buttons
used in this section, see pages 38-44 for remote
RM-PP506 and pages 45-48 for remote
RM-U306.
1 Press TUNER on the remote.
The last received station is tuned in.
2 Press SHIFT to select a memory page
(A, B, or C), then press the preset
number of the station you want using
the numeric buttons.
Using the Radio Data
System (RDS)
(Models of area code CEL, CEK only)
This receiver also allows you to use RDS
(Radio Data System), which enables radio
stations to send additional information along
with the regular program signal. You can use
the following convenient RDS features:
– Displaying RDS information
– Scanning preset stations by program type
Note that RDS is operable only for FM
stations.*
Receiving RDS broadcasts
Simply select a station on the FM band
using direct tuning (page 30), automatic
tuning (page 31), or preset tuning (page 31).
When you tune in a station that provides RDS
services, the RDS indicator lights up and the
program station name normally appears in the
display.
Note
RDS may not work properly if the station you tuned
to is not transmitting the RDS signal properly or if the
signal strength is weak.
• If there is an emergency announcement by
government authorities, “ALARM” flashes in the
display.
• When the message consists of 9 characters or more,
the message scrolls across the display.
• If a station does not provide a particular RDS
service, “NO XXX” (such as “NO PTY”) appears in
the display.
Scanning preset stations by
program type
You can tune in preset stations according to a
program type that you specify. The receiver
scans for stations in its preset memory currently
broadcasting the specified program type.
Receiving Broadcasts
* Not all FM stations provide RDS service, nor do
they provide the same types of services. If you are
not familiar with the RDS services in your area,
check with your local radio stations for details.
Notes
1 Press PTY.
2 Press PRESET/PTY SELECT + or
PRESET/PTY SELECT – to select the
program type.
See the table below for the information on
each program type.
3 Press PTY.
While the receiver is scanning stations,
“SEARCH” and the programme type are
displayed alternately.
When the receiver finds a station, the
receiver stops scanning. When the receiver
could not find any preset stations currently
broadcasting the specified program type,
“NO PTY” appears in the display.
continued
Displaying RDS information
While receiving an RDS station, press
DISPLAY.
Each time you press the button, RDS
information on the display changes cyclically
as follows:
Program Station name t Frequency t
Program Type indicationa) t
Radio Text indicationb) t Current Time
indication (in 24-hour system) t Sound field
currectly applied
a) Type of program being broadcast (page 34).
b) Text messages sent by the RDS station.
33GB
Using the Radio Data System (RDS)
(continued)
Description of program types
Program type
indication
Description
PHONE IN
Programs where members of the
public express their views by
phone or in a public forum
TRAVEL
Programs about travel. Not for
announcements that are located by
TP/TA
Programs on recreational activities
such as gardening, fishing,
cooking, etc.
NEWS
News programs
AFFAIRS
Topical programs that expand
on current news
LEISURE
INFO
Programs offering information on
a wide spectrum of subjects,
including consumer affairs and
medical advice
JAZZ
Jazz programs
COUNTRY
Country music programs
NATION M
Programs featuring the popular
music of the country or region
OLDIES
Programs featuring oldies music
SPORT
Sports programs
EDUCATE
Educational programs, such as
“how-to” and advice programs
DRAMA
CULTURE
34GB
Description
Program type
indication
Radio plays and serials
Programs about national or
regional culture, such as language
and social concerns
SCIENCE
Programs about the natural
sciences and technology
VARIED
Other types of programs such as
celebrity interviews, panel games,
and comedy
POP M
Popular music programs
ROCK M
Rock music programs
EASY M
Easy Listening
LIGHT M
Instrumental, vocal, and choral
music
CLASSICS
Performances of major orchestras,
chamber music, opera, etc.
OTHER M
Music that does not fit into any
categories above, such as Rhythm
& Blues and Reggae
WEATHER
Weather information
FINANCE
Stock market reports and trading,
etc.
CHILDREN
Programs for children
SOCIAL
Programs about people and the
things that affect them
RELIGION
Programs of religious content
FOLK M
Folk music programs
DOCUMENT
Investigative features
NONE
Any programs not defined above
Other Operations
4 Press ENTER.
5 Repeat steps 2 to 4 to assign index
Naming preset stations
and program sources
name for another station or program
source.
1 To name a preset station
Press TUNER.
The last station you received is tuned in.
If you are not familiar with how to tune in
preset stations, see “Tuning to preset
stations” on page 32.
To name a program source
Select the program source (component)
to be named.
2 Press NAME.
3 Create an index name by using MENU +
or MENU – and MENU
or MENU
:
Press MENU + or MENU – to select a
character, then press MENU to move the
cursor to the next position.
To insert a space
Press MENU + or MENU – until a blank
space appears in the display.
If you’ve made a mistake
Note
(Models of area code CEL, CEK only)
You cannot change the name of an RDS station.
Recording
Before you begin, make sure you’ve connected
all components properly.
Recording on an audio tape
or MiniDisc
You can record on a cassette tape or MiniDisc
using the receiver. See the operating
instructions of your cassette deck or MD deck
if you need help.
Other Operations
You can enter a name (index name) of up to 8
characters for preset stations and program
sources. These names (for example, “VHS”)
appear in the receiver’s display when a station
or program source is selected. Note that no
more than one name can be entered for each
preset station or program source.
This function is useful for distinguishing
components of the same kind. For example,
two VCRs can be specified as “VHS” and
“8MM”, respectively. It is also handy for
identifying components connected to jacks
meant for another type of component, for
example, a second CD player connected to the
MD/TAPE jacks.
1 Select the component to be recorded.
2 Prepare the component for playing.
For example, insert a CD into the CD
player.
3 Insert a blank tape or MD into the
recording deck and adjust the
recording level, if necessary.
4 Start recording on the recording deck,
then start playback on the playback
component.
Notes
• Sound adjustments do not affect the signal output
from the MD/TAPE OUT jacks.
• When MULTI CH IN is selected, the analog audio
signals of the current function is output from the
REC OUT jack (STR-DE585 and STR-DE485
only).
continued
Press MENU or MENU repeatedly
until the character to be changed flashes,
then press MENU + or MENU – to select
the right character.
35GB
Recording (continued)
Recording on a video tape
You can record from a VCR, a TV, a DVD
player or an LD player using the receiver. You
can also add audio from a variety of audio
sources when editing a video tape. See the
operating instructions of your VCR or LD
player if you need help.
1 Select the program source to be
recorded.
2 Prepare the component for playing.
For example, insert the laser disc you want
to record into the LD player.
3 Insert a blank video tape into the VCR
(VIDEO 1) for recording.
4 Start recording on the recording VCR,
then start playing the video tape or
laser disc you want to record.
Tip
You can record the sound from any audio source onto
a video tape while copying from a video tape or laser
disc. Locate the point where you want to start
recording from another audio source, select the
program source, then start playback. The audio from
that source will be recorded onto the audio track of
the video tape instead of the audio from the original
medium. To resume audio recording from the original
medium, select the video source again.
Notes
• Make sure to make both digital and analog
connections to the VIDEO 2 and DVD/LD inputs.
Analog recording is not possible if you make only
digital connections.
• When MULTI CH IN is selected analog audio
signals of the current function is output from the
REC OUT jacks (STR-DE585 and STR-DE485
only).
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press SLEEP on the front panel (STRDE485E only) or on the remote while the
power is on.
Each time you press the button, the display
changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00
t OFF
The display dims after you have specified the
time.
Tips
• You can freely specify the time. After pressing
SLEEP, specify the time you want using the MENU
/
or MENU +/– on the receiver. The sleep
time changes in 1 minute intervals. You can specify
up to 5 hours.
• To check the remaining time before the receiver
turns off, press SLEEP. The remaining time
appears in the display.
Adjustments using the SET
UP button
The SET UP button allows you to make the
following adjustments.
1 Press SET UP.
2 Press MENU
or MENU
to select
the parameter you want to adjust.
3 Press MENU + or MENU – to select the
setting you want.
The setting is entered automatically.
4 Repeat steps 2 and 3 until you have set
all of the parameters that follow.
36GB
Initial settings
Parameter
Initial setting
C.MODE.AVX
PRO LOGIC
*
AV2
II MOVIE
* STR-DE585 only
x Selecting the command mode of the
remote (C.MODE.AVX)
Lets you select the command mode of the
remote. Change the command mode when you
use 2 Sony receivers in the same room.
x 2ch decode mode (
PRO LOGIC
)
• When set to “DOLBY PL”, the receiver
performs the Pro logic decoding. The source
recorded in 2 channel is decoded into 4
channels.
Other Operations
Lets you specify the type of decoding for the 2
channel source. This receiver incorporates with
Dolby Pro Logic II which has movie mode and
music mode, and the receiver can reproduce the
2 channel sound in 5.1 channel through Dolby
Pro Logic II.
• When set to “II MOVIE”, the receiver
performs the Pro Logic II movie mode
decoding. This setting is ideal for the movies
encoded in Dolby Surround. Besides, this
mode can reproduce the sound in 5.1 channel
when watching the videos of old movies or
in the dubbed language.
• When set to “II MUSIC”, the receiver
performs the Pro Logic II music mode
decoding. This setting is ideal for the normal
stereo sources, such as CDs.
Note
Dolby Pro Logic II does not function for DTS or
MPEG format signals.
37GB
Operations Using the Remote RM-PP506
For STR-DE585 area code CA only
You can use the remote RM-PP506 to operate
the components in your system.
Remote button
description
Before you use your
remote
USE MODE
VIDEO 1
AUX
Inserting batteries into the
remote
MONITOR
?/1
AV ? / 1
SLEEP
VIDEO 2
SYSTEM
STANDBY
VIDEO 3
DVD/LD
TV/SAT
MD/TAPE CD/SACD
TUNER
PHONO
AV1
AV2
3RD
2ND ROOM
1
2
3
4
5
6
7
8
9
(SOURCE)
Insert R6 (size-AA) batteries with the + and –
properly oriented in the battery compartment.
When using the remote, point it at the remote
sensor g on the receiver.
TV/VIDEO
SEARCH
MODE
INPUT MODE
AUDIO
SPLIT
WIDE
CLEAR
SHIFT
– /– –
>10
/11
– SUB CH +
m
POSITION
– VOL +
n
SWAP
>
MUTING
P IN P
X
x
SOUND FIELD
2CH
MODE
TEST
TONE
TITLE/
GUIDE
D. SKIP/
CH/PRESET
PRESET
NIGHT
MODE
EQ/
TONE
MULTI/2CH
A. DIRECT
AV
MENU
ON
SCREEN
MUTING
Tip
MAIN
MENU
Under normal conditions, the batteries should last for
about 6 months. When the remote no longer operates
the receiver, replace all batteries with new ones.
DISC
JUMP
/12
.
N
AUTO DEC
AV
DISPLAY
/10
M
ANT
TV/VTR
ENTER
0
D.TUNING
MASTER
VOL
ENTER/
EXEC
EXIT/
RETURN
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
The tables below show the settings of each
button.
38GB
Remote
Button
Operations
Function
SLEEP
Receiver
Activates the sleep
function and the duration
which the receiver turns
off automatically.
?/1
Receiver
Turns the receiver on or off.
Operations
Function
Remote
Button
VIDEO 1
Receiver
To watch VCR.
(VTR mode 3)
NIGHT
MODE
Receiver
Press to select NIGHT
MODE.
VIDEO 2
Receiver
To watch VCR.
(VTR mode 1)
EQ/
TONE
Receiver
EQ ON/OFF.
VIDEO 3
Receiver
To watch VCR.
(VTR mode 2)
Receiver
Selects MULTI CH IN.
DVD/LD
Receiver
To watch DVD or laser
disc.
MULTI/
2CH A.
DIRECT
Receiver
To watch TV programs
or satellite receiver.
ON
SCREEN
Receiver
TV/SAT
To display the menus of
the receiver on the TV
screen.
AUX
Receiver
To listen to an audio
equipment.
MUTING
Receiver
Mutes the sound from the
receiver.
MD/TAPE Receiver
To listen to Minidisc
or audio tape.
U/u
Receiver
Selects a menu item.
I/i
Receiver
Makes adjustment or
change the setting.
MAIN
MENU
Receiver
Press this button
repeatedly to select one
of the four cursor modes:
SURR, LEVEL, SET UP
and NAME.
MASTER
VOL +/–
Receiver
Adjusts the master
volume of the receiver.
AV ?/1
TV/VCR/
Turns the audio and
CD player/
video components on or
VCD player/ off.
LD player/
DVD player/
MD deck/
DAT deck
SYSTEM
STANDBY
(Press
AV ?/1
and ?/1
at the
same time)
Receiver/TV/ Turns off the receiver and
VCR/Satellite other Sony audio/video
tuner/
components.
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
CD/SACD Receiver
To listen to compact disc.
TUNER
To listen to radio
programs.
Receiver
PHONO
Receiver
To listen to turntable.
INPUT
MODE
Receiver
Selects input mode for
your digital components.
AUDIO
SPLIT
Receiver
To assign the audio input
for each function.
SHIFT
Receiver
Press repeatedly to select
a memory page for
presetting radio stations
or tuning to preset
stations.
D.TUNING Receiver
Tuner station direct keyin-mode.
AUTO DEC Receiver
Selects AUTO
DECODING mode.
MODE +/– Receiver
Selects sound field mode.
2CH
Receiver
Selects 2CH mode.
PRESET
Receiver
Selects preset sound field
(e.g. Cinema Studio
EX A, B, C)
TEST
TONE
Receiver
Press to output test tone.
Operations
Function
Operations Using the Remote RM-PP506
Remote
Button
continued
39GB
Remote Button Description
(continued)
Remote
Button
Operations
Function
0–9
Receiver
Use with “SHIFT” button
to select tuner preset
station numeric input
during DIRECT
TUNING or MEMORY
mode.
CD player/
Selects track numbers.
VCD player/ 0 selects track 10.
LD player/
MD deck/
DAT deck
Remote
Button
Operations
Function
D.SKIP /
CH/
Receiver
Scans and selects preset
stations.
PRESET
+/–
TV/VCR/
Selects preset channels.
Satellite tuner
CD player/
Skips discs (multi-disc
VCD player/ changer only).
DVD player/
MD deck
N
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
Starts play.
X
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
Pauses play or record.
(Also starts recording
with components in
record standby.)
x
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
Stops play.
TV/VCR/
Selects channel numbers.
Satellite tuner
ENTER
TV/VCR/
Satellite tuner/
VCD player/
LD player/
MD deck/
DAT deck/
Tape deck
>10
CD player/
Selects track numbers
VCD player/ over 10.
LD player/
MD deck/
Tape deck
m/M CD player/
VCD player/
DVD player/
VCR/
LD player/
MD deck/
DAT deck/
Tape deck
./> VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
40GB
After selecting a channel,
disc or track using the
numeric buttons, press to
enter the value.
Searches tracks
(forward or backward).
Fastforwards or
rewinds.
Skips tracks.
AV
TV/VCR/
DISPLAY VCD player/
LD player/
DVD player
Selects information
displayed on the TV
screen.
TITLE/
GUIDE
VCR/Satellite Displays title and guide.
tuner/
DVD player
AV
MENU
VCR/Satellite Displays menu.
tuner/
DVD player
U/u/I/i
VCR/Satellite Selects a menu item.
tuner/
DVD player
Remote
Button
Operations
Function
ENTER/
EXEC
VCR/Satellite Enters the selection.
tuner/
DVD player
EXIT/
VCR/Satellite Returns to the previous
RETURN tuner/
menu or exits the menu.
DVD player
n
Tape deck
ANT
TV/ VTR
VCR
DISC
Starts play on the reverse
side.
Remote
Button
Operations
Function
MUTING
(with
PAUSE)
TV
Mutes the sound from
TV.
P IN P*
TV
Activates the picture-inpicture function.
USE
MODE
Remote
Use to program the
remote.
AV 1
Remote
Selects the mode of the
remote.
Remote
Selects 2ND AV output.
Selects output signal
from aerial terminal: TV
signal or VCR program.
AV 2
CD player/
VCD player
Selects discs (multi-disc
changer only).
2ND ROOM
O
VCD player
Press to go back to the
previous menu.
SOURCE
TV/
VIDEO
TV/VCR
Selects input signal: TV
input or video input.
* Only for Sony TVs with the picture-in-picture
function.
-/--
TV/VCR
Selects the channel
entry mode, either one
or two digit.
SEARCH
MODE
DVD player
Selects searching mode.
CLEAR
DVD player
Press if you made a
mistake when you press
the number button.
3RD
Notes
MONITOR TV
Press to activate TV
control buttons. Press
again to restore original
category.
WIDE
TV
Selects the wide picture
mode.
JUMP
TV
Toggles between the
previous and the current
channels.
SUB
CH+/–*
TV
Selects preset channels
for the small picture.
Set the remote mode using the USE MODE
button and the remote mode buttons.
POSITION* TV
Changes the position of
the small picture.
Selecting the command mode
SWAP*
TV
Swaps the small and
the large picture.
VOL
+/–*
TV
Adjusts the volume of the
TV.
Operations Using the Remote RM-PP506
• Some functions explained in this section may not
work depending on the model of the receiver.
• The above explanation is intended to serve as an
example only.
Therefore, depending on the component the above
operation may not be possible or may operate
differently than described.
• The VIDEO 3, TV/SAT, AUX, PHONO, AUDIO
SPLIT, NIGHT MODE, EQ/TONE, ON SCREEN,
/10, /11, /12, 3RD, 2ND ROOM and SOURCE
functions are not available for set operation.
Selecting the mode of the
remote
You can switch the command mode (AV1 or
AV2) of the remote. If the command mode of
the receiver and the remote is different, you
cannot use the remote to operate the receiver.
Press 1 (AV1) (or 2 (AV2)) while pressing
down USE MODE
The indicator lights once (twice for AV2) , then
the command mode switches.
continued
41GB
Selecting the mode of the remote
(continued)
To check the mode of the remote
Press USE MODE. You can check the remote
by the indicator.
Mode
Indicator lights
AV1
once
AV2
twice
To reset the remote to factory
settings
Press =/1, AV =/1, and MASTER VOL – at
the same time.
The indicator lights 3 times, then goes off.
Programming the remote
You can program the remote to control nonSony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Futhermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
Note
When you assign a component to the MONITOR
button, you can operate the programmed component
without changing the function of the receiver.
1 Press AV ?/1 while pressing down USE
MODE.
The indicator lights.
2 Press the function button (including
MONITOR) for the component you want
to control.
For example, if you are going to control a
CD player, press CD/SACD.
42GB
3 Press the numeric buttons to enter the
numeric code (or one of the codes if
more than one code exists)
corresponding to the component and
the maker of the component you want
to control.
See the tables on pages 43 and 44 for
information on the numeric code(s)
corresponding to the component and the
maker of the component (the first digit and
the last two digits of the numeric code
correspond to the category and the maker’s
code respectively.)
4 Press ENTER.
Once the numeric code has been verified,
the indicator slowly flashes twice and the
remote automatically exits the programming
mode.
5 Repeat steps 1 to 4 to control other
components.
To cancel programming
Press USE MODE during any step. The remote
automatically exits the programming mode.
To activate the function after
programming.
Press the programmed button to activate the
function you want.
If programming is unsuccessful,
check the following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 4 times in quick succession
while entering the numeric code, an error has
occurred. Start again from step 1.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if several function buttons are pressed,
only the last pressed button is valid.
• In step 3, if a function button is pressed, the new
function is selected and the programming
procedure returns to the beginning of step 3.
• For the numeric codes, only the first three numbers
entered are valid.
To clear the memory of the remote
To control a DAT deck
To clear all programmed and learned signals,
do the following to reset the remote to factory
settings.
Maker
Press ?/1, AV ?/1 and MASTER VOL – at
the same time.
The indicator flashes 3 times, then goes off.
Code(s)
SONY
203
PIONEER
219
To control an MD deck
Maker
Code(s)
The numeric codes corresponding to
the component and the maker of the
component
SONY
301
DENON
302
JVC
303
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
KENWOOD
304
Notes
PANASONIC
216
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the functions on this remote may not be
available when used with your particular
component.
PHILIPS
211, 212
PIONEER
213, 214
To control a tape deck
Maker
Code(s)
201, 202
DENON
204, 205
KENWOOD
206, 207, 208, 209
NAKAMICHI
210
TECHNICS
215, 216
YAMAHA
217, 218
To control an LD player
To control a CD player
Maker
Maker
Code(s)
SONY
601, 602, 603
SONY
101, 102, 103
PIONEER
606
DENON
104, 123
JVC
105, 106, 107
KENWOOD
108, 109, 110
MAGNAVOX
111, 116
MARANTZ
116
ONKYO
112, 113, 114
PANASONIC
115
PHILIPS
116
PIONEER
117
TECHNICS
115, 118, 119
YAMAHA
120, 121, 122
Code(s)
To control a video CD player
Maker
Code(s)
SONY
605
continued
Operations Using the Remote RM-PP506
SONY
43GB
Programming the remote (continued)
To control a VCR
Maker
Code(s)
SONY
701, 702, 703, 704, 705,
706
AIWA
710, 750, 757, 758
AKAI
707, 708, 709, 759
BLAUPUNKT
740
EMERSON
711, 712, 713, 714, 715,
716, 750
FISHER
717, 718, 719, 720
GENERAL ELECTRIC
721, 722, 730
GOLDSTAR
723, 753
GRUNDIG
724
HITACHI
722, 725, 729, 741
ITT/NOKIA
717
JVC
726, 727, 728, 736
MAGNAVOX
730, 731, 738
MITSUBISHI/MGA
732, 733, 734, 735
NEC
736
PANASONIC
729, 730, 737, 738, 739,
740
PHILIPS
729, 730, 731
PIONEER
729
RCA/PROSCAN
722, 729, 730, 731, 741,
747
Maker
Code(s)
SONY
501
DAEWOO
504, 505, 506, 507, 515,
544
FISHER
508
GOLDSTAR
503, 511, 512, 515, 534,
544
GRUNDIG
517, 534
HITACHI
513, 514, 515, 544
ITT/NOKIA
521, 522
JVC
516
MAGNAVOX
503, 518, 544
MITSUBISHI/MGA
503, 519, 544
NEC
503, 520, 544
PANASONIC
509, 524
PHILIPS
515, 518
PIONEER
509, 525, 526, 540
RCA/PROSCAN
510, 527, 528, 529, 544
SAMSUNG
503, 515, 531, 532, 533,
534, 544
SANYO
508, 545
SHARP
535
TELEFUNKEN
523, 536, 537, 538
THOMSON
530, 537, 539
TOSHIBA
535, 540, 541
ZENITH
542, 543
SAMSUNG
742, 743, 744, 745
SANYO
717, 720, 746
SHARP
748, 749
To control a satellite tuner or cable
box
TELEFUNKEN
751, 752
Maker
TOSHIBA
747, 755, 756
SONY
801, 802, 803
ZENITH
754
JERROLD/G.I.
806, 807, 808, 809, 810,
811, 812, 813, 814
PANASONIC
818
RCA
804, 805
S. ATLANTA
815, 816, 817
To control a DVD player
44GB
To control a TV
Maker
Code(s)
SONY
401
PANASONIC
402, 406
PHILIPS
407
PIONEER
403
TOSHIBA
404
DENON
405
Code(s)
Operations Using the Remote RM-U306
Except for STR-DE585 area code CA
You can use the remote RM-U306 to operate
the components in your system.
Remote button
description
Before you use your
remote
AV
?/1
SLEEP
?/1
SYSTEM
STANDBY
Inserting batteries into the
remote
VIDEO 1
VIDEO 2
MD/TAPE
CD
TUNER
TOP MENU
DVD MENU
F
1
Insert R6 (size-AA) batteries with the + and –
properly oriented in the battery compartment.
When using the remote, point it at the remote
sensor g on the receiver.
DVD/LD
2
G
3
g
ENTER
4
5
6
O
f
7
8
9
SHIFT
D.TUNING
0
>10
-
ENTER
RETURN
– CH/PRESET +
.
>
TV/VIDEO
ANT
TV/VTR
]
}
m
}
M
X
N
]
D.SKIP
x
SOUND FIELD
MODE
TEST TONE
MAIN MENU
MULTI CH
MENU
Operations Using the Remote RM-U306
A.DEC
2CH
MUTING
Tip
MASTER
VOL
Under normal conditions, the batteries should last for
about 6 months. When the remote no longer operates
the receiver, replace all batteries with new ones.
TV VOL
Notes
TV CH
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
The tables below show the settings of each
button.
Remote
Button
Operations
Function
SLEEP
Receiver
Activates the sleep
function and the duration
which the receiver turns
off automatically.
?/1
Receiver
Turns the receiver on or
off.
continued
45GB
Remote button description
(continued)
46GB
Remote
Button
Operations
Function
VIDEO 1
Receiver
To watch VCR.
(VTR mode 3)
VIDEO 2
Receiver
To watch VCR.
(VTR mode 1)
DVD/LD
Receiver
To watch DVD or laser
disc.
MD/TAPE Receiver
To listen to Minidisc or
audio tape.
CD
Receiver
To listen to compact disc.
TUNER
Receiver
To listen to radio
programs.
SHIFT
Receiver
Press repeatedly to select
a memory page for
presetting radio stations
or tuning to preset
stations.
D.TUNING Receiver
Tuner station direct keyin-mode.
A.DEC
Receiver
Selects AUTO
DECODING mode.
MODE
Receiver
Selects sound field mode.
2CH
Receiver
Selects 2CH mode.
TEST
TONE
Receiver
Press to output test tone.
MAIN
MENU
Receiver
Press this button
repeatedly to select one
of the four cursor modes:
SURR, LEVEL, SET UP
and NAME.
MULTI CH Receiver
Selects MULTI CH IN
source.
MENU </> Receiver
Selects a menu item.
MENU +/– Receiver
Makes adjustment or
change the setting.
MUTING Receiver
Mutes the sound from the
receiver.
Remote
Button
Operations
Function
MASTER Receiver
VOL +/–
Adjusts the master
volume of the receiver.
AV ?/1
TV/VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck
Turns the audio and
video components on or
off.
SYSTEM
STANDBY
(Press AV
?/1 and
?/1 at
the same
time)
Receiver/TV/ Turns off the receiver and
VCR/Satellite other Sony audio/video
tuner/
components
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
0-9
Receiver
Use with “SHIFT” button
to select tuner preset
station numeric input
during DIRECT
TUNING or MEMORY
mode.
CD player/
VCD player/
LD player/
MD deck/
DAT deck
Selects track numbers.
0 selects track 10.
TV/VCR/
Selects channel numbers.
Satellite tuner
>10
CD player/
VCD player/
LD player/
MD deck/
Tape deck
Selects track numbers
over 10.
ENTER
TV/VCR/
Satellite tuner/
LD player/
MD deck/
DAT deck/
Tape deck
After selecting a channel,
disc or track using the
numeric buttons, press to
enter the value.
Remote
Button
Operations
RETURN VCD player
CH/
PRESET
+/-
Receiver
Function
Remote
Button
Operations
Function
Go back to previous
menu.
Scans and selects preset
stations.
ANT
TV/VTR
VCR
Selects output signal
from the aerial terminal:
TV signal or VCR
program.
D.SKIP
CD player/
VCD player/
DVD player/
MD deck
Skips discs (multi-disc
changer only).
TOP
MENU
DVD player
Displays DVD title.
DVD
MENU
DVD player
Displays DVD menu.
TV/VCR/
Selects preset channel.
Satellite tuner
Skips tracks.
m/M
CD player/
VCD player/
DVD player
Searches tracks (forward
or backward)
VCR/
LD player/
MD deck/
DAT deck/
Tape deck
Fastforwards or rewinds.
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
Starts play.
X
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
Pauses play or record.
(Also start recording
with components in
record standby.)
x
VCR/
CD player/
VCD player/
LD player/
DVD player/
MD player/
DAT deck/
Tape deck
Stops play.
N
ENTER
DVD player
Enters the selection.
O
DVD player
Returns to the previous
menu or exits the menu.
V/v/B/b
DVD player
Selects a menu item.
÷
TV
Selects the channel entry
mode, either one or two
digit
TV/VIDEO TV
Selects input signal: TV
input or video input.
TV VOL
+/–
TV
Adjusts the volume of the
TV
TV CH
+/–
TV
Selects preset TV
channels
Notes
• When you press the function buttons (VIDEO 1,
VIDEO 2, DVD/LD), the input mode of the TV
might not switch to the corresponding input mode
that you want. In this case, press the TV/VIDEO
button to switch the input mode of the TV.
• Some functions explained in this section may not
work depending on the model of the receiver.
• The above explanation is intended to serve as an
example only.
Therefore, depending on the component the above
operation may not be possible or may operate
differently than described.
• The MULTI CH function is not available for set
operation (STR-DE485E only).
Operations Using the Remote RM-U306
./> VCR/
CD player/
VCD player/
LD player/
DVD player/
MD deck/
DAT deck/
Tape deck
47GB
Changing the factory
setting of a function button
If the factory settings of the FUNCTION
buttons do not match your system components,
you can change them. For example, if you have
a tape deck and you do not have an MD deck,
you can assign the MD/TAPE button to your
tape deck.
Note that the settings of the TUNER button
cannot be changed.
1 Hold down the Function button whose
function you want to change (for
example, MD/TAPE).
2 Press the corresponding button of the
component you want to assign to the
Function button (for example, 4 – Tape
deck).
The following buttons are assigned to select
the functions:
To operate
CD player
Press
1
DAT deck
2
MD deck
3
Tape deck A
4
Tape deck B
5
LD player
6
VCR (command mode VTR 1*)
7
VCR (command mode VTR 2*)
8
VCR (command mode VTR 3*)
9
TV
DSS (Digital Satellite Receiver)
DVD
VCD player
0
>10
ENTER
.
* Sony VCRs are operated with a VTR 1, 2 or 3
setting. These correspond to Beta, 8mm and
VHS respectively.
Now you can use the MD/TAPE button to
control the tape deck.
48GB
To reset a button to its factory
setting
Repeat the above procedure.
To reset all the function buttons to
their factory setting
Press ?/1, AV ?/1 and MASTER VOL – at
the same time.
Additional Information
Precautions
On safety
Should any solid object or liquid fall into the cabinet,
unplug the receiver and have it checked by qualified
personnel before operating it any further.
On power sources
• Before operating the unit, check that the operating
voltage is identical with your local power supply.
The operating voltage is indicated on the nameplate
at the rear of the receiver.
• The unit is not disconnected from the AC power
source (mains) as long as it is connected to the wall
outlet, even if the receiver itself has been turned off.
• If you are not going to use the receiver for a long
time, be sure to disconnect the receiver from the
wall outlet. To disconnect the AC power cord,
grasp the plug itself; never pull the cord.
• (Models of area code U, CA only)
One blade of the plug is wider than the other for the
purpose of safety and will fit into the wall outlet
only one way. If you are unable to insert the plug
fully into the outlet, contact your dealer.
• AC power cord must be changed only at the
qualified service shop.
On heat buildup
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and prolong the
life of the receiver.
• Do not place the receiver near heat sources, or in a
place subject to direct sunlight, excessive dust or
mechanical shock.
• Do not place anything on top of the cabinet that
might block the ventilation holes and cause
malfunctions.
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem. Also, see “Checking the connections”
on page 20 to verify that the connections are
correct. Should any problem persist, consult
your nearest Sony dealer.
There is no sound or only a very low-level sound
no matter which component is selected.
• Check that the speakers and components are
connected securely and correctly.
• Check that both the receiver and all components
are turned on.
• Check that the MASTER VOLUME control is
not set at VOL MIN.
• Press MUTING to cancel the muting function.
• Check that the headphones are not connected.
• The protective device on the receiver has been
activated because of a short circuit (“PROTECT”
flashes). Turn off the receiver, eliminate the
short-circuit problem and turn on the power
again.
continued
Additional Information
Although the unit heats up during operation, this is
not a malfunction. If you continuously use this unit at
a large volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid burning
yourself, do not touch the cabinet.
Troubleshooting
On operation
Before connecting other components, be sure to turn
off and unplug the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any question or problem concerning your
receiver, please consult your nearest Sony dealer.
49GB
Troubleshooting (continued)
There is no sound from the active sub woofer.
There is no sound output from the SUB WOOFER
terminal depending on the sound field (page 55).
There is no sound from a specific component.
• Check that the component is connected correctly
to the audio input jacks for that component.
• Check that the cord(s) used for the connection is
(are) fully inserted into the jacks on both the
receiver and the component.
• Check that you have selected the correct
component on the receiver.
There is no sound from one of the front
speakers.
Connect a pair of headphones to the PHONES jack
to verify that sound is output from the headphones
(page 21).
If only one channel is output from the headphones,
the component may not be connected to the
receiver correctly. Check that all the cords are fully
inserted into the jacks on both the receiver and the
component.
If both channels are output from the headphones,
the front speaker may not be connected to the
receiver correctly. Check the connection of the
front speaker which is not outputting any sound.
The surround effect cannot be obtained.
Make sure the sound field function is on (press
MODE).
Dolby Digital or DTS multi channel sound is not
reproduced.
• Check that the playing DVD, etc. is recorded in
Dolby Digital or DTS format.
• When connecting the DVD player, etc. to the
digital input jacks of this receiver, check the
audio setting (settings for the audio output) of the
connected component.
Recording cannot be done.
• Check that the components are connected
correctly.
• Select the source component with function
buttons.
• Make sure that INPUT MODE is set to
“ANALOG” (page 21) before recording from a
digital component connected to the analog
MD/TAPE terminals.
To connect an LD player via an RF demodulator.
The left and right sounds are unbalanced or
reversed.
• Check that the speakers and components are
connected correctly and securely.
• Adjust balance parameters in the LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components are
connected securely.
• Check that the connecting cords are away from a
transformer or motor, and at least 3 meters away
from a TV set or fluorescent light.
• Move your TV away from the audio components.
• The plugs and jacks are dirty. Wipe them with a
cloth slightly moistened with alcohol.
There is no sound or only a very low level sound
is heard from the center or/and surround
speaker.
• Make sure the sound field function is on (press
MODE).
• Select a sound field containing the word
“C.ST.EX” (pages 24).
• Adjust the speaker level (page 20).
• Make sure the center or/and surround speaker
size parameter is set to either “SMALL” or
“LARGE” (page 17).
50GB
Connect the LD player to the RF demodulator,
then connect the RF demodulator’s optical or
coaxial digital output to the receiver’s jack. When
making this connection, be sure to set INPUT
MODE manually (page 21). The receiver may not
operate correctly if INPUT MODE is set to
“AUTO IN”.
For details on DOLBY DIGITAL RF hookups, see
the operating instructions supplied with your RF
demodulator.
The FM reception is poor.
Use a 75-ohm coaxial cable (not supplied) to
connect the receiver to an outdoor FM antenna as
shown below. If you connect the receiver to an
outdoor antenna, ground it against lightning. To
prevent a gas explosion, do not connect the ground
wire to a gas pipe.
Receiver
Outdoor FM antenna
ANTENNA
AM
FM
75Ω
COAXIAL
Ground wire
(not supplied)
To ground
Radio stations cannot be tuned in.
• Select the appropriate function on the receiver.
• Set your TV to the appropriate input mode.
• Move your TV away from the audio components.
The remote does not function.
• For RM-PP506 (STR-DE585 area code CA
only).
The VIDEO 3, TV/SAT, AUX, PHONO,
AUDIO SPLIT, NIGHT MODE, EQ/TONE,
ON SCREEN, /10, /11, /12, 3RD, 2ND ROOM
and SOURCE on the remote are not available
• For RM-U306 (STR-DE485E only)
The MULTI CH button on the remote is not
available.
• Point the remote at the remote sensor g on the
receiver.
• Check that the mode of the remote corresponds
to that of the receiver (pages 36 and 41)
(RM-PP506 only).
• Check that you select AV2 as the command
mode of the receiver (page 36) (RM-U306 only).
• Remove any obstacles in the path between the
remote and the receiver.
• Replace both batteries in the remote with new
ones, if they are weak.
• Make sure you select the correct function on the
remote.
• If the remote is set to operate the TV only, use
the remote to select a source or component other
than TV before operating the receiver or other
component.
* Models of area code CEL, CEK only.
RDS does not work.*
• Make sure that you’re tuned to an FM RDS
station.
• Select a stronger FM station.
The RDS information that you want does not
appear.*
Clearing the receiver’s memory
To clear
See
All memorized settings
page 15
Customized sound fields
page 27
Additional Information
• Check that the antennas are connected securely.
Adjust the antennas and connect an external
antenna if necessary.
• The signal strength of the stations is too weak
(when tuning in with automatic tuning). Use
direct tuning.
• Make sure you set the tuning interval correctly
(when tuning in AM stations with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the stations
(page 32).
• Press DISPLAY so that the frequency appears in
the display.
There is no picture or an unclear picture appears
on the TV screen or monitor.
Contact the radio station and find out whether they
actually provide the service in question. If so, the
service may be temporarily out of order.
51GB
Specifications
AUDIO POWER SPECIFICATIONS
1) Depending on the sound field settings and the
source, there may be no sound output.
2) Measured under the following conditions:
Area code
Power requirements
E2/E3, AU
240 V AC, 50 Hz
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
SP, CEL, CEK, AR
230 V AC, 50 Hz
TW
110 V AC, 60 Hz
With 8 ohm loads, both channels driven, from
40 – 20,000 Hz; rated 80 watts per channel
minimum RMS power, with no more than
0.09 % total harmonic distortion from 250
milliwatts to rated output (STR-DE485 area
code U only).
MX
120 V AC, 60 Hz
Amplifier section
POWER OUTPUT
Models of area code U, CA
Rated Power Output at Stereo Mode
(8 ohms 40 Hz – 20 kHz, THD 0.09 %)
STR-DE585*:
100 W + 100 W
STR-DE485:
80 W + 80 W
Reference Power Output
(8 ohms 1 kHz, THD 0.7 %)
STR-DE585*:
FRONT1):100 W/ch
CENTER1): 100 W
SURR1): 100 W/ch
STR-DE485:
FRONT1): 80 W/ch
CENTER1): 80 W
SURR1): 80 W/ch
Frequency response
MULTI CH IN
(STR-DE 585 and
STR-DE485 only),
CD, MD/TAPE, DVD/
LD, VIDEO 1, 2
10 Hz – 50 kHz
+0.5/–2 dB (with sound
field, and tone bypassed)
Inputs (Analog)
MULTI CH IN
(STR-DE 585 and
STR-DE485 only),
CD, MD/TAPE, DVD/
LD, VIDEO 1, 2
Sensitivity: 250 mV
Impedance: 50 kilohms
S/N3): 96 dB
(A, 250 mV4))
3) INPUT SHORT (with sound field and tone
bypassed).
4) Weighted network, input level.
Inputs (Digital)
DVD/LD (Coaxial)
* Models of area code CA only.
Models of area code CEL,CEK
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0.7 %)
STR-DE585:
100 W + 100 W2)
STR-DE485E:
80 W + 80 W2)
Reference Power Output2)
(8 ohms 1 kHz, THD 0.7 %)
STR-DE585:
FRONT1):100 W/ch
CENTER1): 100 W
SURR1): 100 W/ch
STR-DE485E:
FRONT1): 80 W/ch
CENTER1): 80 W
SURR1): 80 W/ch
Models of other area code
Rated Power Output at Stereo Mode
(8 ohms 1 kHz, THD 0.7 %)
STR-DE485:
80 W + 80 W2)
Reference Power Output2)
(8 ohms 1 kHz, THD 10 %)
STR-DE485:
FRONT1): 100 W/ch
CENTER1): 100 W
SURR1): 100 W/ch
52GB
VIDEO 2 (Optical)
Outputs
MD/TAPE (OUT),
VIDEO 1
(AUDIO OUT)
SUB WOOFER
Tone
Gain levels:
Sensitivity: –
Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Sensitivity: –
Impedance: –
S/N: 100 dB
(A, 20 kHz LPF)
Voltage: 250 mV
Impedance: 10 kilohms
Voltage: 2 V
Impedance: 1 kilohms
±6 dB, 1 dB step
FM tuner section
Tuning range
87.5 - 108.0 MHz
Antenna terminals
75 ohms, unbalanced
Intermediate Frequency
10.7 MHz
Sensitivity
Mono:
Stereo:
18.3 dBf, 2.2 µV/75 ohms
38.3 dBf, 22.5 µV/75 ohms
Usable sensitivity
11.2 dBf, 1 µV/75 ohms
S/N
Mono:
Stereo:
General
76 dB
70 dB
Harmonic distortion at 1 kHz
Mono:
0.3%
Stereo:
0.5%
Power requirements
Area code
Power requirements
U, CA, MX
120 V AC, 60 Hz
CEL, CEK
230 V AC, 50/60 Hz
SP, AR
220 – 230 V AC, 50/60 Hz
E2/E3
120/220/240 V AC, 50/60 Hz
TW
110 V AC, 50/60 Hz
AU
240 V AC, 50Hz
Separation
45 dB at 1 kHz
Frequency response
30 Hz – 15 kHz,
+0.5/–2 dB
Area code
Power consumption
U, MX
STR-DE485: 180 W
60 dB at 400 kHz
CA
STR-DE585: 300 VA
STR-DE485: 260 VA
CEL, CEK
STR-DE585: 180 W
STR-DE485E: 155 W
Selectivity
AM tuner section
Tuning range
Models of area code U, CA
With 10-kHz tuning scale: 530 – 1710 kHz5)
With 9-kHz tuning scale: 531 – 1710 kHz5)
Models of area code E2/E3, MX, AR
With 10-kHz tuning scale: 530 – 1610 kHz5)
With 9-kHz tuning scale: 531 – 1602 kHz5)
Models of area code AU, SP, CEL, CEK, TW
With 9-kHz tuning scale: 531 – 1602 kHz
Antenna
Power consumption
AU, SP, E2/E3, AR STR-DE485: 155 W
TW
Power consumption (during standby mode)
0.5 W
430 × 145 × 298 mm
(16 7/8 × 5 6/8 × 11 6/8 in.)
including projecting parts
and controls
Usable sensitivity
50 dB/m (at 1,000 kHz or
999 kHz)
Mass (Approx.)
7.0 kg (15lb 7 oz)
S/N
54 dB (at 50 mV/m)
Harmonic distortion
0.5 % (50 mV/m, 400 Hz)
Selectivity
At 9 kHz:
At 10 kHz:
35 dB
40 dB
5) You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. Hold down PRESET TUNING + and
press ?/1. All preset stations will be erased when
you change the tuning scale. To reset the scale to
10 kHz (or 9 kHz), repeat the procedure.
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
• STR-DE585 only
• Models of area code CA
Remote commander RM-PP506 (1)
R6 (size-AA) batteries (2)
• Models of area code CEL, CEK
Remote commander RM-U306 (1)
R6 (size-AA) batteries (2)
• STR-DE485E/DE485 only
Remote commander RM-U306 (1)
R6 (size-AA) batteries (2)
Additional Information
Dimensions
Loop antenna
Intermediate Frequency
450 kHz
STR-DE485: 400 W
For details on the area code of the component you
are using, see page 4.
Design and specifications are subject to change
without notice.
Video section
Inputs
Video:
1 Vp-p, 75 ohms
Outputs
Video:
1 Vp-p, 75 ohms
53GB
Tables of settings using SURR, LEVEL, SET UP, BASS and
TREBLE buttons
You can make various settings using the LEVEL, SURR, SET UP, MENU +/–, and MENU
buttons. The tables below show each of the settings that these buttons can make.
Press
Press MENU
SURR
EFFECT
LEVEL
L
R
or MENU
to select
BAL. L/R XXX
CTR XXX dB
Press MENU + or MENU – to select
Page
depends on the sound field (15 steps)
27
L +8 to R +8 (1 steps)
28
–10 dB to +10 dB (1 dB steps)
SUR.L. XXX dB
–10 dB to +10 dB (1 dB steps)
SUR.R. XXX dB
–10 dB to +10 dB (1 dB steps)
S.W. XXX dB
–10 dB to +10 dB (1 dB steps)
L.F.E. XXX dB
OFF, –20 dB to 0 dB (1 dB steps)
D. RANGE
SET UP
L
C
SL
SW
L
C
R
COMP. XXX
OFF, 0.1 to 0.9 (0.1 steps), STD, MAX
(FRONT)
LARGE, SMALL
(CENTER)
SR
16
LARGE, SMALL, NO
(SURROUND)
LARGE, SMALL, NO
(SUB WOOFER) S.W. XXX
R
/
YES, NO
DIST. XX.X m
between 1.0 meters and 12.0 meters
(0.1 meters steps)1)
DIST. XX.X m
R DIST. and 1.5 meters
between L
(0.1 meters steps)2)
DIST. XX.X m
R DIST. and 4.5 meters
between L
(0.1 meters steps)3)
SL
SR
SL
SR
PL. XXX
SIDE, MID, BEHD.
SL
SR
HGT. XXX
HIGH, LOW
C.MODE.AVX
AV1, AV2
PRO LOGIC 4)
DOLBY PL,
37
MOVIE,
MUSIC
1) For models of area code U, CA: 3 feet to 40 feet (1 foot steps)
R DIST. and 5 feet (1 foot steps)
2) For models of area code U, CA: between L
3) For models of area code U, CA: between
4) STR-DE585 only.
L
R
DIST. and 15 feet (1 foot steps)
You can make various settings using the BASS +/– and TREBLE +/– buttons. The tables below
show each of the settings that these buttons can make.
54GB
Press
To select
Page
BASS +/–
-6 dB to + 6 dB (1dB steps)
29
TREBLE +/–
-6 dB to + 6 dB (1dB steps)
29
Adjustable parameters for each sound field
The adjusted SURR, BASS and TREBLE parameters are stored in each sound field.
<SURR>
<BASS>
<TREBLE>
EFFECT
LEVEL
2CH ST.
z
z
AUTO DEC.
z
z
NORM.SURR.
z
z
C.ST.EX A
z
z
z
C.ST.EX B
z
z
z
C.ST.EX C
z
z
z
HALL
z
z
z
JAZZ
z
z
z
CONCERT
z
z
z
GAME
z
z
z
MULTI CH IN1)
PCM 96K
The adjusted LEVEL parameters are applied to all the sound fields.
<
LEVEL
>
CENTER
LEVEL
SUR.L.
LEVEL
SUR.R.
LEVEL
S.WOOFER
LEVEL
LFE
MIX2)
D.RANGE
COMP2)
2CH ST.
z
z
z
AUTO DEC.
z
z
z
z
z
z
z
NORM.SURR.
z
z
z
z
z
z
z
C.ST.EX A
z
z
z
z
z
z
z
C.ST.EX B
z
z
z
z
z
z
z
C.ST.EX C
z
z
z
z
z
z
z
HALL
z
z
z
z
z3)
z
z
JAZZ
z
z
z
z
z3)
z
z
CONCERT
z
z
z
z
z3)
z
z
GAME
z
z
z
z
z
z
z
MULTI CH IN1)
z
z
z
z
z
PCM 96K
z
Additional Information
FRONT
BAL
1) STR-DE585 and STR-DE485 only.
2) These parameters may not operate depending on the source or adjustments. For details, see each item in
“Adjusting the level parameters” (page 27).
3) When these sound fields are selected, there is no sound output from the sub woofer if the front speaker size is
set to “LARGE”. However, sound will be output from the sub woofer if the digital input signal contains L.F.E.
signals.
55GB
Sony Corporation
Printed in Indonesia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
