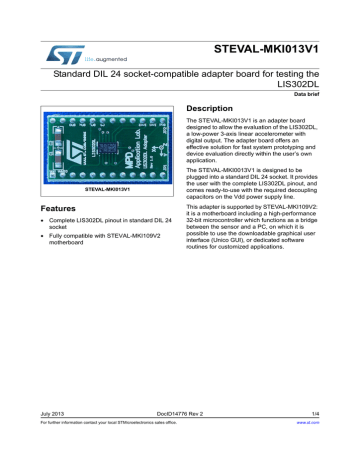

STEVAL-MKI013V1 Standard DIL 24 socket-compatible adapter board for testing the LIS302DL Description

STEVAL-MKI013V1 Standard DIL 24 socket-compatible adapter board for testing the LIS302DL Description
STEVAL-MKI013V1
Standard DIL 24 socket-compatible adapter board for testing the
LIS302DL
Data brief
Description
The STEVAL-MKI013V1 is an adapter board
designed to allow the evaluation of the LIS302DL,
a low-power 3-axis linear accelerometer with
digital output. The adapter board offers an
effective solution for fast system prototyping and
device evaluation directly within the user’s own
application.
The STEVAL-MKI0013V1 is designed to be
plugged into a standard DIL 24 socket. It provides
the user with the complete LIS302DL pinout, and
comes ready-to-use with the required decoupling
capacitors on the Vdd power supply line.
STEVAL-MKI013V1
Features
• Complete LIS302DL pinout in standard DIL 24
socket
• Fully compatible with STEVAL-MKI109V2
motherboard
July 2013
This adapter is supported by STEVAL-MKI109V2:
it is a motherboard including a high-performance
32-bit microcontroller which functions as a bridge
between the sensor and a PC, on which it is
possible to use the downloadable graphical user
interface (Unico GUI), or dedicated software
routines for customized applications.
DocID14776 Rev 2
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
DocID14776 Rev 2
1
2
3
4
5
6
P02
P13
P01
P13
P13
P01
VDD
GND
GND
Rsvd
GND
Vdd_IO
P20
14
SDO
SDA
Int1
Int2
GND
Reserved
SCL
CS
2/4
7
P21
P22
P13
P13
P15
P14
13
12
11
10
9
8
LIS302DL
C1
100nF
P13
P01
+ C2
10uF
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
JP2
24
23
22
21
20
19
18
17
16
15
14
13
Header 12 Header 12
1
2
3
4
5
6
7
8
9
10
11
12
JP1
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
1
P19
Schematic diagram
STEVAL-MKI013V1
Schematic diagram
Figure 1. STEVAL-MKI013V1 circuit schematic
STEVAL-MKI013V1
2
Revision history
Revision history
Table 1. Document revision history
Date
Revision
Changes
06-Jun-2008
1
Initial release.
10-Jul-2013
2
Updated description.
Added new features.
