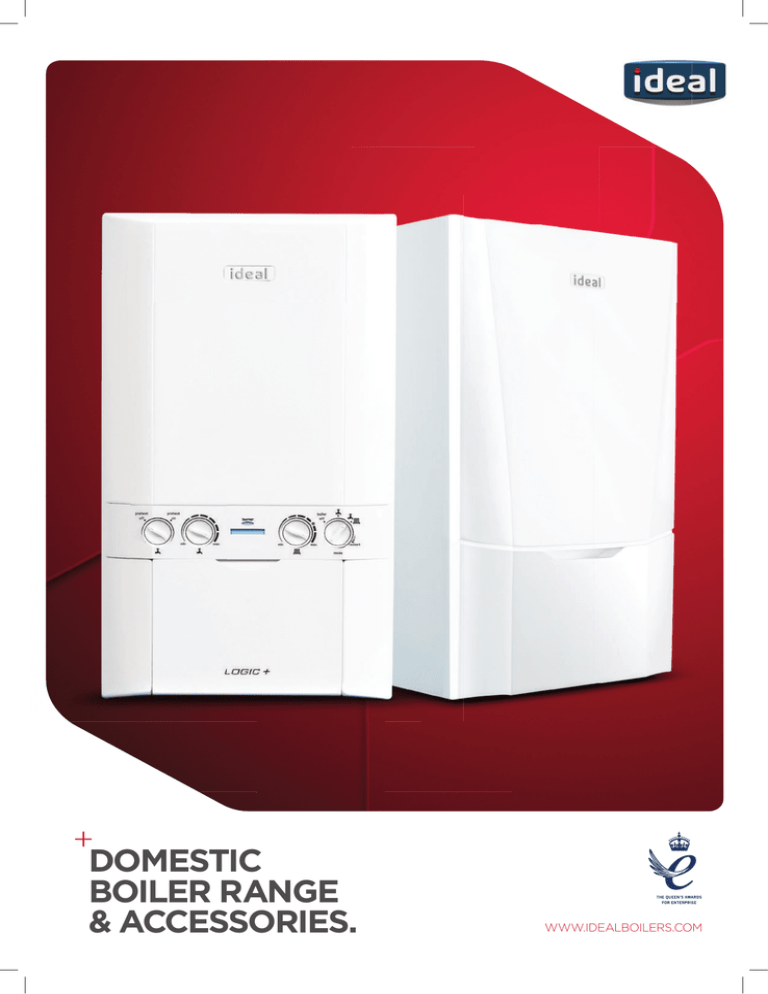

DOMESTIC

BOILER RANGE

& ACCESSORIES.

WWW.IDEALBOILERS.COM

WELCOME TO

FIRST CLASS.

As technologies continue to develop, we understand that you want a long term partner who has the skills and expertise to deliver you a wide range of practical and reliable hot water and heating solutions, that are simple to install and easy to service.

When you choose to work with Ideal you can be confi dent in the knowledge that our rigorous research and development procedures ensure that our products are not only reliable, but have also been designed and built with you in mind.

Here at Ideal Boilers, we can provide you with just that.

We offer dedicated one to one support throughout the design, planning and aftersales service.

CONTENTS.

GET MORE WITH IDEAL

04-05 SERVICE & SUPPORT

THE LOGIC+ RANGE

06-15 LOGIC+ COMBI

LOGIC+ SYSTEM

LOGIC+ HEAT ONLY

THE VOGUE RANGE

16-21 VOGUE COMBI

VOGUE SYSTEM

KITS & CONTROLS

22-24 THERMOSTATS & TIMERS

25 LPG CONVERSION KITS

HIGH EFFICIENCY CYLINDERS

26-29 THERMSTORE

FLUE SITING & FLUE KITS

30 FLUE SITING

31 FLUE KITS

GET MORE WITH IDEAL

04

GET MORE

WITH IDEAL.

AFTERSALES

SUPPORT

With a range of tools to help you grow your business, Ideal is on hand to ensure you have the support you need.

Our dedicated Customer Service department is available

364 days a year, 8am to 8pm Monday to Friday, as well as

8am to 4pm on a Saturday and bank holidays and 8am to

12 noon on a Sunday.

Installer Helpline

01482 498663

Homeowner Helpline

01482 498660

We also have a team of expert engineers, fully trained to exacting standards and Gas Safe registered, on hand to provide one-to-one advice on the road, over the phone or online ensuring you’re fully supported, wherever and whenever you need.

SERVICE

REMINDERS

Ideal Service Reminders are designed so you don’t miss out on any of the service revenue from the Ideal boilers you fi t.

For every Ideal boiler you install, Ideal will…

1

Contact your customer a month before the service is due to remind them that their Ideal boiler is approaching its annual service

2

Send your customer your name and contact number so that its you they book a service with

3 We’ll then send you an SMS to let you know we’ve contacted them, reminding you to give them a call and arrange their annual boiler service!

To register for Service Reminders, speak to your Ideal Boilers

Area Sales Manager.

PARTS

REQUESTS

Ideal’s extensive quality testing procedures ensure that all of our products are manufactured to the highest quality standards.

In the unlikely event that a spare part is required, you can rest assured that most parts are readily available to order via your local spares outlet for up to 10 years after appliance production has ceased.

Ideal spare parts can be obtained from any of Ideal’s nationwide network of approved stockists.

For more information about Ideal spare parts and for a list of stockists, please visit our website or call our parts department on:

01482 498665 www.idealparts.com

RELIABILITY

Not only do Ideal boilers go through 200 quality checks before they leave our factory, our Customer Services are open 364 days a year and we offer warranties from two up to ten years.

EASY

INSTALLATION

All of our boilers are built with the installer in mind. Through extensive fi eld trials and installer clinics we are confi dent that our range of boilers are easy to install with plenty of room inside to manoeuvre.

BUSINESS SUPPORT

TAILORED TO YOU

Installer Connect is the installer loyalty scheme from Ideal

Boilers. The scheme rewards you for the Ideal boilers you install, as well as offering a number of brilliant business support services including free Gas Safe notifi cations for building regulations.

To fi nd out more or to become a member, visit:

www.installerconnect.com

SERVICE & SUPPORT

05

LOGIC+

06

01.

LOGIC+

The Logic+ is the fl agship range of high effi ciency boilers from Ideal. Compact in size and fully modulating down to as low as 4.8kW, the Logic+ provides excellent energy savings making it the perfect choice for new or replacement installations.

Siting a Logic+ boiler is quick and simple thanks to a telescopic fl ue, fast fi x fl ue turret connections and zero compartment ventilation, which allows the product to be installed neatly into a standard kitchen cupboard (always check measurements before installation).

*

*7 year warranty available until 31.12.2016. 5 year warranty as standard. Subject to terms and conditions.

Parts and labour warranty available when registered within 30 days of installation.

LOGIC+

Thanks to unrivalled levels of reliability, the

Logic+ range of boilers comes with a 7 year warranty* and supported by the Queen’s

Award for Enterprise 2013, Good Housekeeping

Reader Recommendation and being voted

Product of the Year for 2014.

The Logic+ range has been designed to ensure a quick and hassle-free installation.

Benefi ting from concealed connections and comprehensive controls, all models also feature a translucent condensate siphon to allow any debris to be spotted quickly and easily.

KEY FEATURES

There is no wonder the Logic+ range is installed by thousands of installers across the country, with a range of key features built in as standard:

• ErP compliant

• Compact cupboard fi t

• Low lift weight

(starting at 31.4kg for combination models)

• Plain text display with simple diagnostics

• Preformed copper tails

• Pre-wired mains lead

• Wide range of fl ue options

• Visually impaired user fascia option

• Four optional language user instructions available

†Heating and hot water ErP A rating on combi models as shown.

Heating ErP A rating on heat and system models.

LOGIC+

07

LOGIC+

08

LOGIC+ COMBI 24 30 35

Available in outputs of 24, 30 and 35 kW, the Logic+ Combi is designed to ensure a quick and hassle-free installation thanks to concealed connections, built-in automatic bypass and an integral fi lling loop.

A translucent condensate siphon also allows any debris to be spotted quickly and effi ciently.

Siting the product is quick and simple too thanks to a telescopic fl ue, fast fi x fl ue turret connections and zero compartment ventilation which allow the product to be installed neatly into a standard kitchen cupboard.

A clear 16 character backlit display provides a plain English description of the heating and hot water functions, together with fault information. A history log provides further reassurance.

Complete with a 7 year parts and labour warranty* and recommended by the Energy

Saving Trust, the Logic+ delivers total home comfort and customer peace of mind.

FEATURES

7 YEAR

WARRANTY*

COMPACT FROST

PROTECTION**

FLUE

VARIANTS

LPG

CONVERSION

NOX CLASS 5 ErP

COMPLIANT

SPECIFICATION

RELIABLE

• Award winning range

• Energy Saving Trust endorsed

• 7 year parts and labour warranty*

• Built-in frost protection**

• Built-in fi lling loop

• Pre-heat function

• Service indication

• Latest generation Honeywell gas valve

• Simple diverter valve design with no

dynamic seals

• ErP compliant

EASY TO INSTALL

• Compact cupboard fi t

• Door to optional timers includes user instructions

• Fast fi x fl ue options

• Wide range of additional fl ueing options

• Low lift weight (starting at 31.4kg)

• Preformed copper tails

• Plain text display

• Pre-wired mains lead (2m) & spare

fuses included

• Pre-piping kit

• PRV wall outlet pipe included

• Universal condensate connection

• Stand-off kit including piping

• Compatible with a range of additional controls inc. weather compensation and

OpenTherm controls

• LPG conversion kit available for 30 kW boilers

*7 year warranty available until 31.12.2016. 5 year warranty as standard. Subject to terms and conditions. Parts and labour warranty available when registered within 30 days of installation. **Permanent live connection required. †30 kW model only.

CLEARANCES & DIMENSIONS

ALL DIMENSIONS IN MM

Note: The minimum front clearance when built into a cupboard is 5mm from the cupboard door but 450mm overall clearance with the cupboard door open is required for servicing.

*Bottom clearance after installation can be reduced to 5mm. However, 100mm is required for servicing.

LOGIC+ COMBI

09

LOGIC+

10

LOGIC+ SYSTEM 15 18 24 30

Endorsed by the Energy Saving Trust and available in a choice of four outputs – 15, 18,

24 and 30 kW, the Logic+ System is suitable for a wide variety of sealed domestic systems and features a lightweight compact cupboard fi t design.* There are concealed connections at the base and no compartment ventilation is required, so the Logic+ System can be conveniently located out of sight in both new or replacement installations.

Product design and quality is paramount within the Logic+ System range; additional features such as a PRV wall outlet pipe ensure total reliability and a hassle-free installation.

FEATURES

7 YEAR

WARRANTY**

COMPACT FROST

PROTECTION †

FLUE

VARIANTS

LPG

CONVERSION

††

NOX CLASS 5 DIGITAL DISPLAY ErP

COMPLIANT

SPECIFICATION

RELIABLE

• Award winning range

• Energy Saving Trust endorsed

• 7 year parts and labour warranty**

• Built-in frost protection †

• Service indication

• Latest generation Honeywell gas valve

• ErP compliant

EASY TO INSTALL

• Compact cupboard fi t

• Wide range of fl ueing options

• Concealed pipe connections

• Low lift weight (27.7kg) †††

• Preformed copper tails

• LPG Conversion kit available for 30 kW boilers

• Stand-off kit and pre-pipe options

• PRV wall outlet pipe

• Pre-wired mains lead

*Please check kitchen cupboard size prior to installation.

**7 year warranty available until 31.12.2016. 5 year warranty as standard. Subject to terms and conditions. Parts and labour warranty available when registered within 30 days of installation. †Permanent live connection required.

††30 kW model only. †††Weight with front panel removed.

CLEARANCES & DIMENSIONS

ALL DIMENSIONS IN MM

Note: The minimum front clearance when built into a cupboard is 5mm

from the cupboard door but 450mm overall clearance with the cupboard door open is required for servicing.

*Bottom clearance after installation can be reduced to 5mm. However, 100mm is required for servicing.

LOGIC+ SYSTEM

11

LOGIC+

12

LOGIC+ HEAT ONLY 12 15 18 24 30

Incorporating the latest in heating design and technology, the Logic+ Heat Only is an outstanding heat only solution for both new build or replacement installations alike.

Available in a choice of fi ve outputs – 12, 15,

18, 24 and 30 kW, the Logic+ Heat Only will deliver total home comfort for a wide range of domestic properties.

Suitable for open vent and sealed systems, the

Logic+ Heat Only boiler is straightforward to site and install. No compartment ventilation, compact fi t and a lightweight design mean the boiler can be neatly installed out of sight in a kitchen cupboard.*

Installers have the further choice of neat direct rear fl ue options as required, helping to further speed up the installation in retro fi t situations.

FEATURES

7 YEAR

WARRANTY**

COMPACT FROST

PROTECTION †

FLUE

VARIANTS

LPG

CONVERSION ††

NOX CLASS 5

DIRECT

REAR FLUE

SPECIFICATION

RELIABLE

• Award winning range

• Energy Saving Trust endorsed

DIGITAL

DISPLAY

• 7 year parts and labour warranty**

• Boiler frost protection †

• Water fl ow sensor

• Latest generation Honeywell gas valve

• ErP compliant

ErP

COMPLIANT

EASY TO INSTALL

• Compact cupboard fi t

• Direct 80mm diameter rear fl ue option

• Wide range of fl ueing options

• Low lift weight (22.8kg) †††

• Top system connections

• 75mm deep translucent condensate siphon

• Stand-off kit

• Terminal wall plate kit

• Security bracket kit

• Low minimum head requirement

• LPG conversion kit available for

30 kW boilers

• Fully modulating operation down to 4.8 kW ††††

• Weather compensation kit option

* Please check kitchen cupboard prior to installation.

**7 year warranty available until 31.12.2016. 5 year warranty as standard. Subject to terms and conditions. Parts and labour warranty available when registered within 30 days of installation. †Permanent live connection required. ††30 kW model only.

† ††Weight with front panel removed. ††††(30 kW only - 6.1 kW).

CLEARANCES & DIMENSIONS

ALL DIMENSIONS IN MM

Note: The minimum front clearance when built into a cupboard is 5mm from the cupboard door but 450mm overall clearance with the cupboard door open is required for servicing.

*Bottom clearance after installation can be reduced to 5mm. However, 100mm is required for servicing.

**Rear fl ue option - top clearance 100mm.

LOGIC+ HEAT ONLY

13

LOGIC+

14

TECHNICAL SPECIFICATION

BOILER MODEL

PRODUCT CODE

SIZE

PERFORMANCE

CONSTRUCTION

INSTALLATION

CLEARANCES

USER INTERFACE

PIPES

FLUES

CONNECTIONS***

ErP EFFICIENCIES

Height (mm)

Width (mm)

Depth (mm)

Weight (packed) kg

Maximum installation weight kg

CH output (kW) Min/Max @ 70°C

CH output (kW) Min/Max @ 40°C

DHW output (kW) Max

DHW flow rate l/min. 35°C rise

SEDBUK (2005) %

SEDBUK (2009) %

NOx Classification

Optional LPG kit

Heat exchanger material

Burner type

Fully modulating

DHW plate heat exchanger

Integrated hydroblock

Suitable for sealed systems

Suitable for open-vent systems

Filling loop

Pre-wired mains lead

Flow regulator

In-built system bypass

In-built condensate trap/siphon

In-built boiler frost protection

Zero compartment ventilation

Top (mm) (from top of boiler)

Side (mm)

Bottom (mm)

Front (mm)

User display

User interface

Diagnostics

User adjustable

‘Eco’ setting on CH

In-built programmer

Pre-piping kit

Stand-off kit

Stand-off kit inc. pipes

Max horizontal

Max vertical

Powered vertical

Gas supply connection

CH flow connection

CH return connection

Inlet connection - DHW

Outlet connection - DHW

Condensate drain

Condensing boiler

Seasonal space heating efficiency class

Rated heat output kW

Seasonal space heating energy efficiency η son

%

Sound power level, indoors L

WA

dB

Water heating energy efficiency class

24

210823

700

395

278

35.8

31.4

4.8 - 24.2

5.1 - 25.6

24.2

9.9

91

89.0

CLASS 5

No

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

LOGIC+ COMBI

30

210824

700

395

278

36.2

31.8

6.1 - 24.2

6.4 - 25.6

30.3

12.4

91.1

89.0

CLASS 5

Yes

Cast Aluminium - Silicon Alloy

Downward firing pre-mix

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

2.5

100*

450*

Yes

Optional

Optional

Optional

Optional

9m

7.5m

22m

Yes

A

24

2.5

100*

450*

Plain text

Text display & manual controls

Plain English text

Manual heating & hot water controls

Yes

Optional

Optional

Optional

Optional

8m

7.5m

22m

15mm copper compression

22mm copper compression

22mm copper compression

15mm copper compression

15mm copper compression

21.5mm

Yes

A

24

2.5

100*

450*

Yes

Optional

Optional

Optional

Optional

6m

7.5m

22m

Yes

A

24

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

35

210825

700

395

278

36.2

31.8

7.1 - 24.2

7.5 - 25.6

35.3

14.5

91

88.9

CLASS 5

No

93

45

A

93

45

A

93

44

A

*Can be reduced to 5mm, 450mm required for servicing (front) 100mm (bottom). **Also available: High Level Flue Outlet Kit/Direct Rear Flue Kit (55/80).

***For outputs exceeding 18 kW (60,000 Btu/h), 28mm primary pipework will be required.

Yes

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

165

2.5

100*

450*

15

210846

700

395

278

34.2

27.7

4.8 - 15.0

5.1 - 15.9

N/A

N/A

9 1.1

89 .3

CLASS 5

No

Yes

No

Optional

Optional

Optional

9m

7.5m

22m

Yes

A

15

LOGIC+ SYSTEM

18

210847

700

395

278

34.2

27.7

4.8 - 18.0

5.1 - 19.1

N/A

N/A

91

89.2

CLASS 5

No No

Cast Aluminium - Silicon Alloy

Downward firing pre-mix

Yes Yes

N/A

N/A

Yes

No

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

No

Yes

N/A

Yes

Yes

Yes

Yes

24

210848

700

395

278

34.2

27.7

4.8 - 24.2

5.1 - 25.6

N/A

N/A

91

89.5

CLASS 5

165 165

2.5

100*

2.5

100*

450* 450*

Digital (alpha/current)

Digital display & manual controls

Fault diagnosis display

Manual heating control

Yes Yes

No

Optional

Optional

Optional

9m

7.5m

9m

7.5m

22m 22m

15mm copper compression

22mm copper compression

22mm copper compression

N/A

N/A

21.5mm

No

Optional

Optional

Optional

Yes Yes

A

18

A

24

93

41

N/A

92

42

N/A

93

45

N/A

30

210849

700

395

278

34.2

27.7

6.1 - 30.3

6.4 - 31.0

N/A

N/A

91.1

89.6

CLASS 5

Yes

Yes

No

Optional

Optional

Optional

8m

7.5m

22m

Yes

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

165

2.5

100*

450*

Yes

A

30

93

45

N/A

LOGIC+ HEAT ONLY

12

210859

700

395

278

28.5

22.8

4.8 - 12.0

5.1 - 13.0

N/A

15

210860

700

395

278

28.5

22.8

4.8 - 15.0

5.1 - 15.9

N/A

18

210861

700

395

278

28.5

22.8

4.8 - 18.0

5.1 - 19.1

N/A

24

210862

700

395

278

28.5

22.8

4.8 - 24.2

5.1 - 25.6

N/A

30

210863

700

395

278

28.5

22.8

6.1 - 30.3

6.4 - 31.0

N/A

N/A

91.2

89.4

CLASS 5

No

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91.1

89.3

CLASS 5

N/A

91

89.2

CLASS 5

No No No

Cast Aluminium - Silicon Alloy

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

Downward firing pre-mix

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91

89.5

CLASS 5

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91.1

89.6

CLASS 5

Yes

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

Yes (See p.12) Yes (See p.12) Yes (See p.12) Yes (See p.12) Yes (See p.12)

Yes Yes Yes Yes Yes

165 (100 rear outlet flue)

2.5

100*

450*

165 (100 rear outlet flue)

2.5

100*

450*

Yes

No

No

Optional

No

9m

7.5m**

22m**

165 (100 rear outlet flue)

165 (100 rear outlet flue)

165 (100 rear outlet flue)

2.5

100*

450*

2.5

100*

450*

Digital (alpha/current)

2.5

100*

450*

Digital display & manual controls

Fault diagnosis display

Yes

No

No

Optional

No

9m

7.5m**

22m**

Manual heating control

Yes

No

No

Optional

No

9m

7.5m**

22m**

15mm copper compression

Yes

No

No

Optional

No

9m

7.5m**

22m**

22mm copper compression

22mm copper compression

N/A

N/A

21.5mm

Yes Yes Yes

Yes

No

No

Optional

No

8m

7.5m**

22m**

Yes

A

12

A

15

A

18

A

24

Yes

A

30

92

40

N/A

93

41

N/A

92

42

N/A

93

45

N/A

93

45

N/A

BOILER MODEL

PRODUCT CODE

SIZE

PERFORMANCE

CONSTRUCTION

INSTALLATION

CLEARANCES

USER INTERFACE

PIPES

FLUES

CONNECTIONS***

ErP EFFICIENCIES

Height (mm)

Width (mm)

Depth (mm)

Weight (packed) kg

Maximum installation weight kg

CH output (kW) Min/Max @ 70°C

CH output (kW) Min/Max @ 40°C

DHW output (kW) Max

DHW flow rate l/min. 35°C rise

SEDBUK (2005) %

SEDBUK (2009) %

NOx Classification

Optional LPG kit

Heat exchanger material

Burner type

Fully modulating

DHW plate heat exchanger

Integrated hydroblock

Suitable for sealed systems

Suitable for open-vent systems

Filling loop

Pre-wired mains lead

Flow regulator

In-built system bypass

In-built condensate trap/siphon

In-built boiler frost protection

Zero compartment ventilation

Top (mm) (from top of boiler)

Side (mm)

Bottom (mm)

Front (mm)

User display

User interface

Diagnostics

User adjustable

‘Eco’ setting on CH

In-built programmer

Pre-piping kit

Stand-off kit

Stand-off kit inc. pipes

Max horizontal

Max vertical

Powered vertical

Gas supply connection

CH flow connection

CH return connection

Inlet connection - DHW

Outlet connection - DHW

Condensate drain

Condensing boiler

Seasonal space heating efficiency class

Rated heat output kW

Seasonal space heating energy efficiency η son

%

Sound power level, indoors L

WA

dB

Water heating energy efficiency class

24

210823

700

395

278

35.8

31.4

4.8 - 24.2

5.1 - 25.6

24.2

9.9

91

89.0

CLASS 5

No

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

LOGIC+ COMBI

30

210824

700

395

278

36.2

31.8

6.1 - 24.2

6.4 - 25.6

30.3

12.4

91.1

89.0

CLASS 5

Yes

Cast Aluminium - Silicon Alloy

Downward firing pre-mix

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

2.5

100*

450*

Yes

Optional

Optional

Optional

Optional

9m

7.5m

22m

Yes

A

24

2.5

100*

450*

Plain text

Text display & manual controls

Plain English text

Manual heating & hot water controls

Yes

Optional

Optional

Optional

Optional

8m

7.5m

22m

15mm copper compression

22mm copper compression

22mm copper compression

15mm copper compression

15mm copper compression

21.5mm

Yes

A

24

2.5

100*

450*

Yes

Optional

Optional

Optional

Optional

6m

7.5m

22m

Yes

A

24

Yes

Yes

Yes

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

35

210825

700

395

278

36.2

31.8

7.1 - 24.2

7.5 - 25.6

35.3

14.5

91

88.9

CLASS 5

No

93

45

A

93

45

A

93

44

A

Yes

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

165

2.5

100*

450*

15

210846

700

395

278

34.2

27.7

4.8 - 15.0

5.1 - 15.9

N/A

N/A

9 1.1

89 .3

CLASS 5

No

Yes

No

Optional

Optional

Optional

9m

7.5m

22m

Yes

A

15

LOGIC+ SYSTEM

18

210847

700

395

278

34.2

27.7

4.8 - 18.0

5.1 - 19.1

N/A

N/A

91

89.2

CLASS 5

No No

Cast Aluminium - Silicon Alloy

Downward firing pre-mix

Yes Yes

N/A

N/A

Yes

No

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

No

Yes

N/A

Yes

Yes

Yes

Yes

24

210848

700

395

278

34.2

27.7

4.8 - 24.2

5.1 - 25.6

N/A

N/A

91

89.5

CLASS 5

165 165

2.5

100*

2.5

100*

450* 450*

Digital (alpha/current)

Digital display & manual controls

Fault diagnosis display

Manual heating control

Yes Yes

No

Optional

Optional

Optional

9m

7.5m

9m

7.5m

22m 22m

15mm copper compression

22mm copper compression

22mm copper compression

N/A

N/A

21.5mm

No

Optional

Optional

Optional

Yes Yes

A

18

A

24

93

41

N/A

92

42

N/A

93

45

N/A

30

210849

700

395

278

34.2

27.7

6.1 - 30.3

6.4 - 31.0

N/A

N/A

91.1

89.6

CLASS 5

Yes

Yes

No

Optional

Optional

Optional

8m

7.5m

22m

Yes

N/A

N/A

Yes

No

No

Yes

N/A

Yes

Yes

Yes

Yes

165

2.5

100*

450*

Yes

A

30

93

45

N/A

LOGIC+ HEAT ONLY

12

210859

700

395

278

28.5

22.8

4.8 - 12.0

5.1 - 13.0

N/A

15

210860

700

395

278

28.5

22.8

4.8 - 15.0

5.1 - 15.9

N/A

18

210861

700

395

278

28.5

22.8

4.8 - 18.0

5.1 - 19.1

N/A

24

210862

700

395

278

28.5

22.8

4.8 - 24.2

5.1 - 25.6

N/A

30

210863

700

395

278

28.5

22.8

6.1 - 30.3

6.4 - 31.0

N/A

N/A

91.2

89.4

CLASS 5

No

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91.1

89.3

CLASS 5

N/A

91

89.2

CLASS 5

No No No

Cast Aluminium - Silicon Alloy

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

Downward firing pre-mix

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91

89.5

CLASS 5

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

N/A

91.1

89.6

CLASS 5

Yes

Yes

N/A

N/A

Yes

Yes

No

No

N/A

No

Yes

Yes (See p.12) Yes (See p.12) Yes (See p.12) Yes (See p.12) Yes (See p.12)

Yes Yes Yes Yes Yes

165 (100 rear outlet flue)

2.5

100*

450*

165 (100 rear outlet flue)

2.5

100*

450*

Yes

No

No

Optional

No

9m

7.5m**

22m**

165 (100 rear outlet flue)

165 (100 rear outlet flue)

165 (100 rear outlet flue)

2.5

100*

450*

2.5

100*

450*

Digital (alpha/current)

2.5

100*

450*

Digital display & manual controls

Fault diagnosis display

Yes

No

No

Optional

No

9m

7.5m**

22m**

Manual heating control

Yes

No

No

Optional

No

9m

7.5m**

22m**

15mm copper compression

Yes

No

No

Optional

No

9m

7.5m**

22m**

22mm copper compression

22mm copper compression

N/A

N/A

21.5mm

Yes Yes Yes

Yes

No

No

Optional

No

8m

7.5m**

22m**

Yes

A

12

A

15

A

18

A

24

Yes

A

30

92

40

N/A

93

41

N/A

92

42

N/A

93

45

N/A

93

45

N/A

LOGIC+

15

VOGUE

16

02.

VOGUE

Showcasing unique boiler innovation, the Vogue from Ideal

Boilers utilises modern technology, teamed with premium parts and components to bring you the next step in domestic heating intelligence.

The complete design, from component specifi cation, manufacture and build, through to consumer use is engineered with quality in mind. All models in the Vogue range deliver premium performance, reliability and are supported by a premium aftersales support service.

*

*10 year warranty available until 31.12.2016. 7 year warranty as standard. Subject to terms and conditions.

Parts and labour warranty available when registered within 30 days of installation.

VOGUE

The Vogue range comes complete with comprehensive components and a 10 year warranty as standard* for complete peace of mind.

As well as receiving a Good Housekeeping

Reader Recommendation, the Vogue is the ideal solution for customers looking for a top of the range product.

VOGUE

17

†Heating and hot water ErP A rating on combi models as shown.

Heating ErP A rating on system models.

VOGUE

18

VOGUE

COMBI 26 32 40 SYSTEM 15 18 26 32

Every model in the Vogue range comes complete with a 10 year parts and labour warranty.* When choosing Vogue, installers and homeowners can rest assured that they will be receiving ultimate peace of mind.

Unrivalled levels of reliability are achieved through integrated product design - only high specifi cation components and interface are used, and all our suppliers have market leading technical competence and quality assured processes.

The Vogue range also comes with a dedicated

Customer Service helpline.

FEATURES

10 YEAR

WARRANTY*

COMPACT FROST

PROTECTION

FLUE

VARIANTS

NOX CLASS 5 DIGITAL

DISPLAY

PREMIUM

COMPONENTS

HIGH

PERFORMANCE

DEDICATED

CUSTOMER SERVICE

LPG

CONVERSION

ErP

COMPLIANT †

*10 year warranty available until 31.12.2016. 7 year warranty as standard. Subject to terms and conditions. Parts and labour warranty available when registered within 30 days of installation.

†Heating and hot water ErP A rating on combi models as shown. Heating ErP A rating on system models.

KEY FEATURES

• 10 year warranty*

• Modulating pump

• Filling loop**

• Service display with installer telephone number input

• Pre-wired mains lead

• Preformed copper tails at pipe clip distance

• Stainless steel heat exchanger

• Universal condensate drain connection

• High modulation

• Pump, diverter valve exercise & anticycling

• Boiler frost protection

• Commissioning function

• Fault history & help text

• ErP compliant

*10 year warranty available until 31.12.2016. 7 year warranty as standard. Subject to terms and conditions.

Parts and labour warranty available when registered within 30 days of installation.**Combi only.

VOGUE

19

VOGUE

20

CLEARANCES & DIMENSIONS

ALL DIMENSIONS IN MM

Dimensions applicable to all models.

SPECIFICATION

PRODUCT INTELLIGENCE

• Cool door technology

• Modulating pump

• Up to 7:1 modulation

• Large 10 litre expansion vessel

• Large backlit LCD with plain text

• Service display & telephone number input

RELIABLE

• 10 year warranty †

• Dedicated Customer Services helpline

• High DHW flow 40 kW Combi

• Comprehensive standard components

• ErP compliant

EASY TO INSTALL

• Longer maximum flue lengths with easy access sampling points

• Brass waterset including readily accessible parts

• Choice of plug-in controls

PREMIUM COMPONENTS

• Stylish chassis with full size door complete with damped opening

• Stainless steel heat exchanger

* Bottom clearance after installation can be reduced to 5mm. However, 100mm is required for servicing.

†10 year warranty available until 31.12.2016. 7 year warranty as standard. Subject to terms and conditions.

Parts and labour warranty available when registered within 30 days of installation.

TECHNICAL SPECIFICATION

BOILER MODEL

PRODUCT CODE

SIZE

PERFORMANCE

Height (mm)

Width (mm)

Depth (mm)

Packaged weight (kg)

Installation weight (kg)

CH output (kW) Min/Max @ 70°C

CH output (kW) Min/Max @ 40°C

DHW output (kW) Max

DHW flow rate l/min. 35°C rise

SEDBUK (2005) %

SEDBUK (2009) %

NOx Classification

Optional LPG kit

CONSTRUCTION

Heat exchanger material

Burner type

Fully modulating output

DHW plate heat exchanger

INSTALLATION

Pump & hydroblock

Suitable for sealed systems

Suitable for open-vent systems

Filling loop

Pre-wired mains lead

In-built system bypass

In-built condensate trap/siphon

In-built boiler frost protection

PRV Wall outlet pipe standard

CLEARANCES

Zero compartment ventilation

Top (mm) (from top of boiler)

Side (mm)

Bottom (mm)

Front (mm)

USER INTERFACE

User display

User interface

Diagnostics

User adjustable

‘Eco’ setting on CH

DHW preheat

Pressure gauge

In-built programmer

PIPES

Stand-off kit

Stand-off kit inc. pipes.

FLUES

Max horizontal

Max vertical

CONNECTIONS**

Gas supply connection

CH flow connection

CH return connection

Inlet connection - DHW

Outlet connection - DHW

Condensate drain

ErP EFFICIENCIES

Condensing boiler

Seasonal space heating efficiency class

Rated heat output kW

Seasonal space heating energy efficiency

η son

%

Sound power level, indoors L

WA

dB

Water heating energy efficiency class

26

VOGUE COMBI

32 40 15

VOGUE SYSTEM

18 26 32

208304 208305 208306 208307 208308 208309 208310

740

445

330

40.4

740

445

330

41.7

740

445

330

43.7

740

445

330

37.7

740

445

330

38.0

740

445

330

40.9

740

445

330

41.1

35.0

36.4

38.0

31.9

33.1

34.4

35.9

3.7-18.0 4.6-26.0 5.7-32.0 3.0-15.0 3.6-18.0 5.2-26.0 6.4-32.0

4.0-19.3 4.9-27.9 6.1-34.3 3.2-16.2 3.9-19.3 5.6-27.9 6.8-34.3

26 32 40 N/A N/A N/A N/A

10.6

91

89.1

5

Yes

7:1

Yes

13.1

91.1

89.2

5

Yes

16.4

91

89.1

5

Yes

N/A

91

88.9

5

Yes

Stainless steel

N/A

91.1

89.3

5

Yes

N/A

91.1

89.3

5

Yes

7:1

Pre-mix steel with ‘cool burner door’

7:1 5:1 5:1 5:1

Yes Yes N/A N/A N/A

N/A

91.1

89.3

5

Yes

5:1

N/A

Yes

No

165

2.5

Brass with modulating pump

Yes

Yes

Yes

Yes

Yes

Yes

Yes

100

450*

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

2.5

100

Yes

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

165

2.5

100

Yes

No

No

No

Yes

Yes

Yes

Yes

Yes

165

2.5

100

Modulating pump

Yes

No

No

No

Yes

Yes

Yes

Yes

Yes

165

2.5

100

Yes

No

No

No

Yes

Yes

Yes

Yes

Yes

165

2.5

100

450* 450* 450* 450* 450*

Large backlit LCD with text & symbols

Text display & manual controls

Plain English text

Yes

165

2.5

100

450*

Yes

No

No

No

Yes

Yes

Yes

Yes

Manual heating & hot water controls

Manual heating control

Yes

Yes

Yes

Yes

Yes

Yes

Yes

N/A

Yes

N/A

Yes

N/A

Yes

N/A

Yes Yes

Analogue in control panel

Optional

(Mech. & electronic)

Yes Yes

Optional

Yes Yes

Yes

10

10

Yes

8

10

Yes

8

10

22mm copper compression

Yes

10

Yes

10

Yes

10

Yes

Yes

10 10 10

22mm copper compression

8

10

22mm copper compression

22mm copper compression

15mm copper compression

15mm copper compression

22mm copper compression

22mm copper compression

N/A

N/A

Yes

21.5mm Universal

Yes Yes

A

18

A

24

A

24

Yes

A

15

21.5mm Universal

Yes Yes

A

18

A

26

Yes

A

32

92

50

A

93

51

A

93

51

A

92

47

N/A

93

50

N/A

93

50

N/A

93

51

N/A

*Can be reduced to 5mm, 450mm required for servicing.

**For outputs exceeding 17.6kW (60,000 Btu/h), 28mm primary pipework will be required.

VOGUE

21

KITS & CONTROLS

22

03.

KITS &

CONTROLS

We believe that choosing the right control to meet the needs of your customer is as important as choosing the right boiler; that’s why the Logic+ and Vogue boilers are fully compatible with a range of thermostats and timers for the ultimate in home comfort.

MECHANICAL TIMER

Simple heating control through a plug -in analogue timer. 24 hour tappet operation with off/timed/continuous periods.

• Part No. 204839 Logic+ Combi only

• Part No. 208445 Vogue Combi only

Image shown is 204839

ErP: Class 0, no additional effi ciency.

THERMOSTATS & TIMERS

23

ELECTRONIC TIMER

Easy-to-use heating control through a plug-in digital timer. Plain text operating and diagnostics information. 7 day and up to 3 time periods per day. Automatic summer/winter time update.

• Part No. 204545 Logic+ Combi

• Part No. 208907 Vogue Combi

• Part No. 208909 Vogue System

Image shown is 204545

ErP: Class 0, no additional effi ciency.

RF ELECTRONIC

PROGRAMMABLE

THERMOSTAT

Wireless Radio Frequency (RF) digital timer and room thermostat providing heating control. 7 day, plain text operating and diagnostics display. Automatic summer/winter time update.

• Part No. 204789 Logic+ Combi only

• Part No. 208447 Vogue Combi only

Image shown is 204789

ErP: Class 5, 3% additional effi ciency.

If fi tted with Weather Compensation (Outdoor Sensor)

(Logic+ Combi 211326 - Vogue Combi 208921)

ErP: Class 6, 4% additional effi ciency.

KITS & CONTROLS

24

RF MECHANICAL

TIMER AND ROOM

THERMOSTAT KITS

mounted and has a compact design with LCD

• Part No. 208352 Logic+ Combi only

• Part No. 208912 Vogue Combi only

Image shown is 208352

ErP: Class 1, 1% additional effi ciency.

If fi tted with Weather Compensation (Outdoor Sensor)

(Logic+ Combi 211326 - Vogue Combi 208921)

ErP: Class 2, 2% additional effi ciency.

WEATHER COMPENSATION

OUTDOOR SENSOR

Ideal Boiler ranges provide weather compensation when fi tted with an outdoor sensor (which is available as an optional accessory).

Weather compensation works by measuring the temperature outside the home and adjusting the temperature (or fl ow) of the radiators inside. If the weather is particularly cold outside, the outdoor sensor will communicate with the boiler intelligently to increase the radiator temperature. This process also works in reverse, as the outdoor temperature increases, the fl ow to the radiators will decrease.

This process allows the system to operate more effi ciently by only heating to the minimum temperature necessary and also preventing spikes in heating activity.

• Part No. 211326 Logic+ Combi

• Part No. 211332 Logic+ System & Heat

• Part No. 208921 Vogue Combi & System

RF MECHANICAL

PROGRAMMABLE

THERMOSTAT

Wireless Radio Frequency (RF) analogue timer and room thermostat providing heat control. Easy-to-use 24 hour tappet control.

• Part No. 204824 Logic+ Combi only

• Part No. 208774 Vogue Combi only

Image shown is 204824

ErP: Class 1, 1% additional effi ciency.

If fi tted with Weather Compensation (Outdoor Sensor)

(Logic+ Combi 211326 - Vogue Combi 208921)

ErP: Class 2, 2% additional effi ciency.

LPG CONVERSION KITS

25

LPG CONVERSION KITS

Designed for use with the Logic+ and Vogue range of boilers, the Ideal LPG (propane) conversion kit provides a simple and robust conversion solution.

PRODUCT CODE

213344

211371

211373

211375

209282

209283

209284

209285

209286

209287

209288

PRODUCT CODE

177515

177517

177519

177107

177108

177109

177110

177111

177112

177113

FEATURES AND

BENEFITS

• Available for all Logic+ and Vogue ranges

(Combi, Heat & System)

• Suitable for most property sizes

• Fast & simple conversion with pre-set gas valve for no product adjustment

PRODUCTS APPLICABLE

• Logic+ Combi 30 kW

• Logic+ Heat 30 kW

• Logic+ System 30 kW

• Vogue Combi 26, 32, 40 kW

• Vogue System 15, 18, 26, 32 kW

NATURAL GAS TO

LPG KIT CONTENTS

Each kit comprises:

• Gas valve (preset operation)

• Burner injector

• BCC (Boiler chip card)

• Data plate labels

• Instructions

• Washer (not pictured)

• ‘O’ ring (not pictured)

LPG HEAT OUTPUTS

BOILER MODEL

Min. output (kW)

Max. output (kW)

Max. DHW output (kW)

LOGIC+

COMBI 30

8.0

24.2

30.3

LOGIC+

HEAT 30

8.0

30.3

N/A

Two data plate labels are provided in the kits inclusive of a new data plate providing LPG details, and a label to retain boiler serial number identity.

LOGIC+

SYSTEM 30

8.0

30.3

N/A

VOGUE COMBI

26 32 40 15

VOGUE SYSTEM

18 26 32

4.4

5.4

6.7

3.8

4.4

5.2

8.0

18.0

26.0

32.0

15.0

18.0

26.0

32.0

26.0

32.0

40.0

N/A N/A N/A N/A

NG - LPG CONVERSION KITS

Logic+ Combi 30 ErP

Logic+ Combi 30

Logic+ Heat 30

Logic+ System 30

Vogue Combi 26

Vogue Combi 32

Vogue Combi 40

Vogue System 15

Vogue System 18

Vogue System 26

Vogue System 32

LPG - NG CONVERSION KITS

Logic+ Combi 30

Logic+ Heat 30

Logic+ System 30

Vogue Combi 26

Vogue Combi 32

Vogue Combi 40

Vogue System 15

Vogue System 18

Vogue System 26

Vogue System 32

HIGH EFFICIENCY CYLINDERS

26

04.

HIGH

EFFICIENCY

CYLINDERS

If you’re installing a heat only or system boiler from the Ideal Logic+ or Vogue range, then consider the

Thermstore range of cylinders – the perfect solution for new or replacement installations.

HIGH EFFICIENCY CYLINDERS

27

THERMSTORE

90 120 150 180 210 250 300 400

The Ideal Thermstore range of stainless steel unvented, indirect cylinders are manufactured to the highest standards. We have 8 models in the range, all with a 2 year parts and labour warranty, so you can be sure the Thermstore allies the twin demands of excellent product quality with outstanding value.

KEY FEATURES

• 2 year parts and labour, and 25 year vessel warranty

• Duplex stainless steel construction to offer excellent resistance to corrosion

• Global Warming Potential (GWP) of 1 provides CfSH benefits

• Insulated using the latest HCFC free Envirofoam

• Corrugated heat transfer coil to give 20% faster recovery than plain tube

• Manufactured in accordance with

BS EN 12897

• Complete with all quality fittings according to model

• Lightweight for ease of installation

• Standing heat loss as low as 0.8 kW hr/24hr

HOME SET UP

STANDARD

APPLIANCE

• Hot water draw of 22mm compression

• Temperature and pressure relief valve 95˚C/6 bar

• Hot water secondary return 22mm (not fi tted to cylinders below

210 litres)

• Immersion heater 1

3

/

4

” BSP 3 kW

• Cold supply 22mm compression

• Dual control/overheat thermostat pocket

• Boiler control sensor pocket (spare)

• Primary fl ow 22mm compression (28mm tails for 400 litre model only)

• Primary return 22mm compression (28mm tails for 400 litre model only)

STANDARD COMPONENTS

SUPPLIED

• Combination inlet group incorporating pressure reducing valve, strainer, check valve, balanced cold take-off point, expansion relief valve and expansion vessel connection points

• Potable expansion vessel complete with fl exible hose and wall bracket

• Tundish

• Dual control thermostat and combined overheat thermostat

• Two port 22mm zone valve for primary circuit

• Wiring junction box for primary system

TECHNICAL SPECIFICATION

CYLINDER MODEL

SIZE

PERFORMANCE

90 120

IDEAL THERMSTORE

150 180 210 250 300 400

Height (mm)

Diameter (mm)

Weight (empty) (kg)

Weight (full) (kg)

Capacity (litres)

Pressure regulator (bar)

745

550 550

19

109

90

3

930 1120 1305 1495 1745 1992 2030

22

142

120

3

Expansion vessel size (litres)

Rating of primary coil (kW)

Recovery time after 70% draw off (min) 16

Heat up time from 15°C to 60°C (min) 21

Standing losses (kWhr/24hr)

12

16.5

12

18.0

19

27

0.85

1.06

550

26

176

150

3

18

18.5

19

28

1.27

550

28

208

180

3

18

19.0

20.5

21

33

1.48

550

33

243

210

3

24

26

41

1.70

550

38

288

250 300 400

3 3 3

24

30

44

550

44

344

630

55

455

35 2 x 24

21.5

25.0

30.5

32

48

36

55

1.85

2.04

2.82

29

FLUE SITING

30

FLUE SITING

There are a substantial number of fluing options available for Ideal boiler ranges, giving excellent siting flexibility for almost all applications.

The range of options include standard and telescopic flue as well as roof flue and powered vertical flue options.

To ensure siting issues are kept to a minimum,

High Level Flue Outlet kit options and Flue

Deflector kits are available.

MINIMUM DIMENSIONS OF

FLUE TERMINAL POSITIONS

FLUE TERMINAL POSITION

1. Directly below, above or alongside an opening window, air vent or other ventilation opening.

2. Below guttering, drain pipes or soil pipes

MIN. SPACING

300mm (12”)

BS5440-1 2008

3. Below eaves.

BS5440-1 2008

4. Below balconies or car port roof.

BS5440-1 2008

5. From vertical drain pipes or soil pipes.

BS5440-1 2008

6. From an internal or external corner or to a boundary alongside the terminal.

25mm (1”)*

75mm (3”)

25mm (1”)*

200mm (8”)

25mm (1”)*

200mm (8”)

25mm (1”)*

150mm (6”)

25mm (1”)*

BS5440-1 2008

7. Above ground, roof or balcony level.

300mm (12”)

300m (12”)

8. From a surface or boundary facing a terminal.

600mm (24”)

9. From a terminal facing a terminal.

1200mm (48”)

1200mm (48”) 10. From an opening in a car port (eg. door or window) into dwelling.

11. Vertically from a terminal on the same wall.

12. Horizontally from a terminal on the wall.

1500mm (60”)

300mm (12”)

VERTICAL FLUES

13. Above the roof pitch with roof slope of all angles.

Above flat roof.

14. From a single wall face.

From corner walls.

15. Below Velux window.

16. Above or side of Velux window.

300mm (12”)

300mm (12”)

300mm (12”)

300mm (12”)

2000mm (79”)

600mm (24”)

B

B

A

A

If chimney penetrates dotted area such that A is less than 300mm, B shall not be less than 300mm.

A

B

A

A

R

F9

807

*Only one reduction down to 25mm is allowable per installation otherwise BS5440-1 2008 dimensions must be followed.

A = 600mm

B = 2000mm

The flue terminal shall not penetrate the shaded area of the roof.

LOGIC+ & VOGUE

FLUE KITS

• Part No. 208171 Horizontal fl ue terminal (0.6m long)

• Part No. 208169 Telescopic B pack fl ue (0.6m long)

• Part No. 208174 Telescopic horizontal fl ue terminal (1m long)

• Part No. 208290 Raised horizontal fl ue kit

• Part No. 203129 Flue extension 1m (pack D)

• Part No. 203130 Flue elbow 90 deg kit (60/100)

• Part No. 203131 Flue elbow 45 deg kit (60/100) (pair)

• Part No. 208178 High level fl ue outlet kit

• Part No. 203228 Flue extension kit 60 dia (1m) for high level fl ue outlet kit

• Part No. 203229 High level 90 deg elbow

• Part No. 203230 High level 45 deg elbow (pair)

• Part No. 152258 Weather collar universal 100 dia (fi ts slate & tiles)

• Part No. 152259 Weather collar fl at roof 100 dia

• Part No. 208176 Flue defl ector kit 60 dia (clips on end of fl ue & angles pluming away)

• Part No. 205990 Rear fl ue outlet kit 55/80 (Logic+ heat only)

• Part No. 205989 High level outlet kit 55/80 (Logic+ heat only, rear fl ue only)

• Part No. 208177 Balcony fl ue outlet kit

• Part No. 211037 Flue extension 0.5m kit (Pack D)

• Part No. 211038 Flue extension 2m kit (Pack D)

• Part No. 211039 Roof fl ue kit (with vertical connector)

• Part No. 211302 Soffi t kit 60/100 (14 05295)

LOGIC+

ACCESSORIES

• Part No. 211103 Stand off kit

• Part No. 211101 Stand off kit (including upward piping; combi)

• Part No. 211330 Stand off kit with pipes Logic System

• Part No. 206153 Stand off kit Logic Heat

• Part No. 211328 Terminal wall plate RS kit combi & system

• Part No. 206164 Terminal wall plate kit RS replacement (heat)

• Part No. 205419 Kit - DHW expansion vessel

• Part No. 206712 Pressure gauge extension kit

• Part No. 159991 Ideal HE condensate pump

• Part No. 211329 Visually impaired kit

VOGUE

ACCESSORIES

• Part No. 208442 Stand off kit Vogue

• Part No. 208443 Stand off kit (including piping) Vogue Combi

• Part No. 208707 Stand off kit (including piping) Vogue System

• Part No. 205419 Kit - DHW expansion vessel

• Part No. 159991 Ideal HE condensate pump

FLUE KITS

31

GREAT

BOILERS

FROM

GREAT

BRITAIN.

Ideal Boilers

PO Box 103

National Avenue

Kingston upon Hull

East Yorkshire

HU5 4JN

T 01482 492251 [email protected]

WWW.IDEALBOILERS.COM

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
