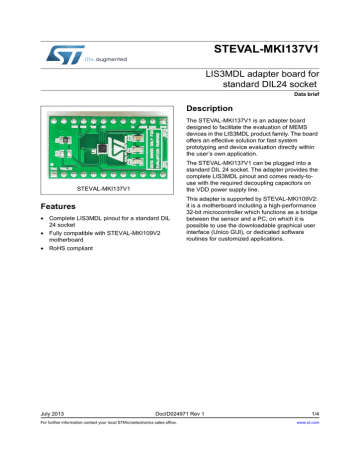

STEVAL-MKI137V1
LIS3MDL adapter board for
standard DIL24 socket
Data brief
Description
The STEVAL-MKI137V1 is an adapter board
designed to facilitate the evaluation of MEMS
devices in the LIS3MDL product family. The board
offers an effective solution for fast system
prototyping and device evaluation directly within
the user’s own application.
The STEVAL-MKI137V1 can be plugged into a
standard DIL 24 socket. The adapter provides the
complete LIS3MDL pinout and comes ready-touse with the required decoupling capacitors on
the VDD power supply line.
STEVAL-MKI137V1
Features
• Complete LIS3MDL pinout for a standard DIL
24 socket
• Fully compatible with STEVAL-MKI109V2
motherboard
This adapter is supported by STEVAL-MKI109V2:
it is a motherboard including a high-performance
32-bit microcontroller which functions as a bridge
between the sensor and a PC, on which it is
possible to use the downloadable graphical user
interface (Unico GUI), or dedicated software
routines for customized applications.
• RoHS compliant
July 2013
DocID024971 Rev 1
For further information contact your local STMicroelectronics sales office.
1/4
www.st.com
Schematic diagram
1
STEVAL-MKI137V1
Schematic diagram
Figure 1. STEVAL-MKI137V1 schematic circuit
Vdd
Vdd
C2
10uF
C1
100nF
JP1
1
2
3
4
5
6
7
8
9
10
11
12
Vdd_IO
JP2
12
11
10
9
8
7
6
5
4
3
2
1
SDO
SDA
SCL
CS
T1
DRDY
INT1
Res
T1
2
3
R1
0
4
CS
Res
SDO
GND
C1
Vdd
DRDY
INT1
10
CS
9
SDO
8
DRDY
7
INT1
Vdd_IO
C3
100nF
SCL
Vdd_IO
1
U1
DALLAS
6
SCL
Vdd
R2
0
5
nc
11
Vdd
SDA
12
SDA
Header 12 Header 12
AM17534v1
2/4
DocID024971 Rev 1
STEVAL-MKI137V1
2
Revision history
Revision history
Table 1. Document revision history
Date
Revision
08-Jul-2013
1
Changes
Initial release.
