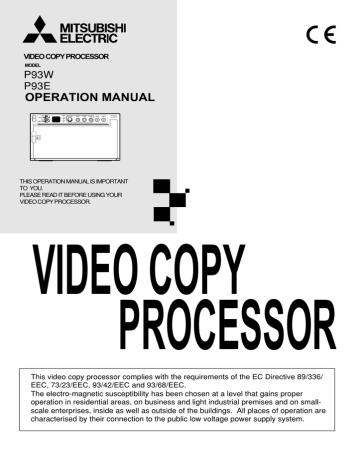

VIDEO COPY PROCESSOR OPERATION MANUAL P93W

VIDEO COPY PROCESSOR OPERATION MANUAL P93W
VIDEO COPY PROCESSOR
MODEL
P93W
P93E
OPERATION MANUAL
SIDE NOR
1:1
SIZE
BRT
ADJUST
BRT
CONT
FUNC
FEED
COPY
PRINT
CONT
MULTI SINGLE EXP.
MODE
EXP.
OPEN
THIS OPERATION MANUAL IS IMPORTANT
TO YOU.
PLEASE READ IT BEFORE USING YOUR
VIDEO COPY PROCESSOR.
VIDEO COPY
PROCESSOR
This video copy processor complies with the requirements of the EC Directive 89/336/
EEC, 73/23/EEC, 93/42/EEC and 93/68/EEC.
The electro-magnetic susceptibility has been chosen at a level that gains proper
operation in residential areas, on business and light industrial premises and on smallscale enterprises, inside as well as outside of the buildings. All places of operation are
characterised by their connection to the public low voltage power supply system.
FOR THE MODEL P91DW(UB) ONLY
WARNING:
In the USA or Canada, use the AC power cord according to the recommendations as
below, in order to comply with UL2601-1 and CAN/CSA C22.2 No. 601.1.
Case 1. Connect to the 120V receptacle of the room or the host equipment.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 125V 10A or
higher rating connector and NEMA 5-15 type, 125V 10A or higher rating, Hospital
Grade plug.
Case 2. Connect to the 230V receptacle of the room or the host equipment.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 250V 10A or
higher rating connector and NEMA 6-15 type, 250V 10A or higher rating, Hospital
Grade plug.
Case 3. Connect to the 120V receptacle of the host equipment.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 125V 10A or
higher rating connector and IEC320-2.2/E type, 125V 10A or higher rating plug.
Case 4. Connect to the 230V receptacle of the host equipment.
The AC power cord should be UL or CSA approved and consist of type SJT, size
16 or 18AWG, length 2.5m or shorter cord with IEC320/C13 type, 250V 10A or
higher rating connector and IEC320-2.2/E type, 250V 10A or higher rating plug.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his or her own expense.
Information:
This class A digital apparatus complies with Canadian ICES-003.
"CLASSIFIED BY UNDERWRITERS LABORATORIES INC.®
WITH RESPECT TO ELECTRIC SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL2601-1 AND CAN/CSA C22.2 No. 601.1"
CAUTION:
RISK OF ELECTRIC SHOCK DO NOT OPEN.
TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR
BACK)
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
When you dispose of the unit or accessories, you must obey the law in the relative area
or country and/or regulation in the relative hospital.
WARNING:
Install and use this appliance in accordance with the operation manual for safety and
EMC (Electromagnetic Compatibility). If it is not installed and used in accordance with
the operation manual, it may cause interference to other equipment and/or other risk.
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
This appliance must be earthed.
In Europe, use the AC power cord according to the recommendations as below, in order
to comply with EN60601-1 and EN60950.
Connect to the 230V receptacle of the room or the host equipment.
The AC power cord should be VDE approved and consist of core size 1mm2 or bigger,
length 2.5m or shorter cord with IEC320/C13 type, 250V 10A or higher rating connector
and CEE(7)VII type or IEC 320-2.2/E type, 250V 10A or higher rating plug.
Use the video cable and/or the wired remote control according to the recommendations
as below, in order to comply with safety and EMC standards.
The video cable shall be 2m long or shorter, 75Ω coaxial, 3C-2VT or equivalent, with
BNC plug at each end.
The wired remote control shall be Mitsubishi Electric parts No. 939P951010. (2m long or
shorter, shielded wire, with 3.5mm diameter stereo mini-plug and switch box.)
This product is to be employed with medical equipment, just for reference purpose, not
for medical diagnostic purpose.
Information:
This equipment complies with EN55011, class B, group 1.
1
CONTENTS
1 CONTENTS .................................................................. 1
2 PRECAUTIONS ....................................................... 2 - 4
3 UNPACKING ................................................................. 5
4 FEATURES AND FUNCTIONS
5
6
7
8
9
A
B
C
D
E
F
Front Panel ............................................................... 6
Rear Panel ................................................................ 7
INSTALLATION OF PAPER .................................... 8 - 9
EXAMPLE OF CONNECTION /SETTING OF SWITCHES
Composite Video Signal ....................................... 10
Medical Video Signal ............................................. 11
PRINTING
Printing Procedure ................................................ 12
Use of Remote Control.......................................... 13
ADJUSTMENT OF PRINT PICTURE
Adjustment of Brightness/Contrast .............. 14 - 15
SETTING FUNCTION MODE
Function mode ....................................................... 16
Setting the function mode ............................. 17 - 21
SIZE switch setting................................................ 22
MODE switch setting ............................................. 23
Print patterns depending on the combination of
the settings of the SIZE and MODE switches ... 24
User setting ............................................................ 25
Resetting the set values ....................................... 25
ERROR DISPLAY ................................................ 26 - 28
DIP SWITCH FUNCTIONS ......................................... 29
STATUS AND MODES ............................................... 30
USE OF CLEANING PAPER ...................................... 31
MAINTENANCE.......................................................... 32
SPECIFICATIONS ...................................................... 33
1
2
PRECAUTIONS
In the interest of safety, please observe the following
precautions:
POWER REQUIREMENT
This Video Copy Processor is designed for operation on
100-240V AC 50/60Hz. Never connect to any outlet or
power supply having a different voltage or frequency.
WARNING : THIS APPARATUS MUST BE EARTHED.
AVERTISSEMENT : CET APPAREIL DOIT ETRE MIS A
LA TERRE.
This equipment is classified as class 1, according to the
type of protection against electric shock.
PROTECTIVE MEASURES
IF ABNORMALITIES ARISE, . . .
Use of the unit during emission of smoke or abnormal
sounds (without adopting countermeasures) is
dangerous. In such a case, unplug the power cord from
the source outlet immediately, and request maintenance services from the sales dealer.
DO NOT REMOVE THE CABINET
Touching internal parts is dangerous or may lead to
malfunction. Contact the sales dealer to carry out internal checks and/or adjustments. Before opening the
cover to clear a paper jam, etc., be sure to disconnect
the power cord plug.
NEVER INSERT ANY OBJECT INTO THE UNIT
Foreign objects of any kind inserted into this unit constitute
a safety hazard and can cause extensive damage.
If any object should be inserted into the unit, unplug the
power cord, then contact the sales dealer.
DO NOT ATTACH A SCREW MORE THAN 6MM LONG
ON THE BOTTOM
If a screw more than 6 mm long is attached on the bottom
of the printer, it may cause internal damage.
DO NOT PLACE ANYTHING ON THE UNIT
Heavy objects placed on the unit can cause damage or
obstruct proper ventilation.
PROTECT THE POWER CORD
Damage to the power cord may cause fire or shock
hazard. When unplugging, hold by the plug only and
remove carefully.
Never put a heavy thing on the power cord. The cord may
be damaged causing a fire or electric shock.
DO NOT PLACE WATER CONTAINERS ON THE UNIT
Do not place flower vases, and other water-holding containers on the unit. If, for some reason, water seeps to the
inside of the unit, unplug the power cord from the
source outlet, and contact the sales dealer. If used without
corrective measures, the unit may be damaged.
PROTECT AGAINST DEW FORMATION
In extremely cold regions, if the unit is moved quickly from
an extremely cold place to a warmer one, dew is likely to
be formed. If dew is formed, printing is not possible.
OPERATING AMBIENT TEMPERATURE RANGE
The operating ambient temperature range is 5°C-40°C
(41°F-104°F), and humidity of 20-80%.
BE CAREFUL AROUND PRINT PAPER EXIT SLOT
Do not insert your hand or any material into the paper exit
slot during printing.
Do not touch the cutter blade inside the paper exit slot.
Otherwise, your finger will be injured.
DO NOT TOUCH THE THERMAL HEAD AND CUTTER
Do not touch the thermal head (located inside the unit)
and the cutter blade.
The thermal head is heated to high temperature.
This may cause injury.
INSTALLATION LOCATIONS
MAINTAIN GOOD VENTILATION
Ventilation slots and holes are provided on sides of this
unit.
Place the unit on a hard and level surface and locate at
least 4" (10cm) from walls to ensure proper ventilation.
PLACES LIKELY TO BE EXTREMELY HOT
Places exposed to direct sunlight, or near heating
appliances can attain extremely high temperatures,
which may deform the cabinet, or can become a
prime cause of damage.
UNSUITABLE LOCATIONS
Avoid shaky places or hot-springs areas where hydrogen
sulfide and acidic ions are likely to be generated.
SET THE UNIT ON A FLAT PLACE
Do not use the unit when inclined ±20° in vertical or
horizontal direction, or in an unstable place.
It will disturb paper feeding or ventilation, or affects the
set.
PLACES WITH HIGH HUMIDITY AND DUST
Do not place the unit at locations with high humidity and/
or dust. They can cause extensive damage.
Avoid places where the unit is likely to contact oily fumes
and vapors.
2
FOR LONG OPERATING LIFE
UNSUITABLE MATERIALS FOR THE UNIT
Many plastic components are used in the unit.
Coat flaking and deformation are likely to occur if the
unit is wiped with chemical dusters, benzine, thinner or
any other solvent, if rubber or PVC items are left in
contact with the unit for extended duration, or if the unit
is sprayed with insecticide.
CARE OF THE CABINET
Unplug and clean with a soft cloth slightly moistened
with a mild soap and water solution. Allow to dry completely before operating. Never use petroleum base
solutions or abrasive cleaners.
HEAD ABRASION
The thermal head, like the video head, wears out.
When it is abraded, it becomes hard to print out fine
details of the picture. In such a case, it is necessary to
replace the thermal head. Consult with the sales dealer
for replacing the head.
WHEN A DEFECT IS FOUND
If you detect smoke or other smell from the unit, disconnect immediately the power cord plug from a wall socket
and ask the agent for repair. It may dangerous to
operate the unit under these conditions.
CONNECTION DEVICES
Read thoroughly "Operating Precautions" of the instruction booklets for the devices connected with the Video
Copy Processor.
Do not disconnect the power cord during printing.
CAUTION ON RELOCATING
When transporting this unit, make sure it is not likely to
be subjected to impacts. They can be a prime cause for
damage. Further, make sure to disconnect the power
cord from the power outlet, and the cables from the
connected devices.
UNPLUG THE POWER CORD DURING A LONG
ABSENCE
Turn off the MAIN power switch and unplug the power
cord during a long absence.
THERMAL PAPER
2
2
2
2
2
2
2
2
2
Thermal papers listed in the page of SPECIFICATIONS are available.
When the remaining length of the paper is about10"
(25cm), a color belt appears at the paper end.
Prepare for replacement of the paper. If the
remaining paper length is less than 10" (25cm),
printing becomes uneven due to the uneven
paper core surface.
When the Printed paper is touched by wet hand,
the print may be discolored.
When the paper runs out during printing, the printing
operation stops and "EP" is displayed by the indicator
on the front panel. Install new paper at this time.
Store the printed paper in a place with low humidity
free from a direct sunlight.
If the paper absorbs non-volatile organic solvents
(alcohol, ester, katone, etc.) the print may be
discolored.
Particularly, if the paper comes in contact with soft
vinyl chloride such as a transparent tape, it quickens
discoloration.
Do not use paper other than the specified one.
Immediately after the paper is replaced, 2-3 images
may be printed with a blank part due to hand's dust
or oil.
Avoid direct sunlight or places near heaters, etc.,
and store the paper in a place with 30°C ( 86°F)
or lower temperature and 35-80% RH.
2
2
When the paper is rapidly transferred from a cool
place to a hot place, a vapor or a dew is generated
on the paper surface causing paper jam or degraded
printing quality.
A finger print or dust on the paper surface may
degrade the printing quality.
Note:
Mitsubishi brand thermal paper is specially treated
with an anti-static coating against thermal head
damage caused by static-electricity discharge.
The use of non-treated paper may cause premature
head failure in your product.
3
SAFETY TECHNICAL CHECKS
Periods: According to the recommendations of the manufacturer of medical device.
Scope: a) Visual check
Housing, cables, operator controls, readout device ( displays, LED etc.), labels,
accessories, instruction manual.
b) Function test
Performance check acc. instruction manual, also unity and applicability of set
and accessory test.
c) Electrical check
Safety electrical test of the configuration in accordance with EN60601-1.
“ In the interest of safety, avoid the handling of liquids beside the set.”
RESPONSIBILITY OF THE MANUFACTURER
The manufacturer, assembler, installer or importer considers himself responsible for the
effects on safety, reliability and performance of the EQUIPMENT only if:
– assembly operations, extensions, re-adjustments, modifications or repairs are carried out
by persons authorized by him, and
– the electrical installation of the relevant room complies with the IEC requirements
– the EQUIPMENT is used in accordance with the instructions for use.
• Any service after expiration of the warranty period will be chargeable. Consult your dealer
for advice.
TECHNICAL DESCRIPTION
The supplier will make available on request such circuit diagrams, component part lists,
descriptions, calibration instructions or other information which will assist the USER's appropriately qualified technical personnel to repair those parts of the EQUIPMENT which
are classified by the manufacturer as repairable.
The use of ACCESSORY equipment not complying with the equivalent safety requirements
of this equipment may lead to a reduced level of safety of the resulting system. Consideration relating to the choice shall include:
– use of the accessory in the PATIENT VICINITY
– evidence that the safety certification of the ACCESSORY has been performed in accordance to the appropriate EN60601-1 and/or EN60601-1-1 harmonized national standard.
The transportation and storage environmental conditions are:
Temperature : -20°C - +60°C (-4°F - +140°F)
Humidity : 90%RH or less at 40°C (104°F)
Note : The above transportation environmental conditions indicate the storage environmental conditions during transport.
4
3
UNPACKING
Take the unit out of the box by the following procedures. Make sure to check the
contents.
1 Open the top of the box.
3 Take the unit out of the box carefully.
• Make sure to
keep the unit
horizontal.
2 Remove the cushion above the unit.
4 Unwrap the unit.
SIZE
SIZE
MULTI
MODE
NOR. 1:1
SINGLE EXP.
BRT
CONT
EXP.
ADJUST
BRT
CONT
FUNC
FEED
COPY
PRINT
Accessories
Thermal paper
AC power cord
BNC/BNC connection cable
Wired remote control
Cleaning paper
Operation manual
5
4
FEATURES AND FUNCTIONS
Front Panel
1 23 4 5 6 7 8 9 A B C
SIDE NOR
1:1
SIZE
BRT
ADJUST
BRT
CONT
FUNC
FEED
COPY
PRINT
CONT
D
MULTI SINGLE EXP.
MODE
E
1
2
3
4
5
6
7
8
9
A
B
C
D
E
EXP.
OPEN
Function
Name
Power switch
Turns on/off the power.
SIZE switch
Selects the size of images to print.
MODE switch
Indicator
Indicator (BRT/CONT/EXP.)
ADJUST control
Reference
Page
12 • 31
22
Selects the extended function of the SIZE
23
switch.
Displays stand-by, functions and error
13•15•17-20•
messages.
24-28•30
14 • 23
Displays the function being set.
Turn to change the settings of each
15
function.
BRT (brightness) button
Sets the brightness of the print image.
14
CONT (contrast) button
Sets the contrast of the print image.
14
FUNC (function) button
Selects the function mode.
16
FEED button
Press to feed the paper.
COPY button
Press to print additional copies of the
previous print-out.
Press to print the image.
12
12
PRINT button
Print exit/Cutter
Lever
Printed paper will come out through this
slot./ Cut the printed paper here.
Switch to open the door.
6
12
12
8
Rear Panel
F G H
I
REMOTE
ON
OFF
DIP SW
OUT
VIDEO
IN
AC LINE
J
EQUALIZATION
K POTENTIAL
TERMINAL
DIP SW FUNCTION TABLE
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
NO.
75Ω
HIGH
ON
OFF
FIELD
FRAME
4
5
6
RESERVED
This is used to equalize the potential of the
equipment connected to this unit.
For details refer to the installation
instruction of equipment to be
connected.
F
G
H
I
J
K
Function
Name
Reference
Page
DIP switch
Selects special functions.
VIDEO IN connector
(BNC type)
Video signal input.
10•11
VIDEO OUT connector
(BNC type)
Video signal output (Monitor output).
10•11
Remote control terminal
Power terminal (AC LINE)
Potential equalization terminal
Terminal to connect the remote
control.
Connect the power cord to this terminal.
Makes the connected equipment
potential equal.
7
10•11•29
13
10•11
–
5
INSTALLATION OF PAPER
Paper (High-density paper KP65HM-CE)
3 Pull out the paper end.
Moisture, fingerprints or dust on the
paper surface may cause a noise at
printing or deterioration in print
quality. Set the paper by the following procedure to prevent adhesion
of fingerprint or dust on the paper
surface.
• Pull out the first 1520cm (6 in. - 9 in.) of
the paper to remove
any slack in the roll.
1 Open the door.
4 Close the door.
• Switch the lever
located on the
left side to the
“OPEN” position.
OPEN
The door opens.
2 Load the paper roll.
• Place the paper roll
in the printer.
5 Cut the paper end.
printing side
INCORRECT
cutter
CORRECT
Note: The printing surface is the outside.
Place the paper with the thermosensitive side (printing side) up.
When the paper roll is placed
inversely, images can not be printed.
• Cut the paper end with the cutter by
pulling the paper upwards against the
cutter blade.
8
When setting the paper, observe the following
precautions to prevent paper jam.
Do not use defective paper.
Do not use bent or wrinkled
paper.
Adjust the paper position correctly.
When the paper is fed out skewed
from the print exit, adjust the paper
position so that it is fed out straight.
Do not allow slack in the paper roll.
Set the paper tightly to remove any
slack.
If the side of the print paper is uneven or the core is sticking out, the amount of paper feeding
after printing may vary.
When the side of paper is uneven or the core is sticking out, install the print paper after
making the paper side even.
The core is sticking out.
The paper is uneven.
Make the paper side even.
CORRECT
INCORRECT
CAUTION
• Keep the high-density paper away from fingerprint, dust or moisture when storing it.
• Do not touch the rubber roller. Do not stain or damage the roller surface.
• Do not touch the thermal head (located behind the cutter). When printing, the thermal
head is heated to high temperature.
• Do not touch the cutter blade.
9
6
EXAMPLE OF CONNECTION / SETTING OF SWITCHES
Connecting to various composite video signal equipment such
as medical equipment.
Composite Video Signal
Video signal equipment
Television
1 Turn off the power switches of the Video copy processor and
the equipment to be connected.
2 Connect the VIDEO input terminal of the Video copy
processor to the video output terminal of the connected
equipment.
To VIDEO
output
terminal
To VIDEO
IN
terminal
Rear panel
REMOTE
ON
OFF
DIP SW
VCR
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
75Ω
HIGH
ON
OFF
FIELD
FRAME
Video disc player
To VIDEO
input
terminal
Setting of Switches
2
AC LINE
4
5
6
RESERVED
Connect
Power cord
Monitor
2
OUT
VIDEO
DIP SW FUNCTION TABLE
NO.
To VIDEO
OUT terminal
Camera-type VCR
IN
The following is an example of DIP switch setting.
Refer to page 29 for the DIP switch settings.
SW-NO.
1
2
3
4
5
6
ON
OFF
DIP SW
10
Setting
75Ω
ON
FRAME
OFF
OFF
OFF
Medical Video Signal
1 Turn off the power switches of the Video copy processor and
the equipment to be connected.
2 Connect the VIDEO input terminal of the Video copy
processor to the video output terminal of the connected
equipment.
Rear panel
To VIDEO
output
terminal
To VIDEO
IN terminal
REMOTE
ON
OFF
DIP SW
IN
OUT
VIDEO
AC LINE
DIP SW FUNCTION TABLE
NO.
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
75Ω
HIGH
ON
OFF
FIELD
FRAME
4
5
Connect
Power
cord
6
RESERVED
Medical
equipment
Setting of Switches
Set the DIP switch as follows:
(This is standard setting.)
ON
SW-NO.
1
2
3
4
5
6
OFF
DIP SW
DIP SW FUNCTION TABLE
NO.
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
75Ω
HIGH
ON
OFF
FIELD
FRAME
2
2
4
5
Setting
75Ω
OFF
FRAME
OFF
OFF
OFF
6
RESERVED
Select γ-curve " " - " " for ultrasonic diagnosis equipment.
Especially " " is recommended. Refer to the γ-curve set mode on page 17.
Refer to the " DIP SWITCH FUNCTIONS " on page 29 .
11
7
PRINTING
Printing Procedure
1 Turn on the power.
3 Cut the printed paper.
• Press the
“POWER”
switch to turn
on the power.
2
• Cut the printed
paper with the
cutter by
tearing off the
paper in the
upper right
direction.
cutter
Print a picture displayed on the screen.
• Display a picture to
be printed on the
monitor screen, and
press the PRINT
button.
When printing
finishes, a
buzzer tone will
be heard.
Copy Printing
2
You can set the number of copies by
pressing the COPY button on the front
panel.
You can copy the same picture as
many times as you desire by pressing
the COPY button.
When pressing the FEED button during
copy printing, the copy printing is
canceled upon completion of the
current copy.
FEED
Paper Feeding
2
To feed the paper, hold down the
FEED button on the front panel.
12
COPY
Use of Remote Control
Connect the wired remote control to
the remote control terminal on the
rear panel.
Press the button on the remote
control to print pictures.
This button functions the same as the
PRINT button.
When no signal is input, the button is
invalid.
Rear panel
REMOTE
ON
OFF
DIP SW
IN
OUT
VIDEO
AC LINE
DIP SW FUNCTION TABLE
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
NO.
75Ω
HIGH
ON
OFF
FIELD
FRAME
4
5
To remote control terminal
6
RESERVED
Precautions on Printing
When dark pictures are printed consecutively, the Video Copy Processor may become
overheated and the indicator blinks.
In this case, wait for a while until the unit is cooled down.
Avoid pulling out or holding the paper during printing or copying to prevent paper jam.
Do not touch the paper until printing or copying finishes.
When printing is carried out with no signal input, "NO SIGNAL" will be printed at the bottom
of the print.
Paper saving mode
When the paper saving mode (SAVING : ) is selected to " " by FUNC button, the amount of
paper fed is smaller than in normal paper feeding.
Press and hold the FEED button on the front panel to feed the paper to cut the paper at
the appropriate position.
13
8
ADJUSTMENT OF PRINT PICTURE
Adjustment of Brightness/Contrast
You can adjust brightness and contrast of the printed picture
while observing the monitor screen.
Control panel
SIDE NOR
BRT
1:1
SIZE
ADJUST
BRT
CONT
FUNC
FEED
COPY
CONT
MULTI SINGLE EXP.
EXP.
MODE
• For adjustment, use the BRT button "
BRT
", CONT button "
CONT
" and ADJUST control "
ADJUST
".
1 Press the buttons to adjust brightness or contrast.
BRT
SIDE NOR
1:1
SIZE
BRT
ADJUST
BRT
CONT
FUNC
FEED
COPY
Press the BRT button "
the brightness.
PRINT
CONT
MULTI SINGLE EXP.
EXP.
MODE
" to adjust
• The BRT indicator lights up.
OPEN
CONT
SIDE NOR
1:1
SIZE
BRT
ADJUST
BRT
CONT
FUNC
FEED
COPY
PRINT
Press the CONT button " " to adjust
the contrast.
• The CONT indicator lights up.
CONT
MULTI SINGLE EXP.
MODE
EXP.
OPEN
14
2 Change the setting.
ADJUST
ADJUST
3 Store the set value.
By pressing the PRINT button, the
setting value is memorized.
The memorized value will not be lost
even when the power is turned off.
• Turn the control
clockwise to
increase the value.
• Turn the control
counterclockwise
to decrease the
value.
The setting value is displayed by the
indicator.
(example)
Setting range is -19 to +19.
15
9
SETTING FUNCTION MODE
Function mode
In this mode, the initial setting value of each function can be
changed. Each time the FUNC button is pressed, the mode is
switched as follows.
SIDE NOR
1:1
SIZE
BRT
ADJUST
BRT
CONT
FUNC
FEED
COPY
PRINT
CONT
MULTI SINGLE EXP.
MODE
EXP.
OPEN
Press the FUNC button for
less than 1 second
more than 1 second
Stand-by status
curve setting
SCAN setting
Selection of the memorized
image for copy printing
IMAGE setting
DIRECTION setting
Selection of the memorized
multi image copy printing *1
SAVING setting
Setting of the horizontal print
area for the enlarged image *2
PAPER setting
PRINT button function setting
Setting of the vertical print
area for the enlarged image *2
Setting of the number of prints
Printing of the setting values
Setting of the mode table printing
*1 Displayed only when the MODE switch is set to MULTI.
*2 Displayed only when the enlarging print is set.
16
Setting the function mode
By turning the ADJUST control, you can change the setting
value of each function mode. The set values will not be lost
even when the power is turned off.
ADJUST
ADJUST
γ curve setting
Indicator
Purpose and description
• To select the gamma (γ) curve (relation between the density and
the brightness of the image) to obtain an optimum density
depending on the connected device. Five options are available.
• The default setting is 5.
Selection of the memorized image for copy printing or the first image
for the multi image copy printing
Indicator
Purpose and description
• You can select any image from the last 10 printed images to print
it again.
• The larger the number displayed by the indicator becomes, the
older the selected image is. (Selectable range : 0 to 9.)
• The selected image is displayed on the monitor. The image
selected in this mode is specified automatically as the first image
(the image printed on the right) for 2-multi image copy printing.
• The selected image is kept until a new image is memorized.
• The memorized images are cleared when the power is turned off.
17
Selection of the second image for the multi image copy printing
Indicator
Purpose and description
• You can select any image from the last 10 printed images for 2multi image printing.
• The larger the number displayed by the indicator becomes, the
older the selected image is. (Selectable range : 0 to 9)
• The image selected in this mode is printed on the left for 2-multi
image copy printing.
• The selected image is displayed on the monitor.
• The selected image is kept until a new image is memorized.
• The memorized images are cleared when the power is turned off.
Setting of the horizontal print area for the enlarged image
Indicator
Purpose and description
• You can specify the print area when the image is enlarged and
printed in NOR size.
• Because the print area is shown on the monitor, you can adjust
the print area viewing the monitor and shift the print area by
turning the ADJUST control.
• You can adjust the print area just horizontally in this mode. If you
expand the print area vertically, the whole image is enlarged.
Setting of the vertical print area for the enlarged image
Indicator
Purpose and description
• You can specify the print area when the image is enlarged and
printed in SIDE size.
• Because the print area is shown on the monitor, you can adjust
the print area viewing the monitor and shift the print area by
turning the ADJUST control.
• You can adjust the print area just vertically in this mode. If you
expand the print area horizontally, the whole image is enlarged.
18
Printing of the setting values
Indicator
Purpose and description
• You can include the setting values of BRT, CONT and GAMMA
in the print at the bottom.
: The setting values are not printed.
: The setting values are printed.
,
SCAN setting
Indicator
Purpose and description
• You can select underscan or overscan of the print image.
: Underscan
: Overscan
,
A
A
(Underscan)
(Overscan)
IMAGE setting
Indicator
,
Purpose and description
• You can select the print pattern, positive print or negative.
: Positive print
: Negative print
• When positive printing is selected, the image is printed as
displayed. When negative printing is selected, the image is
printed inversed.
A
A
(Positive print)
19
(Negative print)
DIRECTION setting
Indicator
Purpose and description
• You can select the print direction.
: Printing starts from the bottom of the image.
(The image is rotated 180°)
: Printing starts from the top of the image.
A
,
A
(Normal)
(Reverse)
SAVING setting
Indicator
Purpose and description
• You can select the amount of paper for preparing a margin of the
next print.
: Normal margin
: Narrow margin
,
Normal
(Normal margin)
Narrow
(Narrow margin)
PAPER setting
Indicator
, ,
Purpose and description
• You can select any of the following options according to the paper
to be used.
: High glossy paper (KP91HG-CE)
: High density paper (KP65HM-CE, KP65H-CE)
: Standard paper
(KP61B-CE, KP61S-CE)
20
PRINT button function setting
Indicator
, ,
Purpose and description
• You can extend the function of the PRINT button.
: Normal function only
: The image is copied as many times as the PRINT button is
pressed.
: The printed images are memorized during printing.
Setting of the number of prints
Indicator
Purpose and description
• You can select the number of prints when you press the PRINT
button.
• The selectable number is to and (continuous printing).
- ,
• The continuous printing can be canceled by pressing the FEED
button.
Setting of the mode table printing
Indicator
Purpose and description
• You can print the table of LED indications and the explanations
corresponding to each function mode.
is
• You can print the table by pressing the COPY button while
displayed on the LED.
21
SIZE switch setting
The size of the printed image can be selected by the SIZE
switch.
SIDE NOR
1:1
SIZE
Example
A
SIDE
NOR.
1:1
A
22
A
MODE switch setting
MODE switch works as the extended function of SIZE switch.
MULTI SINGLE EXP.
MODE
Set this switch to SINGLE for normal use. The image is printed in the size specified by the
SIZE switch.
When selecting MULTI, you can print 2-multi images.
• To print a multi image, press the PRINT button twice.
• At the first press of the PRINT button, the first image is memorized and the indicator
displays .
• At the second press of the PRINT button, the second image is memorized and both
the first and the second images are printed automatically.
• When 1:1 is selected by SIZE switch, multi image printing is not available.
When selecting EXP., you can enlarge or reduce the image to be printed in the NOR. size or
the SIDE size according to the setting of the SIZE switch.
• When EXP. is selected, the EXP. indicator lights up and the enlargement ratio is
displayed.
• The switch does not stay at the EXP. position. When you release the switch at the
EXP. position, it returns to the SINGLE position automatically.
• The enlargement ratio can be set from 0.5 to 2.0 by 0.1 steps.
• Use the ADJUST control to change the enlargement ratio.
• The fixed enlargement ratio will not be lost even when the power is turned off.
• When 1:1 is selected by the SIZE switch, printing of enlarged or reduced images is
not available.
23
Print patterns depending on the combination of the settings of
the SIZE and MODE switches
SIZE
SIDE
NOR
1:1
A
A
MULTI
EXP.
A
B
SINGLE
A
MODE
A B
A
24
Printing is not
available.
Printing is not
available.
User setting
This unit can memorize the settings which you adjusted to
meet the operating conditions of the connected devices and
the print quality conditions as the "user setting". When you
change the setting by mistake, you can correct it with a
simple operation.
Memorizing the user setting
1
The service personnel of this unit memorizes the settings. Contact your dealer.
Setting back to the user setting
1
2
3
Turn off the power.
While pressing the COPY button, turn on the power.
The display by the indicator changes from
to , and the setting values are
reset to the user setting.
Resetting the setting values
You can reset the setting values of brightness, contrast and
functions.
1 Turn off the power.
2 While pressing the FUNC button, turn on the power.
3 The display by the indicator changes from to , and the setting values are reset to
the default setting.
The user setting values are not reset with this operation.
25
10
ERROR DISPLAY
In case of an error in the unit during operation, you are warned
by an alarm tone or the LED indicator.
Cause/Error display
1 Overheat
Symptom/Remedy
[Symptom]
• When the head gets overheated, the indicator blinks. In this case,
the following buttons function as described below.
When overheat occurs during continuous printing, printing starts as
soon as the error is solved.
COPY button
• Each time the COPY button is pressed, the number displayed by
.
the indicator increases as
• After the error is solved, copy printing starts automatically.
PRINT button
When the function of the PRINT button has been set so that the
image is copied as many times as the PRINT button is pressed:
• Each time the PRINT button is pressed, the number displayed by
the indicator increases as
.
• After the error is solved, copy printing starts automatically.
When the function of the PRINT button has been set so that the
printed image is memorized during printing:
• When the PRINT button is pressed, the current input image is
memorized. You can continue memorizing images until the
memory becomes full.
• After the error is cleared, the memorized images are printed
automatically.
FEED button
• When the number of copies has been set to more than one,
outstanding copies are canceled at a press of the FEED button.
[Remedy]
Wait until the head cools down.
26
Cause/Error display
2 No paper
Symptom/Remedy
[Symptom]
• When the paper runs out or the paper is not installed, printing
becomes impossible and an alarm tone is heard.
In this case, all the buttons become invalid.
• If this error occurs while more than one copy is being printed or
there are images waiting to be processed, printing is cancelled
at the occurrence of the error.
[Remedy]
Install a new roll of paper according to "5. INSTALLATION OF
PAPER" on page 8.
When the paper is correctly installed while the printing of more than
one copy has been suspended or there are images waiting to be
processed, an alarm tone is heard. Then, the paper is fed automatically about 15 cm and printing resumes.
After the error is resolved, the unit resumes printing from the interrupted image and finishes printing all the outstanding images.
Cause/Error display
3 Button input
error
Symptom/Remedy
[Symptom]
• The button becomes invalid and an alarm tone is heard in the
following cases.
• The PRINT button is pressed with the memory full when the
PRINT button has been set so that the printed image is
memorized during printing.
• The PRINT button on the remote control is pressed with no
signal input.
The indicator displays “ ” for one second and return to the status
before the error occurred.
27
Cause/Error display
4 Door error
Symptom/Remedy
[Symptom]
• When the door opens, an alarm tone is heard.
The indicator displays " " for one second.
In this case, all the buttons become invalid.
• If this error occurs while more than one copy is being printed or
there are images waiting to be processed, printing is cancelled at
the occurrence of the error.
[Remedy]
Close the door.
When the door is closed while the printing of more than one copy
has been suspended or there are images waiting to be processed,
an alarm tone is heard and printing resumes.
After the error is resolved, the unit resumes printing from the
interrupted image and finishes printing all the outstanding images.
Cause/Error display
5 Gear lock error
Symptom/Remedy
[Symptom]
• When the thermal head does not automatically go down at the start
of printing or paper feeding, an alarm tone is heard.
• When the thermal head does not automatically go up at the end of
printing or paper feeding, an alarm tone is heard.
The indicator displays " " and all the buttons become invalid.
• If this error occurs while more than one copy is being printed or
there are images waiting to be processed, printing is cancelled at
the occurrence of the error.
[Remedy]
Turn the power off. Then turn it on again.
Printing of the interrupted image or all the images saved in the
memory that are waiting to be processed is cancelled.
28
11
DIP SWITCH FUNCTIONS
ON
OFF
DIP SW
DIP SW FUNCTION TABLE
NO.
1
2
3
FUNCTION
IMP
TRAP
MEMORY
SW-ON
SW-OFF
75Ω
HIGH
ON
OFF
FIELD
FRAME
2
3
5
6
RESERVED
Functions
DIP SWITCH
1
4
IMP
(IMPEDANCE)
75Ω / HIGH
Set to "75Ω" in normal use.
Set to "HIGH" when making branch connection of a monitor or
other units to the VIDEO IN connector.
TRAP
ON / OFF
Set to "OFF" in normal use.
Set to "ON" when inputting a color signal.
ON : The trap circuit is active.
OFF : The trap circuit is inactive.
MEMORY
FIELD / FRAME
FRAME
FIELD
: Set to "FRAME" position in normal use.
: Set to "FIELD" position to print an image with rapid
motion.
2 The image displayed on the monitor is usually a single frame
4
5
6
consisting of two fields.
RESERVED
RESERVED
RESERVED
Set to "OFF".
(These switches are not used.)
29
12
STATUS AND MODES
LED display
Contents of right
side LED display
Video
output
Power off
Power off
Through
Stand-by
Normal stand-by
Through
γ-curve set mode (γ-curve)
γ-curve No.
Through
Selection of the memorized
image for copy printing
Selection of the memorized
image for multi copy printing
Setting of the horizontal print
area
Image No. in
the memory
Image No. in
the memory
Freeze
-
Monitor
Setting of the vertical print area
-
Monitor
Printing of the setting values
,
Printing enabled /
disabled
Through
SCAN
,
Underscan / Overscan
Through
,
Positive / negative
Through
DIRECTION
,
Normal / Reverse
Through
SAVING
,
Set state/Mode
Left
Right
PAPER
,
,
PRINT button function setting
,
,
Setting of the number of prints
,
Normal /
Paper saving
High glossy / High
density / Normal
Normal print /
Printing as many
times as the PRINT
button is pressed./
Image memorizing
during printing
Number of prints
Freeze
Through
Through
Through
Through
Setting of the mode table printing
Mode table printing
Through
Brightness adjustment
Brightness index
Monitor
Contrast adjustment
Contrast index
Monitor
Copy status
Number of outstanding copies
Through
Error detect state
No paper
Through
Button input error
Door is open.
Gear lock
30
13
USE OF CLEANING PAPER
When the thermal head is dirty with dust, etc., white spots or stripes may appear on the
print. In this case, clean the thermal head by the following procedure BY USING THE
SUPPLIED CLEANING PAPER.
1
4
Turn on the power.
Close the door.
Press the POWER
switch to turn on the
power.
2
Close the door
without taking out
the cleaning paper.
Open the door.
OPEN
Switch the left side
lever to the OPEN
position.
5
Press the "FEED" button.
FEED
3
Insert the cleaning paper.
Roll the cleaning
paper and install
into the set.
6
Take out the cleaning paper.
OPEN
Cleaning paper
Red mark
Platen roller
Adjust the red mark
on the cleaning
paper parallel to the
platen roller.
Keep pressing the
FEED button until
you hear a beep.
Open the door.
Take out the
cleaning paper.
Do not pull out the
cleaning paper while
the door is closed.
7 Repeat the steps 3-6 by 2 or 3 times,
and print 1-2 sheets to verify the
cleaning effect.
Cleaning paper
CAUTION
0 It is recommended that after printing 10 rolls of paper the unit be cleaned using the supplied cleaning paper.
0 If the symptom of the dirty head is not corrected even after cleaning, your set needs repairing, contact your dealer.
0 Do not pull out the sheet and the cleaning paper while the door is closed.
This may cause extensive damage on the unit.
0 Never use other cleaning papers. It may cause damage to the thermal head.
0 This cleaning paper should be used only for cleaning the thermal head. Do not use it for other purpose.
31
14
MAINTENANCE
Turn off the power for maintenance.
Maintenance of Main Unit
Wipe off stains of the front panel with a soft cloth.
When the panel is heavily stained, wipe of with the cloth
moistened with neutral cleanser diluted by water and finish with
a dry cloth.
Maintenance of Rubber Roller
When the rubber roller is dirty with dust, etc., a blank spot may
appear on the print.
In this case, eliminate the dust on to the rubber roller with a
blower or a brush.
Rubber roller
Cleaning of Thermal Head
When the thermal head is dirty with dust, etc., white spots or
stripes may appear on the print.
In this case, clean the thermal head according to "13. USE OF
CLEANING PAPER".
Note: After installation of new roll of paper, dust on the paper will
generally require 2 to 3 prints to be made before the dust
is eliminated.
32
15
SPECIFICATIONS
Type:
Video Copy Processor
Model:
P93W / P93E
Power supply and
power consumption:
100-240V AC, 50/60Hz, 1.5 - 0.8A
Connection terminal:
Video input terminal (BNC contact plug)
Video output terminal (BNC contact plug)
Resolution:
Horizontal 1280 pixels x Vertical 500 lines (Standard) (NTSC)
Horizontal 1280 pixels x Vertical 600 lines (Standard) (PAL)
Gradation:
256 gradations
Printing speed:
3.3 sec (Standard) (NTSC), 3.9 sec (Standard) (PAL)
Print size:
4" x 3" (100mm x 75mm) (Standard)
Operating conditions:
Temperature 41 - 104˚F (5-40˚C)
Humidity
20 - 80% RH (No dewing)
External dimensions:
6.1" x 3.5" x 10.1" (154mm x 89.5mm x 256mm); W x H x D
Weight:
6.2 lbs (2.8 kg)
Standard accessories:
BNC/BNC connection cable (2m) .............................. 1 piece
AC power cord ........................................................... 1 piece
Thermal paper KP65HM-CE .......................................... 1 roll
Wired remote control .................................................... 1 unit
Cleaning paper .......................................................... 1 sheet
Optional accessory:
Thermal paper KP65HM-CE, KP65H-CE, KP61S-CE,
KP61B-CE, KP91HG-CE
SERVICE INFORMATION
Before requesting service please review this operation manual to correct minor complaints.
If you are unable to correct the problem, consult your MITSUBISHI Dealer or MITSUBISHI
Service Department.
DO NOT ADJUST ANY CONTROLS NOT DESCRIBED IN THIS OPERATION MANUAL.
DO NOT REMOVE THE PROTECTIVE ENCLOSURE OF THIS UNIT.
33
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road, Irvine, CA 92618
Phone 949-465-6000
Mitsubishi Electric Europe B.V.
UK Branch
Travellers Lane, Hatfield, Herts. AL10 8XB, England, U.K.
Phone (0) 1707 276100
FAX (0) 1707 278755
German Branch
Gothaer Strasse 8, 40880 Ratingen ; Postfach 1548, 40835 Ratingen ; Germany
Phone (2102) 486-9250
FAX (2102) 486-7320
French Branch
25, Boulevard des Bouvets - 92741 NANTERRE cedex
Phone (01) 55.68.55.00
FAX (01) 55.68.57.31
Italian Branch
Centro Direzionale Colleoni, Palazzo Perseo-Ingresso 2,
Via Paracelso 12, 20041 Agrate Brianza, (Milano) Italy
Phone (039) 60531
FAX (039) 6057694
Benelux Branch
Nijverheidsweg 23 A, 3641 RP. Postbus 222, 3640 AE Mijdrecht
Phone 02972-82461
FAX 02972-83936
Spanish Branch (Barcelona)
Sucursal en españa
Polígono Industrial "Can Magí", Calle Joan Bucallà 2-4,
Apartado de Correos 420, 08190 Sant Cugat del Vallês,
Barcelona, Spaín
Phone 93.5653154
FAX 93.5894388
Manufactured by Mitsubishi Electric Corporation
1 Zusho Baba, Nagaokakyo-City, Kyoto Japan
871C594A30
Made from recycled paper
PRINTED IN MALAYSIA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
