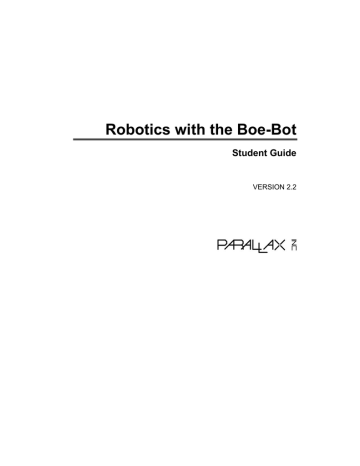

Robotics with the Boe-Bot

Student Guide

VERSION 2.2

WARRANTY

Parallax Inc. warrants its products against defects in materials and workmanship for a period of 90 days from receipt of product. If you discover a defect, Parallax Inc. will, at its option, repair or replace the merchandise, or refund the purchase price. Before returning the product to Parallax, call for a Return Merchandise Authorization (RMA) number. Write the RMA number on the outside of the box used to return the merchandise to Parallax. Please enclose the following along with the returned merchandise: your name, telephone number, shipping address, and a description of the problem. Parallax will return your product or its replacement using the same shipping method used to ship the product to Parallax.

14-DAY MONEY BACK GUARANTEE

If, within 14 days of having received your product, you find that it does not suit your needs, you may return it for a full refund. Parallax Inc. will refund the purchase price of the product, excluding shipping/handling costs. This guarantee is void if the product has been altered or damaged. See the Warranty section above for instructions on returning a product to Parallax.

COPYRIGHTS AND TRADEMARKS

This documentation is copyright 2003-2004 by Parallax Inc. By downloading or obtaining a printed copy of this documentation or software you agree that it is to be used exclusively with Parallax products. Any other uses are not permitted and may represent a violation of Parallax copyrights, legally punishable according to Federal copyright or intellectual property laws. Any duplication of this documentation for commercial uses is expressly prohibited by

Parallax Inc. Duplication for educational use is permitted, subject to the following Conditions of Duplication:

Parallax Inc. grants the user a conditional right to download, duplicate, and distribute this text without Parallax's permission. This right is based on the following conditions: the text, or any portion thereof, may not be duplicated for commercial use; it may be duplicated only for educational purposes when used solely in conjunction with Parallax products, and the user may recover from the student only the cost of duplication.

This text is available in printed format from Parallax Inc. Because we print the text in volume, the consumer price is often less than typical retail duplication charges.

BASIC Stamp, Stamps in Class, Board of Education, SumoBot, and SX-Key are registered trademarks of Parallax,

Inc. If you decide to use registered trademarks of Parallax Inc. on your web page or in printed material, you must state that "(registered trademark) is a registered trademark of Parallax Inc.” upon the first appearance of the trademark name in each printed document or web page. Boe-Bot, HomeWork Board, Parallax, the Parallax logo, and

Toddler are trademarks of Parallax Inc. If you decide to use trademarks of Parallax Inc. on your web page or in printed material, you must state that "(trademark) is a trademark of Parallax Inc.”, “upon the first appearance of the trademark name in each printed document or web page. Other brand and product names are trademarks or registered trademarks of their respective holders.

ISBN 1-928982-03-4

DISCLAIMER OF LIABILITY

Parallax Inc. is not responsible for special, incidental, or consequential damages resulting from any breach of warranty, or under any legal theory, including lost profits, downtime, goodwill, damage to or replacement of equipment or property, or any costs of recovering, reprogramming, or reproducing any data stored in or used with

Parallax products. Parallax Inc. is also not responsible for any personal damage, including that to life and health, resulting from use of any of our products. You take full responsibility for your BASIC Stamp application, no matter how life-threatening it may be.

WEB SITE AND DISCUSSION LISTS

The Parallax Inc. web site (www.parallax.com) has many downloads, products, customer applications and on-line ordering for the components used in this text. We also maintain several e-mail discussion lists for people interested in using Parallax products. These lists are accessible from www.parallax.com via the Support → Discussion Groups menu. These are the lists that we operate:

ƒ BASIC Stamps – This list is widely utilized by engineers, hobbyists and students who share their BASIC

Stamp projects and ask questions.

ƒ Stamps in Class – Created for educators and students, subscribers discuss the use of the Stamps in Class curriculum in their courses. The list provides an opportunity for both students and educators to ask questions and get answers.

ƒ Parallax Educators –Exclusively for educators and those who contribute to the development of Stamps in

Class. Parallax created this group to obtain feedback on our curricula and to provide a forum for educators to develop and obtain Teacher’s Guides.

ƒ Parallax Translators – The purpose of this list is to provide a conduit between Parallax and those who translate our documentation to languages other than English. Parallax provides editable Word documents to our translating partners and attempts to time the translations to coordinate with our publications.

ƒ Toddler Robot – A customer created this discussion list to discuss applications and programming of the

Parallax Toddler robot.

ƒ SX Tech – Discussion of programming the SX microcontroller with Parallax assembly language tools and

3 rd

party BASIC and C compilers.

ƒ Javelin Stamp – Discussion of application and design using the Javelin Stamp, a Parallax module that is programmed using a subset of Sun Microsystems’ Java® programming language.

ERRATA

While great effort is made to assure the accuracy of our texts, errors may still exist. If you find an error, please let us know by sending an email to [email protected] We continually strive to improve all of our educational materials and documentation, and frequently revise our texts. Occasionally, an errata sheet with a list of known errors and corrections for a given text will be posted to our web site, www.parallax.com. Please check the individual product page’s free downloads for an errata file.

Table of Contents · Page i

Table of Contents

Preface.........................................................................................................................5

Foreword.........................................................................................................................5

Audience.........................................................................................................................6

Support and Discussion Groups .....................................................................................6

The Stamps in Class Curriculum ....................................................................................7

Foreign Translations .......................................................................................................8

Special Contributors .......................................................................................................8

Chapter 1: Your Boe-Bot’s Brain ..............................................................................1

Hardware and Software ..................................................................................................2

Activity #1: Getting the Software.....................................................................................4

Activity #2: Installing the Software ................................................................................10

Activity #3: Setting up the Hardware and Testing the System......................................13

Activity #4: Your First Program .....................................................................................22

Activity #5: Looking up Answers ...................................................................................30

Activity #6: Introducing ASCII Code..............................................................................33

Activity #7: When You’re Done .....................................................................................35

Summary ......................................................................................................................37

Chapter 2: Your Boe-Bot’s Servo Motors ..............................................................41

Introducing the Continuous Rotation Servo ..................................................................41

Activity #1: How to Track Time and Repeat Actions.....................................................42

Activity #2: Tracking Time and Repeating Actions with a Circuit..................................45

Activity #3: Connecting the Servo Motors.....................................................................58

Activity #4: Centering the Servos..................................................................................66

Activity #5: How to Store Values and Count .................................................................71

Activity #6: Testing the Servos .....................................................................................75

Summary ......................................................................................................................86

Chapter 3: Assemble and Test Your Boe-Bot........................................................91

Activity #1: Assembling the Boe-Bot.............................................................................91

Activity #2: Re-Test the Servos ..................................................................................101

Activity #3: Start/Reset Indicator Circuit and Program................................................105

Activity #4: Testing Speed Control with the Debug Terminal......................................111

Summary ....................................................................................................................118

Chapter 4: Boe-Bot Navigation .............................................................................123

Activity #1: Basic Boe-Bot Maneuvers........................................................................123

Activity #2: Tuning the Basic Maneuvers....................................................................129

Activity #3: Calculating Distances...............................................................................132

Activity #4: Maneuvers – Ramping .............................................................................137

Page ii ·

Robotics with the Boe-Bot

Activity #5: Simplify Navigation with Subroutines .......................................................140

Activity #6: Building Complex Maneuvers in EEPROM ..............................................146

Summary ....................................................................................................................157

Chapter 5: Tactile Navigation with Whiskers ...................................................... 165

Tactile Navigation .......................................................................................................165

Activity #1: Building and Testing the Whiskers...........................................................166

Activity #2: Field Testing the Whiskers .......................................................................174

Activity #3: Navigation with Whiskers .........................................................................177

Activity #4: Artificial Intelligence and Deciding When You’re Stuck............................182

Summary ....................................................................................................................188

Chapter 6: Light Sensitive Navigation with Photoresistors .............................. 193

Introducing the Photoresistor......................................................................................193

Activity #1: Building and Testing Photoresistor Circuits .............................................194

Activity #2: Roam and Avoid Shadows Like Objects ..................................................200

Activity #3: A More Responsive Shadow Controlled Boe-Bot.....................................203

Activity #4: Getting More Information from Your Photoresistors.................................205

Activity #5: Flashlight Beam Following Boe-Bot .........................................................210

Activity #6: Roaming Toward the Light .......................................................................219

Summary ....................................................................................................................227

Chapter 7: Navigating with Infrared Headlights.................................................. 235

Using Infrared Headlights to See the Road ................................................................235

Activity #1: Building and Testing the IR Pairs.............................................................237

Activity #2: Field Testing for Object Detection and Infrared Interference ...................242

Activity #3: Infrared Detection Range Adjustments ....................................................247

Activity #4: Object Detection and Avoidance..............................................................249

Activity #5: High Performance IR Navigation..............................................................252

Activity #6: The Drop-Off Detector..............................................................................255

Summary ....................................................................................................................262

Chapter 8: Robot Control with Distance Detection ............................................ 269

Determining Distance with the Same IR LED/Detector Circuit ...................................269

Activity #1: Testing the Frequency Sweep .................................................................269

Activity #2: Boe-Bot Shadow Vehicle .........................................................................277

Activity #3: Following a Stripe.....................................................................................286

Summary ....................................................................................................................294

Appendix A: PC to BASIC Stamp Communication Trouble-Shooting.............. 301

Appendix B: BASIC Stamp and Carrier Board Components and Features ..... 305

Appendix C: Resistor Color Codes ...................................................................... 309

Appendix D: Breadboarding Rules ...................................................................... 311

Table of Contents · Page iii

Appendix E: Boe-Bot Parts Lists ..........................................................................317

Appendix F: Balancing Photoresistors ................................................................321

Appendix G: Tuning IR Distance Detection .........................................................329

Appendix H: Boe-Bot Navigation Contests .........................................................335

Index ........................................................................................................................339

Preface · Page v

Preface

FOREWORD

Robots are used in the auto, medical, and manufacturing industries, in all manner of exploration vehicles, and, of course, in many science fiction films. The word "robot" first appeared in a Czechoslovakian satirical play, Rossum's Universal Robots, by Karel

Capek in 1920. Robots in this play tended to be human-like. From this point onward, it seemed that many science fiction stories involved these robots trying to fit into society and make sense out of human emotions. This changed when General Motors installed the first robots in its manufacturing plant in 1961. These automated machines presented an entirely different image from the “human form” robots of science fiction.

Building and programming a robot is a combination of mechanics, electronics, and problem solving. What you're about to learn while doing the activities and projects in this text will be relevant to "real world" applications that use robotic control, the only difference being the size and sophistication. The mechanical principles, example program listings, and circuits you will use are very similar to, and sometimes the same as, industrial applications developed by engineers.

The goal of this text is to get students interested in and excited about the fields of engineering, mechatronics, and software development as they design, construct, and program an autonomous robot. This series of hands-on activities and projects will introduce students to basic robotic concepts using the Parallax Boe-Bot™ robot, called the "Boe-Bot". Its name comes from the Board of Education

®

carrier board that is mounted on its wheeled chassis. An example of a Boe-Bot with an infrared obstacle detection circuit built on the Board of Education solderless prototyping area is shown in

Figure P-1.

Figure P-1

Parallax Inc’s Boe-Bot™

Autonomous Wheeled Robot.

Page vi ·

Robotics with the Boe-Bot

The activities and projects in this text begin with an introduction to your Boe-Bot’s brain, the Parallax BASIC Stamp

®

2 microcontroller, and then move on to construction, testing, and calibration of the Boe-Bot. After that, you will program the Boe-Bot for basic maneuvers, and then proceed to adding sensors and writing programs that make it react to its surroundings and perform autonomous tasks.

AUDIENCE

The Robotics with the Boe-Bot Student Guide was created for ages 13+ as a subsequent text to “What’s a Microcontroller?”. Like all of the Stamps in Class curriculum, this series of experiments teaches new techniques and circuits with minimal overlap between the other texts. The general topics introduced in this series are: basic Boe-Bot navigation under program control, navigation using a variety of sensor inputs, navigation using feedback and various control techniques, and navigation using programmed artificial intelligence. Each topic is addressed in an introductory format designed to impart a conceptual understanding along with some hands-on experience. Those who intend to delve further into industrial technology, electronics, or robotics are likely to benefit significantly from initial experiences with these topics.

SUPPORT AND DISCUSSION GROUPS

The following two Yahoo! Discussion Groups are available for those who would like support in using this text. These groups are accessible from www.parallax.com under

Discussion Groups on the Support menu.

Stamps In Class Group: Open to students, educators, and independent learners, this forum allows members to ask each other questions and share answers as they work through the activities, exercises and projects in this text.

Parallax Educator’s Group: This moderated forum provides support for educators and welcomes feedback as we continue to develop our Stamps in Class curriculum. To join this group you must have proof of your status as an educator verified by Parallax. The

Teacher’s Guide for this text is available as a free download through this forum.

Educational Support: [email protected] Contact the Parallax Stamps in Class

Team directly if you are having difficulty subscribing to either of these Yahoo! Groups, or have questions about the material in this text, our Stamps in Class Curriculum, our

Educator’s Courses, or any of our educational services.

Preface · Page vii

Educational Sales: [email protected] Contact our Sales Team for information about educational discount pricing and classroom packs for our Stamps in Class kits and other selected products.

Technical Support: [email protected] Contact our Tech Support Team for general questions regarding the set-up and use of any of our hardware or software products.

THE STAMPS IN CLASS CURRICULUM

This text can be successfully completed with no prerequisites. However, What’s a

Microcontroller? is the recommended first (gateway) text to our Stamps in Class curriculum.

What’s a Microcontroller?”, Student Guide, Version 2.2, Parallax Inc., 2004

After completing this text, you can continue your studies with any of the kits and student guides or other manuals discussed below. All of these publications are available for free download from www.parallax.com. The versions cited below were current at the time of this printing. We continually strive to improve our educational program. Please check our web sites, www.parallax.com and www.stampsinclass.com, for the latest revisions.

Stamps in Class Student Guides:

For a well-rounded introduction to the design practices that go into modern devices and machinery, working through the activities and projects in the following Student Guides is highly recommended.

Applied Sensors”, Student Guide, Version 1.3, Parallax Inc., 2003

Basic Analog and Digital”, Student Guide, Version 1.3, Parallax Inc., 2004

Process Control”, Student Guide, Version 2.0, Parallax Inc., 2004

More Robotics Kits:

After completing this text, you will be ready for either or both of these more advanced robotics texts and kits:

Advanced Robotics: with the Toddler”, Student Guide, Version 1.2, Parallax

Inc., 2003

SumoBot” Manual, Version 2.0, Parallax Inc., 2004

Page viii ·

Robotics with the Boe-Bot

Educational Project Kits:

Elements of Digital Logic, Understanding Signals and Experiments with Renewable

Energy focus more closely on topics in electronics, while StampWorks provides a variety of projects that are useful to hobbyists, inventors and product designers interested in trying a variety of projects.

Elements of Digital Logic”, Student Guide, Version 1.0, Parallax Inc., 2003

Experiments with Renewable Energy”, Student Guide, Version 1.0, Parallax

Inc., 2004

StampWorks”, Manual, Version 1.2, Parallax Inc., 2000-2001

Understanding Signals”, Student Guide, Version 1.0, Parallax Inc., 2003

Reference

The BASIC Stamp Manual is an essential reference for all Stamps in Class Student

Guides. It is packed with information on the BASIC Stamp microcontrollers, the BASIC

Stamp Editor, and the PBASIC programming language.

BASIC Stamp Manual”, Version 2.0c, Parallax Inc., 2000

FOREIGN TRANSLATIONS

Parallax educational texts may be translated to other languages with our permission (email [email protected]). If you plan on doing any translations please contact us so we can provide the correctly-formatted MS Word documents, images, etc. We also maintain a discussion group for Parallax translators that you may join. It’s called the

Parallax Translators Yahoo! Group, and directions for finding it are included on the inside cover of this text. See section entitled: WEB SITE AND DISCUSSION LISTS on the page before the Table of Contents.

SPECIAL CONTRIBUTORS

Chuck Schoeffler, Ph.D., authored portions of the v1.2 text in conjunction with Parallax,

Inc. At that time, Dr. Schoeffler was a professor at University of Idaho's Industrial

Technology Education department. He designed the original Board of Education Robot

(Boe-Bot) shown in Figure P-2 along with similar robot derivatives with many unique functions. After several revisions, Chuck's design was adopted as the basis of the

Parallax Boe-Bot that is used in this text. Russ Miller of Parallax designed the Boe-Bot based on this prototype.

Preface · Page ix

Figure P-2

Original Boe-Bot

Prototype

Andrew Lindsay, Parallax Chief Roboticist, has since rewritten this text and its activities with three goals in mind. First, to support all activities in the text with carefully written

“how to” instructions. Second, to expose the reader and student to new circuit, programming, engineering, and robotic concepts in each chapter. Third, to ensure that the experiments can be performed with a high degree of success using the most up-todate Parallax equipment. As of this version, the most up-to-date equipment is the Board of Education Rev C or the BASIC Stamp HomeWork Board.

Thanks to Dale Kretzer for editorial review, which was incorporated into v1.4. Thanks also to the following Stamps in Class e-group participants for their input: Richard Breen,

Robert Ang, Dwayne Tunnell, Marc Pierloz, and Nagi Babu. These participants submitted one or more of the following: error corrections, useful editorial suggestions, or new material for v1.4. Thanks to student Laura Wong and to Rob Gerber for their respective contributions to v1.5. A special thanks to the Parallax, Inc. staff. Each and every member of the Parallax team has in some way contributed to making the Stamps in

Class program a success.

Version 2.0 of this Student Guide was a major revision and complete rewrite, featuring new activities, PBASIC 2.5 support, and BASIC Stamp HomeWork Board support. This revision would not have been possible without the following people. Parallaxians: Andy

Lindsay – author, Rich Allred – technical illustration, Stephanie Lindsay – technical editing, Kris Magri – reviewer and robotics guru. Also, thanks go to Stamps in Class outside reviewers and contributors Robert Ang and Sid Weaver.

Page x ·

Robotics with the Boe-Bot

If you have suggestions, think you found a mistake, or would like to contribute an activity or chapter to forthcoming Robotics with the Boe-Bot versions or More Robotics

with the Boe-Bot texts, contact us at [email protected] Subscribe and stay tuned to the StampsInClass Yahoo! Group for the latest in free hardware offers for

Robotics with the Boe-Bot contributions. See the WEB SITE AND DISCUSSION LISTS section on the page before the Table of Contents.

Chapter 1: Your Boe-Bot’s Brain · Page 1

Chapter 1: Your Boe-Bot’s Brain

Parallax, Inc’s Boe-Bot™ robot is the focus of the activities, projects, and contests in this book. The Boe-Bot and a close-up of its BASIC Stamp

®

2 programmable microcontroller brain are shown in Figure 1-1. The BASIC Stamp 2 module is both powerful and easy to use, especially with a robot.

Figure 1-1

BASIC

Stamp® 2 module on a

Boe-Bot™ robot.

The activities in this text will guide you through writing simple programs that make the

BASIC Stamp and your Boe-Bot do four essential robotic tasks:

1. Monitor sensors to detect the world around it

2. Make decisions based on what it senses

3. Control its motion (by operating the motors that make its wheels turn)

4. Exchange information with its Roboticist (that will be you!)

The programming language you will use to accomplish these tasks is called PBASIC, which stands for:

• Parallax - Company that invented and makes BASIC Stamp microcontrollers.

Beginners - Made for beginners to use to learn how to program computers

• All-purpose - Powerful and useful for solving many different kinds of problems

Symbolic - Using symbols (terms that resemble English word/phrases)

Instruction - To instruct a computer how to solve problems

• Code - In terms that you and the computer understand

Page 2 ·

Robotics with the Boe-Bot

What’s a Microcontroller?

It’s a programmable device that is designed into your digital wristwatch, cell phone, calculator, clock radio, etc. In these devices, the microcontroller has been programmed to sense when you press a button, make electronic beeping noises, and control the device’s digital display. They are also built into factory machinery, cars, submarines, and spaceships because they can be programmed to read sensors, make decisions, and orchestrate devices that control moving parts.

The What’s a Microcontroller? Student Guide is the recommended first text for beginners. It is full of examples of how to use microcontrollers, and how to make the BASIC Stamp the brain of your own microcontrolled inventions. It’s available for free download from www.parallax.com, and it's also included on the Parallax CD. Many electronics outlets carry the What’s a Microcontroller Kits and printed Student Guides. If you have any difficulty finding them locally, they can also be purchased directly from Parallax, either on-line at www.parallax.com or by phone at (888) 512-1024.

HARDWARE AND SOFTWARE

Getting started with BASIC Stamp programming is similar to getting started with a brand-new PC or laptop. The first things that most people do when they get a new PC or laptop is take it out of the box, plug it in, install and test some software, and maybe even write some software of their own using a programming language. If this is your first time using BASIC Stamp microcontrollers, you will be doing all these same activities. This chapter shows you how to get up and running with BASIC Stamp programming as it guides you through:

Finding and installing the programming software

Connecting your BASIC Stamp module to a battery power supply

Connecting your BASIC Stamp module to the computer for programming

Writing your first few PBASIC programs

Disconnecting power when you’re done

If you are in a class, the BASIC Stamp may already be all set up for you. If this is the case, your teacher may have other instructions. If not, the activities in this chapter will take you through all the steps of getting your new BASIC Stamp microcontroller up and running.

√ If you have already completed the What’s a Microcontroller? Student Guide, skip to the next chapter.

√ Likewise, if you are already familiar with your BASIC Stamp and Board of

Education or BASIC Stamp HomeWork Board, skip to the next chapter.

Chapter 1: Your Boe-Bot’s Brain · Page 3

Both this text and What’s a Microcontroller? contain instructions for getting started with

BASIC Stamp hardware and software in Chapter 1. These instructions are almost identical.

Introducing the BASIC Stamp and Board of Education

A BASIC Stamp 2 module and a Board of Education

®

carrier board are shown in Figure

1-2. As mentioned earlier, a BASIC Stamp module is like a very small computer. This very small computer plugs into the Board of Education carrier board. As you will soon see, the Board of Education makes it easy to connect a power supply and serial cable to the BASIC Stamp module. In later activities, you will also see how the Board of

Education makes it easy to build circuits and connect them to the BASIC Stamp.

Figure 1-2

BASIC Stamp® 2 Module

(left)

Board of Education®

Carrier Board (right)

Introducing the BASIC Stamp HomeWork Board

The BASIC Stamp

®

HomeWork Board™ project platform is shown below in Figure 1-3.

This board is like a Board of Education with the BASIC Stamp 2 microcontroller built in.

You can use either a BASIC Stamp 2 module with Board of Education carrier board or the BASIC Stamp HomeWork Board as your project platform for the activities in this text. Be sure to follow the directions for the specific project platform you are using, since they differ in a few places.

Page 4 ·

Robotics with the Boe-Bot

Figure 1-3

BASIC Stamp

®

HomeWork Board™ project platform.

What’s the difference?

Using a Board of Education carrier board and BASIC Stamp module gives you additional features such as headers for plugging in servo motors, control over the type of power supply the servos receive, and a handy, 3-position switch you can use to control what parts of the system receive power. The BASIC Stamp 2 module is removable, and can be replaced.

The BASIC Stamp HomeWork Board has no servo ports, external power supply jack or power switch, but it also costs less. You have to build your own servo connections, and to control power by disconnecting it from the board, or by building your own power control circuits. The BASIC Stamp 2 microcontroller is build right into the board, and each I/O pin is protected by a surface-mounted 220 Ω resistor.

See also: Appendix B: BASIC Stamp and Carrier Board Components and Features

ACTIVITY #1: GETTING THE SOFTWARE

The BASIC Stamp Editor (version 2.0 or higher) is the software you will use in most of the activities and projects in this text. This software allows you to write programs on your computer and download them into your Boe-Bot’s BASIC Stamp brain. It also displays messages on your computer screen sent by the BASIC Stamp, allowing your

Boe-Bot one way to report what it is doing and sensing to you, the roboticist.

Chapter 1: Your Boe-Bot’s Brain · Page 5

The BASIC Stamp Editor is free software, and the two easiest ways to get it are:

Download from the Internet: Look for “BASIC Stamp Windows Editor Version

2.0…” on the www.parallax.com → Downloads → BASIC Stamp Software page.

Included on the Parallax CD: Follow the Software link on the Welcome page.

Make sure the date printed on the CD is more recent than April 2003.

In a Hurry?

Get your copy of the BASIC Stamp Windows Editor version 2.0 (or higher) and install it on your PC or laptop. Then, skip to: Activity #3: Setting up the Hardware and

Testing the System.

If you have questions along the way,

Activity #1 can be used as a step-by-step reference for getting the software, and Activity #2 can be used as a reference for installing the software on your PC or laptop.

Computer System Requirements

You will need either a PC or laptop computer to run the BASIC Stamp Editor software.

Getting started with the BASIC Stamp is easiest if your PC or laptop has the following features:

Windows 98 or newer operating system

A serial or USB port

A CD-ROM drive, World Wide Web access, or both

USB Port Adapter:

If your computer only has USB ports, you will need a USB to Serial

Adapter. See the information box on page 14 for details.

Downloading the Software from the Internet

It’s easy to download the BASIC Stamp Editor software from the Parallax web site. The web page shown in Figure 1-4 may look different from the web page you see when you visit the site. Nonetheless, the steps for downloading the software should still be similar to these:

√ Using a web browser, go to www.parallax.com (shown in Figure 1-4).

√ Point at the Downloads menu to display the options.

√ Point at the BASIC Stamp Software link and click to select it.

Page 6 ·

Robotics with the Boe-Bot

Figure 1-4

The Parallax Web

Site:

www.parallax.com

√ When you get to the BASIC Stamp Software page, find a BASIC Stamp

Windows Editor download with a version number of 2.0 or higher.

√ Click the Download icon. In Figure 1-5, the Download icon looks like a file folder to the right of the description: “BASIC Stamp Windows Editor Version 2.0 Beta

1 (6MB)”.

Figure 1-5

The Parallax

Web Site

Downloads

Page

√ When the File Download window shown in Figure 1-6 appears, select: Save this program to disk.

√ Click the OK button.

Chapter 1: Your Boe-Bot’s Brain · Page 7

Figure 1-6

File Download

Window

Figure 1-7 shows the Save As window that appears next. You can use the Save in field to browse your computer’s hard drives to find a convenient place to save the file.

√ After choosing where to save the file you are downloading, click the Save button.

Figure 1-7

Save As Window

Selecting a place to save the file

√ Wait while the BASIC Stamp Editor installation program downloads (shown in

Figure 1-8). This may take a while if you are using a modem connection.

Page 8 ·

Robotics with the Boe-Bot

Figure 1-8

Download

Progress Window

√ When the download is complete, leave the window shown in Figure 1-9 open while you skip to the next section - Activity #2: Installing the Software.

Figure 1-9

Download

Complete

Window

Go to Activity #2:

Installing the

Software

.

Other free downloads at the Parallax web site include:

This text and other Stamps in Class texts

Robot videos

• More free software

Hundreds of applications and experiments you can try!

Finding the Software on the Parallax CD

You can also install the BASIC Stamp Editor from the Parallax CD, but the CD has to be newer than April, 2003 so that you can get the version of the BASIC Stamp Editor that is compatible with the examples in this text. You can find the Parallax CD’s Year and

Month by examining the labeling on the front of the CD.

√ Place the Parallax CD into your computer’s CD drive. The Parallax CD browser is called the Welcome application. It’s shown in Figure 1-10 and it should run as soon as you load the CD into your computer’s CD drive.

Chapter 1: Your Boe-Bot’s Brain · Page 9

√ If the Welcome application does not automatically run, double-click My Computer, then double-click your CD drive, and then double-click Welcome.

√ Click the Software link shown in Figure 1-10.

Figure 1-10

The Parallax CD

Browser

√ Click the + next to the BASIC Stamps folder shown in Figure 1-11.

√ Click the + next to the Windows folder.

√ Click the floppy diskette icon labeled “Stamp 2/2e/2sx/2p/2pe (stampw.exe)”.

√ Continue through Activity #2: Installing the Software.

Page 10 ·

Robotics with the Boe-Bot

Figure 1-11

The Parallax CD

Browser

Select the

BASIC Stamp

Editor installation program from the Software page.

Free downloads at the Parallax web site are included in the Parallax CD

, but only up to the date the CD was created. The date on the front of the CD indicates when it was created. If the CD is just a month or two old, you will probably have the most up-to-date material. If it’s an older CD, consider requesting a new one from Parallax or downloading the files you need from the Parallax web site.

ACTIVITY #2: INSTALLING THE SOFTWARE

By now, you have either downloaded the BASIC Stamp Editor Installer from the Parallax web site or located it on the Parallax CD. Now it’s time to run the BASIC Stamp Editor

Installer.

Installing the Software Step by Step

√ If you downloaded the BASIC Stamp Editor Installer from the Internet, click the

Open button on the Download Complete window shown in Figure 1-12.

Chapter 1: Your Boe-Bot’s Brain · Page 11

Figure 1-12

Download

Complete

Window

If you skipped here from the

“Downloading the

Software from the

Internet” section, click the Open button now.

√ If you located the software on the Parallax CD, click the Install button shown in

Figure 1-13.

Figure 1-13

The Parallax CD

Browser

Install button located near bottom of window.

√ When the BASIC Stamp Editor…InstallShield Wizard window opens, click the

Next button shown in Figure 1-14.

Figure 1-14

InstallShield

Wizard for the

BASIC Stamp

Editor

Page 12 ·

Robotics with the Boe-Bot

√ Select Typical for your setup type as shown in Figure 1-15.

√ Click the Next button.

Figure 1-15

Setup Type

√ When the InstallShield Wizard tells you it is “Ready to Install the Program”, click the Install button shown in Figure 1-16.

Figure 1-16

Ready to Install

Click the Install button.

√ When the InstallShield Wizard window tells you “InstallShield Wizard

Completed” as shown in Figure 1-17, click Finish.

Congratulations! Your BASIC Stamp Editor is now installed.

Chapter 1: Your Boe-Bot’s Brain · Page 13

Figure 1-17

InstallShield

Wizard

Completed

ACTIVITY #3: SETTING UP THE HARDWARE AND TESTING THE

SYSTEM

The BASIC Stamp needs to be connected to power for it to run. It also needs to be connected to a PC so it can be programmed. After making these connections, you can use the BASIC Stamp Editor to test the system. This activity will show you how.

Computer Serial Cable Setup

The Board of Education or BASIC Stamp HomeWork Board should be connected to your

PC or laptop by either a serial cable or a USB to Serial Adapter.

√ If you are using a serial cable, connect it to an available COM port on the back of your computer as shown in Figure 1-18.

Com

Figure 1-18

PC or Laptop

COM Port

Plug the serial cable into an available COM port on your PC or laptop.

Page 14 ·

Robotics with the Boe-Bot

√ If you are using a USB to Serial Adapter, follow the hardware and software installation instructions that are supplied with the product.

FTDI’s US232B/LC USB to Serial Adapter:

At the time of this writing, the US232B/LC USB to Serial Adapter made by Future

Technology Devices International is the recommended adapter for use with Parallax products. The US232B/LC comes with the hardware shown in Figure 1-19 and a mini-CD

ROM with drivers for use with various operating systems including Microsoft Windows

®

.

US232B/LC Driver Software Downloads: The software drivers and other information about this product can be downloaded from: http://www.ftdichip.com/FT232.htm.

Figure 1-19

FTDI’s US232B/LC USB to Serial

Adapter

This adapter is Parallax Stock# 800-

00030. It comes with a software CD

(not shown).

Now that your programming cable is connected to your computer, it’s time to assemble the hardware.

√ If you have a BASIC Stamp and Board of Education, follow the instructions in the next section, Board of Education Connection Instructions.

√ If you have a BASIC Stamp HomeWork board, skip to the BASIC Stamp

HomeWork Board Connection Instructions on page 18.

√ If your equipment is already hooked up, skip to the Testing for Communication section on page 21.

Chapter 1: Your Boe-Bot’s Brain · Page 15

Board of Education Connection Instructions

If you have a BASIC Stamp and Board of Education, Figure 1-20 shows the hardware you will need to get started.

Required Hardware

(1) Strip of four rubber feet

(1) Battery pack

(1) BASIC Stamp 2

(1) Board of Education

(4) New AA alkaline batteries (not included)

Figure 1-20

Getting Started Hardware for the BASIC Stamp and

Board of Education

Connecting the Hardware

The rubber feet are shown in Figure 1-21, and they should be affixed to the underside of your Board of Education. The Board of Education has circles on its underside that show where each rubber foot should be attached.

√ Remove each rubber foot from the adhesive strip and affix it to the underside of the Board of Education.

Page 16 ·

Robotics with the Boe-Bot

Figure 1-21

Rubber Feet (left)

Affixed to Underside of the Board of

Education (right)

The Board of Education Rev C has a 3-position switch (see Figure 1-22). Position-0 is for turning the power to the Board of Education completely off. Regardless of whether or not you have a battery or power supply connected to the Board of Education Rev C, when the 3-posiiton switch is set to 0, the device is off.

√ Set the 3-position switch on the Board of Education to position-0.

Figure 1-22

3-position Switch

0 1 2

Set to position-0 to turn off the power.

Only the Board of Education Rev C has a 3-position switch.

If you have a Board of Education Rev A or B:

• When directed to set the 3-position switch to position-0, turn off power by disconnecting the battery pack (the reverse of Figure 1-24, step 3).

• When directed to set the 3-position switch to either position-1 or position-2, plug the battery pack in as shown in Figure 1-24, step 3.

√ Load the batteries into the battery pack as shown in Figure 1-23. Make sure to follow the polarity ( + and - ) markings on the inside of the battery pack's plastic case when inserting each battery.

Chapter 1: Your Boe-Bot’s Brain · Page 17

Figure 1-23

Battery Pack

Polarity indicators on molded plastic

(left) and loaded with correct polarity

(right).

√ If your BASIC Stamp is not already plugged into your Board of Education, insert it into the socket shown in Figure 1-24, step-1.

Make sure your BASIC Stamp is right-side-up (as shown in Figure 1-24) before you insert it into the socket!

If the BASIC Stamp is plugged into the socket upside-down, it could be damaged when you plug in power.

√ Make sure the pins are lined up properly with the holes in the socket, then press down firmly to seat it. The module should sink in about

1

/

8

inch (3 mm).

2

3

6-9VDC

9 Vdc

Battery

Vdd

X4 X5

Vin Vss

Red

Black

P3

P4

P5

P6

P7

Sout

Sin

ATN

Vss

P0

P1

P2

1

U1

TM

Vin

Vss

Rst

Vdd

P15

P14

P13

P12

P11

P10

P9

P8 www.stampsinclass.com

Pwr

Vss

P0

P2

P4

P6

P8

P10

P12

P14

Vdd

X1

Vss

P1

P3

P5

P7

P9

P11

P13

P15

Vin

Reset

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

0 1 2

X3

Board of Education

© 2000-2003

1

Figure 1-24

Board of

Education,

BASIC

Stamp,

Battery, and

Serial Cable

Connect components in the order shown in the diagram.

Page 18 ·

Robotics with the Boe-Bot

√ Plug the serial cable into the Board of Education as shown in Figure 1-24, step-2.

√ Plug the battery pack into the 6-9 VDC battery jack as shown in Figure 1-24, step-3.

√ Move the 3-position switch from position-0 to position-1 to turn the power on.

0 1 2

Figure 1-25

3-position Switch

Set to position-1 to turn the power back on.

√ The green light labeled Pwr on the Board of Education should now be on.

Figure 1-26

BASIC Stamp and Board of

Education Connected and

Ready to Program

√ Skip to the Testing for Communication section on page 21.

BASIC Stamp HomeWork Board Connection Instructions

This section will guide you through connecting your BASIC Stamp to your computer and a (battery) power supply if you have a BASIC Stamp HomeWork Board.

Required Hardware

√ Collect the following parts from your kit, shown in Figure 1-27

(1) Basic Stamp HomeWork Board

(1) Strip of four rubber feet

(1) New 9 V battery (not included)

Chapter 1: Your Boe-Bot’s Brain · Page 19

(1) BASIC Stamp HomeWork Board

Figure 1-27

Getting Started Hardware for the BASIC Stamp

HomeWork Board

√ Remove each rubber foot from its adhesive strip and affix it to the underside of the HomeWork Board next to each plated hole at each corner of the board as shown in Figure 1-28, making sure not to cover up the holes.

Figure 1-28

Rubber Feet

√ Connect the serial cable and battery to the HomeWork Board (Figure 1-29, steps

1 and 2).

Page 20 ·

Robotics with the Boe-Bot

2 in

STAMPS

Power

Reset

1

X3

P3

P2

P1

P0

P7

P6

P5

P4

P15

P14

P13

P12

P11

P10

P9

P8

X2

(916) 624-8333 www.parallaxinc.com

www.stampsinclass.com

Vdd Vin Vss

Rev A

© 2002

Figure 1-29

HomeWork Board and Serial Cable

Plug the serial cable and 9 V battery into the

HomeWork

Board.

Figure 1-30 shows the BASIC Stamp HomeWork Board connected to its battery power supply and serial programming cable.

The green Pwr light does not come on when you connect the battery

. It will light up only when you have a program running.

You are now ready to test the programming connection between the BASIC Stamp and your PC/laptop.

Chapter 1: Your Boe-Bot’s Brain · Page 21

Figure 1-30

BASIC Stamp

HomeWork Board

Ready to Program

Testing for Communication

√ First, run your BASIC Stamp Editor by double-clicking the shortcut on your desktop. It should look similar to the one shown in Figure 1-31.

Figure 1-31

BASIC Stamp

Editor Shortcut

Look for a shortcut similar to this one on your computer’s desktop.

The Windows Start Menu can also be used to run the BASIC Stamp Editor. Click your

Windows Start Button, then select ProgramsParallax, Inc.Stamp Editor 2…, then click the BASIC Stamp Editor Icon.

Your BASIC Stamp Editor window should look similar to the one shown in Figure 1-32.

The first time you run your BASIC Stamp Editor, it may display some messages and a list of your COM ports found by the software.

√ If you know the number of the COM port your BASIC Stamp is connected to, check to make sure it is included in the list.

√ If it is not included in the list, follow the BASIC Stamp Editor's instructions for adding a COM port.

√ If you're not sure about your COM port, click OK for now.

Page 22 ·

Robotics with the Boe-Bot

√ To make sure your BASIC Stamp is communicating with your computer, click the Run menu, then select Identify.

Figure 1-32

BASIC

Stamp Editor

An Identification window similar to the one shown in Figure 1-33 will appear. The example in the figure shows that a BASIC Stamp 2 has been detected on COM2.

Figure 1-33

Identification

Window

Example: BASIC

Stamp 2 found on

COM2.

√ Check the Identification window to make sure a BASIC Stamp 2 has been detected on one of the COM ports. If the BASIC Stamp 2 has been detected, then you are ready for Activity #4: Your First Program.

√ If the Identification window does not detect a BASIC Stamp 2 on any of the

COM ports, go to page 301 (Appendix A: PC to BASIC Stamp Communication

Trouble-Shooting).

ACTIVITY #4: YOUR FIRST PROGRAM

The first program you will write and test will tell the BASIC Stamp to send a message to your PC or laptop. Figure 1-34 shows how the BASIC Stamp sends a stream of ones and zeros to communicate the text characters displayed by the PC or laptop. These ones and zeros are called binary numbers. The BASIC Stamp Editor software has the ability to detect and display these messages as you will soon see.

Chapter 1: Your Boe-Bot’s Brain · Page 23

0 1 0

0 0

1

0 1

0

1 0 0

0 0 0

1

0 0

1

1 1

0

1

1

0

1

1 1

0 0

1

0 0 0

0 0

1

0 0 1

1 0

0

0 0

1

1

0

0

1

1

1

0

1 0

9 Vdc

Battery

6-9VDC

P4

P5

P6

P7

P0

P1

P2

P3

Sout

Sin

ATN

Vss

1

U1

TM

Vin

Vss

Rst

Vdd

P15

P14

P13

P12

P11

P10

P9

P8 www.stampsinclass.com

Figure 1-34

Messages from the

BASIC Stamp to Your

Computer

Your First Program

The example programs that you will type into the BASIC Stamp Editor and download to the BASIC Stamp will always be shown with a gray background. Here is an example:

Example Program: HelloBoeBot.bs2

' Robotics with the Boe-Bot - HelloBoeBot.bs2

' BASIC Stamp sends a text message to your PC/laptop.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Hello, this is a message from your Boe-Bot."

END

You will enter this program into the BASIC Stamp Editor. Some lines of the program are made automatically by clicking buttons on the toolbar. Other lines are made by typing them in from the keyboard.

Page 24 ·

Robotics with the Boe-Bot

√ Begin by clicking the BS2 icon (the green diagonal chip) on the toolbar, shown highlighted in Figure 1-35. If you hold your cursor over this button, its flyover help description “Stamp Mode: BS2” will appear.

√ Next, click on the gear icon labeled “2.5” shown highlighted in Figure 1-36.

Its flyover help description is “PBASIC Language: 2.5”.

Figure 1-35

BS2 Icon

Clicking on this button will

automatically place '{$STAMP BS2}

PBASIC 2.5 Icon

Clicking on this button will automatically

place '{$PBASIC 2.5}

at the beginning

at the beginning of your program. of your program.

ALWAYS use these toolbar buttons to add these two lines as the beginning of every program!

Compiler directives use braces

{ }

.

If you try to type in these parts of your program, you may accidentally use parentheses

( ) or square brackets

[ ]

.

If you do this, your program will not work.

√ Type the rest of the program into the BASIC Stamp Editor exactly as shown in

Figure 1-37. Notice that the first two lines are above the compiler directives, and the rest of the program is below the compiler directives.

Chapter 1: Your Boe-Bot’s Brain · Page 25

Figure 1-37

HelloBoeBot.bs2 Entered into the BASIC Stamp Editor

√ Save your work by clicking File and selecting Save, (shown in Figure 1-38).

Figure 1-38

Saving the

Program

HelloBoeBot.bs2

√ Enter the name HelloBoeBot.bs2 into the File name field near the bottom of the

Save As window as shown in Figure 1-39.

√ Click the Save button.

Page 26 ·

Robotics with the Boe-Bot

Figure 1-39

Entering the File

Name

The next time you save, the BASIC Stamp Editor will automatically save to the same filename (HelloBoeBot.bs2) unless you tell it to save to a different filename by clicking File and selecting Save As (instead of just Save).

√ Click Run, and select Run from the menu that appears (by clicking it) as shown in

Figure 1-40.

Figure 1-40

Running

Your First

Program

HelloBoeBot.

bs2

A Download Progress window will appear briefly as the program is transmitted from the

PC or laptop to your BASIC Stamp. Figure 1-41 shows the Debug Terminal that should appear when the download is complete. You can prove to yourself that this is a message from the BASIC Stamp by pressing and releasing the Reset button on your Board of

Education or HomeWork Board. Every time you press and release it, the program will re-run, and you will see another copy of the message displayed in the Debug Terminal.

Chapter 1: Your Boe-Bot’s Brain · Page 27

√ Press and release the Reset button. Did you see a second “Hello…” message appear in the Debug Terminal?

Figure 1-41

Debug Terminal

The Debug Terminal displays messages sent to the PC/laptop by the BASIC Stamp.

The BASIC Stamp Editor has shortcuts for most common tasks. For example, to run a program, you can press the ‘Ctrl’ and ‘R’ keys at the same time to run a program. You can also click the Run button. It’s the blue triangle shown in Figure 1-42 that looks like a CD player’s Play button. The flyover help (the Run hint) will appear if you point at the Run button with your mouse. You can get similar hints to find out what the other buttons do by pointing at them.

Figure 1-42

BASIC Stamp Editor

Shortcut Buttons

How HelloBoeBot.bs2 Works

The first two lines in the example program are called comments. A comment is a line of text that gets ignored by the BASIC Stamp Editor, because it’s meant for a human reading the program, not for the BASIC Stamp. In PBASIC, everything to the right of an apostrophe is normally considered to be a comment by the BASIC Stamp Editor. The first comment tells which book the example program is from and what the program’s filename is. The second comment contains a handy, one-line description that explains what the program does.

' Robotics with the Boe-Bot - HelloBoeBot.bs2

' BASIC Stamp sends a text message to your PC/laptop.

Page 28 ·

Robotics with the Boe-Bot

There are several special messages that you can send to the BASIC Stamp Editor by placing them inside comments (to the right of an apostrophe on a given line). These are called compiler directives, and every program in this text will use these two directives:

' {$STAMP BS2}

' {$PBASIC 2.5}

The first directive is called the Stamp directive, and it tells the BASIC Stamp Editor that you will be downloading the program to a BASIC Stamp 2. The second directive is called the PBASIC directive, and it tells the BASIC Stamp Editor that you are using version 2.5 of the PBASIC programming language.

A command is a word you can use to tell the BASIC Stamp to do a certain job. The first of the two commands in this program is called the

DEBUG

command:

DEBUG "Hello, this is a message from your Boe-Bot."

This is the command that tells the BASIC Stamp to send a message to the PC using the serial cable.

The second command is called the

END

command:

END

This command is handy because it puts the BASIC Stamp into low power mode when it’s done running the program. In low power mode, the BASIC Stamp waits for either the

Reset button to be pressed (and released), or for a new program to be loaded into it by the

BASIC Stamp Editor. If the Reset button on your board is pressed, the BASIC Stamp will run the program you loaded into it again. If a new program is loaded into it, the old one is erased, and the new program begins to run.

Your Turn – DEBUG Formatters and Control Characters

A

DEBUG

formatter is a code-word you can use to make the message the BASIC Stamp sends look a certain way in the Debug Terminal.

DEC

is an example of a formatter that makes the Debug Terminal display a decimal value. An example of a control character is

CR

, which sends a carriage return to the Debug Terminal. The text or numbers that come after a

CR

will appear on the line below characters that came before it. You can modify your program so that it contains more

DEBUG

commands along with some formatters and control characters. Here’s an example of how to do it:

√ First, save the program under a new name by clicking File and selecting Save As.

Chapter 1: Your Boe-Bot’s Brain · Page 29

√ A good new name for the file would be HelloBoeBotYourTurn.bs2.

√ Modify the comments at the beginning of the program so that they read:

' Robotics with the Boe-Bot - HelloBoeBotYourTurn.bs2

' BASIC Stamp does simple math, and sends the results

' to the Debug Terminal.

√ Add these three lines between the first

DEBUG

command and the

END

command:

DEBUG CR, "What's 7 X 11?"

DEBUG CR, "The answer is: "

DEBUG DEC 7 * 11

√ Save the changes you made by clicking File and selecting Save.

Your program should now look like the one shown in Figure 1-43.

Run your modified program. Hint: you will have to either click Run from the Run menu again, like in Figure 1-40, or click the Run button, like in Figure 1-42.

Figure 1-43

Modified

HelloBoeBot.bs2

Check your work against the example program shown here.

Page 30 ·

Robotics with the Boe-Bot

Your Debug Terminal should now resemble Figure 1-44.

Figure 1-44

Modified

HelloBoeBot.bs2 Debug

Terminal Output

Make sure that when you re-run your program, you get the results you expect.

Where did my Debug Terminal go?

Sometimes the Debug Terminal gets hidden behind the BASIC Stamp Editor window. You can bring it back to the front by using the Run menu as shown at the left of Figure 1-45, the Debug Terminal 1 shortcut button shown at the right of the figure, or the F12 key on your keyboard.

Figure 1-45

Debug Terminal 1 to

Foreground

Using the menu (left) and using the shortcut button (right).

ACTIVITY #5: LOOKING UP ANSWERS

The example program you just finished introduced two PBASIC commands:

DEBUG

and

END

. You can find out more about these commands and how they are used by looking them up, either in the BASIC Stamp Editor’s Help or in the BASIC Stamp Manual. This activity guides you through an example of looking up

DEBUG

using the BASIC Stamp

Editor’s Help and the BASIC Stamp Manual.

Chapter 1: Your Boe-Bot’s Brain · Page 31

Using the BASIC Stamp Editor’s Help

√ In the BASIC Stamp Editor, Click Help, then select Index as shown in Figure 1-

46.

Figure 1-46

Selecting Index from the Help

Menu

√ Type

DEBUG

into the field labeled Type in the keyword to find: (shown in Figure 1-

47).

√ When the word

DEBUG

appears in the list below the field you are typing in, double-click it, then click the Display button.

Figure 1-47

Looking up the

DEBUG Command

Using Help

Your Turn

√ Use the scrollbar to review the

DEBUG

command article. Notice that it has lots of explanations and example programs you can try.

√ Click the Contents tab, and find

DEBUG

there.

Page 32 ·

Robotics with the Boe-Bot

√ Click the Search tab, and run a search for the word

DEBUG

.

√ Repeat this process for the

END

command.

Getting and Using the BASIC Stamp Manual

The BASIC Stamp Manual is available for free download from the Parallax web site, and it’s also included on the Parallax CD. It can also be purchased as a bound and printed manual.

Downloading the BASIC Stamp Manual from the Parallax Web Site

Using a web browser, go to www.parallax.com.

Point at the Downloads menu to display the options.

Point at the Documentation link and click to select it.

When you get to the BASIC Stamp Documentation page, find the BASIC Stamp

Manual.

Click the Download icon that looks like a file folder to the right of the description:

“BASIC Stamp Manual Version 2.0 (3.2 MB)”.

Viewing the BASIC Stamp Manual on the Parallax CD

Click the Documentation link.

Click the + next to the BASIC Stamps folder.

Click the BASIC Stamp Manual book icon.

Click the View button.

√ Figure 1-48 shows an excerpt from the BASIC Stamp Manual Contents section

(Page 2). It shows that information on the

DEBUG

command can be found on page 97.

Figure 1-48

Finding the

DEBUG

Command in the

Table of

Contents

Figure 1-49 shows an excerpt from the BASIC Stamp Manual. The

DEBUG

command is explained in detail here.

Chapter 1: Your Boe-Bot’s Brain · Page 33

√ Briefly look over the BASIC Stamp Manual explanation of the

DEBUG

command.

√ Count the number of example programs in the

DEBUG

section. How many are there?

Figure 1-49

Reviewing the

DEBUG

Command in the

BASIC Stamp

Manual

Your Turn

√ Use the BASIC Stamp Manual index to look up the

DEBUG

command.

√ Look up the

END

command in the BASIC Stamp Manual.

ACTIVITY #6: INTRODUCING ASCII CODE

In Activity #4: Your First Program, you used the

DEC

formatter with the

DEBUG

command to display a decimal number in the Debug Terminal. But what happens if you don’t use the

DEC

formatter with a number? If you use the

DEBUG

command followed by a number with no formatter, the BASIC Stamp will read that number as an ASCII code.

Programming with ASCII Code

ASCII is short for American Standard Code for Information Interchange. Most microcontrollers and PC computers use this code to assign a number to each keyboard function. Some numbers correspond to keyboard actions, such as cursor up, cursor down, space, and delete. Other numbers correspond to printed characters and symbols. The numbers 32 through 126 correspond to those characters and symbols that the BASIC

Stamp can display in the Debug Terminal. The following program will use ACSII code to display the words “BASIC Stamp 2” in the Debug Terminal.

Page 34 ·

Robotics with the Boe-Bot

Example Program – AsciiName.bs2

√ Enter and run AsciiName.bs2.

Remember to use the toolbar icons to place Compiler Directives into your programs!

'{$STAMP BS2} -

Use the diagonal green electronic chip icon

.

'{$PBASIC 2.5} -

Use the gear icon labeled 2.5.

You can see a picture of these icons again on page 24.

' Robotics with the Boe-Bot - AsciiName.bs2

' Use ASCII code in a DEBUG command to display the words BASIC Stamp 2.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG 66,65,83,73,67,32,83,116,97,109,112,32,50

END

How AsciiName.bs2 Works

Each letter in the

DEBUG

command corresponds to one ASCII code symbol that appeared in the Debug Terminal.

DEBUG 66,65,83,73,67,32,83,116,97,109,112,32,50

66 is the ASCII code for capital “B”, 65 is the code for capital “A” and so on. 32 is the code for a space between characters. Notice that each code number was separated with a comma. The commas allow the one instance of

DEBUG

to execute each symbol as a separate command. This is much easier to type than 12 separate

DEBUG

commands.

Your Turn – Exploring ASCII Code

√ Save AsciiName.bs2 as AsciiRandom.bs2

√ Pick 12 random numbers between 32 and 127.

√ Replace the ASCII code numbers in the program with the numbers you chose.

√ Run your modified program to see what you get!

The BASIC Stamp Manual Appendix A has a chart of ASCII code numbers and their corresponding symbols. You can look up the corresponding code numbers to spell your own name.

Chapter 1: Your Boe-Bot’s Brain · Page 35

√ Save AsciiRandom.bs2 as YourAsciiName.bs2

√ Look up the ASCII Chart in the BASIC Stamp Manual.

√ Modify the program to spell your own name.

√ Run the program to see if you spelled your name correctly.

√ If you did, good job, and save your program!

ACTIVITY #7: WHEN YOU’RE DONE

It’s important to disconnect the power from your BASIC Stamp and Board of Education or HomeWork Board for several reasons. First, your batteries will last longer if the system is not drawing power when you’re not using it. Second, in future experiments, you will build circuits on the Board of Education’s or HomeWork Board’s prototyping area.

Circuit prototypes should never be left unattended with a battery or power supply connected.

You never know what kind of accident might occur when you are not there.

Always disconnect the power from your Board of Education or HomeWork Board, even if you only plan on leaving it alone for a minute or two.

If you are in a classroom, your instructor may have extra instructions, such as disconnecting the serial cable, storing your Board of Education/HomeWork Board in a safe place, etc. Aside from those details, the most important step that you should always follow is disconnecting power when you’re done.

Disconnecting Power

With the Board of Education Rev C, disconnecting power is easy:

√ If you are using the Board of Education Rev C, move the 3-position switch to position-0 by pushing it to the left as shown in Figure 1-50.

Page 36 ·

Robotics with the Boe-Bot

Sout

Sin

ATN

Vss

P0

P1

P2

P3

P4

P5

P6

P7

U1

Vin

Vss

Rst

Vdd

P15

P14

P13

P12

P11

P10

P9

P8 www.stampsinclass.com

P10

P12

P14

Vdd

X1

P11

P13

P15

Vin

Reset

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1

P0

X2

0 1 2

Board of Education

© 2000-2003

Figure 1-50

Switching Off the Power for the Board of

Education Rev C

Do not remove the BASIC Stamp from its socket in the Board of Education!

Resist any temptation to store your Board of Education and BASIC Stamp separately.

Every time the BASIC Stamp is removed and re-inserted into the socket on the Board of

Education, mistakes may occur that can damage it. Although the BASIC Stamp is sometimes moved from one socket to another during a larger project, it will not be necessary during any of the activities in this text.

Disconnecting the BASIC Stamp HomeWork Board’s power is easy too:

√ If you are using the BASIC Stamp HomeWork Board, disconnect the battery as shown in Figure 1-51.

Vdd Vin Vss

X3

Power

Reset

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

© 2002

Figure 1-51

Disconnecting the

Power for the

HomeWork Board

The Board of Education Rev A or B also has to have its power disconnected, either by removing the battery or by unplugging the DC supply from the jack.

Your Turn

√ Disconnect power now.

Chapter 1: Your Boe-Bot’s Brain · Page 37

SUMMARY

This chapter guided you through the following:

• An introduction to the BASIC Stamp

• Where to get the free BASIC Stamp Editor software you will use in just about all of the experiments in this text

• How to install the BASIC Stamp Editor software

• An introduction to the BASIC Stamp, Board of Education, and HomeWork

Board

• How to set up your BASIC Stamp hardware

• How to test your software and hardware

• How to write and run a PBASIC program

• Using the

DEBUG

and

END

commands

• Using the

CR

control character and

DEC

formatter

• Using ASCII codes to transmit characters

• How to use the BASIC Stamp Editor’s Help and the BASIC Stamp Manual

• How to disconnect the power to your Board of Education or HomeWork Board when you’re done

Questions

1. What device will be the brain of your Boe-Bot?

2. When the BASIC Stamp sends a character to your PC/laptop, what type of numbers are used to send the message through the serial cable?

3. What is the name of the window that displays messages sent from the BASIC

Stamp to your PC/laptop?

4. What PBASIC commands did you learn in this chapter?

Exercises

1. Explain what you can do with each PBASIC command you learned in this chapter.

2. Explain what the asterisk does in this command:

DEBUG DEC 7 * 11

3. There is a problem with these two commands. When you run the code, the numbers they display are stuck together so that it looks like one large number

Page 38 ·

Robotics with the Boe-Bot instead of two small ones. Modify these two commands so that the answers appear on different lines in the Debug Terminal.

DEBUG DEC 7 * 11

DEBUG DEC 7 + 11

Projects

1. Write a program that uses a

DEBUG

instruction to display the solution to the math problem: 1 + 2 + 3 + 4.

2. Predict what you would expect to see if you removed the

DEC

formatter from this command. Use a PBASIC program to test your prediction.

DEBUG DEC 7 * 11

3. Which lines can you delete in HelloBoeBotYourTurn.bs2 if you place the command shown below on the line just before the

END

command in the program?

Test your hypothesis (your prediction of what will happen). Make sure to save

HelloBoeBotYourTurn.bs2 with a new name to help keep track, like

HelloBoeBotCh01Project03.bs2. Then make your modification, save and run your program.

DEBUG "What's 7 X 11?", CR, "The answer is: ", DEC 7 * 11

Chapter 1: Your Boe-Bot’s Brain · Page 39

Solutions

Q1. The BASIC Stamp 2 microcontroller module.

Q2. Binary numbers.

Q3. The Debug Terminal.

Q4.

DEBUG

and

END

.

E1.

DEBUG

– This command is used to send a message from the BASIC Stamp to the

PC. The information is displayed on the Debug Terminal.

END

– This command is used to terminate a PBASIC program and put the BASIC

Stamp module into low-power mode.

E2. The asterisk multiplies the two operands 7 and 11, resulting in a product of 77.

The asterisk is the multiply operator.

E3. To fix the problem, add a carriage return, the

CR

control character.

DEBUG DEC 7 * 11

DEBUG CR, DEC 7 + 11

P1. Here is a program to display a solution to the math problem:

' Robotics with the Boe-Bot - HelloBoeBotCh01Project01.bs2

' Adds together 4 numbers with DEBUG

'{$STAMP BS2}

'{$PBASIC 2.5}

DEBUG "What's 1+2+3+4?"

DEBUG CR, "The answer is: "

DEBUG DEC 1+2+3+4

END

P2. Prediction: It will print the character "M". This program tests this prediction:

' Robotics with the Boe-Bot - HelloBoeBotCh01Project02.bs2

' Prints ASCII 7 * 11

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG 7 * 11

END

Page 40 ·

Robotics with the Boe-Bot

P3. The last three

DEBUG

lines can be deleted. An additional

CR

is needed after the

"Hello" message.

' Robotics with the Boe-Bot – HelloBoeBotCh01Project03.bs2

' Send message to Debug Terminal and do some math.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Hello, this is a message from your Boe-Bot.", CR

DEBUG "What's 7 X 11?", CR, "The answer is: ", DEC 7 * 11

END

The output from the Debug Terminal is:

Hello, this is a message from your Boe-Bot.

What's 7 X 11?

The answer is: 77

This output is the same as it was with the three lines. This is an example of using commas to output a lot of information, using only one

DEBUG

statement.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 41

Chapter 2: Your Boe-Bot’s Servo Motors

This chapter will guide you through connecting, adjusting, and testing the Boe-Bot’s motors. In order to do that, you will need to understand certain PBASIC commands and programming techniques that will control the direction, speed, and duration of servo motions. Therefore, Activities #1, #2, and #5 will introduce you to these programming tools, and then Activities #3, #4, and #6 will show you how to apply them to the servos.

Since precise servo control is key to the Boe-Bot’s performance, completing these activities before mounting the servos into the Boe-Bot chassis is both important and necessary!

INTRODUCING THE CONTINUOUS ROTATION SERVO

The Parallax Continuous Rotation servos shown in Figure 2-1 are the motors that will make the Boe-Bot’s wheels turn. This figure points out the servos’ external parts. Many of these parts will be referred to as you go through the instructions in this and the next chapter.

Figure 2-1

Parallax Continuous Rotation Servo

Control horn

Mounting

Flange

Phillips screw

Label should read

“Continuous

Rotation”

Cable for power and control signal

Mounting

Flange

Access hole for center adjusting feedback potentiometer

Case contains motor, circuits, and gears

Plug for RC servo connection ports on

Board of Education

TIP:

You may find it useful to bookmark this page so that you can refer back to it later.

Page 42 ·

Robotics with the Boe-Bot

Standard Servos vs. Continuous Rotation Servos:

Standard servos are designed to receive electronic signals that tell them what position to hold. These servos control the positions of radio controlled airplane flaps, boat rudders, and car steering. Continuous rotation servos receive the same electronic signals, but instead of holding certain positions, they turn at certain speeds and directions. Continuous rotation servos are ideal for controlling wheels and pulleys.

ACTIVITY #1: HOW TO TRACK TIME AND REPEAT ACTIONS

Controlling a servo motor’s speed and direction involves a program that makes the

BASIC Stamp send the same message, over and over again. The message has to repeat itself around 50 times per second for the servo to maintain its speed and direction. This activity has a few PBASIC example programs that demonstrate how to repeat the same message over and over again and control the timing of the message.

Displaying Messages at Human Speeds

You can use the

PAUSE

command to tell the BASIC Stamp to wait for a while before executing the next command.

PAUSE Duration

The number that you put to the right of the

PAUSE

command is called the

Duration

argument, and it’s the value that tells the BASIC Stamp how long it should wait before moving on to the next command. The units for the

Duration

argument are thousandths of a second (ms). So, if you want to wait for one second, use a value of 1000. Here’s how the command should look:

PAUSE 1000

If you want to wait for twice as long, try:

PAUSE 2000

A second

is abbreviated “s”. In this text, when you see 1 s, it means one second.

A millisecond

is one thousandth of a second, and it is abbreviated “ms”. The command

PAUSE 1000 delays the program for 1000 ms, which is 1000/1000 of a second, which is one second, or 1 s. Got it?

Chapter 2: Your Boe-Bot’s Servo Motors · Page 43

Example Program: TimedMessages.bs2

There are lots of different ways to use the

PAUSE

command. This example program uses

PAUSE

to delay between printing messages that tell you how much time has elapsed. The program should wait one second before it sends the “One second elapsed…” message and another two seconds before it displays the “Three seconds elapsed . . . ” message.

√ If you have a Board of Education Rev C, move the 3-postion switch from position-0 to position-1.

√ If you have a HomeWork Board, reconnect the 9 V battery to the battery clip.

√ Enter the program below into the BASIC Stamp Editor.

√ Save the program under the name “TimedMessages.bs2”.

√ Run the program, then watch for the delay between messages.

' Robotics with the Boe-Bot - TimedMessages.bs2

' Show how the PAUSE command can be used to display messages at human speeds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Start timer..."

PAUSE 1000

DEBUG CR, "One second elapsed..."

PAUSE 2000

DEBUG CR, "Three seconds elapsed..."

DEBUG CR, "Done."

END

From here onward, the three instructions that came before this program will be phrased like this:

Enter, save, and run TimedMessages.bs2.

Your Turn – Different Pause Durations

You can change the delay between messages by changing the

PAUSE

commands’

Duration

arguments.

Page 44 ·

Robotics with the Boe-Bot

√ Try changing the

PAUSE

Duration

arguments from 1000 and 2000 to 5000 and

10000, for example:

DEBUG "Start timer..."

PAUSE 5000

DEBUG CR, "Five seconds elapsed..."

PAUSE 10000

DEBUG CR, "Fifteen seconds elapsed..."

√ Run the modified program.

√ Also try it again with numbers like 40 and 100 for the

Duration

arguments; they’ll go pretty fast.

√ The longest possible

Duration

argument is 65535. If you've got a minute to spare, try

PAUSE 60000

.

Over and Over Again

One of the best things about both computers and microcontrollers is that they never complain about doing the same boring things over and over again. You can place your commands between the words

DO

and

LOOP

if you want them executed over and over again. For example, let’s say you want to print a message repeating once every second.

Simply place your

DEBUG

and

PAUSE

commands between the words

DO

and

LOOP

like this:

DO

DEBUG "Hello!", CR

PAUSE 1000

LOOP

Example Program: HelloOnceEverySecond.bs2

√ Enter, save, and run HelloOnceEverySecond.bs2.

√ Verify that the “Hello!” message is printed once every second.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 45

' Robotics with the Boe-Bot - HelloOnceEverySecond.bs2

' Display a message once every second.

' {$STAMP BS2}

' {$PBASIC 2.5}

DO

DEBUG "Hello!", CR

PAUSE 1000

LOOP

Your Turn – A Different Message

You can modify your program so that part of it executes once, and another part executes over an over again.

√ Modify the program so that the commands look like this:

DEBUG "Hello!"

DO

DEBUG "!"

PAUSE 1000

LOOP

√ Run it and see what happens! Did you anticipate the result?

ACTIVITY #2: TRACKING TIME AND REPEATING ACTIONS WITH A

CIRCUIT

In this activity, you will build circuits that emit light that will allow you to “see” the kind of signals that are used to control the Boe-Bot’s servo motors.

What’s a Microcontroller? Excerpts –

This activity contains selected excerpts from the

What’s a Microcontroller?

Student Guide v2.0.

√ Even if you are familiar with this material from What’s a Microcontroller?, don’t skip this activity.

In the second half of this activity, you will examine the signals that control your servos and timing diagrams in a different light than they were presented in What’s a Microcontroller?

Introducing the LED and Resistor

A resistor is a component that ‘resists’ the flow of electricity. This flow of electricity is called current. Each resistor has a value that tells how strongly it resists current flow.

Page 46 ·

Robotics with the Boe-Bot

This resistance value is called the ohm, and the sign for the ohm is the Greek letter omega

-

Ω. The resistor you will be working with in this activity is the 470 Ω resistor shown in

Figure 2-2. The resistor has two wires (called leads and pronounced “leeds”), one coming out of each end. There is a ceramic case between the two leads, and it’s the part that resists current flow. Most circuit diagrams that show resistors use the symbol on the left with the squiggly lines to tell the person building the circuit that he or she must use a

470

Ω resistor. This is called a schematic symbol. The drawing on the right is a part drawing used in some beginner level Stamps in Class texts to help you build circuits.

470

Gold

Silver or

Blank

Yellow

Violet

Brown

Figure 2-2

470 Ω Resistor Part

Drawing

Schematic symbol (left) and part drawing (right)

The colored stripes indicate resistance values.

See Appendix C: Resistor Color Codes for information on how to determine a resistor's value from the colored stripes on its ceramic case.

A diode is a one-way current valve, and a light emitting diode (LED) emits light when current passes through it. Unlike the color codes on a resistor, the color of the LED usually just tells you what color it will glow when current passes through it. The important markings on an LED are contained in its shape. Since an LED is a one-way current valve, you have to make sure to connect it the right way, or it won’t work as intended.

Figure 2-3 shows an LED’s schematic symbol and part drawing. An LED has two terminals. One is called the anode, and the other is called the cathode. In this activity, you will have to build the LED into a circuit, and you will have to pay attention and make sure the anode and cathode leads are connected to the circuit properly. On the part drawing, the anode lead is labeled with the plus-sign (+). On the schematic symbol, the anode is the wide part of the triangle. In this part drawing, the cathode lead is the pin labeled with a minus-sign (-), and on the schematic symbol, the cathode is the line across the point of the triangle.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 47

+

_

Figure 2-3

LED Part Drawing and

Schematic Symbol

Part drawing (above) and schematic symbol

(below).

The LED part drawings in later pictures will have a + next to the anode leg.

LED

When you start building your circuit, make sure to check it against the schematic symbol and part drawing. If you look closely at the LED’s plastic case in the part drawing, it’s mostly round, but there is a small flat spot right near one of the leads that that tells you it’s the cathode. Also note that the LED’s leads are different lengths. In this text, the anode will be shown with a + sign and the cathode will be shown with a – sign.

Always check the LED’s plastic case.

Usually, the longer lead is connected to the LED’s anode, and the shorter lead is connected to its cathode. But sometimes the leads have been clipped to the same length, or a manufacturer does not follow this convention. Therefore, it is best to always look for the flat spot on the case. If you plug an LED in backwards, it will not hurt it, but it will not light up.

LED Test Circuit Parts

(2) LEDs – Red

(2) Resistors – 470

Ω (yellow-violet-brown)

Always disconnect power to your board before building or modifying circuits!

For the

Board of Education Rev C, set the 3-position switch to position-0. For the BASIC Stamp

HomeWork Board, disconnect the 9 V battery from the battery clip. Always double-check your circuit for errors before reconnecting power.

Page 48 ·

Robotics with the Boe-Bot

LED Test Circuits

If you completed the What’s a Microcontroller? text, you are no doubt very familiar with the circuit shown in Figure 2-4. The left side of this figure shows the circuit schematic, and the right side shows a wiring diagram example of the circuit built on your board’s prototyping area.

√ Build the circuit shown in Figure 2-4.

√ Make sure that the shorter pins on each LED (the cathodes) are plugged into black sockets labeled Vss.

√ Make sure the longer pins (the anodes, marked with a ⊕ in the wiring diagram) are connected to the white breadboard sockets exactly as shown.

P13

P12

470 Ω

470

Vss

LED

Vss

LED

X3

P15

P14

P13

P12

P7

P6

P5

P4

P3

P11

P10

P9

P8

P2

P1

P0

X2

Vdd Vin Vss

+

+

Figure 2-4

Two LEDs

Connected to BASIC

Stamp I/O

Pins P13 and P12

Schematic

(left) and wiring diagram

(right).

What's an I/O pin?

I/O stands for input/output. The BASIC Stamp has 24 pins, 16 of which are I/O pins. In this text, you will program the BASIC Stamp to use I/O pins as outputs to make LED lights turn on/off, control the speed and direction the Parallax Continuous

Rotation servos turn, make tones with speakers, and prepare sensors to detect light and objects. You will also program the BASIC Stamp to use I/O pins as inputs to monitor sensors that indicate mechanical contact, light level, objects in the Boe-Bot's path, and even their distance.

New to building circuits?

See Appendix D: Breadboarding Rules.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 49

Figure 2-5 shows what you will program the BASIC Stamp to do to the LED circuit.

Imagine that you have a 5 volt (5 V) battery. Although a 5 V battery is not common, the

Board of Education has a device called a voltage regulator that supplies the BASIC

Stamp with the equivalent of a 5 V battery. When you connect a circuit to Vss, it’s like connecting the circuit to the negative terminal of the 5 V battery. When you connect the other end of the circuit to Vdd, it’s like connecting it to the positive terminal of a 5 V battery.

-

-

-

Vdd

5 V

Vss

+

_

N

+

+

-

-

-

N

-

-

-

N

+

+

-

-

-

N

+

+

+

N

-

N

-

+

=

-

+

N

-

-

-

-

-

-

-

-

Vdd

5 V

Vss

+

_

N

+

+

-

-

-

N

+

+

-

-

N

+

-

-

N

+

+

+

N

-

-

N

Figure 2-5

BASIC Stamp

Switching

The BASIC Stamp can be programmed to internally connect the

LED circuit’s input to

Vdd or Vss.

-

-

-

-

Volts is abbreviated V.

That means 5 volts is abbreviated 5 V. When you apply voltage to a circuit, it’s like applying electrical pressure.

Current refers to the rate at which electrons pass through a circuit.

You will often see measurements of current expressed in amps, which is abbreviated A. The amount of current an electric motor draws is often measured in amps, for example 2 A, 5 A, etc.

However, the currents you will use in the Board of Education are measured in thousandths of an amp, or milliamps. For example, 10.3 mA passes through the circuit in Figure 2-5.

When these connections are made, 5 V of electrical pressure is applied to the circuit causing electrons to flow through and the LED to emit light. As soon as you disconnect the resistor lead from the battery’s positive terminal, the current stops flowing, and the

LED stops emitting light. You can take it one step further by connecting the resistor lead to Vss, which has the same result. This is the action you will program the BASIC Stamp to do to make the LED turn on (emit light) and off (not emit light).

Page 50 ·

Robotics with the Boe-Bot

Programs that Control the LED Test Circuits

The

HIGH

and

LOW

commands can be used to make the BASIC Stamp connect an LED alternately to Vdd and Vss. The

Pin

argument is a number between 0 and 15 that tells the BASIC Stamp which I/O pin to connect to Vdd or Vss.

HIGH

Pin

LOW

Pin

For example, if you use the command

HIGH 13 it tells the BASIC Stamp to connect I/O pin P13 to Vdd, which turns the LED on.

Likewise, if you use the command

LOW 13 it tells the BASIC Stamp to connect I/O pin P13 to Vss, which turns the LED off. Let’s try this out.

Example Program: HighLowLed.bs2

√ Reconnect power to your board.

√ Enter, save, and run HighLowLed.bs2.

√ Verify that the LED circuit connected to P13 is turning on and off, once every second.

' Robotics with the Boe-Bot – HighLowLed.bs2

' Turn the LED connected to P13 on/off once every second.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "The LED connected to Pin 13 is blinking!"

DO

HIGH 13

PAUSE 500

LOW 13

PAUSE 500

LOOP

Chapter 2: Your Boe-Bot’s Servo Motors · Page 51

How HighLowLed.bs2 Works

Figure 2-6 shows how the BASIC Stamp can connect an LED circuit alternately to Vdd and Vss. When it’s connected to Vdd, the LED emits light. When it’s connected to Vss, the LED does not emit light. The command

HIGH 13

instructs the BASIC Stamp to connect P13 to Vdd. The command

PAUSE 500

instructs the BASIC Stamp to leave the circuit in that state for 500 ms. The command

LOW 13

instructs the BASIC Stamp to connect the LED to Vss. Again, the command

PAUSE 500

instructs the BASIC Stamp to leave it in that state for another 500 ms. Since these commands are placed between

DO

and

LOOP

, they execute over and over again.

SOUT

SIN

ATN

VSS

P0

P1

1

2

3

4

5

6

P2

P3

7

8

P4

9

P5

P6

10

11

P7

12

BS2

Vdd

Vss

BS2-IC

24

23

22

VIN

VSS

RES

21

20

VDD (+5V)

P15

19

18

17

16

15

14

13

P14

P13

P12

P11

P10

P9

P8

SOUT

SIN

ATN

VSS

P0

P1

1

2

3

4

5

6

P2

P3

7

8

P4

9

P5

P6

10

11

P7

12

BS2

Vdd

Vss

BS2-IC

24

23

22

VIN

VSS

RES

21

20

VDD (+5V)

P15

19

18

17

16

15

14

13

P14

P13

P12

P11

P10

P9

P8

Figure 2-6

BASIC Stamp

Switching

The BASIC Stamp can be programmed to internally connect the LED circuit’s input to Vdd or Vss.

A Diagnostic Test for your Computer

A very few computers, such as some laptops, will halt the PBASIC program after the first time through a

DO

...

LOOP

loop. These computers have a non-standard serial port design.

By placing a

DEBUG

command the program LedOnOff.bs2, the open Debug Terminal prevents this from possibly happening. You will next re-run this program without the

DEBUG

command to see if your computer has this non-standard serial port problem. It is not likely, but it would be important for you to know.

√ Open HighLowLed.bs2.

√ Delete the entire

DEBUG

instruction.

√ Run the modified program while you observe your LED.

If the LED blinks on and off continuously, just as it did when you ran the original program with the

DEBUG

command, your computer will not have this problem.

If the LED blinked on and off only once and then stopped, you have a computer with a non-standard serial port design. If you disconnect the serial cable from your board and

Page 52 ·

Robotics with the Boe-Bot press the Reset button, the BASIC Stamp will run the program properly without freezing.

In programs you write yourself, you should add a single command:

DEBUG "Program Running!" right after the compiler directives. This will open the Debug Terminal and keep the

COM port open. This will prevent your programs from freezing after one pass through the

DO…LOOP

, or any of the other looping commands you will be learning in later chapters. You will see this command in some of the example programs that would not otherwise need a

DEBUG

instruction. So, you should be able to run all of the remaining programs in this book even if your computer failed the diagnostic test.

Introducing the Timing Diagram

A timing diagram is a graph that relates high (Vdd) and low (Vss) signals to time. In

Figure 2-7, time increases from left to right, and high and low signals align with either

Vdd (5 V) or Vss (0 V). This timing diagram shows you a 1000 ms slice of the high/low signal you just experimented with. The line of dots (. . .) to the right of the signal is one way of indicating that the signal repeats itself.

Vdd (5 V)

Vss (0 V)

500 ms

1000 ms

500 ms

Figure 2-7

Timing Diagram for

HighLowLed.bs2

The LED on/off states are shown above the timing diagram.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 53

Your Turn – Blink the Other LED

Blinking the other LED (connected to P12) is a simple matter of changing the

Pin

argument in the

HIGH

and

LOW

commands and re-running the program.

√ Modify the program so that the commands look like this:

DO

HIGH 12

PAUSE 500

LOW 12

PAUSE 500

LOOP

√ Run the modified program and verify that it makes the other LED blink on/off.

You can also make both LEDs blink at the same time.

√ Modify the program so that the commands look like this:

DO

HIGH 12

HIGH 13

PAUSE 500

LOW 12

LOW 13

PAUSE 500

LOOP

√ Run the modified program and verify that it makes both LEDs blink on and off at roughly the same time.

You can modify the program again to make one LEDs blink alternately on/off, and you can also change the rates that the LEDs blink by adjusting the

PAUSE

command’s

Duration

argument higher or lower.

√ Try it!

Viewing a Servo Control Signal with an LED

The high and low signals you will program the BASIC Stamp to send to the servo motors must last for very precise amounts of time. That’s because the servo motors measure the amount of time the signal stays high, and use it as an instruction for where to turn. For

Page 54 ·

Robotics with the Boe-Bot accurate servo motor control, the time these signals stay high must be much more precise than you can get with a

HIGH

and a

PAUSE

command. You can only change the

PAUSE

command’s

Duration

argument by 1 ms (remember, that’s 1/1000 of a second) at a time. There’s a different command called

PULSOUT

that can deliver high signals for precise amounts of time. These amounts of time are values you use in the

Duration

argument, and they are measured in units that are two millionths of a second!

PULSOUT Pin, Duration

A microsecond

is a millionth of a second. It’s abbreviated µs. Be careful when you write this value, it’s not the letter ‘u’ from our alphabet; it’s the Greek letter mu ‘

µ’.

For example, 8 microseconds is abbreviated 8 µs.

You can send a

HIGH

signal that turns the P13 LED on for 2

µs (that’s two millionths of a second) by using this command:

PULSOUT 13, 1

This command would turn the LED on for 4

µs

PULSOUT 13, 2

This command sends a high signal that you can actually view:

PULSOUT 13, 65000

How long does the LED circuit connected to P13 stay on when you send this pulse?

Let’s figure it out. The time it stays on is 65000 times 2

µs. That’s:

Duration

=

65000

×

2

µ

s

=

=

65000

0 .

13 s

×

0 .

000002 s

which is still pretty fast, thirteen hundredths of a second.

The largest value

you can use in a

Duration

argument is 65535.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 55

Example Program: PulseP13Led.bs2

This timing diagram in Figure 2-8 shows the pulse train you are about to send to the LED with this new program. This time, the high signal lasts for 0.13 seconds, and the low signal lasts for 2 seconds. This is 100 times slower than the signal that the servo will need to control its motion.

0.13 s 0.13 s

Vdd (5 V)

Vss (0 V)

Figure 2-8

Timing Diagram for

PulseP13Led.bs2

2.0 s

√ Enter, save, and run PulseP13Led.bs2.

√ Verify that the LED circuit connected to P13 pulses for about thirteen hundredths of a second, once every two seconds.

' Robotics with the Boe-Bot – PulseP13Led.bs2

' Send a 0.13 second pulse to the LED circuit connected to P13 every 2 s.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 13, 65000

PAUSE 2000

LOOP

Example Program: PulseBothLeds.bs2

This example program sends a pulse to the LED connected to P13, and then it sends a pulse to the LED connected to P12 as shown in Figure 2-9. After that, it pauses for two seconds.

Page 56 ·

Robotics with the Boe-Bot

0.13 s

P13

0.13 s

P12

0.13 s

0.13 s

Figure 2-9

Timing Diagram for

PulseBothLeds.bs2

The LEDs emit light for 0.13 seconds while the signal is high.

2.26 s

The voltages (Vdd and Vss) in this timing diagram are not labeled.

With the BASIC

Stamp, it is understood that the high signal is 5 V (Vdd) and the low signal is 0 V (Vss).

This is a common practice in documents that explain the timing of high and low signals.

Often there are one or more of these documents for each component inside the circuit an engineer is designing. The engineers who created the BASIC Stamp had to comb through many of these kinds of documents looking for information needed to help make decisions while designing the product.

Sometimes the times are also left out, or just shown with a label, like t high desired time values for t high and t low and t low

. Then, the

are listed in a table somewhere after the timing diagram.

This concept is discussed in more detail in Basic Analog and Digital, another Parallax

Stamps in Class Student Guide.

√ Enter, save, and run PulseBothLeds.bs2.

√ Verify that both LED circuits simultaneously pulse for about thirteen hundredths of a second, once every two seconds.

' Robotics with the Boe-Bot – PulseBothLeds.bs2

' Send a 0.13 second pulse to P13 and P12 every 2 seconds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

Chapter 2: Your Boe-Bot’s Servo Motors · Page 57

DO

PULSOUT 13, 65000

PULSOUT 12, 65000

PAUSE 2000

LOOP

Your Turn – Viewing the Full Speed Servo Signal

Remember the servo signal is 100 times as fast as the program you just ran. First, let’s try running the program ten times as fast. That means divide all the

Duration

arguments

(

PULSOUT

and

PAUSE

) by 10.

√ Modify the program so that the commands look like this:

DO

PULSOUT 13, 6500

PULSOUT 12, 6500

PAUSE 200

LOOP

√ Run the modified program and verify that it makes the LEDs blink ten times as fast.

Now, let’s try 100 times as fast (one hundredth of the duration). Instead of appearing to flicker, the LED will just appear to be not as bright as it would when you send it a simple high signal. That’s because the LED is flashing on and off so quickly and for such brief periods of time that the human eye cannot detect the actual on/off flicker, just a change in brightness.

√ Modify the program so that the commands look like this:

DO

PULSOUT 13, 650

PULSOUT 12, 650

PAUSE 20

LOOP

√ Run the modified program and verify that it makes both LEDs about the same brightness.

√ Try substituting 850 in the

Duration

argument for the

PULSOUT

command that goes to P13.

DO

Page 58 ·

Robotics with the Boe-Bot

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

LOOP

√ Run the modified program and verify that the P13 LED now appears slightly brighter than the P12 LED. You may have to cup your hands around the LEDs and peek inside to see the difference. They are different because the amount of time the LED connected to P13 stays on is longer than the amount of time the

LED connected to P12 stays on.

√ Try substituting 750 in the

Duration

argument for the

PULSOUT

command that goes to both LEDs.

DO

PULSOUT 13, 750

PULSOUT 12, 750

PAUSE 20

LOOP

√ Run the modified program and verify that the brightness of both LEDs is the same again. It may not be obvious, but the brightness level is between those given by

Duration

arguments of 650 and 850.

ACTIVITY #3: CONNECTING THE SERVO MOTORS

In this activity, you will build a circuit that connects the servo to a power supply and a

BASIC Stamp I/O pin. The LED circuits you developed in the previous activity will be used later to monitor the signals the BASIC Stamp sends to the servos to control their motion.

Parts for Connecting the Servos

(2) Parallax Continuous Rotation servos

(2) Built and tested LED circuits from the previous activity

Finding the Connection Instructions for Your Carrier Board

There are three different Revs of the Board of Education and one Rev of the BASIC

Stamp HomeWork Board. Boards of Education can either be Rev A, B, or C. The

HomeWork Board is Rev B. Figure 2-10 shows examples of the labeling you might see on your board.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 59

√ Examine the labeling on your carrier board and figure out whether you have a

BASIC Stamp HomeWork Board Rev B or a Board of Education Rev C, B, or A.

(916) 624-8333 www.parallaxinc.com

www.stampsinclass.com

Rev B

P3

P2

P1

P0

X2

Vdd

Vin Vss

Board of Education

X3

Rev C

© 2000-2003

BASIC Stamp Board of Education Rev C

HomeWork Board Rev B

15 14 13 12

Red

Rev A

Figure 2-10

Examples of Rev

Labels on the

BASIC Stamp

HomeWork Board and the Board of

Education

Black

VR1

X3

Vdd nc

Vss

X3

Vdd

X4 X5

Vin

Rev B

Vss

X2

5

Board of Education Rev B Board of Education Rev A

√ Knowing the revision of your carrier board, skip to instructions (listed below) for connecting the servo to your board:

Page 60

Page 63

Board of Education Rev C

BASIC Stamp HomeWork Board

Board of Education Rev B

If you have a Board of Education Rev B, follow the instructions for the Board of Education

Rev C throughout the text, always keeping these two points in mind:

The Board of Education Rev B does not have a 3-positioin switch. You will have to disconnect battery pack’s plug from the Board of Education’s power jack when directed to set the 3-position switch to position-0. When directed to set the 3position switch to position-1 or 2, you will have to plug the power in.

The Board of Education Rev B does not have a jumper setting for power. Only use the 6 V battery pack as a power source for Board of Education Rev B Boe-

Bot projects.

Board of Education Rev A

If you have a Board of Education Rev A, follow the instructions for the BASIC Stamp

HomeWork Board throughout the text.

Page 60 ·

Robotics with the Boe-Bot

√ When you are done, go to Activity #4: Centering the Servos on page 66.

Connecting the Servos to the Board of Education Rev C

√ Turn off the power by setting the 3-position switch on your Board of Education to position-0 (see Figure 2-11).

Reset

Figure 2-11

Disconnect

Power

0 1 2

Figure 2-12 shows the servo header on the Board of Education Rev C. This board features a jumper that you can use to connect the servo’s power supply to either Vin or

Vdd. To move it, you have to pull it upwards and off the pair of pins it rests on, then push it onto the pair of pins you want it to rest on.

√ If you are using the 6 V battery pack, make sure the jumper between the servo ports on the Board of Education is set to Vin as shown on the left of Figure 2-

12.

Use only alkaline AA (1.5 V) batteries.

Avoid rechargeable batteries because they are 1.2

V instead of 1.5 V.

√ If you are using a 7.5 V, 1000 mA center positive DC supply, set the jumper to

Vdd as shown on the right side of Figure 2-12.

CAUTION – Misuse of AC powered DC supplies can damage your servos.

If you are inexperienced with DC supplies, consider sticking with the 6 V battery pack that comes with the Boe-Bot.

Use only supplies with DC output voltage ratings between 6 and 7.5 V, and current output ratings of 800 mA or more.

Only use a DC supply that is equipped with the same kind of plug as the Boe-Bot battery pack (2.1 mm, center-positive).

Chapter 2: Your Boe-Bot’s Servo Motors · Page 61

Select Vdd if you are using a DC supply that plugs into an AC

X4 X5

Red

Black

Vin

Select Vin if you are using the outlet (AC adapter).

Red

Black

Figure 2-12

Selecting Your

Servo’s Power

Supply on the Board of Education Rev C

battery pack that comes with the

X4 X5

Boe-Bot kits.

Vin

All examples and instructions in this book will use the battery pack. Figure 2-13 shows the schematic of the circuit you will build on the Board of Education Rev C. The jumper is set to Vin.

√ Connect your servos to your Board of Education Rev C as shown in Figure 2-13.

Vin

P13

White

Red

Black

White

Red

Black

White

Red

Black

P12

Vss

Vin

White

Red

Black

X4 X5

Red

Black

Figure 2-13

Servo

Connection

Schematic and Wiring

Diagram for the Board of Education

Rev C

Vss

How do I tell which servo is connected to P13 and which servo is connected to P12?

You just plugged your servos into headers with numbers above them. If the number above the header where the servo is plugged in is 13, it means the servo is connected to P13. If the number is 12, it means it’s connected to P12.

√ When you are done assembling the system, it should resemble Figure 2-14.

(LED circuits not shown).

Page 62 ·

Robotics with the Boe-Bot

Figure 2-14

Board of Education with Servos and

Battery Pack

Connected

√ If you removed the LED circuits after Activity #2, make sure to rebuild them as shown in Figure 2-15. They will be your servo signal monitoring circuits.

P13

P12

470

470

Vss

LED

Vss

LED

X3

P15

P14

P13

P12

P11

P10

P9

P8

P3

P2

P1

P0

P7

P6

P5

P4

X2

Vdd Vin Vss

+

+

Figure 2-15

LED Servo

Signal

Monitor

Circuit

Disconnecting Power – Special Instructions for the Board of Education Rev C

Never leave the power connected to your system when you are not working on it.

√ To disconnect power from your Board of Education Rev C, move the 3-position switch to position-0.

√ Move on to page 66 (Activity #4: Centering the Servos).

Chapter 2: Your Boe-Bot’s Servo Motors · Page 63

Connecting the Servos to the BASIC Stamp HomeWork Board

If you are connecting your servos to a BASIC Stamp HomeWork Board, you will need the parts listed below and shown in Figure 2-16:

Parts List:

(1) Battery pack with tinned leads

(2) Parallax Continuous Rotation Servos

(2) 3-pin male-male headers

(4) Jumper wires

(4) AA batteries – 1.5 V alkaline

(2) Built and tested LED circuits from the previous activity

Figure 2-16

Servo Centering

Parts for the

HomeWork

Board

Figure 2-17 shows a schematic of the servo circuits on the HomeWork Board. Before you start building this circuit, make sure that power is disconnected from the BASIC

Stamp HomeWork Board.

√ The 9 V battery should be disconnected from the battery clip, and the battery pack with tinned leads should not have any batteries loaded.

Page 64 ·

Robotics with the Boe-Bot

P13

Vbp

White

Red

Black

P12

Vss

Vbp

White

Red

Black

Figure 2-17

Servo Connection

Schematic for the

BASIC Stamp

HomeWork Board.

Vss

√ Remove the two LED/resistor circuits, and save the parts.

√ Build the servo ports shown on the left side of Figure 2-18.

√ Double-check to make sure the black wire with the white stripe is connected to

Vbp, and the solid black wire should be connected to Vss.

√ Double-check to make sure that all the connections for P13, Vbp, Vss, Vbp, and

P12 all exactly match the wiring diagram.

√ Connect the servo plugs to the male headers as shown on the right of Figure 2-

18.

√ Double-check to make sure the servo wire colors match the legend in the figure.

Vbp stands for Voltage battery pack.

It refers to the 6 VDC supplied by the four 1.5 V batteries. This is brought directly to the breadboard to power the servos for Boe-Bots built with the HomeWork Board or Board of Education Rev A. Your BASIC Stamp is still powered by the 9 V battery.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 65

Black wire with white stripe

www.parallaxinc.com

www.stampsinclass.com

Vdd Vin Vss

X3

Solid Black

Wire

Rev B

(916) 624-8333 www.parallaxinc.com

www.stampsinclass.com

Vdd Vin Vss

Rev B

X3

P15

P14

P13

P12

P11

P10

P9

P8

Å P13

Å Vbp

Å Vss

Å Vbp

Å P12

Port connections

Your setup will then resemble Figure 2-19.

P15

P14

P13

P12

P11

P10

P9

P8

Å White

Å Red

Å Black

Å Red

Å White

Servo connections by wire color

Figure 2-18

Servo

Connection

Wiring

Diagram for the BASIC

Stamp

HomeWork

Board

Left (build the servo ports).

Right

(connect the servos).

Figure 2-19

Dual Supplies and Servos

Connected

√ Rebuild the LED circuit as shown in Figure 2-20.

Page 66 ·

Robotics with the Boe-Bot

P13

P12

470 Ω

470 Ω

Vss

LED

Vss

X3

(916) 624-8333 www.parallaxinc.com

www.stampsinclass.com

Vdd Vin

+

+

LED

P3

P2

P1

P0

P15

P14

P13

P12

P7

P6

P5

P4

P11

P10

P9

P8

X2

© 2002

HomeWork Board

Rev B

Figure 2-20

LED Servo

Signal

Monitor

Circuit

√ When all your connections are made and double-checked, load the battery pack with batteries and reconnect the 9 V battery to the HomeWork Board’s battery clip.

Disconnecting Power – Special Instructions for the HomeWork Board

Never leave the power connected to your system when you are not working with it. From here onward, disconnecting power takes two steps:

√ Unplug the 9 V battery from the battery clip to disconnect power from the

HomeWork Board. This disconnects power from the embedded BASIC Stamp, and the power sockets above the breadboard (Vdd, Vin, and Vss).

√ Remove one battery from the battery pack. This disconnects power from the servos.

ACTIVITY #4: CENTERING THE SERVOS

In this activity, you will run a program that sends the servos a signal, instructing them to stay still. Because the servos are not pre-adjusted at the factory, they will instead start

Chapter 2: Your Boe-Bot’s Servo Motors · Page 67 turning. You will then use a screwdriver to adjust them so that they stay still. This is called centering the servos. After the adjustment, you will test the servos to make sure they are functioning properly. The test programs will send signals that make the servos turn clockwise and counterclockwise at various speeds.

Servo Tools and Parts

The Parallax screwdriver shown in Figure 2-21 is the only extra tool you will need for this activity. Alternately, any Phillips #1 point screwdriver with a 1/8″ (3.18 mm) shaft should do the trick.

Figure 2-21

Parallax

Screwdriver

Sending the Center Signal

Figure 2-22 shows the signal that has to be sent to the servo connected to P12 to calibrate it. This is called the center signal, and after the servo has been properly adjusted, this signal instructs it to stay still. The instruction consists of a series of 1.5 ms pulses with 20 ms pauses between each pulse.

P12

1.5 ms 1.5 ms

Figure 2-22

Timing Diagram for

CenterServoP12.bs2

The 1.5 ms pulses instruct the servo to

20 ms

remain still.

The program for this signal will be a

PULSOUT

command and a

PAUSE

command inside a

DO…LOOP

. Figuring out the

PAUSE

command from the timing diagram is easy, it's going to be

PAUSE 20

for the 20 ms between pulses.

Figuring out the

PULSOUT

command's

Pin

argument isn't that hard either, it's going to be

12, for I/O pin P12. Next, let's figure out what the

PULSOUT

command's

Duration

argument has to be for 1.5 ms pulses. 1.5 ms is 1.5 thousandths of a second, or 0.0015 s.

Remember whatever number is in the

PULSOUT

command's

Duration

argument, multiply that number by 2 µs (2 millionths of a second = 0.000002 s), and you will know how long

Page 68 ·

Robotics with the Boe-Bot the pulse will last. You can also figure out what the

PULSOUT

command's

Duration

argument has to be if you know how long you want the pulse to last. Just divide 2 µs into the time you want the pulse to last. With this calculation:

Duration argument

=

Pulse duration

2

µ

s

0 .

0015 s

0 .

000002 s

=

750

we now know that the command for a 1.5 ms pulse to P12 will be

PULSOUT 12, 750

.

It’s best to only center one servo at a time, because that way you can hear when the motor stops as you are adjusting it. This program will only send the center signal to the servo connected to P12, and these next instructions will guide you through adjusting it. After you complete the process with the servo connected to P12, you will repeat it with the servo connected to P13.

√ If you have a Board of Education Rev C, make sure to set the 3-position power switch to position-2 as shown in Figure 2-23.

0 1 2

Figure 2-23

Set the 3-Position Switch to

Position-2

√ If you are using the HomeWork Board, check the power connections to both your BASIC Stamp and your servos. The 9 V battery should be attached to the battery clip, and the 6 V battery pack should have all four batteries loaded.

If the servos start running (or twitching) as soon as you connect power

It's probably because the BASIC Stamp is running a program you ran in a previous activity.

√ Make sure to enter, save, and run CenterServoP12.bs2 before continuing to the servo centering instructions that follow the example program.

√ Enter, save, and run CenterServoP12.bs2, then continue with the instructions that follow the program.

Example Program: CenterServoP12.bs2

' Robotics with the Boe-Bot - CenterServoP12.bs2

' This program sends 1.5 ms pulses to the servo connected to

Chapter 2: Your Boe-Bot’s Servo Motors · Page 69

' P12 for manual centering.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 12, 750

PAUSE 20

LOOP

If the servo has not yet been centered, its horn will start turning, and you will be able to hear the motor inside making a whining noise.

√ If the servo is not yet centered, use a screwdriver to gently adjust the potentiometer in the servo as shown in Figure 2-24. Adjust the potentiometer until you find the setting that makes the servo stop turning.

Caution: do not push too hard with the screwdriver!

The potentiometer inside the servo is pretty delicate, so be careful not to apply any more pressure than necessary when adjusting the servo.

Figure 2-24

Center Adjusting a

Servo

Insert tip of Phillips screwdriver into potentiometer access hole.

Gently turn screwdriver to adjust potentiometer

√ Verify that the LED signal monitor circuit connected to P12 is showing activity.

It should be emitting light, indicating that the pulses are being transmitted to the servo connected to P12.

If the servo has already been centered, it will not turn. It is unlikely, but a damaged or defective servo would also not turn. Activity #6 will rule out this possibility before the servos are installed on your Boe-Bot chassis.

Page 70 ·

Robotics with the Boe-Bot

√ If the servo does not turn, skip to the Your Turn section on page 70 so that you can test and center the other servo that’s connected to P13.

What's a Potentiometer?

A potentiometer is kind of like an adjustable resistor. The resistance of a potentiometer is adjusted with a moving part. On some potentiometers, this moving part is a knob or a sliding bar, others have sockets that can be adjusted with screwdrivers. The resistance of the potentiometer inside the Parallax Continuous Rotation servo is adjusted with a #1 point Phillips screwdriver tip. You can learn more about potentiometers in What's a Microcontroller? and Basic Analog and Digital student guides.

Your Turn – Centering the Servo Connected to P13

√ Repeat the process for the servo connected to P13 using this program:

Example Program: CenterServoP13.bs2

' Robotics with the Boe-Bot - CenterServoP13.bs2

' This program sends 1.5 ms pulses to the servo connected to

' P13 for manual centering.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 13, 750

PAUSE 20

LOOP

Remember to completely disconnect power when you are done.

If you have a Board of Education Rev C.

√ Move the 3-position switch to position-0.

If you have a BASIC Stamp HomeWork Board:

√ Unplug the 9 V battery from the battery clip to disconnect power to the HomeWork

Board.

√ Remove one battery from the battery pack.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 71

ACTIVITY #5: HOW TO STORE VALUES AND COUNT

This activity introduces variables, which are used in PBASIC programs to store values.

Boe-Bot programs later in this book will rely heavily on variables. The most important thing about being able to store values is that the program can use them to count. As soon as your program can count, it can both control and keep track of the number of times something happens.

Your servos do not need to be connected to power for this activity.

√ If you have a Board of Education Rev C, set the 3-position switch to position-1.

This disconnects power from the servo ports only. The BASIC Stamp, Vdd, Vin, and Vss will all still be connected to power.

√ If you have a BASIC Stamp HomeWork Board, remove one battery from the battery pack, but leave the 9 V battery connected to the battery clip. This disconnects power from the servo ports, but power remains connected to the embedded BASIC Stamp, Vdd, Vin, and Vss.

Using Variables for Storing Values, Math Operations, and Counting

Variables can be used to store values. Before you can use a variable in PBASIC, you have to give it a name and specify its size. This is called declaring a variable.

variableName VAR Size

You can declare four different sizes of variables in PBASIC:

Size – Stores

Bit – 0 to 1

Nib

Byte

0 to 15

0 to 255

Word – 0 to 65535 or -32768 to + 32767

The next example program just involves a couple of word variables: value VAR Word anotherValue VAR Word

After you have declared a variable, you can also initialize it, which means giving it a starting, or initial, value. value = 500 anotherValue = 2000

Page 72 ·

Robotics with the Boe-Bot

Default Value

- If you do not initialize a variable, the program will automatically start by storing the number zero in that variable. That’s called the variable's default value.

The “=” sign in

value = 500

is an example of an operator. You can use other operators to do math with variables. Here are a couple of multiplication examples: value = 10 * value anotherValue = 2 * value

Example Program: VariablesAndSimpleMath.bs2

This program demonstrates how to declare, initialize, and perform operations on variables.

√ Before running the program, predict what each

DEBUG

command will display.

√ Enter, save, and run VariablesAndSimpleMath.bs2.

√ Compare the results to your predictions and explain any differences.

' Robotics with the Boe-Bot - VariablesAndSimpleMath.bs2

' Declare variables and use them to solve a few arithmetic problems.

' {$STAMP BS2}

' {$PBASIC 2.5} value VAR Word ' Declare variables anotherValue VAR Word value = 500 ' Initialize variables anotherValue = 2000

DEBUG ? value ' Display values

DEBUG ? anotherValue value = 10 * anotherValue ' Perform operations

DEBUG ? value ' Display values again

DEBUG ? anotherValue

END

How VariablesAndSimpleMath.bs2 Works

This code declares two word variables,

value

and

anotherValue

. value VAR Word ' Declare variables

Chapter 2: Your Boe-Bot’s Servo Motors · Page 73 anotherValue VAR Word

These commands are examples of initializing variables to values that you determine.

After these two commands are executed,

value

will store 500, and

anotherValue

will store 2000. value = 500 ' Initialize variables anotherValue = 2000

These

DEBUG

commands help you see what each variable stores after you initialize them.

Since

value

was assigned 500 and

anotherValue

was assigned 2000, these

DEBUG

commands send the messages “value = 500” and “anotherValue = 2000” to the Debug

Terminal.

DEBUG ? value ' Display values

DEBUG ? anotherValue

The DEBUG command’s “?” formatter

can be used before a variable to make the Debug

Terminal display its name, the decimal value it’s storing, and a carriage return. It’s very handy for looking at the contents of a variable.

The riddle in the next three lines is, what will be displayed? The answer is that

value

will be set equal to ten times

anotherValue

. Since

anotherValue

is 2000,

value

will be set equal to 20,000. The

anotherValue

variable is unchanged. value = 10 * anotherValue ' Perform operations

DEBUG ? value ' Display values again

DEBUG ? anotherValue

Your Turn – Calculations with Negative Numbers

If you want to do calculations that involve negative numbers, you can use the

DEBUG

command’s

SDEC

formatter to display them. Here’s an example that can be made by modifying VariablesAndSimpleMath.bs2.

√ Delete this portion of VariablesAndSimpleMath.bs2: value = 10 * anotherValue ' Perform operations

DEBUG ? value ' Display values again

√ Replace it with the following:

Page 74 ·

Robotics with the Boe-Bot value = value - anotherValue ' Answer = -1500

DEBUG "value = ", SDEC value, CR ' Display values again

√ Run the modified program and verify that

value

changes from 500 to -1500.

Counting and Controlling Repetitions

The most convenient way to control the number of times a piece of code is executed is with a

FOR…NEXT

loop. Here is the syntax:

FOR Counter = StartValue TO EndValue {STEP StepValue}…NEXT

The three-dots

...

indicate that you can put one or more commands between the

FOR

and

NEXT

statements. Make sure to declare a variable for use in the

Counter

argument.

The

StartValue

and

EndValue

arguments can be either numbers or variables. When you see something between curly braces { } in a syntax description, it means it’s an optional argument. In other words, the

FOR…NEXT

loop will work without it, but you can use it for a special purpose.

You don’t have to name the variable “counter”. For example, you can call it

“myCounter”. myCounter VAR Word

Here’s an example of a

FOR…NEXT

loop that uses the

myCounter

variable for counting. It also displays the value of the

myCounter

variable each time through the loop.

FOR myCounter = 1 TO 10

DEBUG ? myCounter

PAUSE 500

NEXT

Example Program: CountToTen.bs2

√ Enter, save, and run CountToTen.bs2.

' Robotics with the Boe-Bot – CountToTen.bs2

' Use a variable in a FOR...NEXT loop.

' {$STAMP BS2}

' {$PBASIC 2.5} myCounter VAR Word

Chapter 2: Your Boe-Bot’s Servo Motors · Page 75

FOR myCounter = 1 TO 10

DEBUG ? myCounter

PAUSE 500

NEXT

DEBUG CR, "All done!"

END

Your Turn – Different Start and End Values and Counting in Steps

You can use different values for the

StartValue

and

EndValue

arguments.

√ Modify the

FOR…NEXT

loop so it looks like this:

FOR myCounter = 21 TO 9

DEBUG ? myCounter

PAUSE 500

NEXT

√ Run the modified program. Did you notice that the BASIC Stamp counted down instead of up? It will do this whenever the

StartValue

argument is larger than the

EndValue

argument.

Remember the optional

{STEP StepValue}

argument? You can use it to make

myCounter

count in steps. Instead of 9, 10, 11…, you can make it count by twos (9, 11,

13…) or by fives (10, 15, 20…), or whatever

StepValue

you give it, forwards or backwards. Here’s an example that uses it to count down in steps of 3:

√ Add

STEP 3

to the

FOR…NEXT

loop so it looks like this:

FOR myCounter = 21 TO 9 STEP 3

DEBUG ? myCounter

PAUSE 500

NEXT

√ Run the modified program and verify that it counts backwards in steps of 3.

ACTIVITY #6: TESTING THE SERVOS

There’s one last thing to do before assembling your Boe-Bot, and that’s testing the servos. In this activity, you will run programs that make the servos turn at different speeds and directions. By doing this, you will verify that your servos are working properly before you assemble your Boe-Bot.

Page 76 ·

Robotics with the Boe-Bot

This is an example of subsystem testing. Subsystem testing is a worthwhile habit to develop, because it isn’t any fun to take a robot back apart just to fix a problem that you could have otherwise caught before putting it together!

Subsystem testing

is the practice of testing the individual components before they go into the larger device. It’s a valuable strategy that can help you win robotics contests. It’s also an essential skill used by engineers worldwide to develop everything from toys, cars, and video games to space shuttles and Mars roving robots. Especially in more complex devices, it can become nearly impossible to figure out a problem if the individual components haven’t been tested beforehand. In aerospace projects, for example, disassembling a prototype to fix a problem can cost hundreds of thousands, or even millions of dollars. In those kinds of projects, subsystem testing is rigorous and thorough.

Pulse Width Controls Speed and Direction

Recall from centering the servos that a signal with a pulse width of 1.5 ms caused the servos to stay still. This was done using a

PULSOUT

command with a

Duration

of 750.

What would happen if the signal’s pulse width is not 1.5 ms?

In the Your Turn section of Activity #2, you programmed the BASIC Stamp to send series of 1.3 ms pulses to an LED. Let’s take a closer look at that series of pulses and find out how it can be used to control a servo. Figure 2-25 shows how a Parallax

Continuous Rotation servo turns full speed clockwise when you send it 1.3 ms pulses.

Full speed ranges from 50 to 60 RPM.

Vdd (5 V)

Vss (0 V)

1.3 ms

20 ms standard servo www.parallax.com

1.3 ms

Figure 2-25

A 1.3 ms

Pulse Train

Turns the

Servo Full

Speed

Clockwise

What’s RPM?

Revolutions Per Minute. It’s the number of full circles something turns in a minute.

What’s a pulse train?

Just as a railroad train is a series of cars, a pulse train is a series of pulses.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 77

You can use ServoP13Clockwise.bs2 to send this pulse train to the servo connected to

P13.

Example Program: ServoP13Clockwise.bs2

Your entire system, including servos should be connected to power for this activity.

√ If you have a Board of Education Rev C, set the 3-position switch to position-2.

This connects power to the servo ports in addition to the position-1 power to the

BASIC Stamp, Vdd, Vin, and Vss.

√ If you have a BASIC Stamp HomeWork Board, replace the battery you removed from the battery pack. This will restore power to the servo ports. Also, connect the 9 V battery to the battery clip. This will supply power to the embedded BASIC

Stamp, Vdd, Vin, and Vss.

√ Enter, save, and run ServoP13Clockwise.bs2.

√ Verify that the servo’s horn is rotating between 50 and 60 RPM clockwise.

' Robotics with the Boe-Bot – ServoP13Clockwise.bs2

' Run the servo connected to P13 at full speed clockwise.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 13, 650

PAUSE 20

LOOP

Notice that a 1.3 ms pulse requires a

PULSOUT

command

Duration

argument of 650, which is less than 750. All pulse widths less than 1.5 ms, and therefore

PULSOUT

Duration

arguments less than 750, will cause the servo to rotate clockwise.

Example Program: ServoP12Clockwise.bs2

By changing the

PULSOUT

command’s

Pin

argument from 13 to 12, you can make the servo connected to P12 turn full speed clockwise.

√ Save ServoP13Clockwise.bs2 as ServoP12Clockwise.bs2.

√ Modify the program by updating the comments and the

PULSOUT

command’s

Pin

argument to 12.

Page 78 ·

Robotics with the Boe-Bot

√ Run the program and verify that the servo connected to P12 is now rotating between 50 and 60 RPM clockwise.

' Robotics with the Boe-Bot – ServoP12Clockwise.bs2

' Run the servo connected to P12 at full speed clockwise.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 12, 650

PAUSE 20

LOOP

Example Program: ServoP12Counterclockwise.bs2

You have probably anticipated that making the

PULSOUT

command’s

Duration

argument greater than 750 will cause the servo to rotate counterclockwise. A

Duration

of 850 will send 1.7 ms pulses as shown in Figure 2-26. This will make the servo turn full speed counterclockwise.

Vdd (5 V)

Vss (0 V)

1.7 ms standard servo www.parallax.com

1.7 ms

Figure 2-26

A 1.7 ms Pulse

Train Makes the

Servo Turn Full

Speed

Counterclockwise

20 ms

√ Save ServoP12Clockwise.bs2 as ServoP12Counterclockwise.bs2.

√ Modify the program by changing the

PULSOUT

command’s

Duration

argument from 650 to 850.

√ Run the program and verify that the servo connected to P12 is now rotating between 50 and 60 RPM counterclockwise.

' Robotics with the Boe-Bot – ServoP12Counterclockwise.bs2

' Run the servo connected to P12 at full speed counterclockwise.

' {$STAMP BS2}

' {$PBASIC 2.5}

Chapter 2: Your Boe-Bot’s Servo Motors · Page 79

DEBUG "Program Running!"

DO

PULSOUT 12, 850

PAUSE 20

LOOP

Your Turn – P13Clockwise.bs2

√ Modify the

PULSOUT

command’s

Pin

argument so that it makes the servo connected to P13 turn counterclockwise.

Example Program: ServosP13CcwP12Cw.bs2

You can use two

PULSOUT

commands to make both servos turn at the same time. You can also make them turn in opposite directions.

√ Enter, save, and run ServosP13CcwP12Cw.bs2.

√ Verify that the servo connected to P13 is turning full speed counterclockwise while the one connected to P12 is turning full speed clockwise.

' Robotics with the Boe-Bot - ServosP13CcwP12Cw.bs2

' Run the servo connected to P13 at full speed counterclockwise

' and the servo connected to P12 at full speed clockwise.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

DO

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

LOOP

This will be important soon. Think about it: when the servos are mounted on either side of the chassis, one will have to rotate clockwise while the other rotates counterclockwise to make the Boe-Bot roll in a straight line. Does that seem odd? If you can’t picture it, try this:

√ Hold your servos together back-to-back and re-run the program.

Page 80 ·

Robotics with the Boe-Bot

Your Turn – Adjusting the Speed and Direction

There are four different combinations of

PULSOUT

Duration

arguments that will be used repeatedly when programming your Boe-Bot’s motion in the upcoming chapters.

ServosP13CcwP12Cw.bs2 sends one of these combinations, 850 to P13 and 650 to P12.

By testing several possible combinations and filling in the Description column of Table

2-1, you will become familiar with them and build a reference for yourself. You will fill in the Behavior column after your Boe-Bot is fully assembled, when you can see how each combination makes it move.

√ Try the following

PULSOUT

Duration

combinations, and fill in the Description column with your results.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 81

Table 2-1:

PULSOUT Duration Combinations

Durations

P13 P12

Description

Full speed, P13 servo

850 650 counterclockwise, P12 servo clockwise.

650 850

850 850

650 650

750 850

650 750

Both servos should stay still

750 750 because of the centering adjustments you made in

Activity #4.

760 740

770 730

850 700

800 650

Behavior

Page 82 ·

Robotics with the Boe-Bot

FOR…NEXT to Control Servo Run Time

Hopefully, by now you fully understand that pulse width controls the speed and direction of a Parallax Continuous Rotation servo. It’s a pretty simple way to control motor speed and direction. There is also a simple way to control the amount of time a motor runs, and that’s with a

FOR…NEXT

loop.

Here is an example of a

FOR…NEXT

loop that will make the servo turn for a few seconds:

FOR counter = 1 TO 100

PULSOUT 13, 850

PAUSE 20

NEXT

Let’s figure out the exact length of time this code would cause the servo to turn. Each time through the loop, the

PULSOUT

command lasts for 1.7 ms, the

PAUSE

command lasts for 20 ms, and it takes around 1.3 ms for the loop to execute.

One time through the loop = 1.7 ms + 20 ms + 1.3 ms = 23.0 ms.

Since the loop executes 100 times, that’s 23.0 ms times 100.

time

=

100

×

23 .

0 ms

=

=

100

×

0 .

0230 s

2 .

30 s

Let’s say you want the servo to run for 4.6 seconds. Your

FOR…NEXT

loop will have to execute twice as many times:

FOR counter = 1 TO 200

PULSOUT 13, 850

PAUSE 20

NEXT

Example Program: ControlServoRunTimes.bs2

√ Enter, save, and run ControlServoRunTimes.bs2.

√ Verify that the P13 servo turns counterclockwise for about 2.3 seconds, followed by the P12 servo turning for twice as long

' Robotics with the Boe-Bot - ControlServoRunTimes.bs2

' Run the P13 servo at full speed counterclockwise for 2.3 s, then

' run the P12 servo for twice as long.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 83

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Byte

FOR counter = 1 TO 100

PULSOUT 13, 850

PAUSE 20

NEXT

FOR counter = 1 TO 200

PULSOUT 12, 850

PAUSE 20

NEXT

END

Let’s say you want to run both servos, the P13 servo at a pulse width of 850 and the P12 servo at a pulse width of 650. Now, each time through the loop, it will take:

1.7ms – Servo connected to P13

1.3 ms – Servo connected to P12

20 ms – Pause duration

1.6 ms – Code overhead

--------- ------------------------------

24.6 ms – Total

If you want to run the servos for a certain amount of time, you can calculate it like this:

Number of pulses = Time s / 0.0246s = Time / 0.0246

Lets’ say we want to run the servos for 3 seconds. That’s

Number of pulses = 3 / 0.0246 = 122

Now, you can use the value 122 in the

EndValue

of the

FOR…NEXT

loop, and it will look like this:

FOR counter = 1 TO 122

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

Page 84 ·

Robotics with the Boe-Bot

Example Program: BothServosThreeSeconds.bs2

Here’s an example of making the servos turn in one direction for three seconds, then reversing their direction.

√ Enter, save, and run BothServosThreeSeconds.bs2.

' Robotics with the Boe-Bot - BothServosThreeSeconds.bs2

' Run both servos in opposite directions for three seconds, then reverse

' the direction of both servos and run another three seconds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Byte

FOR counter = 1 TO 122

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

FOR counter = 1 TO 122

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

END

Verify that each servo turned one direction for three seconds, and then reversed direction and turned for three more seconds. Did you notice that while the servos reversed at the same moment, they were always turning in opposite directions? Why would this be useful?

Your Turn – Predict Servo Run Time

√ Pick a time (six seconds or less), that you want your servos to turn.

√ Divide the number of seconds by 0.024.

√ Your answer is the number of loops you will need.

√ Modify BothServosThreeSeconds.bs2 so that it makes both servos run for the amount of time you selected.

√ Compare your predicted run time to the actual run time.

Chapter 2: Your Boe-Bot’s Servo Motors · Page 85

√ Remember to disconnect power from your system (board and servos) when you are done. That means setting the 3-posisiton switch to position-0 if you have a

Board of Education Rev C. If you have a HomeWork Board, disconnect the 9 V battery from the battery clip and remove one battery from the battery pack.

TIP

– To measure the run time, press and hold the Reset button on your Board of Education

(or BASIC Stamp HomeWork Board). When you are ready to start timing, let go of the

Reset button.

Page 86 ·

Robotics with the Boe-Bot

SUMMARY

This chapter guided you through connecting, adjusting, and testing the Parallax

Continuous Rotation servos. Along the way, a variety of PBASIC commands were introduced. The

PAUSE

command makes the program stop for brief or long periods of time, depending on the

Duration

argument you use.

DO…LOOP

makes repeating a single or group of PBASIC commands over and over again efficient.

HIGH

and

LOW

were introduced as a way of making the BASIC Stamp connect an I/O pin to Vdd or Vss.

High and low signals were viewed with the help of an LED circuit. These signals were used to introduce timing diagrams.

The

PULSOUT

command was introduced as a more precise way to deliver a high or low signal, and an LED circuit was also used to view signals sent by the

PULSOUT

command.

DO…LOOP

,

PULSOUT

, and

PAUSE

were then used to send the Parallax Continuous Rotation servos the signal to stay still, which is 1.5 ms pulses every 20 ms. The servo was adjusted with a screwdriver while receiving the 1.5 ms pulses until it stayed still. This process is called “centering” the servo.

After the servos were centered, variables were introduced as a way to store values.

Variables can be used in math operations and counting.

FOR…NEXT

loops were introduced as a way to count.

FOR…NEXT

loops control the number of times the code between the

FOR

and

NEXT

statements are executed.

FOR…NEXT

loops were then used to control the number of pulses delivered to a servo, which in turn controls the amount of time the servo runs.

Questions

1. How do the Parallax Continuous Rotation servos differ from standard servos?

2. How long does a millisecond last? How do you abbreviate it?

3. What PBASIC commands can you use to make other PBASIC commands execute over and over again?

4. What command causes the BASIC Stamp to internally connect one of its I/O pins to Vdd? What command makes the same kind of connection, but to Vss?

5. What are the names of the different size variables that can be declared in a

PBASIC program? What size values can each size of variable store?

6. What is the key to controlling a Parallax Continuous Rotation servo’s speed and direction? How does this relate to timing diagrams? How does it relate to

Chapter 2: Your Boe-Bot’s Servo Motors · Page 87

PBASIC commands? What are the command and argument that you can adjust to control a continuous rotation servo’s speed and direction?

Exercises

1. Write a

PAUSE

command that makes the BASIC Stamp do nothing for 10 seconds.

2. Modify this

FOR…NEXT

loop so that it counts from 6 to 24 in steps of 3. Also, write the variable declaration you will need to make this program work.

FOR counter = 9 TO 21

DEBUG ? counter

PAUSE 500

NEXT

Projects

1. Write a program that causes the LED connected to P14 to light dimly (on/off with every pulse) while the P12 servo is turning.

2. Write a program that takes the servos through three seconds of each of the four different combinations of rotation. Hint: you will need four different

FOR…NEXT

loops. First, both servos should rotate counterclockwise, then they should both rotate clockwise. Then, the P12 servo should rotate clockwise as the P13 servo rotates counterclockwise, and finally, the P12 servo should rotate counterclockwise while the P13 servo rotates clockwise.

Page 88 ·

Robotics with the Boe-Bot

Solutions

Q1. Instead of holding a certain position like a standard servo, the Parallax

Continuous Rotation servos turn a certain direction at a certain speed.

Q2. A millisecond lasts one thousandth of a second. Millisecond is abbreviated

"ms".

Q3. The

DO…LOOP

command is used to make other PBASIC commands execute over and over.

Q4.

HIGH

connects I/O pin to Vdd,

LOW

connects I/O pin to Vss.

Q5. The variable sizes are bit, nib, byte, and word.

Bit – Stores 0 to 1

Nib – Stores 0 to 15

Byte – Stores 0 to 255

Word – Stores 0 to 65535 or -32768 to +32767

Q6. Pulse width controls servo speed and direction. As seen on a timing diagram, the pulse width is the high time. In PBASIC, the pulse can be generated with the

PULSOUT

command. The

PULSOUT

command's

Duration

argument adjusts the speed and direction.

E1.

PAUSE 10000

E2. The key to writing the variable declaration is to choose a variable size large enough to hold the value 24. A Nib (nibble) will not work, since the maximum value a Nib can store is 15. Therefore, choose a Byte variable. counter VAR Byte

FOR counter = 6 TO 24 STEP 3

DEBUG ? counter

PAUSE 500

NEXT

P1. The key to solving this problem is to send a pulse train to the LED as well as the servo.

' Robotics with the Boe-Bot - Ch02Prj01_DimlyLitLED.bs2

' Run servo and send same signal to the LED on P14,

' to make it light dimly.

'{$STAMP BS2}

'{$PBASIC 2.5}

DEBUG "Program Running!"

DO

Chapter 2: Your Boe-Bot’s Servo Motors · Page 89

PULSOUT 12, 650 ' P12 servo clockwise

PULSOUT 14, 650 ' P14 LED lights dimly

PAUSE 20

LOOP

P2. First, calculate the number of loops needed to get the servos to run for three seconds, for each combination of rotation. As given on page 79, the code overhead is 1.6 ms.

Four combinations (1,2,3,4).

Each combination: Determine

PULSOUT

Duration

arguments:

1. Both counterclockwise: 12, 850 and 13, 850

2. Both clockwise: 12, 650 and 13, 650

3. 12 CW and 13 CCW: 12, 850 and 13, 650

4. 12 CCW and 13 CW: 12, 650 and 13, 850

Each combination: Calculate how long it will take for one loop:

1. one loop = 1.7 + 1.7 + 20 ms + 1.6 = 25.0 ms = 0.025 s

2. one loop = 1.3 + 1.3 + 20 ms + 1.6 = 24.2 ms = 0.0242 s

3. one loop = 1.7 + 1.3 + 20 ms + 1.6 = 24.6 ms = 0.0246 s

4. one loop = 1.3 + 1.7 + 20 ms + 1.6 = 24.6 ms = 0.0246 s

Each combination: Calculate number of pulses needed for 3 s of running:

1. number of pulses = 3 s / 0.025 s = 120

2. number of pulses = 3 s / 0.0242 s = 123.9 = 124

3. number of pulses = 3 s / 0.0246 s = 121.9 = 122

4. number of pulses = 3 s / 0.0246 s = 121.9 = 122

Now write four

FOR…NEXT

loops, using the number of pulses calculated for the

EndValue argument. Include the correct

PULSOUT

arguments for the combination of rotation.

' Robotics with the Boe-Bot - Ch02Prj02_4RotationCombinations.bs2

' Move servos through 4 clockwise/counterclockwise rotation ' combinations.

'{$STAMP BS2}

'{$PBASIC 2.5}

Page 90 ·

Robotics with the Boe-Bot

DEBUG "Program Running!" counter VAR Word

FOR counter = 1 TO 120 ' Loop for three seconds

PULSOUT 13, 850 ' P13 servo counterclockwise

PULSOUT 12, 850 ' P12 servo counterclockwise

PAUSE 20

NEXT

FOR counter = 1 TO 124 ' Loop for three seconds

PULSOUT 13, 650 ' P13 servo clockwise

PULSOUT 12, 650 ' P12 servo clockwise

PAUSE 20

NEXT

FOR counter = 1 TO 122 ' Loop for three seconds

PULSOUT 13, 650 ' P13 servo clockwise

PULSOUT 12, 850 ' P12 servo counterclockwise

PAUSE 20

NEXT

FOR counter = 1 TO 122 ' Loop for three seconds

PULSOUT 13, 850 ' P13 servo counterclockwise

PULSOUT 12, 650 ' P12 servo clockwise

PAUSE 20

NEXT

END

Chapter 3: Assemble and Test Your Boe-Bot · Page 91

Chapter 3: Assemble and Test Your Boe-Bot

This chapter contains instructions for building and testing your Boe-Bot. It’s especially important to complete the testing portion before moving on to the next chapter. By doing so, you can help avoid a number of common mistakes that lead to mystifying Boe-Bot behavior in later chapters. Here is a summary of what you will do in each of the activities in this chapter:

Activity Summary

1

2

3

4

Re-test the servos to make sure they are properly connected

Connect and test a speaker that can let you know when the Boe-Bot’s batteries are low

Use the Debug Terminal to control and test servo speed

ACTIVITY #1: ASSEMBLING THE BOE-BOT

This activity will guide you through assembling the Boe-Bot, step-by-step. In each step, you will gather a few of the parts, and then assemble them so that they match the pictures. Each picture has instructions that go with it; make sure to follow them carefully.

Servo Tools and Parts

All of the tools shown in Figure 3-1 are common and can be found in most households and school shops. They can also be purchased at local hardware stores.

Tools

(1) Parallax screwdriver (Phillips #1 point screwdriver

1

/

8

(1)

1

/

4

″ Combination wrench (Optional)

(1) Needle-nose pliers (Optional)

″ (3.18 mm) shaft)

Page 92 ·

Robotics with the Boe-Bot

Figure 3-1

Boe-Bot

Assembly

Tools

Mounting the Topside Hardware

√ Start by gathering this list of parts.

√ Then, follow the accompanying instructions.

Parts List:

See Figure 3-2.

(1) Boe-Bot chassis

(4) 1″ Standoffs

(4) Pan head screws, 1/4″ 4-40

(1) Rubber grommet, 13/32″

Instructions:

√ Insert the 13/32″ rubber grommet into the hole in the center of the Boe-Bot chassis.

√ Make sure the groove in the outer edge of the rubber grommet is seated on the edge of the hole in the chassis.

√ Use the four 1/4″ 4-40 screws to attach the four standoffs to the chassis as shown.

Chapter 3: Assemble and Test Your Boe-Bot · Page 93

Figure 3-2

Chassis and

Topside

Hardware

Parts (left); assembled

(right).

Boe-Bot Parts

- The parts for the Boe-Bot are either included in the Boe-Bot full kit or in a combination of the Board of Education Full Kit and Robotics Parts Kit. See Appendix E:

Boe-Bot Parts Lists for more information.

Removing the Servo Horns

√ Disconnect the power from your BASIC Stamp and servos.

√ Remove all of the AA batteries from the battery pack.

√ Disconnect the servos from your board.

Parts List:

See Figure 3-3.

(2) Parallax Continuous

Rotation servos, previously centered

Instructions:

√ Use a Phillips screwdriver to remove the screws that hold the servo control horns on the output shafts.

√ Pull each horn upwards and off the servo output shaft.

√ Save the screws; they will be used in a later step.

Page 94 ·

Robotics with the Boe-Bot

Figure 3-3

Servo Control

Horn Removal

Parts (left); after following instructions

(right).

Phillips screw

Control horn

Output shaft

Stop!

√ Before this next step, you must have completed these activities from Chapter 2: Your

Boe-Bot’s Servo Motors

Activity #3: Connecting the Servo Motors

• Activity #4: Centering the Servos

Mounting the Servos on the Chassis

Parts List:

See Figure 3-4.

(1) Boe-Bot chassis (partially assembled)

(2) Parallax Continuous Rotation servos

(8) Pan Head Screws, 3/8″ 4-40

(8) Nuts, 4-40

Instructions:

√ Attach the servos to the chassis using the

Phillips screws and nuts. Note that for best performance, you must place the face of each servo through the rectangular window from inside the chassis rather than dropping them in from the outside.

√ Use pieces of masking tape to label the servos left (L) and right (R).

Chapter 3: Assemble and Test Your Boe-Bot · Page 95

Figure 3-4

Mounting the

Servos on the

Chassis

Parts (left); assembled

(right).

Mounting the Battery Pack

Figure 3-5 shows two different sets of parts. Use the parts on the left if you have a Board of Education, and the parts on the right if you have a HomeWork Board.

Parts List for Boe-Bot with a

Board of Education Rev C:

See Figure 3-5 (left side).

(1) Boe-Bot chassis (partially assembled)

(2) Flat head Phillips screws,

3/8″ 4-40

(2) Nuts, 4-40

(1) Battery pack with center positive plug

Parts List for Boe-Bot with a

HomeWork Board:

See Figure 3-5 (right side).

(1) Boe-Bot chassis (partially assembled)

(2) Flat head Phillips screws, 3/8″

4-40

(2) Nuts, 4-40

(1) Battery pack with tinned leads

Page 96 ·

Robotics with the Boe-Bot

Figure 3-5

Battery Pack

Mounting

Hardware

For use with the Board of Education For use with the HomeWork Board

Instructions:

√ Use the flathead screws and nuts to attach the battery pack to underside of the

Boe-Bot chassis as shown on the left side of Figure 3-6.

√ Make sure to insert the screws through the battery pack, then tighten down the nuts on the topside of the chassis.

√ As shown on the right side of Figure 3-6, pull the battery pack’s power cord through the hole with the rubber grommet in the center of the chassis.

√ Pull the servo lines through the same hole.

√ Arrange the servo lines and supply cable as shown.

Chapter 3: Assemble and Test Your Boe-Bot · Page 97

Figure 3-6

Battery Pack

Installed

Bottom view

(left); top view

(right).

Mounting the Wheels

Parts List:

(1) Partially assembled Boe-Bot

(not shown)

(1) 1/16″ Cotter pin

(1) Tail wheel ball

(2) Rubber band tires

(2) Plastic machined wheels

(2) Screws that were saved in the

Removing the Servo Horns step

Figure 3-7

Wheel

Hardware

Instructions:

The left side of Figure 3-8 shows the Boe-Bot’s tail wheel mounted on the chassis. The tail wheel is merely a plastic ball with a hole through the center. A cotter pin holds it to the chassis and functions as an axle for the wheel.

√ Line the hole in the tail wheel up with the holes in the tail portion of the chassis.

√ Run the cotter pin through all three holes (chassis left, tail wheel, chassis right).

√ Bend the ends of the cotter pin apart so that it can’t slide back out of the hole.

The right side of Figure 3-8 shows the Boe-Bot’s drive wheels mounted on the servos.

√ Stretch each rubber band tire and seat it on the outer edge of each wheel.

Page 98 ·

Robotics with the Boe-Bot

√ Each plastic wheel has a recess that fits on a servo output shaft. Press each plastic wheel onto a servo output shaft making sure the shaft lines up with and sinks into the recess.

√ Use the machine screws that you saved when you removed the servo horns to attach the wheels to the servo output shafts.

Attaching Board to Chassis

Parts List for a Boe-Bot with a Board of Education:

See left side of Figure 3-9.

(1) Boe-Bot chassis (partially assembled)

(4) Pan head screws, 1/4″ 4-40

(1) Board of Education with

BASIC Stamp 2

Parts List for a Boe-Bot with a

HomeWork Board:

See right side of Figure 3-9.

(1) Boe-Bot chassis (partially assembled)

(4) Pan head screws, 1/4″ 4-40

(1) BASIC Stamp HomeWork

Board

Figure 3-8

Mounting the

Wheels

Tail wheels

(left); drive wheels (right).

Chapter 3: Assemble and Test Your Boe-Bot · Page 99

Figure 3-9

Boe-Bot Chassis and Boards

With the Board of Education Rev C With the HomeWork Board

Figure 3-10 shows the servo ports reconnected for both the Board of Education Rev C

(left side) and the HomeWork Board (right side).

√ Reconnect the servos to the servo headers.

√ Make sure to connect the plug labeled ‘L’ to the P13 port and the plug labeled

‘R’ to the P12 port.

Page 100 ·

Robotics with the Boe-Bot

White

Red

Black

White

Red

Black

White

Stripe

(916) 624-8333 www.parallaxinc.com

www.stampsinclass.com

Solid

Black

Rev B

Figure 3-10

Servo Ports

Reconnected

X4 X5

Red

Black

P15

P14

P13

P12

P11

P10

P9

P8

X3

Vdd Vin Vss

Å P13 - White

Å Vbp - Red

Å Vss - Black

Å Vbp - Red

Å P12 - White

Board of

Education Rev

C (left)

HomeWork

Board (right).

On Board of Education Rev C On HomeWork Board

Figure 3-11 shows the Boe-Bot chassis with their respective boards attached.

√ Set the board on the four standoffs so that they line up with the four holes on the outer corner of the board.

√ Make sure the white breadboard is closer to the drive wheels, not the tail wheel.

√ Attach the board to the standoffs with the pan head screws.

Figure 3-11

Boards Attached to Boe-Bot

Chassis

With Board of Education Rev C With HomeWork Board

Figure 3-12 shows assembled Boe-Bots, the left built with a Board of Education Rev C and the right built with a HomeWork Board.

Chapter 3: Assemble and Test Your Boe-Bot · Page 101

√ From the underside of the chassis, pull any excess servo and battery cable through the hole with the rubber grommet.

√ Tuck the excess cable lengths between the servos and the chassis.

Figure 3-12

Assembled

Boe-Bots

With Board of Education Rev C With HomeWork Board

ACTIVITY #2: RE-TEST THE SERVOS

In this activity, you will test to make sure that the electrical connections between your board and the servos are correct. Figure 3-13 shows your Boe-Bot’s front, back, left, and right. We need to make sure that the servo on the right turns when it receives pulses from

P12 and that the servo on the left turns when it receives pulses from P13.

Page 102 ·

Robotics with the Boe-Bot

Left

Back Front

Figure 3-13

Your Boe-Bot robot’s Front, Back,

Left, and Right

Right

Testing the Right Wheel

The next example program will test the servo connected to the right wheel, shown in

Figure 3-14. The program will make this wheel turn clockwise for three seconds, then stop for one second, then turn counterclockwise for three seconds.

Clockwise 3 seconds

Stop 1 second

Counterclockwise 3 seconds

Figure 3-14

Testing the Right

Wheel

Example Program: RightServoTest.bs2

√ Set the Boe-Bot on its nose so that the drive wheels are suspended above ground.

√ Reload the batteries into the battery pack.

√ If you have a Board of Education Rev C, set the 3-position switch to position-2.

√ If you have a BASIC Stamp HomeWork Board, connect the 9 V battery to the battery clip.

√ Enter, save, and run RightServoTest.bs2.

√ Verify that the right wheel turns clockwise for three seconds, stops for one second, then turns counterclockwise for three seconds.

Chapter 3: Assemble and Test Your Boe-Bot · Page 103

√ If the right wheel/servo does not behave as predicted, see the Servo Trouble

Shooting section. It comes right after RightServoTest.bs2.

√ If the right wheel/servo does behave properly, then move on to the Your Turn section, where you will test the left wheel.

' Robotics with the Boe-Bot - RightServoTest.bs2

' Right servo turns clockwise three seconds, stops 1 second, then

' counterclockwise three seconds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FOR counter = 1 TO 122 ' Clockwise just under 3 seconds.

PULSOUT 12, 650

PAUSE 20

NEXT

FOR counter = 1 TO 40 ' Stop one second.

PULSOUT 12, 750

PAUSE 20

NEXT

FOR counter = 1 TO 122 ' Counterclockwise three seconds.

PULSOUT 12, 850

PAUSE 20

NEXT

END

Page 104 ·

Robotics with the Boe-Bot

Servo Trouble Shooting

: Here is a list of some common symptoms and how to fix them.

The servo doesn’t turn at all.

√ If you are using a Board of Education Rev C, make sure the 3-position switch is set to position-2. You can then re-run the program by pressing and releasing the

Reset button.

√ If you are using a BASIC Stamp HomeWork Board, make sure the battery pack has batteries.

√ Double-check your servo connections using Figure 3-10 on page 100 as a guide.

If you are using a HomeWork Board, you may also want to take a second look at

Figure 2-18 on page 65.

√ Check and make sure you entered the program correctly.

The right servo doesn’t turn, but the left one does.

This means that the servos are swapped. The servo that’s connected to P12 should be connected to P13, and the servo that’s connected to P13 should be connected to

P12.

√ Disconnect power.

√ Unplug both servos.

√ Connect the servo that was connected to P12 to P13.

√ Connect the other servo (that was connected to P13) to P12.

√ Reconnect power.

The wheel does not fully stop; it turns slowly.

This means that the servo may not be exactly centered. You can often adjust the program to make the servo stay still. You can do this by modifying the

PULSOUT

12, 750

command.

√ If the wheel turns slowly counterclockwise, use a value that’s a little smaller than

750.

√ If it’s turning clockwise, use a value that’s a little larger than 750.

√ If you can find a value between 740 and 760 that fully stops your servo, then make sure to use it anywhere you see the command

PULSOUT 12, 750

.

The wheel doesn’t stop for one second between the clockwise and counterclockwise rotations.

The wheel might turn rapidly for three seconds in one direction and four in the other. It might also turn rapidly for three seconds, then just a little slower for one second, then turn rapidly again for three seconds. Or, it might turn rapidly in the same direction for seven seconds. Regardless, it means the potentiometer is out of adjustment.

√ Remove the wheels, un-mount the servos and repeat the exercise in Chapter 2

Activity #4: Centering the Servos.

Chapter 3: Assemble and Test Your Boe-Bot · Page 105

Your Turn – Testing the Left Wheel

Now, it’s time to run the same test on the left wheel as shown in Figure 3-15. This involves modifying RightServoTest.bs2 so that the

PULSOUT

commands are sent to the servo connected to P13 instead of the servo connected to P12.

All you have to do is change the three

PULSOUT

commands so that they read

PULSOUT 13

instead of

PULSOUT 12

.

Clockwise 3 seconds

Stop 1 second

Figure 3-15

Testing the Left

Wheel

Counterclockwise 3 seconds

√ Save RightServoTest.bs2 as LeftServoTest.bs2.

√ Change the three

PULSOUT

commands so that they read

PULSOUT 13

instead of

PULSOUT 12

.

√ Save and then run the program.

√ Verify that it makes the left servo turn clockwise for 3 seconds, stops for 1 second, then makes the servo turn counterclockwise for 3 seconds.

√ If the left wheel/servo does not behave as predicted, see the Servo Trouble

Shooting section on page 104.

√ If the left wheel/servo does behave properly, then your Boe-Bot is functioning properly, and you are ready to move on to the next activity.

ACTIVITY #3: START/RESET INDICATOR CIRCUIT AND PROGRAM

When the voltage supply drops below the level a device needs to function properly, it’s called brownout. The BASIC Stamp protects itself from brownout by making its processor and program memory chips go dormant until the power supply voltage returns to normal levels. A drop below 5.2 V at Vin results in a drop below 4.3 V at the BASIC

Stamp’s internal voltage regulator output. A circuit called a brownout detector on the

BASIC Stamp is always on the lookout for this condition. When brownout occurs, the brownout detector disables the BASIC Stamp’s processor and program memory.

Page 106 ·

Robotics with the Boe-Bot

When the supply voltage comes back above 5.2 V, the BASIC Stamp starts running again, but not at the same place in the program. Instead, it starts from the beginning of the program. This is actually the same thing that happens when you unplug power and plug it back in, and it’s also the same thing that happens if you press and release the Reset button on your board.

When the Boe-Bot’s batteries are running low, brownouts can cause the program to restart when you’re not expecting it to. This can lead to some really mystifying Boe-Bot behavior. In some cases, the Boe-Bot will be running whatever course it’s programmed to navigate, and all of the sudden, it might seem to get lost and go in an unexpected direction. If low batteries are the cause, it could be the fact that the Boe-Bot’s program went back to the beginning and started over again. In other cases, the Boe-Bot can end up doing a confused dance because every time the servos start turning, it overtaxes the already low batteries. The program attempts to make the servos turn for a split second, then restarts, over and over again.

These situations make a program start/reset indicator an extremely useful diagnostic device as well as a useful robot tool. One way to indicate resets is to include an unmistakable signal at the beginning of all the Boe-Bot’s programs. The signal occurs every time the power gets plugged in, but it also occurs every time a reset due to brownout conditions occurs. One effective signal for resets is a speaker that emits a tone each time the BASIC Stamp program runs from the beginning or resets.

BASIC Stamp HomeWork Board Special Instructions

Although the reset indicator will tell you when the 9 V battery supplying the BASIC Stamp is running low, it will not tell you when the servo supply (the battery pack) is running low.

You can always tell when your battery pack is running low because the servos will gradually move slower and slower during normal operation. When you observe this symptom, replace the dead batteries with new 1.5 V alkaline batteries.

This exercise will introduce a device called a piezoelectric speaker (piezospeaker) that you can use to generate tones. This speaker can make different tones depending on the frequency of high/low signals it receives from the BASIC Stamp. The schematic symbol and part drawing for the piezoelectric speaker are shown in Figure 3-16. This speaker will be used for emitting the tones when the BASIC Stamp is reset in this activity as well as in the rest of the activities in this text.

Chapter 3: Assemble and Test Your Boe-Bot · Page 107

Figure 3-16

Piezospeaker

What’s frequency?

It’s the measurement of how often something occurs in a given amount of time.

What’s a piezoelectric element and how can it make sound?

It’s a crystal that changes shape slightly when voltage is applied to it. By applying high and low voltages to a piezoelectric crystal at a rapid rate, it causes the piezoelectric crystal to rapidly change shape. The result is vibration. Vibrating objects cause the air around them to vibrate also.

This is what our ear detects as sounds and tones. Every rate of vibration has a different tone. For example, if you pluck a single guitar string, it will vibrate at one frequency, and you will hear a particular tone. If you pluck a different guitar string, it will vibrate at a different frequency and make a different tone.

Note:

Piezoelectric elements have many uses. For example, when force is applied to a piezoelectric element, it can create voltage. Some piezoelectric elements have a frequency at which they naturally vibrate. These can be used to create voltages at frequencies that function as the clock oscillator for many computers and microcontrollers.

Parts Required

(1) Assembled and tested Boe-Bot

(1) Piezospeaker

(misc.) Jumper wires

If your piezospeaker has a label that says “Remove seal after washing” just peel it off and proceed. Your piezospeaker does not need to be washed!

Building the Start/Reset Indicator Circuit

Figure 3-17 shows piezospeaker alarm circuit schematics for both the Board of Education and BASIC Stamp HomeWork Board. Figure 3-18 shows a wiring diagram for each board.

Always disconnect power before building or modifying circuits!

√ If you have a Board of Education Rev C, set the 3-position switch to position-0.

√ If you have a BASIC Stamp HomeWork Board, disconnect the 9 V battery from the battery clip and remove a battery from the Battery Pack.

Page 108 ·

Robotics with the Boe-Bot

√ Build the circuit shown in Figure 3-17 and Figure 3-18.

P4

Figure 3-17

Program Start/Reset

Indicator Circuit

Vss

To Servos

To Servos

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

15 14 13 12

Vdd

X4 X5

Vin Vss

Red

Black

+

Board of Education

Rev C

© 2000-2003

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

X2

+

HomeWork Board

Figure 3-18

Wiring Diagrams for the Program

Start/Reset Indicator

Circuit

Board of Education

(left) and HomeWork

Board (right).

The piezospeaker and servo circuits will remain connected to your board for the rest of the activities in this text.

All circuit schematics from this point onward will show circuits that should be added to the existing servo and piezospeaker circuits.

All wiring diagrams will show the circuit from the schematic that comes just before it along with the servo and piezospeaker circuit connections.

Chapter 3: Assemble and Test Your Boe-Bot · Page 109

Programming the Start/Reset Indicator

The next example program tests the piezospeaker. It uses the

FREQOUT

command to send precisely timed high/low signals to a speaker. Here is the

FREQOUT

command’s syntax:

FREQOUT Pin, Duration, Freq1 {,Freq2}

Here’s an example of a

FREQOUT

command that’s used in the next example program.

FREQOUT 4, 2000, 3000

The

Pin

argument is 4, meaning that the high/low signals will be sent to I/O pin P4. The

Duration

argument, which is how long the high/low signals will last, is 2000, which is

2000 ms or 2 seconds. The

Freq1

argument is the frequency of the high/low signals. In this example, the high/low signals will make a 3000 hertz, or 3 kHz, tone.

Frequency can be measured in hertz (Hz).

The hertz is a frequency measurement of how many times per second something happens. One hertz is simply one time-per-second, and it’s abbreviated 1 Hz. One kilohertz is one-thousand-times-per-second, and it’s abbreviated

1 kHz.

FREQOUT digitally synthesizes tones.

The

FREQOUT

command applies high/low pulses of varying durations that make a piezospeaker’s vibration more closely resemble natural vibrations of music strings.

Example Program: StartResetIndicator.bs2

This example program makes a beep at the beginning of the program, then it goes on to run a program that sends

DEBUG

messages every half second. These messages will continue indefinitely because they are nested between

DO

and

LOOP

. If the power to the

BASIC Stamp is interrupted while it is in the middle of its

DO…LOOP

, the program will start at the beginning again. When it starts over, it will beep again. You can simulate a brownout condition by either pressing and releasing the Reset button on your board or disconnecting and reconnecting your board’s battery supply.

√ Reconnect power to your board.

√ Enter, save, and run StartResetIndicator.bs2.

√ Verify that the piezospeaker made a clearly audible tone for two seconds before the “Waiting for reset…” messages started to display in the Debug Terminal.

Page 110 ·

Robotics with the Boe-Bot

√ If you did not hear a tone, check your wiring and code for errors. Repeat until you get an audible tone from your speaker.

√ If you did hear an audible tone, try simulating the brownout condition by pressing and releasing the Reset button on your board. Verify that the piezospeaker makes a clearly audible tone after each reset.

√ Also try disconnecting and reconnecting your battery supply, and verify that this results in the reset warning tone as well.

' Robotics with the Boe-Bot - StartResetIndicator.bs2

' Test the piezospeaker circuit.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG CLS, "Beep!!!" ' Display while speaker beeps.

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

DO ' DO...LOOP

DEBUG CR, "Waiting for reset…" ' Display message

PAUSE 500 ' every 0.5 seconds

LOOP ' until hardware reset.

How StartResetIndicator.bs2 Works

StartResetIndicator.bs2 starts by displaying the message “Beep!!!” Then, immediately after printing the message, the

FREQOUT

command plays a 3 kHz tone on the piezoelectric speaker for 2 s. Because the instructions are executed so rapidly by the BASIC Stamp, it should seem as though the message is displayed at the same instant the piezospeaker starts to play the tone.

When the tone is done, the program enters a

DO…LOOP

, displaying the same “Waiting for reset…” message over and over again. Each time the reset button on the Board of

Education is pressed or the power is disconnected and reconnected, the program starts over again, with the "Beep!!!" message and the 3 kHz tone.

Your Turn - Adding StartResetIndicator.bs2 to a Different Program

The lines of code in the battery indicator program will be used at the beginning of every example program from here onward. You could consider it part of the “initialization routine” or “boot routine” for every Boe-Bot program.

Chapter 3: Assemble and Test Your Boe-Bot · Page 111

An initialization routine

is comprised of all the commands necessary to get a device or program up and running. It often includes setting certain variable values, beeping noises, and for more complex devices, self testing and calibration.

√ Open HelloOnceEverySecond.bs2.

√ Copy the

FREQOUT

command from StartResetIndicator.bs2 into

HelloOnceEverySecond.bs2 above the

DO…LOOP

section.

√ Run the modified program and verify that it responds with a warning tone every time the BASIC Stamp is reset (either by pressing and releasing the Reset button on the board or disconnecting and reconnecting the battery supply).

ACTIVITY #4: TESTING SPEED CONTROL WITH THE DEBUG TERMINAL

In this activity, you will graph servo speed vs. pulse width. One thing that can make this process go much more quickly is the Debug Terminal’s Transmit windowpane, which is shown in Figure 3-19. You can use the Transmit windowpane to send the BASIC Stamp messages. By sending messages that tell the BASIC Stamp what pulse width to deliver to the servo, you can test the servo speed at various pulse widths.

Transmit

Windowpane

Receive

Windowpane

Figure 3-19

Debug Terminal

Windowpanes

Pulse width

is a common way to describe how long a pulse lasts. The reason it is called pulse "width" is because the amount of time a pulse lasts is related to how wide it is on a timing diagram. Pulses that last longer are wider on timing diagrams, and pulses that last for short periods of time are narrow.

Page 112 ·

Robotics with the Boe-Bot

Using the DEBUGIN Command

By now, you are probably familiar with the

DEBUG

command and how it can be used to send messages from the BASIC Stamp to the Debug Terminal. The place the messages are viewed is called the Receive windowpane because it's the place where messages received from the BASIC Stamp are displayed. The Debug Terminal also has a Transmit windowpane, which allows you to send information to your BASIC Stamp while a program is running. You can use the

DEBUGIN

command to make the BASIC Stamp receive what you type into the Transmit windowpane and store it in one or more variables.

The

DEBUGIN

command places the value you type in the Transmit windowpane into a variable. In the next example program, a word variable named

pulseWidth

will be used to store the values the

DEBUGIN

command receives. pulseWidth VAR Word

Now, the

DEBUGIN

command can be used to capture a decimal value that you enter into the Debug Terminal’s Transmit windowpane and store it in

pulseWidth

:

DEBUGIN DEC pulseWidth

You can then program the BASIC Stamp to use this value. Here it is used in the

PULSOUT

command’s

Duration

argument:

PULSOUT 12, pulseWidth

Example Program: TestServoSpeed.bs2

This program allows you to set the

PULSOUT

command’s

Duration

argument by entering it into the Debug Terminal's Transmit windowpane.

√ Continue this activity with the Boe-Bot sitting on its nose so that the wheels do not touch the ground.

√ Enter, save, and run TestServoSpeed.bs2.

√ Point at the Debug Terminal’s Transmit windowpane with your mouse, and click it to activate the cursor in that window for typing.

√ Type 650 and then press the Enter key.

√ Verify that the servo turns full speed clockwise for six seconds.

Chapter 3: Assemble and Test Your Boe-Bot · Page 113

When the servo is done turning, you will be prompted to enter another value.

√ Type 850 and then press the Enter key.

√ Verify that the servo turns full speed counterclockwise.

Try measuring the wheel's rotational speed in RPM (revolutions per minute) for a range of pulse widths between 650 and 850. Here's how:

√ Place a mark on the wheel so that you can see how far it turns in 6 seconds.

√ Use the Debug Terminal to test how far the wheel turns for each of these pulse widths: 650, 660, 670, 680, 690, 700, 700, 710, 720, 730, 740, 750, 760, 770,

780, 790, 800, 810, 820, 830, 840, 850

√ For each pulse width, multiply the number of turns by 10 to get the RPM. For example, if the wheel makes 3.65 full turns, it was rotating at 36.5 RPM.

√ Explain in your own words how you can use pulse width to control Continuous

Rotation servo speed.

' Robotics with the Boe-Bot - TestServoSpeed.bs2

' Enter pulse width, then count revolutions of the wheel.

' The wheel will run for 6 seconds

' Multiply by 10 to get revolutions per minute (RPM).

'{$STAMP BS2}

'{$PBASIC 2.5} counter VAR Word pulseWidth VAR Word pulseWidthComp VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

DO

DEBUG "Enter pulse width: "

DEBUGIN DEC pulseWidth

pulseWidthComp = 1500 - pulseWidth

Page 114 ·

Robotics with the Boe-Bot

FOR counter = 1 TO 244

PULSOUT 12, pulseWidth

PULSOUT 13, pulseWidthComp

PAUSE 20

NEXT

LOOP

How TestServoSpeed.bs2 Works

Three variables are declared,

counter

for the

FOR…NEXT

loop,

pulseWidth

for the

DEBUGIN

and

PULSOUT

commands, and

pulseWidthComp

which stores a value that is used in a second

PULSOUT

command. counter VAR Word pulseWidth VAR Word pulseWidthComp VAR Word

The

FREQOUT

command is used to signal that the program has started.

FREQOUT 4,2000,3000

The remainder of the program is nested within a

DO…LOOP

, so it will execute over and over again. The Debug Terminal’s operator (that's you) is asked to enter a pulse width.

The

DEBUGIN

command stores this value in the

pulseWidth

variable.

DEBUG "Enter pulse width: "

DEBUGIN DEC pulseWidth

To make the measurement more accurate, two

PULSOUT

commands have to be sent. By making one

PULSOUT

command the same amount below 750 as the other is above 750, the sum of the two

PULSOUT

Duration

arguments is always 1500. That ensures that the two

PULSOUT

commands combined take the same amount of time. The result is that no matter the

Duration

of your

PULSOUT

command, the

FOR…NEXT

loop will still take the same amount of time to execute. This will make the

RPM

measurements you will take in the Your Turn section more accurate.

This next command takes the pulse width you entered, and calculates a pulse width that will make 1500 when the two are added together. If you enter a pulse width of 650,

pulseWidthComp

will be 850. If you enter a pulse width of 850,

pulseWidthComp

will

Chapter 3: Assemble and Test Your Boe-Bot · Page 115 be 650. If you enter a pulse width of 700,

pulseWidthComp

will be 800. Try a few other examples. They will all add up to 1500.

pulseWidthComp = 1500 - pulseWidth

A

FOR…NEXT

loop that runs for 6 seconds sends pulses to the right (P12) servo. The

pulseWidthComp

value is sent to the left (P13) servo, making it turn in the opposite direction.

FOR counter = 1 TO 244

PULSOUT 12, pulseWidth

PULSOUT 13, pulseWidthComp

PAUSE 20

NEXT

Your Turn – Advanced Topic: Graphing Pulse Width vs. Rotational Velocity

Figure 3-20 shows an example of a transfer curve for a continuous rotation servo. The horizontal axis shows the pulse width in ms, and the vertical axis shows the rotational velocity in RPM. In this graph, clockwise is negative and counterclockwise is positive.

This particular servo’s transfer curve ranges from about -48 RPM to 48 RPM over the range of test pulse widths that range from 1.3 ms to 1.7 ms.

Rotational Velocity vs. Pulse Width for Servo

60

40

20

0

-20

-40

-60

1.300

1.350

1.400

1.600

1.650

1.700

Figure 3-20

Transfer Curve

Example for

Parallax Servo

1.450

1.500

Pulse Width, m s

1.550

Right Servo

Page 116 ·

Robotics with the Boe-Bot

You can use Table 3-1 to record the data for your own transfer curve. Keep in mind that the example program is controlling the right wheel with the values you enter. The left wheel turns in the opposite direction.

Table 3-1:

Pulse Width and RPM for Parallax Servo

Pulse

Width

(ms)

Rotational

Velocity

(RPM)

Pulse

Width

(ms)

Rotational

Velocity

(RPM)

Pulse

Width

(ms)

Rotational

Velocity

(RPM)

Pulse

Width

(ms)

Rotational

Velocity

(RPM)

1.300 1.400 1.500 1.600

1.310 1.410 1.510 1.610

1.320 1.420 1.520 1.620

1.330 1.430 1.530 1.630

1.340 1.440 1.540 1.640

1.350 1.450 1.550 1.650

1.360 1.460 1.560 1.660

1.370 1.470 1.570 1.670

1.380 1.480 1.580 1.680

1.390 1.490 1.590 1.690

1.700

Remember that the

PULSOUT

command’s

Duration

argument is in 2 µs units.

PULSOUT

12, 650

sends pulses that last 1.3 ms to P12.

PULSOUT 12, 655

sends pulses of 1.31 ms,

PULSOUT 12, 660

sends pulses of 1.32 ms, and so on.

Duration

=

=

650

×

2

650

×

µ

s

0 .

000002

=

0 .

0013

=

1 .

3 m s s s

Duration

=

=

655

×

2

655

×

µ

s

0 .

000002

=

=

0 .

00131

1 .

31 m s s s

Duration

=

=

660

×

660

×

2

µ

s

0 .

000002

=

=

0 .

00132

1 .

32 m s s s

√ Mark your right wheel so that you have a reference point to count the revolutions.

√ Run TestServoSpeed.bs2.

√ Click the Debug Terminal’s Transmit windowpane.

√ Enter the value 650.

√ Count how many turns the wheel made.

Chapter 3: Assemble and Test Your Boe-Bot · Page 117

Since the servo turns for 6 seconds, you can multiply this value by 10 to get revolutions per minute (RPM).

√ Multiply this value by 10 and enter the result into Table 3-1 next to the 1.3 ms entry.

√ Enter the value 655.

√ Count how many turns the wheel made.

√ Multiply this value by 10 and enter the result into Table 3-1 next to the 1.31 ms entry.

√ Keep increasing your durations by 5 (0.01 ms) until you are up to 850 (1.7 ms).

√ Use a spreadsheet, calculator, or graph paper to graph the data.

√ Repeat this process for your other servo.

You can repeat these measurements for the left wheel. You will have to modify the

PULSOUT

commands so that pulses with a duration of

pulseWidth

are sent to P13 and pulses with a duration of

pulseWidthComp

are sent to P12.

Page 118 ·

Robotics with the Boe-Bot

SUMMARY

This chapter covered Boe-Bot assembly and testing. This involved mechanical assembly, such as connecting the various moving parts to the Boe-Bot chassis. It also involved circuit assembly, connecting the servos and piezospeaker. The testing involved retesting the servos after they were disconnected to build the Boe-Bot.

The concept of brownout was introduced along with what this condition does to a program running on the BASIC Stamp. Brownout causes the BASIC Stamp to shut down, and then start running the program from the beginning. A piezospeaker was added to signal the start of a program. If the piezospeaker sounds in the middle of a running program when it’s not supposed to, this can indicate a brownout condition. Brownout conditions can in turn indicate low batteries. To make the piezospeaker play a tone to indicate a reset, the

FREQOUT

command was introduced. This command is part of an initialization routine that will be used at the beginning of all Boe-Bot programs.

Until this chapter, the Debug Terminal has been used to display messages sent to the computer by the BASIC Stamp. These messages were displayed in the Receive windowpane. The Debug Terminal also has a Transmit windowpane that you can use to send values to the BASIC Stamp. The BASIC Stamp can capture these values by executing the

DEBUGIN

command, which receives a value sent by the Debug Terminal's transmit windowpane and stores it in a variable. The value can then be used by the

PBASIC program. This technique was used to set the pulse widths to control and test servo speed and direction. It was also used as a data collection aid for plotting the transfer curve of a continuous rotation servo.

Questions

1. What are some of the symptoms of brownout on the Boe-Bot?

2. How can a piezospeaker be used to detect brownout?

3. What is a reset?

4. What is an initialization routine?

5. What are three (or more) possible mistakes that can occur when disconnecting and reconnecting the servos?

6. What command do you have to change in RightServoTest.bs2 to test the left wheel instead of the right wheel?

Chapter 3: Assemble and Test Your Boe-Bot · Page 119

Exercises

1. Write a

FREQOUT

command that makes a tone that sounds different from the reset detect tone to signify the end of a program.

2. Write a

FREQOUT

command that makes a tone (different from beginning or ending tones) that signifies an intermediate step in a program has been completed. Try a value with a 100 ms duration at a 4 kHz frequency.

Projects

1. Modify RightServoTest.bs2 so that it makes a tone signifying the test is complete.

2. Modify TestServoSpeed.bs2 so that you can use

DEBUGIN

to enter the pulse width for the left and the right servo as well as the number of pulses to deliver in the

FOR…NEXT

loop. Use this program to control your Boe-Bot’s motion via the

Debug Terminal’s Transmit windowpane.

Page 120 ·

Robotics with the Boe-Bot

Solutions

Q1. Symptoms include erratic behavior such as going in unexpected directions or doing a confused dance.

Q2. A

FREQOUT

command at the beginning of all Boe-Bot programs causes the piezospeaker to play a tone. This tone will therefore occur every time an accidental reset happens due to brownout conditions.

Q3. A reset is when the power is interrupted and the BASIC Stamp program starts running again from the beginning of the program.

Q4. An initialization routine consists of the lines of code that are used at the beginning of the program. These lines of code run each time the program starts from the beginning.

Q5. 1. The servo lines P12 and P13 are swapped.

2. One or both servos is plugged in backwards, so that the white-red-black color coding is incorrect.

3. The power switch is not on position-2.

4. The 9V or AA batteries are not installed.

5. The servo centering potentiometer is out of adjustment.

Q6. The

PULSOUT

commands must be changed to read

PULSOUT 13

instead of

PULSOUT 12

.

E1. The key is to modify the

FREQOUT

command used for the StartResetIndicator.bs2 program, that is,

FREQOUT, 4, 2000, 3000

. For example:

FREQOUT, 4, 500,

3500

would work.

E2.

FREQOUT 4, 100, 4000

P1. The key to solving this program is to add the line from Exercise 1 above the

END

command in the RightServoTest.bs2 program.

' Robotics with the Boe-Bot - Ch03Prj01_TestCompleteTone.bs2

' Right servo turns clockwise three seconds, stops 1 second, then

' counterclockwise three seconds. A tone signifies that the

' test is complete.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

Chapter 3: Assemble and Test Your Boe-Bot · Page 121

FREQOUT 4, 2000, 3000 ' Signal start of program.

FOR counter = 1 TO 122 ' Clockwise just under 3 seconds.

PULSOUT 12, 650

PAUSE 20

NEXT

FOR counter = 1 TO 40 ' Stop one second.

PULSOUT 12, 750

PAUSE 20

NEXT

FOR counter = 1 TO 122 ' Counterclockwise three seconds.

PULSOUT 12, 850

PAUSE 20

NEXT

FREQOUT 4, 500, 3500 ' Signal end of program

END

P2. To solve this problem, TestServoSpeed.bs2 must be expanded to receive three pieces of data: left servo pulsewidth, right servo pulsewidth, and number of pulses. Then, a

FOR…NEXT

loop with two servo

PULSOUT

commands must be added to actually move the servo motors. Furthermore, all variables must be declared in the beginning of the program. An example solution is shown below.

' Robotics with the Boe-Bot - Ch03Prj02_DebuginMotion.bs2

' Enter servo pulsewidth & duration for both wheels via Debug Terminal.

'{$STAMP BS2}

'{$PBASIC 2.5} ltPulseWidth VAR Word ' Left servo pulse width rtPulseWidth VAR Word ' Right servo pulse width pulseCount VAR Byte ' Number of pulses to servo counter VAR Word ' Loop counter

DO

DEBUG "Enter left servo pulse width: " ' Enter values in Debug

DEBUGIN DEC ltPulseWidth ' Terminal

DEBUG "Enter right servo pulse width: "

DEBUGIN DEC rtPulseWidth

DEBUG "Enter number of pulses: "

DEBUGIN DEC pulseCount

FOR counter = 1 TO pulseCount ' Send specific number of pulses

Page 122 ·

Robotics with the Boe-Bot

PULSOUT 13, ltPulseWidth ' Left servo motion

PULSOUT 12, rtPulseWidth ' Right servo motion

PAUSE 20

NEXT

LOOP

Note: This project is best tested with the Boe-Bot's wheels propped up.

Chapter 4: Boe-Bot Navigation · Page 123

Chapter 4: Boe-Bot Navigation

The Boe-Bot can be programmed to perform a variety of maneuvers. The maneuvers and programming techniques introduced in this chapter will be reused in later chapters. The only difference is that in this chapter, the Boe-Bot will blindly perform the maneuvers.

In later chapters, the Boe-Bot will perform similar maneuvers in response to conditions it detects with its sensors.

This chapter also introduces ways to tune and calibrate the Boe-Bot’s navigation.

Included are techniques to straighten a Boe-Bot’s straight line, more precise turns, and calculating distances.

Activity Summary

1

2

3

4

5

6

Program the Boe-Bot to perform the basic maneuvers: forward, backward, rotate left, rotate right, and pivoting turns.

Tune the maneuvers from Activity 1 so that they are more precise.

Use math to calculate the number of pulses to deliver to make the Boe-Bot travel a predetermined distance.

Instead of programming the Boe-Bot to make abrupt starts and stops, write programs that make the Boe-Bot gradually accelerate into and decelerate out of maneuvers.

Write subroutines to perform the basic maneuvers so that each subroutine can be used over and over again in a program.

Record complex maneuvers in the BASIC Stamp module's unused program memory and write programs that play back these maneuvers.

ACTIVITY #1: BASIC BOE-BOT MANEUVERS

Figure 4-1 shows your Boe-Bot’s front, back, left, and right. When the Boe-Bot goes forward, in the picture, it would have to roll to the right edge of the page. Backward would be toward the left edge of the page. A left turn would be make the Boe-Bot ready to drive off the top of the page, and a right turn would have it facing the bottom of the page.

Page 124 ·

Robotics with the Boe-Bot

Backward

Left Turn

Forward

Right Turn

Figure 4-1

Your Boe-Bot and

Driving Directions

Moving Forward

Here’s a funny thing: to make the Boe-Bot go forward, the Boe-Bot’s left wheel has to turn counterclockwise, but its right wheel has to turn clockwise. If you haven’t already grasped this, take a look at Figure 4-2 and see if you can convince yourself that it’s true.

Viewed from the left, the wheel has to turn counterclockwise for the Boe-Bot to move forward. Viewed from the right, the other wheel has to turn clockwise for the Boe-Bot to move forward.

Forward

Counterclockwise

Figure 4-2

Wheel

Rotation for

Forward

Motion

Clockwise

Forward

Right Side Left Side

Remember from Chapter 2 that the

PULSOUT

command’s

Duration

argument controls the speed and direction the servo turns. The

StartValue

and

EndValue

arguments of a

FOR…NEXT

loop control the number of pulses that are delivered. Since each pulse takes

Chapter 4: Boe-Bot Navigation · Page 125 the same amount of time, the

EndValue

argument also controls the time the servo runs.

Here’s an example program that will make the Boe-Bot roll forward for about three seconds.

Example Program: BoeBotForwardThreeSeconds.bs2

√ Make sure power is connected to the BASIC Stamp and servos.

√ Enter, save, and run BoeBotForwardThreeSeconds.bs2.

' Robotics with the Boe-Bot - BoeBotForwardThreeSeconds.bs2

' Make the Boe-Bot roll forward for three seconds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

FOR counter = 1 TO 122 ' Run servos for 3 seconds.

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

END

How BoeBotForwardThreeSeconds.bs2 Works

From chapter 2, you already have lots of experience with the elements of this program: a variable declaration, a

FOR…NEXT

loop,

PULSOUT

commands with

Pin

and

Duration

arguments, and

PAUSE

commands. Here’s a review of what each does and how it relates to the servos’ motions.

First a variable is declared that will be used in the

FOR

...

NEXT

loop. counter VAR Word

You should recognize this command; it generates a tone to signal the start of the program.

It will be used in all programs that run the servos.

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

Page 126 ·

Robotics with the Boe-Bot

This

FOR…NEXT

loop sends 122 sets of pulses to the servos, one each to P13 and P12, pausing for 20 ms after each set and then returning to the top of the loop.

FOR counter = 1 TO 122

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

PULSOUT 13, 850

causes the left servo to rotate counterclockwise while

PULSOUT 12,

650

causes the right servo to rotate clockwise. Therefore, both wheels will be turning toward the front end of the Boe-Bot, causing it to drive forward. It takes about 3 seconds for the

FOR…NEXT

loop to execute 122 times, so the Boe-Bot drives forward for about 3 seconds.

Your Turn – Adjusting Distance and Speed

√ By changing the

FOR…NEXT

loop’s

EndValue

argument from 122 to 61, you can make the Boe-Bot move forward for half the time. This in turn will make the

Boe-Bot move forward half the distance.

√ Save BoeBotForwardThreeSeconds.bs2 under a new name.

√ Change the

FOR

...

NEXT

loop's

EndValue

from 122 to 61.

√ Run the program and verify that it ran at half the time and covered half the distance.

√ Try these steps over again, but this time, change the

FOR…NEXT

loop’s

EndValue

to 244.

The

PULSOUT

Duration

arguments of 650 and 850 caused the servos to rotate near their maximum speed. By bringing each of the

PULSOUT

Duration

arguments closer to the stay-still value of 750, you can slow down your Boe-Bot.

√ Modify your program with these

PULSOUT

commands:

PULSOUT 13, 780

PULSOUT 12, 720

√ Run the program, and verify that your Boe-Bot moves slower.

Chapter 4: Boe-Bot Navigation · Page 127

Moving Backward, Rotating, and Pivoting

All it takes to get other motions out of your Boe-Bot are different combinations of the

PULSOUT

Duration

arguments. For example, these two

PULSOUT

commands can be used to make your Boe-Bot go backwards:

PULSOUT 13, 650

PULSOUT 12, 850

These two commands will make your Boe-Bot rotate in a left turn (counterclockwise as you are looking at it from above):

PULSOUT 13, 650

PULSOUT 12, 650

These two commands will make your Boe-Bot rotate in a right turn (clockwise as you are looking at it from above):

PULSOUT 13, 850

PULSOUT 12, 850

You can combine all these commands into a single program that makes the Boe-Bot move forward, turn left, turn right, then move backward.

Example Program: ForwardLeftRightBackward.bs2

√ Enter, save, and run ForwardLeftRightBackward.bs2.

TIP

– To enter this program quickly, use the BASIC Stamp Editor's Edit menu tools (Copy and Paste) to make four copies of a

FOR…NEXT

loop. Then, adjust only the

PULSOUT

Duration

values and

FOR…NEXT

loop

EndValues

.

' Robotics with the Boe-Bot - ForwardLeftRightBackward.bs2

' Move forward, left, right, then backward for testing and tuning.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

FOR counter = 1 TO 64 ' Forward

Page 128 ·

Robotics with the Boe-Bot

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

PAUSE 200

FOR counter = 1 TO 24 ' Rotate left - about 1/4 turn

PULSOUT 13, 650

PULSOUT 12, 650

PAUSE 20

NEXT

PAUSE 200

FOR counter = 1 TO 24 ' Rotate right - about 1/4 turn

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

PAUSE 200

FOR counter = 1 TO 64 ' Backward

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

END

Your Turn - Pivoting

You can make the Boe-Bot turn by pivoting around one wheel. The trick is to keep one wheel still while the other rotates. For example, if you keep the left wheel still and make the right wheel turn clockwise (forward), the Boe-Bot will pivot to the left.

PULSOUT 13, 750

PULSOUT 12, 650

If you want to pivot forward and to the right, simply stop the right wheel, and make the left wheel turn counterclockwise (forward).

Chapter 4: Boe-Bot Navigation · Page 129

PULSOUT 13, 850

PULSOUT 12, 750

These are the

PULSOUT

commands for pivoting backwards and to the right.

PULSOUT 13, 650

PULSOUT 12, 750

Finally, these are the

PULSOUT

commands for pivoting backwards and to the left.

PULSOUT 13, 750

PULSOUT 12, 850

√ Save ForwardLeftRightBackward.bs2 as PivotTests.bs2.

√ Substitute the

PULSOUT

commands just discussed in place of the forward, left, right, and backward routines.

√ Adjust the run time of each maneuver by changing each

FOR…NEXT

loop’s

EndValue

to 30.

√ Be sure to change the comment next to each

FOR…NEXT

loop to reflect each new pivot action.

√ Run the modified program and verify that the different pivot actions work.

ACTIVITY #2: TUNING THE BASIC MANEUVERS

Imagine writing a program that instructs the Boe-Bot to travel full-speed forward for fifteen seconds. What if the Boe-Bot curves slightly to the left or right during its travel, when it’s supposed to be traveling straight ahead? There’s no need to take the Boe-Bot back apart and re-adjust the servos with a screwdriver to fix this. You can simply adjust the program slightly to get both Boe-Bot wheels traveling the same speed. While the screwdriver approach would be called a “hardware adjustment”, the programming approach is called a “software adjustment”.

Straightening the Boe-Bot’s Path

The first step is to examine your Boe-Bot’s travel for long enough to find out if it’s curving either to the left or to the right when it’s supposed to be going straight ahead.

Ten seconds of forward travel should be enough. This can be accomplished with a simple modification to BoeBotForwardThreeSeconds.bs2 from the previous activity.

Example Program: BoeBotForwardTenSeconds.bs2

√ Open BoeBotForwardThreeSeconds.bs2.

√ Rename and save it as BoeBotForwardTenSeconds.bs2.

Page 130 ·

Robotics with the Boe-Bot

√ Change the

EndValue

of the

FOR counter

from 122 to 407, so it reads like this:

' Robotics with the Boe-Bot - BoeBotForwardTenSeconds.bs2

' Make the Boe-Bot roll forward for ten seconds.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

FOR counter = 1 TO 407 ' Number of pulses – run time.

PULSOUT 13, 850 ' Left servo full speed ccw.

PULSOUT 12, 650 ' Right servo full speed cw.

PAUSE 20

NEXT

END

√ Run the program, and watch closely to see if your Boe-Bot veers to the right or left as it travels forwards for ten seconds.

Your Turn – Adjusting Servo Speed to Straighten the Boe-Bot’s Path

If your Boe-Bot goes perfectly straight

, try this example anyway. If you follow the instructions, it should adjust your Boe-Bot so that it curves slightly to the right.

Let’s say that the Boe-Bot turns slightly to the left. There are two ways to think about this problem: either the left wheel is turning too slowly, or the right wheel is turning too quickly. Since the Boe-Bot is already at full speed, speeding up the left wheel isn’t going to be practical, but slowing down the right wheel should help remedy the situation.

Remember that servo speed is determined by the

PULSOUT

command’s

Duration

argument. The closer the

Duration

is to 750, the slower the servo turns. This means you should change the 650 in the command

PULSOUT 12,650

to something a little closer to 750. If the Boe-Bot is only just a little off course, maybe

PULSOUT 12,663

will do the trick. If the servos are severely mismatched, maybe it needs to be

PULSOUT 12,690

.

Chapter 4: Boe-Bot Navigation · Page 131

It will probably take several tries to get the right value. Let’s say that your first guess is that

PULSOUT 12,663

will do the trick, but it turns out not to be enough because the Boe-

Bot is still turning slightly to the left. So try

PULSOUT 12,670.

Maybe that overcorrects, and it turns out that

PULSOUT 12,665

gets it exactly right. This is called an iterative process, meaning a process that takes repeated tries and refinements to get to the right value.

If your Boe-Bot curved to the right instead of the left,

it means you need to slow down the left wheel by reducing the

Duration

of 850 in the

PULSOUT 13,850

command.

Again, the closer this value gets to 750, the slower the servo will turn.

√ Modify BoeBotForwardTenSeconds.bs2 so that it makes your Boe-Bot go straight forward.

√ Use masking tape or a sticker to label each servo with the best

PULSOUT

values.

√ If your Boe-Bot already travels straight forward, try the modifications just discussed to see the effect. It should cause the Boe-Bot to travel in a curve instead of a straight line.

You might find that there’s an entirely different situation when you program your Boe-

Bot to roll backward.

√ Modify BoeBotForwardTenSeconds.bs2 so that it makes the Boe-Bot roll backward for ten seconds.

√ Repeat the test for straight line.

√ Repeat the steps for correcting the

PULSOUT

command’s

Duration

argument to straighten the Boe-Bot’s backward travel.

Tuning the Turns

Software adjustments can also be made to get the Boe-Bot to turn to a desired angle, such as 90°. The amount of time the Boe-Bot spends rotating in place determines how far it turns. Because the

FOR…NEXT

loop controls run time, you can adjust the

FOR…NEXT

loop’s

EndValue

argument to get very close to the turning angle you want.

Here’s the left turn routine from ForwardLeftRightBackward.bs2.

FOR counter = 1 TO 24 ' Rotate left - about 1/4 turn

PULSOUT 13, 650

Page 132 ·

Robotics with the Boe-Bot

PULSOUT 12, 650

PAUSE 20

NEXT

Let’s say that the Boe-Bot turns just a bit more than 90° (1/4 of a full circle). Try

FOR counter = 1 TO 23

, or maybe even

FOR counter = 1 TO 22

. If it doesn’t turn far enough, increase the run time of the rotation by increasing the

FOR…NEXT

loop’s

EndValue

argument to whatever value it takes to complete the quarter turn.

If you find yourself with one value slightly overshooting 90° and the other slightly undershooting, try choosing the value that makes it turn a little too far, then slow down the servos slightly. In the case of the rotate left, both

PULSOUT

Duration

arguments should be changed from 650 to something a little closer to 750. As with the straight line exercise, this will also be an iterative process.

Your Turn - 90° Turns

√ Modify ForwardLeftRightBackward.bs2 so that it makes precise 90° turns.

√ Update ForwardLeftRightBackward.bs2 with the

PULSOUT

values you determined for straight forward and backward travel.

√ Update the label on each servo with a notation about the appropriate

EndValue

for a 90° turn.

Carpeting can cause navigation errors.

If you are running your Boe-Bot on carpeting, don’t expect perfect results! A carpet is a bit like a golf green – the way the carpet pile is inclined can affect the way your Boe-Bot travels, especially over long distances. For more precise maneuvers, use a smooth surface.

ACTIVITY #3: CALCULATING DISTANCES

In many robotics contests, more precise robot navigation lends itself to better scores.

One popular entry level robotics contest is called dead reckoning. The entire goal of this contest is to make your robot go to one or more locations and then return to exactly where it started.

You might remember asking your parents this question, over and over again, while on your way to a vacation destination or relatives’ house:

“Are we there yet?”

Chapter 4: Boe-Bot Navigation · Page 133

Perhaps when you got a little older, and learned division in school, you started watching the road signs to see how far it was to the destination city. Next, you checked the speedometer in your car. By dividing the speed into the distance, you got a pretty good estimate of the time it would take to get there. You may not have been thinking in these exact terms, but here is the equation you were using.

time

=

distance speed

Example – Time for English Distance Example – Time for Metric Distance

If you’re 140 miles away from your destination, and you’re traveling 70 miles per hour, it’s going to take 2 hours to get there.

time

=

140 miles

70 miles/hour

=

140 miles

×

1 hour

70 miles

If you’re 200 kilometers away from your destination, and you’re traveling 100 kilometers per hour, it’s going to take 2 hours to get there.

time

=

200 kilometers

=

100 kilometers /hour

200 km

×

1 hour

100 km

=

2 hours

=

2 hours

You can do the same exercise with the Boe-Bot, except you have control over how far away the destination is. Here’s the equation you will use:

servo run time

=

Boe -

Boe -

Bot distance

Bot speed

You will have to test the Boe-Bot speed. The easiest way to do this is to set the Boe-Bot next to a ruler and make it travel forward for one second. By measuring how far your

Boe-Bot traveled, you will know your Boe-Bot’s speed. If your ruler has inches, your answer will be in inches per second (in/s), if it has centimeters your answer will be in centimeters per second (cm/s).

√ Enter, save, and run ForwardOneSecond.bs2.

Page 134 ·

Robotics with the Boe-Bot

√ Place your Boe-Bot next to a ruler as shown in Figure 4-3.

√ Make sure to line up the point where the wheel touches the ground with the 0 in/cm mark on the ruler.

Figure 4-3:

Measuring Boe-Bot Distance

6-9VDC

9 Vdc

Battery

Vdd

X4 X5

Vin Vss

Red

Black

Pwr

Sout

Sin

ATN

Vss

P0

P1

P2

P3

P4

P5

P6

P7

1

U1

TM

Vin

Vss

Rst

Vdd

P15

P14

P13

P12

P11

P10

P9

P8 www.stampsinclass.com

Vss

P0

P2

P4

P6

P8

P10

P12

P14

Vdd

X1

Vss

P1

P3

P5

P7

P9

P11

P13

P15

Vin

Reset

X3

P3

P2

P1

P0

P7

P6

P5

P4

P15

P14

P13

P12

P11

P10

P9

P8

X2

0 1 2

Board of Education

Rev C

© 2000-2003

Measured Distance inch cm

1 2 3 4 5 6

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

7 8 9 10

16 17 18 19 20 21 22 23 24 25

√ Press the Reset button on your board to re-run the program.

√ Measure how far your Boe-Bot traveled by recording the measurement where the wheel is now touching the ground here:__________________ in / cm.

Example Program: ForwardOneSecond.bs2

' Robotics with the Boe-Bot - ForwardOneSecond.bs2

' Make the Boe-Bot roll forward for one second.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

FOR counter = 1 TO 41

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

Chapter 4: Boe-Bot Navigation · Page 135

NEXT

END

You can also think about the distance you just recorded as your Boe-Bot’s speed, in units per second. Let’s say that your Boe-Bot traveled 9 in (23 cm). Since it took one second for your Boe-Bot to travel that far, it means your Boe-Bot travels at around 9 in/s (23 cm/s). Now, you can figure out how many seconds your Boe-Bot has to travel to go a particular distance.

Inches and centimeters per second

– The abbreviation for inches is in, and the abbreviation for centimeters is cm. Likewise, inches per second is abbreviated in/s, and centimeters per second is abbreviated cm/s. Both are convenient speed measurements for the Boe-Bot. There are 2.54 cm in 1 in. You can convert inches to centimeters by multiplying the number of inches by 2.54. You can convert centimeters to inches by dividing the number of centimeters by 2.54.

Example – Time for 20 in Example – Time for 51 cm

At 9 in/s, your Boe-Bot has to travel for

2.22 s to travel 20 in.

At 23 cm/s, your Boe-Bot has to travel for

2.22 s to travel 51 cm.

time

=

20 in

9 in/s time

=

51 cm

23 cm/s

=

20 in

×

1 s

9 in

=

5 1 cm

×

1 s

23 cm

=

2 .

22 s

=

2 .

22 s

In Chapter 2, Activity #6, we learned that it takes 24.6 ms (0.024 s) each time the two servo

PULSOUT

and one

PAUSE

commands are executed in a

FOR…NEXT

loop. The reciprocal of this value is the number of pulses per second that the loop transmits to each servo. A reciprocal is when you swap a fraction's numerator and denominator. Another way to take a reciprocal is to divide a number or fraction into the number one. In other words, 1

÷ 0.024 s/pulse = 40.65 pulses/s.

Since you know the amount of time you want your Boe-Bot to move forward (2.22 s) and the number of pulses the BASIC Stamp sends to the servos each second (40.65 pulses/s),

Page 136 ·

Robotics with the Boe-Bot you can use these values to calculate how many pulses to send to the servos. This is the number you will have to use for your

FOR…NEXT

loop's

EndValue

argument.

p ulses

=

=

2 .

22 s

×

90 .

24 ...

40 .

65 pulses s pulses

The calculations in this example took two steps. First, figure out how long the servos have to run to make the Boe-Bot travel a certain distance, then figure out how many pulses it takes to make the servos run for that long. Since you know you have to multiply by 40.65 to get from run time to pulses, you can reduce this to one step.

p ulses

=

90 pulses

Boe

Boe

Bot

dis

Bot tan speed ce

×

40 .

65 s pulses

Example – Time for 20 in

At 9 in/s, your Boe-Bot has to travel for

2.22 s to travel 20 in.

p ulses

=

=

20 in

9 in/s

×

20 in

×

40 .

65

1 s

9 in

×

pulses s

40 .

65 pulses

1 s

=

=

20

÷

9

×

40 .

65 pulses pulses

90 .

333 ...

pulses

90

Example – Time for 51 cm

At 23 cm/s, your Boe-Bot has to travel for

2.22 s to travel 51 cm.

p ulses

=

51 cm

23 cm/s

×

40 .

65 pulses

=

5 1 cm

×

1 s

23 cm

×

s

40 .

65 pulses

1 s

=

=

51

90

÷

23

×

pulses

40 .

65

90 .

136 ...

pulses pulses

Your Turn – Your Boe-Bot’s Distance

Now, it’s time to try this out with distances that you choose.

√ If you have not already done so, use a ruler and the ForwardOneSecond.bs2 program to determine your Boe-Bot’s speed in in/s or cm/s.

√ Decide how far you want your Boe-Bot to travel.

√ Use the pulses equation to figure out how many pulses to deliver to the Boe-

Bot’s servos:

Chapter 4: Boe-Bot Navigation · Page 137

p ulses

=

Boe

Boe

Bot

dis

Bot tan speed ce

×

40 .

65 pulses s

√ Modify BoeBotForwardOneSecond.bs2 so that it delivers the number of pulses you determined for your distance.

√ Run the program and test to see how close you got.

This technique has sources of error.

The activity you just completed does not take into account the fact that it took a certain number of pulses for the Boe-Bot to get up to full speed. Nor did it take into account any distance the Boe-Bot might coast before it comes to a full stop. The servo speeds will also go slower as the batteries lose their charge.

You can increase the accuracy of your Boe-Bot distances

with devices called encoders, which count the holes in the Boe-Bot's wheels as they pass. Encoders hardware, documentation and example programs are available in the Robotics Æ Accessories page at www.parallax.com.

ACTIVITY #4: MANEUVERS – RAMPING

Ramping is a way to gradually increase or decrease the speed of the servos instead of abruptly starting or stopping. This technique can increase the life expectancy of both your Boe-Bot’s batteries and your servos.

Programming for Ramping

The key to ramping is to use variables along with constants for the

PULSOUT

command’s

Duration

argument. Figure 4-4 shows a

FOR…NEXT

loop that can ramp the Boe-Bot’s speed from full stop to full speed ahead. Each time the

FOR…NEXT

loop repeats itself, the

pulseCount

variable increases by 1. The first time through,

pulseCount

is 1, so it’s like using the commands

PULSOUT 13, 751

and

PULSOUT 12, 749

. The second time through the loop, the value of

pulseCount

is 2, so it’s like using the commands

PULSOUT

13, 752

and

PULSOUT 12, 748

. As the value of the

pulseCount

variable increases, so does the speed of the servos. By the hundredth time through the loop, the

pulseCount

variable is 100, so it’s like using the commands

PULSOUT 13, 850

and

PULSOUT 12,

650

, which is full-speed ahead for the Boe-Bot.

Page 138 ·

Robotics with the Boe-Bot pulseCount VAR Word

FOR pulseCount = 1 TO 100

PULSOUT 13, 750 + pulseCount

PULSOUT 12, 750 - pulseCount

1, 2, 3,

…100

PAUSE 20

Figure 4-4

Ramping

Example

NEXT

Recall from Chapter 2, Activity #5 that

FOR…NEXT

loops can also count downward from a higher number to a lower number. You can use this to ramp the speed back down again by using

FOR pulseCount = 100 TO 1

. Here is an example program that uses

FOR…NEXT

loops to ramp up to full speed, then ramp back down.

Example Program: StartAndStopWithRamping.bs2

√ Enter, save, and run StartAndStopWithRamping.bs2.

√ Verify that the Boe-Bot gradually accelerates to full speed, maintains full speed for a while, and then gradually decelerates to a full stop.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - StartAndStopWithRamping.bs2

' Ramp up, go forward, ramp down.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" pulseCount VAR Word ' FOR...NEXT loop counter.

' -----[ Initialization ]----------------------------------------------------

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]-------------------------------------------------------

' Ramp up forward.

FOR pulseCount = 1 TO 100 ' Loop ramps up for 100 pulses.

PULSOUT 13, 750 + pulseCount ' Pulse = 1.5 ms + pulseCount.

PULSOUT 12, 750 - pulseCount ' Pulse = 1.5 ms – pulseCount.

PAUSE 20 ' Pause for 20 ms.

Chapter 4: Boe-Bot Navigation · Page 139

NEXT

' Continue forward for 75 pulses.

FOR pulseCount = 1 TO 75 ' Loop sends 75 forward pulses.

PULSOUT 13, 850 ' 1.7 ms pulse to left servo.

PULSOUT 12, 650 ' 1.3 ms pulse to right servo.

PAUSE 20 ' Pause for 20 ms.

NEXT

' Ramp down from going forward to a full stop.

FOR pulseCount = 100 TO 1 ' Loop ramps down for 100 pulses.

PULSOUT 13, 750 + pulseCount ' Pulse = 1.5 ms + pulseCount.

PULSOUT 12, 750 - pulseCount ' Pulse = 1.5 ms - pulseCount.

PAUSE 20 ' Pause for 20 ms.

NEXT

END ' Stop until reset.

Your Turn

You can also create routines to combine ramping up or down with the other maneuvers.

Here’s an example of how to ramp up to full speed going backward instead of forward.

The only difference between this routine and the forward ramping routine is that the value of

pulseCount

is subtracted from 750 in the

PULSOUT 13

command, where before it was added. Likewise,

pulseCount

is added to the value of 750 in the

PULSOUT 12

command, where before it was subtracted.

' Ramp up to full speed going backwards

FOR pulseCount = 1 TO 100

PULSOUT 13, 750 - pulseCount

PULSOUT 12, 750 + pulseCount

PAUSE 20

NEXT

You can also make a routine for ramping into a turn by adding the value of

pulseCount

to 750 in both

PULSOUT

commands. By subtracting

pulseCount

from 750 in both

PULSOUT

commands, you can ramp into a turn the other direction. Here’s an example of a quarter turn with ramping. The servos don’t get an opportunity to get up to full speed before they have to slow back down again.

Page 140 ·

Robotics with the Boe-Bot

' Ramp up right rotate.

FOR pulseCount = 0 TO 30

PULSOUT 13, 750 + pulseCount

PULSOUT 12, 750 + pulseCount

PAUSE 20

NEXT

' Ramp down right rotate

FOR pulseCount = 30 TO 0

PULSOUT 13, 750 + pulseCount

PULSOUT 12, 750 + pulseCount

PAUSE 20

NEXT

√ Open ForwardLeftRightBackward.bs2 from Activity #1, and save it as

ForwardLeftRightBackwardRamping.bs2.

√ Modify the new program so your Boe-Bot will ramp into and out of each maneuver. Hint: you might use the code snippets above, and similar snippets from StartAndStopWithRamping.bs2.

ACTIVITY #5: SIMPLIFY NAVIGATION WITH SUBROUTINES

In the next chapter, your Boe-Bot will have to perform maneuvers to avoid obstacles.

One of the key ingredients to avoiding obstacles is executing pre-programmed maneuvers. One way of executing pre-programmed maneuvers is with subroutines. This activity introduces subroutines, and also two different approaches to creating reusable maneuvers with subroutines.

Inside the Subroutine

There are two parts of a PBASIC subroutine. One part is the subroutine call. It’s the command in the program that tells it to jump to the reusable part of code, then come back when it’s done. The other part is the actual subroutine. It starts with a label that serves as its name and ends with a

RETURN

command. The commands between the label and the

RETURN

command make up the code block that does the job you want the subroutine to do.

Chapter 4: Boe-Bot Navigation · Page 141

Figure 4-5 shows part of a PBASIC program that contains a subroutine call and a subroutine. The subroutine call is the

GOSUB My_Subroutine

command. The actual subroutine is everything from the

My_Subroutine:

label through the

RETURN

command.

Here’s how it works. When the program gets to the

GOSUB My_Subroutine

command, it looks for the

My_Subroutine:

label. As shown by arrow (1), the program jumps to the

My_Subroutine:

label and starts executing commands. The program keeps going down line by line from the label, so you’ll see the message “Command in subroutine” in your Debug Terminal.

PAUSE 1000

causes a one second pause. Then, when the program gets to the

RETURN

command, arrow (2) shows how it jumps back to the command immediately after the

GOSUB

command. In this case, it’s a

DEBUG

command that displays the message “After subroutine”.

2

DO

DEBUG "Before subroutine",CR

PAUSE 1000

GOSUB My_Subroutine

DEBUG "After subroutine", CR

PAUSE 1000

1

LOOP

My_Subroutine:

DEBUG "Command in subroutine", CR

PAUSE 1000

RETURN

Figure 4-5

Subroutine

Basics

Example Program – OneSubroutine.bs2

√ Enter, save, and run OneSubroutine.bs2

' Robotics with the Boe-Bot - OneSubroutine.bs2

' This program demonstrates a simple subroutine call.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Before subroutine",CR

PAUSE 1000

GOSUB My_Subroutine

DEBUG "After subroutine", CR

END

My_Subroutine:

Page 142 ·

Robotics with the Boe-Bot

DEBUG "Command in subroutine", CR

PAUSE 1000

RETURN

√ Watch your Debug Terminal, and press the Reset button a few times. You should get the same set of three messages in the right order each time.

Here’s an example program that has two subroutines. One subroutine makes a high pitched tone while the other makes a low pitched tone. The commands between

DO

and

LOOP

call each of the subroutines in turn. Try this program and note the effect.

Example Program – TwoSubroutines.bs2

√ Enter, save, and run TwoSubroutines.bs2

' Robotics with the Boe-Bot - TwoSubroutines.bs2

' This program demonstrates that a subroutine is a reusable block of commands.

' {$STAMP BS2}

' {$PBASIC 2.5}

DO

GOSUB High_Pitch

DEBUG "Back in main", CR

PAUSE 1000

GOSUB Low_Pitch

DEBUG "Back in main again", CR

PAUSE 1000

DEBUG "Repeat...",CR,CR

LOOP

High_Pitch:

DEBUG "High pitch", CR

FREQOUT 4, 2000, 3500

RETURN

Low_Pitch:

DEBUG "Low pitch", CR

FREQOUT 4, 2000, 2000

RETURN

Let’s try putting the forward, left, right, and backward navigation routines inside subroutines. Here’s an example:

Chapter 4: Boe-Bot Navigation · Page 143

Example Program – MovementsWithSubroutines.bs2

√ Enter, save, and run MovementsWithSubroutines.bs2. Hint: you can use the Edit menu in the BASIC Stamp Editor to copy and paste code blocks from one program to another.

' Robotics with the Boe-Bot - MovementsWithSubroutines.bs2

' Make forward, left, right, and backward movements in reusable subroutines.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

GOSUB Forward

GOSUB Left

GOSUB Right

GOSUB Backward

END

Forward:

FOR counter = 1 TO 64

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

PAUSE 200

RETURN

Left:

FOR counter = 1 TO 24

PULSOUT 13, 650

PULSOUT 12, 650

PAUSE 20

NEXT

PAUSE 200

RETURN

Right:

FOR counter = 1 TO 24

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

Page 144 ·

Robotics with the Boe-Bot

PAUSE 200

RETURN

Backward:

FOR counter = 1 TO 64

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

You should recognize the pattern of movement your Boe-Bot makes; it is the same one made by ForwardLeftRightBackward.bs2. Clearly there are many different ways to structure a program that will result in the same movements. A third approach is given in the example below.

Example Program – MovementsWithVariablesAndOneSubroutine.bs2

Here’s another example program that causes your Boe-Bot to perform the same maneuvers, but it only uses one subroutine and some variables to do it.

You have surely noticed that up to this point each Boe-Bot maneuver has been accomplished with similar code blocks. Compare these two snippets:

' Forward full speed

FOR counter = 1 TO 64

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

' Ramp down from full speed backwards

FOR pulseCount = 100 TO 1

PULSOUT 13, 750 - pulseCount

PULSOUT 12, 750 + pulseCount

PAUSE 20

NEXT

What causes these two code blocks to perform different maneuvers are changes to the

FOR

StartValue

and

EndValue

arguments, and the

PULSOUT

Duration

arguments.

These arguments can be variables, and these variables can be changed repeatedly during program run time to generate different maneuvers. Instead of using separate subroutines with specific

PULSOUT

Duration

arguments for each maneuver, the program below uses the same subroutine over and over. The key to making different maneuvers is to set the variables to the correct values for the maneuver you want before calling the subroutine.

Chapter 4: Boe-Bot Navigation · Page 145

√ Enter, save, and run MovementWithVariablesAndOneSubroutine.bs2.

' Robotics with the Boe-Bot - MovementWithVariablesAndOneSubroutine.bs2

' Make a navigation routine that accepts parameters.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" counter VAR Word pulseLeft VAR Word pulseRight VAR Word pulseCount VAR Byte

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' Forward pulseLeft = 850: pulseRight = 650: pulseCount = 64: GOSUB Navigate

' Left turn pulseLeft = 650: pulseRight = 650: pulseCount = 24: GOSUB Navigate

' Right turn pulseLeft = 850: pulseRight = 850: pulseCount = 24: GOSUB Navigate

' Backward pulseLeft = 650: pulseRight = 850: pulseCount = 64: GOSUB Navigate

END

Navigate:

FOR counter = 1 TO pulseCount

PULSOUT 13, pulseLeft

PULSOUT 12, pulseRight

PAUSE 20

NEXT

PAUSE 200

RETURN

Did your Boe-Bot perform the familiar forward-left-right-backward sequence? This program may be difficult to read at first, because the instructions are arranged in a new way. Instead of having each variable statement and each

GOSUB

command on a different line, they are grouped together on the same line and separated by colons. Here, the

Page 146 ·

Robotics with the Boe-Bot colons function the same as a carriage return to separate each PBASIC instruction. Using colons this way allows all of the new variable values for a given maneuver to be stored together, and on the same line as the subroutine call.

Your Turn

Here is your "dead reckoning" contest mentioned earlier.

√ Modify MovementWithVariablesAndOneSubroutine.bs2 to make your Boe-Bot drive in a square, facing forwards on the first two sides and backwards on the second two sides. Hint: you will need to use your own

PULSOUT

EndValue

argument that you determined in Activity #2, page 132.

ACTIVITY #6: ADVANCED TOPIC - BUILDING COMPLEX MANEUVERS

IN EEPROM

When you download PBASIC program to your BASIC Stamp, the BASIC Stamp Editor converts your program to numeric values called tokens. These tokens are what the

BASIC Stamp uses as instructions for executing the program. They are stored in one of the two smaller black chips on top of your BASIC Stamp, the one labeled "24LC16B.”

This chip is a special type of computer memory called EEPROM, which stands for electrically erasable programmable read only memory (EEPROM). The BASIC Stamp’s

EEPROM can hold 2048 bytes (2 kB) of information. What’s not used for program storage (which builds from address 2047 toward address 0) can be used for data storage

(which builds from address 0 toward address 2047).

If the data you store in EEPROM collides with your program, the PBASIC program won't execute properly.

EEPROM memory is different from RAM (random access memory) variable storage in several respects:

EEPROM takes more time to store a value, sometimes up to several milliseconds.

EEPROM can accept a finite number of write cycles, around 10 million writes.

RAM has unlimited read/write capabilities.

The primary function of the EEPROM is to store programs; data can be stored in leftover space.

Chapter 4: Boe-Bot Navigation · Page 147

You can view the contents of the BASIC Stamp’s EEPROM in the BASIC Stamp Editor by clicking Run and selecting Memory Map. Figure 4-6 shows the Memory Map for

MovementsWithSubroutines.bs2. Note the condensed EEPROM Map on the left side of the figure. This shaded area in the small box at the bottom shows the amount of

EEPROM that MovementsWithSubroutines.bs2 occupies.

The memory map images shown in this activity were taken from the BASIC Stamp Editor v2.1. If you are using an earlier version of the BASIC Stamp Editor, your memory map will contain the same information, but it will be formatted differently.

Figure 4-6

BASIC Stamp

Memory Map

While we are here, note also that the

counter

variable we declared as a word is visible in

Register 0 of the RAM Map.

This program might have seemed large while you were typing it in, but it only takes up

136 of the available 2048 bytes of program memory. There currently is enough room for quite a long list of instructions. Since a character occupies a byte in memory, there is room for 1912 one-character direction instructions.

EEPROM Navigation

Up to this point we have tried three different programming approaches to make your Boe-

Bot drive forward, turn left, turn right, and drive back again. Each technique has its merits, but all would be cumbersome if you wanted your Boe-Bot to execute a longer, more complex set of maneuvers. The upcoming program examples will use the now-

Page 148 ·

Robotics with the Boe-Bot familiar code blocks in subroutines for each basic maneuver. Each maneuver is given a one-letter code as a reference. Long lists of these code letters can be stored in EEPROM and then read and decoded during program execution. This avoids the tedium of repeating long lists of subroutines, or having to change the variables before each

GOSUB

command.

This programming approach requires some new PBASIC instructions: the

DATA

directive, and

READ

and

SELECT

...

CASE

...

ENDSELECT

commands. Let’s take a look at each before trying out an example program.

Each of the basic maneuvers is given a single letter code that will correspond to its subroutine: F for

Forward

, B for

Backward

, L for

Left_Turn,

and R for

Right_Turn.

Complex Boe-Bot movements can be quickly choreographed by making a string of these code letters. The last letter in the string is a Q, which will mean “quit” when the movements are over. The list is saved in EEPROM during program download with the

DATA

directive, which looks like this:

DATA "FLFFRBLBBQ"

Each letter is stored in a byte of EEPROM, beginning at address 0 (unless we tell it to start somewhere else). The

READ

command can then be used to get this list back out of

EEPROM while the program is running. These values can be read from within a

DO…LOOP

like this:

DO UNTIL (instruction = "Q")

READ address, instruction

address = address + 1

' PBASIC code block omitted here.

LOOP

The

address

variable is the location of each byte in EEPROM that is holding a code letter. The

instruction

variable will hold the actual value of that byte, our code letter.

Notice that each time through the loop, the value of the

address

variable is increased by one. This will allow each letter to be read from consecutive bytes in the EEPROM, starting at address 0.

The

DO…LOOP

command has optional conditions that are handy for different circumstances. The

DO UNTIL (condition)

...

LOOP

allows the loop to repeat until a certain condition occurs.

DO WHILE (condition)

...

LOOP

allows the loop to repeat only

Chapter 4: Boe-Bot Navigation · Page 149 while a certain condition exists. Our example program will use

DO…LOOP UNTIL

(condition)

. In this case, it causes the

DO…LOOP

to keep repeating until the character

“Q” is read from EEPROM.

A

SELECT

...

CASE

...

ENDSELECT

statement can be used to select a variable and evaluate it on a case-by-case basis and execute code blocks accordingly. Here is the code block that will look at each letter value held in the

instruction

variable and then call the appropriate subroutine for each instance, or case, of a given letter.

SELECT instruction

CASE "F": GOSUB Forward

CASE "B": GOSUB Backward

CASE "R": GOSUB Right_Turn

CASE "L": GOSUB Left_Turn

ENDSELECT

Here are these concepts, all together in a single program.

Example Program: EepromNavigation.bs2

√ Carefully read the code instructions and comments in EepromNavigation.bs2 to understand what each part of the program does.

√ Enter, save, and run EepromNavigation.bs2.

' Robotics with the Boe-Bot - EepromNavigation.bs2

' Navigate using characters stored in EEPROM.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]---------------------------------------------------------- pulseCount VAR Word ' Stores number of pulses. address VAR Byte ' Stores EEPROM address. instruction VAR Byte ' Stores EEPROM instruction.

' -----[ EEPROM Data ]--------------------------------------------------------

' Address: 0123456789

' ||||||||||

DATA "FLFFRBLBBQ"

' These two commented lines show

' EEPROM address of each datum.

' Navigation instructions.

' -----[ Initialization ]-----------------------------------------------------

Page 150 ·

Robotics with the Boe-Bot

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]-------------------------------------------------------

DO UNTIL (instruction = "Q")

READ address, instruction ' Data at address in instruction.

address = address + 1 ' Add 1 to address for next read.

SELECT instruction ' Call a different subroutine

CASE "F": GOSUB Forward ' for each possible character

CASE "B": GOSUB Backward ' that can be fetched from

CASE "L": GOSUB Left_Turn ' EEPROM.

CASE "R": GOSUB Right_Turn

ENDSELECT

LOOP

END ' Stop executing until reset.

' -----[ Subroutine - Forward ]-----------------------------------------------

Forward: ' Forward subroutine.

FOR pulseCount = 1 TO 64 ' Send 64 forward pulses.

PULSOUT 13, 850 ' 1.7 ms pulse to left servo.

PULSOUT 12, 650 ' 1.3 ms pulse to right servo.

PAUSE 20 ' Pause for 20 ms.

NEXT

RETURN ' Return to Main Routine loop.

' -----[ Subroutine - Backward ]----------------------------------------------

FOR pulseCount = 1 TO 64 ' Send 64 backward pulses.

PULSOUT 13, 650 ' 1.3 ms pulse to left servo.

PULSOUT 12, 850 ' 1.7 ms pulse to right servo.

PAUSE 20 ' Pause for 20 ms.

NEXT

RETURN ' Return to Main Routine loop.

' -----[ Subroutine - Left_Turn ]---------------------------------------------

Left_Turn: ' Left turn subroutine.

FOR pulseCount = 1 TO 24 ' Send 24 left rotate pulses.

PULSOUT 13, 650 ' 1.3 ms pulse to left servo.

PULSOUT 12, 650 ' 1.3 ms pulse to right servo.

PAUSE 20 ' Pause for 20 ms.

NEXT

RETURN ' Return to Main Routine loop.

Chapter 4: Boe-Bot Navigation · Page 151

' -----[ Subroutine – Right_Turn ]--------------------------------------------

Right_Turn: ' right turn subroutine.

FOR pulseCount = 1 TO 24 ' Send 24 right rotate pulses.

PULSOUT 13, 850 ' 1.7 ms pulse to left servo.

PULSOUT 12, 850 ' 1.7 ms pulse to right servo.

PAUSE 20 ' Pause for 20 ms.

NEXT

RETURN ' Return to Main Routine section.

Did your Boe-Bot drive in a rectangle, going forward on the first two sides and backwards on the second two? If it looked more like a trapezoid, you may want to adjust the

FOR

...

NEXT

loop's

EndValue

arguments in the turning subroutines to make precise 90degree turns.

Your Turn

√ With EepromNavigation.bs2 active in the BASIC Stamp Editor, click Run and select Memory Map.

Your stored instructions will appear highlighted in blue at the beginning of the Detailed

EEPROM Map as shown in Figure 4-7. The numbers shown are the hexadecimal ASCII

(American Standard Code for Information Interchange) codes that correspond to the characters you entered in your

DATA

statement.

Figure 4-7

Memory Map with Stored

Instructions

Visible in

EEPROM Map

√ Click the Display ASCII checkbox near the lower left corner of the Memory Map window.

Page 152 ·

Robotics with the Boe-Bot

Now the direction instructions will appear in a more familiar format shown in Figure 4-8.

Instead of ASCII codes, they appear as the actual characters you recorded using the

DATA

directive.

Figure 4-8

Close-up of the

Detailed

EEPROM Map after Display

ASCII Box is

Checked

This program stored a total of 10 characters in EEPROM. These ten characters were accessed by the

READ

command’s

address

variable. The

address

variable was declared as a byte, so it can access up to 256 locations, well over the 10 we needed. If the

address

variable is re-declared to be a word variable, you could theoretically access up to 65535, far more locations than are available. Keep in mind that if your program gets larger, the number of available EEPROM addresses for holding data gets smaller.

You can modify the existing data string to a new set of directions. You can also add additional

DATA

statements. The data is stored sequentially, so the first character in the second data string will get stored immediately after the last character in the first data string.

√ Try changing, adding, and deleting characters in the

DATA

directive, and rerunning the program. Remember that the last character in the

DATA

directive should always be a “Q.”

√ Modify the

DATA

directive to make your Boe-Bot perform the familiar forwardleft-right-backward sequence of movements.

√ Try adding a second

DATA

directive. Remember to remove the “Q” from the end of the first

DATA

directive and add it to the end of the second. Otherwise, the program will execute only the commands in the first

DATA

directive.

Chapter 4: Boe-Bot Navigation · Page 153

Example Program – EepromNavigationWithWordValues.bs2

This next example program looks complicated at first, but it is a very efficient way to design programs for custom Boe-Bot choreography. This example program uses

EEPROM data storage, but does not use subroutines. Instead, a single code block is used, with variables in place of the

FOR

...

NEXT

loop's

EndValue

and

PULSOUT

Duration

arguments.

By default, the

DATA

directive stores bytes of information in EEPROM. To store wordsized data items, you can add the

Word

modifier to the

DATA

directive, before each data item in your string. Each word-sized data item will use two bytes of EEPROM storage, so the data will be accessed via every other address location. When using more than one

DATA

directive, it is most convenient to assign a label to each one. This way, your

READ

commands can refer to the label to retrieve data items without you having to figure out at which EEPROM address each string of data items begins. Take a look at this code snippet:

' addressOffset 0 2 4 6 8

Pulses_Count DATA Word 64, Word 24, Word 24, Word 64, Word 0

Pulses_Left DATA Word 850, Word 650, Word 850, Word 650

Pulses_Right DATA Word 650, Word 650, Word 850, Word 850

Each of the three

DATA

statements begins with its own label. The

Word

modifier goes before each data item, and the items are separated by commas. These three strings of data will be stored in EEPROM one after another. We don’t have to do the math to figure out the address number of a given data item, because the labels and the

addressOffset

variable will do that automatically. The

READ

command uses each label to determine the EEPROM address where that string begins, and then adds the value of the

addressOffset

variable to know how many address numbers to shift over to find the correct

DataItem

. The

DataItem

found at the resulting

Address

will be stored in the

READ

command's

Variable

argument. Notice that the

Word

modifier also comes before the variable that stores the value fetched from EEPROM.

DO

READ Pulses_Count + addressOffset, Word pulseCount

READ Pulses_Left + addressOffset, Word pulseLeft

READ Pulses_Right + addressOffset, Word pulseRight

addressOffset = addressOffset + 2

' PBASIC code block omitted here.

Page 154 ·

Robotics with the Boe-Bot

LOOP UNTIL (pulseCount = 0)

The first time through the loop,

addressOffset

= 0. The first

READ

command will retrieve a value of 64 from the first address at the

Pulses_Count

label, and place it in the

pulseCount

variable. The second

READ

command retrieves a value of 850 from the first address specified by the

Pulses_Left

label, and places it in the

pulseLeft

variable.

The third

READ

command retrieves a value of 650 from the first address specified by the

Pulses_Right

label and places it in the

pulseRight

variable. Notice that these are the three values in the “0” column of the code snippet on page 153. When the value of those variables are placed in the code block that follows, this:

FOR counter = 1 TO pulseCount FOR counter = 1 TO 64

PULSOUT 13, pulseLeft

PULSOUT 12, pulseRight

PAUSE 20 becomes

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT NEXT

Do you recognize the basic maneuver generated by this code block?

√ Look at the other columns of the code snippet on page 153 and anticipate what the

FOR…NEXT

code block will look like on the second, third, and fourth times through the loop.

√ Look at the

LOOP UNTIL (pulseCount = 0)

statement in the program below.

The

<>

operator stands for "not equal to". What will happen on the fifth time through the loop?

√ Enter, save, and run EepromNavigationWithWordValues.bs2.

' Robotics with the Boe-Bot - EepromNavigationWithWordValues.bs2

' Store lists of word values that dictate.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]---------------------------------------------------------- counter VAR Word pulseCount VAR Word ' Stores number of pulses. addressOffset VAR Byte ' Stores offset from label. instruction VAR Byte ' Stores EEPROM instruction. pulseRight VAR Word ' Stores servo pulse widths.

Chapter 4: Boe-Bot Navigation · Page 155 pulseLeft VAR Word

' -----[ EEPROM Data ]--------------------------------------------------------

' addressOffset 0 2 4 6 8

Pulses_Count DATA

Pulses_Left DATA

Pulses_Right DATA

Word 64, Word 24, Word 24, Word 64, Word 0

Word 850, Word 650, Word 850, Word 650

Word 650, Word 650, Word 850, Word 850

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]-------------------------------------------------------

DO

READ Pulses_Count + addressOffset, Word pulseCount

READ Pulses_Left + addressOffset, Word pulseLeft

READ Pulses_Right + addressOffset, Word pulseRight

addressOffset = addressOffset + 2

FOR counter = 1 TO pulseCount

PULSOUT 13, pulseLeft

PULSOUT 12, pulseRight

PAUSE 20

NEXT

LOOP UNTIL (pulseCount = 0)

END ' Stop executing until reset.

Did your Boe-Bot perform the familiar forward-left-right-backwards movements? Are you thoroughly bored with it by now? Do you want to see your Boe-Bot do something else, or to choreograph your own routine?

Your Turn – Making Your Own Custom Navigation Routines

√ Save EepromNavigationWithWordValues.bs2. under a new name.

√ Replace the

DATA

directives with the ones below.

√ Run the modified program and see what your Boe-Bot does.

Pulses_Count DATA Word 60, Word 80, Word 100, Word 110,

Word 110, Word 100, Word 80, Word 60, Word 0

Pulses_Left DATA Word 850, Word 800, Word 785, Word 760, Word 750,

Page 156 ·

Robotics with the Boe-Bot

Word 740, Word 715, Word 700, Word 650, Word 750

Pulses_Right DATA Word 650, Word 700, Word 715, Word 740, Word 750,

Word 760, Word 785, Word 800, Word 850, Word 750

√ Make a table with three rows, one for each

DATA

directive, and a column for each

Boe-Bot maneuver you want to make, plus one for the

Word 0

item in the

Pulses_Count

row.

√ Use the table to plan out your Boe-Bot choreography, filling in the

FOR

...

NEXT

loop's

EndValue

and

PULSOUT Duration

arguments you will need for each maneuver’s code block.

√ Modify your program with your newly charted

DATA

directives.

√ Enter, save, and run your custom program. Did your Boe-Bot do what you wanted it to do? Keep working on it until it does.

Chapter 4: Boe-Bot Navigation · Page 157

SUMMARY

This chapter introduced the basic Boe-Bot maneuvers: forward, backward, rotating in place to turn to the right or left, and pivoting. The type of maneuver is determined by the

PULSOUT

commands’

Duration

arguments. How far the maneuver goes is determined by the

FOR…NEXT

loop’s

StartValue

and

EndValue

arguments.

Chapter 2 included a hardware adjustment, physically centering the Boe-Bot’s servos with a screwdriver. This chapter focused on fine tuning adjustments made by manipulating the software. Specifically, a difference in rotation speed between the two servos was compensated for by changing the

PULSOUT

command’s

Duration

argument for the faster of the two servos. This changes the Boe-Bot’s path from a curve to a straight line if the servos are not perfectly matched. To refine turning so that the Boe-Bot turns to the desired angle, the

StartValue

and

EndValue

arguments of a

FOR…NEXT

loop can be adjusted.

Programming the Boe-Bot to travel a pre-defined distance can be accomplished by measuring the distance it travels in one second, with the help of a ruler. Using this distance, and the number of pulses in one second of run time, you can calculate the number of pulses required to cover a desired distance.

Ramping was introduced as a way to gradually accelerate and decelerate. It’s kinder to the servos, and we recommended that you use your own ramping routines in place of the abrupt start and stop routines shown in the example programs. Ramping is accomplished by taking the same variable that’s used as the

Counter

argument in a

FOR…NEXT

loop and adding it to or subtracting it from 750 in the

PULSOUT

command’s

Duration

argument.

Subroutines were introduced as a way to make pre-programmed maneuvers reusable by a

PBASIC program. Instead of writing an entire

FOR…NEXT

loop for each new maneuver, a single subroutine that contains a

FOR…NEXT

loop can be executed as needed with the

GOSUB

command. A subroutine begins with a label, and ends with the

RETURN

command.

A subroutine is called from the main program with a

GOSUB

command. When the subroutine is finished and it encounters the

RETURN

command, the next command to be executed is the one immediately following the

GOSUB

command.

Page 158 ·

Robotics with the Boe-Bot

The BASIC Stamp’s EEPROM stores the program it runs, but you can take advantage of any unused portion of the program to store values. This is a great way to store custom navigation routines. The

DATA

directive can store values in EEPROM. Bytes are stored by default, but adding the

Word

modifier to each data item allows you to store values up to 65535 in two bytes’ worth of EEPROM memory space. You can read values back out of EEPROM using the

READ

command. If you are retrieving a word-sized variable, make sure to place a

Word

modifier before the variable that will receive the value that

READ

fetches.

SELECT…CASE

was introduced as a way of evaluating a variable on a case by case basis, and executing a different code block depending on the case. Optional

DO…LOOP

conditions are helpful in certain circumstances;

DO UNTIL

(Condition)

...

LOOP

and

DO

...

LOOP UNTIL (Condition)

were demonstrated as ways to keep executing a

DO…LOOP

until a particular condition is detected.

Questions

1. What direction does the left wheel have to turn to make the Boe-Bot go forward?

What direction does the right wheel have to turn?

2. When the Boe-Bot pivots to the left, what are the right and left wheels doing?

What PBASIC commands do you need to make the Boe-Bot pivot left?

3. If your Boe-Bot veers slightly to the left when you are running a program to make it go straight ahead, how do you correct this? What command needs to be adjusted and what kind of adjustment should you make?

4. If your Boe-Bot travels 11 in/s, how many pulses will it take to make it travel 36 inches?

5. What’s the relationship between a

FOR…NEXT

loop’s

Counter

argument and the

PULSOUT

command’s

Duration

argument that makes ramping possible?

6. What directive can you use to pre-store values in the BASIC Stamp’s EEPROM before running a program?

7. What command can you use to retrieve a value stored in EEPROM and copy it to a variable?

8. What code block can you use to select a particular variable and evaluate it on a case by case basis and execute a different code block for each case?

9. What are the different conditions that can be used with

DO…LOOP

?

Exercises

1. Write a routine that makes the Boe-Bot back up for 350 pulses.

Chapter 4: Boe-Bot Navigation · Page 159

2. Let’s say that you tested your servos and discovered that it takes 48 pulses to make a 180° turn with right-rotate. With this information, write routines to make the Boe-Bot perform 30, 45, and 60 degree turns.

3. Write a routine that makes the Boe-Bot go straight forward, then ramp in and out of a pivoting turn, and then continue straight forward.

Projects

1. It is time to fill in column 3 of Table 2-1:

PULSOUT

Duration

Combinations on page 81. To do this, modify the

PULSOUT

Duration

arguments in the program

BoeBotForwardThreeSeconds.bs2 using each pair of values from column 1.

Record your Boe-Bot’s resultant behavior for each pair in column 3. Once completed, this table will serve as a reference guide when you design your own custom Boe-Bot maneuvers.

2. Figure 4-9 shows two simple obstacle courses. Write a program that will make your Boe-Bot navigate along each figure. Assume straight line distances

(including the diameter of the circle) to be either 1 yd or 1 m.

Figure 4-9

Simple Obstacle

Courses

Page 160 ·

Robotics with the Boe-Bot

Solutions

Q1. Left wheel counterclockwise, right wheel clockwise.

Q2. The right wheel is turning clockwise (forward), and the left wheel is not moving.

PULSOUT 13, 750

PULSOUT 12, 650

Q3. You can slow down the right wheel to correct a veer to the left. The

PULSOUT

command for the right wheel needs to be adjusted.

PULSOUT 12, 650

Adjust the 650 to something closer to 750 to slow the wheel down.

PULSOUT 12, 663

Q4. Given:

Boe-Bot speed = 11 in/s

Boe-Bot distance = 36 in/s pulses = (Boe-Bot distance / Boe-Bot speed) * (40.65 pulses / s)

= (36 / 11 ) * (40.65)

= 133.04

= 133

It should take 133 pulses to travel 36 inches.

Q5. The

FOR…NEXT

loop's

pulseCount

variable can be used as an offset (plus or minus) to 750 (the center position) in the

Duration

argument.

FOR pulseCount = 1 to 100

PULSOUT 13, 750 + pulseCount

PULSOUT 12, 750 – pulseCount

PAUSE 20

NEXT

Q6. The

DATA

directive.

Q7. The

READ

command.

Q8.

SELECT

...

CASE

...

ENDSELECT

.

Q9.

UNTIL

and

WHILE

.

E1.

FOR counter = 1 to 350

'

Backward

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

E2.

FOR counter = 1 to 8 ' Rotate right 30 degrees

PULSOUT 13, 850

Chapter 4: Boe-Bot Navigation · Page 161

PULSOUT 12, 850

PAUSE 20

NEXT

FOR counter = 1 to 12

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

FOR counter = 1 to 16

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

E3.

FOR counter = 1 to 100

PULSOUT 13, 850

' Rotate right 45 degrees

' Rotate right 60 degrees

' Forward

PULSOUT 12, 650

PAUSE 20

NEXT

FOR counter = 0 TO 30 ' Ramping pivot turn

PULSOUT 13, 750 + counter

PULSOUT 12, 750

PAUSE 20

NEXT

FOR counter = 30 TO 0

PULSOUT 13, 750 + counter

PULSOUT 12, 750

PAUSE 20

NEXT

FOR counter = 1 to 100

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

' Forward

Page 162 ·

Robotics with the Boe-Bot

P1.

P13 P12 Description

Speed

P13 CCW, P12 CW

Speed

P13 CW, P12 CCW

Speed

P13 CCW, P12 CCW

650 650 Full Speed

P13 CW, P12 CW

Stopped

P12 CCW Full speed

650 750 P13 CW Full Speed

P12 Stopped

Stopped

P12 Stopped

CCW

P12 CW Slow

CCW

P12 CW Med

850 700 P13 CCW Full Speed

P12 CW Medium

CCW

P12 CW Full Speed

Behavior

Forward

Backward

Right rotate

Left rotate

Pivot back left

Pivot back right

Stopped

Forward slow

Forward medium

Veer right

Veer left

P2. The circle can be implemented by veering right continuously. Trial and error, a yard or meter stick, will help you arrive at the right

PULSOUT

value. Circle with a one-yard diameter:

' Robotics with the Boe-Bot - Chapter 4 - Circle.bs2

' Boe-Bot navigates a circle of 1 yard diameter.

'{$STAMP BS2}

'{$PBASIC 2.5}

DEBUG "Program running!" pulseCount VAR Word ' Pulse count to servos

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]------------------------------------------------

Main:

DO

PULSOUT 13, 850 ' Veer right

PULSOUT 12, 716

PAUSE 20

LOOP

To make the triangle, first calculate the number of pulses required for a one meter or yard straight line, as in Question 4. Then fine-tune your distances to

Chapter 4: Boe-Bot Navigation · Page 163 match your Boe-Bot and particular surface. For a triangle pattern, the Boe-Bot must travel 1 meter/yard forward, then make a 120 degree turn. This should be repeated three times for the three sides of the triangle. You may have to adjust the

pulseCount

EndValue

in the

Right_Rotate120

subroutine to get a precise

120 degree turn.

' Robotics with the Boe-Bot - Chapter 4 - Triangle.bs2

' Boe-Bot navigates triangle shape with 1 yard sides.

' Go forward, then turn 120 degrees. Repeat three times.

'{$STAMP BS2}

'{$PBASIC 2.5}

DEBUG "Program running!" counter VAR Nib ' Triangle has 3 sides pulseCount VAR Word ' Pulse count to servos

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

Main:

FOR counter = 1 TO 3 ' Repeat 3 times for triangle

GOSUB Forward

GOSUB Right_Rotate120

NEXT

END

Forward:

FOR pulseCount = 1 TO 163 ' Forward 1 yard

PULSOUT 13, 850

PULSOUT 12, 650

PAUSE 20

NEXT

RETURN

Right_Rotate120:

FOR pulseCount = 1 TO 21 ' Rotate right 120 degrees

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

Chapter 5: Tactile Navigation with Whiskers · Page 165

Chapter 5: Tactile Navigation with Whiskers

Many types of robotic machinery rely on a variety of tactile switches. For example, a tactile switch may detect when a robotic arm has encountered an object. The robot can be programmed to pick up the object and place it elsewhere. Factories use tactile switches to count objects on a production line, and also for aligning objects during industrial processes. In all these instances, the switches provide inputs that dictate some other form of programmed output. The inputs are electronically monitored by the product, be it a robot, or a calculator, or a production line. Based on the state of the switches, the robot arm grabs an object, or the calculator display updates, or the factory production line reacts with motors or servos to guide products.

In this chapter, you will build tactile switches, called whiskers, onto your Boe-Bot and test them. You will then program the Boe-Bot to monitor the state of these switches, and to decide what to do when it encounters an obstacle. The end result will be autonomous navigation by touch.

TACTILE NAVIGATION

The whiskers are so named because that is what these bumper switches look like, though some argue they look more like antennae. At any rate, these whiskers are shown mounted on a Boe-Bot in Figure 5-1. Whiskers give the Boe-Bot the ability to sense the world around it through touch, much like the antennae on an ant or the whiskers on a cat.

The activities in this chapter use the whiskers by themselves, but they can also be combined with other sensors you will learn about in later chapters to increase your Boe-

Bot’s functionality.

Page 166 ·

Robotics with the Boe-Bot

Figure 5-1

Boe-Bot with

Whiskers

ACTIVITY #1: BUILDING AND TESTING THE WHISKERS

Before moving on to programs that make the Boe-Bot navigate based on what it can touch, it’s essential to build and test the whiskers first. This activity will guide you through building and testing the whiskers.

Whisker Circuit and Assembly

√ Gather the whiskers hardware shown in Figure 5-2.

√ Disconnect power from your board and servos.

Chapter 5: Tactile Navigation with Whiskers · Page 167

Parts List:

(2) Whisker wires

(2)

7

/

8

″ pan head 4-40

Phillips screws

(2) ½″ round spacer

(2) Nylon washers – size #4

(2) 3-pin m/m headers

(2) Resistors, 220 Ω

(red-red-brown)

(2) Resistors, 10 kΩ

(brown-black-orange)

Figure 5-2

Whiskers

Hardware

Building the Whiskers

√ Remove the two front screws that hold your board to the front standoffs.

√ Refer to Figure 5-3 while following the remaining instructions.

√ Thread a nylon washer and then a ½″ round spacer on each of the

7

/

8

″ screws.

√ Attach the screws through the holes in your board and into the standoffs below, but do not tighten them all the way yet.

√ Slip the hooked ends of the whisker wires around the screws, one above the washer and the other below the washer, positioning them so they cross over each other without touching.

√ Tighten the screws into the standoffs.

Board of Education / HomeWork Board

Figure 5-3

Mounting the

Whiskers

Page 168 ·

Robotics with the Boe-Bot

The next step is add the whiskers circuit shown in Figure 5-4 to the piezospeaker and servo circuits you built and tested in Chapter 2 and Chapter 3.

√ If you have a Board of Education, build the whiskers circuit shown in Figure 5-4 using the wiring diagram in Figure 5-5 on page 169 as a reference.

√ If you have a HomeWork Board, build the whiskers circuit shown in Figure 5-4 using the wiring diagram in Figure 5-6 on page 170 as a reference.

√ Make sure to adjust each whisker so that it is close to, but not touching, the 3-pin header on the breadboard. A distance of about

8

″ (3 mm) is a recommended starting point.

1

/

Vdd Vdd

10 k

10 k

P7

P5

220

220 Ω

Right

Whisker

Left

Whisker

Figure 5-4

Whiskers

Schematic

Vss Vss

Chapter 5: Tactile Navigation with Whiskers · Page 169

Figure 5-5:

Whisker Wiring Diagram for the Board of Education

Left

Whisker

To Servos

15 14 13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

+

Board of Education

Rev C

© 2000-2003

Right

Whisker

Use the 220

Ω resistors (red-red-brown color codes) to connect P5 and P7 to their corresponding 3-pin headers. Use the 10 k

Ω resistors (brown-black-orange color codes) to connect Vdd to each 3-pin header.

Page 170 ·

Robotics with the Boe-Bot

Figure 5-6:

Whisker Wiring Diagram for the HomeWork Board

To Servos

Left

Whisker

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

X2

+

HomeWork Board

Right

Whisker

Use the 220

Ω resistors (red-red-brown-color codes) to connect P5 and P7 to their corresponding 3-pin headers. Use the 10 k

Ω resistors (brown-black-orange color codes) to connect Vdd to each 3-pin header.

Chapter 5: Tactile Navigation with Whiskers · Page 171

Testing the Whiskers

Take a second look at the whiskers schematic (Figure 5-7). Each whisker is both the mechanical extension and the ground electrical connection of a normally open, singlepole, single-throw switch. The reason the whiskers are connected to ground (Vss) is because the plated holes at the outer edge of the board are all connected to Vss. This is true for both the Board of Education and the BASIC Stamp HomeWork Board. The metal standoffs and screw provide the electrical connection to each whisker.

Vdd Vdd

10 k

10 k

P7

P5

220 Ω

220

Right

Whisker

Left

Whisker

Figure 5-7

Whiskers

Schematic –

A Second

Look

Vss Vss

The BASIC Stamp can be programmed to detect when a whisker is pressed. I/O pins connected to each switch circuit monitor the voltage at the 10 k

Ω pull-up resistor.

Figure 5-8 illustrates how this works. When a given whisker is not pressed, the voltage at the I/O pin connected to that whisker is 5 V. When a whisker is pressed, the I/O line is shorted to ground (Vss), so the I/O line sees 0 V.

All I/O pins default to input every time a PBASIC program starts. This means that the

I/O pins connected to the whiskers will function as inputs automatically. As an input, an

I/O pin connected to a whisker circuit will cause its input register to store a 1 if the voltage is 5 V (whisker not pressed) or a 0 if the voltage is 0 V (whisker pressed). The

Debug Terminal can be used to display these values.

Page 172 ·

Robotics with the Boe-Bot

How do you get the BASIC Stamp to tell you whether it’s reading a 1 or 0?

Because the circuit is connected to P7, this 1 or 0 value will appear in a variable named

IN7

.

IN7

is called an input register. Input register variables are built-in and do not have to be declared in the beginning of your program. You can see the value this variable is storing by using the command

DEBUG BIN1 IN7

. The

BIN1

is a formatter that tells the Debug Terminal to display one binary digit (either 1 or 0).

Figure 5-8

Detecting Electrical

Contacts

Example Program: TestWhiskers.bs2

This next example program is designed to test the whiskers to make sure they are functioning properly. By displaying the binary digits stored in the P7 and P5 input registers (

IN7

and

IN5

), the program will show you whether the BASIC Stamp detects contact with a whisker. When the value stored in a given input register is 1, the whisker is not pressed. When it is 0, the whisker is pressed.

√ Reconnect power to your board and servos.

√ Enter, save, and run TestWhiskers.bs2.

√ This program makes use of the Debug Terminal, so leave the serial cable connected to the BASIC Stamp while the program is running.

' Robotics with the Boe-Bot - TestWhiskers.bs2

' Display what the I/O pins connected to the whiskers sense.

' {$STAMP BS2} ' Stamp directive.

Chapter 5: Tactile Navigation with Whiskers · Page 173

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "WHISKER STATES", CR,

"Left Right", CR,

"------ ------"

DO

DEBUG CRSRXY, 0, 3,

"P5 = ", BIN1 IN5,

" P7 = ", BIN1 IN7

PAUSE 50

LOOP

√ Note the values displayed in the Debug Terminal; it should display that both P7 and P5 are equal to 1.

√ Check Figure 5-5 on page 169 (or Figure 5-6 on page 170) so you know which whisker is the “left whisker” and which whisker is the “right whisker”.

√ Press the right whisker into its three-pin header, and note the values displayed in the Debug Terminal. It should now read:

P5 = 1 P7 = 0

√ Press the left whisker into its three-pin header, and note the value displayed in the Debug Terminal again. This time it should read:

P5 = 0 P7 = 1

√ Press both whiskers against both three-pin headers. Now it should read

P5 = 0 P7 = 0

√ If the whiskers passed all these tests, you’re ready to move on; otherwise, check your program and circuits for errors.

What is CRSRXY ?

It is a formatter that allows you to conveniently arrange information your program sends to the Debug Terminal. The formatter

CRSRXY 0, 3,

in the command

DEBUG CRSRXY, 0, 3,

"P5 = ", BIN1 IN5,

" P7 = ", BIN1 IN7 places the cursor at column 0, row 3 in the Debug Terminal. This makes it display nicely below the “Whisker States” table heading. Each time through the loop, the new values overwrite the old values because the cursor keeps going back to the same place.

Page 174 ·

Robotics with the Boe-Bot

ACTIVITY #2: FIELD TESTING THE WHISKERS

Assume that you may have to test the whiskers at some later time away from a computer.

Since the Debug Terminal won’t be available, what can you do? One solution would be to program the BASIC Stamp so that it sends an output signal that corresponds to the input signal it’s receiving. This can be done with a pair of LED circuits and a program that turns the LEDs on and off based on the whisker inputs.

Parts List:

(2) Resistors - 220 Ω (red-red-brown)

(2) LEDs – Red

Building the LED Whisker Testing Circuits

√ Disconnect power from your board and servos.

√ If you have a Board of Education, add the circuit shown in Figure 5-9 with the help of the wiring diagram in Figure 5-10 (page 175).

√ If you have a HomeWork Board, add the circuit shown in Figure 5-9 with the help of the wiring diagram in Figure 5-11 (page 176).

P10

P1

220 Ω

220

Vss

LED

Vss

LED

Figure 5-9

LED Whisker

Testing

Schematic

Add this LED circuit.

Remember that an LED is a one way current valve.

If it is plugged in backwards, it will not let current pass through, and so will not emit light. For the LED to emit light when the

BASIC Stamp sends a high signal, the LED's anode must be connected to the 220 Ω resistor, and its cathode must be connected to Vss. See Figure 5-10 or Figure 5-11.

Chapter 5: Tactile Navigation with Whiskers · Page 175

Figure 5-10:

Whisker Plus LED Wiring Diagram for the Board of Education

This lead is the anode.

To Servos

15 14 13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

P4

X2

+

Board of Education

Rev C

© 2000-2003

Flat spot on plastic case indicates cathode.

This lead is the anode.

Left

Whisker

Right

Whisker

Page 176 ·

Robotics with the Boe-Bot

Figure 5-11:

Whisker Plus LED Wiring Diagram for the HomeWork Board

To Servos

The anode connects to the 220 Ω resistor.

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

X2

+

HomeWork Board

Flat spot on plastic case indicates cathode

The anode connects to the 220 Ω resistor.

Left

Whisker

Right

Whisker

Chapter 5: Tactile Navigation with Whiskers · Page 177

Programming the LED Whisker Testing Circuits

√ Reconnect power to your board.

√ Save TestWhiskers.bs2 as TestWhiskersWithLeds.bs2.

√ Insert these two

IF

...

THEN

statements between the

PAUSE 50

and

LOOP

commands.

IF (IN7 = 0) THEN

HIGH 1

ELSE

LOW 1

ENDIF

IF (IN5 = 0) THEN

HIGH 10

ELSE

LOW 10

ENDIF

These are called

IF…THEN

statements, and they will be more fully introduced in the next activity. These statements are used to make decisions in PBASIC. The first of the two

IF…THEN

statements sets P1 high, which turns the LED on when the whisker connected to

P7 is pressed (

IN7 = 0

). The

ELSE

portion of the statement makes P1 go low, which turns the LED off when the whisker is not pressed. The second

IF…THEN

statement does the same thing for the whisker connected to P5 and the LED connected to P10.

√ RunTestWhiskersWithLeds.bs2.

√ Test the program by gently pressing the whiskers. The red LEDs should light up when each whisker has made contact with its 3-pin header.

ACTIVITY #3: NAVIGATION WITH WHISKERS

In Activity #1, the BASIC Stamp was programmed to detect whether a given whisker was pressed. In this activity, the BASIC Stamp will be programmed to take advantage of this information to guide the Boe-Bot. When the Boe-Bot is rolling along and a whisker is pressed, it means the Boe-Bot bumped into something. A navigation program needs to take this input, decide what it means, and call a set of maneuvers that will make the Boe-

Bot back up from the obstacle, turn, and go in a different direction.

Page 178 ·

Robotics with the Boe-Bot

Programming the Boe-Bot to Navigate Based on Whisker Inputs

This next program makes the Boe-Bot go forward until it encounters an obstacle. In this case, the Boe-Bot knows when it encounters an obstacle by bumping into it with one or both of its whiskers. As soon as the obstacle is detected by the whiskers, the navigation routines and subroutines developed in Chapter 4 will make the Boe-Bot back up and turn.

Then, the Boe-Bot resumes forward motion until it bumps into another obstacle.

In order to do that, the Boe-Bot needs to be programmed to make decisions. PBASIC has a command called an

IF…THEN

statement that makes decisions. The syntax for

IF…THEN

statements is:

IF (condition) THEN…{ELSEIF (condition)}…{ELSE}…ENDIF

The “…” means you can place a code block (one or more commands) between the keywords. The next example program makes decisions based on the whisker inputs, and then calls subroutines to make the Boe-Bot take action. The subroutines are similar to the ones you developed in Chapter 4. Here is how

IF…THEN

is used.

IF (IN5 = 0) AND (IN7 = 0) THEN

GOSUB Back_Up ' Both whiskers detect obstacle,

GOSUB Turn_Left ' back up & U-turn (left twice)

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN ' Left whisker contacts

GOSUB Back_Up ' Back up & turn right

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN ' Right whisker contacts

GOSUB Back_Up ' Back up & turn left

GOSUB Turn_Left

ELSE ' Both whiskers 1, no contacts

GOSUB Forward_Pulse ' Apply a forward pulse &

ENDIF ' check again

Example Program: RoamingWithWhiskers.bs2

This program demonstrates one way of evaluating the whisker inputs and deciding which navigation subroutine to call using

IF…THEN

.

√ Reconnect power to your board and servos.

√ Enter, save, and run RoamingWithWhiskers.bs2.

Chapter 5: Tactile Navigation with Whiskers · Page 179

√ Try letting the Boe-Bot roam. When it contacts obstacles in its path, it should back up, turn, and then roam in a new direction.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - RoamingWithWhiskers.bs2

' Boe-Bot uses whiskers to detect objects, and navigates around them.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]---------------------------------------------------------- pulseCount VAR Byte ' FOR...NEXT loop counter.

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]-------------------------------------------------------

DO

IF (IN5 = 0) AND (IN7 = 0) THEN ' Both whiskers detect obstacle

GOSUB Back_Up ' Back up & U-turn (left twice)

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN ' Left whisker contacts

GOSUB Back_Up ' Back up & turn right

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN ' Right whisker contacts

GOSUB Back_Up ' Back up & turn left

GOSUB Turn_Left

ELSE ' Both whiskers 1, no contacts

GOSUB Forward_Pulse ' Apply a forward pulse

ENDIF ' and check again

LOOP

' -----[ Subroutines ]--------------------------------------------------------

Forward_Pulse: ' Send a single forward pulse.

PULSOUT 13,850

PULSOUT 12,650

PAUSE 20

RETURN

Turn_Left: ' Left turn, about 90-degrees.

FOR pulseCount = 0 TO 20

PULSOUT 13, 650

PULSOUT 12, 650

Page 180 ·

Robotics with the Boe-Bot

PAUSE 20

NEXT

RETURN

Turn_Right:

FOR pulseCount = 0 TO 20 ' Right turn, about 90-degrees.

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

Back_Up: ' Back up.

FOR pulseCount = 0 TO 40

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

How Roaming with Whiskers Works

The

IF

...

THEN

statements in the Main Routine section first check the whiskers for any states that require attention. If both whiskers are pressed (

IN5 = 0

and

IN7 = 0

), a Uturn is executed by calling the

Back_Up

subroutine followed by calling the

Turn_Left

subroutine twice in a row. If just the left whisker is pressed (

IN5 = 0

), then the program calls the

Back_Up

subroutine followed by the

Turn_Right

subroutine. If the right whisker is pressed

(IN7 = 0

), the

Back_Up

subroutine is called, followed by the

Turn_Left

subroutine. The only possible combination that has not been covered is if neither whisker is pressed (

IN5 = 1

and

IN7 = 1

). The

ELSE

command calls the

Forward_Pulse

subroutine in this case.

IF (IN5 = 0) AND (IN7 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

ELSE

GOSUB Forward_Pulse

ENDIF

Chapter 5: Tactile Navigation with Whiskers · Page 181

The

Turn_Left

,

Turn_Right

, and

Back_Up

subroutines should look fairly familiar, but the

Forward_Pulse

subroutine has a twist. It just sends one pulse, then returns. This is really important, because it means the Boe-Bot can check its whiskers between each forward pulse. That means the Boe-Bot checks for obstacles roughly 40 times per second as it travels forward.

Forward_Pulse:

PULSOUT 12,650

PULSOUT 13,850

PAUSE 20

RETURN

Since each full speed forward pulse makes the Boe-Bot roll around half a centimeter, it’s a really good idea to only send one pulse, then go back and check the whiskers again.

Since the

IF…THEN

statement is inside a

DO…LOOP

, each time the program returns from a

Forward_Pulse

, it gets to

LOOP

, which sends the program back up to

DO

. What happens then? The

IF…THEN

statement checks the whiskers all over again.

Your Turn

The

FOR

...

NEXT

loop

EndValue

arguments in the

Back_Right

and

Back_Left

routines can be adjusted for more or less turn, and the

Back_Up

routine can have its

EndValue

adjusted to back up less for navigation in tighter spaces.

√ Experiment with the

FOR

...

NEXT

loop

EndValue

arguments in the navigation routines in RoamingWithWhiskers.bs2.

You can also modify your

IF…THEN

statements to make the LED indicators from the previous activity broadcast what maneuver the Boe-Bot is in by adding

HIGH

and

LOW

commands to control the LED circuits. Here is an example.

IF (IN5 = 0) AND (IN7 = 0) THEN

HIGH 10

HIGH 1

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN

HIGH 10

GOSUB Back_Up

Page 182 ·

Robotics with the Boe-Bot

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN

HIGH 1

GOSUB Back_Up

GOSUB Turn_Left

ELSE

LOW 10

LOW 1

GOSUB Forward_Pulse

ENDIF

√ Modify the

IF…THEN

statement in RoamingWithWhiskers.bs2 to make the Boe-

Bot broadcast its maneuver using the LED indicators.

ACTIVITY #4: ARTIFICIAL INTELLIGENCE AND DECIDING WHEN

YOU’RE STUCK

You may have noticed that the Boe-Bot gets stuck in corners. As the Boe-Bot enters the corner, its whisker touches the wall on the left, so it turns right. When the Boe-Bot moves forward again, its right whisker bumps the wall on the right, so it turns left. Then it turns and bumps the left wall again, and the right wall again, and so on, until somebody rescues it from its predicament.

Programming to Escape Corners

RoamingWithWhiskers.bs2 can be modified to detect this problem and act upon it. The trick is to count the number of times that alternate whiskers are contacted. One important thing about this trick is that the program has to remember what state each whisker was in during the previous contact. It has to compare that to the whisker states of the current contact. If they are opposite, then add one to the counter. If the counter goes over a threshold that you (the programmer) have determined, then, it’s time to do a U-turn and reset that alternate whisker counter.

This next program also relies on the fact that you can “nest”

IF…THEN

statements. In other words, the program checks for one condition, and if that condition is true, it checks for another condition within the first condition. Here is a pseudo code example of how it can be used.

IF condition1 THEN

Commands for condition1

IF condition2 THEN

Chapter 5: Tactile Navigation with Whiskers · Page 183

Commands for both condition2 and condition1

ELSE

Commands for condition1 but not condition2

ENDIF

ELSE

Commands for not condition1

ENDIF

There is an example of nested

IF…THEN

statements in the routine that detects consecutive alternate whisker contacts in the next program.

Example Program: EscapingCorners.bs2

This program will cause your Boe-Bot to execute a U-turn at either the fourth or fifth alternate corner, depending on which whisker was pressed first.

√ Enter, save, and run EscapingCorners.bs2.

√ Test this program by pressing alternate whiskers as the Boe-Bot roams.

Depending on which Whisker you started with, the Boe-Bot should execute its

U-Turn maneuver after either the fourth or fifth consecutive whisker press.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - EscapingCorners.bs2

' Boe-Bot navigates out of corners by detecting alternating whisker presses.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]---------------------------------------------------------- pulseCount VAR Byte ' FOR...NEXT loop counter. counter VAR Nib ' Counts alternate contacts. old7 VAR Bit ' Stores previous IN7. old5 VAR Bit ' Stores previous IN5.

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000 ' Signal program start/reset. counter = 1 ' Start alternate corner count. old7 = 0 ' Make up old values. old5 = 1

' -----[ Main Routine ]-------------------------------------------------------

Page 184 ·

Robotics with the Boe-Bot

DO

' --- Detect Consecutive Alternate Corners ------------------------

' See the "How EscapingCorners.bs2 Works" section that follows this program.

IF (IN7 <> IN5) THEN ' One or other is pressed.

IF (old7 <> IN7) AND (old5 <> IN5) THEN ' Different from previous.

counter = counter + 1 ' Alternate whisker count + 1.

old7 = IN7 ' Record this whisker press

old5 = IN5 ' for next comparison.

IF (counter > 4) THEN ' If alternate whisker count = 4,

counter = 1 ' reset whisker counter

GOSUB Back_Up ' and execute a U-turn.

GOSUB Turn_Left

GOSUB Turn_Left

ENDIF ' ENDIF counter > 4.

ELSE ' ELSE (old7=IN7) or (old5=IN5),

counter = 1 ' not alternate, reset counter.

ENDIF ' ENDIF (old7<>IN7) and

' (old5<>IN5).

ENDIF ' ENDIF (IN7<>IN5).

' --- Same navigation routine from RoamingWithWhiskers.bs2 ------------------

IF (IN5 = 0) AND (IN7 = 0) THEN ' Both whiskers detect obstacle

GOSUB Back_Up ' Back up & U-turn (left twice)

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN ' Left whisker contacts

GOSUB Back_Up ' Back up & turn right

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN ' Right whisker contacts

GOSUB Back_Up ' Back up & turn left

GOSUB Turn_Left

ELSE ' Both whiskers 1, no contacts

GOSUB Forward_Pulse ' Apply a forward pulse

ENDIF ' and check again

LOOP

' -----[ Subroutines ]--------------------------------------------------------

Forward_Pulse: ' Send a single forward pulse.

PULSOUT 13,850

PULSOUT 12,650

PAUSE 20

RETURN

Turn_Left: ' Left turn, about 90-degrees.

FOR pulseCount = 0 TO 20

PULSOUT 13, 650

Chapter 5: Tactile Navigation with Whiskers · Page 185

PULSOUT 12, 650

PAUSE 20

NEXT

RETURN

Turn_Right:

FOR pulseCount = 0 TO 20 ' Right turn, about 90-degrees.

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

Back_Up: ' Back up.

FOR pulseCount = 0 TO 40

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

How EscapingCorners.bs2 Works

Since this program is a modified version of RoamingWithWhiskers.bs2, only new features related to detecting and escaping corners are discussed here.

Three extra variables are created for detecting a corner. The nibble variable

counter

can store a value between 0 and 15. Since our target value for detecting a corner is 4, the size of the variable is reasonable. Remember that a bit variable can store a single bit, either a

1 or a 0. The next two variables (

old7

and

old5

) are both bit variables. These are also the right size for the job since they are used to store old values of

IN7

and

IN5

, which are also bit variables. counter VAR Nib old7 VAR Bit old5 VAR Bit

These variables have to be initialized (given initial values). For the sake of making the program easier to read,

counter

is set to 1, and when it gets to 4 due to the fact that the

Boe-Bot is stuck in a corner, it is reset to 1. The

old7

and

old5

variables have to be set so that it looks like one of the two whiskers was pressed some time before the program started. This has to be done because the routine for detecting alternate corners always compares an alternating pattern, either (

IN5 = 1

and

IN7 = 0

) or (

IN5 = 0

and

IN7 =

1

). Likewise,

old5

and

old7

have to be different from each other.

Page 186 ·

Robotics with the Boe-Bot counter = 1 old7 = 0 old5 = 1

Now we get to the Detect Consecutive Alternate Corners section. The first thing we want to check for is if one or the other whisker is pressed. A simple way to do this is to ask “is

IN7

different from

IN5

?” In PBASIC, we can use the not-equal operator

<>

in an

IF

statement:

IF (IN7 <> IN5) THEN

If it is indeed one whisker that is pressed, the next thing to check for is whether or not it’s the exact opposite pattern as the previous time. In other words, is

(old7 <> IN7)

and is

(old5 <> IN5)

? If that’s true, then, it’s time to add one to the counter that tracks alternate whisker contacts. It’s also time to remember the current whisker pattern by setting

old7

equal to the current

IN7

and

old5

equal to the current

IN5

.

IF (old7 <> IN7) AND (old5 <> IN5) THEN

counter = counter + 1

old7 = IN7

old5 = IN5

If it turns out that this is the fourth consecutive whisker contact, then it’s time to reset the counter to 1 and execute a U-turn.

IF (counter > 4) THEN

counter = 1

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

This

ENDIF

ends the code block that is executed if

counter

> 4.

ENDIF

This

ELSE

statement is connected to the

IF (old7 <> IN7) AND (old5 <> IN5) THEN

statement. The

ELSE

statement covers what happens if the

IF

statement is not true. In other words, it must not be an alternate whisker that was pressed, so reset the counter because the Boe-Bot is not stuck in a corner.

Chapter 5: Tactile Navigation with Whiskers · Page 187

ELSE

counter = 1

This

ENDIF

statement ends the decision making process for the

IF

(

old7 <> IN7

)

AND

(old5 <> IN5) THEN

statement.

ENDIF

ENDIF

The remainder of the program is the same as before.

Your Turn

One of the

IF

...

THEN

statements in EscapingCorners.bs2 checks to see if

counter

has reached 4.

√ Try increasing the value to 5 and 6 and note the effect.

√ Try also reducing the value and see if it has any effect on normal roaming.

Page 188 ·

Robotics with the Boe-Bot

SUMMARY

In this chapter, instead of navigating from a pre-programmed list, the Boe-Bot was programmed to navigate based on sensory inputs. The sensory inputs used in this chapter were whiskers, which served as normally open contact switches. When properly wired, these switches can show one voltage (5 V) at the switch’s contact point when it’s open, and a different voltage (0 V) when it’s closed. The BASIC Stamp I/O pin’s input registers store “1” if they detect Vdd (5 V) and “0,” if they detect Vss (0 V).

The BASIC Stamp was programmed to test the whisker sensors and display the test results using two different media, the Debug Terminal and LEDs. PBASIC programs were developed to make the BASIC Stamp check the whiskers between each servo pulse.

Based on the state of the whiskers,

IF…THEN

statements in the program’s Main Routine section called navigation subroutines similar to the ones developed in the previous chapter to guide the Boe-Bot away from obstacles. As an example of artificial intelligence, an additional routine was developed that enabled the Boe-Bot to detect when it got stuck in a corner. This routine involved storing old whisker states, comparing them against the current whisker states, and counting the number of alternate object detections.

This chapter introduced sensor-based Boe-Bot navigation. The next three chapters will focus on using different types of sensors to give the Boe-Bot vision. Both vision and touch open up lots of opportunities for the Boe-Bot to navigate in increasingly complex environments.

Questions

1. What kind of electrical connection is a whisker?

2. When a whisker is pressed, what voltage occurs at the I/O pin monitoring it?

What binary value will occur in the input register? If I/O pin P8 is used to monitor the input pin, what value does

IN8

have when a whisker is pressed, and what value does it have when a whisker is not pressed?

3. If

IN7 = 1

, what does that mean? What does it mean if

IN7 = 0

? How about

IN5 = 1

and

IN5 = 0

?

4. What command is used to jump to different subroutines depending on the value of a variable? What command is used to decide which subroutine to jump to?

What are these decisions based on?

5. What is the purpose of having nested

IF…THEN

statements?

Chapter 5: Tactile Navigation with Whiskers · Page 189

Exercises

1. Write a

DEBUG

command for TestWhiskers.bs2 that updates each whisker state on a new line. Adjust the

PAUSE

command so that it is 250 instead of 50.

2. Using RoamingWithWhiskers.bs2 as a reference, write a

Turn_Away

subroutine that calls the

Back_Up

subroutine once and the

Turn_Left

subroutine twice.

Write down the modifications you will have to make to the Main Routine section of RoamingWithWhiskers.bs2.

Projects

1. Modify RoamingWithWhiskers.bs2 so that the Boe-Bot makes a 4 kHz beep that lasts 100 ms before executing the evasive maneuver. Make it beep twice if both whisker contacts are detected during the same sample.

2. Modify RoamingWithWhiskers.bs2 so that the Boe-Bot roams in a 1 yard (or meter) diameter circle. When you touch one whisker, it will cause the Boe-Bot to travel in a tighter circle (smaller diameter). When you touch the other whisker, it will cause the Boe-Bot to navigate in a wider diameter circle.

Page 190 ·

Robotics with the Boe-Bot

Solutions

Q1. A tactile switch.

Q2. Zero (0) volts, resulting in Binary zero (0) at the input register.

IN8 = 0 when whisker is pressed. IN8 = 1 when whisker is not pressed.

Q3. IN7 = 1 means the right whisker is not pressed.

IN7 = 0 means the right whisker is pressed.

IN5 = 1 means the left whisker is not pressed.

IN5 = 0 means the left whisker is pressed.

Q4. The

GOSUB

command performs the actual jump. The

IF

...

THEN

command is used to decide which subroutine to jump to. That decision is based on conditions, which are logical statements that evaluate to true or false.

Q5. The program can check for one condition, and if that condition is true, it can check for another condition within the first condition.

E1. The key to solving this problem is to use a second

CRSRXY

command that will place the right whisker state in the proper place on the screen. To line up with the headings, the text should start on column 9 of row 3.

' Robotics with the Boe-Bot - TestWhiskers_UpdateEaOnNewLine.bs2

' Update each whisker state on a new line.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "WHISKER STATES", CR,

"Left Right", CR,

"------ ------"

DO

DEBUG CRSRXY, 0, 3, "P5 = ", BIN1 IN5 ' Print in Column 0,Row 3

DEBUG CRSRXY, 9, 3, "P7 = ", BIN1 IN7 ' Print in Column 9,Row 3

PAUSE 250 ' Change from 50 to 250

LOOP

E2.

Turn

_

Away

:

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

RETURN

Chapter 5: Tactile Navigation with Whiskers · Page 191

To modify the

Main

Routine, replace the three

GOSUB

commands under the first

IF

condition with this single line:

GOSUB Turn_Away

P1. The key to solving this problem is to write a statement that makes a beep with the required parameters:

FREQOUT 4, 100, 4000 ' 4kHz beep for 100ms

This statement must be added to the Main Routine in the appropriate places, as shown below. The rest of the program is unchanged.

' -----[ Main Routine ]----------------------------------------

DO

IF (IN5 = 0) AND (IN7 = 0) THEN ' Both whiskers detect

FREQOUT 4, 100, 4000 ' 4 kHz beep for 100 ms

FREQOUT 4, 100, 4000 ' Repeat twice

GOSUB Back_Up ' Back up & U-turn

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN ' Left whisker contacts

FREQOUT 4, 100, 4000 ' 4 kHz beep for 100 ms

GOSUB Back_Up ' Back up & turn right

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN ' Right whisker contacts

FREQOUT 4, 100, 4000 ' 4 kHz beep for 100 ms

GOSUB Back_Up ' Back up & turn left

GOSUB Turn_Left

ELSE ' Both whiskers 1, no

GOSUB Forward_Pulse ' contacts

ENDIF ' Apply a forward pulse

LOOP ' and check again

P2. We found from Chapter 4 Projects that a 1 yard circle can be achieved with

PULSOUT 13, 850

and

PULSOUT 12, 716

. Using these values as the 1y circle, the radius can be adjusted by slightly increasing or decreasing the pulse width from the starting value of 716. Each time a whisker is pressed the program will add or subtract a bit from the right wheel's pulse width.

In the solution below, an audible beeping indicator was added. This acts as feedback to verify that the whisker was pressed. This is entirely optional.

Page 192 ·

Robotics with the Boe-Bot

' Robotics with the Boe-Bot - CirclingWithWhiskerInput.bs2

' Move in 1 yard circle, increase/decrease radius in response

' to whisker presses, one whisker increases, one decreases.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables/Initialization ]------------------------------------ pulseWidth VAR Word ' Signal sent to servo toneFreq VAR Word ' Frequency of beeping tone pulseWidth = 716 ' Found in Ch4 to make 1y circle toneFreq = 4000 ' Beginning tone is 4 kHz

' -----[ Main Routine ]------------------------------------------------

DO

PULSOUT 13, 850 ' Pulse servos in circular path

PULSOUT 12, pulseWidth ' 12 slower than 13 so it arcs

PAUSE 20

IF (IN5 = 0) THEN ' Left whisker makes circle

IF (pulseWidth <= 845) THEN ' smaller, down to servo max

pulseWidth = pulseWidth + 5 ' pulseWidth of 850.

toneFreq = toneFreq + 100

FREQOUT 4, 100, toneFreq ' Play tone as indicator.

ENDIF

ELSEIF (IN7 = 0) THEN ' Right whisker makes circle

IF (pulseWidth >= 655) THEN ' larger, down to servo min

pulseWidth = pulseWidth - 5 ' pulseWidth of 650.

toneFreq = toneFreq - 100

FREQOUT 4, 100, toneFreq ' Play tone as indicator.

ENDIF

ENDIF

LOOP

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 193

Chapter 6: Light Sensitive Navigation with

Photoresistors

Light has many applications in robotics and industrial control. Some examples include sensing the edge of a roll of fabric in the textile industry, determining when to activate streetlights at different times of the year, when to take a picture, or when to deliver water to a crop of plants.

There are many different light sensors that serve unique functions. The light sensor in your Boe-Bot kit is designed to detect visible light, and it can be used to make your Boe-

Bot detect variations in light level. With this ability, your Boe-Bot can be programmed to recognize areas with light or dark perimeters, report the overall brightness and darkness level it sees, and seek out light sources such as flashlight beams and doorways letting light into dark rooms.

INTRODUCING THE PHOTORESISTOR

The resistors you worked with in previous chapters had fixed values, such as 220 Ω and

10 kΩ. The photoresistor, on the other hand, is a light dependent resistor (LDR). This means that its resistance value depends on the brightness, or illuminance, of the light that shines on its light detecting surface. Figure 6-1 shows the schematic symbol and part drawing for the photoresistor you will use to make the Boe-Bot able to detect variations in light levels.

Light detecting surface

Figure 6-1

Photoresistor Schematic and

Part Drawing

Page 194 ·

Robotics with the Boe-Bot

A photoresistor

is a light-dependent resistor (LDR) that covers the spectral sensitivity similar to that of the human eye. In other words, the kind of light that your eye detects is the same kind of light that affects the photoresistor’s resistance. The active elements of these photoresistors are made of Cadmium Sulfide (CdS). Light enters into the semiconductor layer applied to a ceramic substrate and produces free charge carriers. A defined electrical resistance is produced that is inversely proportional to the illumination intensity. In other words, darkness causes more resistance, and brightness causes less resistance.

Illuminance

is a scientific name for the measurement of incident light. One way to understand incident light is to think about shining a flashlight at a wall. The focused beam that you see shining on the wall is incident light. The unit of measurement of illuminance is commonly the "foot-candle" in the English system or the "lux" in the metric system. While using the photoresistors we won't be concerned about lux levels, just whether illuminance is higher or lower in certain directions. The Boe-Bot can be programmed to use the relative light intensity information to make navigation decisions.

ACTIVITY #1: BUILDING AND TESTING PHOTORESISTOR CIRCUITS

In this activity, you will build and test light level sensor circuits with photoresistors.

Your light level sensor circuits will be able to detect the difference between shade and no shade. The PBASIC commands for determining whether a shadow is cast over the photoresistor will be very similar to those used to determine whether or not a whisker has contacted an object.

Parts List:

(2) Photoresistors - CdS

(2) Resistors – 2 kΩ (red-black-red)

(2) Resistors – 220 Ω (red-red-brown)

(4) Jumper wires

(2) Resistors – 470 Ω (yellow-violet-brown)

(2) Resistors – 1 kΩ (brown-black-red)

(2) Resistors – 4.7 kΩ (yellow-violet-red)

(2) Resistors – 10 kΩ (brown-black-orange)

Building the Photosensitive Eyes

Figure 6-2 shows the schematic and Figure 6-3 shows the wiring diagram for the photoresistor circuits you will use in this and the next two activities.

√ Disconnect power from your board and servos.

√ Build the circuit shown in Figure 6-2, using Figure 6-3 as a reference.

Vdd

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 195

Vdd

P6

220

P3

220

2 k

Figure 6-2

Schematic –

First Light

Detection

Circuit

2 k

Vss

To Servos

15 14 13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

+

Board of Education

Rev C

© 2000-2003

To Servos

Vss

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P8

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

X2

+

HomeWork Board

Figure 6-3

Wiring

Diagrams for the First

Light

Detection

Circuit

Board of

Education

(left) and

HomeWork

Board

(right).

Page 196 ·

Robotics with the Boe-Bot

How the Photoresistor Circuit Works

A BASIC Stamp I/O pin can function as an output or an input. As an output, the I/O pin can send a high (5 V) or low (0 V) signal. Up to this point, high and low signals have been used to turn LED circuits on and off, control servos, and send tones to a speaker.

A BASIC Stamp I/O pin can also function as an input. As an input, the I/O pin does not apply any voltage to the circuit it is connected to. Instead, it just quietly listens without any actual effect on the circuit. In the previous chapter, these input registers stored values that indicated whether or not the whiskers were pressed. For example, the

IN7

input register stored a 1 when it sensed 5 V (whisker not pressed), or a 0 when it sensed 0

V (whisker pressed).

An I/O pin set to input doesn't actually need to have 5 V applied to it to make its input register store a 1. Anything above 1.4 V will make the input register for an I/O pin store a 1. Likewise, an I/O pin doesn't need 0 V to make its input register store a 0. Any voltage below 1.4 V will make an input register for an I/O pin store a 0.

BASIC Stamp I/O pins are input by default.

When a BASIC Stamp program starts, all I/O pins start as inputs. When you use commands like

HIGH

,

LOW

,

PULSOUT

or

FREQOUT

, the I/O pin is changed from input to output so that the BASIC Stamp can send the high or low signals.

When a BASIC Stamp I/O pin is an input, the circuit behaves as though neither the I/O pin nor 220 Ω resistor is present. Figure 6-4 shows the equivalent circuit. The resistance of the photoresistor is shown as the letter R. It could be a few Ω if the light is very bright, or it could be in the neighborhood of 50 kΩ in complete darkness. In a well lit room with fluorescent ceiling fixtures, the resistance could be as small as a 1 kΩ (full light exposure) or as large as 25 kΩ (shade cast around most of the object).

As the photoresistor’s resistance changes with light exposure, so does the voltage at Vo; as R gets larger, Vo gets smaller, and as R gets smaller, Vo gets larger. Vo is what the

BASIC Stamp I/O pin is detecting when it is functioning as an input. If this circuit is connected to

IN6

, when the voltage at Vo is above 1.4 V,

IN6

will store a 1. If Vo falls below 1.4 V,

IN6

will store a 0.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 197

Vdd

R

2 k

Vo

Figure 6-4

Schematic –

Voltage Divider

Circuit

Vss

When resistors are connected end-to-end as shown in Figure 6-4 they are connected in

series

, and they can be referred to as series resistors.

When two resistors are connected in series to set a voltage at Vo, the circuit is called a

voltage divider

. In this circuit, the value of Vo can be anywhere between Vdd and Vss.

The exact value of Vo is determined by the ratio of R to 2 kΩ. When R is larger than 2 kΩ,

Vo will be closer to Vss. When R is smaller than 2 kΩ, Vo will be closer to Vdd. When R is equal to 2 kΩ, Vo will be 2.5 V. If you measure one of the two values (R or Vo), you can calculate the other value using one of these two equations.

Vo

=

5 V

×

2 000

2 000

+

R

R

=

5 V

×

2000

Vo

2000

1.4 V is called the BASIC Stamp I/O pin’s threshold voltage, also known as the I/O pin’s

logic threshold

. When voltage sensed by an I/O pin is above that threshold, the I/O pin’s input register will store a 1. If it is below that value, the I/O pin’s input register will store a 0.

Detecting Shadows

Casting a shadow makes the photoresistor’s resistance value (R) larger, which in turn makes Vo smaller. The 2 kΩ resistors were chosen to make the value of Vo reside slightly above the BASIC Stamp I/O pin’s 1.4 V threshold in a well lit room. When you cast a shadow over it with your hand, it should send Vo below the 1.4 V threshold.

In a well lit room, both

IN6

and

IN3

will store the value 1. If you cast a shadow over the photoresistor divider connected to P6, it will then store a 0. Likewise, if you cast a shadow over the photoresistor divider connected to P3, it will cause

IN3

to store a 0.

Page 198 ·

Robotics with the Boe-Bot

Example Program: TestPhotoresistorsDividers.bs2

This example program is TestWhiskers.bs2 adapted to the photoresistor dividers. Instead of monitoring P5 and P7 as we did with the whiskers, we are now monitoring P3 and P6, which are connected to the photoresistor divider circuits. This program should display a value of 1 on both sides in a well-lit room. When you cast a shadow over one or both of the photoresistors, their corresponding values should change to 0.

√ Reconnect power to your board.

√ Enter, save, and run TestPhotoresistorDividers.bs2.

√ Verify that with no shade, both

IN6

and

IN3

store the value 1.

√ Verify that you can use your hand to cast a shadow over each of the photoresistors and cause its input register to change from 1 to 0.

√ If you are having difficulty, either with getting a shadow to change the input register to 0 or if the input registers store 0 regardless of whether or not you cast a shadow over them, see the Photoresistor Divider Troubleshooting box after the program listing. Work on it until your hand casting a shadow over the photoresistor reliably changes the state from 1 to 0.

' Robotics with the Boe-Bot - TestPhotoresistorDividers.bs2

' Display what the I/O pins connected to the photoresistor

' voltage dividers sense.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "PHOTORESISTOR STATES", CR,

"Left Right", CR,

"------- --------"

DO

DEBUG CRSRXY, 0, 3,

"P6 = ", BIN1 IN6,

" P3 = ", BIN1 IN3

PAUSE 100

LOOP

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 199

Photoresistor Divider Troubleshooting

General things to verify:

√ Check your wiring and program for errors.

√ Make sure that each component is firmly plugged into its socket.

√ Check the color codes on your resistors. The resistors that connect between Vss and the photoresistors should be 2 kΩ (red-black-red). The resistors connecting

P6 and P3 to the photoresistors should be 220 Ω (red-red-brown).

If either the IN3 or IN6 registers showed 0 regardless of whether or not you cast a shadow over them:

√ If the room is dimly lit, consider bringing in some extra lamps. Alternately, you can replace the 2 kΩ resistors with 4.7 kΩ resistors (Yellow Violet Red). This will give your resistor divider better performance under lower lighting conditions. For really low lighting conditions, you can even use the 10 kΩ resistors (brown-black- orange).

If either the IN3 or IN6 registers showed 1 regardless of whether or not you cast a shadow over them:

√ If the room is very brightly lit, and you find yourself having to cup your hand over the photoresistor’s light collecting surface to make the 1 go to 0, you may need to substitute a lower value resistor in place of the 2 kΩ. Try 1 kΩ resistor (brownblack-red), or even a 470 Ω resistor (yellow-violet-brown) if you are outdoors.

Your Turn – Experimenting with Different Voltage Dividers

Depending on the lighting conditions in your robotics area, larger or smaller series resistors in place of the 2 kΩ resistors may improve the performance of your shadow detectors.

√ Remember to disconnect power to your board during each circuit modification.

√ Try replacing the 2 kΩ (red-black-red) resistors with each of the other resistor values you have gathered: 470 Ω, 1 kΩ, 4.7 kΩ, and 10 kΩ.

√ Test each voltage divider combination with TestPhotoresistorDividers.bs2 and determine which resistors work best under your lighting conditions. The best combination is one that’s not overly sensitive, but doesn’t require you to cup your hand over the photoresistor either.

√ Use the resistor combination that you think works best in the next two activities.

Page 200 ·

Robotics with the Boe-Bot

ACTIVITY #2: ROAM AND AVOID SHADOWS LIKE OBJECTS

Since the photoresistor dividers behave similarly to whiskers, it’s worth examining what’s involved in adapting RoamingWithWhiskers.bs2 so that it functions with the photoresistor dividers.

Adapting RoamingWithWhiskers.bs2 for the Photoresistor Dividers

All you really have to do is adjust the

IF…THEN

statements so that they monitor

IN6

and

IN3

, instead of

IN7

and

IN5

. Figure 6-5 demonstrates how to make these changes.

Figure 6-5:

Modify RoamingWithWhiskers.bs2 for Use with Photoresistor Dividers

' Modified for

' RoamingWithPhotoresistor

' From RoamingWithWhiskers.bs2

IF (IN5 = 0) AND (IN7 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN5 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (IN7 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

ELSE

GOSUB Forward_Pulse

ENDIF

' Dividers.bs2

IF (IN6 = 0) AND (IN3 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN6 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (IN3 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

ELSE

GOSUB Forward_Pulse

ENDIF

Example Program – RoamingWithPhotoresistorDividers.bs2

√ Open the program RoamingWithWhiskers.bs2 from page 179, and save it as

RoamingWithPhotoresistorDividers.bs2.

√ Make the modifications shown in Figure 6-5.

√ Reconnect power to your board and servos.

√ Run and test the program.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 201

Casting shadows over both photoresistors at the same time can be difficult

. When the

Boe-Bot is going forward, it is checking the photoresistors around 40 times/second. You will have to move quickly to cast a shadow over both photoresistors between pulses. It helps to move your hand rapidly from no shade to full shade to trigger both photoresistors at once.

Alternately, just leave your hand casting shade over both photoresistors while it executes a maneuver. When it returns from the maneuver and checks the photoresistors again, it should recognize that both photoresistors are in shade.

√ Verify that the Boe-Bot avoids shadows by using your hand to cast a shadow over the photoresistors. Try no shadow, a shadow over the right photoresistor divider (circuit connected to P3), a shadow over the left photoresistor divider

(circuit connected to P7), and a shadow over both photoresistor dividers.

√ Update the comments such as the title and descriptions of reactions to whisker presses to reflect the photoresistor circuit behavior. It should resemble the program below when you are done.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - RoamingWithPhotoresistorDividers.bs2

' Boe-Bot detects shadows photoresistors voltage divider circuit and turns

' away from them.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]---------------------------------------------------------- pulseCount VAR Byte ' FOR...NEXT loop counter.

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000 ' Start/restart signal.

' -----[ Main Routine ]-------------------------------------------------------

DO

IF (IN6 = 0) AND (IN3 = 0) THEN ' Both photoresistors detects

GOSUB Back_Up ' shadow, back up & U-turn

GOSUB Turn_Left ' (left twice).

GOSUB Turn_Left

ELSEIF (IN6 = 0) THEN ' Left photoresistor detects

GOSUB Back_Up ' shadow, back up & turn right.

GOSUB Turn_Right

ELSEIF (IN3 = 0) THEN ' Right photoresistor detects

GOSUB Back_Up ' shadow, back up & turn left.

GOSUB Turn_Left

Page 202 ·

Robotics with the Boe-Bot

ELSE ' Neither photoresistor detects

GOSUB Forward_Pulse ' shadow, apply a forward pulse.

ENDIF

LOOP

' -----[ Subroutines ]--------------------------------------------------------

Forward_Pulse: ' Send a single forward pulse.

PULSOUT 12,650

PULSOUT 13,850

PAUSE 20

RETURN

Turn_Left: ' Left turn, about 90-degrees.

FOR pulseCount = 0 TO 20

PULSOUT 12, 650

PULSOUT 13, 650

PAUSE 20

NEXT

RETURN

Turn_Right:

FOR pulseCount = 0 TO 20 ' Right turn, about 90-degrees.

PULSOUT 12, 850

PULSOUT 13, 850

PAUSE 20

NEXT

RETURN

Back_Up: ' Back up.

FOR pulseCount = 0 TO 40

PULSOUT 12, 850

PULSOUT 13, 650

PAUSE 20

NEXT

RETURN

Your Turn – Improving performance

You can improve your Boe-Bot’s performance by commenting some of the subroutine calls that were designed to help the Boe-Bot back away from obstacles and then turn to avoid them. Figure 6-6 shows an example where the two

Turn_Left

subroutine calls are commented from the

IF…THEN

statement when the condition is that both photoresistors detect a shadow. Then, when only individual photoresistors detect shadows, the

Back_Up

subroutine calls are commented so that the Boe-Bot only turns in response to a shadow.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 203

Figure 6-6: Modify RoamingWithPhotoresistorDividers.bs2

' Excerpt from

' RoamingWithPhotoresistor

' Dividers.bs2

' Modified excerpt from

' RoamingWithPhotoresistor

' Dividers.bs2

IF (IN6 = 0) AND (IN3 = 0) THEN

GOSUB Back_Up

IF (IN6 = 0) AND (IN3 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (IN6 = 0) THEN

GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (IN3 = 0) THEN

GOSUB Back_Up

' GOSUB Turn_Left

' GOSUB Turn_Left

ELSEIF (IN6 = 0) THEN

' GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (IN3 = 0) THEN

' GOSUB Back_Up

GOSUB Turn_Left

ELSE

GOSUB Turn_Left

ELSE

GOSUB Forward_Pulse

ENDIF

GOSUB Forward_Pulse

ENDIF

√ Modify RoamingWithPhotoresistorDividers.bs2 as shown in the right side of

Figure 6-6.

√ Run the program, and compare the performance.

ACTIVITY #3: A MORE RESPONSIVE SHADOW CONTROLLED BOE-BOT

By eliminating the

FOR…NEXT

loops in the navigation subroutines, you can make the Boe-

Bot significantly more responsive. This wasn’t really possible with the whiskers, because the Boe-Bot had to back up before turning since it had already made physical contact with the obstacle. When you are using shadows to guide the Boe-Bot, it can check between each pulse to see if the shadow is still detected regardless of whether it’s moving forward or executing a maneuver.

A Simple Shadow Controlled Boe-Bot

One interesting form of remote control is to have the Boe-Bot sit still in normal light, then follow a shadow you cast over the photoresistors. It’s kind of a user-friendly way of guiding the Boe-Bot’s motion.

Example Program – ShadowGuidedBoeBot.bs2

When you run this next program, the Boe-Bot should stay still when no shadow is cast over its photoresistor dividers. When you cast a shadow over both photoresistors, the

Page 204 ·

Robotics with the Boe-Bot

Boe-Bot should move forward. If you cast a shadow over one of the photoresistors, the

Boe-Bot should turn in the direction of the photoresistor that senses the shadow.

√ Enter, save, and run ShadowGuidedBoeBot.bs2.

√ Use your hand to cast shadows over the photoresistor dividers.

√ Study this program carefully and make sure you understand how it works. It is very short, yet very powerful.

' Robotics with the Boe-Bot - ShadowGuidedBoeBot.bs2

' Boe-Bot detects shadows cast by your hand and tries to follow them.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

FREQOUT 4, 2000, 3000 ' Start/restart signal.

DO

IF (IN6 = 0) AND (IN3 = 0) THEN ' Both detect shadows, forward.

PULSOUT 13, 850

PULSOUT 12, 650

ELSEIF (IN6 = 0) THEN ' Left detects shadow,

PULSOUT 13, 750 ' pivot left.

PULSOUT 12, 650

ELSEIF (IN3 = 0) THEN ' Right detects shadow,

PULSOUT 13, 850 ' pivot right.

PULSOUT 12, 750

ELSE

PULSOUT 13, 750 ' No shadow, sit still

PULSOUT 12, 750

ENDIF

PAUSE 20 ' Pause between pulses.

LOOP

How ShadowGuidedBoeBot.bs2 Works

The

IF…THEN

statement in the

DO…LOOP

looks for one of the four possible shadow conditions: both, left, right, neither. Depending on which condition is detected,

PULSOUT

commands deliver pulses for one of the following maneuvers: forward, pivot right, pivot left, or sit still. Regardless of the condition, one of the four sets of pulses will be delivered each time through the

DO…LOOP

. After the

IF…THEN

statement, it’s important to remember to include the

PAUSE 20

to ensure the low time between each pair of servo pulses.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 205

Your Turn – Condensing the Program

This program does not need the

ELSE

condition or the two

PULSOUT

commands that follow. If you deliver no pulses, the Boe-Bot will sit still, just as it should when you deliver pulses using 750 for the

PULSOUT

Duration

argument.

√ Try deleting (or commenting) this code block.

ELSE

PULSOUT 13, 750

PULSOUT 12, 750

√ Run the modified program.

√ Can you detect any difference in the Boe-Bot’s behavior?

ACTIVITY #4: GETTING MORE INFORMATION FROM YOUR

PHOTORESISTORS

The only information the BASIC Stamp was able to gather from the photoresistor divider circuits was whether the light level was above or below a threshold. This activity introduces a different circuit that the BASIC Stamp can monitor, and actually gather enough information from it to determine relative light levels. The value the BASIC

Stamp gets from the circuit will range from small numbers, indicating bright light, to large numbers, indicating low light. This means no more manually replacing series resistors based on light levels. Instead, you will be able to adjust your program to look for different ranges of values.

Introducing the Capacitor

A capacitor is a device that stores charge, and it is a fundamental building block of many circuits. How much charge the capacitor tends to store is measured in farads (F). A farad is a very large value that’s not practical for use with the Boe-Bot. The capacitors you will use in this activity store fractions of millionths of farads. A millionth of a farad is called a microfarad, and it’s abbreviated µF. The capacitor you will use in this exercise stores one one-hundredth of a millionth of a farad. That’s 0.01 µF.

Page 206 ·

Robotics with the Boe-Bot

Common capacitance measurements are:

Microfarads:

Nanofarads:

(millionths of a Farad), abbreviated µF

(billionths of a Farad), abbreviated nF

Picofarads: (trillionths of a Farad), abbreviated pF

1 µF = 1×10

1 nF = 1×10

1 pF = 1×10

-6

-9

F

F

-12

F

The 103 on the 0.01 µF capacitor’s case

is a measurement picofarads or (pF). 103 is 10, with three zeros added, which is 10,000. Here is how to relate 103 to 0.01 µF.

10,000 is 10 × 10

3

.

(10 × 10

3

) × (1 × 10

-12

) F = 10 × 10

-9

F which is also 0.01 × 10

-6

F which is 0.01 µF.

Figure 6-7 shows the schematic symbol for a 0.01 µF capacitor along with a drawing of the part in your Boe-Bot parts kit. The 103 marking on the capacitor indicates its value.

Parts List:

(2) Photoresistors - CDS

(2) Capacitors – 0.01 µF (103)

(2) Resistors - 220 Ω

(red-red-brown)

(2) Jumper wires

0.01 µF

103

Figure 6-7

Capacitor

Schematic

Symbol and

Part Drawing

There may also be 0.1 µF capacitors marked 104 in your kit. Do not use them in these activities.

√ Make sure you have selected the 0.01 µF capacitors (marked 103) for this activity.

The 0.1 µF capacitors can be used in brightly lit areas, but they interfere with the Boe-Bot’s performance in indoor and low lighting activities.

Rebuilding the Photosensitive Eyes

The circuit the BASIC Stamp can use to determine light levels is called a resistor/capacitor (RC) circuit. Figure 6-8 shows schematics of the Boe-Bot’s RC light detection circuits and Figure 6-9 shows examples wiring diagrams for the Board of

Education and the HomeWork Board.

√ Disconnect power from your board and servos.

√ Build the RC circuits shown in Figure 6-8 using Figure 6-9 as a reference.

P6

220

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 207

P3

220 Ω

Vss

0.01 µF

0.01 µF

Figure 6-8

Schematic - Two

Photoresistor RC

Circuits

For measurement of resistance that varies with light.

To Servos

Vdd

13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

+

Board of Education

Rev C

© 2000-2003

Vss

To Servos

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1

P0

X2

+

HomeWork Board

Figure 6-9

Wiring

Diagrams for

Photoresistor

Circuits

Board of

Education

(left) and

HomeWork

Board (right).

Page 208 ·

Robotics with the Boe-Bot

About RC Decay Time and the Photoresistor Circuit

Think of a capacitor in the circuit shown in Figure 6-10 as a tiny rechargeable battery.

When P6 sends the high signal, it essentially charges this capacitor-battery by applying 5

V to it. After a few ms, the capacitor charges up to almost 5 V. If the BASIC Stamp program then changes the I/O pin so that it just quietly listens, the capacitor loses its charge through the photoresistor. As the capacitor looses its charge through the photoresistor, its voltage decays, getting lower and lower as it looses charge. The amount of time it takes for the voltage that

IN6

senses to drop below 1.4 V depends on how strongly the photoresistor “resists” the flow of electric current supplied by the capacitor.

If the photoresistor has a large resistance value due to very dim lighting conditions, the capacitor takes longer to discharge. If the photoresistor has a small resistance value because the light incident on its surface is very bright, it will not resist current very strongly, and the capacitor will lose its charge very rapidly.

P6

220

0.01 µF

Figure 6-10

RC Circuit

Connected to I/O

Pin

Vss

Connected in parallel

The photoresistor and capacitor shown in Figure 6-10 are connected in parallel. For two components to be connected in parallel, each of their leads must be connected to common terminals (also called nodes). The photoresistor and the capacitor each have one lead connected to Vss. They also each have one lead connected to the same 220 Ω resistor lead.

Measuring RC Decay Time with the BASIC Stamp

The BASIC Stamp can be programmed to charge the capacitor and then measure the time it takes the capacitor's voltage to decay to 1.4 V. This decay time measurement can be used to indicate the photoresistor's resistance. This resistance in turn indicates how bright the light detected by the photoresistor really is. This measurement requires a combination of the

HIGH

and

PAUSE

commands along with a new command called

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 209

RCTIME

. The

RCTIME

command is designed to measure RC decay time on a circuit like the one in Figure 6-10. Here is the syntax for the

RCTIME

command:

RCTIME Pin, State, Duration

The

Pin

argument is the number of the I/O pin that you want to measure. For example, if you want to measure P6, the

Pin

argument should be 6. The

State

argument can either be 1 or 0. It should be 1 if the voltage across the capacitor starts above 1.4 V and decays downward. It should be 0 if the voltage across the capacitor starts below 1.4 V and grows upward. For the circuit in Figure 6-10, the voltage across the capacitor will start close to 5 V and decay to 1.4 V, so the

State

argument should be 1. The

Duration

argument has to be a variable that stores the time measurement, which is in 2 µs units. In this next example program, we’ll measure the RC decay time on the photoresistor circuit connected to P6, which is the photoresistor on the Boe-Bot’s left.

To measure RC decay, the first thing you have to do is make sure you have declared a variable that will store the time measurement: timeLeft VAR Word

These next three lines of code charge the capacitor, measure the RC decay time and then store it in the

timeLeft

variable.

HIGH 6

PAUSE 3

RCTIME 6,1,timeLeft

To get the measurement, the code implements these three steps:

1. Start charging the capacitor by connecting the circuit to 5 V (using the

HIGH

command).

2. Use

PAUSE

to give the

HIGH

command enough time to charge the capacitor in the

RC circuit.

3. Execute the

RCTIME

command, which sets the I/O pin to input, measures the decay time (from almost 5 V to 1.4 V), and stores it in the

timeLeft

variable.

Example Program: TestP6Photoresistor.bs2

√ Reconnect power to your board.

√ Enter, save, and run TestP6Photoresistor.bs2.

Page 210 ·

Robotics with the Boe-Bot

√ Cast a shadow over the photoresistor connected to P6 and verify that the time measurement gets larger as the environment gets darker.

√ Point the photoresistor’s light collecting surface directly at an overhead light, or shine flashlight directly at it. The time measurement should get very small. It should then get larger as you gradually direct the photoresistor further away from the light source. It should get even larger if you cast a shadow over it or turn out the lights.

' Robotics with the Boe-Bot - TestP6Photoresistor.bs2

' Test Boe-Bot photoresistor circuit connected to P6 and display

' the decay time.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive. timeLeft VAR Word

DO

HIGH 6

PAUSE 2

RCTIME 6,1,timeLeft

DEBUG HOME, "timeLeft = ", DEC5 timeLeft

PAUSE 100

LOOP

Your Turn

√ Save TestP6Photoresistor.bs2 as TestP3Photoresistor.bs2.

√ Modify the program so that it performs the RC decay time measurement on the right photoresistor, the one connected to P3.

√ Repeat the shadow and bright light tests with the P3 RC circuit and verify that it works correctly. You will need to modify the

Pin

arguments for both the

HIGH

and

RCTIME

commands, changing them from 6 to 3.

ACTIVITY #5: FLASHLIGHT BEAM FOLLOWING BOE-BOT

In this activity, you will test and calibrate your Boe-Bot’s light sensors so that they recognize the difference between ambient light and a directed flashlight beam. You will then program the Boe-Bot to follow the flashlight beam that is pointed at the surface in front of the Boe-Bot.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 211

Extra Equipment

(1) Flashlight

Adjust Sensors to Search for Flashlight Beam

This activity works best if the photoresistors’ light-collecting surfaces are pointing ahead at separate points on the ground about 2 in (5.1 cm) in front of the Boe-Bot.

√ Point the light collecting surfaces of your photoresistors at the surface in front of the Boe-Bot as shown in Figure 6-11.

Figure 6-11:

Photoresistor Orientation

To Servos

15 14 13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

+

Board of Education

Rev C

© 2000-2003

Page 212 ·

Robotics with the Boe-Bot

Testing Sensor Response to Flashlight Beam

Before you can program the Boe-Bot to turn towards a flashlight beam, you have to know the difference between light readings with and without the flashlight beam shining in the

Boe-Bot’s path.

Example Program: TestBothPhotoresistors.bs2

√ Enter, save, and run TestBothPhotoresistors.bs2.

√ Place the Boe-Bot on the surface where it is to follow the flashlight beam. Make sure it is still connected to the serial cable and that the measurements are displaying in the Debug Terminal.

√ Record the values of both time measurements in the first row of Table 6-1.

√ Turn on your flashlight, and focus your beam in front of the Boe-Bot.

√ Your time measurements should now be significantly lower than the first set.

Record these new values of both time measurements in the second row of Table

6-1.

Table 6-1:

RC-Time Measurements With and Without Flashlight Beam

Duration Values timeLeft timeRight

Description

Time measurements with no flashlight beam (ambient light).

Time measurements with flashlight beam focused in front of the Boe-Bot.

' Robotics with the Boe-Bot - TestBothPhotoresistors.bs2

' Test Boe-Bot RC photoresistor circuits.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive. timeLeft VAR Word ' Variable declarations. timeRight VAR Word

DEBUG "PHOTORESISTOR VALUES", CR, ' Initialization.

"timeLeft timeRight", CR,

"-------- ---------"

DO ' Main routine.

HIGH 6 ' Left RC time measurement.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 213

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

DEBUG CRSRXY, 0, 3, ' Display measurements.

DEC5 timeLeft,

" ",

DEC5 timeRight

PAUSE 100

LOOP

Your Turn

√ Try facing the Boe-Bot in different directions, and repeat your measurements.

√ For better results, you can average your measurements for "flashlight on" and

"flashlight off" and replace the values in Table 6-1 with your average values.

Following the Flashlight Beam

You have been using variable declarations up to this point. For example,

counter VAR

Nib

gives the name

counter

to a particular memory location in the BASIC Stamp’s

RAM. After you have declared the variable, every time you use

counter

in a PBASIC program, it uses the value stored at that particular location in the BASIC Stamp’s RAM.

You can also declare constants. In other words, if you have a number you plan on using in your program, give it a useful name. Instead of the

VAR

directive, use the

CON

directive. Here are some

CON

directives from the next example program:

LeftAmbient CON 108

RightAmbient CON 114

LeftBright CON 20

RightBright CON 22

Now, everywhere in the program the name

LeftAmbient

is used, the BASIC Stamp will use the number 108. Everywhere

RightAmbient

is used, the BASIC Stamp will use the value 114. Likewise, everywhere

LeftBright

appears, it’s really the value 20, and

RightBright

is 22. You will substitute your values from Table 6-1 before running the program.

Page 214 ·

Robotics with the Boe-Bot

Constants can even be used to calculate other constants. Here is an example of two constants, named

LeftThreshold

and

RightThreshold

that are calculated using the four constants just discussed. The

LeftThreshold

and

RightThreshold

constants are used in the program to figure out whether or not the flashlight beam has been detected.

' Average Scale factor

LeftThreshold CON LeftBright + LeftAmbient / 2 * 5 / 8

RightThreshold CON RightBright + RightAmbient / 2 * 5 / 8

The math performed on these constants is an average, and then a scale. The average calculation for

LeftThreshold

is

LeftBright

+

LeftAmbient

/ 2. That result is multiplied by 5 and divided by 8. This means that

LeftThreshold

is a constant whose value is the

5

/

8

of the average of

LeftBright

and

LeftAmbient

.

Math expressions in PBASIC are executed from left to right.

First,

LeftBright

is added to

LeftAmbient

. This value is divided by 2. The result is then multiplied by 5 and divided by 8.

Let’s try this:

LeftBright

+

LeftAmbient

= 20 + 108 = 128.

128 / 2 = 64.

64 * 5 = 320

320 / 8 = 40

You can use parentheses to force a calculation that is further to the right in a line of

PBASIC code to be completed first.

For example, you can rewrite this line of PBASIC code:

pulseRight = 2 - distanceRight * 35 + 750

like this:

pulseRight = 35 * (2 – distanceRight) + 750

In this expression, 35 is multiplied by the result of (

2 – distanceRigh

t), then the product is added to 750.

Example Program: FlashlightControlledBoeBot.bs2

√ Enter FlashlightControlledBoeBot.bs2 into the BASIC Stamp Editor.

√ Substitute your

timeLeft

measurement with no flashlight beam (from Table 6-

1) in place of the value 108 in the

LeftAmbient CON

directive.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 215

√ Substitute your

timeRight

measurement with no flashlight beam in place of the value 114 in the

RightAmbient CON

directive.

√ Substitute your

timeLeft

measurement with focused flashlight beam in place of the value 20 in the

LeftBright CON

directive.

√ Substitute your

timeRight

measurement with focused flashlight beam in place of the value 22 in the

RightBright CON

directive.

√ Reconnect power to your board and servos.

√ Save and then run FlashlightControlledBoeBot.bs2.

√ Experiment and figure out exactly where to focus the light to get the forward, left turn, and right turn maneuvers to execute.

√ Use the flashlight to guide your Boe-Bot through various obstacle courses and maneuvers.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - FlashlightControlledBoeBot.bs2

' Boe-Bot follows flashlight beam focused in front of it.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Constants ]----------------------------------------------------------

' REPLACE THESE VALUES WITH THE VALUES YOU DETERMINED AND ENTERED INTO

' TABLE 6.1.

LeftAmbient CON 108

RightAmbient CON 114

LeftBright CON 20

RightBright CON 22

' Average Scale factor

LeftThreshold CON LeftBright + LeftAmbient / 2 * 5 / 8

RightThreshold CON RightBright + RightAmbient / 2 * 5 / 8

' -----[ Variables ]----------------------------------------------------------

' Declare variables for storing measured RC times of the

' left & right photoresistors. timeLeft VAR Word timeRight VAR Word

' -----[ Initialization ]-----------------------------------------------------

Page 216 ·

Robotics with the Boe-Bot

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]-------------------------------------------------------

DO

GOSUB Test_Photoresistors

GOSUB Navigate

LOOP

' -----[ Subroutine - Test_Photoresistors ]-----------------------------------

Test_Photoresistors:

HIGH 6 ' Left RC time measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

RETURN

' -----[ Subroutine - Navigate ]----------------------------------------------

Navigate:

IF (timeLeft < LeftThreshold) AND (timeRight < RightThreshold) THEN

PULSOUT 13, 850 ' Both detect flashlight beam,

PULSOUT 12, 650 ' full speed forward.

ELSEIF (timeLeft < LeftThreshold) THEN ' Left detects flashlight beam,

PULSOUT 13, 700 ' pivot left.

PULSOUT 12, 700

ELSEIF (timeRight < RightThreshold) THEN ' Right detects flashlight beam,

PULSOUT 13, 800 ' pivot right.

PULSOUT 12, 800

ELSE

PULSOUT 13, 750 ' No flashlight beam, sit still.

PULSOUT 12, 750

ENDIF

PAUSE 20 ' Pause between pulses.

RETURN

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 217

How FlashlightControlledBoeBot.bs2 Works

These are the four constant declarations that you used with your own values from Table

6-1.

LeftAmbient CON 108

RightAmbient CON 114

LeftBright CON 20

RightBright CON 22

Now that the four constants have been declared, the next two lines average and scale the values to come up with threshold values for the program. These threshold values can be compared with the current

timeLeft

and

timeRight

measurements to determine whether the photoresistors are sensing ambient light or a focused beam.

' Average Scale

LeftThreshold CON LeftBright + LeftAmbient / 2 * 5 / 8

RightThreshold CON RightBright + RightAmbient / 2 * 5 / 8

These variables are used to store the

RCTIME

measurements. timeLeft VAR Word timeRight VAR Word

This is the reset indicator that has been used in most of the programs in this text.

FREQOUT 4, 2000, 3000

The Main Routine section contains just two subroutine calls. All the actual work in the program occurs in the two subroutines.

Test_Photoresistors

takes the

RCTIME

measurements for both RC photoresistor circuits, and the

Navigate

subroutine makes the decisions and delivers the servo pulses.

DO

GOSUB Test_Photoresistors

GOSUB Navigate

LOOP

Page 218 ·

Robotics with the Boe-Bot

This is the subroutine that performs the

RCTIME

measurements on both photoresistor RC circuits. The measurement for the left circuit is stored in the

timeLeft

variable, and the measurement for the right circuit is stored in the

timeRight

variable.

Test_Photoresistors:

HIGH 6

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3

PAUSE 3

RCTIME 3,1,timeRight

RETURN

The Navigate subroutine uses an

IF…THEN

statement to compare the

timeLeft

variable against the

LeftThreshold

constant and the

timeRight

variable against the

RightThreshold

constant. Remember, when the

RCTIME

measurement is small, it means bright light is detected, and when it’s large, it means the light is not as bright. So, when one of the variables that stores an

RCTIME

measurement is smaller than the threshold constant, it means the flashlight beam has been detected; otherwise, the flashlight beam has not been detected. Depending on which condition this subroutine detects (both, left, right or neither), the correct navigation pulses is applied, followed by a

PAUSE

before the

RETURN

command exits the subroutine.

Navigate:

IF(timeLeft<LeftThreshold)AND(timeRight<RightThreshold) THEN

PULSOUT 13, 850

PULSOUT 12, 650

ELSEIF (timeLeft < LeftThreshold) THEN

PULSOUT 13, 700

PULSOUT 12, 700

ELSEIF (timeRight < RightThreshold) THEN

PULSOUT 13, 800

PULSOUT 12, 800

ELSE

PULSOUT 13, 750

PULSOUT 12, 750

ENDIF

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 219

PAUSE 20

RETURN

Your Turn – Adjusting the Performance and Changing the Behavior

You can adjust the program’s performance by adjusting the scale factor term in this constant declaration:

' Average Scale factor

LeftThreshold CON LeftBright + LeftAmbient / 2 * 5 / 8

RightThreshold CON RightBright + RightAmbient / 2 * 5 / 8

If you change the scale factor from

5

/

8

to

1

/

2

, it will make the Boe-Bot less sensitive to the flashlight, which may (or may not) lead to improved flashlight control.

√ Try different scale factors, such as

1

/

4

,

1

/

2

,

1

/

3

,

2

/

3

, and

3

/

4

and make notes about any differences in the way the Boe-Bot responded to the flashlight beam.

By modifying the

IF…THEN

statement in the example program, you can change the Boe-

Bot’s behavior so that it tries to get the light out of its eyes.

√ Modify the

IF…THEN

statement so that the Boe-Bot backs up when it detects the flashlight beam with both photoresistor circuits and turns away if it detects the flashlight beam with only one of its photoresistor circuits.

ACTIVITY #6: ROAMING TOWARD THE LIGHT

The example program in this activity can be used to guide the Boe-Bot through exiting a fairly dark room toward a doorway that’s letting in brighter light. It also allows for much better control over the Boe-Bot’s roaming by casting shadows over the photoresistors with your hand.

Readjusting the Photoresistors

This activity works best if the photoresistors’ light collecting surfaces are pointing upwards and outwards.

Page 220 ·

Robotics with the Boe-Bot

√ Point the light collecting surfaces of your photoresistors upward and outward shown in Figure 6-12.

Figure 6-12:

Photoresistor Orientation

Vdd Vin Vss

X3

P15

P6

P5

P4

P3

P2

P1

P0

P14

P13

P12

P11

P10

P9

P8

P7

X2

+

Programming the Roaming Toward the Light Behavior

The key to roaming toward brighter light sources is going straight ahead when the differences between the photoresistor measurements are small, and turning toward the smaller photoresistor measurement when there is a large difference between the two measurements. In effect, this means the Boe-Bot will turn toward bright light.

Initially this seems like a simple enough programming task;

IF…THEN

reasoning like this example below should work. The problem is, it doesn’t because the Boe-Bot gets stuck turning left and then right again because the change in

timeLeft

and

timeRight

is too large. Each time the Boe-Bot turns a little, the

timeRight

and

timeLeft

variables change so much that the Boe-Bot tries to correct and turn back. It never manages to get any forward pulses in.

IF (timeLeft > timeRight) THEN ' Turn right.

PULSOUT 13, 850

PULSOUT 12, 850

ELSEIF (timeRight > timeLeft) THEN ' Turn left.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 221

PULSOUT 13, 650

PULSOUT 12, 650

ELSE ' Go forward.

PULSOUT 13, 850

PULSOUT 12, 650

ENDIF

Here is another code block that works a little better. This code block fixes the turning back and forth problem under certain conditions. The

timeLeft

variable now has to be larger than

timeRight

by a margin of 15 before the Boe-Bot will apply a left pulse.

Likewise,

timeRight

has to be larger than

timeLeft

by 15 before the Boe-Bot adjusts to the left. This gives the Boe-Bot the opportunity to apply enough forward pulses before it has to correct with a turn, but only at certain light levels.

IF (timeLeft > timeRight + 15) THEN ' Turn right.

PULSOUT 13, 850

PULSOUT 12, 850

ELSEIF (timeRight > timeLeft + 15) THEN ' Turn left.

PULSOUT 13, 650

PULSOUT 12, 650

ELSE ' Go forward.

PULSOUT 13, 850

PULSOUT 12, 650

ENDIF

The problem with the code block above is that it works under medium dark conditions only. If you take it into a much darker area, the Boe-Bot starts turning back and forth again, and it never applies any forward pulses. If you take it into a brighter area, the Boe-

Bot just goes forward, and never makes any adjustments to the left or right.

Why does that happen?

Here is the answer: When the Boe-Bot is in a dark part of a room, the measurement for each photoresistor will be large. For the Boe-Bot to decide to turn toward a light source, the difference between these two measurements has to be large. When the Boe-Bot is in a more brightly lit area, the measurement for each photoresistor will be smaller. For the

Boe-Bot to decide to make a turn, the difference between photoresistor measurements also has to be much smaller than it was in the darker part of the room. The way to make this difference respond to the lighting conditions is to make it a variable that is a fraction of the average of

timeRight

and

timeLeft

. That way, it will always be the right value, regardless whether the lighting is bright or dim.

Page 222 ·

Robotics with the Boe-Bot

average = timeRight + timeLeft / 2

difference = average / 6

Now, the

difference

variable can be used in this

IF…THEN

statement, and it will be a large value when the lighting is low, and a small value when the lighting is bright.

IF (timeLeft > timeRight + difference) THEN ' Turn right.

PULSOUT 13, 850

PULSOUT 12, 850

ELSEIF (timeRight > timeLeft + difference) THEN ' Turn left.

PULSOUT 13, 650

PULSOUT 12, 650

ELSE ' Go forward.

PULSOUT 13, 850

PULSOUT 12, 650

ENDIF

Example Program – RoamingTowardTheLight.bs2

Unlike RoamingWithPhotoresistorDividers.bs2 on page 201, this program will be very responsive to your hand casting a shadow over the photoresistor, regardless of whether the light is bright or dim. This program does not need to change resistors depending on the lighting conditions. Instead, it takes into account the lighting conditions and the sensitivity adjustment is made in software using the

average

and

difference

variables.

For this program to work well, your photoresistors should respond similarly to similar light levels.

If the RC circuits are severely mismatched, your measurements from Table 6-1 will be very different under the same lighting conditions. You can correct these mismatched measurements using techniques discussed in Appendix F: Balancing Photoresistors.

This program measures the overall average of

timeLeft

and

timeRight

and uses it to set the

difference

between the

timeLeft

and

timeRight

measurements that’s needed to justify delivering a turning pulse.

√ Enter, save, and run RoamingTowardTheLight.bs2

√ Take it to various areas, and let it roam, and verify that you can change its course by casting a shadow over one of the photoresistor RC circuits, regardless of the lighting conditions.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 223

√ Also try placing your Boe-Bot in a room that is poorly lit, but that has light streaming in through a doorway from an adjacent brightly lit room or hallway.

See if the Boe-Bot can successfully find its way out the door.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - RoamingTowardTheLight.bs2

' Boe-Bot roams, and turns away from dark areas in favor of brighter areas.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]----------------------------------------------------------

' Declare variables for storing measured RC times of the

' left & right photoresistors. timeLeft VAR Word timeRight VAR Word average VAR Word difference VAR Word

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]-------------------------------------------------------

DO

GOSUB Test_Photoresistors

' For mismatched photoresistors, use Appendix F, uncomment and use next line.

' timeLeft = (timeLeft */ 351) + 7 ' Replace 351 and 7 with your own values.

GOSUB Average_And_Difference

GOSUB Navigate

LOOP

' -----[ Subroutine - Test_Photoresistors ]-----------------------------------

Test_Photoresistors:

HIGH 6 ' Left RC time measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

RETURN

Page 224 ·

Robotics with the Boe-Bot

' -----[ Subroutine - Average_And_Difference ]--------------------------------

Average_And_Difference:

average = timeRight + timeLeft / 2

difference = average / 6

RETURN

' -----[ Subroutine - Navigate ]----------------------------------------------

Navigate:

' Shadow significantly stronger on left detector, turn right.

IF (timeLeft > timeRight + difference) THEN

PULSOUT 13, 850

PULSOUT 12, 850

' Shadow significantly stronger on right detector, turn left.

ELSEIF (timeRight > timeLeft + difference) THEN

PULSOUT 13, 650

PULSOUT 12, 650

' Shadows in same neighborhood of intensity on both detectors.

ELSE

PULSOUT 13, 850

PULSOUT 12, 650

ENDIF

PAUSE 10

RETURN

Why PAUSE 10 instead of PAUSE 20?

Because the

Test_Photoresistors

subroutine has two

PAUSE

commands adding up to 6 ms plus some extra time to execute the

RCTIME

commands. Both these factors add to the amount of time between servo pulses, so the

PAUSE

in the

Navigate

subroutine has to be reduced. After some trial and error experiments,

PAUSE 10

appeared to give the servos the most reliable performance over the widest range of light levels.

Your Turn – Adjusting the Sensitivity to Differences in Light

Right now, the

difference

variable is the

average

divided by 6. You can divide

average

by a smaller value if you want to make the Boe-Bot less sensitive to differences in light or divide it by a larger value if you want to make the Boe-Bot more sensitive to differences in light level.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 225

√ Instead of the value 6, try dividing the

average

variable by the values 3, 4, 5, 7, and 9.

√ Run the program and test the Boe-Bot’s ability to exit a dark room with each denominator value.

√ Decide what the optimum denominator value is.

Average_And_Difference:

average = timeRight + timeLeft / 2

difference = average / 6

RETURN

You can also change the denominator into a constant like this:

Denominator CON 6

Then, in your Average_And_Difference subroutine, you can replace 6 (or the optimum value that you determined) with the

Denominator

constant, like this:

Average_And_Difference:

average = timeRight + timeLeft / 2

difference = average / Denominator

RETURN

√ Make the changes just discussed, and verify that the program still works correctly.

You can also use one less variable in this program. Notice that the only time the

average

variable is used is to temporarily hold the average value, then it gets divided by

Denominator

and stored in the

difference

variable. The

difference

variable is needed later, but the

average

variable is not. One way to fix this problem would be to simply use the

difference

variable in place of the

average

variable. It will work fine, and you would no longer need the

average

variable. Here is how the subroutine would look:

Average_And_Difference:

difference = timeRight + timeLeft / 2

Page 226 ·

Robotics with the Boe-Bot

difference = difference / Denominator

RETURN

There is a better way though.

√ Leave the

Average_And_Difference

routine like this:

Average_And_Difference:

average = timeRight + timeLeft / 2

difference = average / Denominator

RETURN

√ Next, make this change in the variable declarations:

Figure 6-13:

Modify RoamingTowardTheLight.bs2 to Save a Word of RAM

' Unchanged code ' Changed to save Word of RAM average VAR Word average VAR Word difference VAR Word difference VAR average

We don’t really need the

average

variable, but the program will make more sense to someone trying to understand it if we use the word

average

in the first line and the word

difference

in the second line. Here is how to create an alias name

difference

for the

average

variable. difference VAR average

Now, both

average

and

difference

refer to the same word of RAM.

√ Test your modified program and make sure it still works properly.

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 227

SUMMARY

This chapter focused on measuring differences in light intensity and programming the

Boe-Bot to act on these differences. A pair of cadmium sulfide (CdS) photoresistors were used to measure differences in visible light. The CdS photoresistors were first connected to resistors to form voltage dividers, and the BASIC Stamp monitored the voltage at the connection between the photoresistor and the fixed resistor. When this voltage dropped below or rose above 1.4 V the input register for the I/O pin connected to the circuit stored either a 0 or 1. The Boe-Bot was programmed to make decisions using these binary values in a manner similar to the whiskers.

The photoresistor divider technique works so long as the right resistors are chosen and the lighting doesn’t change. However, a much more versatile way of detecting light levels with the BASIC Stamp is to use the CdS photoresistor in an RC circuit, charge the capacitor, and then measure the decay time. RC stands for resistor capacitor, and the capacitor was introduced in this chapter along with a circuit that makes it possible for the

BASIC Stamp to measure RC decay time. This is easily done with the BASIC Stamp using the RCTIME command, which is specifically designed for measuring RC decay and growth times.

Constants were introduced as a way to substitute meaningful names for numbers that are used in a PBASIC program. Scaling and averaging were also introduced. Scaling was used to set a threshold value to indicate whether or not a flashlight beam was detected. It was also used to determine the average value of the light levels in an area based on the two photoresistor RC time measurements. This was used to create a threshold that automatically self-adjusted to the overall lighting conditions, eliminating the need to change resistors when the light levels change.

Watch the Boe-Bot in Action at www.parallax.com!

You can see the Boe-Bot solving Chapter 6 Projects 1 and 2 along with other Robotics video clips in the Robo Video Gallery under the Robotics Menu at www.parallax.com.

Questions

1. How does the resistance of a photoresistor respond to bright and dim light?

What happens if the light levels are between bright and dim?

Page 228 ·

Robotics with the Boe-Bot

2. Does an I/O pin have any effect on the circuit when it’s set to input? What causes the input register for an I/O pin to hold a 1 or 0 when it’s set to input?

3. What does threshold voltage mean? What’s the threshold voltage of a BASIC

Stamp I/O pin?

4. Referring to Figure 6-4 on page 197, what causes Vo to rise above or fall below a BASIC Stamp I/O pin’s threshold voltage? What is it about the circuit that causes Vo to change value?

5. How does the program ShadowGuidedBoeBot.bs2 differ from the program

RoamingWithPhotoresistorDividers.bs2? What does this change in the Boe-

Bot’s performance?

6. What is a constant declaration? What does it do? How can you use one in a program?

7. How are math expressions evaluated in PBASIC?

8. What are the two examples in this chapter where PBASIC was used to calculate an average? How are they different? How are they the same?

Exercises

1. Calculate Vo for Figure 6-4 on page 197 if R is 10 kΩ. Repeat for R = 30 kΩ.

2. If Vo in Figure 6-4 on page 197 is 1.4 V, what’s the value of R? Repeat for Vo

= 1 V and Vo = 3 V.

3. Assume you have three variable values:

firstValue

,

secondValue

, and

thirdValue

. Write a command that takes the average of these three values in a variable named

myAverage

. Write a command that stores 7/8 of the average value in a variable named

myScaledAverage

. Write the variable declarations needed to make your command able to run in a program, first with

myAverage

and

myScaledAverage

as separate variables, then with one of these variable names aliased as the other.

Projects

1. With your Boe-Bot’s photoresistors looking down in front of it, develop a program that makes your Boe-Bot recognize the difference between black and white. Find a large white surface and place dark-black sheets of paper on it.

Develop a program that makes the Boe-Bot avoid the black sheets of paper.

Hints: Make sure to test and understand what the Boe-Bot sees when it is focused on a black sheet of paper and what it sees when it is focused on a white background. Use example programs from the last three activities in this chapter.

The RC decay time circuit and programs will be much more helpful for making

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 229 the program work than the photoresistor divider techniques. Also, make sure this obstacle course is in a uniformly lit area. Bright sunlight from windows, and shadows cast by onlookers can make the demonstration fail.

2. If you succeeded with project 1, experiment with confining the Boe-Bot so that it can only roam in a space that is enclosed by black sheets of paper.

Page 230 ·

Robotics with the Boe-Bot

Solutions

Q1. The resistance is small, a few ohms, if the light is bright. The resistance is large, around 50 kΩ, in dim light. For light levels between bright and dim, its resistance will be somewhere between the bright and dim values.

Q2. No. The I/O pin just quietly listens without any actual effect on the circuit. The value of the applied voltage causes the input register to change what it stores. If the applied voltage is less than 1.4 volts it stores a 0. Otherwise it stores a 1.

Q3. The threshold voltage is a value above which is a logic 1, below which is a logic

0. The threshold voltage of BASIC Stamp modules is 1.4 volts.

Q4. The value of Vo is determined by the ratio of the resistors. Vo changes value because the resistor, R, changes value. R is a photoresistor which changes value depending on the amount of light falling upon it.

Q5. It checks the sensors between each pulse, instead of having fixed maneuvers of many pulses. This makes the Boe-Bot much more responsive.

Q6. A constant declaration tells the compiler the value of your constant. For example, MaxTemp

CON 212

is a constant declaration. A constant gives a useful name to a number or value used in a program. To use a constant, type the constant name anywhere in the program where the value is needed.

Q7. Expressions are evaluated from left to right. This is different than standard algebraic evaluation, where multiplication and division are evaluated before addition and subtraction.

Q8. In FlashLightControlledBoeBot.bs2, averages were used to calculate lighting thresholds. In RoamingTowardTheLight.bs2, an average of the left and right readings is calculated. They different in that the first is calculated statically in a constant declaration, and the second is calculated dynamically as the program runs. They are similar in that they both add two values together and divide by 2.

E1. a) R = 10 kOhm

Vo = 5V * (2000 / (2000 + R))

= 5 * (2000 / (2000 + 10000)

= 5 * (2000 / (12000)

= 5 * ( 2 / 12 )

= 5 * ( 1 / 6 )

= 5 * 0.17

= 0.83 Volts

If R = 10 kOhm, Vo = 0.83 V b) R = 30 kOhm

Vo = 5V * (2000 / (2000 + R))

= 5 * (2000 / (2000 + 30000)

= 5 * (2000 / (32000)

= 5 * ( 2 / 32 )

= 5 8 ( 1 / 16 )

= 5 * 0.06

= 0.31 Volts

If R = 30 kOhm, Vo = 0.31 V

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 231

E2.

a) Vo = 1.4 V

R = (5 * (2000/Vo)) – 2000

= (5 * (2000/1.4)) – 2000

= (5 * 1428.57) – 2000

= 7142.86 – 2000

= 5142.86

= 5143 Ohm

When Vo = 1.4V, R = 5143 Ω

c) Vo = 3.0 V

R = (5 * (2000/3.0)) – 2000

= (5 * 666.67) – 2000

= 3333.33 – 2000

= 1333.33

= 1333 Ohm

When Vo = 1.4V, R = 1333 Ω

b) Vo = 1.0 V

R = (5 * (2000/1)) – 2000

= (5 * 2000) – 2000

= (10000) – 2000

= 8000

= 8 kOhm

When Vo = 1.4V, R = 8 kΩ

E3. The average of these three values in a variable named

myAverage

, storing 7/8 in

myScaledAvereage

: myAverage = firstValue + secondValue + thirdValue / 3 myScaledAverage = myAverage * 7 / 8

Declarations as separate variables: myAverage VAR Word myScaledAverage VAR Word

Declarations using aliasing: myAverage VAR Word myScaledAverage VAR myAverage

P1. The first step is to use "TestBothPhotoresistors.bs2" and determine the values for the white surface and the black paper. Similar to

"FlashlightControlledBoeBot.bs2", these values can be coded as constants.

Then,

IF…THEN

statements can be used to determine whether the values are above or below the average readings. (For the author's Boe-Bot, scaling was not necessary). Here's a program solution that makes the Boe-Bot recognize the difference between black and white surfaces.

Page 232 ·

Robotics with the Boe-Bot

' -----[ Title ]----------------------------------------------------------

' Robotics with the Boe-Bot - TestBlackWhiteLogic.bs2

' Calculate whether Boe-Bot is over black or white surface, and print.

' {$STAMP BS2} ' Stamp directive

' {$PBASIC 2.5} ' PBASIC directive.

' -----[ Constants ]------------------------------------------------------

LeftWhite CON 16

RightWhite CON 33

LeftBlack CON 26

RightBlack CON 45

LeftAvg CON LeftWhite + LeftBlack / 2

RightAvg CON RightWhite + RightBlack / 2

' -----[ Variables ]------------------------------------------------------ timeLeft VAR Word ' Left photoresistor reading timeRight VAR Word ' Right photoresistor reading

' -----[ Main Routine ]---------------------------------------------------

DO

GOSUB Test_Photoresistors

IF (timeLeft > LeftAvg) THEN

DEBUG CRSRXY, 0, 0, "Left Black "

ELSE

DEBUG CRSRXY, 0, 0, "Left White "

ENDIF

IF (timeRight > RightAvg) THEN

DEBUG CRSRXY, 13, 0, "Right Black", CR

ELSE

DEBUG CRSRXY, 13, 0, "Right White", CR

ENDIF

LOOP

' -----[ Subroutine - Test_Photoresistors ]-------------------------------

Test_Photoresistors:

HIGH 6 ' Left RC time Measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

RETURN

To develop a program that makes the Boe-Bot avoid the black sheets of paper, the decision and navigation steps required are very similar to

Chapter 6: Light Sensitive Navigation with Photoresistors · Page 233

"FlashlightControlledBoeBot.bs2" and "RoamingTowardTheLight.bs2". A sample solution is shown below.

' -----[ Title ]-------------------------------------------------------

' Robotics with the Boe-Bot - AvoidBlackSpots.bs2

' Boe-Bot avoids black pieces of paper.

' {$STAMP BS2} ' Stamp directive

' {$PBASIC 2.5} ' PBASIC directive.

' -----[ Constants ]---------------------------------------------------

LeftWhite CON 16

RightWhite CON 33

LeftBlack CON 26

RightBlack CON 45

LeftAvg CON LeftWhite + LeftBlack / 2

RightAvg CON RightWhite + RightBlack / 2

' -----[ Variables ]--------------------------------------------------- timeLeft VAR Word ' Left photoresistor reading timeRight VAR Word ' Right photoresistor reading

' -----[ Initialization ]----------------------------------------------

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]------------------------------------------------

DO

GOSUB Test_Photoresistors

GOSUB Navigate

LOOP

' -----[ Subroutines --------------------------------------------------

Test_Photoresistors:

HIGH 6 ' Left RC time

Measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

RETURN

Navigate:

Page 234 ·

Robotics with the Boe-Bot

' Both detect black paper, back up and make a noise

IF (timeLeft > LeftAvg) AND (timeRight > RightAvg) THEN

PULSOUT 13, 650

PULSOUT 12, 850

FREQOUT 4, 20, 4400 ' Beep instead of pause

' Left detects black paper, turn away to right, make a noise

ELSEIF (timeLeft > LeftAvg) THEN

PULSOUT 13, 850

PULSOUT 12, 850

FREQOUT 4, 20, 2200

' Right detects black paper, turn away to left, make a noise

ELSEIF (timeRight > RightAvg) THEN

PULSOUT 13, 650

PULSOUT 12, 650

FREQOUT 4, 20, 3300

' Neither detects black paper, go forward one pulse.

ELSE

PULSOUT 13,850

PULSOUT 12,650

PAUSE 20

ENDIF

RETURN

Hints: Make sure to test and understand what the Boe-Bot sees when it is focused on a black sheet of paper and what it sees when it is focused on a white background. Use example programs from the last three activities in this chapter.

The RC decay time circuit and programs will be much more helpful for making the program work than the photoresistor divider techniques. Also, make sure this obstacle course is in a uniformly lit area. Bright sunlight from windows, and shadows cast by onlookers can make the demonstration fail.

P2. The "AvoidBlackSpots.bs2" program solution, above, works quite well to keep the Boe-Bot confined in a black-bordered space. A video clip of a Boe-Bot doing just this can be viewed at www.parallax.com. Under the Robotics menu, look for Robo Video Gallery.

Chapter 7: Navigating with Infrared Headlights · Page 235

Chapter 7: Navigating with Infrared Headlights

Today's hottest products seem to have one thing in common: wireless communication.

Personal organizers beam data into desktop computers, and wireless remotes let us channel surf. Many remote controls and PDA’s use signals in the infrared frequency range to communicate, below the visible light spectrum. With a few inexpensive and widely available parts, the BASIC Stamp can also receive and transmit infrared light signals.

USING INFRARED HEADLIGHTS TO SEE THE ROAD

Detecting objects without whiskers doesn’t require anything as sophisticated as machine vision. Some robots use RADAR or SONAR (sometimes called SODAR when used in air instead of water). An even simpler system is to use infrared light to illuminate the robot’s path and determine when the light reflects off an object. Thanks to the proliferation of infrared (IR) remote controls, IR illuminators and detectors are readily available and inexpensive.

Infrared:

Infra means below, so Infra-red is light (or electromagnetic radiation) that has lower frequency, or longer wavelength than red light. Table 7-1 shows the wavelengths for common colors along with the infrared spectrum. Our IR LED and detector work at 980 nm

(nanometers) which is considered near infrared. Night-vision goggles and IR temperature sensing use far infrared wavelengths of 2000-10,000 nm, depending on the application.

Table 7-1 shows the wavelengths for common colors along with the infrared spectrum.

Color

Violet

Blue

Green

Yellow

Orange

Table 7-1:

Colors and Approximate Wavelengths

Wavelength Color

400 Red

470

565

590

630

Near infrared

Infrared

Far infrared

Wavelength

780

800-1000

1000-2000

2000-10,000

Page 236 ·

Robotics with the Boe-Bot

Infrared Headlights

The infrared object detection system we’ll build on the Boe-Bot is like a car’s headlights in several respects. When the light from a car’s headlights reflects off obstacles, your eyes detect the obstacles and your brain processes them and makes your body guide the car accordingly. The Boe-Bot uses infrared LEDs for headlights as shown in Figure 7-1.

They emit infrared, and in some cases, the infrared reflects off objects and bounces back in the direction of the Boe-Bot. The eyes of the Boe-Bot are the infrared detectors. The infrared detectors send signals indicating whether or not they detect infrared reflected off an object. The brain of the Boe-Bot, the BASIC Stamp, makes decisions and operates the servo motors based on this sensor input.

Figure 7-1

Object Detection with IR Headlights

The IR detectors have built-in optical filters that allow very little light except the 980 nm infrared that we want to detect with its internal photodiode sensor. The infrared detector also has an electronic filter that only allows signals around 38.5 kHz to pass through. In other words, the detector is only looking for infrared that’s flashing on and off 38,500 times per second. This prevents IR interference from common sources such as sunlight and indoor lighting. Sunlight is DC interference (0 Hz), and indoor lighting tends to flash on and off at either 100 or 120 Hz, depending on the main power source in the region.

Since 120 Hz is outside the electronic filter’s 38.5 kHz band pass frequency, it is completely ignored by the IR detectors.

Chapter 7: Navigating with Infrared Headlights · Page 237

Some fluorescent lights do generate signals that can be detected by the IR detectors.

These lights can cause problems for your Boe-Bot’s infrared headlights. One of the things you will do in this chapter is develop an infrared interference “sniffer” that you can use to test the fluorescent lights near your Boe-Bot courses.

ACTIVITY #1: BUILDING AND TESTING THE IR PAIRS

In this activity, you will build and test the infrared transmitter/detector pairs.

Parts List:

(2) Infrared detectors

(2) IR LEDs (clear case)

(2) IR LED shield assemblies

(2) Resistors - 220 Ω

(red-red-brown)

(2) Resistors – 1 kΩ

(brown-black-red)

+

-

1

2

3

Longer lead

+

-

1

2

3

Flattened edge

Figure 7-2

New Parts

Used in this

Chapter

IR detector

(top)

IR LED

(middle)

IR LED shield assembly

(bottom)

Building the IR Headlights

√ Insert the infrared LED into the shield assembly as shown in Figure 7-3.

√ Make sure the LED snaps into the larger part of the housing.

√ Snap the smaller part of the housing over the LED case and onto the larger part.

+

-

IR LED will snap in.

Figure 7-3

Snapping the IR

LED into the

Shield Assembly

Page 238 ·

Robotics with the Boe-Bot

One IR pair (IR LED and detector) is mounted on each corner of the breadboard. Figure

7-4 shows the IR headlights circuit as a schematic and Figure 7-5 shows the circuit as a wiring diagram.

√ Disconnect power from your board and servos.

√ Build the circuit shown by the schematic in Figure 7-4, using the wiring diagram for your board in Figure 7-5 as a reference for parts placement.

Vdd

P2

1 k Ω

P9

IR

LED

220 Ω

Vss

Vss

P8

Vdd

Figure 7-4

Left and Right IR

Pairs

1 k Ω

IR

LED

P0

220 Ω

Vss

Vss

Left IR Pair Right IR Pair

Watch your IR LED anodes and cathodes!

Remember that the anode lead is the longer lead on an IR LED by convention, but that you need to check the LED’s plastic case to make sure. The cathode lead is the one near the flat spot on the case. In Figure 7-5, the anode lead of each IR LED connects to a 1 kΩ resistor. The cathode lead plugs into the same breadboard row as an IR detector’s center pin, and that row connects to Vss with a jumper wire.

Chapter 7: Navigating with Infrared Headlights · Page 239

To Servos

Vdd

13 12

Vdd

X4 X5

Vin Vss

Red

Black

X3

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1

P0

X2

+

Board of Education

Rev C

© 2000-2003 anode leads

To Servos

X3

P5

P4

P3

P2

P1

P0

P9

P8

P7

P6

P15

P14

P13

P12

P11

P10

X2

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

+

HomeWork Board

anode leads

Figure 7-5

Wiring

Diagrams for

Infrared

Emitter and

Receiver

Circuits

Board of

Education

(left) and

HomeWork

Board (right).

Testing the IR Pairs Using the FREQOUT Trick

The

FREQOUT

command was designed mainly to synthesize audio tones. The actual range of the

FREQOUT

command is 1 to 32768 Hz. One interesting phenomenon of digitally synthesized tones is that they contain signals called harmonics. A harmonic is a higher frequency tone that’s mixed in with the tone you want to hear. These tones are outside human abilities to detect sound, which tend to range from 20 Hz to 20 kHz. The harmonics generated by the

FREQOUT

command start at 32769 Hz and go upward. You can directly control these harmonics using

Freq1

arguments above 32768. In this activity, you will use the command

FREQOUT 8, 1, 38500

to send a 38.5 kHz harmonic that lasts 1 ms to P8. The infrared LED circuit connected to P8 will broadcast this harmonic. If the infrared light is reflected back to the Boe-Bot by an object in its path, the infrared detector will send the BASIC Stamp a signal to let it know that the reflected infrared light was detected.

Page 240 ·

Robotics with the Boe-Bot

FREQOUT

Command - Fundamentals and Harmonics

The fundamental frequency is the value of the

Freq1

argument when it’s at or below

32768. For example, when you use the command

FREQOUT 4, 2000, 3000

, the fundamental frequency is 3000 Hz. That's the intended sound, but there is also a harmonic sound that accompanies it. This harmonic is a much higher frequency that the human ear can detect, in the neighborhood of 62.5 kHz. Here's how to calculate the harmonic frequency given the fundamental and visa versa.

Whenever you use the

FREQOUT

command to send a tone in this range, it contains that hidden (harmonic) tone as well. The equation for the harmonic is:

harmonic frequency = 65536 – Freq1, Freq1 <= 32678

Whenever you use the

FREQOUT

command with a

Freq1

argument above 32768 to send a harmonic, it contains a fundamental tone. The equation for the fundamental is:

fundamental frequency = 65536 – Freq1, Freq1 > 32768

The key to making each IR LED/detector pair work is to send 1 ms of 38.5 kHz

FREQOUT

harmonic, and then, immediately store the IR detector’s output in a variable. Here is an example that sends the 38.5 kHz signal to the IR LED connected to P8, then stores the IR detector’s output, which is connected to P9, in a bit variable named

irDetectLeft

.

FREQOUT 8, 1, 38500

irDetectLeft = IN9

The IR detector’s output state when it sees no IR signal is high. When the IR detector sees the 38500 Hz harmonic reflected by an object, its output is low. The IR detector’s output only stays low for a fraction of a millisecond after the

FREQOUT

command is done sending the harmonic, so it’s essential to store the IR detector’s output in a variable immediately after sending the

FREQOUT

command. The value stored by the variable can then be displayed in the Debug Terminal or used for navigation decisions by the Boe-Bot.

Example Program: TestLeftIrPair.bs2

√ Reconnect power to your board.

√ Enter, save, and run TestLeftIrPair.bs2.

' Robotics with the Boe-Bot - TestLeftIrPair.bs2

' Test IR object detection circuits, IR LED connected to P8 and detector

' connected to P9.

' {$STAMP BS2}

Chapter 7: Navigating with Infrared Headlights · Page 241

' {$PBASIC 2.5} irDetectLeft VAR Bit

DO

FREQOUT 8, 1, 38500

irDetectLeft = IN9

DEBUG HOME, "irDetectLeft = ", BIN1 irDetectLeft

PAUSE 100

LOOP

√ Leave the Boe-Bot connected to the serial cable, because you will be using the

Debug Terminal to test your IR pair.

√ Place an object, such as your hand or a sheet of paper, about an inch from the left

IR pair, in the manner shown in Figure 7-1 on page 236.

√ Verify that when you place an object in front of the IR pair the Debug Terminal displays a 0, and when you remove the object from in front of the IR pair, it displays a 1.

√ If the Debug Terminal displays the expected values for object not detected (1) and object detected (0), move on to the Your Turn section following the example program.

√ If the Debug Terminal does not display the expected values, try the steps in the

Trouble-Shooting box.

Trouble-Shooting

If the Debug Terminal does not display the expected values, check for circuit and program entry errors.

If you are always getting 0, even when an object is not placed in front of the Boe-Bot, there may be a nearby object that is reflecting the infrared. The surface of the table in front of the

Boe-Bot is a common culprit. Move the Boe-Bot so that the IR LED and detector cannot possibly be reflecting off any nearby object.

If the reading is 1 most of the time when there is no object in front of the Boe-Bot, but flickers to 0 occasionally, it may mean you have interference from a nearby fluorescent light.

Turn off any nearby fluorescent lights and repeat your tests.

Your Turn

√ Save TestLeftIrPair.bs2 as TestRightIrPair.bs2.

Page 242 ·

Robotics with the Boe-Bot

√ Change the

DEBUG

statement, title and comments to refer to the right IR pair.

√ Change the variable name from

irDetectLeft

to

irDetectRight

. You will need to do this in four places in the program.

√ Change the

FREQOUT

command’s

Pin

argument from 8 to 2.

√ Change the input register monitored by the

irDetectRight

variable from

IN9

to

IN0

.

√ Repeat the testing steps in this activity for the right IR pair; with the IR LED circuit connected to P2 and the detector connected to P0.

ACTIVITY #2: FIELD TESTING FOR OBJECT DETECTION AND

INFRARED INTERFERENCE

In this activity, you will build and test indicator LEDs that will tell you if an object is detected without the help of the Debug Terminal. This is handy if you are not near a PC or laptop, and you need to trouble-shoot your IR detector circuits. You will also write a program to “sniff” for infrared interference from fluorescent lights. Some fluorescent lights send signals that resemble the signal sent by your infrared LEDs. The device inside a fluorescent light fixture that controls voltage for the lamp is called the ballast.

Some ballasts operate in the same frequency range of your IR detector, 38.5 kHz, which in turn causes the lamp to emit a signal at this frequency. When you integrate IR object detection with navigation, this interference can cause some bizarre Boe-Bot behavior!

Rebuilding the LED Indicator Circuits

These are the same LED indicator circuits that you used with the whiskers.

Parts List:

(2) Red LEDs

(2) Resistors – 220 Ω (red-red-brown)

√ Disconnect power from your board and servos.

√ Build the circuit shown in Figure 7-6 using Figure 7-7 as a reference.

Chapter 7: Navigating with Infrared Headlights · Page 243

P10 P1

220

Red

LED

220

Red

LED

Figure 7-6

Left and Right

Indicator LEDs

Vss

Left IR Pair Right IR Pair

Vss

To Servos

To Servos

15 14 Vdd 13 12

Anode leads

Vdd

X4 X5

Vin Vss

Red

Black

P10

P9

P8

P7

P6

P5

P3

P15

P14

X3

P13

P12

P11

P4

P2

P1

P0

X2

+

Board of Education

Rev C

© 2000-2003

Anode leads

(916) 624-8333 www.parallax.com

www.stampsinclass.com

Rev B

Vdd Vin Vss

X3

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

X2

+

HomeWork Board

Figure 7-7

Wiring

Diagrams for

Red LED

Indicators with IR Object

Detection

Circuits

Board of

Education

(left) and

HomeWork

Board (right).

Testing the System

There are quite a few components involved in this system, and this increases the likelihood of a wiring error. That’s why it’s important to have a test program that shows you what the infrared detectors are sensing. You can use this program to verify that all the circuits are working before unplugging the Boe-Bot from its serial cable and testing other objects.

Example Program – TestIrPairsAndIndicators.bs2

√ Reconnect power to your board.

√ Enter, save, and run TestIrPairsAndIndicators.bs2.

Page 244 ·

Robotics with the Boe-Bot

√ Verify that the speaker makes a clear, audible tone while the Debug Terminal displays “Testing piezospeaker…”.

√ Use the Debug Terminal to verify that the BASIC Stamp still receives a zero from each IR detector when an object is placed in front of it.

√ Verify that the LED next to each detector emits light when the detector detects an object. If one or both of the LEDs appear not to work, check your wiring and your program.

' Robotics with the Boe-Bot - TestIrPairsAndIndicators.bs2

' Test IR object detection circuits.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

' -----[ Variables ]---------------------------------------------------------- irDetectLeft VAR Bit irDetectRight VAR Bit

' -----[ Initialization ]-----------------------------------------------------

DEBUG "Testing piezospeaker..."

FREQOUT 4, 2000, 3000

DEBUG CLS,

"IR DETECTORS", CR,

"Left Right", CR,

"----- -----"

' -----[ Main Routine ]-------------------------------------------------------

DO

FREQOUT 8, 1, 38500

irDetectLeft = IN9

FREQOUT 2, 1, 38500

irDetectRight = IN0

IF (irDetectLeft = 0) THEN

HIGH 10

ELSE

LOW 10

ENDIF

IF (irDetectRight = 0) THEN

HIGH 1

ELSE

Chapter 7: Navigating with Infrared Headlights · Page 245

LOW 1

ENDIF

DEBUG CRSRXY, 2, 3, BIN1 irDetectLeft,

CRSRXY, 9, 3, BIN1 irDetectRight

PAUSE 100

LOOP

Your Turn – Remote Testing and Range Testing

You can now use your LED detectors to take your Boe-Bot and test your IR detectors on objects that might not otherwise be in reach of your computer’s serial cable.

√ Unplug your Boe-Bot from the serial cable, and take your Boe-Bot to a variety of objects and test the range of the IR detectors.

√ Try the detection range of different colored objects. What color is detected at the furthest range? What color is detected at the closest range?

Sniffing for IR Interference

If you happened to notice that your Boe-Bot let you know it detected something even though nothing was in range, it may mean that a nearby light is generating some IR light at a frequency close to 38.5 kHz. If you try to have a Boe-Bot contest or demonstration under one of these lights, your infrared systems might end up performing very poorly.

The last thing anybody wants is to have their robot not perform as advertised during a public demonstration, so make sure to check any prospective demo area with this IR interference “sniffer” program before-hand.

The concept behind this program is simple, don’t transmit any IR through the IR LEDs, just monitor to see if any IR is detected. If IR is detected, sound the alarm using the piezospeaker.

You can use a handheld remote for just about any piece of equipment to generate IR interference. TVs, VCRs, CD/DVD players, and projectors all use the same IR detectors you have on your Boe-Bot right now. Likewise, the remotes you use to control these devices all use the same kind of IR LED that's on your Boe-Bot to transmit messages to the

IR detector in your TV, VCR, CD/DVD player, etc.

Page 246 ·

Robotics with the Boe-Bot

Example Program – IrInterferenceSniffer.bs2

√ Enter, save, and run IrInterferenceSniffer.bs2.

√ Test to make sure the Boe-Bot sounds the alarm when it detects IR interference.

You can do this with a separate Boe-Bot that’s running

TestIrPairsAndIndicators.bs2. If you don’t have a second Boe-Bot, just use a handheld remote for a TV, VCR, CD/DVD player, or projector. Simply point the remote at the Boe-Bot and press a button. If the Boe-Bot responds by sounding the alarm, you know your IR interference sniffer is working.

' Robotics with the Boe-Bot – IrInterferenceSniffer.bs2

' Test fluorescent lights, infrared remotes, and other sources

' of 38.5 kHz IR interference.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive. counter VAR Nib

DEBUG "IR interference not detected, yet...", CR

DO

IF (IN0 = 0) OR (IN9 = 0) THEN

DEBUG "IR Interference detected!!!", CR

FOR counter = 1 TO 5

HIGH 1

HIGH 10

FREQOUT 4, 50, 4000

LOW 1

LOW 10

PAUSE 20

NEXT

ENDIF

LOOP

Your Turn – Testing for Fluorescent Lights that Interfere

√ Disconnect your Boe-Bot from its serial cable, and point it at any fluorescent light near where you plan to operate it. Especially if you get frequent alarms, turn off that fluorescent light before trying to use IR object detection under it.

Always use this IrInterferenceSniffer.bs2 to make sure that any area where you are using the Boe-Bot is free of infrared interference.

Chapter 7: Navigating with Infrared Headlights · Page 247

ACTIVITY #3: INFRARED DETECTION RANGE ADJUSTMENTS

You may have noticed that brighter car headlights (or a brighter flashlight) can be used to see objects that are further away when it’s dark. By making the Boe-Bot’s infrared LED headlights brighter, you can also increase its detection range. By resisting electric current less, a smaller resistor allows more current to flow through an LED. More current through an LED is what causes it to glow more brightly. In this activity, you will examine the effect of different resistance values with both the red and infrared LEDs.

Parts List:

You will need some extra parts for this activity.

(2) Resistors – 470 Ω (yellow-violet-brown)

(2) Resistors – 220 Ω (red-red-brown)

(2) Resistors – 2 kΩ (red-black-red)

(2) Resistors – 4.7 kΩ (yellow-violet-red)

Series Resistance and LED Brightness

First, let’s use one of the red LEDs to “see” the difference that a resistor makes in how brightly an LED glows. All we need to test the LED is a program that sends a high signal to the LED.

Example Program – P1LedHigh.bs2

√ Enter, save and run P1LedHigh.bs2.

√ Run the program and verify that the LED in the circuit connected to P1 emits light.

' Robotics with the Boe-Bot - P1LedHigh.bs2

' Set P1 high to test for LED brightness testing with each of

' these resistor values in turn: 220 ohm , 470 ohm, 1 k ohm.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!"

HIGH 1

STOP

Page 248 ·

Robotics with the Boe-Bot

The command

STOP

is used here rather than

END

, since

END

would put the BASIC Stamp into low power mode.

Your Turn – Testing LED Brightness

Remember to disconnect power before you make changes to a circuit.

Remember also that the same program will run again when you reconnect power, so you can pick up right where you left off with each test.

√ Note how brightly the LED in the circuit connected to P1 is glowing with the

220 Ω resistor.

√ Replace the 220 Ω resistor connected to P1 and the right LED’s cathode with a

470 Ω resistor.

√ Note now how brightly the LED glows.

√ Repeat for a 2 kΩ resistor.

√ Repeat once more with a 4.7 kΩ resistor.

√ Replace the 4.7 kΩ resistor with the 220 Ω resistor before moving on to the next portion of this activity.

√ Explain in your own words the relationship between LED brightness and series resistance.

Series Resistance and IR Detection Range

We now know that less series resistance will make an LED glow more brightly. A reasonable hypothesis would be that brighter IR LEDs can make it possible to detect objects that are further away.

√ Open and run TestIrPairsAndIndicators.bs2 (from page 244).

√ Verify that both detectors are working properly.

Your Turn – Testing IR LED Range

√ With a ruler, measure the furthest distance from the IR LED that a sheet of paper facing the IR LED can be detected, with the 1 kΩ resistors in place, and record your data in Table 7-2.

√ Replace the 1 kΩ resistors that connect P2 and P8 to the IR LED anodes with 4.7 kΩ resistors.

√ Determine the furthest distance at which the same sheet of paper is detected, and record your data.

Chapter 7: Navigating with Infrared Headlights · Page 249

√ Repeat with 2 kΩ resistors.

√ Repeat with 470 Ω resistors.

√ Repeat with 220 Ω resistors.

Table 7-2:

Detection Distance vs. Resistance

IR LED Series

Resistance, (

Ω)

Maximum Detection Distance,

Circle one: ( in / cm )

4700

2000

1000

470

220

√ Before moving on to the next activity, restore your IR pairs to their original configuration (with 1 kΩ resistors in series with each IR LED).

√ Also, before moving on, make sure to test this last change with

TestIrPairsAndIndicators.bs2 to verify that both IR LED/detector pairs are working properly.

ACTIVITY #4: OBJECT DETECTION AND AVOIDANCE

An interesting thing about the IR detectors is that their outputs are just like the whiskers.

When no object is detected, the output is high; when an object is detected, the output is low. In this activity, RoamingWithWhiskers.bs2 from page 178 is modified so that it works with the IR detectors.

Converting the Whiskers Program for IR Object Detection/Avoidance

This next example program started as RoamingWithWhiskers.bs2. Aside from adjusting the name and description, two bit variables were added to store the states of the IR detectors.

irDetectLeft VAR Bit

irDetectRight VAR Bit

A routine was also added to read the IR pairs.

FREQOUT 8, 1, 38500

Page 250 ·

Robotics with the Boe-Bot

irDetectLeft = IN9

The

IF…THEN

statements were modified so that they look at the variables that store the IR pair detections instead of the whisker inputs.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

GOSUB Turn_Left

ELSEIF (irDetectLeft = 0) THEN

GOSUB Back_Up

GOSUB Turn_Right

ELSEIF (irDetectRight = 0) THEN

GOSUB Back_Up

GOSUB Turn_Left

ELSE

GOSUB Forward_Pulse

ENDIF

Example Program – RoamingWithIr.bs2

√ Open RoamingWithWhiskers.bs2

√ Modify it so that it matches the program below.

√ Reconnect power to your board and servos.

√ Save and run it.

√ Verify that, aside from the fact that there’s no contact required, it behaves like

RoamingWithWhiskers.bs2.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - RoamingWithIr.bs2

' Adapt RoamingWithWhiskers.bs2 for use with IR pairs.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Variables ]----------------------------------------------------------

irDetectLeft VAR Bit

irDetectRight VAR Bit

pulseCount VAR Byte

' -----[ Initialization ]-----------------------------------------------------

Chapter 7: Navigating with Infrared Headlights · Page 251

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]-------------------------------------------------------

DO

FREQOUT 8, 1, 38500 ' Store IR detection values in

irDetectLeft = IN9 ' bit variables.

FREQOUT 2, 1, 38500

irDetectRight = IN0

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

GOSUB Back_Up ' Both IR pairs detect obstacle

GOSUB Turn_Left ' Back up & U-turn (left twice)

GOSUB Turn_Left

ELSEIF (irDetectLeft = 0) THEN ' Left IR pair detects

GOSUB Back_Up ' Back up & turn right

GOSUB Turn_Right

ELSEIF (irDetectRight = 0) THEN ' Right IR pair detects

GOSUB Back_Up ' Back up & turn left

GOSUB Turn_Left

ELSE ' Both IR pairs 1, no detects

GOSUB Forward_Pulse ' Apply a forward pulse

ENDIF ' and check again

LOOP

' -----[ Subroutines ]--------------------------------------------------------

Forward_Pulse: ' Send a single forward pulse.

PULSOUT 13,850

PULSOUT 12,650

PAUSE 20

RETURN

Turn_Left: ' Left turn, about 90-degrees.

FOR pulseCount = 0 TO 20

PULSOUT 13, 650

PULSOUT 12, 650

PAUSE 20

NEXT

RETURN

Turn_Right:

FOR pulseCount = 0 TO 20 ' Right turn, about 90-degrees.

PULSOUT 13, 850

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

Page 252 ·

Robotics with the Boe-Bot

Back_Up: ' Back up.

FOR pulseCount = 0 TO 40

PULSOUT 13, 650

PULSOUT 12, 850

PAUSE 20

NEXT

RETURN

Your Turn

√ Modify RoamingWithIr.bs2 so that the IR pairs are checked in a subroutine.

ACTIVITY #5: HIGH PERFORMANCE IR NAVIGATION

The style of pre-programmed maneuvers that were used in the previous activity were fine for whiskers, but are unnecessarily slow when using the IR LEDs and detectors. You can greatly improve the Boe-Bot’s roaming performance by checking for obstacles before delivering each set of pulses to the servos. The program can use the sensor inputs to select the best maneuver for each moment of navigation. That way, the Boe-Bot never turns further than it has to, and it can neatly find its way around obstacles and successfully navigate more complex courses.

Sampling Between Every Pulse to Avoid Collisions

The great thing about detecting an obstacle before bumping into it is that it gives the Boe-

Bot some room to navigate around it. The Boe-Bot can apply a pulse to turn away from an object, check again and if the object is still there, apply another pulse to avoid it. The

Boe-Bot can keep applying pulses and checking, until it steers clear of the obstacle.

Then, it can resume forward pulses. After experimenting with this next example program, you’ll likely agree that it’s a much better way for the Boe-Bot to roam.

Example Program – FastIrRoaming.bs2

√ Enter, save, and run FastIrRoaming.bs2.

' Robotics with the Boe-Bot - FastIrRoaming.bs2

' Higher performance IR object detection assisted navigation

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" irDetectLeft VAR Bit ' Variable Declarations

Chapter 7: Navigating with Infrared Headlights · Page 253 irDetectRight VAR Bit pulseLeft VAR Word pulseRight VAR Word

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

DO ' Main Routine

FREQOUT 8, 1, 38500 ' Check IR Detectors

irDetectLeft = IN9

FREQOUT 2, 1, 38500

irDetectRight = IN0

' Decide how to navigate.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 850

ELSEIF (irDetectLeft = 0) THEN

pulseLeft = 850

pulseRight = 850

ELSEIF (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 650

ELSE

pulseLeft = 850

pulseRight = 650

ENDIF

PULSOUT 13,pulseLeft ' Apply the pulse.

PULSOUT 12,pulseRight

PAUSE 15

LOOP ' Repeat main routine

How FastIrRoaming.bs2 Works

This program takes a slightly different approach to applying pulses. Aside from the two bits used to store the IR detector outputs, it uses two word variables to set the pulse durations delivered by the

PULSOUT

command. irDetectLeft VAR Bit irDetectRight VAR Bit pulseLeft VAR Word pulseRight VAR Word

Inside the

DO…LOOP

, the

FREQOUT

commands are used to send a 38.5 kHz IR signal to each IR LED. Immediately after the 1 ms burst of IR is sent, a bit variable stores the output state of the IR detector. This is necessary, because if you wait any longer than a

Page 254 ·

Robotics with the Boe-Bot command’s worth of time, the IR detector will return to the not detected (1 state), regardless of whether or not it detected an object.

FREQOUT 8, 1, 38500

irDetectLeft = IN9

FREQOUT 2, 1, 38500

irDetectRight = IN0

In the

IF…THEN

statements, instead of delivering pulses or calling navigation routines, this program sets variable values that will be used in

PULSOUT

commands’

Duration

arguments.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 850

ELSEIF (irDetectLeft = 0) THEN

pulseLeft = 850

pulseRight = 850

ELSEIF (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 650

ELSE

pulseLeft = 850

pulseRight = 650

ENDIF

Before the

DO…LOOP

repeats, the last thing to do is to deliver pulses to the servos. Notice that the

PAUSE

command is no longer 20. Instead, it’s 15 since roughly 5 ms is taken checking the IR LEDs.

PULSOUT 13,pulseLeft ' Apply the pulse.

PULSOUT 12,pulseRight

PAUSE 15

Your Turn

√ Save FastIrRoaming.bs2 as FastIrRoamingYourTurn.bs2.

√ Use the LEDs to broadcast that the Boe-Bot has detected an object.

√ Try modifying the values that pulseLeft and pulseRight are set to so that the

Boe-Bot does everything at half speed.

Chapter 7: Navigating with Infrared Headlights · Page 255

ACTIVITY #6: THE DROP-OFF DETECTOR

Up until now, the Boe-Bot has mainly been programmed to take evasive maneuvers when an object is detected. There are also applications where the Boe-Bot must take evasive action when an object is not detected. For example, if the Boe-Bot is roaming on a table, its IR detectors might be looking down at the table surface as shown in Figure 7-8. The program should make it continue forward so long as both IR detectors can “see” the surface of the table. In other words, the Boe-Bot can continue forward so long as the table top it’s navigating on is detected.

√ Disconnect power from your board and servos.

√ Point your IR pairs downward and outward as shown in Figure 7-8.

To Servos

15 14

Vdd

13 12

Vdd

X4 X5

Vin Vss

Red

Black

P4

P3

P2

P1

P0

P5

P15

P14

P13

P12

P11

P10

P9

X3

P8

P7

P6

X2

+

Board of Education

Rev C

© 2000-2003

Top View Side View

Figure 7-8

IR Pairs

Directed

Downwards to

Scan for a

Drop-Off

Recommended Materials:

(1) Roll of black vinyl electrical tape – ¾″ (19 mm) wide.

(1) Sheet of white poster board – 22 x 28 in (56 x 71 cm).

Simulating a Drop-Off with Electrical Tape

A sheet of white poster board with a border made of electrical tape makes for a handy way to simulate the drop-off presented by a table edge, with much less risk to your Boe-

Bot.

Page 256 ·

Robotics with the Boe-Bot

√ Build a course similar to the electrical tape delimited course shown in Figure 7-

9. Use at least three strips of electrical tape, edge to edge with no paper visible between the strips.

√ Replace your 1 kΩ resistors with 2 kΩ resistors (red-black-red) to connect P2 to its IR LED and P8 to its IR LED. We want the Boe-Bot to be nearsighted for this activity.

√ Reconnect power to your board.

√ Run the program IrInterferenceSniffer.bs2 (page 246) to make sure that nearby fluorescent lighting will not interfere with your Boe-Bot’s IR detectors.

√ Use the TestIrPairsAndIndicators.bs2 (page 244) to make sure that the Boe-Bot detects the poster board but does not detect the electrical tape.

If the Boe-Bot still "sees" the electrical tape too clearly

, here are a few remedies:

Try adjusting the IR detectors and LEDs downward at various angles.

Try a different brand of vinyl electrical tape.

Try replacing the 2 kΩ resistors with 4.7 kΩ (yellow-violet-red) resistors to make the

Boe-Bot more nearsighted.

Adjust the

FREQOUT

command with different

Freq1

arguments. Here are some arguments that will make the Boe-Bot more nearsighted: 38250, 39500, 40500

If you are using older IR LEDs, the Boe-Bot might actually be having problems with being

too nearsighted.

Here are some remedies that will increase the Boe-Bot's sensitivity to objects and make it more far sighted:

Try 1 kΩ (brown-black-red) or 470 Ω (yellow-violet-brown) or even 220 Ω (red-redbrown) resistors in series with the IR LEDs instead of 2 kΩ.

22” (56 cm)

Chapter 7: Navigating with Infrared Headlights · Page 257

Figure 7-9

Electrical Tape

Outline

Simulates

Tabletop Edge

If you try a tabletop after success with the electrical tape course:

Remember to follow the same steps you followed before running the Boe-Bot in the electrical tape delimited course!

Make sure to be the spotter for your Boe-Bot. Be ready as your Boe-Bot roams the tabletop:

Always be ready to pick your Boe-Bot up from above as it approaches the edge of the table it’s navigating. If the Boe-Bot tries to drive off the edge, pick it up before it takes the plunge. Otherwise, your Boe-Bot might become a Not-Bot!

Your Boe-Bot may detect you if you are standing in its line of sight. Its current program has no way to differentiate you from the table below it, so it might try to continue forward and off the edge of the table. So, stay out of its detector’s line of sight as you spot.

Programming for Drop-Off Detection

For the most part, programming your Boe-Bot to navigate around a table top without going over the edge is a matter of adjusting the

IF

...

THEN

statements from

FastIrNavigation.bs2. The main adjustment is that the servos should be directed to make the Boe-Bot roll forward when

irDetectLeft

and

irDetectRight

are both 0, indicating that an object (the table’s surface) has been detected. The Boe-Bot also has to turn away from a detector that indicates it has not detected an object. For example, if

irDetectLeft

is 1, the Boe-Bot had better turn right.

Page 258 ·

Robotics with the Boe-Bot

A second feature of a program for turning away from drop-offs is adjustable distance.

You may want your Boe-Bot to only take one pulse forward between checking the detectors, but as soon as a drop-off is detected, you may want your Boe-Bot to take several pulses worth of turn before checking the detectors again.

Just because you are taking multiple pulses in an evasive maneuver, it doesn’t mean you have to return to whiskers-style navigation. Instead, you can add a

pulseCount

variable that you can use to set to the number of pulses to deliver for a maneuver. The

PULSOUT

command can be placed inside a

FOR…NEXT

loop that executes

FOR 1 TO pulseCount

pulses. For one pulse forward,

pulseCount

can be 1, for ten pulses left,

pulseCount

can be set to 10, and so on.

Example Program – AvoidTableEdge.bs2

√ Open FastIrNavigation.bs2 and save it as AvoidTableEdge.bs2.

√ Modify the program so that it matches the example program. This will involve adding variables, modifying the

IF…THEN

statements, and nesting the

PULSOUT

commands inside a

FOR…NEXT

loop. Be careful to make sure that all the

pulseLeft

and

pulseRight

variable values inside the

IF…THEN

statement are properly adjusted. Their values are different from the ones in

FastIrNavigation.bs2 because the rules of the course are different.

√ Reconnect your board and servos.

√ Test the program on your electrical tape delimited course.

√ If you decide to try a tabletop, remember to follow the testing and spotting tips discussed earlier.

' Robotics with the Boe-Bot - AvoidTableEdge.bs2

' IR detects object edge and navigates to avoid drop-off.

' {$STAMP BS2}

' {$PBASIC 2.5}

DEBUG "Program Running!" irDetectLeft VAR Bit ' Variable declarations. irDetectRight VAR Bit pulseLeft VAR Word pulseRight VAR Word loopCount VAR Byte pulseCount VAR Byte

Chapter 7: Navigating with Infrared Headlights · Page 259

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

DO ' Main Routine.

FREQOUT 8, 1, 38500 ' Check IR detectors.

irDetectLeft = IN9

FREQOUT 2, 1, 38500

irDetectRight = IN0

' Decide navigation.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseCount = 1 ' Both detected,

pulseLeft = 850 ' one pulse forward.

pulseRight = 650

ELSEIF (irDetectRight = 1) THEN ' Right not detected,

pulseCount = 10 ' 10 pulses left.

pulseLeft = 650

pulseRight = 650

ELSEIF (irDetectLeft = 1) THEN ' Left not detected,

pulseCount = 10 ' 10 pulses right.

pulseLeft = 850

pulseRight = 850

ELSE ' Neither detected,

pulseCount = 15 ' back up and try again.

pulseLeft = 650

pulseRight = 850

ENDIF

FOR loopCount = 1 TO pulseCount ' Send pulseCount pulses

PULSOUT 13,pulseLeft

PULSOUT 12,pulseRight

PAUSE 20

NEXT

LOOP

How AvoidTableEdge.bs2 Works

Since this program is a modified version of FastIrRoaming.bs2, only changes to the program are discussed here.

A

FOR…NEXT

loop is added to the program to control how many pulses are delivered each time through the main (

DO…LOOP

) routine. Two variables are added,

loopCount

functions as an index for a

FOR…NEXT

loop and

pulseCount

is used as the

EndValue

argument. loopCount VAR Byte

Page 260 ·

Robotics with the Boe-Bot pulseCount VAR Byte

The

IF…THEN

statements now set the value of

pulseCount

as well as the values of

pulseRight

and

pulseLeft

. If both detectors can see the table, take one cautious pulse forward.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseCount = 1

pulseLeft = 850

pulseRight = 650

Else, if the right IR detector does not see the tabletop, rotate left 10 pulses.

ELSEIF (irDetectRight = 1) THEN

pulseCount = 10

pulseLeft = 650

pulseRight = 650

Else, if the left IR detector does not see the tabletop, rotate right 10 pulses.

ELSEIF (irDetectLeft = 1) THEN

pulseCount = 10

pulseLeft = 850

pulseRight = 850

Else, if neither detector can see the table top, back up 15 pulses and try again, hoping that one of the detectors will see the drop-off before the other.

ELSE

pulseCount = 15

pulseLeft = 650

pulseRight = 850

ENDIF

Now that the value of

pulseCount

,

pulseLeft

, and

pulseRight

are set, this

FOR…NEXT

loop delivers the specified number of pulses for the maneuver determined by the

pulseLeft

and

pulseRight

variable.

FOR loopCount = 1 TO pulseCount

PULSOUT 13,pulseLeft

PULSOUT 12,pulseRight

PAUSE 20

Chapter 7: Navigating with Infrared Headlights · Page 261

NEXT

Your Turn

You can experiment with setting different

pulseLeft

,

pulseRight

, and

pulseCount

values inside the

IF…THEN

statement. For example, if the Boe-Bot doesn’t turn as far, it may actually track the edge of the electrical tape delimited course. Pivoting backward instead of rotating in place may also lead to some interesting behaviors.

√ Modify AvoidTableEdge.bs2 so that it follows the edge of the electrical tape delimited course by adjusting the

pulseCount

values so that the Boe-Bot doesn’t turn too far away from the edge.

√ Experiment with pivoting as a way to make the Boe-Bot roam inside the perimeter instead of following the edge.

Page 262 ·

Robotics with the Boe-Bot

SUMMARY

This chapter covered a unique technique for infrared object detection that uses the infrared LED found in common handheld remotes, and the infrared detector found in

TVs, CD/DVD players, and other appliances that are controlled by these remotes. By shining infrared into the Boe-Bot’s path and looking for its reflection, object detection can be accomplished without physically contacting the object. Infrared LED circuits are used to send a 38.5 kHz signal with the help of a property of the

FREQOUT

command called a harmonic, which is inherent to digitally synthesized signals.

An infrared detection indicator program was introduced for remote (not connected to the

PC) testing of the IR LED/detector pairs. An infrared interference sniffer program was also introduced to help detect interference that can be generated by some fluorescent light fixtures. Since the signals sent by the IR detectors are so similar to the signals sent by the whiskers, RoamingWithWhiskers.bs2 was adapted to the infrared detectors. A program that checks the IR detectors between each servo pulse was introduced to demonstrate a higher performance way of roaming without colliding into objects. This program was then modified to avoid the edge of an electrical tape delimited area. Since electrical tape absorbs infrared, framing a large sheet of construction paper emulates the drop-off that is seen at a table edge without the danger to the actual Boe-Bot.

Questions

1. What is the frequency of the harmonic sent by

FREQOUT 2, 1, 38500

? What is the value of the fundamental frequency sent by that command? How long are these signals sent for? What I/O pin does the IR LED circuit have to be connected to in order to broadcast this signal?

2. What command has to immediately follow the

FREQOUT

command in order to accurately determine whether or not an object has been detected?

3. What does it mean if the IR detector sends a low signal? What does it mean when the detector sends a high signal?

4. What happens if you change the value of a resistor in series with a red LED?

What happens if you change the value of a resistor in series with an infrared

LED?

Chapter 7: Navigating with Infrared Headlights · Page 263

Exercises

1. Modify a line of code in IrInterferenceSniffer.bs2 so that it only monitors one of the IR LED/detector pairs.

2. Explain the function of

pulseCount

in AvoidTableEdge.bs2. How does this relate to your answer to Exercise 3?

Projects

1. Design a Boe-Bot application that sits still until you wave your and in front of it, then it starts roaming.

2. Design a Boe-Bot application that slowly rotates in place until it detects an object. As soon as it detects an object, it locks onto and chases the object. This is a classic SumoBot behavior.

3. Design a Boe-Bot application that roams, but if it detects infrared interference, it sounds the alarm briefly, then continues roaming. This alarm should be different from the low battery alarm.

Page 264 ·

Robotics with the Boe-Bot

Solutions

Q1. 38.5 kHz is the frequency of the harmonic. Its fundamental frequency = 65536 –

38500 = 27036 Hz. The signals are sent for 1 millisecond, and the IR LED must be connected to I/O Pin 2.

Q2. The command which stores the detector's output in a variable. For example,

irDetectLeft = IN9.

Q3. A low signal means IR at 38.5 kHz was detected, thus, an object was detected.

A high signal means no IR at 38.5kHz was detected, so, no object.

Q4. Electrically speaking, for both red and infrared LEDs, a smaller resistor will cause the LED to glow more brightly. A bigger resistor results in dimmer LEDs.

In terms of results, brighter IR LEDs make it possible to detect objects that are farther away.

E1. Change the

IF…THEN

to read:

IF (IN0 = 0) THEN

This will only monitor the right detector.

E2. The

pulseCount

variable allows the Boe-Bot to have adjustable distance of motion depending on the situation.

P1. The FastIrRoaming.bs2 program can be combined with a

DO…UNTIL

loop that does nothing until it detects an object. A sample solution is shown below.

' -----[ Title ]-------------------------------------------------------

' Robotics with the Boe-Bot - MotionActivatedBoeBot.bs2

' Boe-Bot starts roaming when hand is waved in front of IR detectors.

' {$STAMP BS2}

' {$PBASIC 2.5}

' -----[ Variables ]--------------------------------------------------- irDetectLeft VAR Bit ' Variable Declarations irDetectRight VAR Bit pulseLeft VAR Word pulseRight VAR Word

' -----[ Initialization ]----------------------------------------------

DEBUG "Program Running!"

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

Chapter 7: Navigating with Infrared Headlights · Page 265

' -----[ Main Routine ]------------------------------------------------

Main:

' Loop until something is detected

DO

GOSUB Check_IRs

LOOP UNTIL (irDetectLeft = 0) OR (irDetectRight = 0)

' Now start roaming -- this code from FastIrRoaming.bs2

DO

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseLeft = 650 ' Both detect

pulseRight = 850 ' Back up

ELSEIF (irDetectLeft = 0) THEN ' Left detect

pulseLeft = 850 ' Turn right

pulseRight = 850

ELSEIF (irDetectRight = 0) THEN ' Right detect

pulseLeft = 650 ' Turn left

pulseRight = 650

ELSE ' Nothing detected

pulseLeft = 850 ' Go forward

pulseRight = 650

ENDIF

PULSOUT 13, pulseLeft ' Apply the pulse.

PULSOUT 12, pulseRight

PAUSE 15

GOSUB Check_IRs ' Check IRs again

LOOP

' -----[ Subroutines ] ------------------------------------------------

Check_IRs:

FREQOUT 8, 1, 38500 ' Check IR Detectors

irDetectLeft = IN9

FREQOUT 2, 1, 38500

IrDetectRight = IN0

RETURN

P2. This behavior is in many ways the opposite of the roaming behavior covered in this chapter. Instead of avoiding objects, the Boe-Bot tries to go toward the objects. For this reason, the main code can be derived from

"FastIrRoaming.bs2", with a bit added that spins the Boe-Bot slowly until an object is detected.

In the solution below, once the Boe-Bot has spied an object, it will continue forward even if the detectors both read "no object" (1) for a few loops. This is because, as the Boe-Bot is maneuvering toward the object, sometimes the

Page 266 ·

Robotics with the Boe-Bot detectors read "no object" for brief moments, but this is not reason enough to give up the chase.

' Robotics with the Boe-Bot - SumoBoeBot.bs2

' Search for object, lock onto it and push it.

' {$STAMP BS2}

' {$PBASIC 2.5} irDetectLeft VAR Bit ' Left IR reading irDetectRight VAR Bit ' Right IR reading pulseLeft VAR Word ' pulse values for servos pulseRight VAR Word

' -----[ Initialization ]----------------------------------------------

DEBUG "Program Running!"

FREQOUT 4, 2000, 3000 ' Signal start/reset.

' -----[ Main Routine ]------------------------------------------------

Main:

' Spin around slowly until an object is spotted

DO

PULSOUT 13, 790 ' Rotate slowly

PULSOUT 12, 790

PAUSE 15 ' 5 ms for detectors

GOSUB Check_IRs ' While looking for object

LOOP UNTIL (irDetectLeft = 0) OR (irDetectRight = 0)

' Now figure out exactly where the object is and go toward it

DO

' Object in both detectors -- go forward

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseLeft = 850 ' Forward

pulseRight = 650

' Object on left - go left

ELSEIF (irDetectLeft = 0) THEN

pulseLeft = 650 ' Left toward object

pulseRight = 650

' Object on right - go right

ELSEIF (irDetectRight = 0) THEN

pulseLeft = 850 ' Right toward object

pulseRight = 850

' No object -- go forward anyway, because the detectors will

ELSE ' momentarily show

pulseLeft = 850 ' "no object" as the

pulseRight = 650 ' Boe-Bot is adjusting

Chapter 7: Navigating with Infrared Headlights · Page 267

ENDIF ' its position.

PULSOUT 13,pulseLeft ' Apply the pulse.

PULSOUT 12,pulseRight

PAUSE 15 ' 5 ms for detectors

' Check IRs again in case object is moving

GOSUB Check_IRs

LOOP

' -----[ Subroutines ] ------------------------------------------------

Check_IRs:

FREQOUT 8, 1, 38500 ' Check IR Detectors

irDetectLeft = IN9

FREQOUT 2, 1, 38500

IrDetectRight = IN0

RETURN

P3. The key to solving this problem is to combine "FastIrRoaming.bs2" and

"IrInterferenceSniffer.bs2" in a single program.

' -----[ Title ]-------------------------------------------------------

' Robotics with the Boe-Bot - RoamAndSniffBoeBot.bs2

' Boe-Bot roams around and sounds alarm when IR detected.

' {$STAMP BS2}

' {$PBASIC 2.5}

' -----[ Variables ]--------------------------------------------------- irDetectLeft VAR Bit ' Left IR sensor reading irDetectRight VAR Bit ' Right IR sensor reading pulseLeft VAR Word ' Pulses sent to servos pulseRight VAR Word counter VAR Nib ' Loop counter

' -----[ Initialization ]----------------------------------------------

DEBUG "Program Running!"

FREQOUT 4, 2000, 3000 ' Signal program start/reset.

' -----[ Main Routine ]------------------------------------------------

Main:

DO

GOSUB Roam

GOSUB Sniff

LOOP

Page 268 ·

Robotics with the Boe-Bot

' -----[ Subroutines ] ------------------------------------------------

Sniff: ' From IrInterferenceSniffer.bs2

IF (IN0 = 0) OR (IN9 = 0) THEN

FOR counter = 1 TO 5 ' Beep 5 times

HIGH 1 ' and flash LEDs

HIGH 10

FREQOUT 4, 50, 4000

LOW 1

LOW 10

PAUSE 20

NEXT

ENDIF

RETURN

Roam: ' From FastIrRoaming.bs2

FREQOUT 8, 1, 38500 ' Check IR Detectors

irDetectLeft = IN9

FREQOUT 2, 1, 38500

irDetectRight = IN0

' Decide how to navigate.

IF (irDetectLeft = 0) AND (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 850

ELSEIF (irDetectLeft = 0) THEN

pulseLeft = 850

pulseRight = 850

ELSEIF (irDetectRight = 0) THEN

pulseLeft = 650

pulseRight = 650

ELSE

pulseLeft = 850

pulseRight = 650

ENDIF

PULSOUT 13,pulseLeft ' Apply the pulse.

PULSOUT 12,pulseRight

PAUSE 15

RETURN

Chapter 8: Robot Control with Distance Detection · Page 269

Chapter 8: Robot Control with Distance Detection

In Chapter 7, we used the infrared sensors to detect whether an object is in the Boe-Bot’s way without actually touching it. Wouldn’t it be nice to also know how far away the object is? This is usually a task for sonar, which sends a pulse of sound out and records how long it takes for the echo to come back. The time it takes for the echo to come back can then be used to calculate how far away the object is. There is, however, a way to accomplish distance detection with the very same circuit you used in the previous chapter. With your Boe-Bot able to determine the distance of an object, it can be programmed to follow a moving object without colliding into it. The Boe-Bot can also be programmed to follow black tracks on a white background.

DETERMINING DISTANCE WITH THE SAME IR LED/DETECTOR CIRCUIT

You will use the same circuit from the previous chapter to detect distance.

√ If the circuit is still built on your Boe-Bot, make sure your IR LED’s have 1 kΩ resistors in series.

√ If you already disassembled the circuit from the previous chapter, repeat the steps in Chapter 7, Activity #1 on page 237.

Recommended Equipment and Materials:

(1) Ruler

(1) Sheet of paper

ACTIVITY #1: TESTING THE FREQUENCY SWEEP

Figure 8-1 shows an excerpt from one specific brand of IR detector’s datasheet

(Panasonic PNA4602M). This excerpt is a graph that shows how much less sensitive this

IR detector becomes if the IR signal it receives flashes on/off at a frequency other than

38.5 kHz. For example, if you send it IR flashed on/off at 40 kHz, it’s only 50% as sensitive as it would be at 38.5 kHz. If the IR is flashed on/off at 42 kHz, the detector is only 20% as sensitive. Especially for frequencies that make the detector less sensitive, the object has to be closer to make the reflected IR brighter for the detector to detect it.

Page 270 ·

Robotics with the Boe-Bot

Figure 8-1

Filter Sensitivity

Depends on

Carrier Frequency

Another way to think about it is that the most sensitive frequency will detect the objects that are the farthest away, while less sensitive frequencies can only be used to detect closer objects. This makes distance detection simple. Pick 5 frequencies, then test them from most sensitive to least sensitive. Try at the most sensitive frequency first. If an object is detected, check and see if the next most sensitive frequency detects it.

Depending on which frequency makes the reflected infrared no longer visible to the IR detector, you can infer the distance.

Frequency Sweep

is the technique of testing a circuit’s output using a variety of input frequencies.

Programming Frequency Sweep for Distance Detection

Figure 8-2

shows an example of how the Boe-Bot can test for distance using frequency.

In this example, the object is in Zone 3. That means that the object can be detected when

37500 and 38250 Hz is transmitted, but it cannot be detected with 39500, 40500, and

41500 Hz. If you were to move the object into Zone 2, then the object can be detected when 37500, 38250, and 39500 Hz are transmitted, but not when 40500 and 41500 Hz are transmitted.

Chapter 8: Robot Control with Distance Detection · Page 271

Figure 8-2:

Frequencies and Zones for the Boe-Bot

13 12

Vdd

X4 X5

Vin Vs s

Red

Black

X3

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

X2

+

Boar d of Education

© 20 00 -2 00 3

Zone 0

41500 Hz

Zone 1

40500 Hz

Zone 2

39500 Hz

Zone 3

38250 Hz

Zone 4

37500 Hz

Zone 5

No Detection at any

Frequency

You might be wondering why the value of zone 4 is 37.5 kHz and not 38.5 kHz.

The reason they are not the values that you would expect based on the % sensitivity graph is because the

FREQOUT

command transmits a slightly more powerful (harmonic) signal at

37.5 kHz than it does at 38.5 kHz. The frequencies listed in Figure 8-2 are frequencies you will program the BASIC Stamp to use to determine the distance of an object. These frequencies were determined using tests similar to the ones outlined in Appendix G: Tuning

IR Distance Detection.

In order to test the IR detector at each frequency, you will need to use

FREQOUT

to send five different frequencies and test at each frequency to find out whether the IR detector could see the object. The steps between each frequency are not quite even enough to use the

FOR

NEXT

loop’s

STEP

operator. You could use

DATA

and

READ

, but that would be cumbersome. You could use five different

FREQOUT

commands, but that would be a waste of code space. Instead, the best approach for storing a short list of values that you want to use in sequence is a command called

LOOKUP

. The syntax for the

LOOKUP

command is:

LOOKUP

Index, [Value0, Value1, …ValueN], Variable

If the

Index

argument is 0,

Value0

from the list inside the square braces will be placed in

Variable

. If

Index

is 1,

Value1

from the list will be placed in

Variable

. There could be up to 256 values in the list, but for the next example program, we will only need

5. Here is how it will be used:

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500],irFrequency

Page 272 ·

Robotics with the Boe-Bot

FREQOUT 8,1, irFrequency

irDetect = IN9

' Commands not shown...

NEXT

The first time through the

FOR

NEXT

loop,

freqSelect

is 0, so the

LOOKUP

command places the value 37500 in the

irFrequency

variable. Since

irFrequency

contains

37500 after the

LOOKUP

command, the

FREQOUT

command sends that frequency to the IR

LED connected to P8. As in the previous chapter, the value of

IN9

is then saved in the

irDetect

variable. The second time through the

FOR

NEXT

loop, the value of

freqSelect

is now 1, which means the

LOOKUP

command places 38250 into the

irFrequency

variable, and the process is repeated for this higher frequency. The third time through, it’s repeated again with 39500, and so on. The result is remarkable, especially considering you are using parts that were designed for a completely different purpose, to make IR communication between a handheld remote and a television possible.

Example Program – TestLeftFrequencySweep.bs2

TestLeftFrequencySweep.bs2 does two things. First, it tests the left IR LED/detector pair

(connected to P8 and P9) to make sure they are functioning properly for distance detection. However, it also demonstrates how the frequency sweep illustrated in Figure

8-2 is accomplished.

When you run the program, the Debug Terminal will display your zone measurement.

There are many possible yes-no patterns that can be generated; two are shown in Figure

8-3. The test patterns will vary depending on the characteristics of the filter inside the IR detector.

The program determines which zone the detected object is in by counting the number of

“No” occurrences. Notice that even though the two Debug Terminal test patterns in

Figure 8-3 are different, they both have three “Yes” and two “No” occurrences.

Therefore, “Zone 2” is the location of the object detected in both examples.

Chapter 8: Robot Control with Distance Detection · Page 273

Figure 8-3

Testing

Distance

Detection

Output

Examples

Keep in mind that these distance measurements are relative and not necessarily precise or evenly spaced.

However, they will give the Boe-Bot a good enough sense of object distance for following, tracking, and other activities.

√ Enter, save, and run TestLeftFrequencySweep.bs2.

√ Use a sheet of paper or card facing the IR LED/detector to test the distance detection.

√ Start with the sheet very close to the IR LED, perhaps ¼ in (or 1 cm) away from the IR LED. Your Zone in the Debug Terminal should either be 0 or 1.

√ Gradually move the sheet of paper away from the IR LED and make a note of each distance that causes the zone value to get larger.

Zones 1-4

typically fall in the range of 6 to 12 in (15 to 30 cm) for the shielded LEDs with a 1 kΩ resistor. Older shrink wrap LED distances will be less. As long as objects can be detected up to 4 in (10 cm) away, the experiments in this chapter will work. If the distance detector range is less than that, which is likely if you have shrink wrapped IR LEDS, try reducing your series resistance from 1 kΩ to 470 Ω or 220 Ω.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - TestLeftFrequencySweep.bs2

' Test IR detector distance responses to frequency sweep.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

Page 274 ·

Robotics with the Boe-Bot

' -----[ Variables ]---------------------------------------------------------- freqSelect VAR Nib irFrequency VAR Word irDetect VAR Bit distance VAR Nib

' -----[ Initialization ]-----------------------------------------------------

DEBUG CLS,

" OBJECT", CR,

"FREQUENCY DETECTED", CR,

"--------- --------"

' -----[ Main Routine ]-------------------------------------------------------

DO

distance = 0

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500], irFrequency

FREQOUT 8,1, irFrequency

irDetect = IN9

distance = distance + irDetect

DEBUG CRSRXY, 4, (freqSelect + 3), DEC5 irFrequency

DEBUG CRSRXY, 11, freqSelect + 3

IF (irDetect = 0) THEN DEBUG "Yes" ELSE DEBUG "No "

PAUSE 100

NEXT

DEBUG CR,

"--------- --------", CR,

"Zone ", DEC1 distance

LOOP

Your Turn – Testing the Right IR LED/Detector Pair

Although there’s some labeling involved, you can modify this program to test the right IR

LED and detector by changing these two lines:

FREQOUT 8,1, irFrequency

irDetect = IN9

Chapter 8: Robot Control with Distance Detection · Page 275 so that they read

FREQOUT 2,1, irFrequency

irDetect = IN0

√ Modify TestLeftFrequencySweep.bs2 for testing the distance measurement of the right IR LED/detector pair.

√ Run the program and verify that this pair can measure a similar distance.

Displaying Both Distances

It’s useful at times to have a quick program you can run to test both the Boe-Bot’s distance detectors at the same time. This program is organized into subroutines, which can be handy for copying and pasting into other programs that require distance detection.

Example Program – DisplayBothDistances.bs2

√ Enter, save, and run DisplayBothDistances.bs2.

√ Repeat the distance measurement exercise with a sheet of paper on each LED, then on both LEDs at the same time.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - DisplayBothDistances.bs2

' Test IR detector distance responses of both IR LED/detector pairs to

' frequency sweep.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

' -----[ Variables ]---------------------------------------------------------- freqSelect VAR Nib irFrequency VAR Word irDetectLeft VAR Bit irDetectRight VAR Bit distanceLeft VAR Nib distanceRight VAR Nib

' -----[ Initialization ]-----------------------------------------------------

DEBUG CLS,

"IR OBJECT ZONE", CR,

"Left Right", CR,

"----- -----"

' -----[ Main Routine ]-------------------------------------------------------

Page 276 ·

Robotics with the Boe-Bot

DO

GOSUB Get_Distances

GOSUB Display_Distances

LOOP

' -----[ Subroutine – Get_Distances ]-----------------------------------------

Get_Distances:

distanceLeft = 0

distanceRight = 0

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500], irFrequency

FREQOUT 8,1,irFrequency

irDetectLeft = IN9

distanceLeft = distanceLeft + irDetectLeft

FREQOUT 2,1,irFrequency

irDetectRight = IN0

distanceRight = distanceRight + irDetectRight

PAUSE 100

NEXT

RETURN

' -----[ Subroutine – Display_Distances ]-------------------------------------

Display_Distances:

DEBUG CRSRXY,2,3, DEC1 distanceLeft,

CRSRXY,9,3, DEC1 distanceRight

RETURN

Your Turn – More Distance Tests

√ Try measuring the distance of different objects and find out if the color and/or texture make any difference to the distance measurement.

Chapter 8: Robot Control with Distance Detection · Page 277

ACTIVITY #2: BOE-BOT SHADOW VEHICLE

For one Boe-Bot to follow another, the Boe-Bot that follows, a.k.a. the shadow vehicle, has to know how far ahead the lead vehicle is. If the shadow vehicle is lagging behind, it has to detect this and speed up. If the shadow vehicle is too close to the lead vehicle, it has to detect this as well and slow down. If it’s the right distance, it can wait until the measurements indicate it’s too far or too close again.

Distance is just one kind of value that robots and other automated machinery are responsible for. When a machine is designed to automatically maintain a value, such as distance, pressure, or fluid level, it generally involves a control system. These systems sometimes consist of sensors and valves, or sensors and motors, or, in the case of the

Boe-Bot, sensors and continuous rotation servos. There is also some kind of processor that takes the sensor measurements and converts them to mechanical action. The processor has to be programmed to make decisions based on the sensor inputs, and then control the mechanical outputs accordingly. In the case of the Boe-Bot, the processor is the BASIC Stamp 2.

Closed loop control is a common method of maintaining levels, and it works very well for helping the Boe-Bot maintain its distance from an object. There are lots of different kinds of closed loop control. Some of the most common are hysteresis, proportional, integral, and derivative control. All of these types of control are introduced in detail in the Stamps in Class text Process Control, listed in the Preface.

Most control techniques can be implemented with just a few lines of code in PBASIC. In fact, the majority of the proportional control loop shown in Figure 8-4 reduces to just one line of PBASIC code. This diagram is called a block diagram, and it describes the steps of the proportional control process that the Boe-Bot will use to measure distance with its right IR LED and detector and adjust position to maintain distance with its right servo.

Page 278 ·

Robotics with the Boe-Bot

Center pulse width

750

Measured right distance = 4

+

-

Error = -2

Kp X error

35 X -2

Output adjust

-70

+

+

Right servo output

680

Figure 8-4

Proportional

Control Block

Diagram for

Right Servo and IR LED and Detector

Pair

System

Let’s take a closer look at the numbers in Figure 8-4 to learn how proportional control works. This particular example is for the right IR LED/detector and right servo. The set point is 2, which means we want the Boe-Bot to maintain a distance of 2 between itself and any object it detects. The measured distance is 4, which is too far away. The error is the set point minus the measured distance which is 2 – 4 = –2. This is indicated by the symbols inside the circle on the left. This circle is called a summing junction. Next, the error feeds into an operator block. This block shows that error will be multiplied by a value called a proportional constant (Kp). The value of Kp is 35. The block’s output shows the result of –2

× 35 = –70, which is called the output adjust. This output adjust goes into another summing junction, and this time it is added to the servo’s center pulse width of 750. The result is a 680 pulse width that will make the servo turn about ¾ speed clockwise. That makes the Boe-Bot’s right wheel roll forward, toward the object. This correction goes into the overall system, which consists of the Boe-Bot, and the object, that was at a measured distance of 4.

The next time through the loop, the measured distance might change, but that’s OK because regardless of the measured distance, this control loop will calculate a value that will cause the servo to move to correct any error. The correction is always proportional to the error, which is the difference between the set point and measured distances.

A control loop always has a set of equations that govern the system. The block diagram in Figure 8-4 is a way of visually describing this set of equations. Here are the equations that can be taken from this block diagram, along with solutions.

Error = Right distance set point – Measured right distance

Chapter 8: Robot Control with Distance Detection · Page 279

Output adjust

=

=

2 – 4 error

×

K p

×

35

= – 70

Right servo output = Output adjust + Center pulse width

= – 70 + 750

680

By making some substitutions, the three equations above can be reduced to this one, which will give you the same result.

Right servo output = (Right distance set point – Measured right distance)

×

Kp

+ Center pulse width

By substituting the values from the example, we can see that the equation still works:

=

=

((2 – 4)

×

35) + 750

680

The left servo and IR pair have a similar algorithm shown in Figure 8-5. The difference is that Kp is –35 instead of +35. Assuming the same measured value at the right IR pair, the output adjust results is a pulse width of 820. Here is the equation and calculations for this block diagram:

Left servo output = (Left distance set point – Measured left distance)

+ Center pulse width

×

Kp

=

=

((2 – 4)

820

×

–35) + 750

The result of this control loop is a pulse width that makes the left servo turn about ¾ of full speed counterclockwise. This is also a forward pulse for the left wheel. The idea of feedback is that the system’s output is re-sampled, by the shadow Boe-Bot taking another distance measurement. Then the control loop repeats itself again and again and again…roughly 40 times per second.

Page 280 ·

Robotics with the Boe-Bot

Center pulse width

750

Measured left distance = 4

+

-

Error = -2

Kp X error

-35 X -2

Output adjust

+70

+

+

Left servo output

820

Figure 8-5

Proportional

Control Block

Diagram for

Left Servo and

IR LED and

Detector Pair

System

Programming the Boe-Bot Shadow Vehicle

Remember that the equation for the right servo’s output was:

Right servo output = (Right distance set point – Measured right distance)

+ Center pulse width

×

Kp

Here is an example of solving this same equation in PBASIC. The right distance set point is 2, the measured distance is a variable named

distanceRight

that will store the

IR distance measurement, Kp is 35, and the center pulse width is 750:

pulseRight = 2 - distanceRight * 35 + 750

Remember that in PBASIC math expressions are executed from left to right.

First,

distanceRight

is subtracted from

2

. The result of this subtraction is then multiplied by

Kpr

, and after that, the product is added to the center pulse width.

You can use parentheses to force a calculation that is further to the right in a line of

PBASIC code to be completed first.

Recall this example: you can rewrite this line of

PBASIC code:

pulseRight = 2 - distanceRight * 35 + 750

like this:

pulseRight = 35 * (2 – distanceRight) + 750

In this expression, 35 is multiplied by the result of (2 – distanceRight), then the product is added to 750.

Chapter 8: Robot Control with Distance Detection · Page 281

The left servo is different because Kp for that system is -35 pulseLeft = 2 - distanceLeft * (-35) + 750

Since the values -35, 35, 2, and 750 all have names, it’s definitely a good place for some constant declarations.

Kpl CON -35

Kpr CON 35

SetPoint CON 2

CenterPulse CON 750

With these constant declarations in the program, you can use the name

Kpl

in place of -

35,

Kpr

in place of 35,

SetPoint

in place of 2, and

CenterPulse

in place of 750. After these constant declarations, the proportional control calculations now look like this: pulseLeft = SetPoint - distanceLeft * Kpl + CenterPulse pulseRight = SetPoint - distanceRight * Kpr + CenterPulse

The convenient thing about declaring constants for these values is that you can change them in one place, at the beginning of the program. The changes you make at the beginning of the program will be reflected everywhere these constants are used. For example, by changing the

Kpl CON

directive from -35 to -40, every instance of

Kpl

in the entire program changes from -35 to -40. This is exceedingly useful for experimenting with and tuning the right and left proportional control loops.

Example Program – FollowingBoeBot.bs2

FollowingBoeBot.bs2 repeats the proportional control loop just discussed with every servo pulse. In other words, before each pulse, the distance is measured and the error signal is determined. Then the error is multiplied by Kp, and the resulting value is added/subtracted to/from the pulse widths that are sent to the left/right servos.

√ Enter, save, and run FollowingBoeBot.bs2.

√ Point the Boe-Bot at an 8 ½

× 11” sheet of paper held in front of it as though it’s a wall-obstacle. The Boe-Bot should maintain a fixed distance between itself and the sheet of paper.

√ Try rotating the sheet of paper slightly. The Boe-Bot should rotate with it.

√ Try using the sheet of paper to lead the Boe-Bot around. The Boe-Bot should follow it.

Page 282 ·

Robotics with the Boe-Bot

√ Move the sheet of paper too close to the Boe-Bot, and it should back up, away from the paper.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - FollowingBoeBot.bs2

' Boe-Bot adjusts its position to keep objects it detects in zone 2.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Constants ]----------------------------------------------------------

Kpl CON -35

Kpr CON 35

SetPoint CON 2

CenterPulse CON 750

' -----[ Variables ]---------------------------------------------------------- freqSelect VAR Nib irFrequency VAR Word irDetectLeft VAR Bit irDetectRight VAR Bit distanceLeft VAR Nib distanceRight VAR Nib pulseLeft VAR Word pulseRight VAR Word

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]-------------------------------------------------------

DO

GOSUB Get_Ir_Distances

' Calculate proportional output.

pulseLeft = SetPoint - distanceLeft * Kpl + CenterPulse

pulseRight = SetPoint - distanceRight * Kpr + CenterPulse

GOSUB Send_Pulse

LOOP

' -----[ Subroutine - Get IR Distances ]--------------------------------------

Chapter 8: Robot Control with Distance Detection · Page 283

Get_Ir_Distances:

distanceLeft = 0

distanceRight = 0

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500], irFrequency

FREQOUT 8,1,irFrequency

irDetectLeft = IN9

distanceLeft = distanceLeft + irDetectLeft

FREQOUT 2,1,irFrequency

irDetectRight = IN0

distanceRight = distanceRight + irDetectRight

NEXT

RETURN

' -----[ Subroutine – Get Pulse ]---------------------------------------------

Send_Pulse:

PULSOUT 13,pulseLeft

PULSOUT 12,pulseRight

PAUSE 5

RETURN

How the FollowingBoeBot.bs2 Works

FollowingBoeBot.bs2 declares four constants,

Kpr

,

Kpl, SetPoint

, and

CenterPulse

using the

CON

directive. Everywhere you see

SetPoint

, it’s actually the number 2 (a constant). Likewise, everywhere you see either

Kpl

, it’s actually the number -35.

Kpr

is actually 35, and

CenterPulse

is 750.

Kpl CON -35

Kpr CON 35

SetPoint CON 2

CenterPulse CON 750

The first thing the main routine does is call the

Get_Ir_Distances

subroutine. After the

Get_Ir_Distances

subroutine is finished,

distanceLeft

and

distanceRight

each contain a number corresponding to the zone in which an object was detected for both the left and right IR pairs.

DO

GOSUB Get_Ir_Distances

Page 284 ·

Robotics with the Boe-Bot

The next two lines of code implement the proportional control calculations for each servo.

' Calculate proportional output.

pulseLeft = SetPoint - distanceLeft * Kpl + CenterPulse

pulseRight = SetPoint - distanceRight * Kpr + CenterPulse

Now that the

pulseLeft

and

pulseRight

calculations are done, the

Send_Pulse

subroutine can be called.

GOSUB Send_Pulse

The

LOOP

portion of the

DO…LOOP

sends the program back to the command immediately following the

DO

at the beginning of the main loop.

LOOP

Your Turn

Figure 8-6 shows a lead Boe-Bot followed by a shadow Boe-Bot. The lead Boe-Bot is running a modified version of FastIrRoaming.bs2, and the shadow Boe-Bot is running

FollowingBoeBot.bs2. Proportional control makes the shadow Boe-Bot a very faithful follower. One lead Boe-Bot can string along a chain of 6 or 7 shadow Boe-Bots. Just add the lead Boe-Bot’s side panels and tailgate to the rest of the shadow Boe-Bots in the chain.

Chapter 8: Robot Control with Distance Detection · Page 285

Figure 8-6

Lead Boe-Bot (left) and Shadow Boe-

Bot (right)

√ If you are part of a class, mount paper panels on the tail and both sides of the lead Boe-Bot as shown in Figure 8-6.

√ If you are not part of a class (and only have one Boe-Bot) the shadow vehicle will follow a piece of paper or your hand just as well as it follows a lead Boe-

Bot.

√ Replace the 1 kΩ resistors that connect the lead Boe-Bot’s P2 and P8 to the IR

LEDs with 470 Ω or 220 Ω resistors.

√ Program the lead Boe-Bot for object avoidance using a modified version of

FastIrRoaming.bs2. Open FastIrRoaming.bs2, and rename it

SlowerIrRoamingForLeadBoeBot.bs2.

√ Make these modifications to SlowerIrRoamingForLeadBoeBot.bs2:

√ Increase all

PULSOUT

Duration

arguments that are now 650 to 710.

√ Reduce all

PULSOUT

Duration

arguments that are now 850 to 790.

√ The shadow Boe-Bot should be running FollowingBoeBot.bs2 without any modifications.

√ With both Boe-Bots running their respective programs, place the shadow Boe-

Bot behind the lead Boe-Bot. The shadow Boe-Bot should follow at a fixed distance, so long as it is not distracted by another object such as a hand or a nearby wall.

Page 286 ·

Robotics with the Boe-Bot

You can adjust the set points and proportionality constants to change the shadow Boe-

Bot’s behavior. Use your hand or a piece of paper to lead the shadow Boe-Bot while doing these exercises:

√ Try running FollowingBoeBot.bs2 using values of

Kpr

and

Kpl

constants, ranging from 15 to 50. Note the difference in how responsive the Boe-Bot is when following an object.

√ Try making adjustments to the value of the

SetPoint

constant. Try values from

0 to 4.

ACTIVITY #3: FOLLOWING A STRIPE

Figure 8-7 shows an example of a course you can build and program your Boe-Bot to follow. Each stripe in this course is three long pieces of ¾ in (19 mm) vinyl electrical tape placed edge to edge on white poster board. No paper should be visible between the strips of electrical tape.

6- 9VD C

9 V dc

B a t t ery

X 4 X 5

R ed

Bl ack

S out

S in

AT N

V ss

P 1

P 2

P 4

P 5

P 6

P 7

U 1

S TAMPS

S

TM

V in

V ss

P 12

P 11

P 9

V ss

P 0

P 2

P 4

P 8

P 10

P 12

P 14

R st

P 15

P 14

P 13

V dd X 1

R eset

Pw r

V ss

P 1

P 3

P 5

P 7

P 9

P 11

P 15

P 14

P 13

P 12

P 13

P 15

P 11

P 10

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

V in

P 9

P 8

P 7

P 6

P 5

P 4

P 3

P 7

P 6

P 5

P 4

P 3

P 2

P 1

P 0

P 8 w w w . st a mp si nc la ss .c om

0 1 2

B o a rd o f E d uc a t i o n

R ev C © 2 000 -2 003

Start

Figure 8-7

Stripe

Following

Course

Finish

28” (71 cm)

Building and Testing the Course

For successful navigation of this course, some testing and Boe-Bot adjustment will be required.

Chapter 8: Robot Control with Distance Detection · Page 287

Materials Required

(1) Sheet of poster board – Approximate dimensions: 22 X 28 in (56 X 71 cm)

(1) Roll of Black Vinyl Electrical Tape – ¾” (19 mm) wide.

√ Use your poster board and electrical tape to build the course shown in Figure 8-

7.

Testing the Stripe

√ Point your IR pairs downward and outward as shown in Figure 8-8 (Figure 7-8 from page 255 repeated here for convenience).

Vdd

X4 X5

Vin Vss

Figure 8-8

IR Pairs Directed

Downwards to

Scan for the

Stripe

+

Board of Education

Rev C

© 2000-2003

Top View Side View

√ Make sure your electrical tape course is free of fluorescent light interference.

See Sniffing for IR Interference (page 245).

√ Replace the 1 kΩ resistors in series with the IR LEDs with 2 kΩ resistors to make the Boe-Bot more nearsighted.

√ Run DisplayBothDistances.bs2 from page 275. Keep your Boe-Bot connected to its serial cable so that you can see the displayed distances.

√ Start by placing your Boe-Bot so that it is looking directly at the white background of your poster board as shown in Figure 8-9.

√ Verify that your zone readings indicate that an object is detected in a very close zone. Both sensors should give you a 1 or 0 reading.

Page 288 ·

Robotics with the Boe-Bot

6- 9VD C

9 V dc

B a t t ery

X 4 X 5

R ed

Bl ack

P 4

P 5

P 6

P 7

P 0

P 1

P 2

P 3

S out

S in

AT N

V ss

U 1

STA

C LAS

S

TM

V in

V ss

R st

V dd

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

V ss

P 0

P 2

P 4

P 6

P 8

P 10

P 12

V ss

Pw r

P 1

P 3

P 5

P 7

P 9

P 11

P 14

V dd

P 13

P 15

X 1

V in

R eset

0 1 2 w w w . st a mps i nc la ss .c om

P 7

P 6

P 5

P 4

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

P 7

P 6

P 5

P 4

P 3

P 2

P 1

P 0

X 2

B o a rd o f E d uc a t i o n

R ev C © 2 000 -2 003

Figure 8-9

Test for Low Zone

Number – Top View

√ Place your Boe-Bot so that both IR LED/detector pairs are focused directly at the center of your electrical tape stripe (see Figure 8-10 and Figure 8-11).

√ Then, adjust your Boe-Bot’s position (toward and away from the tape) until both zone values reach the 4 or 5 level indicating that either a far away object is detected, or no object is detected.

√ If you are having difficulties getting the higher readings with your electrical tape course, see Trouble Shooting the Electrical Tape Course on page 289.

6- 9VD C

9 V dc

B a t t ery

Pw r

STA i n MPS

S

TM

S out

S in

V ss

AT N

P 0

P 1

P 2

P 3

P 4

P 5

P 6

P 7

U 1

V in

V ss

R st

V dd

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8 w w w . st a mps i nc la ss .c om

0 1 2

V ss

P 0

P 2

P 4

P 6

P 8

P 10

P 12

P 14

V dd

X 1

R eset

V ss

P 1

P 3

P 5

P 7

P 9

P 11

P 13

P 15

P 14

P 13

P 12

P 15

V in

P 11

P 10

P 7

P 6

P 5

P 4

P 3

P 2

P 1

P 0

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

P 9

P 8

P 7

P 6

P 5

P 4

P 3

V dd

X 4 X 5

B o a rd o f E d uc a t i o n

R ev C © 2 000 -2 003

R ed

Bl ack

Figure 8-10

Test for High Zone

Number – Top View

Chapter 8: Robot Control with Distance Detection · Page 289

Figure 8-11

Test for High

Zone Number

– Side View

Electrical Tape

Trouble Shooting the Electrical Tape Course

If you are unable to get a high zone value when the IR detectors are focused on the electrical tape, take a separate piece of paper, and make a stripe that’s four strips wide instead of three. If the zone numbers are still low, make sure that you are using 2 kΩ resistors (red-black-red) in series with your IR LEDs. You can also try a 4.7 kΩ resistor to make the Boe-Bot more nearsighted. If none of this works, try a different brand of black vinyl electrical tape. Adjusting the IR LED/detector so that it is focused closer to or further from the front of the Boe-Bot (see Figure 8-11) may also help.

If you are having trouble with low zone measurements when reading the white surface, try pointing the IR LEDs and detectors further downward and toward the front of the Boe-Bot, but be careful not to cause reflection off the chassis. You can also try a lower-value resistor like 1 kΩ (brown-black-red).

If you are using the older shrink wrapped IR LEDs instead of the ones with the 2-piece plastic shields, you may be having trouble with getting a low zone number when the IR

LED/detectors are focused on the white background. These LEDs may need 470 Ω (yellow- violet-brown) or 220 Ω (red-red-brown) resistors in series. Also, make sure that the leads of the IR LEDs are not touching each other.

√ Now, place the Boe-Bot on the course so that its wheels straddle the black line.

The IR detectors should be facing slightly outward. See close-up in Figure 8-12.

Verify that the distance reading for both IR pairs is 0 or 1 again. If the readings are higher, it means they need to be pointed slightly further outward, away from the edge of the stripe.

When you move the Boe-Bot in either direction indicated by the double-arrow, one or the other IR pair will become focused on the electrical tape. When you do this, the readings

Page 290 ·

Robotics with the Boe-Bot for the pair that is now over the electrical tape should increase to 4 or 5. Keep in mind that if you move the Boe-Bot toward its left, the right detectors should increase in value, and if you move the Boe-Bot toward its right, the left detectors should show the higher value.

√ Adjust your IR LED/detector pairs until the Boe-Bot passes this last test. Then you will be ready to try following the stripe.

Vdd

X4 X5

Vin Vss

6- 9VD C

9 V dc

B a t t ery

X 4 X 5

R ed

Bl ack

P 1

P 2

P 4

P 5

S out

S in

AT N

P 0

P 6

P 7

U 1

S TAM

C LAS PS

S

V ss

P 0

P 2

TM

P 4

P 6

P 10

V in

V ss

R st

P 15

P 12

P 14

V dd X 1

P 14

P 13

P 12

P 10

P 9

P 8 w w w . st a mps i nc la ss .c om

R eset

Pw r

V ss

P 1

P 3

P 7

P 9

P 11

P 13

V in

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

P 7

P 6

P 7

P 6

P 5

P 4

P 3 P 3

P 2

P 1

P 0

0 1 2

B o a rd o f E d uc a t i o n

R ev C © 2 000 -2 003

Figure 8-12

Stripe Scan

Test

+

Board of Education

Rev C

© 2000-2003

IR pairs close-up Top view of Boe-Bot straddling the stripe

Programming for Stripe Following

You will only need to make a few small adjustments to FollowingBoeBot.bs2. from page

282 to make it work for following a stripe. First, the Boe-Bot should move toward objects closer than the

SetPoint

and away from objects further from the

SetPoint

.

This is the opposite of how FollowingBoeBot.bs2 behaved. To reverse the direction the

Boe-Bot moves when it senses that the object is not at the

SetPoint

distance, simply change the signs of

Kpl

and

Kpr

. In other words, change

Kpl

from -35 to 35, and change

Kpr

from 35 to -35. You will need to experiment with your

SetPoint

. Values from 2 to

4 tend to work best. This next example program will use a

SetPoint

of 3.

Example Program: StripeFollowingBoeBot.bs2

√ Open FollowingBoeBot.bs2 and save it as StripeFollowingBoeBot.bs2.

√ Change the

SetPoint

declaration from

SetPoint CON 2

to

SetPoint CON 3

.

√ Change

Kpl

from -35 to 35.

Chapter 8: Robot Control with Distance Detection · Page 291

√ Change

Kpr

from 35 to -35.

√ Run the program (shown below).

√ Place your Boe-Bot at the “Start” location shown in Figure 8-13. The Boe-Bot should wait there until you place your hand in front of its IR pairs. It will then roll forward. When it clears the starting stripe, take your hand away, and it should start tracking the stripe. When it sees the “Finish” stripe, it should stop and wait there.

√ Assuming that you can get distance readings of 5 from the electrical tape and 0 from the poster board,

SetPoint

constant values of 2, 3, and 4 should work.

Try different

SetPoint

values and make notes of your Boe-Bot’s performance on the track.

6- 9VD C

15 1 4 13 1 2

V dd

9 V dc

B a t t ery

X 4 X 5

V ss

R ed

Bl ack

Pw r

P 4

P 5

P 6

P 7

P 0

P 1

P 2

P 3

S out

S in

AT N

V ss

S TAMPS

C LAS

S

TM

V in

V ss

R st

V dd

V ss

P 0

P 2

P 4

P 6

P 8

P 10

P 12

U 1

P 15

P 14

P 13

P 12

P 11

P 10

P 9

P 8

P 14

V dd

X 1

R eset

0 1 2 w w w . st a mp si nc la ss .c om

V ss

P 1

P 3

P 5

P 7

P 9

P 11

P 13

P 15

X 3

P 14

P 13

P 15

V in

P 10

P 9

P 8

P 7

P 6

P 5

P 4 P 4

P 3

P 2

P 1

P 0

B o a rd o f E d uc a t i o n

R ev C © 2 000 -2 003

Start

Figure 8-13

Stripe

Following

Course

Finish

28” (71 cm)

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - StripeFollowingBoeBot.bs2

' Boe-Bot adjusts its position to move toward objects that are closer than

' zone 3 and away from objects further than zone 3. Useful for following a

' 2.25 inch wide vinyl electrical tape stripe.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Constants ]----------------------------------------------------------

Kpl CON 35 ' Change from -35 to 35

Page 292 ·

Robotics with the Boe-Bot

Kpr CON -35 ' Change from 35 to -35

SetPoint CON 3 ' Change from 2 to 3.

CenterPulse CON 750

' -----[ Variables ]---------------------------------------------------------- freqSelect VAR Nib irFrequency VAR Word irDetectLeft VAR Bit irDetectRight VAR Bit distanceLeft VAR Nib distanceRight VAR Nib pulseLeft VAR Word pulseRight VAR Word

' -----[ Initialization ]-----------------------------------------------------

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]-------------------------------------------------------

DO

GOSUB Get_Ir_Distances

' Calculate proportional output.

pulseLeft = SetPoint - distanceLeft * Kpl + CenterPulse

pulseRight = SetPoint - distanceRight * Kpr + CenterPulse

GOSUB Send_Pulse

LOOP

' -----[ Subroutine - Get IR Distances ]--------------------------------------

Get_Ir_Distances:

distanceLeft = 0

distanceRight = 0

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500], irFrequency

FREQOUT 8,1,irFrequency

irDetectLeft = IN9

distanceLeft = distanceLeft + irDetectLeft

FREQOUT 2,1,irFrequency

irDetectRight = IN0

distanceRight = distanceRight + irDetectRight

NEXT

RETURN

Chapter 8: Robot Control with Distance Detection · Page 293

' -----[ Subroutine - Get Pulse ]---------------------------------------------

Send_Pulse:

PULSOUT 13,pulseLeft

PULSOUT 12,pulseRight

PAUSE 5

RETURN

Your Turn – Stripe Following Contest

You can turn this into a contest with the lowest course time winning, provided the Boe-

Bot faithfully waits at the “Start” and “Finish” stripes. You can make up other courses too. For best performance, experiment with different

SetPoint

,

Kpl

, and

Kpr

values.

Page 294 ·

Robotics with the Boe-Bot

SUMMARY

Frequency sweep was introduced as a way of determining distance using the Boe-Bot’s

IR LED and detector.

FREQOUT

was used to send IR signals at frequencies ranging from

37.5 kHz (most sensitive) to 41.5 kHz (least sensitive). The distance was determined by tracking which frequencies caused the IR detector to report that an object was detected and which did not. Since not all of the frequencies were separated by the same value, the

LOOKUP

command was introduced as simple way to use the counting sequence supplied by a

FOR…NEXT

loop to index sequential lists of numbers.

Control systems were introduced along with closed loop control. Proportional control in a closed-loop system is an algorithm where the error is multiplied by a proportionality constant to determine the system’s output. The error is the measured system output subtracted from the set point. For the Boe-Bot, both system output and set point were in terms of distance. The BASIC stamp was programmed in PBASIC to operate control loops for the both the left and right servos and distance detectors. By re-sampling distance and adjusting the servo output before sending pulses to the servos, the control loop made the Boe-Bot responsive to object motion. The Boe-Bot was able to use proportional control to lock onto and follow objects, and it also used it to track and follow a stripe of black electrical tape.

Watch the Boe-Bot in Action at www.parallax.com!

You can see the Boe-Bot solving Chapter 8 Project 2 and other Robotics video clips in the

Robo Video Gallery under the Robotics Menu at www.parallax.com.

Questions

1. What would the relative sensitivity of the IR detector be if you use

FREQOUT

to send a 35 kHz harmonic? What is the relative sensitivity with a 36 kHz harmonic?

2. Consider the code snippet below. If the

index

variable is 4, which number will be placed in the

prime

variable in this

LOOKUP

command? What values will

prime

store when

index

is 0, 1, 2, and 7?

LOOKUP index, [2, 3, 5, 7, 11, 13, 17, 19], prime

3. In what order are PBASIC math expressions evaluated? How can you override that order?

Chapter 8: Robot Control with Distance Detection · Page 295

4. What PBASIC directive do you use to declare a constant? How would you give the number 100 the name “BoilingPoint”?

Exercises

1. List the sensitivity of the IR detector for each kHz frequency shown in Figure 8-

1.

2. Write a segment of code that does the frequency sweep for just four frequencies instead of five.

3. Make a condensed checklist for the tests that should be performed to ensure faithful stripe following.

Projects

P1. Create different types of electrical tape intersections and program the Boe-Bot to navigate through them. The intersections could be 90° left, 90° right, three-way, and four-way. This will involve the Boe-Bot recognizing it is at an intersection.

When the Boe-Bot executes StripeFollowingBoeBot.bs2, the Boe-Bot will stay still at intersections. The goal is to have the Boe-Bot realize it’s not doing anything and break from its proportional control loop.

Hints: You can do this by creating two counters, one that increments by 1 each time through the

DO…LOOP

, and the other that only increments when the Boe-Bot delivers a forward pulse. When the counter that increments each time through the

DO…LOOP

gets to 60, use

IF…THEN

to check how many forward pulses were applied. If less than 30 forward pulses were applied, the Boe-Bot is probably stuck. Remember to reset both counters to zero each time the loop counter gets to 60. After the Boe-Bot recognizes that it is at an intersection, it needs to move to the top edge of the intersection, then back up and figure out whether it sees electrical tape or white background on the left and right, then make the correct

90° turn. Use a preprogrammed motion for turning 90°, without proportional control. For three-way and four-way intersections, the Boe-Bot may turn either right or left.

P2. Advanced Project - Design a maze-solving contest of your own, and program the

Boe-Bot to solve it!

Page 296 ·

Robotics with the Boe-Bot

Questions

Q1. The relative sensitivity at 35 kHz is 30%. For 36 kHz, it's 50%

Q2. When

index

= 4,

prime

= 11

index

= 0,

prime

= 2

index

= 1,

prime

= 3

index

= 2,

prime

= 5

index

= 7,

prime

= 19

Q3. Expressions are evaluated left to right. To override, use parentheses to change the order.

Q4. Use the

CON

directive.

BoilingPoint CON 100

E1. Frequency (kHz): 34 35 36 37 38 39 40 41 42

Sensitivity : 14% 30% 50% 76% 100% 80% 55% 35% 16%

E2. To solve this problem, put only four frequencies in the

LOOKUP

list, and decrease the

FOR…NEXT

index by one.

FOR freqSelect = 0 TO 3

LOOKUP freqSelect, [37500, 38750, 39500, 40500], irFrequency

FREQOUT 8, 1, irFrequency

irDetect = IN9

… commands not shown

NEXT

E3. • Sniff for IR interference with "IrInterferenceSniffer.bs2".

• Run Display BothDistances.bs2.

• White readings should be 0-1 in both sensors.

• Black readings should be 4-5 in both sensors.

• Straddle the line, both sensors should read 0-1.

• Move Boe-Bot back and forth over line, sensor over black line should read 4-5.

P1. In the solution below, the

Check_For_Intersection

subroutine implements the algorithm outlined. The left servo was arbitrarily chosen for counting the forward pulses. A bit-sized variable named

isStuck

is used as a flag to let the

Main program know whether an intersection has been reached. In the

Navigate_Intersection

subroutine, the Boe-Bot goes forward past the intersection and then backs up, checking the sensors, using

DO…LOOP…UNTIL

.

Then it makes a preprogrammed 90 degree turn in the correct direction. If the

Chapter 8: Robot Control with Distance Detection · Page 297 intersection is a 3-way or 4-way intersection, the Boe-Bot will arbitrarily turn in the direction that black is first detected. A constant,

Turn90Degree

, is provided to tune the 90 degree turn. Some audible and visual indicators are included, which aid in troubleshooting and understanding what the Boe-Bot is seeing and deciding, as well as adding a bit of personality and fun.

' -----[ Title ]-------------------------------------------------------

' Robotics with the Boe-Bot - IntersectionsBoeBot.bs2

' Navigate 90 degree left/right, 3-way, and 4-way intersections.

' Based on StripeFollowingBoeBot.bs2

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

DEBUG "Program Running!"

' -----[ Constants ]---------------------------------------------------

Kpl CON 35 ' Left proportional constant

Kpr CON -35 ' Right proportional constant

SetPoint CON 3 ' 0-1 is White, 4-5 is Black

CenterPulse CON 750

Turn90Degree CON 30 ' Pulses needed for 90 turn

RightLED PIN 1 ' LED Indicators

LeftLED PIN 10

' -----[ Variables ]--------------------------------------------------- freqSelect VAR Nib ' Sweep through 5 frequencies irFrequency VAR Word ' Freq sent to IR emitter irDetectLeft VAR Bit ' Store results from detectors irDetectRight VAR Bit distanceLeft VAR Nib ' Calculate distance zones distanceRight VAR Nib pulseLeft VAR Word ' Servo pulseWidths pulseRight VAR Word numPulses VAR Byte ' Count total pulses fwdPulses VAR Byte ' Count forward pulses counter VAR Byte isStuck VAR Bit ' Boolean variable,is bot stuck?

' -----[ Initialization ]----------------------------------------------

FREQOUT 4, 2000, 3000

' -----[ Main Routine ]------------------------------------------------

DO

GOSUB Get_Ir_Distances ' Read IR sensors

Page 298 ·

Robotics with the Boe-Bot

GOSUB Update_LEDs ' Indicate white/black line

' Calculate proportional output and move accordingly.

pulseLeft = SetPoint - distanceLeft * Kpl + CenterPulse

pulseRight = SetPoint - distanceRight * Kpr + CenterPulse

GOSUB Send_Pulse

GOSUB Check_For_Intersection ' Are we stuck at intersection?

IF (isStuck = 1) THEN

GOSUB Make_Noise ' Audible indication

GOSUB Navigate_Intersection ' Navigate through it

ENDIF

LOOP

' -----[ Subroutines ]-------------------------------------------------

Navigate_Intersection:

' Go forward until both sensors read white, through the intersection.

DO

pulseLeft = 850: pulseRight = 650 ' Forward

GOSUB Send_Pulse

GOSUB Get_Ir_Distances

GOSUB Update_LEDs

LOOP UNTIL (distanceLeft <=2) AND (distanceRight <=2)

GOSUB Stop_Quickly ' Don't coast forward

' Now back up until one detector sees the black.L & R turn will see

' black on one detector.3- or 4-way will see both black, turn toward

' whichever the bot sees first (random).

DO

pulseLeft = 650: pulseRight = 850 ' Backward

GOSUB Send_Pulse

GOSUB Get_Ir_Distances

GOSUB Update_LEDs

LOOP UNTIL (distanceLeft >=4) OR (distanceRight >=4)

GOSUB Stop_Quickly ' Don't coast backward

' Make 90 degree turn in direction of the detector which sees black

IF (distanceLeft >=4) THEN ' Left detector reads black

FOR counter = 1 TO Turn90Degree ' Turn 90 degrees left

PULSOUT 13, 750 ' without proportional control

PULSOUT 12, 650

PAUSE 20 ' so use PAUSE 20

NEXT

ELSEIF (distanceRight >=4) THEN ' Right detector reads black

FOR counter = 1 TO Turn90Degree ' Turn 90 degrees right

PULSOUT 13, 850

PULSOUT 12, 750

Chapter 8: Robot Control with Distance Detection · Page 299

PAUSE 20

NEXT

ENDIF

' That's it. At this point the Boe-Bot should have turned 90 degrees

' to follow the intersection. Continue following the black line.

RETURN

Check_For_Intersection:

' Keep track of no. of pulses vs the forward pulses. If there are less

' than 30 forward pulses per total of 60 pulses, robot is likely stuck

' at an intersection.

isStuck = 0 ' Initialze Boolean variable

numPulses = numPulses + 1 ' Count total pulses sent

SELECT numPulses

CASE < 60

IF (pulseLeft > CenterPulse) THEN

fwdPulses = fwdPulses + 1 ' Count foward pulses

ENDIF ' (forward is any pulse > 750)

CASE = 60 ' If we have sent 60 pulses

IF (fwdPulses < 30) THEN ' how many were forward?

isStuck = 1 ' If < 30, robot is stuck

ENDIF

CASE > 60

numPulses = 0 ' Reset counters back to zero

fwdPulses = 0 ' (Could reset in =60 case but

ENDSELECT ' it spoils cool Make_Noise)

RETURN

Make_Noise:

' Makes an increasing tone, proportional to number of forward pulses

FOR counter = 1 TO fwdPulses STEP 3

FREQOUT 4, 100, 3800 + (counter * 10)

NEXT

RETURN

Update_LEDs:

' Use LEDs to indicate whether detectors are seeing black or white.

' White = Off, Black = On. Black is a distance reading > or = 4 .

IF (distanceLeft >= 4) THEN HIGH LeftLED ELSE LOW LeftLED

IF (distanceRight >= 4) THEN HIGH RightLED ELSE LOW RightLED

RETURN

Stop_Quickly:

' This stops the wheels so the Boe-Bot does not "coast" forward.

PULSOUT 13, 750

Page 300 ·

Robotics with the Boe-Bot

PULSOUT 12, 750

PAUSE 20

RETURN

Get_Ir_Distances:

' Read both IR pairs and calculate the distance. Black line gives 4-5

' reading. White surface give 0-1 reading.

distanceLeft = 0

distanceRight = 0

FOR freqSelect = 0 TO 4

LOOKUP freqSelect,[37500,38250,39500,40500,41500], irFrequency

FREQOUT 8,1,irFrequency

irDetectLeft = IN9

distanceLeft = distanceLeft + irDetectLeft

FREQOUT 2,1,irFrequency

irDetectRight = IN0

distanceRight = distanceRight + irDetectRight

NEXT

RETURN

Send_Pulse:

' Send a single pulse to the servos in between IR readings.

PULSOUT 13,pulseLeft

PULSOUT 12,pulseRight

PAUSE 5 ' PAUSE reduced due to IR readings

RETURN

P2. If you create an interesting Boe-Bot maze project and you want to share it with others, you may want to join the StampsInClass Yahoo! Group, listed behind the title page of Robotics with the Boe-Bot. Or, you can email the parallax

Educational Team directly at [email protected]

Appendix A: PC to BASIC Stamp Communication Trouble-Shooting · Page 301

Appendix A: PC to BASIC Stamp Communication

Trouble-Shooting

Here is a list of things to try to quickly fix any difficulties getting the BASIC Stamp

Editor to communicate with your BASIC Stamp:

√ If you are using a Board of Education Rev C, make sure the power switch is set to position-1.

√ Rule out dead batteries and incorrect or malfunctioning power supplies by using a new 9 V battery or four new 1.5 V AA alkaline batteries in the battery pack.

√ Make sure the serial cable is firmly connected to both the computer’s COM port and the DB9 connector on the Board of Education or BASIC Stamp HomeWork

Board.

√ Make sure that your serial cable is a normal (straight-through) serial cable. DO

NOT USE A NULL MODEM CABLE. Most null modem cables are labeled

If you are using a BASIC Stamp and Board of Education, also check the following:

NULL or Null Modem; visually inspect the cable for any such labeling.

√ Disable any palmtop communication software.

√ Make sure the BASIC Stamp was inserted into the socket right-side-up as shown in Figure 1-24 on page 17.

√ If you are using a DC power supply that plugs into the wall, make sure it is plugged in to both the wall and the Board of Education. Verify that the green

Pwr light on the Board of Education emits light when the DC supply is plugged in.

√ Make sure the BASIC Stamp is firmly inserted into the socket.

√ Visually inspect the BASIC Stamp module to make sure that none of the pins folded under the module instead of sinking into their sockets on the Board of

Education.

If your Identification window looks similar to Figure A-1, it means that the BASIC

Stamp Editor cannot find your BASIC Stamp on any COM port. If you have this problem, try the following:

Page 302 ·

Robotics with the Boe-Bot

Figure A-1

Identification Window

Example: BASIC Stamp

2 not found on COM ports.

If you know the number of the COM port, but it does not appear in the Identification

Window:

√ Use the Edit Port List button to add that COM port. When you return to the

Identification window, click the Refresh button to find out if the BASIC Stamp 2 is now detected.

√ Close the Identification window.

√ In the BASIC Stamp Editor, Click Edit and select Preferences. Click the Editor

Operation tab, and set the Default COM Port to AUTO.

√ Try the Run → Identify test again.

If you are unsure of which COM port your BASIC Stamp is connected to, or if you are using a USB to serial port adaptor, you may need to look in your computer's Device

Manager to find the list of COM ports in use.

√ Click on your computer desktop’s Start button.

√ To view the list of COM ports in use, make the selections listed next to your operating system :

Windows® 98:

Control Panel → System → Hardware → Device Manager

→ Ports(COM & LPT1).

Windows® 2000:

Settings → Control Panel → System → Hardware →

Device Manager → Ports (COM & LPT).

Windows® XP:

Control Panel → Printers and Other Hardware.

In the See Also box select System.

Hardware → Device Manager → Ports

Windows® XP Pro: Settings → Control Panel → System → Hardware →

Device Manager → Ports (COM & LPT).

Appendix A: PC to BASIC Stamp Communication Trouble-Shooting · Page 303

√ If you are using a serial port (no USB to serial adaptor), make a note of the COM ports listed. If one or more of these COM ports do not appear in your BASIC

Stamp Editor's list, make a note of the numbers for each COM port that doesn't appear in the list now.

√ If you are using an FTDI USB to Serial adaptor, look for the COM port that reads FTDI USB to Serial COM…

√ Repeat the Run → Identify test.

√ Click the Edit Ports List button and add the missing COM port numbers.

√ Repeat the Run → Identify test again, this time, the Identification window should

"find" your BASIC Stamp 2.

Still no BASIC Stamp Detected?

√ If you have more than one COM port, try connecting your Board of Education or

BASIC Stamp HomeWork Board to a different COM port and see if Run →

Identify works then.

√ If you have a second computer, try it on the different computer.

If you get the error message “No BASIC Stamp Found” but the Run → Identify test shows a “Yes” in both columns for one of the COM ports, you may need to change a setting to your FIFO Buffers. This happens occasionally with Microsoft Windows® 98 and XP users. Make a note of the COM port with the “Yes” messages, and try this:

Windows

®

98:

√ Click on your computer desktop’s Start button.

√ Select SettingsControl PanelSystem Device ManagerPorts (COM & LPT).

√ Select the COM port that was noted by the Run → Identify test.

√ Select Properties Port SettingsAdvanced.

√ Uncheck the box labeled “Use FIFO Buffers” then click OK.

√ Click OK as needed to close each window and return to the BASIC Stamp Editor.

√ Try downloading a program once more.

Windows

®

2000:

√ Click on your computer desktop’s Start button.

√ Select Settings Control Panel System Hardware Device Manager Ports

(COM & LPT).

Page 304 ·

Robotics with the Boe-Bot

√ Select the COM port that was noted by the Run → Identify test.

√ Select Port SettingsAdvanced.

√ Uncheck the box labeled “Use FIFO Buffers” then click OK.

√ Click OK as needed to close each window and return to the BASIC Stamp Editor.

√ Try downloading a program once more.

Windows

®

XP:

√ Click on your computer desktop’s Start button.

√ Select Control PanelPrinters and Other Hardware.

√ In the See Also box select System.

√ Select HardwareDevice ManagerPorts.

√ Enter the COM port number noted by the RunIdentify test.

√ Select Port SettingsAdvanced.

√ Uncheck the box labeled “Use FIFO Buffers” then click OK.

√ Click OK to close each window as needed and return to the BASIC Stamp Editor.

√ Try downloading a program once more.

Windows

®

XP Pro:

√ Click on your computer desktop’s Start button.

√ Select Control Panel System Hardware Device Manager Ports(COM & LPT1).

√ Select the Communications Port number noted by the RunIdentify test.

√ Select Properties Port SettingsAdvanced.

√ Uncheck the box labeled “Use FIFO Buffers” then click OK.

√ Click OK to close each window as needed and return to the BASIC Stamp Editor.

√ Try downloading a program once more.

If none of these solutions work, you may go to www.parallax.com and follow the Support link. Or, email [email protected] or call Tech Support toll free at 1-888-99-STAMP.

Appendix B: BASIC Stamp and Carrier Board Components and Features · Page 305

Appendix B: BASIC Stamp and Carrier Board

Components and Features

The BASIC STAMP

®

2 Microcontroller Module

Figure B-1 shows a close-up of the BASIC Stamp

®

2 microcontroller module. Its major components and their functions are indicated by labels.

Figure B-1:

BASIC Stamp

®

2 Microcontroller Module

Components and Their Functions

Page 306 ·

Robotics with the Boe-Bot

The Board of Education

®

Rev C Carrier Board

The Board of Education

®

Rev C carrier board for BASIC Stamp

®

24-pin microcontroller modules is shown in Figure B-2. Its major components and their functions are indicated by labels.

Figure B-2:

Board of Education

®

Rev C Carrier Board

Appendix B: BASIC Stamp and Carrier Board Components and Features · Page 307

The BASIC Stamp

®

HomeWork Board

Project Platform

The BASIC Stamp

®

HomeWork Board

project platform is shown in Figure B-3. Its major components and their functions are indicated by labels.

Figure B-3:

BASIC Stamp

®

HomeWork Board

Project Platform

Page 308 ·

Robotics with the Boe-Bot

The Board of Education

®

Rev B Carrier Board

Figure B-4 shows the Board of Education

®

Rev B carrier board for BASIC Stamp

®

24pin microcontroller modules. Its major components and their functions are indicated by labels.

Figure B-4:

Board of Education

®

Rev B Carrier Board

Appendix C: Resistor Color Codes · Page 309

Appendix C: Resistor Color Codes

Resistors like the ones we are using in this student guide have colored stripes that tell you what their resistance values are. There is a different color combination for each resistance value. For example, the color code for the 470 Ω resistor is yellow-violetbrown.

There may be a fourth stripe that indicates the resistor’s tolerance. Tolerance is measured in percent, and it tells how far off the part’s true resistance might be from the labeled resistance. The fourth stripe could be gold (5%), silver (10%), or no stripe (20%). For the activities in this book, a resistor’s tolerance does not matter, but its value does.

Each color bar that tells you the resistor’s value corresponds to a digit, and these colors/digits are listed in Table C-1. Figure C-1 shows how to use each color bar with the table to determine the value of a resistor.

Table C-1:

Resistor Color Code

Values

Digit Color

0 Black

1 Brown

Tolerance

Code

2 Red

3 Orange

4 Yellow

5 Green

First Digit

Second Digit

Number of Zeros

Figure C-1

Resistor Color

Codes

6 Blue

7 Violet

8 Gray

9 White

Here is an example that shows how Table C-1 and Figure C-1 can be used to figure out a resistor value by proving that yellow-violet-brown is really 470

Ω:

First stripe is yellow, which means leftmost digit is a 4.

Second stripe is violet, which means next digit is a 7.

Page 310 ·

Robotics with the Boe-Bot

Third stripe is brown. Since brown is 1, it means add one zero to the right of the first two digits.

Yellow-Violet-Brown = 4-7-0.

Appendix D: Breadboarding Rules · Page 311

Appendix D: Breadboarding Rules

Look at your Board of Education or HomeWork Board. The white square with lots of holes, or sockets, in it is called a solderless breadboard. This breadboard, combined with the black strips of sockets along two of its sides, is called the prototyping area (shown in

Figure D-1).

The example circuits in this text are built by plugging components such as resistors,

LEDs, speakers, and sensors into these small sockets. Components are connected to each other with the breadboard sockets. You will supply your circuit with electricity from the power terminals, which are the black sockets along the top labeled Vdd, Vin, and Vss.

The black sockets on the left are labeled P0, P1, up through P15. These sockets allow you to connect your circuit to the BASIC Stamp’s input/output pins.

Vdd

Vin Vss

X3

P3

P2

P1

P0

P7

P6

P5

P4

P15

P14

P13

P12

P11

P10

P9

P8

X2

Figure D-1

Prototyping Area

Power terminals (black sockets along top), I/O pin access (black sockets along the side), and solderless breadboard (white sockets)

The breadboard has 17 rows of sockets separated into two columns by a trough. The trough splits each of the seventeen rows of sockets into two rows of five. Each row of five sockets is electrically connected inside the breadboard. You can use these rows of sockets to connect components together as dictated by a circuit schematic. If you insert two wires into any two sockets in the same 5-socket row, they are electrically connected to each other.

A circuit schematic is a roadmap that shows how to connect components together. It uses unique symbols each representing a different component. These component symbols are connected by lines to indicate an electrical connection. When two circuit symbols are

Page 312 ·

Robotics with the Boe-Bot connected by lines on a schematic, the line indicates that an electrical connection is made.

Lines can also be used to connect components to voltage supplies. Vdd, Vin, and Vss all have symbols. Vss corresponds to the negative terminal of the battery supply for the

Board of Education or BASIC Stamp HomeWork Board. Vin is the battery’s positive terminal, and Vdd is regulated to +5 volts.

Let’s take a look at an example that uses a schematic to connect the parts shown in Figure

D-2. For each of these parts, the part drawing is shown above the schematic symbol.

+

Gold

Silver or

Blank

Yellow

Violet

Brown

Figure D-2

Part Drawings and

Schematic Symbols

LED(left) and

470

resistor (right)

470

LED

Figure D-3 shows an example of a circuit schematic on the left and a drawing of a circuit that can be built using this schematic on the right. Notice how the schematic shows that one end of the jagged line that denotes a resistor is connected to the symbol for Vdd. In the drawing, one of the resistor’s two leads is plugged into one of the sockets labeled

Vdd. In the schematic, the other terminal of the resistor symbol is connected by a line to the + terminal of the LED symbol. Remember, the line indicates the two parts are electrically connected. In the drawing, this is accomplished by plugging the other resistor lead into the same row of 5 sockets as the + lead on the LED. This electrically connects the two leads. The other terminal of the LED is shown connected to the Vss symbol in the schematic. In the drawing, the other lead of the LED is plugged into one of the sockets labeled Vss.

Appendix D: Breadboarding Rules · Page 313

Vdd Vin Vss

Vdd

Vss

470

LED

X3

P4

P3

P2

P1

P0

P8

P7

P6

P5

P15

P14

P13

P12

P11

P10

P9

X2

+

Figure D-3

Example Schematic and

Wiring Diagram

Schematic (left) and wiring diagram (right)

Figure D-4 shows a second example of a schematic and wiring diagram. This schematic shows P14 connected to one end of a resistor, with the other end connected to the + terminal of an LED, and the – terminal of the LED is connected to Vss. The schematic only differs by one connection. The resistor lead that used to be connected to Vdd is now connected to BASIC Stamp I/O pin P14. The schematic might look more different than that, mainly because the resistor is shown drawn horizontally instead of vertically. But in terms of connections, it only differs by one, P14 in place of Vdd. The wiring diagram shows how this difference is handled with the resistor lead that used to be plugged into

Vdd, now plugged into P14.

Page 314 ·

Robotics with the Boe-Bot

Vdd Vin Vss

X3

+

P14

470 Ω

Vss

LED

P4

P3

P2

P1

P0

P8

P7

P6

P5

P15

P14

P13

P12

P11

P10

P9

X2

Figure D-4

Example Schematic and

Wiring Diagram

Schematic (left) and wiring diagram (right)

Here is a more complex example that involves two additional parts, a photoresistor and a capacitor. The schematic symbols and part drawings for these components are shown in

Figure D-5.

Figure D-5

Part Drawings and

Schematic Symbols

Photoresistor (top) and non-polar capacitor (bottom)

0.01 µF

Since this schematic shown in Figure D-6 calls for a 220 Ω resistor, the first step is to consult Appendix C: Resistor Color Codes to determine the color code for a 220 Ω resistor. The color code is Red, Red, Brown. This resistor is connected to P6 in the schematic, which corresponds to the resistor lead plugged into the socket labeled P6 in

Appendix D: Breadboarding Rules · Page 315 the prototyping area (Figure D-7). In the schematic, the other lead of the resistor is connected to not one, but two other component terminals. A terminal from the photoresistor and capacitor both share this connection. On the breadboard, the other resistor lead is plugged into one of the rows of 5 sockets. This row also has leads from the capacitor and photoresistor plugged into it. In the schematic, the other terminals of the photoresistor and capacitor are connected to Vss. Here is a trick to keep in mind when building circuits on a breadboard. You can use a wire to connect an entire row on the breadboard to another row, or even to I/O pins or power terminals such as Vdd or

Vss. In this case, a wire was used to connect Vss to a row on the breadboard. Then, the leads for the capacitor and photoresistor were plugged into the same row, completing the circuit.

P6

220 Ω

0.1 µF

Figure D-6

Resistor, Photoresistor, and

Capacitor Schematic

Vss

Page 316 ·

Robotics with the Boe-Bot

Vdd Vin Vss

X3

P15

P5

P4

P3

P2

P1

P0

P14

P13

P12

P11

P10

P9

P8

P7

P6

X2

Figure D-7

Resistor, Photoresistor, and Capacitor Wiring

Diagram

Keep in mind that the wiring diagrams presented here as solutions to the schematics are not the ONLY solutions to those schematics. For example, Figure D-8 shows another solution to the schematic just discussed. Follow the connections and convince yourself that it does satisfy the schematic.

Vdd Vin Vss

X3

P15

P5

P4

P3

P2

P14

P13

P12

P11

P10

P9

P8

P7

P6

P1

P0

X2

Figure D-8

Resistor, Photoresistor, and

Capacitor Wiring Diagram

Note the alternative parts placement.

Appendix E: Boe-Bot Parts Lists · Page 317

Appendix E: Boe-Bot Parts Lists

To complete the activities in this text, you will need a complete Boe-Bot and the electronic components necessary to build the example circuits. There are several options for ordering these items from Parallax, which are described on the following pages.

All of the information in this appendix was current at the time of printing. Parallax may make part substitutions at our discretion, out of necessity or to upgrade the quality of our products. For the latest information and free downloads about your Boe-Bot and the

Robotics with the Boe-Bot Student Guide, check their individual product pages at www.parallax.com.

Boe-Bot Robot Kit (also known as the Boe-Bot Full Kit)

Aside from a PC with a serial port and a few common household items, the Boe-Bot

Robot Kit contains all the parts and documentation you’ll need to complete the experiments in this text.

Table E-1:

Boe-Bot Robot (Full) Kit (#28132)

Parts and quantities subject to change without notice

Parallax

Stock Code

BS2-IC

27000

28124

28125

28150

Description

BASIC Stamp 2 microcontroller module

Parallax CD with software and documentation

Robotics with the Boe-Bot Parts Kit

Robotics with the Boe-Bot Student Guide

Board of Education Rev C

Quantity

1

1

1

1

1

1

1

All of these items may also be ordered separately, using the individual part numbers. You can contact the Parallax Sales Team toll free at 1-888-512-1024 or order online at www.parallax.com. For technical questions or assistance call our Technical Support team at 1-888-99-STAMP.

Page 318 ·

Robotics with the Boe-Bot

Robotics with the Boe Bot Parts Kit

If you already have a Board of Education and BASIC Stamp, you may purchase the

Robotics with the Boe-Bot Parts kit, with or without the printed text Robotics with the

Boe-Bot Student Guide.

Parallax

Stock Code

150-01020

150-01030

150-02020

150-02210

150-04710

150-04720

200-01031

200-01040

Table E-2:

Robotics with the Boe-Bot Parts & Text, #28154

Robotics with the Boe-Bot Parts only, #28124

Parts and quantities subject to change without notice

Description

1 k

Ω resistor

10 k Ω resistor

2 k

Ω resistor

220

Ω resistor

470 Ω resistor

4.7 k

Ω resistor

0.01

µF capacitor

0.1 µF capacitor

Quantity

350-00014

350-90000

350-00001

710-00007

713-00007

Infrared receiver (Panasonic PNA4602M or equivalent)

LED standoff for infrared LED

LED light shield for infrared LED

7/8” 4-40 pan-head screw, Phillips

½” Spacer, aluminum, #4 round

800-00016 Jumper wires (bag of 10)

900-00001 Piezospeaker

28133 Boe-Bot Hardware Pack

4

2

2

2

2

2

8

2

2

2

2

2

2

1

1

2

2

2

2

2

2

2

Appendix E: Boe-Bot Parts Lists · Page 319

Building a Boe-Bot with a HomeWork Board

If you already have a BASIC Stamp HomeWork Board that you wish to use with a Boe

Bot, you will need the Robotics with the Boe-Bot Parts kit and these additional items:

(2) 3-pin male/male headers, #451-00303

(1) Tinned-lead battery pack, #753-00001

Boe-Bot Hardware Pack

All of the Boe-Bot hardware parts can be purchased individually, as found in our on-line

Robot Component Shop if you find you need a replacement part. Please note that the

Hardware Pack is not sold as a unit separately from the Boe-Bot Robot (Full) Kit or the

Boe-Bot Parts Kit.

Table E-3:

Boe-Bot Hardware Pack (#28133)

Parts and quantities subject to change without notice

Parallax

Stock Code

700-00002

700-00003

Description

4-40 x 3/8”machine screw, Phillips

Hex nut, 4-40 zinc plated

Quantity

700-00016

700-00022

700-00023

700-00028

700-00038

700-00060

721-00002

900-00008

4-40 x 3/8” flathead machine screw, Phillips

Boe-Bot aluminum chassis

1/16" x 1.5” long cotter pin

4-40 x 1/ 4” machine screw, Phillips

Battery holder with cable and barrel plug

Standoff, threaded aluminum, round 4-40

Rubber band tire

Parallax Continuous Rotation Servo

8

10

1

2

1

1

2

8

1

4

2

4

2

Page 320 ·

Robotics with the Boe-Bot

Board of Education Kits

Almost all of the titles in the Stamps in Class curriculum feature different hardware and component packages that depend on the BASIC Stamp and Board of Education as a core.

The Board of Education can be purchased separately or in its own kit, as listed in Table

E-4 below.

Table E-4:

Board of Education – Full Kit (#28102)

Parts and quantities subject to change without notice

Parallax

Stock Code

28150

800-00016

BS2-IC

750-00008

Description

Board of Education Rev C

Jumper wires – pack of 10

BASIC Stamp 2 microcontroller module

300 mA 9 VDC power supply

Quantity

1

1

1

1

1

Appendix F: Balancing Photoresistors · Page 321

Appendix F: Balancing Photoresistors

In this appendix, you will test the photoresistors to find out if they respond similarly to the same incident light levels. If the measurements they report are different for the same incident light levels, you can modify your programs to scale the values reported by your photoresistors. The values will then be similar for similar incident light levels, which can help the Boe-Bot recognize different incident light levels more reliably. This technique can in turn assist the Boe-Bot in exiting dark rooms, even with mismatched photoresistor circuits.

RC circuits with photoresistors can report different values for the same light level

for many reasons: The stated value of the capacitors is 0.01 µF, but the actual value of capacitors can be very different. Many common ceramic capacitors are rated with a tolerance of +80/-20%, meaning that the actual value of the capacitor could be up to 80% larger or 20% smaller than 0.01 µF. This means that your measured decay time could also be between 80% larger and 20% smaller. The photoresistors themselves can also behave differently if they come from different manufacturing batches or if they have smudged or chipped light collecting surfaces.

Testing for Well Matched Photoresistor Circuits

This next example program displays the decay time of both photoresistors in the Debug

Terminal. It makes it easy to judge the differences between the two readings for similar light levels.

For best results, eliminate sources of direct sunlight:

In general, uniform lighting conditions improve the Boe-Bot’s performance with photoresistors. Draw the blinds to eliminate sources of direct sunlight. Rooms with distributed light sources such as fluorescent lights or ceiling lamps work well.

Example Program: TestPhotoresistors.bs2

√ Enter, save, and run TestPhotoresistors.bs2.

√ Cast a shadow over the Boe-Bot’s photoresistors with a white sheet of paper.

Find a level of shade that gives you readings between 20 and 100.

√ Record the values of both time measurements in the first row of Table F-1.

Page 322 ·

Robotics with the Boe-Bot

√ Cup your hand over the photoresistors, making sure that you are casting equal shade over both. For best results, the measurements should be in the 200 to 400 range.

√ Record the values of both time measurements in the second row of Table F-1.

Table F-1:

RC-Time Measurements in Ambient and Low Light

Duration Values timeLeft timeRight

Description

Photoresistors in uniform ambient light

Photoresistors in uniform low light

' Robotics with the Boe-Bot - TestPhotoresistors.bs2

' Test Boe-Bot photoresistor circuits.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive. timeLeft VAR Word ' Variable declarations. timeRight VAR Word

DEBUG "PHOTORESISTOR VALUES", CR, ' Initialization.

"timeLeft timeRight", CR,

"-------- ---------"

DO ' Main routine.

HIGH 6 ' Left RC time measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

DEBUG CRSRXY, 0, 3, ' Display measurements.

DEC5 timeLeft,

" ",

DEC5 timeRight

PAUSE 200

LOOP

Appendix F: Balancing Photoresistors · Page 323

Calibrating Using a Linear Approximation

The photoresistor is often referred to as a non-linear device. In other words, if it returns one measurement at one brightness, that doesn’t mean that the measurement will be five times as large when the light is five times as bright. The math is more complicated and involves logarithms. However, in cases where the measurements are confined over a narrow range of the sensors overall detection abilities, the sensor can be treated like it’s a linear device. You can take a couple of measurements, and then figure out how the device will react if other measurements in its range could be plotted in a straight line.

The technique is called linear approximation.

Another thing you can do with linear devices is assume the difference between the two lines can also be plotted as a line. In fact, if you have one linear device that has larger measurements than the other for ambient and low light, you can use a linear approximation for making the sensors return approximately the same values for the same light levels. For every reading from one sensor, (we’ll call that one x), you can multiply it by a scale factor (m), and add it to a constant (b) to get a value in the same range the other sensor would report (y).

y

=

mx

+

b

Here is an example of how to get the values of m and b to match the left photoresistor circuit to the right. First, assign X

1

and X

2

to the left photoresistor values and Y

1

and Y

2 to the right photoresistor values. (Table F-2) shows some example values for mismatched photoresistors. Your values will be different.

Table F-2:

RC-Time Measurements in Ambient and Low Light

Duration Values timeLeft timeRight

Description

X

1

= 36 Y

1

= 56 Photoresistors in uniform ambient light

X

2

= 152 Y

2

= 215 Photoresistors in uniform low light

Now, solve for m and b using two equations in two unknowns. One of the simpler approaches is to write two y = mx + b equations, one in terms of X in terms of X

2 m.

and Y

1

and Y

1

and the other

2

. Then, subtract one from the other to eliminate b. Then, solve for

Page 324 ·

Robotics with the Boe-Bot

(

( y

2 y

1 y

2

=

=

mx mx

2

1

+

+

b b )

y

1

)

=

m (

− −

x

2

x

1

)

m

=

(

( y

2 x

2

y

1 x

1

)

)

Once you’ve solved for m, you can plug m back into either of the two y = mx + b equations you started with to get b.

y

2 b

=

=

y

2 mx

2

+

b mx

2

So, the two equations for solving for m and b turn out to be:

m

=

(

( y

2 x

2

y

1 x

1

)

) b

=

y

2

mx

2

and

Let’s plug our sample values from Table F-2 into the equations and see what the scale factor (m) and offset constant (b) will be for the left photoresistor. First, calculate m:

m

=

(

( y

2 x

2

y

1 x

1

)

) m

=

(

(

215

152

56

36 )

) m

=

159

116

=

1 .

37

Then, use m, y

2,

b

=

215

and x

( 1 .

37

2

×

to calculate b:

152 ) b b

=

6 .

76

7

Appendix F: Balancing Photoresistors · Page 325

Now, we know how to correct the

timeLeft

variable so that it reports values similar to the

timeRight

variable in this narrow range of light levels:

y

=

mx

+

b y

=

1 .

37 x

+

7 timeLeft

( adjusted )

=

1 .

37

×

timeLeft

+

7

A Linear Equation in PBASIC

In most programming languages for PCs, this equation could be entered as-is. The

BASIC Stamp is a very tiny processor compared to a PC. Because of this, it takes an extra step to multiply by a fractional value. You have to use the */ operator (it’s called the “star-slash” operator). For the

timeLeft

equation, the PBASIC code to adjust the

timeLeft

variable can be done like this: timeLeft = (timeLeft */ 351) + 7

The adjusted value of

timeLeft

after this line of code is executed is 1.37 times the old

timeLeft

, plus 7.

Why did 1.37 become 351? The way the */ operator works is that you have multiply your fractional value by 256, and place it to the right of the */ operator. Since 1.37 X 256 =

350.72 ≈ 351, the value 351 goes to the right of the */ operator.

You can find out more about the */ operator in the BASIC Stamp Editor by clicking Help and selecting Index. Type in */ in the field labeled “Type in keyword to find”. You can also look up */ in the Binary operators section of the BASIC Stamp Manual.

Your Turn – Balance Your Photoresistors with m and b

√ In Table F-1, label the first

timeLeft

entry X1 and the second

timeLeft

entry

X2.

√ Label the first

timeRight

entry Y1 and the second

timeRight

entry Y2.

√ Use these equations and your X1, X2, Y1, and Y2 values to solve for m and b.

m

=

(

( y

2 x

2

y

1 x

1

)

)

and

b

=

y

2

mx

2

Page 326 ·

Robotics with the Boe-Bot

√ Calculate the values of m you will use with the */ operator by multiplying m by

256.

√ Substitute your value of m and b in this line of code from

BalancePhtoresistors.bs2:

timeLeft = (timeLeft */ 351) + 7

√ Enter, save, and run your adjusted version of BalancePhotoresistors.bs2.

√ Expose both photoresistors to the same light level.

√ Verify that the “after” values are similar and corrected for differences in the

“before” values.

√ Choose a different light level and again, expose both photoresistors to it.

√ Check the “after” values again for similarity.

√ When you have determined your values for m and b, you can modify

RoamingTowardTheLight.bs2 by uncommenting the equation between

GOSUB

Test_Photoresistors

and

GOSUB Average_And_Difference

. Your m value will replace

351

and your b value will replace

7

.

' Robotics with the Boe-Bot - BalancePhotoresistors.bs2

' Test adjustments to Boe-Bot photoresistor circuits.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive. timeLeft VAR Word ' Variable declarations. timeRight VAR Word

DEBUG "PHOTORESISTOR VALUES", CR, ' Initialization.

"timeLeft timeRight", CR,

"-------- ---------"

DO ' Main routine.

HIGH 6 ' Left RC time measurement.

PAUSE 3

RCTIME 6,1,timeLeft

HIGH 3 ' Right RC time measurement.

PAUSE 3

RCTIME 3,1,timeRight

DEBUG CRSRXY, 0, 3, ' Display measurements.

DEC5 timeLeft,

" ",

Appendix F: Balancing Photoresistors · Page 327

DEC5 timeRight,

" Before"

timeLeft = (timeLeft */ 351) + 7

DEBUG CRSRXY, 0, 5, ' Display measurements.

DEC5 timeLeft,

" ",

DEC5 timeRight,

" After"

PAUSE 200

LOOP

Appendix G: Tuning IR Distance Detection · Page 329

Appendix G: Tuning IR Distance Detection

Finding the Right Frequency Sweep Values

Fine tuning the Boe-Bot’s distance detection involves determining which frequency is most reliable for each zone for each IR pair.

Note:

This appendix features a method of determining the best frequencies for determining given distances using spreadsheets. This activity takes time and patience, and is only recommended if your distance sensing is severely out of calibration. It involves collecting frequency sweep data and using it to determine the most reliable values for detecting particular distances.

√ Point both the IR LEDs and detectors straight forward.

√ Place the Boe-Bot in front of a wall with a white sheet of paper as the IR target.

√ Place the Boe-Bot so that its IR LEDs are 2.5 cm away from the paper target.

Make sure the front of the Boe-Bot is facing the paper target. Both IR LEDs and detectors should be pointed directly at the paper.

IR Fine Tuning Program

FrequencySweep.bs2 performs a frequency sweep on the IR detector and displays the data. Although the techniques used are similar to other programs, it has one unique feature. The BASIC Stamp is programmed to wait for you to press the Enter key.

√ Enter and run FrequencySweep.bs2, but do not disconnect the Boe-Bot from the serial cable.

' -----[ Title ]--------------------------------------------------------------

' Robotics with the Boe-Bot - FrequencySweep.bs2

' Test IR LED/detector response to frequency sweep.

' {$STAMP BS2} ' Stamp directive.

' {$PBASIC 2.5} ' PBASIC directive.

' -----[ Variables ]---------------------------------------------------------- crsrPosRow VAR Byte irFrequency VAR Word irDetect VAR Bit distance VAR Nib dummy VAR crsrPosRow

Page 330 ·

Robotics with the Boe-Bot

' -----[ Initialization ]-----------------------------------------------------

DEBUG CLS,

"Click transmit windowpane,", CR,

"then press enter to begin", CR,

"frequency sweep...", CR, CR,

" OBJECT", CR,

"FREQUENCY DETECTED", CR,

"--------- --------", CR

' -----[ Main Routine ]-------------------------------------------------------

DO

DEBUGIN dummy

crsrPosRow = 6

FOR irFrequency = 30500 TO 46500 STEP 1000

crsrPosRow = crsrPosRow + 1

FREQOUT 8,1, irFrequency

irDetect = IN9

DEBUG CRSRXY, 4, crsrPosRow, DEC5 irFrequency

DEBUG CRSRXY, 11, crsrPosRow

IF (irDetect = 0) THEN DEBUG "Yes" ELSE DEBUG "No "

PAUSE 100

NEXT

LOOP

√ Click the upper of the two window panes shown in Figure G-1.

√ Press the Enter key. The frequency response data will appear as shown in the figure.

Appendix G: Tuning IR Distance Detection · Page 331

Figure G-1

Debug of

Frequency

Data

The BASIC Stamp has been programmed to make the Debug Terminal display a “Yes” if an object was detected and a “No” if an object was not detected. Figure G-1 shows that the left sensor’s region of good signal response is between 36500 and 42500.

Page 332 ·

Robotics with the Boe-Bot

√ Modify the

FOR

...

NEXT

loop in Program Listing FrequencySweep.bs2 so that it steps in increments of 250 and includes the upper and lower limits of both detectors. Based on the data in the example shown in Figure G-1, the start, end, and step values of the

FOR

...

NEXT

loop would be modified as follows:

FOR irFrequency = 36500 to 42500 STEP 250

√ Re-run your modified FrequencySweep.bs2, and press Enter again.

√ Record the data for left and right sides in separate spreadsheets.

√ Press the Enter key again and record the next set of data points.

√ Repeat this process three more times. When finished, you will have five sets of data points for each sensor in separate spreadsheets for this one frequency.

√ Back the Boe-Bot up 2.5 cm. Now your Boe-Bot’s IR detectors will be 5 cm from the paper target.

√ Record five more data sets at this distance.

√ Keep on backing up the Boe-Bot by 2.5 cm at a time and recording the five frequency sweep data sets between each distance adjustment.

√ When the Boe-Bot has been backed up by 20 cm, the frequency sweep will display mostly, if not all ”No” regions. When the frequency sweep is all ”No”, it means no object is detected at any frequency within the sweep.

By careful scrutiny of the spreadsheets and process of elimination, you can determine the optimum frequency for each IR pair for each zone. Customizing for up to eight zones can be done without any restructuring of the Boe-Bot navigational routines. If you were to customize for 15 zones, this would entail 30 one millisecond

FREQOUT

commands.

That won’t gracefully fit between servo pulses. One solution would be to take 15 measurements every other pulse.

How to determine the best frequencies for the left sensor is discussed here. Keep in mind you’ll have to repeat this process for the right sensor. This example assumes you are looking for six zones (zero through five).

√ Start by examining the data points taken when the Boe-Bot was furthest from the paper target. There probably won’t be any sets of data points that are all “Yes” readings at the same frequency. Check the data points for the next 2.5 cm towards the paper target. Presumably, you will see a set of four or five “Yes”

Appendix G: Tuning IR Distance Detection · Page 333 readings at a particular frequency. Note this frequency as a reliable measurement for the dividing line between Zone 0 and Zone 1.

√ At each of the remaining five distances, find a frequency for which the output values have just become stable.

For example, at 15 cm, three different frequencies might show five ”Yes” readings. If you look back to the 17.5 cm mark, two of these frequencies were stable, but the other was not. Take the frequency that was not stable at 17.5 cm but was stable at 15 cm as your most reliable frequency for this distance. Now, this example has determined the frequencies that can be used to separate Zones 5 and 4 and Zones 4 and 3. Repeat this process for the remaining zone partitions.

Your Turn

√ If you succeeded in fine tuning five measurements and time permits, try increasing the resolution to eight measurements. Save your data for both methods.

Appendix H: Boe-Bot Navigation Contests · Page 335

Appendix H: Boe-Bot Navigation Contests

If you're planning a competition for autonomous robots, these rules are provided courtesy of Seattle Robotics Society.

CONTEST#1: ROBOT FLOOR EXERCISE

Purpose

The floor exercise competition is intended to give robot inventors an opportunity to show off their robots or other technical contraptions.

Rules

The rules for this competition are quite simple. A 10-foot-by-10-foot flat area is identified, preferably with some physical boundary. Each contestant will be given a maximum of five minutes in this area to show off what their robot can do. The robot's contestant can talk through the various capabilities and features of the robot. As always, any robot that could damage the area or pose a danger to the public will not be allowed.

Robots need not be autonomous, but it is encouraged. Judging will be determined by the audience, either indicated by clapping (the loudest determined by the judge), or some other voting mechanism.

CONTEST#2: LINE FOLLOWING

Objective

To build an autonomous robot that begins in Area "A" (at position "S"), travels to Area

"B" (completely via the line), then travels to the Area "C" (completely via the line), then returns to the Area "A" (at position "F"). The robot that does this in the least amount of time (including bonuses) wins. The robot must enter areas "B" and "C" to qualify. The exact layout of the course will not be known until contest day, but it will have the three areas previously described.

Skills Tested

The ability to recognize a navigational aid (the line) and use it to reach the goal.

Page 336 ·

Robotics with the Boe-Bot

Maximum Time to Complete Course

Four minutes.

Example Course

All measurements in the example course are approximate. There is a solid line dividing

Area "A" from Area "T" at position "F.” This indicates where the course ends. The line is black, approximately 2.25 inches wide and spaced approximately two feet from the walls.

All curves have a radius of at least one foot and at most three feet. The walls are 3 1/2 inches high and surround the course. The floor is white and made of either paper or

Dupont Tyvek®. Tyvek is a strong plastic used in mailing envelopes and house construction.

Positions "S" and "F" are merely for illustration and are not precise locations. A

Competitor may place the robot anywhere in Area "A,” facing in any direction when starting. The robot must be completely within Area "A.” Areas "A,” "B" and "C" are not colored red on the actual course.

Figure H-1

Sample Contest

Course

Appendix H: Boe-Bot Navigation Contests · Page 337

Scoring

Each contestant’s score is calculated by taking the time needed to complete the course (in seconds) minus 10% for each "accomplishment." The contestant with the lowest score wins.

Table H-1:

Line Following Scoring

Accomplished

Stops in area A after reaching B and C

Percent Deducted

10%

Does not touch any walls 10%

Starts on command 10%

("Starts on command" means the robot starts with an external, non-tactile command. This could, for example, be a sound or light command.)

CONTEST#3: MAZE FOLLOWING

Purpose

The grand maze is intended to present a test of navigational skills by an autonomous robot. The scoring is done in such a way as to favor robots which are either brutally fast or which can learn the maze after one pass. The object is for a robot, which is set down at the entrance of the maze, to find its way through the maze and reach the exit in the least amount of time.

Physical Characteristics

The maze is constructed of 3/4" shop-grade plywood. The walls are approximately 24 inches high, and are painted in primary colors with glossy paint. The walls are set on a grid with 24-inch spacing. Due to the thickness of the plywood and limitations in accuracy, the hallways may be as narrow as 22 inches. The maze can be up to 20-feet square, but may be smaller, depending on the space available for the event.

The maze will be set up on either industrial-type carpet or hard floor (depending on where the event is held). The maze will be under cover, so your robot does not have to be rain proof; however, it may be exposed to various temperatures, wind, and lighting

Page 338 ·

Robotics with the Boe-Bot conditions. The maze is a classical two-dimensional proper maze: there is a single path from the start to the finish and there are no islands in the maze. Both the entrance and exit are located on outside walls. Proper mazes can be solved by following either the left wall or the right wall. The maze is carefully designed so that there is no advantage if you follow the left wall or the right wall.

Robot Limitations

The main limit on the robot is that it be autonomous: once started by the owner or handler, no interaction is allowed until the robot emerges from the exit, or it becomes hopelessly stuck. Obviously the robot needs to be small enough to fit within the walls of the maze. It may touch the walls, but may not move the walls to its advantage -no bulldozers. The judges may disqualify a robot which appears to be moving the walls excessively. The robot must not damage either the walls of the maze, nor the floor. Any form of power is allowed as long as local laws do not require hearing protection in its presence or place any other limitations on it.

Scoring

Each robot is to be run through the maze three times. The robot with the lowest single time is the winner. The maximum time allowed per run is 10 minutes. If a robot cannot finish in that amount of time, the run is stopped and the robot receives a time of 10 minutes. If no robot succeeds in finding the exit of the maze, the one that made it the farthest will be declared the winner, as determined by the contest's judge.

Logistics

Each robot will make one run, proceeding until all robots have attempted the maze. Each robot then does a second run through the maze, then the robots all do the third run. The judge will allow some discretion if a contestant must delay their run due to technical difficulties. A robot may remember what it found on a previous run to try to improve its time (mapping the maze on the first run), and can use this information in subsequent runs-as long as the robot does this itself. It is not allowed to manually "configure" the robot through hardware or software as to the layout of the maze.

Index

- * -

*/, 325

- < -

<>, 186

- … -

…, 52

- 3 -

3-position switch, 16

3-position switch, 35

- 9 -

90° turns, 132

- A - alarm circuit, 107

American Standard Code for

Information Interchange, 33, 151 amps, 49 anode, 46 artificial intelligence, 182

ASCII, 33, 151

- B - backwards motion, 127 ballast, 242 band pass frequency, 236

Basic Analog and Digital, 56

BASIC Stamp components, 305 insertion, 17 low power mode, 28 preventing damage, 36

BASIC Stamp Editor

Identification window, 22

Identify, 302, 303, 304 installation, 10

Software, 4

Trouble-Shooting, 301

BASIC Stamp Editor’s Help, 30

BASIC Stamp HomeWork Board, 3

BASIC Stamp HomeWork Board, 4

BASIC Stamp HomeWork Board connecting power, 20

BASIC Stamp HomeWork Board disconnect power, 36

BASIC Stamp HomeWork Board components, 307

BASIC Stamp Manual, 32 batteries, 60 battery pack, 96 battery pack with tinned leads, 63

BIN1, 172 binary numbers, 22

Bit, 71 block diagram, 277

Board of Education, 3, 4 components, 306 servo header, 60

Board of Education Rev A, 59

Board of Education Rev A or B

Page 340 ·

Robotics with the Boe-Bot disconnect power, 36

Board of Education Rev B, 59 components, 308

Board of Education Rev C connecting power, 16 disconnect power, 35 breadboard. See prototyping area brownout, 105, 109 brownout detector, 105

Byte, 71

- C -

Cadmium Sulfide, 194 capacitor, 205 part drawing, 206 schematic symbol, 206 carriage return, 28 carrier board, 3 cathode, 46

CdS, 194 centering the servos, 67 chassis, 92 closed loop control, 277 code block, 140 color code, 309

COM port, 301

COM Port, 13 command, 28 comment, 27

Compiler directives, 24 components

BASIC Stamp, 305

BASIC Stamp HomeWork Board, 307

Board of Education, 306

Board of Education Rev B, 308 computer system requirements, 5

CON, 213 condensed EEPROM Map, 147 constants, 213 control character

CR, 28 control system, 277 cotter pin, 97

CR, 28

CRSRXY, 173 crystal, 107 current, 45, 49

- D -

DATA, 148

Word modifier, 153

DATA directive, 152 data storage, 146

DC interference, 236

DC power supply, 301 dead reckoning, 132

DEBUG, 28

DEBUG formatters

?, 73

BIN, 172

DEC, 28

SDEC, 73

Debug Terminal, 26

DEBUGIN, 112

DEC, 28 declare, 72, 213 decrement, 138 derivative control, 277

Detailed EEPROM Map, 151 disconnect power, 35 distance calculation, 133

DO WHILE, 148

DO...LOOP, 44

Download Progress window, 26

Duration argument, 54, 109 maximum value, 54

- E -

EEPROM, 146 electrical tape, 255, 286 electrically erasable programmable read only memory, 146 electromagnetic radiation, 235 electronic filter, 236

ELSE, 178

ELSEIF, 178

END, 28

ENDIF, 178

EndValue, 74

- F -

F, 205 farad, 205 feedback, 279 filter sensitivity, 270 flashlight, 210 fluorescent light, 242 fluorescent light interference, 287 fluorescent lights, 237 foot-candle, 194

FOR…NEXT, 74 counting backward, 75 decrement, 75

EndValue, 74

StartValue, 74

STEP StepValue, 75 forward motion, 124

Freq1 argument, 109

FREQOUT, 109

Duration argument, 109

Freq1 argument, 109

Pin argument, 109 frequency, 107 frequency sweep, 270 fundamental frequency, 240

- G -

GOSUB, 141

Guarantee, 2

- H - hardware adjustment, 129 harmonic frequency, 240 hertz, 109 hexadecimal, 151

HIGH, 50

PIN argument, 50 hysteresis, 277

- I -

I/O pins as inputs or outputs, 196 default to input, 171

Identification window, 22, 301

Identify, 302, 303, 304

IF…THEN, 178 nesting statements, 182 illuminance, 193, 194 incident light, 194

Page 342 ·

Robotics with the Boe-Bot

Index argument, 271

Industrial Control, 277 infrared detector, 237 infrared interference, 242 infrared led, 237 infrared spectrum, 235 initialize, 72 input register, 172 integral control, 277

IR interference, 236

- J - jumper, 60

- K - kilohertz, 109

Kp, 278

- L - label subroutine, 141

LDR, 194 lead vehicle, 277

LED, 46

LED light shield assembly, 237 light dependent resistor, 193 light emitting diode, 46 anode, 46 cathode, 46 schematic symbol, 46 terminals, 46 linear approximation, 323 logic threshold, 197

LOOKUP, 271

Index argument, 271

ValueN argument, 271

Variable argument, 271

LOW, 50

PIN argument, 50 low power mode, 28 lux, 194

- M - math order of operations, 214, 280 measuring distance, 133

Memory Map, 147 microfarad, 205, 206 milliamps, 49 millisecond, 42

- N - nanofarad, 206 negative numbers, 73

Nib, 71 nodes, 208 null modem cable, 301 nylon washer, 167

- O - ohm, 46 omega, 46 operator, 72 operator block, 278 output adjust, 278

- P -

Parallax Continuous Rotation servos, 41 part drawing capacitor, 206

LED, 46 photoresistor, 193

piezoelectric speaker, 106 resistor, 46

PAUSE, 42

Duration argument, 42

PBASIC, 1 variables, 71

PBASIC commands

DEBUG, 28

DEBUGIN, 112

DO WHILE, 148

DO...LOOP, 44

ELSE, 178

ELSEIF, 178

END, 28

ENDIF, 178

FOR…NEXT, 74

FREQOUT, 109

GOSUB, 141

HIGH, 50

IF…THEN, 178

LOOKUP, 271

LOW, 50

PAUSE, 42

PULSOUT, 54

RCTIME, 209

READ, 148

RETURN, 140

SELECT...CASE...ENDSELECT, 149

STOP, 248

PBASIC directive, 28

PBASIC directives

CON, 213

DATA, 148

PBASIC, 28

Stamp, 28

PBASIC operators

*/, 325

<>, 186 photoresistor, 193, 194 calibration, 323 part drawing, 193 schematic symbol, 193 photoresistor voltage divider troubleshooting, 199 picofarad, 206 piezoelectric crystal, 107 piezoelectric element, 107 piezoelectric speaker, 106 part drawing, 106 schematic symbol, 106 piezospeaker, 106 alarm circuit, 107

Pin argument, 50, 109 pivoting motion, 128 plastic wheel, 98 poster board, 255 potentiometer, 70 program storage, 146

Page 344 ·

Robotics with the Boe-Bot programs saving, 26, 27 proportional constant, 278 proportional control, 277 prototyping area input/output pins, 311 prototyping areas socket, 311

PULSOUT, 54

Duration argument, 54

- R -

RADAR, 235

RAM, 146 ramping, 137 random access memory, 146

RC decay time, 208

RCTIME, 209

Duration argument, 209

Pin argument, 209

State argument, 209

READ, 148

Reset button, 28

Reset button, 26 resistor, 45 color code, 309 leads, 46 light dependent resistor, 193 series resistors, 197 tolerance, 309 voltage divider, 197

RETURN, 140 rotational velocity, 115

RPM, 115 rubber band tire, 97 rubber grommet, 92, 96

- S - saving programs, 26, 27 schematic symbol capacitor, 206

LED, 46 photoresistor, 193 piezoelectric speaker, 106 resistor, 46 screwdriver, 67, 91 screws, 7/8", 167

SDEC, 73 second, 42

SELECT...CASE...ENDSELECT, 149 serial cable, 13 servo header, 60 output shafts, 98 servos avoiding damage, 60, 69 labeling, 94 troubleshooting, 104 shadow vehicle, 277

SODAR, 235 software adjustment, 129

SONAR, 235 spacer, 167

Stamp Directive, 28

standoffs, 92, 100, 167 start/reset indicator, 106

StartValue, 74

STEP StepValue, 75

stepValue, 75

STOP, 248 straightening the trajectory, 130 subroutine call, 140, 141 subroutine label, 141 subroutines, 140 summing junction, 278

- T - tactile switches, 165 tail wheel, 97 threshold voltage, 197 timing diagram, 52, 56 tokens, 146 tolerance, 309 tones, 106 tools required, 91 transfer curve, 115

Transmit windowpane, 111 troubleshooting

BASIC Stamp to PC communication, 301 electrical tape course, 289

IR detectors, 241 photoresistor voltage divider, 199 servos, 103, 104, 105

Tyvek, 336

- U -

US232B, 14

USB to Serial Adapter, 13, 14

USB to Serial Adaptor, 5

- V -

VAR, 71 variable, 71 declare, 72 default value, 72 initialize, 72

VAR, 71 variable sizes, 71

Vbp, 64

Vdd, 49, 311

Vin, 311 voltage, 49 voltage divider, 197

Vss, 311

- W -

What’s a Microcontroller? Student

Guide, 2 whisker wires, 167

Word, 71

Word modifier, 153

- Μ -

µF, 205

Parts and quantities in the various Boe-Bot Robot kits are subject to change without notice. Parts may differ from what is shown in this picture. Please contact [email protected] if you have any questions about your kit.
