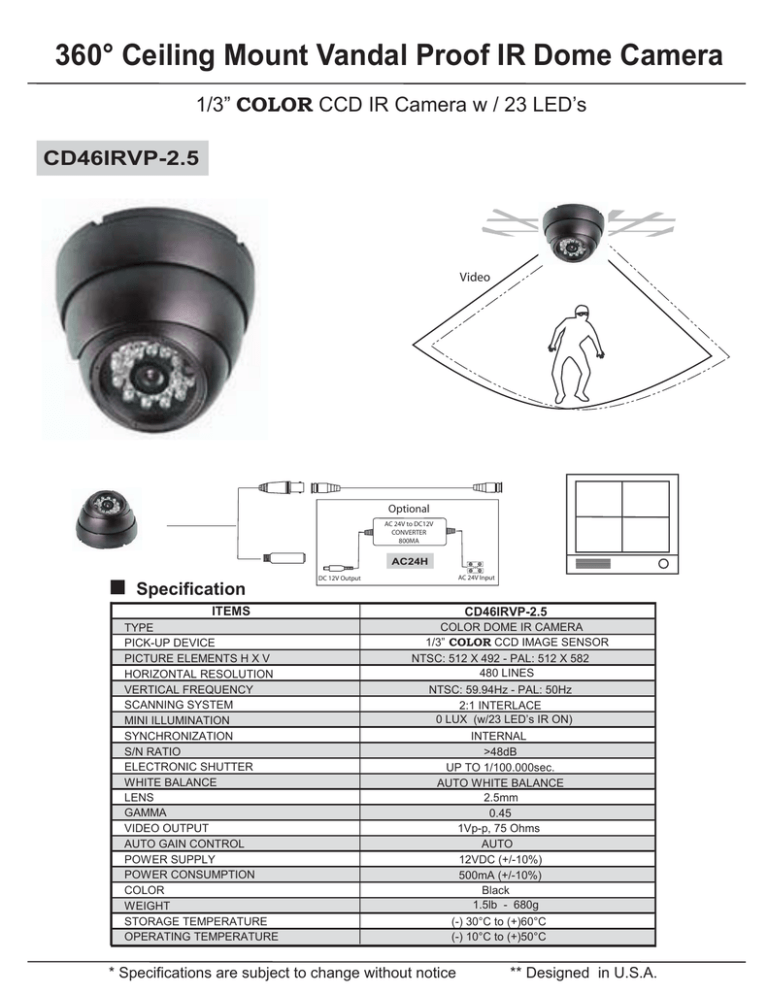

User manual | 360° Ceiling Mount Vandal Proof IR Dome Camera COLOR CD46IRVP-2.5 1/3”

360° Ceiling Mount Vandal Proof IR Dome Camera
1/3” COLOR CCD IR Camera w / 23 LED’s
CD46IRVP-2.5
Video
Optional
AC 24V to DC12V
CONVERTER
800MA
AC24H
Specification
ITEMS
TYPE
PICK-UP DEVICE
PICTURE ELEMENTS H X V
HORIZONTAL RESOLUTION
VERTICAL FREQUENCY
SCANNING SYSTEM
MINI ILLUMINATION
SYNCHRONIZATION
S/N RATIO
ELECTRONIC SHUTTER
WHITE BALANCE
LENS
GAMMA
VIDEO OUTPUT
AUTO GAIN CONTROL
POWER SUPPLY
POWER CONSUMPTION
COLOR
WEIGHT
STORAGE TEMPERATURE
OPERATING TEMPERATURE
AC 24V Input
DC 12V Output
CD46IRVP-2.5
COLOR DOME IR CAMERA
1/3” COLOR CCD IMAGE SENSOR
NTSC: 512 X 492 - PAL: 512 X 582
480 LINES
NTSC: 59.94Hz - PAL: 50Hz
2:1 INTERLACE
0 LUX (w/23 LED’s IR ON)
INTERNAL
>48dB
UP TO 1/100.000sec.
AUTO WHITE BALANCE
2.5mm
0.45
1Vp-p, 75 Ohms
AUTO
12VDC (+/-10%)
500mA (+/-10%)
Black
1.5lb - 680g
(-) 30°C to (+)60°C
(-) 10°C to (+)50°C
* Specifications are subject to change without notice
** Designed in U.S.A.
