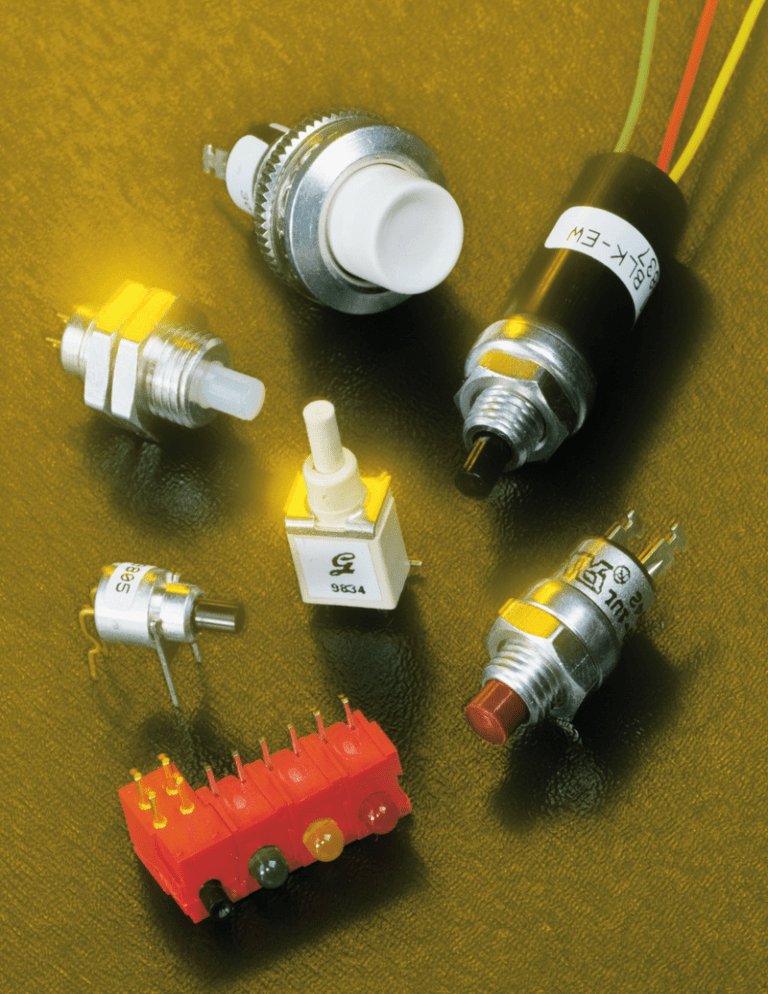

PUSHBUTTON SWITCHES
• Large Selection of Types and
Styles
• Wiping, Butt, and Snap Action
Contacts
• SPST, SPDT, DPDT Circuitry
and 4PST Joystick Action
• Space Saving Miniature Sizes
• Bushing or Bezel Mounting
• RoHS Compliant
Page
ENGINEERING INFORMATION .................................................................. 2
BUTT CONTACT PUSHBUTTON SWITCHES
Miniature Surface Mount ..................................... Series
Miniature Horizontal PC Mount ........................... Series
Miniature Vertical PC Mount ............................... Series
Snap Action Miniature Pushbutton ..................... Series
Alternate Action Pushbutton ............................... Series
Sealed Snap Action Miniture Pushbutton .......... Series
Subminiture Pushbutton ..................................... Series
Sealed Subminiture Pushbutton ......................... Series
Sealed Surface Mount Subminiture Pushbutton Series
SPST and SPDT, Stackable with LED ............... Series
SPST and SPDT, 1/4 Amp ................................. Series
SPST, 150mA ...................................................... Series
Miniature Limit ..................................................... Series
SPST, 150 mA to 1/2 Amp ................................. Series
SPST, 1 and 5 Amp ............................................ Series
4PST .................................................................... Series
Snap-In Panel Mount .......................................... Series
Snap-In Panel Mount .......................................... Series
Decorator Line ..................................................... Series
38BM ................... 4
38BT .................... 6
38BT .................... 7
38C ...................... 8
38D .................... 13
38E .................... 18
38F ..................... 23
38G .................... 27
38H .................... 31
32 ....................... 35
39 ....................... 37
39 ....................... 38
39 ....................... 40
39 ....................... 41
30 ....................... 43
04 ....................... 47
30 & 46 .............. 48
30 ....................... 49
30 & 46 .............. 51
WIPING CONTACT PUSHBUTTON SWITCHES
SPDT and DPDT, 1/4 Amp ................................. Series 46 ....................... 54
SPST, 1/4 Amp ................................................... Series 23 ....................... 57
SPST, 1 and 3 Amp ............................................ Series 10 & 4000 .......... 58
SNAP ACTION CONTACT PUSHBUTTON SWITCHES
SPST and SPDT, 10 Amp .................................. Series 7 & 2000 ............ 59
OPTIONS AND ACCESSORIES
Sealed Terminals and Wire Leads ..................... Series 23, 30, 39 & 46 ..... 60
Accessories
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Pushbutton
1
Pushbutton Switches
SELECTION CHART .................................................................................... 3
Engineering Information
Ratings, operating environments and switch
selection are discussed in detail on pages E-3
thru E-5. This information is applicable to
pushbutton switches as well as rotary and DIP
switches.
Wiping Contacts are self-cleaning and usually
provide a low resistance in circuits where
contact resistance is critical. However, the
wiping action creates mechanical wear and
conductive wear products.
Snap Action switches are basically butt contact
switches with a spring mechanism which
provides the make and break. The mechanism
controls both the operating point and the rate of
operation, but adds to the wear of the switch.
Pushbutton switches are selected not only by
their ratings, but also by their contact type.
While nearly all rotary switches and DIP switches
have wiping contacts, pushbutton switches may
have either wiping or butt contacts (see internal
views below).
Butt Contacts have less wear than wiping
contacts and therefore, have a longer life. They
are also smaller. Butt contacts are not selfcleaning, so their contact resistance can vary
from operation to operation.
The rapid rate of make and break means that
these switches are appropriate for high current
loads. They usually have a slight wiping action
and contact surfaces made of precious metals
to minimize their disadvantages.
INTERNAL VIEWS OF PUSHBUTTON SWITCHES
Butt Contact
Wiping Contact
ACTUATOR
ACTUATOR
Pushbutton Switches
ACTUATOR
SHORTING
BAR
BUSHING
BUSHING
INTERNAL
BUTTON
SHORTING
BAR
SHORTING
BAR
RETURN
SPRING
RETURN
SPRING
RETURN
SPRING
SHORTING
BAR
FIXED CONTACTS
FIXED CONTACTS
Pushbutton
Joystick Action
FIXED CONTACTS
ACTUATOR
.312
(7,92)
.550 (13.97)
.550 (13.97)
1.250 (31,75)
1.250 (31,75)
.550 (13.97)
A = .063 (1,60)
B = .094 (2,39)
.187
(4,75)
1.125 (28,58)
Snap Action
.312
(7,92)
.312 (7,92)
A
OVERSPRING
FIXED
CONTACTS
.937 (23,80)
.375 (9,53) DIA.
.500 (12,7) DIA.
#8-32 UNC-2A THREAD
HEX NUTS .344 (8,74)
ACROSS FLATS,
.125 (3,18) THICK
B
BUSHING
MOVABLE
CONTACT
#8-32 UNC-2A THREAD
HEX NUTS .344 (8,74) ACROSS
FLATS, .125 (3,18) THICK
SWITCH TERMINOLOGY
Actuator: The part of the switch to which an
external force is applied to operate the switch.
Alternate Action (Push-Push) Switch: A
switch in which the operable position is
maintained after the first actuation, and then
disengaged with the second operation.
Break-Before-Make Switch (BBM): A double
throw switch in which the moving contact breaks
the connection with the first circuit before
making contact with the second; also called
non-shorting switch.
Double Throw Switch: A switch which has a
normally open as well as a normally closed
circuit per pole.
Joystick Action Switch: (From Joystick, the
control for an airplane). A lever switch which
operates with momentary action in 4 directions,
and is disengaged in the upright position.
Pushbutton
2
Make-Before-Break Switch (MBB): A double
throw switch in which the contacts makes
connection with the second circuit before
breaking contact with the first; also called
shorting switch.
Maintained Contact Switch: A switch in which
the actuator remains in a position until it is
actuated to another position where it also remains
until actuated. Example: Push-Pull Switch.
N.O., Normally Open: Switch in which the
circuit is open without actuation (with actuator in
the "normal" position).
Overtravel: The distance or angle between the
operating position and the extreme position to
which the actuator may be moved.
Pole: An electrically isolated circuit within a
switch; a common terminal and all the selected
terminals to which it connects.
Momentary Contact Switch: A switch in which
the shorting bar returns from its operated
position to its normal or free position when the
actuating force is removed.
Pretravel: The distance or angle through which
the actuator moves from its free position to its
electrical operating position.
Operating Position or Point: The position of
the actuator when the desired electrical action
(make or break of contact) occurs.
Single Throw Switch: A switch which has only
one normally open or one normally closed circuit
per pole.
N.C., Normally Closed: Switch in which the
circuit is closed without actuation (with actuator
in the "normal" position).
Throw: See Single Throw and Double Throw.
