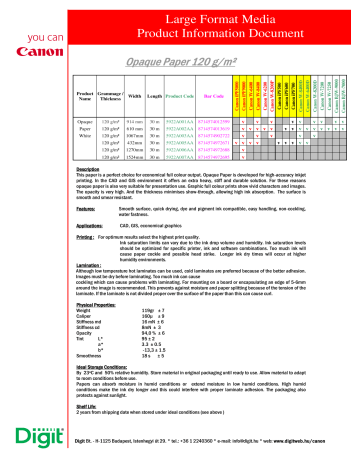

Product Information Document
Large Format Media
Opaque Paper 120 g/m?
SSE gS Sg SES SEs SFE
2 ES SEE ES ESSE
! 2 2 бы " 1 1
Product |Grammage/ wigg | Length | Product Code| Bar Code |=|=|5|5|5|=|5|5|5|=|=|=|515 ==
Name | Thickness =| =| | E| §| =| §| §| §| =| =| =| &| =
| El El El El $) El | 2| 2| Sl S| El SI ENE
318 S| S| S| &| S| S| S| &| &| &| S| S| 5| 5
19 O ooo SO
Opaque 120 g/m? | 914 mm | 30m | 5922A001 AA | 8714574012599 V V V viv V У | У
Рарег 120 g/m? | 610 mm | 30 т | 5922 АОО2АА | 8714574013619 У | У | У | У | У У | У | У | У | У | У | У | У | У
White 120 g/m? | 1067mm | 30m | 5922A003AA | 8714574902722 у у У у у
120 g/m? | 432mm | 30m | 5922 АОО5АА | 8714574972671 | у | У | У | У У | У | У | У | У
120 g/m? | 1270mm | 30m | 5922 АООбАА | 8714574972688 у
120 g/m? | 1524mm | 30m | 5922 АООТАА | 8714574972695 У
Description
This paper is a perfect choice for economical full colour output. Opaque Paper is developed for high-accuracy inkjet
printing. In the CAD and GIS environment it offers an extra heavy, stiff and durable solution. For these reasons
opaque paper is also very suitable for presentation use. Graphic full colour prints show vivid characters and images.
The opacity is very high. And the thickness minimises show-through, allowing high ink absorption. The surface is
smooth and smear resistant.
Features: Smooth surface, quick drying, dye and pigment ink compatible, easy handling, non-cockling,
water fastness.
Applications: CAD, GIS, economical graphics
Printing: For optimum results select the highest print quality.
Ink saturation limits can vary due to the ink drop volume and humidity. Ink saturation levels
should be optimized for specific printer, ink and software combinations. Too much ink will
cause paper cockle and possible head strike. Longer ink dry times will occur at higher
humidity environments.
Lamination :
Although low temperature hot laminates can be used, cold laminates are preferred because of the better adhesion.
Images must be dry before laminating. Too much ink can cause
cockling which can cause problems with laminating. For mounting on a board or encapsulating an edge of 5-6mm
around the image is recommended. This prevents against moisture and paper splitting because of the tension of the
laminate. If the laminate is not divided proper over the surface of the paper than this can cause curl.
Physical Properties:
Weight 119gr +7
Caliper 160p +9
Stiffness md 16 MN +6
Stiffness cd 8mN + 3
Opacity 940% +6
Tint L* 95 +2
a* 3.3 + 0.5
b* -13,3 + 1.5
Smoothness 18s +5
Ideal Storage Conditions:
By 23°C and 50% relative humidity. Store material in original packaging until ready to use. Allow material to adapt
to room conditions before use.
Papers can absorb moisture in humid conditions or extend moisture in low humid conditions. High humid
conditions make the ink dry longer and this could interfere with proper laminate adhesion. The packaging also
protects against sunlight.
Shelf Life:
2 years from shipping date when stored under ideal conditions (see above )
D
Digit Bt. - H-1125 Budapest, Istenhegyi út 29. * tel.: +36 12240360 * e-mail: [email protected] * web: ww.digitweb.hu/ canon
