FT 4000 Series Float and Thermostatic Traps

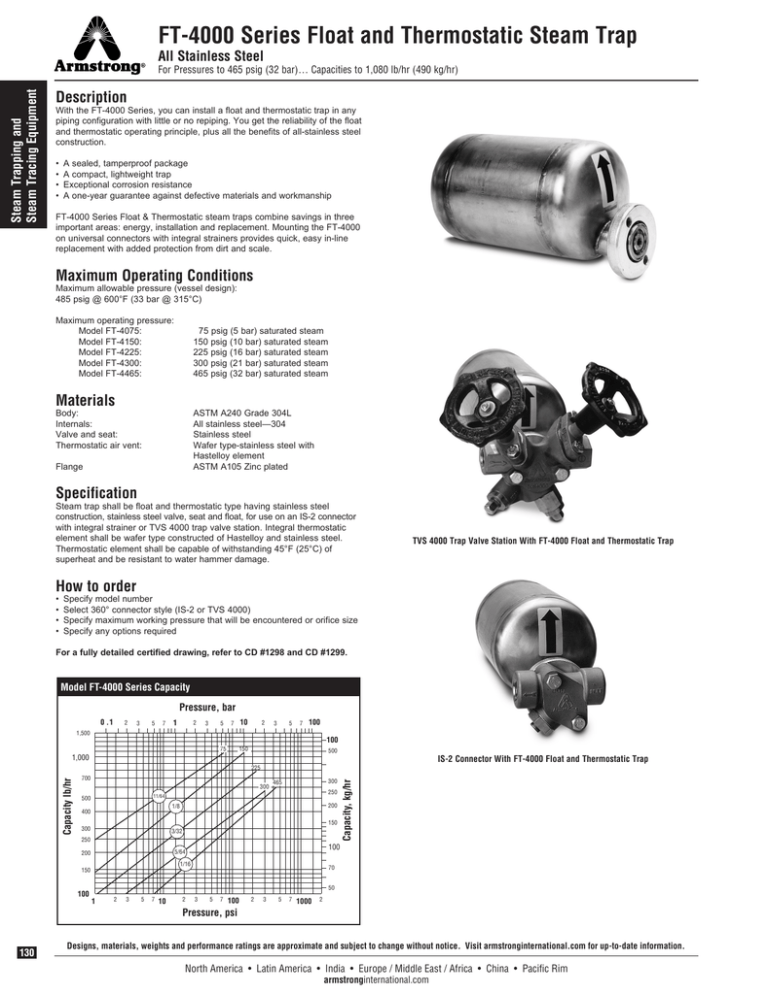

FT-4000 Series Float and Thermostatic Steam Trap All Stainless Steel Steam Trapping and Steam Tracing Equipment For Pressures to 465 psig (32 bar)… Capacities to 1,080 lb/hr (490 kg/hr) Description With the FT-4000 Series, you can install a float and thermostatic trap in any piping configuration with little or no repiping. You get the reliability of the float and thermostatic operating principle, plus all the benefits of all-stainless steel construction. • A sealed, tamperproof package • A compact, lightweight trap • Exceptional corrosion resistance • A one-year guarantee against defective materials and workmanship FT-4000 Series Float & Thermostatic steam traps combine savings in three important areas: energy, installation and replacement. Mounting the FT-4000 on universal connectors with integral strainers provides quick, easy in-line replacement with added protection from dirt and scale. Maximum Operating Conditions Maximum allowable pressure (vessel design): 485 psig @ 600°F (33 bar @ 315°C) Maximum operating pressure: Model FT-4075: Model FT-4150: Model FT-4225: Model FT-4300: Model FT-4465: 75 psig (5 bar) saturated steam 150 psig (10 bar) saturated steam 225 psig (16 bar) saturated steam 300 psig (21 bar) saturated steam 465 psig (32 bar) saturated steam Materials Body: Internals: Valve and seat: Thermostatic air vent: ASTM A240 Grade 304L All stainless steel—304 Stainless steel Wafer type-stainless steel with Hastelloy element ASTM A105 Zinc plated Flange Specification Steam trap shall be float and thermostatic type having stainless steel construction, stainless steel valve, seat and float, for use on an IS-2 connector with integral strainer or TVS 4000trap valve station. Integral thermostatic element shall be wafer type constructed of Hastelloy and stainless steel. Thermostatic element shall be capable of withstanding 45°F (25°C) of superheat and be resistant to water hammer damage. TVS 4000 Trap Valve Station With FT-4000 Float and Thermostatic Trap How to order • Specify model number • Select 360° connector style (IS-2 or TVS 4000) • Specify maximum working pressure that will be encountered or orifice size • Specify any options required For a fully detailed certified drawing, refer to CD #1298 and CD #1299. Model FT-4000 Series Capacity Pressure, bar 0 .1 2 5 3 7 1 2 3 5 10 7 2 3 5 7 100 1,500 100 75 150 1,000 500 IS-2 Connector With FT-4000 Float and Thermostatic Trap 700 300 300 465 250 11/64 500 200 1/8 400 150 300 3/32 250 1/16 150 100 100 5/64 200 Capacity, kg/hr Capacity lb/hr 225 70 50 1 2 3 5 7 10 2 3 5 7 100 2 3 5 7 1000 2 Pressure, psi 130 Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com FT-4000 Series Float and Thermostatic Steam Trap All Stainless Steel For Pressures to 465 psig (32 bar)… Capacities to 1,080 lb/hr (490 kg/hr) Steam Trapping and Steam Tracing Equipment F J E G A B Inlet D H C Series FT-4000 With TVS 4000 Trap Valve Station E F C G A B al 2" raw d th ith eng W L D H Series FT-4000 With IS-2 Connector With Integral Strainer and Optional Blowdown Valve FT-4000 Series Float and Thermostatic Steam Trap Trap Series Model Pipe Connections FT-4000 IS-2 Connector With Integral Strainer in mm in mm 1/2, 3/4 15, 20 1 25 TVS 4000 Connector in mm 1/2, 3/4 15, 20 “A” Trap Diameter 4-1/2 114 4-1/2 114 4-1/2 114 “B” Total Height 5-7/8 149 5-7/8 149 7-7/8 198 “C” Face-to-Face 3-1/2 89 4 101 4-3/4 120 “D” Connection CL to Bottom 2-5/8 67 2-5/8 67 3-1/4 83 “E” Connection CL to Outside of Trap 10 255 10-1/4 259 9-7/8 250 “F” Connection CL to Front of Connector 7/8 22 7/8 22 3-7/8 98 1 25 1 25 4-1/2 114 2-1/2 64 2-1/2 64 “G” Connection CL to Top “H” Connection CL to Bottom of Connector 3-1/4 83 “J” Width across Handwheels (valve open) N/A 8-11/16 221 Test Port Connection N/A 1/4 NPT 6 Maximum Operating Pressure (saturated steam) Maximum Allowable Pressure (vessel design) 465 psi (32 bar) 485 psi @ 600°F (33 bar @ 315°C) Trap Only Weight, lb (kg) 6-1/4 (2.8) Trap and Connector Weight, lb (kg) 8-3/4 (4) 12-3/4 (5.8) Designs, materials, weights and performance ratings are approximate and subject to change without notice. Visit armstronginternational.com for up-to-date information. Next North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim armstronginternational.com 131
