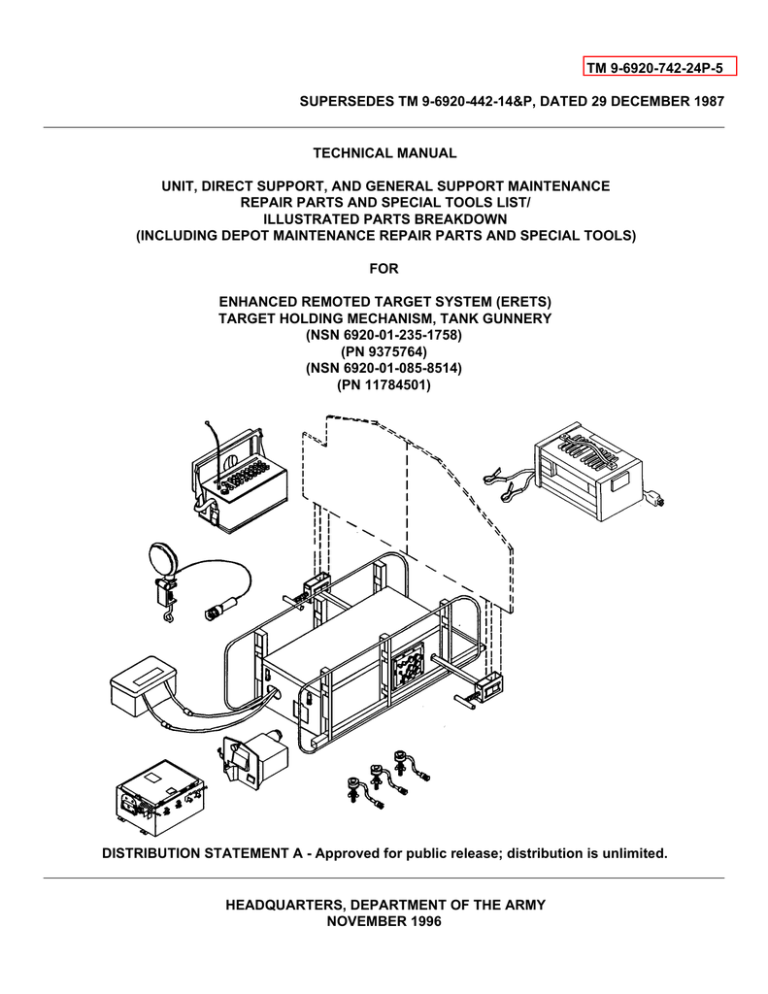

TM-9-6920-742-24P-5

TM-9-6920-742-24P-5

TM 9-6920-742-24P-5

SUPERSEDES TM 9-6920-442-14&P, DATED 29 DECEMBER 1987

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT, AND GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST/

ILLUSTRATED PARTS BREAKDOWN

(INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS)

FOR

ENHANCED REMOTED TARGET SYSTEM (ERETS)

TARGET HOLDING MECHANISM, TANK GUNNERY

(NSN 6920-01-235-1758)

(PN 9375764)

(NSN 6920-01-085-8514)

(PN 11784501)

DISTRIBUTION STATEMENT A - Approved for public release; distribution is unlimited.

HEADQUARTERS, DEPARTMENT OF THE ARMY

NOVEMBER 1996

*TM 9-6920-742-24P-5

Washington D.C., 11 November 1996

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT, AND GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST/

ILLUSTRATED PARTS BREAKDOWN

(INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS)

FOR

ENHANCED REMOTED TARGET SYSTEM (ERETS)

TARGET HOLDING MECHANISM,

TANK GUNNERY

(NSN 6920-01-235-1758)

(PN 9375764)

(NSN 6920-01-085-8514)

(PN 11784501)

REPORTING OF ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this manual. If you find any mistakes or if you know of a way to improve the procedures, please let us know. Mail your letter, DA Form 2028

(Recommended Changes to Publications and Blank Forms), or DA Form 2028-2 located in the back of this manual direct to: Director, Armament and Chemical Acquisition and

Logistics Activity, ATTN: AMSTA-AC-NML, Rock Island, IL 61299- 7630.

DISTRIBUTION STATEMENT A - Approved for public release; distribution is unlimited.

HEADQUARTERS, DEPARTMENT OF THE ARMY

TABLE OF CONTENTS

Page

SECTION I

SECTION II

GROUP 00

INTRODUCTION.................................................................................................... 1

REPAIR PARTS LIST............................................................................................ 1-1

TARGET HOLDING MECHANISM, TANK GUNNERY

(9375764 and 11784501) ....................................................................................... 1-1

*This manual supersedes TM 9-6920-442-14&P, dated 29 December 1987, including all changes.

i

Illus/

Figure

1

1

TM 9-6920-742-24P-5

TABLE OF CONTENTS - Continued

Page Illus/

Figure

SECTION II

GROUP 01

GROUP 03

REPAIR PARTS LIST - Continued

TANK TARGET ASSEMBLY (11784502-1 and 11784502-2)................................ 2-1

0101 TARGET FRAME, SINGLE (11784508) ....................................................... 3-1

0102 CABLE ASSEMBLY (11784509)................................................................... 4-1

0103 CABLE ASSEMBLY, POWER (11784510) ................................................... 5-1

0104 CONTROL ASSEMBLY (11784504) ............................................................. 6-1

0105 HYDRAULIC CYLINDER (11784619-1)........................................................ 7-1

0106 HYDRAULIC UNIT ASSEMBLY (9375758) .................................................. 8-1

0109 CABLE ASSEMBLY (11784508)................................................................... 9-1

LAMP ASSEMBLY (11784475).............................................................................. 10-1

0301 CABLE ASSEMBLY, SPECIAL (11784476).................................................. 11-1

GROUP 04

GROUP 06

GROUP 07

GROUP 08

GROUP 99

BATTERY BOX ASSEMBLY (12950811) .............................................................. 12-1

BATTERY ELIMINATOR (9356185) ...................................................................... 13-1

0601 POWER SUPPLY (12934455) ...................................................................... 14-1

RECEIVER, CHANNEL (11784801) ...................................................................... 15-1

TRANSMITTER, RADIO (11784700) ..................................................................... 16-1

0802 TRANSMITTER (11784701) ......................................................................... 17-1

BULK ...................................................................................................................... BULK-1

SECTION III

SPECIAL TOOLS UST (Not applicable) .............................................................. I-1

SECTION IV

CROSS-REFERENCE INDEXES .......................................................................... I-1

NATIONAL STOCK NUMBER INDEX ................................................................... I-1

PART NUMBER INDEX ......................................................................................... I-4

ii

2

7

8

9

10

11

5

6

3

4

12

13

14

15

16

17

TM 9-6920-742-24P-5

UNIT, DIRECT SUPPORT, AND GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST/

ILLUSTRATED PARTS BREAKDOWN

(INCLUDING DEPOT MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS)

SECTION I. INTRODUCTION

1 SCOPE.

This RPSTL/IPB lists and authorizes spares and repair parts, special tools, special test, measurement, and diagnostic equipment (TMDE), and other special support equipment required for performance of unit maintenance, direct support, and general support maintenance of the Target Holding Mechanism, Tank Gunnery (THM/TG). It authorizes the requisitioning, issue, and disposition of spares, repair parts, and special tools as indicated by the source, maintenance, and recoverability (SMR) codes.

2 GENERAL.

In addition to Section I, Introduction, this repair parts and special tools list/illustrated parts breakdown is divided into the

following sections.

a. SECTION II - Repair Parts List. A list of spares and repair parts authorized by this RPSTL/IPB for use in the

performance of maintenance. This list also includes parts which must be removed for replacement of the authorized parts.

Parts lists are composed of functional groups in ascending alphanumeric sequence, with the parts in each group listed in ascending figure and item number sequence. Bulk materials are listed by item name in fig. Bulk at the end of the section.

Repair parts kits are listed separately in their own functional group within section II. Repair parts for the repairable speci al

tools are also listed in this section.

b. SECTION III - Special Tools List. A list of special tools, special TMDE, and other special support equipment authorized by this RPSTL/IPB (as indicated by Basis of Issue (BOI) information in DESCRIPTION AND USABLE ON

CODE (UOC) column) for the performance of maintenance.

c. SECTION IV - Cross-Reference Indexes. A list, in national item identification number (NIIN) sequence, of all

national stock number items appearing in the listings, followed by a list in alphanumeric sequence of all part numbers appearing in the list. National stock numbers and part numbers are cross-referenced to each illustration figure and item number appearance. This figure and item number index lists figure and item numbers in alphanumeric sequence and cross-references national stock numbers (NSN), commercial and government entity codes (CAGEC), and part numbers.

3

EXPLANATION OF COLUMNS (SECTIONS II AND III).

a. ITEM NO. (Column (1)). Indicates the number used to identify items called out in the illustration.

b. SMR CODE (Column (2)). The source, maintenance, and recoverability (SMR) code containing supply/requisitioning information, maintenance level authorization criteria, and disposition instruction, as shown in the following breakout:

Source

Code

XX 1st two positions

Maintenance

Code

XX

TM 9-6920-742-24P-5

Recoverability

Code

XX 5th position

How you get an item 3d Position

Who can install replace or use the item.

4th position

Who can do complete repair* on the item.

Who determines disposition action on an unserviceable item.

*Complete Repair: Maintenance, capacity, and authority tct perform all corrective maintenance tasks of the Repair function in a use/user environment in order to restore serviceability to a failed item.

(1)

Source Code. The source code tells you how you get an item needed for maintenance, repair, or overhaul of an end item/equipment Explanations of source codes follow:

Code: PA

Definition:

Item procured and stocked for anticipated or known usage.

Code: PB

Definition:

Item procured and stocked for insurance purposes because essentiality dictates that a minimum quantity be available in the supply systems.

Code: PC

Definition:

nature.

Item procured and stocked and which otherwise would be coded PA except that it is deteriorative in

Code: PD

Definition:

Support item, excluding support equipment procured for initial issue or outfitting and stocked only for subsequent or additional initial issues or outfittings. Not subject to automatic replenishment.

Code: PE

Definition:

activities.

Code: PF

Definition:

Support equipment procured and stocked for initial issue or outfitting to specified maintenance repair

Support equipment which will not be stocked but which will be centrally procured on demand.

Code: PG

Definition:

Item procured and stocked to provide for sustained support for the life of the equipment. It is applied to an item peculiar to the equipment which, because of probable discontinuance or shutdown of production facilities, would prove unecononical to reproduce at a later time.

Code: KD

Definition:

An item of a depot overhaul/repair kit and not purchased separately. Depot kit defined as a kit that provides items required at the time of overhaul or repair.

2

TM 9-6920-742-24P-5

Code: KF

Definition:

An item of a maintenance kit and not purchased separately. Maintenance kit defined as a kit that provides an item that can be replaced at unit or intermediate levels of maintenance.

Code: KB

Definition:

Item included in both a depot overhaul/repair kit and a maintenance kit.

Code: MO

Definition:

Item to be manufactured or fabricated at unit level.

Code: MF

Definition:

Item to be manufactured or fabricated at intermediate maintenance levels (Air Force—intermediate*;

Marine Corps-3rd echelon; Army-direct support*; Navy--afloat).

Code: MH

Definition:

Item to be manufactured or fabricated at intermediate maintenance levels (Air Force--intermediate*;

Marine Corps--4th echelon; Army-general support*; Navy--ashore).

Code: MG

Definition:

use only).

Item to be manufactured or fabricated at both afloat and ashore intermediate maintenance levels (Navy

Code: MD

Definition:

Code: AO

Definition:

Item to be manufactured or fabricated at depot maintenance level.

Item to be assembled at unit level.

Code: AF

Definition:

Item to be assembled at intermediate maintenance levels (Air Force--intermediate*; Marine Corps--3rd echelon; Army--direct support*; Navy--afloat).

Code: AH

Definition:

Item to be assembled at intermediate maintenance levels (Air Force--intermediate*; Marine Corps--4th echelon; Army--general support*; Navy--ashore).

Code: AG

Definition:

Item to be assembled at both afloat and ashore intermediate maintenance levels (Navy use only).

Code: AD

Definition:

Item to be assembled at depot maintenance levels.

Code: XA**

Definition:

Item is not procured or stocked because the requirements for the item will result in replacement of the next higher assembly.

Code: XB

Definition:

Item is not procured or stocked. If not available through salvage, requisition.

Code: XC**

Definition:

part number.

Installation drawing, diagram, instruction sheet, field service drawing that is identified by manufacturers'

3

TM 9-6920-742-24P-5

Code: XD

Definition:

supply channels.

A low mortality support item that is not stocked. When required, items will be requested through normal

NOTE

*For USAF and the USA Safeguard Program, only code F will be used to denote intermediate maintenance. On joint programs, use of either code F or H by the joining service will denote intermediate maintenance to USAF and the USA

Safeguard Program.

**Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items with the above source codes except for those source coded XA or those aircraft support items restricted by requirements of AR 700-42.

(2)

Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to use and repair support items.

(a) The maintenance code entered in the third position tells you the lowest maintenance level authorized to remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to the following levels of maintenance:

CODE: O

Application/explanation:

Support item is removed, replaced, used at the unit level of maintenance. (To distinguish between the unit maintenance capabilities on different classes of ships, the following codes may be used intra-Navy only.

On joint programs, Navy will receive and transmit an O to indicate unit maintenance level.

2--Minesweeper, Yardcraft, Patrol Boat

3--Submarines

4--Auxiliary/Amphibious Ships

5--Major Combatant (Destroyer, Frigate)

6--Major Combatant (Cruiser, Carrier)

On Army programs, a code C may be used in the third position to denote crew or operator maintenance performed within unit maintenance. On joint programs the Army will receive or transmit an O to indicate unit level.)

Code: F

Application/explanation:

Support item is removed, replaced, used at the following intermediate levels:

USAF--Intermediate*

USA--Direct Support*

USN--Afloat

USMC--Third Echelon

Code: G

Application/explanation:

Support item is removed, replaced, used at both afloat and ashore intermediate levels:

Navy only

4

TM 9-6920-742-24P-5

Code: H

Application/explanation:

Support item is removed, replaced, used at the following intermediate levels:

USAF--Intermediate*

USA--General Support*

USN--Ashore (only)

USMC--Fourth Echelon

NOTE

*For USAF programs and the USA Safeguard Program, code F will be used to denote intermediate maintenance. On joint programs, use of either code F or H by the joining service will denote intermediate maintenance to USAF and the USA

Safeguard Program.

Code: D

Application/explanation:

Support items that are removed, replaced, used at depot only:

USAF--Depot, Mobile Depot, Specialized Repair Activity

USA--Depot, Mobile Depot, Specialized Repair Activity

USN--Aviation Rework, Avionics and Ordnance Facilities, Shipyards

USMC--Depot

(b) The maintenance code entered in the fourth position tells you whether or not the item is to be repaired and identifies the lowest maintenance with the capability to do complete repair (perform all authorized repair functions).

The decision to code the support item for repair at the indicated maintenance levels requires that all maintenance capability (remove, replace, repair, assemble, and test) for the support items be provided to that level. This does not preclude some repair which may be accomplished at a lower level of maintenance. However, because of service differences in communicating maintenance repair level information, a maintenance code entry in this position is not required by all services. When a maintenance code is not used, a dash (-) sign will be entered. For multi-service equipment/systems or when a code is entered, this position will contain one of the following maintenance codes as assigned by the service(s) that requires the code:

Code: O

Application/explanation:

The lowest maintenance level capable of complete repair of the support item is the unit level.

(To distinguish between the unit maintenance capabilities on different classes of ships, the following codes will be used intra-Navy only. On joint programs, Navy will receive and transmit an o to indicate unit maintenance level.

2--Minesweeper, Yardcraft, Patrol Boat

3--Submarines

4--Auxiliary/Amphibious Ships

5--Major Combatant (Destroyer, Frigate)

6--Major Combatant (Cruiser, Carrier)

Code: F

Application/explanation:

The lowest maintenance level capable of complete repair of the support item is the following intermediate level:

USAF--Intermediate*

USA--Direct Support*

USN--Afloat

USMC--Third Echelon

5

TM 9-6920-742-24P-5

Code: H

Application/explanation:

The lowest maintenance level capable of complete repair of the support Item is the following intermediate level:

USAF--Intermediate*

USA--General Support*

USN--Ashore (only)

USMC--Fourth Echelon

NOTE

*For USAF programs and the USA Safeguard Program, Code F will be used to denote intermediate maintenance. On joint programs, use of either code F or H by the joining service will denote intermediate maintenance to USAF and the USA

Safeguard Program.

Code: G

Application/explanation:

Both afloat and ashore intermediate levels are capable of complete repair of support item:

NAVY ONLY

Code: D

Application/explanation:

The lowest maintenance level capable of complete repair of the support item is the depot level:

USAF--Depot, Mobile Depot, Specialized Repair Activity

USA--Depot, Mobile Depot, Specialized Repair Activity

USN--Aviation Rework, Avionics and Ordnance Facilities, Shipyards

USMC--Depot

Code: L

Application/explanation:

Repair restricted to designated specialized repair activity.

Code: Z

Application/explanation:

Nonrepairable; no repair is authorized.

Code: B

Application/explanation:

No repair is authorized. The item may be reconditioned by adjusting, lubricating, etc, at the user level. No parts or special tools are procured for the maintenance of this item.

(3)

Recoverability Code. Recoverability codes are assigned to items to indicate the disposition action on unserviceable items. The recoverability code is shown in the fifth position of the SMR code as follows:

Recoverability Code: Z

Definition:

Nonrepairable item. When unserviceable, condemn and dispose at the level indicated in position 3.

Recoverability Code: O

Definition:

Repairable item. When uneconomically repairable, condemn and dispose at unit level.

6

TM 9-6920-742-24P-5

Recoverability Code: F

Definition:

Repairable item. When uneconomically repairable, condemn and dispose at the following intermediate levels:

USAF--Intermediate*

USA--Direct Support*

USN--Afloat

USMC--Third Echelon

Recoverability Code: H

Definition:

Repairable item. When uneconomically repairable, condemn and dispose at the following levels:

USAF--Intermediate*

USA--General Support*

USN--Ashore (only)

USMC--Fourth Echelon

NOTE

*For USAF programs and the USA Safeguard Program, code F will be used to denote intermediate level. On joint programs, use of either code F or H by the joining service will denote intermediate level to USAF and the USA Safeguard

Program.

Recoverability Code: D

Definition:

Repairable item. When beyond lower level repair capability, return to depot. Condemnation and disposal not authorized below depot level.

Recoverability Code: L

Definition:

activity level.

Repairable item. Repair, condemnation, and disposal not authorized below depot/specialized repair

Recoverability Code: A

Definition:

Item requires special handling or condemnation procedures because of specific reasons (ie, precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.

(4)

Reserved for Service Option. The sixth position of the SMR code is reserved for internal management purposes of each service.

c. CAGEC (Column (3)). The commercial and Government entity code (CAGEC) is a 5-digit code which is used to identify the manufacturer, distributor, or government agency/activity that supplies the item.

d. PART NUMBER (Column (4)). Indicates the primary number used by the manufacturer (individual, company, firm, corporation, or government activity) which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

NOTE

When you use an NSN to requisition an item, the item you receive may have a different part number from the part you ordered.

e. DESCRIPTION AND USABLE ON CODE (UOC) (Column (5)). This column includes the following information:

7

(1)

The federal item name and, when required, a minimum description to identify the item.

TM 9-6920-742-24P-5

(2)

Part numbers of bulk materials are referenced in this column in the line entry to be manufactured/fabricated.

(3)

The statement END OF FIGURE appears just below the last item description in column (5) for a given figure

in both Sections II and III.

f. QTY (Column (6)). The QTY (quantity per figure column) indicates the quantity of the item used in the breakout shown on the illustration/figure which is prepared for a functional group, subfunctional group, or an assembly. A V appearing in this column in lieu of a quantity indicates that the quantity is variable and the quantity may vary from application to application.

4 EXPLANATION OF COLUMNS (SECTION IV).

a. National Stock Number (NSN) Index.

(1)

STOCK NUMBER Column. This column lists the NSN in national item number (NIIN) sequence. The NIIN consists of the last nine digits of the NSN.

NSN

___________________

(e.g., 5385-01-574-1476)

_____________

NIIN

When using this column to locate an item, ignore the first four digits of the NSN. However, the complete NSN should be used when ordering items by stock number.

(2)

FIG. Column. This column lists the number of the figure where the item is identified/located. The figures

are in numerical order in Section II and Section III.

(3)

ITEM Column. The item number identifies the item associated with the figure listed in the adjacent FIG.

Column. This item is also identified by the NSN listed on the same line.

b. PART NUMBER INDEX. Part numbers in this index are listed by part number in ascending alphanumeric sequence (vertical arrangement of letter and number combinations which places the first letter or digit of each group in order A through Z, followed by the numbers 0 through 9 and each following letter or digit in like order).

(1)

CAGEC Column. The commercial and Government entity code is a 5-digit numeric code used to identify the manufacturer, distributor, or Government activity that supplies the item.

(2)

PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity) which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

(3)

STOCK NUMBER Column. This column lists the NSN for the associated part number and manufacturer identified in the PART NUMBER and CAGEC columns to the left.

and III.

(4)

FIG. Column. This column lists the number of the figure where the item is identified/located in Sections II

(5)

ITEM Column. The item number is the number assigned to the item as it appears in the figure referenced in the adjacent figure number column.

8

TM 9-6920-742-24P-5

c. FIGURE AND ITEM NUMBER INDEX. This index lists the figures in the order in which they appear in Section II.

and III.

(1)

FIG. Column. This column lists the number of the figure where the item is identified/located in Sections II

(2)

ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced in the adjacent figure number column.

(3)

STOCK NUMBER Column. This column list the NSN for the item.

(4)

CAGEC Column. The commercial and Government entity code (CAGEC) is a 5-digit code used to identify the manufacturer, distributor, or Government activity that supplies the item.

(5)

PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

5 SPECIAL INFORMATION.

a. Fabrication Instructions. Not applicable.

b. Index Numbers. Not applicable.

c. Associated Publications. The publication listed below pertains to the Target Holding Mechanism, Tank Gunnery:

Publication Short Title

THM/TG maintenance manual TM9-6920-742-14-5

d. Illustrations Listing. Not applicable.

e. Usable on Code. The usable on code appears in the lower left comer of the description column heading. Usable on codes are shown as UOC: in the description column on the first line after the applicable item description/nomenclature.

Uncoded items are applicable to all models. Identification of usable on code used in the RPSTL/IPB are:

CODE

AL5

AL6

6 HOW TO LOCATE REPAIR PARTS.

USED ON

THM/TG, Radio Controlled

THM/TG, Computer Controlled

a. When National Stock Numbers or Part Numbers Are Not Known.

(1)

First. Using the table of contents, determine the assembly group to which the items belong. This is necessary since figures are prepared for assembly groups and subassembly groups, and listings are divided into the same groups.

(2)

Second. Find the figure covering the functional group or the subfunctional group to which the items belong.

9

TM 9-6920-742-24P-5

(3)

Third. Identify the items on the figure and note the number(s).

(4)

Fourth. Refer to the repair parts list for the figure to find the part number(s) noted on the figure.

(5)

Fifth. Refer to the figure and item number index to find the NSN, if assigned.

b. When National Stock Number or Part Number is Known.

(1)

First. Using the national stock number or the part number index, find the pertinent nsn or part number. The

NSN index is arranged in NIIN sequence. Both indexes cross-reference you to the illustration/figure and item number of the part you are looking for.

(2)

Second. Turn to the figure and item number, verify that the item is the one you are looking for and locate the item number in the repair parts list

7 ABBREVIATIONS.

Not applicable.

10

SECTION II. REPAIR PARTS LIST

TM 9-6920-742-24P-5

Figure 1. Target Holding Mechanism, Tank Gunnery 9375764 and 11784501

04

05

06

07

08

09

10

01

02

03

03

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

PFOOO

AOOOO

XDOFF

XDOFF

PAOZZ

PAOFF

PAOZZ

PAOZZ

XDOOO

PAOOO

PBOZZ

5820010909304

6920013507760

5895013941714

6145012396988

6150012389872

6240011951750

6130012367454

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

11784700

9356185

11784502-2

11784502-1

12599363

12974102

9375734

9375737

12950811

11784475

11784485

(5)

PART

NUMBER

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 00 FIG. 1

TARGET HOLDING MECH, TANK GUNNERY

9375764 AND 11784501

TRANSMITTER, RADIO SEE FIG. 16 FOR ...................

BREAKDOWN UOC: AL5................................................

BATTERY ELIMINATOR SEE FIG 13 FOR....................

BREAKDOWN UOC: AL6................................................

TANK TARGET ASSEMBLY SEE FIG 2 FOR .................

BREAKDOWN UOC AL6.................................................

TARGET HOLDING MECH SEE FIG 2 FOR ...................

BREAKDOWN UOC: AL5................................................

SENSOR, HIT INDICATOR .............................................

RECEIVER, SUBASSEMBLY SEE FIG 15......................

FOR BREAKDOWN UOC: AL5 .......................................

CABLE, POWER, ELECTRICAL .....................................

CABLE ASSEMBLY, POWER .........................................

BATTERY BOX ASSEMBLY SEE FIG 12 .......................

FOR BREAKDOWN ........................................................

LAMP ASSEMBLY SEE FIG 10 FOR ..............................

BREAKDOWN.................................................................

CHARGER, BATTERY ....................................................

END OF FIGURE

QTY

1

1

1

1

1

1

1

3

1

1

1

01-1

SECTION II.

TM 9-6920-742-24P-5

Figure 2. Tank Target Assembly 11784502-1 and 11784502-2 (Sheet 1 of 2)

SECTION II.

TM 9-6920-742-24P-5

Figure 2. Tank Target Assembly 11784502-1 and 11784502-2 (Sheet 2 of 2)

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

12

13

14

05

06

07

08

01

02

03

04

09

10

11

27

28

29

30

31

32

20

21

22

23

15

16

17

17A

18

19

24

25

26

33

34

35

36

37

38

39

40

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

AOOOO

PAOFF

PAOFF

PAFFF

PAOFF

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PBFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFFF

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

5340012389879

5340012410430

6920012350244

5975000742072

5310000145850

5310000453296

5305009906444

5995012350235

5995012350236

6150012391547

6920012037820

6920012350238

5310004079566

5306010562942

5306010758519

6920012350237

6105013753690

5310000453299

5305009846189

9390012388184

5305009846193

5340011827616

6920012350234

5310008113494

5310012350245

5340012350233

5310008238804

5305012389876

3040012351760

4730002895484

5310012101588

6920011951749

5315000120123

3130012350295

5305009837428

5310008098546

19200

19200

19200

96906

19200

19200

96906

96906

96906

19200

19200

19200

19200

19200

19200

96906

96906

96906

19200

19200

19200

96906

96906

19200

96906

19200

19200

96906

19200

19200

96906

19200

19200

96906

19200

19920

96906

19200

19200

96906

96906

(4)

CAGEC

(5)

PART

NUMBER

11784606

9375759

11784608

MS3367-1-9

11784539

11784538

MS27183-42

MS35338-43

MS35207-261

11784506

11784508

11784509

11784510

11784504

11784605

MS35338-45

MS90725-35

MS90725-36

11784607

11784626

11784627

MS35338-42

MS35206-241

9375736

MS35206-245

11784545

11784611

MS21044N08

11784548

9375761

MS27183-9

11784572-2

11784619-1

MS51500A4-4

11784618

11784617

MS24665-355

11784521

11784621

MS16998-26

MS27183-8

02-1

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 01 FIG. 2

TANK TARGET ASSEMBLY

11784602-1 AND 11784502-2

QTY

DOOR, ACCESS.............................................................

RETAINER, NUT AND BOLT ..........................................

BAR, CROSS ..................................................................

STRAP, TIEDOWN, ELECTRICAL..................................

PLATE, IDENTIFICATION...............................................

PLATE, IDENTIFICATION...............................................

WASHER, FLAT..............................................................

23

WASHER, LOCK.............................................................

26

1

1

1

2

2

2

SCREW, MACHINE ........................................................

23

TARGET FRAME, SINGLE SEE FIG. 3 FOR .................

BREAKDOWN ..........................................................

2

CABLE ASSEMBLY, (RECEIVER) SEE..........................

FIG. 9 FOR BREAKDOWN UOC: AL5 ...........................

1

CABLE ASSEMBLY, HYD SEE FIG.. 4 FOR .................

BREAKDOWN.................................................................

1

CABLE ASSEMBLY, POWER SEE FIG 5 .......................

FOR BREAKDOWN ........................................................

CONTROL ASSEMBLY SEE FIG 6 FOR .......................

1

1

BREAKDOWN.................................................................

STABILIZER, TARGET ...................................................

1

WASHER, LOCK.............................................................

14

BOLT, MACHINE ............................................................

BOLT, MACHINE ............................................................

FRAME, PROTECTION ..................................................

PLATE, BASE .................................................................

6

6

2

1

BASE PUMP ...................................................................

WASHER, LOCK.............................................................

1

2

SCREW, MACHINE ........................................................

10

NONMETALLIC CHANNEL .............................................

1

SCREW, MACHINE ........................................................

CATCH, CLAMPING .......................................................

COVER, SIDE .................................................................

8

4

1

NUT, SELF-LOCKING, HEXAGON ................................

NUT.................................................................................

BRACKET, MOUNTING ..................................................

WASHER, FLAT..............................................................

SCREW, MACHINE ........................................................

CYLINDER, HYDRAULIC SEE FIG. 7 FOR ..................

BREAKDOWN.................................................................

ADAPTER, STRAIGHT, PIPE .........................................

WASHER, FLAT..............................................................

JOURNAL .......................................................................

PIN, COTTER .................................................................

HOUSING, BEARING UNIT ............................................

SHAFT, STRAIGHT ........................................................

SCREW, CAP, SOCKET HEAD ......................................

WASHER, FLAT..............................................................

1

2

8

1

1

1

2

4

2

4

1

1

3

3

SECTION II

(1)

ITEM

NO.

50

51

52

53

54

55

56

57

58

59

60

61

45

46

47

48

49

41

42

43

44

62

63

64

65

(2)

SMR

CODE

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFFF

PAOZZ

PAFZZ

PAFZZ

PAFZZ

(3)

NSN

6920012350246

6920012350247

5305009881726

5310005501130

5310008094058

5975007275153

5340012350248

5310005432410

5305001636561

3130012350296

5305009789395

5310006379541

5330012389871

5340012350249

5305009844988

5310005790079

5310013034701

5340010548824

5306002264825

5310000814219

6920012391548

4720012351768

5315005317881

5310005825965

5305000680502

(4)

CAGEC

19200

96906

96906

19200

19200

96906

96906

96906

19200

80204

96906

19200

19200

19200

96906

96906

96906

96906

19200

96906

96906

19200

96906

96906

96906

TM 9-6920-742-24P-5

(5)

PART

NUMBER

(6)

11784622

11784623

MS35206-282

MS35333-40

MS27183-10

MS3367-4-9

11784625

MS35338-40

MS51861-14C

11784522

MS16997-100

MS35338-46

11784613

11784624

MS35206-228

MS35333-37

MS51412-1

11784669-2

B1821BH031C075N

MS27183-12

9375758

9375747

MS39086-251

MS35338-44

MS90725-6

DESCRIPTION AND USABLE ON CODE (UOC)

ACTUATOR, LIMIT .........................................................

ACTUATOR, LIMIT .........................................................

SCREW, MACHINE ........................................................

WASHER, LOCK.............................................................

WASHER, FLAT..............................................................

STRAP, TIEDOWN, ELECTRICAL..................................

PLATE, MOUNTING........................................................

WASHER, LOCK.............................................................

SCREW, TAPPING THREAD..........................................

HOUSING, BEARING UNIT ............................................

SCREW, CAP, SOCKET HEAD ......................................

WASHER, LOCK.............................................................

SEAL, NONMETALLIC ROUND ......................................

PLATE, MOUNTING........................................................

SCREW, MACHINE ........................................................

WASHER, LOCK.............................................................

WASHER, FLAT..............................................................

CLAMP, LOOP ................................................................

BOLT, MACHINE ............................................................

WASHER, FLAT..............................................................

HYDRAULIC UNIT ASSEMBLY SEE FIG 8 ....................

FOR BREAKDOWN ........................................................

HOSE ASSEMBLY, NONMETALLIC...............................

PIN, SPRING ..................................................................

WASHER, LOCK.............................................................

SCREW, CAP, HEXAGON HEAD ...................................

END OF FIGURE

(7)

QTY

4

2

1

4

1

1

1

2

2

1

1

1

4

1

1

6

6

4

4

1

2

2

4

1

1

02-2

SECTION II.

TM 9-6920-742-24P-5

Figure 3. Target Frame, Single 11784506

01

02

03

04

05

06

07

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

5305012389870

3040012350242

5310000453296

5305000889044

6920012350241

6920012350240

5340013963952

19200

19200

96906

96906

19200

19200

19200

11784554

11784550

MS35358-43

MS35207-260

11784553

11784552

11784551

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0101 FIG. 3

TARGET FRAME, SINGLE

11784506

SCREW, CLAMP ............................................................

SHAFT, EXTENSION ......................................................

WASHER, LOCK.............................................................

SCREW, MACHINE ........................................................

PAD, CLAMP ..................................................................

RETAINER, PAD.............................................................

HOLDER, CLAMP ...........................................................

END OF FIGURE

QTY

1

1

1

1

1

1

1

03-1

SECTION II.

TM 9-6920-742-24P-5

Figure 4. Cable Assembly 11784509

01

02

03

04

05

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

PAFZZ

MFFZZ

MFFZZ

PAFZZ

PAFZZ

6145013852711

5935005999604

5935011711966

(4)

CAGEC

19200

81349

81349

96906

81349

TM 9-6920-742-24P-5

(5)

PART

NUMBER

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0102 FIG. 4

CABLE ASSEMBLY, 11784509

(7)

QTY

12599347-3

MS23053/5-104-0

M23053/5-108-0

MS3456W16S1S

M85049/52-1-16W

CABLE, POWER, ELECTRICAL 4 CONDUCTOR .......... V

INSULATION SLEEVING MAKE FROM.......................... V

5970008122969...............................................................

INSULATION SLEEVING MAKE FROM.......................... V

5970008122967...............................................................

CONNECTOR, PLUG, ELECTRIC AL .............................

CLAMP, CABLE, ELECTRICAL ......................................

2

2

END OF FIGURE

04-1

SECTION II.

TM 9-6920-742-24P-5

Figure 5. Cable Assembly, Power 11784510

01

02

03

04

05

06

07

08

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

PAFZA

MFFZZ

PAFZZ

MFFZZ

PAFZZ

PAFZZ

PAFZZ

MFFZZ

5935012078376

6145013852711

5940010791647

5975007275153

5930011953539

19200

81349

19200

81349

81349

96906

19200

81349

(4)

CAGEC

(5)

PART

NUMBER

11784662

M23053/5-106-0

12599347-3

M23053/5-108-0

M7928/5-3

MS3367-4-9

11784511

M23053/5-104-0

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0103 FIG. 5

CABLE ASSEMBLY, POWER 11784510

(7)

QTY

CONNECTOR, PLUG, ELECTRIC ..................................

INSULATION SLEEVING MAKE FROM.......................... V

5970008151295...............................................................

CABLE, POWER, ELECTRICAL ..................................... V

INSULATION SLEEVING MAKE FROM.......................... V

5970008122967...............................................................

SPLICE, CONDUCTOR ..................................................

STRAP, TIEDOWN, ELECTRICAL..................................

SWITCH, PROXIMITY ....................................................

INSULATION SLEEVING MAKE FROM.......................... V

5970008122969...............................................................

1

4

1

3

END OF FIGURE

05-1

SECTION II.

TM 9-6920-742-24P-5

Figure 6. Control Assembly 11784504 (Sheet 1 of 3)

SECTION II.

TM 9-6920-742-24P-5

Figure 6. Control Assembly 11784504 (Sheet 2 of 3)

SECTION II.

TM 9-6920-742-24P-5

Figure 6. Control Assembly 11784504 (Sheet 3 of 3)

34

35

36

37

38

39

40

41

30

31

32

33

26

27

28

29

19

20

21

22

23

24

25

42

43

44

45

46

08

09

10

11

12

13

14

15

16

17

18

01

02

03

04

05

06

07

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

MFFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZA

PAFZZ

XBFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

MFFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

5330009468344

5935011051187

5935010355156

5310001937577

5310009349739

5305009846194

5910006494142

5910012073566

5940001139828

5305002062508

5310005765752

5310000455207

5940001434780

5310008098544

5310009349757

5961009149740

5945012092983

5305012351898

5310005590070

5340012097818

5945012079434

5340012364105

5310005790079

5310009349747

5340011177702

7690012098655

5310005501130

5305009881723

5305012111377

5935011951761

5935012391555

5355006169604

5305006559246

5330012132421

5930009014275

5999012162560

5935005631173

5999012044175

5310012101605

5365012132426

5310009501310

11784633

MS5200-5

MS3452W16S-1S

MS3452W16S1P

MS35333-36

MS35649-242

MS35206-246

11784671

11784670

MS25036-148

MS35215-53

MS35333-39

MS15795-908

MS25036-108

MS27183-7

MS35649-282

JAN1N4246

M23053/5-205-C

11784559-2

11784649

11784555-4

MS35333-38

11784641

11784648

QQW343S20SIT

11784669-3

MS35333-37

MS35649-262

11784669-4

11784632

11784636

MS35333-40

MS35206-279

11784638

11784631

11784630

MS91528-1P2B

MS51021-10

11784629

MS25307-272

11784635

11784658-2

11784523

11784639

11784628

MS27183-4

19200

19200

19200

96906

19200

19200

81348

19200

96906

96906

19200

19200

19200

96906

96906

19200

19200

19200

96906

96906

19200

96906

19200

19200

96906

96906

96906

96906

96906

96906

19200

19200

96906

96906

96906

96906

96906

96906

96906

81349

81349

19200

19200

19200

19200

96906

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0104 FIG. 6

CONTROL ASSEMBLY 11784504

(7)

QTY

BOX, ELECTRONIC UNIT...............................................

GASKET .........................................................................

CONNECTOR, RECEPTACLE........................................

CONNECTOR, RECEPTACLE........................................

WASHER, LOCK.............................................................

52

NUT, PLAIN, HEXAGON.................................................

40

SCREW, MACHINE ........................................................

1

1

1

1

7

RETAINER, CAPACITOR ...............................................

CAPACITOR, FIXED, ELECTRICAL ...............................

TERMINAL, LUG.............................................................

SCREW, MACHINE ........................................................

WASHER, LOCK.............................................................

WASHER, FLAT..............................................................

TERMINAL, LUG.............................................................

1

2

1

1

2

2

1

WASHER, FLAT..............................................................

13

NUT, PLAIN, HEXAGON.................................................

9

SEMICONDUCTOR DEVICE ..........................................

INSULATION SLEEVING MAKE FROM.......................... V

6

5970007670515

TERMINAL, QUICK DISCONNECT.................................

RELAY, ELECTROMAGNETIC .......................................

SCREW, MACHINE ........................................................

2

WASHER, LOCK.............................................................

14

4

1

ROD, STRAIGHT, HEADLESS .......................................

RELAY, ELECTROMAGNETIC .......................................

1

5

WIRE, ELECTRICAL MAKE FROM ................................ V

6145008397432

CLAMP, LOOP ................................................................

WASHER, LOCK.............................................................

NUT, PLAIN, HEXAGON.................................................

CLAMP, LOOP ................................................................

PANEL, ELECTRONIC UNIT ..........................................

1

5

5

1

MARKER, IDENTIFICATION...........................................

WASHER, LOCK.............................................................

10

SCREW, MACHINE ........................................................

10

1

1

SCREW, MACHINE ........................................................

COVER, ELECTRICAL CONNECTOR ............................

COVER, ELECTRICAL CONNECTOR ............................

KNOB..............................................................................

2

5

2

2

SETSCREW ....................................................................

O-RING ...........................................................................

SWITCH, TOGGLE .........................................................

CHASSIS, ELECTRICAL-ELECTRONIC.........................

EQUIPMENT ...................................................................

CONNECTOR, RECEPTACLE........................................

CIRCUIT CARD ASSEMBLY (LOGIC) ............................

NUT STRIP .....................................................................

1

SPACER, SLEEVE..........................................................

2

WASHER, FLAT..............................................................

12

1

1

4

1

1

1

06-1

SECTION II

84

85

86

87

88

89

90

91

(1)

ITEM

NO.

63

64

65

66

67

68

69

56

57

58

59

60

61

62

51

52

53

54

55

47

48

49

50

77

78

79

80

81

82

83

70

71

72

73

74

75

76

PAFZZ

MFFZZ

MFFZZ

PAFZZ

MFFZZ

PAFZZ

MFFZZ

PAFZZ

(2)

SMR

CODE

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZA

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZA

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

MFFZZ

PAFZZ

MFFZZ

(3)

NSN

5305009844978

5330012111342

5365012075755

5998013742340

5999012044176

5305009846189

5365012146400

5305009836730

5935012387770

5340002827965

5305008892999

9390012169346

5340002168352

5935010949306

5935012078380

5935012060218

5330009681753

5930012082275

5930012098516

6210012146430

5365012172088

5330006843420

6920012146249

5365007262038

5999012044174

5935012081990

6145012144016

6920012246370

6850012180679

5935012357568

5330006414338

5910001135515

5940008040365

5975007275153

5910000108717

5905001045755

5940013756597

5975000742072

(4)

81349

81349

81349

81349

81349

19200

81349

96906

CAGEC

19200

96906

19200

19200

19200

19200

19200

96906

19200

19200

19200

19200

19200

96906

96906

19200

19200

19200

19200

96906

19200

96906

19200

19200

19200

19200

19200

19200

19200

19200

19200

96906

81349

96906

81349

96906

81349

(5)

PART

NUMBER

MS35206-221

11784634

11784645

9360577

11784526

MS35206-241

11784644-1

MS35206-218

11784658-1

11784669-1

MS35206-217

11784646

11784669-5

11784663

11784665

9384688

MS52000-7

11784542

11784530

11784529

11784640

11784644-2

MS28775-013

11784637

11784644-3

11784531

11784657-1

12599347-2

11784657-2

11784647

11784661

MS52000-4

M39014/01-1333

MS25036-146

M22759/11-2-9

MS3367-4-9

MLI22129

M39014/01-1593

M23053/5-104-0

M16878/12BHE6

RCR20G100JS

M23053/5-105-0

9365816

M23053/5-108-0

MS3367-1-9

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC) QTY

SCREW, MACHINE ........................................................

GASKET .........................................................................

PLUG, MACHINE THREAD.............................................

BRACKET, MOUNTING ..................................................

CIRCUIT CARD ASSEMBLY (AMPLIFIER).....................

SCREW, MACHINE ........................................................

SPACER, PLATE ............................................................

SCREW, MACHINE ........................................................

CONNECTOR, RECEPTACLE........................................

CLAMP, LOOP ................................................................

SCREW, MACHINE ........................................................

NONMETALLIC CHANNEL .............................................

CLAMP, LOOP ................................................................

CONNECTOR, RECEPTACLE........................................

CONNECTOR, RECEPTACLE........................................

CONNECTOR, RECEPTACLE........................................

GASKET .........................................................................

PLATE, IDENTIFICATION...............................................

SWITCH, ROTARY .........................................................

SWITCH, ROTARY .........................................................

LENS, LIGHT ..................................................................

SPACER, SLEEVE..........................................................

O-RING ...........................................................................

PLATE, LENS CLAMP ....................................................

SPACER, SLEEVE..........................................................

CIRCUIT CARD ASSEMBLY (BATTERY TEST) .............

CONNECTOR, PLUG, ELECTRICAL..............................

CABLE, POWER, ELECTRICAL 12 CONDUCTOR ........ V

TERMINAL, PLUG ..........................................................

DESICCANT, ACTIVATED..............................................

CONNECTOR, RECEPTACLE, ELECTRICAL ................

GASKET .........................................................................

CAPACITOR, FIXED, CERAMIC.....................................

TERMINAL, LUG.............................................................

4

1

WIRE, ELECTRICAL MAKE FROM M22759/11-2-9........ V

STRAP, TIEDOWN, ELECTRICAL..................................

45

INSULATION SLEEVING MAKE FROM.......................... V

8

1

1

1

1

4

1

1

1

4

2

2

1

2

1

1

1

1

1

2

1

1

4

1

1

6

1

1

4

1

2

5970000079587

CAPACITOR, FIXED, CERAMIC.....................................

INSULATION SLEEVING MAKE FROM.......................... V

5970008122969

WIRE, ELECTRICAL MAKE FROM 6145-01-332-1528... V

RESISTOR, FIXED, COMPOSITION ..............................

INSULATION SLEEVING MAKE FROM 5970-................ V

00-954-1622

SPLICE, CONDUCTOR .................................................. V

INSULATION SLEEVING MAKE FROM.......................... V

5970008122967

STRAP, TIEDOWN, ELECTRICAL..................................

2

1

4

END OF FIGURE

06-2

SECTION II.

TM 9-6920-742-24P-5

Figure 7. Hydraulic Cylinder 11784619-1

07

08

09

10

01

02

03

04

05

06

11

12

13

14

I5

16

17

18

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

KFFZZ

KFFZZ

KFFZZ

KFFZZ

KFFZZ

KFFZZ

KFFZZ

KFFZZ

PAFZZ 6920012351762

65150

6S150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

65150

BT01BRA00

BT01PT000

BT01CT000

302CD0000

452000001

BT01PRA00

NW03GL000

NW04GR000

402122300

26110010D0

20-AC02H0

2521L01D0

20-AC0100

20-AA01F0

271HC02H0

244IC02H0

20-AB02D0

BT01PK001

(5)

PART

NUMBER

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0105 FIG. 7

HYDRAULIC CYLINDER 11784619-1

BARREL ASSEMBLY......................................................

PISTON...........................................................................

CUSHION, SPEAR..........................................................

LOCKNUT .......................................................................

SPRING ..........................................................................

PISTON ROD ASSEMBLY ..............................................

GLAND, STUFFING TUBE..............................................

COLLAR, BARREL..........................................................

BUSHING........................................................................

ROD WIPER PART OF KIT P/N BT01PK001 ..................

GLAND SEAL PART OF KIT P/N BT01PK001 ................

ROD SEAL PART OF KIT P/N BT01PK001 ....................

ROD SEAL EXPANDER PART OF KIT P/N ....................

BT01PK001.....................................................................

PISTON AND ROD SEAL PART OF KIT P/N ..................

4T01PK001 .....................................................................

PISTON WEAR RING PART OF KIT P/N .......................

BT01PK001.....................................................................

PISTON SEAL PART OF KIT P/N ...................................

BT01PK001.....................................................................

PISTON SEAL EXPANDER PART OF KIT .....................

P/N BT01PK001 ..............................................................

GLAND SEAL ( 1) 07-11

KIT, REPAIR ...................................................................

PISTON AND ROD SEAL

PISTON SEAL EXPANDE

PISTON SEAL

( 1)

( 1)

( 1)

07-14

07-17

07-16

PISTON WEAR RING

ROD SEAL EXPANDER

ROD SEAL

ROD WIPER

( 2)

( 1)

( 1)

( 1)

07-15

07-13

07-12

07-10

END OF FIGURE

QTY

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

07-1

SECTION II.

TM 9-6920-742-24P-5

Figure 8. Hydraulic Unit Assembly 9375758 (Sheet 1 of 2)

SECTION II.

TM 9-6920-742-24P-5

Figure 8. Hydraulic Unit Assembly 9375758 (Sheet 2 of 2)

36

37

38

39

40

41

42

29

30

31

32

33

34

35

43

44

45

46

47

48

49

22

23

24

25

26

27

28

15

16

17

18

19

20

21

08

09

10

11

12

13

14

01

02

03

04

05

06

07

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

5305009838084

5310005825965

5310008094058

5365012075755

5330012351875

5999012391611

5975000742072

5995012391552

6920012416111

5310005590070

5305009846191

5305008892997

5310001937577

5330009468344

5310008807744

5310004079566

5310000814219

6150012351974

5310009349751

5310000453296

5310000145850

5930013031296

5306013730397

6150012351976

6920012351769

5305000680502

4320013422401

4730013747803

4720012351771

4720012351770

5306002264825

5340012351772

5330010463300

4730006799280

5920012391551

5920001994019

5330005857723

5935012391550

5310012351922

5305009846194

5310000453299

5935012391549

6150012351975

5310000068291

5306002258499

5340012351960

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

19200

19200

19200

19200

80204

19200

81349

96906

19200

81349

96906

19200

19200

96906

96906

19200

19200

96906

19200

96906

94433

96906

96906

96906

96906

96906

19200

96906

96906

96906

19200

96906

19200

19200

96906

96906

96906

96906

19200

19200

19200

19200

96906

19200

19200

19200

96906

96906

96906

(4)

CAGEC

TM 9-6920-742-24P-5

(5)

PART

NUMBER

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0106 FIG. 8

HYDRAULIC UNIT ASSEMBLY 9375758

(7)

QTY

MS16997-60

MS35338-44

MS27183-10

11784645

9375740

9375743

11784514

MS3367-1-9

93575751

9375754

9375727

MS35333-38

MS35206-243

MS35206-215

MS35333-36

MS52000-5

MS51967-5

MS35338-45

MS27183-12

9375713

MS35650-302

MS35338-43

MS27183-42

9360576

MS9783-24

9375714

9375731

MS90725-6

12598336

9375726

9375746

9375748

B1821BH031C075N

9375752

M83461/1-012

MS51520A4

9375730

F09B250V6-1/4A

MS28775-020

9375718

9375729

MS35206-246

MS35338-42

9375717

9375712

MS27130-S32

937S573

MS90725-34

61143

SCREW, CAP, SOCKET HEAD ......................................

14

WASHER, LOCK.............................................................

18

WASHER, FLAT..............................................................

16

PLUG, MACHINE THREAD.............................................

1

COVER, ACCESS...........................................................

GASKET .........................................................................

CIRCUIT CARD ASSEMBLY...........................................

1

1

1

STRAP, TIEDOWN, ELECTRICAL..................................

CABLE ASSEMBLY, SPECIAL .......................................

BOX, HYDRAULIC UNIT.................................................

SIGN, SERIAL NUMBER ................................................

WASHER, LOCK.............................................................

SCREW, MACHINE ........................................................

SCREW, MACHINE ........................................................

1

1

2

1

2

2

4

WASHER, LOCK.............................................................

GASKET .........................................................................

NUT, PLAIN, HEXAGON.................................................

WASHER, LOCK.............................................................

WASHER, FLAT..............................................................

BUS, CONDUCTOR........................................................

NUT, PLAIN, HEXAGON.................................................

WASHER, LOCK.............................................................

WASHER, FLAT..............................................................

SWITCH, SOLENOID......................................................

SCREW, MACHINE ........................................................

BUS, CONDUCTOR........................................................

WIRE ASSEMBLY ..........................................................

SCREW, CAP, HEXAGON HEAD ...................................

1

1

1

1

1

1

3

4

1

2

6

4

1

1

MOTOR, HYDRAULIC ....................................................

ELBOW, PIPE .................................................................

HOSE, HYDRAULIC........................................................

HOSE ASSEMBLY, NONMETALLIC...............................

BOLT, MACHINE ............................................................

BRACKET, MOUNTING ..................................................

PACKING, PREFORMED ...............................................

NIPPLE, TUBE ................................................................

FUSEHOLDER, RECEPTACLE ......................................

FUSE, CARTRIDGE........................................................

PACKING, PREFORMED ...............................................

CONNECTOR, RECEPTACLE........................................

WASHER FLAT...............................................................

SCREW MACHINE .........................................................

WASHER, LOCK.............................................................

CONNECTOR, RECEPTACLE........................................

BUS, CONDUCTOR........................................................

NUT, PLAIN, BLIND RIVET.............................................

BRACKET, MOUNTING ..................................................

BOLT, MACHINE ............................................................

PLUG, VENT ...................................................................

2

1

1

2

1

2

6

1

2

1

1

2

1

2

6

1

1

1

1

2

1

END OF FIGURE

08-1

SECTION II.

TM 9-6920-742-24P-5

Figure 9. Cable Assembly 11784508

01

02

03

04

05

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

XDFZZ

MFFZZ

MFFZZ

PAFZZ

PAFZZ

5935010506586

5935011711966

(4)

CAGEC

19200

81349

81349

96906

81349

TM 9-6920-742-24P-5

(5)

PART

NUMBER

12599347-1

M23053/5-104-0

M23053/5-108-0

MS3456W16S-1P

M85049/52-1-16W

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0109 FIG. 9

CABLE ASSEMBLY 11784508

QTY

CABLE, POWER, ELECTRICAL 8 .................................. V

CONDUCTORS UOC: AL5..............................................

INSULATION SLEEVING MAKE FROM.......................... V

5970008122969 UOC: AL5 .............................................

INSULATION SLEEVING MAKE FROM 5970-................ V

00-812-2967 UOC: AL5...................................................

CONNECTOR, PLUG, ELECTRICAL UOC: AL5.............

CLAMP, CABLE, ELECTRICAL UOC: AL5 .....................

2

2

END OF FIGURE

09-1

SECTION II.

TM 9-6920-742-24P-5

Figure 10. Lamp Assembly 11784475

SECTION II

(1)

ITEM

NO.

01

02

03

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

XAOZZ

PAOZZ

PAOFF

6240013050906

6150011951754

19200

19200

19200

11785549

11784473

11784476

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 03 FIG. 10

LAMP ASSEMBLY 11784475

LAMP ASSEMBLY ..........................................................

LAMP, INCANDESCENT ................................................

CABLE ASSEMBLY, SPECIAL SEE FIG 11 ...................

FOR BREAKDOWN ........................................................

END OF FIGURE

(7)

QTY

1

1

1

10-1

SECTION II.

TM 9-6920-742-24P-5

Figure 11. Cable Assembly, Special 11784476

05

06

07

01

02

03

04

08

09

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

PAFZZ

PAFZZ

PAFZZ

MFFZZ

PAOZZ

MOOZZ

MFFZZ

PAFZZ

MFFZA

5935013808256

5975009367377

5975007275153

5940005571629

5940011357079

19200

96906

96906

81349

96906

81349

81349

81349

81349

(4)

CAGEC

TM 9-6920-742-24P-5

(5)

PART

NUMBER

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0301 FIG. 11

CABLE ASSEMBLY, SPECIAL 11784476

(7)

QTY

11784666

MS3420-8

MS3367-4-9

C0-02MDE(2/20)SJ

0278

MS25036-149

M23053/5-104-4

M23053/5-109-4

M83519/1-5

M22759/11-20-5

CONNECTOR, RECEPTACLE, ELECTRICAL ................

BUSHING, ELECTRICAL ................................................

STRAP, TIEDOWN, ELECTRICAL..................................

CABLE, POWER, ELECTRICAL MAKE FROM ............... V

CO-02MDE (2/20) SJ0278...............................................

TERMINAL, LUG.............................................................

INSULATION SLEEVING MAKE FROM.......................... V

5970007872325...............................................................

INSULATION SLEEVING MAKE FROM.......................... V

5970000573545...............................................................

SPLICE, CONDUCTOR ..................................................

WIRE, ELECTRICAL MAKE FROM 6145-00- ................. V

939-4960 .........................................................................

1

1

1

2

1

END OF FIGURE

11-1

SECTION II.

TM 9-6920-742-24P-5

Figure 12. Battery Box Assembly 12950811

01

02

02

03

04

05

06

07

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

XDOZZ

PAOBA

PAOBA

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

6140010321326

6140012622272

5310010882490

5935013674430

6150013690285

6135012116911

5310002090790

19200

08163

16764

96906

19200

19200

19200

96906

9375741

C31R-4

M27NF

MS35425-74

9356078

9356077

9356194

MS36335-63

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 04 FIG. 12

BATTERY BOX ASSEMBLY 12950811

SIGN ...............................................................................

BATTERY, STORAGE (STANDARD) UOC: AL6.............

BATTERY, STORAGE (MARINE DEEP ..........................

CYCLE) UOC: AL5 ..........................................................

NUT, PLAIN, WING .........................................................

JACK, TIP ADAPTER, POSITIVE (RED) ........................

LEAD, ELECTRICAL ADAPTER, NEGATIVE .................

(BLACK) ..........................................................................

BATTERY BOX ...............................................................

WASHER, LOCK.............................................................

END OF FIGURE

QTY

2

1

1

1

2

1

1

1

12-1

SECTION II.

TM 9-6920-742-24P-5

Figure 13. Battery Eliminator 9356185

SECTION II

(1)

ITEM

NO.

01

02

03

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

PAOZZ

PAOFF

PAOZZ

6150013544394

6130013220258

6150013544395

19200

19200

19200

12934456

12934455

12934457

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 06 FIG. 13

BATTERY ELIMINATOR 9356185

CABLE ASSEMBLY, SPECIAL UOC: AL6 ......................

POWER SUPPLY SEE FIG 14 FOR ...............................

BREAKDOWN UOC: AL6................................................

CABLE ASSEMBLY, SPECIAL UOC: AL6 ......................

END OF FIGURE

(7)

QTY

1

1

1

13-1

SECTION II.

TM 9-6920-742-24P-5

Figure 14. Power Supply 12934455 (Sheet 1 of 2)

SECTION II.

TM 9-6920-742-24P-5

Figure 14. Power Supply 12934455 (Sheet 2 of 2)

28

29

30

31

32

33

34

21

22

23

24

25

26

27

14

15

16

17

18

19

20

10

11

12

13

06

07

08

09

42

43

44

45

46

47

35

36

37

38

39

40

41

01

02

03

04

05

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XBFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZA

PAFZZ

PAFZZ

PAFZZ

PBFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ

XDFZZ

7690011631560

5310006389857

5310009259646

5925013492227

5310002453615

5310001788631

5935012391550

5310009390850

5310013529577

5935012391549

5330009468344

5305010068953

5305010577206

5340011980230

5305010470340

5305010068952

6150013614734

5310005843782

5310009390849

5330008272813

5330013967215

5310001670812

5310009338120

5305000593657

5310008976145

5310005432740

5950013493193

5305006853511

6150013765822

5305002257773

5310005319515

5961013648045

5340013738829

5305000593663

5310009261835

5940009836099

5940011584518

5940011584521

5310002091239

5310004776768

5310001670804

19200

19200

88044

96906

19200

96906

96906

19200

88044

96906

96906

96906

96906

19200

96906

19200

96906

88044

19200

19200

96906

96906

19200

96906

80205

19200

96906

96906

96906

19200

96906

96906

19200

88044

19200

81349

96906

96906

81349

19200

19200

19200

96906

96906

88044

96906

81349

(4)

CAGEC

(5)

PART

NUMBER

11829423

9354182-1

AN960C6L

MS21083C06

12934471

12934458

MS35649-2314

MS35333-75

9375718

MS21083C08

NAS1149CN816R

9375717

MS52000-5

MS3213-27

MS3213-5

9365840

MS3213-12

MS3213-15

12934470

AN960C4L

MS21083C04

MS52000-9

12934478

AN960C10L

MS35338-138

MS51958-61

MS21083C4

MS35333-74

12934465

MS35308-306

12934473

MS16996-22

AN960C416

12934462

12934460

MSA39TB4

MS51958-67

MS21083C3

39TB4

12934474

9354183

9353945

MS35335-60

MS35649-2384

AN960C616

MS21322-58

M39018/04-0039

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0601 FIG. 14

POWER SUPPLY 12934455

(7)

QTY

PLATE, IDENTIFICATION UOC: AL6..............................

DECAL UOC: AL6 ...........................................................

WASHER, FLAT UOC: AL6.............................................

NUT, SELF-LOCKING, HEXAGON UOC: AL6 ................

CIRCUIT BREAKER SUBASSEMBLY UOC:...................

AL6..................................................................................

ENCLOSURE UOC: AL6.................................................

NUT, PLAIN, HEXAGON UOC: AL6................................

WASHER, LOCK UOC: AL6............................................

CONNECTOR, RECEPTACLE UOC: AL6.......................

NUT, SELF-LOCKING, HEXAGON UOC: AL6 ................

WASHER, FLAT UOC: AL6.............................................

CONNECTOR, RECEPTACLE UOC: AL6.......................

GASKET UOC: AL6 ........................................................

SCREW, MACHINE UOC: AL6 .......................................

SCREW, MACHINE UOC: AL6 .......................................

BRACKET, DOUBLE ANGLE UOC: AL6.........................

SCREW, MACHINE UOC: AL6 .......................................

SCREW, MACHINE UOC: AL6 .......................................

WIRING HARNESS UOC: AL6 .......................................

WASHER, FLAT UOC: AL6.............................................

NUT, SELF-LOCKING, HEXAGON UOC: AL6 ................

GASKET UOC: AL6 ........................................................

GASKET UOC: AL6 ........................................................

1

WASHER, FLAT UOC: AL6.............................................

13

8

1

WASHER, LOCK UOC: AL6............................................

SCREW, MACHINE UOC: AL6 .......................................

NUT, SELF-LOCKING, HEXAGON UOC: AL6 ................

4

4

5

6

8

1

2

4

1

8

6

6

1

2

1

2

2

1

1

1

4

4

1

WASHER, LOCK UOC: AL6............................................

TRANSFORMER, POWER UOC: AL6 ............................

SCREW, CAP, HEXAGON HEAD UOC: AL6 ..................

CABLE ASSEMBLY, SPECIAL UOC: AL6 ......................

SCREW, CAP, SOCKET HEAD UOC: AL6 .....................

WASHER, FLAT UOC: AL6.............................................

RECTIFIER SEMICONDUCTOR UOC: AL6....................

PLATE, MOUNTING UOC: AL6 ......................................

MARKER STRIP, TERMINAL UOC: AL6.........................

SCREW, MACHINE UOC: AL6 .......................................

NUT, SELF-LOCKING, HEXAGON UOC: AL6 ................

TERMINAL BOARD UOC: AL6 .......................................

DECAL UOC: AL6 ...........................................................

COVER, TERMINAL BOARD UOC: AL6 .........................

TERMINAL, LUG UOC: AL6............................................

WASHER, LOCK UOC: AL6............................................

NUT, PLAIN, HEXAGON UOC: AL6................................

WASHER, FLAT UOC : AL6............................................

CLAMP, LOOP UOC: AL6 ...............................................

CAPACITOR, FIXED, ELECTROLYTIC UOC:.................

AL6..................................................................................

4

2

4

4

1

1

9

8

1

1

1

1

2

5

1

6

1

4

6

1

14-1

END OF FIGURE

SECTION II.

TM 9-6920-742-24P-5

Figure 15. Receiver, Channel 11784801

08

09

10

11

12

13

14

01

02

03

04

05

06

07

15

16

17

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

PAFZZ

XDDDD

PAFZZ

XDDDD

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

PAFZZ

PAFZZ

XDDDD

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

5985012417565

5305012351805

6685013651407

5325001850012

19200

19200

19200

19200

19200

19200

96906

96906

19200

19200

96906

19200

19200

19200

19200

19200

19200

11784802

11784804

11784837

11784814

11784817

9375750

MS35338-40

MS35206-215

9375742

12950861

MS35489-35

11784808

11784811

937572

11784575

11784442

11784443

(5)

PART

NUMBER

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 07 FIG. 15

RECEIVER, CHANNEL 11784801

ANTENNA UOC: AL5 ......................................................

PANEL, CONTROL, TARGET UOC: AL5........................

THUMBSCREW UOC: AL5 .............................................

CIRCUIT CARD ASSEMBLY UOC: AL5..........................

HOLDER, ELECTRICAL CARD OUC: AL5 .....................

CABLE ASSEMBLY, SPECIAL UOC: AL5 ......................

WASHER, LOCK UOC: AL5............................................

SCREW, MACHINE UOC: AL5 .......................................

COVER, RECEIVER UOC: AL5 ......................................

INDICATOR, HUMIDITY, UOC: AL5 ...............................

GROMMET, NONMETALLIC UOC: AL5 .........................

CIRCUIT CARD ASSEMBLY UOC: AL5..........................

CIRCUIT CARD ASSEMBLY UOC: AL5..........................

PAD, PROTECTION UOC: AL5 ......................................

SCREW, MACHINE UOC: AL5 .......................................

SIGN UOC: AL5 ..............................................................

SIGN UOC: AL5 ..............................................................

END OF FIGURE

(7)

QTY

4

1

1

1

1

1

2

4

1

1

1

1

1

1

1

1

4

15-1

SECTION II.

TM 9-6920-742-24P-5

Figure 16. Transmitter, Radio 11784700

SECTION II

(1)

ITEM

NO.

01

02

03

(2)

SMR

CODE

(3)

NSN

(4)

CAGEC

(5)

PART

NUMBER

PFODD

PAOBZ

PBOZZ

6920012357564

6135012416115

6130013507763

19200

19200

19200

11784701

11784703

9356098

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 08 FIG. 16

TRANSMITTER, RADIO 11784700

TRANSMITTER SEE FIG.. 17 FOR ...............................

BREAKDOWN UOC: AL5................................................

BATTERY ASSEMBLY UOC: AL5 ..................................

CHARGER, BATTERY UOC: AL5 ...................................

END OF FIGURE

(7)

QTY

1

1

1

16-1

SECTION II.

TM 9-6920-742-24P-5

Figure 17. Transmitter 11784701

SECTION II

(1)

ITEM

NO.

(2)

SMR

CODE

(3)

NSN

31

32

33

34

35

36

37

24

25

26

27

28

29

30

17

18

19

20

21

22

23

13

14

15

16

09

10

11

12

05

05

05

05

05

05

05

05

05

06

07

08

01

02

03

04

04A

04B

05

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDFZZ

XDFZZ

XDDZZ

XDFZZ

XDFZZ

PAFZZ

XDDZZ

XDDZZ

XDDZZ

XDFZZ

XDFZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

XDDZZ

PAFZZ

XDDZZ

PAFZZ

XDDDD

XDFZZ

XDFZZ

PAFZZ

PAFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDFZZ

XDDZZ

XDDDD

XDDZZ

5985012360263

6210012410427

6240012417563

6920012391563

6685013651408

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

(4)

CAGEC

(5)

PART

NUMBER

11784726

11784569-4

11784574-2

11784728-1

11784729

12598337

11784789

11784849-1

11784727

11784708

11785164

11784717

11784574-4

11784706

11784555-6

11784568-2

11784570-2

11784744

11784790

11784567-2

11784724

11784745

11784728-2

11784569-2

11784746

11784730

11784578

12950862

11784568-1

11784704

11784718

11784748

9360588

11784751

11784752

11784702-1

11784702-2

11784702-3

11784702-4

11784702-5

11784702-6

11784702-7

11784702-8

11784702-9

11784702-10

11784714

11784711

11784710

17-1

TM 9-6920-742-24P-5

(6)

DESCRIPTION AND USABLE ON CODE (UOC)

GROUP 0802 FIG. 17

TRANSMITTER 11784701

(7)

QTY

ANTENNA UOC: AL5 ......................................................

PANEL ASSEMBLY UOC: AL5 .......................................

PLATE, IDENTIFICATION UOC: AL5..............................

SIGN UOC: AL5 ..............................................................

LENS, LAMP UOC: AL5 ..................................................

LAMP UOC: AL5 .............................................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

KNOB, SELECTOR UOC: AL5........................................

CIRCUIT CARD ASSEMBLY UOC: AL5..........................

CIRCUIT CARD ASSEMBLY UOC: AL5..........................

CONTACT ASSEMBLY, ELECTRICAL UOC: .................

AL5..................................................................................

PIN, SHOULDER, HEADLESS UOC: AL5.......................

1

WASHER, FLAT UOC: AL5.............................................

SCREW, MACHINE UOC: AL5 .......................................

2

4

BRACKET, ANGLE UOC: AL5 ........................................

INSULATION UOC: AL5..................................................

CASE, FOAMED UOC: AL5 ............................................

2

1

RUBBER, CUSHION UOC: AL5 ......................................

1

O-RING UOC: AL5 ..........................................................

10

8

1

1

1

1

1

SCREW, SHOULDER UOC: AL5 ....................................

10

VALVE UOC: AL5 ...........................................................

1

GASKET UOC: AL5 ........................................................

PLATE, BATTERY UOC: AL5 .........................................

1

1

SCREW, MACHINE UOC: AL5 .......................................

PLATE, BOTTOM UOC: AL5...........................................

SCREW, MACHINE UOC: AL5 .......................................

6

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

NUT, PLAIN, HEXAGON UOC: AL5................................

10

WASHER, SPRING TENSION UOC: AL5 .......................

4

GASKET UOC: AL5 ........................................................

CATCH, PULL DOWN UOC: AL5....................................

1

2

RIVET, SOLID UOC: AL5 ................................................

LOOP, STRAP FASTENER UOC: AL5 ...........................

STRAP, LEATHER UOC: AL5.........................................

4

2

1

BRACKET, ANGLE UOC: AL5 ........................................

WASHER, FLAT UOC: AL5.............................................

PAD, CUSHIONING UOC: AL5 .......................................

SPACER, SLEEVE UOC: AL5 ........................................

NT, SELF-LOCKING, HEXAGON UOC: AL5...................

INDICATOR, HUMIDITY, UOC: AL5 ...............................

NUT, PLAIN, HEXAGON UOC: AL5................................

1

2

1

2

2

1

2

SECTION II

(1)

ITEM

NO.

38

39

40

41

42

(2)

SMR

CODE

XDDZZ

XDDZZ

XDFZZ

PAFZZ

XDFZZ

(3)

NSN

5310009960133

(4)

CAGEC

19200

19200

19200

96906

19200

(5)

PART

NUMBER

1178470-1

11784725

11784574-5

MS27129-4

11784707

TM 9-6920-742-24P-5

(6) (7)

DESCRIPTION AND USABLE ON CODE (UOC)

WASHER, SPRING TENSION UOC: AL5 .......................

BRACKET UOC: AL5 ......................................................

SCREW, MACHINE UOC: AL5 .......................................

WASHER, FINISHING UOC: AL5 ...................................

COVER, TOP UOC: AL5 .................................................

QTY

2

2

2

1

1

END OF FIGURE

17-2

SECTION II TM 9-6920-742-24P-5

(1) (2) (3) (4) (5) (6) (7)

ITEM SMR PART

NO. CODE NSN CAGEC NUMBER DESCRIPTION AND USABLE ON CODE (UOC) QTY

GROUP 99 FIG. BULK

BULK MATERIALS

1 PAFZZ 6145013738788 81349 C0-02MDE(2/20)SJ CABLE, POWER, ELECTRI ............................................ 1

0278

2 PCOZZ 5970008122969 81349 M23053/5-104-0 INSULATION SLEEVING ................................................ 1

3 PCFZZ 5970008122967 81349 M23053/5-108-0 INSULATION SLEEVING ................................................ 1

4 PCFZZ 5970008151295 81349 M23053/5-106-0 INSULATION SLEEVING ................................................ 1

5 PCFZZ 5970009541622 81349 M23053/5-105-0 INSULATION SLEEVING ................................................ 1

6 PCOZZ 5970007872325 81349 M23053/5-104-4 INSULATION SLEEVING ................................................ 1

7 PCFZZ 5970000573545 81349 M23053/5-109-4 INSULATION SLEEVING ................................................ 1

8 PAFZZ 5970008370647 81349 MIL-I-22129 INSULATION SLEEVING ................................................ 1

9 PCFZZ 5970007670515 81349 M23053/5-205-C INSULATION SLEEVING ................................................ 1

10 PAFZZ 6145008397432 81348 QQW343S20SIT WIRE, ELECTRICAL ....................................................... 1

11 PAFZA 6145009498006 81349 M22759/11-22-9 WIRE, ELECTRICAL ....................................................... 1

12 PAFZA 6145013321528 81349 M16878/12BHE6 WIRE, ELECTRICAL ....................................................... 1

13 PAFZA 6145009394960 81349 M22759/11-20-5 WIRE, ELECTRICAL ....................................................... 1

END OF FIGURE

BULK-1

SECTION IV

STOCK NUMBER

5310-00-006-8291

5910-00-010-8717

5315-00-012-0123

5310-00-014-5850

5310-00-045-3296

5310-00-045-3299

5310-00-045-5207

5970-00-057-3545

5305-00-059-3657

5305-00-059-3663

5305-00-068-0502

5975-00-074-2072

5310-00-081-4219

5305-00-088-9044

5905-00-104-5755

5910-00-113-5515

5940-00-113-9828

5940-00-143-4780

5305-00-163-6561

5310-00-167-0804

5310-00-167-0812

5310-00-178-8631

5325-00-185-0012

5310-00-193-7577

5920-00-199-4019

5305-00-206-2508

5310-00-209-0790

5310-00-209-1239

5340-00-216-8352

5305-00-225-7773

5306-00-225-8499

5306-00-226-4825

5310-00-245-3615

5340-00-282-7965

4730-00-289-5484

5310-00-407-9566

5310-00-477-6768

5315-00-531-7881

5310-00-531-9515

FIG.

02

08

14

02

14

14

08

02

08

14

06

02

08

08

06

12

14

06

06

02

14

14

14

15

06

BULK

14

14

02

08

02

06

08

02

08

03

06

06

06

02

03

08

02

08

06

08

06

02

02

08

CROSS-REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM STOCK NUMBER

16

18

44

63

33

32

48

59

33

07

56

33

15

38

11

07

43

59

14

49

45

24

08

11

05

08

60

19

04

87

79

10

7

26

37

65

28

04

91

08

03

22

21

43

13

46

84

36

07

23

5310-00-543-2410

5310-00-543-2740

5310-00-550-1130

5940-00-557-1629

5310-00-559-0070

5310-00-576-5752

5310-00-579-0079

5310-00-582-5965

5330-00-585-7723

5310-00-595-6425

5935-00-599-9604

5355-00-616-9604

5310-00-637-9541

5310-00-638-9857

5330-00-641-4338

5910-00-649-4142

5305-00-655-9246

4730-00-679-9280

5330-00-684-3420

5305-00-685-3511

5365-00-726-2038

5975-00-727-5153

5970-00-767-0515

5970-00-787-2325

5940-00-804-0365

5310-00-809-4058

5310-00-809-8544

5310-00-809-8546

5310-00-811-3494

5970-00-812-2967

5970-00-812-2969

5970-00-815-1295

5310-00-823-8804

5330-00-827-2813

5970-00-837-0647

6145-00-839-7432

5310-00-880-7744

5305-00-889-2997

5305-00-889-2999

5310-00-897-6145

5930-00-901-4275

5961-00-914-9740

I-1

FIG.

BULK

BULK

02

14

BULK

BULK

08

08

06

14

06

06

02

05

06

11

BULK

BULK

06

02

08

06

02

02

BULK

06

06

06

08

06

14

06

08

08

14

04

06

02

14

06

08

06

02

06

02

02

14

02

06

11

TM 9-6920-742-24P-5

ITEM

14

57

27

40

17

30

22

2

4

8

10

17

45

03

15

40

27

3

46

06

82

03

9

6

80

78

08

38

36

69

30

71

02

39

20

04

37

52

03

22

12

12

56

27

64

48

28

44

32

05

SECTION IV

STOCK NUMBER

5310-00-925-9646

5310-00-926-1835

5310-00-933-8120

5310-00-934-9739

5310-00-934-9747

5310-00-934-9751

5310-00-934-9757

5310-00-939-0849

5310-00-939-0850

6145-00-939-4960

5330-00-946-8344

6145-00-949-8006

5310-00-950-1310

5970-00-954-1622

5330-00-968-1753

5305-00-978-9395

5940-00-983-6099

5305-00-983-6730

5305-00-983-7428

5305-00-983-8084

5305-00-984-4978

5305-00-984-4988

5305-00-984-6189

5305-00-984-6191

5305-00-984-6193

5305-00-984-6194

5305-00-988-1723

5305-00-988-1726

5305-00-990-6444

5310-00-996-0133

5305-01-006-8952

5305-01-006-8953

6140-01-032-1326

5935-01-035-5156

5330-01-046-3300

5305-01-047-0340

5935-01-050-6586

5340-01-054-8824

5306-01-056-2942

5305-01-057-7206

5306-01-075-8519

5940-01-079-1647

5310-01-088-2490

5935-01-094-9306

5935-01-105-1187

5340-01-117-7702

FIG.

05

12

06

06

06

08

14

09

02

02

14

02

02

17

14

14

12

06

06

08

02

06

08

06

02

08

14

BULK

06

BULK

06

02

14

06

02

08

06

02

02

08

06

14

14

BULK

06

14

14

14

06

06

CROSS-REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM STOCK NUMBER

35

17

04

58

17

15

17A

05

03

60

03

29

09

41

18

14

02

04

52

13

24

07

42

33

43

39

54

39

01

47

55

22

16

13

11

46

5

63

51

21

16

21

10

13

02

04

38

25

06

28

5940-01-135-7079

5940-01-158-4518

5940-01-158-4521

7690-01-163-1560

5935-01-171-1966

5340-01-182-7616

6920-01-195-1749

6240-01-195-1750

6150-01-195-1754

5935-01-195-1761

5930-01-195-3539

5340-01-198-0230

6920-01-203-7820

5999-01-204-4174

5999-01-204-4175

5999-01-204-4176

5935-01-206-0218

5910-01-207-3566

5365-01-207-5755

5935-01-207-8376

5935-01-207-8380

5945-01-207-9434

5935-01-208-1990

5930-01-208-2275

5945-01-209-2983

5340-01-209-7818

5930-01-209-8516

7690-01-209-8655

5310-01-210-1588

5310-01-210-1605

5330-01-211-1342

5305-01-211-1377

6135-01-211-6911

5330-01-213-2421

5365-01-213-2426

6145-01-214-4016

6920-01-214-6249

5365-01-214-6400

6210-01-214-6430

5999-01-216-2560

9390-01-216-9346

5365-01-217-2088

6850-01-218-0679

6920-01-224-6370

5340-01-235-0233

6920-01-235-0234

5995-01-235-0235

5995-01-235-0236

I-2

FIG.

06

02

02

02

02

06

06

06

06

06

06

06

06

06

12

06

06

06

06

06

06

06

06

02

06

06

06

08

05

06

06

06

05

14

02

06

06

06

06

09

02

02

01

10

06

11

14

14

14

04

TM 9-6920-742-24P-5

ITEM

75

29

26

11

12

70

53

67

41

58

68

76

48

34

06

39

45

74

65

20

23

66

31

34

44

09

49

04

01

61

24

73

07

16

14

72

43

51

62

05

25

35

09

03

35

08

41

42

02

05

SECTION IV

STOCK NUMBER

6920-01-235-0237

6920-01-235-0238

6920-01-235-0240

6920-01-235-0241

3040-01-235-0242

6920-01-235-0244

5310-01-235-0245

6920-01-235-0246

6920-01-235-0247

5340-01-235-0248

5340-01-235-0249

3130-01-235-0295

3130-01-235-0296

3040-01-235-1760

4720-01-235-1768

6920-01-235-1769

4720-01-235-1770

4720-01-235-1771

5340-01-235-1772

5305-01-235-1805

5330-01-235-1875

5305-01-235-1898

5310-01-235-1922

5340-01-235-1960

6150-01-235-1974

6150-01-235-1975

6150-01-235-1976

6920-01-235-7564

5935-01-235-7568

5985-01-236-0263

5340-01-236-4105

6130-01-236-7454

5935-01-238-7770

9390-01-238-8184

5305-01-238-9870

5330-01-238-9871

6150-01-238-9872

5305-01-238-9876

5340-01-238-9879

6150-01-239-1547

6920-01-239-1548

5935-01-239-1549

5935-01-239-1550

5920-01-239-1551

5995-01-239-1552

5935-01-239-1555

6920-01-239-1563

5999-01-239-1611

FIG.

08

08

06

17

08

02

02

02

08

14

08

14

06

02

03

02

01

02

08

08

16

06

17

06

1

08

15

08

06

08

08

08

02

02

02

02

08

08

08

02

02

02

02

02

02

02

02

03

03

03

CROSS-REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM STOCK NUMBER

37

09

36

22

07

01

13

61

44

12

40

09

55

23

01

53

07

31

45

26

01

77

01

26

10

34

03

06

21

41

49

20

37

50

32

62

27

32

31

03

28

41

42

47

54

18

15

06

05

02

6145-01-239-6988

6210-01-241-0427

5340-01-241-0430

6920-01-241-6111

6135-01-241-6115

6240-01-241-7563

5985-01-241-7565

6140-01-262-2272

5930-01-303-1296

5310-01-303-4701

6240-01-305-0906

6130-01-322-0258

6145-01-332-1528

4320-01-342-2401

5925-01-349-2227

5950-01-349-3193

6920-01-350-7760

6130-01-350-7763

5310-01-352-9577

6150-01-354-4394

6150-01-354-4395

6150-01-361-4734

5961-01-364-8045

6685-01-365-1407

6685-01-365-1408

5935-01-367-4430

6150-01-369-0285

5306-01-373-0397

6145-01-373-8788

5340-01-373-8829

5998-01-374-2340

4730-01-374-7803

6105-01-375-3690

5940-01-375-6597

5935-01-380-8256

6145-01-385-2711

5895-01-394-1714

5340-01-396-3952

5330-01-396-7215

I-3

FIG.

13

BULK

08

14

14

01

16

14

13

13

14

14

15

17

17

15

12

08

02

10

01

17

02

08

16

12

12

08

BULK

14

06

08

02

06

11

04

05

01

03

14

TM 9-6920-742-24P-5

ITEM

11

01

03

19

34

10

36

02

12

29

05

29

04

03

06

04A

02

10

02

04B

01

02

24

57

02

20

89

01

01

03

05

07

23

04

05

25

1

35

50

30

SECTION IV

CAGEC

88044

88044

88044

88044

88044

65150

65150

65150

65150

65150

80204

81349

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

08163

81349

81349

81349

81349

81349

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

PART NUMBER

AN960C10L

AN960C4L

AN960C416

AN960C6L

AN960C616

BT01BRA00

BT01CT000

BT01PK001

BT01PRA00

BT01PT000

B1821BH031C075N

C0-02MDE(2/20)SJ

0278

C31R-4

F09B250V6-1/4A

JAN1N4246

MIL-I-22129

MILI22129

MSA39TB4

MS15795-908

MS16996-22

MS16997-100

MS16997-60

MS16998-26

MS21044N08

MS21083C04

MS21083C06

MS21083C08

MS21083C3

MS21083C4

MS21322-58

MS24665-355

MS25036-108

MS25036-146

MS25036-148

MS25036-149

MS25307-272

MS27129-4

MS27130-S32

MS27183-10

M527183-12

MS27183-4

MS27183-42

MS27183-7

MS27183-8

MS27183-9

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5310-00-167-0812

5310-00-595-6425

5310-00-531-9515

5310-00-638-9857

5310-00-167-0804

5306-00-226-4825

6145-01-373-8788

6140-01-032-1326

5920-00-199-4019

5961-00-914-9740

5970-00-837-0647

5310-00-045-5207

5305-00-225-7773

5305-00-978-9395

5305-00-983-8084

5305-00-983-7428

5310-00-811-3494

5310-00-939-0849

5310-00-925-9646

5310-00-939-0850

5310-00-926-1835

5310-00-897-6145

5315-00-012-0123

5940-00-143-4780

5940-00-804-0365

5940-00-113-9828

5940-00-557-1629

5930-00-901-4275

5310-00-996-0133

5310-00-006-8291

5310-00-809-4058

5310-00-081-4219

5310-00-950-1310

5310-00-014-5850

5310-00-809-8544

5310-00-809-8546

5310-00-823-8804

I-4

TM 9-6920-742-24P-5

ITEM

03

60

19

46

40

41

46

45

07

23

15

40

30

14

80

10

05

38

27

46

36

27

21

04

10

32

51

01

39

1

02

38

17

8

83

36

13

45

01

03

18

24

20

33

03

06

02

59

33

04

FIG.

08

02

08

06

06

17

08

02

02

08

06

02

02

06

06

06

11

14

14

14

02

BULK

12

08

06

BULK

06

14

06

02

14

14

14

14

02

08

02

14

07

07

07

14

14

14

14

07

07

02

08

11

SECTION IV

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

CAGEC

96906

96906

96906

96906

96906

96906

96906

96906

MS3420-8

MS3452W16S-1S

MS3452W16S1P

MS3456W16S-1P

MS3456W16S1S

MS35206-215

MS35206-217

MS35206-218

MS35206-221

MS35206-228

MS35206-241

MS35206-243

MS35206-245

MS35206-246

MS35206-279

MS35206-282

MS35207-260

MS35207-261

MS35215-53

MS35308-306

MS35333-36

MS35333-37

MS35333-38

MS35333-39

MS35333-40

MS35333-74

MS35333-75

MS35335-60

MS35335-63

MS35338-138

MS35338-40

PART NUMBER

MS28775-013

MS28775-020

MS3213-12

MS3213-15

MS3213-27

MS3213-5

MS3367-1-9

MS3367-4-9

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER FIG.

5330-00-684-3420

5330-00-585-7723

5305-01-047-0340

5305-01-006-8952

5305-01-006-8953

5305-01-057-7206

5975-00-074-2072

5975-00-727-5153

5935-01-105-1187

5935-01-035-5156

5935-01-050-6586

5935-00-599-9604

5305-00-889-2997

5305-00-889-2999

5305-00-983-6730

5305-00-984-4978

5305-00-984-4988

5305-00-984-6189

5305-00-984-6191

5305-00-984-6193

5305-00-984-6194

5305-00-988-1723

5305-00-988-1726

5305-00-088-9044

5305-00-990-6444

5305-00-206-2508

5305-00-685-3511

5310-00-193-7577

5310-00-579-0079

5310-00-559-0070 06

08

5310-00-576-5752

5310-00-550-1130

06

02

5310-00-543-2740

5310-00-178-8631

5310-00-209-1239

06

14

14

14

5310-00-209-0790

5310-00-933-8120

5310-00-543-2410

06

08

02

06

03

02

06

14

12

14

02

06

08

06

02

02

06

08

02

06

06

06

02

09

04

08

15

11

11

06

06

08

02

05

06

14

14

02

06

06

08

14

14

TM 9-6920-742-24P-5

ITEM

07

42

33

43

22

52

13

24

57

54

47

55

04

04

14

08

03

02

03

04

08

46

06

82

14

15

04

91

69

39

17

18

32

28

08

43

22

12

12

44

05

15

56

27

04

09

11

30

07

25

48

I-5

SECTION IV

CAGEC

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

81349

81349

81349

81349

81349

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

MS35338-44

MS35338-45

MS35338-46

MS35425-74

MS35489-35

MS35649-2314

MS35649-2384

MS35649-242

MS35649-262

MS35649-282

MS35650-302

MS39086-251

MS51021-10

MS51412-1

MS51500A4-4

MS51520A4

MS51861-14C

MS51958-61

MS51958-67

MS51967-5

MS52000-4

MS52000-5

MS52000-7

MS52000-9

MS90725-34

MS90725-35

MS90725-36

MS90725-6

MS91528-1P2B

MS9783-24

M16878/12BHE6

M22759/11-2-9

M22759/11-20-5

M22759/11-22-9

M23053/5-104-0

PART NUMBER

MS35338-40

MS35338-42

MS35338-43

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5310-00-045-3299

5310-00-045-3296

5310-00-582-5965

5310-00-407-9566

5310-00-637-9541

5310-01-088-2490

5325-00-185-0012

5310-00-245-3615

5310-00-477-6768

5310-00-934-9739

5310-00-934-9747

5310-00-934-9757

5310-00-934-9751

5315-00-531-7881

5305-00-655-9246

5310-01-303-4701

4730-00-289-5484

4730-00-679-9280

5305-00-163-6561

5305-00-059-3657

5305-00-059-3663

5310-00-880-7744

5330-00-641-4338

5330-00-946-8344

5330-00-968-1753

5330-00-827-2813

5306-00-225-8499

5306-01-056-2942

5306-01-075-8519

5305-00-068-0502

5355-00-616-9604

5306-01-373-0397

6145-01-332-1528

6145-00-939-4960

6145-00-949-8006

TM 9-6920-742-24P-5

ITEM

17

78

02

16

36

49

26

37

63

38

57

33

06

28

16

21

03

11

07

44

02

16

18

52

07

21

43

08

03

22

64

81

09

13

11

37

25

86

12

17

17A

65

28

13

63

22

48

02

08

85

02

FIG.

08

06

06

08

08

02

14

14

02

06

02

02

06

06

06

08

12

15

14

14

08

02

08

02

15

02

08

02

03

08

02

06

08

06

BULK

06

11

BULK

BULK

04

05

06

09

02

02

02

08

14

06

14

08

I-6

81349

81349

16764

81349

81349

81349

81349

81349

81349

81349

80205

65150

65150

81348

81349

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

SECTION IV

CAGEC

81349

81349

81349

81349

81349

M23053/5-109-4

M23053/5-205-C

M27MF

M39014/01-1333

M39014/01-1593

M39018/04-0039

M7928/5-3

M83461/1-012

M83519/1-5

M85049/52-1-16W

NAS1149CN816R

NW03GL000

NW04GR000

QQW343S20S1T

RCR20G100JS

11784442

11784443

11784473

11784475

11784476

11784485

11784502-1

11784502-2

11784504

11784506

11784508

11784509

11784510

11784511

11784514

11784521

11784522

11784523

11784526

11784529

PART NUMBER

M23053/5-104-0

M23053/5-104-4

M23053/5-105-0

M23053/5-106-0

M23053/5-108-0

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5970-00-812-2969

5970-00-787-2325

5970-00-954-1622

5970-00-815-1295

5970-00-812-2967

5970-00-057-3545

5970-00-767-0515

6140-01-262-2272

5910-00-113-5515

5910-00-010-8717

5940-01-079-1647

5330-01-046-3300

5940-01-135-7079

5935-01-171-1966

5310-01-352-9577

6145-00-839-7432

5905-00-104-5755

6240-01-305-0906

6240-01-195-1750

6150-01-195-1754

6130-01-236-7454

6920-01-203-7820

5995-01-235-0235

5995-01-235-0236

6150-01-239-1547

5930-01-195-3539

5999-01-239-1611

3130-01-235-0295

3130-01-235-0296

5999-01-204-4175

5999-01-204-4176

5930-01-209-8516

I-7

TM 9-6920-742-24P-5

ITEM

08

25

10

87

05

05

11

07

47

05

35

08

9

02

79

84

03

04

90

03

3

07

7

18

2

06

6

88

5

02

4

13

07

07

37

14

10

11

12

50

43

51

66

03

10

03

03

16

17

02

09

FIG.

BULK

12

06

06

14

05

08

11

07

06

BULK

06

04

09

14

07

BULK

11

BULK

06

BULK

05

BULK

BULK

11

BULK

06

04

05

06

09

02

05

08

02

02

02

02

02

02

06

06

06

10

1

01

01

15

15

10

01

SECTION IV

CAGEC

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

PART NUMBER

11784530

11784531

11784538

11784539

11784542

11784545

11784548

11784550

11784551

11784552

11784553

11784554

11784555-4

11784555-6

11784559-2

11784567-2

11784568-1

11784568-2

11784569-2

11784569-4

11784570-1

11784570-2

11784572-2

11784574-2

11784574-4

11784574-5

11784575

11784578

11784605

11784606

11784607

11784608

11784611

11784613

11784617

11784618

11784619-1

11784621

11784622

11784623

11784624

11784625

11784626

11784627

11784628

11784629

11784630

11784631

11784632

11784633

11784634

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5930-01-208-2275

5999-01-204-4174

5340-01-182-7616

5310-01-235-0245

3040-01-235-0242

5340-01-396-3952

6920-01-235-0240

6920-01-235-0241

5305-01-238-9870

5305-01-235-1898

5305-01-238-9876

6920-01-235-0238

5340-01-238-9879

6920-01-235-0237

6920-01-235-0244

6920-01-235-0234

5330-01-238-9871

6920-01-195-1749

5310-01-210-1588

3040-01-235-1760

6920-01-235-0246

6920-01-235-0247

5340-01-235-0249

5340-01-235-0248

6105-01-375-3690

5365-01-213-2426

5330-01-213-2421

5935-01-239-1555

5935-01-195-1761

5330-01-211-1342

I-8

TM 9-6920-742-24P-5

ITEM

35

15

01

18

11

21

40

15

10

38

25

31

28

37

24

32

01

21

23

19

02

07

06

05

65

72

06

05

64

25

28

20

45

59

36

42

54

47

19

35

30

01

48

34

32

38

41

03

26

53

35

FIG.

17

02

02

02

17

17

17

15

17

17

17

02

17

17

17

17

03

06

17

06

03

03

03

03

06

06

02

02

06

02

02

02

06

06

06

02

02

02

02

06

06

06

06

02

02

02

02

02

02

02

02

SECTION IV

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

CAGEC

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

PART NUMBER

11784635

11784636

11784637

11784638

11784639

11784640

11784641

11784644-1

11784644-2

11784644-3

11784645

11784646

11784647

11784648

11784649

11784657-1

11784657-2

11784658-1

11784658-2

11784661

11784662

11784663

11784665

11784666

11784669-1

11784669-2

11784669-3

11784669-4

11784669-5

11784670

11784671

11784700

11784701

11784702-1

11784702-10

11784702-2

11784702-3

11784702-4

11784702-5

11784702-6

11784702-7

11784702-8

11784702-9

11784703

11784704

11784706

11784707

11784708

11784710

11784711

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5999-01-216-2560

7690-01-209-8655

6920-01-214-6249

5305-01-211-1377

5310-01-210-1605

6210-01-214-6430

5340-01-209-7818

5365-01-214-6400

5365-01-217-2088

5365-00-726-2038

5365-01-207-5755

9390-01-216-9346

6850-01-218-0679

5945-01-207-9434

5945-01-209-2983

5935-01-208-1990

6920-01-224-6370

5935-01-238-7770

5935-01-235-7568

5935-01-207-8376

5935-01-094-9306

5935-01-207-8380

5935-01-380-8256

5340-00-282-7965

5340-01-054-8824

5340-01-236-4105

5340-01-117-7702

5340-00-216-8352

5910-01-207-3566

5910-00-649-4142

6920-01-235-7564

6135-01-241-6115

5985-01-236-0263

6920-01-239-1563

I-9

TM 9-6920-742-24P-5

ITEM

26

29

59

09

61

01

56

58

42

77

01

60

20

73

75

55

04

58

76

24

53

68

71

49

41

31

70

34

44

67

23

05

02

01

22

05

05

05

05

42

18

08

07

05

05

05

05

08

01

01

05

FIG.

06

06

06

06

06

11

06

02

06

06

05

06

06

06

06

06

08

06

06

06

06

06

06

06

06

06

06

06

06

06

06

17

16

17

17

17

17

17

17

17

17

17

17

17

17

17

17

06

01

16

17

SECTION IV

CAGEC

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

12599363

12934455

12934456

12934457

12934458

12934460

12934462

12934465

12934470

12934471

12934473

12934474

12934478

12950811

12950861

PART NUMBER

11784714

11784717

11784718

11784724

11784725

11784726

11784727

11784728-1

11784728-2

11784729

11784730

11784744

11784745

11784746

11784748

11784751

11784752

11784789

11784790

11784802

11784804

11784808

11784811

11784814

11784817

11784837

11784849-1

11785164

11785549

11829423

12598336

12598337

12599347-1

12599347-2

12599347-3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

6210-01-241-0427

6240-01-241-7563

5985-01-241-7565

5305-01-235-1805

4320-01-342-2401

6145-01-214-4016

6145-01-385-2711

6920-01-350-7760

6130-01-322-0258

6150-01-354-4394

6150-01-354-4395

5340-01-373-8829

5961-01-364-8045

5950-01-349-3193

6150-01-361-4734

5925-01-349-2227

5330-01-396-7215

6685-01-365-1407

I-10

TM 9-6920-742-24P-5

ITEM

19

01

01

29

04

05

03

16

04A

048

15

27

01

02

12

13

26

30

33

03

12

31

13

34

06

20

02

29

39

09

17

29

19

05

31

03

06

35

34

40

23

08

10

03

04

02

01

14

01

74

01

FIG.

17

10

14

08

15

15

15

17

15

15

15

15

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

14

14

14

14

13

14

14

14

14

14

01

15

05

01

13

13

17

09

06

04

SECTION IV

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

CAGEC

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

19200

65150

65150

65150

65150

65150

65150

65150

65150

65150

81349

65150

65150

94433

9375718

9375725

9375726

9375727

9375729

9375730

9375731

9375734

9375736

9375737

9375740

9375741

9375742

9375743

9375746

9375747

9375748

PART NUMBER

12950862

12974102

20-AA01F0

20-AB02D0

20-AC0100

20-AC02H0

244IC02H0

2521L01D0

2611001D0

271HC02H0

302CD0000

39TB4

402122300

452000001

61143

9353945

9354182-1

9354183

9356077

9356078

9356098

9356185

9356194

9360576

9360577

9360588

9365816

9365840

9375712

9375713

9375714

9375717

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

6685-01-365-1408

5895-01-394-1714

5940-00-983-6099

5340-01-235-1960

5940-01-158-4521

7690-01-163-1560

5940-01-158-4518

6150-01-369-0285

5935-01-367-4430

6130-01-350-7763

6135-01-211-6911

5930-01-303-1296

5998-01-374-2340

5940-01-375-6597

5340-01-198-0230

6150-01-235-1975

6150-01-235-1974

6150-01-235-1976

5935-01-239-1549

5935-01-239-1550

4730-01-374-7803

5310-01-235-1922

5920-01-239-1551

6920-01-235-1769

6145-01-239-6988

9390-01-238-8184

6150-01-238-9872

5330-01-235-1875

4720-01-235-1771

4720-01-235-1768

4720-01-235-1770

I-11

TM 9-6920-742-24P-5

ITEM

16

45

20

26

24

50

04

89

04

03

02

06

42

02

41

05

39

09

05

49

12

10

15

04

36

05

14

17

13

11

16

07

05

01

09

37

27

06

23

06

31

62

32

14

30

11

41

44

12

40

09

FIG.

14

-08

08

08

08

06

17

06

12

16

01

12

14

14

14

12

14

07

07

08

07

07

07

07

17

01

07

07

07

07

07

01

08

12

15

08

08

01

02

08

08

02

08

15

08

08

08

08

14

08

14

SECTION IV

CAGEC

19200

19200

19200

19200

19200

19200

19200

19200

19200

PART NUMBER

9375750

9375751

9375752

9375753

9375754

9375758

9375759

9375761

9384688

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5995-01-239-1552

5340-01-235-1772

6920-01-241-6111

6920-01-239-1548

5340-01-241-0430

5340-01-235-0233

5935-01-206-0218

I-12

FIGURE

15

08

08

08

08

02

02

02

06

TM 9-6920-742-24P-5

ITEM

06

09

34

47

10

61

02

29

62

By Order of the Secretary of the Army:

DENNIS J. REIMER

General, United States Army

Chief of Staff

Official:

JOEL .HUDSON

Administrative Assistant to the

Secretary of the Army

02698

DISTRIBUTION: To be distributed in accordance with the initial distribution number (IDN) 372436, requirements for TM 9-

6920-742-24P-5.

ž

U.S. GOVERNMENT PRINTING OFFICE: 1996 - 545-039 / 40057

PIN : 075059-000

This fine document...

Was brought to you by me:

Liberated Manuals -- free army and government manuals

Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly available information, slap “watermarks” and other junk on it, and sell it.

Those masters of search engine manipulation make sure that their sites that sell free information, come up first in search engines. They did not create it...

They did not even scan it... Why should they get your money? Why are not letting you give those free manuals to your friends?

I am setting this document FREE. This document was made by the US

Government and is NOT protected by Copyright. Feel free to share, republish, sell and so on.

I am not asking you for donations, fees or handouts. If you can, please provide a link to liberatedmanuals.com, so that free manuals come up first in search engines:

<A HREF= http://www.liberatedmanuals.com/ >Free Military and Government Manuals</A>

Sincerely

Igor Chudov http://igor.chudov.com/

Chicago Machinery Movers

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
