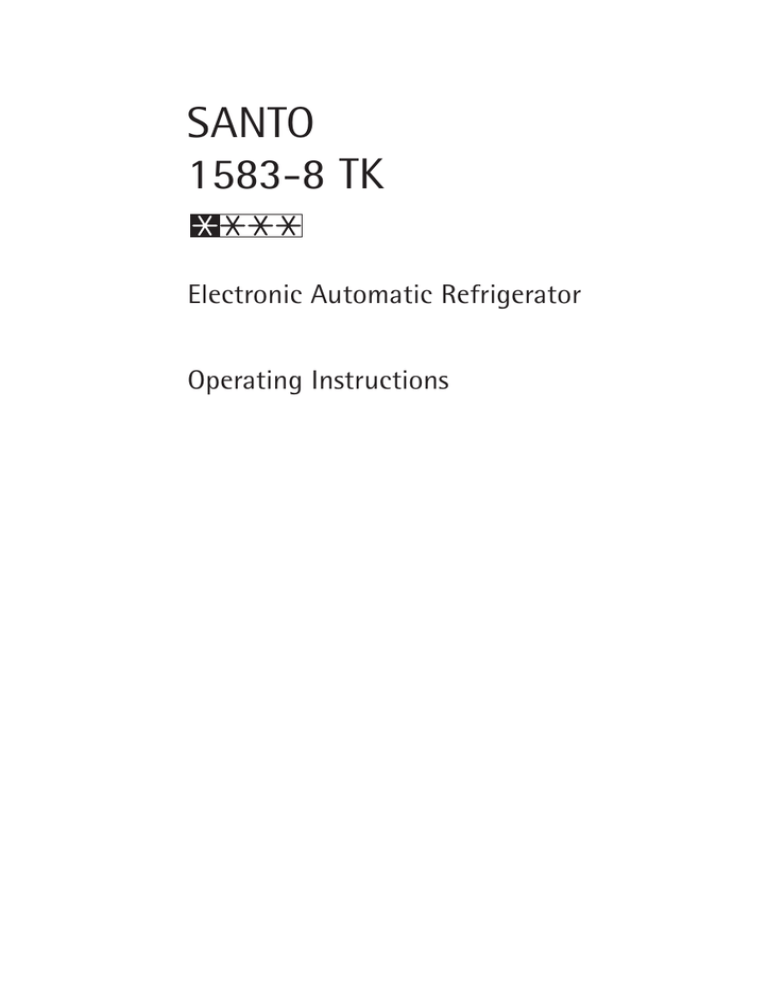

SANTO
1583-8 TK
Electronic Automatic Refrigerator
Operating Instructions
Dear customer,
Before placing your new refrigerator/freezer into operation please read
these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes
which apply to your model.
Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/ or with
signal words (Warning!, Caution!, Important!). Please observe the following carefully.
☞1. This symbol guides you step by step in the operation of the appliance.
2.
Supplementary information regarding operation and practical applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use
of the appliance are marked with the cloverleaf.
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ...".
If these instructions should not be sufficient, please contact your local
Service Force Centre.
Printed on paper manufactured with environmentally sound processes
he who thinks ecologically acts accordingly...
2
Contents
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Appliance Packaging Information/Disposal of old Appliances . . . . . . . . . . .6
Remove transport packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Installation Location / Your refrigerator needs air . . . . . . . . . . . . . . . . . . . .7
Reversing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Changing over the freezer compartment door . . . . . . . . . . . . . . . . . . . . . . .9
Plug socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
View of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Control panel / Temperature setting buttons . . . . . . . . . . . . . . . . . . . . . . .12
Temperature display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Prior to Initial Start–Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Starting up and temperature regulation . . . . . . . . . . . . . . . . . . . . . . . . .13
FROSTMATIC/COOLMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
FROSTMATIC button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
COOLMATIC button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Switching off the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Storage shelves/glass shelves - Variable inner door . . . . . . . . . . . . . . . . . .16
Variable storage box / Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Correct storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
The fridge defrosts automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Defrosting the freezer compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Correcting Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Noises during Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Technical terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
3
Important Safety Instructions
4
These warnings are provided in the interests of your safety. Ensure
you fully understand them before installing or using the appliance.
Your safety is of paramount importance. If you are unsure about the
meaning of these warnings contact the Customer Care Department
for assistance.
Intended use
• The refrigerator is intended for use in the home. It is suitable for
cooling, freezing and storing of frozen food, as well as for making
ice. If the appliance is used for purposes other than those intended
or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
• Alterations or changes to the refrigerator are not permitted for reasons of safety.
• If you use the refrigerator in a commercial application or for purposes other than the cooling, freezing or frozen storage of foods, the
manufacturer accepts no liability for any damages which may occur.
Prior to initial start–up
• Ensure that the appliance does not stand on the electrical supply
cable. Important: if the supply cable is damaged, it must be replaced
by authorised service or qualified personnel using a special cable of
the same type.
• Check the appliance for transport damage. Under no circumstance
should a damaged appliance be plugged in! In the event of damage,
please contact your supplier.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
Safety of children
• Packaging (e.g. wraps, polystyrene) can be dangerous for children.
There is a risk of suffocation! Keep packaging material away from
children!
• Please make old appliances unusable prior to disposal. Pull out the
Important Safety Instructions
mains plug, cut off the mains cable, break or remove spring or bolt
catches, if fitted. By doing this you ensure that children cannot lock
themselves in the appliance when playing (there is risk of suffocation!) or get themselves into other dangerous situations.
• Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate
supervision and never let children play with the appliance!
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as spray cans, fire extinguisher refill
cartridges etc in the refrigerator and/or freezer.
• Bottles and cans must not be placed in the freezer compartment.
They can burst when the contents freeze, high carbonate content
drinks can even explode! Never store lemonade, juices, beer, wine,
sparkling wine etc. in the freezer compartment.
• Do not put ice cream or ice cubes in the mouth immediately after
removal from the freezer compartment. Very cold ice can freeze to
the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze
to the food.
• Do not operate any electrical appliances in the refrigerator and/or
freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and
unplug it, or pull the house fuse or switch off the circuit breaker.
• Placing frozen goods on the top of the appliance can lead to the
accumulation of condensation in the cavity of the storage tray
through contact with the cold. Electronic components are housed
within this cavity. If condensation should drip onto these components, the appliance could be damaged by a short circuit. For this
reason do not place frozen goods on top of the appliance.
• When unplugging always pull the plug from the mains socket, do
not pull on the cable.
In case of malfunction
• If a malfunction occurs on the appliance, please look first in the
"What to do if ..." section of these instructions. If the information
given there does not help, please do not perform any further repairs
yourself.
• Under no circumstance should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local Service Force
Centre.
5
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of or
burned at an incinerating plant without danger.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed
of at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed
of properly. This applies to your old appliance, and - at the end of its
service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy
any snap or latch closures. This ensures that playing children do not
lock themselves inside the appliance (danger of suffocation!) or place
themselves into other life-endangering situations.
Disposal:
• The appliance may not be disposed of with domestic waste or bulky
refuse.
• The refrigerant circuit, especially the heat exchanger at the back of
the appliance, must not be damaged.
• Information concerning collection schedules or locations can be
obtained from your local Council or Environmental Health Office.
Remove transport packaging
The appliance and the interior fittings are protected for transport.
1. Pull off the adhesive tape on the left and right side of the door.
2. Remove all adhesive tape and packing pieces from the interior of the
appliance.
☞
6
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by
the ambient temperature.
The appliance should therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
Climate classification
for an ambient temperature of
SN
+10 to +32 °C
N
+16 to +32 °C
ST
+18 to +38 °C
T
+18 to +43 °C
If the refrigeration appliance is installed next to another refrigerator
or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.
Your refrigerator needs air
For correct operation this appliance must be located in a dry atmosphere, away from heat sources, e.g. cookers, radiators, boilers and
direct sunlight.
You should also ensure that air can circulate freely around the back
and the top of the cabinet. There should be 100mm (4”) between the
top of the cabinet and any overhanging kitchen furniture.
Alternatively allow 50mm (2”) between the top of the cabinet and any
overhanging kitchen furniture and a gap of 25mm (1”) on either side
of the appliance.
7
Installation
If your refrigerator is installed under
a continuous worktop, an air outlet
105
opening of at least 200 cm2 and a
ventilation grille (A/B) matching the
worktop design should be installed at
the rear of the worktop.
The cut surfaces of the worktop (C)
should be varnished to avoid swelling
due to penetration of moisture.
The appliance wall distance must be
at least 30 mm and should be
checked before the ventilation grille is inserted.
Special accessories:
A Ventilation grille, brown
B Ventilation grille, white
A/B
2
200 cm
C
570
550
93-103
AEG36
Reversing the door
The side at which the door opens can be changed from the right side
(as supplied) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance must not be connected to the mains. Remove plug from the
mains beforehand.
the appliance slightly towards the
☞1. Tilt
rear and prop it securely.
2. Unscrew the door hinge screws (K)
and remove the hinge pin bracket (1).
3. Open the door a little way and take it
out downwards.
1
K
AEG97
4. Unscrew the upper pin (A) and screw
it into place on the opposite side.
5. Fit the door into the upper pin (A) and
close it.
6. Screw the hinge pin bracket (1)
securely into place on the opposite
side using the screws (K).
A
AEG98
8
12
Installation
7. Unscrew the handle. Refit it on the opposite side after having pushed in the plugs
with a punch. Cover the holes left open
with the plugs contained in the documentation pack.
Changing over the freezer compartment door
180°
Plug socket
The plug socket necessary for connection of your appliance to the electricity supply should be positioned so that
it is possible to pull out the appliance
plug.
If your appliance is installed under a
continuous worktop, the plug socket
should be provided as shown.
130
300
AEG44
9
Installation
Alternatively a concealed spur socket fitted with a 13 A fuse may be
fitted.
If the socket is not accessible once the appliance is built in, the electrical installation must include suitable means of isolating the appliance
from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).
The mains cable may only be changed by a qualified electrician or
competent person. If your appliance needs repairing, please contact
your local Service Force Centre.
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not be observed.
13 AMP
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate
is inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA
approved (BS 1362) fuse must be used.
GREEN & YELLOW
13 AMP. FUSE
Important
The wires in the mains lead are coloured in
accordance with the
following code:
Green and Yellow Earth
Blue
Neutral
BROWN
Brown
Live
BLUE
CORD CLAMP
As the colours of the wires in the mains lead
of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
1.The wire coloured green and yellow must be connected to the terminal marked with the letter “E” or by the earth symbol
or coloured
green and yellow.
2.The wire coloured blue must be connected to the terminal marked
“N” or coloured black.
3.The wire coloured brown must be connected to the terminal marked
“L” or coloured red.
207
10
4.Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of
safely.
Description of the Appliance
View of the appliance
9
➀
➁
➂
➃
➄
➅
➆
➇
➈
➉
Butter/cheese compartment
Sliding shelf
Door shelf
Bottle shelf
Vegetable drawer
Storage shelves
Light switch
Freezer compartment
Control panel
Rating plate
11
Description of the appliance
Control panel
1
2
3
4
5
6
7
8
9
Pilot light (green)
ON/OFF switch
Temperature setting buttons (for warmer temperatures)
Temperature display
Temperature setting buttons (for colder temperatures)
FROSTMATIC indicator light (yellow)
Push button for FROSTMATIC
COOLMATIC indicator light (yellow)
Push button for COOLMATIC
Temperature setting buttons
The temperature is adjusted using the „+“
(WARMER) and „-“ (COLDER) buttons.
These buttons are connected to the temperature display.
• The temperature display is switched over from the display of the
ACTUAL temperature (one light illuminated) to the display of the
DESIRED temperature (one light flashing) by pressing one of the two
buttons, „+“ or „-“.
• With each further press of one of the two buttons, the DESIRED
temperature is adjusted by one display field.
• If neither button is pressed, the temperature display automatically
switches back after a short period (approx. 5 sec.) to the display of
the ACTUAL temperature.
DESIRED temperature means:
The temperature that is required in the refrigerator or freezer compartment, this can be adjusted to the temperatures shown in the display.
The DESIRED temperature is indicated by a flashing light.
12
ACTUAL temperature means:
The temperature display indicates the temperature that is currently
present in the refrigerator or freezer compartment. The ACTUAL temperature is indicated by a continuously illuminated light.
Temperature Display
The temperature display can indicate several pieces
of information:
• During normal operation, the temperature currently present in the
refrigerator or freezer compartment (ACTUAL temperature) is displayed, the corresponding light illuminates.
• If the temperature in the refrigerator is warmer than the display
range of the temperature display, all the lights in the temperature
display are extinguished.
• When the temperature is being adjusted, the temperature currently
set flashes (DESIRED temperature).
Prior to Initial Start–Up
☞
Please clean the appliance interior and all accessories prior to initial
start-up (see section: “Cleaning and Care”).
Starting up and temperature regulation
the plug into the plug socket. When the refrigerator compart☞1. Insert
ment door is opened, the internal lighting is switched on.
2. Press ON/OFF button.
The green mains pilot indicator illuminates.
3. Press either the „+“ (WARMER) or „-“ (COLDER) button.
The temperature display switches over and the DESIRED temperature
currently set flashes on the temperature display.
4. Set the required temperature by pressing the „+“ (WARMER) or „-“
(COLDER) buttons (see section "Temperature setting buttons"). The
temperature display will immediately show the changed setting. With
each further press of one of the two buttons, the DESIRED temperature is adjusted by one display field.
Adjustable temperature range: +2°C to +8°C.
13
Note: From a food safety point of view, +5°C for the refrigerator compartment and -18°C for the freezer compartment should be considered cold enough as a storage temperature.
5. Once the required temperature has been set, after a short period
(approx. 5 sec.) the temperature display will change and again indicate
the current ACTUAL temperature inside the fridge. The display will
change from flashing to continuous illumination.
The compressor will start and then run automatically.
Information! When the setting is changed, the compressor does not
start immediately if automatic defrosting is currently taking place.
As the storage temperature within the fridge is reached quickly you
can store food immediately after switching on.
Important! Wait until the freezer compartment has reached a temperature of –18°C, before storing frozen food.
FROSTMATIC/COOLMATIC
FROSTMATIC Button
The FROSTMATIC function accelerates the freezing of
fresh food and, at the same time, protects foodstuffs
already stored from undesirable warming.
FROSTMATIC function is switched on by pressing the FROSTMATIC
☞1. The
button. The yellow light illuminates.
If the FROSTMATIC function is not ended manually, the appliance electronics switch off the FROSTMATIC function after 24 hours. The yellow
light goes out.
2. The FROSTMATIC function can be ended manually at any time by pressing the FROSTMATIC button again. The yellow light goes out.
When the FROSTMATIC function is switched on the ACTUAL temperature in the fridge can fall slightly. Once the FROSTMATIC function has
been switched off the selected DESIRED temperature will be resumed.
If the FROSTMATIC function is switched on the temperature setting
may not be changed.
14
COOLMATIC Button
The COOLMATIC function is suited for quick cooling of
large quantities of goods in the refrigerator, e.g. drinks
and salads for a party.
COOLMATIC function is switched on by pressing the COOLMATIC
☞1. The
button. The yellow light illuminates.
2. The COOLMATIC function now provides for intensive cooling. A
DESIRED temperature of +2°C is automatically selected. The COOLMATIC function is ended automatically after a period of 6 hours. The
originally selected DESIRED temperature is again valid. The temperature
display shows the ACTUAL refrigerator temperature.
3. The COOLMATIC function can be ended manually at any time by pressing the COOLMATIC button again. The yellow light goes out.
If the COOLMATIC function is switched on the temperature setting may
not be changed.
Warning: The COOLMATIC and FROSTMATIC functions cannot be
switched on simultaneously.
Malfunctions
If the electronics in the appliance have detected a fault that prevents
the ACTUAL temperature being measured, the temperature display will
flash. The appliance will continue to function using a backup programme until your local Service Force engineer has repaired the appliance.
Switching off the appliance
switch off, press the ON/OFF button until the mains power light
☞ To
extinguishes.
If the appliance is not going to be used for an extended period:
1. Remove all frozen and refrigerated packages.
2. Switch off the appliance by pressing the ON/OFF button until the
mains power light extinguishes.
3. Remove the mains plug or switch off or disconnect the electricity supply.
4. Defrost the freezer compartment and clean thoroughly (see section:
“Cleaning and Care”).
5. Leave the doors open to avoid the build up of odours.
☞
15
Interior Accessories
Storage shelves/glass shelves
☞
Various glass or plastic storage shelves and wire trays are included with
your appliance - different models have different combinations.
You should always slide one of the full size glass storage shelves into
the lowest set of guides, above the vegetable drawers, and keep it in
this position.
The height of the storage shelves can be adjusted:
1. To do this pull the storage shelf forward until it can be swivelled
upwards or downwards and
removed.
2. Please do the same in reverse to
insert the shelf at a different height.
☞
☞
Your appliance is equipped with two half-size glass storage shelves.
Storing tall items:
Slide the front half of the Vario storage shelf in another level to the rear.
By this means you will gain space to
place tall items on the storage shelf
below.
Variable Inner Door
The door compartments can be pulled up and removed, and inserted at
other positions as needed.
16
Interior Accessories
Variable Storage Box
(not on all models, design differs depending on the model)
Some models are equipped with a variable storage box which is fitted
under a door shelf compartment and can be slid sideways.
The box can be inserted under every door shelf compartment.
1. To change, lift the shelf compartment with the box upwards and
out of the holders in the door and
remove the retaining bracket out
of the guide under the shelf compartment.
2. Please do the same in reverse to
insert the shelf at a different
height.
☞
The variable box can be hung from a
storage shelf in the refrigerator compartment:
1. Pull the storage shelf forward until it
can be tipped up or down and removed.
2. Hang the retaining bracket on the taper
on the storage shelf and slide the storage shelf back into the guides.
☞
Bottle Holder
Some models are equipped with a bottle
holder in the bottle compartment. This is
used to prevent individual bottles from
falling over and can be slid sideways.
17
Correct storage
For physical reasons, there are different temperature regions in the
fridge. The coldest region is on the
lowest storage shelf. Warmer
regions are the top storage shelf,
the vegetable drawer and the storage compartments on the door.
The arrangement example shows at
which places in the refrigerator
suitable temperatures for various
types of foods exist.
Tip: Food in the fridge should
always be covered or packaged, to
prevent drying and tainting of other
food.
The following are suited for packaging:
– Polyethylene airtight bags and wraps;
– Plastic containers with lids;
– Special plastic covers with elastic;
– aluminium foil.
Freezing and storing frozen food
The freezer compartment is for freezing and storing food.
Important!
• The temperature in the freezer compartment must be –18°C or colder before freezing fresh food or storing food already frozen.
• Do not freeze too large a quantity at any one time (max. 2 kg per 24
hrs). The quality of the food is best preserved when it is frozen right
through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will
cause increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
18
Freezing and storing frozen food
freeze the maximum quantity shown on the rating plate press the
☞1. To
FROSTMATIC button 24 hours prior to freezing, or 4 to 6 hours for
smaller quantities. Yellow display lights up.
The FROSTMATIC button need not be pressed for freezing of small
quantities.
2. All foods must be packed into airtight packages or containers prior to
freezing, so that they do not dry out or lose their flavour, and so that
no flavour contamination of other frozen goods occurs.
Caution! Do not touch frozen food with wet hands. Your hands could
stick to the food causing skin abrasions.
3. Lay the packaged food on the base of the freezer compartment.
Unfrozen food must not touch items already frozen, otherwise the
frozen food could begin to defrost.
The appliance’s electronics switch off the FROSTMATIC function automatically after 24 hours. The yellow light goes out. You can also end
the FROSTMATIC function manually by pressing the FROSTMATIC button again.
When the FROSTMATIC function is switched on the ACTUAL temperature in the fridge can fall slightly. Once the FROSTMATIC function has
been switched off the selected DESIRED temperature will be resumed.
Tips:
• The following are suited for the packaging of frozen goods:
– freezer bags and polyethylene wraps;
– special cans for frozen goods;
– extra–thick aluminium foil.
• The following are suitable for sealing bags and wrappings:
plastic clips, rubber bands or tape.
• Smooth the air out of the bag before sealing; air makes it easier for
the frozen food to dry out.
• Make flat packages, because these freeze more quickly.
• Do not fill cans for frozen goods to the brim with liquid or paste–like
goods, because liquids expand during freezing.
19
Preparation of Ice Cubes
the ice cube tray 3/4 full with cold water, place it in the freezer
☞1. Fill
compartment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it
under running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer
compartment using pointed or sharp edged objects, since you may
damage the refrigerating circuit. Use the plastic scraper.
Defrosting
The fridge defrosts automatically
The rear wall of the fridge covers with frost when the compressor is
running, and defrosts when the compressor is off. The water from the
thawing frost evaporates by itself.
The water drainage hole must be cleaned regularly (see the section
"Cleaning and Care").
Defrosting the freezer compartment
During use and when the freezer compartment door is opened, moisture is deposited in the freezer compartment as frost. Remove this
frost from time to time with the soft plastic scraper. Under no circumstances use hard or pointed objects to remove frost.
The freezer compartment should always be defrosted when the layer of
frost has reached a thickness of approx. 4 millimetres; however at least
once a year. A good time for defrosting is when the appliance is empty
or contains only a small amount of food.
Warning!
• Do not use electrical heating appliances or any other mechanical or
artificial devices to speed up the defrosting process, with the exception of those recommended in these operating instructions.
• Do not use defrosting sprays, they can be hazardous to your health
and/or contain substances that damage plastics.
Caution! Do not touch frozen food with wet hands. Your hands could
stick to the food causing skin abrasions.
20
on the FROSTMATIC function a few hours before defrosting to
☞1. Switch
make sure frozen food remains sufficiently frozen.
2. Remove frozen food, wrap it in several layers of newspaper and store
it, covered, in a cool place.
3. Switch off the appliance and unplug it, or disconnect from the electricity supply.
4. Remove the stopper from the meltwater outlet and place a bowl underneath it to catch the meltwater.
Tip: You can speed up the defrosting
process by placing a pan with warm
water in the freezer compartment and
closing the doors. Remove pieces of
ice that have fallen before they completely defrost.
5. After defrosting, thoroughly clean the freezer compartment ( see
"Cleaning and Care" section).
6. Do not forget to switch the FROSTMATIC function off again.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
Warning!
• The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off
and remove the plug from the mains, or switch off or turn out the
circuit breaker or fuse.
• Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock! Hot
vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Important!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel;
– butyric acid;
– cleansers which contain acetic acid.
21
Cleaning and Care
Do not allow such substances to come into contact with appliance
parts.
• Do not use any abrasive cleansers.
frozen food and the food from the refrigerator. Wrap frozen
☞1. Remove
food in several layers of newspaper. Store it in a cool place, well covered.
2. Defrost the freezer compartment prior to cleaning (see “Defrosting”
section).
3. Switch the appliance off and remove the plug from the mains, or disconnect from the electricity supply.
4. Clean the appliance and the interior accessories with a cloth and lukewarm water with a little bicarbonate of soda added (5ml to 0,5 litres
of water).
5. After cleaning wipe with fresh water and rub dry.
6. Check the water drain hole on the rear
wall of the fridge.
Clear a blocked drain hole with the aid
of the green peg in the pack of accessories included with the appliance.
7. After everything is dry place appliance
back into service.
Accumulation of dust at the condenser
increases energy consumption. For this
reason carefully clean the condenser at
the back of the appliance once a year with a soft brush or a vacuum
cleaner.
22
Energy Saving Tips
• Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to
cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food
will then be used to cool the fridge.
• Always keep the heat emitting condenser, the metal grille on the rear
wall of your appliance clean.
What to do if ...
Correcting Malfunctions
A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other
work on the appliance if the following information does not provide
assistance in your specific case.
Important! Repairs to refrigerators/freezers may only be performed by
competent service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please
contact your specialist dealer or your local Service Force Centre.
Symptom
Possible Cause
Appliance is not switched
on.
Mains plug is not plugged
Appliance does not work,
in or is loose.
green stand-by display and
Fuse has blown or is defectemperature display are
tive
not lit.
Socket is defective.
Remedy
Switch on the appliance.
Insert mains plug.
Check fuse, replace if necessary.
Mains malfunctions are to
be corrected by an
electrician.
23
What to do if ...
Symptom
Remedy
All the lights in the temperature display are flashing.
There is a malfunction.
Inform your local Service
Force Centre. Do not open
the door of the appliance
any more.
Appliance cools too much.
Temperature is set too
cold.
Press „+“ (WARMER) button.
The food is too warm.
Please look in the “Starting
Temperature is not properup and Temperatur regulaly adjusted.
tion” section.
Door was open for an
Open the door only as long
extended period.
as necessary.
A large quantity of warm
food was placed in the
Press COOLMATIC
appliance within the last
and/orFROSTMATIC button.
24 hours.
The appliance is near a
Please look in the
heat source.
“Installation location” section.
Interior lighting does not
work.
Light bulb is defective.
Please look in the “Changing
the light bulb” section.
Door seal is not air tight
(possibly after reversing
the door).
Carefully warm the leaking
sections of the door seal
with a hair dryer (on a
cool setting). At the same
time shape the warmed
door seal by hand such
that it sits correctly.
Appliance is not level.
Readjust the feet.
The appliance is touching
the wall or other objects.
Move the appliance
slightly.
Heavy build up of frost,
possibly also on the door
seal.
Unusual noises.
The compressor does not
start immediately after
pressing the COOLMATIC
or FROSTMATIC button, or
after changing the temperature setting.
24
Possible Cause
This is normal, no error has The compressor starts after
occurred.
a period of time.
What to do if ...
Symptom
Water on the floor or on
storage shelves.
Possible Cause
Water drain hole is
blocked.
Remedy
See the “Cleaning and
Care” section.
Changing the light bulb
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and unplug it, or disconnect from the
mains supply.
Light bulb data: 220-240 V, max. 15 W
1. To switch off, press the ON/OFF button until the mains power light
extinguishes.
2. Unplug the mains plug.
3. To change the light bulb, undo the
screw.
4. Press the light bulb cover as shown and
slide it backwards.
5. Change the defective light bulb.
☞
6. Refit the light bulb cover and the screw.
7. Put the refrigerator back into operation.
During operation at low ambient temperature, the light bulb works at
a lower intensity. That allows an optimal distribution of the temperature between the fridge and the freezer compartment.
Attention! The light bulb is an essential component for efficient performance of the appliance!
In case of faulty bulb, you must ensure that it is replaced.
When the door is open, the light bulb operates at usual intensity.
25
Noises during Operation
The following noises are characteristic of refrigeration appliances:
• Clicks
Whenever the compressor switches on or off, a click can be heard.
• Humming
As soon as the compressor is in operation, you can hear it humming.
• Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards. The necessary measures
in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and
the regulations of the German Society of Electrical Engineers (VDE)
were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU
guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
26
Technical terminology
• Refrigerant
Liquids that can be used to a generate a cooling effect are known as
refrigerants. They have a relatively low boiling-point, indeed so low,
that the warmth from the food stored in the fridge or freezer can
cause the refrigerant to boil and vaporise.
• Refrigerant Circuit
Closed circulation system that contains the refrigerant. The refrigerant circuit comprises primarily of an evaporator, a compressor, a condenser and pipe work.
• Evaporator
The refrigerant is evaporated in the evaporator. Similar to all other
liquids, refrigerant requires heat to evaporate. This heat is removed
from the interior of the appliance, as a result the interior is cooled.
The evaporator is therefore located inside the appliance or placed in
foam immediately behind the inner wall and thus not visible.
• Compressor
The compressor looks like a small drum. It is driven by a built-in
electric motor and is mounted on the base of the appliance at the
rear. The task of the compressor is to draw in vaporised refrigerant
from the evaporator, to compress it, and to pass it on to the condenser.
• Condenser
The condenser normally has the form of a grid. The refrigerant compressed in the compressor is liquefied in the condenser. During this
process, heat is released to the surrounding air at the surface of the
condenser. The condenser is mounted on the base of the appliance.
27
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Electrolux plc 2003
2222 670-52 -01- 0603
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
