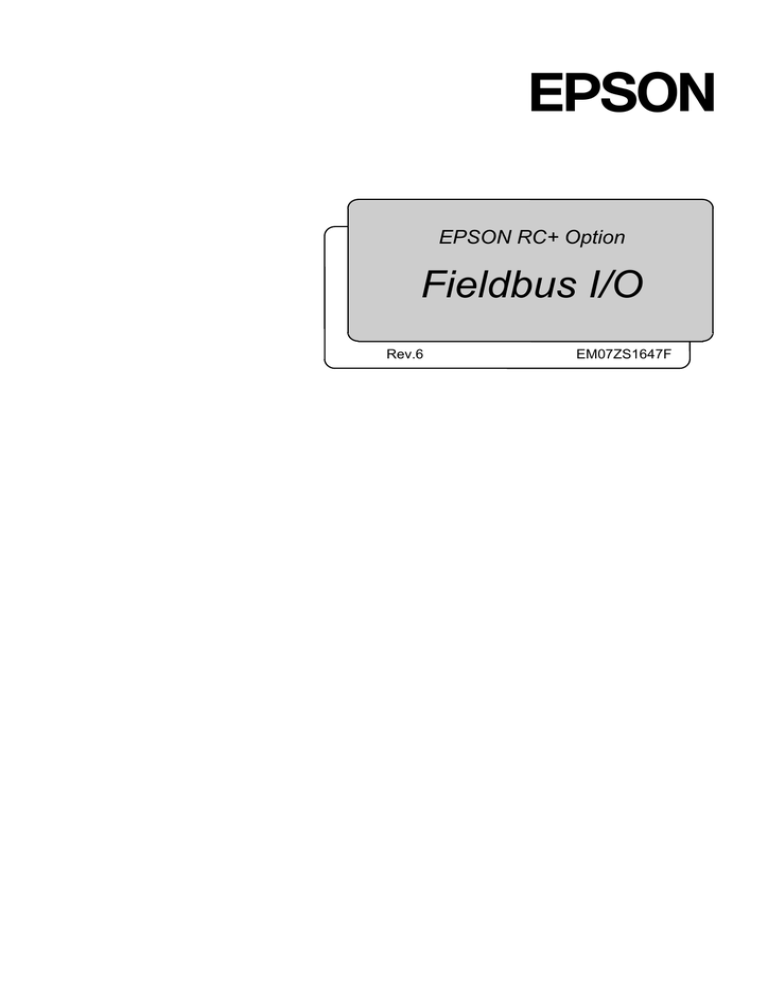

EPSON RC+ Option
Fieldbus I/O
Rev.6
EM07ZS1647F
EPSON RC+ Option
Fieldbus I/O Rev.6
EPSON RC+ Option
Fieldbus I/O
Rev.6
Copyright © 2005-2007 SEIKO EPSON CORPORATION. All rights reserved.
Fieldbus I/O Rev.6
i
FOREWORD
This manual contains important information necessary to use the EPSON RC+ option
Fieldbus I/O properly and safely. This manual is intended for personnel who perform any
operations that use the pendant, such as teaching robot points.
Please thoroughly read this and other related manuals before and while using the
equipment.
WARRANTY
The robot and its optional parts are shipped to our customers only after being subjected to
the strictest quality controls, tests, and inspections to certify its compliance with our high
performance standards.
Product malfunctions resulting from normal handling or operation will be repaired free of
charge during the normal warranty period. (Please ask your Regional Sales Office for
warranty period information.)
However, customers will be charged for repairs in the following cases (even if they occur
during the warranty period):
1. Damage or malfunction caused by improper use which is not described in the manual,
or careless use.
2. Malfunctions caused by customers’ unauthorized disassembly.
3. Damage due to improper adjustments or unauthorized repair attempts.
4. Damage caused by natural disasters such as earthquake, flood, etc.
Warnings, Cautions, Usage:
1. If the robot or associated equipment is used outside of the usage conditions and
product specifications described in the manuals, this warranty is void.
2. If you do not follow the WARNINGS and CAUTIONS in this manual, we cannot be
responsible for any malfunction or accident, even if the result is injury or death.
3. We cannot foresee all possible dangers and consequences. Therefore, this manual
cannot warn the user of all possible hazards.
ii
Fieldbus I/O Rev.6
TRADEMARKS
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries. Other brand and
product names are trademarks or registered trademarks of the respective holders.
TRADEMARK NOTATION IN THIS MANUAL
Microsoft® Windows® 2000 Operating system
Microsoft® Windows® XP Operating system
Throughout this manual, Windows 2000, and Windows XP refer to above respective
operating systems. In some cases, Windows refers generically to Windows 2000, and
Windows XP.
NOTICE
No part of this manual may be copied or reproduced without authorization.
The contents of this manual are subject to change without notice.
Please notify us if you should find any errors in this manual or if you have any comments
regarding its contents.
INQUIRIES
Contact the following service center for robot repairs, inspections or adjustments.
If service center information is not indicated below, please contact the supplier office for
your region.
Please prepare the following items before you contact us.
- Your controller model and its serial number
- Your manipulator model and its serial number
- Software and its version in your robot system
- A description of the problem
SERVICE CENTER
Fieldbus I/O Rev.6
iii
MANUFACTURER & SUPPLIER
Japan & Others
SEIKO EPSON CORPORATION
Suwa Minami Plant
Factory Automation Systems Dept.
1010 Fujimi, Fujimi-machi,
Suwa-gun, Nagano, 399-0295
JAPAN
TEL
: +81-266-61-1802
FAX
: +81-266-61-1846
SUPPLIERS
North & South America EPSON AMERICA, INC.
Factory Automation/Robotics
18300 Central Avenue
Carson, CA 90746
USA
TEL
: +1-562-290-5900
FAX
: +1-562-290-5999
E-MAIL : info@robots.epson.com
Europe
iv
EPSON DEUTSCHLAND GmbH
Factory Automation Division
Otto-Hahn-Str.4
D-40670 Meerbusch
Germany
TEL
: +49-(0)-2159-538-1391
FAX
: +49-(0)-2159-538-3170
E-MAIL : robot.infos@epson.de
Fieldbus I/O Rev.6
Before Reading This Manual
This section describes what you should know before reading this manual.
Safety Precautions
Installation and transportation of robots and robotic equipment shall be performed by
qualified personnel and should conform to all national and local codes.
Please carefully read this manual and other related manuals before installing the robot
system or before connecting cables.
Keep this manual handy for easy access at all times. Please read the Safety chapter in
User’s Guide to understand safety requirements before installing the robot system.
Conventions
Important safety considerations are indicated throughout the manual by the following
symbols. Be sure to read the descriptions shown with each symbol.
This sign indicates that a danger of serious injury or death will
WARNING
exist if those instructions are not followed.
This sign indicates that a danger of possible harm to people
caused by electric shock will exist if those instructions are not
WARNING
followed.
This sign indicates that ignoring these instruction may cause
CAUTION
Fieldbus I/O Rev.6
harm to people or physical damage to equipment and facilities.
v
vi
Fieldbus I/O Rev.6
Table of Contents
1. Introduction ...................................................................... 1
1.1 Overview of Fieldbus I/O............................................................ 1
1.2 DeviceNet .................................................................................. 2
Overview of DeviceNet ............................................................................ 2
Features of DeviceNet............................................................................. 2
General Specifications............................................................................. 4
1.3 PROFIBUS DP .......................................................................... 5
Overview of PROFIBUS DP .................................................................... 5
Features of PROFIBUS DP ..................................................................... 5
General Specifications............................................................................. 7
1.4 EtherNet/IP ................................................................................ 8
Overview of EtherNet/IP .......................................................................... 8
Features of EtherNet/IP .......................................................................... 8
General Specifications........................................................................... 10
2. Installation...................................................................... 11
2.1 How to Setup a DeviceNet Network......................................... 11
2.2 DeviceNet Network Construction ............................................. 12
2.3 How to Setup a PROFIBUS DP Network ................................. 19
2.4 PROFIBUS DP Network Construction ..................................... 20
2.5 How to Setup a EtherNet/IP Network....................................... 24
2.6 EtherNet/IP Network Construction ........................................... 25
2.7 DeviceNet Board Installation.................................................... 26
2.7.1 Board Appearance........................................................................ 26
2.7.2 Specifications................................................................................ 27
2.7.3 Software Installation ..................................................................... 27
2.7.4 Board Installation .......................................................................... 29
2.7.5 Master Mode................................................................................. 31
2.7.6 Slave Mode................................................................................... 37
2.8 PROFIBUS DP Board Installation ............................................ 41
2.8.1 Board Appearance........................................................................ 41
2.8.2 Specifications................................................................................ 42
2.8.3 Software Installation ..................................................................... 42
2.8.4 Board Installation .......................................................................... 44
2.8.5 Master Mode................................................................................. 46
2.8.6 Slave Mode................................................................................... 51
2.8.7 GSD File ....................................................................................... 53
Fieldbus I/O Rev.6
vii
Table of Contents
2.9 DeviceNet Board Installation ................................................... 54
2.9.1 Board Appearance ........................................................................ 54
2.9.2 Specifications ................................................................................ 54
2.9.3 Software Installation...................................................................... 55
2.9.4 Board Installation .......................................................................... 57
2.9.5 Master Mode ................................................................................. 60
2.9.6 Slave Mode ................................................................................... 64
2.10 EPSON RC+ Fieldbus I/O Installation ................................... 67
Fieldbus I/O Software Configuration ...................................................... 67
3. Operation ....................................................................... 69
3.1 Fieldbus I/O Addressing in SPEL+ .......................................... 69
3.2 SPEL+ Fieldbus I/O Commands.............................................. 69
3.3 Outputs Off by Emergency Stop and Reset Instruction ........... 70
3.4 Waiting for Input or Output Status............................................ 70
3.5 Using FbusIO_SendMsg ......................................................... 71
3.6 Using Slave Mode ................................................................... 72
3.7 Remote Control Slave ............................................................. 72
3.8 Devices available for Fieldbus I/O Option................................ 73
3.9 Fieldbus I/O Response Performance....................................... 73
DeviceNet .............................................................................................. 73
PROFIBUS DP....................................................................................... 75
4. Troubleshooting ............................................................. 77
4.1 DeviceNet Troubleshooting ..................................................... 77
Exclusion................................................................................................ 77
Tools ...................................................................................................... 77
4.1.1 Examining a Problem .................................................................... 78
4.1.2 Problems and Countermeasures................................................... 80
4.1.3 Procedures for Examining Possible Causes ................................. 98
4.2 PROFIBUS DP Troubleshooting.............................................111
Exclusion...............................................................................................111
Tools .....................................................................................................111
4.2.1 Examining a Problem .................................................................. 112
4.2.2 Problems and Countermeasures................................................. 114
4.2.3 Procedures for Examining Possible Causes ............................... 130
4.3 EtherNet/IP Troubleshooting.................................................. 140
Exclusion.............................................................................................. 140
4.3.1 Examining a Problem .................................................................. 141
4.3.2 Problems and Countermeasures................................................. 143
4.3.3 Procedures for Examining Possible Causes ............................... 144
viii
Fieldbus I/O Rev.6
Table of Contents
5. Maintenance Parts List ................................................ 151
Appendix A applicomIO Upgrade .................................... 153
Fieldbus I/O Rev.6
ix
Table of Contents
x
Fieldbus I/O Rev.6
1. Introduction
1. Introduction
1.1 Overview of Fieldbus I/O
The Fieldbus I/O option is an integrated I/O system that supports DeviceNet, PROFIBUS DP,
and EtherNet/IP fieldbuses.
A fieldbus is a standard of signal communications between field devices operating in a
factory (sensor, actuator, robot controller, etc.) and controller (PLC or robot controller) using
serial communications. Compared to signal communications using analog signals, a fieldbus
has the following features:
•
Access to signals from multiple devices and multiple data from each device using
one cable.
•
Precise signal transmission since there is no need for A/D conversion and D/A
conversion.
•
Less wiring costs, including signal relay board costs and installation area due to
several dozen (or a hundred) devices connected on one fieldbus.
•
More flexible modification and expansion of a system because multiple devices are
simply added to one fieldbus without additional wiring.
•
Slave devices can transmit self-diagnostics information.
Controller
Controller
RS-232c
RS-232c
Sample Parallel Connection
Fieldbus
Sample Fieldbus Connection
For each fieldbus on the RCxxx controller, there is at least one board installed. You can use
more that one fieldbus type on the same controller. You can also use multiple boards for the
same fieldbus type. The EPSON RC+ software key Fieldbus I/O Option must be enabled to
use this option.
NOTE
)
Response times for Fieldbus I/O can vary and depend on several factors, including baud rate,
scan rate, number and types of devices, number of SPEL+ tasks, etc. When the fastest and
most consistent response times are required, please use EPSON standard digital I/O, which
incorporates interrupt driven inputs and outputs.
Fieldbus I/O Rev.6
1
1. Introduction
1.2 DeviceNet
Overview of DeviceNet
DeviceNet is a fieldbus network that provides easy interconnection between control devices
(PLC, PC, sensor, actuator, etc.).
DeviceNet was developed by Allen-Bradley as an open communication standard to connect
various field devices (sensor, actuator, robot controller, etc.). Because of the open
communication standard, DeviceNet users can easily construct a multi-vendor system with
various devices developed around the world.
Controller
DeviceNet Network
Photo Sensor
from Company E
Motor Driver
Motor Driver
Intelligent I/O
from Company A from Company B from Company C
Intelligent I/O
from Company D
Analog Device
from Company G
HMI Device
from Company F
Features of DeviceNet
Reduced Wiring
Compared with parallel wiring, DeviceNet employs a dedicated 5-wire cable (signal wires
and power wires) which substantially reduces the number of necessary wires, wiring time and
cost.
Detachable communication connectors provide you with simple wiring between nodes and
easy network separation or reconstruction.
Specified environment-resistance cables allow you to construct an environment-resistant
system at low cost.
Open Standard (Multi-vendor)
Due to an open communication standard, various devices from many manufacturers are
available. Standardized communication connectors provide you with easy network
construction.
The maintenance spare parts stored on site (factory, etc.) can be reduced because different
manufacturers’ devices are used in case of a breakdown. Similar products are available
around the world due to a global standard DeviceNet.
Large Numbers of Inputs/Outputs
For EPSON RC+ standard I/O and expansion I/O, the number of inputs/outputs is limited to
512 inputs and 512 outputs. When configuring a device to be a master of fieldbus I/O, you
can control more than 16,000 total inputs and outputs.
For a slave device, 2,040 inputs (255 bytes) and 2,040 outputs (255 bytes) are available.
2
Fieldbus I/O Rev.6
1. Introduction
Different Connection Types
There are two messaging connections: I/O messaging connection and explicit messaging
connection. The I/O messaging connection includes polling, strobe, cyclic, and change of
state. I/O messaging connections are explained below:
Polling: First, a master device sends output data to a slave device and then the slave device
responds. Data is normally exchanged in every communication cycle. The
communication frequency can be changed by setting. This connection type is the
most often used.
Strobe: First, a master device requests slave devices to send data with multicast messages,
and then, each slave device responds separately.
Data from many sensors on the system can be effectively gathered. When the master
does not receive responses from all requested slave devices, a timeout error occurs.
Change Of State:
A device sends data whenever it changes. Signals for device diagnosis are sent
regularly in the background. This connection type is useful for remedying DeviceNet
communication traffic.
Cyclic: A slave device transfers data regularly according to its internal timer. This
connection type is typically used for communicating with a temperature controller.
The data transfer frequency is defined by master configuration.
NOTE
)
For Change of State and Cyclic, you can disable the ACK that is for verifying that
communication is completed. Never disable ACK, since communication errors cannot be
detected.
Functions of Master
The Master device gathers and controls all nodes on one network.
A DeviceNet master can control up to 64 nodes (max. 2 kbytes) on one network.
A PLC is typically configured as a master and controls all nodes in factory automation system,
but EPSON RC+ is also capable of being a master.
DeviceNet network configuration is specified by configuration management software. This
software is normally provided by a master device manufacturer. The configuration
management software determines parameters for each slave device via an Electronic Data
Sheet (EDS).
Available connection types are Polling, Strove, Cyclic, Change Of State, and explicit
messaging.
Available baud rates are 125 kbps, 250 kbps, and 500 kbps.
Functions of Slave
A slave can exchange data with a master device.
The configuration management software identifies parameters of each slave device via
Electronic Data Sheet (EDS) where the parameters are registered.
Available connection types are Polling, Strobe, Cyclic, and Change of State.
Available baud rates are 125 kbps, 250 kbps, and 500 kbps.
Fieldbus I/O Rev.6
3
1. Introduction
General Specifications
Electrical Specifications
Item
Specification
Supply Voltage
5 V DC (supplied from a controller)
Power Consumption
7W
Ambient Temperature 5-40 deg C
Relative Humidity
20-80%
DeviceNet Communication Specifications
Item
Supported Connection
Baud Rates
Transfer Distance
Maximum Nodes
Data Length / Frame
Bus Access
Error Detection
Cable
Communications
Power Supply Voltage
Specification
- I/O messaging connection
(Polling, Strove, Cyclic, Change of State)
- Explicit messaging connection
All connections are conformed to DeviceNet communication
protocol.
125 kbps, 250 kbps, 500 kbps
Max. Network
Total Drop
Baud Rates
Drop Length
Length
Line Length
500 kbps
100 m
6 m or under 39 m or under
250 kbps
250 m * 6 m or under 78 m or under
125 kbps
500 m * 6 m or under 156 m or under
64 (including master unit)
8 byte (The data can be divided and transferred.)
CSMA/NBA
CRC error / Duplicate node address check
5-wire cable dedicated to DeviceNet (2 wires for signal,
2 wires for power supply, 1 shield wire)
24 V DC (supplied from a connector)
* When thin cable is used for trunk line, the maximum network length is 100 m.
4
Fieldbus I/O Rev.6
1. Introduction
1.3 PROFIBUS DP
Overview of PROFIBUS DP
PROFIBUS DP is one of fieldbus networks that provide easy interconnection between control
devices (PLC, PC, sensor, actuator, etc.).
PROFIBUS DP was co-developed by Siemens, Bosch, and ABB as an open communication
standard to connect various field devices (sensor, actuator, robot controller, etc.). Because of
the open communication standard, PROFIBUS DP can easily construct multi-vendor system
with various devices developed around the world.
Controller
PROFIBUS DP Network
Photo Sensor
from Company E
Motor Driver
from Company A
Motor Driver
Intelligent I/O
Intelligent I/O
from Company B from Company C from Company D
Analog Device
from Company G
HMI Device
from Company F
Features of PROFIBUS DP
Reduced Wiring
Compared with a parallel wiring, PROFIBUS DP employing dedicated 2-wire cable
substantially reduces the number of necessary wires, wiring time and cost.
Detachable communication connector provides you a simple wiring between devices
(stations) and an easy network separation or reconstruction.
Fast Communication
PROFIBUS DP communication speed can be set up to 12Mbps. This is faster than
DeviceNet, another communication standard supported by the fieldbus I/O.
Open Standard (Multi-vendor)
Due to an open communication standard, various devices from many manufacturers are
available. Standardized communication connectors allow you to reconstruct your network
easily.
The sort of maintenance parts stored on site (factory, etc.) can be reduced because different
manufacturers’ devices are used in case of a breakdown. Similar products are available
around the world due to a global standard PROFIBUS DP.
Large Numbers of Inputs/Outputs
For the standard I/O and expansion I/O, the number of inputs/outputs is limited to up to 512
inputs and 512 outputs. When configuring a device to be a master of fieldbus I/O, you can
control more than 16,000 total inputs and outputs.
For a slave device, 1,952 inputs (244 bytes) and 1,952 outputs (244 bytes) are available.
Fieldbus I/O Rev.6
5
1. Introduction
Functions of Master
There are two types of PROFIBUS DP master: DPM1 and DPM2. DPM1 (DP Master Class
1) gathers and controls all stations on one PROFIBUS DP network. DPM2 (DP master Class
2) operates network configurations, network maintenance, and diagnosis.
PROFIBUS DP master can control up to 126 stations (max. 2 kbytes) on one network.
A PLC is typically configured as a master and controls all devices in factory automation
system, but EPSON RC+ is also capable of being a master.
PROFIBUS DP network configuration is specified by configuration management software.
This software is normally provided by a master device manufacturer. The configuration
management software determines parameters for each slave device via an Electronic Data
Sheet (GSD).
The connection type is token passing procedure and master-slave communication. The token
passing procedure is applied to the PROFIBUS DP network with more than two master
devices to transfer network control between masters. The master-slave communication is
applied to the communication between the master device with network control and its slave
devices.
Available baud rates are 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1500 kbps, 3
Mbps, 6 Mbps, and 12 Mbps.
Functions of Slave
A slave can exchange data with a master device.
The configuration management software identifies parameters of each slave device via an
electronic data sheet (GSD) file where the parameters are registered.
The communication type is a cyclic master-slave communication.
The input/output data of each station is up to 244 bytes.
Available baud rates are 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1500 kbps, 3
Mbps, 6 Mbps, and 12 Mbps.
6
Fieldbus I/O Rev.6
1. Introduction
General Specifications
Electrical Specifications
Item
Supply Voltage
Power Consumption
Ambient Temperature during Operation
Relative Humidity during Operation
Specification
5 V DC (supplied from a controller)
5.5 W
5-40 deg C
20-80%
PROFIBUS DP Communication Specifications
Item
Specification
Connection Method Hybrid
(token passing procedure and master-slave communication)
Baud Rates
9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps,
1500 kbps, 3 Mbps, 6 Mbps, and 12 Mbps.
Transfer Distance
Baud Rates
Cable Length
12 Mbps
100 m
6 Mbps
100 m
3 Mbps
100 m
1500 kbps
200 m
500 kbps
400 m
187.5 kbps
1000 m
93.75 kbps
1200 m
19.2 kbps
1200 m
9.6 kbps
1200 m
Maximum Stations
126 (including master unit and repeater)
Data Length / Frame 244 bytes
Cable
2-wire cable dedicated to PROFIBUS (2 wires for signal)
Fieldbus I/O Rev.6
7
1. Introduction
1.4 EtherNet/IP
Overview of EtherNet/IP
EtherNet/IP is a fieldbus network that provides easy interconnection between control devices
(PLC, PC, sensor, actuator, etc.).
EtherNet/IP was developed by Allen-Bradley as an open communication standard to connect
various field devices (sensor, actuator, robot controller, etc.). Because of the open
communication standard, EtherNet/IP users can easily construct a multi-vendor system with
various devices developed around the world.
Controller
Ethernet/IP Network
Photo Sensor
from Company E
Motor Driver
Motor Driver
Intelligent I/O
from Company A from Company B from Company C
Intelligent I/O
from Company D
Analog Device
from Company G
HMI Device
from Company F
Features of EtherNet/IP
Reduced Wiring
Compared with parallel wiring, EtherNet/IP employs a standard Ethernet cable which
substantially reduces the number of necessary wires, wiring time and cost.
Detachable communication connectors provide you with simple wiring between nodes and
easy network separation or reconstruction.
Specified environment-resistance cables allow you to construct an environment-resistant
system at low cost.
NOTE
)
You can use the generic Ethernet hub or Ethernet switch for the EtherNet/IP. However, be
sure to a use product complying with the industrial standards or noise resistant Ethernet
cable (STP cable). If you use an office use product or UTP cable, it may causes
communication errors and may not offer the proper performance.
Open Standard (Multi-vendor)
Due to an open communication standard, various devices from many manufacturers are
available. Standardized communication connectors provide you with easy network
construction.
The maintenance spare parts stored on site (factory, etc.) can be reduced because different
manufacturers’ devices are used in case of a breakdown. Similar products are available
around the world due to a global standard EtherNet/IP.
8
Fieldbus I/O Rev.6
1. Introduction
Large Numbers of Inputs/Outputs
For EPSON RC+ standard I/O and expansion I/O, the number of inputs/outputs is limited to
512 inputs and 512 outputs. When configuring a device to be a master of fieldbus I/O, you
can control more than 16,000 total inputs and outputs.
For a slave device, 4,040 inputs (505 bytes) and 4,072 outputs (509 bytes) are available.
Different Connection Types
There are two messaging connections: I/O messaging connection and explicit messaging
connection. The I/O messaging connection includes cyclic and change of state.
I/O
messaging connections are explained below:
Change Of State:
A device sends data whenever it changes. Signals for device diagnosis are sent
regularly in the background. This connection type is useful for remedying
EtherNet/IP communication traffic.
Cyclic: A slave device transfers data regularly according to its internal timer. This
connection type is typically used for communicating with a temperature controller.
The data transfer frequency is defined by master configuration.
NOTE
)
For Change of State and Cyclic, you can disable the ACK that is for verifying that
communication is completed. Never disable ACK, since communication errors cannot be
detected.
Functions of Master
The Master device gathers and controls all nodes on one network.
A EtherNet/IP master can control up to 127 nodes (max. 14 kbytes) on one network.
A PLC is typically configured as a master and controls all nodes in factory automation system,
but EPSON RC+ is also capable of being a master.
EtherNet/IP network configuration is specified by configuration management software. This
software is normally provided by a master device manufacturer. The configuration
management software determines parameters for each slave device via an Electronic Data
Sheet (EDS).
Available connection types are Cyclic, Change Of State, and explicit messaging.
Available baud rates are 100 Mbps and 10 Mbps. (auto-detect)
Functions of Slave
A slave can exchange data with a master device.
The configuration management software identifies parameters of each slave device via
Electronic Data Sheet (EDS) where the parameters are registered.
Available connection type is Cyclic.
Available baud rates are 100 Mbps and 10 Mbps. (auto-detect)
Fieldbus I/O Rev.6
9
1. Introduction
General Specifications
Electrical Specifications
Item
Specification
Supply Voltage
5 V DC (supplied from a controller)
Power Consumption
5.5 W
Ambient Temperature 5-40 deg C
Relative Humidity
20-80%
EtherNet/IP Communication Specifications
Item
Supported Connection
Baud Rates
Maximum Nodes
Data Length / Frame
Access Control Type
Cable
10
Specification
- I/O messaging connection
(Cyclic, Change of State)
- Explicit messaging connection
All connections are conformed to EtherNet/IP communication
protocol.
100 Mbps, 10 Mbps
128 (including master unit)
244 bytes
CSMA/CD
Universal Ethernet cable
Fieldbus I/O Rev.6
2. Installation
2. Installation
This chapter contains procedures for installing a DeviceNet, PROFIBUS DP, or EtherNet/IP
network. Refer to the sections that correspond to the type of network you are installing.
2.1 How to Setup a DeviceNet Network
The following is a basic procedure for setting up a DeviceNet network:
1. Choose node distribution and distribution route on your network.
For details, refer to the following section 2.2 DeviceNet Network Construction.
2. Choose power supply method for communication.
For details, refer to the following section 2.2 DeviceNet Network Construction.
3. Choose baud rate.
Choose the baud rate based on the network length. Select the fastest baud allowed
for the length. Increasing network load due to slow baud rate may cause trouble
including communication failure.
4. Lay cables.
For details, refer to the following section 2.2 DeviceNet Network Construction.
5. Configure nodes.
For details, refer to respective manuals of your desired nodes.
6. Turn ON the communications power supply and nodes.
Turn ON the communications power supply. After that or simultaneously, turn ON
the nodes to supply power. When the power to the nodes is supplied earlier than the
power to the communications power supply, communication with the nodes may fail.
7. Install the scanner board in your controller.
Refer to the section 2.7 DeviceNet Board Installation later in this chapter.
8. Configure a master and slaves.
Use the configuration management software for configuring a master and slaves
(scan list). For details, please refer to the configuration management software
manual.
To configure EPSON RC+ as a master, refer to the section 2.7 DeviceNet Board
Installation later in this chapter.
9. Configure EPSON RC+.
Refer to the section 2.10 EPSON RC+ Fieldbus I/O Installation later in this chapter.
10. Operate the DeviceNet network.
Fieldbus I/O Rev.6
11
2. Installation
2.2 DeviceNet Network Construction
Network Configuration
A DeviceNet network is configured as shown in the following figure.
Attach a terminating
resistor on each end
of the trunk line.
Ground to
100 Ω or less.
T-branch
Tap
Node
Trunk
Line
Trunk Line
Drop Line
T-branch Tap
Drop Line
Drop
Line
Node
Trunk T-branch
Line Connector
Drop
Line
Drop
Line
Connector with
terminating
resistor
Node
Drop Line
Node
T-branch
Connector
T-branch Tap
T-branch
Tap
Drop Line Drop
Line
Attach a terminating
resistor on each end
of the trunk line.
Power Supply Tap or
T-branch Tap
24 V DC
Trunk Line
Trunk Line
Communications
power supply
Drop Line
Node
Node
Waterproof
slave
Waterproof
slave
Use DeviceNet cables.
Node
Node
There are two types of the node: master and slave. The master controls a network and gathers
data from its slaves. The slaves, including external I/O and other devices, output data in
response to the master’s output order and informs the master of its input status.
You can install masters anywhere in the network. You can connect up to 64 nodes (including
the master) on your network.
Trunk Line and Drop Line
A trunk line is a backbone cable of DeviceNet network with a terminating resistor on the both
ends.
A drop line is a branch of the trunk line.
Terminating
resistor
Trunk Line
Terminating
resistor
T-branch
These are all drop Lines.
- No limits on the number of T-branch
- Limits on the length of drop lines
For DeviceNet, 5-wire cables are used for trunk lines and drop lines. The DeviceNet cables
on the market can be used for such cables. There are two types of the DeviceNet cable: Thick
cable and Thin cable. Environment-resistant cable and flexible cable are available. For
details of cables, see ODVA’s Web site (http://www.odva.org/).
12
Fieldbus I/O Rev.6
2. Installation
Thick Cable
Thin Cable
11.2 to 12.1 mm outside diameter
6.9 mm outside diameter
Braid Shield
Braid Shield
Signal Wire
(Blue/White)
Power Wire
(Red/Black)
Shield Wire
Signal Wire
(Blue/White)
Power Wire
(Red/Black)
Shield Wire
Communication Cable Signal
Wire Type
Color
Details of Signal
Blue
Signal Low
Signal wire
White
Signal High
Red
Communications Power Positive
Power wire
Black
Communications Power Negative
Shield wire
Shield
Wire Identity
CAN L
CAN H
V+
V
S
Terminating Resistor
To reduce reflections of communication signal, terminating resistors should be attached on
both ends of the trunk line. For DeviceNet, nodes have no terminating resistor on the ends.
Attach 121 Ω +/-1%, 1/4W terminating resistors between the signal wires (CAN-H and CANL) of the trunk line cable. Some T-branch taps and connectors can accept terminal resistors.
Molded terminating resistors with connectors are also available to attach to environmentresistant T-branch taps and connectors.
Node Connection
Nodes can be connected to a DeviceNet network by the following topologies: tree, multi-drop,
T-branch, daisy chain. For tree topology, there is no limitation of daisy chain layer but drop
line length is limited. For details of drop line length, refer to the following section “Drop
Line Length”.
Terminating
Resistor
Branch Tap Terminating
Resistor
Trunk Line
Daisy Chain
Tree
Multi-drop
T-branch
Communications Power Supply
DeviceNet supplies 24V DC communications power to each node via 5-wire cables. You can
install the communications power supply at any location on the DeviceNet network. We
recommend providing a dedicated communications power supply on the network separately
even though it is possible to share power among the communications power supply, node
internal circuit power supply, and I/O power supply.
Shield Ground of Signal Wire
Ground the DeviceNet network at one point with 100 Ω or less.
As a noise countermeasure, you can leave the network ungrounded. For details, refer to the 4.
Troubleshooting.
Fieldbus I/O Rev.6
13
2. Installation
Maximum Network Length (Maximum Trunk Length)
The maximum network length is the longest distance either between terminating resistors or
between the two most distant nodes on the network.
The longest distance is the maximum network length.
Trunk Line
Terminating
Resistor
Terminating
Resistor
The maximum network length is restricted by the type of cable and the baud rate.
Maximum Network Length
Thick Cable
Thin Cable
100 m
100 m
250 m
100 m
500 m
100 m
Baud Rate
500 kbps
250 kbps
125 kbps
Both Thick Cable and Thin Cable can be combined and used for trunk lines. In this
case, the maximum network length is calculated using the following formulas.
Baud Rate
500 kbps
250 kbps
125 kbps
Maximum Network Length
Thick Cable Length + Thin Cable Length ≤ 100m
Thick Cable Length + 2.5 × Thin Cable Length ≤ 250m
Thick Cable Length + 5.0 × Thin Cable Length ≤ 500m
Drop Line Length
The drop line length is the distance from a branch on the trunk line to the end of that branch.
Trunk Line
2m
1m
1m
Node 1
4m
3m
Node 3
Node 2
In figure above, each drop line length is as follows:
Drop Line to Node 1: 4 m
Drop Line to Node 2: 6 m
Drop Line to Node 3: 6 m
One drop line length should be 6m or less.
14
Fieldbus I/O Rev.6
2. Installation
Total Drop Line Length
The total drop line length is the total distance of all drop lines on one network.
Trunk Line
Terminating
Resistor
2m
4m
1m
1m
Terminating
Resistor
2m
4m
3m
In the figure above, the total drop line length is 17 m.
The maximum total drop line length is restricted by baud rate as shown in the table below.
The cable thickness is not related to the restriction.
Baud Rate
500 kbps
250 kbps
125 kbps
Max. Total Drop Line Length
39 m
78 m
156 m
Cable Current Capacity
The current-carrying capacity of the DeviceNet network cable is restricted as shown below:
Trunk Line
Thick Cable Thin Cable
8A
3A
Current Capacity
Drop Line (Unit: A)
4.57 / Drop Line Length (m) ≤ 3A
The following figures illustrate power supply configuration examples.
When an external power supply is installed on the network as shown in the figure below, the
current capacity is 11A and it exceeds the permissible current of the cable.
Power Supply Tap
Terminating
Resistor
2A
External Power
Supply 24 V DC
2A
2A
1A
1A
Terminating
Resistor
Trunk Line
2A
1A
If the location of the external power supply is changed on the network as shown in the figure
below, the power supply can be used on the network because the current capacity on the left
side of the power supply tap is 5 A and that on the right side is 6 A.
Power Supply Tap
Terminating
Resistor
Trunk Line
2A
Terminating
Resistor
2A
2A
1A
1A
Fieldbus I/O Rev.6
External
Power Supply
24 V DC
2A
1A
15
2. Installation
If the current capacity consumed on the network exceeds the restriction of cable current
capacity, it is possible to install more than one power supply on the network. If you attempt
to install two or more power supplies on the network, take necessary measures (pulling out a
fuse on the power supply tap, etc.) to avoid conflicts between power outputs from multiple
power supplies.
Power Supply Tap
Terminating
Resistor
Power Supply Tap
Trunk Line
2A
Terminating
Resistor
2A
2A
2A
1A
1A
1A
External
Power Supply
24 V DC
1A
2A
1A
1A
The following figure illustrates a sample wiring. An OMRON power supply tap is shown in
the figure.
V+
L
S
H
V-
Trunk Line
V+
CAN L
Shield
CAN H
V-
Pull out
the fuse.
Ground the
network at
only one point.
Ground 100 Ω or less.
Ground 100 Ω or less.
If you cannot ground the network with 100 Ω or less,
do not connect V- and FG wires.
„ Carefully connect the wires. Incorrect wiring may cause node malfunction and
severe damage to the entire DeviceNet network.
CAUTION
Procedure for Modifying and Installing Communication Cables
Follow the steps described below to modify communication cables and connect them to
connectors.
CAUTION
„ Be careful not to injure your hands or fingers on any sharp blades or tools used
to modify the cable.
Use appropriate blades and/or other tools to modify the cable. Using
inappropriate blades and/or other tools may result in bodily injury and/or
equipment damage.
(1) Strip approx. 30 mm of the cable covering with extra
care so that you do not scratch on the braided shield
underneath. Do not strip the cable covering more than
necessary. Excess stripping may cause short-circuit
and/or make the cable more sensitive to noise.
16
Approx. 30 mm
Fieldbus I/O Rev.6
2. Installation
(2) Carefully expand the meshes of the braided shield.
Under the braided shield, there is one exposed bare
twisted shield wire other than the signal wires and
power wires that are wrapped with aluminum tape. The
shield wire is slightly harder than the mesh.
(3) Cut off the expanded braided shield and remove the
aluminum tape around the signal wires and power
wires. Then, strip the insulation from the signal wires
and power wires for a length sufficient to connect them
to crimp terminals.
Twist each stripped signal wire and power wire.
Shield Wire
Peel the coverings in enough
length to connect the wires to
crimping terminals.
(4) Set the crimp terminal on the stripped part of the wire
and crimp it with a crimp tool. The following crimping
terminals are recommended products.
NICHIFU TC series
Model Number
TMEV TC-0.5
TMEV TC-2-11
TMEV TC-1.25-11
Specifications
For Thin Cable
For Thick Cable (power wire)
For Thick Cable (signal wire)
Special Tool
Phoenix Contact AI series
Model Number
AI 0.5-8WH
AI 0.25-8YE
AI 2.5-8BU
AI 1-8RD
Specifications
For Thin Cable (power cable)
For Thin Cable (signal wire)
For Thick Cable (signal wire)
For Thick Cable (signal wire)
Special Tool
(5) Wrap or cover the cable with vinyl tape or heat-shrink
tubing.
NOTE
)
Crimping
Terminal
MH-32
CRIMPFOX UD6
Heat-shrinkable Tube, etc.
Loosen the screws securing the cables on the connector. If the screws are not loosened, the
wires go into different openings on the rear of connector instead of the correct openings
and the wires cannot be secured.
(6) Ensure the correct connector orientation and insert the
signal wires and shield wire to their respective holes
on the connector.
As shown in the figure, insert the wires (black, blue,
shield, white, and red) into the holes in the order
named.
The following table shows the specified colors of the
cables.
Fieldbus I/O Rev.6
a
Color
Black
b
c
d
e
Blue
White
Red
Details of Signal
Wire Identity
Communications Power VSupply (negative)
Signal (Low)
CAN L
Shield
S
Signal (High)
CAN H
Communications Power V+
Supply (positive)
Insert wires in
this direction.
Insert the
connector
in this
direction.
a
b
e
d
c
17
2. Installation
(7) Tighten each screw securing the wires on the connector.
Tighten the screw securing the wire at a correct tightening torque (0.25 to 0.3 N·m). To
prevent thick cable from coming out due to cable tension, install enough thick cable
length to allow for stretch.
Use a small flat blade screwdriver that has the correct
Width
Thickness
width and thickness. If you use a typical screwdriver
whose point is narrow, you cannot deeply insert it into
the hole on the connector.
Specific screwdriver for DeviceNet connector screw:
OMRON
: XW4Z-00C
Phoenix Contact : SZF-1 0.6×3.5
0.6 mm
18
3.5 mm
Fieldbus I/O Rev.6
2. Installation
2.3 How to Setup a PROFIBUS DP Network
The following is a basic procedure for setting up a PROFIBUS DP network:
1. Choose station distribution and distribution route on your network.
For details, refer to the following section 2.4 PROFIBUS DP Network Construction.
2. Choose baud rate.
Choose the baud rate based on the network length. Select the fastest baud rate
allowed for the length. Increasing network load due to slow baud rate may cause
trouble including communication failure.
3. Lay cables.
For details, refer to the following section 2.4 PROFIBUS DP Network Construction.
4. Configure stations.
For details, refer to respective manuals of your desired stations.
5. Turn ON the stations.
6. Install the scanner board in your controller.
Refer to the section 2.8 PROFIBUS DP Board Installation later in this chapter.
7. Configure a master and slaves.
Use the configuration management software for configuring a master and slaves
(scan list). For details, please refer to the configuration management software
manual.
To configure EPSON RC+ as a master, refer to the section 2.8 PROFIBUS DP Board
Installation later in this chapter.
8. Configure EPSON RC+.
Refer to the section 2.10 EPSON RC+ Fieldbus I/O Installation later in this chapter.
9. Operate the PROFIBUS DP network.
Fieldbus I/O Rev.6
19
2. Installation
2.4 PROFIBUS DP Network Construction
Network Configuration
A PROFIBUS DP network is configured as shown in the following figure.
Network
Cable
Master 1
Terminating
Resistor ON
Slave
Slave
Slave
Master 2
Slave
Slave
Terminating
Resistor ON
Repeater
Terminating
Resistor ON
Slave
Slave
Slave
Slave
Slave
Terminating
Resistor ON
Station
There are four types of stations (devices): master, slave, repeater, and configurator.
The master controls a network and gathers its slaves.
The slave, including external I/O and other devices, outputs data as a response to a master’s
output order and informs the master of its input status.
The repeater is necessary for a network with more than 32 slaves to separate network
segments.
The configurator, used only for network installation, configures a scan list of the slaves on the
master device.
You can install masters anywhere on the network. You can connect up to 126 stations
including server and repeater on your network. However, we recommend you to use one
device for the engineering device.
Network Cable
The PROFIBUS cable can be used as a network cable. There are four types (A, B, C, D) of
PROFIBUS cables. Normally, cable type A is used for a PROFIBUS DP network. The cable
type A specifications are shown in the table below.
Item
Specification
Impedance
135 to 165 Ω
Capacity
< 30 pf/m
Loop resistance
110 Ω/km
Wire diameter
0.64 mm
Core cross-section
20
> 0.34 mm2
Fieldbus I/O Rev.6
2. Installation
It is recommended that a 9-pin D-Sub connector be used for protecting rating IP 20. For IP
65/67, M12 connector in accordance with IEC 947-5-2, Han-Bird connector in accordance
with DESINA, and Siemens hybrid connector are available.
Pin assignment (9-pin D-Sub)
Pin No.
Signal
1
Shield
2
M24
3
RxD/TxD-P
4
CNTR-P
5
DGND
6
VP
7
P24
8
RxD/TxD-N
9
CNTR-N
Assignment
Shield / Protective ground
Ground of output voltage (24 V)
Data line B
Repeater control signal (directional control)
Communications power supply (5 V)
Supply voltage to terminating resistor (P5V)
Output voltage (24 V)
Data line A
Repeater control signal (directional control)
Use pins 2 and 7 for connecting a maintenance device without any power supply.
The following figure illustrates wiring.
Station 1
RxD/TxD-P (3)
Station 2
(3) RxD/TxD-P
DGND (5)
(5) DGND
VP (6)
(6) VP
RxD/TxD-N (8)
(8) RxD/TxD-N
Shield
Protective Ground Protective Ground
Different manufacturers produce a wide range of PROFIBUS cables. For details of the
PROFIBUS cables, see PROFIBUS International’s website (http://www.profibus.com/).
Terminating Resistor
To reduce reflections of communication signal, terminating resistors should be attached on
both ends of each segment. Attach the terminating resistor as shown below.
VP (6)
390 Ω
Data Line B
RxD/TxD-P (3)
220 Ω
Data Line A
RxD/TxD-N (8)
390 Ω
DGND (5)
Some PROFIBUS 9-pin D-Sub connectors on the market have functions of terminating
resistor and they can enable / disable the terminating resistor. (Example: Woodhead
MA9D00-32)
Molded terminating resistors with connector are also available to attach them to environmentresistant M12 connector.
Baud Rate and Maximum Cable Length
Available baud rates are 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1500 kbps, 3
Mbps, 6 Mbps, and 12 Mbps.
Fieldbus I/O Rev.6
21
2. Installation
PROFIBUS DP requires approximately 1ms at 12 Mbps for the transmission of 512 bits input
data and 512 bits output data distributed over 32 stations. The following figure shows typical
PROFIBUS DP transmission times depending on the number of stations and baud rate.
Bus Cycle Time [ms]
18
14
500 kbps
10
1.5 Mbps
6
12 Mbps
2
2
10
20
30
Number of Slaves
The maximum cable length is restricted by the baud rate.
Baud Rate
12 Mbps
6 Mbps
3 Mbps
1500 kbps
500 kbps
187.5 kbps
93.75 kbps
19.2 kbps
9.6 kbps
Maximum Cable Length
100 m
100 m
100 m
200 m
400 m
1000 m
1200 m
1200 m
1200 m
Multi-Master Configuration
PROFIBUS DP allows you to install multiple masters on a single physical network.
All slave devices on the network can be accessed by different masters. Only one master on
the network can be used for device configuration.
The following figure illustrates the communication procedure for a multi-master
configuration.
Token-passing Procedure
Master 1
Master 2
Master 3
Master-slave communication
Slave
Slave
Slave
Slave
Slave
Slave
Slave
When the master receives the logic token, it inquires data from its slaves. After all
communications are completed, the master passes the token to another master. In this way,
the master can only communicate with its slaves while it is holding the token. The slaves
respond to only the inquiry from the master. No slave can output any messages.
22
Fieldbus I/O Rev.6
2. Installation
Procedure for Modifying and Installing Communication Cables
The following procedure explains how to modify and install a Woodhead 9-pin D-Sub
connector (MA9D00-32).
Follow the steps described below to modify communication cables and connect them to the
connector.
CAUTION
„ Be careful not to injure your hands or fingers on any sharp blades or tools used
to modify the cable.
Use appropriate blades and/or other tools to modify the cable. Using
inappropriate blades and/or other tools may result in bodily injury and/or
equipment damage.
(1) Strip approx. 47.5 mm of the cable covering with extra
care so that you do not scratch on braided shield
underneath.
Do not strip the cable covering more than necessary.
Excess stripping may cause short-circuit and/or make
the cable more sensitive to noise.
(2) Carefully expand meshes of the braided shield and fold
back the shield over the cable covering. Cut off the
shield at approx. 10 mm from the stripped side of the
cable covering.
(3) Strip the covering of the signal wire as shown in the
figure.
Approx. 47.5 mm
10 mm
40 mm
7.5 mm
(4) Insert the signal wires into the terminal block on the connector and secure the signal
wires. Carefully connect the same signal wire to the same terminal on both ends.
To prevent faulty wiring, make a rule of connection. For instance, connect the green
signal wire to the A1/A2 terminal and the red signal wire to the B1/B2 terminal.
Fieldbus I/O Rev.6
23
2. Installation
2.5 How to Setup a EtherNet/IP Network
The following is a basic procedure for setting up a EtherNet/IP network:
1. Choose node distribution and distribution route on your network.
For details, refer to the following section 2.6 EtherNet/IP Network Construction.
2. Lay cables.
For details, refer to the following section 2.6 EtherNet/IP Network Construction.
3. Configure nodes.
For details, refer to respective manuals of your desired nodes.
4. Turn ON the nodes.
5. Install the scanner board in your controller.
Refer to the section 2.9 EtherNet/IP Board Installation later in this chapter.
6. Configure a master and slaves.
Use the configuration management software for configuring a master and slaves
(scan list). For details, please refer to the configuration management software
manual.
To configure EPSON RC+ as a master, refer to the section 2.9 EtherNet/IP Board
Installation later in this chapter.
7. Configure EPSON RC+.
Refer to the section 2.10 EPSON RC+ Fieldbus I/O Installation later in this chapter.
8. Operate the EtherNet/IP network.
24
Fieldbus I/O Rev.6
2. Installation
2.6 EtherNet/IP Network Construction
Network Configuration
A EtherNet/IP network is configured as shown in the following figure.
Network inside
the factory, etc
Ethernet switch
Ethernet switch
Node
Node
Node
Node
Node
Node
Node
Waterproof
Ethernet switch
Node
Node
Waterproof Waterproof
slave
slave
Node
There are two types of the node: master and slave. The master controls a network and gathers
data from its slaves. The slaves, including external I/O and other devices, output data in
response to the master’s output order and informs the master of its input status.
You can install masters anywhere in the network. One master node can control up to 127
nodes.
Universal Ethernet cable is used for EtherNet/IP. Use a proper cable such as environmental
resistance and refraction resistance that fulfills the environment.
For details, see the website of ODVA. (http://www.odva.org/)
Wiring
Wirings are conformed to EtherNet/IP connection protocol.
NOTE
)
You can use the generic Ethernet hub or Ethernet switch for the EtherNet/IP. However, be
sure to a use product complying with the industrial standards or noise resistant Ethernet
cable (STP cable). If you use an office use product or UTP cable, it may causes
communication errors and may not offer the proper performance.
Fieldbus I/O Rev.6
25
2. Installation
2.7 DeviceNet Board Installation
Following two types can be used for the fieldbus I/O option DeviceNet.
- PCU-DVNIO
- PCI-DVNIO
2.7.1 Board Appearance
Part names and functions of the scanner board are shown in the following figure.
For details of the status display LEDs (Module/NetWork LED and IO LED), refer to the 4.
Troubleshooting in this manual.
PCU-DVNIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Status Display LED (2)
Jumper for Board Address
JP1
DeviceNet Port
JP1
0
LED (2)
(Not in use)
1
RJ45 Connector
(Not in use)
C0 C1 C2
PCI-DVNIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Jumper for Board Address
JP1
Male 9-pin D-Sub
Port for Board Configuration
Status Display LED (2)
Left: Module/NetWork LED
Right: IO LED
DeviceNet Port
26
JP1
0
1
C0 C1 C2
Fieldbus I/O Rev.6
2. Installation
2.7.2 Specifications
Part Number
applicom PCI-DVNIO / PCU-DVNIO
Modes
Master/Slave
Baud rates
125, 250, 500 kbps
Interface
1 DeviceNet port
Supported Devices
Group 2 Only Server and U.C.M.M. capable
Maximum Nodes
63
Connection Types
Strobe, Polling, Cyclic and Change of State
Explicit Messaging
Yes
EDS Support
Yes
Input Data Size
1 to 255 bytes
Output Data Size
1 to 255 bytes
Automatic Detection
Yes. Devices can be detected automatically.
2.7.3 Software Installation
Before installing any boards in your controller, you must install the applicomIO console
application and drivers for the type of board you will be using.
(1) Start the controller.
(2) Run the C:\Install\FieldBus\Install\applicomIO\Disk1\Setup.EXE from the install
folder in the controller to start the installation.
(3) Select the desired language for the installer.
(4) Select Install Products.
(5) Select applicomIO. Do not select applicomIO ActiveX.
Fieldbus I/O Rev.6
27
2. Installation
(6) Allow the default components to be installed.
(7) Select the protocol: DeviceNet you will be using. If you also use PROFIBUS DP,
select Profibus-DP as well. Select which type of device data files to install (EDS for
DeviceNet, GSD for PROFIBUS DP).
(8) Complete the installation.
(9) The message to ensure the restart appears. Click the Yes button.
(10) Start the C:\Install\FieldBus\Install\SP\Setup.EXE and install the service pack.
No installation is necessary when a service pack is not attached to controller.
(11) After completing the installation of the service pack, shutdown the computer.
(12) Proceed to 2.5.4 Board Installation.
28
Fieldbus I/O Rev.6
2. Installation
2.7.4 Board Installation
WARNING
„ Make sure that the power is turned OFF before installing/removing any boards
or connecting/disconnecting any cables. Installing/removing any boards or
connecting/disconnecting any cables with the power ON is extremely hazardous
and may result in electric shock and/or malfunction of equipment.
(1) Configure the board address jumper (JP1) on each board. The board number must
start with 1 consecutively. Refer to the following table for JP1 configuration.
Short Socket
C0
C1
C2
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
0: Short
0: Short
1: Short
1: Short
1: Short
1: Short
Board No.
1
2
3
4
5
6
7
8
(2) Install the board(s) in any available PCI slot in the controller.
(3) Connect the board(s) to the Fieldbus.
(4) Start the controller.
(5) The Windows Hardware Wizard will display a message that the applicomIO board
was found and prompt you to restart the computer.
The applicomIO console application will automatically start for this first start after
installation. Close this application for now and restart the controller.
(6) Start the applicomIO console application.
(7) Click the Add Board button on the upper left of the console window to add a board.
(8) The following dialog will appear.
Check that “PCI-DVNIO” (“PCI-DPIO” or “PCU-DPIO” in case of PROFIBUS DP)
Fieldbus I/O Rev.6
29
2. Installation
is shown in the Board Type: box. Then, click the OK button.
When installing more than two fieldbus boards in the system, add all the boards
using this dialog.
The following dialog will appear when no board is detected. Ensure that the board is
correctly inserted and that the board configuration is correct.
(9) After all the boards are added, the system should be restarted.
Close the applicomIO Console application and click the OK button on the Save
modification dialog. Click the OK button on the following dialog to restart
Windows.
(10) After restarting the system, continue with the following 2.5.5 Master Mode or 2.5.6
Slave Mode sections.
30
Fieldbus I/O Rev.6
2. Installation
2.7.5 Master Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Register the device information (EDS file) that is necessary for the network setup.
Select the [Equipment Library] tab at the center of the dialog’s right side and click
the Add icon.
(3) Following dialog appears. Specify the EDS file that is supplied from the device
manufacturer.
(4) Click on the “Protocol list” under the board that was just added.
(5) Select Protocol | Property.
Fieldbus I/O Rev.6
31
2. Installation
(6) Configure the baud rate, MAC ID (master address), and so on for the DeviceNet
network.
NOTE
)
The load on a bus can be controlled by the baud rate and interscan delay settings.
When the load exceeds 60%, the DeviceNet network communication will be unstable, for
example: more communication errors. Set the configuration to minimize the load.
For the procedure for verifying the load on the bus using the applicomIO Console
application, refer to the 4. Troubleshooting in this manual.
(7) Click the Network Detection tab on the center left of the console window.
(8) Click the Read Network Configuration button to display the Network Detection
dialog and read in the devices on the Fieldbus.
32
Fieldbus I/O Rev.6
2. Installation
(9) Drag each device you want to scan from the Network Detection tab to the Master
item in the list on the right.
(10) The following dialog will appear.
Select the Connection Configuration tab to verify the connection configuration.
Change the configuration if necessary.
NOTE
)
Fieldbus I/O Rev.6
Not every slave device supports all connection types. Understand the
specifications of the slave device you want to use and configure the connection
correctly.
33
2. Installation
The Expert Mode button will appear when the applicomIO Console application is
used in the expert mode.
To configure details of “Change Of State” and “Cyclic”, click the Expert Mode
button and display the Expert Mode dialog.
NOTE
)
Never disable Ack. When the [Ack] checkbox is unchecked, a failed connection is
not regarded as an error.
(11) When the system cannot identify the device you want to use (its EDS file is not
registered), the following dialog will appear. In this case, obtain the EDS file from
the device manufacturer and register it. Then, start from step 5 (Network Detection)
of this procedure.
34
Fieldbus I/O Rev.6
2. Installation
To create a new EDS file based on the data from the device, click the Create New
EDS File button.
When a new EDS file is created, the following dialog will appear to verify the
contents of the file.
(12) Select the Equipment Library tab on the center left of the console window and
click the Add button to register the new EDS file in the system.
Fieldbus I/O Rev.6
35
2. Installation
(13) Select File | Download in Flash to register the configuration in the fieldbus board.
After a few seconds, the board's state will show green in the status bar.
(14) Now, the fieldbus board is ready to operate as a master. Close the applicomIO
Console application.
36
Fieldbus I/O Rev.6
2. Installation
2.7.6 Slave Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Click on the “Protocol list” under the board that was just added.
(3) Select Protocol | Properties.
(4) Configure the baud rate, MAC ID (slave address), and so on for the DeviceNet
network. In this example, the MAC ID (slave address) is set to 005.
NOTE
)
Specify an unused address on the network for a slave device as well as other devices.
(5) Double-click the “DeviceNet Local Slave” item.
Fieldbus I/O Rev.6
37
2. Installation
(6) The DeviceNet Local Slave property sheet will appear. Select the Equipment
(device) ID. It must be the same number as the Master ID in step (4).
(7) Click on the Connection Configuration tab. Check the Polling check box and
configure how many inputs and outputs for the slave device. In this example, the
Output Size and Input Size are set to 8 bytes.
NOTE
)
The load on a bus varies depending on the input/output size settings.
When the load exceeds 60%, the DeviceNet network communications will be
unstable, for example: more communication errors. Restrict the input/output sizes
to the minimum necessary to minimize the load. The load is also controlled by
baud rate in the master configuration.
For the procedure for verifying the load on the bus using the applicomIO Console
application, refer to the 4. Troubleshooting in this manual.
The input/output sizes of each node may be restricted depending on the master.
For details of the permitted data size, refer to the respective manuals of the masters.
(8) Click OK.
38
Fieldbus I/O Rev.6
2. Installation
(9) Select File | Download in Flash to register the configuration in the fieldbus board.
After a few seconds, the board's state will show green in the status bar.
(10) Close the applicomIO console application.
(11) The default slave EDS file is created.
The path is: C:\Program Files\Woodhead\Direct-link\ApplicomIO2.3\ConfigIO
\Config01\applicomio.eds.
You may make a copy of the default slave EDS file and modify it to create your
original EDS file if necessary.
Edit the copy of the slave EDS file using Notepad. You may want to change the
VendName and ProductTypeStr.
Fieldbus I/O Rev.6
39
2. Installation
$
EDS File Generated by applicomIO® Console Version : 2.2
[File]
DescText
CreateDate
CreateTime
ModDate
ModTime
Revision
=
=
=
=
=
=
"EDS for applicomIO Scanner";
02-01-2004;
08:14:41;
02-01-2004;
08:14:41;
1.0;
[Device]
VendCode
ProdType
ProdCode
MajRev
MinRev
VendName
ProdTypeStr
ProdName
Catalog
=
=
=
=
=
=
=
=
=
579;
12;
1;
1;
2;
"applicom international";
"Communication Adapter";
"applicomIO Scanner";
"";
[IO_Info]
Default
= 0x0000;
Copy the EDS file to the system where the master is located. Add the new slave
device to the master using the new EDS file.
(12) On the master system, scan the network for new devices. The new slave device
should be detected.
Use the EDS file created in previous steps for the slave device.
40
Fieldbus I/O Rev.6
2. Installation
2.8 PROFIBUS DP Board Installation
Following two board types can be used for the fieldbus I/O option PROFIBUS DP.
- PCU-DPIO
- PCI-DPIO
2.8.1 Board Appearance
Part names and functions of the scanner board are shown in the following figure. For details
of the status display LEDs, refer to the 4. Troubleshooting in this manual.
PCU-DPIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Status Display LED (2)
Jumper for Board Address
JP1
PROFIBUS-DP Port
JP1
0
LED (2)
(Not in use)
1
RJ45 Connector
(Not in use)
C0 C1 C2
PCI-DPIO
Configuration Port
Communication Status LED
Male 9-pin D-Sub
Port for Board Configuration
Status Display LED (2)
Left: Communication Status LED
Right: Physical Error LED
Female 9-pin D-Sub
PROFIBUS DP Port
Jumper for Board Address
JP1
JP1
0
1
C0 C1 C2
4-pin Terminal
Watchdog Port
(Do not use this port.)
Fieldbus I/O Rev.6
41
2. Installation
2.8.2 Specifications
Part Number
applicom PCI-DPIO / PCU-DPIO
Modes
Master/Slave
Baud Rates
9.6, 19.2, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 kbps
Interface
1 PROFIBUS port (EN 50 170)
Output Current Capacity
Maximum 150mA
Supported Devices
All DP Devices
Maximum Stations
126 (32 per segment)
GDS Support
Yes
PROFIBUS DP Class 1
Yes
PROFIBUS DP Class 2
Yes
Input Data Size
1 to 244 bytes
Output Data Size
1 to 244 bytes
Automatic Detection
Yes. Devices can be detected automatically.
2.8.3 Software Installation
Before installing any boards in your controller, you must install the applicomIO console
application and drivers for the type of board you will be using.
(1) Start the controller.
(2) Run the C:\Install\FieldBus\Install\applicomIO\Disk1\Setup.EXE from the install
folder in the controller to start the installation.
(3) Select the desired language for the installer.
(4) Select Install Products.
(5) Select applicomIO. Do not select applicomIO ActiveX.
42
Fieldbus I/O Rev.6
2. Installation
(6) Allow the default components to be installed.
(7) Select the protocol: PROFIBUS DP you will be using.
If you also use DeviceNet, select DeviceNet as well. Select which type of device
data files to install (GSD for PROFIBUS DP, EDS for DeviceNet).
(8) Complete the installation.
(9) The message to ensure the restart appears. Click the Yes button.
(10) Start the C:\Install\FieldBus\Install\SP\Setup.EXE and install the service pack.
No installation is necessary when a service pack is not attached to controller.
(11) After completing the installation of the service pack, shutdown the computer.
(12) Proceed to 2.6.4 Board Installation.
Fieldbus I/O Rev.6
43
2. Installation
2.8.4 Board Installation
WARNING
„ Make sure that the power is turned OFF before installing/removing any boards
or connecting/disconnecting any cables. Installing/removing any boards or
connecting/disconnecting any cables with the power ON is extremely hazardous
and may result in electric shock and/or malfunction of equipment.
(1) Configure the board address jumper (JP1) on each board. The board number must
start with 1 consecutively. Refer to the following table for JP1 configuration.
Short Socket
Board No.
1
2
3
4
5
6
7
8
C0
C1
C2
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
0: Short
0: Short
1: Short
1: Short
1: Short
1: Short
(2) Install the board(s) in any available PCI slot in the controller.
(3) Connect the board(s) to the Fieldbus.
(4) Start the controller.
(5) The Windows Hardware Wizard will display a message that the applicomIO board
was found and prompt you to restart the computer.
The applicomIO console application will automatically start for this first start after
installation. Close this application for now and restart the controller.
(6) Start the applicomIO console application.
(7) Click the Add Board button on the upper left of the console window to add a board.
44
Fieldbus I/O Rev.6
2. Installation
(8) The following dialog will appear.
Check that “PCI-DPIO” or “PCU-DPIO” (“PCI-DVNIO” in case of DeviceNet) is
shown in the Board Type: box. Then, click the OK button.
When installing more than two fieldbus boards in the system, add all the boards
using this dialog.
The following dialog will appear when no board is detected. Ensure that the board is
correctly inserted and that the board configuration is correct.
(9) After all the boards are added, the system should be restarted.
Close the applicomIO Console application and click the OK button on the Save
modification dialog. Click the OK button on the following dialog to restart
Windows.
(10) After restarting the system, continue with the following 2.6.5 Master Mode or 2.6.6
Slave Mode sections.
Fieldbus I/O Rev.6
45
2. Installation
2.8.5 Master Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Register the device information (GSD file) that is necessary for the network setup.
Select the [Equipment Library] tab at the center of the dialog’s right side and click
the Add icon.
(3) Following dialog appears. Specify the GSD file that is supplied from the device
manufacturer.
(4) Select Description | Properties.
46
Fieldbus I/O Rev.6
2. Installation
(5) Select the “Profibus, Master/Slave” in the Channel Properties dialog and click the
OK button.
(6) Click on the “Protocol list” under the board that was just added.
(7) Select Protocol | Properties.
(8) Configure the baud rate, Master Profibus Address (master address), number of
repeaters, and so on for the PROFIBUS DP network.
Fieldbus I/O Rev.6
47
2. Installation
(9) Click the Network Detection tab on the center left of the console window.
(10) Click the Read Network Configuration button to display the Network Detection
dialog and read in the devices on the fieldbus.
(11) Drag each device you want to scan from the Network Detection tab to the Master
item in the list on the right.
48
Fieldbus I/O Rev.6
2. Installation
(12) The following dialog will appear.
The device name is shown on the dialog title bar. Click the OK button.
When the system cannot identify the device you want to use (its GSD file is not
registered), the following dialog will appear. In this case, obtain the GSD file from
the device manufacturer and register it. Then, start from step 5 (Network Detection)
of this procedure.
Fieldbus I/O Rev.6
49
2. Installation
(13) Select the Equipment Library tab on the center left of the console window and
click the Add button to register the new GSD file in the system.
(14) Select File | Download in Flash to register the configuration in the fieldbus board.
After a few seconds, the board's state will show green in the status bar.
Now, the fieldbus board is ready to operate as a master. Close the applicomIO
Console application.
50
Fieldbus I/O Rev.6
2. Installation
2.8.6 Slave Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Select Description | Properties.
(3) Select the “Profibus, Slave” in the Cannel Properties dialog and click the OK
button.
NOTE
)
Though you can select the “Profibus, Master/Slave” as a slave, it might not
communicate properly in some Master.
To use only the slave function, select the “Profibus, Slave”.
(4) Click on the “Protocol list” under the board that was just added.
(5) Select Protocol | Properties.
Fieldbus I/O Rev.6
51
2. Installation
(6) Configure the baud rate, Master Profibus Address (slave address), number of
repeaters, and so on for the PROFIBUS DP network. In this example, the Master
Profibus Address (slave address) is set to 005.
NOTE
)
Specify an unused address on the network for a slave device as well as other devices.
(7) Double-click the “Local DP Slave” item.
(8) The Local DP Slave property sheet will appear.
Select the Equipment (device) ID. It must be the same number as the Master
Profibus Address in step (4). In this manual, the input/output sizes are set to 8 bytes.
NOTE
)
52
The input/output sizes of each station may be restricted depending on the master.
For details of the permitted data size, refer to the respective manuals of the masters.
Fieldbus I/O Rev.6
2. Installation
(9) Select File | Download in Flash to register the configuration in the fieldbus board.
After a few seconds, the board's state will show green in the status bar.
(10) Now the fieldbus board is ready to operate as a slave. Close the applicomIO Console
application.
2.8.7 GSD File
A GSD file is a device data file for registering slave configuration data in the configurator
(device or software that configures the master).
The standard GSD file for EPSON robot controller RC520 and RC420 is provided in the
following path:
c:\Program Files\Woodhead\Direct-Link\applicomIO2.3\Equipment Library
\Profibus_gsd\app0890.gsd.
For details of the PROFIBUS DP network configuration, contact the manufacturer of the
master device you use. If you use EPSON RC+ as a master device, you do not need to
register EPSON RC+ since the said GSD file was installed.
Fieldbus I/O Rev.6
53
2. Installation
2.9 EtherNet/IP Board Installation
Following two board types can be used for the fieldbus I/O option EtherNet/IP.
- PCU-ETHIO
2.9.1 Board Appearance
Part names and functions of the scanner board are shown in the following figure. For details
of the status display LEDs, refer to the 4. Troubleshooting in this manual.
PCU-ETHIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
LED (2)
(Not in use)
D-Sub 9 pin
(Not in use)
Jumper for Board Address
JP1
JP1
0
Status Display LED (2)
1
EtherNetI/P Connector
C0 C1 C2
2.9.2 Specifications
54
Part Number
applicom PCU-ETHIO
Modes
Master/Slave
Baud Rates
10, 100 Mbps
Interface
EtherNet/IP 1 port
Maximum Node
127
Connection Type
Cyclic, Change of State
Explicit messaging
Yes
EDS support
Yes
Input Data Size
1 to 505 bytes
Output Data Size
1 to 509 bytes
Automatic Detection
Yes. Devices can be detected automatically.
Fieldbus I/O Rev.6
2. Installation
2.9.3 Software Installation
Before installing any boards in your controller, you must install the applicomIO console
application and drivers for the type of board you will be using.
(1) Start the controller.
(2) Run the C:\Install\FieldBus\Install\applicomIO\Disk1\Setup.EXE from the install
folder in the controller to start the installation.
(3) Select the desired language for the installer.
(4) Select Install Products.
(5) Select applicomIO. Do not select applicomIO ActiveX.
(6) Allow the default components to be installed.
Fieldbus I/O Rev.6
55
2. Installation
(7) Select the protocol: Ethernet you will be using.
If you also use DeviceNet, select DeviceNet as well. If you also use PROFIBUS DP,
select Profibus-DP as well.
Select which type of device data files to install (GSD for PROFIBUS DP, EDS for
DeviceNet).
(8) Complete the installation.
(9) The message to ensure the restart appears. Click the Yes button.
(10) Start the C:\Install\FieldBus\Install\SP\Setup.EXE and install the service pack.
No installation is necessary when a service pack is not attached to controller.
(11) After completing the installation of the service pack, shutdown the computer.
(12) Proceed to 2.9.4 Board Installation.
56
Fieldbus I/O Rev.6
2. Installation
2.9.4 Board Installation
WARNING
„ Make sure that the power is turned OFF before installing/removing any boards
or connecting/disconnecting any cables. Installing/removing any boards or
connecting/disconnecting any cables with the power ON is extremely hazardous
and may result in electric shock and/or malfunction of equipment.
(1) Configure the board address jumper (JP1) on each board. The board number must
start with 1 consecutively. Refer to the following table for JP1 configuration.
Short Socket
Board No.
1
2
3
4
5
6
7
8
C0
C1
C2
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
1: Short
1: Short
0: Short
0: Short
0: Short
0: Short
1: Short
1: Short
1: Short
1: Short
(2) Install the board(s) in any available PCI slot in the controller.
(3) Connect the board(s) to the Fieldbus.
(4) Start the controller.
(5) The Windows Hardware Wizard will display a message that the applicomIO board
was found and prompt you to restart the computer.
The applicomIO console application will automatically start for this first start after
installation. Close this application for now and restart the controller.
(6) Start the applicomIO console application.
(7) Click the Add Board button on the upper left of the console window to add a board.
Fieldbus I/O Rev.6
57
2. Installation
(8) The following dialog will appear.
Check that “PCI/PCU-ETHIO (“PCI-DVNIO” in case of DeviceNet, and ”“PCIDPIO” or “PCU-DPIO” in case of PROFIBUS-DP) is shown in the Board Type:
box. Then, click the OK button.
When installing more than two fieldbus boards in the system, add all the boards
using this dialog.
The following dialog will appear when no board is detected. Ensure that the board is
correctly inserted and that the board configuration is correct.
(9) Click the OK button. The following dialog will appear.
Select EtherNet/IP from Protocol, and click the OK button.
58
Fieldbus I/O Rev.6
2. Installation
(10) Click the OK button. The following dialog will appear.
Configure the IP address for the EtherNet/IP board.
Select the IP address from Static, DHCP, or BOOTP at Configuration.
Do not select Flash Memory.
When you select Static, set the values for each item.
(11) After all the boards are added, the system should be restarted.
Close the applicomIO Console application and click the OK button on the Save
modification dialog. Click the OK button on the following dialog to restart
Windows.
(12) After restarting the system, continue with the following 2.9.5 Master Mode or 2.9.6
Slave Mode sections.
Fieldbus I/O Rev.6
59
2. Installation
2.9.5 Master Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Register the device information (EDS file) that is necessary for the network setup.
Select the [Equipment Library] tab at the center of the dialog’s right side and click
the Add icon.
(3) Following dialog appears. Register the EDS file that is supplied from the device
manufacturer.
(3)-1 Click Next button.
(3)-2 Specify the folder that EDS is stored, and click the Next button.
60
Fieldbus I/O Rev.6
2. Installation
(3)-3 Check the device information in EDS, and click the Next button.
(3)-4 Click the Complete button to register the EDS file.
(4) Click the Network Detection tab on the center left of the console window.
(5) Click the Read Network Configuration button to display the Network Detection
dialog and read in the devices on the fieldbus.
Fieldbus I/O Rev.6
61
2. Installation
(6) Drag each device you want to scan from the Network Detection tab to the Master
item in the list on the right.
(7) Following dialog appears.
Uncheck the Link Parameter box and assign a value from 1 to 127. This number is
called as device ID and necessary to create SPEL+ programs.
Click the OK button to complete the registration.
(8) After finishing devices registration, select File | Download in Flash to register the
configuration in the fieldbus board.
62
Fieldbus I/O Rev.6
2. Installation
After a few seconds, the board's state will show green in the status bar.
Now, the fieldbus board is ready to operate as a master. Close the applicomIO
Console application.
Fieldbus I/O Rev.6
63
2. Installation
2.9.6 Slave Mode
(1) Ensure that the board is connected to the fieldbus. Then, start the applicomIO
console application.
(2) Double-click the “EtherNet/IP Local Slave” item.
(3) The EtherNet/IP Local Slave property sheet will appear.
Select the Number (device) ID, and check the “Active Configuration”.
(4) Click on the Assembly Instance tab. Configure how many inputs and outputs for
the slave device. In this example, the Sizes and Instances of Input and Output are set
as follows.
[Output]-[Instance] : 001
[Output]-[Size]
: 256 (bytes)
[Input]-[Instance] : 002
[Input]-[Size]
: 256 (bytes)
Value of Configuration | Size is not available for EPSON RC+. Set “0” (Words) for
this box.
NOTE
)
Make sure that the input/output size settings do not exceed 14 kbytes in total.
The input/output sizes of each node may be restricted depending on the master.
For details of the permitted data size, refer to the respective manuals of the masters.
(5) Click OK.
64
Fieldbus I/O Rev.6
2. Installation
(6) Drag EtherNet/IP Local Slave from Equipment Library to the Master item in the
list on the right.
Window in step 5 appears. Configure by the procedures from step 7.
You can create up to 32 Local Slaves if necessary.
(7) Select File | Download in Flash to register the configuration in the fieldbus board.
After a few seconds, the board's state will show green in the status bar.
(8) Close the applicomIO console application.
Fieldbus I/O Rev.6
65
2. Installation
(9) The default slave EDS file is created.
The path is: C:\Program Files\Woodhead\Direct-link\ApplicomIO2.3\ConfigIO
\Config01\applicomio.eds.
You may make a copy of the default slave EDS file and modify it to create your
original EDS file if necessary.
Edit the copy of the slave EDS file using Notepad. You may want to change the
VendName and ProductTypeStr.
Copy the EDS file to the system where the master is located. Add the new slave
device to the master using the new EDS file.
(10) On the master system, scan the network for new devices. The new slave device
should be detected.
Use the EDS file created in previous steps for the slave device.
66
Fieldbus I/O Rev.6
2. Installation
2.10 EPSON RC+ Fieldbus I/O Installation
After you have created your fieldbus network and installed the scanner board(s) in your
controller, you must configure the EPSON RC+ Fieldbus I/O option.
Before continuing, the fieldbus scanner boards must have the device configuration stored in
the board's flash memory, as described in the chapter Installation. Otherwise, the fieldbus
boards will function improperly and EPSON RC+ cannot control them.
See the 2. Installation to store the device configuration in the flash memory.
Fieldbus I/O Software Configuration
To configure Fieldbus I/O, select System Configuration from the Setup menu. Click the I/O
Systems tab, then select Fieldbus I/O from the list and click the Configure button. The dialog
shown below will be displayed.
Set the bus type, name, and board type properly and click the Read Configuration button.
Option
Description
Add
Click this button to add a Fieldbus.
Delete
Click this button to delete the last Fieldbus. It will be dimmed when
the last Fieldbus is not selected or there are no Fieldbuses installed.
Bus Type
Click in the Bus Type field and click the arrow on the right side of the
field to select the Fieldbus type.
Board Number
The Board Number field is automatically incremented. The boards
must be configured to use this number. Boards are always numbered
consecutively starting with 1.
Read Configuration Use this button to read the Fieldbus configuration for the selected
Fieldbus. You must read the configuration in order for EPSON RC+
to know the devices in the bus.
Before continuing, you must click the Read Configuration button for each bus. This
instructs EPSON RC+ to read the device configurations. If the configuration for a board is
ever changed, you must Read Configuration again.
Fieldbus I/O Rev.6
67
2. Installation
68
Fieldbus I/O Rev.6
3. Operation
3. Operation
This chapter contains information on how to use the Fieldbus I/O option after it has been
installed.
3.1 Fieldbus I/O Addressing in SPEL
+
Each of the Fieldbus I/O commands in SPEL+ refer to one device on the network. The bit
number and port number parameters refer to inputs and outputs local to the device.
3.2 SPEL+ Fieldbus I/O Commands
All Fieldbus I/O commands begin with the same prefix: "FbusIO_". Here are the main
commands. For details, please see the online help or SPEL+ Language Reference Manual.
FbusIO_GetBusStatus
Returns the status of the specified fieldbus.
FbusIO_GetDeviceStatus Returns the status of the specified fieldbus device.
NOTE
)
FbusIO_In
Returns the status of an 8 bit input port.
FbusIO_InW
Returns the status of a 16 bit input port.
FbusIO_IONumber
Returns the bit number of the specified Fieldbus I/O label.
FbusIO_Off
Turns an output off.
FbusIO_On
Turns an output on.
FbusIO_Out
Simultaneously sets 8 output bits.
FbusIO_OutW
Simultaneously sets 16 output bits.
FbusIO_Sw
Returns the status of one input bit.
FbusIO_SendMsg
Sends an explicit message to a device and returns the reply.
Response times for Fieldbus I/O can vary and depend on several factors, including baud rate,
scan rate, number and types of devices, number of SPEL+ tasks, communication error, etc.
When the fastest and most consistent response times are required, please use EPSON
Standard digital I/O, which incorporates interrupt driven inputs and outputs.
Fieldbus I/O Rev.6
69
3. Operation
3.3 Outputs Off by Emergency Stop and Reset Instruction
You can configure the system so that all outputs including the fieldbus outputs will be turned
off when the emergency stop occurs and when a Reset instruction is executed. For details of
the configuration, refer to the chapter SPEL+ Options in the EPSON RC+ User's Guide.
NOTE
)
A command that was issued just before an emergency stop can be executed after the
emergency stop condition is cleared. If the outputs from the fieldbus involve risk, the
“Outputs off during Emergency Stop” option should be enabled to remove all power to
output devices when an emergency stop occurs.
3.4 Waiting for Input or Output Status
The SPEL+ Wait statement cannot be used for Fieldbus I/O. You can make your own
function to handle this.
For example:
Function WaitFbusInput(bus As Integer, device As Integer,
bit As Integer, state As Integer)
Do
If FbusIO_Sw(bus, device, bit) = state Then
Exit Function
EndIf
Wait .01
Loop
Fend
In the program example above, a Wait statement is used to prevent the task from using too
much CPU. You can remove the Wait for faster response, but the task will use more CPU.
You may also want to add a timeout or other checks.
70
Fieldbus I/O Rev.6
3. Operation
3.5 Using FbusIO_SendMsg
FbusIO_SendMsg is used to send an explicit message to a device and return a reply. This
command operates according to the protocol.
The syntax is as follows:
FbusIO_SendMsg bus, device, msgParam, sendBytes(), recvBytes()
There are two arrays passed to the function. The sendData array contains the data that is sent
to the device in bytes. This array must be dimensioned to the correct number of bytes to send.
If there are no bytes to send, you must use 0 as the parameter. The recvData array returns the
response in bytes. This array is automatically re-dimensioned to the number of bytes received.
For DeviceNet, you need to initialize the sendData array with the command, class, instance,
and attribute, as shown in the example below. Consult the documentation that came with the
device for the values that can be used. The msgParam parameter value is always 0 for
DeviceNet messages.
Here is an example for DeviceNet, EtherNet/IP:
' Send explicit message to the device
Byte sendData(5)
Byte recvData(10)
Integer i
sendData(0) = 14 ' Command
sendData(1) = 1 ' Class
sendData(3) = 1 ' Instance
sendData(5) = 7 ' Attribute
FbusIO_SendMsg 1, 1, 0, sendData(), recvData()
For i = 0 To UBound(recvData)
Print recvData(i)
Next i
For PROFIBUS DP, you need to specify the service number in the msgParam parameter.
Consult the documentation that came with the device for the services that are supported.
Some services require 0 send bytes. In this case, use 0 for the sendBytes parameter.
Here is an example for PROFIBUS DP:
' Send message to Profibus device
Byte recvData(10)
Integer i
' Service 56 - read all inputs
' sendBytes = 0
FbusIO_SendMsg 2, 1, 56, 0, recvData()
For i = 0 To UBound(recvData)
Print recvData(i)
Next i
Fieldbus I/O Rev.6
71
3. Operation
3.6 Using Slave Mode
In slave mode, the EPSON RC+ system is a slave on the bus. Outputs from the master are
inputs in EPSON RC+, and inputs to the master are outputs in EPSON RC+.
Uses for slave mode:
•
External equipment can monitor data in the controller
•
Remote control
To use the system in slave mode, perform the following basic steps:
1. Configure local slave on the Fieldbus scanner board. Refer to the 2. Installation for
instructions for the type of hardware you are using.
2. Design your application to handle requests from the Fieldbus master and return data or
execute functions.
3.7 Remote Control Slave
If the controller will be remotely controlled by a Fieldbus master, your application must auto
start and run in a continuous loop to service requests from the master. Use OnErr, Trap Error,
Trap Emergency and Restart to accomplish this. Refer to the sample project for Fieldbus
remote slave called FieldbusRemoteSlave that is included with EPSON RC+.
72
Fieldbus I/O Rev.6
3. Operation
3.8 Devices available for Fieldbus I/O Option
The fieldbus I/O option operations were checked with the following devices.
NOTE
)
The following information about the devices is just for reference. This is not our guarantee of
the proper operation of these devices.
DeviceNet Devices
Specifications
16-input module
8-output module
Intelligent I/O module
4-channel digital input module
4-channel digital output module
Photo sensor
Motor Driver I/F
Motor Driver
RC170 DeviceNet option
PROFIBUS DP Device
Specifications
16-input module
16-output module
Intelligent I/O module
4-channel digital input module
4-channel digital output module
Motor Driver I/F
Motor Driver
RC170 PROFIBUS-DP option
Fieldbus I/O Rev.6
Model Number
TDN-8C0-108
TDN-808-118
750-346
750-431
750-530
42GNP-9000-QD1
JUSP-NS300
SGDH
RC170
Model Number
TDP-8C0-B18-02
TDN-808-B18-02
750-343
750-431
750-530
JUSP-NS500
SGDH
RC170
Manufacturer
Woodhead
Woodhead
WAGO
WAGO
WAGO
Allen-Bradley
YASKAWA ELECTRIC
YASKAWA ELECTRIC
SEIKO EPSON
Manufacturer
Woodhead
Woodhead
WAGO
WAGO
WAGO
YASKAWA ELECTRIC
YASKAWA ELECTRIC
SEIKO EPSON
73
3. Operation
3.9 Fieldbus I/O Response Performance
As mentioned previously, respond times for fieldbus I/O can vary and depend on several
factors. The values in this section are shown for reference not for guaranteed performance.
DeviceNet
Test Environment
RC520 Controller: Pentium III 850 MHz 128 MB memory
Fieldbus I/O:
PCI-DVNIO board Master (MAC ID: 0)
Baud rate:
500 kbps, 125 kbps
Connected Slave: Woodhead 16-input module (TDN-8C0-108)
Node address: 2
Connection Image
Power Tap
T-branch
T-branch
Terminating
Resistor
Terminating
Resistor
Input Module
DeviceNet
I/F Board
Power Supply
+24V
To Standard Input
Waveform
Generator
NPN Output
PNP Output
Waveform
Modification Jig
Evaluation
Signals with various pulse widths (every 5 msec) were input to the standard
I/O input and the input module of the fieldbus I/O at 1 Hz. For 10 minutes
(600 seconds), pulse widths of the received signals were measured at 125
kbps and 500 kbps.
Result
500 kbps: The input devices responded to 25-msec pulse.
125 kbps: The input devices responded to 30-msec pulse.
74
Fieldbus I/O Rev.6
3. Operation
PROFIBUS DP
Test Environment
RC520 Controller: Pentium III 850 MHz 128 MB memory
Fieldbus I/O:
PCI-DPIO board Master (station address: 0)
Baud rate:
12 Mbps, 9.6 kbps
Connected Slave: Woodhead 16-inpout module (TDP-8C0-B18-02)
Node address: 2
Connection Image
Power Supply
+24V
To Standard Input
Input Module
D-Sub
Terminating Resistor
NPN Output
PNP Output
Waveform
modification jig
Waveform
Generator
PROFIBUS
I/F Board
Evaluation
Signals with various pulse widths (every 5 msec) were input to the standard
I/O input and the input module of the fieldbus I/O at 1 Hz. For 10 minutes
(600 seconds), pulse widths of the received signals were measured at 12
Mbps and 9.6 kbps.
Result
12 Mbps: The input devices responded to 25-msec pulse.
9.6 kbps: The input devices responded to 80-msec pulse.
Fieldbus I/O Rev.6
75
3. Operation
76
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4. Troubleshooting
4.1 DeviceNet Troubleshooting
Exclusion
Every system has its special environment, conditions, specifications, and usages. This guide
is provided as a general reference for troubleshooting a DeviceNet network. Every effort has
been made to ensure the information is accurate. However, we do not guarantee the complete
accuracy of the information and thus we decline any liability for damages or costs incurred by
the use of this troubleshooting.
Before examining a problem on the network, please ensure that your established DeviceNet
system satisfies network specifications. (Refer to this troubleshooting and the section 2.2
DeviceNet Network Construction.)
Tools
Prepare the following tools for troubleshooting.
Philips screwdriver
Flat-blade screwdriver
Tester
HINT
)
Using the Woodhead NetMeter (DeviceNet diagnostic tool) is a simple way to learn physical
status of the DeviceNet network. For details of NetMeter, see Woodhead’s Web site
(http://www.mysst.com/diagnostics/NetMeter.asp).
Fieldbus I/O Rev.6
77
4. Troubleshooting (DeviceNet)
4.1.1 Examining a Problem
4.1.1.1 Scanner Board Diagnostic LEDs
The DeviceNet board used with EPSON RC+ has two status display LEDs. The layout of the
LEDs is shown in the following figure.
PCU-DVNIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Status Display LED (2)
Jumper for Board Address
JP1
DeviceNet Port
JP1
0
LED (2)
(Not in use)
1
RJ45 Connector
(Not in use)
C0 C1 C2
PCI-DVNIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Jumper for Board Address
JP1
Male 9-pin D-Sub
Port for Board Configuration
JP1
0
Status Display LED (2)
Left: Module/NetWork LED
Right: IO LED
1
DeviceNet Port
C0 C1 C2
The Module/NetWork LED is on the left and the IO LED is on the right seen from the rear
panel. These LED names are used in applicomIO Console application and this manual. Only
in this troubleshooting section, general names of the status display of the DeviceNet device
are used instead.
The Module/NetWork LED is expressed by the Network Status (NS) in this section.
The IO LED is expressed by the Module Status LED (MS) in this section.
78
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4.1.1.2 Check Network Status
(1) Master Status: MS/NS LEDs
LED
Color
† Green
† Green
MS (Module Status)
NS (Network Status)
Light Condition
† Red
† Red
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(2) Node Number of Absent Slaves
Absent slaves are disconnected from or not added to the network.
1. See the status flag regarding to the removal and addition if the master has status
information.
2. See the MS/NE LEDs of all slaves if the master has no status information.
(3) Absent Slave Status: MS/NS LEDs
LED
Color
† Green
† Green
MS (Module Status)
NS (Network Status)
† Red
† Red
Light Condition
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(4) Physical Node Location of Absent Slave
Master
Branch Tap
PLC
Terminating
Resistor
Branch Tap
Slave
Communications
Power Supply
Terminating
Resistor
Slave
Slave
Slave
Slave
Start the examination from this block
when the error occurred here.
A communication time out error occurred.
(5) Error Occurrence Condition
† Immediate occurrence (high reproducibility)
† Rare occurrence (low reproducibility)
Fieldbus I/O Rev.6
79
4. Troubleshooting (DeviceNet)
4.1.2 Problems and Countermeasures
Master Unit LED
MS
NS
Green
Green
Light ON
Light ON
Green
Green
Light ON
Light
Blinking
80
Error
Normal
communication
During connection
establishment
Green
Light ON
Red Light
Blinking
Communication
error
Green
Light ON
Red Light
ON
Busoff detection
Duplicate MAC ID
Green
Light ON
Light OFF
Unestablished
communication
Red Light
Blinking
No Matter
Configuration error
Red Light
ON
Light OFF
No Matter
Module error
Green
Light
Blinking
Absent slave
Light OFF
Light OFF
Uninitialized
network
Absent slave
Description [Reference]
- Normal condition
- Processing connection establishment
(The NS LED will be ON in green in a few seconds.)
- Master function in stop state
(When communication does not start, master analysis
with NetMeter is required.)
[Refer to the section 4.1.2.1 Master: Communication
Error.]
- Slave disconnected from the network (Remote I/O
communication error)
- Slave not added to the network (Scan list collation
error)
- Communications power supply OFF (Error detection
after the communication establishment)
[Refer to the section 4.1.2.2 Master: Busoff
Detection.]
- Busoff detection: Communication stopped due to
critical error.
- Duplicate MAC ID: The MAC ID configuration was
duplicated. (This error occurs only during unit startup)
[Refer to the section 4.1.2.3 Master: Unestablished
Communication.]
- No slave (Error detection before communication
establishment)
- Communications power supply OFF (Error detection
before the communication establishment)
- Duplicate MAC ID: The MAC ID configuration was
duplicated.
- Master unit configuration error
Refer to the respective device manuals.
[Refer to the section 4.1.2.4 Master: Configuration
Error.]
When EPSON RC+ was configured as a master:
- Slave disconnected from the network (Remote I/O
communication error)
- Slave not added to the network (Scan list collation
error)
- Duplicate MAC ID: The MAC ID configuration was
duplicated.
- Broken master unit → Unit Replacement
[Refer to the section 4.1.2.5 Absent Slave.]
- No slave (Error detection before communication
establishment)
- Communications power supply OFF
[Refer to the section 4.1.2.6 Uninitialized Network.]
- Master unit start-up error
- No slave (Error detection before communication
establishment)
- Communications power supply OFF
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Process Flowchart
Master LED
Examining a
trouble.
See 4.1.1. Examining
Details of Trouble.
MS: Green ON
NS: Red Blinking
Absent Slave LED
Yes
MS: OFF
NS: OFF
Yes
1
Slave:
Not Operating
2
Slave:
Communication
Error Detection
3
Slave:
Busoff Detection See 4.1.2.1.2.
4
Slave:
Not Added
See 4.1.2.1.1.
No
No
MS: Green ON
NS: Red Blinking
Yes
See 4.1.2.1.2.
No
MS: Green ON
NS: Red ON
Yes
No
MS: Green ON
NS: OFF
No
(Other)
MS: Green ON
NS: Red ON
Yes
Yes
See 4.1.2.1.2.
Broken Slave Unit
Replace the unit.
5
Master:
Busoff Detection
See 4.1.2.2.
6
Master:
Unestablished
Communication
See 4.1.2.3.
7
Master Unit:
Configuration Error
See 4.1.2.4.
8
Master:
Absent Slave
See 4.1.2.5.
9
Master:
Uninitialized Network See 4.1.2.6.
No
MS: Green ON
NS: OFF
Yes
No
MS: Red Blinking
Yes
No
MS: OFF
Yes
NS: Green Blinking
No
MS: OFF
NS: OFF
Yes
No
MS: Red ON
Other
Fieldbus I/O Rev.6
Broken Master Unit
Replace the Unit.
81
4. Troubleshooting (DeviceNet)
4.1.2.1 Master: Communication Error
Master Unit LED
Error
MS
NS
Green
Red Light Communication
Light ON Blinking error
Description
- Slave disconnected from the network
(Remote I/O communication error)
- Slave not added to the network
(Scan list collation error)
- Communications power supply OFF
(Error detection after the communication
establishment)
4.1.2.1.1 Slave: Not Operating
Master LED Condition
Absent Slave LED Condition
MS
NS
Green Light ON
Light OFF
Red Light Blinking
Light OFF
♦ Process Flowchart
Check
† No Problem
1
Is power supplied to slaves?
No
Supply power.
Yes
No
Is MS LED light ON?
Yes
Replace the unit.
Normal communication?
No
Yes
Finish
See other errors.
82
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Slave power OFF
{ Broken unit
Examination Method
Measure the power voltage of the
slaves. (It should be within the range
of sufficient voltage for the slave
operation.)
NOTE: For slaves operating with
communications power
supply, measure voltage at
the DeviceNet connector.
Slave unit replacement
Countermeasure
Supply power to the
slave.
Replace the broken
slave unit with a new
one.
4.1.2.1.2 Slave: Communication Error Detection / Busoff Detection / Not-added
Master LED Condition
(1) Absent Slave LED Condition
(Communication error detection)
(2) Absent Slave LED Condition
(Busoff detection)
(3) Absent Slave LED Condition
(Slave not added to the network)
Fieldbus I/O Rev.6
MS
NS
Green Light ON
Red Light Blinking
Green Light ON
Red Light Blinking
Green Light ON
Red Light ON
Green Light ON
Light OFF
83
4. Troubleshooting (DeviceNet)
♦ Process Flowchart
Check
2
3
4
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Measure voltage of
communications power supply.
† No Problem
Problem exits. (Fix it.)
No problem
Replace the trouble unit.
† No Change
The problem is fixed.
No change
Replace moving cable
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
Check for noise influence.
† No Change
The problem is fixed.
See 4.1.3.3.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
„ Analyze the network with NetMeter.
„ Consult the DeviceNet manufacturer.
84
Finish
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Disconnected
terminating resistors
{ Cable disconnection
{ Disconnected
connector
{ Disconnected signal
wire
{ Loose connector
{ Loose signal wire
{ Voltage drop of
communications
power supply
{ Noise
(external cause)
{ Broken unit
z No cause is
identified.
Fieldbus I/O Rev.6
Examination Method
(1) Check that terminating
resistors are connected to
both ends of the network.
(2) Measure resistance
between signal wires with
communications power
supply OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection
of the trouble unit
z For detail, refer to the section
4.1.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all nodes and all
branch taps
z For details, refer to the
section 4.1.3.2 Loose
Connector and Signal Wire.
Measure voltage of
communications power supply
at the unit with a trouble.
→ Normal: 11V or more
between V+ and Vz If the voltage is 11 to 14 V,
the unit is a possible cause.
Fix the problem on the unit.
Check the noise intrusion via
the following paths (1) to (3).
(1) Noise via DRAIN (FG)
(2) Induced noise via
communication cable
(3) Communications power
supply
→ For details, refer to the
section 4.1.3.3 Noise
Intrusion.
Replace the broken unit with a
new one.
→ Verify whether the problem
is fixed.
Identify the trouble point by
dividing the network.
→ For details, refer to the
section 4.1.3.4 Broken Unit
Examination.
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 120 Ω.
Connect the connectors and
signal wires again.
Check the voltage of the
power supply.
Calculate the current
capacity of the cable and add
more communications power
supplies.
Take countermeasures
against noise.
Replace the unit with a new
one.
85
4. Troubleshooting (DeviceNet)
4.1.2.2 Master: Busoff Detection
Master Unit LED
Error
MS
NS
Green
Red Light Busoff detection
Light ON ON
Duplicate MAC ID
86
Description
Communication stopped due to critical
error.
The MAC ID configuration was
duplicated. (This error occurs only
during unit start-up)
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Process Flowchart
Check
5
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Measure voltage of
communications power supply.
† No Problem
Problem exits. (Fix it.)
No problem
Replace the master unit.
† No Change
The problem is fixed.
No change
Replace moving cable
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
Check for noise influence.
† No Change
The problem is fixed.
See 4.1.3.3.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
„ Analyze the network with NetMeter.
„ Consult the DeviceNet manufacturer.
Fieldbus I/O Rev.6
Finish
87
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Disconnected
terminating resistors
{ Cable disconnection
{ Disconnected
connector
{ Disconnected signal
wire
{ Loose connector
{ Loose signal wire
{ Voltage drop of
communications
power supply
{ Noise
(external cause)
{ Broken unit
z No cause is
identified.
88
Examination Method
(1) Check that terminating
resistors are connected to
both ends of the network.
(2) Measure resistance between
signal wires with
communications power
supply OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection
of the problem unit
z For detail, refer to the section
4.1.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all nodes and all
branch taps
z For details, refer to the section
4.1.3.2 Loose Connector and
Signal Wire.
Measure voltage of
communications power supply at
the trouble unit.
→ Normal: 11V or more between
V+ and Vz If the voltage is 11 to 14 V, the
unit is a possible cause. Fix the
problem on the unit.
Check the noise intrusion via the
following paths (1) to (3).
(1) Noise via DRAIN (FG)
(2) Induced noise via
communication cable
(3) Communications power
supply
→ For details, refer to the section
4.1.3.3 Noise Intrusion.
Replace the broken unit with a
new one.
→ Verify whether the problem is
fixed.
Identify the trouble point by
dividing the network.
→ For details, refer to the section
4.1.3.4 Broken Unit
Examination.
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance
changes from 120 Ω.
Connect the connectors
and signal wires again.
Check the voltage of the
power supply.
Calculate the current
capacity of the cable and
add more communications
power supplies.
Take countermeasures
against noise.
Replace the unit with a
new one.
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4.1.2.3 Master: Unestablished Communication
Master Unit LED
Error
MS
NS
Green
Light
Light ON OFF
Master
Unestablished
communication
Description
Communications power supply OFF
No slave
♦ Process Flowchart
Check
† No Problem
6
Measure voltage of
communications power supply
at the master unit.
Problem exists. (Fix it.)
No problem
† No Problem
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Problem exists. (Fix it.)
† No Problem
Check that power is supplied to all slaves.
No problem
Problem exists. (Fix it.)
† No Problem
Check for master unit configuration.
No problem
Finish
Replace the master unit.
Fieldbus I/O Rev.6
89
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Voltage drop of
communications
power supply
{ Disconnected
terminating
resistors
{ Cable
disconnection
{ Disconnected
connector
{ Disconnected
signal wire
{ Loose connector
{ Loose signal wire
{ All slaves power
OFF
{ Master unit
configuration
90
Examination Method
Measure voltage of
communications power supply at
the master unit.
→ Normal: 11V or more between
V+ and Vz If the voltage is 11 to 14 V, the
master unit is a possible cause.
Fix the problem on it.
(1) Check that terminating
resistors are connected to
both ends of the network.
(2) Measure resistance between
signal wires with
communications power
supply OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection
of the master
z For detail, refer to the section
4.1.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: Between the
master and its slaves
z For details, refer to the section
4.1.3.2 Loose Connector and
Signal Wire.
Measure the power voltage of the
slaves. (It should be within the
range of sufficient voltage for
slave operation.)
(1) Start applicomIO Console
application and check that the
configuration
has
no
difference with the network
condition.
(2) Check that the configuration
data were written in flash.
z For details, refer to the section
4.1.3.6 EPSON RC+ Master
Configuration.
Countermeasure
Check voltage of the power
supply.
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance
changes from 120 Ω.
Connect the connectors
and signal wires again.
Supply power to the slaves.
Change the configuration.
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4.1.2.4 Master: Configuration Error
Master Unit LED
Error
MS
NS
Red
Light
Blinking
Fieldbus I/O Rev.6
No
Matter
Configuration error
Slave error
detection
Description
- Slave disconnected from the network
(Remote I/O communication error)
- Slave not added to the network (Scan list
collation error)
- Duplicate MAC ID: The MAC ID
configuration was duplicated.
91
4. Troubleshooting (DeviceNet)
♦ Process Flowchart
Check
7
Check for master unit
configuration (scan list configuration).
† No Problem
The problem is fixed.
No problem
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Measure voltage of
communications power supply.
† No Problem
Problem exists. (Fix it.)
No problem
† No Change
Replace moving cable
(Replace deteriorated cable).
The problem is fixed.
No change
† No Change
Check for noise influence.
The problem is fixed.
See 4.1.3.3.
No change
Replace the master unit.
† No Change
† The trouble unit is not found.
Rarely
The problem is fixed.
No change
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
„ Analyze the network with NetMeter.
„ Consult the DeviceNet manufacturer.
92
Finish
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Master unit
configuration
{ Disconnected
terminating
resistors
{ Cable
disconnection
{ Disconnected
connector
{ Disconnected
signal wire
{ Loose connector
{ Loose signal
wire
{ Voltage drop of
communications
power supply
{ Noise
(external cause)
{ Broken unit
z No cause is
identified.
Fieldbus I/O Rev.6
Examination Method
(1) Start
applicomIO
Console
application and check that the
configuration has no difference
with the network condition.
(2) Check that the configuration data
were written in flash.
(3) Check that the network load is
within allowable range.
z For details, refer to the section
4.1.3.6 EPSON RC+ Master
Configuration.
(1) Check that terminating resistors
are connected to both ends of the
network.
(2) Measure resistance between signal
wires with communications power
supply OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection of the
trouble unit
z For detail, refer to the section
4.1.3.1 Connection Problem.
Check for the connection of connectors
and signal wires.
→ The connectors and signal wires
should be firmly connected.
z Checkpoint: all nodes and all branch
taps
z For details, refer to the section
4.1.3.2 Loose Connector and Signal
Wire.
Measure voltage of communications
power supply at the unit with a trouble.
→ Normal: 11V or more between V+
and Vz If the voltage is 11 to 14 V, the unit
is a possible cause. Fix the problem
on the unit.
Check the noise intrusion via the
following paths (1) to (3).
(1) Noise via DRAIN (FG)
(2) Induced noise via communication
cable
(3) Communications power supply
→ For details, refer to the section
4.1.3.3 Noise Intrusion.
Replace the broken unit with a new
one.
→ Verify whether the problem is
fixed.
Identify the trouble point by dividing
the network.
→ For details, refer to the section
4.1.3.4 Broken Unit Examination.
Countermeasure
Change the configuration.
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network.
The trouble
point is where resistance
changes from 120 Ω.
Connect the connectors
and signal wires again.
Check the voltage of the
power supply.
Calculate
the
current
capacity of the cable and
add more communications
power supplies.
Take
countermeasures
against noise.
Replace the unit with a
new one.
93
4. Troubleshooting (DeviceNet)
4.1.2.5 Absent Slave
Master Unit LED
MS
Light
OFF
Error
NS
Green
Light
Blinking
Absent slave
Description
- No slave (Error detection before
communication establishment)
- Communications power supply OFF
♦ Process Flowchart
Check
† No Problem
8
Measure voltage of
communications power supply
at the master unit.
Problem exists. (Fix it.)
No problem
† No Problem
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Problem exists. (Fix it.)
† No Problem
Check that power is supplied to all slaves.
No problem
Problem exists. (Fix it.)
† No Problem
Check for master unit configuration.
No problem
Finish
Replace the master unit.
94
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Voltage drop of
communications
power supply
{ Disconnected
terminating
resistors
{ Cable
disconnection
{ Disconnected
connector
{ Disconnected
signal wire
{ Loose connector
{ Loose signal wire
{ All slaves power
OFF
{ Master unit
configuration
Fieldbus I/O Rev.6
Examination Method
Measure voltage of
communications power supply at
the master unit.
→ Normal: 11V or more between
V+ and Vz If the voltage is 11 to 14 V, the
unit is a possible cause. Fix the
problem on the unit.
(1) Check
that
terminating
resistors are connected to both
ends of the network.
(2) Measure resistance between
signal
wires
with
communications power supply
OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection of
the master
z For detail, refer to the section
4.1.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: Between the master
and its slaves
z For details, refer to the section
4.1.3.2 Loose Connector and
Signal Wire.
Measure the power voltage of the
slaves.
(It should be within the range of
sufficient voltage for the slave
operation.)
(1) Start applicomIO Console
application and check that the
configuration
has
no
difference with the network
condition.
(2) Check that the configuration
data were written in flash.
z For details, refer to the section
4.1.3.6 EPSON RC+ Master
Configuration.
Countermeasure
Check voltage of the power
supply.
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 120 Ω.
Connect the connectors and
signal wires again.
Supply power to the slaves.
Change the configuration.
95
4. Troubleshooting (DeviceNet)
4.1.2.6 Uninitialized Network
Master Unit LED
MS
Error
Description
Uninitialized network
Absent slave
- Master unit start-up error
- No slave (Error detection before
communication establishment)
- Communications power supply OFF
NS
Light OFF Light OFF
♦ Process Flowchart
Check
† No Problem
9
Measure voltage of
communications power supply
at the master unit.
Problem exists. (Fix it.)
No problem
† No Problem
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
Problem exists. (Fix it.)
See 4.1.3.1 and 4.1.3.2.
No problem
Problem exists. (Fix it.)
† No Problem
Check that power is supplied to all slaves.
No problem
Problem exists. (Fix it.)
† No Problem
Check for master unit configuration.
No problem
Finish
Replace the master unit.
96
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Causes of Error
Possible Cause
{ Voltage drop of
communications
power supply
Examination Method
Measure voltage of
communications power supply at
the master unit.
→ Normal: 11V or more between
V+ and Vz If the voltage is 11 to 14 V, the
master unit is a possible cause.
Fix the problem on it.
{ Disconnected
(1) Check that terminating
terminating resistors
resistors are connected to
{ Cable disconnection
both ends of the network.
{ Disconnected
(2) Measure resistance between
connector
signal wires with
{ Disconnected signal
communications power
wire
supply OFF.
→ Normal: 50 to 70 Ω
z Measuring point: Connection
of the master
z For detail, refer to the section
4.1.3.1 Connection Problem.
{ Loose connector
Check for the connection of
{ Loose signal wire
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: Between the
master and its slaves
z For details, refer to the section
4.1.3.2 Loose Connector and
Signal Wire.
{ All slaves power
Measure the power voltage of the
OFF
slaves.
(It should be within the range of
sufficient voltage for slave
operation.)
{ Master unit
(1) Start applicomIO Console
configuration
application and check that
the configuration has no
difference with the network
condition.
(2) Check that the configuration
data were written in flash.
z For details, refer to the section
4.1.3.6 EPSON RC+ Master
Configuration.
Fieldbus I/O Rev.6
Countermeasure
Check voltage of the power
supply.
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance
changes from 120 Ω.
Connect the connectors
and signal wires again.
Supply power to the slaves.
Change the configuration.
97
4. Troubleshooting (DeviceNet)
4.1.3 Procedures for Examining Possible Causes
4.1.3.1 Connection Problem (Disconnected Terminating Resistors, Cable
Disconnection, Disconnected Connector, Disconnected Signal Wire)
(1) Ensure that two terminating resistors are connected to both ends of the network.
(2) Turn OFF the communications power supply.
(3) Measure resistance between CAN_H and CAN_L wires of the absent slave using the
tester.
Tester
Measure resistance between signal wires with tester.
Ω
Red (CAN H)
Blue (CAN L)
Resistance
0Ω
Under 50 Ω
50 to 70 Ω
70 to 120 Ω
Over 120 Ω
Determination
Shot circuit
Three or more terminating resistors on one network
Normal
Error (cable disconnection or disconnected signal wire on the
trunk line)
Error (cable disconnection or disconnected signal wire on drop
line or trunk line → Both CAN_H and CAN_L)
(4) How to find the trouble point:
- Remove the terminating resistor on one end of the network.
(The resistance at the point where the terminating resistor is connected is 120
Ω.)
- Measure resistance at branch taps of all units.
- The trouble point is where resistance changes from 120 Ω.
- After finding the trouble point, verify the connector and cable conditions.
98
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Process Flowchart
Check for cable laying.
Check that
terminating resistors
are connected.
Problem exists.
(Add terminating resistors.)
Normal
Turn OFF communications power supply.
Measure resistance
with tester.
50 to 70 Ω
Out of 50 to 70 Ω (Error)
Normal
Resistance: over 70 Ω
Yes
See 4.1.3.2.
Remove one terminating
resistor on either side.
No
Resistance: under 50 Ω
Under 10 Ω
10 to 50 Ω
Approx.
120 Ω
Measure
resistance at
connectors and
branch taps with
tester.
Check for connection
with terminating resistors
and branch taps.
Check for short
circuit between
signal wires.
(1) Three
or
more
terminating resistors
(2) Wrong
terminating
resistors, etc.
Short
circuit
between signal
wires
Other
Find the trouble point.
(1) Unconnected or loose connector
(2) Cable disconnection, etc.
Fieldbus I/O Rev.6
99
4. Troubleshooting (DeviceNet)
4.1.3.2 Loose Connector and Signal Wire
Check for the connections of the following parts on the connector and cable.
(1) Crimp Terminal
Crimping Terminal
(2) Connection of connector and signal wire
Small flat-blade screwdriver with even thickness
(3) Connection of connector and unit (T-branch tap)
Connector on the node
(mask) side
Connector on the
T-branch side
Connector on
the cable side
Screw
Cable side
Male Female
Female
100
Mounting
hole
Male Female
Thin cable
Thin cable
Cable with M12
micro-size shielded
connector (at one
end or both ends)
Screw
Male
Cable with M12
micro-size shielded
connector (at one
end or both ends)
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4.1.3.3 Noise Intrusion
Verify how an error occurrence condition changes while taking the following
countermeasures.
♦ Ground of FG (DRAIN) wire
Normal Grounding: Ground the DeviceNet network at only one point.
Power Supply Tap
V+
CAN H
Shield (S)
CAN L
V-
V+
CAN H
Shield (S)
CAN L
V-
DeviceNet cable
V+ V- S
V+ V- FG
Ground 100 Ω or less.
Communications
power supply
24 V DC
Countermeasure 1: Disconnect the wire between V- and FG.
Disconnect the wire between V- and FG when you cannot ground the FG wire.
Power Supply Tap
V+
CAN H
Shield (S)
CAN L
V-
V+
CAN H
Shield (S)
CAN L
V-
V+ V- S
DeviceNet cable
Disconnect here.
V+ V- FG
Ground 100 Ω or less.
Communications
Power Supply
24 V DC
Fieldbus I/O Rev.6
101
4. Troubleshooting (DeviceNet)
Countermeasure 2: Disconnect the shield wire to isolate it from the ground.
When noise intrudes the ground line because a noise source such as an inverter is
installed near the communications power supply, disconnect the shield wire of the
communication cable and isolate it from the ground to restrain noise intrusion.
Power Supply Tap
V+
CAN H
Shield (S)
CAN L
V-
V+
CAN H
Shield (S)
CAN L
V-
V+ V- S
DeviceNet cable
Disconnect here.
V+ V- FG
Ground 100 Ω or less.
Communications
Power Supply
24 V DC
♦ Induced noise via communication cable
Separate the DeviceNet signal wire from the other wires (especially power wires).
* Separate the signal wire from the power wires 300 mm or more.
Light electrical cable
Communication cable
Suspended ducts
Signal wire
PLC input/output wire
PLC power wire
Control circuit wire
1
1
Control cable
300 mm
or more
Power cable
300 mm
or more
Floor ducts
2
2
Conduit
1
2
1 Signal wire
PLC input/output wire
2 Power wire
Power wire
During site inspection, bypass the wire that is possibly affected by induced noise with other
cables and then lay the cables. Establish the communication under no induced noise
condition and verify whether an error occurs.
102
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
♦ Communications Power Supply
When sharing one power source with the communications power supply and I/O devices,
provide respective power sources separately.
Separating power source prevents noise caused by I/O device operations from affecting
communication.
Communications
Power Supply 24V
Power Supply Tap
Disconnect I/O devices from the communications power supply.
Fieldbus I/O Rev.6
103
4. Troubleshooting (DeviceNet)
4.1.3.4 Broken Unit Examination (Dividing Network Examination)
When you cannot quickly find the trouble point due to a broken unit, connection failure
including loose connector, or cable partial disconnection, divide the network to find the
trouble point. Verify how error occurrence conditions change while taking the following
countermeasures.
How to Examine
Divide the network to find which node is the cause of the problem.
Verify that a master can establish communications with the slaves even though one slave is
separated from the network.
After finding the problem node, check the cables connected to it and replace the unit.
How to Divide
To divide the network, follow either procedure described below depending on the cable
layout.
(1) Separating each block from the network
Divide the network by block and check each block.
1. Ensure that the master has no problem by connecting it to its slaves one by one.
(MS/NS: green light ON)
2. Divide the network in the middle of it and check for the communication condition.
(MS/NS: green light ON)
Normal: The trouble point is on the other half of the network.
Error: The trouble point is on the current half of the network.
(Continue dividing the half of the network further to distinguish error part from
normal part.)
3. Check for communication on the block to specify the trouble point.
Master
Branch Tap
Connect the terminating resistor to the branch
taps one by one to specify which device is the
limit of the normal communications.
PLC
Terminating
Resistor
Branch Tap
Slave
Slave
Slave
Slave
Communications
Power Supply
Terminating Resistor
104
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
(2) Separate each slave from the network
Check for each slave. The trouble point is where error condition changes into normal
condition.
Master
Branch Tap
PLC
Terminating
Resistor
Branch Tap
Slave
Communications
Power Supply
Terminating
Resistor
Slave
Slave
Slave
Second
First
Separate slaves one by one from
the network.
4.1.3.5 Network Configuration and Specifications
(1) Maximum Network Length and Drop Line Length
Check that the cables used on the network meet the following specifications.
Type
Thick Cable
Thin Cable
Baud Rate
Max. Network
Length
500 kbps
250 kbps
125 kbps
500 kbps
250 kbps
125 kbps
100 m
250 m
500 m
100 m
100 m
100 m
Drop Line
Length
Total Drop
Line Length
6m
39 m
78 m
156 m
39 m
78 m
156 m
(2) Terminating Resistor
Ensure that two terminating resistors are connected to both ends of the network (trunk
line). The terminating resistor should be 121 Ω 1/4 W.
(3) Cable and Branch Tap
The cables and branch taps should meet the DeviceNet specifications.
(4) Communications Power Supply
The communications power supply should be dedicated to DeviceNet.
Do not share power source with the communications power supply and I/O device. *
* Noise due to load on/off may affect DeviceNet communications via the
communications power supply.
(The noise causes remote I/O communication error, Busoff detection, and broken
unit.)
Fieldbus I/O Rev.6
105
4. Troubleshooting (DeviceNet)
4.1.3.6 EPSON RC+ Master Configuration
For details of EPSON RC+ master configuration, refer to the section 2.5 DeviceNet Board
Installation.
The following section describes the procedure for verifying the scanner board condition with
applicomIO Console application.
4.1.3.6.1 Verifying applicomIO Console application condition
The status bar at the bottom of the window shows the applicomIO Console
application status. The status bar varies as shown below:
Character:
The address number of the scanner board is indicated with
characters. When the character “F” appears, the flash memory
on the board initialized the scanner board.
Background color:The background color indicates the scanner board status. For
details, refer to the table below.
Background Character
Status
Gray
Black
Access to scanner board was failed.
106
Magenta
Black
Red
Black
Yellow
Black
Dark green
White
Green
Black
After that, the status bar will not be renewed
automatically. To renew the status bar, right-click
the status bar and select Refresh.
The scanner board was initialized with an earlier
version applicomIO Console application.
It is recommended that the scanner board be written
into the flash memory (reinitializing the scanner
board) again with the current version applicomIO
Console application.
The scanner board was not initialized.
Initialize the scanner board to use it.
The scanner board was partially initialized.
This status happens only during network detection
and on-line actions.
Although the scanner board was initialized, it is
different than the currently opened configuration.
(Different version, etc.)
It is recommended that the scanner board be written
into the flash memory (reinitializing the scanner
board) again with the current version applicomIO
Console application.
This status happens only during network detection,
on-line actions, and diagnostic.
The scanner board was initialized properly and it is
no different with the currently opened
configuration.
This status happens only during network detection,
on-line actions, and diagnostics.
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
4.1.3.6.2 Verifying the DeviceNet network condition
The applicomIO Console application has a network diagnostic function
(Diagnostic). The procedure for using the Diagnostic is described below.
(1) Open the Diagnostic window, click the magnifying grass button, and select the
“Channel” on the device tree in the left side of the window. The window
changes as shown below.
The CAN and DeviceNet (scanner) tabs appear on the data display in the right
side of the window.
The CAN controller status of the scanner board is displayed on the CAN tab.
Rx
: Number of receive data bytes and flames
Tx
: Number of send data bytes and flames
OverRun : Number of communication overrun errors detected by CAN
controller
Errors : Number of communication errors detected by CAN controller
Bus Off : Number of Busoff detections
Baud Rate :
baud rate
Bus Load: Load on the bus (maximum, minimum, current)
NOTE
)
Use DeviceNet so that the load on a bus is under 60% of the maximum load.
When the load exceeds 60%, the DeviceNet network communication will be
unstable. (For example, more communication errors)
For the procedure for master configuration, refer to respective master device
manuals. For EPSON RC+ master configuration, refer to the section 2.5.5
Master Mode.
Fieldbus I/O Rev.6
107
4. Troubleshooting (DeviceNet)
(2) Select the DeviceNet (Scanner) tab. The window changes as shown below.
MAC ID
:
Module/NetWork LED
IO LED
:
applicomR Status
:
MAC ID specified for the scanner board
:
Network Status (NS) LED status
Module Status (MS) LED status
Scanner board status
The scanner board status is shown in the “Code No. => Comment” form. The
code numbers are shown in the following table.
Status Code
General Protocol
0
4
32
33
34
36
108
Descriptions
No fault detected. The function was performed
correctly.
Inaccessible data.
Additional information:
The remote device is in error.
Check its status.
Indicates that the parameters passed to the functions
are not correct (eg: Number of requested variables
too large)
Response time-out fault.
Additional information:
The device does not answer. Check its status and the
wiring.
The DeviceNet master has no device to be scanned in
its configuration.
Physical defect on the line.
Additional information:
No +24V power supply was detected.
The CAN component of the applicomIO® interface
is "Bus Off".
Check the network wiring and Baud Rate.
Device not configured.
Define the device configuration with the
applicomIO® Console and re-initiate the
initialization of the applicomIO® product by running
the PcInitIO
Fieldbus I/O Rev.6
4. Troubleshooting (DeviceNet)
Status Code
General Protocol
45
47
53
55
65
70
79
63
66
93
99
255
Fieldbus I/O Rev.6
Descriptions
Non-resident dialogue software.
Additional information:
Initialize the applicomIO® interface before use by
running the PcInitIO
Targeted applicomIO® card invalid or incorrectly
initialized by the function IO_Init
Synchronization problem on the line.
Additional information:
The DeviceNet master is "off line" (power supply
not detected or the CAN component of the
applicomIO® is "Bus Off")
Check the network wiring and Baud Rate.
Response time-out exceeded.
Additional information:
The device accepted the connection but did not
answer the request.
Check the device status.
Connection denied.
Additional information:
Connection to the DeviceNet master is in progress
or refused by the device.
Connection finished.
Additional information:
Duplication of MAC ID detected on the DeviceNet
network.
Modify the MAC ID of the DeviceNet master.
Profile incompatible.
Additional information:
The device does not match the configuration.
Check the device identity and the connection sizes.
Indicates that a communication error has been
encountered on serial Port.
Not enough applicomIO® interface memory.
Driver cannot be accessed.
Indicates that applicomIO® solution is already
running.
Indicates that the local input buffer was not updated
beforehand by the function IO_RefreshInput.
109
4. Troubleshooting (DeviceNet)
(3) When you click the I/O button on the upper left of the window, the window
changes as shown below.
Each slave device status is shown in the right side of the window.
A green circle indicates that the communication of the corresponding device is
normal, and a red circle indicates that there is a communication error. A gray
circle indicates that the corresponding device does not exist.
(4) When you select “Equipment” on the device tree in the left side of the window,
the window changes as shown below.
The input and output statuses of the selected device are shown in the right side
of the window.
If you want to change output data, click the byte number you want to change in
the Output Mapping box. Then, enter a value in the Write box in the
“Selected Output Value” and click the Write button.
110
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2 PROFIBUS DP Troubleshooting
Exclusion
Every system has its special environment, conditions, specifications, and usages. This guide
is provided as general reference for troubleshooting a PROFIBUS DP network. Every effort
has been made to ensure the information is accurate. However, we do not guarantee the
complete accuracy of the information and thus we decline any liability for damages or costs
incurred by the use of this troubleshooting.
Before examining a problem on the network, please ensure that your established PROFIBUS
DP system satisfies network specifications. (Refer to this troubleshooting and the section 2.4
PROFIBUS DP Network Construction.)
Tools
Prepare the following tools for troubleshooting.
Philips screwdriver
Flat-blade screwdriver
Tester
Fieldbus I/O Rev.6
111
4. Troubleshooting (PROFIBUS DP)
4.2.1 Examining a Problem
4.2.1.1 Scanner Board Diagnostic LEDs
The PROFIBUS DP board used with EPSON RC+ has two status display LEDs. The layout
of the LEDs is shown in the following figure.
PCU-DPIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
Status Display LED (2)
Jumper for Board Address
JP1
PROFIBUS-DP Port
JP1
0
LED (2)
(Not in use)
1
RJ45 Connector
(Not in use)
C0 C1 C2
PCI-DPIO
Configuration Port
Communication Status LED
Male 9-pin D-Sub
Port for Board Configuration
Jumper for Board Address
JP1
Status Display LED (2)
Left: Communication Status LED
Right: Physical Error LED
JP1
0
Female 9-pin D-Sub
PROFIBUS DP Port
1
C0 C1 C2
4-pin Terminal
Watchdog Port
(Do not use this port.)
The Communication Status LED is on the left and the Physical Error LED is on the right seen
from the rear panel.
The Communication Status LED is expressed by the ST LED (ST) in this section.
The Physical Error LED is expressed by the BF LED (BF) in this section.
112
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.1.2 Check Network Status
First of all, you should check the current condition of the network. There are different
specifications of status display LED on a device in the PROFIBUS DP standard. This section
explains how to check the network status assuming that EPSON RC+ is configured as a
master or slave.
(1) Master Status: BF/ST LEDs
LED
BF (Physical error)
ST (Communication Status)
Color
† Green
† Green
Light Condition
† Red
† Red
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(2) Station Number of Absent Slaves
Absent slaves are disconnected from or not added to the network.
1. See the status flag regarding to the removal and addition if the master has status
information.
2. See the BF/ST LEDs of all slaves if the master has no status information.
(3) Absent Slave Status: BF/ST LEDs
LED
BF (Physical error)
ST (Communication Status)
Color
† Green
† Green
Light Condition
† Red
† Red
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(4) Physical Node Location of Absent Slave
Master
PLC
Terminating Resistor ON
Slave
Slave
Slave
Terminating Resistor ON
Terminating
Resistor ON
Slave
Slave
Slave
Start the examination from this block
when an error occurred here.
(5) Error Occurrence Condition
† Immediate occurrence (high reproducibility)
† Rare occurrence (low reproducibility)
Fieldbus I/O Rev.6
113
4. Troubleshooting (PROFIBUS DP)
4.2.2 Problems and Countermeasures
Master Unit LED
BF
ST
Description [Reference]
Light
OFF
Green
Light
Blinking
Normal
communication
- Normal condition
Light
OFF
Green
Light ON
Ready for
communication
- Normal condition
Light
OFF
Red
Light
Blinking
Communication
error
[Refer to the section 4.2.2.1 Master
Communication Error.]
- Slave disconnected from the network
(Remote I/O communication error)
- Slave not added to the network (Scan list
collation error)
- Nonstandard wiring
- No or too many terminating resistors
- Noise intrusion
Light
OFF
Red
Light ON
Data link layer
error
[Refer to the section 4.2.2.2 Master: Data
Link Layer Error.]
- Nonstandard wiring
- Noise intrusion
Light
OFF
Light
OFF
Uninitialized
network
[Refer to the section 4.2.2.3 Master:
Uninitialized Network.]
- Master unit power error
- Master unit configuration error
Physical error
[Refer to the section 4.2.2.4 Master:
Configuration Error.]
- Nonstandard wiring
- Signal wire connection failure
- Signal wire short circuit
Red
No
Light ON Matter
114
Error
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Process Flowchart
Absent Slave LED
Master LED
Examining a
trouble.
See 4.2.1 Examining
Details of Trouble.
Yes
BF: OFF
ST: Red Blinking
BF: OFF
ST: Green ON
Yes
1
Master:
Communication Error
See
4.2.2.1.1.
2
Slave:
Communication Error
See
4.2.2.1.1.
3
Slave:
Data Link Error
See
4.2.2.1.2.
4
Slave:
Uninitialized Network
See
4.2.2.1.3.
5
Slave:
Physical Error
See
4.2.2.1.4.
6
Master:
Data Link Error
See
4.2.2.2.
7
Master:
Uninitialized Network
See
4.2.2.3.
8
Master:
Physical Error
See
4.2.2.4.
No
No
BF: OFF
Yes
ST: Red Blinking
No
BF: OFF
ST: Red ON
Yes
No
BF: OFF
ST: OFF
Yes
No
BF: Red ON
Other
BF: OFF
ST: Red ON
Yes
No
BF: OFF
ST: OFF
Yes
No
BF: Red ON
Other
Fieldbus I/O Rev.6
115
4. Troubleshooting (PROFIBUS DP)
4.2.2.1 Master: Communication Error
Master Unit LED
Error
Description
BF
ST
Light
Red
Communication - Slave disconnected from the network
(Remote I/O communication error)
OFF
Light
error
- Slave not added to the network (Scan list
Blinking
collation error)
- Nonstandard wiring
- No or too many terminating resistors
- Noise intrusion
4.2.2.1.1 Master/Slave: Communication Error
Master LED Condition
Absent Slave LED Condition
(Communication error)
116
BF
ST
Light OFF
Light OFF
Light OFF
Red Light Blinking
Green Light Blinking
Red Light Blinking
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Process Flowchart
Check
1
2
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.2.3.1 and 4.2.3.2.
No problem
Measure voltage of all
slave power supplies.
† No Problem
Problem exists. (Fix it.)
No problem
† No Change
Replace the trouble unit.
The problem is fixed.
No change
Replace moving cable.
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
The problem is fixed.
Check for noise influence.
† No Change
See 4.2.3.3.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
Consult the PROFIBUS manufacturer.
Fieldbus I/O Rev.6
Finish
117
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
{ Disconnected
terminating
resistors
{ Cable
disconnection
{ Disconnected
connector
{ Disconnected
signal wire
{ Loose connector
{ Loose signal wire
{ Electrical surges of
device power
supply
{ Noise
(external cause)
{ Broken unit
z No cause is
identified.
118
Examination Method
(1) Check that terminating
resistors are connected to
both ends of the network.
(2) Measure resistance between
signal wires with device
power supply OFF.
→ Normal: 100 to 120 Ω
z Measuring point: Connection
of the trouble unit
z For detail, refer to the section
4.2.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all stations and all
branch taps
z For details, refer to the section
4.2.3.2 Loose Connector and
Signal Wire.
Measure voltage of device power
supply at the trouble unit.
→ It should be within the range
of sufficient voltage for device
operation.
Check the noise intrusion via the
following paths (1) to (3).
(1) Noise via shield
(2) Induced noise via
communication cable
(3) Device power supply
→ For details, refer to the section
4.2.3.3 Noise Intrusion.
Replace the trouble unit with a
new one.
→ Verify whether the problem is
fixed.
Identify the trouble point by
dividing the network.
→ For details, refer to the section
4.2.3.4 Broken Unit
Examination.
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 220 Ω.
Connect the connectors and
signal wires again.
Check voltage of the device
power supply.
Take countermeasures
against noise.
Replace the unit with a new
one.
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.2.1.2 Slave: Data Link Error
Master LED Condition
Absent Slave LED Condition
(Data link error)
MS
NS
Light OFF
Red Light Blinking
Light OFF
Red Light ON
♦ Process Flowchart
Check
3
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.2.3.1 and 4.2.3.2.
No problem
Replace moving cable.
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
The problem is fixed.
† No Change
Check for noise influence.
See 4.2.3.3.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
Consult the PROFIBUS manufacturer.
Fieldbus I/O Rev.6
Finish
119
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
{ Disconnected
terminating resistors
{ Cable disconnection
{ Disconnected
connector
{ Disconnected signal
wire
{ Loose connector
{ Loose signal wire
{ Noise
(external cause)
{ Broken unit
z No cause is
identified.
120
Examination Method
(1) Check that terminating
resistors are connected to
both ends of the network.
(2) Measure resistance
between signal wires with
device power supply OFF.
→ Normal: 100 to 120 Ω
z Measuring point: Connection
of the trouble unit
z For detail, refer to the section
4.2.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all stations and
all branch taps
z For details, refer to the
section 4.2.3.2 Loose
Connector and Signal Wire.
Check the noise intrusion via
the following paths (1) to (3).
(1) Noise via shield
(2) Induced noise via
communication cable
(3) Device power supply
→ For details, refer to the
section 4.2.3.3 Noise
Intrusion.
Replace the trouble unit with a
new one.
→ Verify whether the problem
is fixed.
Identify the trouble point by
dividing the network.
→ For details, refer to the
section 4.2.3.4 Broken Unit
Examination.
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 220 Ω.
Connect the connectors and
signal wires again.
Take countermeasures
against noise.
Replace the unit with a new
one.
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.2.1.3 Slave: Uninitialized Network
Master LED Condition
Absent Slave LED Condition
(Uninitialized Network)
BF
Light OFF
ST
Red Light Blinking
Light OFF
Light OFF
♦ Process Flowchart
Check
† No Problem
4
Measure voltage of all
slave power supplies.
Problem exists. (Fix it.)
No problem
† No Problem
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
Problem exists. (Fix it.)
See 4.2.3.1 and 4.2.3.2.
No problem
† No Change
Replace moving cable.
(Replace deteriorated cable).
The problem is fixed.
No change
Replace the unit.
† No
Normal Communication?
Yes
No
Consult the PROFIBUS manufacturer.
Fieldbus I/O Rev.6
Finish
121
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
Examination Method
{ Electrical surges of
Measure voltage of device
device power supply power supply at the trouble
unit.
→ It should be within the range
of sufficient voltage for
device operation.
{ Disconnected
(1) Check that terminating
terminating resistors
resistors are connected to
{ Cable disconnection
both ends of the network.
{ Disconnected
(2) Measure resistance
connector
between signal wires with
{ Disconnected signal
device power supply OFF.
wire
→ Normal: 100 to 120 Ω
z Measuring point: Connection
of the trouble unit
z For detail, refer to the section
4.2.3.1 Connection Problem.
{ Loose connector
Check for the connection of
{ Loose signal wire
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all stations and
all branch taps
z For details, refer to the
section 4.2.3.2 Loose
Connector and Signal Wire.
{ Broken unit
Replace the trouble unit with a
new one.
→ Verify whether the problem
is fixed.
122
Countermeasure
Check voltage of the device
power supply.
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 220 Ω.
Connect the connectors and
signal wires again.
Replace the unit with a new
one.
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.2.1.4 Slave: Physical Error
Master LED Condition
Absent Slave LED Condition
(Physical error)
BF
Light OFF
ST
Red Light Blinking
Red Light ON
No Matter
♦ Process Flowchart
Check
5
Measure voltage of all
slave power supplies.
† No Problem
Problem exists. (Fix it.)
No problem
Replace the unit.
Normal Communication?
† No
Yes
No
Consult the PROFIBUS manufacturer.
♦ Causes of Error
Possible Cause
{ Electrical surges
of device power
supply
{ Broken unit
Fieldbus I/O Rev.6
Examination Method
Measure voltage of device
power supply at the trouble
unit.
→ It should be within the
range of sufficient voltage
for device operation.
Replace the trouble unit with
a new one.
→ Verify whether the
problem is fixed.
Finish
Countermeasure
Check voltage of the
device power supply.
Replace the unit with a
new one.
123
4. Troubleshooting (PROFIBUS DP)
4.2.2.2 Master: Data Link Layer Error
Master Unit LED
Error
BF
ST
Light
Red
Data link layer
OFF
Light ON error
Description
- Nonstandard wiring
- Noise intrusion
♦ Process Flowchart
Check
6
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.2.3.1 and 4.2.3.2.
No problem
Replace moving cable.
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
The problem is fixed.
Check for noise influence.
† No Change
See 4.2.3.3.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Normal Communication?
Yes
No
Consult the PROFIBUS manufacturer.
124
Finish
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
Examination Method
{ Disconnected
(1) Check that terminating
terminating resistors
resistors are connected to
{ Cable disconnection
both ends of the network.
{ Disconnected
(2) Measure resistance between
connector
signal wires with device
{ Disconnected signal
power supply OFF.
wire
→ Normal: 100 to 120 Ω
z Measuring point: Connection
of the trouble unit
z For detail, refer to the section
4.2.3.1 Connection Problem.
{ Loose connector
Check for the connection of
{ Loose signal wire
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all stations and all
branch taps
z For details, refer to the section
4.2.3.2 Loose Connector and
Signal Wire.
{ Noise
Check the noise intrusion via the
(external cause)
following paths (1) to (3).
(1) Noise via shield
(2) Induced noise via
communication cable
(3) Device power supply
→ For details, refer to the section
4.2.3.3 Noise Intrusion.
{ Broken unit
Replace the trouble unit with a
new one.
→ Verify whether the problem is
fixed.
z No cause is
Identify the trouble point by
identified.
dividing the network.
→ For details, refer to the section
4.2.3.4 Broken Unit
Examination.
Fieldbus I/O Rev.6
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance
changes from 220 Ω.
Connect the connectors
and signal wires again.
Take countermeasures
against noise.
Replace the unit with a
new one.
125
4. Troubleshooting (PROFIBUS DP)
4.2.2.3 Master: Uninitialized Network
Master Unit LED
Error
BF
ST
Light
Light
Uninitialized network
OFF
OFF
Description
- Master unit power error
- Master unit configuration error
♦ Process Flowchart
Check
† No Problem
7
Measure voltage of all
slave power supplies.
Problem exists. (Fix it.)
No problem
Problem exists. (Fix it.)
† No Problem
Check for master device configuration.
No problem
Replace the master unit.
† No
Normal Communication?
Yes
No
Consult the PROFIBUS manufacturer.
126
Finish
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
{ Electrical surges
of master device
power supply
Examination Method
Measure voltage of device power
supply at the master unit.
→ It should be within the range
of sufficient voltage for device
operation.
{ Master device
Check that the master device was
configuration error configured properly.
→ After changing the
configuration, verify whether
the problem is fixed.
{ Broken master
Replace the broken master unit
unit
with a new one.
→ Verify whether the problem is
fixed.
Fieldbus I/O Rev.6
Countermeasure
Check voltage of the
device power supply.
Check the master unit
configuration.
Replace the master unit
with a new one.
127
4. Troubleshooting (PROFIBUS DP)
4.2.2.4 Master: Configuration Error
Master Unit LED
Error
BF
ST
Red Light No
ON
Matter
Physical error
Description
- Nonstandard wiring
- Signal wire connection failure
- Signal wire short circuit
♦ Process Flowchart
Check
8
Check the following:
- Unconnected terminating resistor
- Unconnected or loose connector/signal wire
- Cable disconnection
† No Problem
Problem exists. (Fix it.)
See 4.2.3.1 and 4.2.3.2.
No problem
Replace moving cable.
(Replace deteriorated cable).
† No Change
The problem is fixed.
No change
† The trouble unit is not found.
Rarely
Does an error occur immediately?
Immediately
Divide the network and
find the trouble unit.
The unit is not found.
The unit is found.
Replace the unit.
Yes
Normal Communication?
No
Consult the PROFIBUS manufacturer.
128
Finish
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Causes of Error
Possible Cause
{ Disconnected
terminating
resistors
{ Cable
disconnection
{ Disconnected
connector
{ Disconnected
signal wire
{ Loose connector
{ Loose signal wire
{ Broken unit
z No cause is
identified.
Fieldbus I/O Rev.6
Examination Method
(1) Check that terminating
resistors are connected to both
ends of the network.
(2) Measure resistance between
signal wires with device
power supply OFF.
→ Normal: 100 to 120 Ω
z Measuring point: Connection of
the trouble unit
z For detail, refer to the section
4.2.3.1 Connection Problem.
Check for the connection of
connectors and signal wires.
→ The connectors and signal
wires should be firmly
connected.
z Checkpoint: all stations and all
branch taps
z For details, refer to the section
4.2.3.2 Loose Connector and
Signal Wire.
Replace the trouble unit with a
new one.
→ Verify whether the problem is
fixed.
Identify the trouble point by
dividing the network.
→ For details, refer to the section
4.2.3.4 Broken Unit
Examination.
Countermeasure
Fix the problem.
How to find the trouble
point:
Remove the terminating
resistor on one end of the
network. The trouble point
is where resistance changes
from 220 Ω.
Connect the connectors and
signal wires again.
Replace the unit with a
new one.
129
4. Troubleshooting (PROFIBUS DP)
4.2.3 Procedures for Examining Possible Causes
4.2.3.1 Connection Problem (Disconnected Terminating Resistors, Cable
Disconnection, Disconnected Connector, Disconnected Signal Wire)
(1) Ensure that two terminating resistors are connected to both ends of the network.
(2) Turn OFF all device power supplies.
(3) Measure resistance between A1 and B1 wires of the absent slave using the tester.
Tester
Measure resistance between signal wires with tester.
Resistance
0Ω
Under 100 Ω
100 to 120 Ω
Over 120 Ω
Determination
Shot circuit
Three or more terminating resistors on one network
Normal
Error (cable disconnection, disconnected signal wire, one or
zero terminating resistor)
(4) How to find the trouble point:
- Remove the terminating resistor on one end of the network.
(The resistance at the point where the terminating resistor is connected is 220
Ω.)
- Measure resistance at branch taps of all units.
- The trouble point is where resistance changes from 220 Ω.
- After finding the trouble point, verify the connector and cable conditions.
130
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
♦ Process Flowchart
Check for cable laying.
Check that
terminating resistors
are connected.
Problem exists.
(Add terminating resistors.)
Normal
Turn OFF all units.
Measure resistance
with tester.
100 to 120 Ω
Out of 100 to 120 Ω (Error)
Normal
Resistance: over 120 Ω
Yes
See 4.2.3.2.
Remove one terminating
resistor on either side.
No
Resistance: under 100 Ω
Under 10 Ω
10 to 100 Ω
Approx.
220 Ω
Measure
resistance at
connectors
with tester.
Check for connection
of terminating resistors.
(1) Three
or
more
terminating resistors
(2) Wrong terminating
resistors, etc.
Check for short
circuit between
signal wires.
Short
circuit
between signal
wires
Other
Find the trouble point.
(1) Unconnected or loose connector
(2) Cable disconnection, etc.
Fieldbus I/O Rev.6
131
4. Troubleshooting (PROFIBUS DP)
4.2.3.2 Loose Connector and Signal Wire
Check for the connections of the following parts on the connector and cable.
(1) Connection of connector and signal wire
Small flat-blade screwdriver
with even thickness
(2) Connection of connector and unit
4.2.3.3 Noise Intrusion
Verify how error occurrence condition changes while taking the following countermeasures.
♦ Ground of FG wire
Normal Grounding: Peel the cable covering and ground the FG wire.
Peel the cable covering and
secure the cable with FG clamps.
Turn ON the terminating resistor
at the end of the network.
132
Secure the clamps to the
intermediate plate of the board
with screws to ground the shield.
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
Countermeasure 1: Improve FG.
Peel the cable covering and
secure the cable with FG clamps.
Isoelectric Line
Grounding Screw
Grounding Screw
Slave Device
Slave Device
Countermeasure 2: Disconnect the FG wire to isolate it from the ground.
When noise intrudes the ground line because a noise source such as an inverter is
installed near the grounding point, disconnect the shield wire of the signal cable and
isolate it from the ground to restrain noise intrusion.
Disconnect the grounding wire.
♦ Induced noise via communication cable
Separate the PROFIBUS DP signal wire from the other wires (especially power wires).
* Separate the signal wire from the power wires 300 mm or more.
Light electrical cable
Communication cable
Suspended ducts
Signal wire
PLC input/output wire
1
1
Control cable
PLC power wire
Control circuit wire
Power cable
300 mm
or more
300 mm
or more
Floor ducts
2
2
Conduit
1
2
1 Signal wire
PLC input/output wire
2 Power wire
Power wire
During site inspection, bypass the wire that is possibly affected by induced noise with other
cables and then lay the cables. Establish the communication under no induced noise
condition and verify whether an error occurs.
Fieldbus I/O Rev.6
133
4. Troubleshooting (PROFIBUS DP)
4.2.3.4 Broken Unit Examination (Dividing Network Examination)
When you cannot quickly find the trouble point due to broken unit, connection failure
including loose connector, or cable partial disconnection, divide the network to find the
trouble point. Verify how error occurrence conditions change while taking the following
countermeasures.
How to Examine
Divide the network to find which station is a cause of a trouble.
Verify that a master can establish communications with the slaves even though one slave is
separated from the network.
After finding the trouble station, check the cables connected to it and replace the unit.
How to Divide
Divide the network by block and check each block.
1. Ensure that the master has no problem by connecting it to its slaves one by one.
(BF/ST: light OFF/green light ON or blinking)
2. Divide the network in the middle of it and check for the communication condition.
(BF/ST: light OFF/green light ON or blinking)
Normal: The trouble point is on the other half of the network.
Error: The trouble point is on the current half of the network.
(Continue dividing the half of the network further to distinguish error part from
normal part.)
3. Check for communication on the block to specify the trouble point.
Master
PLC
Terminating
Resistor ON
Specify which station is the limit of
the normal communications.
Terminating
Resistor ON
Terminating
Resistor ON
Slave
Slave
Slave
Slave
Slave
Separate slaves from the network.
134
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.3.5 Network Configuration and Specifications
(1) Maximum Cable Length
Check that the cables used on the network meet the following specifications.
Baud Rates
12 Mbps
6 Mbps
3 Mbps
1500 kbps
500 kbps
187.5 kbps
93.75 kbps
19.2 kbps
9.6 kbps
Max. Cable Length
100 m
100 m
100 m
200 m
400 m
1000 m
1200 m
1200 m
1200 m
(2) Terminating Resistor
Ensure that two terminating resistors are connected to both ends of the network.
The terminating resistor should be connected as shown below.
VP (6)
390 Ω
Data Line B
RxD/TxD-P (3)
220 Ω
Data Line A
RxD/TxD-N (8)
390 Ω
DGND (5)
(3) Cable
The cables should meet the PROFIBUS specifications.
Item
Property
Impedance
135 to 165 Ω
Capacity
< 30 pf/m
Loop resistance
110 Ω/km
Wire diameter
0.64 mm
Core cross-section
Fieldbus I/O Rev.6
> 0.34mm2
135
4. Troubleshooting (PROFIBUS DP)
4.2.3.6 EPSON RC+ Master Configuration
For details of EPSON RC+ master configuration, refer to the section 2.6 PROFIBUS DP
Board Installation.
The following section describes the procedure for verifying the scanner board condition with
the applicomIO Console application.
4.2.3.6.1 Verifying applicomIO Console application condition
The status bar at the bottom of the window shows the applicomIO Console
application status. The status bar varies as shown below:
Character:
The address number of the scanner board is indicated with
characters. When the character “F” appears, the flash
memory on the board initialized the scanner board.
Background color: The background color indicates the scanner board status. For
details, refer to the table below.
Background Character
Status
Gray
Black
Access to scanner board was failed.
136
Magenta
Black
Red
Black
Yellow
Black
Deep green
White
Green
Black
After that, the status bar will not be renewed
automatically. To renew the status bar, right-click
the status bar and select Refresh.
The scanner board was initialized with the earlier
version applicomIO Console application.
It is recommended that the scanner board be written
into the flash memory (reinitializing the scanner
board) again with the current version applicomIO
Console application.
The scanner board was not initialized.
Initialize the scanner board to use it.
The scanner board was partially initialized.
This status happens only during network detection
and on-line actions.
Although the scanner board was initialized, it is
different with the currently opened configuration.
(Different version, etc.)
It is recommended that the scanner board be written
into the flash memory (reinitializing the scanner
board) again with the current version applicomIO
Console application.
This status happens only during network detection,
on-line actions, and diagnostic.
The scanner board was initialized properly and it is
no different with the currently opened configuration.
This status happens only during network detection,
on-line actions, and diagnostic.
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
4.2.3.6.2 Verifying the PROFIBUS DP network condition
The applicomIO Console application has the following functions:
Network Monitor function: Monitoring error condition detected on the
network
Diagnostic function:
Network diagnosis
(1) Select the Network Detection tab in the left center of the applicomIO Console
application.
(2) Click the Online Action button. The Network Monitor dialog appears.
You can check the conditions of the following errors on this dialog.
Token Error
Address Error
Timeout Error
Frame Error
Network Cycle
Bus Fault
When an error occurs on the network, it is added to the corresponding error
counter.
Fieldbus I/O Rev.6
137
4. Troubleshooting (PROFIBUS DP)
(3) Select the Protocol | Diagnostic on the applicomIO Console application menu.
Click the magnifying grass button on the Diagnostic window.
Then, select the slave you want on the device tree in the left side of the window.
The window changes as shown below.
To check the device condition in detail, click the Diagnostic button in the
Equipment information group box in the right side of the window. If an error
occurs, the information is displayed in red.
138
Fieldbus I/O Rev.6
4. Troubleshooting (PROFIBUS DP)
(4) When you click the I/O button, the window changes as shown below.
The status of each slave device is shown in the right side of the window.
A green circle indicates that the communication of the corresponding device is
normal, and a red circle indicates that there is a communication error. A gray
circle indicates that the corresponding device does not exist.
(5) When you select the slave on the device tree in the left side of the window, the
window changes as shown below.
The input and output statuses of the selected device are shown in the right side
of the window.
If you want to change output data, click the bite number you want to change in
the Output Mapping box. Then, enter a value in the Write box in the
“Selected Output Value” and click the Write button.
Fieldbus I/O Rev.6
139
4. Troubleshooting (EtherNet/IP)
4.3 EtherNet/IP Troubleshooting
Exclusion
Every system has its special environment, conditions, specifications, and usages. This guide
is provided as a general reference for troubleshooting a EtherNet/IP network. Every effort
has been made to ensure the information is accurate. However, we do not guarantee the
complete accuracy of the information and thus we decline any liability for damages or costs
incurred by the use of this troubleshooting.
Before examining a problem on the network, please ensure that your established DeviceNet
system satisfies network specifications. (Refer to this troubleshooting and the section 2.6
EtherNet/IP Network Construction.)
140
Fieldbus I/O Rev.6
4. Troubleshooting (EtherNet/IP)
4.3.1 Examining a Problem
4.3.1.1 Scanner Board Diagnostic LEDs
The EtherNet/IP board used with EPSON RC+ has two status display LEDs. The layout of
the LEDs is shown in the following figure.
PCU-ETHIO
4-pin Terminal
Watchdog Port
(Do not use this port.)
LED (2)
(Not in use)
D-Sub 9 pin
(Not in use)
Jumper for Board Address
JP1
Status Display LED (2)
JP1
0
1
EtherNetI/P Connector
C0 C1 C2
The Module/NetWork LED is on the left and the IO LED is on the right seen from the rear
panel. These LED names are used in applicomIO Console application and this manual. Only
in this troubleshooting section, general names of the status display of the DeviceNet device
are used instead.
The Network Status LED is expressed by the NS LED (NS) in this section.
The Module Status LED is expressed by the MS LED (MS) in this section.
Fieldbus I/O Rev.6
141
4. Troubleshooting (EtherNet/IP)
4.3.1.2 Check Network Status
(1) Master Status: MS/NS LEDs
LED
Color
† Green
† Green
MS (Module Status)
NS (Network Status)
Light Condition
† Red
† Red
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(2) Node Number of Absent Slaves
Absent slaves are disconnected from or not added to the network.
1. See the status flag regarding to the removal and addition if the master has status
information.
2. See the MS/NE LEDs of all slaves if the master has no status information.
(3) Absent Slave Status: MS/NS LEDs
LED
MS (Module Status)
NS (Network Status)
Color
† Green
† Green
Light Condition
† Red
† Red
† ON
† ON
† Blinking
† Blinking
† OFF
† OFF
(4) Physical Node Location of Absent Slave
Master
RC420
Ethernet Switch
Ethernet Switch
Slave
Slave
Slave
A communication time out error occurred.
Slave
Slave
Start the examination from this block
when the error occurred here.
(5) Error Occurrence Condition
† Immediate occurrence (high reproducibility)
† Rare occurrence (low reproducibility)
142
Fieldbus I/O Rev.6
4. Troubleshooting (EtherNet/IP)
4.3.2 Problems and Countermeasures
Master Unit LED
MS
NS
Green
Green
Light ON
Light ON
Green
Green
Light ON
Light
Blinking
Green
Light ON
Green
Light ON
Red Light
Blinking
Red Light
ON
Light OFF
Red Light
Blinking
Light OFF
Light OFF
Error
Normal
communication
During connection
establishment
No Matter
Communication
timeout
IP address not
defined
Critical error
No Matter
Module error
No Matter
error
Light OFF
Not initialized status
Fieldbus I/O Rev.6
Description [Reference]
- Normal condition
- Processing connection establishment
(The NS LED will be ON in green in a few seconds.)
- Master function in stop state
(Communication does not start.)
- Network channel error
- The IP address is not defined
[Refer to the section 4.3.3 Tests and diagnostics.]
- Unrecoverable critical error
[Refer to the section 4.3.3 Tests and diagnostics.]
- Recoverable error occurred
[Refer to the section 4.1.2.5 Absent Slave.]
- No slave (Error detection before communication
establishment)
- Communications power supply OFF
[Refer to the section 2.9.5 Master Mode and 2.9.6
Slave Mode.]
- The communication board is not initialized
Check the configuration
143
4. Troubleshooting (EtherNet/IP)
4.3.3 Tests and diagnostics
4.3.3.1 The diagnostic tool
After configuring the EtherNet/IP master, adding and configuring the devices of your network
and downloading your configuration in the board, the statuses of all devices can be tested
with the diagnostic tool.
tart this tool with the menu command “Protocol/Diagnostic…” or with the
button.
See also: To display the help, select [Start]-[Program]-[Direct-Link]-[applicomIO 2.3][Help].
4.3.3.1.1 Ethernet/IP channel on Ethernet diagnostics
The EtherNet/IP on Ethernet channel diagnostic information can be displayed by
selecting the MULTI-MSG ETH channel.
All devices in the configuration are visualized by a LED corresponding to the
applicomIO device number.
The LED may be red or green depending on the device error status.
144
Fieldbus I/O Rev.6
4. Troubleshooting (EtherNet/IP)
1. Diagnostic of the TCP/IP layer
This screen is used to display the exchange statuses regarding the TCP/IP layer.
Configuration Type
Mode type selected in the configuration: DHCP, BOOTP,
Static
How the IP address has been obtained, from the server,
Address From
flash memory or factory address.
IP address of the applicomIO master on this channel.
IP address
Sub-network address of the applicomIO master on this
Sub-Network Mask
channel.
Address of the gateway configured on the applicomIO
Gateway IP Address
master on this channel.
IP Address of the primary DNS server.
Primary DNS Address
Secondary DNS Address IP address of the secondary DNS server.
Host name of the applicomIO master on this channel.
Host Name
Domain name of the applicomIO® master on this channel.
Domain Name
Fieldbus I/O Rev.6
145
4. Troubleshooting (EtherNet/IP)
TCP tab
Passive connections
Active connections
Current connections
Bytes received
Bytes transmitted
Retries on time-out
Number of passive connections.
Number of active connections.
Number of current connections.
Number of bytes received.
Number of bytes transmitted.
Number of retries on reception of a time-out.
IP tab
Packets received
Packets transmitted
Errors
146
Number of packets received.
Number of packets transmitted.
Number of IP errors.
Fieldbus I/O Rev.6
4. Troubleshooting (EtherNet/IP)
2. Diagnostic of server devices
Requests
Requests / s
Useful bytes
Useful bytes / s
Requests in error
Fieldbus I/O Rev.6
Number of requests.
umber of requests per second.
Number of useful data bytes.
Number of useful data bytes per second.
Number of requests in error.
147
4. Troubleshooting (EtherNet/IP)
3. Overall device diagnostics
View the diagnostic information on a device in the configuration by selecting the node
which corresponds to the device.
IP Address
From
148
Requests
Requests / s
Useful bytes
Useful bytes / s
Connections
Time-out errors
Frame errors
IP address of the device.
How the IP address of the device was obtained:
from the configuration
from the DNS server (IP address of the device has been resolved)
Number of requests.
Number of requests per second.
Number of useful data bytes.
Number of useful data bytes per second.
Number of connections created for this device.
Number of time-outs received for this device.
Number of frame errors for this device.
Refusal errors
Number of errors excluding time-out and frame errors.
Fieldbus I/O Rev.6
4. Troubleshooting (EtherNet/IP)
4.3.3.1.2 TCP/IP tool
By clicking in the
button and selecting "TCP/IP layer", a "services" window gives
you the following options.
DNS
ICMP (ping)
See also: To display the help, select [Start]-[Program]-[Direct-Link]-[applicomIO 2.3][Help].
1. Resolution of IP address or name
DNS functionality is available on the applicomIO solution. It is available through the
diagnostic tool, DNS tab.
(1) Selects the type of resolution to be carried out.
IP Address : the host name is obtained from the IP address.
Host Name: the IP address is obtained from the host name.
(2) Carries out a resolution.
(3) Status: Status of resolution carried out
0
: No error
33 : Response time-out exceeded
132 : Negative reply from DNS server (SERVER FAILURE, etc.)
Fieldbus I/O Rev.6
149
4. Troubleshooting (EtherNet/IP)
2. Ping
ICMP ECHO "PING" functionality is available on the applicomIO solution. It is
available through the diagnostic tool, ICMP tab.
(1) Entry field for the IP address or name of the remote station.
(2) Field showing result obtained:
- Status 0
: The station is present and has responded (the response time is
given in the Time column)
- Status 33
: The station is not present
(3) Command field:
Clear
Ping
Loop
Stop on Error
Status
150
: Clears the list of results
: Sends a PING command
: Executes PING command in a loop
: If Loop has been selected, stops if an error has occurred
: Status of the PING request
0 :OK
33 : TIME-OUT
132 : Resolution error
Fieldbus I/O Rev.6
5. Maintenance Parts List
5. Maintenance Parts List
Part Name
Fieldbus I/O Rev.6
Code
DeviceNet board
R13B040701
PROFIBUS DP board
R13B040702
EtherNet/IP board
R12B040719
Specifications
151
5. Maintenance Parts List
152
Fieldbus I/O Rev.6
Appendix A applicomIO Upgrade
Appendix A applicomIO Upgrade
(1) Start the controller
(2) Insert the setup CD that is packaged with the product to the CD-Rom drive on the
controller.
Setup program starts automatically.
(3) Select the desired language for the installer.
(4) Select Products Installation.
(5) Select Installation.
(6) Select applicomIO. Do not select applicomIO ActiveX.
Fieldbus I/O Rev.6
153
Appendix A applicomIO Upgrade
(7) Following dialog appears. Select the option above.
(If the option below is selected, the transition of the current setting will not be
executed.)
(8) Uninstall the current applicomIO before upgrading.
Following dialog appears. Click the OK button.
Following dialog appears. Check the [Don't display this message] box and click the
Yes button.
(9) Install the default components.
154
Fieldbus I/O Rev.6
Appendix A applicomIO Upgrade
(10) Select the protocol and the device data file.
(11) Complete the installation.
(12) The message to ensure the restart appears. Click the Yes button.
(13) When a service pack is attached to the CD-ROM, install the service pack.
(14) After completing the installation of the service pack, shutdown the computer.
Fieldbus I/O Rev.6
155
Appendix A applicomIO Upgrade
156
Fieldbus I/O Rev.6
