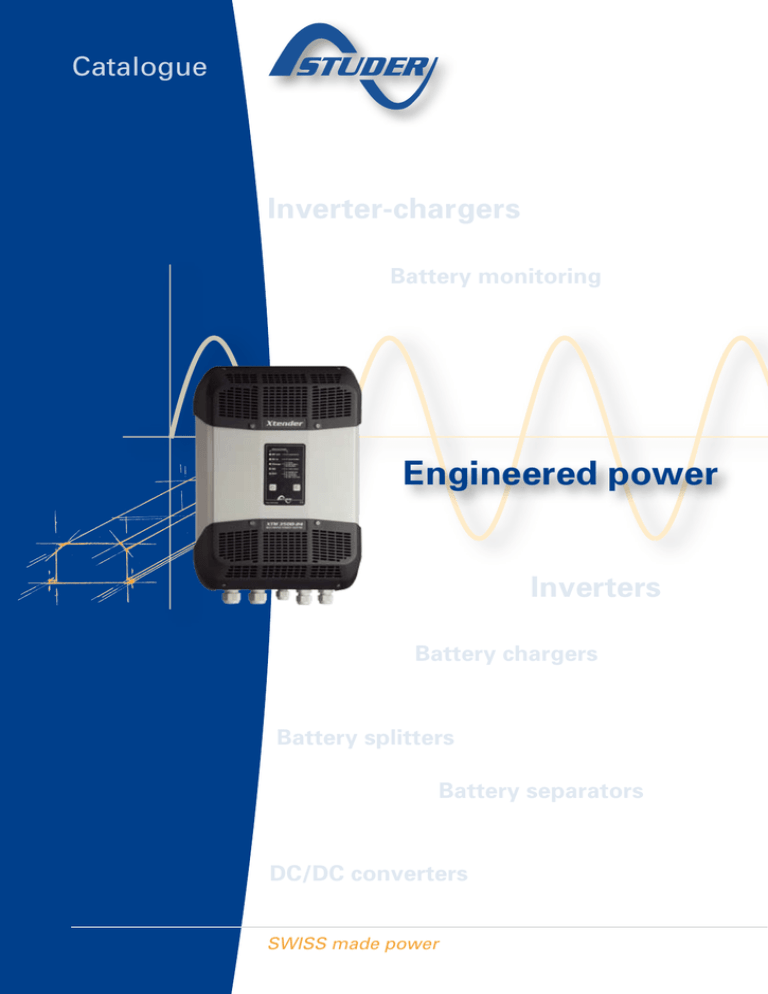

STUDER CATALOGUE engineered power

Catalogue

Inverter-chargers

Battery monitoring

Engineered power

Inverters

Battery chargers

Battery splitters

Battery separators

DC/DC converters

SWISS made power

Summary

T he company

A pplications

- Applications in remote areas

- Mobile applications

- Backup applications

P roducts

- Sine wave inverter-chargers

- Sine wave inverters

- Battery chargers

- DC/DC converters

- Battery splitters

- Battery separators

- Battery protection

- Battery monitoring

A ppendices

- Technical sheets

- How to find us

3

12

12

26

27

27

20

24

25

26

8

10

6

6

28

28

36

Photos credits

Robert Hofer : Studer’s products ; Perspective : 4, 5, 24 ; Steca : p. 6 bottom ; Jeanneau : p. 8 top ;

Meteorisk : p. 3, 8, 36 ; Siblik: p. 21.

Graphism

Atelier Perspective, R. Gigon, Sion.

February 2010

2

C ompany

Experience and competences

Studer Innotec was founded in 1987 by

Roland Studer, current General Director.

From 1987 to 1991, the company developed its areas of competences in the solar photovoltaics and in the energy conversion, with the first inverters (DC/AC).

In 2005, the Sommet Prize, organized among others by the Union Bank of Switzerland was awarded to Studer Innotec, for its capabilities to innovate as well as to export its inverters.

90% of the turnover exported

The launch in 1994 of the Twinpower, then in 1995 of the SI, both sine wave inverters with unbeaten performances so far, makes Studer Innotec’s offer very attractive to demanding export markets.

This is the start of an export business which represents now some 90% of its turnover.

3

4

Leadership

Studer Innotec is today the leader of the inverter market in

Switzerland and in Europe, and a major actor in the rest of the

World.

It manages a network of more than one hundred distributors in more than 70 countries.

Thanks to a large range of products, it is the only inverter manfacturer to cover the solar photovoltaic market as well as the nautical, the mobile, the backup and the telecom markets.

Integration and flexibility of the production

The philosophy of the company has been, from the very beginning, to master the process from A to Z, so from the development to the sales of the products. This is why Studer Innotec has started as a vertically integrated manufacturer, therefore more flexible than its competitors.

In other respects, to turn the markets expectations into products and services, an 8 people team is fully dedicated to Research &

Development.

The choice of the performance

The high-tech design of its products, as well as the choice of the performance and of the reliability, brings Studer Innotec to select its components with the highest care. This is the reason why it has chosen the latest technologies, like the digital signal processors (DSP) which provide better performances and a higher efficiency to its inverters.

C ompany

Comfort and versatility of the products

In future, this choice for quality and for service will continue to guide our strategic axes.

Beyond the performances, the next inverters will provide more comfort and will offer a greater versatility to their users.

Closeness to the clients

From research to industrial implementation, Studer Innotec intends to keep on investing financially and also in human resources, in order to maintain its lead in terms of the offer and of the closeness to the clients. This closeness expresses itself also by a network of partners qualified to service its products. The addresses of these partners, as well as the distributors, will be found on the company’s website, under the heading « Distributors ».

5

Applications in remote areas

Far from any electrical grid, by choice or by force, security and comfort (lighting, heating, household appliances, leisure electronics, telecoms…) can yet be provided by autonomous energy systems. These systems consist firstly of an energy source, normally a genset, a solar generator, a wind turbine or a combination of them, secondly of a battery storage, and then thirdly of devices (inverter-charger, battery charger) able to charge the battery from this energy source and to supply the users with AC voltage (inverter, inverter-charger).

The examples below show the products in some stand-alone applications.

A complete solar system

DC AC

This is a complete solar system that the combination of the inverter and of the optional built-in solar charge controller function allows to create. The inverter supplies the appliances with AC voltage and charges the battery with DC voltage from the solar generator.

AJ serie

(200 - 2000 VA)

Quality AC voltage for all electrical appliances

p. 20

DC

REGULAT0R

DC

AC

The inverter supplies, exclusively from a battery, any kind of appliance using AC voltage, without exception.

It does convert the battery DC voltage into AC voltage with a better quality than from the public grid.

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

AJ serie

(200 - 2000 VA)

p. 20

SI serie

(600 - 10500 VA)

p. 22

6

A pplications

Village electrification

GENERATOR

AC

GRID

INVERTER

GRID

INVERTER

DC

Various power sources supply energy to several consumer points.

Hybrid system : more autonomy and flexibility

GENERATOR

AC AC

Xtender serie

p. 12

(1500 - 63000 VA)

REGULATOR

This hybrid system provides a great flexibility in supply and an increased autonomy in relation to each source of energy.

The AC voltage supply to the appliances is done directly from the energy source through the transfer relay, or from the battery through the inverter function.

The charger function allows to charging the battery with the genset. The size of the genset can be reduced thanks to the function Smart-Boost.

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

3-phase grid 3 x 400Vac for high power appliances

AC

GENERATOR

AC

REGULATOR

DC

A 3 x 400Vac 3-phase grid can be built with

3 inverters for the supply of high power appliances. In case of an increased need of power it is possible to set up to 3 inverters in parallel on each phase (Xtender only).

Xtender serie

p. 12

(1500 - 63000 VA)

SI serie

(600 - 10500 VA)

p. 22

7

Mobile applications

An energy system on-board is often necessary to power the

AC voltage users, while the vehicle or the boat is away from the electrical grid (port, garage, camping…). In that case the energy is stored in the battery, which is actually charged by power sources on-board, like genset, solar generator, wind turbine, alternator or a combination of them. Studer Innotec offers the range of products that secure the management and the conversion of this energy, while securing an optimal supply of the appliances on-board.

The examples below show our products in some mobile applications.

A simple and reliable system on-board

AC

AC

The inverter-charger charges the battery from the grid or from a genset, and powers any kind of electrical appliance.

It converts the battery DC voltage to AC voltage.

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

An upgradeable power

AC

AC

AC

DC DC

The power available for the users can be adapted in the course of time by adding inverters in parallel or by creating additional phases. It is therefore possible to install up to 9 inverters in a 3-phase power system.

Xtender serie

p. 12

(1500 - 63000 VA)

8

A pplications

3 x 400Vac 3-phase grid on-board

AC

AC

DC DC

AC

A 3-phase grid can be built with 3 inverters. The serie Xtender enables to create a 3-phase grid and to charge simultaneously the battery, even if only a single phase is available as a power source

Xtender serie

p. 12

(1500 - 63000 VA)

SI serie

(600 - 10500 VA)

p. 22

Variable power source assistance

VARIABLE POWER

SOURCE

AC AC

The source being a variable power alternator, the Smart-boost will supply the power difference in order that the power delivered is always the same (Application Note nr. 004/

www.studer-innotec.com).

Xtender serie

p. 12

(1500 - 63000 VA)

Successive charge of the batteries

AC

AC

DC

DC

MOTOR

MBR serie

DC

DC

In this system, a battery separator enables the charge of one or several auxiliary batteries once the primary battery is charged.

MBC serie

Simultaneous charge of batteries

MOTOR

DC

MBI serie

DC

AC

DC

DC

A MOSFET splitter, with almost no voltage losses, enables to split the charge current to and in between several batteries. From the battery pack, a DC/DC converter will step up or step down the voltage according to the voltage of the users, 12, 24 or 48Vdc.

MBC serie

p. 26 p. 24 p. 26 p. 24

MDCI-MDC series

p. 25

9

Backup applications

Powered by the public grid, the users like fridges, PCs, emergency lights, etc. which can not afford any power cut, are electrically secured. An inverter-charger with transfer relay or a combination of an inverter and a charger guarantees to maintain well the battery and to keep uninterrupted the supply of strategic appliances.

Studer Innotec offers solutions from 200W up to 63kW with a product choice unchallenged on the market.

Some examples of backup applications are described below.

Uninterruptible power supply on-line

AC

DC

AC

In this system, the functions of battery charge and of users supply are separated, with on one side a battery charger, and on the other an inverter. The fluctuations of the grid current have no impact on the users.

10

AJ serie

(200 - 2000 VA)

SI serie

(600 - 10500 VA)

p. 20 p. 22

MBC serie

p. 24

A pplications

Uninterruptible power supply off-line

AC

AC

In this configuration the grid supplies directly the users thanks to the by-pass function of the inverter-charger. In case of a drop or a cut of the grid, the inverter-charger guarantees the supply of the users.

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

Individual Home backup

AC AC

Solsafe – a backup system for grid connected solar installations

An inverter-charger is used there to provide a backup power in case of public grid outage. As soon as the power shuts off the inverter-charger switches on inverter mode and assures an uninterruptible power supply.

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

Compteur

DC

AC

GRID

INVERTER

Secured

Not secured

The installation of our solution Solsafe in a grid connected solar system enables to secured totally or partially the power supply in case of a power cut, and so to keep on using the solar energy being produced (Application Note nr. 003/www.studer-innotec.com).

11

Solsafe

S-Box

p. 17

Xtender serie

p. 12

(1500 - 63000 VA)

Compact series

p. 18

(1100 - 7000 VA)

Xtender

XTM

XTM 1500-12

XTM 2000-12

XTM 2400-24

XTM 2600-48

XTM 3500-24

XTM 4000-48

Sine wave inverter-chargers

Xtender Series

The Xtender serie provides an unmatched freedom of use thanks to its many functions. In a basic application, it offers together the functions of inverter, battery charger, transfer system and assistance to the source.

These functions can be combined and controlled in a totally automatic way for an exceptional comfort and an optimal management of the energy available. Its programmable auxiliary contacts allow as well the interconnection with existing systems or the implementation of extended functions.

Features and performances

• Parallel and 3 phase configuration up to 9 units.

• Outstanding efficiency and overload capabilities.

• Smart-Boost Function for assistance to the source.

• Automatic reduction of peak loads.

• Automatic allocation of the available power

(power sharing).

• Standby level adjustable from a very low load threshold.

• Multi-stage, fully programmable battery charger with PFC.

• Ultra fast high power transfer relay.

• Control by digital signal processor (DSP).

• 2 fully independently programmable auxiliary contacts.

• Real time clock for event record and auxiliary relay

programming.

Xtender

XTH

XTH 3000-12

XTH 5000-24

XTH 6000-48

XTH 8000-48

Generator or Grid

Smart-Boost function

The function Smart-Boost enables to add the inverter power to another source, like for instance a genset or the shorepower, even in case of complex (reactive, crest factor etc.) loads. This offers the possibility to reduce the peak loads and to undersize the genset (Application Note nr.

001/www.studer-innotec.com).

Xtender

Charge

Battery

P roducts

Xtender range

XTM 1500-12 (-01)

XTM 2000-12 (-01)

XTM 2400-24 (-01)

XTM 2600-48 (-01)

XTH 3000-12 (-01)

XTM 3500-24 (-01)

XTM 4000-48 (-01)

XTH 5000-24 (-01)

XTH 6000-48 (-01)

XTH 8000-48*

Battery voltage

12V

12V

24V

48V

12V

24V

48V

24V

48V

48V

AC voltage

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

Output power

P30/Pnom

1500VA / 1500VA

2000VA / 2000VA

2400VA / 2000VA

2600VA / 2000VA

3000VA / 2500VA

3500VA / 3000VA

4000VA / 3500VA

5000VA / 4500VA

6000VA / 5000VA

8000VA / 7000VA

Power Smart-

Boost

1500VA

2000VA

2400VA

2600VA

3000VA

3500VA

4000VA

5000VA

6000VA

8000VA

Charge current

0 - 70A

0 - 100A

0 - 55A

0 - 30A

0 - 160A

0 - 90A

0 - 50A

0 - 140A

0 - 100A

0 - 120A

Transfer current

Note : for the 120Vac version, -01 is added to the model designation.

* This model is not available in 120Vac version. Complete technical specifications on page 28.

50A

50A

50A

50A

50A

50A

50A

50A

50A

50A

RCC-02

RCC-03

Comprehensive

LCD display

Remote control and programming centre RCC-02 or RCC-03

Apart from the enclosure difference, adapted for wall or panel mounting, both units have exactly the same features and allow the user to survey his system and fully customize it to his needs.

RCC gives a controlled access to the many adjustable parameters of the Xtender. It enables the setting of the charge curve of the battery, the programming of the auxiliary contacts and gives access to a lot of operation options. Thanks to its graphic display RCC provides clear and comprehensive indications on the state of the system in selectable language. The unit memorizes and displays the events that occurred on an installation and so it does anticipate the problems that might appear. A slot for a SD card is available and it allow the parameters record and download as well as the full software update.

Wide modularity

By the implementation of several units, it is possible to create a 3-phase source or to set them in parallel to increase the power available without extra cost. Up to 9 inverters of the Xtender serie shall therefore be combined together up to 63 kW !

13

Sine wave inverter-chargers

Communicate with an Xtender system

The remote control RCC-02/-03-32, equiped with a serial port RS-232, enables to be informed of the state of a system consisting of one or several Xtenders.

It is then possible to read all data that can be displayed on the remote control basic screen and also to modify the configuration parameters.

The RS 232 interface allows to connect an Xtender system to various SCADA control and supervision devices (PC, programmable logic controller, microcontroller) (more information on our website, page

RCC-02/-03).

Data logging and analysis

Analyze easily your data with the RCC-02/03 Data logger function that will record on the SD card the main electrical values of your Xtender system during its operation.

These values enable to follow up the evolution of the system energy consumption, to check the power cuts, the state of the auxiliary contacts, the input currents and voltages, etc...

Studer Innotec offers for free two graphical and analysis tools, Xtender Data Analysis Tool and Xtender

Matlab® Data Analysis (more information on our website and

in the Application Note 006/www.studer-innotec.com).

14

Accessories

P roducts

Remote control and programming centre with 2 m cable

RCC-02 : for display, programming, updates and data logging

RCC-02-32 : same functions as RCC-02, with RS 232 interface

Wall mounting. Dimensions hxlxw : 170 x 168 x 43.5 mm.

Remote control and programming centre with 2 m cable

RCC-03 : for display, programming, updates and data logging

RCC-03-32 : same functions as RCC-02, with RS 232 interface

Panel mounting. Dimensions hxlxw : 130 x 120 x 42.2 mm.

Remote Control Module RCM-10. Only for XTM with 3 m cable (possible up to 5 m)

DIN rail remote module for main on/off and function input management.

Dimensions : HxLxl : 45 x 73 x 45 mm.

Battery temperature sensor BTS-01 with 3 m cable

This sensor enables to accurately adapt the charge thresholds to the battery temperature.

Dimensions : HxLxl : 58 x 51.5 x 22 mm.

Cable for 3ph and parallel CAB-RJ45-8-2/-5/-20/-50 (2/5/20/50 m)

Allows the setting in parallel or the implementation of a 3-phase system.

15

Sine wave inverter-chargers

The main configurations offered by the

Xtender serie

Xtender family is a complete range of inverter-chargers ideally suited for hybrid, mobile and backup systems.

Automatic switch for 2 AC sources

(Application note nr. 005/

www.studer-innotec.com).

GENERATOR

AC

REGULAT0R

DC

Easy set up of multi-units

Compatible with standard cable channel (230 x 60 mm)

16

Easy accessible and robust connections

Inverter, charger and transfer relay

The Xtender basically works as an inverter and as a charger, combined with a transfer relay.

2 or 3 units in parallel on 1 phase

Increase of the power on one phase by setting 2 or 3 Xtender in parallel.

1 phase in and 3 phase out

Three-phase power supply from a single phase source.

3 phase in and 3 phase out

Three-phase source for a three-phase power supply.

3 phase + with one reinforced phase

Three-phase power supply with increase of the power on one phase by setting 2 or 3

Xtender in parallel on this phase.

3 Xtender in parallel on 3 phases

Three-phase power supply with 3 Xtender on each phase, for power up to

72kW.

P roducts

GENERATOR

GENERATOR

GENERATOR

XT

GENERATOR

XT

XT

GENERATOR

XT

XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

XT

GENERATOR

XT

XT

XT

XT

XT

XT

GENERATOR

XT XT

GENERATOR

GENERATOR

GENERATOR

XT XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

GENERATOR

GENERATOR

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

GENERATOR

XT

GENERATOR

GENERATOR

GENERATOR

XT

GENERATOR

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT XT XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

XT

XT

XT

XT

XT

XT

XT XT

XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

XT

17

Sine wave inverter-chargers

X-Connect system

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

XT

XT

XT

XT

XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT

XT

XT

XT

XT

Parallell

GENERATOR

XT

XT

XT

GENERATOR

GENERATOR

GENERATOR

3-phase

XT

XT

XT

XT XT

GENERATOR

GENERATOR

GENERATOR

GENERATOR

XT XT

Parallell + 3-phase

XT

XT

917 mm

Pre-wired mounting frame for Xtender multi-system

Offers a flexible and cost effective solution for high power systems based on XTH inverter

1

2

3

3 x

9 x

3 x

4

5

6

Up to 63kW multi-unit system

Frame is supplied with :

1

Pre-installed DC circuit breakers

2

Pre-installed DC fuses

3

Pre-installed DIN rails

4

Interconnection pipes and gland for auxiliary contact wiring

5

Interconnection pipes and gland for AC wiring

6

Interconnection pipes and gland + 90 mm

2

wire terminated

with appropriates ring tongues for DC wiring from Xtender

to breakers and fuses

Screws set for frame assembly

18

P roducts

Solsafe : the anti-blackout system for grid connected solar installations

Despite a solar system on your house, in case of power outage, the grid inverters will shut off and the solar generator, whatever its size, will be useless. Studer Innotec has developped, already in 2004, a concept in which its inverter-chargers allow to keep energy available from the solar generator, even in case of a power cut.

Solsafe

S-Box

S-Box : a genuine cabling solution to implement the Solsafe

• Hassle free cabling

• Quick installation

• Easy commissioning

Compared to other similar solutions, it offers :

• A great system flexibility by choosing independently the

grid inverter power (matching the solar generator) and

the stand-alone power (matching the needs for

autonomous energy), so long the stand-alone inverter is

as big or bigger than the grid inverter

• The choice of the grid inverter allowing to work with

standard well known products

• To choose the grid inverter with any voltage input range,

independently from the battery voltage

• A possible and easy upgrade of existing grid-connected

solar installations

The S-Box can be supplied in 4 versions :

For single phase application :

- Solsafe box 25A for Compact………………...... S-Box-25C

- Solsafe box 25A for Xtender………………….... S-Box-25X

- Solsafe box 25A for Compact with ENS-26...... S-Box-25C-E

- Solsafe box 25A for Xtender with ENS-26........ S-Box-25X-E

For Solsafe implementation in 3ph systems, a schematic is at disposal on simple request.

DC

GRID

INVERTER

AC

Not secured

Secured

19

Solsafe – a backup system for grid connected solar installations

The installation of our solution Solsafe in a grid connected solar system enables to secured totally or partially the power supply in case of a power cut, and so to keep on using the solar energy being produced (Application Note nr. 003/

www.studer-innotec.com).

Sine wave inverter-chargers

XP COMPACT

XPC 1400-12

XPC 2200-24

XPC 2200-48

COMPACT

C 1600-12

C 2600-24

C 4000-48

Compact series

The models of the Compact series consist of 3 fully automatic functions : a sine wave inverter, a battery charger and a transfer system. Equiped with a high-end technology, they carry our long experience in the field of electrical supply.

Features and performances

• True sine wave voltage.

• Suitable for any kind of electrical appliance.

• Reliable and silent working with all kind of loads.

• Outstanding overload capabilities.

• Stand-by level adjustable over a large range and from

a very low threshold.

• 4 STEP battery charger with PFC.

• Ultra-fast transfer relay.

• High efficiency.

• Full internal protection.

• Ultra-fast regulation.

• Microprocessor controlled.

HP COMPACT

HPC 2800-12

HPC 4400-24

HPC 6000-48

HPC 8000-48

Norm E certification

The XPC 1400-12, XPC 2200-24, C 1600-12 and

C 2600-24 are certified to the ECE-R 10 norm.

Compact range

Output power

P30/Pnom

XPC 1400-12 (-01)

1400VA / 1100VA

XPC 220O-24 (-01)

2200VA / 1600VA

XPC 2200-48 (-01)

2200VA / 1600VA

C 1600-12

1600VA / 1300VA

C 2600-24

C 4000-48

2600VA / 2300VA

4000VA / 3500VA

HPC 2800-12

HPC 4400-24

HPC 6000-48

HPC 8000-48

2800VA / 2500VA

4400VA / 4000VA

6000VA / 5000VA

8000VA / 7000VA

Battery voltage

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

48Vdc

AC voltage

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

Charge current

0 - 45A

0 - 37A

0 - 20A

0 - 55A

0 - 55A

0 - 50A

0 - 110A

0 - 100A

0 - 70A

0 - 90A

Transfer current

16A

16A

16A

16A

16A

16A

30A

30A

30A

50A

Note : for the 120Vac version, -01 is added to the model designation.

Complete technical specifications on page 29.

20

P roducts

Multifunctional contact

The 16 A. potential free contact can be programmed according to the user wishes. It can react according to the battery levels as well as to the system status (alarm conditions, presence of the public grid, sunlight’s presence…), and it enables for example :

1/ Automatic disconnection of

second priority users (condi-

tional supply).

2/ Alarm signalisation, acoustic

signal, MODEM, radio alarm etc.

3/ Conditional battery charge.

GENERATOR

AC

DC

3

2

1

AC

AC

Accessories

Remote control RCC-01

State of the system displayed by LED and remote programming* (supplied with a 20 m cable).

*compulsory for the programming of the XP Compacts

Temperature sensor CT-35

This sensor adapts charge levels to the temperature variations of the battery (supplied with 3 m cable).

Remote control RPS-01

The setting of the power sharing can be remotely controlled by means of the remote control supplied with a

20 m cable.

Auxiliary relay module ARM-01

Equiped with 3 programed relays and with a fourth one that is the equivalent of the auxiliary contact of the inverter-charger. This module allows the implementation of the Solsafe system (see page 11).

Cover CFC-01

This cover provides an additional protection to the connections by means of glands.

Cover C-IP22

Cover for a protection against intrusions or projections, installed after the mounting of the device. It extends the protection index from IP 20 to IP 22.

XP COMPACT COMPACT HP COMPACT

l l l l l l l l l l l l l l l

Optional built-in solar charge controller (-S)

The models XP Compact and Compact are available with an optional built-in charge controller (I/U/Uo) making the invertercharger an « all in one » device for a solar installation.

DC AC

21

Sine wave inverters

AJ serie

The AJ range consists of sine wave inverters that convert the DC voltage of a battery into AC voltage which can be used by all electrical appliances.

Features and performances

• High and steady efficiency.

• Outstanding overload capabilities.

• Digital regulation and control by microprocessor.

• Electrical supply to any kind of appliance.

• Full internal protection.

• Stand-by level adjustable from a very low threshold.

AJ serie

AJ 275-12

AJ 350-24

AJ 400-48

AJ serie

AJ 500-12

AJ 600-24

AJ 700-48

AJ serie

AJ 1000-12

AJ 1300-24

AJ serie

AJ 2100-12

AJ 2400-24

AJ range

AJ 275-12 (-01)

AJ 350-24 (-01)

AJ 400-48 (-01)

AJ 500-12 (-01)

AJ 600-24 (-01)

AJ 700-48 (-01)

AJ 1000-12 (-01)

AJ 1300-24 (-01)

AJ 2100-12 (-01)

AJ 2400-24 (-01)

Output power

P30/Pnom

275VA / 200VA

350VA / 300VA

400VA / 300VA

500VA / 400VA

600VA / 500VA

700VA / 500VA

1000VA / 800VA

1300VA / 1000VA

2100VA / 2000VA

2400VA / 2000VA

Battery voltage

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

48Vdc

12Vdc

24Vdc

12Vdc

24Vdc

AC voltage

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

230Vac

Note : for the 120Vac version, -01 is added to the model designation.

Complete technical specifications on pages 30-31.

22

Norm E certification

The AJs in 12 and 24Vdc are certified to the ECE-R

10 norm.

AC

P roducts

Options and accessories

Remote control JT8

Enables the control (ON/OFF) and the remote display (ON / Standby / Temporary off).

(supplied with a 5 m cable)

Plug for remote control RCM :

CM 01 : ON when a contact is closed ;

RCM 02 : ON when a voltage is present on the remote control ;

RCM 03 : ON when a contact is open.

Supplied with a connector Jack 3.5 mm.

AJ 275-12, AJ 350-24

AJ 400-48, AJ 500-12

AJ 600-24, AJ 700-48

AJ 1000-12, AJ 1300-24

AJ 2100-12, AJ 2400-24

l l

Optional built-in solar charge controller (-S)

An optional 3 STEP charge controller

(I/U/Uo) can be supplied built-in making the inverter AJ an « all in one » device for a solar installation.

DC AC

Rural electrification (Solar Home System)

The rural electrification and the inverters of the AJ serie : excellence to the benefit of the development of remore areas and populations. Choosing AC voltage for the rural electrification systems is going for simplicity, reliability and cost saving. Indeed, compared with a DC voltage one, a system with an inverter is often more efficient from 100W of solar power, and is always since 200W.

The AJ serie, due to its overload capability and to its very reliable stand-by system adjustable from 1W, is the most suitable range of inverters to meet the rural electrification technical and economical requirements.

23

Battery chargers

MBC serie

The MBC chargers enable to charge a battery from an AC voltage source of supply (genset, public grid, shore power...). These chargers are also IP65 and therefore especially designed for outdoor applications.

Features and performances

• Universal input voltage.

• Charge of lead-acid or GEL batteries.

• Protection against battery overcharge.

AC

GENERATOR

AC

MBC range

MBC 12-06/1

MBC 12-15/1

MBC 24-03/1

MBC 24-08/1

MBC 24-32/1

Battery voltage

12 Vdc

12 Vdc

24 Vdc

24 Vdc

24 Vdc

Input voltage

100-260 Vac

100-260 Vac

100-260 Vac

100-260 Vac

100-260 Vac

Output current

6 A

15 A

3 A

8 A

32 A

Output

1

1

1

1

1

Complete technical specifications on page 33.

24

P roducts

DC/DC converters

MDCI and MDC series

The DC/DC converters type MDCI and MDC are used, depending on the model, either to step up or to step down a DC voltage.

The converters of the MDCI range are electrically isolated.

Features and performances

• High efficiency.

• Low consumption.

• Protection against short-circuit, overheat,

overvoltage and reverse polarity.

• Great stability of the output voltage for a more

reliable system.

DC DC

MDCI range

MDCI 100

MDCI 200

MDCI 360

MDCI 360 A24

Charger

A = 9-18 Vdc

Power

100 W

200 W

360 W

330 W

Output Current

8/4 A

16.5/8 A

30/15 A

30/15 A

Input variant

A/B/C/D

A/B/C/D

A/B/C/D

A

B = 20-35 Vdc C = 30-60 Vdc D = 60-120 Vdc

Output variant

12/24 Vdc

12/24 Vdc

12/24 Vdc

24 Vdc

Isolated

Yes

Yes

Yes

Yes

MDC range

MDC 1224-7

MDC 2412-5

MDC 2412-8

MDC 2412-12

MDC 2412-20

MDC 2412-30

Power

170 W

65 W

105 W

160 W

275 W

415 W

Output Current

7 A

5 A

8 A

12 A

20 A

30 A

Input voltage

9-18 Vdc

18-35 Vdc

18-35 Vdc

20-35 Vdc

20-35 Vdc

20-35 Vdc

Output voltage

24 Vdc

13.2 Vdc

13.2 Vdc

13.2 Vdc

13.8 Vdc

13.8 Vdc

Isolated

No

No

No

No

No

No

Complete technical specifications on page 33.

The MDC 2412-20 and 2412-30, as well as the MDCI 360 A24 « Charger » can also be used to charge a battery from a source at their input terminal to a battery at their output terminal.

25

MOSFET battery splitters

MBI serie

The MOSFET battery splitters MBI generate an insignificant voltage drop. They supply the current of a charger or of an alternator to several batteries. All batteries are thus charged in the same time and therefore will not charge or discharge each others.

MBI range

MBI 100/2

MBI 150/2

MBI 100/3

MBI 150/3

MBI 200/3

MBI 2-100/3

Features and performances

• Automatic adjustment to the batteries voltage.

• Possible charge of the battery from an alternator

• Voltage drop < 0.4 V at 100 Amp. charge current.

• Suitable for electronic alternators.

Input

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

12/24 Vdc

Charge current

100 A

150 A

100 A

150 A

200 A

100 A

Charge input

1

1

1

1

1

2

Outputs

2

2

3

3

3

3

Complete technical specifications on page 34.

AC

MOTOR

DC

DC

Batteries separators

MBR serie

The batteries separators MBR are microprocessor controlled.

They charge first the primary battery, from a charger or an alternator, then the other batteries by connecting them in parallel.

MBR range

Battery voltage

MBR 12/24-100

12/24 Vdc

MBR 12-160

12 Vdc

MBR 24-160

MBR 12/24-500

24 Vdc

12/24 Vdc

Charge current

100 A

160 A

160 A

500 A

Batteries

2

2

2

2

Complete technical specifications on page 35.

MOTOR

Features and performances

• Insignificant voltage drop.

• Protects the auxiliary battery from any

overvoltage coming from the charge.

DC

DC

DC DC

AC

26

P roducts

Battery protection

MBW serie

The Battery Watch protects the battery from an excessive discharge and also the consumers in case of overvoltage.

Features and performances

• Programming of the connection and disconnection voltages

by jumpers.

• MOSFET switches, therefore no sparks.

• Alarm output to indicate excessive voltage drops.

MBW range

MBW 40

MBW 60

MBW 200

Maximum current

40

60

200

Operating voltage range (Vdc)

6-35

6-35

8-32

Complete technical specifications on page 35.

Battery monitoring

DC

DC

SBM-02

The SBM-02 is a highly accurate battery monitor with a history data memory. It is supplied together with a 500A/50mV shunt.

This device is designed for 12 and 24V batteries. The voltage pre-scaler

SBM-PS-02 in option extends the use of the SBM-02 to 27-175V batteries.

AUX

Features and performances

• Digital display of the 6 most important

parameters of a DC power system :

1. Battery voltage (V)

2. Current (A)

3. Consumed Ampere-hours (Ah)

4. Sate-of-charge (%)

5. Time-to-go (h:m)

6. Temperature (°C or °F)

Optional accessories

• Connection kit, type SBM-CAB-20, including 20m of twisted pair cable (3 x 2 x 0.5mm2) and

2 fuseholders.

• Communication kit, type SBM-COM, including RS232 interface box, 1.8m of 9p DSUB serial cable

and software.

• Communication kit, type SBM-COM-USB, including USB interface box, 1.8m of USB cable and software.

• Temperature kit, type SBM-TEMP-20, with a temperature sensor and 20 m cable.

• Shunt 1200 A / 50 mV, type SH-1200-50, for the battery monitoring in big systems.

27

Technical sheets

Xtender series

Model XTM 1500-12 XTM 2000-12 XTM 2400-24 XTM 2600-48 XTH 3000-12 XTM 3500-24 XTM 4000-48 XTH 5000-24 XTH 6000-48 XTH 8000-48

Inverter (factory setting/range adjustable with RCC-02 or RCC-03)

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 sec. @ 25°C

Power Smart-Boost 30 min. @ 25°C

Maximum load

Maximum asymmetric load

Load detection (stand-by)

1500VA

12V

9.5 - 17V

1500VA

3.4kVA

1500VA

2000VA

4.8kVA

2000VA

24V

19 - 34V

2000VA

2400VA

6kVA

2400VA

48V

38 - 68V

2600VA

6.5kVA

2600VA

12V

9.5 - 17V

2500VA

3000VA

7.5kVA

3000VA

24V

19 - 34V

3000VA

3500VA

9kVA

3500VA

Up to short-circuit

Up to Pcont.

2 to 25 W

48V

38 - 68V

3500VA

4000VA

10.5kVA

4000VA

24V

19 - 34V

4500VA

5000VA

12kVA

5000VA

5000VA

48V

38 - 68V

7000VA

6000VA

15kVA

6000VA

8000VA

21kVA

8000VA

Cos j

Maximum efficiency

Consumption OFF/Stand-by/ON

Output voltage

Output frequency

93% 94% 96% 93% 94% 96% 94% 96%

1.2W/1.4W/8W 1.2W/1.4W/10W 1.4W/1.6W/9W 1.8W/2W/10W 1.2W/1.4W/14W 1.4W/1.6W/12W 1.8W/2.1W/14W 1.4W/1.8W/18W 1.8W/2.2W/22W 1.8W/2.4W/30W

Harmonic distortion

Dynamic behaviour

Overload and short-circuit protection

Overheat protection

Battery charger 6 step adjustable : I-U-Uo-Equalize-Uo(low)-U(periodic)

Charging current adjustable

0 - 70A 0 - 100A

Sine wave 230Vac (+/- 2%) / 190-245Vac (also available in 120Vac except for the XTH 8000-48)

50Hz / 60Hz (-01) adjustable 45-65Hz +/- 0.05% (crystal controlled)

<2%

0.5 ms (on load change 0 to 100%)

Automatic disconnection with 3 time restart attempt

Warning before shut-off - with automatic restart

0 - 55A 0 - 30A

0.1-1

0 - 50A 0 - 140A 0 - 100A 0 - 120A

Input current balance adjustment

Maximum input voltage

Input AC voltage range

Input frequency

Power Factor Correction (PFC)

Battery control (factory setting/range adjustable with RCC-02 or RCC-03)

0 - 160A 0 - 90A

1 - 50A

265Vac / 150Vac (-01)

Adjustable threshold from 150 to 265Vac / 50 to 140Vac (-01)

45 - 65Hz

EN 61000-3-2

Absorption end

Absorption voltage

Periodic absorption voltage

Floating voltage

Reduced floating voltage

Equalization

Equalization end

Equalization voltage

Deep-discharge protection

Reduced floating time

Periodic absorption time

Temp. compensation (option BTS-01)

General data

Multifunction contact adjustable

Max. current on transfer relay

Transfer time

Weight

Dimension hxwxl [mm]

14.4 / 9.5 - 17V

- / 9.5 - 17V

13.6 / 9.5 - 17V

- / 9.5 - 17V

10.8 / 9.5 - 17V

- / 19 - 34V

By duration 4 / 0.25 - 10 h or by current - / 4 - 30A

- / 38 - 68V - / 9.5 - 17V - / 19 - 34V - / 38 - 68V - / 19 - 34V

21.6 / 19 - 34V 43.2 / 38 - 68V 10.8 / 9.5 - 17V 21.6 / 19 - 34V 43.2 / 38 - 68V 21.6 / 19 - 34V

- / 38 - 68V

43.2 / 38 - 68V

- / 0 - 32 days

- / 0 - 10 hours

-5 / 0 to -8mV/°C/Cell (only with option BTS-01)

XTM 1500-12 XTM 2000-12 XTM 2400-24 XTM 2600-48 XTH 3000-12 XTM 3500-24 XTM 4000-48 XTH 5000-24 XTH 6000-48 XTH 8000-48

15 kg

- / 9.5 - 17V

By duration 2 / 0.25 - 10 h or by current - / 4 - 30A

28.8 / 19- 34V 57.6 / 38 - 68V 14.4 / 9.5 - 17V 28.8 / 19 - 34V 57.6 / 38 - 68V 28.8 / 19 - 34V

- / 19- 34V - / 38 - 68V - / 9.5 - 17V - / 19 - 34V - / 38 - 68V - / 19 - 34V

27.2 / 19 - 34V 54.4 / 38 - 68V 13.6 / 9.5 - 17V 27.2 / 19 - 34V 54.4 / 38 - 68V 27.2 / 19 - 34V

- / 19 - 34V - / 38 - 68V - / 9.5 - 17V - / 19 - 34V - / 38 - 68V

By number of cycles ( - / 1 - 100) or at set interval ( - / 52 weeks)

2 independent contacts 16A/240Vac, 20 A-24 Vdc / 16A/140Vac (-01) (potential free 3 points)

18.5 kg

133x322x466

16.2 kg

50A

<15ms

34 kg

230x300x500

21.2 kg 22.9 kg

133x322x466

- / 19 - 34V

40 kg

230x300x500

57.6 / 38 - 68V

- / 38 - 68V

54.4 / 38 - 68V

- / 38 - 68V

42 kg

230x300x500

46 kg

Protection index

Conformity

Operating temperature range

Relative humidity in operation

Ventilation

Acoustic level

Warranty

Options

Remote control RCC-02 or RCC-03

Communication cable for 3ph and // CAB-RJ45-8-2

Battery temp. sensor BTS-01 (3 m)

Remote Control Module RCM-10 (3 m) l l l l l l l l

IP20

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC

-20 to 55°C

95% without condensation

Forced from 55°C

<40dB / <45dB (without/with ventilation)

2 years l l l l l l l l l l l l l l l l l l l l l l l l l l l l

Data may change without any notice.

28

A ppendices

COMPACT series

Model

Inverter

XPC 1400-12 XPC 2200-24 XPC 2200-48 C 1600-12 C 2600-24 C 4000-48 HPC 2800-12 HPC 4400-24 HPC 6000-48 HPC 8000-48

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 sec. @ 25°C

Maximum power

Maximum asymmetric load

Stand-by adjustment

Cos j

Maximum efficiency

Consumption OFF/Stand-by/ON

Output voltage

Output frequency

Total harmonic distortion

Dynamic behaviour

12V

9.5 – 16V

1100VA

1400VA

94%

< 4%

24V

19 - 32V

1600VA

2200VA

95%

48V

38 - 64V

1600VA

2200VA

12V

9.5 - 16V 19 - 32V 38 - 64V

1300VA

1600VA

0 - 55A

24V

2300VA

2600VA

Up to short-circuit

Up to Pcont.

1 to 25W

0.1 - 1

48V

3500VA

4000VA

3 x Pnom

1 - 16A

0 - 50A

265Vac

12V

9.5 - 17V

2500VA

2800VA

24V

19 - 34V

4000VA

4400VA

0.5/0.6/4W 0.8/0.9/7W 1.2/1.3/7W 0.5/0.6/6W 0.8/0.9/9W 1.2/1.4/12W 1.4/1.8/10W 1.7/2/16W

Overload and short-circuit protection

Overheat protection

Battery charger (4 STEP) I-U-Uo-Equalize (every 25 cycles)

Charging current adjustable 0 - 45A 0 - 37A

Input current balance adjustment

Maximum input voltage

Not available

0 - 20A

94% 95%

Sine wave 230Vac (+0/- 10%) (XPC also available in 120Vac)

50Hz +/- 0.05% (crystal controlled)

< 2%

0.5 ms (on load change 0 to 100%)

93%

Automatic disconnection with 3 time restart attempt

Acoustic warning before shut-off - with automatic restart

0 - 110A

94%

0 - 100A

1 - 30A

Multifunction contact programmable

Max. current on transfer relay

Transfer time

Weight

Dimension hxwxl [mm]

Protection index

Certification ECE-R 10 (E24)

EC conformity

Operating temperature range

Relative humidity in operation

Ventilation

Accoustic level

Warranty

Options

Solar charge controller

11.7 kg l

30A 30A 20A 30A 30A 20A

5000VA

6000VA

48V

38 - 68V

2/2.5/18W

0 - 70A

Input AC voltage range

Input frequency

Power Factor Correction (PFC)

Optional solar charger (4 stages) I-U-Uo-Equalize (every 25 cycles)

Maximum PV open circuit voltage (V)

Maximum charge current (A)

25V

30A

45V

30A

Adjustable threshold from 150 to 230Vac (XPC also available in 120Vac)

90V

20A

25V

30A

45V

30A

Charging curve I-U-Uo-Equalize (every 25 cycles) / Not available

Battery control (thresholds and times adjustable by the user)

45 - 65Hz

EN 61000-3-2

90V

20A

Not available

Not available

Not available

Absorption time

End charge cycle voltage*

Floating voltage

Equalization time

Equalization voltage

Deep-discharge protection

Temparature compensation

(optional CT-35)

General data

14.4V

13.6V

15.6V

10.8V

28.8V

27.2V

31.2V

21.6V

57.6V

54.4V

62.4V

43.2V

14.4V

13.6V

15.6V

10.8V

28.8V

27.2V

31.2V

21.6V

0-4 h

0-4 h

57.6V

54.4V

62.4V

43.2V

-3mV / ° C / Cell

14.4V

13.6V

15.6V

10.8V

28.8V

27.2V

31.2V

21.6V

l

16A

16A - 250Vac (potential free 3 points)

12.6 kg

124x215x410

16 kg

IP20 (IP22 with top cover C-IP22)

17.1 kg

124x215x480

< 40 ms

29.4 kg

124x215x670

33 kg

30A

Not available l l

Not available

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, EN 61000-3-2, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +55°C

95% without condensation

From 45°C

<40dB / <45dB (without/with ventilation)

2 years

39 kg

242x288x480

IP 20

41 kg

96%

57.6V

54.4V

62.4V

43.2V

7000VA

8000VA

2/3/30W

0 - 90A

1 - 50A

50A

45 kg

242x288x500

* Factory settings

Data may change without any notice.

29

Technical sheets

AJ serie

Model

Inverter

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 min. @ 25°C

Power 5 sec. @ 25°C

Maximum asymmetric load

Max. efficiency (%)

Cos j max.

Detection of the load

Current of short-circuit 2 sec. (exit)

Output voltage

Frequency

Distortion THD (resistive load)

Consumption Stand-by

Consumption «ON» no load

Overheat protection (+/-5°C)

Overload and short circuit protection

Reverse polarity protection

Deep discharge battery protection

Max. battery voltage

Acoustic alarm

General data

Weight

Dimensions

Protection index IP

Certification ECE-R 10 (E24)

EC conformity

Operating temperature

Relative humidity in operation

Ventilation forced

Acoustic level

Warranty

Approximate correction of Pnom

Recommended battery capacity

Length cables (Battery/left AC)

Options

Voltage max.

Current max.

Solar regulator

Principle

Absorption voltage

Floating voltage

Plug for remote control (RCM)

* 120Vac/60Hz on request

** Standby with solar option -S

AJ 275-12 AJ 350-24 AJ 400-48 AJ 500-12 AJ 600-24 AJ 700-48

12V 24V 48V 12V 24V 48V

10.5 – 16V (24V max.) 21 – 32V (44V max.) 42 – 64V (64V max.) 10.5 – 16V (24V max.) 21 –32V (44V max.) 42 –64V (64V max.)

200VA 300VA 300VA 400VA 500VA 500VA

275VA

350VA

450VA

350VA

500VA

650VA

400VA

600VA

1000VA

500VA

575VA

1000VA

600VA

675VA

1200VA

700VA

900VA

1400VA

150VA

93%

150VA

94%

200VA

94%

250VA

93%

0.1 – 1 up to 200 VA 0.1 – 1 up to 300 VA 0.1 – 1 up to 300 VA 0.1 – 1 up to 400VA

300VA

94%

300VA

0.1 – 1 up to 500VA 0.1 – 1 up to 500VA

Adjustable : 1 g 20W

5.7A (11.4A*)

94%

7A (14A*) 2.3A (4.6A*)

2W (only with the solar option -S)

3.2A (6.4A*)

0.3W**

2.4W

0.5W**

3.5W

4.6A (9.2A*) 5.2A (10.4A*)

Sine wave 230Vac (120Vac*) 0 / - 10%

50Hz (60Hz*) ± 0.05% (crystal controlled)

< 5% (@ Pnom.)

1.1W**

5.2W

0.4W

4.6W

0.6W

7.2W

1.5W

12W

Shut down @ 75°C - Auto-restart @ 70°C

Automatic disconnection with 2 time restart attempt

Protected by internal fuse

Shut off @ 0.87 x Unom - Automatic restart @ Unom

Shut off @ >1.33 x Unom - Automatic restart @ < Umax

Before low battery or overheating disconnection

2.4 kg l

AJ 275-12-S

25V

14.4V

13.6V

l

2.6 kg

142mm x 163mm x 84mm

4.5 kg

142mm x 240mm x 84mm l

IP 30 conforms to DIN 40050

Not available l l

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +50°C

95% without condensation

From 45°C ± 5°C

< 45 dB (with ventilation)

2 years

-1.5%/°C since +25°C

> 5 x Pnom/Unom (recommended value in Ah)

1.2m / 1m

AJ 350-24-S

45V

10A

AJ 400-48-S

90V

AJ 500-12-S

25V

1.5m / 1m

AJ 600-24-S

45V

15A

28.8V

27.2V

Floating 3 stages (I/U/UO)

57.6V

14.4V

54.4V

13.6V

28.8V

27.2V

l l l l

Not available

AJ 700-48-S

90V

57.6V

54.4V

l

A ppendices

AJ serie

Model

Inverter

Nominal battery voltage

Input voltage range

Continuous power @ 25°C

Power 30 min. @ 25°C

Power 5 min. @ 25°C

Power 5 sec. @ 25°C

Maximum asymmetric load

Max. efficiency (%)

Cos j max.

Detection of the load

Current of short-circuit 2 sec. (exit)

Output voltage

Frequency

Distortion THD (resistive load)

Consumption Stand-by

Consumption «ON» no load

Overheat protection (+/-5°C)

Short circuit protection

Reverse polarity protection

Deep discharge battery protection

Max. battery voltage

Acoustic alarm

General data

Weight

Dimensions

Protection index IP

Certification ECE-R 10 (E24)

EC conformity

Operating temperature

Relative humidity in operation

Ventilation forced

Acoustic level

Warranty

Approximate correction of Pnom

Recommended battery capacity

Length cables (Battery/left AC)

Options

Voltage max.

Solar regulator

Current max.

Principle

Absorption voltage

Floating voltage

Remote control JT8 supplied with

5 m cable

* 120Vac/60Hz on request

AJ 1000-12 AJ 1300-24 AJ 2100-12 AJ 2400-24

12V

10.5 – 16V (24V max.)

800VA

1000VA

1200VA

2200VA

500VA

93%

0.1 – 1 up to 800VA

24V

21–32V (44V max.)

1000VA

1300VA

2000VA

2800VA

600VA

94%

0.1 – 1 up to1000VA

Adjustable : 1 g 20W

12V

10.5 – 16V (20V max.)

2000VA

2100VA

2450VA

5000VA

1000VA

92% @ 300VA

0.1 – 1 up to 2000VA

10A (20A*)

0.7W

13A (26A*) 26A (52A*)

Sine wave 230Vac (120Vac*) 0 / -10%

50 Hz (60Hz*) ± 0.05% (crystal controlled)

< 5% (@ Pnom. & Uin nom.)

1.2W

0.7W

10W 13W 16W

Shut down @ 75°C - Auto-restart @ 70°C

Automatic disconnection with 2 time restart attempt

Protected by internal fuse 125A Protected by internal fuse 100A Not protected

Shut off @ 0.87 x Unom - Automatic restart @ Unom

Shut off @ >1.33 x Unom - Automatic restart @ < Umax

Before low battery or overheating disconnection

24V

21–32V (40V max.)

2000VA

2400VA

2800VA

5200VA

1200VA

94% @ 300VA

0.1 – 1 up to 2000VA

30A (60A*)

< 3% (@ Pnom & Uin nom.)

1.2W

16W

Protected by internal fuse 150A l

AJ 1000-12-S

25V

14.4V

13.6V

8.5 kg

142mm x 428mm x 84mm

IP 30 conforms to DIN 40050

19 kg l

273mm x 399mm x 117mm

18 kg

IP 20 conforms to DIN 40050 l l

EN 61000-6-1, EN 61000-6-3, EN 55014, EN 55022, Dir. 89/336/EEC, LVD 73/23/EEC

-20°C up to +50°C

95% without condensation

From 45°C ± 5°C

< 45 dB (with ventilation)

2 years

-1.5%/°C since +25°C

> 5 x Pnom/Unom (recommended value in Ah)

1.5m / 1m 1.7m / 1m

AJ 1300-24-S

45V

AJ 2100-12-S

25V

25A 30A

Floating 3 stages (I/U/UO)

28.8V

27.2V

14.4V

13.6V

AJ 2400-24-S

45V

28.8V

27.2V

l l l l

Data may change without any notice. Data may change without any notice.

30 31

Technical sheets

MBC serie

Model

Battery voltage (Vdc)

Input voltage (Vac)

Charge voltage (boost) (Vdc)

Charge voltage (float) (Vdc)

Output (A)

Cooling

Outputs

Efficiency

Ambient temp. range

Dimensions lxwxh (mm)

Weight (kg)

Recommended batt. capacity (Ah)

Switch to Floating mode (A)

Secondary fuse (A)

Input wired

Ouput wired

Warranty

MBC 12-06/1

12

14.4

13.8

6

155x80x36

0.9

18-60

0.2

7.5

l l

MBC 12-15/1

12

14.4

13.8

15

195x100x47

1.8

45-150

0.8

20 l l

MBC 24-03/1

24

100-260 (40 - 60 Hz)

28.8

27.6

3

Heat sink

1

> 85 %

-25 to 50°C

155x80x36

0.9

9-30

0.2

7.5

l l

2 years

MBC 24-08/1

24

28.8

27.6

8

195x100x46

1.8

24-80

0.4

15 l l

MBC 24-32/1

24

28.8

27.2

32

158x245x47.5

3.8

20 >

3.5

40 l l

MDCI and MDC series

MDCI – DC/DC converter, switch-mode, isolated

Model

Power (W)

Input variants (Vdc)

Output variants (Vdc/A) +- 2

Output current (A)

Galvanic isolation

Isolation voltage (V)

Efficiency @ full load (%)

Off-load current (mA)

Operating temperature

Ambiant temp. (20°) increase after 30 min. @ full load

Cooling

Dimensions HxWxD (mm)

Weight (gr)

* A = 9-18 Vdc B = 20-35 Vdc C = 30-60 Vdc

MDCI 100

100

A-B-C-D

12.5/8-24/4

8/4 l

25°C

Convection

49x88x152

500

D = 60-120 Vdc

MDCI 200

200

A-B-C-D

12.5/16-24/8

16.5/8 l

49x88x182

600

MDC –DC/DC converter, switch-mode, not-isolated

Model

Power (W)

Output current (A)

Input (Vdc)

Output (Vdc)

Efficiency @ full load (%)

Off-load current (mA)

Operating temperature

Ambiant temp. (20°) increase after 30 min. @ full load

Cooling

Dimensions HxWxD (mm)

Weight (gr)

MDC 1224-7 MDC 2412-5 MDC 2412-8 MDC 2412-12 MDC 2412-20 MDC 2412-30

170

7

9-18

24

65

5.5

18-35

105

8

13.2

160

12

275

20

20-35

13.8

415

30

90

< 15 < 5 25

-20 / +40°C

30°C

49x88x98

300

49x88x68

170

20°C 30°C

Convection

49x98x88

250 260

33°C

Fan

49x88x126 49x88x151

480 600

400

± 85

< 25

-20 / +45°C

Data may change without any notice.

MDCI 360

360

A-B-C-D

12.5/30-24/15

30/15 l

30°C

Fan

64x163x160

1400

MDCI 360 Charger

330

A

27.6/12

13 l

Common features MDCI & MDC

Paralleling

Humidity

Protection

Overload

Overheating

Overvoltage

Max. 2 converters

Max. 95% non condensing

Up to short-circuit

Output voltage reduction

Transient protection by Varistor

Reverse polarity

Fuse

Casework Anodized aluminium

Connections

Warranty

Norms

6.3 mm Faston

2 years

EN 50081-1 (emission) EN

50082-1 (immunity) 95/54/EC

(automotive directive)

32

A ppendices

MBI serie

MBI – Battery isolator, voltage drop free

Model

Input nominal voltage (Vdc)

Input voltage range (Vdc)

Charge current max. (A)

Input number

Battery banks

Voltage drop @ 10a/20A (V)

Consumption (mA)

Alternator start

Operating temperature (°C)

Dimensions LxHxD (mm)

Weight (gr)

Nominal voltage 12 or 24V

Insulation to ground

Warranty

Norms

MBI 100/2 IG

100 l

780

2

146x85x92

MBI 150/2 IG MBI 100/3 IG MBI 150/3 IG MBI 200/3 IG

12/24

8-30

150 100

1

150 200

3

0.0 / 0.1

0 l l l l

810

-40 / +85

146x85x152

780

Automatic detection

810

> 500V @ 60Hz

2 years

EN 50081-1 (emission) EN 50082-1 (immunity) EN 60950-1 (safety)

815

MBI 2-100/3

100

2

780

MBR serie

MBR – Microprocessor controlled battery separator

Model

Nominal voltage (Vdc)

Charge current max. (Amp)

Connection threshold (Vdc)

Disconnection threshold (Vdc)

Battery banks

Alternator start

Start contact for batteries paralleling

Micro switch for remote status indication

Dimensions LxHxD (mm)

Weight (gr)

Consumption

Voltage stability

Protection of the auxiliary battery against overvoltage

Connection on the battery side

Other connections

Warranty

Norms

MBR 12/24-100

12/24

100

13.2/26.4

12.8/25.6

MBR 12-160

12

13.2

12.8

160

MBR 24-160

24

26.4

25.6

MBR 12/24-500

12/24

500

13.2/26.4

11.8/23.6

2 l l l l l l l l

46x46x80

110

46x93x96

300

< 5mA

6

2%

16 / 32Vdc

M6

6.3 mm Faston

2 years

EN 50081-1 (emission) EN 50082-1 (immunity) Automotive Directive 95/54/CE

72x70x80

417

M8

Data may change without any notice.

33

Technical sheets

MBW serie

MBW – Battery watch

Model

Nominal voltage (Vdc) depends on jumpers

Max. continuous current 5’ (Amp)

Peak current (Amp)

Operating voltage range (Vdc)

Consumption (mA)

Alarm output delay

Alarm output max. current (mA)

Load disconnect delay

Voltage level accuracy

Casework

Weight (gr)

Dimensions HxDxL (mm)

Battery protection

Users protection

MOSFET switches

Norms

MBW 40 MBW 60

12/24

40

120

60

120

6-35

< 7

15 seconds

500

1 minute

0.2V

2%

Anodized aluminium, black

49x88x68

200

80x60x40

Against excessive discharge

Against overvoltages (16 / 32 Vdc)

No sparks

EN 50081-1 (emission) EN 50082-1 (immunity)

Automotive Directive 95/54/CE

MBW 200

200

480

8-32

< 3

30 secondes

0.1V

580

145x92x85

Against overvoltages

(15.5 / 31 Vdc)

EN 50081-1 (emission)

Automotive Directive 95/54/CE

Jumper selectable voltage

Disengage (V)

10

10.5

11

11.5

21.5

22

22.5

23

Engage (V)

11.5

12

13

13.8

24.5

25

25.5

26.5

SBM-02

SBM-02 – Battery monitor 12 and 24Vdc

Model

Supply voltage range

Supply current @ 12Vdc, without BL

Supply current @ 24Vdc, without BL

Input voltage range (« Auxiliary » battery)

Input voltage range (« Main » battery)

Input current range

Battery capacity range

Operating temperature range

Protection class

Front panel

Dimensions

Body diameter

Total depth

SBM-02

9-35 Vdc

9 mA

7 mA

2...35 Vdc

0...35 Vdc

-9999…+9999 A

20…9990 Ah

-20…50°C

IP20 (Frontpanel IP65)

Ø 64 mm

Ø 52 mm

79 mm

Standart equipment SBM-02

Potential free alarm contact

500A/50mV current shunt

Optional accessories

SBM-PS-02-Voltage pre-scaler 1:5 (adapting the SBM-02 to input voltage 27-175Vdc)

Connection kit, type SBM-CAB-20, including 20 m of twisted pair cable (3x2x0.5 mm2) and 2 fuseholders

Communication kit, type SBM-COM, including RS232 interface box, 1.8 m of 9p DSUB serial cable and a software

Communication kit, type SBM-COM-USB, including USB interface box, 1.8 m of USB cable and software.

Temperature kit, type SBM;-TEMP-20, with 20 m cable

Shunt 1200 A/50 mV, type SH-1200-50

Data may change without any notice.

34 35

London

Studer Europe

Brussels

Francfort

Paris

Lyon

Geneva

Sion

Zurich

Milan

Barcelona

STUDER INNOTEC

Rue des Casernes 57

1950 Sion - Switzerland

Tél : +41 (0) 27 205 60 80

Fax : +41 (0) 27 205 60 88 [email protected]

www.studer-innotec.com

SWISS made power

Rome

Vienna

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
