CI/SfB | | Rf7 | |

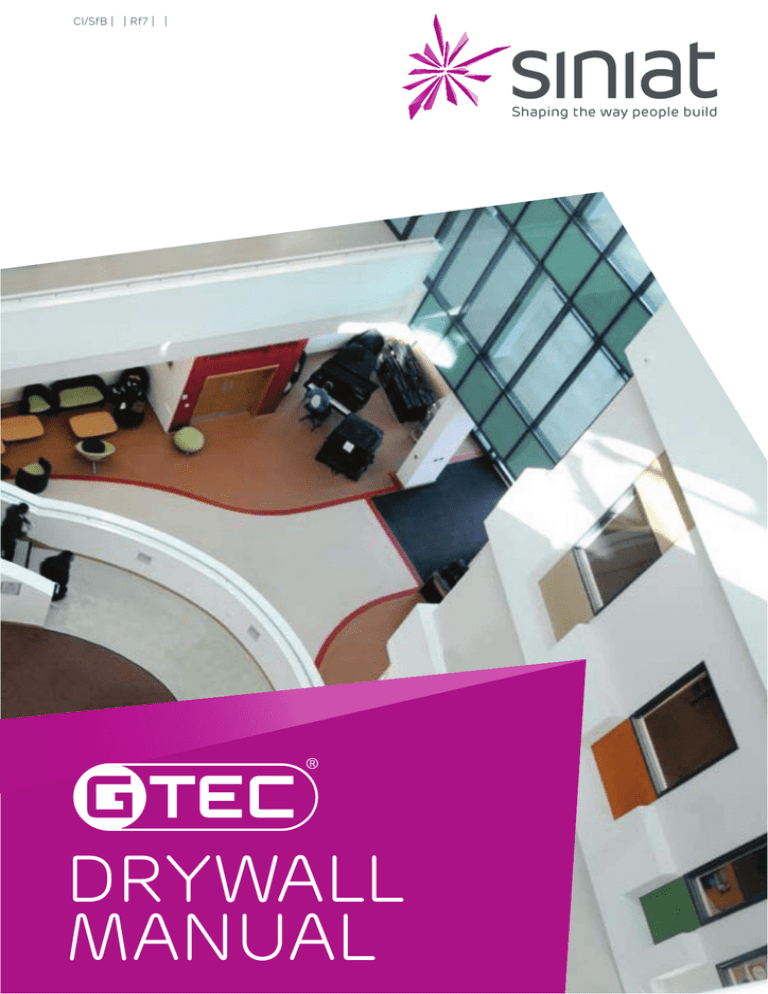

DRYWALL
MANUAL
INNOVATIVE
DRYLINING
SOLUTIONS
Welcome to the new look Siniat Drywall Manual – a comprehensive guide
containing all the technical information you need to specify the best and
most appropriate drywall, drylining product or system. From enabling you to
design warm and safe residential environments, to guiding you to meeting and
exceeding regulations for the most demanding of commercial and industrial
installations, Siniat is confident you will find the best solution to match your
particular requirement.
This document is intended as guidance for the correct
use of Siniat GTEC products and systems in typical, best
practice applications. It incorporates detailed technical
information to assist the user in selecting and specifying
the correct systems for the intended applications. This
document does not cover all possible configurations
of products in all possible constructions. When project
requirements are different from the typical construction
solutions shown then consultation with Siniat Specification
Managers, Technical Enquiryline or other suitably qualified
professionals should be sought.
There are references within this document to products to
be supplied by other manufacturers; their advice should
be sought when using their products. The fixing of GTEC
products to various structures is beyond the scope of this
document and advice should be sought from fixing suppliers
and/or qualified professionals.
This document is non-exhaustive and provides general
advice in line with good practice; further information
should be sought when required. This document
supersedes all previous guidance. All reasonable efforts
have been made to ensure accuracy and future changes
and improvements may be made to the document
without prejudice or notice. The correct installation and
specification of GTEC systems and components is the
responsibility of the contractor and the specifier.
All GTEC systems should be constructed in accordance
with all relevant building regulations and the guidance in
‘BS 8212:1995 Code of Practice for Dry lining and Partitioning
using Gypsum Plasterboard’, ‘BS 8000-8:1994 Workmanship
on building sites -Code of practice for plasterboard partitions
and dry linings’ and ‘BS EN 13964:2004+A1:2006 Suspended
ceilings – requirements and test methods’.
GTEC is registered trademark of Siniat Limited
© 2012 Siniat Limited
Call the Technical Enquiryline
for technical advice and details
specific to your project
01275 377 789
INTRODUCTION
CONSIDER...
SPECIFY...
REFER...
2
SYSTEMS FOR HEALTHCARE
SYSTEMS FOR EDUCATION
SYSTEMS FOR RESIDENTIAL
INVENTED BY SINIAT
SYSTEM PERFORMANCE
6
8
10
12
16
GTEC® PARTITIONS
20
GTEC® FLOORS AND CEILINGS
120
GTEC® LININGS
178
GTEC® FIRE PROTECTION
242
GTEC® FINISHING
276
Product Reference
Profile Guide
Screw Selection Guide
Sustainability
Health and Safety
Standards
Index
292
332
334
336
341
342
344
The latest version of this publication can be
found at www.siniat.co.uk/drywallmanual
2
INTRODUCTION
SHAPING
THE WAY
PEOPLE
BUILD
BUILDING ON SOLID FOUNDATIONS
Our company was established in the UK in 1987
with a manufacturing facility on the outskirts of
Bristol – one of the most technically advanced
drywall production units in the world. It has
the capacity to produce and supply more than
50 million square metres of plasterboard a year.
A second plant at Ferrybridge opened in 2007,
enabling a 50% increase in UK manufacturing
capacity. Excellence is achieved through
continual investment in technology combined
with high quality materials. Fully automated plant
and high purity gypsum combine to produce
plasterboard products of the highest quality.
Siniat is a European leader in plasterboard
manufacture and systems, active across Europe
with major operations in France, Germany,
Benelux, Italy, Romania and Ukraine. The
worldwide head office located in Avignon,
France, also houses the Technical Development
Centre which has led the way in gypsum research
and product innovation. Siniat joined Etex,
a leading worldwide industrial and building
materials group, in 2011.
OUR COMMITMENT TO SUSTAINABLE
CONSTRUCTION
The need for sustainable buildings, and the
sustainable products to build them, is increasingly
important for both the construction industry, the
occupants of our buildings, and to us. We reacted
early to this challenge, amassing a number of
sustainability firsts in the process. Having led the
way, we remain firmly committed to sustainability.
We will continue to examine our product’s whole
lifecycle, from source to disposal, always looking
for new ways to reduce the amount of natural
resources we use.
Plasterboard is fully recyclable –
with no loss in quality
GTEC Products and Systems are
BRE Green Guide A / A+ rated and
help collect sustainability code credits
Certified and managed sustainability:
Responsible Sourcing BES 6001,
ISO 9001 and ISO 14001
Full plasterboard site waste collection and
recycling from GTEC Wasteline Direct
The leading recycler of post-consumer
plasterboard waste in each of the last three years
For more information on our life cycle approach
please refer to pages 336-340.
INTRODUCTION
GTEC®
GTEC® LIFETIME SYSTEM WARRANTY
The GTEC brand represents quality, durability
and assured performance across all our products
and system solutions. Products include standard,
performance and specialist boards, as well as
finishing compounds, metal framing and fixings
to satisfy the practical and performance needs of
all new-build and refurbishment projects. GTEC
Systems are built from four key component groups:
GTEC products and components are tested
together to ensure compatibility and
system performance. By completing this
rigorous testing we are able to guarantee
the technical performance of our systems;
giving piece of mind to users, contractors,
engineers and architects alike.
GTEC Board
Standard, performance and specialist boards
specifically designed for a wide range of
construction applications, giving impact,
moisture, vapour, sound and fire resistance.
GTEC Frame
A range of metal framing components for
use in combination with GTEC Boards.
From basic studwork to suspended
ceilings and intricate curves.
GTEC Fix
A comprehensive range of screws, adhesives
and other fixing components for attaching
boards and connecting components.
GTEC Finish
Taping and jointing systems used for the
seamless jointing of plasterboard for creating a
high performance system with a perfect finish.
When systems are built entirely with GTEC
components and materials, by qualified
professionals, in accordance with our latest
literature and relevant standards, we can offer
our invaluable Lifetime System Warranty.
In the unlikely event of failure, provided the
system is unaltered, as originally designed
and built, we will reinstate the system to its
originally specified performance level. This
warranty gives the confidence that Siniat
GTEC systems will perform as intended
throughout the life of the building.
Warranties for products and systems in
wet or severe humidity environments
are available separately on request.
For full details of the Lifetime System
Warranty, please visit www.siniat.co.uk
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
3
4
GTEC® SINIAT
RE-SHAPING
THE
SPECIFICATION
PROCESS
GTEC® SINIAT
DEDICATED SUPPORT SERVICES TO
THE SPECIFIER
FIND OUT EVEN MORE INFORMATION
ON OUR WEBSITE
Whilst our suite of literature covers most typical
uses and situations, we understand that every
installation is different and there are bound to be
situations that are not covered. For this reason,
Siniat offers specification customers a range of
dedicated support services.
With the increasing pressure on the industry
to react and respond quickly to changes in
legislation and find solutions to meet the
ever-changing pressures towards sustainable
solutions and cost efficiency, our information
must be where you need it, when you need it.
Our field based specification managers are
able to help with design, system selection,
construction details and project specifications.
Highly experienced they can develop solutions
to improve speed of installation, fire, sound and
thermal performance, as well as guiding you
through sector-specific requirements.
Our website – www.siniat.co.uk – has been
created to provide a one-stop resource for
product, technical and legislative information.
Built on the latest web technology, the new
website guides you through the information
you need including:
The dedicated Technical Enquiryline offer an
immediate response to your technical queries
including installation advice, product guidance,
and acoustic and U-value calculations.
Online system selector to
complement this manual
Downloadable product and
technical literature
Case studies
We also provide a purpose-designed training
centre, which has been accredited by the CITB
and provides instruction in drywall installation
and management for contractors, merchants
and housebuilders.
Technical blogs
News, videos, and features
Sustainability
Other support services include a series of
CPD seminars to keep our specifier customers
updated on the latest developments and
regulations. Siniat also subscribes to NBS Plus
and continues to invest in new technology to
improve the specification process.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
5
6
SOUTHMEAD HOSPITAL
Bristol
Project: Healthcare
Architect: BDP
Main Contractor: Carillion Construction
Sub Contractor: BR Hodgson
Project Value: £430 million
Completion: 2014
GTEC Systems used: GTEC C Stud Partitions,
GTEC Acoustic Stud Partitions, GTEC Twin
Frame Partitions, GTEC Dryliner Linings,
GTEC Shaftwall Fire Protection
GTEC Boards used: GTEC Aqua Board,
GTEC Megadeco
GTEC® SYSTEMS FOR HEALTHCARE
SYSTEMS FOR
HEALTHCARE
GTEC Plasterboard Systems have been used extensively in major
healthcare projects across the UK and Ireland as fast and effective
solutions to healthcare construction.
The GTEC Boards and GTEC Systems have been developed to meet
and exceed the full range of extraordinary demands placed on
hospital and healthcare buildings.
EXTRAORDINARY DEMANDS
ACOUSTICS:
The acoustic demands on partitions in Healthcare buildings are extreme; from
ensuring consultation room privacy and operation suite concentration, to
dealing with emergency vehicle sirens and the intensity of A&E departments.
While layout can ease noise risk, GTEC Systems allow for flexible design with
extremely high levels of sound insulation from space to space. The partition
performance ensures that a superior healing environment is achieved. GTEC
Pregybel ceilings also help to control noise levels through acoustic absorption.
FIRE:
Multi-storey constructions containing bed-bound patients, large public areas,
multiple service entrances and numerous circulation routes, place a high fire
resistance demand on any project.
GTEC Partitions and GTEC Ceilings provide a simple design with high levels
of fire resistance and robust detailing for design flexibility. GTEC Shaftwall
and GTEC Encasement Fire Protection solutions offer specialist passive fire
protection to lifts, shafts and structural steel.
IMPACT:
Hospitals are dynamic, highly trafficked, public environments where walls are
subject to constant impact from staff, visitors and hospital equipment.
GTEC LaDura, a unique and exceptionally strong plasterboard, achieves severe
duty ratings with the minimum of boarding. Plus, it provides high levels of
fixing resistance for crash rails, skirting, services and fixtures.
HYGIENE:
Easy to clean surfaces are vital for good healthcare environments which need
frequent washing, and are dependent on excellent hygiene.
GTEC Finishing solutions combined with GTEC Partition and Lining systems
offer smooth, easy to joint and repairable surfaces which are easier to clean.
GTEC Megadeco Board requires no pre-sealing for even faster finishing.
KEY GUIDANCE DOCUMENTS AND REGULATIONS:
NHS Guidance:
Acoustics: Technical Design Manual
Firecode HTM 05
BREEAM New Construction:
Healthcare
Building Regulations:
Approved Document Part B 2006 – Fire Safety
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
7
8
BARNSLEY COLLEGE
Project: Education
Architect: Jefferson Sheard
Main Contractor: Miller Construction
Sub Contractor: Ace Partitions
Project Value: £50 million
Completion: 2012
GTEC Systems used: GTEC C Stud Partitions,
GTEC Curved Twin Frame Partitions,
GTEC Encasement Fire Protection, GTEC Mass
Barrier Ceilings, GTEC Dryliner Thermal Linings
GTEC Boards used: GTEC Megadeco,
GTEC Fire Board, GTEC Thermal K Board
GTEC® SYSTEMS FOR EDUCATION
SYSTEMS FOR
EDUCATION
GTEC Plasterboard Systems have been adopted in hundreds of
school, academy, college and university projects across the UK and
Ireland to efficiently meet the needs of education construction.
The range of GTEC Board and GTEC Systems suit the full scope
of extraordinary demands placed on education buildings.
EXTRAORDINARY DEMANDS
ACOUSTICS:
From music and sports noise to examination room silence, Education buildings
place extreme acoustic demands on specification. The isolation and control
of ambient noise from space to space is vital, as is good speech clarity in open
spaces, along with controlled reverberation.
While layout design can reduce noise risk, GTEC Systems’ high level of sound
insulation allows design flexibility from space to space. GTEC Pregybel ceilings
offer acoustic absorption and echo control, improving speech clarity and
reducing noise distractions.
FIRE:
“Each year around 1 in 20 schools experiences a fire and nearly 60% of school
fires are started deliberately.” BB100
Large circulation areas, multi-storey construction and broad types of use from science
labs to sports halls place a high fire resistance need on any Education project.
GTEC Partitions and GTEC Ceilings achieve high levels of fire resistance
with uncomplicated, robust and proven detailing for design flexibility.
GTEC Shaftwall and GTEC Encasement Fire Protection solutions offer
specialist passive fire protection to lifts, shafts and structural steel.
IMPACT:
Education buildings face some of the most intense usage. With high levels
of student movement, a wide variety of activities taking place and the chance
of misuse, careful specification is needed to reduce maintenance and repairs.
GTEC LaDura Board is exceptionally strong and achieves severe duty ratings
with the minimum of boarding. It offers excellent impact performance for
corridors and high levels of fixing resistance for fixtures and fittings.
DESIGN:
An innovative design can transform the learning experience of students,
enhancing their performance, motivation, behaviour and engagement.
Ideal for the most ambitious projects, GTEC Systems are flexible,
high performance and easy to install, providing quick construction.
GTEC LaDura, Aqua Board and Megadeco take plasterboard systems
to new areas replacing slower, less flexible, wet construction methods.
KEY GUIDANCE DOCUMENTS AND REGULATIONS:
Department for Education Guidance:
BB93 – Acoustic Design in Schools
BB100 – Design for Fire Safety in Schools
BREEAM New Construction:
Building Regulations:
Approved Document Part E 2003 – Resistance to the
Passage of Sound
Approved Document Part B 2006 – Fire Safety
Education
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
9
10
CASPIAN WHARF
Bow, London
Project: Residential
Architect: Stefan Zins Associates
Main Contractor: Berkeley Homes
Sub Contractor: BDL Group
Completion: 2012
GTEC Systems used: GTEC C Stud Partitions,
GTEC Twin Frame Partitions, GTEC Shaftwall
Fire Protection, GTEC Suspended MF Ceilings,
GTEC Direct Bond Linings
GTEC Boards used: GTEC LaDura,
GTEC Aqua Board, GTEC dB Board
GTEC® SYSTEMS FOR RESIDENTIAL
SYSTEMS FOR
RESIDENTIAL
GTEC Plasterboard Systems have been used across the UK and
Ireland to successfully build or renovate thousands of housing,
apartment and hotel projects.
The diverse range of GTEC Board and GTEC Systems features solutions
ideal for the construction of homes and other residential buildings.
EXTRAORDINARY DEMANDS
ACOUSTICS:
Busy lifestyles, close neighbours and urban noise can all combine to affect the
quality of home life. Party walls, party floors, partitions and ceilings all require
special attention to reduce noise issues.
GTEC Systems are tested to achieve extremely high levels of sound insulation.
They meet Part E Regulations and the enhanced CSH (Code for Sustainable
Homes) requirements* with the minimum of components.
*+3dB and +5dB over Part E for separating elements (Code for Sustainable Homes Technical Guide – November 2010)
FIRE:
With occupants of all ages, most often present at night while asleep, a
fire resistant design is essential. Multi-storey buildings and their escape
routes present even greater fire resistance needs, as stipulated by Building
Regulations Part B – Fire Safety.
GTEC Partitions and GTEC Ceilings achieve a full range of fire resistance using
minimal components for multi-storey apartments, dense housing developments
and detached houses. Robust and proven detailing enables design flexibility
and economic construction.
SUSTAINABILITY:
Dwellings are responsible for up to 30% of national carbon emissions through
their construction and use. Huge changes to the Building Regulations, as well
as the Code for Sustainable Homes (CSH), have been implemented to reduce
these carbon emissions representing a major shift in construction methods.
The use of GTEC Systems can earn CSH credits in a variety of ways – for more
details see the Sustainability section on pages 336-340. GTEC Systems are made
up of fully recyclable components with gypsum plasterboard being 100% re-usable
in a closed loop process. Recent product innovations use minimal components to
achieve technical performances, limiting material usage and waste.
All GTEC Lining systems can provide insulation to enhance the thermal
performance of external walls. These include the GTEC Thermal Boards range;
thermally laminated plasterboards which are recommended by Approved
Document L1B to achieve thermal upgrades in renovation projects.
KEY GUIDANCE DOCUMENTS AND REGULATIONS:
Code for Sustainable Homes
Building Regulations:
Approved Document Part B 2006 – Fire Safety
Approved Document Part E 2003 – Resistance to the
Passage of Sound
Approved Document Part L1 A&B 2010 – Conservation of
Fuel and Power
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
11
12
INVENTED BY SINIAT
INVENTED
BY SINIAT
From over 25 years of experience on building sites we know
there is unmet potential in drywall and have created the
boards to unlock it.
Excellent fire and acoustic performance is always
expected and we have the range of boards with
higher densities, highly developed additives and
patented technology to achieve the top levels
of fire and sound performance needed in the UK
and Ireland.
But we don’t consider that to be enough. Better
finishing capabilities are available. As a result we
are the first and only manufacturers of gypsum
plasterboards which offer exceptional water
resistance, exceptional strength and exceptional
finishing speed.
We also know that one board can do more than
one thing. Our boards combine the highest levels
of performance making them suitable for a huge
breadth of applications, reducing the amount
of fixing, and potentially meaning only a single
board type is needed on site.
OUR UNIQUE BOARDS
GTEC LaDura
Type D,E,F,H1, I and R to BS EN 520
Exceptionally strong for extreme impact applications
and maximum fixture pull-out resistance.
Severe Duty performance from a
single 12.5mm boarded partition
H1 moisture resistance for humid
applications
Highest board surface mass for
maximum levels of sound insulation
Fire, sound, impact and moisture
performance allowing specification
of just one board type per project
See System Tables on pages 22-25
Suitable for GTEC Partitions p20 and GTEC Linings p178
INVENTED BY SINIAT
GTEC Aqua Board
Type GM-F, GM-H1 and GM-I to BS EN 15283
Highly water resistant gypsum board
for wet areas and external use.
High sound and fire resistance
Ideal for wet and humid environments
Fully mould and fungus resistant
May be externally exposed for up to
six months for innovative construction
schedules
Dimensionally stable and easier to cut,
fix and handle than cementitious boards
See System Tables on pages 26-27
Suitable for GTEC Partitions p20, GTEC Linings p178, GTEC Floors and Ceilings p120 and external sheathing
GTEC Megadeco
Type D,F, I and R to BS EN 520
Pre-sealed, white faced board for
ease of decoration and finishing.
Unique pre-sealed, white, paper facing
Equivalent sound resistance to GTEC dB Board
Equivalent fire resistance to GTEC Fire Board
Substitute with GTEC Universal Board for skim
plastering
Fire, sound and impact performance allowing
specification of just one board type per project
See System Tables on pages 28-31
Suitable for GTEC Partitions p20, GTEC Linings p178, GTEC Floors and Ceilings p120 and GTEC Fire Protection p242
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
13
14
INVENTED BY SINIAT
SYSTEM SOLUTIONS
Each of our three unique boards elevates the final layer of the partition,
ceiling or lining, to previously unknown levels of standard plasterboard
construction. These capabilities drive a different ethos in specifying
drywall systems – the basic demands of acoustics and fire are always
achievable and the focus can now switch to these extra benefits.
Good design means every space has its own needs and tuning boards
to best suit these demands is made possible.
FROM TWO BOARDS TO ONE
OPPOSING NEEDS
For many performance requirements the
board configuration can be improved with
Siniat products, from two layers of a lower
spec board to just one layer of a board such as
GTEC Megadeco or LaDura. This can drastically
reduce the number of boards needed on
site. One high performance technical board
can often do the job of two standard boards.
Installation time is reduced without having to
fix multiple layers, there is less waste as material
volumes are reduced and the whole project
becomes simpler to specify and manage.
Great architectural design will not always
place identical rooms on opposite sides of a
partition. With Siniat systems this problem is
solved with hybrid system make-ups giving
different finishing performance on each side of
the partition. For example, a partition between
a shower room and a corridor in a school could
use GTEC Aqua Board on one side and GTEC
LaDura for the corridor side. The lower of the
two corresponding performance values for
sound or fire being would be used unless the
system has been tested in a hybrid make-up.
RCP 006
2x12.5mm GTEC
Standard Board
LDP 003
1x 15mm GTEC
LaDura Board
25mm Mineral
Wool Insulation
25mm Mineral
Wool Insulation
Performance
Fire: 60 Mins.
Acoustic: 49 Rw dB
Severe Duty
3.4m Max. Height
Thickness: 100mm
Performance
Fire: 60 Mins.
Acoustic: 49 Rw dB
Severe Duty
4.0m Max. Height
Thickness: 100mm
Symmetrical System
Same performance
through the wall in
both directions
Hybrid System
Different finishing
layer performances
in different rooms
INVENTED BY SINIAT
MIXING LAYERS
As Siniat’s unique boards offer their key
improvements to the final layer of a system it
can make sense to lower the capabilities of the
inner board. Lower performing base layers can
be used to open up new opportunities in system
design, to value engineer, or to tune performance
characteristics. These standardised layers, used
as a base, are composed to build a system exactly
right for the situation, e.g.:
FINISHING LAYER
BASE LAYER
GTEC Fire Board where fire resistance is key
GTEC dB Board where high sound insulation
is most important
GTEC Standard Board or Plank where a lower
density base layer will suffice
HIGHER PERFORMANCE
STANDARD PERFORMANCE
GTEC LaDura
GTEC Aqua Board
GTEC Megadeco
GTEC Universal Board
GTEC Fire Board
GTEC dB Board
GTEC E Board
GTEC Moisture Board
GTEC Fire MR Board
HIGHER PERFORMANCE
STANDARD PERFORMANCE
GTEC Fire Board
GTEC Fire MR Board
GTEC dB Board
GTEC Moisture Board
GTEC Standard Board
GTEC Plank
GTEC E Board
NOTE: System specific system boards, e.g. GTEC Acoustic Homespan Board and GTEC Contour Board are not included in the above matrix.
Homogenous System
Single board type
required
More limited
performance
Mixed Board System
Superior final layer
performance
Improved attenuation
range
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
15
16
SYSTEM PERFORMANCE
SYSTEM
PERFORMANCE
FIRE
Gypsum is a naturally fire resistant material, locking in water which will
be released during a fire. This water controls the temperature allowing
plasterboard systems to survive a fire for substantial lengths of time.
The requirement for fire protection in a project is
driven by the Building Regulations, fire strategy
and any high risk equipment or activity in a
building. The ratings in this manual represent
the minimum passive fire protection that
can be expected in a fire and can be used to
show compliance with the current Building
Regulations in the UK and Northern Ireland.
The fire ratings of the systems are determined
by testing and assessment to British and
European standards. In the UK the BS 476
series of test standards and BS EN 1361, 1362,
1363 standards are used to establish the fire
resistance of building elements such as walls
and ceilings. A different temperature monitoring
method is adopted in the European test methods
and the results obtained are not the same
as the British Standard results; both results
are declared in this manual where possible.
The tests are carried out in 3m x 3m aperture
furnaces which simulate the most intensive
period in a fire. The results of these tests are
expressed in terms of integrity, insulation and
loadbearing capacity (where applicable).
System Ref.
Component
TYPICAL PARTITION AND FLOOR
REQUIREMENTS*
30 mins
Between rooms within a dwelling or
office unit
60 mins
Separating adjacent units in low rise
buildings
90 mins
Between units in medium rise buildings
120 mins
Fire fighting or escape routes and
between units in higher rise buildings
*consult relevant building regulations and fire strategy consultants for precise needs
The ratings in the system tables give the worst of
the three criteria rounded down to the nearest
30, 60, 90 or 120 minutes, e.g. if insulation fails
before integrity or loadbearing capacity then this
will be the rating quoted.
GTEC products are tested for reaction to fire and
other fire sensitive properties to European and
British Standards test methods and are classified
as Materials of Limited Combustibility Euroclass
A2-s1-d0, the second highest performance
level for construction materials. In UK Building
Regulations plasterboard products are generally
considered Class 0.
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
27
3.7
95
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
30
30
Severe
48
LDP 008: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm
12.5mm GTEC
12
GTEC LaDura
LaDura Board
Board
Studs:
Stu
ds: Sin
Single
gle GTEC
GTEC CS70Rx
CS70Rx C Studs
Studs
att 600mm
600mm centres
centtre
cen
tres
tres
25mm
IInsulation:
Ins
nsula
l ti
tion:
tio
i n: 25m
2
5 m 16kg/m
116k
6kg//m
6kg
6k
/m3 glass
gllass
mineral wool
Accessories: –
LDP 001: C Stud Partition – see p50
SYSTEM PERFORMANCE
ACOUSTICS
Control of sound in buildings is essential for comfort. Plasterboard systems
can assist with acoustic requirements in two ways, through sound insulation
and sound absorption. Sound insulation is principally driven by the surface
mass of a building element. As a thin, dense material plasterboard can be
used to provide adaptable solutions for minimising sound transmission.
Plasterboards generally reflect sound, however, perforated boards enable
effective sound absorbing systems to be built.
For residential construction the Building
Regulations contain minimum values for sound
transmission between rooms and absorption
within communal areas. For many other
projects acoustics are beyond the remit of
building regulations. It is essential to consider
the noise tolerance and noise output of
neighbouring spaces to select the right levels
of sound insulation for the separating element,
consultation with acousticians is recommended.
The sound insulation values quoted in this
manual use consistent laboratory testing to allow
system comparison. Elements are placed in an
aperture between spaces with the reduction in
sound pressure between the two spaces being
recorded; this testing is carried out to BS EN
ISO 140 and BS EN ISO 717 standards. The result
is the Weighted Sound Reduction Index (Rw)
measured in decibels (dB) with higher values
offering better insulation.
Site testing uses a different measurement
method of Standardised Level Difference (DnT,w)
where values around 7dB lower than laboratory
tests can be expected. It is critical to seal all
air paths, avoid routes for sound to ‘flank’ the
element and build to high standards to achieve
System Ref.
Component
Rw dB
RELATIVE ACOUSTIC PRIVACY
30
Normal conversation can be distinguished
35
Loud conversation can be distinguished
40
Loud conversation can be heard but not
distinguished
45
Loud conversation cannot be heard
50
Shouting can be heard but not distinguished
55
All speech is totally blocked with a high level of
privacy from other domestic noise
60
High level of privacy including noise from
television or stereos
the best site results – just one air path can
dramatically diminish the sound insulation
of an element.
Sound absorption is calculated through laboratory
testing to European and ISO standards where
a component is located in a space with known
reverberation – the resulting reduction in
reverberation time gives a coefficient of sound
absorption. This co-efficient varies between 0
and 1 with higher values representing greater
absorption per square metre.
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
LDP 008: C Stud Partition – see p50
Facing Outer Layer(s):
27
3.7
95
30
Severe 48
1x 12.5mm
1x
12.5
12.
12
2 5mm
5mm GTEC
GTEC LaDura
L Dura Board
LaD
Board
Bo
d
30
0
Studs:
GTEC
Studs
Stu
St
ds: Single
ds
Single
Si
gl GT
EC CS70Rx
CS70R
CS7
0Rx C Studs
Stud
Stu
St
ds
ds
att 600mm
600mm centres
centtre
cen
tres
tres
25mm
IInsulation:
nsula
l ti
tion:
i
25mm 16kg/m
25
116k
6kg//m3 glass
6k
l
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
17
18
SYSTEM PERFORMANCE
STRUCTURE
A major advantage of plasterboard systems is their low mass to height/span
ratio, this enables tall partitions and wide spans to be created without imposing
high loads on structures supporting the system. As a lightweight system overall
robustness must be considered and by using the correct framework and board
combinations extremely tough partitions, ceilings and linings can be built.
The maximum height of a partition is determined
from its ability to resist a uniformly distributed
lateral pressure, taken as 0.2kN/m2 for most
internal applications, and limiting the resulting
deflection to height/240. Greater lateral pressures
and other imposed loads are possible and depend
on the layout adopted. The ‘Strength’ criterion
in the System Performance Tables is determined
according to the test methods and criteria
given in BS 5234-2. There are four grades in the
standard, increasing in robustness from Light,
Medium, Heavy to Severe Duty. In most projects
the use of the lowest duty grade will result in
walls which are too flexible for the expectations
of users and are not generally recommended.
Based on extensive testing and calculations
the height values shown in this manual are the
maximum that the system can safely satisfy
when fully built. Care must be taken during
construction to ensure that the construction
sequence does not undermine structural
strength and construction loads are not
applied to the systems.
The ceiling systems in this publication will not
support imposed loads in addition to those
given in the appropriate sections. Fixings to
structural elements must be determined by
suitably qualified professionals and are not the
responsibility of Siniat.
GRADE
CATEGORY
EXAMPLES
Light Duty
Adjacent space only accessible to persons with high incentive
to exercise care. Small chances of accident or of misuse.
Domestic accommodation
Medium Duty
Adjacent space moderately used primarily by persons with
some incentive to exercise care. Chances of accident
occurring and of misuse.
Office accommodation
Heavy Duty
Adjacent space frequently used by the public and others with
little incentive to exercise care. Chances of accident occurring
and of misuse.
Public circulation areas
Industrial areas
Severe Duty
Adjacent space intensively used by the public and others
with little incentive to exercise care. Prone to vandalism and
abnormally rough use.
Major circulation areas
Heavy industrial areas
Table extract from BS 5234-2: 1992
System Ref.
Component
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
27
3.7
95
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
30
30
Severe
48
LDP 008: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm
12.5mm GTEC
12
GTEC LaDura
LaDura Board
Board
Studs:
Stu
ds: Sin
Single
gle GTEC
GTEC
C CS70Rx
CS70Rx C Studs
Studs
at 600mm
600mm centres
centre
cen
tress
tre
25mm
IInsulation:
Ins
nsula
l ti
tion:
tio
i n: 25
25m
m 16kg/m
116k
6kg//m
6kg
6k
/m3 glass
gllass
mineral wool
Accessories: –
LDP 001: C Stud Partition – see p50
SYSTEM PERFORMANCE
THERMAL
Plasterboard is not a low conductivity material but can be combined easily with
different types of thermal insulation to create systems or products (such as GTEC
Thermal Boards) which offer excellent thermal insulation properties. Plasterboard
systems can contribute to construction with the most thermally efficient U-values
satisfying new build or renovation building regulation requirements.
Plasterboard is dimensionally stable and can be
ideal as the air-tightness envelope in a building,
with projects typically achieving 3m3/hr/m2
@ 50Pa, exceeding the building regulation
requirement. The stability of plasterboard
systems also allows construction independent
of the substrate to prevent thermal bridging.
this manual so it is often possible to achieve
improved U-values by changing the quality
and quantity of insulation, contact Technical
Enquiryline for further information.
The U-values quoted in the system performance
tables can be used in SAP and SBEM calculations
either as part of an external element or as
the whole element where no other material
is involved. For thermal upgrades to existing
dwellings the default U-values for construction
types and ages found in RdSAP 2009 have
been used to indicate a resulting U-value with
GTEC products and systems. Only a select range
of systems configurations can be shown in
TYPICAL U-VALUES
FOR PART L 2010
U-values are calculated, following the
conventions of BR 443, using specialist
calculation software, from conductivity values
in international standards or manufacturers’
information. In product reference tables the
quoted conductivity values (λ) W/mK for the
materials in specific products have been used
to calculate the thermal resistance (R) mK/W
for that product. The GTEC range does not
include independent insulation and therefore
U-values should always be checked against
manufacturer’s data for the actual insulation
used in construction.
RENOVATION
NEW
App. Doc. L1B/L2B
App. Doc. L1B/L2B
App. Doc. L1B/L2B
App. Doc. L1A/L1B
Low Carbon*
Construction
‘New’
‘Improved’
‘Threshold’
‘Limiting’
Wall (cavity insulation in place)
0.28
0.55
0.70
–
–
Wall
0.28
0.30
0.70
0.30
0.15
Pitched roof (insulation at ceiling level)
0.16
0.16
0.35
0.20
0.13
Pitched roof (insulation at rafter level)
0.18
0.18
0.35
0.20
0.13
Flat roof
0.18
0.18
0.35
0.20
0.13
Floors
0.22
0.25
0.70
0.25
0.12
Thermal Bridging (W/m2K)
–
–
–
–
0.04
Air permeability (m3/hr/m2 @ 50Pa)
–
–
–
–
5.2
*Worked examples to meet Fabric Energy Efficiency Standard (FEES) proposals for detached house – Zero Carbon Hub 2012
EXTERNAL WALLS
System Ref.
Component
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
Fire Perf.
BS476-21
BS EN
1365-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RFL 002
Facing Inner Layer(s): –
2.4
–
0.30
30
51
F
Faci
Fac
acing
ing
g Ou
O
Out
uter
ter La
L
Layer
ayer
y ((s)):
):
Facing
Outer
Layer(s):
30
1x 15mm
1x
15mm GTEC
15
GTEC
T C Vapour
Va
Vapou
Vapou
p r Fire
F
Fiire
ire Board
Bo
Board
d
Lining
Lin
ing
g: Sh
eathi
eat
thing board
boar
oard
d – Recom
R
Re
ecom
commen
mend
men
ded
d
Lining:
Sheathing
Recommended
GTEC Aqua Board
Insulation: 120mm glass fibre (BS5250)
Internal Wall Leaf: Timber Frame Stud
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
work
19
20
GTEC® PARTITIONS
21
PARTITIONS
The GTEC range of metal stud profiles provides system solutions
for most building projects. Combining the right GTEC plasterboard,
fixings, frame and finishing products, gives partition solutions up to
the most demanding levels of fire, acoustic and thermal performance.
System Performance Tables
GTEC LaDura Partition Systems
22
GTEC Aqua Board Partition Systems
26
GTEC Megadeco Partition Systems
28
GTEC Universal Board Partition Systems
32
GTEC dB Board Partition Systems
33
GTEC Fire Board Partition Systems
38
GTEC Standard Board Partition Systems
41
GTEC Acoustic Homespan Partition Systems
43
GTEC E Board Partition Systems
44
GTEC Structural Frame Partition Systems
45
Masonry Robust Detail Systems
46
GTEC Timber Partition Systems
47
GTEC C Stud Partitions
GTEC Acoustic Stud Partitions
GTEC Acoustic Homespan Partitions
GTEC Resilient Bar Partitions
GTEC Twin Frame Partitions
GTEC Timber Partitions
50
72
80
88
94
110
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
22
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® LADURA PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
95
30
30
Severe
48
4.0
100
60
60
Severe
41
33
4.0
100
60
60
Severe
49
33
3.8
100
60
60
Severe
51
33
4.0
100
60
60
Severe
50
45
4.6
120
60
60
Severe
56
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
27
3.7
33
LDP 008: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
LDP 003: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ADP 003: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC AS70Rx
Acoustic C Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 004: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 050: C Stud Partition – see p50
Facing Inner Layer(s):
1x 9.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
120
120
90
Severe
56
5
120
120
120
Severe
56
64
5.6
130
120
120
Severe
57
33
5.0
120
60
60
Severe
50
33
5.0
120
60
60
Severe
51
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
52
5
52
LDP 011: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC LaDura Board
Facing Outer Layer(s):
1x 12.5mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 011F: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 024: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC LaDura Board
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 128: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 138: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
23
24
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® LADURA PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
120
60
60
Severe
52
6.2
145
90
60
Severe
56
52
6.4
140
120
90
Severe
57
52
6.4
140
120
90
Severe
60
64
7.2
150
120
120
Severe
58
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
33
5.0
52
ADP 138: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC AS90Rx Acoustic
C Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 086: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 130: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC LaDura Board
Facing Outer Layer(s):
1x 12.5mm GTEC LaDura Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ADP 130: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 12.5mm GTEC LaDura Board
Facing Outer Layer(s):
1x 12.5mm GTEC LaDura Board
Studs: Single GTEC AS90Rx Acoustic
C Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
LDP 140: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC LaDura Board
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
170
60
60
Severe
56
200
120
120
Severe
65,
-8 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
33
5.0
64
6.4
LDP 013: Twin Frame Partition – see p94
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Twin GTEC CS50Rx C Studs at
600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
1500mm centres
LDP 038: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 15mm GTEC LaDura Board
Facing Outer Layer(s):
1x 15mm GTEC LaDura Board
Studs: Twin GTEC CS50Rx C Studs at
600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
1500mm centres
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
25
26
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® AQUA BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
95
30
30
Medium
46
3.6
100
60
60
Severe
40
28
3.6
100
60
60
Severe
46
28
3.6
100
60
60
Severe
47
28
3.6
100
60
30
Severe
49
28
3.6
100
60
30
Severe
47
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
23
3.2
28
RAP 004: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC Aqua Board
Studs: Single GTEC CS70/B C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RAP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board
Studs: Single GTEC CS70/B C Studs
at 600mm centres
Insulation: –
Accessories: –
RAP 003: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board
Studs: Single GTEC CS70/B C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RAP 044: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board
Studs: Single GTEC CS70/B C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
RMAP 003: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMAP 004: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
98
60
60
Severe
46
3.6
98
60
60
Severe
47
28
3.6
100
60
60
Severe
52
44
4.4
120
60
60
Severe
56
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
26
3.5
26
RMAP 022: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 12.5mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMAP 068: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 12.5mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
AMAP 004: Acoustic C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS70Rx Acoustic
C Studs at 600mm centres
Insulation: GTEC AS70Rx Acoustic C
Studs at 600mm centres
Accessories: –
RMAP 050: C Stud Partition – see p50
Facing Inner Layer(s):
1x 9.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 15mm GTEC Aqua Board,
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
27
28
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® MEGADECO PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
100
60
60
Severe
40
3.8
100
60
60
Severe
49
29
3.8
100
60
60
Severe
51
27
3.8
100
60
60
Severe
50
30
3.8
100
60
60
Severe
52
27
3.8
100
60
60
Severe
53
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
27
3.8
27
RMP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RMP 003: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
AMP 003: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS70Rx Acoustic
C Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 004: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
AMP 004: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS70Rx Acoustic
C Studs at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
AMP 140: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Facing Inner Layer(s):
1x 15mm GTEC Megadeco Board
inside studs one side
Studs: GTEC AS70Rx Acoustic C
Studs at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
120
60
60
Severe
56
4.6
120
120
120
Severe
52
44
4.6
120
120
120
Severe
56
27
4.6
120
60
60
Severe
42
27
4.6
120
60
60
Severe
50
27
4.6
120
60
60
Severe
51
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
40
4.6
43
RMP 050: C Stud Partition – see p50
Facing Inner Layer(s):
1x 9.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 009: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RMP 011: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Megadeco Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 127: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RMP 128: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 138: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
29
30
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® MEGADECO PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
120
60
60
Severe
54
4.6
120
60
60
Severe
52
45
5.8
140
90
90
Severe
57
54
6.5
150
90
90
Severe
58
53
6.3
150
90
90
Severe
60
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
40
4.6
31
AMP 141: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Facing Inner Layer(s):
1x 15mm GTEC Megadeco Board
inside studs one side
Studs: Single GTEC AS90Rx Acoustic
C Studs at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
AMP 138: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS90Rx Acoustic
C Studs at 600mm centres
Insulation: 75mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 130: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC dB Board
Facing Outer Layer(s):
1x 12.5mm GTEC Megadeco Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 140: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
AMP 142: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS90Rx Acoustic
C Studs at 600mm centres
Insulation: 75mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
176
60
60
Severe
42
7.3
176
60
60
Severe
52
57
8.9
206
90
90
Severe
57
55
5.3
200
120
90
Severe
63
-8 Ctr
54
6.7
206
120
120
Severe
61
-6 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
29
8.8
28
RMP 062: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS146Y C Studs
at 600mm centres
Insulation: –
Accessories:–
RMP 075: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 017: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RMP 038: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Twin GTEC CS50Rx C Studs at
600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
1500mm centres
AMP 017: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Megadeco Board
Studs: Single GTEC AS146Rx C Studs
at 600mm centres
Insulation: 100mm 10kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
31
32
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® UNIVERSAL BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
95
60
30
Heavy
45
3.8
100
60
60
Severe
40
46
5.5
120
120
120
Severe
55
46
8.6
196
120
120
Severe
50
47
8.6
196
120
120
Severe
57
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
24
4.3
27
RUP 055: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC Universal Board
Studs: Single GTEC CS70B C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RUP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Universal Board
Studs: Single GTEC CS70B C Studs
at 600mm centres
Insulation: –
Accessories: –
RUP 048: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Universal Board
Facing Outer Layer(s):
1x 12.5mm GTEC Universal Board
Studs: Single GTEC CS70B C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RUP 053: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Universal Board
Facing Outer Layer(s):
1x 12.5mm GTEC Universal Board
Studs: Single GTEC CS146B C Studs
at 600mm centres
Insulation: –
Accessories: –
RUP 054: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Universal Board
Facing Outer Layer(s):
1x 12.5mm GTEC Universal Board
Studs: Single GTEC CS146B C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® dB BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
80
30
30
Heavy
40
3.5
75
30
30
Medium
44
23
4.5
95
30
30
Medium
40
23
4.5
95
30
30
Medium
45
27
4.4
100
30
30
Heavy
42
27
4.4
100
30
30
Heavy
46
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
27
3.4
23
RSP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RSP 002: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RSP 006: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RSP 028: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RSP 007: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RSP 008: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
33
34
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® dB BOARD PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
100
30
30
Heavy
49
3.6
100
60
60
Severe
53
45
4.6
120
60
60
Severe
58
53
5.1
130
90
90
Severe
56
53
5.1
130
90
60
Severe
57
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
28
4.5
45
ASP 003: Acoustic Stud Partition – see p72
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: GTEC AS70Rx Acoustic C
Studs at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: –
RSP 027: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC dB Board
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ASP 011: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 12.5mm GTEC dB Board
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: GTEC AS70Rx Acoustic C
Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RSP 013: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ASP 013: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: GTEC AS70Rx Acoustic C
Studs at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
206
90
90
Severe
57
5.3
200
90
60
Severe
63
-7 Ctr
52
10.2
295
60
60
Severe
67
-9 Ctr
60
10.5
300
90
60
Severe
69
-9 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
54
8.9
54
RSP 017: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RSP 038: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Twin GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
1500mm centres
RSP 022: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 12.5mm GTEC dB Board
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Studs: Twin GTEC CS90W C Studs
at 600mm centres
Insulation: 100mm 10kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
3000mm centres plus extension
RSP 023: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Twin GTEC CS90W C Studs
at 600mm centres
Insulation: 100mm 10kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
3000mm centres plus extension
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
35
36
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® dB BOARD PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
400
120
90
Severe
74
-7 Ctr
5.3
130
60
60
Severe
59
54
3.7
147
90
90
Severe
62
-9 Ctr
54
7.2
223
90
90
Severe
63
-8 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
86
12
56
RSP 037: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
2x 15mm GTEC dB Board
Studs: Twin GTEC CS90W C Studs
at 600mm centres
Insulation: 2x 100mm 10kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
3000mm centres plus extension
RSP 085: I Stud Partition – contact Enquiryline
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Staggered GTEC IS60B I-Studs
at 300mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: 72mm GTEC Track with
IS10 clips
RSP 157: Resilient Bar Partition – see p88
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: Single GTEC Resilient
Bar at 600mm vertical centres
RSP 159: Resilient Bar Partition – see p88
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: Single GTEC Resilient
Bar at 600mm vertical centres
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
55
6.9
206
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
90
90
Severe
61
-6 Ctr
ASP 017: Acoustic Stud Partition – see p72
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Single GTEC AS146Rx C Studs
at 600mm centres
Insulation: 100mm 10kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
37
38
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® FIRE BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
100
120
120
Severe
52
4.0
100
60
60
Heavy
47
42
4.6
120
120
120
Severe
46
42
4.6
120
120
120
Severe
53
50
4.9
130
120
120
Severe
48
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
42
3.6
26
RFP 016: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 044: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 054: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RFP 050: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 045: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
130
120
120
Severe
56
5.1
120
60
60
Heavy
40
42
5.3
140
120
120
Severe
48
42
5.3
140
120
120
Severe
56
26
6.6
176
60
60
Heavy
42
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
51
4.9
26
RFP 046: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 127: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RFP 134: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: None
Accessories: –
RFP 135: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS90Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 062: C Stud Partition – see p50
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
39
40
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® FIRE BOARD PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
196
120
120
Severe
57
6
205
240
240
Severe
65
-10 Ctr
50
3.3
147
120
120
Severe
61
-7 Ctr
52
4.5
200
120
120
Severe
62
-7 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
43
8.0
88
RFP 076: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 112: Fire Wall Partition – contact Enquiryline
Facing Inner Layer(s):
3x 15mm GTEC Fire Board down centre
Facing Outer Layer(s):
2x 15mm GTEC Fire Board each side
Studs: Twin Staggered GTEC CS50Rx
C Studs at 600mm centres
Insulation: 2x 25mm 16kg/m3 glass
mineral wool
Accessories: –
RFP 157: Resilient Bar Partition – see p88
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 50mm 16kg/m3 glass
mineral wool
Accessories: Single GTEC Resilient
Bar at 600mm vertical centres
RFP 038: Twin Frame Partition – see p94
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Twin GTEC CS50Rx C Studs at
600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: GTEC V-Brace at
1500mm centres
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® STANDARD BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
75
30
–
Medium
34
3.2
75
30
30
Medium
41
18
4.2
95
30
30
Medium
42
34
4.6
120
60
30
Severe
45
35
4.6
120
60
30
Severe
49
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
17
3.2
18
RCP 001: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: –
Accessories: –
RCP 002: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 33kg/m3 rock
mineral wool
Accessories: –
RCP 042: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 33kg/m3 rock
mineral wool
Accessories: –
RCP 045: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: None
Accessories: –
RCP 046: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
41
42
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® STANDARD BOARD PARTITION SYSTEMS continued
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
196
60
30
Severe
48
7.6
196
60
30
Severe
52
8.2
206
90
60
Severe
56
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
35
7.6
35
43
RCP 064: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: None
Accessories: –
RCP 067: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
RCP 068: C Stud Partition – see p50
Facing Inner Layer(s):
1x 15mm GTEC Standard Board
Facing Outer Layer(s):
1x 15mm GTEC Standard Board
Studs: Single GTEC CS146Rx C Studs
at 600mm centres
Insulation: 25mm 33kg/m3 rock
mineral wool
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® ACOUSTIC HOMESPAN PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
74
30
30
Heavy
40
2.7
74
30
30
Heavy
43
2.8
80
30
30
Heavy
41
2.8
80
30
30
Heavy
43
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
2.7
AHP 001: Acoustic Homespan Partition – see p80
Facing Outer Layer(s):
1x 15mm GTEC Acoustic
Homespan Board
Studs: GTEC AHS44Rx Acoustic
Homespan Studs at 450mm centres
Insulation: –
Accessories: –
28
AHP 002: Acoustic Homespan Partition – see p80
Facing Outer Layer(s):
1x 15mm GTEC Acoustic
Homespan Board
Studs: GTEC AHS44Rx Acoustic
Homespan Studs at 450mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
29
AHP 003: Acoustic Homespan Partition – see p80
Facing Outer Layer(s):
1x 15mm GTEC Acoustic
Homespan Board
Studs: GTEC AHS50Rx Acoustic
Homespan Studs at 450mm centres
Insulation: –
Accessories: –
28
AHP 004: Acoustic Homespan Partition – see p80
Facing Outer Layer(s):
1x 15mm GTEC Acoustic
Homespan Board
Studs: GTEC AHS50Rx Acoustic
Homespan Studs at 450mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
29
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
43
44
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® E BOARD PARTITION SYSTEMS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
75
30
30
Medium
41
3.4
100
60
60
Severe
43
21
4.3
95
30
30
Medium
42
41
4.6
120
60
60
Severe
46
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
21
3.3
41
REP 002: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC E Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
REP 005: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC E Board
Facing Outer Layer(s):
1x 12.5mm GTEC E Board
Studs: Single GTEC CS50Rx C Studs
at 600mm centres
Insulation: None
Accessories: –
REP 042: C Stud Partition – see p50
Facing Outer Layer(s):
1x 12.5mm GTEC E Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: 25mm 16kg/m3 glass
mineral wool
Accessories: –
REP 045: C Stud Partition – see p50
Facing Inner Layer(s):
1x 12.5mm GTEC E Board
Facing Outer Layer(s):
1x 12.5mm GTEC E Board
Studs: Single GTEC CS70Rx C Studs
at 600mm centres
Insulation: None
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® STRUCTURAL FRAME PARTITION SYSTEMS
System Ref.
Fire Perf.
BS476-21
BS EN
1365-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
310
60
60
Severe
Robust
Detail
Solution
4.5
315
60
60
Severe
Robust
Detail
Solution
–
4.0
310
90
60
Severe
66
-9 Ctr
–
4.5
245
60
60
Severe
61
-7 Ctr
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Twin Structural C-Studs
at 600mm centres
Insulation: 1x 50mm 33-60kg/m3
mineral wool
Accessories: –
–
4.5
Facing Inner Layer(s):
1x 19mm GTEC Plank Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Twin Structural C-Studs
at 600mm centres
Insulation: 1x 50mm 33-60kg/m3
mineral wool
Accessories: –
–
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: Twin 100mm Structural
C-Studs at 600mm centres
Insulation: 2x 75mm 24kg/m3 glass
mineral wool
Accessories: –
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1 x 15mm GTEC Fire Board
Studs: Single 150mm Structural
C-Studs at 600mm centres
Insulation: 50mm 24kg/m3 glass
mineral wool
Accessories: Single GTEC Resilient
Bar at 600mm vertical centres Both
sides
Component
E-WS-1
E-WS-1 alt.
RLB 003
RLB 014
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
45
46
GTEC® PARTITIONS – PERFORMANCE TABLES
MASONRY ROBUST DETAIL SYSTEMS
System Ref.
Fire Perf.
BS476-21
BS EN
1365-1
(mins)
Strength
Duty
Rating to
BS 5234-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
315
240
240
–
Robust
Detail
Solution
5.2
315
240
240
–
Robust
Detail
Solution
–
5.2
315
240
240
–
Robust
Detail
Solution
–
5.2
315
240
240
–
Robust
Detail
Solution
System
Weight
Max.
Height
Overall
Thickness
(kg/m2)
(m)
(mm)
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
both sides
Lining: Sand Cement render
Universal Bonding Compound
to form 10mm cavity
Cavity: 75mm; Insulation: –
Internal Wall Leaf: 100mm Blocks
Density 1850-2300kg/m3
External Wall Leaf: 100mm Blocks
Density 1850-2300kg/m3
–
5.2
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
both sides
Lining: GTEC E Coat Render
Universal Bonding Compound
to form 10mm cavity
Cavity: 75mm; Insulation: –
Internal Wall Leaf: 100mm Blocks
Density 1350-1600kg/m3
External Wall Leaf: 100mm Blocks
Density 1350-1600kg/m3
–
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
both sides
Lining: Sand Cement render
Universal Bonding Compound
to form 10mm cavity
Cavity: 75mm; Insulation: –
Internal Wall Leaf: 100mm Star
Performer Blocks
External Wall Leaf: 100mm Star
Performer Blocks
Facing Outer Layer(s): GTEC 12.5mm
Standard Board both sides
Lining: GTEC E Cont Render
Universal Bonding Compound
to form 10mm cavity
Cavity: 100mm; Insulation: –
Internal Wall Leaf: 100mm Blocks
Density 1350-1600kg/m3
External Wall Leaf: 100mm Blocks
Density 1350-1600kg/m3
Component
E-WM-3
E-WM-4
E-WM-5
E-WM-11
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® TIMBER PARTITION SYSTEMS
System Ref.
Component
System
Weight
Max.
Height
Overall
Thickness
Fire Perf.
BS476-22
Non-load
bearing
(NLB)
BS EN
1364-1
(mins)
Fire Perf.
BS476-21
Load
bearing
(LB)
BS EN
1365-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
(kg/m2)
(m)
(mm)
55
3.6
166
60
60
60
60
Severe
57
21
3.0
88
30
30
–
–
Medium
36
18
3.0
88
30
–
–
–
Medium
35
21
3.9
114
30
30
30
–
Medium
35
38
2.8
113
60
30
–
–
Severe
42
RTP 152: Timber Partition – see p110
Facing Inner Layer(s):
1x 15mm GTEC dB Board
Facing Outer Layer(s):
1x 15mm GTEC dB Board
Studs: 38x89mm Timber
Studs at 600mm centres
Insulation: 25mm 16kg/m3
glass mineral wool
Accessories: GTEC
Resilient Bar at 600mm
centres
RTP 021: Timber Partition – see p110
Facing Outer Layer(s):
1x 12.5mm GTEC Fire
Board
Studs: 38x63mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 001: Timber Partition – see p110
Facing Outer Layer(s):
1x 12.5mm GTEC Standard
Board
Studs: 38x63mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 005: Timber Partition – see p110
Facing Outer Layer(s):
1x 12.5mm GTEC Standard
Board
Studs: 38x89mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 031: Timber Partition – see p110
Facing Inner Layer(s):
1x 12.5mm GTEC Standard
Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard
Board
Studs: 38x63mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
47
48
GTEC® PARTITIONS – PERFORMANCE TABLES
GTEC® TIMBER PARTITION SYSTEMS continued
System Ref.
Component
System
Weight
Max.
Height
Overall
Thickness
Fire Perf.
BS476-22
Non-load
bearing
(NLB)
BS EN
1364-1
(mins)
Fire Perf.
BS476-21
Load
bearing
(LB)
BS EN
1365-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
(kg/m2)
(m)
(mm)
5.8
295
60
60
60
60
Severe
65
54
5.7
290
60
60
60
60
Severe
66
28
4.7
130
60
30
60
30
Heavy
38
36
2.9
125
60
30
60
30
Severe
43
23
3.9
113
30
30
30
30
Medium
36
RFL 011 RD: Timber Partition – see p110
Facing Inner Layer(s):
1x 19mm GTEC Plank Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Studs: Twin 38x89mm
Timber Studs at 600mm
centres
Insulation: 2x 50mm
16kg/m3 glass mineral wool
Accessories: Brace at mid
height
53
RFL 050 RD: Timber Partition – see p110
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: Twin 38x89mm
Timber Studs at 600mm
centres
Insulation: 2x 50mm
16kg/m3 glass mineral wool
Accessories: Brace at mid
height
RTP 006: Timber Partition – see p110
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: 50x100mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 012: Timber Partition – see p110
Facing Inner Layer(s):
1x 12.5mm GTEC Standard
Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard
Board
Studs: 50x75mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 035: Timber Partition – see p110
Facing Outer Layer(s):
1x 12.5mm GTEC Fire
Board
Studs: 38x88mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
See p49 for notes on alterations to partition configuration.
GTEC® PARTITIONS – PERFORMANCE TABLES
System Ref.
Component
System
Weight
Max.
Height
Overall
Thickness
Fire Perf.
BS476-22
Non-load
bearing
(NLB)
BS EN
1364-1
(mins)
Fire Perf.
BS476-21
Load
bearing
(LB)
BS EN
1365-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
(kg/m2)
(m)
(mm)
39
3.4
138
60
60
60
60
Severe
45
27
3.5
118
60
30
30
–
High
37
27
3.5
118
60
30
30
–
High
41
35
3.4
138
30
30
30
–
Severe
42
RTP 043: Timber Partition – see p110
Facing Inner Layer(s):
1x 12.5mm GTEC Standard
Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire
Board
Studs: 38x88mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 045: Timber Partition – see p110
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: 38x88mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
RTP 047: Timber Partition – see p110
Facing Outer Layer(s):
1x 15mm GTEC Fire Board
Studs: 38x88mm Timber
Studs at 600mm centres
Insulation: 25mm 16kg/m3
glass mineral wool
Accessories: –
RTP 059: Timber Partition – see p110
Facing Inner Layer(s):
1x 12.5mm GTEC Standard
Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard
Board
Studs: 38x88mm Timber
Studs at 600mm centres
Insulation: –
Accessories: –
PARTITION PERFORMANCE NOTES
Performance values are for imperforate, jointed systems using Siniat GTEC components (metal studs and tracks, boards, metal accessories,
screws and finishing systems) and specified insulation quilt material (type, thickness and density) and installed to Siniat specification and
installation guides.
Any alterations may impair the quoted performance. Contact Technical Enquiryline for further system configurations and their resulting
performances.
All maximum heights are based on a maximum partition deflection limit of height/240 at the stated duty ratings under a uniform lateral
pressure of 0.2 kN/m2 and can be increased using thicker gauge studs.
Maximum height can be increased by 0.3m for single layer boarding and by 0.6m for double layer boarding when studs centres are
reduced to 400mm.
The maximum partition height may vary from the quoted values if the fire resistance of the system is specified according to BS EN 1364-1.
Insulation shown may be replaced with thicker and/or heavier quilt material without impairing the quoted performances.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
49
50
GTEC® C STUD PARTITION
®
GTEC C STUD
PARTITION SYSTEMS
GTEC Metal Stud Partitioning is an economical, friction-fit system for
assembling internal partitions. The unique design of the components
ensures high strength, easy installation and a higher performing
alternative to traditional timber frame partitions.
GTEC C Stud Partitions are constructed using a frame of GTEC U Track
at the head and base with GTEC C Studs for vertical framing elements.
A range of GTEC C Stud and U Track widths allow varying partition
depth, enhancing fire resistance, sound insulation and maximum
heights. For individual system performances, refer to the System
Performance Tables on pages 22 to 44.
WHERE TO USE:
GTEC C Stud Partitions create internal dividing walls within both
domestic and commercial projects.
FEATURES
BENEFITS
Strong
Less material is required than a similar timber
frame structure
Lightweight
Multiple lengths can be carried at one time
Natural resistance to bowing, bending and
insect infestation
Metal maintains shape, removing the chance of
‘screw popping’
High fire resistance levels
Fire performance levels are easily achieved
using metal
High acoustic performance levels
Acoustic performance levels are easily achieved
using metal
Flat finish
Provides an easy surface for decoration
GTEC® C STUD PARTITION
TIP: Partition heights can be increased with additional studs,
e.g. with studs boxed, back-to-back, at closer centres or
thicker stud gauges.
GTEC Intumescent Acoustic Sealant
GTEC Board
to suit required performance
timber stud
for jamb
reinforcement
GTEC Insulation
Hold at
1200mm centres
GTEC Socket Pad
GTEC Intumescent Acoustic Sealant
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
51
52
GTEC® C STUD PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p22-44
GTEC C Stud
Metal profile for vertical frame elements
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/B,
CS90/W, CS70/Y, CS90/Y, CS146/Y
GTEC U Track
Metal profile for head and base frame elements
UT52/RX, UT62/RX, UT72/RX, UT92/RX,
UT148/RX
GTEC U Track Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UDT62/B, UDT72/B, UDT92/B,
UDT148/B, UT52/Y
GTEC U Track Extra Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UXT72/B, UXT92/W, UXT148/W
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
GTEC Flex Track Deep Flange
Steel track for curved partitions
DFLEX/B
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See fixing selector, p334-335
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® C STUD PARTITION
SYSTEM GUIDANCE
FRAME
PT-CS-102S-Base
PT-CS-101S-Head – no deflection
GTEC U Track
fixed at max. 600mm centres
GTEC Board
to suit required performance 5mm
shorter than floor to ceiling height
GTEC Intumescent Acoustic
Sealant
screw fix plasterboard to track
GTEC C Stud
cut 5mm shorter
than floor to ceiling height
GTEC Board to suit required
performance 5mm shorter
than floor to ceiling height
screw fix plasterboard to track
GTEC Intumescent Acoustic
Sealant
GTEC C Stud
5mm shorter than
floor to ceiling height
GTEC U Track
fixed at 600mm centres
SECTION
PT-CS-103S-Base with timber sole plate and screed
GTEC Board
to suit required
performance
GTEC C Stud
screw fix
plasterboard
to track
GTEC U Track on
timber sole plate
GTEC Intumescent
Acoustic Sealant
SECTION
PT-CS-104P-End detail
GTEC Board
to suit required performance
GTEC Corner 90º External /
GTEC Flex Tape
GTEC C Stud
boxed or increase stud gauge
FLOATING SCREED
Resilient layer
timber sole plate to
same depth as screed
SECTION
PLAN
PT-CS-105M-Stud splice
600mm overlap
for height ≤ 4m
1000mm overlap
for height > 4m
screw fix at 150mm
centres both sides
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
53
54
GTEC® C STUD PARTITION
FRAME continued
Select compatible sizes (e.g. 50mm stud
and 52mm track) of GTEC C Stud and
GTEC U Track framing elements
to meet system performance.
GTEC U Track Deep or Extra Deep Flange to
be used for heights greater than 4.2m and
where deflection allowance is required.
Studs abutting structure (starter studs) to
be fixed with web flat to structure using
appropriate fixings by others at maximum
600mm centres and fixed to head and track
with appropriate GTEC Drywall Screws
(see screw selector, p334-335).
GTEC U Track to be fixed flat to structure
using appropriate fixings by others at
maximum 600mm centres.
Timber sole plate may be required on uneven
floors or where partition is constructed prior
to screeding.
Protect base track from moisture with damp
proof membrane when situated on newly laid
concrete floors.
All GTEC C Studs to be 5mm shorter than
floor to ceiling height except in case of head
deflection requirement (see p61).
Intermediate GTEC C Studs, facing in same
direction, to be friction fitted into tracks to
allow for adjustment during boarding.
GTEC C Studs to be at centres required to
meet system performance with a maximum
of 600mm centres.
Where wall height exceeds available
GTEC Stud length splice two lengths
together ensuring overlap of 600mm
for heights less than 4m and 1000mm
for heights more than 4m.
INSULATION
PT-CS-151M-Insulation Hold
Insulation, if required, to be of type and
thickness to achieve performance and
installed in a continuous layer between
frames or studs.
GTEC Insulation Hold
to support each insulation batt
Where insulation may be expected to slump
suspend from GTEC Insulation Hold strips
fixed across studs, 150mm from top of
partition and at 1200mm vertical centres.
screw fixed to
studs at max.
1200mm
vertical centres
ISOMETRIC
GTEC® C STUD PARTITION
BOARDING
PT-CS-201M-Board fixing – single layer
PT-CS-202M-Board fixing – double layer
screw fix plasterboard
at maximum
300mm centres
All joints in outer layer
taped and jointed
joints on
alternating studs
Joints on opposite faces
offset and staggered
between layers
ISOMETRIC
PT-CS-203M-Horizontal joint reinforcement, single layer
ISOMETRIC
PT-CS-204M-Horizontal joint reinforcement, double layer
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
screw fix
to fixing strap at
max. 300mm centres
screw fix
to fixing strap at
max. 300mm centres
GTEC Flat Strap FS50/RX
screw fixed to
studs through board
GTEC Flat Strap
FS90/W screw
fixed to stud
ISOMETRIC
GTEC Twin Frame partition system is suitable
for single, double and multiple layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables (p22-24) and Product
Specification (p294-307) to achieve required
performance. See High Performance
Boards guide (p12-15) for further selection
information.
Boards to be 5mm less than floor to
ceiling height except in case of deflection
requirement, see p61.
ISOMETRIC
Boards to be mechanically fixed to studs
at 300mm centres using appropriate
GTEC Drywall Screws (see screw selector,
p334-335).
Base layers of boarding may be temporarily
fixed at 600mm centres providing final layer
is fixed through to stud at 300mm centres.
Board edges to be centred over studs.
Stagger all board joints between layers.
Stagger all board joints on opposing sides
of partition.
Strips of board 300mm wide or less to be
avoided by stud location rearrangement.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
55
56
GTEC® C STUD PARTITION
BOARDING continued
Over-height single layer boarding:
Over-height multiple layer boarding:
Where partition height exceeds board height
GTEC Flat Strap FS90/W or GTEC MFIX to be
fixed behind all horizontal joints to provide
substrate for board fixing.
Where partition height exceeds board height
for double or multiple layer boarding GTEC
Flat Strap FS50/RX to be fixed behind all
horizontal joints in outer layer of board.
MOVEMENT CONTROL JOINTS
PT-CS-301P-Movement control joint – single boarded
screw fix
plasterboard
to stud
10mm between
boards and
tracks
GTEC Movement
Control Joint
PT-CS-302P-Movement control joint – double boarded
10mm between
boards and tracks
GTEC Movement
Control Joint
GTEC Fire Board
2x 15mm cut to
exact width of stud
10mm
Rock mineral wool
to fill void
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
10mm
10mm
GTEC Fire Board
2 x 15 mm cut to exact
width of stud
PLAN
Form movement control joints at maximum
10m intervals in the partition run.
Form movement control joints where the
partition crosses a structural movement joint.
20mm
screw fix
plasterboard to stud
70mm
PLAN
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
GTEC® C STUD PARTITION
OPENINGS
PT-CS-401P-Door frames – 25kg to 100kg door loads
GTEC Intumescent Acoustic Sealant
Up to Door 25 kg
Timber stud minimum 32mm wide
GTEC C Stud 50-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
Timber stud minimum 32mm wide
Up to 50kg Door
GTEC C Stud boxed 50-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
Timber stud minimum 32mm wide
Up to 75kg Door
GTEC C Stud boxed 70-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
Timber stud minimum 32mm wide
Up to 100kg Door
GTEC C Stud boxed 70-146mm wide
150mm
GTEC C Stud boxed 70- 146mm wide
Note: Insulation not shown for clarity
PLAN
PT-CS-403E-Single and double door frames
GTEC C Stud
400mm
GTEC UXT
Track
Section A-A
A
optional timber head stud
for door fixing
A
Min. 150mm
Max. 2m
Reinforcement as shown
in door frame plan
to full height of partition
Single Door
Max. 150mm
Double Door
Max. 150mm
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
57
58
GTEC® C STUD PARTITION
OPENINGS continued
Form openings following guidance in
Construction Detail Drawings to suit
door weights.
Reinforce jamb studs with timber and
boxed studs as described in Construction
Detail Drawings.
Reinforce head-to-jamb junction 150mm
down each jamb stud by cutting and folding
head track.
Jamb studs to be fixed to track with
appropriate GTEC Drywall Screws
(see screw selector, p334-335).
CORNERS AND JUNCTIONS
PT-CS-502P-Corner detail, double layer
PT-CS-501P-Corner detail, single layer
GTEC C Stud
GTEC C Stud
GTEC Intumescent
Acoustic Sealant
connect studs
through plasterboard
screw fix
plasterboard
to stud
screw fix
plasterboard to stud
connect studs
through plasterboard
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
PLAN
PLAN
PLAN
PLAN
PT-CS-503P-Non-acoustic T-junction, single layer
PT-CS-504P-Non-acoustic T-junction, double layer
connect studs
through plasterboard
GTEC C Stud
GTEC C Stud
connect studs
through plasterboard
screw fix plasterboard to stud
GTEC Board
to suit required performance
PLANPLAN
screw fix plasterboard to stud
GTEC Board
to suit required performance
PLAN
GTEC® C STUD PARTITION
PT-CS-505P-Acoustic rated T-junctions, single layer
PT-CS-506P-Acoustic rated T-junctions, double layer
GTEC Intumescent
Acoustic Sealant
screw fix
plasterboard
to stud
GTEC C Stud
GTEC Intumescent
Acoustic Sealant
GTEC C Stud
screw fix
plasterboard
to stud
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
PLAN
PT-CS-507P-Splayed corners
PLAN
PT-CS-508P-Four way junction
screw fix
plasterboard to stud
GTEC C Stud
GTEC Intumescent
Acoustic Sealant
screw fix
plasterboard
to stud
Timber fillet
GTEC External
Corner Tape
GTEC C Stud
GTEC Board
to suit required
performance
Min. 10mm gap
stud to stud
connection on
alternating sides
GTEC Board
to suit required
performance
PLAN
PT-CS-509P-Junction with Masonry – Plastered
PLAN
PT-CS-510P-Junction with Masonry – Dryliner & Direct Bond
GTEC Intumescent
Acoustic Sealant
GTEC Direct Bond
lining system
screw fix plasterboard to stud
GTEC Intumescent
Acoustic Sealant
existing skim plaster chased
out to receive partition
GTEC Dryliner
lining system
PLAN
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
59
60
GTEC® C STUD PARTITION
CORNERS AND JUNCTIONS continued
PT-CS-509P-Junction with Masonry – Plastered
PT-CS-510P-Junction with Masonry – Dryliner & Direct Bond
GTEC Intumescent
Acoustic Sealant
GTEC Direct Bond
lining system
screw fix plasterboard to stud
GTEC Intumescent
Acoustic Sealant
existing skim plaster chased
out to receive partition
GTEC Dryliner
lining system
PLAN
PT-CS-513P-T-Junction of Single into Twin Frame
PLAN
PT-CS-514P-T-Junction of Twin into Single Frame
fix studs together through board
GTEC Twin Frame System
GTEC Twin Frame System
fix studs together
through board
fix stud to twin frame head and base
track or ensure single frame partition
coincides with twin frame studs
GTEC Intumescent
Acoustic Sealant
GTEC C Stud or
Acoustic Stud System
PLAN
Abutting partitions to coincide with studs,
install additional intermediate ‘pick-up’ stud
if required.
Connect studs through plasterboards at
corners and junctions at 600mm vertical
centres using appropriate GTEC Drywall
Screws.
PLAN
See Construction Details Drawings for further
guidance on arrangement and fixing.
GTEC® C STUD PARTITION
HEAD DEFLECTION
PT-CS-601S-Deflection head, general arrangement
GTEC INTUMESCENT
ACOUSTIC SEALANT
MINERAL WOOL &
CLOAKING ANGLE
packers cut precisely
to track width
use head deflection
table to select packers
GTEC Intumescent
Acoustic Sealant
=
Cloaking angle
boards cut short of soffit by
deflection amount
=
Rock Mineral Wool
studs cut short
of track by
deflection amount
5mm
Minimum overlap
of boards and packers
allow deflection amount as
minimum between track
and fixing
Minimum 20mm overlap
of stud and track
=
20mm
screw fix flat strap
between outer board
layer and substrate
Note: Refer to the deflection table
SECTION
Deflection
required:
Packer for all fire ratings:
Track for all fire
ratings:
30 & 60 mins
90 & 120 mins
0-5mm
12.5mm GTEC Fire Board
GTEC U Track (UT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
6-10mm
15mm GTEC Fire Board
GTEC U Track (UT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
11-20mm
2x 12.5mm GTEC Fire Board or
25mm GTEC Fire Core Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
21-25mm
2x 15mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
26-32mm
3x 12.5mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
33-40mm
3x 15mm GTEC Fire Board
GTEC Extra Deep
Flange U Track (UXT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
41-45mm
2x 25mm GTEC Fire Core Board or
4x 12.5mm GTEC Fire Board
GTEC Extra Deep
Flange U Track (UXT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
61
GTEC® C STUD PARTITION
HEAD DEFLECTION continued
PT-CS-603S-Def. Head – parallel to profiled soffit
PT-CS-604S-Def. Head – perpendicular to simple profile
profiled insulation
by others to fill
profile cavity
GTEC Intumescent
Acoustic Sealant
GTEC FS90W
at 600mm centres
PROFILED SOFFIT
deflection
amount
deflection
amount
15mm GTEC Fire Board
to close cavity between
profile and partition
use head deflection
table to select packer
NOTE: follow general deflection
head arrangement guidance
for full construction and
component detail
overlap
Min. 150mm
62
15mm GTEC Fire
Board cut to shape
of metal deck profile
GTEC Flat Strap
SECTION
SECTION
PT-CS-605S-Def. Head – perpendicular to complex profile
profiled insulation
by others to fill
profile cavity
PROFILED SOFFIT
deflection
amount
15mm GTEC Fire Board
continuous head packers
GTEC Flat Strap
SECTION
PT-CS-606S-Def. Head – parallel to purlins – purlins cloaked
GTEC Board
to suit required
performance
composite box
stud to pick up top fix
(size to suit purlin)
GTEC Ceiling Channels
at 400mm centres, with
GTEC Edge Channel or
angle to edge
stud and board cut short
by required deflection
Composite box
U Track
GTEC Edge Channel
deflection amount
GTEC Partition to suit
C Stud
SECTION
GTEC® C STUD PARTITION
PURLIN ZONE
PT-CS-608S-Def. Head – perpendicular to purlins
PT-CS-609S-Def. Head – under beam
GTEC Intumescent
Acoustic Sealant
GTEC U Track
Metal angle fixed to purlin to
provide profile fixing
GTEC C Stud or U Track
fixed between purlins
GTEC C Stud
deflection amount
GTEC Metal
Angle 90°
composite box ladder frame
GTEC C Stud and GTEC U Track
spanning across purlins
GTEC Metal
Angle 90°
GTEC U Track
fixed to composite box
GTEC Flat Strap
as top fixing of boards
GTEC Flat Strap
SECTION
SECTION
PT-CS-610M-Telescopic deflection head assembly
GTEC U Track
Deflection amount
studs to be free
moving in both
directions
GTEC U Track
370mm + deflection amount
GTEC C Stud
cut short by 80mm + deflection amount
GTEC C Stud / U Track
370mm + deflection amount
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
63
64
GTEC® C STUD PARTITION
HEAD DEFLECTION continued
PT-CS-611S-Telescopic deflection head – parallel to purlins
GTEC Intumescent
Acoustic Sealant
GTEC C Stud
fixed at 600mm centres between
and screw fixed to purlins
GTEC C Stud
fixed at 600mm centres
GTEC U Track
Telescopic head
GTEC Metal Angle
GTEC U Track
NOTE: Insulation removed for clarity
SECTION
See Construction Detail Drawings and Tables
for full details. Contact Siniat Technical
Enquiryline for further information.
GTEC Studs to be cut short of track by
deflection amount.
Continuity of head packer to be maintained.
GTEC Studs and Tracks to overlap by
minimum 20mm.
No mechanical connection to be made
between stud and head track.
GTEC Boards to be short of partition
height by deflection amount.
All air paths to be sealed with
GTEC Intumescent Acoustic Sealant.
GTEC Boards to overlap packer
by minimum of 5mm.
GTEC® C STUD PARTITION
PENETRATIONS
PT-CS-701P-Small diameter pipe penetration
GTEC Intumescent
Acoustic Sealant
PT-CS-702E-Cable tray penetration
insulation to seal
around penetrating
pipe or conduit
GTEC Fire Board
GTEC Intumescent
Acoustic Sealant
GTEC U Track
cut and bent
pipe or conduit
less than 50mm
in diameter
PLAN
PT-CS-703M-Cable tray penetration at soffit
GTEC Intumescent
Acoustic Sealant
ELEVATION
PT-CS-704E-Socket pad fitting
Packers and head to suit
deflection if required
GTEC Socket Pad
pre-cut socket pad
folded and pushed
into socket box
GTEC U Track
150mm up turn
2x 15mm
GTEC Fire Board
GTEC C Stud
Infill section of
GTEC U Track fixed
to lower track
ELEVATION
ISOMETRIC
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
65
66
GTEC® C STUD PARTITION
PENETRATIONS continued
PT-CS-705P-Multiple pipe penetrations – Single frame
150mm
100mm min.
overlap
voisd filled with dense rock mineral wool
GTEC Fire Board
pattress
GTEC Board
to suit required
performance
NOTE : Insulation may be reduced if partition is not fire-rated
PLAN
ELEVATION
PT-CS-706S Fire damper
damper suspension rods
protected within cavity
GTEC U Track
cut and folded to reinforce
jamb stud
Fire damper
GTEC Intumescent
Acoustic Sealant
Rock mineral wool packed
around damper
max. 600mm
SECTION
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated partitions.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
ELEVATION
Protect all electrical cables in cavity
with conduit.
GTEC® C STUD PARTITION
FIXTURES
PT-CS-801M-Flat strap for light-weight fixings
PT-CS-802M-Plywood pattress for heavy-weight fixings
GTEC C Stud
GTEC Shallow Wall Channel
screw fix 15mm plywood to
GTEC Shallow Wall Channel
at max. 300mm centres
GTEC Flat Strap or
Fixing Channel
to provide fixing
reinforcement
screw fix GTEC Shallow Wall
Channel to GTEC C Stud at
max. 300mm centres
fix final layer of board
to stud over pattress
and through channel face
ISOMETRIC
ISOMETRIC
ISOMETRIC
PT-CS-803M-Timber support for extreme-weight fixings
Horizontal nogging and central stud
of timber sawn to suit size of GTEC
Metal Studs notched and fixed
through ends
300mm length of GTEC C Stud
screw fixed back to back main
stud where stud is not
positioned to receive timber
Vertical timber framing as
required fixed into track
GTEC U Track
ISOMETRIC
SECTION
PT-CS-804M-LaDura adhesive pattress for heavy-weight fixings
PT-CS-805M-LaDura channel pattress for heavy-weight fixings
GTEC LaDura Pattress glued to back
of board using Drywall Adhesive/
GTEC Intumescent Acoustic Sealant
GTEC C Stud
GTEC Shallow Wall Channel
fixing should be
surrounded by
min. 150mm of board
screw fix 15mm GTEC
LaDura board to GTEC
Shallow Wall Channel
at max. 300mm centres
GTEC Intumescent Acoustic
Sealant to adhere GTEC
LaDura Pattress to board
screw fix GTEC Shallow Wall
Channel to GTEC C Stud at
max. 300mm centres
GTEC C Stud
fix final layer of board
to stud over pattress and
through channel face
Note: Only possible on one
side of partition unless
pre-fixed to boards.
ISOMETRIC
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
67
68
GTEC® C STUD PARTITION
FIXTURES continued
PT-CS-806S-LaDura pattress types for fixings both sides
GTEC Shallow Wall Channel
GTEC LaDura Board
fixture fixed through
into pattress
fixture fixed through
into pattress
GTEC Intumescent Acoustic
Sealant to adhere GTEC
LaDura Pattress to board
GTEC Stud
SECTION
Select fixture details for recommended
fixture provision in combination with
fixing capability.
Appropriate fixings for loadings and substrate
to be supplied by others.
Site testing of fixings with plasterboard is
recommended.
GTEC LaDura is recommended as pattress or
facing to enhance mechanical resistance of
the fixing.
For high loadings partitions must be checked
for overall robustness.
GTEC Boards have been tested for pull-out
strength in combination with Spit fixings, see
maximum loadings and required arrangements
in summary table. For complete results please
consult Technical Enquiryline. Other
manufacturer’s fixings will require further
testing before use.
GTEC® C STUD PARTITION
PT-CS-807M-Fixing options chart
Spit Spring Toggle
Spit Satelis
Spit Hollow Wall Anchor
Spit Driva® Plus
Spit Driva®
Spit Driva® LD
DESIGN PULL-OUT LOADS (kN) including safety factor
With 15mm LaDura pattress
Without pattress
Spit Driva®
Spit Hollow
Wall Anchor
Spit Satelis
Spit Driva®
Spit Hollow
Wall Anchor
Spit Satelis
Single layer 15mm
GTEC Standard Boards*
0.35
0.7
1.25
0.15
0.35
0.4
Single layer 15mm
GTEC Technical Boards**
0.35
0.75
1.4
0.2
0.4
0.5
Single layer 15mm GTEC LaDura
0.4
0.85
1.8
0.25
0.5
0.85
Double layer 15mm
GTEC Standard Boards*
0.4
0.85
1.55
0.25
0.55
0.7
Double layer 15mm
GTEC Technical Boards**
0.45
1.0
2.05
0.3
0.65
1.1
Double layer 15mm GTEC LaDura
0.5
1.15
2.85
0.4
0.85
1.8
Board Arrangement
*Standard boards are those up to 10kg/m2 for 15mm boards
**Technical boards are those up to 13kg/m2 for 15mm boards
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
69
70
GTEC® C STUD PARTITION
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to board
type to be used.
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Full, imperforate system continuity to be
maintained to achieve rated performances.
CURVED PARTITIONS
PT-CS-901M-Single frame curved partition
See table for stud spacing
to achieve curve radius
GTEC Flat Strap
to reinforce
horizontal joints
GTEC Board
to suit required performance
GTEC C Stud
screw fix plasterboard to stud
and flat strap at 150mm centres
screw fix plasterboard to
stud at max. 300mm vertical
centres and to each stud
horizontally
GTEC U Track
minimum 300mm at
each end of curve
15
0m
m
Two C studs separated
by 150mm at start
of straight section
GTEC Flex Track Deep Flange
ISOMETRIC
GTEC® C STUD PARTITION
CURVED PARTITIONS continued
PT-CS-902M-Flex track component
Boards to be installed horizontally.
Fix boards to continuous band of GTEC Flat
Strap FS90/Rx behind all horizontal joints.
Consult Technical Enquiryline for further
guidance on curved partition specification.
GTEC Flex Track Deep Flange
pre-cut at 50mm centres to allow
curves of minimum radius of 600mm
ISOMETRIC
PT-CS-903P-Curved partition plan
GTEC C Stud
GTEC Flex Track Deep Flange
GTEC Contour Board or
other GTEC Board as required
PLAN
MAXIMUM STUD CENTRES (mm)
Radius (m)
6mm
GTEC Contour Board
9.5mm
GTEC Board
12.5mm
GTEC Board
15mm
GTEC Board
0.6 – 0.9
150 Wet
–
–
–
0.9 – 1.0
200 Dry
150 Wet
–
–
1.0 – 1.5
200 Dry
200 Wet
150 Wet
–
1.5 – 2.0
200 Dry
250 Wet
200 Wet
–
2.0 – 3.0
200 Dry
300 Wet
200 Wet
150 Wet
3.0 – 4.0
300 Dry
450 Wet
400 Wet
200 Wet
4.0 – 8.0
300 Dry
450 Wet
500 Wet
400 Wet
8.0 – 12.0
300 Dry
600 Dry
600 Dry
600 Wet
12.0 –
300 Dry
600 Dry
600 Dry
600 Dry
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
71
72
GTEC® ACOUSTIC STUD PARTITION
®
GTEC ACOUSTIC STUD
PARTITION SYSTEMS
The GTEC Acoustic Stud is an alternative to 70mm, 90mm and
146mm GTEC C Studs, where higher levels of acoustic performance
are needed from a partition.
With a unique profile design, the engineered slots create a spring
section, resulting in less acoustic energy being transmitted through
the stud and sound is absorbed within the partition.
Compatibility with the GTEC C Stud system and all GTEC Boards
allows a range of partition performances within identical footprints.
For individual system performances, refer to the System Performance
Tables on pages 22 to 44.
WHERE TO USE:
GTEC Acoustic Stud is an internal partition system for commercial and
domestic applications requiring high acoustic performance levels.
Benefits from all key features as detailed for GTEC C Stud, plus:
FEATURES
BENEFITS
Compatible with GTEC U Tracks
Only requires one change in component in a
specification and on site
Partition types can be mixed on site
Unique spring section design
Can eliminate insulation or board layers to
achieve acoustic performance
GTEC® ACOUSTIC STUD PARTITION
TIP: GTEC Acoustic Stud can improve
the overall Rw dB performance of a
partition by up to 3 dB.
Insulation to suit required performance
GTEC U Track Deep Flange
GTEC Acoustic Studs
at 600mm centres
GTEC Board
to suit required performance
screw fix plasterboard to
stud at 300mm centres
GTEC Intumescent
Acoustic Sealant
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
73
74
GTEC® ACOUSTIC STUD PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance table, p22-44
GTEC Acoustic Stud
Metal profile for vertical frame elements with improved
acoustic performance
AS70/RX, AS90/RX, AS146/RX
GTEC C Stud
Metal profile for vertical frame elements at corners,
door openings, abutments
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/B,
CS90/W, CS70/Y, CS90/Y, CS146/Y
GTEC U Track
Metal profile for head and base frame elements
UT52/RX, UT62/RX, UT72/RX, UT92/RX,
UT148/RX
GTEC U Track Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UDT62/B, UDT72/B, UDT92/B,
UDT148/B, UT52/Y
GTEC U Track Extra Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UXT72/B, UXT92/W, UXT148/W
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Screws (as appropriate)
For connecting plasterboard and metal components
See fixing selector, p334-335
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® ACOUSTIC STUD PARTITION
SYSTEM GUIDANCE
See guidance in GTEC C Stud section and additional considerations given below:
FRAME
PT-AS-101M-Stud splice
600mm overlap
for height ≤ 4m
1000mm overlap
for height > 4m
screw fix at 150mm
centres both sides
ISOMETRIC
Select compatible size (e.g. 50mm stud
and 52mm track) GTEC Acoustic Stud,
GTEC C Stud and GTEC U Track framing
elements to suit system performance.
Intermediate studs to be GTEC Acoustic
Studs, facing in same direction, to be
friction fitted to allow for adjustment
during boarding.
Studs abutting structure (starter studs)
to be GTEC C Stud, fixed with web flat
to structure using appropriate fixings at
maximum 600mm centres and fixed to head
and track with appropriate GTEC Drywall
Screws (see screw selector, p334-335).
GTEC Studs to be at centres required to
achieve performance and at a maximum
of 600mm centres
All GTEC C and Acoustic Studs to be 5mm
shorter than floor to ceiling height.
Where wall height exceeds available
GTEC Stud length splice two lengths
together ensuring overlap of 600mm
for heights below 4m and 1000mm for
heights above 4m.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
75
76
GTEC® ACOUSTIC STUD PARTITION
BOARDING
PT-AS-201M- Horizontal joint reinforcement, single layer
PT-AS-202M-Horizontal joint reinforcement, double layer
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
screw fix
to fixing strap at
max. 300mm centres
screw fix
to fixing strap at
max. 300mm centres
GTEC Flat Strap FS50/RX
screw fix strap to
stud through board
GTEC Flat Strap
FS90/W screw
fix strap to stud
ISOMETRIC
PT-AS-203M-Board fixing – single layer
ISOMETRIC
PT-AS-204M-Board fixing – double layer
screw fix plasterboard
at maximum
300mm centres
screw fix plasterboard
at maximum
300mm centres
joints on
alternating studs
joints on
alternating studs
ISOMETRIC
GTEC Acoustic Stud partition system is
suitable for single, double and multiple
layer boarding.
ISOMETRIC
GTEC® ACOUSTIC STUD PARTITION
OPENINGS
PT-AS-401P- Door frames – 25 to 100kg
GTEC Intumescent Acoustic Sealant
Timber stud
Up to 25kg Door
GTEC C Stud
150mm
GTEC Intumescent Acoustic Sealant
Timber stud
Up to 50kg Door
GTEC C Stud boxed
150mm
GTEC Intumescent Acoustic Sealant
Timber stud
Up to 75kg Door
GTEC C Stud boxed
150mm
GTEC Intumescent Acoustic Sealant
Timber stud
Up to 100kg Door
Note: Insulation not shown for clarity
GTEC C Stud boxed
150mm
PLAN
Form openings following guidance in
Construction Detail Drawings to suit
door weights.
GTEC C Studs to be used as jambs at
openings to provide flat web for fixing.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
77
78
GTEC® ACOUSTIC STUD PARTITION
CORNERS AND JUNCTIONS
PT-AS-501P- Acoustic T-junction, double layer
PT-AS-502P-Corner – double layer
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
GTEC C Stud
screw fix
plasterboard
to stud
GTEC C Stud
screw fix
plasterboard
to stud
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
Insulation quilt
to suit required
performance
Insulation quilt
to suit required
performance
PLAN
GTEC C Studs to be used at corners and
junctions to provide flat web for fixing.
CURVED PARTITIONS
GTEC Acoustic Studs are not suitable
for use in curved partitions.
PLAN
See Construction Details Drawings for further
guidance on arrangement and fixing.
79
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
80
GTEC® ACOUSTIC HOMESPAN PARTITION
®
GTEC ACOUSTIC
HOMESPAN
PARTITION SYSTEMS
The GTEC Acoustic Homespan system is a lightweight
partition specifically designed to meet Building Regulation
Part E where 40RwdB is required for internal partitions
in dwellings. This performance is achieved using 44mm
and 50mm GTEC Acoustic Homespan Studs and Tracks
and GTEC Acoustic Homespan Board without the need to
install insulation to achieve a 40RwdB rating.
The narrow stud width and specially configured boards
simplify specification and use the least material to achieve
the demands of Part E.
WHERE TO USE:
GTEC Acoustic Homespan is an internal partition for
new-build domestic applications.
Benefits from all key features as detailed for GTEC C Stud, plus:
FEATURES
BENEFITS
Achieves acoustic performance using narrow
width studs
Maintains a low system footprint to minimise
the effect on the room size
Achieves acoustic performance without the
need for insulation
Quicker to install than other systems which use
insulation to achieve the same performance
GTEC® ACOUSTIC HOMESPAN PARTITION
TIP: With all acoustic partitions it is
critical to seal any air paths to achieve
the best sound ratings.
Insulation to suit required performance
GTEC U Track Deep Flange
GTEC Acoustic Studs
at 600mm centres
GTEC Board
to suit required performance
screw fix plasterboard to
stud at 300mm centres
GTEC Intumescent
Acoustic Sealant
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
81
82
GTEC® ACOUSTIC HOMESPAN PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
GTEC Acoustic Homespan Board
900mm board to provide wall surface suitable
for finishing
See performance table, p43
GTEC Acoustic Homespan MR Board
Moisture resistant 900mm board
See performance table
GTEC Acoustic Homespan Stud
Metal profile for vertical frame elements with improved
acoustic performance
AHS44/RX, AHS50/RX
GTEC Acoustic Homespan Starter Stud
Metal profile for vertical frame elements at corners,
door openings, abutments
CS44/RX, CS50/RX
GTEC U Track
Metal profile for head and base frame elements
UT45/RX, UT52/RX
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334-335
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® ACOUSTIC HOMESPAN PARTITION
SYSTEM GUIDANCE
See guidance in GTEC C Stud section and additional considerations given below:
FRAME
Select compatible size (e.g. 44mm stud
and 45mm track) GTEC Acoustic Homespan
Stud, GTEC Acoustic Homespan Starter Stud
and GTEC U Track framing elements to suit
system performance.
GTEC Acoustic Homespan is not suitable for
heights above 2.8m and so does not require
deeper flange tracks.
Intermediate GTEC Acoustic Homespan
Studs, facing in same direction, to be
friction fitted to allow for adjustment
during boarding.
All GTEC Studs to be 5mm shorter than
floor to ceiling height.
GTEC Acoustic Homespan Studs to be
at a maximum of 450mm centres.
Studs abutting structure to be GTEC Acoustic
Homespan Starter Studs fixed with web flat
to structure using appropriate fixings at
maximum 600mm centres and fixed to head
and track with appropriate GTEC Drywall
Screws (see screw selector, p334-335).
INSULATION
Insulation is not required to achieve
40 RwdB performance with the GTEC
Acoustic Homespan system but may
be fitted to increase performance,
see performance tables p43.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
83
84
GTEC® ACOUSTIC HOMESPAN PARTITION
BOARDING
PT-AH-201M-Horizontal joint reinforcement, single layer
PT-AH-202M-Horizontal joint reinforcement, double layer
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
fixing strap to reinforce
horizontal edge
of boards where
partition > board height
screw fix to fixing
strap at max.
300mm centres
screw fix to fixing
strap at max.
300mm centres
GTEC Flat Strap
FS90/W screw
fixed to studs
GTEC Flat Strap FS50/RX
screw fix strap to stud
through board
ISOMETRIC
PT-AH-203M-Board fixing – single layer
ISOMETRIC
PT-AH-204M- Board fixing – double layer
screw fix plasterboard
at maximum
300mm centres
All joints in outer layer
taped and jointed
joints on
alternating studs
Joints on opposite faces
offset and staggered
between layers
ISOMETRIC
GTEC Acoustic Homespan partition system
is suitable for single boarding using
GTEC Acoustic Homespan Board only.
ISOMETRIC
GTEC® ACOUSTIC HOMESPAN PARTITION
OPENINGS
PT-AH-401P-Door frames – 25kg to 50kg door loads
GTEC Intumescent Acoustic Sealant
Timber stud minimum 32mm wide
Up to 25kg Door
GTEC C Stud 44-50mm wide
150mm
GTEC Intumescent Acoustic Sealant
Timber stud minimum 32mm wide
Up to 50kg Door
150mm
GTEC C Stud boxed 44-50mm wide
Note: Insulation not shown for clarity
PLAN
Form openings following guidance
in Construction Detail Drawings to
suit door weights.
GTEC Acoustic Homespan Starter Studs to be
used as jambs at openings to provide flat web
for fixing.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
85
86
GTEC® ACOUSTIC HOMESPAN PARTITION
CORNERS AND JUNCTIONS
PT-AH-501P-Acoustic T-junction, single layer
PT-AH-502P-Corner – single layer
GTEC Intumescent
Acoustic Sealant
GTEC Acoustic
Homespan Starter Stud
GTEC Acoustic
Homespan Stud
GTEC Intumescent
Acoustic Sealant
screw fix
plasterboard to stud
screw fix
plasterboard
to stud
GTEC Acoustic
Homespan Starter Stud
GTEC Acoustic
Homespan Board
GTEC Board
to suit required
performance
GTEC Acoustic
Homespan Studs
PLAN
GTEC Acoustic Homespan Starter Studs to be
used at corners and junctions to provide flat
web for fixing.
HEAD DEFLECTION
GTEC Acoustic Homespan systems
are not suitable for specification
with deflection heads.
PLAN
See Construction Details Drawings for further
guidance on arrangement and fixing.
CURVED PARTITIONS
GTEC Acoustic Homespan Studs are not
suitable for use in curved partitions.
87
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
88
GTEC® RESILIENT BAR PARTITION
®
GTEC RESILIENT
BAR PARTITION
SYSTEMS
GTEC Resilient Bar is a versatile component that can be used with
a variety of partitions to provide improved acoustic performance.
GTEC Resilient Bar decouples the plasterboard from the metal frame
to reduce sound transmission with little increase in thickness. It is
fixed across the flanges of GTEC C Stud and GTEC Board to provide a
substrate for the plasterboard away from the metal framing. Refer to
the System Performance Tables on pages 22 to 44 for full details.
See the GTEC Timber Partitions section for details on using the
GTEC Resilient Bar with timber construction.
WHERE TO USE:
GTEC Resilient Bar is used with the GTEC C Stud Partition system
in both domestic and commercial applications.
FEATURES
BENEFITS
Easy to fit and install
Reduced installation time compared with more
complex systems
Low profile component design
Increases acoustics with minimal effect
on room size
Decouples board and frame
Gives increase in acoustic performance
GTEC® RESILIENT BAR PARTITION
TIP: When fixing GTEC Board to GTEC Resilient Bar it is vital
to fix to the bar only or risk reducing acoustic performance.
GTEC Resilient Bar
provides fixing at 50mm maximum from soffit
GTEC Resilient Bar
spaced at 600mm vertical centres
and screw fixed to GTEC C Studs
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required performance
screw fix board to resilient
bar at 300mm centres
GTEC Socket Pad
GTEC Intumescent
Acoustic Sealant
GTEC Resilient Bar
at bottom to provide fixing at
50mm maximum from floor
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
89
90
GTEC® RESILIENT BAR PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p22-44
GTEC Resilient Bar
Metal profile to provides acoustic separation of board
and frame
RBD3000
GTEC C Stud
Metal profile for vertical frame elements
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/W,
CS90/W, CS70/Y, CS146/Y
GTEC U Track
Metal profile for head and base frame elements
UT52/RX, UT62/RX, UT72/RX, UT92/RX,
UT148/RX
GTEC U Track Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UDT62/B, UDT72/B, UDT92/B,
UDT148/B, UT52/Y
GTEC U Track Extra Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UXT72/B, UXT92/W, UXT148/W
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334-335
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® RESILIENT BAR PARTITION
SYSTEM GUIDANCE
See guidance in GTEC C Stud section and additional considerations given below:
FRAME
PT-RB-101S-Head – no deflection
PT-RB-102S-Base junction v1
screw fix
plasterboard
to track
GTEC Intumescent
Acoustic Sealant
screw fix
plasterboard
to Resilient Bar
GTEC U Track
Deep Flange
fixed at 600mm
centres
GTEC Resilient
Bar inverted at
top of stud
GTEC Insulation
Hold
GTEC Board
fixed to resilient
bar only
GTEC C Stud
GTEC Board
to suit required
performance
GTEC C Stud
GTEC Resilient Bar
max. 50mm from base
screw fix plasterboard
to Resilient Bar only
GTEC Intumescent
Acoustic Sealant
GTEC Resilient Bar
screw fixed to stud
at 600mm centres
screw fix
plasterboard
to track
GTEC U Track Deep Flange
fixed at 600mm centres
SECTION
GTEC Resilient Bar to be installed on one side
of partition, across studs at 600mm vertical
centres and fixed to each stud with suitable
GTEC Drywall Screws (see screw selector,
p334-335).
SECTION
Uppermost GTEC Resilient Bar to be installed
in inverted position at maximum of 50mm
from top of partition.
Lowest GTEC Resilient Bar to be installed at
maximum of 50mm from base of partition.
BOARDING
PT-RB-201M-Board fixing – double layer
GTEC Resilient Bar partition system is
suitable for single and double layer boarding.
screw fix board
to resilient bar only
at max. 300mm centres
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System Tables
(p22-44) and Product Specification (p294307) to achieve required performance. See
High Performance Boards guide (p12-15) for
further selection information.
stagger joints
Boards to be fixed to GTEC Resilient Bar only
at 300mm centres using shortest appropriate
GTEC Drywall Screws (see screw selector,
p334-335). Screws must not penetrate
through to substrate.
Base and final layers of boarding to be fixed
at 300mm centres.
ISOMETRIC
ISOMETRIC
Boards must not be fixed to studs or tracks to
ensure acoustic performance.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
91
92
GTEC® RESILIENT BAR PARTITION
OPENINGS
PT-RB-401P-Door frame – 25-100 kg
GTEC Intumescent Acoustic Sealant
GTEC Resilient Bar
Up to 25kg Door
Timber stud minimum 32mm wide
GTEC C Stud 50-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
GTEC Resilient Bar
Timber stud minimum 32mm wide
Up to 50kg Door
GTEC C Stud boxed 50-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
GTEC Resilient Bar
Timber stud minimum 32mm wide
Up to 75kg Door
GTEC C Stud boxed 70-146mm wide
150mm
GTEC Intumescent Acoustic Sealant
GTEC Resilient Bar
Timber stud minimum 32mm wide
Up to 100kg Door
GTEC C Stud boxed 70-146mm wide
Note: Insulation not shown for clarity
150mm
PLAN
PT-RB-402M-Horizontal joint reinforcement
Form openings following guidance in
Construction Detail Drawings to suit
door weights.
FS50/RX flat strap to
support horizontal
edge of boards
screw fix board
to resilient bar
only at max.
300mm centres
ISOMETRIC
GTEC® RESILIENT BAR PARTITION
CORNERS AND JUNCTIONS
PT-RB-501P-Junction with masonry wall
PT-RB-502P-Corner detail (External Resbar)
GTEC Direct Bond
lining system
GTEC Resilent Bar to
external side of corner
GTEC Intumescent Acoustic Sealant
GTEC Resilient Bar
screw fix plasterboard
to resilient bar
GTEC Resilient Tape or
plasterboard packer
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
GTEC Dryliner
lining system
PLAN
PT-RB-503P-Corner detail (Internal Resbar)
PLAN
PT-RB-504P-Acoustic T-junction, double layer
GTEC Resilent Bar
to internal side of corner
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to resilient bar
GTEC Resilient Bar
ensure 10mm min. gap
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
PLAN
PLAN
PLAN
See Construction Details Drawings for further
guidance on arrangement and fixing.
CURVED PARTITIONS
GTEC Resilient Bar is not suitable
for curved partitions.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
93
94
GTEC® TWIN FRAME PARTITION
®
GTEC TWIN FRAME
PARTITION SYSTEMS
Separating walls and divisions between noisy or noise sensitive
rooms requires very high levels of sound insulation. The GTEC Twin
Frame metal system is a dual layer C Stud Partition used where the
highest fire and acoustic performance is required.
GTEC Twin Frame Partitions are constructed from two metal frames
in parallel, braced together with GTEC Acoustic V Brace and boarded
on the external sides only. Varying cavity size options help optimise
acoustic insulation and provide a service cavity. The GTEC Twin
Frame system is a lightweight, flexible option compared to traditional
masonry separating walls. Refer to the System Performance Tables on
pages 22 to 45 for full performance details.
WHERE TO USE:
GTEC Twin Frame systems are suitable for creating internal dividing
walls in both domestic and commercial applications with increased
performance and / or height requirements.
The highest performing GTEC Twin Frame partitions are commonly
used in cinemas, theatres and schools.
Benefits from all key features as detailed for GTEC C Stud, plus:
FEATURES
BENEFITS
Cavity space between the two frames
Provides high levels of acoustic,
thermal and fire performance
Varying cavity size
Optimisable for obstacles in
the path of the partition
Higher partition heights
Increased height capabilities
Enables use in large commercial spaces
GTEC® TWIN FRAME PARTITION
TIP: GTEC Twin Frame Partitions have been built
in cinemas across the UK as they are ideal for tall,
highly sound insulated partitions.
GTEC Intumescent Acoustic Sealant
at all perimeters of run
Twin GTEC C Studs
Twin GTEC U Tracks
to suit height
and deflection
mineral wool
insulation to suit
required performance
GTEC Insulation Hold
GTEC Acoustic V Brace
to connect studs at
1500mm vertical centres
GTEC Board
to suit required performance
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
95
96
GTEC® TWIN FRAME PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance table, p22-45
GTEC C Stud
Metal profile for vertical frame elements
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/B,
CS90/W, CS70/Y, CS90/Y, CS146/Y
GTEC I Stud
Alternative metal profile for vertical frame elements
IS50/RX, IS60/B, IS60/B, IS70/B, IS90/B
GTEC U Track
Metal profile for head and base frame elements
UT52/RX, UT62/RX, UT72/RX, UT92/RX,
UT148/RX
GTEC U Track Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UDT62/B, UDT72/B, UDT92/B,
UDT148/B, UT52/Y
GTEC U Track Extra Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UXT72/B, UXT92/W, UXT148/W
GTEC Acoustic V Brace
Acoustic frame bracing
VBRACE
GTEC Acoustic V Brace 90
Acoustic frame bracing for connecting at 90°
VBRACE90
GTEC Resilient Tape
Provides acoustic isolation between components
RAFT50
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
GTEC Flex Track Deep Flange
Steel track for curved partitions
DFLEX/B
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
BOARDS
FRAME
INSULATION
GTEC® TWIN FRAME PARTITION
System Component
System primary use
Product Reference
GTEC Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334-335
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FIX
FINISHING
SYSTEM GUIDANCE
FRAME
PT-CT-101S-Head – no deflection
PT-CT-102S-Base
GTEC U Track Deep Flange
fixed at 600mm centres
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required
performance
screw fix
plasterboard to track
GTEC C Stud
GTEC Board to suit required
performance 5mm shorter
than floor to ceiling height
GTEC C Stud
5mm shorter than
floor to ceiling height
SECTION
GTEC U Track Deep Flange
fixed at 600mm centres
screw fix plasterboard
to track
GTEC Intumescent
Acoustic Sealant
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
97
98
GTEC® TWIN FRAME PARTITION
FRAME continued
PT-CT-103S-Base with timber sole plate and screed
Insulation quilt
to suit required performance
GTEC U Track
on timber sole plate
floating screed
GTEC Board
to suit required performance
GTEC C Stud
GTEC Intumescent
Acoustic Sealant
timber sole plate same
depth as screed
Resilient layer
SECTION
Select compatible size (e.g. 50mm stud and
52mm track) GTEC C Stud and GTEC U Track
framing elements to suit system performance.
Timber sole plate may be required on uneven
floors or where partition is constructed prior
to screeding.
GTEC U Track Deep or Extra Deep Flange
to be used for heights greater than 4.2m
and where deflection allowance is required
(see p105).
Protect base track from moisture with damp
proof membrane when situated on newly laid
concrete floors.
GTEC Twin Frame partition to be constructed
using two parallel track and stud frames
braced together with GTEC Acoustic V Brace
at 1500mm vertical centres, mechanically
fixed to both studs with four appropriate
GTEC Drywall screws (see screw selector,
p334-335).
Separate parallel frames as required by
system performance. Where frame separation
is wider than GTEC Acoustic V Brace extend
with additional length of GTEC Primary
Channel or Dryliner Channel.
Studs abutting structure (starter studs) to
be fixed with web flat to structure using
appropriate fixings at maximum 600mm
centres and fixed to head and track with
appropriate GTEC Drywall Screws (see screw
selector, p334-335).
GTEC U Track to be fixed flat to structure
using appropriate fixings at maximum
600mm centres.
All GTEC C Studs to be 5mm shorter than
floor to ceiling height except in case of
deflection requirement (see p105).
Intermediate GTEC C Studs, facing in same
direction, to be friction fitted to allow for
adjustment during boarding.
GTEC C Studs to be at centres required to
achieve performance and at a maximum of
600mm centres.
Where wall height exceeds available
GTEC Stud length splice two lengths
together ensuring overlap of
600mm for heights below 4m and
1000mm for heights above 4m.
Acoustic break in slab for party walls
may be required.
GTEC® TWIN FRAME PARTITION
PT-CT-104M-Stud splice
PT-CT-105M-V-brace fixing and extensions
screw fix at 150mm
centres both sides
1200mm min. between
stagger joints
cut GTEC Dryliner
Channel or Primary
Channel to suit
width of cavity
600mm overlap
for height ≤ 4m
1000mm overlap
for height > 4m
fix with GTEC Wafer / Pan
Head Self Drilling Screws
ISOMETRIC
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
99
100
GTEC® TWIN FRAME PARTITION
INSULATION
PT-CT-151M-Insulation Hold
Insulation, if required, to be of type and
thickness to achieve performance and
installed in a continuous layer between studs.
All joints in outer layer
taped and jointed
Joints on opposite
faces offset and
staggered
between layers
Where insulation may be expected to slump
suspend from GTEC Insulation Hold strips
fixed across studs, 150mm from top of
partition and at 1200mm vertical centres.
ISOMETRIC
BOARDING
PT-CT-201M-Board fixing – double layer
PT-CT-202M-Horizontal joint reinforcement
fixing strap to reinforce
horizontal edge of
boards where
partition > board height
screw fix
to fixing strap at
max. 300mm centres
GTEC Flat Strap
FS50/RX screw fixed
to stud through board
ISOMETRIC
GTEC Twin Frame partition system is suitable
for single, double and multiple layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System Tables
(p22-45) and Product Specification (p294307) to achieve required performance. See
High Performance Boards guide (p12-15) for
further selection information.
Boards to be 5mm less than floor to
ceiling height except in case of deflection
requirement, see below.
Strips of board 300mm wide or less to be
avoided by stud location rearrangement.
ISOMETRIC
Boards to be mechanically fixed to studs
at 300mm centres using appropriate
GTEC Drywall Screws (see screw selector
and guidance, p334-335).
Base layers of boarding may be temporarily
fixed at 600mm centres providing final layer
is fixed through to stud at 300mm centres.
Board edges to be centred over studs.
Stagger all board joints between layers.
Stagger all board joints on opposing sides
of partition.
GTEC® TWIN FRAME PARTITION
Over-height single layer boarding:
Where partition height exceeds board height
fix boards to continuous band of GTEC Flat
Strap FS90/W or GTEC MFIX behind all
horizontal joints to maintain fire integrity.
Over-height multiple layer boarding:
Where partition height exceeds board height
for double or multiple layer boarding fix
outer layer of boards to continuous band
of GTEC Flat Strap FS50/RX behind all
horizontal joints.
MOVEMENT CONTROL JOINTS
PT-CT-301P-Movement control joint – double boarded
10mm
GTEC Movement
Control Joint
GTEC Fire Board 2x 15mm
cut to exact width of cavity
fixed to back of studs
GTEC C Studs
to suit required performance
Rock mineral wool to fill void
GTEC Intumescent
Acoustic Sealant
10mm
GTEC Board
to suit required performance
PLAN
Form movement control joints at maximum
10m intervals in the partition run.
Form movement control joints where the
partition crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
101
GTEC® TWIN FRAME PARTITION
OPENINGS
PT-CT-401P-Door frames – 25kg to 100kg door loads
GTEC C Stud boxed 50-146mm wide
Timber stud minimum 32mm wide
25- 50kg
GTEC LaDura Board or plywood
150mm
GTEC C Stud boxed 70-146mm wide
Timber stud minimum 32mm wide
Up to 75kg
GTEC LaDura Board or plywood
150mm
GTEC C Stud boxed 70-146mm wide
Timber stud minimum 32mm wide
Up to 100kg
GTEC LaDura Board or plywood
150mm
PLAN
PT-CT-403E-Single and double door frames
GTEC C Stud
GTEC UXT
Track
400mm
102
Section A-A
A
optional head stud
for door fixing
A
Min. 150mm
Max. 2m
Reinforcement as shown
in door frame plan
to full height of partition
Single Door
Max. 150mm
Double Door
Max. 150mm
ELEVATION
GTEC® TWIN FRAME PARTITION
Form openings following guidance in
Construction Detail Drawings to suit
door weights.
Reinforce head-to-jamb junction 150mm
down each jamb stud by cutting and
folding head track.
Reinforce jamb studs with timber
and boxed studs as described in
Construction Detail Drawings.
Jamb studs to be fixed to track with
appropriate GTEC Drywall Screws
(see screw selector, p334-335).
CORNERS AND JUNCTIONS
PT-CT-501P-Corner detail, double layer
PT-CT-502P-Acoustic T-junctions, double layer
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
screw fix
plasterboard
to stud
GTEC Acoustic
V Brace
additional stud
if required
Insulation
to suit required
performance
GTEC Intumescent
Acoustic Sealant
GTEC Acoustic
V Brace
additional studs
if required
screw fix
plasterboard
to stud
Insulation to
suit required
performance
Head packer
configuration
Head packer
configuration
PLAN
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
103
104
GTEC® TWIN FRAME PARTITION
CORNERS AND JUNCTIONS continued
PT-CT-503P-Splayed corners
PT-CT-504P-Four way junction
GTEC External
Corner Tape
GTEC Board
to suit required
performance
Timber fillet
GTEC C Stud
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to stud
screw fix
plasterboard
to stud
Insulation
to suit required
performance
GTEC Board to suit
required performance
GTEC Acoustic
V Brace
PLAN
PT-CT-505P-Junction with Masonry – Plastered
PLAN
PT-CT-506P-Junction with Masonry – Dryliner & Direct Bond
GTEC Intumescent Acoustic Sealant
GTEC Direct Bond
lining system
screw fix plasterboard to stud
GTEC Resilient Tape or
plasterboard packer
GTEC Resilient Tape or
plasterboard packer
skim plastered
GTEC Dryliner
lining system
PLAN
PLAN
PLAN
PLAN
PT-CT-507P-Junction with external SFS wall, acoustic rated
External Insulation and
Finishing System (EIFS)
GTEC Board
to suit required
performance
GTEC C Stud
SFS light steel
framing system
GTEC Intumescent
Acoustic Sealant
GTEC Acoustic
V Brace
additional
insulation
PLAN
Abutting partitions to coincide with studs,
install additional intermediate ‘pick-up’ stud
if required.
Connect studs through plasterboards at
corners and junctions at 600mm vertical
centres using appropriate GTEC Drywall
Screws.
See Construction Details Drawings for
further guidance on arrangement and fixing.
GTEC® TWIN FRAME PARTITION
HEAD DEFLECTION
PT-CT-601S-Deflection head, general arrangement
GTEC INTUMESCENT
ACOUSTIC SEALANT
MINERAL WOOL &
CLOAKING ANGLE
packers cut precisely
to track width
GTEC Intumescent
Acoustic Sealant
=
rock mineral wool
Cloaking angle
boards short of
soffit by deflection amount
=
5mm
Minimum 5mm overlap
of boards and packers
15mm
=
Stud cut short of track by
deflection amount
Minimum 15mm overlap
of stud and track
allow deflection spacing as
minimum between track
and fixing
screw fix flat strap
between outer board
layer and substrate
Note : Refer to the deflection table below
SECTION
Deflection
required:
Packer for all fire ratings:
Track for all fire
ratings:
30 & 60 mins
90 & 120 mins
0-5mm
12.5mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
6-10mm
15mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
11-20mm
2x 12.5mm GTEC Fire Board or
25mm GTEC Fire Core Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
21-25mm
2x 15mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
26-32mm
3x 12.5mm GTEC Fire Board
GTEC Deep Flange U
Track (UDT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
33-40mm
3x 15mm GTEC Fire Board
GTEC Extra Deep
Flange U Track (UXT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
41-45mm
2x 25mm GTEC Fire Core Board or
4x 12.5mm GTEC Fire Board
GTEC Extra Deep
Flange U Track (UXT)
GTEC Intumescent
Acoustic Sealant
Mineral wool &
cloaking angle
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
105
106
GTEC® TWIN FRAME PARTITION
HEAD DEFLECTION continued
See Construction Detail Drawings and Tables
for full details. Contact Siniat Technical
Enquiryline for further information.
GTEC Studs to be cut short of track by
deflection amount.
Continuity of head packer to be maintained.
GTEC Studs and Tracks to overlap by
minimum 30mm.
No mechanical connection to be made
between stud and head track.
GTEC Boards to be cut short of partition
height by deflection amount.
All air paths to be sealed with
GTEC Intumescent Acoustic Sealant.
GTEC Boards to overlap packer by
minimum of 5mm.
PENETRATIONS
PT-CT-701P-Small diameter pipe penetration
PT-CT-702E-Cable tray penetration
GTEC Intumescent
Acoustic Sealant
GTEC Fire Board
GTEC Intumescent
Acoustic Sealant
GTEC U Track
cut and bent
pipe or conduit
less than 50mm
in diameter
PLAN
ELEVATION
ELEVATION
PT-CT-703M-Socket pad
M&E runs and other penetrating services
to be pre-planned to minimise or eliminate
penetrations through rated partitions.
GTEC Socket Pad
pre-cut socket pad
folded and pushed
into socket box
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
Protect all electrical cables in cavity
with conduit.
ISOMETRIC
ISOMETRIC
GTEC® TWIN FRAME PARTITION
PT-CT-704P-Multiple pipe penetrations
GTEC Fire Board
pattress
GTEC Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
ELEVATION
150mm
void filled with
dense mineral wool
100mm minimum overlap
PLAN
FIXTURES
Consult fixture details in GTEC C Stud
Section (p67-69) for recommended
fixture provision.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to board
type to be used.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
107
108
GTEC® TWIN FRAME PARTITION
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
Full, imperforate system continuity to be
maintained to achieve rated performances.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
CURVED PARTITIONS
PT-CT-901M-Curved partition
See table for stud spacing
to achieve curve radius
GTEC Flat Strap
to reinforce
horizontal joints
GTEC Contour Board or
other to suit required
performance
GTEC C Stud
screw fix plasterboard
to stud and flat strap at
150mm centres
screw fix plasterboard to
stud at max. 300mm
vertical centres and to
each stud horizontally
GTEC U Track
minimum 300mm at
each end of curve
15
0m
m
Two C studs separated
by 150mm at start
of straight section
GTEC Flex Track Deep Flange
to create curve
ISOMETRIC
GTEC® TWIN FRAME PARTITION
PT-CT-902M-Flex track component
Boards to be installed horizontally.
Fix boards to continuous band of GTEC Flat
Strap FS90/Rx behind all horizontal joints.
Consult Technical Enquiryline for further
guidance on curved partition specification.
GTEC Flex Track Deep Flange
pre-cut at 50mm centres to
allow curves of minimum radius
of 600mm
ISOMETRIC
PT-CT-903P-Twin frame curved partition plan
GTEC Flex Track Deep Flange
GTEC C Stud
GTEC Contour Board
or other board to suit
GTEC Acoustic V Brace
PLAN
MAXIMUM STUD CENTRES (mm)
Radius (m)
6mm
GTEC Contour Board
9.5mm
GTEC Board
12.5mm
GTEC Board
15mm
GTEC Board
0.6 – 0.9
150 Wet
–
–
–
0.9 – 1.0
200 Dry
150 Wet
–
–
1.0 – 1.5
200 Dry
200 Wet
150 Wet
–
1.5 – 2.0
200 Dry
250 Wet
200 Wet
–
2.0 – 3.0
200 Dry
300 Wet
200 Wet
150 Wet
3.0 – 4.0
300 Dry
450 Wet
400 Wet
200 Wet
4.0 – 8.0
300 Dry
450 Wet
500 Wet
400 Wet
8.0 – 12.0
300 Dry
600 Dry
600 Dry
600 Wet
12.0 –
300 Dry
600 Dry
600 Dry
600 Dry
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
109
110
GTEC® TIMBER PARTITION
®
GTEC TIMBER
PARTITION SYSTEMS
In timber frame construction or where traditional methods dominate,
a timber partition may be the preferred construction method.
GTEC Timber Partitions use timber studs and plates in place of metal
framing with GTEC Board screw fixed to complete the partition. Refer
to the System Performance Tables on pages 47 to 49 for full details.
Separating walls can also be constructed with double layers of GTEC
Board and twin timber frames built in parallel to create a separating
cavity. Insulation is applied in between for further sound reduction.
WHERE TO USE:
GTEC Timber Partitions are used to create internal and separating
partitions within domestic applications.
FEATURES
BENEFITS
Strong
Less material required than masonry
construction
GTEC Resilient Bar option
Provides improved acoustic performance
Compatible with full range of GTEC boards
Achieves excellent partition performance
Flat finish
Provides an easy surface for decoration
Cavity space between two frames
High levels of acoustic and fire performance
GTEC® TIMBER PARTITION
TIP: GTEC LaDura has been tested for
racking resistance making it an excellent
choice for timber frame construction.
GTEC Board
to suit required performance
Timber studs at max. 600mm centres
Mineral wool insulation fitted between timber studs
Single timber stud internal wall
Twin timber studs
separating wall
GTEC Intumescent
Acoustic Sealant
Timber sole plates
Timber head plates
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
111
112
GTEC® TIMBER PARTITION
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p47-49
Timber
Drywall partition framing
Supplied by others
GTEC Resilient Bar
Metal profile to provides acoustic separation of board
and frame
RBD3000
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
GTEC Flex Track Deep Flange
Steel track for curved partitions
DFLEX/B
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table supplied
by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC High Thread Screws (as appropriate)
For attaching plasterboard to timber frame
See screw selector, p334-335
GTEC Corner and Edge beads
Galvanised metal reinforcements for corner
and edge protection
n/a
GTEC Joint Tape
White perforated cross fibre tape for reinforcing joints
in conjunction with GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® TIMBER PARTITION
SYSTEM GUIDANCE
FRAME
PT-TS-101S-Head Detail (Load Bearing)
PT-TS-102S-Head Detail (Non-Load Bearing)
Nogging
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to timber
GTEC Board
to suit required
performance
Timber head track fixed
through to full height
timber in ceiling
Mineral wool
insulation as required
fixed to board
Mineral wool
insulation as required
fixed to board
GTEC Board
to suit required
performance
screw fix
plasterboard
to timber
Timber head track
fixed to full height
timber in ceiling
GTEC Board
to suit required
performance
SECTION
PT-TS-103S-Base Detail (Load Bearing)
PT-TS-104S-Base Detail (Non-Load Bearing)
GTEC Board
to suit required
performance
Mineral wool insulation
as required fixed to board
Timber base track fixed to
full height timber in floor
screw fix plasterboard
to track
SECTION
GTEC Board
to suit required
performance
Mineral wool insulation
as required fixed to board
Timber base track fixed to
full height timber in floor
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to track
GTEC Intumescent
Acoustic Sealant
full height timber to
coincide with partition
to reduce sound and fire path
SECTION
SECTION
PT-TS-105P-End Detail
GTEC Board
to suit required performance
screw fix strip of
plasterboard to timber stud
Timber Stud
GTEC Corner 90º External /
GTEC Flex Tape
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
113
114
GTEC® TIMBER PARTITION
FRAME continued
PT-TT-101S-Head Detail
GTEC Resilien Bar
Timber head plate
PT-TT-102S-Base Detail
screw fix
plasterboard
to timber
GTEC Board
to suit required
performance
Mineral wool
insulation to
suit required
performance
Timber packer
Mineral wool
insulation to
suit required
performance
GTEC Board
to suit required
performance
Timber head plate
screw fix
plasterboard
to timber
SECTION
Timber stud framing to be straight, plumb
and true. Studs to be fixed to timber sole
and head plates.
All framing elements abutting structure to
be fixed at maximum 600mm centres using
appropriate fixings.
Studs to have minimum board bearing width
of 38mm.
Studs to be arranged at maximum 400mm
centres for 9.5mm board and maximum
600mm centres for 12.5 and 15mm board.
Timber packer
GTEC Intumescent
Acoustic Sealant
SECTION
GTEC Resilient Bar option only:
GTEC Resilient Bar may be installed on one
side of partition, across studs at 600mm
vertical centres and fixed to each stud with
suitable GTEC Drywall Screws (see screw
selector, p334-335).
Uppermost GTEC Resilient Bar to be installed
in inverted position at maximum of 50mm
from top of partition.
Lowest GTEC Resilient Bar to be installed at
maximum of 50mm from base of partition.
GTEC® TIMBER PARTITION
INSULATION
PT-TS-151M-Insulation Hold
GTEC Insulation Hold
to support each insulation batt
GTEC Insulation Hold screw fixed
to studs at maximum 1200mm vertical
centres and within 600mm of top
ISOMETRIC
Insulation, if required, to be of type and
thickness to achieve performance and
installed in a continuous layer between
frames or studs to suit required performance.
Where insulation may be expected to slump
suspend from GTEC Insulation Hold strips
fixed across studs, 150mm from top of
partition and at 1200mm vertical centres.
BOARDING
PT-TS-201M-Board fixing – single layer
PT-TS-202M-Overheight partition – single layer
opposing joints
on alternating studs
screw fix plasterboard at
maximum 300mm centres
timber nogging or FS90/W
flat strap to support
horizontal edge of boards
screw fix to timber at
max. 300mm centres
ISOMETRIC
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
115
116
GTEC® TIMBER PARTITION
BOARDING continued
PT-TS-203M-Overheight partition – double layer
PT-TT-201M-Board fixing – double layer
screw fix
to timber studs at
max. 300mm centres
Stagger joints
between layers
FS50/RX flat strap to
support horizontal
edge of boards
Stagger on
opposing sides
ISOMETRIC
PT-TT-202M-Overheight partitions – double layer
ISOMETRIC
PT-TT-203M-Overheight partitions – Single layer
screw fix
to timber studs at
max. 300mm centres
timber nogging or
FS90/W flat strap
to support horizontal
edge of boards
screw fix board
to timber studs at
max. 300mm centres
FS50/RX flat strap to
support horizontal
edge of boards
ISOMETRIC
GTEC Timber Single Stud partition system is
suitable for single, double and multiple layer
boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables (p47-49) and Product
Specification (p294-307) to achieve required
performance. See High Performance
Boards guide (p12-15) for further selection
information.
Boards to be 5mm less than floor to ceiling
height.
Strips of board 300mm wide or less to be
avoided by stud arrangement.
ISOMETRIC
Boards to be mechanically fixed to studs
at 300mm centres using appropriate
GTEC High-Thread Drywall Screws (see screw
selector, p334-335).
Base layers of boarding may be temporarily
fixed at 600mm centres providing final layer
is fixed through to stud at 300mm centres
Board edges to be centred over studs.
Stagger all board joints between layers.
Stagger all board joints on opposing sides
of partition.
GTEC® TIMBER PARTITION
Over-height single layer boarding:
GTEC Resilient Bar option only:
Where partition height exceeds board
height fix boards to continuous band of
GTEC Flat Strap FS90/W, GTEC MFIX, or
timber nogging behind all horizontal joints
to maintain fire integrity.
Over-height multiple layer boarding:
Where partition height exceeds board
height for double or multiple layer boarding
fix outer layer of boards to continuous
band of GTEC Flat Strap FS50/RX behind
all horizontal joints.
Boards to be mechanically fixed to GTEC
Resilient Bar only at 300mm centres using
shortest appropriate GTEC Drywall Screws
(see screw selector, p334-335). Screws must
not penetrate through to substrate.
All layers of boarding to be fixed at
300mm centres.
Boards must not be fixed to studs or
tracks to ensure acoustic performance.
OPENINGS
PT-TS-401P-Door jamb
PT-TT-401P-Door jamb
GTEC Intumescent
Acoustic Sealant
GTEC Corner 90º External /
GTEC Flex Tape
strips of board fixed to stud
Timber stud
GTEC Board
to suit required
performance
PLAN
GTEC Board
to suit required performance
PLAN
Form door openings following guidance
in Construction Detail Drawings to suit
door weights.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
117
118
GTEC® TIMBER PARTITION
CORNERS AND JUNCTIONS
PT-TS-501P-Corner Detail
PT-TS-502P-Acoustic T-junction
timber studs fixed
together
GTEC Intumescent
Acoustic Sealant
Timber Stud
as required
screw fix
plasterboard to stud
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to stud
GTEC Board
to suit required
performance
GTEC Board
to suit required performance
PLAN
PT-TS-503P-Junction of Twin and Single partition (LB)
PLAN
PT-TS-504P-Non-rated T-junction
GTEC Intumescent
Acoustic Sealant
Timber Stud fixed through
to twin frame studs
continuos boarding
Timber Stud
Timber Studs to coincide
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to stud
GTEC Board
to suit required performance
PLAN
Abutting partitions to coincide with
studs, install additional intermediate
‘pick-up’ stud if required.
Additional studs to be installed
where required to provide
fixing substrate for boards.
See Construction Details
Drawings for further guidance
on arrangement and fixing.
PLAN
GTEC® TIMBER PARTITION
HEAD DEFLECTION
SYSTEM CONTINUITY
Timber stud partitions are not generally
compatible with deflection head requirements.
PENETRATIONS
M&E runs and other penetrating services
to be pre-planned to minimise or eliminate
penetrations through rated partitions.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Full, imperforate system continuity to be
maintained to achieve rated performances.
Protect all electrical cables in cavity
with conduit.
FIXTURES
See guidance on p67-69 for further information.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to
board type to be used.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
119
120
GTEC® FLOORS AND CEILINGS
121
121
FLOORS AND
CEILINGS
GTEC Floor and Ceiling systems are used to achieve acoustic and fire
rated solutions for both domestic and commercial building projects.
A range of solutions are available; from direct soffit application to
the creation of full supporting frames. They are suitable for varying
building projects and can be built in large runs.
System Performance Tables
GTEC Engineered Joist Systems
122
GTEC Ceiling Systems to Timber Floors
123
GTEC Dryliner Ceiling Systems to Concrete Soffit
127
GTEC Separating Floor Systems
128
GTEC Pregybel MF Ceiling Systems
131
GTEC Suspended MF Ceiling Systems to Timber Floors
133
GTEC Suspended MF Ceiling Systems to Protect Structure
135
GTEC Mass Barrier Ceilings
136
GTEC Acoustic Floor Systems
137
GTEC Suspended MF Ceiling
GTEC Pregybel MF Ceiling
GTEC Dryliner Ceiling
GTEC Direct-to-Timber Ceiling
GTEC Acoustic Floor
138
148
154
162
170
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
122
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® ENGINEERED JOIST SYSTEMS
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
292
30
30
47
74
27
277
(294)
30
–
40
83
31
275
(292)
30
30
40
80
31
277
(294)
30
–
43
74
30
277
(294)
30
30
41
80
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
29
Impact
Sound
Insulation
REJ 023: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at
max. 450mm centres
Insulation: –
Structure: min. 240mm engineered timber
I-joists at 600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
REJ 024: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Standard Board
Accessories: (Single GTEC Resilient Bar at
max. 450mm centres recommended)
Insulation: –
Structure: min. 240mm engineered timber
I-joists at 600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
REJ 026: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC E Board
Accessories: (Single GTEC Resilient Bar at
max. 450mm centres recommended)
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: min. 240mm engineered timber
I-joists at 400mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
REJ 027: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Standard Board
Accessories: (Single GTEC Resilient Bar at
max. 450mm centres recommended)
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: min. 240mm engineered timber
I-joists at 600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
REJ 028: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Fire Board
Accessories: (Single GTEC Resilient Bar at
max. 450mm centres recommended)
Insulation: –
Structure: min. 240mm engineered timber
I-joists at 450mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® CEILING SYSTEMS TO TIMBER FLOORS
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
233
30
30
38
77
35
235
30
–
38
78
38
235
30
–
40
79
43
254
30
30
40
76
38
252
30
30
52
69
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
37
Impact
Sound
Insulation
RTC 052: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Standard Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
400mm centres without noggings
Flooring Make-up: 18mm tongue and
grooved chipboard
RTC 012: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
400mm centres without noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 065: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: –
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
400mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 061: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Standard Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: –
Structure: 47mm x 200mm joists at
450mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 017: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC E Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10.5kg/m3 glass mineral
wool
Structure: 47mm x 200mm joists at
600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
123
124
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® CEILING SYSTEMS TO TIMBER FLOORS continued
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
247
30
30
40
78
48
247
30
30
42
75
38
235
30
30
44
75
34
235
30
30
41
77
37
237
60
60
41
76
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
48
Impact
Sound
Insulation
RTC 003: Direct-to-Timber – see p162
Ceiling Inner Layer(s):
1x 12.5mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 004: Direct-to-Timber – see p162
Ceiling Inner Layer(s):
1x 12.5mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: –
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
600mm centres
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 028: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC E Board
Accessories: –
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
600mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 037: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
600mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 018: Direct-to-Timber – see p162
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Fire Board
(Fixed with 63mm GTEC High Thread screws)
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
600mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
252
60
30
43
72
52
247
30
30
44
75
54
–
30
30
47
71
55
–
60
60
48
70
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
50
Impact
Sound
Insulation
RTC 016: Direct-to-Timber – see p162
Ceiling Inner Layer(s):
1x 15mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 15mm GTEC Standard Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
600mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 014: Direct-to-Timber – see p162
Ceiling Inner Layer(s):
1x 12.5mm GTEC E Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC E Board
Accessories: –
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
450mm centres without noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 029: Direct-to-Timber – see p162
Ceiling Inner Layer(s): Existing Lath & Plaster
with Chicken Wire & Battens at 400mm centres
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
450mm centres without noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
RTC 020: Direct-to-Timber – see p162
Ceiling Inner Layer(s): Existing Lath & Plaster
with Chicken Wire & Battens at 400mm centres
Ceiling Outer Layer(s):
1x 15mm GTEC Fire Board
(Fixed with 63mm GTEC High Thread screws)
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
450mm centres without noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
125
126
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® CEILING SYSTEMS TO TIMBER FLOORS continued
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
269
60
60
55
62
252
120
90
45
70
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
55
50
Impact
Sound
Insulation
RTC 051: Direct-to-Timber – see p162
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at 450mm
centres without noggings
Flooring Make-up: 22mm tongue and grooved
chipboard
RTC 023: Direct-to-Timber – see p162
Ceiling Inner Layer(s):
1x 15mm GTEC Fire Board
(Fixed with 50mm GTEC High Thread screws)
Ceiling Outer Layer(s):
1x 15mm GTEC Fire Board
(Fixed with 75mm GTEC High Thread screws)
Accessories: –
Insulation: –
Structure: 47mm x 200mm joists at
600mm centres with noggings
Flooring Make-up: 22mm tongue and
grooved chipboard
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® DRYLINER CEILING SYSTEMS
TO CONCRETE SOFFIT
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
–
–
–
–
–
22
–
30
–
–
–
13
–
30
–
–
–
23
–
60
–
–
–
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
11
Impact
Sound
Insulation
RDC 016: Dryliner – see p154
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: GTEC Dryliner Channel RD1 at
450mm max. centres
Insulation: –
Structure: Any Concrete Soffit
Flooring Make-up: –
RDC 017: Dryliner – see p154
Ceiling Inner Layer(s):
1x 12.5mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Accessories: GTEC Dryliner Channel RD1 at
450mm max. centres
Insulation: 100mm 10.5kg/m3 glass
mineral wool
Structure: Any Concrete Soffit
Flooring Make-up: –
RDC 018: Dryliner – see p154
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Accessories: GTEC Dryliner Channel RD1 at
450mm max. centres
Insulation: 50mm 24kg/m3 glass mineral wool
Structure: Any Concrete Soffit
Flooring Make-up: –
RDC 019: Dryliner – see p154
Ceiling Inner Layer(s):
1x 12.5mm GTEC Fire Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Accessories: GTEC Dryliner Channel RD1 at
450mm max. centres
Insulation: 50mm 24kg/m3 glass mineral wool
Structure: Any Concrete Soffit
Flooring Make-up: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
127
128
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® SEPARATING FLOOR SYSTEMS
System Ref.
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
323
60
60
61, -11
54
71
–
60
60
60, -9
55
71
317
60
60
60, -9
55
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
Ceiling Inner Layer(s): 1x 19mm GTEC Plank
Ceiling Outer Layer(s): 1x 12.5mm GTEC E Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
600mm centres
Flooring Make-up: 18mm tongue and
grooved chipboard
(from external layer)
on 19mm GTEC Plank
on 30mm 150kg/m3 rock mineral wool
on 12mm plywood or OSB
70
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Frame: GTEC MF Ceiling Channels at max.
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
400mm centres
Flooring Make-up: 18mm tongue and
grooved chipboard
(from external layer)
on 19mm GTEC Plank
on 30mm 150kg/m3 rock mineral wool
on 12mm plywood or OSB
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at
400mm centres
Flooring Make-up: 18mm tongue and
grooved chipboard
(from external layer)
Spot bonded on GTEC 15mm dB Board
on 30mm 150kg/m3 rock mineral wool
on 12mm plywood or OSB
Component
Impact
Sound
Insulation
RTC 025
RTC 049
RTC 050
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
System Ref.
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
-
60
60
Robust
Detail
Solution
Robust
Detail
Solution
44
271
60
60
65, -12
53
112
313
60
60
61, -7
57
–
60
60
–
–
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
Ceiling Inner Layer(s): 1x 15mm GTEC Fire Board
Ceiling Outer Layer(s): 1x 15mm GTEC Fire Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10-33kg/m3 glass mineral wool
Structure: min. 240mm engineered timber I-joists
Flooring Make-up: 18mm tongue and grooved
chipboard
(from external layer)
Resilient Timber battens
13mm 33-36kg/m3 Rock mineral wool
between battens
on 15mm plywood or OSB
72
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 23kg/m3 glass mineral wool
Structure: 150mm Structural Steel Joists at
400mm centres
Flooring Make-up: 18mm tongue and grooved
chipboard
(from external layer)
Spot bonded on GTEC 15mm dB Board
on 30mm 120kg/m3 Rock Slab Insulation
on 11mm OSB Sterling T&G Board
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10kg/m3 glass mineral wool
Structure: 150mm Structural Steel Joists at
400mm centres
Flooring Make-up: 40mm Gyvlon Screed on
6mm Ethafoam
(from external layer)
on 20mm OSB Sterling Board
Component
Impact
Sound
Insulation
E-FT-1: Robust Detail
RSF 002
RSF 003
RCC 015 Modified: Refurbishment as Approved Doc. E 4-3
Ceiling Inner Layer(s): 1x 12.5mm GTEC dB Board
Ceiling Outer Layer(s): 1x 12.5mm GTEC dB Board
Frame: GTEC MF Ceiling Channels at Max
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Existing Ceiling: Existing Lath & Plaster
Ceiling plus 15mm GTEC Fire Board
Flooring Make-up: 18mm tongue and
grooved chipboard
80
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
129
130
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® SEPARATING FLOOR SYSTEMS continued
System Ref.
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
–
–
–
Robust
Detail
Solution
Robust
Detail
Solution
–
–
–
–
Robust
Detail
Solution
Robust
Detail
Solution
–
–
–
–
Robust
Detail
Solution
Robust
Detail
Solution
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
Applicable Ceilings:
(CT1) Metal ceiling system:
GTEC MF Ceiling system providing
100mm (min) ceiling void with one layer
12.5mm GTEC Standard Board
(CT2) Timber battens and counter battens:
50mm x 50mm softwood battens with 50mm
x 50mm counter battens below and one layer
12.5mm GTEC Standard Board
(CT3) Metal ceiling system:
GTEC Dryliner SR or MF ceiling system
providing 75mm (min) ceiling void with
one layer 10+kg/m2 GTEC Board
(CT4) Timber battens and resilient bar:
50mm x 50mm softwood with GTEC resilient
bar RBD3000 mounted at 90° to softwood
battens at 450mm c/c (max) and one layer
12.5mm GTEC E Board
Floating floor: 18mm tongue and groove
floorboards on resilient composite timber
battens type FFT1
Screed: 40mm sand/cement or similar,
minimum 80kg/m2
Structural floor: 150mm minimum precast
concrete planks, minimum 300kg/m2
–
Applicable Ceilings:
Metal ceiling system:
GTEC Dryliner SR or MF ceiling system
providing 75mm (min) ceiling void with
one layer 10+kg/m2 GTEC Board
Timber ceiling system:
Any ceiling system providing 75mm void
with one layer 12.5mm GTEC E Board
Floating floor: 18mm tongue and groove
floorboards on 25mm mineral wool batt
insulation density 150kg/m3 type FFT4
Structural floor: 250mm minimum in-situ
concrete slab, minimum 2400kg/m3
without screed
Applicable ceilings:
Metal ceiling system:
GTEC Dryliner or MF ceiling system providing
100mm or 15mm ceiling void with one layer
12.5mm GTEC Standard Board
Timber ceiling system:
Battens and counter battens providing
100mm ceiling void with one layer 12.5mm
GTEC Standard Board
Screed: 65mm (min) sand/cement or similar,
minimum 80kg/m2
Upper resilient layer: 5mm foamed
polyethylene 30-36kg/m3
Lower resilient layer: 25mm mineral wool batt
140kg/m3 (min) or 25mm expanded SD grade
polystyrene or extruded polystyrene
Component
Impact
Sound
Insulation
E-FC-1
E-FC-2
E-FC-3
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® PREGYBEL MF CEILING SYSTEMS
(kg/m2)
Acoustic
Absorption
Class,
BS EN ISO
11654
Absorption
co-efficient
(_w),
BS EN ISO
11654
12
B
0.80
12
C
0.75
12
C
0.70
12
C
0.60
12
C
0.7
12
C
0.65
System
Weight
System Ref.
Component
PGC 001: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel C10no8
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 75mm glass mineral wool and 600mm void
Structure: Any suitable soffit
PGC 002: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel C10no8
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm glass mineral wool and 600mm void
Structure: Any suitable soffit
PGC 003: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel C10no8
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm glass mineral wool and 300mm void
Structure: Any suitable soffit
PGC 004: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel C10no8
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 300mm void
Structure: Any suitable soffit
PGC 101: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R12no2
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm glass mineral wool and 300mm void
Structure: Any suitable soffit
PGC 102: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R12no2
Frame: GTEC MF Ceiling Channels at Max 600mm centres
Accessories: GTEC Connecting Clips
Insulation: 300mm void
Structure: Any suitable soffit
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
131
132
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® PREGYBEL MF CEILING SYSTEMS continued
(kg/m2)
Acoustic
Absorption
Class,
BS EN ISO
11654
Absorption
co-efficient
(_w),
BS EN ISO
11654
12
C
0.70
12
C
0.7
12
C
0.60
12
D
0.50
12
D
0.55
12
D
0.55
System
Weight
System Ref.
Component
PGC 201: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R15no1
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm glass mineral wool and 300mm void
Structure: Any suitable soffit
PGC 202: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R15no1
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 30mm glass mineral wool and 50mm void
Structure: Any suitable soffit
PGC 301: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R15no8
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm glass mineral wool and 300mm void
Structure: Any suitable soffit
PGC 302: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel R15no8
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 300mm void
Structure: Any suitable soffit
PGC 401: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel L5x80no8
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 80mm glass mineral wool and 300mm void
Structure: Any suitable soffit
PGC 402: Pregybel MF – see p148
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x GTEC Pregybel L5x80no8
Frame: GTEC MF Ceiling Channels at Max 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 80mm glass mineral wool and 100mm void
Structure: Any suitable soffit
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® SUSPENDED MF CEILING SYSTEMS
TO TIMBER FLOORS
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
(Lnw dB)
n/a
30
30
43
72
40
n/a
60
30
44
72
42
n/a
60
30
46
69
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
33
Impact
Sound
Insulation
RCC 011: Suspended MF – see p138
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC E Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Connecting Clips
Insulation: –
Structure: 47mm x 200mm Joists at 600mm
centres
Floor: Min. 18mm tongue and grooved
boarding or similar
RCC 042: Suspended MF – see p138
Ceiling Inner Layer(s):
1x 12.5mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm Joists at
600mm centres
Floor: Min. 18mm tongue and grooved
boarding or similar
RCC 012: Suspended MF – see p138
Ceiling Inner Layer(s): 1x 12.5mm GTEC E Board
Ceiling Outer Layer(s): 1x 12.5mm GTEC E Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm Joists at
600mm centres
Floor: Min. 18mm tongue and grooved
boarding or similar
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
133
134
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® SUSPENDED MF CEILING SYSTEMS TO TIMBER FLOORS continued
System Ref.
Component
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
(Lnw dB)
n/a
60
30
44
70
45
n/a
90
30
54
62
50
n/a
120
30
56
60
System
Weight
Minimum
Thickness
(kg/m2)
(mm)
34
Impact
Sound
Insulation
RCC 013: Suspended MF – see p138
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC Fire Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Connecting Clips
Insulation: –
Structure: 47mm x 200mm Joists at
600mm centres
Floor: Min. 18mm tongue and grooved
boarding or similar
RCC 014: Suspended MF – see p138
Ceiling Inner Layer(s): 1x 12.5mm GTEC Fire Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm Joists at
600mm centres
Floor: Min. 18mm tongue and grooved
boarding or similar
RCC 015: Suspended MF – see p138
Ceiling Inner Layer(s): 1x 15mm GTEC Fire Board
Ceiling Outer Layer(s): 1x 15mm GTEC Fire Board
Frame: GTEC Ceiling Channels at max.
450mm centres
Accessories: GTEC Frame should be screw fixed
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm Joists at
600mm centres
Floor: Min. 18mm tongue and grooved
boarding or similar
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® SUSPENDED MF CEILING SYSTEMS
TO PROTECT STRUCTURE
System Ref.
Component
System
Weight
Fire Perf.
BS476-21
BS476-22
Fire Perf.
BS476-23
Fire Perf.
BS1364-2
BS1365-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
Impact
Sound
Insulation
(kg/m2)
(mins)
(mins)
(mins)
11
–
–
–
–
–
–
–
22
–
–
30
30
–
–
–
13
–
–
30
30
–
–
–
26
–
–
60
30
–
–
–
15
–
30
60
30
–
–
–
(Lnw dB)
RCC 016: Suspended MF – see p138
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Accessories: GTEC Connecting Clips
Insulation: –
Structure: Any suitable soffit
RCC 017: Suspended MF – see p138
Ceiling Inner Layer(s):
1x 12.5mm GTEC Standard Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Standard Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Accessories: GTEC Frame should be
screw fixed
Insulation: 100mm 10.5kg/m3 glass
mineral wool
Structure: Any suitable soffit
RCC 018: Suspended MF – see p138
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm 24kg/m3 glass
mineral wool
Structure: Any suitable soffit
RCC 019: Suspended MF – see p138
Ceiling Inner Layer(s):
1x 12.5mm GTEC Fire Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC Fire Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Accessories: GTEC Frame should be
screw fixed
Insulation: 50mm 10.5kg/m3 glass
mineral wool
Structure: Any suitable soffit
RCC 028: Suspended MF – see p138
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s):
1x 15mm GTEC Fire Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Accessories: GTEC Connecting Clips
Insulation: 50mm 24kg/m3 glass
mineral wool
Structure: Any suitable soffit
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
135
136
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® MASS BARRIER CEILINGS
System Ref.
Component
System
Weight
Fire Perf.
BS476-21
BS476-22
Fire Perf.
BS476-23
Fire Perf.
BS1364-2
BS1365-2
Acoustic
Perf.
Rw dB
(Ctr if
applicable)
Impact
Sound
Insulation
(kg/m2)
(mins)
(mins)
(mins)
30
–
–
60
30
–
–
–
50
–
–
90
90
–
–
–
(Lnw dB)
RCC 060: Suspended MF – see p138
Ceiling Inner Layer(s):
1x 12.5mm GTEC dB Board
Ceiling Outer Layer(s):
1x 12.5mm GTEC dB Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Heavy Duty Primary channels
UT52/Y at 900mm Centres
Accessories: Phonissimo Acoustic
Hangers as 1200mm Centres
Insulation: 100mm 10.5kg/m3 glass
mineral wool
Structure: Any suitable soffit
RCC 061: Suspended MF – see p138
Ceiling Inner Layer(s):
1x 15mm GTEC dB Board
Ceiling Outer Layer(s):
2x 15mm GTEC dB Board
Frame: GTEC Ceiling Channels at
max. 450mm centres
Heavy Duty Primary channels
UT52/Y at 900mm Centres
Accessories: Phonissimo Acoustic
Hangers as 1200mm Centres
Insulation: 100mm 10.5kg/m3 glass
mineral wool
Structure: Any suitable soffit
See p137 for notes on alterations to floors and ceilings configuration.
GTEC® FLOORS AND CEILINGS – PERFORMANCE TABLES
GTEC® ACOUSTIC FLOOR SYSTEMS
Fire Perf.
BS476-21
BS EN
1365-2
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
(Lnw dB)
60
60
60
63, -10
54
60
60
60
53
65
System
Weight
System Ref.
(kg/m2)
Component
Impact
Sound
Insulation
RAF 050: Acoustic Floor – see p170
Ceiling Inner Layer(s): 1x 15mm GTEC dB Board
Ceiling Outer Layer(s): 1x 15mm GTEC dB Board
Accessories: Single GTEC Resilient Bar at max.
450mm centres
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at 450mm centres
Floor Inner Layer(s): 1x 15mm GTEC dB Board on
GTEC Acoustic Floor Clips
Floor Outer Layer(s): 22mm tongue and grooved chipboard
RAF 006: Acoustic Floor – see p170
Ceiling Inner Layer(s): 15mm GTEC Fire Board to joists
and bridged over insulation
Ceiling Outer Layer(s): Existing lath and plaster
decorative ceiling
Accessories: –
Insulation: 100mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 200mm joists at 450mm centres
Floor Inner Layer(s): 1x 19mm GTEC Plank on
GTEC Acoustic Floor Clips
Floor Outer Layer(s): 22mm tongue and grooved chipboard
FLOORS AND CEILINGS PERFORMANCE NOTES
Performance values are for imperforate, jointed systems using Siniat GTEC components (metal studs and tracks, boards,
metal accessories, screws and finishing systems) and specified insulation quilt material (type, thickness and density) and
installed to Siniat specification and installation guides.
Any alterations may impair the quoted performance. Contact Technical Enquiryline for further system configurations and
their resulting performances.
Insulation shown may be replaced with thicker and/or heavier quilt material without impairing the quoted performances.
For maximum framing centres, joist connector and bracket centres and loading see tables within system guidance pages.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
137
138
GTEC® SUSPENDED MF CEILING
®
GTEC SUSPENDED
MF CEILING
SYSTEMS
The GTEC Suspended MF Ceilings are used to create ‘false ceilings’
which house services between the ceiling and soffit. The large voids
created also improve acoustic, fire and thermal performance.
GTEC Suspended MF Ceilings are formed from a series of GTEC
Primary Channels hung from the soffit. Attached to these channels
are GTEC Ceiling Channels, slotted into GTEC Edge Channel to form
the frame. GTEC Board is fixed to the MF frame to complete the
system. Refer to the System Performance Tables on pages 133 to 136
for full details.
WHERE TO USE:
GTEC Suspended MF Ceilings are used for commercial
applications where services are required below the soffit.
For ceilings with enhanced fire and acoustic performance
in commercial and residential applications.
FEATURES
BENEFITS
Variable cavity depth
Optimisable cavity size for service and
insulation requirements
High acoustic, fire and thermal capabilities
Required performance levels are easily achieved
Creates a ‘false ceiling’
Can be used to upgrade or protect
existing structures
Demountable
Easy to renovate
Flat finish
Provides a smooth surface for decorating
GTEC® SUSPENDED MF CEILING
139
TIP: The most versatile option for a new ceiling,
the optimisable depth gives a wide range of fire
and sound ratings.
Insulation to suit
required performance
GTEC Connecting Clip
for single layer systems only
fix channels back to back if required
minimum overlap of 150mm
GTEC Metal Angle
cut and bent to form appropriate fixing
GTEC Ceiling Channel
GTEC Edge Channel
splice ceiling channel
if necessary minimum
overlap of 150mm
GTEC Board
to suit required performance
GTEC Primary Channel
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
140
GTEC® SUSPENDED MF CEILING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p133-136
GTEC Ceiling Channel
Steel channel to support boards
MFCC50
GTEC Primary Channel
Steel channel to support GTEC Ceiling Channel
MFCP44
GTEC Heavy Gauge Primary Channel
Heavy duty steel channel to support
GTEC Ceiling Channel
UT52/Y
GTEC Edge Channel
Steel channel used to form perimeter board support
MFCE26
GTEC Metal Angle
Multi-purpose metal section as suspension hanger
MFC2330, MFC2525, MFC2550
GTEC Connecting Clip
Steel clip for joining GTEC Ceiling Channel to
GTEC Primary Channel
MFCCLEAT
GTEC Soffit Cleat
Steel bracket to fix suspension hangers to substrate
MFSTRAP
GTEC Phonistar Acoustic Hanger
A heavy duty (up to 120kg) acoustic suspended ceiling
hanger bracket
PHONI
GTEC Phonissimo Acoustic Hanger
A medium duty (up to 50kg) acoustic suspended ceiling
hanger bracket
PHONIMO
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance tables
supplied by others
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® SUSPENDED MF CEILING
SYSTEM GUIDANCE
FRAME
FC-MF-101S-Ceiling perimeter
Max.
1200mm
GTEC Metal Angle
GTEC Edge Channel
screw fix to substrate
at max. 600mm centres
GTEC Primary
Channel
Board fixed to GTEC Edge
Channel at 150mm centres
GTEC Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
SECTION
FC-MF-102M & 103M-Ceiling channel splicing
Ceiling Channel Splice
12
00
mm
15
0m
ov m m
erl in.
ap
mm
00
12
mi
n.
be
tw
ee
ns
pli
ce
s
es
lic
sp
en
e
tw
be
n.
mi
Primary Channel Splice
n
mi
mmap
0
15 verl
o
ISOMETRIC
GTEC Edge Channel to be fixed to structure
at perimeter of ceiling run and around any
obtrusions within the ceiling, e.g. columns.
Fix at 600mm centres using appropriate
fixings. Allow for board depth when
positioning channel.
GTEC Primary Channels to be arranged at
maximum centres (see table) according to
expected loadings including system and
board weight (as indicated in performance
tables). Channels to be fixed to hangers
using appropriate GTEC Drywall Screws.
GTEC Metal Angle suspension hangers to
be fixed at maximum 1200mm centres to
structural soffit using GTEC Soffit Cleats
and appropriate structural fixings by others.
Max. primary
channel centres
Maximum loading
including system and board weight
600mm
74kg/m2
Hangers to be at maximum of 900mm
from ceiling perimeter.
900mm
50kg/m2
1200mm
35kg/m2
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
141
142
GTEC® SUSPENDED MF CEILING
FRAME continued
GTEC Ceiling Channels to be located into
GTEC Edge Channel at maximum. 450mm
centres and fixed at right angles to GTEC
Primary Channel.
GTEC Primary Channels may be spliced
if necessary by fixing back-to-back with
minimum four appropriate GTEC Drywall
Screws.
Fixing between Ceiling and Primary channels
to be made using appropriate GTEC Drywall
Screws.
GTEC Ceiling Channels may be jointed by
overlapping profiles by minimum 150mm
and fixing with minimum four appropriate
GTEC Drywall Screws.
GTEC Connecting Clips may only be used to
connect GTEC Ceiling Channel to Primary
Channel in single board layer systems with
no additional loadings. GTEC Connecting
Clips to be alternated in direction to
counteract any movement.
INSULATION
Any insulation to be of type and thickness
to achieve performance and installed in a
continuous layer between primary channels
and over ceiling channels and boards.
GTEC® SUSPENDED MF CEILING
BOARDING
FC-MF-201M & 202M Board Layout
SINGLE LAYER
GTEC Ceiling Channel
screw fix plasterboard to
GTEC Ceiling Channel
at 230mm centres
screw fix cut end of plasterboard to
GTEC Ceiling Channel
at 150mm centres
screw fix cut end of plasterboard
to GTEC Edge Channel
at 150mm centres
GTEC Intumescent Acoustic Sealant
GTEC Edge Channel
DOUBLE LAYER
stagger joints and
fixings between layers
GTEC Intumescent Acoustic Sealant
GTEC Edge Channel
PLAN
GTEC Suspended MF Ceiling system is
suitable for single, double and multiple
layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables (p133-136) and Product
Specification (p294-307) to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to span across GTEC Ceiling Channels.
Joints between boards must occur at centre
of channels.
Board ends and joints to be centred over
channels.
Boards to be mechanically fixed to GTEC
Edge Channel at 150mm centres using
appropriate GTEC Drywall Screws. See screw
selector p334.
Boards to be mechanically fixed to GTEC
Ceiling Channels at 230mm centres in centre
of board or at bound edges and at 150mm
centres at cut edges, using appropriate GTEC
Drywall Screws. See screw selector p334.
Board joints to be staggered between layers.
Any GTEC Fire Board, or other GTEC Type
F (BS EN 520) board, required by the
system performance, to be installed as the
outermost/finishing layer.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
143
144
GTEC® SUSPENDED MF CEILING
MOVEMENT CONTROL JOINTS
FC-MF-301S-Movement joint – parallel to c. channels
FC-MF-302S-Movement joint – perpendicular to c. channels
GTEC Metal Angle
60x60mm 40kg/m3 Rock
Mineral Wool to maintain
fire integrity
GTEC Primary
Channel
GTEC Board
to suit required
performance
60mm Mineral Wool to
maintain fire integrity
60mm
60mm
GTEC Edge Channel
GTEC Ceiling Channel
extended to end of board
10mm
Max.
50mm
Max.
50mm
GTEC Ceiling
Channel
GTEC Movement
Control Joint
GTEC Board
to suit required
performance
GTEC Primary Channel
GTEC Ceiling
Channel
10mm
GTEC Movement
Control Joint
screw fix board
at 150mm centres
SECTION
Form movement control joints at maximum
10m intervals in any direction in ceiling run.
Form movement control joints where ceiling
crosses a structural movement joint.
SECTION
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
Follow measures to ensure fire resistance and
stability as shown in Construction Details.
OPENINGS
FC-MF-401M-Opening in ceiling
GTEC Ceiling Channel
Frame formed from
GTEC Edge Channel
GTEC Primary Channel
Note: hangers not shown for clarity
Frames around openings and large
penetrations in ceiling to be formed from
GTEC Edge Channel with additional GTEC
Primary Channel to support opening frame
and GTEC Ceiling Channels.
ISOMETRIC
GTEC® SUSPENDED MF CEILING
HEIGHT CHANGE & JUNCTIONS
FC-MF-501S-Junction of partition to ceiling
FC-MF-502S-Junction of ceiling to partition
GTEC Metal Angle
fixed at 1200mm centres
GTEC Ceiling Channel
to coincide
with partition
GTEC Primary
Channel
Ceiling boards separated at
partition heads to reduce
sound transmission
Track fixed through
to channel
GTEC Edge Channel
fixed through to stud
GTEC Partition
System to suit
required performance
GTEC Intumescent
Acoustic Sealant
GTEC Partition
System to suit
required performance
SECTION
FC-MF-503S-Change in ceiling height
Max.
150mm
Max.
150mm
SECTION
FC-MF-504S-Bulkhead
GTEC Soffit Cleat
GTEC Metal Angle
GTEC Intumescent
Acoustic Sealant
GTEC Primary Channel
GTEC Metal Angle
GTEC Edge Channel
GTEC Edge Channel
Max.
600mm
GTEC Ceiling Channel
screw fixed at 400mm centres
Max. 600mm
GTEC Primary
Channel
GTEC Edge Channel
fix channels together
fix channels together
GTEC Corner 90º
External / GTEC Flex Tape
SECTION
Abutting partitions to coincide with and fix
to GTEC Ceiling Channel, install additional
intermediate ‘pick-up’ channels if required.
Separate boards at partition head to reduce
sound transmission.
GTEC Ceiling Channel
GTEC Corner 90º
External / GTEC Flex Tape
SECTION
Where ceiling abuts partition fix
GTEC Edge Channel through to stud.
Form 90° junction in ceiling by fixing
GTEC Edge Channels at right angle with
GTEC Ceiling Channel spanning vertically
as required. Hangers to be positioned at
maximum 150mm from change in height.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
145
146
GTEC® SUSPENDED MF CEILING
FIXTURES
Where possible fixtures and loadings to be
suspended from structural soffit and not
GTEC Suspended MF Ceiling system.
Loads suspended from ceiling to be fixed to
frame not boards. Framing centres to suit
total load, see guidance on centres in ‘Frame’
guidance section, and appropriate fixings
selected to suit full loadings.
Services running through ceiling void to
be supported by structural soffit and not
GTEC Suspended MF Ceiling System.
FINISHING
All board joints to be taped, jointed or
finished according to guidance in Finishing
section (p276-291) to achieve system
performances. Where a ceiling is not intended
to be decorated GTEC Intumescent Sealant to
be used to seal board joints.
GTEC Finish materials appropriate to board
type to be used.
SYSTEM CONTINUITY
Full, imperforate system continuity to be
maintained to achieve rated performances.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated ceilings.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire and sound resisting material.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
GTEC® SUSPENDED MF CEILING
ACOUSTIC MASS BARRIER CEILINGS
FC-MF-002S-Phonissimo Acoustic Hanger – general arrangement FC-MF-003M-Phonissimo Acoustic Hanger – assembly
M6 threaded rod by
others at 1200mm centres
Mineral wool insulation
to suit required performance
GTEC Phonissimo
Acoustic Hanger
M6 threaded rod by
fitted into GTEC Phonissimo
GTEC Heavy Gauge
Primary Channel
GTEC Heavy Gauge Primary
Channel at 1200mm centres
Nut to secure end of rod
GTEC Board
to suit required
performance
GTEC Ceiling Channel
at 400mm centres
GTEC Phonissimo
Acoustic Hanger
ISOMETRIC
SECTION
FC-MF-004S-Phonistar Resilient Hanger – general arrangement
M6 threaded rod by others
at 1200mm centres
GTEC Phonistar Resilient
Hanger at 1200mm centres
FC-MF-005M-Phonistar Resilient Hanger – assembly
M6 threaded rod by
fitted into GTEC Phonistar
GTEC Phonistar
Acoustic Hanger
GTEC Heavy Gauge
Primary Channel
GTEC Heavy Gauge Primary
Channel at 1200mm centres
Hole drilled in channel
to receive phoniostar rod
Square washer
GTEC dB Board
to suit required performance
Nut to secure end of rod
GTEC Ceiling Channel
at 400mm centres
SECTION
For Acoustic Mass Barrier system
configurations suspend frame from
GTEC Phonistar or GTEC Phonissimo
hangers at maximum 1200mm centres
using M6 threaded rod.
ISOMETRIC
GTEC Heavy Gauge Primary Channel UT52/Y
to be used instead of GTEC Primary Channel.
GTEC Phonissimo and GTEC Phonistar
hangers are acoustically dampened,
high strength hangers to support higher
mass ceilings which offer the highest
acoustic insulation.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
147
148
GTEC® PREGYBEL MF CEILING
®
GTEC PREGYBEL MF
CEILING SYSTEMS
The GTEC Pregybel MF Ceiling system is used for creating sound
absorbing ceilings to control sound reflection in larger spaces,
creating a more comfortable level of sound and improved audibility.
GTEC Pregybel MF Ceilings combine the easy to install advantages of
the GTEC Suspended MF Ceiling with the sound absorption capability
of GTEC Pregybel Board. Using frame components from the GTEC
Suspended MF system enables flexible design and specification.
GTEC Pregybel board is perforated in a range of patterns for attractive
designs and reduction in the reflective surface of the board to limit
echo or reverberation. Refer to the System Performance Tables on
pages 131 to 132 for full performance details.
WHERE TO USE:
GTEC Pregybel MF ceilings are used in commercial applications
where large, hard-surfaced and uninterrupted spaces would
otherwise suffer from echoing.
GTEC Pregybel MF ceilings are also required for corridors and
stairwells in residential blocks to reduce sound travel through
the building.
FEATURES
BENEFITS
Variable cavity depth
Cavity size can be optimised for service and
insulation requirements
Up to Class B acoustic absorption
Utilises GTEC Suspended MF framing
One set of components on site
Easy to install
Creates a ‘false ceiling’
Can be used to upgrade existing structures
Perforated boards in a range of patterns
Provides a range of aesthetic options to add
variation in large spaces
GTEC® PREGYBEL MF CEILING
TIP: When painting GTEC Pregybel it is crucial
not to use spray applied paint which can block
the board’s tissue backer.
Glass Mineral wool insulation
to suit required performance
GTEC Pregybel Board
to suit required performance
GTEC MF Suspended
Ceiling System
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
149
150
GTEC® PREGYBEL MF CEILING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p131-132
GTEC Ceiling Channel
Steel channel to support boards.
MFCC50
GTEC Primary Channel
Steel channel to support GTEC Ceiling Channel
MFCP44
GTEC Edge Channel
Steel channel used to form perimeter board support
MFCE26
GTEC Metal Angle
Multi-purpose metal section as suspension hanger
MFC2330, MFC2525, MFC2550
GTEC Connecting Clip
Steel clip for joining GTEC Ceiling Channel to
GTEC Primary Channel
MFCCLEAT
GTEC Soffit Cleat
Galvanised steel bracket to fix suspension hangers
to substrate
MFSTRAP
GTEC Strap Hanger
Suspension hanger for depths up to 1m
MFSTRAP
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases acoustic absorption
See performance tables
supplied by others
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to prevent dust accumulation
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® PREGYBEL MF CEILING
SYSTEM GUIDANCE
See guidance in GTEC Suspended MF section and additional considerations given below:
FRAME
FC-PG-101S-Pregybel Secondary Ceiling
GTEC Metal Angle
fixed at max. 1200mm centres
GTEC Primary Channel
screw fixed at centres to support loading
GTEC Ceiling Channel
screw fixed at 400mm centres
GTEC Board
to suit required performance
Fix Pregybel ceiling through to Ceiling Channel
GTEC Metal Angle
fixed to every other ceiling channel
Mineral wool insulation
to suit required performance
GTEC Primary Channel
screw fixed at centres to support loading
GTEC Ceiling Channel
screw fixed at 600mm centres
GTEC Pregybel Board
GTEC Connecting Clips may be used to
connect GTEC Ceiling Channel to Edge
Channel in all single layer GTEC Pregybel MF
systems providing no additional loads are
being carried.
SECTION
GTEC Ceiling Channel to be at maximum
600mm centres to coincide with
unperforated areas of board.
INSULATION
Any insulation to be of type and thickness
to achieve performance and installed in a
continuous layer between primary channels
and over ceiling channels and boards.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
151
GTEC® PREGYBEL MF CEILING
BOARDING
FC-PG-201E-Pregybel board designs
GTEC Pregybel R12 no. 2
12
25
GTEC Pregybel C10 no. 8
10
10
20
GTEC Pregybel R15 no. 1
15
30
GTEC Pregybel R15 no. 8
15
30
GTEC Pregybel L5x80 no. 8
5
80
All units in millimetres
80
10
152
ELEVATION
GTEC® PREGYBEL MF CEILING
FC-PG-002S-Pregybel Standalone Bulkhead
FC-PG-501S-Pregybel Ceiling Height Change
Max.
150mm
Max.
150mm
GTEC Metal Angle
GTEC Primary
Channel
GTEC C Stud
Brace diagonally
with GTEC U Track
GTEC Edge Channel
Max.
600mm
GTEC Ceiling Channel
screw fixed at 400mm centres
GTEC Edge Channel
GTEC U Track
fix channels together
screw fix tracks
together
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Pregybel Board
SECTION
SECTION
PENETRATIONS
FINISHING
M&E runs and other penetrating services
to be pre-planned to minimise or eliminate
penetrations through rated ceilings.
All board joints to be taped, jointed or finished
according to guidance in Finishing section
(p276-291) to achieve system performances.
Any penetrations must be fully sealed with
GTEC Intumescent Acoustic Sealant or other
fire and sound resisting material.
GTEC Pregybel Board, once sealed,
to be painted with rollers to prevent
paint blocking tissue backing and
reducing absorption capacity.
GTEC Finish materials appropriate to board
type to be used.
SYSTEM CONTINUITY
Only areas with full system continuity will
achieve rated performances.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings to prevent dust accumulation.
GTEC Pregybel MF Ceiling system is suitable
for single layer boarding.
Select GTEC Pregybel Board according to
acoustic performance required and desired
perforation pattern.
GTEC Pregybel boards to be arranged to
achieve desired board pattern. GTEC Pregybel
Boards and GTEC Boards may be mixed
for decorative effect however acoustic
absorption only occurs where board, void and
insulation match the system performance.
Boards to span across GTEC Ceiling Channels.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
153
154
GTEC® DRYLINER CEILING
®
GTEC DRYLINER
CEILING SYSTEMS
The GTEC Dryliner Ceiling system is a simple, quick and
cost-effective method for constructing a true, flat ceiling,
even when connecting to uneven joists or concrete soffits.
It also creates a small cavity to accommodate services.
GTEC Dryliner ceilings are made from GTEC Dryliner Brackets
fixed to the soffit or joists, with GTEC Dryliner Channels secured
to them. The channels provide a strong, level substrate for fixing
the plasterboard. GTEC Dryliner Brackets are available for a range
of cavity depths up to 130mm.
Fire rating and acoustic performance can be enhanced by the
selection of appropriate GTEC Boards. Refer to the System
Performance Tables on page 127 for full details.
WHERE TO USE:
GTEC Dryliner Ceilings are used for both domestic and commercial
applications for either new build or renovation projects.
FEATURES
BENEFITS
Improved fire protection for timber joists
Cost effective solution for achieving required
performance
Creates a cavity
Accommodates services without the need to
drill joists
Adjustable brackets
Creates a flat surface even with uneven joists
or soffit
Separation from soffit
Provides improved acoustic performance
No direct connection between board and joists
Reduces risk of plasterboard cracking from
movement of wooden joists
GTEC® DRYLINER CEILING
155
TIP: GTEC Boards are strongest in their
long axis so must span across channels.
GTEC Dryliner Channel
GTEC Dryliner Bracket
GTEC Dryliner Track
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required
performance
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
156
GTEC® DRYLINER CEILING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p127
GTEC Dryliner Channel
A galvanised steel furring channel for
plasterboard fixing
RD1
GTEC Dryliner Channel Connector
A galvanised clip used to join sections of
GTEC Dryliner Channel
RD3
GTEC SR bracket
Adjustable bracket to connect GTEC Dryliner Channel
to substrate
RD2
GTEC XR bracket
Adjustable, extended reach bracket to connect
GTEC Dryliner Channel to substrate
RD11
GTEC Dryliner Track
J shaped metal section used as a track and
perimeter channel
RD9
GTEC Metal Angle
Multi-purpose metal section as suspension hanger
MFC2330, MFC2525, MFC2550
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance tables
supplied by others
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards prior to decorating.
Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
BOARDS
FRAME
INSULATION
FIX
FINISHING
GTEC® DRYLINER CEILING
SYSTEM GUIDANCE
FRAME
FC-DC-101E-Dryliner cavity sizes
FC-DC-102S-Ceiling perimeter
Mineral wool insulation
to suit required performance
Max. 60mm
Max.
150mm
fix bracket to soffit with
appropriate fixing by others
GTEC Standard Reach
Dryliner Bracket
GTEC Dryliner Channel
Min. 25mm
GTEC Standard Reach
Dryliner Bracket
GTEC Dryliner Track fixed
to substrate at 600mm
centres with appropriate
fixings by others
Max. 130mm
GTEC Intumescent
Acoustic Sealant
GTEC Extended Reach
Dryliner Bracket
GTEC Board
to suit required
performance
SECTION
GTEC Dryliner Track to be fixed to structure
at perimeter of ceiling run and around any
obtrusions within the ceiling, e.g. columns.
Fix at 600mm centres using appropriate
fixings by others. Allow for board depth
when positioning channel.
Select GTEC Dryliner Brackets (SR and XR) to
suit cavity depth required:
Min. 25mm
GTEC Extended Reach
Dryliner Bracket
GTEC Dryliner Bracket
Cavity Depth Range
GTEC SR Bracket
25mm-60mm
GTEC XR Bracket
25mm-130mm
remove excess
bracket as required
SECTION
GTEC Dryliner Channel to be positioned at
maximum 450mm centres. GTEC Dryliner
Brackets to be positioned at maximum
600mm centres for double layer boarding
and at maximum 900mm centres for single
layer boarding.
GTEC Dryliner Brackets to be fixed to
soffit/joists in line to receive GTEC Dryliner
Channel: GTEC SR and XR Brackets to be
fixed using appropriate structural fixings
by others.
GTEC Dryliner Channel to be 5mm shorter
than ceiling length/width, located into
GTEC Dryliner Track, attached to both
GTEC Dryliner Bracket legs with appropriate
GTEC Drywall Screws (see screw selector
p334) and levelled by adjusting brackets.
Excess bracket leg length to be removed or
bent back.
GTEC Dryliner Channel may be spliced
if necessary using GTEC Dryliner
Channel Connector. Any jointed
sections to be fixed to soffit/joist with
additional brackets where required.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
157
158
GTEC® DRYLINER CEILING
INSULATION
Any insulation to be of type and thickness to
achieve performance and tightly installed in a
continuous layer between brackets and over
channels.
BOARDING
FC-DC-201P & 202P-Single boarding and double layer boarding
SINGLE LAYER
Boards edges must
coincide with channels
Insulation quilt
to suit required
performance
Screw fix at 150mm
at cut edges
Screw fix at 230mm
centres elsewhere
Stagger all joints
Screw fix at 150mm
centres around perimeter
DOUBLE LAYER
Boards edges must
coincide with channels
Insulation quilt
to suit required
performance
Screw fix at 230mm
centres in centre of
board and at bound edges
Screw fix at 150mm
at cut edges
Stagger all joints
Screw fix at 150mm
centres around perimeter
PLAN
GTEC® DRYLINER CEILING
GTEC Dryliner Ceiling system is suitable for
single and double layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables (p133-136) and Product
Specification (p294-307) to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to span across GTEC Dryliner
Channels with bound edges at right
angles to channels.
Board ends and joints to be centred
over channels.
Boards to be mechanically fixed to
GTEC Dryliner Track at 150mm centres
using appropriate GTEC Drywall Screws.
See screw selector p334.
Boards to be mechanically fixed to GTEC
Dryliner Channels at 230mm centres in field
of board or at bound edges and at 150mm
centres at cut edges, using appropriate GTEC
Drywall Screws. See screw selector p334.
Board joints to be staggered between layers.
Any GTEC Fire Board, or other GTEC
Type F (BS EN 520) board, required by
the system performance, to be installed
as the outermost/finishing layer.
MOVEMENT CONTROL JOINTS
FC-DC-301S-Movement joint
Max.
50mm
Max.
50mm
GTEC Movement
Control Joint
10mm
50mm Rock Mineral wool
insulation 40kg/m3
(if fire rated system)
SECTION
Form movement control joints at maximum
10m intervals in any direction in ceiling run.
Form movement control joints where ceiling
crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
Follow measures to ensure fire resistance and
stability as shown in Construction Details.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
159
160
GTEC® DRYLINER CEILING
HEIGHT CHANGE & JUNCTIONS
FC-DC-501S-Junction of partition to ceiling
FC-DC-502S-Junction of ceiling to partition
Max.
150mm
Max.
150mm
GTEC Intumescent
Acoustic Sealant
screw fix track
through to channel
GTEC Intumescent
Acoustic Sealant
GTEC Partition
System to suit
required performance
GTEC Partition
System to suit
required performance
SECTION
FC-DC-503S-Bulkhead
SECTION
FC-DC-504S-Change in ceiling height
GTEC Dryliner Bracket
to suit required depth
GTEC Intumescent
Acoustic Sealant
GTEC Dryliner
Channel
GTEC Dryliner Track
fix plasterboard
to channel at
150mm centres
GTEC Board
to suit required
performance
fix to track
at 150mm centres
GTEC Corner 90º External /
GTEC Flex Tape
SECTION
Abutting partitions to coincide with and fix
to GTEC Dryliner Channel, install additional
intermediate ‘pick-up’ channels with brackets
where required.
Where ceiling abuts partition fix GTEC
Dryliner Track through to stud and install
GTEC Dryliner Channels with brackets within
150mm of partition.
SECTION
Form 90° junction in ceiling with GTEC
Dryliner Track as corner reinforcement or
position GTEC Dryliner brackets to receive
edge board along legs.
GTEC® DRYLINER CEILING
SYSTEM CONTINUITY
FIXTURES
Fixtures and loadings to be suspended from
structural soffit/joist and not GTEC Dryliner
Ceiling system.
Any services or installations in ceiling void to
be supported by structural soffit/joist and not
GTEC Dryliner Ceiling System.
Full, imperforate system continuity to be
maintained to achieve rated performances.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated ceilings.
Any penetrations must be fully sealed with
GTEC Intumescent Acoustic Sealant or other
fire and sound resisting material.
GTEC Dryliner Ceiling system may be used to
upgrade existing, retained ceilings provided
all fixing is into structural soffit/joists and
any combustible material is removed from
retained ceiling or evaluated as inert.
FINISHING
All board joints to be taped, jointed or
finished according to guidance in Finishing
section (p276-291) to achieve system
performances. Where ceiling is not intended
to be decorated GTEC Intumescent
Sealant to be used to seal board joints.
GTEC Finish materials appropriate to board
type to be used.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
161
162
GTEC® DIRECT-TO-TIMBER CEILING
®
GTEC
DIRECT-TO-TIMBER
CEILING SYSTEMS
The GTEC Direct-to-Timber Ceiling system is the simplest method of
creating a flat ceiling surface for decoration and achieving excellent
fire performance.
GTEC Plasterboard is attached directly to the underside of floor joists
or to the bottom chords of roof trusses with insulation between
rafter to boost acoustic and fire performance. Refer to the System
Performance Tables on pages 122 to 126 for full details.
WHERE TO USE:
The GTEC Direct to Timber system is used in both renovation
and new-build domestic applications.
FEATURES
BENEFITS
Only requires board and screws
Reduces installation time and costs
Compatible with GTEC Board options
Achieves required fire performance
Flat finish
Provides easy to decorate surface
Can be used with GTEC Resilient Bar
Improves acoustic performance and reliability
with some engineered joists
GTEC® DIRECT-TO-TIMBER CEILING
163
TIP: In double layer systems it is important
to stagger all joists to prevent fire or sound
bypassing boards.
Screw fix board to joist at
230mm centres in centre of board
Joist
GTEC Intumescent
Acoustic Sealant
Screw fix board to joist at
150mm centres at
perimeter and cut ends
Stagger all joints
Span boards across joists
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
Nogging
164
GTEC® DIRECT-TO-TIMBER CEILING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p122-126
Timber frame
Structural frame forming part of an external
or internal wall
Supplied by others
GTEC Resilient Bar
Metal profile to provide acoustic separation
of board and joists
RBD3000
GTEC High Thread Screws (as appropriate)
For attaching plasterboard to timber
See screw selector, p334
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
BOARDS
FRAME
FIX
FINISHING
GTEC® DIRECT-TO-TIMBER CEILING
SYSTEM GUIDANCE
FRAME
FC-DT-101S-Perimeter detail
FC-DT-102M-Timber ceiling with resilient bar
Timber perimeter
nogging
Mineral wool insulation
to suit required performance
Timber joist
GTEC Board
to suit required performance
screw fix board to perimeter
noggings at 150mm centres
GTEC Resilient Bar
GTEC Board
to suit required performance
GTEC Intumescent
Acoustic Sealant
Engineered or square joists
ISOMETRIC
SECTION
Joist spacings without noggings to be
maximum 450mm for boards up to 15mm and
maximum 600mm for 19mm GTEC Plank.
Joist spacings with noggings to be maximum
600mm for all boards.
Noggings to be fitted around perimeter
of ceiling, around any obtrusions such as
columns and between joists to provide board
fixing at bound board edges.
Joists and noggings to have minimum bearing
face of 44mm. Trusses to BS 5268-3 may
have bearing face of minimum 38mm.
GTEC Resilient Bar option only:
GTEC Resilient Bar to be installed across
joists at maximum 450mm centres and fixed
to each joist with suitable GTEC Drywall
Screws (see screw selector p334).
GTEC Resilient Bar to be spliced if necessary
by overlapping at joists and fixing both
sections to joist.
Noggings may be required to provide fixing
for full perimeter of GTEC Resilient Bar.
Inclusion of GTEC Resilient Bar is
recommended when fixing boards to
engineered joists to mitigate potential for
differential movement between substrate
and board.
INSULATION
Any insulation to be of type and thickness to
achieve performance and tightly installed in a
continuous layer between joists.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
165
166
GTEC® DIRECT-TO-TIMBER CEILING
BOARDING
FC-DT-201, 202 & 203P-Board Layout – single layer
GTEC Board
to suit required performance
SINGLE LAYER
Joists at 400/450 or
600mm centres
Noggings at 1200mm centres
to support boards
all board ends to
coincide with joists
Perimeter noggings
GTEC Board
to suit required performance
boards cut to form staggered
joints between layers
DOUBLE LAYER
Joists at 400/450 or
600mm centres
Noggings at 1200mm
centres to support edges
of second layer of boards
all board ends to
coincide with joists
GTEC Base Board only
Perimeter noggings
Stagger all joints
GTEC BASE BOARD ONLY
Joists 50mm wide
at max. 406mm centres
all board ends to
coincide with joists
No intermediate
noggings
Perimeter noggings
PLAN
GTEC® DIRECT-TO-TIMBER CEILING
GTEC Direct-to-Timber Ceiling system is
suitable for single, double and multiple layer
boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables (p133-p136) and Product
Specification (p294-307) to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to span across joists with bound
edges at right angles to joists.
Board ends and joints to be centred over
joists or intermediate noggings.
Boards to be mechanically fixed to
perimeter noggings at 150mm centres using
appropriate GTEC Drywall Screws. See screw
selector p334.
Board joints to be staggered between layers.
Any GTEC Fire Board, or other GTEC Type
F (BS EN 520) board, required by the
system performance, to be installed as
the outermost/finishing layer.
GTEC Resilient Bar option only:
GTEC Resilient Bar is suitable for single and
double layer boarding.
Boards to be mechanically fixed to GTEC
Resilient Bar only at 150mm centres for cut
edges and perimeter and at 230mm centres
in centre of board and bound edges, using
shortest appropriate GTEC Drywall Screws.
See screw selector p334.
Boards to be fixed to GTEC Resilient Bar only
to ensure acoustic performance. Screws must
not penetrate through to substrate.
Boards to be mechanically fixed to joists or
intermediate noggings at 230mm centres
in centre of board or bound edges and
at 150mm centres at cut edges, using
appropriate GTEC Drywall Screws.
See screw selector p334.
JUNCTIONS
FC-DT-501S-Junction of partition to ceiling
Abutting partitions to coincide with and fix to
joist install additional intermediate ‘pick-up’
joists/noggings as required.
coincide partition
with joist
GTEC Intumescent
Acoustic Sealant
Separate boards at partition head to reduce
sound transmission.
screw fix track
through to joist
GTEC Partiton System to
suit required performance
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
167
168
GTEC® DIRECT-TO-TIMBER CEILING
FIXTURES
SYSTEM CONTINUITY
Fixtures and loadings to be suspended from
structural soffit/joist and not GTEC Board.
Full, imperforate system continuity to be
maintained to achieve rated performances.
Services running through ceiling void to be
supported by structural soffit/joist and not
GTEC Board.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated ceilings.
Any penetrations must be fully sealed with
GTEC Intumescent Acoustic Sealant or other
fire and sound resisting material.
FINISHING
All board joints to be taped, jointed or finished
according to guidance in Finishing section
(p276-291) to achieve system performances.
Where ceiling is not intended to be decorated
GTEC Intumescent Sealant to be used to seal
board joints.
GTEC Finish materials appropriate to board
type to be used.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
169
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
170
GTEC® ACOUSTIC FLOOR
®
GTEC ACOUSTIC
FLOOR SYSTEMS
Load bearing timber floors separating dwellings or other spaces have
limited sound reduction properties. The GTEC Acoustic Floor, ‘floating
floor’ system improves the acoustic performance of these floors with
minimal additional depth.
The system is installed in a two stage process. GTEC Acoustic Clips
temporarily support GTEC Board mounted on GTEC Metal Angle
between the joists, until the final floorboard layers are fixed to the
plasterboard. The only contact between the board and structure is
through GTEC Resilient Tape. The GTEC Acoustic Floor system also
enables fire protection for existing, hard to renovate, decorative
ceilings by applying GTEC Fire Board from above. Refer to the
System Performance Tables on page 137 for full details.
WHERE TO USE:
GTEC Acoustic Floors are used for domestic renovation and
conversion projects or new build.
FEATURES
BENEFITS
Improved acoustic performance
Meets new build and conversion regulations
Provision of GTEC Fire Board
Cost effective method of achieving required
fire rating to existing timber joist flooring
Low profile system design
Minimal addition to floor depth
GTEC® ACOUSTIC FLOOR
TIP: GTEC Acoustic Floor can be built
from one side allowing the room and
finishes below to be left undisturbed.
Tongue and groove floor boards
GTEC Resilient Tape
GTEC Metal Angle
GTEC Board
to suit
required performance
GTEC Resilient Bar
GTEC Acoustic Floor Clip
GTEC Board
to suit required performance
fixed to metal angle only
Insulation laid in
continuous layer
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
171
172
GTEC® ACOUSTIC FLOOR
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p137
GTEC Acoustic Floor Clip
Metal clips for connecting to wooden joists
RACFC25
GTEC Resilient Tape
Self adhesive acoustic isolation tape
RAFT50
GTEC Metal Angle
Metal section to brace joists and acoustic floor
MFC
GTEC Resilient Bar
Metal profile to provide acoustic separation of board
and joists
RBD3000
GTEC Acoustic Floor Self Tapping Screws
For attaching plasterboard to metal angle
See screw selector, p334
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating
See compounds guidance, p280
BOARDS
FRAME
FIX
FINISHING
GTEC® ACOUSTIC FLOOR
SYSTEM GUIDANCE
FRAME
FC-AF-101S-Perimeter detail
GTEC Resilient Tape
only point of contact
of floorboards
floorboards fixed to
GTEC Board and angle only
GTEC Metal Angle
GTEC Acoustic Floor
Clip at 400mm centres
GTEC Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
GTEC Resilient Bar
spaced at 400mm vertical centres
and screw fixed to GTEC C Studs
SECTION
GTEC Acoustic Floor Clips to be fixed to
joists at 400mm centres each side of joist.
Perimeter joists to be fitted with clips on
open side. Joists to be minimum 38mm thick
and structurally sound.
GTEC Metal Angle MFC2330 to be fitted into
GTEC Acoustic Floor Clips Joists with short
leg into clip. Lengths of metal angle to have
minimum number of joints with any joints
located at clips.
GTEC Acoustic Floor Clips on opposing
sides to be fixed at same point where joist
width allows and staggered where joist is
too narrow.
Where required by system configuration GTEC
Resilient Bar to be installed across underside
of joists at maximum 450mm centres and
fixed to each joist with suitable GTEC Drywall
Screws (see screw selector p334).
GTEC Resilient Tape to be fitted along top of
joist and any full depth noggings, over clips,
to isolate floorboards.
GTEC Acoustic Floor Screws to be used to
fix floorboard through plasterboard to GTEC
Metal Angle.
GTEC Resilient Bar may be spliced by
overlapping at joists and fixing both
sections to joist.
Noggings may be required to provide fixing
for full perimeter of GTEC Resilient Bar.
INSULATION
Insulation to be of type and thickness to
achieve performance and tightly installed
in a continuous layer between joists.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
173
174
GTEC® ACOUSTIC FLOOR
BOARDING
FC-AF-201S-Assembly stages – 1 and 2
GTEC Acoustic Floor
Clip at 400mm centres
GTEC Resilient Tape
only point of contact
of floorboards
fixing of floorboards into
angle through GTEC Board
pulls angle clear of clip
GTEC Metal Angle
SECTION
FC-AF-202S-Retained ceiling
GTEC Fire Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
100mm insulation
quilt laid over
existing ceiling
Existing ceiling
100mm strips of
GTEC Fire Board
fixed to joists
SECTION
GTEC® ACOUSTIC FLOOR
FC-AF-203P-Flooring layout
GTEC Metal Angle 90°
GTEC Acoustic Floor Clip
400mm
GTEC Board
to suit required
performance
floorboards laid across joists
GTEC Metal Angle 90°
GTEC Acoustic Floor Clip
400mm
GTEC Board
to suit required
performance
floorboards laid across joists
PLAN
FC-DC-502S-Junction of ceiling to partition
U track fixed through to joists
GTEC Acoustic Floor System
Rock Mineral wool
Partition boards short of floor boards
GTEC Intumescent Acoustic Sealant
U track fixed to joists
GTEC Twin Frame Partition System
to suit required performance
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
175
176
GTEC® ACOUSTIC FLOOR
BOARDING continued
Boarding to underside of ceiling to follow
guidance in GTEC Direct-to-Timber section
p162-169.
Where required by retained ceiling system
configuration 100mm strips of 15mm
GTEC Fire Board to be fitted along each
side of joists. Further 15mm GTEC Fire
Board to be installed to bridge from strip
to strip providing a continuous barrier
between joists.
Select GTEC Board as required by system
performance cut 4mm shorter than space
between joists, to be temporarily secured
to GTEC Metal Angle only at approx.
600mm centres.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated ceilings.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire and sound resisting material.
Floorboards to be installed across joists
and fixed through GTEC Board to GTEC
Metal Angle both sides of every joist
using appropriate GTEC Acoustic Floor
Screws in pattern shown in Construction
Detail drawing. Free-floating floor is
created when angle is pulled out of
clips during fixing of floorboards and
GTEC Board to GTEC Metal Angle.
Floorboards to be in contact with
GTEC Resilient Tape only.
Floorboards to be 3mm clear of perimeter
wall and sealed with GTEC Acoustic
Intumescent Sealant.
Softwood floorboards may require gluing
to a plywood base to prevent warping.
SYSTEM CONTINUITY
Full, imperforate system continuity to be
maintained to achieve rated performances.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
177
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
178
GTEC® LININGS
179
179
LININGS
GTEC Lining systems offer a wide range of plasterboard lining
fixing systems to walls and roofs for most typical substrates.
Different depths of cavity spaces can be created between the
GTEC Board or GTEC Thermal Board lining and underlying wall.
These cavities hide services or help to achieve high levels of fire
resistance, U-Values and sound insulation.
System Performance Tables
GTEC Lining Systems to New External Walls
180
GTEC Lining Systems to Upgrade Internal Walls
182
GTEC Lining Systems to Thermally Upgrade External Walls
184
GTEC Lining Systems to Framed External Walls
187
GTEC Pregybel Independent Lining Systems
190
GTEC GTEC Direct Bond Linings
GTEC Contour Linings
GTEC Shallow Channel Linings
GTEC Dryliner Linings
GTEC Independent Wall Linings
GTEC Pregybel Independent Linings
192
202
208
216
226
236
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
180
GTEC® LININGS – PERFORMANCE TABLES
GTEC® LINING SYSTEMS TO NEW EXTERNAL WALLS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
0.30
–
–
–
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
325
RDL 101: Direct Bond or Shallow Channel – see p192 or p208
Facing layer (s):
1x 30mm GTEC Thermal K Board
Lining: GTEC Universal Bonding
Compound to form 10mm cavity
or GTEC Shallow Channel
Insulation: 25mm expanded polystyrene
(BS 5250) within cavity
Internal Wall Leaf: 100mm Celcon Solar
Blocks
External Wall Leaf: 102mm brick with
75mm cavity
–
RDL 102: Direct Bond or Shallow Channel – see p192 or p208
Facing layer (s):
1x 60mm GTEC Thermal K Board
Lining: GTEC Universal Bonding
Compound to form 10mm cavity
or GTEC Shallow Channel
Insulation: –
Internal Wall Leaf: 100mm Celcon Solar
Blocks
External Wall Leaf: 100mm brick with
75mm cavity
–
342
0.26
–
–
–
–
–
0.28
–
–
–
–
–
0.30
–
–
–
RDS 103: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC Standard Board
Lining: GTEC Dryliner Channel System
Insulation: 120mm glass fibre (BS 5250)
Wall Leaf: 100mm concrete blockwork
(2300kg/m3)
Finish: 100mm brick with 75mm cavity
RDS 104: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC Standard Board
Lining: GTEC Dryliner Channel System
Insulation: 120mm glass fibre (BS 5250)
Wall Leaf: 215mm concrete blockwork
(2300kg/m3)
Finish: Sand Cement Render
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
0.28
–
–
–
–
0.27
–
–
–
-
0.29
–
–
–
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
–
–
–
–
RDS 108: Dryliner – see p216
Facing Layer(s):
1x 70mm GTEC Thermal K Board
Lining: GTEC Dryliner Channel System
Insulation: –
Wall Leaf: 215mm concrete blockwork
(2300kg/m3)
Finish: 12mm sand/cement render
RDS 109: Dryliner – see p216
Facing Layer(s):
1x 70mm GTEC Thermal K Board
Lining: GTEC Dryliner Channel System
Insulation: –
Wall Leaf: 215mm brickwork
Finish: 12mm sand/cement render
RDS 110: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC Vapour Board
Lining: GTEC Dryliner Channel System
Insulation: 120mm glass fibre (BS 5250)
Wall Leaf: 215mm brickwork
Finish: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
181
182
GTEC® LININGS – PERFORMANCE TABLES
GTEC® LINING SYSTEMS TO
UPGRADE INTERNAL WALLS
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
–
60
30
65
-7
177
–
30
0
60
-9
–
140
–
–
–
49
–
177
–
30
–
59
–
290
–
30
–
62
-17
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
–
202
–
RDS 023: Dryliner – see p216
Facing Layer(s):
2x 12.5mm GTEC dB Board
Lining: GTEC Dryliner Channel System
Insulation: 25mm glass mineral wool
16kg/m³
Wall Leaf: 102mm brickwork
Finish: Sand Cement Render
RDS 024: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC dB Board
Lining: GTEC Dryliner Channel System
Insulation: 25mm glass mineral wool
16kg/m³
Wall Leaf: 102mm brickwork
Finish: Sand Cement Render
RDS 031: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC dB Board
Lining: GTEC Dryliner Channel System
Insulation: –
Wall Leaf: 102mm brickwork
Finish: None
RDS 032: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC dB Board both sides
Lining: GTEC Dryliner Channel System
both sides
Insulation: 25mm glass mineral wool
16kg/m³ both sides
Wall Leaf: 102mm brickwork
Finish: –
RDS 021: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC dB Board both sides
Lining: GTEC Dryliner Channel System
both sides
Insulation: 25mm glass mineral wool
16kg/m³ both sides
Wall Leaf: 215mm Solid Dense Block
2300kg/m³
Finish: –
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
System Ref.
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
–
30
–
63
-15
0.29
60
60
–
60
60
–
60
60
–
30
30
–
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
–
325
IS50Rx
–
RDS 022: Dryliner – see p216
Facing Layer(s):
1x 12.5mm GTEC dB Board Both sides
Lining: GTEC Dryliner Channel System
Both sides
Insulation: 25mm glass mineral wool
16kg/m³ both sides
Wall Leaf: 2 x 100mm Solid Dense Block
2300kg/m³ with cavity
Finish: –
RCL 004: Independent Wall – see p226
Facing Inner Layer(s):
1x 12.5mm GTEC Fire V Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire or Megadeco Board
Lining: GTEC IS50Rx/IS60B/IS70B/IS90B
GTEC I Studs at 600mm centres
Insulation: 150mm glass fibre (BS 5250)
External Wall Leaf: Profiled metal
cladding
2.7
Based on
IS70B stud
IS60B
3.9
IS70B
4.5
IS90B
5.4
RCL 005: Independent Wall – see p226
Facing Inner Layer(s):
1x 12.5mm GTEC Fire V Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire or Megadeco Board
Lining: GTEC IS50Rx/IS60B/IS70B/IS90B
GTEC I Studs at 600mm centres
Insulation: 140mm glass fibre (BS 5250)
External Wall Leaf: 102mm brick or block
work
IS50Rx
2.7
–
0.30
Based on
IS70B stud
IS60B
3.9
IS70B
4.5
IS90B
5.4
RCL 021: Independent Wall – see p226
Facing Inner Layer(s):
1x 60mm GTEC Thermal K Board
Facing Outer Layer(s):
1x 12.5mm GTEC dB Board
Lining: GTEC IS50Rx/IS60B/IS70B/IS90B
GTEC I Studs at 600mm centres
Insulation: 50mm glass fibre (BS5250)
External Wall Leaf: 300mm concrete
IS50Rx
2.7
–
0.26
Based on
IS50Rx
stud
IS60B
3.9
IS70B
4.5
IS90B
5.4
RCL 017: Independent Wall – see p226
Facing Inner Layer(s):
1x 12.5mm GTEC Standard Board
Facing Outer Layer(s):
1x 12.5mm GTEC Standard Board
Lining: GTEC IS50Rx/IS60B/IS70B/IS90B
GTEC I Studs at 600mm centres
Insulation: 130mm glass fibre (BS 5250)
External Wall Leaf: 102mm brickwork
with a of 0.752W/mK
IS50Rx
2.7
IS60B
3.9
–
0.30
Based on
IS50Rx
stud
IS70B
4.5
IS90B
5.4
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
183
184
GTEC® LININGS – PERFORMANCE TABLES
GTEC® LINING SYSTEMS TO THERMALLY
UPGRADE EXTERNAL WALLS
System Ref.
Component
(W/m2k)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
Max
Height
Min
Thickness
U-Value
(m)
(mm)
RdSAP 01: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls to 1966 and
cavity walls pre 1900
Facing Inner Layer(s):
1x 50mm GTEC Thermal K Board
–
–
0.40
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.33
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.28
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
RdSAP 02: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Cavity walls 1900-1975
Facing Inner Layer(s):
1x 50mm GTEC Thermal K Board
–
–
0.38
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.31
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.27
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
RdSAP 03: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls and cavity
walls 1976-1982
Facing Inner Layer(s):
1x 40mm GTEC Thermal K Board
–
–
0.40
––
–
Or: 1x 50mm GTEC Thermal K Board
–
–
0.33
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.28
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.24
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
RdSAP 04: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls and cavity
walls 1983-1995
Facing Inner Layer(s):
1x 35mm GTEC Thermal XP Board
–
–
0.40
––
–
Or: 1x 55mm GTEC Thermal XP Board
–
–
0.33
––
–
Or: 1x 30mm GTEC Thermal K Board
–
–
0.38
––
–
Or: 1x 40mm GTEC Thermal K Board
–
–
0.31
––
–
Or: 1x 50mm GTEC Thermal K Board
–
–
0.27
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.23
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.21
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
System Ref.
Component
(W/m2k)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
Max
Height
Min
Thickness
U-Value
(m)
(mm)
RdSAP 05: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls and cavity
walls 1996-2002
Facing Inner Layer(s):
1x 22mm GTEC Thermal Board
–
–
0.38
––
–
Or: 1x 30mm GTEC Thermal Board
–
–
0.35
––
–
Or: 1x 40mm GTEC Thermal Board
–
–
0.32
––
–
Or: 1x 50mm GTEC Thermal Board
–
–
0.29
––
–
Or: 1x 27mm GTEC Thermal XP Board
–
–
0.36
––
–
Or: 1x 35mm GTEC Thermal XP Board
–
–
0.33
––
–
Or: 1x 55mm GTEC Thermal XP Board
–
–
0.28
––
–
Or: 1x 30mm GTEC Thermal K Board
–
–
0.31
––
–
Or: 1x 40mm GTEC Thermal K Board
–
–
0.27
––
–
Or: 1x 50mm GTEC Thermal K Board
–
–
0.24
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.21
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.19
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
RdSAP 06: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls and cavity
walls 2003-2006
Facing Inner Layer(s):
1x 22mm GTEC Thermal Board
–
–
0.31
––
–
Or: 1x 30mm GTEC Thermal Board
–
–
0.28
––
–
Or: 1x 40mm GTEC Thermal Board
–
–
0.26
––
–
Or: 1x 50mm GTEC Thermal Board
–
–
0.25
––
–
Or: 1x 27mm GTEC Thermal XP Board
–
–
0.29
––
–
Or: 1x 35mm GTEC Thermal XP Board
–
–
0.27
––
–
Or: 1x 55mm GTEC Thermal XP Board
–
–
0.24
––
–
Or: 1x 30mm GTEC Thermal K Board
–
–
0.26
––
–
Or: 1x 40mm GTEC Thermal K Board
–
–
0.23
––
–
Or: 1x 50mm GTEC Thermal K Board
–
–
0.21
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.18
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.17
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
185
186
GTEC® LININGS – PERFORMANCE TABLES
GTEC® LINING SYSTEMS TO THERMALLY UPGRADE EXTERNAL WALLS continued
System Ref.
Component
(W/m2k)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
Max
Height
Min
Thickness
U-Value
(m)
(mm)
RdSAP 07: Direct Bond or Shallow Channel – see p192 or p208
RdSAP Wall: Solid brick walls and cavity
walls 2007-2010
Facing Inner Layer(s):
1x 22mm GTEC Thermal Board
–
–
0.27
––
–
Or: 1x 30mm GTEC Thermal Board
–
–
0.25
––
–
Or: 1x 40mm GTEC Thermal Board
–
–
0.23
––
–
Or: 1x 50mm GTEC Thermal Board
–
–
0.22
––
–
Or: 1x 27mm GTEC Thermal XP Board
–
–
0.25
––
–
Or: 1x 35mm GTEC Thermal XP Board
–
–
0.24
––
–
Or: 1x 55mm GTEC Thermal XP Board
–
–
0.21
––
–
Or: 1x 30mm GTEC Thermal K Board
–
–
0.23
––
–
Or: 1x 40mm GTEC Thermal K Board
–
–
0.21
––
–
Or: 1x 50mm GTEC Thermal K Board
–
–
0.19
––
–
Or: 1x 60mm GTEC Thermal K Board
–
–
0.17
––
–
Or: 1x 70mm GTEC Thermal K Board
–
–
0.16
––
–
Lining: GTEC Universal Bonding Compound
to form 10mm cavity
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
GTEC® LINING SYSTEMS TO FRAMED
EXTERNAL WALLS
System Ref.
Fire Perf.
BS476-21
BS EN
1365-1
(mins)
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
0.30
30
30
51
–
0.29
60
60
53
2.4
–
0.29
30
30
60
-5
Facing Inner Layer(s):
1x 12.5mm GTEC Vapour Fire Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Lining: Sheathing Board. Recommended
GTEC Aqua Board
Insulation: 120mm glass fibre (BS5250)
Internal Wall Leaf: Timber Frame Stud
work with GTEC Resilient Bars at 600mm
Centres
External Wall Leaf: Brickwork
2.4
–
0.29
60
60
61
-4
Facing Inner Layer(s):
1x 12.5mm GTEC Vapour Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Lining: 1 x 15mm GTEC Aqua Board
Insulation: 150mm glass fibre (BS 5250)
within SFS
Internal Wall Leaf: 150mm SFS
External Wall Leaf: 100mm brick with
50mm cavity
4.2
–
0.34
60
60
59
Max
Height
Min
Thickness
U-Value
(m)
(mm)
(W/m2k)
Facing Inner Layer(s): –
Facing Outer Layer(s):
1x 15mm GTEC Vapour Fire Board
Lining: Sheathing board – Recommended
GTEC Aqua Board
Insulation: 120mm glass fibre (BS5250)
Internal Wall Leaf: Timber Frame Stud
work
External Wall Leaf: Brickwork
2.4
–
Facing Inner Layer(s):
1x 12.5mm GTEC Vapour Board
Facing Outer Layer(s):
1x 12.5mm GTEC Fire Board
Lining: Sheathing Board – Recommended
GTEC Aqua Board
Insulation: 120mm glass fibre (BS5250)
Internal Wall Leaf: Timber Frame Stud
work
External Wall Leaf: Brickwork
2.4
Facing Inner Layer(s): –
Facing Outer Layer(s):
1x 15mm GTEC Vapour Fire Board
Lining: Sheathing Board. Recommended
GTEC Aqua Board
Insulation: 120mm glass fibre (BS 5250)
Internal Wall Leaf: Timber Frame Stud
work with GTEC Resilient Bars at 400mm
Centres
External Wall Leaf: Brickwork
Component
RFL 002
RFL 003
RFL 015
RFL 016
RFL 051
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
187
188
GTEC® LININGS – PERFORMANCE TABLES
GTEC® ROOF LINING SYSTEMS
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
U-Value
(W/m2k)
9.2
–
–
0.17
9.2
–
–
0.17
7.2
–
–
0.16
Ceiling: 1x 70mm GTEC Thermal K Board
Lining: –
Insulation: 75mm 10.5kg/m3 glass mineral wool
Structure: 47mm x 150mm Joists at 600mm centres with noggings,
roofing material above
7.3
–
–
0.25
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC Fire Board
Accessories: –
Insulation: 100mm glass mineral wool between Trusses, 150mm over
Trusses, 10.5kg/m3
Structure: 47mm x 100mm Trusses at 600mm centres with noggings
11
30
30
0.15
Ceiling Inner Layer(s): 1x 12.5mm GTEC Fire V Board
Ceiling Outer Layer(s): 1x 12.5mm GTEC Fire V Board
Accessories: –
Insulation: 100mm glass mineral wool between Trusses, 150mm over
Trusses, 10.5kg/m3
Structure: 47mm x 100mm Trusses at 600mm centres with noggings
12
60
30
0.15
Board
Weight
System Ref.
Component
(kg/m2)
RIR 001: Pitched roof
Ceiling: 1x 70mm GTEC Thermal K Board
Lining: –
Insulation: 100mm Glass fibre (BS5250)
Structure: 47mm x 150mm rafters at 600mm centres with noggings
RIR 002: Pitched roof
Ceiling: 1x 70mm GTEC Thermal K Board
Lining: –
Insulation: 50mm Kooltherm K7
Structure: 47mm x 100mm rafters at 600mm centres with noggings
RIR 003: Horizontal ceiling at roof apex
Ceiling: 1x 30mm GTEC Thermal K Board
Lining: –
Insulation: 100mm Glass fibre over joists, 100mm between joists (BS 5250)
Structure: 38mm x 100mm Truss Joists at 600mm centres with noggings
RIR 004: Ceiling under flat roof
RTC 031
RTC 032
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
Board
Weight
System Ref.
(kg/m2)
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
U-Value
(W/m2k)
RTC 033
Ceiling Inner Layer(s): –
Ceiling Outer Layer(s): 1x 12.5mm GTEC Fire V Board
Accessories: –
Insulation: 100mm glass mineral wool between Trusses, 150mm over
Trusses, 10.5kg/m3
Structure: 38mm x 100mm Trusses at 600mm centres with noggings
11
30
30
0.15
Ceiling Inner Layer(s): 1x 15mm GTEC Fire V Board
Ceiling Outer Layer(s): 1x 15mm GTEC Fire Board
Accessories: –
Insulation: 100mm glass mineral wool between Trusses, 150mm over
Trusses, 10.5kg/m3
Structure: 38mm x 100mm Trusses at 600mm centres with noggings
26
60
60
0.15
RTC 034
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
189
190
GTEC® LININGS – PERFORMANCE TABLES
GTEC® PREGYBEL INDEPENDENT LINING SYSTEMS
System Ref.
Acoustic
Absorption
Class, BS EN
ISO 11654
Absorption
co-efficient
(_w), BS EN
ISO 11654
12
B
0.8
12
C
0.75
12
C
0.70
12
B
0.60
12
C
0.7
12
C
0.65
Max
Height
Weight
(m)
(kg/m2)
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
Component
PGL 001: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel C10no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 75mm glass mineral wool
and 600mm void
PGL 002: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel C10no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 50mm glass mineral wool
and 600mm void
PGL 003: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel C10no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 50mm glass mineral wool
and 300mm void
PGL 004: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel C10no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 300mm void
PGL 101: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R12no2
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 50mm glass mineral wool
and 300mm void
PGL 102: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R12no2
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 300mm void
See p191 for notes on alterations to linings configuration.
GTEC® LININGS – PERFORMANCE TABLES
System Ref.
Acoustic
Absorption
Class, BS EN
ISO 11654
Absorption
co-efficient
(_w), BS EN
ISO 11654
12
C
0.70
12
C
0.7
12
C
0.60
12
D
0.50
12
D
0.55
12
D
0.55
Max
Height
Weight
(m)
(kg/m2)
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
IS50Rx
2.7
IS60B
3.9
IS70B
4.5
IS90B
5.4
Component
PGL 201: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R15no1
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 50mm glass mineral wool
and 300mm void
PGL 202: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R15no1
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 30mm glass mineral wool
and 50mm void
PGL 301: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R15no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 50mm glass mineral wool
and 300mm void
PGL 302: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel R15no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 300mm void
PGL 401: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel L5x80no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 80mm glass mineral wool
and 300mm void
PGL 402: Pregybel Lining – see p236
Ceiling Outer Layer(s):
1x GTEC Pregybel L5x80no8
Lining: GTEC IS50Rx/IS60B/IS70B/
IS90B GTEC I Studs at 600mm
centres
Insulation: 80mm glass mineral wool
and 100mm void
LININGS PERFORMANCE NOTES
Performance values are for imperforate, jointed systems using Siniat GTEC components (metal studs and tracks, boards, metal
accessories, screws and finishing systems) and specified insulation quilt material (type, thickness and density) and installed to
Siniat specification and installation guides.
All calculations are in accordance with Building Regulations: Conservation of fuel and power, Approved Document L: 2010.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
191
192
GTEC® DIRECT BOND LINING
®
GTEC DIRECT BOND
LINING SYSTEMS
The GTEC Direct Bond Lining system is the simplest option for
single layer drylining of masonry substrates. It provides a clean,
flat and easy to finish surface by bonding GTEC Board to the
masonry substrate. This construction method reduces drying out
time speeding up internal fit-out.
The system uses GTEC Universal Bonding Compound to directly
attach GTEC Plasterboards to the wall and corrects minor surface
irregularities. GTEC Thermal Boards can also be bonded to increase
thermal performance through the wall.
WHERE TO USE:
GTEC Direct Bond Lining systems are used in new build residential
and general renovation projects.
FEATURES
BENEFITS
Few products required
Low installation cost
Limited increase in wall thickness
Minimal effect on room size and achieves the
required finish
Service cavity of 10-25mm can be created
Allows installation of conduits and small services
Suitable for GTEC Thermal Boards
One-fix method of achieving required thermal
performance
Workable bonding compound
Easily achieves air tightness by bonding around
the wall perimeter
Allows adjustment during boarding
Bonds to the majority of masonry substrates
Suits most construction projects and corrects
surface irregularities
GTEC® DIRECT BOND LINING
193
non-laminated GTEC Board
to suit required performance
continuous bonding compound
ribbon 50mm from top of board
250 x 75mm dab of
GTEC Universal
Bonding Compound
cut board to receive
socket box
continuous dab around
socket boxes
max. spacing of 600mm
continuous bonding compound
ribbon 50mm from base of board
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
194
GTEC® DIRECT BOND LINING
TIP: With GTEC Thermal Boards the wall surface
and insulation is installed in one operation.
continuous bonding compound
ribbon 50mm from top of board
GTEC Thermal Board
to suit required performance
GTEC Universal Bonding Compound
GTEC Nailable Plug
continuous dab
around socket boxes
cut board to
receive socket box
max. spacing
of 400mm
continuous bonding
compound ribbon 50mm
from base of board
GTEC® DIRECT BOND LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards, except GTEC Aqua Board and
GTEC Vapour Board
Provides wall surface suitable for finishing.
See performance tables, p180-191
All GTEC Thermal Boards
Provides wall surface suitable for finishing and thermal
insulation
See performance tables, p180-191
BOARDS
FRAME
None required
FIX
GTEC Universal Bonding Compound
Directly bonds plasterboard to walls
n/a
GTEC Nailable Plug
Mechanical secondary fixing of GTEC Thermal Boards
n/a
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FINISHING
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
195
196
GTEC® DIRECT BOND LINING
SYSTEM GUIDANCE
SUBSTRATE
GTEC Direct Bond Lining system is suitable
for most level, masonry substrates.
All substrates to be clean and dust free with
all loose material removed. All grease, oil
and contaminants to be removed; chemical
cleaning may be required.
Substrate treatment for bonding:
Substrate
Treatment
Very low suction
May require mechanical fixing
Low and medium suction
None
High suction
PVAC bonding agent
All loose plasterwork to be removed. Existing
plasterwork in good condition may be
suitable for GTEC Direct Bonding provided
all paint has been removed and adequate
key is established by treating with a PVAC
bonding agent according to manufacturer’s
instructions.
Substrates subject to moisture ingress to use
mechanical fixing system. External solid walls
with render finishes exposed to severe frosts
are not suitable for bonding.
BONDING
LG-DB-181S-Base detail
LG-DB-180M-Dab sizing
-75
50
25
GTEC Board
to suit required performance
50
continuous ribbon of GTEC Universal
Bonding Compound to support skirting
0
25
GTEC Universal
Bonding Compound
GTEC Intumescent Acoustic Sealant
ISOMETRIC
LG-DB-182S-Base detail – GTEC Thermal Boards
SECTION
LG-DB-183S-Head detail
GTEC Thermal Board
to suit required performance
continuous ribbon of GTEC Universal
Bonding Compound to support skirting
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Board
to suit required performance
GTEC Intumescent Acoustic Sealant
SECTION
SECTION
GTEC® DIRECT BOND LINING
LG-DB-184S-Head detail – GTEC Thermal Boards
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Thermal Board
to suit required performance
SECTION
SECTION
Boards to be fixed to substrate using
GTEC Universal Bonding Compound.
Minimum 20% contact area between
boards and dabs.
Bonding dabs to be:
Continuous ribbons of bonding compound
to be provided 50mm from head and base of
each board and around perimeter of walls to
ensure air-tightness and provide robust fixing
for trims.
Socket boxes to be surrounded by continuous
ribbon of bonding compound.
250mm x 50-75mm.
Minimum 10mm thick and up to 25mm to
provide board levelling.
At 600mm maximum horizontal centres and
300mm maximum vertical centres.
At 400mm maximum horizontal centres and
300mm vertical centres for GTEC Thermal
Boards.
Minimum of three ‘columns’ of dabs
per board.
Minimum 25mm from board edges.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
197
198
GTEC® DIRECT BOND LINING
BOARDING
LG-DB-201E-Nailable plug arrangement
The GTEC Direct Bond lining system is
suitable for single layer boarding only.
1200mm
25mm
300mm
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables, p180-191, and Product
Specification, p294-307 to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
GTEC Vapour Board and GTEC Aqua Board
cannot be bonded using the GTEC Direct
Bond lining system.
Boards to be 5mm less than floor to
ceiling height.
Thermal Boards only:
Select GTEC Thermal Board type and
thickness according to desired thermal
value and requirement for vapour barrier.
2100mm
GTEC Thermal Board thickness may be
reduced by utilising higher insulation
grade boards, e.g. GTEC Thermal K Board.
Retain each GTEC Thermal Board with
two GTEC Nailable Plugs to suit board
depth, fitted through holes drilled in
board, through cavity and penetrating
25mm into masonry substrate. Render
or plaster should not be regarded as a
stable substrate for GTEC Nailable Plug
penetration.
ELEVATION
MOVEMENT CONTROL JOINTS
Form movement control joints at maximum
10m intervals in the lining run.
Form movement control joints where the
lining crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
Continuous ribbon of GTEC Universal Bonding
Compound to be provided either side of
movement control joint.
GTEC® DIRECT BOND LINING
OPENINGS
LG-DB-402P-Door jamb
LG-DB-401P-Window reveal
GTEC Board
to suit required
performance
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Corner 90º
External /
GTEC Flex Tape
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Board
to suit required performance
PLAN
PLAN
LG-DB-403P-Window reveal – GTEC Thermal Boards
Thinner, higher grade of
GTEC Thermal Board to
reduce reveal depth
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Corner 90º
External /
GTEC Flex Tape
GTEC Thermal Board
to suit required performance
PLAN
See Construction Details Drawings for further
guidance on arrangement and fixing.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
199
200
GTEC® DIRECT BOND LINING
CORNERS AND JUNCTIONS
LG-DB-502P-Internal corner – GTEC Thermal Boards
LG-DB-501P-Internal corner
Continuous ribbon of
GTEC Universal
Bonding Compound
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Thermal Board
to suit required performance
GTEC Board
to suit required
performance
PLAN
LG-DB-503P-External corner
PLAN
PLAN
LG-DB-504P-External corner – GTEC Thermal Boards
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Corner 90º External /
GTEC Flex Tape
Continuous ribbon of
GTEC Universal
Bonding Compound
Continuous ribbon of
GTEC Universal
Bonding Compound
GTEC Board
to suit required
performance
GTEC Thermal Board
to suit required
performance
10-25mm
GTEC Universal Bonding
Compound dabs
GTEC Universal Bonding
Compound dabs
PLAN
LG-DB-505P-Partition junction
PLAN
LG-DB-506P-Partition junction – GTEC Thermal Boards
Continuous ribbon of
GTEC Universal
Bonding Compound
Continuous ribbon of
GTEC Universal
Bonding Compound
Mineral wool insulation
to improve continuity
of thermal layer
GTEC Partition System
to suit required performance
GTEC Partition System
to suit required performance
GTEC Board
to suit required performance
GTEC Thermal Board
to suit required performance
PLAN
PLAN
GTEC® DIRECT BOND LINING
See Construction Details Drawings for further
guidance on arrangement and fixing.
FINISHING
FIXTURES
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to board
type to be used.
PENETRATIONS
All fixtures to be fixed through to substrate
using appropriate fixings.
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated linings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
Full, imperforate system continuity to be
maintained to achieve rated performances.
Protect all electrical cables in cavity
with conduit.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
201
202
GTEC® CONTOUR LINING
®
GTEC CONTOUR
LINING SYSTEMS
The GTEC Contour Lining system is a simple and fast means
of renovating flat walls which simply need a new, consistently
smooth finish e.g. tiled or plastered walls which have become
scuffed or chipped.
The system uses GTEC Wall Lining Adhesive to directly attach
light and strong GTEC Contour Board to the substrate. It provides
a smooth surface by boarding over existing finishes but will not
correct substrates which are out of plumb.
Once complete, the system provides a smooth and easy to finish
plasterboard surface in the minimum thickness.
WHERE TO USE:
GTEC Contour Board Lining system is suitable for use over
existing wall finishes such as distressed tiled walls.
FEATURES
BENEFITS
8mm total lining thickness
Minimum increase in wall thickness
Quick curing adhesive
Can be jointed and finished quickly after
initial installation
High strength adhesive
No need to remove firmly attached plasterwork
or tiling from the substrate
Lightweight board
Easy to install
GTEC® CONTOUR LINING
TIP: Thin, but strong, GTEC Contour Board
is ideal for resurfacing but also excellent for
curved partitions, see p70.
GTEC Contour Board
GTEC Wall Lining Adhesive
25 x 25mm dabs at 300mm
horizontal and vertical centres
flat, smooth substrate requiring
refurbishment of surface only
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
203
204
GTEC® CONTOUR LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
BOARDS
All GTEC Boards, except GTEC Aqua Board and
GTEC Vapour Board
Provides wall surface suitable for finishing
GTEC Contour Board
Provides wall surface suitable for finishing
in minimum thickness
FRAME
None required
FIX
GTEC Wall Lining Adhesive
Ready mixed adhesive for direct bonding to substrate
n/a
GTEC Nailable Plug
Mechanical secondary fixing of GTEC Contour Boards
n/a
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FINISHING
GTEC® CONTOUR LINING
SYSTEM GUIDANCE
SUBSTRATE
GTEC Contour Lining system is suitable for
most flat, level, secure substrates not subject
to moisture ingress which require only
surface renovation.
All substrates to be clean with all loose
material, wallpaper and protrusions
removed. All contaminants to be
removed from ceramic tiles.
Substrate treatment for bonding:
Substrate
Treatment
Low suction / dusty
May require PVAC bonding agent
Medium suction
Coarse sanding
High suction
n/a
BONDING
Boards to be fixed to substrate using
GTEC Wall Lining Adhesive.
Bonding dabs to be:
25mm x 25mm.
2mm thick after board application.
At 300mm maximum horizontal and
vertical centres.
Minimum 25mm from board edges.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
205
GTEC® CONTOUR LINING
BOARDING
LG-CN-201E-Nailable plug arrangement
25mm
600mm
1600mm
800mm
1200mm
206
ELEVATION
The GTEC Contour Board lining system is
suitable for single layer boarding only.
The GTEC Contour Lining system is designed
for use with 6mm GTEC Contour Board only.
Thermal Boards only:
GTEC Contour Lining system is not suitable
for use with GTEC Thermal Boards.
Boards to be 5mm less than floor to
ceiling height.
Retain each GTEC Contour Board with
five GTEC Nailable Plugs to suit board
depth, fitted through holes drilled in board,
penetrating 25mm into substrate. Render or
plaster should not be regarded as a stable
substrate for GTEC Nailable Plug Penetration.
MOVEMENT CONTROL JOINTS
Form movement control joints at maximum
10m intervals in the lining run.
Form movement control joints where the
lining crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to
board type to be used.
FIXTURES
All fixtures to be fixed through to substrate
using appropriate fixings.
SYSTEM CONTINUITY
The substrate behind the GTEC Contour
Lining system must provide the fire, acoustic
and thermal performance required by the wall
element, GTEC Contour Board is a surface
renovation board only.
207
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
208
GTEC® SHALLOW WALL LINING
®
GTEC SHALLOW
WALL LINING
SYSTEMS
The GTEC Shallow Wall Lining system is an alternative to the
GTEC Direct Bond Lining system. It provides a mechanical fix for
boards which are unsuitable for use with GTEC Universal Bonding
Compound. It can also create a fully mechanically fixed option where
the substrate cannot be bonded, such as some concrete walls.
The system uses GTEC Universal Bonding Compound to attach
GTEC Shallow Wall Channels to the substrate providing a fixing
surface for GTEC Boards. When bonded, it can correct minor surface
irregularities through minimal levelling adjustment of the shallow
channel before the dabs have cured. Alternatively, the GTEC Shallow
Wall Channels can be fixed directly into the substrate.
WHERE TO USE:
The GTEC Shallow Wall Lining system is suitable for most project
types and masonry substrates.
FEATURES
BENEFITS
Plasterboard finish
Easy to decorate flat surface
Intermittent cavity up to 25mm deep
Space for small conduits and services
Mechanical board fixing
Substrate for all GTEC Boards
Mechanical or adhesive channel fixing
Fixes to most substrates
Compatible with GTEC Thermal Boards
Improves U-values
Perforated channel for bonding key
Strong and easy to fix
GTEC® SHALLOW WALL LINING
TIP: GTEC Aqua Board is an extremely water
resistant plasterboard, ideal for wet rooms.
GTEC Aqua Board or Vapour Board
or other to suit required performance
channel continuously fixed around
openings and perimeter
250mm dabs at max.
450mm centres
GTEC Shallow Wall Channel
bonded or mechanically fixed to wall
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
209
210
GTEC® SHALLOW WALL LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
in minimum thickness
See performance tables, p180-191
All GTEC Thermal Boards
Provides wall surface suitable for finishing and
thermal insulation
See performance tables, p180-191
GTEC Shallow Wall Channel
Dabbed or fixed to wall to provide fixing substrate
for boards
MFCS/RX
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
GTEC Universal Bonding Compound
Gypsum based compound for bonding GTEC Shallow
Wall Channel to walls. Suitable for GTEC thermal boards
n/a
GTEC Drywall Screws (as appropriate)
For mechanical fixing of boards to GTEC Shallow Wall
Channel
See screw selector, p334
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
BOARDS
FRAME
FIX
FINISHING
GTEC® SHALLOW WALL LINING
SYSTEM GUIDANCE
SUBSTRATE
GTEC Shallow Wall Lining system is suitable
for most level, masonry substrates and may
be bonded or mechanically fixed.
All substrates to be clean and dust free
with all loose material removed. All grease,
oil and contaminants to be removed;
chemical cleaning may be required.
Substrate treatment for bonding:
Substrate
Treatment
Very low suction
May require mechanical fixing
Low and medium suction
None
High suction
PVAC bonding agent
All loose plasterwork to be removed.
Existing plasterwork in good condition may
be suitable for GTEC Universal Bonding
Compound provided all paint has been
removed and key is established by treating
with a PVAC bonding agent according to
manufacturer’s instructions.
Substrates subject to moisture ingress
require mechanical fixing of GTEC Shallow
Wall Channels. External solid walls with
render finishes exposed to severe frosts
are not suitable for bonding.
FRAME
LG-ML-102S-Base Detail
LG-ML-101S-Head Detail
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required
performance
GTEC Universal
Bonding Compound
GTEC Universal
Bonding Compound
screw fix plasterboard
to channel at 300mm centres
screw fix plasterboard
to channel at 300mm centres
GTEC Shallow
Wall Channel
Max.
80mm
GTEC Shallow
Wall Channel
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required
performance
SECTION
LG-DB-180M-Dab sizing
SECTION
LG-ML-181M-Mechanical fixing
-75
50
25
GTEC Shallow Wall Channel
mechanically fixed to substrate
50
0
25
GTEC Universal
Bonding Compound
ISOMETRIC
board fixed to channel
at max. 300mm centres
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
211
212
GTEC® SHALLOW WALL LINING
FRAME continued
GTEC Shallow Wall Channel to be fixed to
substrate in continuous vertical lengths
at 600mm horizontal centres using dabs
of GTEC Universal Bonding Compound or
mechanically fixed using appropriate fixings
by others.
GTEC Shallow Wall Channels may be shot
fired to dense substrates following fixing
manufacturer’s instructions.
Horizontal lengths of GTEC Shallow Wall
Channel to be fixed maximum 50mm from
head and base of lining.
Bonding dabs to be:
250mm x 50-75mm.
Minimum 10mm thick and up to 25mm
to provide board levelling.
At 450mm maximum vertical centres.
Minimum of two dabs per channel not
exceeding vertical centres above.
Minimum 25mm from board edges.
Continuous ribbons of bonding
compound to be provided 50mm from
head and base of board and around
perimeter of walls and openings to
provide fixing for horizontal channel.
Socket boxes to be surrounded by continuous
ribbon of bonding compound.
BOARDING
The GTEC Shallow Wall lining system is
suitable for single layer boarding only.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables, p180-191, and Product
Specification, p294-307, to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to be 5mm less than floor to
ceiling height.
Board edges to be centred over channels.
Boards to be mechanically fixed to channels
at 300mm centres using appropriate GTEC
Drywall Screws. See screw selector p334.
Height of GTEC Shallow Wall linings should
not exceed two boards in height in one
operation. Safety precautions should be
taken when bonding boards above single
board height.
Thermal Boards only:
Select GTEC Thermal Board type and
thickness according to desired thermal value
and requirement for vapour barrier.
GTEC Thermal Board thickness may be
reduced by utilising higher insulation grade
boards, e.g. GTEC Thermal K Board.
GTEC® SHALLOW WALL LINING
MOVEMENT CONTROL JOINTS
LG-ML-301P-Movement joint
GTEC Universal
Bonding Compound
Max.
80mm
Max.
80mm
GTEC Shallow
Wall Channel
GTEC Board
to suit required
performance
GTEC Movement
Control Joint
10mm
PLAN
Form movement control joints at maximum
10m intervals in the lining run.
Form movement control joints where the
lining crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
OPENINGS AND CORNERS
LG-ML-401P-Window reveal
LG-ML-402P-Door jamb
GTEC Board
to suit required
performance
GTEC Universal
Bonding Compound
GTEC Board
to suit required
performance
GTEC Universal
Bonding Compound
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Shallow
Wall Channel
GTEC Shallow
Wall Channel
PLAN
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
213
GTEC® SHALLOW WALL LINING
OPENINGS AND CORNERS continued
LG-ML-501P-Internal corner
LG-ML-502P-External corner
fix board to channel
at 300mm centres
fix board to channel
at 300mm centres
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Universal
Bonding Compound
GTEC Universal
Bonding Compound
GTEC Shallow
Wall Channel
GTEC Shallow
Wall Channel
GTEC Board
to suit required
performance
PLAN
GTEC Board
to suit required
performance
PLAN
LG-ML-503P-Junction with partition
Max.
80mm
GTEC Shallow Wall Channel
GTEC Intumescent
Acoustic Sealant
Max.
80mm
214
GTEC Partition System
GTEC Board
to suit required performance
PLAN
GTEC Shallow Wall Channel to be
fixed vertically and horizontally
around openings to provide maximum
50mm of unsupported board.
At corners GTEC Shallow Wall Channel to be
fixed vertically to provide maximum 50mm of
unsupported board.
GTEC® SHALLOW WALL LINING
FINISHING
FIXTURES
All board joints to be taped, jointed
or finished according to guidance
in Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to board
type to be used
PENETRATIONS
All fixtures to be fixed through to substrate
using appropriate fixings.
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated linings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
Full, imperforate system continuity to be
maintained to achieve rated performances.
Protect all electrical cables in cavity
with conduit.
Where channels are mechanically
fixed there are no inherent restrictions
on height providing board loads are
fully transferred to substrate.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
215
216
GTEC® DRYLINER LINING
®
GTEC DRYLINER
LINING SYSTEMS
The GTEC Dryliner Lining system is a fully dry, light frame,
drylining system. The cavity created behind the boards allows
for heavier services and sound or thermal insulation.
For stable, high performance drylining, the system uses GTEC Dryliner
Brackets fixed to the substrate to support a frame of GTEC Dryliner
Channel and Tracks.
Once complete, the GTEC Dryliner Lining system provides a clean,
flat and easy to finish plasterboard surface with superior technical
performance than shallow lining systems.
WHERE TO USE:
The GTEC Dryliner Lining system is ideal for most stable
substrates where continuous cavities behind boards of up
to 130mm are required and/or where high levels of substrate
correction are needed.
FEATURES
BENEFITS
Plasterboard finish
Easy to decorate flat surface
Cavity up to 130mm deep
Space for heavy duty services and insulation
Mechanical fixing board
Fixes all GTEC Boards
Cavity frame design
Achieves higher technical performances
Mechanical fixing bracket
Fixes to most stable substrates
Compatible with GTEC Thermal Boards
Improves U-values
Adjustable bracket design
Can adjust depth for high level of
substrate correction
GTEC® DRYLINER LINING
TIP: The GTEC Drywall Screw range
has been improved, see the Screw
Selector Guide on p334.
GTEC Dryliner Track
m
0m
0
6
x.
Ma
GTEC Dryliner Channel
Max. 800mm
GTEC Dryliner Brackets
to suit cavity depth
GTEC Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
217
218
GTEC® DRYLINER LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides ceiling surface suitable for finishing
See performance tables, p180-191
All GTEC Thermal Boards
Provides wall surface suitable for finishing and
thermal insulation
See performance tables, p180-191
GTEC Dryliner Channel
A galvanised steel furring channel for
plasterboard fixing
RD1
GTEC Dryliner Channel Connector
A galvanised clip used to join sections of
GTEC Dryliner Channel
RD3
GTEC SR bracket
Adjustable bracket to brace GTEC Dryliner Channel
to substrate
RD2
GTEC XR bracket
Adjustable, extended reach bracket to brace
GTEC Dryliner Channel to substrate
RD11
GTEC Dryliner Track
J shaped metal section used as a track and
perimeter channel
RD9
GTEC Metal Angle
Multi-purpose metal section
MFC2330, MFC2525, MFC2550
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance tables
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
BOARDS
FRAME
INSULATION
FIX
GTEC® DRYLINER LINING
System Component
System primary use
Product Reference
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FINISHING
SYSTEM GUIDANCE
SUBSTRATE
GTEC Dryliner Lining system is suitable
for most stable substrates where fixing of
bracket will be structurally secure.
GTEC Independent Wall Lining system to be
used for substrates subject to uncontrolled
moisture ingress.
Finished substrates may be fixed to provided
bracket fixing penetrates into structure.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
219
GTEC® DRYLINER LINING
FRAME
LG-DY-102S-Head detail – GTEC Thermal Boards
LG-DY-002P-Cavity size range
GTEC Intumescent
Acoustic Sealant
GTEC Standard Reach
Dryliner Bracket
Max. 800mm
Max. 60mm
GTEC Dryliner Track
screw fix plasterboard
to channel at 300mm centres
GTEC Thermal Board
to suit required performance
GTEC Dryliner Channel
GTEC Dryliner Brackets
to suit required cavity depth
Min. 25mm
GTEC Standard Reach
Dryliner Bracket
SECTION
LG-DY-104S-Base detail – GTEC Thermal Boards
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Extended Reach
Dryliner Bracket
Max. 800mm
Max. 130mm
GTEC Dryliner Channel
GTEC Thermal Board
to suit required performance
screw fix plasterboard
to channel at 300mm centres
GTEC Dryliner Track
GTEC Intumescent
Acoustic Sealant
SECTION
SECTION
LG-DY-101S-Head detail
LG-DY-103S-Base detail
GTEC Intumescent
Acoustic Sealant
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Dryliner Track
screw fix plasterboard
to channel at 300mm centres
GTEC Board
to suit required performance
Max. 800mm
GTEC Dryliner Channel
Max. 800mm
220
GTEC Board
to suit required performance
screw fix plasterboard
to channel at 300mm centres
GTEC Dryliner Channel
GTEC Dryliner Track
GTEC Dryliner Brackets
to suit required cavity depth
SECTION
GTEC Intumescent
Acoustic Sealant
SECTION
GTEC® DRYLINER LINING
GTEC Dryliner Track to be fixed to structure
at perimeter of lining run. Fix at 600mm
centres using appropriate fixings. Allow for
board depth when positioning channel and
to achieve required cavity depth.
Select GTEC Dryliner Brackets (SR and XR)
to suit cavity depth required:
GTEC Dryliner Bracket
Cavity Depth Range
GTEC SR Bracket
25mm-60mm
GTEC XR Bracket
25mm-130mm
GTEC Dryliner Channel to be positioned at
maximum 600mm centres for GTEC Board
and at maximum 400mm horizontal centres
for GTEC Thermal Boards.
GTEC Dryliner Brackets to fixed to structure
in a line at maximum 800mm vertical centres
to receive GTEC Dryliner Channel:
GTEC SR and XR Brackets to be fixed
using appropriate structural fixing
supplied by others.
GTEC Dryliner Channel to be 5mm shorter
than floor to ceiling height, located into
GTEC Dryliner Track.
GTEC Dryliner Channel to be attached to both
GTEC Dryliner Bracket legs with appropriate
GTEC Drywall Screws (see screw selector
p334) and levelled by adjusting brackets.
Excess bracket leg length to be removed or
bent back.
GTEC Dryliner Channel may be spliced if
necessary using GTEC Dryliner Channel
Connector.
INSULATION
Any insulation to be of type and thickness
to achieve performance and tightly installed
in a continuous layer between brackets and
behind channels.
Where insulation may be expected to slump
suspend from GTEC Insulation Hold strips
150mm from top of partition and at 1200mm
vertical centres.
10mm clear gap to be maintained between
substrate and insulation.
BOARDING
The GTEC Dryliner lining system is suitable for
single, double and multiple layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables, p180-191, and Product
Specification, p294-307, to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to be 5mm less than floor to
ceiling height.
Board edges to be centred over channels.
Boards to be mechanically fixed to channels
and track at 300mm centres using
appropriate GTEC Drywall Screws.
See screw selector p334.
Board joints to be staggered between layers.
Over-height single layer boarding:
Where partition height exceeds board height
fix boards to continuous band of GTEC Flat
Strap FS90/W or GTEC MFIX behind all
horizontal joints to maintain fire integrity.
Over-height multiple layer boarding only:
Where partition height exceeds board
height for double or multiple layer boarding
fix outer layer of boards to continuous
band of GTEC Flat Strap FS50/RX behind
all horizontal joints.
Thermal Boards only:
Select GTEC Thermal Board type and
thickness according to desired thermal
value and requirement for vapour barrier.
GTEC Thermal Board thickness may be
reduced by utilising higher insulation
grade boards, e.g. GTEC Thermal K Board.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
221
222
GTEC® DRYLINER LINING
MOVEMENT CONTROL JOINTS
LG-DY-301P-Movement joint
Max.
50mm
LG-DY-302P-Movement joint – GTEC Thermal Boards
Max.
50mm
Max.
50mm
Max.
50mm
50mm Rock Mineral wool
insulation 40kg/m3
(if fire rated system)
Mineral Wool insulation
GTEC Board
to suit required
performance
GTEC Movement
Control Joint
10mm
GTEC Thermal Board
to suit required
performance
GTEC Movement
Control Joint
10mm
PLAN
Form movement control joints at maximum
10m intervals in the lining run.
Form movement control joints where the
lining crosses a structural movement joint.
PLAN
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
OPENINGS AND CORNERS
LG-DY-401P-Window reveal
LG-DY-402P-Window reveal – GTEC Thermal Boards
GTEC Dryliner Track
GTEC Dryliner Track
Thinner, higher grade of
GTEC Thermal Board to
reduce reveal depth
GTEC Board
to suit required
performance
GTEC Metal Angle
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Dryliner Channel
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Metal Angle
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Dryliner Channel
PLAN
PLAN
GTEC® DRYLINER LINING
LG-DY-501P-Internal Corner
LG-DY-502P-Internal corner – GTEC Thermal Boards
GTEC Intumescent Acoustic Sealant
GTEC Intumescent Acoustic Sealant
fold bracket over channel
and fix to suit corners
fold bracket over channel
and fix to suit corners
GTEC Dryliner Channel
GTEC Dryliner Channel
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Thermal Board
to suit required performance
GTEC Board
to suit required performance
PLAN
LG-DY-503P-External corner
PLAN
LG-DY-504P-External corner – GTEC Thermal Boards
25mm
25mm
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Metal Angle
fixed to the track
GTEC Metal Angle
fixed to the track
GTEC Dryliner Channel
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Dryliner Channel
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Board
to suit required
performance
GTEC Board
to suit required
performance
PLAN
LG-DY-505P-Partition junction
PLAN
LG-DY-506P-Partition junction – GTEC Thermal Boards
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Dryliner Brackets
to suit required cavity depth
GTEC Dryliner Channel
GTEC Dryliner Channel
GTEC Partition System
to suit required performance
GTEC Partition System
to suit required performance
Rock wool insulation to
improve continuity of
thermal layer at first stud
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required performance
GTEC Thermal Board
to suit required performance
PLAN
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
223
224
GTEC® DRYLINER LINING
OPENINGS AND CORNERS continued
LG-DY-507P-Change in lining depth
GTEC Dryliner Bracket
to suit required depth
GTEC Dryliner
Channel
fix plasterboard
to channel at
150mm centres
GTEC Board
to suit required
performance
GTEC Corner 90º
External / GTEC Flex Tape
SECTION
At external corners GTEC Dryliner Channel
and brackets to be positioned maximum of
25mm from edge of substrate. GTEC Metal
Angle to be fixed to head and base track to
provide internal reinforcement and fixing
substrate.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to
board type to be used.
FIXTURES
Fixtures may be fixed through to substrate
using appropriate fixings or fixed through
board to channels.
Fixtures may be attached directly to board
provided adequate provision has been made.
See guidance in GTEC C Stud Partitions
section, p67.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated linings.
Any penetrations must be fully sealed with
GTEC Intumescent Acoustic Sealant or
other fire resisting material as specified
in Construction Detail Drawings.
Protect all electrical cables
in cavity with conduit.
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Full, imperforate system continuity to be
maintained to achieve rated performances.
There are no inherent restrictions on height
provided loads are fully transferred to
substrate. Contact Technical Enquiryline
for further guidance.
225
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
226
GTEC® INDEPENDENT WALL LINING
®
GTEC
INDEPENDENT WALL
LINING SYSTEMS
Based on the GTEC C Stud Partition system, the GTEC Independent
Wall Lining system is a fully dry, light frame, drylining system. It is
completely separated from the underlying substrate.
The GTEC Independent Wall Lining system combines GTEC Boards
with GTEC I or C Studs fixed into GTEC U Tracks. The cavity created
behind the boards can be of any depth. This allows for heavy
services, ducting, and insulation.
Once complete, the GTEC Independent Wall Lining system provides
a clean, flat and easy to finish plasterboard surface, offering the
highest technical performances.
WHERE TO USE:
Ideal for commercial projects where deep continuous cavities behind boards
are needed to correct or isolate substrates and accommodate services.
Particularly suited to substrates which may not be suitable for direct fixing,
e.g. metal cladding and other modern methods of construction.
FEATURES
BENEFITS
Plasterboard finish
Easy to decorate flat surface
Completely variable cavity depth
Provides space for heavy duty services
and the highest levels of insulation
Mechanical board fixing
Fix all GTEC Boards
Cavity frame design
Achieves higher technical performances
Based on GTEC Metal C Stud system
Reliable and commonly used
Completely independent from substrate
No thermal bridging created
Drylines any substrate
Can adjust depth for high level
of substrate correction
Creates false wall
Upgrade existing structures
GTEC® INDEPENDENT WALL LINING
TIP: ‘False walls’ created with GTEC Independent Wall Linings
can hide unattractive services or structure.
GTEC C Studs
fixed at right angles
GTEC U Track Deep Flange
snipped and folded down to reinforce corners
GTEC C Stud
fixed back to back
to create opening
GTEC I Stud
GTEC Board
to suit required performance
GTEC U Track
GTEC Intumescent Acoustic Sealant
Insulation quilt to suit required performance
Timber sole plate if required
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
227
228
GTEC® INDEPENDENT WALL LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
All GTEC Boards
Provides wall surface suitable for finishing
See performance tables, p180-191
All GTEC Thermal Boards
Provides wall surface suitable for finishing and
thermal insulation
See performance tables, p180-191
GTEC I Studs
Metal profile for vertical frame elements
IS50/RX, IS60/B, IS70/B, IS90/B
GTEC C Stud
Metal profile for vertical frame elements
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/B,
CS90/W, CS70/Y, CS90/Y, CS146/Y
GTEC U Track
Metal profile for head and base frame elements
UT52/RX, UT62/RX, UT72/RX, UT92/RX,
UT148/RX
GTEC U Track Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UDT62/B, UDT72/B, UDT92/B,
UDT148/B, UT52/Y
GTEC U Track Extra Deep Flange
Used for partitions with heights exceeding 4.2m and
with deflection heads
UXT72/B, UXT92/W, UXT148/W
GTEC Acoustic V Brace 90°
For bracing lining to substrate
VBRACE90
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
BOARDS
FRAME
INSULATION
FIX
GTEC® INDEPENDENT WALL LINING
System Component
System primary use
Product Reference
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FINISHING
SYSTEM GUIDANCE
SUBSTRATE
GTEC Independent Wall Lining system
is fully independent of the substrate.
Protrusions greater than design
cavity depth to be removed.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
229
230
GTEC® INDEPENDENT WALL LINING
FRAME
LG-IW-101S-Head detail
LG-IW-102S-Base detail
GTEC U Track Deep Flange
fixed at 600mm centres
Min.
10mm
screw fix plasterboard
to stud at 300mm centres
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required performance
GTEC Board
to suit required
performance
GTEC I Stud cut 5mm shorter
than floor to ceiling height
GTEC I Stud 5mm shorter
than floor to ceiling height
Min.
10mm
screw fix plasterboard
to stud at 300mm centres
SECTION
Select compatible sized (e.g. 50mm stud
and 52mm track) GTEC I Stud, GTEC C Stud
and GTEC U Track framing elements to suit
system performance.
GTEC U Track Deep or Extra Deep Flange to
be used for heights greater than 4.2m.
GTEC Intumescent
Acoustic Sealant
GTEC U Track
Deep Flange fixed
at 600mm centres
SECTION
Protect base track from moisture with damp
proof membrane when situated on newly laid
concrete floors.
All GTEC Studs to be 5mm shorter than floor
to ceiling height except in case of deflection
requirement.
GTEC C Studs as starter studs to be fixed
with web flat to structure using appropriate
fixings at maximum 600mm centres and
fixed to head and track with appropriate
GTEC Drywall Screws (see screw selector
p334).
Intermediate GTEC Studs to be friction fitted
to allow for adjustment during boarding.
GTEC U Track to be fixed flat to structure
using appropriate fixings at maximum
600mm centres and positioned a minimum
of 10mm from substrate.
For heights over values in performance tables
GTEC Acoustic V Brace 90 may be used to
brace linings while maintaining acoustic
isolation. Contact Technical Enquiryline for
more information.
Timber sole plate may be required on uneven
floors or where lining is constructed prior to
screeding.
GTEC Studs to be at centres required to
achieve performance and at a maximum
of 600mm centres.
GTEC® INDEPENDENT WALL LINING
INSULATION
Any insulation to be of type and thickness
to achieve performance and installed in a
continuous layer between and behind studs
to suit required performance.
Where insulation may be expected to slump
suspend from GTEC Insulation Hold strips
fixed across studs, 150mm from top of
partition and at 1200mm vertical centres.
BOARDING
GTEC Independent Lining system is suitable
for single, double and multiple layer boarding.
Select base layer(s) and finishing layer(s)
GTEC Boards by consulting System
Performance Tables, p180-191, and Product
Specification, p294-307, to achieve required
performance. See High Performance Boards
guide p12 for further selection information.
Boards to be 5mm less than floor to ceiling
height.
Strips of board 300mm wide or less to be
avoided by stud location rearrangement.
Boards to be mechanically fixed to studs
at 300mm centres using appropriate GTEC
Drywall Screws. See screw selector p334.
Base layers of boarding may be temporarily
fixed at 600mm centres providing final layer
is fixed through to stud at 300mm centres
Over-height single layer boarding only:
Where partition height exceeds board height
fix boards to continuous band of GTEC Flat
Strap FS90/W or GTEC MFIX behind all
horizontal joints to maintain fire integrity.
Over-height multiple layer boarding only:
Where partition height exceeds board
height for double or multiple layer
boarding fix outer layer of boards to
continuous band of GTEC Flat Strap
FS50/RX behind all horizontal joints.
Thermal Boards only:
Select GTEC Thermal Board type and
thickness according to desired thermal
value and requirement for vapour barrier.
GTEC Thermal Board thickness may be
reduced by utilising higher insulation
grade boards, e.g. GTEC Thermal K Board.
Board edges to be centred over studs.
Stagger all board joints between layers.
Stagger all board joints on opposing sides
of partition.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
231
232
GTEC® INDEPENDENT WALL LINING
MOVEMENT CONTROL JOINTS
LG-IW-301P-Movement joint
Max.
50mm
Max.
50mm
rock mineral
wool insulation
GTEC I Stud
GTEC Board
to suit required
performance
10mm
GTEC Movement
Control Joint
PLAN
Form movement control joints at maximum
10m intervals in the partition run.
Form movement control joints where the
partition crosses a structural movement joint.
Fix GTEC Movement Control Joint, butted
end-to-end, to board with sheradised or
galvanised staples.
OPENINGS
LG-IW-401P-Window reveal
Sections of GTEC C Studs to be fitted to back
of jamb C Stud above and below opening.
GTEC Intumescent
Acoustic Sealant
fix board to back of
GTEC C Stud
to create rewell
GTEC Corner 90º
External /
GTEC Flex Tape
GTEC Board
to suit required
performance
PLAN
Reinforce head-to-jamb junction 150mm
down each jamb stud by cutting and folding
head track.
Jamb studs to be fixed to track with
appropriate GTEC Drywall Screws
(see screw selector p334).
Reveals may be formed by fixing plasterboard
to web of GTEC C Stud. Additional studs and
tracks may be required for deeper reveals.
GTEC® INDEPENDENT WALL LINING
CORNERS AND JUNCTIONS
LG-IW-501P-Internal Corner
LG-IW-502P-External Corner
GTEC Intumescent
Acoustic Sealant
screw fix GTEC C Stud
together board at
600mm centres
GTEC Board
to suit required
performance
screw fix GTEC C Stud together
through board at 600mm centres
GTEC Intumescent
Acoustic Sealant
GTEC I Stud
at max. 600mm centres
GTEC I Stud at max.
600mm centres
GTEC Board
to suit required performance
PLAN
LG-IW-503P-Junction with partition
PLAN
LG-IW-504P-Acoustic rated junction
GTEC Board
to suit required performance
Ensure GTEC I Stud
coincides with partition
GTEC Board
to suit required performance
GTEC Resilient Tape
where required by substrate
Screw fix GTEC C Stud to
GTEC I Stud at 600mm centres
GTEC Partition System
to suit required performance
GTEC Partition System
to suit required performance
GTEC C Stud
fixed to substrate
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
PLAN
PLAN
PLAN
LG-IW-505P-Braced acoustic lining
Abutting partitions to coincide with studs,
install additional intermediate ‘pick-up’ stud
if required.
GTEC Board
to suit required performance
GTEC Acoustic V Brace 90º
at 3m vertical centres
Connect studs through plasterboards at
corners and junctions at 600mm vertical
centres using appropriate GTEC Drywall
Screws.
See Construction Details Drawings for further
guidance on arrangement and fixing.
GTEC C Stud
fixed to brace
PLAN
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
233
234
GTEC® INDEPENDENT WALL LINING
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated partitions.
Any penetrations must be fully sealed
with GTEC Intumescent Acoustic Sealant
or other fire resisting material as specified
in Construction Detail Drawings.
Protect all electrical cables in cavity
with conduit.
FIXTURES
Fixtures may be attached directly to board
provided adequate provision has been made.
See guidance in GTEC C Stud Partitions
section, p50.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Finish materials appropriate to board
type to be used.
SYSTEM CONTINUITY
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Full, imperforate system continuity must be
maintained to achieve rated performances.
235
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
236
GTEC® PREGYBEL INDEPENDENT LINING
®
GTEC PREGYBEL
INDEPENDENT
LINING SYSTEMS
Sound absorbing wall linings can be created using the GTEC Pregybel
Independent Lining system to improve acoustic comfort by reducing
sound reflection in larger spaces.
Used above pedestrian height perforated GTEC Pregybel Board is
applied to the GTEC Independent Wall Lining system with insulation
for an easy to install sound absorbing lining. Flexible design and simple
specification can be achieved by using these standard components.
Attractive designs are possible created with the variety of patterns in
the GTEC Pregybel range.
Standalone acoustic panels can also be created to mount to walls to
improve sound absorption.
WHERE TO USE:
GTEC Pregybel Independent Linings are used in commercial
applications to improve the acoustic conditions in large spaces.
FEATURES
BENEFITS
Variable cavity depth
Cavity size can be optimised for service and
insulation requirements
Up to Class B acoustic absorption
Utilises GTEC Independent Wall Lining framing
One set of components on site.
Easy to install.
Creates a false wall
Can be used to upgrade existing structures
Perforated boards in a range of patterns
Provides a range of aesthetic options for
variation in large spaces
GTEC® PREGYBEL INDEPENDENT LINING
TIP: GTEC Pregybel is only recommended above
accessible levels where it is less prone to damage.
GTEC U Track
GTEC C Studs
fixed at right angles
GTEC I Studs
GTEC Flat Strap
Insulation quilt and void
to suit required performance
GTEC Pregybel Board
to suit required performance
GTEC Board
to suit required performance
GTEC Corner 90º External or GTEC Flex Tape
to reinforce joints
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
237
238
GTEC® PREGYBEL INDEPENDENT LINING
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
GTEC Pregybel Boards
Perforated board for acoustic absorption
See performance tables, p180-191
GTEC I Studs
Metal profile for vertical frame elements
IS50/RX, IS60/B, IS70/B, IS90/B
GTEC C Stud
Metal profile for vertical frame elements
CS50/RX, CS60/RX, CS70/RX, CS90/RX,
CS146/RX, CS70/B, CS90/B, CS146/B,
CS90/W, CS70/Y, CS90/Y, CS146/Y
GTEC U Track
Metal profile for head and base frame elements
UT52/RX/Y, UT62/RX, UT72/RX, UT92/
RX, UT148/RX
GTEC U Track Deep
Used for linings with heights exceeding 4.2m
UDT52/B, UDT62/B, UDT72/B, UDT92/B,
UDT148/B
GTEC U Track Extra Deep
Used for linings with heights exceeding 4.2m
UXT72/B, UXT92/W, UXT148/W
GTEC Acoustic V Brace 90°
For bracing lining to substrate
VBRACE90
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Movement Control Joint
Flexible metal profile to create movement joint
MCJ304D
Mineral wool insulation
Increases fire and acoustic insulation performance
See performance table
supplied by others
GTEC Insulation Hold
Secures insulation to prevent slump
INSR
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
BOARDS
FRAME
INSULATION
FIX
GTEC® PREGYBEL INDEPENDENT LINING
System Component
System primary use
Product Reference
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration. Ensures system performance
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
GTEC Socket Pad
To maintain acoustic and fire integrity at sockets
PAD1&2
FINISHING
SYSTEM GUIDANCE
See guidance in GTEC Independent Wall Lining section and additional
considerations given below:
BOARDING
LG-PG-101S-Head detail
LG-PG-102S-Base detail
Min.
10mm
GTEC Intumescent
Acoustic Sealant
screw fix plasterboard
to stud at 300mm centres
GTEC U Track Deep Flange
fixed at 600mm centres
GTEC Pregybel Board
to suit required
performance
GTEC I Stud 5mm shorter
than floor to ceiling height
GTEC Pregybel Board
to suit required performance
GTEC I Stud cut 5mm shorter
than floor to ceiling height
GTEC U Track Deep Flange
fixed at 600mm centres
Min.
10mm
screw fix plasterboard
to stud at 300mm centres
SECTION
GTEC Intumescent
Acoustic Sealant
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
239
240
GTEC® PREGYBEL INDEPENDENT LINING
BOARDING continued
LG-PG-501P-Internal Corner
LG-PG-502P-External Corner
GTEC Intumescent
Acoustic Sealant
screw fix GTEC C Stud
together board at
600mm centres
screw fix GTEC C Stud together
through board at 600mm centres
GTEC Pregybel Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
GTEC Pregybel Board
to suit required performance
PLAN
GTEC Pregybel Independent Lining system
is suitable for single layer boarding.
Select GTEC Pregybel Board according
to acoustic performance required and
desired perforation pattern.
Studs to coincide with areas of
unperforated board.
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated linings.
FINISHING
All board joints to be taped, jointed
or finished according to guidance in
Finishing section (p276-291) to achieve
system performances.
GTEC Pregybel Board to be sealed and
painted with rollers to prevent blocking tissue
backing and reducing absorption capability.
GTEC Finish materials appropriate to board
type to be used.
PLAN
GTEC Pregybel boards to be arranged to
achieve desired board pattern. GTEC Pregybel
Boards and GTEC Boards may be mixed
for decorative effect however acoustic
absorption only occurs where board, void and
insulation match the system performance.
GTEC Pregybel boards are recommended
for use above pedestrian height
unless otherwise protected.
SYSTEM CONTINUITY
Only areas with full system continuity will
achieve rated performances.
Bead of GTEC Intumescent Acoustic
Sealant to be applied to perimeter of all
runs and in all other locations specified in
Construction Detail Drawings to prevent
dust accumulation.
GTEC® PREGYBEL INDEPENDENT LINING
ACOUSTIC PANEL
LG-PG-002M-Pregybel Acoustic Panel
LG-PG-103E-Acoustic Panel frame options
GTEC Pregybel Board
to suit required performance
GTEC UDT70/B Tracks
GTEC Board
Fix to wall with
appropriate fixing
by others
GTEC Metal
Angle
(MFC2550)
Max. 3 metres
GTEC CS70/B Stud
GTEC FS50/Rx
Flat Strap
GTEC Flat
Strap to
brace frame
GTEC MFC2550 Angle
Max. 500mm
Stud and
Track Frame
GTEC CS70/B Studs
Insulation quilt and
void to suit required
performance
Max. 3 metres
GTEC UDT70/B Tracks
Fix to wall with
appropriate fixing
by others
GTEC Metal Angle
(MFC2550)
GTEC MFC2550 Angle
Max. 500mm
ISOMETRIC
GTEC Acoustic Panels are suitable for fixing
to most, level, stable and secure substrates
and should be fixed with appropriate fixings
capable of supporting the load of the panel.
SECTION
Board and insulation configuration to be
selected according to acoustic absorption
and pattern required, see performance tables
p180-191.
Box to be positioned above height of
pedestrian movement to prevent crowd
loading, GTEC Acoustic Panels are selfsupporting only.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
241
242
GTEC® FIRE PROTECTION
243
FIRE
PROTECTION
GTEC Shaftwall range uses a specially designed system to
protect voids and shafts in buildings. It resists pressure
changes and enables installation from one side of the
shaft only. GTEC Encasement Fire Protection offers rapid
installation of fire protection around columns and beams.
Performance Tables
GTEC Shaftwall systems
244
GTEC Shaftwall Stairwell systems
248
GTEC Horizontal Shaftwall systems
249
GTEC Encasement systems
250
GTEC Shaftwall systems
GTEC Encasement systems
254
268
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
244
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
GTEC® SHAFTWALL SYSTEMS
See p254 for guidance
System Ref.
Component
Max Height Nominal
System Max
Thickness
Weight Height Back-toBack GTEC E
Studs
(m)
(mm)
(kg/m2) (m)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 102
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
35
4.2
2x
ES60B
4.5
78
60
30
Severe
39
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
36
4.2
2x
ES60B
4.5
78
60
60
Severe
45
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
36
6.0
2x
ES90B
6.4
107
60
30
Severe
43
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
37
6.0
2x
ES90B
6.4
107
60
60
Severe
51
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
38
6.8
2x
ES146B
8.0
161
60
60
Severe
43
Facing: 1x 15mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
38
6.8
2x
ES146B
8.0
161
60
60
Severe
51
RCS 106
RCS 203
RCS 208
RCS 310
RCS 311
See p251 for notes on alterations to fire protection configuration.
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
System Ref.
Max Height Nominal
System Max
Thickness
Weight Height Back-toBack GTEC E
Studs
(m)
(mm)
(kg/m2) (m)
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 103
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
42
4.4
2x
ES60B
4.7
88
90
90
Severe
40
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
43
4.4
2x
ES60B
4.7
88
90
90
Severe
46
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
43
6.4
2x
ES90B
6.8
118
90
90
Severe
45
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
44
6.4
2x
ES90B
6.8
118
90
90
Severe
52
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
47
7.5
2x
ES146B
8.2
175
90
90
Severe
50
RCS 104
RCS 205
RCS 207
RCS 301
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
245
246
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
GTEC® SHAFTWALL SYSTEMS continued
System Ref.
Component
Max Height Nominal
System Max
Thickness
Weight Height Back-toBack GTEC E
Studs
(m)
(mm)
(kg/m2) (m)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 302
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
47
7.5
2x
ES146B
8.2
175
90
90
Severe
52
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core
Board
Core Facing: –
Insulation: –
45
4.8
2x
ES60B
5.1
95
120
90
Severe
41
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
46
4.8
2x
ES60B
5.1
95
120
90
Severe
47
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
47
6.7
2x
ES90B
7.1
120
120
90
Severe
47
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
48
6.7
2x
ES90B
7.1
120
120
90
Severe
54
RCS 109
RCS 110
RCS 206
RCS 210
See p251 for notes on alterations to fire protection configuration.
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
System Ref.
Max Height Nominal
System Max
Thickness
Weight Height Back-toBack GTEC E
Studs
(m)
(mm)
(kg/m2) (m)
Component
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 303
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core
Board
Core Facing: –
Insulation: –
51
8.0
2x
ES146B
9.2
180
120
90
Severe
51
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: 25mm 16kg/m3 glass
mineral wool
52
8.0
2x
ES146B
9.2
180
120
90
Severe
54
RCS 304
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
247
248
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
GTEC® SHAFTWALL STAIRWELL SYSTEMS
See p265 for guidance
System Ref.
Component
Max Height Nominal
System Max
Thickness
Weight Height Back-toBack GTEC E
Studs
(m)
(mm)
(kg/m2) (m)
Fire Perf.
BS476-22
BS EN
1364-1
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 503
Facing: 1x 12.5mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: 1x 12.5mm GTEC Fire
or Megadeco Board
Insulation: –
42
4.5
–
–
88
120
90
Severe
40
Facing: 1x 12.5mm GTEC Fire or
Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: 1x 12.5mm GTEC Fire
or Megadeco Board
Insulation: 25mm 16kg/m3 glass
mineral wool
43
4.5
–
–
88
120
90
Severe
44
Facing Inner Layer(s):
1x 12.5mm GTEC Fire Board
Facing Outer Layer(s): 1x 12.5mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: 1x 12.5mm GTEC Fire
or Megadeco Board
Insulation: –
54
5.4
–
–
101
120
120
Severe
43
RCS 504
RCS 505
See p251 for notes on alterations to fire protection configuration.
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
GTEC® HORIZONTAL SHAFTWALL SYSTEMS
See p267 for guidance
System Max
Weight Span
System Ref.
(kg/m2) (m)
Component
Max Span
Nominal
Back-toThickness
Back GTEC E
Studs
(m)
(mm)
Fire Perf.
BS476-22
BS EN
1364-2
(mins)
Strength
Duty
Rating to
BS 5234
Acoustic
Perf.
Rw dB
(Ctr where
applicable)
RCS 901: HORIZONTAL
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS60B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
42
2.5
–
–
95
90
90
–
41
47
3.6
–
–
123
90
90
–
47
51
4.2
–
–
180
90
90
–
51
RCS 904: HORIZONTAL
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS90B CH-Studs at
600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
RCS 905: HORIZONTAL
Facing Inner Layer(s):
1x 15mm GTEC Fire Board
Facing Outer Layer(s): 1x 15mm
GTEC Fire or Megadeco Board
Studs: GTEC CHS146B CH-Studs
at 600mm centres
Core: 1x 25mm GTEC Fire Core Board
Core Facing: –
Insulation: –
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
249
250
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
GTEC® ENCASEMENT SYSTEMS
See p268 for guidance
System Ref.
Component type
Component
Facing:
Framing:
Fire resistance columns:
1x 12.5mm GTEC Fire or Megadeco Board
GTEC Edge Channel & CB Clips at 600mm Centres
30 Mins up to 280 Hp/A factor
60 Mins up to 280 Hp/A Factor
30 Minutes up to 280 Hp/A factor
60 Minutes up to 115 Hp/A Factor
RCE 001
Fire resistance beams:
RCE 002
Facing:
Framing:
Fire resistance columns:
Fire resistance beams:
1x 15mm GTEC Fire or Megadeco Board
GTEC Edge Channel & CB Clips at 600mm Centres
90 Mins up to 115 Hp/A factor
60 Minutes up to 280 Hp/A factor
90 Minutes up to 50 Hp/A Factor
Facing: Inner
Facing: Outer
Framing:
Fire resistance Columns
Fire resistance Beams
1x 12.5mm GTEC Fire
1x 12.5mm GTEC Fire or Megadeco Board
GTEC Edge Channel & CB Clips at 600mm Centres
90 Minutes up to 280 Hp/A factor
120 Minutes up to 140 Hp/A Factor
90 Minutes up to 280 Hp/A Factor
Facing:
Framing:
Fire resistance columns:
Fire resistance beams:
1x 25mm GTEC Fire Core Board
GTEC Edge Channel & CB Clips at 600mm Centres
120 Minutes up to 185 Hp/A factor
120 Minutes up to 85 Hp/A factor
Facing: Inner
Facing: Outer
Framing:
Fire resistance columns:
Fire resistance beams:
1x 15mm GTEC Fire
1x 15mm GTEC Fire or Megadeco Board
GTEC Edge Channel & CB Clips at 600mm Centres
120 Minutes up to 235 Hp/A factor
120 Minutes up to 180 Hp/A Factor
RCE 003
RCE 004
RCE 005
See p251 for notes on alterations to fire protection configuration.
GTEC® FIRE PROTECTION – PERFORMANCE TABLES
System Ref.
Component type
Component
Facing: Inner
Facing: Outer
Framing:
Fire resistance columns:
1x 25mm GTEC Fire Core Board
1x 15mm GTEC Fire or Megadeco Board
GTEC Edge Channel & CB Clips at 600mm Centres
120 Minutes up to 280 Hp/A factor
180 Minutes up to 130 Hp/A Factor
120 Minutes up to 280 Hp/A Factor
180 Minutes up to 80 Hp/A Factor
RCE 006
Fire resistance beams:
RCE 007
Facing: Inner
Facing: Outer
Framing:
Fire resistance columns:
Fire resistance beams:
1x 25mm GTEC Fire Core Board
1x 25mm GTEC Fire Core Board
GTEC Edge Channel & CB Clips at 600mm Centres
180 Minutes up to 280 Hp/A Factor
180 Minutes up to 280 Hp/A Factor
NOTE: All Encasement systems tested to BS476-21.
FIRE PROTECTION PERFORMANCE NOTES
Performance values are for imperforate, jointed systems using Siniat GTEC components (metal studs and tracks, boards,
metal accessories, screws and finishing systems) and specified insulation quilt material (type, thickness and density)
and installed to Siniat specification and installation guides.
Maximum heights depend on deflection criteria and applied air pressure.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
251
GTEC® FIRE PROTECTION – ENCASEMENT TABLES
UNIVERSAL BEAMS WITH BOX ENCASEMENT
Section factor Hp/A m-1
Size of
steelwork (mm)
Mass per
metre (kg)
3 sides
4 sides
914 x 419
388
343
289
253
224
201
226
194
176
197
173
147
170
152
140
125
238
179
149
140
125
113
101
122
109
101
92
82
98
89
82
74
67
82
74
67
60
52
74
67
60
54
46
39
67
57
51
45
39
33
54
46
40
45
50
60
65
75
80
70
80
90
70
80
95
75
85
90
100
50
70
80
80
90
100
110
85
95
100
110
120
90
100
105
115
130
105
115
125
140
160
105
115
130
145
160
190
105
125
135
155
170
195
115
130
150
55
60
65
75
85
95
80
90
100
85
95
110
90
95
105
115
60
80
95
95
105
115
130
95
110
115
125
140
105
115
125
135
150
120
130
145
160
180
125
140
155
170
185
220
125
145
165
185
195
225
140
160
180
48
42
37
33
28
25
37
31
28
25
22
30
25
23
19
16
13
125
140
155
175
200
225
140
160
170
190
215
145
165
175
190
190
195
145
160
180
200
225
260
170
200
200
220
250
180
210
210
230
235
240
914 x 305
838 x 292
762 x 267
686 x 254
610 x 305
610 x 229
533 x 210
457 x 191
457 x 152
406 x 178
406 x 140
356 x 171
356 x 127
305 x 165
305 x 127
305 x 102
254 x 146
254 x 102
203 x 133
203 x 102
172 x 102
152 x 89
127 x 76
280
RCE
006
RCE
002
200
RCE
003
Hp/A factor
252
180
RCE
001
RCE
007
RCE
005
118
100
85
75
RCE
001
50
RCE
002
RCE
004
RCE
006
0
30
60
90
120
Fire Resistance (mins)
180
GTEC® FIRE PROTECTION – ENCASEMENT TABLES
UNIVERSAL COLUMNS WITH BOX ENCASEMENT
Section factor Hp/A m-1
Size of
steelwork (mm)
Mass per
metre (kg)
3 sides
356 x 406
634
15
20
551
20
25
467
20
30
393
25
35
340
30
35
287
30
45
235
40
50
202
45
60
305 x 305
254 x 254
203 x 203
152 x 152
177
50
65
153
55
75
129
65
90
283
30
40
240
35
45
198
40
50
158
50
65
137
55
70
118
60
85
97
75
100
167
40
50
132
50
65
107
60
75
89
70
90
73
80
110
86
60
80
71
70
95
60
80
110
52
95
125
46
105
140
37
100
135
30
120
160
23
155
205
280
RCE
006
230
200
RCE
003
Hp/A factor
356 x 368
4 sides
RCE
001
RCE
005
RCE
007
185
RCE
004
RCE
001
140
130
100
105
RCE
002
RCE
003
RCE
006
120
180
0
30
60
90
Fire Resistance (mins)
STEEL JOISTS WITH BOX ENCASEMENT
Size of
steelwork (mm)
Mass per
metre (kg)
Section factor Hp/A m-1
3 sides
4 sides
254 x 203
81.85
70
90
254 x 114
37.20
130
155
203 x 152
52.09
85
105
152 x 127
37.20
90
120
127 x 114
29.76
100
130
127 x 114
26.79
110
140
114 x 114
26.79
100
135
102 x 102
23.07
105
140
89 x 89
19.35
105
145
76 x 76
12.65
140
185
EXAMPLE OF USE
Beam = 610mm x 305mm x 179kg/m
Exposed on four sides
Hp/A = 80m-1
Choice of systems
Up to 60mins = RCE001
Up to 90mins = RCE003
Up to 120mins = RCE004
Up to 180mins = RCE007
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
253
254
GTEC® SHAFTWALL
®
GTEC SHAFTWALL
SYSTEMS
The GTEC Shaftwall Fire Protection system protects shafts
and voids in multi-storey buildings with a rapid installation
system preventing continuous routes for the spread of fire.
The system uses a non-symmetrical board assembly for full
installation from one side of the shaft, allowing construction in
tight spaces. The frame features friction fit channels to receive
GTEC Fire Core Board and a fixing flange for the installation
of GTEC Fire, Megadeco or Universal Boards ready to finish on
the room side. The shaft side can also be decoratively finished
using GTEC Shaftwall Stairwell systems, this is commonly used
in stairwells.
GTEC Shaftwall Fire Protection can also be used horizontally to
protect the underside of ductwork or provide a ‘lid’ to a shaft.
In horizontal applications, further boards may be needed to
achieve fire performances. Refer to the System Performance
Tables on pages 244 to 249 for full details.
WHERE TO USE:
GTEC Shaftwall Systems are used to protect voids in commercial or
public multi-storey buildings and is suitable for most construction types.
FEATURES
BENEFITS
System designed to be erected from one side only
No scaffolding required
Offers fire protection from both directions
Provides up to 120 minutes fire performance
Lightweight friction fit framing system
Fast to install with less material costs
Specialised components designed as a system
Reliable and easy to specify
Framing includes cavity
Allows space for services to run
High strength frame
Resists pressure changes likely in deep shafts
and voids
Fully sealed
Prevents whistling, dirt accumulation and
ensures fire performance
GTEC® SHAFTWALL
255
TIP: GTEC Intumescent Acoustic Sealant
is vital to fire rated systems, it secures
boards and improves fire resistance.
GTEC J Track / U Track
Deep Flange at base fixed to
structure at 300mm centres
GTEC Board
to suit required
performance
GTEC Intumescent
Acoustic Sealant
GTEC E Stud
fixed to structure
at 300mm centres
GTEC Fire Core Board
Mineral wool
staggered joints
between layers
Alternative finishing layer
may be used see tables
GTEC J Track / U Track
Deep Flange at base fixed to
structure at 300mm centres
GTEC CH Studs
at 600mm centres
GTEC E Studs
fixed at right angles
at 300mm centres
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
256
GTEC® SHAFTWALL
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
GTEC Fire Core Board
High strength fire and moisture resistant board for use
in steel fire encasement
See performance tables, p250-253
GTEC Fire Board
A fire resistant plasterboard
See performance tables, p250-253
GTEC High Performance Type F Boards
Fire resistant boards, with improved acoustic and
impact performance for room-side of system
See performance tables, p250-253
GTEC CH Stud
Metal profile for vertical frame elements
CH60/B, CHS90/B, CHS146/B
GTEC E Stud
Metal profile used for vertical frame
element at junctions and end studs
ES60/B, ES90/B, ES146/B
GTEC J Track
Metal profile for head and base channel
JT62/B, JT92/B, JT148/B
GTEC U Track Deep Flange
Deep flange metal profile for deflection heads
UDT62/B, UDT92/B, UDT148/B
GTEC U Track Extra Deep Flange
Extra deep flange metal profile for deflection heads
UXT92/W, UXT148/W
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
Mineral wool insulation
Provide fire resistance
See performance table
supplied by others
BOARDS
FRAME
INSULATION
GTEC® SHAFTWALL
System Component
System primary use
Product Reference
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration to achieve quoted performances
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
FIX
FINISHING
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
257
258
GTEC® SHAFTWALL
SYSTEM GUIDANCE
FRAME AND SHAFT-SIDE BOARDING
FP-SH-101S-Head
FP-SH-102S-Base
GTEC Fire Board
to suit system
fix track at 300mm centres
25mm
GTEC Fire Core Board
100mm
GTEC Intumescent
Acoustic Sealant
GTEC J Track
GTEC CH Stud
cut 10mm less
than ceiling height
GTEC J Track
GTEC Fire Board
to suit system
screw fix plasterboard to track
GTEC Fire Core Board
GTEC Intumescent
Acoustic Sealant
GTEC CH Stud cut 10mm
less than ceiling height
fix track at 300mm centres
SECTION
FP-SH-103M-Stud reinforcement (back-to-back E-studs)
SECTION
FP-SH-201P-Partition assembly – start
GTEC Intumescent
Acoustic Sealant
GTEC Fire Core Board
installed after each
stud is fitted
GTEC CH Stud
Screw fix at 150mm
staggered centres
GTEC J Track
GTEC Fire Board installed after all
core board and studs are in place
GTEC E Stud fixed
at 300mm centres
PLAN
Stagger joints by
minimum 1m
FP-SH-202P-Partition assembly – end
GTEC CH Stud
NOTES:
Snip and bend GTEC J Track
temporarily to allow fitting of
final stud and core board
Avoid splicing unless necessary
All board joints minimum 450mm from splice
Minimum 4 board fixings between board joint and stud splice
ISOMETRIC
mechanically fix GTEC E Stud
to structure at 300mm centres
PLAN
GTEC® SHAFTWALL
FP-SH-203S-Overheight shaftwalls reinforcement – option 1
FP-SH-204S-Overheight shaftwalls reinforcement – option 2
GTEC Fire Core Board
Joints within 1/3 height
of head or base of shaftwall
MIn.
50mm
MIn.
50mm
GTEC Fire Core Board
GTEC Intumescent
Acoustic Sealant
GTEC Board
to suit required performance
SECTION
Joints within 1/3 height
of head or base of shaftwall
GTEC CH Stud
to reinforce joint
fitted between vertical studs
GTEC Board
to suit required performance
SECTION
Select compatible size (e.g. 90mm stud and
92mm track) GTEC CH Stud, GTEC E Stud and
GTEC J Track framing elements to suit system
performance.
GTEC Fire Core Board to be installed before
intermediate stud with construction
proceeding progressively, alternating in
sequence between board and GTEC CH Stud.
Bead of GTEC Intumescent Sealant to be
applied at junction of all metal framing with
structure, at junction of all metal framing
with GTEC Fire Core Board, and at all other
locations specified in drawings.
All GTEC CH Studs to be 10mm shorter than
floor to ceiling height except in case of
deflection requirement. Each GTEC CH Stud
to be firmly fitted to board and friction fitted
into track.
GTEC J Track at head and base to be fixed
flat to structure, long leg of track to shaft
side, using appropriate fixings at maximum
300mm centres.
100mm deep strip of GTEC Fire Core Board
spanning between studs to be fixed through
main GTEC Fire Core Board to GTEC J Track
to form fire stop at head.
First GTEC E Stud, 10mm less than floor
to ceiling height, to be fixed abutting
structure using appropriate fixings at
maximum 300mm centres. Stud to be fixed
to head and base track with appropriate
GTEC Drywall Screws (see screw selector,
p334-335). Final GTEC E Stud to be
installed with final GTEC Fire Core Board.
Where wall height exceeds available GTEC
CH Stud length, lengths of GTEC E Stud to
be spliced together, back-to-back, ensuring
overlaps of 600mm for heights below 4m
and 1000mm for heights above 4m.
Protect base track from moisture with damp
proof membrane when situated on newly laid
concrete floors.
Where partition exceeds 3m height,
horizontal joints to be at alternating
maximum 1/3 or 2/3 height with
reinforcement from GTEC CH Stud
noggings or 100mm deep strips of
GTEC Fire Core Board.
GTEC Fire Core Board to be 25mm short of
floor to ceiling height with 25mm gap at top
of Shaftwall frame.
Studs and tracks to be clean of fire protective
coatings which may have been applied to
main structure.
INSULATION
Insulation to be of type and thickness to
achieve performance and installed in a
continuous layer between frames or studs
to suit required performance.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
259
260
GTEC® SHAFTWALL
GENERAL BOARDING
GTEC Fire Core Board to be used as shaft-side
boarding (see p299).
GTEC Fire Board, Megadeco or Universal
Board, 5mm short of floor to ceiling height,
to be used as room-side boarding.
Select GTEC Boards by consulting System
Performance Tables (p244-251) to achieve
required performance.
All layers of boarding to be mechanically
fixed to studs at 300mm centres using
appropriate GTEC Drywall Screws
(see screw selector, p334-335).
Board edges to be centred over studs.
Stagger all board joints between layers
and stagger screws by 100mm compared
to adjacent boards and layers.
Over-height single layer boarding:
Where partition height exceeds board height
fix boards to continuous band of GTEC Flat
Strap FS90/W or GTEC MFIX behind all
horizontal joints to maintain fire integrity.
Over-height multiple layer boarding:
Where partition height exceeds board
height for double or multiple layer boarding
fix outer layer of boards to continuous band
of GTEC Flat Strap FS50/RX behind
all horizontal joints.
MOVEMENT CONTROL JOINTS
FP-SH-301P-Movement control joint
GTEC Fire
Core Board
rock mineral wool
40kg/m3
10mm
GTEC Intumescent
Acoustic Sealant
GTEC E Stud
GTEC Board
to suit required
performance
GTEC Movement
Control Joint
10mm
10mm
PLAN
Form movement control joints at maximum
10m intervals in the partition run.
Form movement control joints where the
partition crosses a structural movement joint.
Fix GTEC Movement Control Joint,
butted end-to-end, to board with
sheradised or galvanised staples.
GTEC® SHAFTWALL
OPENINGS
FP-SH-401P-Door jamb
GTEC J Track
GTEC Intumescent
Acoustic Sealant
GTEC Fire Core Board
Timber stud
GTEC E Stud
inside track
GTEC Board
to suit required
performance
PLAN
Form openings following guidance in
Construction Detail Drawings to suit duct
penetration or door configuration.
For doors, reinforce head-to-jamb junction
down each jamb stud by cutting and folding
head track, continue track down full length of
jamb and reinforce with timber as described
in Construction Detail Drawings.
Jamb studs to be configured to ensure
continuity of GTEC Fire Core Board to
inside of opening.
Jamb studs to be fixed to track with
appropriate GTEC Drywall Screws
(see screw selector, p334-335).
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
261
262
GTEC® SHAFTWALL
CORNERS AND JUNCTIONS
FP-SH-501P-Internal corner
FP-SH-502P-External corner
GTEC Fire Core Board
strip fixed to back of GTEC
Stud at 300mm Centres
GTEC Fire Core Board
GTEC Fire Board
GTEC E Stud
GTEC Intumescent
Acoustic Sealant
Tracks separated by
depth of plasterboard
Fix GTEC E Studs together
at 300mm centres
GTEC Intumescent
Acoustic Sealant
GTEC E Stud
PLAN
FP-SH-503P-T-junction – room side
PLAN
FP-SH-504P-T-junction – shaftside
GTEC CH Stud arranged
to coincide with
shaftwall abutment
GTEC Fire Core Board
screw fix GTEC E Stud
to GTEC CH Stud at
300mm centres
GTEC E Stud arranged
as it coincides with the
shaftwall abutment
GTEC Intumescent
Acoustic Sealant
screw fix GTEC E Stud
to GTEC CH Stud
at 300mm centres
GTEC E Stud
GTEC Fire Board
GTEC Fire Core Board
GTEC Board
to suit required
performance
GTEC CH Stud
PLAN
PLAN
FP-SH-505 P-Junction of partition to shaftwall option 1,2&3
GTEC CH Stud arranged
to coincide with
shaftwall abutment
GTEC Flat Strap
fixed across studs at
600mm vertical centers
GTEC C Stud
fixed to track to
support partition
GTEC CH Stud
screw fix partition stud
through GTEC CH Stud
at 600mm centres
screw fix partition stud
to GTEC Flat Strap through
board at 600mm centres
screw fix partition stud
to GTEC C Stud through
board at 600mm centres
GTEC Board
to suit required
performance
PLAN
GTEC® SHAFTWALL
FP-SH-506P-Column junction – at corner
See encasement
details for component
information
Column encased prior to
shaftwall construction
GTEC E Stud
PLAN
Abutting partitions to coincide with
Shaftwall stud; additional intermediate
‘pick-up’ GTEC C Stud; or GTEC Flat Strap
at 600mm vertical centres.
Ensure continuity of GTEC Fire Core Board
at corners.
See Construction Details Drawings for further
guidance on arrangement and fixing.
Connect studs through plasterboards at
corners and junctions.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
263
264
GTEC® SHAFTWALL
PENETRATIONS
FP-SH-701M-Duct penetration isometric
GTEC J Track
Back to back GTEC E Studs
to create opening
GTEC E Stud
Insert GTEC E Stud (shown in red)
cut short of GTEC CH Stud and
fixed into GTEC J Track to reinforce
Screw fix GTEC E Stud (shown in red)
to GTEC J Track at 200mm centres
GTEC CH Studs
between jambs
m
0m
60
.
x
Ma
Note: Boards not shown for clarity
ISOMETRIC
FP-SH-702P-Duct penetration plan
FP-SH-703S-Duct penetration section
Cable Tray or duct
(may require fire damper)
GTEC Intumescent
Acoustic Sealant
GTEC E Stud
GTEC Board
to suit required
performance
GTEC E Stud inserted and
fixed at 200mm centres into
GTEC J Track to reinforce
Cable Tray or duct
(may Require fire damper)
GTEC Board
to suit required
performance
GTEC Fire Core Board
screw fixed to
GTEC E Stud
GTEC Fire Core Board
screw fixed to GTEC J Track
GTEC Fire Core Board
SECTION
SECTION
GTEC® SHAFTWALL
PENETRATIONS
M&E runs and other services to be
pre-planned to minimise or eliminate
penetrations through rated Shaftwall
systems.
Ductwork to be independently supported and
not supported by the Shaftwall system.
Protect all electrical cables in cavity with
conduit.
Continuity of GTEC Fire Core Board to be
maintained around penetration openings.
Any penetrations must be fully sealed with
GTEC Intumescent Acoustic Sealant or
other fire resisting material as specified
in Construction Detail Drawings.
FIXTURES
SYSTEM CONTINUITY
See fixture guidance in GTEC C Stud Partition
section, p50, for further guidance.
GTEC LaDura is recommended as pattress to
enhance mechanical resistance of the fixing.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
FINISHING
All room-side board joints to be taped,
jointed or finished according to guidance
in Finishing section (p276-291) to achieve
system performances.
Full, imperforate system continuity must be
maintained to achieve rated performances.
GTEC Finish materials appropriate to board
type to be used.
STAIRWELL SYSTEMS
FP-SH-010P-Stairwelll system
FP-SH-011P-Stairwell perimeter detail
GTEC Board to
finish over GTEC
Fire Core Board
GTEC Intumescent
Acoustic Sealant
GTEC Intumescent
Acoustic Sealant
GTEC Fire
Core Board
GTEC Fire Core Board
GTEC Board
to suit required
performance
GTEC E Stud
GTEC E Stud
PLAN
Where finishing of both sides of Shaftwall
system is required one decorative board may
be transferred to shaft side in accordance
with system requirements, see performance
tables p244.
GTEC Board
to suit required
performance
PLAN
Transferred board to be screw fixed at
maximum 300mm centres to exposed flanges
of GTEC CH Stud, GTEC E Stud and track.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
265
GTEC® SHAFTWALL
DUCT PROTECTION SYSTEMS
FP-SH-021S-Duct protection shaftwall – 90 minutes
fix track to substrate at
300mm centres using
appropriate fixings by others
GTEC Intumescent
Acoustic Sealant
GTEC Fire Board screw
fixed to track and stud
at 150mm centres
DUCT
Max. 1200mm
266
GTEC CH Stud
screw fixed to track
GTEC Fire Core Board
GTEC U Track
GTEC Edge Channel
screw fix tracks together
at 150mm centres
GTEC Ceiling Channel
screw fixed to track and
stud at 400mm centres
Max. 1200mm
SECTION
Horizontal runs of GTEC Shaftwall systems
to protect underside of duct work require
additional material and configurations of
frame, see performance tables p244-251 for
requirements.
GTEC Shaftwall duct protection is not
designed to support ductwork or any
other loads.
GTEC® SHAFTWALL
HORIZONTAL SYSTEMS
FP-SH-031S-Horizontal shaftwall
GTEC Intumescent
Acoustic Sealant
GTEC CH Stud
GTEC Fire Core Board
GTEC U Track Deep Flange
GTEC E Stud
GTEC Fire Board
to suit performance
SECTION ACROSS STUDS
GTEC Fire Core Board
GTEC E Stud
GTEC U Track Deep Flange
GTEC Fire Board
to suit performance
SECTION ALONG STUDS
SECTION
GTEC Horizontal Shaftwall to be fixed
to structure using appropriate fixings as
recommended by fixing manufacturer to
support self-weight of Shaftwall.
Horizontal systems are not designed to
support any additional loads.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
267
268
GTEC® ENCASEMENT
®
GTEC ENCASEMENT
SYSTEMS
The GTEC Encasement Fire Protection system provides high levels of
fire resistance to structural I-section columns and beams, delaying the
loss of strength in steel which occurs at temperatures over 550°C.
The system uses push-fit GTEC CB Clips to secure GTEC Edge Channel
to the steel. GTEC Fire Core Boards, Fire Boards, and other high
performance boards as detailed in the performance tables, are fixed
to the edge channel to protect columns and beams. Excellent fire
performance is achieved by holding the boards off the columns on a
strong metal frame.
WHERE TO USE:
The system is used in commercial multi-storey construction to ensure
structural safety during fire. The range of impact resistant boards
compatible with the system enables use in high traffic areas.
FEATURES
BENEFITS
Uses GTEC Fire Board
Economical and effective
Uses GTEC Fire Core Board
Fewer board layers required
Fully tested
Allows use of Hp/A factors, giving performance
to a range of column and beam dimensions
Fully dry installation
Efficient to install
Friction fit frame installation
Efficient to install
Allows differential movement during fire
Simple frame design
Requires no specialist equipment
Plasterboard finish
Flat, easy to decorate, surface. Suitable for use
with GTEC Partitions, Ceilings and Linings
GTEC® ENCASEMENT
269
TIP: Using plasterboard encasement
means that beams or columns can be
finished as easily and consistently as
plasterboard walls or ceilings.
GTEC Edge Channel
push fit into GTEC CB Clip
GTEC CB Clip
at 600mm centres
M
joi 300 in.
nt
sta mm
gg
er
GTEC Board
to suit required performance
GTEC Flat Strap
to reinforce joint
screw fix plasterboard
at max. 300mm centres
(Min.2 per board edge)
GTEC Corner 90º External /
GTEC Flex Tape
to reinforce corner joints
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
270
GTEC® ENCASEMENT
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
GTEC Fire Core Board
High strength fire and moisture resistant board for use
in steel fire encasement
See performance tables, p250-253
GTEC Fire Board
A fire resistant plasterboard
See performance tables, p250-253
GTEC High Performance Type F Boards
Fire resistant boards, with improved acoustic and
impact performance for room-side of system
See performance tables, p250-253
GTEC CB Clip
Steel clip for connecting channels
to structural steelwork
CB17, CB27, CB40
GTEC Edge Channel
Steel channel to provide metal frame and bearing
surface for plasterboard
MFCE26
GTEC Metal Angle
Multi-purpose galvanised metal section
MFC2525, MFC2550, MFC2330
GTEC Fixing Channel
Provide support for plasterboard joints and fixtures
MFIX/W
GTEC Flat Strap
Provide support for plasterboard joints and fixtures
FS50/RX, FS90/W
GTEC Drywall Screws (as appropriate)
For connecting plasterboard and metal components
See screw selector, p334
GTEC Corner and Edge beads
Corner and edge reinforcement
n/a
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
n/a
GTEC Intumescent Acoustic Sealant
Perimeter sealing to restrict smoke, sound and fire
penetration to achieve quoted performances
n/a
GTEC Compounds
To finish joints between boards and bed corner beads
prior to decorating. Ensures system performance
See compounds guidance, p280
GTEC Sealers
To seal plasterboard prior to decoration
n/a
BOARDS
FRAME
FIX
FINISHING
GTEC® ENCASEMENT
SYSTEM GUIDANCE
FRAME
FP-EN-101P-Column encasement – single layer
GTEC Corner 90º External
/ GTEC Flex Tape
screw fix plasterboard
at 300mm centres
GTEC Board
to suit required performance
GTEC CB Clip
at max. 600mm centres
GTEC Edge Channel
pushed into GTEC CB Clip
SECTION
FP-EN-102P-Column encasement – double layer
GTEC Corner 90º External /
GTEC Flex Tape
screw fix plasterboard
at 300mm centres
Joints of layers staggered
by min. 300mm
GTEC CB Clip
at max. 600mm centres
GTEC Edge Channel
pushed into GTEC CB Clip
GTEC Board
to suit required performance
SECTION
FP-EN-103S-Single boarded beam encasement
GTEC Intumescent
Acoustic Sealant
Option A – GTEC Metal Angle
fixed to the beam
GTEC Flat Strap / GTEC Fixing Channel
if beam greater than 300mm deep
GTEC CB Clip
at max. 600mm centres
GTEC Edge Channel
pushed into GTEC CB Clip
Option B – GTEC Metal Angle
fixed to the soffit
GTEC Board
to suit required performance
screw fix plasterboard
at 300mm centres
GTEC Corner 90º External /
GTEC Flex Tape
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
271
272
GTEC® ENCASEMENT
FRAME
FP-EN-104S-Double boarded beam encasement
GTEC Intumescent
Acoustic Sealant
Option B – GTEC Metal Angle
fixed to the soffit
Option A – GTEC Metal Angle
fixed to the beam
GTEC Board
to suit required performance
GTEC Flat Strap / GTEC Fixing Channel
if beam greater than 300mm deep
GTEC Flat Strap FS90/W
to reinforce board joints
GTEC CB Clip
at max. 600mm centres
screw fix plasterboard
at 300mm centres
GTEC Edge Channel
pushed into GTEC CB Clip
GTEC Corner 90º External /
GTEC Flex Tape
Select GTEC CB Clips to suit flange thickness
of steel to be protected:
GTEC CB Clip
To fit flange size:
CB 17
7-17mm
CB 27
17-27mm
CB 40
27-40mm
SECTION
GTEC CB Clips to be friction fitted to flanges
of steel at maximum 600mm centres
beginning at 150mm from both ends of steel.
GTEC Edge Channel to be friction fitted into
GTEC CB Clips along length of steel.
Where steel abuts structure GTEC Metal
Angle to be fixed to structure or shot fired to
inside of steel flange with appropriate fixings,
and following guidance of steel designer, to
provide substrate for plasterboard.
BOARDING
FP-EN-201M-300-600mm beam board reinforcement
FP-EN-202M-Over 600mm beam board reinforcement
GTEC Edge Channel push fit into
GTEC CB Clip where not abutting soffit
GTEC Edge Channel
push fit into GTEC CB Clip
GTEC Flat Strap FS90/W
/ GTEC Fixing Channel fixed to
GTEC Edge Channel to support board
GTEC Flat Strap /
GTEC Fixing Channel
to support board
Over
600mm
depth
300 to
600mm
depth
to
or th
mmleng
0
0 d
24 boar
it
su
GTEC CB Clip
GTEC CB Clip
m
0m
60
ISOMETRIC
ISOMETRIC
GTEC® ENCASEMENT
Select GTEC Boards by consulting System
Performance Tables (p250-251) and Hp/A
tables (p252-253) to achieve required
performance.
Where flange/web dimension exceeds
300mm all plasterboard joints along
beam/column to be reinforced with
GTEC Flat Strap or GTEC MFIX Channel.
GTEC Board to be fixed to GTEC Edge
Channel, GTEC Metal Angle and any
reinforcement at maximum 300mm centres
using appropriate GTEC Drywall Screws (see
screw selector p334-335). Fixing positions
to be staggered on next boarding layer.
Minimum 2 screws per board edge.
Where flange/web dimension exceeds
600mm provide reinforcement to board
with GTEC Flat Strap or GTEC MFIX fixed
to GTEC Edge Channel at maximum
600mm centres and at board joints.
CORNERS AND JUNCTIONS
FP-EN-501P-Junct. partition to column – Opt.1 (non-acoustic)
GTEC Flat Strap
at 600mm vertical centres to
provide fixing for partition stud
column encased prior
to partition construction
GTEC Partition System
to suit reqired performance
GTEC Intumescent
Acoustic Sealant
fix stud
through to strap
SECTION
FP-EN-502P-Junct. partition to column – Opt.2 (acoustic)
GTEC Metal Angle 90°
fixed through to GTEC C Stud
GTEC CB Clip
at max. 600mm centres
GTEC Partition System
minimum fire resistances to
match column encasement
GTEC Resilient Tape
GTEC Intumescent
Acoustic Sealant
GTEC Edge Channel
pushed into GTEC CB Clip
GTEC Corner 90º External /
GTEC Flex Tape
SECTION
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
273
274
GTEC® ENCASEMENT
CORNERS AND JUNCTIONS continued
FP-EN-503S-Column in masonry wall
GTEC Metal
Angle
GTEC Intumescent
Acoustic Sealant
GTEC CB Clip
at max. 600mm
centres
GTEC Edge Channel
pushed into
GTEC CB Clip
GTEC Corner 90º External /
GTEC Flex Tape
GTEC Board
to suit required
performance
SECTION
FP-EN-504S-Junction of partition along beam (non-acoustic)
GTEC Board
to suit required performance
beam encased prior
to partition construction
GTEC Flat Strap
to provide partition fixing
at maximum 600mm centres
fix U track through to GTEC Flat Strap
or fixing channel at 600mm centres
GTEC Intumescent
Acoustic Sealant
GTEC Partition System
to suit required performance
SECTION
Provide GTEC Flat Strap as reinforcement for
abutting partitions at 600mm centres behind
final layer of encasement board. Studs or
tracks to be fixed through to reinforcement.
GTEC® ENCASEMENT
HEAD DEFLECTION
SYSTEM CONTINUITY
GTEC Encasement systems are designed
to move with beam deflection. Partitions
meeting beams liable to deflection to be
detailed according to guidance in GTEC C
Stud system guidance (see p61).
PENETRATIONS
Penetrations must not be made through
GTEC Encasement systems.
Bead of GTEC Intumescent Acoustic Sealant
to be applied to perimeter of all runs and in
all other locations specified in Construction
Detail Drawings.
GTEC Intumescent Acoustic Sealant to seal
all other acoustic or air paths to prevent fire/
smoke spread and acoustic transmission.
Full, imperforate system continuity must be
maintained to achieve rated performances.
FIXTURES
Fixtures to be supported by structure and not
supported by GTEC Encasement systems.
FINISHING
All corners to be reinforced with
GTEC Corner 90.
All board joints to be taped, jointed
or finished according to guidance
in Finishing section (p276-291) to
achieve system performances.
GTEC Finish materials appropriate
to board type to be used.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
275
276
GTEC® FINISHING
277
FINISHING
GTEC Taping and Jointing provides a finish to joints between GTEC
boards creating a continuous, fire resistant and easy to decorate
surface. Skimming can achieve similar results but is a more labour and
time intensive method. Tiling GTEC moisture and wet area GTEC boards
can achieve exceptionally high levels of water resistance.
GTEC Cove is a decorative gypsum element used to finish the junction
between partition and ceiling.
GTEC Taping and Jointing
Alternative finishing methods
GTEC Cove
278
284
288
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
278
GTEC® TAPING AND JOINTING
®
GTEC TAPING
AND JOINTING
GTEC drywall systems require taping and jointing to complete
the wall surface, reinforce joints to prevent cracking, and
ensure fire and sound performances are achieved.
GTEC Taping and Jointing products use limited combustibility,
gypsum and limestone based compounds which secure the
fire rating of the system. These are reinforced with paper tape
or corner beads to create a smooth, durable surface, ready for
decoration. Two and three stage processes are available using
the correct GTEC Finish products to provide options on site and
different setting times.
Water resistant compounds and finishing accessories are
available for GTEC Aqua Board. The GTEC Deco compound range
complements the use of GTEC Megadeco for direct decoration.
WHERE TO USE:
Taping and jointing are suitable for large surface areas
where speed and ease of application can greatly reduce
installation cost and drying time.
FEATURES
BENEFITS
Applied to low surface areas
Quicker than a full plaster skim with less drying
out time
Can be used with automatic taping tools
Flexible, high speed application
Can be hand applied
Versatile enough to suit any job
Wide product range
Suitable for different applications and needs
Gypsum/limestone finish
Excellent finish quality with limited
combustibility
Two and three stage processes
Provides a range of speed and product options
GTEC® TAPING AND JOINTING
SYSTEM COMPONENT TABLE
System Component
System primary use
BOARDS
All GTEC Boards (see specialist
compounds for Aqua & Megadeco)
Provides wall surface suitable for finishing.
FINISHING
GTEC Joint Filler Xtra
Gypsum based joint compound for filling joints
in plasterboards, 90 minute set time
GTEC Joint Cement Xtra
Air-drying joint cement for finishing joints
GTEC Easy Finish Extra
All purpose compound suitable for all stages of
the jointing process with 90 minute set time
GTEC Smartmix
Ready mixed all purpose jointing compound
suitable for all stages of the jointing process
GTEC Aquamix
Ready mixed all purpose jointing compound for use
with GTEC Aqua system in severe wet applications
GTEC Deco Filler
An all purpose gypsum based joint filler for use
with GTEC Megadeco. 90 minute set time
GTEC Deco Joint Cement
An air drying ready mixed compound for finishing joints
with GTEC Megadeco
GTEC Deco Machine
An air drying ready mixed compound for use
with automatic taping tools to finish joints
with GTEC Megadeco
GTEC Joint Tape
Joint reinforcement in conjunction with
GTEC Jointing Compounds
GTEC Aquastrip
Mesh tape for use with GTEC Aqua system to protect
exposed drylining perimeters for wet applications
GTEC Sealers
To seal plasterboard prior to decoration
GTEC Corner and Edge beads
Corner and edge reinforcement
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
279
280
GTEC® TAPING AND JOINTING
SYSTEM GUIDANCE
COMPOUND SELECTION
Joint compound selection is largely a matter
of site preference, depending on weather
conditions, time and equipment. GTEC
Compounds can be combined in numerous
permutations each offering a high quality
surface finish. However, GTEC Aqua Board and
GTEC Megadeco require specific compounds to
suit their unique facers.
Taping and jointing is conducted in three
main stages: Bedding; Second Coat; and
Finishing Coat.
TWO STAGE PROCESS
1
THREE STAGE PROCESS
BEDDING
Tape or bead is bedded into the
compound and taper filled out
SECOND COAT
The taper is re-filled with
compound where required
1
2
FINISHING COAT
2
Final compound layer is applied
and sanded for a smooth finish
3
COMPOUND TYPES
All compounds are suitable for Bedding and
Second Coat, however, setting and hybrid
compounds reduce overall time required.
Setting and hybrid compounds must not be
used over air-drying compounds.
Only air-drying or hybrid compounds are
suitable for the final finishing coat.
Air-drying and hybrid compounds are low
shrinkage. Where low shrinkage compounds
have been used in Bedding layer the Second
Coat may not be required.
The drying time of air-drying compounds
is dependent on climatic conditions and
layer thickness. Drying takes approximately
24 hours but may be extended by adverse
conditions.
GTEC® TAPING AND JOINTING
GTEC Compound
Format
Type
Joint Filler Xtra
Powder
Setting
Compatible
Boards
Machine
Use
Shrinkage
Setting Time
No
Standard
90 mins
Yes
Low
n/a
All
Joint Cement Xtra
Powder
Air-drying
Smartmix Xtra
Readymix
Air-drying
optional
Yes
Low
n/a
Easy Finish Xtra
Powder
Hybrid
optional
No
Low
90 mins
Aquamix
Readymix
Air-drying
GTEC Aqua Board
Yes
Standard
n/a
Deco Filler
Powder
No
Standard
90 mins
No
Low
n/a
Yes
Standard
n/a
Setting
Deco Joint Cement
Readymix
Air-drying
Deco Machine
Readymix
Air-drying
GTEC Megadeco
only
SUBSTRATE
Plasterboard to be tapered edged to
allow GTEC Joint Tape to sit below
finished surface for best finish. Square
edged plasterboard may also be jointed
following guidance in drawings.
Gaps over 3mm to be filled with GTEC Joint
Filler Xtra or GTEC Easy Finish.
Taping & jointing should not be carried
out at extreme temperatures (greater
than 40ºC or less than 5ºC). Do not tape
and joint on frozen backgrounds.
Board surfaces to be dry, clean, protected
from weather, secure and evenly fixed.
Correct screw fixings to be used with screw
heads just below surface of board.
TAPING & JOINTING
FN-TJ-101&102M – Tapered edge
Bed tape into layer of
appropriate jointing
compound
GTEC Joint tape and
bedding layer
Stage 1
bedding layer struck off
with plasterboard face
Ma
60 x.
mm
Ma
60 x.
mm
30
0m
m
GTEC Joint Tape
Second coat feathered
out on to plasterboard
Stage 2
Finishing layer
feathered out on to
plasterboard and
sanded once dry
Stage 3
ap
pro
x.
ISOMETRIC
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
281
282
GTEC® TAPING AND JOINTING
FN-TJ-103&104M – Square or cut edge
GTEC Joint Tape and
Bedding layer
Bed tape into layer
of jointing compound
Stage 1
bedding layer down
both edges of tape
20
0m
m
Second coat feathered
out beyond filling layer
Stage 2
Finishing layer feathered
out on to plasterboard and
sanded once dry
Stage 3
20
0m
m
40
0m
m
GTEC Joint Tape
ISOMETRIC
FN-TJ-105 & 106M – Internal corner
Tape bedded into layer
of jointing compound
GTEC Joint Tape and
bedding layer
Stage 1
Second coat feathered
out beyond bedded layer
Stage 2
Finishing layer feathered
out on to plasterboard and
sanded once dry
Stage 3
GTEC Joint Tape
ISOMETRIC
FN-TJ-107&108M – External corner
Tape bedded into layer
of jointing compound
Tape and bedding layer
filling layer feathered out
Second coat feathered out
Finishing layer feathered
out on to plasterboard and
sanded once dry
GTEC Flex Tape /
GTEC Corner 90º External
ISOMETRIC
GTEC® TAPING AND JOINTING
Screws to be spotted with appropriate
jointing compound.
Compound to be applied in nominal
1mm layers. Thicker layers will extend
drying out time.
GTEC Joint Tape cut to length to be pressed
into bedding compound without trapping air
bubbles, bedding layer of compound to be
flush with plasterboard face. Pound to
be flush with plasterboard face.
Second coat of jointing compound if required
to be applied over dry joint, feathered out 5060mm beyond the edge of first coat. Second
coat to be set hard or dry prior to third stage.
Finishing coat of compound feathered out
50-60mm beyond second coat. Finished,
dry joint to be sanded to smooth finish for
sealing and decoration.
Square edge joints only:
Joint width to be wider to reduce visible
crowning.
External corners only:
GTEC Flex Tape to be applied in place of
GTEC Joint Tape as reinforcement.
Machine application:
Air-drying compounds only to be used in
automatic taping machines.
Setting compounds such as GTEC Joint
Filler or GTEC Allset Xtra are not suitable
for automatic taping machines.
High and Severe Moisture Exposure:
GTEC Aquamix compound to be used in high
and severe moisture/humidity exposure areas.
In areas of severe moisture exposure
GTEC Aqua Board to be coated with
two layers of GTEC Drywall Sealer.
DECORATION
Surfaces and joints to be dry prior to
finishing.
Two coats of GTEC Drywall Sealer can
provide 15 MNs/g vapour barrier.
Joint to be sanded smooth for decoration.
Surfaces to be dust free prior to sealing.
Paint to be applied in accordance with
manufacturer’s instructions to dry and
dust free surface.
Seal with GTEC Universal Sealer prior to paint
application to improve whiteness and paint
coverage. GTEC Megadeco Boards and GTEC
Deco joints together do not require sealing.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
283
284
SKIMMING
SKIMMING
A traditional skimming plaster finish provides a surface ready to
be decorated and is an alternative to GTEC Taping and Jointing in
certain applications. It is particularly suitable where the quality
of board installation is poor, as it will cover surface imperfections,
and where drying out time is not important.
Most GTEC Boards are designed to accept skim plasters.
SYSTEM GUIDANCE
APPLICATION
Skim plaster can be applied by hand or
machine.
Refer to skim plaster manufacturer’s
instructions for application details.
Moisture resistant GTEC Boards (GTEC MR
range and GTEC LaDura) to be pre-treated
with bonding agent by others.
Board to be clean of dust, dirt and grease,
and sufficiently true to allow the specified
thickness of plaster.
FINISHING
Skim plaster to be allowed to dry out
thoroughly before decoration or tiling
is started.
Paint manufacturer’s instructions should
be followed for decorating to new plaster.
GTEC Board
Suitable for Skim
Pre-treatment
Standard Board
Yes
None
Plank
Yes
None
Contour
Yes
None
Base Board
Yes
None
Vapour Board
Yes
None
Vapour Base
Board
Yes
None
Moisture Board
Yes
Bonding agent
Fire Board
Yes
None
Fire MR Board
Yes
Bonding agent
Fire V Board
Yes
None
Fire Core Board
Yes
Bonding agent
E Board
Yes
None
dB Board
Yes
None
Acoustic
Homespan
Yes
None
Acoustic
Homespan MR
Yes
Bonding agent
Megadeco
No
n/a
Universal Board
Yes
None
Thermal
Yes
None
Thermal XP
Yes
None
Thermal K
Yes
None
LaDura
Yes
Bonding agent
Aqua Board
No
n/a
Render Board
No
n/a
TILING
TILING
Internal dry-lined surfaces are suitable for tiling in a wide variety of
applications in both domestic and commercial applications including
showers, toilets and bathrooms as well as permanently wet areas such
as swimming pools.
Ceramic tiling can be applied to GTEC Aqua, LaDura and Moisture
Boards for use in wet, moist or humid areas. Tiling can be applied to any
board if the area is generally dry, such as decorative tiles in a corridor.
Vertical frame centres for linings and partitions to be determined by
system height and tile weight.
Advice in the subsequent section is for low, medium, high and severe
humidity applications.
Normal conditions
Low to Medium Humidity
High to Severe Humidity
GTEC Board
General internal applications
Washrooms, toilets, kitchens,
bathrooms
Swimming pool, spa, wet
rooms, public showers
Aqua Board
Moisture Board
LaDura
All other boards
x
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
285
286
TILING
FN-TL-001M ‘Low to High Humidity’
FN-TL-002M ‘Severe Humidity’
GTEC Aqua Board /
GTEC Moisture Board /
GTEC LaDura Board
GTEC Joint Tape and
tile adhesive
Tile adhesive by others
GTEC Aqua Board
GTEC Aquamix
bedding layer only
2 coats of GTEC Drywall
Sealer applied prior
to tile adhesive
Tile adhesive by others
Tiles by others
Tiles by others
GTEC Aquastrip bedded
in Drywall Sealer
ISOMETRIC
ISOMETRIC
TILING
SYSTEM GUIDANCE
SUBSTRATE
All surfaces to be clean and dust free with all
loose material removed.
Where primer is recommended follow
manufacturer’s instructions.
BONDING
Tiles to be fixed in accordance with BS 5385.
Ceramic, glazed and stone tiles to be fixed
directly to board using waterproof adhesive
which is suitable for plasterboard substrates.
Tiles not to exceed maximum weight per
metre depending on board type.
Maximum weight of tiles by type of board at
400mm stud centres:
Maximum weight of tiles*
GTEC Moisture Board
32kg/m²
GTEC LaDura Board
32kg/m²
GTEC Aqua Board
36kg/m²
*for greater tile weight please contact Technical Enquiryline for recommendations
BOARDING
Untiled areas to be taped and jointed, see
GTEC Taping and Jointing section, p278.
Taper edge boards to be used to enable
formation of flush joints in untiled areas
and to ensure flat substrate for tiling.
Drylining systems using GTEC Universal
Bonding Compound in their construction to
be allowed 10 days to achieve full strength
before tiling.
FINISHING
For concealed joints only GTEC Joint Tape
may be bedded with waterproof, ceramic
tile adhesive. Untiled areas to be taped and
jointed using GTEC Aquamix.
In severe humidity areas tiles to be finished
with suitable waterproof tile grout and
sealed if required.
Seal around pipes, baths, shower fittings,
openings and outlets with waterproof
silicone sealant.
In areas of severe humidity GTEC Drywall
Sealer with GTEC Aquastrip to be used to
protect base of partition/lining.
Details at junctions, corners and perimeters
to be designed to prevent moisture
penetration.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
287
288
GTEC® COVE
®
GTEC COVE
GTEC Cove provides a decorative feature to the ceiling and wall
junction, masking unsightly cracks and improving the acoustic
mass and sealing along the junction.
GTEC Cove is made from gypsum encased in a profiled and strong
paper liner, available in two sizes, 90 and 120mm. It is bonded to
the wall and ceiling using GTEC Cove Adhesive and it is easy to
work with, rigid and provides an excellent surface for decoration.
WHERE TO USE:
Used in domestic new build or renovation projects
to complement the wall and ceiling junction.
FEATURES
BENEFITS
Flat rear profile
Easy to fix
Decorative shape
Distinctive feature
Gypsum product with paper finish
Easy to decorate and lightweight
Mitre cut to create
continuos profile
fix with continuous bead
of GTEC Cove Adhesive
GTEC® COVE
SYSTEM COMPONENT TABLE
System Component
System primary use
Product Reference
GTEC Cove
Gypsum plaster moulding used to finish
the junction of walls and ceilings
n/a
GTEC Cove Adhesive
Gypsum based adhesive, 40 minute
setting time for fast fixing of cove
n/a
GTEC Universal Sealer
Use prior to painting to improve
brightness and coverage
n/a
COVE
FIX
FINISH
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
289
290
GTEC® COVE
SYSTEM GUIDANCE
COVING
FN-CV-101S – Cove 90 and 120
Substrate to be dry, rigid and dust free,
with any wallpaper, whitewash or loose
decoration removed.
Surfaces which have been previously painted
to be abraded and coated bonding agent.
Nails to be installed below cove location
and at 1500mm centres to act as temporary
support while cove adhesive sets.
84mm
m
0m
12
GTEC Cove Adhesive to be applied in 3mm
thick and 10mm wide beads along full length
of each edge of GTEC Cove.
GTEC Cove Adhesive to fill any gaps between
cove and wall or ceiling.
GTEC Cove 120
With uneven ceilings it may be necessary
to permanently nail cove 25mm from one
edge. Nail heads should be countersunk
and covered with GTEC Cove Adhesive.
Ensure temperature does not fall below 5ºC.
64mm
m
m
90
GTEC Cove 90
PLAN
FINISHING
Coat of GTEC Universal Sealer to be applied
to enhance paint coverage and finish.
Plasterboard strips may be added between
coving and ceiling to add extra stepped
features. Visible edges of plasterboard strips
to be bound edges for decoration.
291
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
292
REFERENCE
293
REFERENCE
Product Reference
GTEC Board
294
GTEC Frame
308
GTEC Fix
321
GTEC Finish
324
Profile Guide
Screw Selection Guide
Sustainability
Health and Safety
Standards
Index
332
334
336
341
342
344
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
294
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD
GTEC Standard Board
A simple, lightweight and cost-effective board.
Standards: BS EN 520 Type A (formerly BS 1230 Type 1)
Composition: Aerated calcium sulphate di-hydrate enclosed inside a
tough paper with bound edges. Core and papers bonded with starch
and PVA edge glue.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Standard Board can be jointed and finished
with the GTEC Joining Systems. The boards require priming
with GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
9.5
1.8 to 2.7
900, 1200
5.95
0.052m2K/W
0.25
≥ 400N
≥ 160N
12.5
1.8 to 3.0
900, 1200
8.2
0.064m2K/W
0.25
≥ 550N
≥ 210N
2
1.8 to 3.0
900, 1200
10.0
0.079m K/W
0.25
≥ 650N
≥ 250N
9.5
1.8 to 2.4
900, 1200
5.95
0.052m2K/W
0.25
≥ 400N
≥ 160N
12.5
1.8 to 3.0
900, 1200
8.2
0.064m2K/W
0.25
≥ 550N
≥ 210N
0.25
≥ 650N
≥ 250N
15.0
Square Edge (SE)
15
2.4
900, 1200
10.0
2
0.079m K/W
GTEC Plank
A 19mm version of GTEC Standard Board for use in
flooring applications.
Standards: BS EN 520 Type A (formerly BS 1230 Type 1)
Composition: Aerated Calcium sulphate di-hydrate enclosed
inside a tough paper with bound edges. Core and papers are
bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Plank Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming
with GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Long.
Tapered Edge (TE)
19
Breaking Loads
(acc. BS EN 520)
Trans.
2.4
600
13.8
R = 0.099m²K/W
λ = 0.25
≥ 1000N ≥ 500N
2.4
600
13.8
R = 0.099m²K/W
λR = 0.25
≥ 1000N ≥ 500N
R
Square Edge (SE)
19
PRODUCT REFERENCE – GTEC® BOARD
GTEC Contour Board
A strong, light-weight and flexible 6mm board for creating curved
walls and ceilings.
Standards: BS EN 520 type D (formerly BS 1230 Type 1)
Composition: Aerated calcium sulphate di-hydrate with liners
made from re-cycled waste paper. The core is high density
gypsum re-enforced with chopped strands of glass fibre.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Contour Board can be jointed and finished
with GTEC Jointing Systems.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
6
2.4
1200
5.5
R = 0.026m²K/W
λR = 0.25
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
> 258
> 100,8
GTEC Base Board
A 4 foot long ceiling board ideal for skim plastering.
Sold in complete pallets only.
Standards: BS EN 520 Type P (formerly BS 1230 Type 2 and 6)
Composition: Aerated Calcium sulphate di-hydrate enclosed inside
a tough paper with bound edges. Core and papers are bonded with
starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Base Board is designed for skim finishing
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Square Edge (TE)
9.5
1.22
900
5.95
R = 0.050m²K/W
λR = 0.25
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 180
≥ 125
*Some combinations of length and widths may not be commonly available.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
295
296
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC Vapour Board
GTEC Standard Board with an additional laminated vapour
control layer.
Standards: BS EN 520 Type A (formerly BS1230 Type1) and BS EN 14190
Composition: GTEC Vapour Board has the same physical properties as
GTEC Standard Board but has a silver metallised polyester film back
liner to enhance vapour resistance.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Vapour Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
9.5
1.8 to 2.7
900, 1200
5.95
0.052m2K/W
0.25 W/mK
≥ 400N
≥ 160N
12.5
1.8 to 3.0
900, 1200
8.2
0.064m2K/W
0.25 W/mK
≥ 550N
≥ 210N
15.0
1.8 to 3.0
900, 1200
10.0
0.079m2K/W
0.25 W/mK
≥ 650N
≥ 250N
9.5
1.8 to 2.4
900, 1200
5.95
0.052m2K/W
0.25 W/mK
≥ 400N
≥ 160N
12.5
1.8 to 3.0
900, 1200
8.2
0.064m2K/W
0.25 W/mK
≥ 550N
≥ 210N
15
2.4
900, 1200
10.0
0.079m2K/W
0.25 W/mK
≥ 650N
≥ 250N
Square Edge (SE)
GTEC Vapour Base Board
GTEC Base Board with an additional laminated vapour control layer.
Standards: BS EN 520 Type P (formerly BS 1230 Type 2 and 6) and
BS EN 14190
Composition: GTEC Vapour Base Board has the same physical
properties as GTEC Base Board but has a silver metallised polyester
film back liner to enhance vapour resistance..
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Vapour Base Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness (mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
R = 0.050m²K/W
λ = 0.25
Square Edge (TE)
9.5
1.22
900
5.95
*Some combinations of length and widths may not be commonly available.
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 180
≥ 125
PRODUCT REFERENCE – GTEC® BOARD
GTEC Moisture Board
A board with water resistant additives designed for use in
humid areas.
Standards: BS EN 520 Type H1 (formerly BS 1230 Type 3 and 4)
Composition: Aerated Calcium sulphate di-hydrate with fillers
enclosed inside a green paper with bound edges. Core and
papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Moisture Board can be jointed and finished
with GTEC jointing systems. The boards require priming with
GTEC Universal Sealer prior to decorating and treating with
PVA bonding agent before plastering.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
2.4 to 3.0
1200
9
R= 0.062m²K/W
λR = 0.24
≥ 550N
≥ 210N
2.4
1200
11.85
R= 0.076m²K/W
λR = 0.24
≥ 650N
≥ 250N
GTEC Fire Board
Provides superior fire resistance.
Standards: BS EN 520 Types D and F (formerly BS1230 Type 5)
Composition: Aerated Calcium sulphate di-hydrate with fire-resisting
fillers and fibres enclosed inside a tough pink paper with bound
edges. Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Fire Board can be jointed and finished with
GTEC Jointing systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
R= 0.052m²K/W
Long.
Trans.
λ = 0.24
≥ 725N
≥ 300N
Tapered Edge (TE)
12.5
15
1.8 to 3.0
900, 1200
10.2
Breaking Loads
(acc. BS EN 520)
R
1.8 to 3.0
900, 1200
12.3
R= 0.062m²K/W
λ = 0.24
≥ 870N
≥ 360N
1.8 to 2.4
900, 1200
10.2
R= 0.052m²K/W
λR = 0.24
≥ 725N
≥ 300N
R
Square Edge (SE)
12.5
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
297
298
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC Fire MR Board
Provides both fire and moisture resistance.
Standards: BS EN 520 Types D, F and H1 (formerly BS 1230 Types 3, 4
and 5)
Composition: Aerated Calcium sulphate di-hydrate with fire-resisting
fillers and fibres enclosed inside a tough pink paper with bound
edges. Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Fire MR Board can be jointed and finished with GTEC
Jointing systems. The boards require priming with GTEC Universal
Sealer prior to decorating. Requires PVA treatment prior to skimming.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
2.4
1200
10.3
R= 0.05m²K/W
15
2.4 to 3.0
1200
12.5
R= 0.06m²K/W
λR = .25
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 550N
≥ 210N
≥ 650N
≥ 250N
GTEC Fire V Board
GTEC Fire Board with an additional laminated vapour control.
Standards: BS EN 520 Types D and F (formerly BS1230 Type 5)
and BS EN 14190
Composition: GTEC Fire Vapour Board has same physical properties
as GTEC Fire Board but has a silver metallised polyester film back liner
to enhance vapour resistance
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Fire V Board can be jointed and finished
with GTEC Jointing systems. The boards require priming
with GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
15
1.8 to 3.0
1.8 to 3.0
900, 1200
900, 1200
10.2
12.3
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
R= 0.052m²K/W
λR = 0.24
≥ 725N
≥ 300N
R= 0.062m²K/W
λ = 0.24
≥ 870N
≥ 360N
*Some combinations of length and widths may not be commonly available.
R
PRODUCT REFERENCE – GTEC® BOARD
GTEC Fire Core Board
High strength fire resistant board for use in GTEC Shaftwall
systems, steelwork fire encasement.
Standards: BS EN 520 Types D, H1I and R (formerly BS 1230 Types 3, 4
and 5)
Composition: Aerated Calcium sulphate di-hydrate with fire-resisting
fillers and fibres enclosed inside a moisture resistant paper with
bound edges. Core and papers are bonded with starch.
Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Fire Core Board can be jointed and finished
with GTEC Jointing systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
R= 0.089m²K/W
λ = 0.28
Tapered Edge (TE)
25
3
600
21.6
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 1500N
≥ 700N
GTEC E Board
Engineered for use within dwellings to comply with the latest
Building Regulations Approved Document E Regulations.
Standards: BS 520 Type D (formerly BS 1230 Type 1)
Composition: Aerated Calcium sulphate di-hydrate inside tough liner
papers with bound edges. Core and papers are bonded with starch.
Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC E Board can be jointed and finished with any of the
GTEC Jointing systems. It can be plastered on either side using single
coat proprietary gypsum finishing plasters not less then 2mm thick.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
2.4
1200
10.2
R = 0.052m²K/W
λR = 0.24
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 550N
≥ 250N
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
299
300
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC dB Board
For superior acoustic performance.
Standards: BS EN 520 Types D and I (formerly BS 1230 Type 1)
Composition: Aerated Calcium sulphate di-hydrate with fillers
and fibres enclosed inside tough liner papers with bound edges.
Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC dB Board can be jointed and finished with any of the
GTEC Jointing systems. It can be plastered on either side using single
coat proprietary gypsum finishing plasters not less then 2mm thick.
The blue liner paper requires more paint obscuration than normal
ivory liner. Allow 10 litres / 100m2.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
2.4
1200
11
R= 0.046m²K/W
15
2.4 to 3.0
1200
13
R= 0.056m²K/W
λR = 0.27
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 550N
≥ 210N
≥ 700N
≥ 300N
GTEC Acoustic Homespan Board
For use with the GTEC Acoustic Homespan Partition System.
Standards: BS EN 520 Type D (formerly BS 1230 Type 1)
Composition: Aerated Calcium sulphate di-hydrate with fillers
and fibres enclosed inside tough liner papers with bound edges.
Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Acoustic Homespan Board can be jointed and
finished with GTEC Jointing systems. The boards require priming
with GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
15
2.4 to 2.7
900
12.7
R= 0.060m²K/W
*Some combinations of length and widths may not be commonly available.
λR = 0.27
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 250N
≥ 350N
PRODUCT REFERENCE – GTEC® BOARD
GTEC Acoustic Homespan MR Board
For use with the GTEC Acoustic Homespan Partition System when
superior moisture resistance is required.
Standards: BS EN 520 Type D and H1 (formerly BS 1230 Type 3)
Composition: Aerated Calcium sulphate di-hydrate with fillers and
fibres enclosed inside a moisture resistant paper with bound edges.
Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Acoustic Homespan MR Board can be jointed and
finished with GTEC Jointing systems. The boards require priming with
GTEC Universal Sealer prior to decorating. Requires PVA treatment
prior to skimming.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
R= 0.060m²K/W
λ = 0.27
Tapered Edge (TE)
15
2.4
900
12.7
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 250N
≥ 350N
GTEC Megadeco
Pre-sealed performance board, combining fire and impact resistance
with acoustic insulation. Unique to Siniat.
Standards: BS EN 520 Type D, F, I and R (formerly BS1230 Type 4 and 5)
Composition: Aerated Calcium sulphate di-hydrate with fillers and
fibres enclosed inside a white pre-sealed paper with bound edges.
Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Megadeco Board can be jointed and finished with
only GTEC Deco jointing systems. The boards require no primer prior
to decorating. The board is not suitable for skim plaster finish.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
R= 0.046m²K/W
R= 0.055m²K/W
Long.
Trans.
λ = 0.27
≥ 725N
≥ 300N
λ = 0.27
≥725N
≥ 360N
Tapered Edge (TE)
12.5
15
2.4 to 3.0
2.4 to 3.0
1200
1200
11
13
Breaking Loads
(acc. BS EN 520)
R
R
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
301
302
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC Universal Board
Highly versatile multi-performance board providing outstanding fire,
impact and acoustic resistance.
Standards: BS EN 520 Type D, F, I and R (formerly BS1230 Type 4
and 5)
Composition: Aerated calcium sulphate di-hydrate with fillers
and fibres enclosed inside a tough paper with bound edges.
Core and papers are bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Universal Board can be jointed and finished with any
of the GTEC Jointing systems. The surface is suitable for finishing
with skimming plaster.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
2.4 to 3.0
1200
11
R = 0.046m²K/W
15
2.4 to 3.0
1200
13
R = 0.055m²K/W
λR = 0.27
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 725N
≥ 300N
≥ 870N
≥ 360N
GTEC LaDura
Stronger and harder than standard plaster board, giving greater
impact and pull out resistance. Moisture resistant. Offers a
far superior finish than gypsum fibreboards. The ultimate in
performance plasterboard.
Standards: BS EN 520 Type D, E, F, H1, I & R
Composition: Aerated calcium sulphate di-hydrate with fillers,
glass fibre, wood fibres and moisture resistant agent enclosed
inside a tough paper with bound edges. Core and papers are
bonded with starch. Edge glue is PVA.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC LaDura Board can be jointed and finished with any
of the GTEC Jointing systems
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
λ = 0.25
Tapered Edge (TE)
12.5
2.4 to 3.0
1200
12.8
R= 0.05m²K/W
15
2.4 to 3.0
1200
15.6
R= 0.06m²K/W
*Some combinations of length and widths may not be commonly available.
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 725N
≥ 300N
≥ 870N
≥ 360N
PRODUCT REFERENCE – GTEC® BOARD
GTEC Aqua Board
The UK’s first gypsum based board for use in high humidity or
wet applications. Ideal as a tile backing board for bathrooms.
Can also be used as an external sheathing board.
Standards: BS EN 15283 Type GM-F, GM-H1 and GM-I
Composition: Aerated Calcium sulphate di-hydrate with liners
made from non woven tissue with fillers and fibres enclosed
inside gypsum core. Core and papers bonded with starch.
Edge glue is PVA. Water resistant additive is silicone oil.
Core contains biocide to prevent mould growth.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Aqua Board can be jointed and finished with
GTEC Aqua Mix jointing system. In wet areas the boards require
priming with GTEC Drywall Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
λ = 0.25
Tapered Edge (TE)
12.5
0.85 to 2.7
1200
10.8
R = 0.05m²K/W
15
2.4 to 3.0
1200
13
R = 0.06m²K/W
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
≥ 500N
≥ 250N
≥ 650N
≥ 300N
GTEC Render Board
GTEC Render Board is the pioneering external board for direct
render applications.
Standards: BS EN 15283 Type GM-F, GM-H1 and GM-I
Composition: The board is composed of hydrophobic liner, a water
resistant high density gypsum core treated with silicone, antifungi
and polymeric additive. Core and liner are bonded with starch. Edge
glue is PVA. The core contains a biocide to prevent mould growth.
Reaction to fire: Euroclass A2-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
12.5
2.4
1200
10.8
R= 0.05m²K/W
λR = 0.25
Breaking Loads
(acc. BS EN 520)
Longs.
Trans.
≥ 500N
≥ 250N
ENQUIRYLINE
ENQUIRY LINE
T: 01275
T: 01234
377789
567 890
E: [email protected]
E: [email protected] www.siniat.co.uk
www.siniat.co.uk
303
304
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC Thermal Board
GTEC Standard Board laminated to expanded polystyrene insulation.
Standards: BS EN 13950
Composition: Aerated Calcium sulphate di-hydrate enclosed inside
a tough paper with bound edges. Core and papers are bonded with
starch. Edge glue is PVA. Expanded polystyrene (EPS) is factory
bonded to 9.5mm board using PVA adhesive.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Thermal Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming
with GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
22
2.4
1200
6.3
R = 0.36m²K/W
λ = 0.037
30
2.4
1200
6.4
R = 0.57m²K/W
(insulation)
40
2.4
1200
6.5
R = 0.84m²K/W
50
2.4
1200
6.6
R = 1.10m²K/W
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
GTEC Thermal XP Board
GTEC Standard Board laminated to extruded polystyrene insulation.
Standards: BS EN 13950
Composition: Aerated Calcium sulphate di-hydrate enclosed inside
a tough paper with bound edges. Core and papers are bonded with
starch. Edge glue is PVA. Extruded polystyrene (XPS) is factory
bonded to 9.5mm board using PVA adhesive.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Thermal XP Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
27
2.4
1200
6.7
R = 0.61m²K/W
λ = 0.033
35
2.4
1200
6.9
R = 0.88m²K/W
(insulation)
55
2.4
1200
7.4
R = 1.55m²K/W
*Some combinations of length and widths may not be commonly available.
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
PRODUCT REFERENCE – GTEC® BOARD
GTEC Thermal PIR Board
GTEC Standard Board laminated to rigid PIR insulation.
Standards: BS EN 13950
Composition: Aerated Calcium sulphate di-hydrate enclosed inside
a tough paper with bound edges. Core and papers are bonded with
starch. Edge glue is PVA. Polyisocyanurate Foam is factory bonded
to 9.5mm board with various thicknesses using PVA adhesive.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Thermal K Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming with
TEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
35
2.4
1200
6.8
R = 1.19m²K/W
λ = 0.022
50
2.4
1200
7.3
R = 1.87m²K/W
(insulation)
60
2.4
1200
7.6
R = 2.33m²K/W
R
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
GTEC Thermal K Board
GTEC Standard Board laminated to phenolic foam.
Standards: BS EN 13950
Composition: Aerated Calcium sulphate di-hydrate enclosed inside
a tough paper with bound edges. Core and papers are bonded
with starch. Edge glue is PVA. Phenol formaldehyde foam (PF)
is factory bonded to 9.5mm board with various thicknesses
of using PVA adhesive.
Reaction to fire: Euroclass A2-s1, d0
Finishing: GTEC Thermal K Board can be jointed and finished
with GTEC Jointing Systems. The boards require priming with
GTEC Universal Sealer prior to decorating.
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Thermal Resistance:
(R)
Thermal
Conductivity (W/mk)
Tapered Edge (TE)
30
2.4
1200
7.2
R = 0.94m²K/W
λR = 0.023
40
2.4
1200
7.7
R = 1.50m²K/W
λR = 0.021
50
2.4
1200
8.2
R = 1.98m²K/W
λR = 0.021
60
2.4
1200
8.7
R = 2.58m²K/W
λR = 0.020
70
2.4
1200
9.2
R = 3.08m²K/W
λR = 0.020
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
(insulation)
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
305
306
PRODUCT REFERENCE – GTEC® BOARD
GTEC BOARD continued
GTEC Pregybel C10 no. 8
Standards: BS EN 14190
Composition: Standard plasterboard with 10mm square perforations
in eight blocks. Perforated area = 16%
Reaction to fire: B-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Tapered Edge
12.5
2.4
1200
6.89
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
GTEC Pregybel R12 no. 2
Standards: BS EN 14190
Composition: Standard plasterboard with 12mm round perforations
in two blocks. Perforated area = 14%
Reaction to fire: B-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Tapered Edge
12.5
2.4
1200
*Some combinations of length and widths may not be commonly available.
7.05
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
PRODUCT REFERENCE – GTEC® BOARD
GTEC Pregybel R15 no. 1
Standards: BS EN 14190
Composition: Standard plasterboard with 15mm round perforations
in one block. Perforated area = 16%
Reaction to fire: B-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Tapered Edge
12.5
2.4
1200
6.89
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
GTEC Pregybel R15 no. 8
Standards: BS EN 14190
Composition: Standard plasterboard with 15mm round perforations
in eight blocks. Perforated area = 11%
Reaction to fire: B-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Tapered Edge
12.5
2.4
1200
7.23
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
GTEC Pregybel L5x80 no. 8
Standards: BS EN 14190
Composition: Standard plasterboard with 5 x 80mm line perforations
in eight blocks. Perforated area = 11%
Reaction to fire: B-s1, d0
Health and Safety: Please read the relevant Health and Safety
Datasheet available on our website or through Technical Enquiryline
Thickness
(mm)
Lengths*
(m)
Widths*
(mm)
Nominal Weight:
(kg/m2)
Tapered Edge
12.5
2.4
1200
7.23
Breaking Loads
(acc. BS EN 520)
Long.
Trans.
–
–
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
307
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Code
Ref.
0.52
44
2.4
CS44/RX
0.52
50
2.4, 2.5, 2.7, 3.0, 3.6
CS50/RX
0.52
60
3.0
CS60/RX
0.52
70
2.4, 2.7, 3.0, 3.6, 4.2, 4.8
CS70/RX
GTEC C Studs
Galvanised C shaped metal section
used with GTEC U Track to provide
vertical framework for wall linings
and partitions and at abutments in
other systems
34
36
Standards: BS EN 14195
W
0.52
90
3.0, 3.6, 4.2
CS90/RX
Composition: Galvanised Steel,
hot dipped to BS EN 10346
0.52
146
3, 3.6, 4.2, 6.0
CS146/RX
Reaction to fire: A1
0.7
70
4.2
CS70/B
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
0.7
90
4.2
CS90/B
0.7
146
4.8, 4.6
CS146/B
0.9
90
4.8, 6.0
CS90/W
1.2
70
4.8
CS70/Y
1.2
90
4.8
CS90/Y
1.2
146
6.0
CS146/Y
0.52
44
2.4, 2.7
AHS44/RX
0.52
50
2.4
AHS50/RX
0.52
44
2.4
CS44/RX
0.52
50
2.4
CS50/RX
GTEC Acoustic Homespan C Studs
Galvanised C shaped metal section
used with GTEC U Track to provide
vertical framework for GTEC Acoustic
Homespan Partitions
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
36
38
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
W
GTEC Acoustic Homespan Starter Studs
GTEC Acoustic Homespan Starter
Studs are used at wall abutments
and at door openings as part of the
GTEC Acoustic Homespan System
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
38
Reaction to fire: A1
36
308
W
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
*Bespoke lengths to order.
PRODUCT REFERENCE – GTEC® FRAME
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Depth
(mm)
Code
Ref.
0.52
70
3.6
AS70/RX
0.52
90
4.2
AS90/RX
0.52
146
3
AS146/RX
Galvanised I Shaped metal section
used with GTEC U Track to provide
a metal frame for the main run of
wall linings
0.52
50
3
IS50/RX
0.7
60
3.0, 3.6
IS60/B
0.7
70
3.6, 4.2
IS70/B
Standards: BS EN 14195
0.7
90
6
IS90/B
Galvanised U shaped metal section
used to receive GTEC C Studs to
provide framework for wall linings
and partitions
0.52
45
2.4
30
UT45/RX
0.52
52
3
30
UT52/RX
0.52
62
3
30
UT62/RX
Standards: BS EN 14195
0.52
72
3
30
UT72/RX
Composition: Galvanised Steel,
hot dipped to BS EN 10346
0.52
92
3
30
UT92/RX
0.52
148
3
30
UT148/RX
GTEC Acoustic Stud
A unique galvanised shaped stud
which, when used in a partition
system, gives up to 3 Rw dB increased
acoustic insulation over standard
70mm metal studs with the same
board linings
34
36
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
W
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC I Stud
Composition: Galvanised Steel,
hot dipped to BS EN 10346
W
Reaction to fire: A1
39
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC U Track
50
Reaction to fire: A1
W
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
*Bespoke lengths to order.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
309
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Depth
(mm)
Code
Ref.
0.7
52
3
50
UDT52/B
0.7
62
3
50
UDT62/B
0.7
72
3
50
UDT72/B
Composition: Galvanised Steel,
hot dipped to BS EN 10346
0.7
92
3
50
UDT92/B
0.7
148
3
50
UDT148/B
Reaction to fire: A1
1.2
52
3
50
UT52/Y
0.7
72
3
70
UXT72/B
0.9
92
3
70
UXT92/W
0.9
148
3
70
UXT148/W
0.7
0.7
3
GTEC U Track Deep Flange
Used for partitions with heights
exceeding 4.2m, or at the soffit
where a deflection head is required
Standards: BS EN 14195
50
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
W
GTEC U Track Extra Deep Flange
Used for partitions with heights
exceeding 4.2m or at the soffit
where a deflection head is required
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
70
310
W
GTEC Flex Track Deep Flange
GTEC Flex track is designed to allow
easy construction of curved partitions.
It is a galvanised 0.7mm metal angle
used in place of standard metal
GTEC U Tack. It is supplied pre-cut
to allow a minimum radius of 600mm
to be achieved.
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
*Bespoke lengths to order.
DFLEX/B
PRODUCT REFERENCE – GTEC® FRAME
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Depth
(mm)
Code
Ref.
0.55
79
3.6
25
MFCC50
0.80
15
3.6
44
MFCP44
0.55
28
3.6
26
MFCE26
1.2
52
3
30
UDT52/Y
GTEC Ceiling Channel
Galvanised steel channel used
to support boards in the GTEC
Suspended MF Ceiling System
Standards: BS EN 13964
25
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
50
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC Primary Channel
Galvanised steel channel used
to support the GTEC Ceiling Channel
MFCC50 in the GTEC Suspended MF
Ceiling System
Standards: BS EN 13964
15
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
44
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC Edge Channel
Galvanised steel channel used to
form the perimeter support of the
GTEC Suspended MF Ceiling System
Standards: BS EN 13964
Composition: Galvanised Steel,
hot dipped to BS EN 10346
19
30
Reaction to fire: A1
26
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC Heavy Gauge Primary Channel
Used in mass barrier GTEC Suspended
MF Ceilings to support increased load
Standards: BS EN 13964
Composition: Galvanised Steel,
hot dipped to BS EN 10346
30
Reaction to fire: A1
52
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
*Bespoke lengths to order.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
311
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Depth
(mm)
Code
Ref.
GTEC Connecting Clip
MFCCLIP
A galvanised steel clip for joining
GTEC Ceiling Channel to GTEC Primary
Channel in single layer systems only
Standards: BS EN 13964
Composition: Galvanised Spring Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear when
handling and fitting
GTEC Soffit Cleat
MFCCLEAT
Galvanised steel bracket used to fix
angle brackets or strap hanger to the
substrate for the GTEC Suspended
MF Ceiling System
Standards: BS EN 13964
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear when
handling and fitting
GTEC Dryliner Channel
A galvanised steel furring channel
for plasterboard fixing in the
GTEC Dryliner system
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
17
312
Reaction to fire: A1
47
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
*Bespoke lengths to order.
0.55
47
2.4, 2.7, 3.0,
3.6
17
RD1
PRODUCT REFERENCE – GTEC® FRAME
Thickness
(mm)
Width
(mm)
Lengths*
(m)
Depth
(mm)
Code
Ref.
0.55
30
3
19
RD9
GTEC Dryliner Track
Galvanised metal J shaped section
used as a track or perimeter channel
in the GTEC Dryliner System
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
20
30
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
19
Cavity
Depth (mm)
Length
(mm)
Overall Width
(mm)
Code Ref.
25-60
47
35
RD2
Cavity
Width (mm)
Length
(mm)
Overall Width
(mm)
Code Ref.
25-130
47
35
RD11
GTEC SR Bracket
Steel bracket used to brace
GTEC Dryliner Channels to
substrate in the GTEC Dryliner
Ceiling and Lining systems
Standards: BS EN 14195
63
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
48
GTEC XR Bracket
Extended reach steel bracket used
to brace GTEC Dryliner Channels to
substrate in the GTEC Dryliner Ceiling
and Lining systems
Standards: BS EN 14195
Composition: Galvanised Steel, hot
dipped to BS EN 10346
133
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
48
*Bespoke lengths to order.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
313
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Width
(mm)
Length
(mm)
Depth
(mm)
Code Ref.
47
100
16
RD3
Thickness
Depth (mm)
Length
(mm)
Depth
(mm)
Width
(mm)
Code Ref.
0.52
2400
15
79
MFCS/RX
Thickness
(mm)
Width
(mm)
Length*
(m)
Code Ref.
0.7
60
3000
CHS60/B
0.7
60
4800
CHS60/B
0.7
90
6600
CHS90/B
0.7
146
6000
CHS146/B
GTEC Dryliner Channel Connector
A galvanised clip used to join
GTEC Dryliner Channels (RD1)
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
GTEC Shallow Wall Channel
Galvanised channel for dabbing
to walls or for shot-firing to
masonry walls.
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
43
15
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
18
GTEC CH Stud
Light-weight non-loadbearing steel
sections which are installed between
GTEC Fire Core Board and provide the
bearing surface to which plasterboard
is applied in GTEC Shaftwall system
35
Standards: BS EN 14195
25
314
W
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
PRODUCT REFERENCE – GTEC® FRAME
Thickness
(mm)
Width
(mm)
Length
(m)
Code Ref.
0.7
60
3.0, 4.8
ES60/B
0.7
90
6.6
ES90/B
0.7
146
6
ES146/B
0.7
62
3
JT62/B
0.7
92
3
JT92/B
0.7
148
3
JT148/B
3
RBD3000/RX
GTEC E Stud
Light-weight steel sections used
for starter studs, intersections,
door openings and end studs in
GTEC Shaftwall System
Standards: BS EN 14195
25
35
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
W
GTEC J Track
Light-weight steel sections positioned
at floor and soffit to guide GTEC CH
Studs in GTEC Shaftwall system
Standards: BS EN 14195
50
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
25
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
W
GTEC Resilient Bar
Acoustic isolation bar for improving
the sound performance of a partition
or ceiling, and minimising the risk
of joints cracking due to timber
movement during drying out
0.52
Standards: BS EN 14195
17
45
18
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
315
316
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Thickness
Max. Steel Flange
(mm)
Code Ref.
0.55
17
CB17
0.55
27
CB27
0.55
40
CB40
Total Length
(mm)
Min. frame
separation (mm)
Code Ref.
106
35
VBRACE
65
35
VBRACE90
GTEC CB Clip
Light-weight steel clips friction fitted
to flanges of structural steelwork
in the GTEC Column and Beam Clip
System. Used in conjunction with
GTEC Edge Channel.
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
D
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
GTEC Acoustic V Brace
Acoustic brace for bracing twin
wall partitions
Standards: BS EN 14195
Composition: Spring steel with black
phosphate coating
106
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
GTEC Acoustic V Brace 90º
Acoustic brace for bracing linings
and twin frame partitions
Standards: BS EN 14195
Composition: Spring steel with black
phosphate coating
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
PRODUCT REFERENCE – GTEC® FRAME
Overall Size
(mm)
Coating
(mm)
Max Weight
(kg)
Code Ref.
50
PHONIMO
120
PHONI
GTEC Phonissimo Acoustic Hanger
Heavy duty acoustic suspended
ceiling hanger bracket for use with the
GTEC Suspended MF Ceiling System.
This bracket is capable of supporting
services and a secondary ceiling.
70 x 30 x 30
Standards: BS EN 14195
Composition: Spring steel with black
phosphate coating
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
GTEC Phonistar Acoustic Hanger
Very heavy duty acoustic suspended
ceiling hanger bracket for use with the
GTEC Suspended MF Ceiling System.
This bracket is capable of supporting
services and a secondary ceiling.
55 x 75
Zinc
Standards: BS EN 14195
Composition: Zinc galvanised mild steel
/ Moulded neoprene elastomeric rubber
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
GTEC Acoustic Floor Clip
Metal clip used in the
GTEC Acoustic Floor System
50 x 30
RAFC25
Standards: BS EN 14195
Composition: Spring steel with black
phosphate coating
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
317
318
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Overall size
(mm)
Code Ref.
12 x 27.5 x 38
ISC10
GTEC Staggered Stud Clip
A spacing clip for use in GTEC partitions
with staggered GTEC I Studs
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
Width
(mm)
Length
(m)
Code Ref.
50
12
RAFT50
Gauge
(mm)
Length
(m)
Code Ref.
0.55
25
MFSTRAP
GTEC Resilient Tape
Self-adhesive acoustic isolation tape
Composition: Natural Rubber with a
solvent based acrylic adhesive
GTEC Strap Hanger
May be used in lieu of GTEC Metal
Angle for ceiling depths up to 1 metre
Standards: BS EN 14195
Composition: Galvanised Mild Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling and fitting
PRODUCT REFERENCE – GTEC® FRAME
Flange Width
(width)
(depth)
Length
(m)
Code Ref.
23
30
3.6
MFC
25
25
3.6
MFC
25
50
3.6
MFC
Gauge
Width
(mm)
Length
(mm)
Code Ref.
0.52
50
2.4
FS50/RX
0.85
90
2.4
FS90
Thickness
(mm)
Width
(mm)
Length
(mm)
Code Ref.
0.9
99
2.4
MFIX/W
GTEC Metal Angle 90°
Galvanised versatile metal section
used in a number of systems
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
D
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
W
GTEC Flat Strap
Galvanised metal GTEC Flat Strap used
in linings and partitions to provide
support for GTEC Flat Strap
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC Fixing Channel
Galvanised metal channel used in
linings and partitions to provide
support to plasterboard joints and
heavy fixtures. Also provides a
fire stop
Standards: BS EN 14195
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
319
320
PRODUCT REFERENCE – GTEC® FRAME
GTEC FRAME continued
Length
(mm)
Code Ref.
3.048
MCJ3048
Width
(mm)
Code Ref.
25
INSR
GTEC Movement Control Joint
Metal sections fixed between boards
to control movement up to 10mm.
Composition: Galvanised Steel,
hot dipped to BS EN 10346
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
GTEC Insulation Hold
Metal strip used with timber and
metal framing for supporting
mineral wool insulation
Composition: Galvanised Mild Steel,
hot dipped to BS EN 10346
Reaction to fire: A1
Health and Safety: Always wear
protective gloves and eyewear
when handling, cutting and fitting
PRODUCT REFERENCE – GTEC® FIX
GTEC FIX
Size
Coverage
Guide
Application
25kg bag
8m²
Internal
walls
Hand only
5ltr bucket
50m²
Hand
application
only
25kg bag
5m²
Hand
application
only
GTEC Universal Bonding Compound
Gypsum based compound for direct
bonding plasterboard to walls or
bonding GTEC Metal Furring Wall
Channels to walls. Suitable for
bonding GTEC Thermal Boards.
Standards: BS EN 14496
Composition: Calcium sulphate
hemihydrate with polymer binders
Reaction to fire: A2, s1, d0
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC Wall Lining Adhesive
For bonding plasterboard to tiles or
bonding flooring to plasterboard in
some flooring systems
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC E-coat
A gypsum based acoustic render for use
on party walls prior to direct bonding.
Robust Detail approved.
Composition: Calcium sulphate
hemihydrate and limestone with
polymer binders
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
321
322
PRODUCT REFERENCE – GTEC® DRYWALL SCREWS
GTEC DRYWALL SCREWS
Length
(mm)
Diameter
(mm)
Head Type
Drive Type
Thread
Point
25
3.5
Bugle
Phillips 2
Fine
Self-tapping
32
3.5
38
3.5
42
3.5
50
3.5
65
4.2
75
4.2
90
4.8
32
3.5
Bugle
Phillips 2
Coarse
Self-tapping
38
3.5
42
3.5
50
3.5
65
4.2
75
4.2
90
4.8
100
4.8
25
3.5
Bugle
Phillips 2
Fine
Self-drilling
32
3.5
42
3.5
50
3.5
65
4.2
90
4.8
Bugle
Phillips 2
Fine
Self-tapping
Bugle
Phillips 2
Fine
Self-tapping
GTEC Drywall Screw – Self Tapping
Screw for attaching
plasterboard to light
gauge metal.
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Drywall Screw – High Thread
Screw for attaching
plasterboard to timber
framework.
Standards: BS EN 14566
Composition: Carbon
steel with black
phosphate coating
GTEC Drywall Screw – Self Drilling
Screw for attaching
plasterboard to heavy
gauge metal.
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Performance Drywall Screw – Self Tapping
For attaching GTEC
Performance board to
light gauge metal and
ceiling systems.
32
3.9
38
3.9
45
3.9
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Performance Drywall Screw – Wet Area
For attaching GTEC Wet
Area boards to various
substrates.
Standards: BS EN 14566
Composition: Carbon
steel with ceramic
coating
25
3.9
38
3.9
Fine
Self-tapping
42
3.9
Coarse
Self-tapping
32
3.9
Fine
Self-drilling
PRODUCT REFERENCE – GTEC® DRYWALL SCREWS
Length
(mm)
Diameter
(mm)
Head Type
Drive Type
Thread
Point
13
4.2
Wafer
Head
Phillips 2
Fine
Self-tapping
12
4.2
Fine
Self-drilling
13
3.9
Fine
Self-tapping
12
3.9
Fine
Self-drilling
GTEC Drywall Screw – Wafer Head
Screw for connecting
metal components
beneath plasterboard.
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Drywall Screw – Pan Head
Screw for connecting
metal components.
Pan Head
Phillips 2
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Drywall Screw – Acoustic Floor – Self Tapping
For use with the GTEC
Acoustic Floor System.
63
4.2
Countersunk
Phillips 2
Fine
Self-tapping
Bugle
Phillips 2
Fine
Self-tapping
Bugle
Phillips 2
Coarse
Self-tapping
Length
(mm)
Plug Material
Pilot Hole Size
60
Red Plastic
8mm
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Collated Drywall Screws – Self Tapping
Strips of 50 collated
drywall screws for use
with auto-feed drywall
tools.
25
3.5
35
3.5
38
3.5
Standards: BS EN 14566
44
3.5
Composition: Carbon
steel with zinc coating
GTEC Collated Drywall Screws – High Thread
Strips of 50 collated
drywall screws for use
with auto-feed drywall
tools.
38
3.5
51
3.5
Standards: BS EN 14566
Composition: Carbon
steel with zinc coating
GTEC Nailable Plugs
For the secondary mechanical fixing of
GTEC Thermal and GTEC Contour Boards
when bonded.
Standards: n/a
Composition: n/a
80
100
120
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
323
324
PRODUCT REFERENCE – GTEC® FINISH
GTEC FINISH
Bag Size
(kg)
Coverage
Guide
Application
12.5
25m²
Bedding &
Filling
Hand only
GTEC Joint Filler Xtra
GTEC Joint Filler Xtra is a gypsum based
joint compound with 90 minute setting
time for bedding tapes by hand application.
37m²
Bedding
only
Standards: Type 1B to BS EN 13963
Composition: Calcium sulphate hemihydrate
and limestone with polymer binders
Reaction to fire: A1
Health and Safety: Please read the relevant
Health and Safety Datasheet available on
our website or through Technical Enquiryline
GTEC Joint Cement Xtra
Air-Drying Compound – GTEC Joint
Cement Xtra is a light-weight, air-drying
joint cement offering superior Coverage
Guide and easy sanding. Can be used for
bedding tapes and finishing joints in a
2-stage application. Also suitable for
machine application.
22.5
64m² Full
Taping
Operation
Hand or
machine
application
174m²
Finishing
Coat only
Standards: Type 3A to BS EN 13963
Composition: Limestone and mica based,
containing amounts of vinyl polymers and
workability aids
Reaction to fire: A2
Health and Safety: Please read the relevant
Health and Safety Datasheet available on
our website or through Technical Enquiryline
GTEC Easy Finish Xtra
Setting/Air-Drying Combined – GTEC Easy
Finish – revolutionary and lightweight, GTEC
Easy Finish is the ideal jointing compound
for same day completion of the jointing
application due to a 90 minute setting time.
Standards: Type 3B to BS EN 13963
Composition: Calcium sulphate hemihydrate
and limestone with polymer binders
Reaction to fire: A2
Health and Safety: Please read the relevant
Health and Safety Datasheet available on our
website or through Technical Enquiryline
10
64m² Full
Taping
Operation
174m²
Finishing
Coat only
Hand
application
only
PRODUCT REFERENCE – GTEC® FINISH
Size
(kg)
Coverage
Guide
Application
20
50m2 Full
Taping
Operation
Hand or
machine
application
GTEC Smartmix Xtra
Air-Drying Compound Ready Mixed –
GTEC Smartmix Xtra is a light-weight
compound offering superior coverage and
easy sanding. Can be used for bedding
tapes and finishing joints in a 2-stage
application. Ideal for machine application.
135m2
Finishing
Coat Only
Standards: Type 3A to BS EN 13963
Composition: Limestone and mica based,
containing amounts of vinyl polymers and
workability aids. Water based.
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC Aquamix
GTEC Aquamix is a water resistant readymixed joint cement. For use in humid and
wet applications
5
20
50m² Full
Taping
Operation
Hand
application
only
135m²
Finishing
Coat Only
Standards: Type 3A to BS EN 13963
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
(20kg)
GTEC Deco Filler
Deco Setting Compound – GTEC Deco
Filler is a gypsum based compound
designed for bedding and filling joints by
hand when using the GTEC Deco System.
12.5
25m²
Bedding &
Filling only
Hand
application
only
Standards: Type 1B to BS EN 13963
Composition: Calcium sulphate
hemihydrate and limestone with
polymer binders
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
325
326
PRODUCT REFERENCE – GTEC® FINISH
GTEC FINISH continued
Size
(kg)
Coverage
Guide
Application
20
50m² Full
Taping
Hand or
machine
application
GTEC Deco Joint Cement
Deco Air-Drying Compounds Ready
Mixed – GTEC Deco Joint Cement is
a light-weight, readymixed compound
which must be used for the final coat
of the jointing process and can be used
for bedding and filling when using the
GTEC Deco System.
135m²
Finishing
Coat only
Standards: Type 3A to BS EN 13963
Composition: Limestone and mica based,
containing amounts of vinyl polymers and
workability aids. Water based.
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC Deco Machine
Deco Air-Drying Compounds Ready Mixed
– GTEC Deco Machine is a light-weight,
readymixed compound formulated for use
with Premier International Taping Tools.
As with GTEC Deco Joint Cement, GTEC
Deco Machine must be used for the final
coat of the jointing process when using
the GTEC Deco System.
Standards: Type 3A to BS EN 13963
Composition: Limestone and mica based,
containing amounts of vinyl polymers and
workability aids. Water based.
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
20
50m² Full
Taping
135m²
Finishing
Coat only
Machine
only
PRODUCT REFERENCE – GTEC® FINISH
Roll Size
(m)
Nominal Width
(mm)
150
53
90
52
33
51
50
100
GTEC Joint Tape
White perforated cross
fibre tape for reinforcing
joints. Suitable for hand or
mechanical application with
GTEC Jointing Compounds.
Standards: BS EN 13963
Health and Safety: Please read
the relevant Health and Safety
Datasheet available on our
website or through Technical
Enquiryline
GTEC Patching Tape
Self adhesive fibreglass tape for
patching plasterboard.
Health and Safety: Please read
the relevant Health and Safety
Datasheet available on our
website or through Technical
Enquiryline
GTEC Flex Tape
Cross fibre paper tape with heat
bonded zinc coated steel strips
for the protection of external
corner angles.
Health and Safety: Please read
the relevant Health and Safety
Datasheet available on our
website or through Technical
Enquiryline
GTEC Aquastrip
This mesh strip is used in the
GTEC Aqua System to protect
exposed drylining perimeters
for wet applications.
Health and Safety: Please read
the relevant Health and Safety
Datasheet available on our
website or through Technical
Enquiryline
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
327
328
PRODUCT REFERENCE – GTEC® FINISH
GTEC FINISH continued
Length
(mm)
GTEC Corner 90º External
Tape-On Beads are a paper tape reinforced with galvanised
metal for protection of external corners and board edges.
Used for taping and jointing.
2400
3000
Health and Safety: Please read the relevant Health and
Safety Datasheet available on our website or through
Technical Enquiryline
GTEC Duo Bead
Galvanised steel angle bead with 3mm nose for drywall
corner reinforcement.
2400
3000
Health and Safety: Always wear protective gloves and
eyewear when handling, cutting and fitting
GTEC Edging Bead
Galvanised steel bead gives a neat edge to plasterboard.
Perforated to provide a key for jointing compound.
3000
Health and Safety: Always wear protective gloves and
eyewear when handling, cutting and fitting
Bucket Size
(kg)
Coverage
Guide
Application
10
100m²
One coat
Hand
application
only
10
100m²
One coat
Hand
application
only
GTEC Universal Sealer
For use on plasterboard prior to painting for
improved whiteness and covering power.
Does not provide a vapour control layer.
Composition: A blend of limestone and
silica fillers dispersed with polymers
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC Drywall Sealer
Ivory, pre-decoration coat for
plasterboard. Can provide 15 MNs/g
vapour check, with two coats.
Composition: Aqueous, modified adhesive
based on polyvinyl acetate
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
70m²
Two coats
PRODUCT REFERENCE – GTEC® FINISH
Length
(mm)
GTEC Cove 90
Gypsum plaster moulding in a
traditional cove profile, provides
an attractive feature at the junction
of walls and ceilings.
3000
Standards: BS EN 14209
Composition: Calcium sulphate
di-hydrate enclosed inside a tough
paper with bound edges
Reaction to fire: Euroclass A2-s1, d0
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
GTEC Cove 120
Gypsum plaster moulding in a larger
traditional cove profile, provides an
attractive feature at the junction of
walls and ceilings.
3000
3600
4200
Standards: BS EN 14209
Composition: Calcium sulphate
di-hydrate enclosed inside a tough
paper with bound edges
Reaction to fire: Euroclass A2-s1, d0
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
Bag Size
(kg)
Coverage Guide
Application
5
11 linear metres
(approx)
Hand
application only
33 linear
metres (approx)
40 minute
setting time
GTEC Cove Adhesive
A gypsum based adhesive with
a 40 minute setting time for fast
fixing of cove.
Composition: Calcium sulphate
hemihydrate with Polymer binders
12.5
Reaction to fire: A2
Health and Safety: Please read the
relevant Health and Safety Datasheet
available on our website or through
Technical Enquiryline
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
329
330
PRODUCT REFERENCE – GTEC® FINISH
GTEC FINISH continued
Pad Size
(mm)
Thickness
(mm)
Size
Code Ref.
170 x 170
4
Single
socket
PAD1
230 x 170
4
GTEC Socket Pads
GTEC Socket Pads are used to protect
the fire and acoustic integrity of
partitions where electrical sockets
are used.
PAD2
Double
socket
Size
(ltr)
Coverage
(6mm Bead)
Colour
Maximum joint
width (mm)
0.9
29 linear
metres
White
25
White
2
0.38
12 linear
metres
0.6
17 linear
metres
GTEC Intumescent Acoustic Sealant
Gun applied water based sealant for
use as an acoustic sealant, resilient
adhesive, decorators caulk or as
intumescent mastic to seal air gaps
at system perimeter.
Composition: Acrylic emulsion
containing inert fillers and fungicide
331
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
PROFILE GUIDE
PROFILE GUIDE
width
GTEC C Stud – W gauge
(CS)
GTEC C Stud – Y gauge
(CS)
UT
30
50
70
GTEC C Stud – RX and B gauge
(CS)
C Stud (CS)
width
width
Width (mm)
Gauge
44 50 60 70 90 146
RX
33
36
34
36
34
36
GTEC STUD AND TRACK PROFILES
–
–
–
70 90 146
–
–
–
–
90
–
–
–
–
90 146
–
B
W
Y
Width (mm)
Gauge
45 52 62 72 92 148
RX
–
52 62 72 92 148
B
–
52
–
–
Y
–
–
–
–
–
–
–
72
UDT
width
width
width
GTEC U Track
(UT)
GTEC U Track Deep Flange
(UDT)
GTEC U Track Extra Deep Flange
(UXT)
–
–
92 148
W
UXT
–
–
B
39
Width (mm)
34
36
38
W
36
AHS 44 50
width
width
GTEC I Stud
(IS)
GTEC Acoustic Homespan Stud
(AHS)
AS
–
–
–
–
–
50
–
–
–
–
Gauge
–
–
70 90 146
–
–
RX
RX
–
RX
–
B
IS
60 70 90
GTEC Acoustic Stud
(AS)
Gauge Thickness
RX
B
W
Y
0.52mm
0.70mm
0.90mm
1.2mm
GTEC ACCESSORIES
GTEC Flat Strap
50
45
106
90
41
11
17
(FS50/RX)
18
GTEC Resilient Bar
(RBD3000/RX)
(FS90/W)
GTEC Acoustic V Brace
(VBRACE)
GTEC Movement Control Joint
(MCJ304D)
GTEC Metal Angle
25
(MFC2550)
25
(MFC2525)
6
23
25
50
332
30
(MFC2330)
98
GTEC Fixing Channel
(MFIX/W)
All dimensions are in mm
PROFILE GUIDE
30
25
15
19
30
GTEC SUSPENDED MF CEILING PROFILES
26
44
50
GTEC Edge Channel
(MFCE26)
52
GTEC Ceiling Channel
(MFC50)
GTEC Primary Channel
(MFCP44)
GTEC Heavy Guage Primary Channel
(UDT52/Y)
17
20
30
GTEC DRYLINER PROFILES
19
47
63
133
GTEC Dryliner Channel
(RD1)
GTEC Dryliner Track
(RD9)
15
10
43
48
30
18
GTEC CR Bracket
(RD7)
GTEC Shallow Wall Channel
(MFCS/RX)
48
GTEC SR Bracket
(RD2)
GTEC XR Bracket
(RD11)
Gauge Thickness
RX
B
W
Y
0.52mm
0.70mm
0.90mm
1.2mm
25
25
Width (mm)
Gauge
JT
62 92 148
B
ES
60 90 146
B
CHS 60 90 146
B
35
50
GTEC FIRE PROTECTION PROFILES
width
width
GTEC E Stud
(ES)
depth
35
GTEC J Track
(JT)
Depth (mm)
CB CLIP
25
17
27
40
width
GTEC CH Stud
(CHS)
GTEC CB Clip
(CB)
All dimensions are in mm
ENQUIRYLINE T: 01275 377789 E: [email protected]uk www.siniat.co.uk
333
334
SCREW SELECTION GUIDE
SCREW
SELECTION GUIDE
GTEC Drywall Screws are a comprehensive range of mechanical fixings
essential for use in GTEC systems. All screws have been rigorously tested for
mechanical characteristics such as shear and pull-out, allowing the design of
systems with superior levels of structural performance. Only the use of
GTEC screws will enable maximum heights and loadings to be achieved safely.
GTEC Drywall Screws are fully CE marked and compliant with BS EN 14566.
Purpose
Fixing boards to
timber framing
Fixing boards to
metal framing
Fixing boards to
metal framing
Fixing boards to
timber framing
Fixing boards to
metal framing
Fixing boards to
metal framing
Board
Density
Min.
Length
Thread & Point
Product
Timber
Board(s)
Thickness
+ 25mm
Coarse, self-tapping
GTEC High Thread
Drywall Screw
Thin gauge metal
Rx (0.52mm) &
B (0.7mm)
Board(s)
Thickness
+ 10mm
Fine, self-tapping
GTEC Self-Tapping
Drywall Screw
Thick gauge metal
W (0.9mm) &
Y (1.2mm)
Board(s)
Thickness
+ 10mm
Fine, self-drilling
GTEC Self-Drilling
Drywall Screw
Timber
Board(s)
Thickness
+ 25mm
Coarse, self-tapping
GTEC HD High Thread
Drywall Screw
Thin gauge metal
Rx (0.52mm) &
B (0.7mm)
Board(s)
Thickness
+ 10mm
Fine, self-tapping
GTEC HD Self-Tapping
Drywall Screw
Thick gauge metal
W (0.9mm) &
Y (1.2mm)
Board(s)
Thickness
+ 10mm
Fine, self-drilling
GTEC HD Self-Drilling
Drywall Screw
Timber
Board(s)
Thickness
+ 25mm
Coarse, self-tapping
GTEC Wet Area High
Thread Drywall Screw
Thin gauge metal
Rx (0.52mm) &
B (0.7mm)
Board(s)
Thickness
+ 10mm
Fine, self-tapping
GTEC Wet Area
Self-Tapping
Drywall Screw
Thick gauge metal
W (0.9) & Y (1.2)
Board(s)
Thickness
+ 10mm
Fine, self-drilling
GTEC Wet Area
Self-Drilling
Drywall Screw
Lower
12.5mm
< 11kg/m2
15mm <
13kg/m2
Higher
12.5mm
> 11kg/m2
15mm >
13kg/m2
Fixing boards to
timber framing
in wet areas
Fixing boards to
metal framing in
wet areas
Substrate
All
Fixing boards to
metal framing in
wet areas
Fixing metal to metal
below board layer
n/a
All metal gauges
n/a
Fine, self-drilling
GTEC Wafer Head
Drywall Screw
Fixing metal to metal,
generally
n/a
All metal gauges
n/a
Fine, self-drilling
GTEC Pan Head
Drywall Screw
Fixing floorboards
to boards and metal
angles in GTEC
Acoustic Floor System
All
n/a
n/a
Fine, self-tapping
GTEC Acoustic
Floor Screw
Secondary board
retention
All
Masonry
Thickness
of board
+ 25mm
Nail
GTEC Nailable Plug
SCREW SELECTION GUIDE
RF-SC-001-Fixing to metal framing
SCREW SELECTION
Select screws based on application, substrate
and board density outlined in table above.
Higher density boards are those with
a weight of 11kg/m2 and above for
12.5mm boards and 13kg/m2 and above
for 15mm boards.
Min.13mm
Min.10mm
CUT EDGES
BOUND EDGES
For timber substrates minimum length of
screws to be total board thickness plus
25mm penetration into the substrate.
For metal substrates minimum length of
screws to be total board thickness plus
10mm penetration into the substrate.
Min.10mm
Min. 3mm
When fixing to GTEC Resilient Bar screws
must be fixed to bar only and not penetrate
into metal or timber substrate below.
RF-SC-002 -Fixing to timber framing
SCREW POSITIONING
Screws to be located minimum of 10mm
from bound edges.
Screws to be located minimum of 13mm
from cut edges.
Screw location for timber studs to be
minimum of 6mm from edge of stud.
Min.13mm
CUT EDGES
Screw location for metal frame to be
minimum of 3mm from edge of profile.
MAXIMUM SPACINGS
Min.10mm
BOUND EDGES
Min.25mm
Min. 3mm
GTEC Partitions – 300mm. See section for
more detailed guidance.
GTEC Linings – 300mm. See section for more
detailed guidance.
GTEC Fire Protection systems – 300mm.
See section for more detailed guidance.
GTEC Ceilings – 150mm at perimeters and/
or cut edges, and 230mm in field of board
and/or bound edges. See section for more
detailed guidance.
RF-SC-003-Point and thread types
Fine thread,
self-tapping
Coarse thread,
FINISHING
self-tapping
Screw heads to be driven into board until
slightly recessed into board surface.
Screws heads to be sealed with GTEC Drywall
or Universal Sealer and spotted with GTEC
Jointing Compound to create flush finish.
Fine thread,
self-drilling
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
335
336
SUSTAINABILITY
SUSTAINABILITY
SINIAT AND SUSTAINABILITY
Plasterboard is fully recyclable – with no loss in quality
GTEC Products and Systems are BRE Green Guide A and A+ rated and help collect
sustainability code credits
Unique product innovations minimise the number of boards needed in a design
Certified and managed sustainability: Responsible Sourcing BES 6001,
ISO 9001 and ISO 14001
Full plasterboard site waste collection and recycling from GTEC Wasteline Direct
The leading recycler of post-consumer plasterboard waste per unit sales (2009-2011)
INTRODUCTION
SINIAT FIRSTS:
Sustainability has long been a core value at
Siniat and is now top of the agenda for everyone
in the construction supply chain. We remain
committed to sustainable development and
construction in both our business approach and
in meeting the needs of the built environment.
As a leading supplier of construction
products, Siniat has a huge responsibility.
Building materials meet basic human
needs for the buildings that are part of
everyday life. With economic growth and
social development increasing demand
we have to balance the human benefits
of our products with the availability of
finite and non-renewable resources.
2004: The first plasterboard
manufacturer in the UK to
achieve ISO 9001 and ISO
14001 certification for all
activities – these international standards provide
the framework for our conservation of natural
resources. They ensure continuous improvement
in quality and service, as well as emission
reductions and innovative solutions for ever
more sustainable buildings.
Therefore, at Siniat, we focus on environmental
sustainability and leaving the lightest possible
trace on the earth while enabling the social and
economic sustainability of our operations.
2011: The first plasterboard
manufacturer in the UK to
achieve BES6001 certification,
the industry sustainability
standard for the responsible sourcing of
construction products. This independent
assessment certifies environmental stewardship
and social and economic sustainability within
our operations and supply chain.
SUSTAINABILITY
OUR SUSTAINABILITY POLICY:
A LIFE CYCLE APPROACH
GYPSUM WASTE RECYCLING
To meet your client’s sustainability targets,
Siniat takes a life cycle approach to minimising
the environmental impacts of manufacturing
and supply operations.
All of our plant and supply chain activities
translate into embodied impacts (such as
carbon, water and recycled content) within your
construction project. Therefore, we intervene at
every life cycle stage to reduce these through
material and energy resource minimisation,
efficiency and recycling.
AND IT’S NOT JUST ABOUT THE
ENVIRONMENT…
As part of our product stewardship, we
provide for the communities of people
supplying our materials; manufacturing
our products; living near to our plants; or
installing our products and systems on site.
We have adopted the United Nations Global
Compact within our Responsible Sourcing
Policy and expect suppliers to do the same.
MINIMISING WASTE
Whilst all drywall projects generate waste from
off-cuts, steps can be taken to minimise this.
Our project teams can help you reduce waste
through selecting appropriate products and
systems, and efficient design detailing. Where
necessary, we can supply boards and metal studs
in non-standard lengths to reduce wastage on
site. Reducing damage to boards and pallets
with good site storage and transport practices
can also make a big contribution.
An outstanding sustainability credential
of plasterboard is that it can be recycled
into new board products with no loss
in quality. Siniat has been recycling
plasterboard process waste for many years,
becoming the first to eliminate plasterboard
manufacturing waste to landfill in 2005.
We’ve expanded our site waste recycling
and recovery activities since 2000 and are
now the leading recycler of plasterboard
waste in the UK. Our post-consumer
waste recycling rate exceeded the sector
average in each of the years 2009-2011.
European and UK regulations now require
all gypsum waste to be segregated at source.
While it remains legal to landfill gypsum waste
in dedicated facilities our GTEC Wasteline Direct
service makes this easy to avoid, recycling many
thousands of tonnes of waste every year.
Offered to merchants, distributors and
contractors our GTEC Wasteline Direct service
can take care of all your plasterboard waste
management needs. Siniat partners with
specialist providers, to offer cost-competitive
collections on a national basis.
Monthly reports of quantities removed are
provided by GTEC Wasteline Direct. Siniat will
endeavour to recycle the waste back into new
plasterboard wherever viable. Where this is
not possible, we direct the recovered gypsum
to other favourable uses approved by the
Environment Agency. GTEC Wasteline Direct
will not landfill any clean plasterboard waste
recovered by the scheme.
An up-to-date list of the GTEC products accepted
by the scheme is available on our website where
you can also request a service cost quotation.
Or, telephone 01275 377579 or email
[email protected]
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
337
338
SUSTAINABILITY
MANAGING THE PRODUCT LIFECYCLE
1. Gypsum Quarry
Used
Packaging
2. Power Station
3. Paper Mill
Natural
Gypsum
by ship
By-product
Gypsum by
Conveyor
4. Plasterboard
plant
Paper
by road
Recycled
Paper
5. & 6.
Products
Site waste via
Recycled
Gypsum
Wasteline Direct
Construction site
1. All our supply quarries have a biodiversity rehabilitation
plan with state-of-the-art replanting. Delivery by bulk
shipping is 20 times more carbon efficient than road
transport.
2. Flue Gas Desulphurisation (FGD) systems used in
power stations eliminate sulphur dioxide emissions
and produce high purity gypsum as a by-product.
We operate the only integrated FGD gypsum
plasterboard manufacturing site in the UK,
eliminating delivery transport.
3. The plasterboard liners we use comprise 100%
recycled paper, principally from post-consumer
packaging.
4. Our manufacturing process has very few emissions
as all process water and waste is recycled internally.
Zero waste goes to landfill. Our £1.6 million
investments in energy efficiency saved over
40,000 tonnes of carbon dioxide by 2010.
7. Board Recycling Plant
5. Packaging is the second largest source of waste
in construction. Against a national target of 20%
Siniat reduced packaging by over 50% following
investments of over £1 million. The bearers
used for board packaging are from certified
and sustainable sources.
6. We pioneered the use of fuel-saving ‘teardrop’ trailers
to limit the impacts of product delivery. Coupled
with LPG conversion the carbon footprint of our
distribution activities has been reduced by 10%.
7. Almost all GTEC Plasterboards are fully recyclable into
new products. The gypsum and paper are separated,
with both suitable for closed-loop recycling.
Our GTEC Wasteline Direct service offers a
plasterboard recovery and recycling service. In each
of the years 2009-2011, Siniat reported the highest
post-consumer board recycling rate in the industry.
SUSTAINABILITY
SUSTAINABLE CONSTRUCTION
RESPONSIBLE SOURCING AND BES6001
GTEC PRODUCTS AND SYSTEMS
FOR SUSTAINABLE BUILDINGS
As well as meeting regulation standards,
our high performance products and systems
enhance the sustainability of your building
projects in many ways:
Thermal boards contribute to the
conservation of energy and CO2 emissions
Fire boards contribute to safety as well as
building durability
Acoustic boards provide sound insulation
and enhance the conditions required in
our buildings and homes
Impact boards meet the severe duty
ratings required in public areas, reducing
maintenance and promoting durability
Through constant innovation, the GTEC
range includes unique, specialist boards
with enhanced features and performance
to minimise the volume used on site.
GTEC Megadeco
This patented product is unique.
Its pre-sealed surface speeds up
installation by eliminating sealing
on site.
Siniat was the first manufacturer in the UK
to offer plasterboard products certified to
the BRE Environmental and Sustainability
Framework Standard for the Responsible
Sourcing of Construction Products,
BES6001. Our review in 2012 extended
our rating to the ‘Very Good’ grading.
This certificate may be downloaded
from BRE’s Green Book Live website:
www.greenbooklive.com. When using
GTEC products on your projects, you can
collect credits within the Materials section
of the Code for Sustainable Homes or BREEAM.
BRE GREEN GUIDE
Due to the low environmental impact of
plasterboard products, the BRE Green Guide
rating for most of the GTEC systems listed
in the manual is A or A+. Embodied carbon
figures for building elements are also listed.
Our projects team will seek to provide the
highest possible rating in line with your
project’s specific performance requirements.
GTEC LaDura
GTEC LaDura offers similar resource
efficiency plus metal stud savings, due
to its high strength. Excellent durability
will reduce the need for maintenance.
GTEC Aqua Board
The unique range of boards for wet
areas and external applications offers
major carbon reductions compared to
the cementitious boards traditionally
used. Excellent stability provides superior
air-tightness of the building envelope.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
339
340
SUSTAINABILITY
THE CODE FOR SUSTAINABLE HOMES
The Code for Sustainable Homes applies in
England and Wales to drive a step-change
in sustainable home building practice.
GTEC Products, Systems and Services help gain
credits, pushing projects up the rating scale.
The Code measures the sustainability of the
home in nine design categories, and awards
a rating of one to six stars, depending on
achievement against the Code benchmarks.
For all Code levels, there are minimum
requirements for Energy and CO2 emissions
and Water consumption.
building sustainability. As with the Code for
Sustainable Homes, the GTEC range can make
a significant contribution to higher ratings.
BREEAM involves nine key areas of project
design. Credits are awarded in each of the
design areas and the overall score is calculated
from a weighted scorecard of the section
credits. The final score is then rated as Pass,
Good, Very Good, Excellent or Outstanding.
Education and Healthcare buildings must
meet certain minimum ratings, and other
ratings criteria may apply to building projects
as a condition of planning approval.
REFURBISHMENT PROJECTS
Credits are awarded in each of the design
areas, and the overall score is calculated from
a weighted scorecard of the section credits.
The assignment of credits within the Code’s
Energy section has been recently updated
to reflect the importance of installing a
thermally efficient building fabric as the
most cost-effective approach. This hierarchy,
known as the ‘fabric first’ approach, is
now reflected in the Code with credits for
Fabric Energy Efficiency performance.
Following much regulation in the new build
sector, the UK Low Carbon Construction
Action Plan is now focusing on improving the
thermal performance of existing buildings.
The Government is due to launch its Green
Deal package in Autumn 2012 where building
improvements will be funded by energy savings
in consumer energy bills. Siniat offers several
products and systems suitable for Green Deal
measures: please contact Technical Enquiryline
for further details.
BUILDING RESEARCH ESTABLISHMENT
ENVIRONMENTAL ASSESSMENT
METHOD (BREEAM)
Alongside the Green Deal, BRE have launched
a new BREEAM scheme in 2012 for the
sustainability assessment of domestic
refurbishment projects. Building on our
experience gained piloting the scheme,
Siniat will be pleased to support you with
any project requirements.
BREEAM is the most widely used environmental
assessment method for buildings in the UK. It
provides a consistent and robust means of rating
GTEC SYSTEMS IN THE CODE FOR SUSTAINABLE HOMES AND BREEAM:
The range of high performance GTEC Thermal Boards provide for space-efficient insulation.
The Global Warming Potential (GWP) of all these insulated boards is below 5, accessing additional credits.
GTEC systems achieve the high sound insulation values necessary to gain the credits for exceeding Building
Regulation requirements.
In the Materials Section, the excellent BRE Green Guide ratings of GTEC Systems and our BES6001 certification for
Responsible Sourcing both access credits.
Our plasterboard waste recovery service, GTEC Wasteline Direct, can support your site waste management needs
and is also eligible for credits.
Durability credits are available where Severe Duty partitions are used in corridors and public areas. (BREEAM only).
The zero release of VOC’s (volatile organic compounds) from GTEC boards contributes to Indoor Air Quality.
Specification of GTEC Megadeco can also minimise the release of VOC’s during the build. (BREEAM only).
Siniat supports contractors during construction in areas relevant to Project Management credits,
e.g. by minimising construction site impacts. Drawing on their vast experience with all building types,
our projects team will support achievement of the best possible BREEAM or Code rating.
HEALTH AND SAFETY
HEALTH AND
SAFETY
Siniat has a deep commitment to zero harm in our industrial activity. We follow
an active policy for continuous improvement in reducing incidents and protecting
our employees’ health. In our supply chain we require similar exacting standards
from our suppliers.
To protect the health of construction workers and building occupants, we minimise
the use of any hazardous materials and will avoid using substances of high concern.
Our development programme brings innovative products to market which reduce
health and safety risks on site and throughout the life of the building.
CE MARKING
All Siniat GTEC products are CE marked in accordance with
the EU Construction Products Directive and the relevant
harmonised European standard. This ensures that the
essential requirements relevant to safety in use (e.g. reaction
to fire or tensile strength) are type tested in accredited
laboratories. Our ISO9001 quality management processes
ensure continuing compliance. From July 2013, products
will be CE Marked with reference to the EU Construction
Products Regulation 2011/305/EC.
MANUAL HANDLING
CHEMICAL SUBSTANCES AND
PRODUCT SAFETY
Siniat ensures that all materials in its supply chain are
registered under REACH* where necessary. We have also
registered directly as a producer of calcium sulphate, the
main raw material used in our products; evidence and our
REACH registration number is available on request.
Siniat board products do not contain or emit volatile organic
compounds (VOCs) and our pre-finished GTEC Megadeco
Board removes the need for on-site sealing, further enhancing
the indoor air quality of your projects.
In collaboration with the Health & Safety Executive, Siniat
has introduced weight labelling on all UK-produced board
products. This information helps users to reduce injuries
through risk assessment.
The sealing products in the Siniat GTEC range have an
aqueous base and contain VOCs at the lowest classification
level under the current regulations (<30g/litre).
Example of product marking:
All GTEC products are classified as non-hazardous according
to the CHIP4 (UK) and CLP (EU) Regulations and are stable
and non-reactive with other building materials.
The sawing of plasterboard and the sanding of finishing
compounds may generate dust. Whilst there are no known
toxicological effects for gypsum products, Occupational
Exposure Limits (OEL) exist for mineral dusts and the use
of personal protective equipment is recommended.
HANDLE
SAFELY
25kg
A range of mechanical handling aids for plasterboard
lifting and positioning is commercially available to reduce
the risk of injury. Please contact Technical Enquiryline for
further information.
Safety Data Sheets are available for all GTEC products
covering handling, storage, use and disposal. Latest versions
may be downloaded from our website or obtained on request
from our Technical Enquiryline.
*European Regulation 2006/1907/EC on the Regulation, Evaluation,
Authorisation and Restriction of Chemicals.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
341
342
STANDARDS
STANDARDS
GTEC PRODUCT STANDARDS AND TESTS
BS EN 520
BS EN 14353
Gypsum plasterboards. Definitions, Requirements
and Test Methods.
Metal beads and feature profiles for use with gypsum
plasterboards. Definitions, Requirements and Test
Methods.
BS EN 14190
Gypsum plasterboard products from reprocessing.
Definitions, Requirements and Test Methods.
BS EN 13950
Gypsum plasterboard thermal/acoustic insulation composite
panels. Definitions, Requirements and Test Methods.
BS EN 15283
Gypsum boards with fibrous reinforcement – Definitions,
Requirements and Test Methods.
þ Part 1: Gypsum board with mat reinforcement
BS EN 14195
Metal framing components for gypsum plasterboard systems.
Definitions, Requirements and Test Methods.
BS EN 14209
Preformed plasterboard cornices.
Definitions, Requirements and Test Methods.
BS EN 13963
Jointing materials for gypsum plasterboards.
Definitions, Requirements and Test Methods.
BS EN 14496
Gypsum based adhesives for thermal/acoustic insulation
composite panels and plasterboards. Definitions,
Requirements and Test Methods.
BS EN 13964
Suspended Ceilings – Requirements and Test Methods.
BS EN 14566
Mechanical fasteners for gypsum plasterboard systems.
Definitions, Requirements and Test Methods.
SYSTEMS / DESIGN / CODES OF PRACTICE
BS 8212
BS 5250
Code of practice for dry lining and – Partitioning using
gypsum plasterboard
Code of Practice for the control of condensation in
buildings
BS 8000
BS 5385
Workmanship on building sites
þ Part 8: Code of practice for plasterboard – Partitions and
dry linings
Wall and floor tiling – Code of practice
þ Part 1: Design and installation of ceramic, natural stone and
mosaic wall tiling in normal conditions
BS EN 13914
þ Part 4: Design and installation of ceramic and mosaic tiling
in special conditions
Design, preparation and application of external rendering and
internal plastering
BS EN ISO 6946
BS 5234
Specification for performance requirements for strength and
robustness
þ Part 1: – Partitions (including matching linings) – Code of
practice for design and installation
Building components and building elements.
Thermal resistance and thermal transmittance.
Calculation method.
BS 9999: 2008
Code of Practice for fire safety in the design, management
and use of buildings
STANDARDS
TEST METHODS
BS EN 13238
BS EN ISO 10140
Reaction to fire tests for building products. Conditioning
procedures and general rules for selection of substrates.
Acoustics. Laboratory measurement of sound insulation of
building elements.
BS 476
BS EN ISO 140
Fire tests on building materials and structures. Guide to the
principles, selection, role and application of fire testing and
their outputs.
þ Part 4: Non-combustibility test for materials
Acoustics. Measurement of sound insulation in buildings and
of building elements.
þ Part 6: Method of test for fire propagation for products
Specification for performance requirements for strength and
robustness.
þ Part 2: Partitions (including matching linings) –
Specification for performance requirements for strength
and robustness including methods of test
þ Part 7: Method for classification of the surface spread
of flame of products
þ Part 20: Methods for determination of the fire resistance
of elements of construction (general principles)
þ Part 21: Method for determination of the fire resistance
of loadbearing elements of construction
þ Part 22: Methods for determination of the fire resistance
of non-loadbearing elements of construction
þ Part 23: Methods for the determination of the contribution
of components to the fire resistance of a structure
BS 5234
BS EN ISO 717
Acoustics. Rating of sound insulation in buildings and of
building elements.
þ Part 1: Airborne sound insulation
þ Part 2: Impact sound insulation
BS EN ISO 11654
BS EN 1363
Acoustics. Sound absorbers for use in buildings. Rating of
sound absorption.
Fire resistance tests. General requirements.
þ Part 1: General requirements
BS EN 13823
BS EN 1364
Fire Resistance tests for non-loadbearing elements.
þ Part 1: Walls
Reaction to fire tests for building products. Building products
excluding floorings exposed to the thermal attack by a single
burning item.
þ Part 2: Ceilings
BS EN ISO 1182
BS EN 1365
Reaction to fire tests for building products.
Non-combustibility test
Fire Resistance tests for loadbearing elements.
þ Part 1: Walls
BS EN ISO 1716
Reaction to fire tests for products. Determination of the gross
heat of combustion (calorific value).
þ Part 2: Floors and Roofs
þ Part 3: Beams
þ Part 4: Columns
BS EN ISO 11925
ENV 13381
Reaction to fire tests. Ignitability of products subjected to
direct impingement of flame.
þ Part 2: Single-flame source test
Test methods for determining the contribution to
the fire resistance of structural members.
þ Part 4: Test methods for determining the contribution
to the fire resistance of structural members
MISCELLANEOUS
BS EN 13279
BS EN 13164
Gypsum binders, and gypsum plasters.
þ Part 1: Definitions and requirements
þ Part 2: Test methods
Thermal insulation products for buildings. Factory
made products of extruded polystyrene foam (XPS).
Specification.
BS EN 10346
BS EN 13165
Continuously hot-dip coated steel flat products.
Technical delivery conditions.
Thermal insulation products for buildings. Factory made rigid
polyurethane foam (PUR) products. Specification.
BS 12524
BS EN ISO 12572
Building materials and products. Hygrothermal properties.
Tabulated design values.
BS EN 1313
Round and sawn timber. Permitted deviations and preferred sizes.
þ Part 1: Softwood sawn timber
Hygrothermal performance of building materials and
products. Determination of water vapour transmission
properties.
NOTE: Standards are listed without publishing year to allow
for updates, where applicable the latest dated versions should
be used.
BS EN 13163
Thermal insulation products for buildings. Factory made
products of expanded polystyrene (EPS). Specification.
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
343
344
INDEX
INDEX
A
acoustic sealant, Intumescent Acoustic
Sealant 330
acoustic board see Acoustic Homespan
Board; dB Board; LaDura; Universal;
Megadeco
Acoustic Stud 309, 332
Acoustic Homespan Board 300
Acoustic Stud Partition Systems 72–8
Acoustic Homespan MR Board 301
acoustic T-junctions
Aqua Board 303
Acoustic Floor Clip 317
Acoustic Floor Systems 137, 170–6
Acoustic Homespan Board 300
Acoustic Homespan C Studs 308
Acoustic Homespan MR Board 301
Acoustic Homespan Partition Systems
43, 80–6
Acoustic Homespan Starter Studs 308
Acoustic Homespan Stud 332
acoustic mass barrier ceilings 147
acoustic performance 17
Acoustic Floor Systems 137
Acoustic Homespan Partition
Systems 43
Aqua Board Partition Systems 26–7
Ceiling Systems to Timber Floors 126
dB Board Partition Systems 33–7
Dryliner Ceiling Systems to Concrete
Soffit 127
boards 12–13, 294–307
alternative configurations 14–15
Acoustic Homespan Partition
Systems 86
Base Board 295
Acoustic Stud Partition Systems 78
dB Board 300
C Stud Partition Systems 59
E Board 299
Resilient Bar Partition Systems 93
Fire Board 297
Timber Partition Systems 118
Fire Core Board 299
Twin Frame Partition Systems 103
Fire MR Board 298
Contour Board 295
Acoustic V Brace 316, 332
Fire V Board 298
Acoustic V Brace 90° 230, 316
LaDura 302
adhesive
Megadeco 301
Cove Adhesive 329
Moisture Board 297
Wall Lining Adhesive 321
Plank 294
Aqua Board 13, 303
Pregybel Boards 306–7
Aqua Board Partition Systems 26–7
Render Board 303
Aquamix 325
Standard Board 294
Aquastrip 327
Thermal Board 304
Thermal K Board 305
B
Thermal PIR Board 305
E Board Partition Systems 44
Engineered Joist Systems 122
Base Board 295
Universal Board 302
Fire Board Partition Systems 38–40
beading products 328
Vapour Base Board 296
Horizontal Shaftwall Systems 249
beams
LaDura Partition Systems 22–5
Lining Systems To Framed External
Walls 187
Lining Systems To Upgrade Internal
Walls 182–3
Mass Barrier Ceilings 136
Megadeco Partition Systems 28–31
fire resistant encasement 252, 271–2,
274
head deflection 63
boarding details
Acoustic Floor Systems 174–6
Acoustic Homespan Partition
Systems 84
Pregybel Independent Lining Systems
190–1
Acoustic Stud Partition Systems 76
Pregybel MF Ceiling Systems 131–2
Contour Lining System 206
Separating Floor Systems 128–30
Direct Bond Lining Systems 198
Shaftwall Stairwell Systems 248
Shaftwall Systems 244–7
Direct-to-Timber Ceiling Systems
166–7
Standard Board Partition Systems 41–2
Dryliner Ceiling Systems 158–9
Structural Frame Partition Systems 45
Dryliner Lining Systems 221
Suspended MF Ceiling Systems to
Protect Structure 135
Independent Wall Lining Systems 231
Suspended MF Ceiling Systems to
Timber Floors 133–4
C Stud Partition Systems 55–6
Pregybel Independent Lining Systems
239–40
Pregybel MF Ceiling Systems 152
Timber Partition Systems 47–9
Resilient Bar Partition Systems 91
Universal Board Partition Systems 32
Shaftwall Systems 258–60
Masonry Robust Detail Systems 46
Shallow Wall Lining Systems 212
Suspended MF Ceiling Systems 143
Timber Partition Systems 115–16
Twin Frame Partition Systems 100–1
Thermal XP Board 304
Vapour Board 296
bonding
Contour Lining System 205
Direct Bond Lining Systems 196–7
Shallow Wall Lining Systems 211–12
Tiling 287
Universal Bonding Compound 321
BRE Green Guide 339
breaking loads, Board 294–307
BREEAM (Building Research
Establishment environmental
Assessment Method) 336
British Standards 342–3
BS 476-21 122–37
BS 476-22 22–49, 135–6, 244–9
BS 5234-2 18, 22–49, 244–9
BS EN 1364-1 22–49, 244–8
BS EN 1364-2 135–6, 249
BS EN 1365-2 122–37
BS EN ISO 140 17
BS EN ISO 717 17
BS EN ISO 11654 131–2
INDEX
Building Regulations
Ceiling Systems to Timber Floors 126
acoustic performance 17
ceramic tiling 285–7
compliance with Approved Document
E 299
CH Stud 314, 333
fire performance 16
codes of practice 342
thermal performance 11
Collated Drywall Screws 323
Building Research Establishment
environmental Assessment Method
(BREEAM) 336
Building Research Establishment Green
Guide 339
bulkhead
Dryliner Ceiling Systems 160
Pregybel MF Ceiling Systems 153
Suspended MF Ceiling Systems 145
Code for Sustainable Homes 340
columns, fire resistant encasement
253, 263, 271, 273
composition
C Stud Partition Systems 50–71
C Studs 308, 332
cable tray penetrations
C Stud Partition Systems 65
Twin Frame Partition Systems 106
dimensions (see also maximum height;
thickness)
Frame 308–20
conductivity, Board 19, 294–307
Contour Board 295
Contour Lining Systems 202–6
Corner 90º External 328
Corner and Edge beads 328
corner details
Acoustic Homespan Partition
Systems 86
ceiling channel splicing 141
Dryliner Lining Systems 223
ceiling height change
Encasement Systems 273
Dryliner Ceiling Systems 160
Independent Wall Lining Systems 233
Pregybel MF Ceiling Systems 153
Pregybel Independent Lining Systems
240
Resilient Bar Partition Systems 93
Ceiling Systems to Timber Floors 126
Shaftwall Systems 262
Direct-to-Timber Ceiling Systems
162–8
Shallow Wall Lining Systems 214
Dryliner Ceiling Systems 154–61
Twin Frame Partition Systems 103
Suspended MF Ceiling Systems
138–47
Suspended MF Ceiling Systems to
Protect Structure 135
deflection heads see head deflection
Fix 321
Direct Bond Lining Systems 200
Separating Floor Systems 128–30
decoration 283
dimensionally stability 19
Ceiling Channel 311, 333
Pregybel MF Ceiling Systems 131–2,
148–53
Deco Machine 326
Finish 324–30
C Stud Partition Systems 58, 59
Mass Barrier Ceilings 136
Deco Joint Cement 326
design pull-out loads see pull-out loads
Acoustic Stud Partition Systems 78
Dryliner Ceiling Systems to Concrete
Soffit 127
Deco Filler 325
Drywall Screws 322–3
CE marking 341
ceiling systems
dB Board Partition Systems 33–7
design codes 342
CB Clip 316, 333
Suspended MF Ceiling Systems 145
dB Board 300
Board 294–307
Connecting Clip 312
C
D
Timber Partition Systems 118
corners, taping and jointing 282, 328
Cove 288–90, 329
Cove Adhesive 329
curved partitions
C Stud Partition Systems 70–1
Board 294–307
Frame 308–20
Direct Bond Lining Systems 192–201
Direct-to-Timber Ceiling Systems
162–8
domestic buildings see residential
projects
door frames/jambs
Acoustic Homespan Partition
Systems 85
Acoustic Stud Partition Systems 77
C Stud Partition Systems 57–8
Direct Bond Lining Systems 199
Resilient Bar Partition Systems 92
Shallow Wall Lining Systems 213
Timber Partition Systems 117
Twin Frame Partition Systems 102
Dryliner Ceiling Systems 154–61
Dryliner Ceiling Systems to Concrete
Soffit 127
Dryliner Channel 312, 333
Dryliner Channel Connector 314
Dryliner Lining Systems 216–24
Dryliner Profiles 333
Dryliner Track 313, 333
Drywall Screws 322–3, 334–5
Drywall Sealer 328
Contour Board 295
duct penetrations, Shaftwall Systems
264–5
Contour Lining Systems 202–6
duct protection systems 266
Twin Frame Partition Systems 108–9
Duo Bead 328
duty rating see strength duty
Suspended MF Ceiling Systems to
Timber Floors 133–4
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
345
346
INDEX
INDEX
E
E Board 299
E Board Partition Systems 44
E Stud 315, 333
Easy Finish Xtra 324
E-coat 321
Fire Board 297
fire protection systems 244–75
Fire Core Board 299
Encasement Fire Protection Systems
250–3
Fire MR Board 298
Encasement Systems 268–75
fire performance 16
Horizontal Shaftwall Systems 249
Fire Board Partition Systems 38–40
Acoustic Floor Systems 137
Shaftwall Stairwell Systems 248
Shaftwall Systems 244–7, 254–67
Edge Channel 311, 333
Acoustic Homespan Partition
Systems 43
Fire V Board 298
Edging Bead 328
Aqua Board Partition Systems 26–7
Fixing Channel 319, 332
educational projects 9
Board 294–307
fixing details see boarding details
electrical services see cable tray
penetrations
Ceiling Systems to Timber Floors 126
fixing options 69
dB Board Partition Systems 33–7
fixing products
Encasement Fire Protection Systems
250–3, 268–75
Engineered Joist Systems 122
environmental issues 336–9
external insulation 184–7
F
finishing 278–90
Board 294–307
Taping and Jointing Systems 278–83
Tiling 287
skim plastering 284
finishing products 324–30
Aquamix 325
Dryliner Ceiling Systems to Concrete
Soffit 127
E Board Partition Systems 44
Engineered Joist Systems 122
Finish 324–30
bonding and adhesives 321
Drywall Screws 322–3
fixtures
C Stud Partition Systems 67–8
Suspended MF Ceiling Systems 146
Fire Board Partition Systems 38–40
Flat Strap 319, 332
Fix 321
Flex Tape 327
Frame 308–20
Flex Track Deep Flange 310
Horizontal Shaftwall Systems 249
floor systems 121
LaDura Partition Systems 22–5
Acoustic Floor Systems 137, 170–6
Lining Systems To Framed External
Walls 187
Engineered Joist Systems 122
Lining Systems To New External Walls
180–1
Plank 294
Separating Floor Systems 128–30
four way junctions
Aquastrip 327
Lining Systems To Upgrade Internal
Walls 182–3
Corner 90º External 328
Mass Barrier Ceilings 136
Cove 90 329
Megadeco Partition Systems 28–31
Cove 120 329
Roof Lining Systems 188–9
Cove Adhesive 329
Separating Floor Systems 128–30
Deco Filler 325
Shaftwall Stairwell Systems 248
Deco Joint Cement 326
Shaftwall Systems 244–7
Deco Machine 326
Standard Board Partition Systems
41–2
Acoustic V Brace 316
Structural Frame Partition Systems
45
C Studs 308
Drywall Screw heads 335
Drywall Sealer 328
Duo Bead 328
Easy Finish Xtra 324
Edging Bead 328
Flex Tape 327
Intumescent Acoustic Sealant 330
Joint Cement Xtra 324
Joint Filler Xtra 324
Joint Tape 327
Patching Tape 327
Smartmix Xtra 325
Socket Pads 330
Universal Sealer 328
Suspended MF Ceiling Systems to
Protect Structure 135
C Stud Partition Systems 59
Twin Frame Partition Systems 103
frame components 308–20
Acoustic Floor Clip 317
Acoustic Homespan C Studs 308
Acoustic Homespan Starter Studs
308
Acoustic Stud 309
Acoustic V Brace 90º 316
CB Clip 316
Ceiling Channel 311
Suspended MF Ceiling Systems to
Timber Floors 133–4
CH Stud 314
Timber Partition Systems 47–9
Dryliner Channel 312
Universal Board Partition Systems 32
Dryliner Channel Connector 314
Masonry Robust Detail Systems 46
Dryliner Track 313
Fire Protection profiles 333
Connecting Clip 312
E Stud 315
Edge Channel 311
Fixing Channel 319
Flat Strap 319
Flex Track Deep Flange 310
INDEX
Heavy Gauge Primary Channel 311
I Stud 309
Insulation Hold 320
H
J
head deflection
J Track 315, 333
J Track 315
Metal Angle 90° 319
Movement Control Joint 320
Phonissimo Acoustic Hanger 317
Phonistar Acoustic Hanger 317
Primary Channel 311
Resilient Bar 315
Resilient Tape 318
Shallow Wall Channel 314
Joint Filler Xtra 324
joint reinforcement see horizontal joint
reinforcement
Heavy Gauge Primary Channel 311, 333
height see ceiling height change;
maximum height
jointing systems see taping and jointing
systems
horizontal joint reinforcement
junction details
Acoustic Homespan Partition
Systems 84
Strap Hanger 318
U Track 309
frame details
Acoustic Stud Partition Systems 75
C Stud Partition Systems 53–4
Direct-to-Timber Ceiling Systems 165
Dryliner Ceiling Systems 157
Dryliner Lining Systems 220–1
Encasement Systems 271–2
Independent Wall Lining Systems 230
Pregybel MF Ceiling Systems 151
Resilient Bar Partition Systems 91
Shaftwall Systems 258–9
Shallow Wall Lining Systems 211–12
Suspended MF Ceiling Systems 141–2
Timber Partition Systems 113–14
Twin Frame Partition Systems 97–9
G
Acoustic Floor Systems 175
Acoustic Stud Partition Systems 76
Acoustic Homespan Partition
Systems 86
C Stud Partition Systems 55
Acoustic Stud Partition Systems 78
Resilient Bar Partition Systems 92
C Stud Partition Systems 58–60
Twin Frame Partition Systems 100
Direct Bond Lining Systems 200
Horizontal Shaftwall Systems 249
Direct-to-Timber Ceiling Systems 167
horizontal shaftwall systems 267
Dryliner Ceiling Systems 160
hospitals see healthcare projects
Dryliner Lining Systems 223
hybrid systems 14
Encasement Systems 273
Acoustic Floor Systems 173
Acoustic Homespan Partition
Systems 83
Joint Tape 327
homogenous systems 15
Staggered Stud Clip 318
XR Bracket 313
joint compounds 324–6
healthcare projects 7
SR Bracket 313
U Track Extra Deep Flange 310
Joint Cement Xtra 324
Twin Frame Partition Systems 105–6
health and safety 341
Soffit Cleat 312
U Track Deep Flange 310
C Stud Partition Systems 61–2
Independent Wall Lining Systems 233
Resilient Bar Partition Systems 93
I
Shaftwall Systems 262–3
I Stud 309, 332
Shallow Wall Lining Systems 213
impact sound insulation
Suspended MF Ceiling Systems 145
Acoustic Floor Systems 137
Timber Partition Systems 118
Ceiling Systems to Timber Floors 126
Twin Frame Partition Systems 103–4
Dryliner Ceiling Systems to Concrete
Soffit 127
Engineered Joist Systems 122
Mass Barrier Ceilings 136
Separating Floor Systems 128–30
Suspended MF Ceiling Systems to
Protect Structure 135
Suspended MF Ceiling Systems to
Timber Floors 133–4
Independent Wall Lining Systems
226–34
insulation
acoustic/sound 17
GTEC 3
fire 16
GTEC Lifetime System Warranty 3
thermal 19
gypsum waste recycling 337–8
Acoustic Homespan Partition
Systems 83
C Stud Partition Systems 54
Dryliner Lining Systems 221
Timber Partition Systems 115
Twin Frame Partition Systems 100
insulation board see Thermal
Insulation Hold 320
Intumescent Acoustic Sealant 330
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
347
348
INDEX
INDEX
L
Walls 187
N
LaDura Partition Systems 22–5
Lining Systems To Upgrade Internal
Walls 183
LaDura Board 12, 302
Megadeco Partition Systems 28–31
LaDura pattress 67–8, 69
Lafarge Plasterboard see Siniat
Pregybel Independent Lining Systems
190–1
O
lengths
Shaftwall Stairwell Systems 248
openings
Nailable Plug 323
Board 294–307
Shaftwall Systems 244–7
Frame 308–20
life cycle approach 337
Standard Board Partition Systems
41–2
light steel framing systems (SFS) see
SFS junctions
Structural Frame Partition Systems
45
C Stud Partition Systems 57–8
lining depth change 224
Timber Partition Systems 47–9
Dryliner Lining Systems 222
lining systems 179–241
Universal Board Partition Systems 32
Independent Wall Lining Systems 232
Masonry Robust Detail Systems 46
Resilient Bar Partition Systems 92
Contour Lining Systems 202–6
Direct Bond Lining Systems 192–201
Acoustic Homespan Partition
Systems 85
Acoustic Stud Partition Systems 77
Direct Bond Lining Systems 199
Megadeco 13, 301
Shaftwall Systems 261
Dryliner Lining Systems 216–24
Megadeco Partition Systems 28–31
Shallow Wall Lining Systems 213
Independent Wall Lining Systems
226–34
Metal Angle 90° 319, 332
Suspended MF Ceiling Systems 144
metal bead 328
Timber Partition Systems 117
Lining Systems To Framed External
Walls 187
Lining Systems To New External Walls
180
Lining Systems To Thermally Upgrade
External Walls 184–6
Lining Systems To Upgrade Internal
Walls 182–3
Pregybel Independent Lining Systems
190–1, 236–41
Roof Lining Systems 188–9
Shallow Wall Lining Systems 208–15
M
minimum thickness
Acoustic Floor Systems 137
Ceiling Systems to Timber Floors 126
C Stud Partition Systems 56
Dryliner Ceiling Systems to Concrete
Soffit 127
Dryliner Lining Systems 221
Engineered Joist Systems 122
Timber Partition Systems 115–16, 117
Lining Systems To Framed External
Walls 187
Twin Frame Partition Systems 101
Lining Systems To New External Walls
180–1
Lining Systems To Thermally Upgrade
External Walls 184–6
Lining Systems To Upgrade Internal
Walls 182–3
Pregybel MF Ceiling Systems 131–2
manual handling 341
Separating Floor Systems 128–30
Masonry Robust Detail Systems 46
Suspended MF Ceiling Systems to
Timber Floors 133–4
masonry substrates 196, 211
masonry wall junctions
mixed board systems 15
C Stud Partition Systems 59–60
Moisture Board 297
Encasement Systems 274
Resilient Bar Partition Systems 93
moisture resistant board see Aqua;
LaDura; Moisture
Twin Frame Partition Systems 104
Movement Control Joint 320, 332
Mass Barrier Ceilings 136
movement control joints
mass to height/span ratio 18
C Stud Partition Systems 56
maximum height 18
Contour Lining System 206
Acoustic Homespan Partition
Systems 43
Direct Bond Lining Systems 198
Aqua Board Partition Systems 26–7
Dryliner Lining Systems 222
dB Board Partition Systems 33–7
Independent Wall Lining Systems 232
E Board Partition Systems 44
Shaftwall Systems 260
Fire Board Partition Systems 38–40
Shallow Wall Lining Systems 213
Horizontal Shaftwall Systems 249
Suspended MF Ceiling Systems 144
LaDura Partition Systems 22–5
Twin Frame Partition Systems 101
Lining Systems To Framed External
Twin Frame Partition Systems 102
over-height boarding
Dryliner Ceiling Systems 159
Independent Wall Lining Systems 231
P
partition systems 21–119
Acoustic Homespan Partition
Systems 43, 80–6
Acoustic Stud Partition Systems 72–8
Aqua Board Partition Systems 26–7
C Stud Partition Systems 50–71
dB Board Partition Systems 33–7
E Board Partition Systems 44
Fire Board Partition Systems 38–40
LaDura Partition Systems 22–5
Megadeco Partition Systems 28–31
Resilient Bar Partition Systems 88–93
Standard Board Partition Systems 41–2
Structural Frame Partition Systems 45
Timber Partition Systems 47–9,
110–19
Twin Frame Partition Systems 94–108
Universal Board Partition Systems 32
Masonry Robust Detail Systems 46
INDEX
parge coat see E Coat
Patching Tape 327
penetrations
C Stud Partition Systems 65–6
Shaftwall Systems 264–5
Twin Frame Partition Systems 106
perforated board see Pregybel
performance tables see system
performance
Phonissimo Acoustic Hanger 317
Phonistar Acoustic Hanger 317
pipe penetrations
C Stud Partition Systems 65, 66
S
fire resistant encasement 250–3,
271–5
safe handing 341
Fire Core Board 299
school buildings see educational
projects
SFS junctions 104
screws
Drywall Screws 322–3
selection guide 334–5
sealant
Intumescent Acoustic Sealant 330
sealer
shaftwall junction 263
Strap Hanger 318
strength duty 18
Acoustic Homespan Partition
Systems 43
Aqua Board Partition Systems 26–7
dB Board Partition Systems 33–7
Drywall Sealer 328
E Board Partition Systems 44
Universal Sealer 328
Fire Board Partition Systems 38–40
Separating Floor Systems 128–30
Horizontal Shaftwall Systems 249
service openings see penetrations
LaDura Partition Systems 22–5
SFS junctions 104
Megadeco Partition Systems 28–31
Shaftwall Stairwell Systems 248
Shaftwall Stairwell Systems 248
Shaftwall Systems 244–7, 254–67
Shaftwall Systems 244–7
Shallow Wall Channel 314, 333
Standard Board Partition Systems 41–2
Pregybel MF Ceiling Systems 131–2,
148–53
Shallow Wall Lining Systems 208–15
Structural Frame Partition Systems 45
Siniat 2
Timber Partition Systems 47–9
Primary Channel 311, 333
skim plastering 284
Universal Board Partition Systems 32
product life cycles 337
Smartmix Xtra 325
Masonry Robust Detail Systems 46
product safety 341
socket pad fittings
Structural Frame Partition Systems 45
Twin Frame Partition Systems 106, 107
Plank 294
Pregybel Acoustic Panel 241
Pregybel Boards 306–7
Pregybel Independent Lining Systems
190–1, 236–41
profile guide 332–3
C Stud Partition Systems 65
structural performance 18
pull-out loads 69
Twin Frame Partition Systems 106
Stud and Track profiles 332
purlins, head deflection, C Stud
Partition Systems 62–3, 64
R
recycling of waste 337–8
refurbishment projects (sustainability)
340
render, E-coat 321
Socket Pads 330
Acoustic Stud Partition Systems 75
sound absorption see acoustic
performance
C Stud Partition Systems 53
sound insulation see acoustic
performance
splayed corners
C Stud Partition Systems 59
Twin Frame Partition Systems 103
Render Board 303
SR Bracket 313, 333
renovating walls, Contour Lining
Systems 202–6
Staggered Stud Clip 318
residential projects 11
stairwell systems, Shaftwall Systems
265
Resilient Bar 315, 332
Standard Board 294
Resilient Bar Partition Systems 88–93
Standard Board Partition Systems 41–2
Resilient Tape 318
standards 342–3 (see also British
Standards)
Responsible Sourcing of Construction
Products (BES6001) 339
stud splices
Soffit Cleat 312
Board 294–307
Robust Details 46, 129-30
Drywall Screws 322–3
Roof Lining Systems 188–9
Finish 324–30
Fix 321
Frame 308–20
steelwork
Twin Frame Partition Systems 99
Shaftwall Systems 258
substrates (see also masonry
substrates)
Contour Lining System 205
Direct Bond Lining Systems 196
Dryliner Lining Systems 219
Shallow Wall Lining Systems 211
Taping and Jointing Systems 281
Suspended Ceiling profiles 333
Suspended MF Ceiling Systems 138–47
Suspended MF Ceiling Systems to
Protect Structure 135
Suspended MF Ceiling Systems to
Timber Floors 133–4
sustainability issues 2, 11, 336–40
symmetrical systems 14
system performance 16–19
Floor and Ceiling Systems 122–37
Lining Systems 180–91
Partition Systems 22–49
Shaftwall Systems 244–53
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
349
350
INDEX
T
V
tape on bead 328
Vapour Base Board 296
taping and jointing systems 278–83,
324–7
Vapour Board 296
V-brace fixing 99
telescopic deflection head assembly
63–4
test methods 343
Thermal Board 304
W
Wall Lining Adhesive 321
Thermal K Board 305
wall linings see linings
thermal performance 19, 294–307
waste recycling 337–8
Thermal PIR Board 305
Wasteline Direct 337–8
Thermal XP Board 304
website, Siniat 5
thickness (see also minimum thickness)
weight
Board 294–307
Board 294–307
Frame 308–20
Floor and Ceiling Systems 122–37
Partition Systems 22–49
Partition Systems 22–49
Shaftwall Systems 244–9
tiling
Contour Lining Systems 202–6
Tiling 285–7
Timber Partition Systems 47–9, 110–19
T-junctions
C Stud Partition Systems 58–60
Shaftwall Systems 262
Shaftwall Systems 244–9
weighted sound reduction index (Rw) 17
wet areas (see also Aqua)
tiling 285–7
widths
Board 294–307
Frame 308–20
window reveals
Timber Partition Systems 118
Direct Bond Lining Systems 199
Twin Frame Partition Systems 103–4
Dryliner Lining Systems 222
Twin Frame Partition Systems 94–108
Independent Wall Lining Systems 232
Shallow Wall Lining Systems 213
U
U Track 309, 332
U Track Deep Flange 310, 332
U Track Extra Deep Flange 310, 332
universal beams see beams
Universal Board 302
Universal Board Partition Systems 32
Universal Bonding Compound 321
universal columns see columns
Universal Sealer 328
U-values 19
Lining Systems To Framed External
Walls 187
Lining Systems To New External Walls
180–1
Lining Systems To Thermally Upgrade
External Walls 184–6
Lining Systems To Upgrade Internal
Walls 183
Roof Lining Systems 188–9
X
XR Bracket 313, 333
351
NOTTINGHAM UNIVERSITY,
SCHOOL OF HUMANITIES
Project: Education
Architect: CPMG
Main Contractor: Clegg Construction
Sub Contractor: L Reynolds
Project Value: £5.4 million
Completion: January 2010
GTEC Systems used: GTEC Acoustic
Stud Partitions, GTEC C Stud Partitions,
GTEC Shaftwall
GTEC Boards used: GTEC Universal Board,
GTEC LaDura Board, GTEC Fire Core Board
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
352
353
SOUTH BRISTOL
SKILLS ACADEMY
Project: Education
Architect: Atkins Walters & Webster
Main Contractor: Cowlin Construction
Sub Contractor: GHT Plastering
Project Value: £23 million
Completion: June 2010
GTEC Systems used: GTEC C Stud
Partitions, GTEC Independent Wall Lining,
GTEC Pregybel MF Ceilings
GTEC Boards used: GTEC Megadeco,
GTEC Fire MR, GTEC Pregybel Board
ENQUIRYLINE T: 01275 377789 E: [email protected] www.siniat.co.uk
GB ORDERLINE
For placing orders, delivery enquiries and local stockists etc.
T 0800 373636
F 01275 377700
E [email protected]
LITERATURELINE
For Siniat literature.
T 01275 377582
E [email protected]
THE TRAINING CENTRE
For all drywall training needs from basic introduction
to advanced skills and development.
T 01275 377581
F 01275 377402
E [email protected]
IRELAND ORDERLINE
For placing orders, delivery enquiries and local stockists etc.
T +353 (0)1 6203114
F +353 (0)1 6203117
E [email protected]
TECHNICAL ENQUIRYLINE
Technical advice and project enquiries.
T 01275 377789
F 01275 377456
E [email protected]
GTEC® WASTELINE DIRECT
Plasterboard waste management enquiries.
T 01275 377579
F 01275 774950
E [email protected]
SINIAT LIMITED
Marsh Lane, Easton-in-Gordano Bristol BS20 0NF
T +44 (0)1275 377773 www.siniat.co.uk
© 2012 Siniat Limited GB_CC_01_0912
