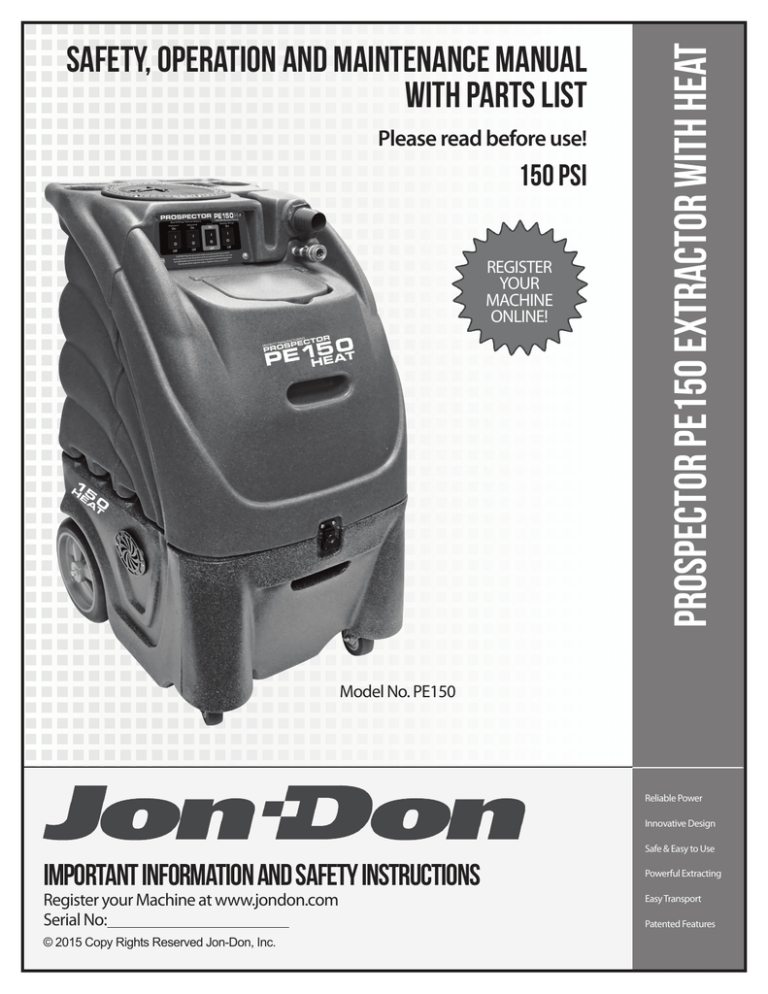

Safety, Operation and Maintenance Manual with Parts List

Please read before use!

150 PSI

REGISTER

YOUR

MACHINE

ONLINE!

Model No. PE150

Important Information and Safety Instructions

Register your Machine at www.jondon.com

Serial No:

© 2015 Copy Rights Reserved Jon-Don, Inc.

Reliable Power

Innovative Design

Safe & Easy to Use

Powerful Extracting

Easy Transport

Patented Features

Dear Valued Customer,

Congratulations on the purchase of your Prospector 150 PSI Carpet Extractor with Heat! The world of carpet cleaning is becoming more high-tech and competitive and we strive to provide you with the most innovative products. Our

Prospector Carpet Extractor is yet another example of this, bringing a new dimension to carpet and upholstery cleaning with its cutting-edge features, quality and value.

Please review this manual, paying careful attention to the “Safety Instructions” section. Keep in mind that any unnecessary damage, neglect or abuse of this machine will void your warranty. You can be confident that simple maintenance will ensure that your Prospector Prospector Carpet Extractor provides quality performance for many years to come.

If warranty questions arise, please consult your manual or contact your local Jon-Don store. Should you have any questions regarding maintenance, replacing parts, or ordering parts please call your local Jon-Don service department, or our technical support team at 800-556-6366 extension 8291.

Before you begin using your Prospector Carpet Extractor, please thoroughly review this owner’s manual.

Again congratulations on the purchase of your Prospector 150 Prospector Carpet Extractor with Heat.

** This manual covers steps for a range of models, not all steps may apply.

New Equipment Warranty

Lifetime warranty on roto-molded body, 5-years on vacuum motors and 150 PSI pump, 2-years on heating unit, 1-year on all electrical parts and 90-days on tools and accessories.

Warranty Policy

All equipment is inspected and tested before shipping from the manufacturer. All parts are warranted to be new and free from defects in workmanship and material, under normal use to the original retail purchaser. This warranty limits manufacturer’s liability for defects in workmanship or materials for replacement of defective parts only. The manufacturer accepts no liability for incidental or consequential damages arisen from the use of any equipment, defective or not.

This warranty is in lieu of all expressed or implied warranties and is extended only to the original retail purchaser.

Manufacturer sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of the manufacturer under the warranty. Parts replaced or repaired under this warranty are warranted for the remainder of the original warranty period.

Labor is only provided by authorized service centers. If an authorized service center is not near you, it is the purchaser’s responsibility to take their machine to an authorized service center.

The manufacturer covers up to one (1) year (365 days) of service labor at the manufacturer’s calculated hourly labor rate/ repair time when performed by a manufacturer-authorized service provider. Ultimately, labor reimbursement costs are at the discretion of the manufacturer. At no time is the manufacturer responsible for travel time to complete on-call repairs.

After one (1) year, the original retail purchaser is responsible for all labor costs with no manufacturer reimbursement..

The manufacturer charges a 25% restocking fee for any items that are being returned to stock. Items must be new, unused, free of damage and are only good for up to 30 days. After 30 days, the manufacturer does not accept the return of any items for a store credit.

Authorized warranty replacement parts need to come directly from the manufacturer. Any use of any other parts will void warranty. The manufacturer and Jon-Don, Inc. do not reimburse for parts used by the client that were not supplied directly for the machine under warranty.

The client must contact the manufacturer prior to working on or changing out of any parts, etc. The manufacturer must issue an RMA Sheet containing approved labor time and replacement parts. Do not send parts or equipment back to the manufacturer without an RMA Number and approval. A copy of the RMA Sheet must be enclosed in the box with the returned item. No returns shall be authorized unless the proper RMA procedures are followed. It is the responsibility of the distributor to repair the client’s equipment as soon as possible.

(1) Prospector 150 PSI Carpet Extractor with Heat

Warranty Policy Continued

No labor will be paid for, nor parts cost paid for or reimbursed, that have not previously been approved by the manufacturer. All warranty work must be approved and authorized to qualify, and appropriate warranty procedures must be followed.

The warranty starts on the purchase date by the original purchaser from an authorized Jon-Don, Inc. distributor, subject to proof of purchase. The Machine Registration Form must be completed and sent to the original manufacturer at the time of purchase. If proof of purchase cannot be identified, the warranty start date is ninety (90) days after the date of sale to an authorized Jon-Don, Inc. distributor.

1.0 Safety Instructions

READ THIS MANUAL BEFORE USING YOUR Prospector Carpet Extractor. KNOW THE PROPER

OPERATION, CORRECT APPLICATIONS AND THE LIMITATIONS OF THIS EQUIPMENT BEFORE USE.

Reduce the Risk of Fire, Electric Shock or Injury:

Use only as described in this manual. Use only the attachments recommended by the manufacturer. Test all outlets with an outlet tester before plugging machine into any outlet. Plug cord into the nearest grounded outlet. Never attempt adjustments or repairs while the machine is plugged in. Pay close attention when using machine near children.

Lift using only the appropriate handles. Always wear the appropriate clothing and safety equipment when operating the machine. Keep all body parts, hair and loose clothing away from openings and moving parts. Use extra care when cleaning stairs. Never move the machine up or down stairs with fluid in the machine. Use common sense to protect yourself and others from injury when using the machine.

• DO NOT unplug by pulling on the cord, grasp the plug. DO NOT pull unit by the cord.

• DO NOT use if cord or plug are damaged. Keep cord away from heated surfaces.

• DO NOT use outdoors, in standing water on wet surfaces.

• DO NOT pick up flammable or combustible materials or use machine where they may be present.

• DO NOT leave machine outdoors, in extreme heat or cold. Harsh weather elements will damage components and void warranty.

• DO NOT use powdered detergents in machine - will VOID warranty.

2.0 Grounding Instructions

DANGER: IMPROPER GROUNDING METHOD CAN RESULT IN A RISK OF ELECTRIC SHOCK.

Electrical equipment must be grounded. If the machine should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. The Prospector Carpet Extractor is equipped with a cord containing a grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

If repair or replacement of the cord or plug is necessary, DO NOT connect the grounded wire to a flat bed terminal. The grounding wire is the wire with insulation and an outer green surface, with or without yellow stripes.

Grounding Method

The electric Prospector Carpet Extractor is for use on a normal 120 volt circuit. It has a grounded plug that fits the outlet illustrated in Figure A. If a properly grounded outlet is not available, a temporary adapter, such as the adapter illustrated in Figure B and C, may be used to connect the plug into a 2-pole outlet, as shown in Figure C.

The temporary adapter should be used only until a properly grounded outlet, Figure A, can be installed by a qualified electrician. The green colored rigid ear lug or grounding means extending from the adapter must be connected to a permanent ground, such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by its grounding means and a metal screw, as shown in Figure C.

SEE DIAGRAM ON NEXT PAGE

(2) Prospector 150 PSI Carpet Extractor with Heat

2.0 Grounding Instructions Continued

WARNING:

Improper connection of the equipment grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with the equipment. If it will not fit into the outlet, have a proper outlet installed by a qualified electrician.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

3.0 Set-Up / Prepare Unit for Use

DO NOT USE ON WET SURFACES. DO NOT EXPOSE TO RAIN. STORE INDOORS.

• All Prospector Carpet Extractors, no matter what the time of year, are shipped with antifreeze in the solution lines.

Prior to first use, fill the tank with one gallon of warm water. Attach the hose and using the hand tool wand, flush out the system by spraying the one gallon of water through the pump.

• Fill the solution tank with warm water (less than 100 degrees Fahrenheit). Fill to approximately 4 inches from the top.

Use a liquid detergent made for carpet cleaning or upholstery. Read and mix to the dilution ratios as directed.

• Do not use citrus acid, buterol or harsh degreasers inside the machine.

3.1 Power Priming the Solution Pump

Once water is in the solution tank, the solution pump must be primed:

• Connect the short prime hose that was included with your machine to the solution outlet quick connect and place the open end of priming hose inside the vacuum hose barb.

• Turn ON both vacuums then the solution pump. The vacuum will pull solution through the pump into the vacuum tank.

• Cup a hand around the hose and barb to increase the vacuum suction on the hose. When the pump is primed, you will hear the pulsation of the pump change.

• After priming, turn OFF the solution pump. Disconnect the prime hose and connect your solution hose and tool.

If the pump still does not prime or if flow is low or unsteady, check the hose from the solution tank to the pump (as well as the filter) for clogging, kinks or restrictions. Clean or replace hose and/or filter and repeat the priming process.

If you are having trouble with the pump, refer to the “Trouble Shooting Guide” section or contact the Jon-Don technical support team for advice or assistance.

3.2 Electrical

Plug cord(s) into 20 AMP grounded wall outlet(s). 20 AMP circuits are normally found in kitchens and bathrooms. Never remove ground prong from the plug. If a circuit breaker trips during operation, turn machine off, reset the breaker and move the electrical cord to a different outlet and resume operation.

If moisture does enter the vacuum motors, contact your local Jon-Don service center. To prevent moisture from damaging the vacuum motors during storage, empty the recovery tank and store with the lid open.

(3) Prospector 150 PSI Carpet Extractor with Heat

3.0 Set-Up / Prepare Unit for Use Continued

3.3 Vacuum System

The extractor uses a dual vacuum motor system that provides outstanding water lift and air flow.

Vacuum Float Assembly Warning System:

the float assembly on the vacuum stand pipe prevents the waste tank from overflowing the stand pipe and damaging the vacuum motors. Motors will reach a fast, high-pitched sound alerting you when the recovery tank is about to over flow. When this happens, immediately turn OFF the vacuum switches and empty the waste tank.

The float assembly has a filter to prevent lint and debris from entering the stand pipe. Refer to the “Maintenance” section for removal and proper cleaning.

Recovery Tank:

An optional in-line filter (OE-ILF-EA) can be purchased and is recommended for use with all jobs.

It is also necessary to use a defoamer to eliminate foam build-up in the recovery tank which could lead to foam/moisture entering the vacuums and contributing to early failure of the vacuum motors.

If moisture does enter the vacuum motors, contact your local Jon-Don service center. To prevent moisture from damaging the vacuum motors during storage, empty the recovery tank and store with the lid open.

4.0 Shutdown Procedures

• If using the auto-fill system, turn the water supply OFF before finishing each job. This will allow use of the water and chemicals already in the tank and will reduce the amount of excess water to be disposed of later.

• When finished cleaning, turn OFF all switches.

• If the auto-fill system was used and there is still water in the solution tank, push the float down to release the water inlet hose pressure before disconnecting the hose from the faucet. Disconnect the water inlet hose from the quick disconnect on the front of the machine.

• Disconnect the solution hose and vacuum hose from the cleaning tool. Pull the valve trigger to release pressure from the hose before disconnecting the solution hose from the cleaning tool.

• Disconnect the clear view in-line filter from the vacuum hoses and clean the filter as needed.

• Disconnect the vacuum hose and solution hose from the machine.

• If water remains in the solution tank, use the short vacuum hose and vacuum the excess water from the tank.

• If the auto-fill system was utilized, place the chemical feed hose back into the solution tank.

• If the dump-out system was used: turn the waste pump switch ON to pump out any remaining water from the recovery tank; turn switch OFF, remove the dump pump-out hose from the outlet fitting and replace the cap; roll up the hose toward drain to remove the remaining water from the hose; connect ends of hose together to prevent dirty water from dripping from hose during transport.

• Disconnect the power cords from the outlets and from the machine.

• Remove the float assembly from the recovery tank and clean filter as needed.

Replace float assembly and tank lid.

• Drain any remaining water from the recovery tank and dispose of in a sanitary drain. DO NOT use the same bucket to drain the tank that you used to fill the tank.

• Roll up all hoses and tools. Collect and store extractor, all tools and accessories.

(4) Prospector 150 PSI Carpet Extractor with Heat

5.0 Maintenance

Regular maintenance is required to keep your Prospector Carpet Extractor in proper working condition. Failure to properly maintain your machine could void warranty. Thoroughly clean all equipment and accessories after each use:

• Rinse the solution and recover tanks with clean water.

• Flush the pump system with clean water, including all hoses and wand(s).

• Do not allow water to remain in the tanks after use.

• Lubricate all quick disconnects with WD-40 or similar lubricant.

• Clean vacuum float assembly screen.

WARNING: Disconnect electrical power cord before performing any service or maintenance inside the machine base or before testing or repairing switches or power cords. Failure to do so may result in severe personal injury or death.

Operation

Clean Chemical Feed Filter

Clean Vacuum Assembly Screen

Rinse Out Recovery Tank

Flush Solution Tank and Pump

Clean Pump-Inlet Filter

Interval

Daily- After Each Job

Daily- After Each Job

Daily

Daily

Weekly - As Needed

5.1 Clean Fresh Water Tank Filter

The fresh water tank filter is located at the bottom of the solution tank. Unscrew the filter counterclockwise and rinse with fresh water. If necessary, use a tooth brush to remove detergent build-up. Note, a heavy build-up is a warning sign that the solution system should be flushed. See the “Flush Chemical System” section.

5.2 Clean Vacuum Float Assembly Screen

Inside the recovery tank, on top of the stand pipe, is the vacuum float assembly. It functions to prevent debris and water from being sucked into the vacuum motors.

Operating the Prospector Carpet Extractor without the float assembly or with a poorly maintained assembly, will greatly decrease the life of the vacuum motors and will void the warranty.

If debris builds up on this filter, it will reduce the vacuum air flow and may cause a significant decrease in the rate of water recovery. If debris prevents the float ball from moving or seating inside the assembly, it may not stop the airflow when the tank fills with water and the water will be sucked in the vacuums and blow out the exhaust.

Vacuum Float Assembly

To clean, twist off the float assembly from the stand pipe and clean the screen. Pull fibers and lint off and rinse with clean water. Push the assembly back onto the stand pipe and replace the recovery tank lid.

This screen should be cleaned frequently if the Prospector Carpet Extractor is being operated in an environment which has an abnormal build-up of lint and debris, such as cleaning newly installed carpet. Loss of vacuum is most normally associated with lint build-up in this filter at the top of the vacuum stand pipe.

5.3 Rinse Out Recovery Tank

Build-up of fine silt and debris can damage the autodump pump and dump valve. Clean out the recovery tank on a regular basis to extend the life of these components as well as keep the tank and machine smelling better.

To rinse out recovery tank, remove the recovery tank lid and open the dump valve. Place a bucket under the dump valve. Use a hose to rinse the dirt and debris out of the recovery tank. Close the dump valve and spray the tank with deodorizer or disinfectant. Proceed to waste pump cleaning and replace the recovery tank lid. Dispose of dirty water and debris.

(5) Prospector 150 PSI Carpet Extractor with Heat

5.4 Clean Pump Inlet Filter

CAUTION: before proceeding with this procedure, make sure both the power cords are disconnected.

• To examine the filter, open the solution tank lid on the front of the machine. The filter is in the bottom of the solution tank.

• Grasp the filter cap and unscrew the filter from the brass nipple by turning counter-clockwise. Clean or replace the filter as needed.

Solution Tank

Latch

Base

1/4” Acorn Strainer

Part No. 10-0845

To prevent moisture from damaging the vacuum motors during storage, empty the recovery tank and store with the lid open.

5.4 Prevent Mineral Deposit Build-Up

Vinegar may be used to prevent mineral deposit build-up in your machine’s lines and pump. Failure to do so may clog your lines and pump. Every two weeks, pour vinegar into the solution tank (dilute with 1/2 water). Run the pump, while squeezing your wand or upholstery tool’s trigger unit you smell vinegar or notice it coming out of the tool. Let the machine sit overnight, and no longer, with the vinegar in its lines. The next day, flush the machine with 1-gallon of clean water or until you do not smell vinegar any longer.

PLEASE NOTE: If you choose to use CLR, follow the directions on the bottle. DO NOT leave CLR in the machine’s lines and flush thoroughly. CLR may corrode the machine’s components and VOID your warranty. If you choose to use vinegar, MUST dilute with 1/2 water. Failure to do so may damage the machine’s components and VOID your warranty.

6.0 Storage and Freeze Protection

You must winterize your Prospector Carpet Extractor to protect the pump system from freezing and also damage being caused to fittings and valves. Damage due to freezing is not covered under the warranty. Store your extractor in temperatures over 40 degrees Fahrenheit. If you plan on storing your extractor in freezing conditions or for a long period of time, the following procedure should help prevent your Prospector Carpet Extractor from freezing and prevent pump and seals from drying out.

Recommended Procedure for Storage

• In a separate container, mix 1/2-gallon of water with 1/2-gallon of automotive radiator antifreeze (ethylene glycol type). Mix well and pour into the solution tank.

• Connect the pressure hose to the female quick disconnect (QD) on the front of the machine. Insert an open-ended male

QD into the female QD on the end of the pressure hose.

• When primed, turn down the pressure to 100 PSI.

• Disconnect the open-ended QD and connect the solution hose to the male QD at the auto-fill/chemical feed connection.

CAUTION: applying high pressure (over 100 PSI) to the chemical feed system will damage the mechanism.

• With the chemical feed supply tube at the bottom of the solution tank, turn on the pump and allow to circulate for 10 minutes. Check to make sure the chemical supply tube is drawing the antifreeze solution. This will introduce antifreeze into the chemical feed system.

(6) Prospector 150 PSI Carpet Extractor with Heat

6.0 Storage and Freeze Protection Continued

• Disconnect the solution hose from the chemical feed and allow the system to bypass for 10 minutes. This will work antifreeze into the pressure gauge.

• Attach and wands and hand tools that will also be stored with the Prospector Carpet Extractor. Open the valve for 30 seconds, directing the spray to the solution tank. Disconnect the hose and with the valve open and the jets pointing down, depress the dimple on the male QD. This will drain the solution out of the tool. Drain thoroughly before storing.

• Turn off the pump and disconnect all hoses and tools. Vacuum out the solution tank and thoroughly drain the recovery tank and vacuum hose.

To return to service, flush the pressure system by repeating the above steps, using fresh water in place of antifreeze.

7.0 Trouble Shooting Guide

Never operate this Prospector Carpet Extractor when the equipment is not performing as expected or when any part is visibly damaged. When repair is needed, take the equipment to an authorized service center.

System

Vacuum

System

Problem

No Vacuum /

Weak Vacuum

Possible Cause

1. Vacuum Tank Full

2. Float Assembly Tank Screen Dirty

3. Float Ball Stuck

4. Damaged or Loose Vacuum Hose

5. Dump Valve Open

6. Access Lid not Sealed

7. Vacuum Hose Clogged

8. Air Intake Grid Clogged

9. Leak in Recovery Tank

10. Water Coming out of Vacuum

Exhaust

Remedy

1. Empty Tank

2. Clean the Screen with Water

3. Tap Float to Unstick then Clean

4. Attach or Replace

5. Close Valve

6. Replace Gasket

7. Clear Debris

8. Clean

9. Clean and Dry Area, Patch with

Silicone

10. Use a Low Foaming Detergent

Electrical

System

Unit will not Turn

On

1. Extension Cord not Plugged In

2. Switch not in the “On” Position

3. Building Circuit Overloaded

4. Wiring Connections Loose

Pump

System

Burning Smell

Pump is not

Running Properly

1. Vacuum Motor Hung Up

2. Pump Motor Hung Up

1. No Power to the Pump

2. Jets on Wand are Clogged

3. In-Line Water Filter is Clogged

4. Debris in Solution Tank Covering

Inlet

5. Kinked or Loose Hose

6. Pump Failed

7. Quick Disconnects are not Completely Locked Together

8. Heater is Clogged with Deposits

9. Pump is Pulsating

10. Auto Prime Valve is Open

1. Check if Machine and Cord are

Plugged In

2. Check Switches, Replace if

Necessary

3. Reset Circuit

4. Unplug Machine and Check for

Loose Wires

1. Replace Vacuum Motor

2. Replace Pump

1. Check the Electrical System

2. Clean Jet Filters

3. Clean In-Line Filter

4. Clear Debris

5. Check and Replace Hoses if

Necessary

6. Replace Pump

7. Snap Quick Disconnects Together\

8. Flush Heater with System Maintainer or Replace if Necessary

9. Check for Clogged Jets and

Clean

10. Close Valve

(7) Prospector 150 PSI Carpet Extractor with Heat

8.0 Machine Schematic Drawing

(8) Prospector 150 PSI Carpet Extractor with Heat

9.0 Machine Parts List

Drawing No. Item ID

1

4

5

2

3

6

SN-12-ST-BLUGRAN

10-0479

10-0845

SN-12-L-BLUGRAN

80-0001

80-0040-C

19

20

21

22

15

16

17

18

11

12

13

14

7

8

9

10

27

28

29

30

23

24

25

26

43

44

45

46

39

40

41

42

47

48

49

35

36

37

38

31

32

33

34

10-0826

80-0026

10-0806

10-0379

10-0204

10-0803

10-0803-H

10-0809-A

80-0200

SN-12-RT-BLUGRAN

80-0008

10-0416-A

10-0804-A

10-0804

10-0419-A

80-0012

10-0805

10-0024

10-0849

10-0848-B

10-0811

10-0838-A

10-0850

10-0851

10-0822

10-1030-S2

SN-12-MFLD

10-0023

10-0833

10-0830

10-0821

10-0820

SN-12-MB-BLKGRAN

10-0836

10-0807

10-0840

10-0835-N

10-0834

10-0808

10-0816

10-0400-D

10-0379

80-0044-L

Item Description

12-Gallon Solution Tank - Blue Granite

1/4" Male Close Nipple

1/4" Strainer for Extractor

12-Gallon Lid - Blue Granite

Extractor Exhaust Hose

46” of Blue 3000 psi Hose for Extractor -

Complete with Fittings and Clamps

3/4" Hose Clamp for Extractor

3/8 Barb x 1/4 MPT 90 Degree

Barb Hose Fitting for Extractor

8-32 x 3/8 Screw

Motor Mount Back-Up Washer

Splash-Proof Switch for Extractor

Splash-Proof Heater Switch

Extractor 4-Hole Switch Plate

Extractor Harness

12-Gallon Recovery Tank - Blue Granite

1.5 PVC Female Adapter

1-1/2" Black ABS Stand Pipe

Hatch Cover Gasket for Extractor

Hatch Cover for Extractor

Screw for Extractor Hatch

Float Assembly for Extractor

Dump Valve for Extractor

18” x 1-1/2" Black Vacuum Hose

1-1/2" ABS Fitting

1-1/2" 90 Degree ABS Street Elbow

2-Stage Extractor Motor

Complete Pigtail for Extractor

Strain Relief for Pigtail - Part of 10-0838-A

Strain Relief Nut for Pigtail -

Part of 10-0838-A

Exhaust Grate for Extractor

2-Stage Extractor Motor Gasket

Extractor Motor Manifold

Shoulder and Waist Belt Washer

Motor Manifold Bolts for Extractor

Hinge Keeper for Extractor

Extractor Hinge

End Cap for Rod on Extractor

12-Gallon Motor Base - Black Granite

19" Axle for Extractor

Wheels for Extractor

Nylon Washer

Nut for Pump Bolt on Extractor

Pump Flat Washer

Caster for Extractor

Caster Bolt

Latch for Extractor

8-32 x 3/8 Screw

67” Black Hose with Fittings and Clamps

1.00

1.00

2.00

8.00

4.00

14.00

2.00

8.00

3.00

2.00

2.00

4.00

10.00

2.00

2.00

4.00

1.00

8.00

1.00

1.00

1.00

1.00

1.00

1.30

1.00

1.00

12.00

1.00

6.00

3.00

1.00

8.00

18.00

3.00

1.00

1.00

1.00

1.00

1.00

3.00

2.00

1.00

Qty.

1.00

1.00

1.00

1.00

0.30

(9) Prospector 150 PSI Carpet Extractor with Heat

9.0 Machine Parts List Continued

Drawing No. Item ID

50 10-0852

64

65

66

67

60

61

62

63

56

57

58

59

51

52

53

55

68

69

70

71

72

73

78

79

80

81

74

75

76

77

10-1500-A

10-0814

10-0814-B

10-0921

10-0204

80-0022-A

10-0920

80-0022-A

10-0921

80-0011-2

10-0907

10-0901

80-0010

10-0801-I

80-0101-M

80-0044-L

10-0812

10-0356

10-0835-B

80-0040-C

10-0868

10-0846

10-0801-J

80-0017

80-0017

10-0843-18

10-0400-C

10-0832

10-0831

10-0818

Item Description

1/4" 90 Degree Brass Elbow -

Part of 80-0044-L

Heater Element 1000 Watt

Sensor for Extractor Heater

Manual Sensor for Heater

Aluminum Box for Dual Rod Heater

Motor Mount Back-Up Washer

Screw for Panel

Dual Rod Heat Exchanger Tube

Screw for Panel

Aluminum Box for Dual Rod Heater

90 Degree Street Elbow

Strain Relief for Tube Heater

175 psi Relief Valve for Heater

1/4" Brass Tee

90 FPT for Heater - Part of 80-0044-L

1/4" Male Check Valve - Part of 80-0044-L

67” Black Hose

Complete with Fittings and Clamps

100 psi Extractor Pump

3/8 MPT x 3/8 Barb 90 Degree -

Part of 80-0044-L

Pump Bolt 100 psi Extractor

46” of Blue 3000 psi Hose for Extractor

Complete with Fittings and Clamps

1/4" Female QD for Extractor

1/4" MPT Hex Nipple for Extractor -

Part of 80-0044-L

90 MPT for Heater - Part of 80-0044-L

Bulk Head fitting for Extractor

Bulk Head fitting for Extractor

3/8" x 18” Complete Black Hose for 170 psi with Heat with Fittings and Clamps

Keeper Latch for Extractor

S/R Strap Bolts

S/R Bracket for Extractor

S/R Top of Tank Bolt on Extractor

Qty.

2.00

2.00

2.00

2.00

18.00

8.00

2.00

8.00

2.00

1.00

2.00

1.00

1.00

2.00

2.00

1.00

1.00

4.00

2.00

2.00

1.00

1.00

4.00

1.00

1.00

(10) Prospector 150 PSI Carpet Extractor with Heat

Prospector PE150 Extractor with Heat

By Jon-Don, Inc.

Please fill out the following information:

Model No:

Serial No:

Distributor Name:

Distributor Phone No:

Date of Purchase:

Returned Material Authorization (RMA) Procedure

Original purchaser (distributor/service center) must contact the manufacturer to follow correct RMA/warranty procedures. Must include a copy of RMA Sheet enclosed in the box with returned item. No returns shall be authorized unless proper RMA procedures are followed. It is the responsibility of the distributor to repair the client’s equipment as soon as possible. Labor is only provided by authorized service centers. If an authorized service center is not near you, it is the purchaser’s responsibility to take their machine to an authorized service center.

Client must contact the distributor prior to working on or changing out any parts, etc. Manufacturer must issue an RMA Sheet containing approved labor time and replacement parts. Do not send parts or equipment back to manufacturer without an RMA number and approval. No labor will be paid for, nor part costs paid for or reimbursed that have not been previously approved by the manufacturer. All warranty work must be approved and authorized to qualify and appropriate warranty procedures must be followed.

400 Medinah Road, Roselle, IL 60172

Phone: 800-556-6366 | Fax: 888-344-6878 www.jondon.com

© 2015 Copy Rights Reserved Jon-Don, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
