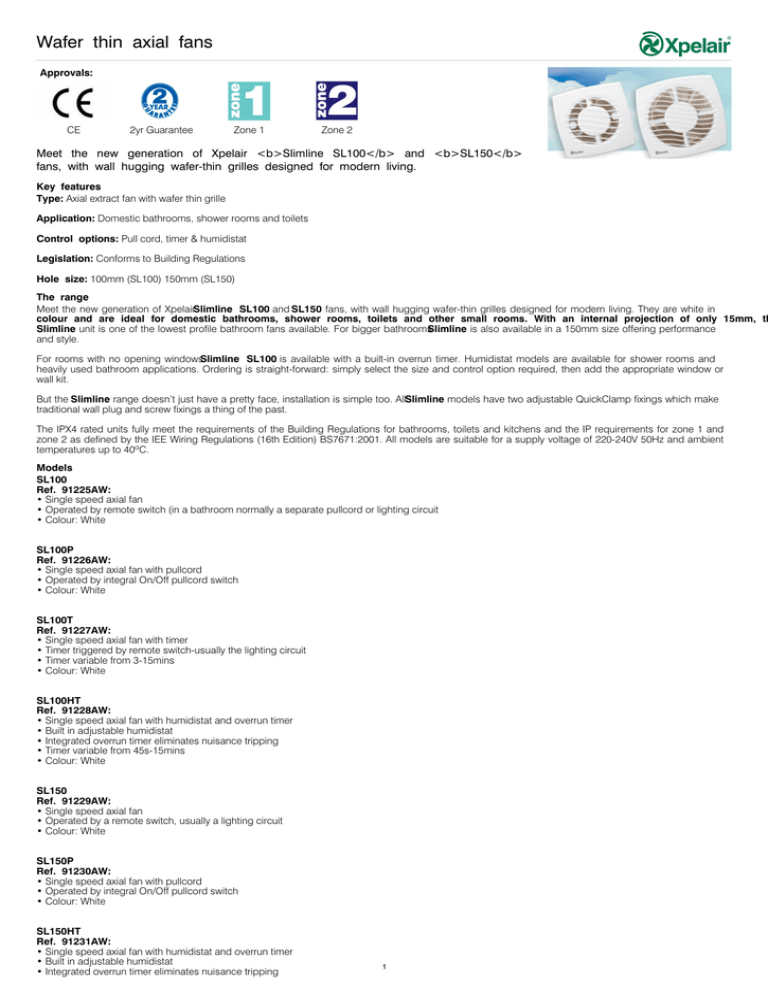

Wafer thin axial fans
Approvals:
CE
2yr Guarantee
Zone 1
Zone 2
Meet the new generation of Xpelair <b>Slimline SL100</b> and <b>SL150</b>
fans, with wall hugging wafer-thin grilles designed for modern living.
Key features
Type: Axial extract fan with wafer thin grille
Application: Domestic bathrooms, shower rooms and toilets
Control options: Pull cord, timer & humidistat
Legislation: Conforms to Building Regulations
Hole size: 100mm (SL100) 150mm (SL150)
The range
Meet the new generation of XpelairSlimline SL100 and SL150 fans, with wall hugging wafer-thin grilles designed for modern living. They are white in
colour and are ideal for domestic bathrooms, shower rooms, toilets and other small rooms. With an internal projection of only 15mm, th
Slimline unit is one of the lowest profile bathroom fans available. For bigger bathroomsSlimline is also available in a 150mm size offering performance
and style.
For rooms with no opening windowsSlimline SL100 is available with a built-in overrun timer. Humidistat models are available for shower rooms and
heavily used bathroom applications. Ordering is straight-forward: simply select the size and control option required, then add the appropriate window or
wall kit.
But the Slimline range doesn’t just have a pretty face, installation is simple too. AllSlimline models have two adjustable QuickClamp fixings which make
traditional wall plug and screw fixings a thing of the past.
The IPX4 rated units fully meet the requirements of the Building Regulations for bathrooms, toilets and kitchens and the IP requirements for zone 1 and
zone 2 as defined by the IEE Wiring Regulations (16th Edition) BS7671:2001. All models are suitable for a supply voltage of 220-240V 50Hz and ambient
temperatures up to 40ºC.
Models
SL100
Ref. 91225AW:
• Single speed axial fan
• Operated by remote switch (in a bathroom normally a separate pullcord or lighting circuit
• Colour: White
SL100P
Ref. 91226AW:
• Single speed axial fan with pullcord
• Operated by integral On/Off pullcord switch
• Colour: White
SL100T
Ref. 91227AW:
• Single speed axial fan with timer
• Timer triggered by remote switch-usually the lighting circuit
• Timer variable from 3-15mins
• Colour: White
SL100HT
Ref. 91228AW:
• Single speed axial fan with humidistat and overrun timer
• Built in adjustable humidistat
• Integrated overrun timer eliminates nuisance tripping
• Timer variable from 45s-15mins
• Colour: White
SL150
Ref. 91229AW:
• Single speed axial fan
• Operated by a remote switch, usually a lighting circuit
• Colour: White
SL150P
Ref. 91230AW:
• Single speed axial fan with pullcord
• Operated by integral On/Off pullcord switch
• Colour: White
SL150HT
Ref. 91231AW:
• Single speed axial fan with humidistat and overrun timer
• Built in adjustable humidistat
• Integrated overrun timer eliminates nuisance tripping
1
Wafer thin axial fans
• Timer variable from 45s-15mins
• Colour: White
Controllers
Passive Infrared Sensor XPIRA
Ref. 21871AA
• Activates fan via body movement
• Ideal for infrequently used public spaces
• Built in timer to prevent nuisance tripping
Remote Time Delay Unit DT20B
Ref. 21850AW
• User adjustable run-on timer (2-20mins)
Technical specification
The unit is to be supplied from the Xpelair SL100 & SL150 range by Applied Energy Products Ltd, Morley Way, Peterborough PE2 9JJ
Tel. +44 (0)1733 456789
Model / Ref
SL100 / 91225AW
SL100P / 91226AW
SL100T / 91227AW
SL100HT / 91228AW
SL150 / 91229AW
SL150P / 91230AW
SL150HT / 91231AW
• The unit shall be designed for wall, ceiling, shaft (or window mounting in glass up to 6mm thick) using the kit provided
• Shall be designed so that the front grille thickness is no more than 15mm
• The fan housing shall be moulded in high gloss white ABS and be of modern design with finger guarding for additional safety protection
• The motor shall be lubricated for life with built in safety thermal overload protection
• The unit shall be rated at IPX4 and a double insulated appliance
• In addition it shall conform to Building Regulations for use in toilets and bathrooms
• P models shall include integral pullcord
• T models shall include integral timer control (3 - 15mins)
• HT models shall include integral humidity control (45 - 99%RH) and timer control
• Dimensions shall be W x H x D:
SL100 - 140mm x 140mm x 98mm (front cover 10mm)
SL150 - 190mm x 190mm x 112mm (front cover 15mm)
Product variations
Reference number
Remote switch (supplied)
Integral pullcord
Integral timer (adjustable up to 15 mins)
Integral humidity sensor (45-99% RH)
Extract performance (FID, m³/h)
Extract performance (FID, l/s)
Sound pressure level (dB(A)@3m)
Electrical power rating (W)
Weight (kg)
IP rating
Guarantee (years)
SL100
91225AW
yes
no
no
no
67
18.5
39
15
0.6
IPX4
2
SL100P
91226AW
no
yes
no
no
67
18.5
39
15
0.6
IPX4
2
SL100T
91227AW
yes
no
yes
no
67
18.5
39
15
0.6
IPX4
2
SL100HT
91228AW
no
no
yes
yes
67
18.5
39
15
0.6
IPX4
2
2
SL150
91229AW
yes
no
no
no
180
50
43
25
0.9
IPX4
2
SL150P
91230AW
no
yes
no
no
180
50
43
25
0.9
IPX4
2
SL150T
92361AW
Yes
No
Yes
No
218
60
43
35
0.9
IPX4
2
SL150HT
91231AW
no
no
yes
yes
180
50
43
25
0.9
IPX4
2
SL150HP
91496AW
no
yes
yes
yes
218
60
43
37
0.4
IPX4
2
Wafer thin axial fans
SL100:
Performance:
Wiring:
Dimensions: All dimensions in mm
Installation:
3
