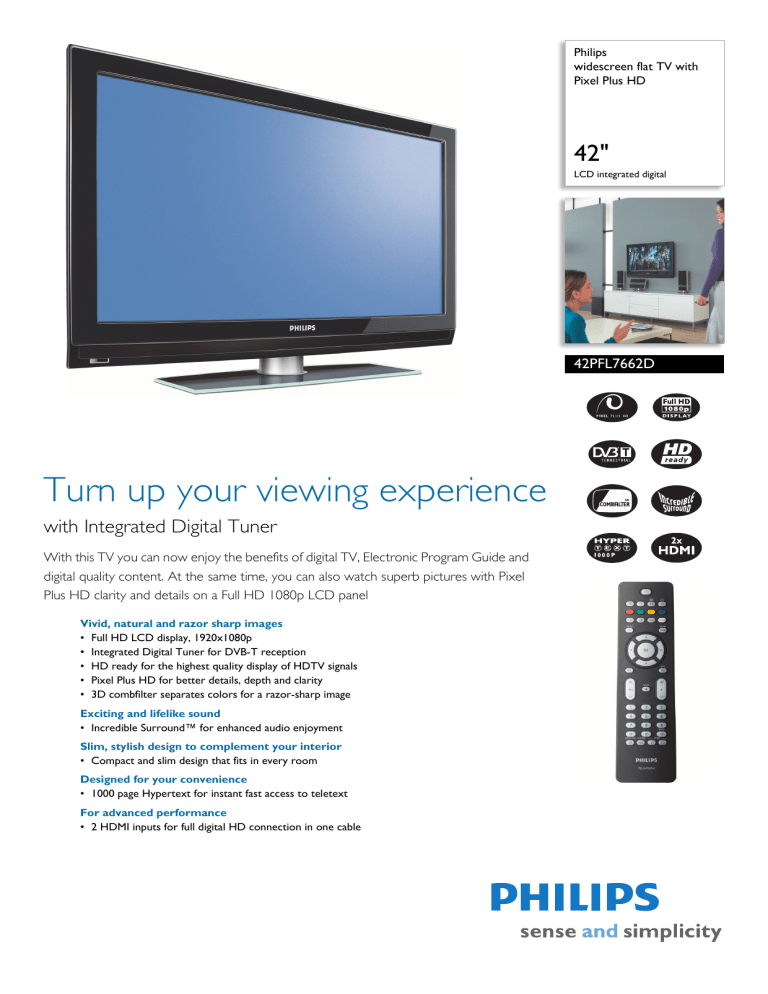

Philips
widescreen flat TV with
Pixel Plus HD
42"
LCD integrated digital
42PFL7662D
Turn up your viewing experience
with Integrated Digital Tuner
With this TV you can now enjoy the benefits of digital TV, Electronic Program Guide and
digital quality content. At the same time, you can also watch superb pictures with Pixel
Plus HD clarity and details on a Full HD 1080p LCD panel
Vivid, natural and razor sharp images
• Full HD LCD display, 1920x1080p
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Pixel Plus HD for better details, depth and clarity
• 3D combfilter separates colors for a razor-sharp image
Exciting and lifelike sound
• Incredible Surround™ for enhanced audio enjoyment
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• 1000 page Hypertext for instant fast access to teletext
For advanced performance
• 2 HDMI inputs for full digital HD connection in one cable
42PFL7662D/12
Widescreen flat TV with Pixel Plus HD
42" LCD integrated digital
Specifications
Product highlights
Picture/Display
•
•
•
•
•
•
•
Aspect ratio: Widescreen, 16:9
Brightness: 550 cd/m²
Dynamic screen contrast: 4000:1
Response time (typical): 8 ms
Viewing angle (H / V): 178 / 178 degree
Diagonal screen size: 42 inch / 107 cm
Display screen type: LCD Full HD W-UXGA Act.
matrix
• Panel resolution: 1920x1080p
• Picture enhancement: Pixel Plus HD, Luminance
Transient Improver, Color Transient
Improvement, Dynamic contrast enhancement,
Contrast Plus, 3/2 - 2/2 motion pull down, 3D
Combfilter, Active Control, Digital Noise
Reduction, Jagged Line Suppression, Progressive
Scan
• Screen enhancement: Anti-Reflection coated
screen
Supported Display Resolution
• Computer formats
Resolution
Refresh rate
640 x 480
60, 72, 75, 85Hz
800 x 600
60, 72, 75, 85Hz
1024 x 768
60, 70, 75, 85Hz
• Video formats
Resolution
Refresh rate
480i
60Hz
480p
60Hz
576i
50Hz
576p
50Hz
720p
50, 60Hz
1080i
50, 60Hz
1080p
50Hz, 60Hz
Sound
• Equalizer: 7-bands
• Output power (RMS): 2 x 10 W
• Sound Enhancement: Auto Volume Leveller,
Incredible Surround, Dynamic Bass Enhancement
• Sound System: Nicam Stereo, Stereo
Loudspeakers
• Built-in speakers: 2
Program Guide
• Remote Control: TV
• Remote control type: RC2034301/01
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Picture in Picture: Text dual screen
• Teletext: 1000 page Hypertext
• Teletext enhancements: 4 favourite pages,
Program information Line
Full HD LCD display 1920x1080p
This display has a resolution that is referred to as Full HD.
The state-of-the-art LCD screen technology has the full
high-definition widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the best possible
picture quality for HD input signals with up to 1080 lines.
It produces brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors. This vibrant
and sharp image will provide you with an enhanced
viewing experience.
Tuner/Reception/Transmission
Integrated Digital DVB-T tuner
The integrated DVB-T tuner lets you receive Digital
Terrestrial TV to watch or record. This means you do not
need an additional set top box and also the additional
cables.
• Aerial Input: 75 ohm coaxial (IEC75)
• TV system: PAL I, PAL B/G, PAL D/K, SECAM B/
G, SECAM D/K, SECAM L/L', DVB COFDM 2K/
8K
• Video Playback: NTSC, SECAM, PAL
• DVB: DVB Terrestrial *
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• Number of Preset Channels: 100
• Tuner Display: PLL
Connectivity
•
•
•
•
•
•
•
•
Ext 1 Scart: Audio L/R, CVBS in/out, RGB
Ext 2 Scart: Audio L/R, CVBS in/out, S-video in
Ext 3: S-video in, CVBS in, Audio L/R in
Ext 4: YPbPr, Audio L/R in
Ext 5: HDMI
Ext 6: HDMI
Number of Scarts: 2
Other connections: Headphone out, Common
Interface
Power
•
•
•
•
Ambient temperature: 5 °C to 40 °C
Mains power: 220 - 240V, 50/60Hz
Power consumption: 240 W
Standby power consumption: < 1 W
Accessories
• Included Accessories: Table top stand, Power
cord, Quick start guide, User Manual, Registration
card, Warranty certificate, Remote Control,
Batteries for remote control
• Optional accessories: Floor stand
Dimensions
Convenience
• Child Protection: Child Lock+Parental Control
• Clock: Sleep Timer, Wake up Clock
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Easy
toggle Dig/Analog modes, Program List, Side
Control, Smart Picture Control, Smart Sound
Control
• Electronic Program Guide: 8 day Electronic
• Color cabinet: Black cabinet with High Gloss glass
deco front
• Set dimensions (W x H x D):
1046 x 686 x 118 mm
• Set dimensions with stand (W x H x D):
1046 x 749 x 265 mm
• Product weight: 26 kg
• Product weight (+stand): 32 kg
• Box dimensions (W x H x D):
1152 x 788 x 313 mm
• Weight incl. Packaging: 40 kg
• VESA wall mount compatible: 600 x 400 mm
•
Issue date 2008-07-02
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 3.0.3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 30841
EAN: 87 12581 34094 0
www.philips.com
HD Ready
Enjoy the exceptional picture quality of a true High
Definition TV signal and be fully prepared for HD sources
like HDTV broadcast, Blu-ray DVD or HD-DVD. HD
ready is a protected label that offers picture quality
beyond that of progressive scan. It conforms to strict
standards laid out by EICTA to offer a HD screen that
displays the benefits of resolution and picture quality of a
High Definition TV signal. It has a universal connection for
both analog YPbPr and uncompressed Digital connection
of DVI or HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Pixel Plus HD
Pixel Plus HD is a picture processing technology that
enables viewer to watch contents that are vivid, natural
and real. The result is a superbly razor sharp pictures
with incredible details and depth from any HD source.
3D Combfilter
The 3D comb filter separates brightness and color signals
better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract
from your viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the television
image to accurately separate the color from the blackand-white information and remove both horizontally and
vertically hanging dots, as well as dot crawl. The result is
a razor sharp image.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
Compact and slim design
This design style emphasizes a slim, compact look that
saves space and fits in anywhere.
2 HDMI inputs
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
With 2 HDMI inputs you can connect multiple HD
sources, for instance an HD settop box, and a Blu-ray
player. Your TV is fully prepared for the HD future.
*
