IMPORTANT! PowerWatch© Reference Guide 2007 ACR Systems Inc.

IMPORTANT! PowerWatch© Reference Guide 2007 ACR Systems Inc.
IMPORTANT!
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com

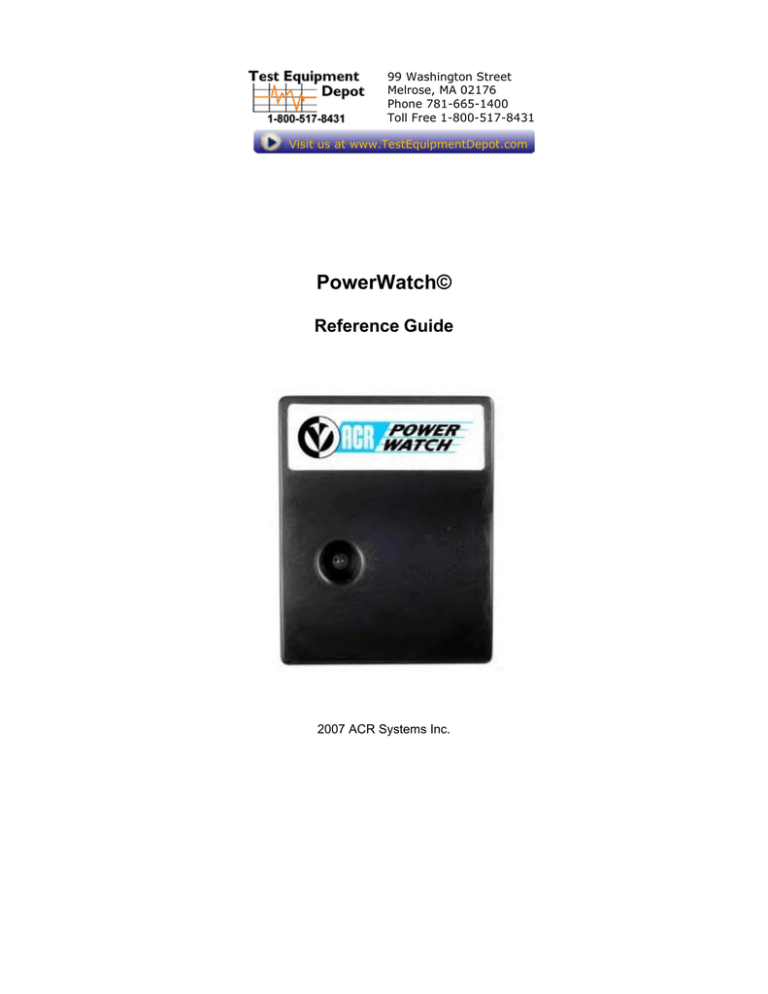

PowerWatch©
Reference Guide
2007 ACR Systems Inc.
PowerWatch©
2007 ACR Systems Inc.
All rights reserved. No parts of this work may be reproduced in any form or by any means
- graphic, electronic, or mechanical, including photocopying, recording, taping, or
information storage and retrieval systems - without the written permission of ACR
Systems Inc.
Products that are referred to in this document may be either trademarks and/or registered
trademarks of the respective owners. The publisher and the author make no claim to
these trademarks. For more information regarding trademarks, see the "Trademark
Notices" section of this manual.
ACR Systems Inc. assumes no responsibility for errors or omissions, or for damages
resulting from the use of information contained in this document or from the use of
programs and source code that may accompany it. In no event shall the publisher and the
author be liable for any loss of profit or any other commercial damage caused or alleged
to have been caused directly or indirectly by this document.
TRADEMARK NOTICES
PowerWatch is a Registered Trademark of ACR Systems Inc.
I
PowerWatch©
Table of Contents
Section I ACR Systems Inc.
1
1 About ACR
Systems Inc.
............................................................................................................................................
1
............................................................................................................................................
3
2 ACR and
the World Wide Web
Section II The PowerWatch Voltage Disturbance Recorder
4
1 About PowerWatch
............................................................................................................................................ 5
VDR
........................................................................................................................................................... 9
2 Hardware
............................................................................................................................................
Warranty
10
3 Software
............................................................................................................................................
Disclaimer
12
Section III Installing PowerWatch Software
15
Section IV Menu Options
17
1 PowerWatch
............................................................................................................................................
Main Window
18
File Menu
........................................................................................................................................................... 19
Edit Menu ........................................................................................................................................................... 20
View Menu ........................................................................................................................................................... 20
Quick Summary................................................................................................................................................. 21
Exporting Files
................................................................................................................................................. 21
.................................................................................................................................................
22
Graph Control
Dialog Box
22
Single Impulse .................................................................................................................................................
Graph
.................................................................................................................................................
23
Event Distribution
Graph
Message Log ................................................................................................................................................. 24
Communicate
...........................................................................................................................................................
Menu
25
Modem
................................................................................................................................................. 25
Options Menu
........................................................................................................................................................... 26
.................................................................................................................................................
26
Graph Setup/Viewing
Options
ToolBar
................................................................................................................................................. 27
ToolTips
................................................................................................................................................. 28
................................................................................................................................................. 28
Calibration Utility
Window Menu
........................................................................................................................................................... 29
Help Menu ........................................................................................................................................................... 30
About Window ................................................................................................................................................. 30
Section V PowerWatch Operating Overview
32
1 PowerWatch
............................................................................................................................................
Setup
33
Connecting ...........................................................................................................................................................
the Lite-Link Interface Cable
33
Starting the ...........................................................................................................................................................
Program
34
................................................................................................................................................. 34
COM port selection
.................................................................................................................................................
35
Opening the Site
Report
................................................................................................................................................. 36
Threshold Settings
2007 ACR Systems Inc.
Contents
Events
II
................................................................................................................................................. 36
.................................................................................................................................................
37
Default threshold
settings
.................................................................................................................................................
37
Changing default
threshold settings
................................................................................................................................................. 38
Operating options
Site Description................................................................................................................................................. 38
................................................................................................................................................. 39
Realtime Readings
Logger Info
................................................................................................................................................. 39
.................................................................................................................................................
40
Sending the setup
to a VDR
Retrieving and
...........................................................................................................................................................
Saving Events
41
.................................................................................................................................................
41
Retrieving events
from a VDR
Saving Events ................................................................................................................................................. 42
Site Report.................................................................................................................................................
Window
44
.................................................................................................................................................
45
Dynamic Data Exchange
(DDE)
2 Displaying
............................................................................................................................................
and Printing Events
47
Events Tab ........................................................................................................................................................... 47
Open Event
................................................................................................................................................. 50
Impulses
................................................................................................................................................. 50
Impulse events ................................................................................................................................................. 50
Sag events
................................................................................................................................................. 51
Surge events ................................................................................................................................................. 51
Outage events ................................................................................................................................................. 52
................................................................................................................................................. 52
Frequency events
.................................................................................................................................................
53
Loss of Synchronization
Event
55
Line Frequency.................................................................................................................................................
Variations
Viewing Events
........................................................................................................................................................... 55
55
Viewing Events.................................................................................................................................................
as a Bar Graph (Quick Summary)
.................................................................................................................................................
57
Viewing a Single
Impulse as a Graph
59
Viewing Events.................................................................................................................................................
as an Event Distribution Graph
.................................................................................................................................................
60
Graph Styles/Control
Dialog Box
Printing events
........................................................................................................................................................... 61
3 Communicating
............................................................................................................................................
with a Remote PowerWatch
63
...........................................................................................................................................................
63
Modem, equipment
needed
Modem overview
........................................................................................................................................................... 64
Remote modem
...........................................................................................................................................................
DIP switch settings (for configuration)
65
Remote modem
...........................................................................................................................................................
setup string
66
...........................................................................................................................................................
67
Remote modem
DIP switch settings (for operation)
...........................................................................................................................................................
68
Computer modem
DIP switch settings
Computer modem
...........................................................................................................................................................
setup string
68
...........................................................................................................................................................
69
Computer modem
dial command & timeout
...........................................................................................................................................................
70
Remote modem
connection
PhoneBook ........................................................................................................................................................... 71
2007 ACR Systems Inc.
III
PowerWatch©
Section VI Troubleshooting
72
1 Lite-Link
............................................................................................................................................
Interface Cable
73
2 Printers
............................................................................................................................................ 75
3 Voltage
Disturbance Recorder
............................................................................................................................................
76
4 Technical
............................................................................................................................................
Support
77
Index
78
2007 ACR Systems Inc.
WELCOME
Congratulations on your purchase of a PowerWatch data logger. We are confident that
you will find it to be a most valuable and useful tool for your data collection applications.
This Reference Guide is designed to be used hand-in-hand with the PowerWatch
software and frequently refers to PowerWatch conventions and procedures. To get the
most from your logger, please take time to familiarize yourself with the PowerWatch
software and its Reference Guide.
For important information on how all PowerWatch data loggers work and how to use
them, read the About PowerWatch chapter. It will give you an overview of how the
loggers work and how to configure them for your application. Next, read the chapter that
deals specifically with the type of PowerWatch logger you have.
1
PowerWatch©
SECTION 1 ACR Systems Inc.
1.1
About ACR Systems Inc.
About ACR Systems Inc.
ACR Systems offers a complete line of compact Data Loggers to measure
and record temperature, relative humidity, electric current, pressure, process
signals, pulse frequency, power quality and more. ACR Data Loggers have
flown with airline pilots, raced with Indy drivers, driven with truckers and have
even been into outer space. ACR Loggers sit on top, under and in buildings;
they operate in tropical and sub-zero temperatures, in and out of water and in
just about any place imaginable.
ACR Systems continues to be customer-driven, using its research and
development expertise to accept challenges others prefer to avoid. As a
result, ACR remains on the leading edge of technological advancements with
simple, cost efficient and state-of-the-art, technology-based products. Each
ACR product will further the tradition of maximizing safety, increasing
efficiency and solving problems overdue for solution. ACR products continue
to be refined and improved to provide customers of every size and need with
innovative ways to do the job better, faster and more efficiently.
Our contact information:
Voice: 604.591.1128
Fax: 604.591.2252
E-mail: enquiry@acrsystems.com
Web address: www.acrsystems.com
Our mailing address is:
ACR Systems Inc.
Unit 210, 12960-84th Avenue
Surrey, BC V3W 1K7
Canada
Our customer support representatives are available during normal business
hours, 6:30am - 4:30pm Pacific Standard Time.
2007 ACR Systems Inc.
ACR Systems Inc.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
2
3
1.2
PowerWatch©
ACR and the World Wide Web
ACR and the World Wide Web
Visit the ACR Web Page by clicking here or using your installed links in the
ACR default file folder.
From here, it's easy to search products, learn what's new, order a catalog, or
even see when our tradeshows will take us to your area.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
SECTION 2 The PowerWatch Voltage Disturbance Recorder
PowerWatch Voltage Disturbance
Recorder
Reference Guide
Copyright 2007 ACR Systems Inc.
The contents of this manual and the associated PowerWatch software are
copyrighted. Any reproduction, in whole or in part, is strictly prohibited.
ACR POWERWATCH is a registered trademark of ACR Systems Inc.
Microsoft, MS-DOS, Excel, Windows and Windows 95, 98 and NT are
registered trademarks of Microsoft Corporation.
IBM is a registered trademark of International Business Machines.
USRobotics and Sportster are registered trademarks of U.S. Robotics Inc.
Procomm is a registered trademark of Datastorm Technologies Inc.
Logitech is a registered trademark of Logitech Inc.
D/N 10051 Rev. C
Printed in Canada
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
4
5
2.1
PowerWatch©
About PowerWatch
About PowerWatch
Thank you for choosing another world-class Event Logger from ACR Systems
Inc. The PowerWatch Voltage Disturbance Recorder (VDR) is an easy-touse, low-cost power quality analysis tool that troubleshoots power line
disturbances.
The PowerWatch Voltage Disturbance Recorder:
·
·
·
·
·
·
·
·
·
·
·
The PowerWatch VDR
PowerWatch VDR Features
Safety Precautions
Plugging in a PowerWatch VDR
Electrical Immunity
Safety Inspection
Battery Care
Maintenance
Product Service
Approvals
VDR Specifications
The PowerWatch VDR
PowerWatch VDR Features
The PowerWatch VDR records surges, sags, impulses, outages and
frequency variations. It is self powered and easy to use - parameters can be
set by a few easy keystrokes from your PC.
The VDR can retain 4,000 events. The existence of recorded events can be
indicated by the VDR's flashing light.
Communication between a PC and the VDR is carried via the Lite-Link
interface cable. By using this optical data transfer, the PC remains electrically
isolated.
Safety Precautions
The VDR is designed and certified to work only on single-phase systems.
Attempting to modify the VDR or operating it improperly may cause circuit
damage which can ultimately result in property damage, personal injury, or
death.
Plugging in a PowerWatch VDR
The VDR is designed to plug into a standard convenience outlet. As a safety
precaution, the unit should be in a place where it can be easily unplugged.
This will also make it accessible for data retrieval. The VDR does not use a
protective earth connection since there are no exposed metal parts. The earth
conductor is used to measure neutral to ground (N-G) events. The ground
prong may be electrically unconnected (as long as it is not exposed). The
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
6
VDR does not normally need any special ventilation, however, its ambient
temperature should not be allowed to rise above the operating limit.
Electrical Immunity
The VDR's internal circuitry is solid-state with built-in EMI and RFI protection
to ensure reliable readings.
Safety Inspection
We recommend that you inspect the VDR periodically for visible damage. To
ensure that it operates safely, inspect for missing labels, cracks in the case, or
bent blades and/or broken leads.
Battery Care
The VDR contains a lithium battery that will, under normal circumstances,
allow the VDR to operate for 10 years. Exposing the VDR to extreme
temperatures for extended periods of time may reduce battery life by as much
as 50%. The VDR is designed for INDOOR USE. It should not be exposed to
direct sunlight.
To extend battery life, keep the VDR plugged into a standard convenience
outlet (even when not in use).
WARNING: BATTERY POSES FIRE, EXPLOSION AND SEVERE BURN
HAZARD. DO NOT RECHARGE, DISASSEMBLE, HEAT ABOVE 100°C
(212°F), INCINERATE, OR EXPOSE CONTENTS TO WATER
Maintenance
The PowerWatch VDR is a maintenance-free product. However, it is
recommended that it be kept clean to allow for easy visual inspections. To
clean the VDR, unplug it from the outlet and wipe it with a dry, clean cloth.
Product Service
The PowerWatch VDR has no user-serviceable parts inside. The fuse inside
the VDR is NOT OPERATOR-REPLACEABLE. Opening the case, or
attempting to do so, will void the warranty and safety certification. If you
require service, please contact your local dealer or factory representative.
Approvals
• Safety:
This device is safety approved in North America by CSA and CSA (NRTL/C)
2007 ACR Systems Inc.
7
PowerWatch©
for measurements on 150V CAT III, Pollution Degree 2, double insulation, per:
CSA C22.2 No. 61010-1-04
UL STD No. 61010-1 (2nd Edition)
International models evaluated by CSA under CB Test Certificate are suitable
for measurement on 300V CAT III.
·
·
Environmental:
MIL-T-28800E, Type III, Class 3
EMC:
FCC rules part 15.
89/336/EEC
Emission:
EN50081.1
Immunity:
EN50082.2
(IEC1000-4-2, -3, -4, -5)
VDR Specifications
Model number:
Nominal Supply:
Operating Range:
Frequency:
Power:
PWV-001
100/110V
70 to 140V
50/60Hz
2W
Model number:
Nominal Supply:
Operating Range:
Frequency:
Power:
PWV-002
220/240V
140 to 270V
50/60Hz
3W
Model number:
Memory Size:
Storage Method:
PWV-001 & PWV-002
32KB, 4000 events
First-in First-out, or
Fill-then-stop
Sampling Method:
Continuous
(half cycle integrated)
Alarm Type:
Optical; red LED
Size:
85mm x 68mm x 35mm
(3.35 in x 2.65 in x 1.35 in)
Weight:
120g (4 oz)
Case Material:
Noryl
Temperature 5 to 40°C (41 to 104°F)
Operating Limits:
Humidity maximum 80% RH for temperatures up to 31°C
decreasing linearly to 50% RH at 40°C
Altitude 2000m
Battery:
3.6V Lithium
Battery Life:
10 years projected
Fuse:
1/16A Fast-blow
(NON-REPLACEABLE)
Note: ACR reserves the right to change its specifications at any time, without
notice.
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
Surge, Sag & Outage Measurement
Model number:
Hot to Neutral
Range:
Accuracy:
Resolution:
Neutral to ground
Range:
Accuracy:
Resolution:
PWV-001
Model number:
Hot to Neutral
Range:
Accuracy:
Resolution:
Neutral to ground
Range:
Accuracy:
Resolution:
PWV-002
*
**
0 to 200Vrms
±2Vrms*
1Vrms
3 to 150Vrms
±2Vrms
1Vrms
0 to 270Vrms
±4Vrms**
2Vrms
3 to 150Vrms
±2Vrms
1Vrms
sags less than 70V for >1 sec will be reported
as øV
sags less than 140V for >1 sec will be reported
as øV
Impulse Measurement
Model number:
Range
Hot to Neutral:
Neutral to Ground:
Accuracy:
Resolution: 10V
Width Detection:
Phase Angle
Accuracy:
Resolution:
PWV-001 & PWV-002
100 to 2500Vpeak
50 to 2500Vpeak
±10% of reading
1 µsec minimum
±1° (20° to 180°, 200° to 360°)
1°
Frequency Measurement
Range:
45 to 65Hz
Accuracy:
±0.1Hz (3 cycles minimum)
Resolution:
0.1Hz
Time Measurement
Events <1 second
Accuracy
Hot to Neutral:
2007 ACR Systems Inc.
±0.5 cycle*
8
9
PowerWatch©
Neutral to Ground: ±1 cycle**
Resolution
Hot to Neutral:
0.5 cycle
Neutral to Ground: 1 cycle
* Outages are reported with 1/2 cycle resolution until the VDR goes into low
power mode. A VDR will go into the low power mode after approximately one
second of an outage condition. In low power mode, the resolution becomes 8
seconds.
* Surge and Sag and frequency events have 1/2 cycle resolution up to
approximately 10 minutes after which the resolution becomes 8 seconds.
** Neutral to Ground surges have 1 cycle resolution up to approximately 10
minutes after which the resolution becomes 8 seconds.
Clock accuracy ±2 sec./day
Specifications subject to change without notice.
Ó 2007, ACR Systems Inc.
2.1.1
VDR
VDR
Voltage Disturbance Recorder
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
2.2
10
Hardware Warranty
Hardware Warranty
Please note the follwing disclaimer when using ACR products:
ACR Systems Inc. ("ACR") warrants that its data loggers will perform
substantially in accordance with the product documentation supplied with the
data loggers (the "documentation") for a period of three years from the date of
shipment from ACR. If you have acquired the data logger from an authorized
ACR reseller, we will delay the commencement of the warranty until the date
the data logger was shipped to you by the reseller, provided that within 90
days of the data logger being shipped to you by reseller, you or the reseller
provide us with the serial number of the data logger, your name, and the date
the data logger was shipped to you. During the warranty period, ACR shall
repair or replace, at its option and at no additional charge to you, any data
logger that fails to perform substantially in accordance with its documentation
(a "defective data logger"). If you wish ACR repair the logger, you must
contact ACR, obtain a return merchandise authorization ("RMA") number and
ship the defective data logger to the designated ACR facility. ACR will not
accept any product returned without an RMA number. You shall bear all costs
of delivering the defective data logger to the ACR facility and ACR shall bear
all costs of delivering the repaired or replacement data logger back to you.
Replacement data loggers shall be covered by this warranty only for the
remainder of the warranty period for the replaced data logger. In no event
shall ACR be responsible for the repair or replacement of any data logger if
ACR reasonably determines that a problem results from:
a. The use of the data logger in a manner or for an activity not contemplated
by the documentation.
b. The use of the data logger in conjunction with software or hardware that
has not been supplied or specifically authorized by ACR.
c. Abnormal environmental conditions.
d. Wiring, electrical or network problems.
e. Your willful or negligent acts.
To the maximum extent permitted by applicable laws, ACR disclaims all
representations, warranties, and conditions not expressly provided herein,
whether expressed or implied, Including without limitation any implied
warranty or condition of fitness for a particular purpose, merchantability,
durability, performance and non- infringement. In no event shall ACR
Systems Inc. Or its suppliers or resellers be liable for any indirect,
consequential, Incidental, special or punitive damages arising out of the use of
a data logger and ACR's aggregate liability to you shall not in any event
exceed the amount paid to ACR for the data logger associated with such
liability. The exclusions and limitations set out herein shall apply regardless of
2007 ACR Systems Inc.
11
PowerWatch©
whether the liability arises out of breach of contract, tort or statutory liability.
This warranty sets out your sole remedies in connection with or arising out of
your purchase of a data logger.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
2.3
12
Software Disclaimer
Software Disclaimer
NOTICE ON SOFTWARE PACKAGE/WEBSITE
Important notice: The software supplied in this Package [or you are downloading from
this site] is licensed to you by ACR and is not sold to you. The terms and conditions
of the license are set out in the installation software. You can only complete the
installation of the software after indicating your acceptance of the license terms and
conditions by clicking "I accept" where provided during the installation process.
Please review these terms and conditions carefully. If you have any questions or
concerns about the license terms and conditions please feel free to contact ACR
(current contact information is included in the license). If PRIOR TO
COMPLETING THE INSTALLATION OF THE SOFTWARE, you decide that the
terms and conditions are not acceptable to you, indicate this by clicking on the "I do
not accept" button. The installation will immediately cease, you may return the
Software and any ACR Data Logger you purchased in conjunction with the Software
and you will be relieved of any obligation to pay for the Software and these ACR Data
Loggers. If you have already paid for the Software, the Software media, or ACR Data
Loggers, if applicable, ACR, or ACR's authorized Reseller (depending on who
supplied you with the executable copy of the Software) will refund to you any monies
you have paid for the Software or Software media and any ACR Data Logger
purchased in conjunction with the Software upon return of the Software, the ACR
Data Loggers, and all accompanying documentation and proof of purchase.
Carefully read the following terms and conditions. If you are prepared to accept these terms and conditions
please indicate this by clicking the "I accept" button provided below. You will not be able to complete the
installation or use the ACR software supplied in association with these terms and conditions and any third
party software embedded in that software (collectively the "Software") unless you accept these terms and
conditions. Please feel free to contact ACR if you have any questions or concerns about these terms and
conditions. If, PRIOR TO COMPLETING INSTALLATION OF THE SOFTWARE, you decide you are
unwilling to accept these terms and conditions, indicate your decision by clicking on the "I do not accept"
button. The installation of the Software will cease, you may return the Software and any ACR Data Logger
you purchased in conjunction with the Software and you will be relieved of any obligation to pay for the
Software and these ACR Data Loggers. If you have already paid for this Software, the Software media or
the ACR Data Loggers, if applicable, ACR or ACR's reseller (depending on who supplied the executable
copy of the software to you) will refund these monies to you upon return of the Software, the ACR Data
Loggers, and all accompanying documentation (the "Documentation") and proof of purchase. ACR can be
reached at:
ACR Systems Inc.,
Address: # 210-12960 84th Ave., Surrey B.C., Canada, V3W 1K7
Phone: 1-800-663-7845 (toll free) or 1-604-591-1128
Fax: 1-604-591-2252
E-mail: enquiry@acrsystems.com
Website: www.acrsystems.com
Software License Agreement
1.
Legal agreement. This is a legal agreement between you and ACR Systems Inc. ("ACR"). Please treat it as
valuable property.
2.
Ownership of Software. The Software and Documentation is licensed and not sold to you. Although you
own any media on which the Software is supplied, this Agreement does not convey to you any ownership
right, interest or title in or to the Software, or to any related intellectual property rights.
2007 ACR Systems Inc.
13
PowerWatch©
3.
Grant of license(s). Subject to the terms and conditions set out in this Agreement and of your paying any
necessary fees for the Software or the Software media, ACR hereby grants to you, for each item of Software,
a personal, non-exclusive and non-transferable license to install and to use the object code of that Software
on no more than one personal computer at any given time, and to use the documentation supplied with the
Software (the "Documentation") solely in connection with this use. If you have paid Reseller for the
Software media, ACR shall grant you the license contemplated in this paragraph at no additional cost.
4.
Restrictions. You shall not (i) use the Software except as expressly permitted in this Agreement and for the
purposes contemplated by the Documentation, (ii) redistribute or authorize or acquiesce in the use of the
Software by any third party (other than consultants who need to use the Software in order to perform
services on your behalf), or (iii) attempt to defeat any protection method designed to prevent the
unauthorized use of the Software. You shall not copy or reproduce the Software except to make one archival
copy to be stored in a secure location and used for back-up purposes only. For the purposes of this
provision, "copy" shall not include copying that naturally results from the authorized use of the Software or
in the course of making regular back-ups of the computer or system on which the Software is installed.
5.
Confidentiality. The Software and Documentation contains information that is confidential and proprietary
to ACR. Upon receipt of your written request, ACR shall provide you with any information about the
Software in its possession or control that you require to operate the Software in conjunction with any other
software or equipment that you use in your business. You shall not: remove any notices, labels or marks
from the Software; deliver, disclose, convey, either directly or indirectly, the contents of the Software to any
third party; or alter, modify, translate, decompile, disassemble, or reverse engineer the whole or any part of
the Software, without first obtaining the express written consent of ACR.
6.
One Year Warranty. ACR warrants that it shall use reasonable commercial efforts to resolve any problem
with the Software of which you notify ACR during the warranty period that precludes the Software from
operating substantially in accordance with its Documentation. The warranty period for the Software is one
year. Unless you acquired the Software from an authorized ACR Reseller ("Reseller"), the warranty period
commences on the date of shipment of the Software from ACR's facility. If you bought the Software media
from a Reseller, we will delay the commencement of the warranty until the date the Software was shipped to
you by the Reseller, provided that within 90 days of the Software being shipped to you, you or the Reseller
provide us with the serial number of the Software, your name, and the date of shipment. In no event
shall ACR be responsible for any problem with the Software or damage caused by the Software if the
problem or damage is due to: (a) a modification of the Software made or required by any person other than
ACR or its agents; (b) its use in association with other software or hardware (other than software or
hardware with which the Documentation specifically indicates it is compatible); (c) its use in a manner or for
an activity not contemplated by its Documentation; (d) electrical supply, wiring or network problems; (e) the
improper use or installation of the Software; (f) abnormal environmental conditions; or (g) the wilful or
negligent acts of any person other than ACR or its agents. If ACR is unable to resolve any problem
contemplated by this warranty provision, ACR, or the Reseller, as the case may be, shall refund to you the
monies you paid to it to acquire the Software. If there is a defect in the media on which the Software was
supplied you may contact ACR during the warranty period, obtain a Return Merchandise Authorization
("RMA") and upon receipt of the defective media, the dated proof of purchase and the RMA, ACR shall
replace the defective media at no charge. This paragraph sets out your sole remedy for the breach of the
warranty set out herein.
7.
No Additional Warranties: to the maximum extent permitted by applicable law the warranty set out in
paragraph 6 is the only warranty, made with respect to the Software, and no other warranty, representation or
condition either express or implied, including without limitation, any implied warranty or condition of
merchantability, non-infringement, performance, durability or fitness for a particular purpose or use shall
apply. ACR does not warrant that the Software will operate on a continuous and trouble free basis. You are
responsible for selecting the software that will achieve your desired results, and for the installation, use and
results obtained from the Software.
8.
No Liability. To the maximum extent permitted by applicable law, in no event shall the aggregate liability
of ACR, its suppliers and Reseller to you exceed the amount you have paid to acquire the Software and
Software media, and in no event shall ACR, its suppliers, or Reseller be liable for any indirect, incidental,
consequential, or special damages, including without limitation any damages for lost profits or savings,
regardless of whether they have been advised of the possibility of such damage. Except to the extent that
the laws of a competent jurisdiction requires liabilities beyond and despite these limitations, exclusions and
disclaimers, these limitations, exclusions and disclaimers shall apply whether an action, claim or demand
arises from a breach of warranty or condition, breach of contract, negligence, strict liability or any other kind
of civil or statutory liability connected with or arising from this Agreement.
9.
Termination for Breach of Agreement: The Software is protected by copyright laws and International
treaty provisions. There are severe penalties, both civil and criminal, for copyright infringement. Any
breach of this Agreement could cause ACR irreparable harm. If you fail to comply with any of the terms of
this Agreement, all licenses granted hereunder shall automatically terminate without notice, and ACR may
2007 ACR Systems Inc.
The PowerWatch Voltage Disturbance Recorder
14
exercise any or all of its rights under this Agreement or under applicable law, including without limitation,
obtaining relief by way of a temporary or permanent injunction. Upon termination of this Agreement, and in
any event upon ACR delivering you notice of termination for breach, you shall immediately purge all
Software from your computer system(s), and return all copies of the Software and Documentation in your
possession or control to ACR.
10.
Personal Information: You hereby consent to your contact information and information about the specific
ACR products you have purchased being disclosed to, maintained and used by ACR, its affiliates and
Resellers solely for the purposes of (a) managing and developing their businesses and operations; (b) making
information about ACR products available to you; and (c) developing new and enhancing existing ACR
products. You further agree that we may provide this information to other persons as required to satisfy any
legal requirements and to any person that purchases all or a substantial portion of ACR's assets provided that
they agree to use this information only for the purposes set out in this Agreement. If you wish to gain access
to any personally identifiable information you have provided to ACR or to make any changes to that
information please contact ACR directly.
11.
Miscellaneous: Paragraphs 4, 5, 7, 8, 9, and 11 shall survive termination or expiration of the license(s)
granted hereunder. When used in this Agreement, the term "license" shall be deemed to include "sublicense"
for items of third party software embedded in the Software. This Agreement constitutes the entire agreement
of the parties with respect to the Software, and supercedes all prior communications, agreements and
discussions between the parties. It will be governed by the laws of the Province of British Columbia, and the
laws of Canada applicable therein, excluding any rules of private international law that lead to the
application of the laws of any other jurisdiction. The United Nations Convention on Contracts for the
International Sale of Goods (1980) does not apply. The courts of the Province of British Columbia shall
have non-exclusive jurisdiction to hear any matter arising in connection with this Agreement. If any
provision of this Agreement is void or is declared void, the provision shall be severed from this Agreement,
which shall otherwise remain in full force and effect.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
15
PowerWatch©
SECTION 3 Installing PowerWatch Software
Getting Started
Computer system requirements, the interface package contents, and installing
the
ACR PowerWatch program.
PowerWatch system requirements
ACR PowerWatch software requirements:
· IBM PC or 100% compatible, with Windows 3.1, 95, 98, NT
· At least one free serial port
· A pointing device (recommended)
· 2 MB hard drive space
· 4 MB RAM for Windows 3.1, 8MB RAM for Windows 95, 98, NT
Optional Equipment:
· A printer port with a printer supported by Microsoft Windows
· Modem (9600 bps minimum)
PWI-100 Interface Package contents
The PWI communication package enables you to set up the VDR, download
all the stored events and display the stored information. Each package
contains:
· One 3.5" PowerWatch software diskette
· One LIC-101 Lite-Link interface cable
· One 9- to 25-pin adapter
· This reference guide
Installing PowerWatch
1. Before installing the PowerWatch program, restart Windows.
2. For Windows 3.1, open Program Manager, select File from the menu bar
and choose Run...
Windows 95, 98 and NT users select Start from the Taskbar on the desktop
and choose Run...
3. In the Run dialog box that appears, type a:setup for drive A and press Enter
(the Return key on some keyboards). If you are using drive B, type b:setup.
4. A Setup dialog box will appear asking if you want to continue installing
PowerWatch on your hard drive.
The last dialog box will inform you that software installation is complete.
Setting Time and Date
It is very important that your PC system's time and date are correct before
2007 ACR Systems Inc.
Installing PowerWatch Software
16
running the PowerWatch program. When retrieving data from the VDR the
PowerWatch program uses the PC's internal clock for time and date
reference.
· With Windows running, set the time from the Control Panel in Program
Manager.
· Windows 95, 98, and NT users open the Control Panel from the Taskbar by
choosing Start, Settings, and Control Panel.
Information about setting the time can be found in the Windows User's Guide.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
17
PowerWatch©
SECTION 4 Menu Options
ACR PowerWatch Main Menu
Overview
·
·
·
·
·
·
·
File Menu
Edit Menu
View Menu
Communicate Menu
Options Menu
Window Menu
Help Menu
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
Menu Options
4.1
18
PowerWatch Main Window
PowerWatch Main Window
At the top of this window is a menu bar listing various menu selections; below
that is a toolbar; and at the bottom of the window is a status bar.
The Menu Bar consists of the following items:
File
Edit
View
Communicate
Options
WIndow
Help
The ToolBar buttons provide access to may of the menu functions. The
buttons are (from left to right):
Open Site File
Save Active Window
Close Active Window
Print
Copy
View Quick Summary
2007 ACR Systems Inc.
19
PowerWatch©
View Single Impulse
View Event Distribution
Open COM Port
Toggle Scanning
Stop Backup
Help
The Status Bar displays messages indicating the current status of
PowerWatch. At the far right is a backup gauge which displays percent
completed when downloading data.
Ó 2007, ACR Systems Inc.
4.1.1
File Menu
File Menu
This menu contains the following items:
Open Site File...
Save
Save As...
Close
Print...
Setup Printer...
Exit
Open Site File...
This menu item opens a previously saved site file.
Save
This menu item saves the active window. If the window has a filename
associated with it, it will be saved under that name. If a name is required, then
a dialog box will appear to prompt for a filename (Modem parameters are
saved to the PWV.INI file.)
Save As...
This menu item saves the active window as above but prompts for a filename.
Site files are saved as PWV files or as text files (CSV, TXT or ASC). Graph
files are saved as images (either BMP or WMF).
Close
This menu item closes the active window.
Print...
This menu item prints the active window. A print dialog box appears which
allows print options.
Setup Printer...
2007 ACR Systems Inc.
Menu Options
20
This menu item sets up the printer. A printer dialog box appears which allows
selection of printer, page orientation, and other printer options.
Exit
This menu item ends the program.
Ó 2007, ACR Systems Inc.
4.1.2
Edit Menu
Edit Menu
The Edit menu allows access to the following common editing functions:
Undo
- undoes the last action. Only valid for text editing.
Cut
- cuts selected text and stores it in the clipboard
Copy
- copies selected text to the clipboard
Paste
- pastes the contents of the clipboard to the active
control
In addition, PowerWatch has the following additional functions:
Font ...
- change the font of the current text
PhoneBook... - calls up the modem window to allow changes to
the list of
phone numbers.
Graph..
- calls up the Graph Control dialog box to edit the
graph display.
Ó 2007, ACR Systems Inc.
4.1.3
View Menu
View Menu
This menu opens accessory windows.
Quick Summary
The Quick Summary displays a bar graph of the events stored in a VDR.
Impulse
The Impulse graph displays a single power cycle (or a flat line in the case of a
Neutral to Ground event) on which is drawn a representation of an impulse
event.
Event Distribution
The Event Distribution Graph plots the magnitude of an event against the
duration on a logarithmic scale in order to determine the importance of the
2007 ACR Systems Inc.
21
PowerWatch©
data.
Message Log
The message log contains a list of the most recent messages displayed on
the status bar.
Ó 2007, ACR Systems Inc.
4.1.3.1
Quick Summary
Quick Summary
Quick Summary displays the number of surge, sag, impulse, and frequency
events as bars on a graph. Outages are included with sags.
The horizontal axis displays time; the vertical axis displays the number of
events that occurred in each time period. In the Quick Summary above, the
time periods are sorted by date.
Note that the thickness of a bar and its position in a time period is irrelevant;
the bar only displays the number of events and the time period they occurred
in.
If more detailed analysis is needed, it may be better to export the file to a
spreadsheet or database for further manipulation.
A Quick Summary can be saved in either a bitmap(BMP) or metafile(WMF)
format. In most cases, a metafile format is preferred since it is smaller, is
easily scaled, and prints better. However, some applications (such as MSPAINT) can only handle the BMP format.
To Edit the graph, right-click anywhere in the graph to open the
Graph Control dialog box.
See also:
Printing events
Ó 2007, ACR Systems Inc.
4.1.3.1.1
Exporting Files
Exporting Files
Data is typically saved in a binary file format (PWV) but can be exported to
other applications as ASCII in tab separated format (ASC), comma separated
format (CSV) or in plain text (TXT).
2007 ACR Systems Inc.
Menu Options
22
Graphs can be exported as bitmaps (BMP) or metafiles (WMF).
4.1.3.1.2
Graph Control Dialog Box
Graph Control Dialog Box
The Graph Control dialog box has a number of edit features that enable you to
change the way a graph appears. These features include naming and placing
titles, using 3D effects, and saving a graph in different formats.
Open this dialog box by right-clicking anywhere in a graph.
Click the dialog box's Help button for explanation of the various features.
4.1.3.2
Single Impulse Graph
Single Impulse Graph
2007 ACR Systems Inc.
23
PowerWatch©
A single impulse event between hot and neutral or neutral and ground can be
displayed as a graph, enabling you to see if the impulse is causing zero
crossings.
An impulse graph is produced using the amplitude, polarity/direction, and
position (in degrees) of the event. The graphical representation is not intended
to show the actual wave form nor does it show the duration of the impulse.
Important To graph an impulse you must choose an event that contains only
one impulse; it is not possible to graph an event consisting of multiple
impulses.
See also:
Impulse events
Printing events
Ó 2007, ACR Systems Inc.
4.1.3.3
Event Distribution Graph
Event Distribution Graph
2007 ACR Systems Inc.
Menu Options
24
The Event Distribution Graph plots the magnitude of the event against
duration on a logarithmic scale in order to determine the importance of the
data. For example, a single random event may not be as significant as a
cluster of recurring events.
This information can be interpreted using the CBEMA Curve found in
Appendix B, Power Quality Issues, in the PowerWatch Reference Guide.
Since the impulses have a duration that is unknown, they are represented as
having a width of 10 microseconds.
Ó 2007, ACR Systems Inc.
4.1.3.4
Message Log
Message Log
The message log is a record of the last 800 items to have appeared on the
status bar.
These messages can be saved to disk or printed by using the appropriate
menu item or tool bar button.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
25
4.1.4
PowerWatch©
Communicate Menu
Communicate Menu
The Communicate menu has the following menu items:
Open COM1:
Open COM2:
Open COM3:
Open COM4:
Modem Setup...
Scan
Open COM#
This menu item opens the numbered COM Port(s) available to the system.
If a modem has been detected, it will be listed on the menu (for example,
Open COM1: Modem).
When PowerWatch is run, it first attempts to find all available COM ports and
list them on the Communicate menu. Ports that it cannot find either don't exist
or are in use. For example, if your computer has two COM ports (1, 2) and if
COM 1 is being used by the mouse, and COM 2 is unused, then only COM 2
will appear on the Communicate menu.
Clicking on an unchecked port will cause PowerWatch to try to open that port;
it will also close the currently open port. Clicking on a checked (open) port will
close that port. Only one port may be open at a given instant.
Modem Setup...
This menu item displays the Modem window. It allows you to add, delete or
edit phone book entries or modem setup strings.
Scan
This menu item indicates whether or not the program is scanning for new
PowerWatch loggers. Checked means that scanning is ON. Clicking on this
item will toggle the setting.
Ó 2007, ACR Systems Inc.
4.1.4.1
Modem
Modem
An interface between a computer or other terminal and a phone line. Used to
communicate with PowerWatch VDRs remotely.
2007 ACR Systems Inc.
Menu Options
4.1.5
26
Options Menu
Options Menu
This menu consists of the following items:
Show Graph Setup - When checked, the Graph Setup Dialog box is
displayed before a graph is drawn.
Show ToolBar - When checked, the ToolBar is displayed
Show ToolTips - When checked, ToolTips are shown over most active
buttons and fields.
Calibration - Use this function to adjust the calibration settings of the logger.
Ó 2007, ACR Systems Inc.
4.1.5.1
Graph Setup/Viewing Options
Graph Setup/Viewing Options
The Graph Setup dialog box gives you a number of viewing options:
All Data or Selected Data - To display all relavent events, click All Data. To
display a block of events from the Events tab, select those events by dragging
the pointer through them to highlight them.
Show Hot to Neutral Events - Check this box to display all hot to neutral
events.
Show Neutral to Ground Events - Check this box to display all neutral to
ground events.
2007 ACR Systems Inc.
27
PowerWatch©
Sort by Date or Sort into Equal Periods - If you want the horizontal axis
divided on a daily basis, click Sort by Date. If you want to divide the
horizontal axis into equal periods, click Sort into Equal Periods and type the
number of divisions you want to display.
Format Date Automatically - The program will automatically select a format
for displaying the date labels on the X-axis.
Format List - Auto Format is not checked, then the program will use the
format method displayed in the list box.
mmm dd hh:nn
mm/dd/yy
hh:nn:ss
ddddd
c
Displays Nov 24 15:36
Date format 11/24/95
Time format 15:36:28
Displays 11/24/95
Windows default format
Ó 2007, ACR Systems Inc.
4.1.5.2
ToolBar
ToolBar
The ToolBar is a quick way to access some of the more common functions of
the PowerWatch program. All the buttons on the Toolbar have menu
equivalents on the menu bar. If you do not wish to display the toolbar
(perhaps due to space restrictions), you can disable this feature in the
Options menu.
Buttons
- Displays a dialog box to open a PWV Site File
- Displays a dialog box to save the active window.
- Closes the active window
- Prints the active window
- Copies the active window to the clipboard
2007 ACR Systems Inc.
Menu Options
28
- Displays a Quick Summary summarizing the events
- Displays a graphical representation of an impulse event
- Displays an Event Distribution Graph
- Selects the current serial port
- Turns scanning on (blinking) or off (not blinking)
- Cancels the current downloading operation
- Displays this helpfile
For more information on each button, see its equivalent in the menu bar.
Ó 2007, ACR Systems Inc.
4.1.5.3
ToolTips
ToolTips
A small descriptive tag that appears when the mouse pointer passes over a
button or text box. This tag contains help on using the button or text box.
Ó 2007, ACR Systems Inc.
4.1.5.4
Calibration Utility
Calibration Utility
Use this function to adjust the calibration settings of the logger. Before
adjusting the logger's calibration, you will need a reliable AC power source
and a calibrated multimeter to verify the voltage of the AC source.
Use the Calibration window to adjust the calibration settings of the
PowerWatch. An illustration of the calibration window is displayed below:
Enter the voltage displayed by the multimeter into the Measured Voltage text
box.
The application enables the OK button once the following conditions are met:
*
The desired voltage is within a specific range of the current line voltage
2007 ACR Systems Inc.
29
PowerWatch©
-- ±15 volts for 120V models and ±16 volts for 240V models. Perform the
calibration sequence multiple times if a larger adjustment is required.
*
For 240V models, enter even voltages only.
Click OK to accept the value. The application then displays a confirmation
message, as illustrated below:
Click the Yes button to start the calibration process. The application displays
a timer in the calibration window to indicate progress.
Click the No button to cancel the calibration process. No changes are made
to the PowerWatch logger.
Click the CANCEL button at anytime to stop the calibration. The application
then displays the following dialog:
Cancelling the calibration process restores the previous calibration settings of
the PowerWatch.
Ó 2007, ACR Systems Inc.
4.1.6
Window Menu
Window Menu
The Window menu makes available a standard set of Windows commands to
aid in placement of the "child" windows (sites and graphs) of the main
program.
Cascade - Arranges the windows in descending order.
2007 ACR Systems Inc.
Menu Options
30
Tile Horizontally - Arranges the windows side by side
Tile Vertically - Arranges the windows on top of each other
Arrange Icons - Automatically arranges all icons (minimized forms) along the
bottom of the main program window
There will also be a listing of all child windows. Selecting a name will set focus
to the respective window.
Ó 2007, ACR Systems Inc.
4.1.7
Help Menu
Help Menu
This menu contains several help items.
About...
Displays the About window which contains software version information.
Search...
Displays the search dialog box to find entries in the Help File.
Overview...
Opens the Help File at the main topic " PowerWatch Overview"
In addition, pressing F1 at anytime will bring up context sensitive help.
Ó 2007, ACR Systems Inc.
4.1.7.1
About Window
About Window
2007 ACR Systems Inc.
31
PowerWatch©
The main purpose of the About window is to display version and copyright
information. In addition, it shows current memory available. The Last Modified
date indicates the date and time this particular program was compiled.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
PowerWatch Operating Overview
SECTION 5 PowerWatch Operating Overview
Overview
The PowerWatch software program enables the set up of a PowerWatch
Voltage Disturbance Recorder to detect, measure and record variations in
power quality.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
32
33
5.1
PowerWatch©
PowerWatch Setup
Setting Up a ACR PowerWatch
· Connecting the Lite-Link Interface Cable
· Starting the Program
Selecting a COM port
Opening the Site Report Window
· Setting Thresholds on the Status Bar
· Viewing the Default Threshold Settings
· Choosing and Saving New Default Settings
· Choosing Operating Options
· Describing the Site
· Viewing the VDR's Realtime Readings
· Viewing Logger Information
· Sending the Setup to the VDR
· Retrieving events from a VDR
· Saving Events
See also:
Setting up a PowerWatch VDR
Ó 2007, ACR Systems Inc.
5.1.1
Connecting the Lite-Link Interface Cable
Connecting the Lite-Link Interface
Cable
The PowerWatch program communicates with a VDR via the Lite-Link
interface cable.
· Plug this cable into an available 9-pin serial port in your computer.
If the computer has only a 25-pin serial port, plug the 25- to 9-pin adapter
(included with your interface package) into the computer, and plug the
interface cable into the adapter.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
PowerWatch Operating Overview
5.1.2
34
Starting the Program
Starting the Program
· Windows 3.1 users double-click the PowerWatch program icon under the
ACR Info Loggers group window.
· Windows 95, 98, NT users click Start on the Taskbar, and choose
Programs, ACR Info Loggers and then PowerWatch.
The main PowerWatch window will open.
Ó 2007, ACR Systems Inc.
5.1.2.1
COM port selection
COM port selection
The PowerWatch progam communicates with a VDR through a Lite-Link
interface cable which connects to a COM port (serial port) on your computer.
2007 ACR Systems Inc.
35
PowerWatch©
Selecting a COM Port
With the PowerWatch main window open, from the Communicate menu
choose the COM port that the Lite-Link interface cable is connected to. When
you have connected the Lite-Link cable to your computer, you must, in the
PowerWatch program, choose that COM port.
The Communicate menu displays the available COM ports on your computer.
When you have chosen the correct port, the Lite-Link wand and the red
scanning button on the ToolBar will start to flash. When the wand is flashing it
is ready to communicate with a VDR. If the wand doesn't flash, please refer to
the Troubleshooting section of this guide.
Ó 2007, ACR Systems Inc.
5.1.2.2
Opening the Site Report
Opening the Site Report Window
1. With the main PowerWatch window open, the Lite-Link interface cable
connected to a COM port, and the red scan button flashing, point the Lite-Link
wand at the optical port of the VDR (from 12mm (0.5") away or closer) or plug
the wand directly into the VDR's recessed optical port.
The Site Report window will open.
2007 ACR Systems Inc.
PowerWatch Operating Overview
36
The Site Report window displays the VDR's settings and its recorded events.
2. Remove the Lite-Link wand from the VDR.
Ó 2007, ACR Systems Inc.
5.1.2.3
Threshold Settings
Threshold Settings
Setting Thresholds on the Status Tab
The thresholds are divided into three categories on the Status tab of the Site
report window: Hot to Neutral, Neutral to Ground, and Frequency. Within
these are Events: impulses, surges, sags, outages, and
line frequency variations.
To change any threshold setting, double-click the setting and then type in the
new value.
See also:
Realtime Readings
Operating Options
Site Description
Logger Info
Ó 2007, ACR Systems Inc.
5.1.2.3.1
Events
Events
A PowerWatch VDR records four types of events:
· Voltage Impulses (spikes)
· Voltage Surges
· Voltage Sags (and outages)
· Line Frequency Variations
The Event column on the Events tab of the Site Report window displays the
types of events that occurred.
See also:
Events Tab
Frequency events
2007 ACR Systems Inc.
37
PowerWatch©
Impulse events
Sag events
Surge events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.1.2.4
Default threshold settings
Default Threshold Settings
The PowerWatch program has factory-installed default threshold settings.
These settings are adequate for most applications.
Since there is a 110V VDR and a 220V VDR, two default threshold templates
are provided. Connecting with a VDR will automatically use the appropriate
one.
To see the default threshold settings on the Status tab, click the Default
Settings button.
If you are concerned that some of your electronic equipment may have
particular power quality requirements, we suggest that you call the equipment
manufacturer for that information. You may discover that you should alter
some of the VDR's threshold settings in order to monitor power quality closer.
See also:
Changing Default Threshold Settings
Ó 2007, ACR Systems Inc.
5.1.2.5
Changing default threshold settings
Changing Default Threshold Settings
If PowerWatch's default template threshold settings do not suit your
application, you may choose new settings and designate them as the default
settings.
1. Make your changes to the settings (on the Status tab of the Site Report
window).
2. Click the Save as Default Setup button.
2007 ACR Systems Inc.
PowerWatch Operating Overview
38
3. In the dialog box that appears, click OK to confirm that the default settings
will be changed.
These settings are now saved in your computer and can be sent to any VDR.
See also:
Default Threshold Settings
Events
Frequency events
Impulse events
Sag events
Surge events
Ó 2007, ACR Systems Inc.
5.1.2.6
Operating options
Operating Options
PowerWatch can store 4,000 events and can be programmed to either stop
recording events when it is full or continue recording over the oldest events in
its memory.
Choose either Stop Recording When Full or Overwrite Oldest
Events When Full.
Check Flash When Data Available to enable the PowerWatch to blink
when it has stored one or more events.
IMPORTANT: The flash feature must be disabled if the PowerWatch is
connected to a modem at a remote site.
See also:
Threshold Settings
Realtime Readings
Site Description
Logger Info
Ó 2007, ACR Systems Inc.
5.1.2.7
Site Description
Site Description
Site Description, on the Status tab of the Site Report window, gives the
2007 ACR Systems Inc.
39
PowerWatch©
opportunity of specifying the location of the VDR, for instance, if you need to
distinguish between the locations of three PowerWatchs in one office. You
may describe the site in your own words using up to 30 characters. The site
description will also appear as the title of a Quick Summary, an
Impulse Graph and an Event Distribution Graph.
See also:
Threshold Settings
Realtime Readings
Operating Options
Logger Info
Ó 2007, ACR Systems Inc.
5.1.2.8
Realtime Readings
Realtime Readings
After establishing communication with PowerWatch, leave the wand in the
optical port while the VDR is plugged into an outlet to see, in real time:
· Line voltage readings (the voltage between the hot and neutral lines).
· Ground voltage readings (the voltage between the neutral and ground lines).
· Line frequency readings (the frequency between the hot and neutral lines).
These readings appear under the "RealTime" heading. Note that if
PowerWatch is not plugged into an outlet while the wand is in the optical port,
real time monitoring will stop after about 25 seconds to conserve battery life.
See also:
Threshold Settings
Operating Options
Site Description
Logger Info
Ó 2007, ACR Systems Inc.
5.1.2.9
Logger Info
Logger Info
Logger Info, on the Status tab of the Site Report window, displays the number
2007 ACR Systems Inc.
PowerWatch Operating Overview
40
of events saved in the VDR and the time span over which the data was
collected.
If no events have been gathered, the words No Events Stored will be
displayed.
See also:
Threshold Settings
Realtime Readings
Operating Options
Site Description
Ó 2007, ACR Systems Inc.
5.1.2.10
Sending the setup to a VDR
Sending the setup to a PowerWatch
VDR
1. Place the wand into the optical port of the VDR.
2. If you have changed threshold settings or you are leaving the settings the
way they are, click Send Setup/Clear Logger button.
If you are changing the VDR's settings to the default settings, click Default
Settings and then click Send Setup/Clear Logger button.
3. In the dialog box that appears, click Yes to confirm that all previous events
will be cleared from the VDR.
The new settings will be saved in the VDR.
4. Remove the Lite-Link wand from the VDR.
The VDR will begin monitoring when plugged into a standard convenience
outlet.
See also:
Retrieving events from a VDR
2007 ACR Systems Inc.
41
PowerWatch©
Ó 2007, ACR Systems Inc.
5.1.3
Retrieving and Saving Events
Retrieving and Saving Events
· Retrieving events from a VDR
· Saving events
Site Report Window
· Dynamic Data Exchange (DDE)
Ó 2007, ACR Systems Inc.
5.1.3.1
Retrieving events from a VDR
Retrieving events from a VDR
1. With the Main PowerWatch window open, and with the Lite-Link connected
to your computer, ensure that the wand is blinking. If it is not, choose Scan
from the Communicate menu (or, on the ToolBar, click the red scan button so
that it flashes).
2. Place the wand into the VDR's optical port. The Site Report window will
open at the Status tab.
3. To download the VDR's stored events to your computer, click the Events
tab.
Downloading will start. During download the Cancel Download button (to the
right of the Scan button) will become activated enabling you to stop the
download. When all the VDR's events have been copied to your computer,
Downloading complete will appear on the status bar at the bottom of the Site
Report window.
4. Remove the wand from the VDR.
See also:
Saving Events
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
PowerWatch Operating Overview
5.1.3.2
42
Saving Events
Saving Events
To save the events that you have downloaded from a VDR, choose Save from
the File menu or click the Save button on the Toolbar.
The Save As dialog box will appear with the current file name highlighted in
the File Name box.
You have two saving options:
· Save the file with the existing name; this means that you will
overwrite the previous file of the same name along with all its data.
To do this, click OK and then click Yes to replace the previous file.
· Save the file with a new name; this means that you will type a new
name for the file so that the previous file will still exist. To do this, in
the File name box, type a new name over the highlighted file name
and click OK.
Opening an Already Saved File
1. From the File menu choose Open Site File.
The Open dialog box will appear.
2007 ACR Systems Inc.
43
PowerWatch©
2. Scroll through the list of site files until you find the file you want.
3. Double-click the selected file (or click it and then OK) to open the Site
Report window.
The Site report window will open at the Status tab.
On the Status tab, notice that the items that cannot be changed are "greyed
out". Only the site description and the file name can be changed.
See also:
Exporting Files
2007 ACR Systems Inc.
PowerWatch Operating Overview
44
Frequency events
Impulse events
Sag events
Surge events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.1.3.2.1
Site Report Window
Site Report Window
The Site Report Window displays all the VDR's settings and events. It is a
tabbed window, displaying Threshold Settings on the Status Tab and events
that have occurred on the Events Tab.
A Site Report window is used to show data from saved PowerWatch files as
well as "live" data from a VDR that is connected to your computer.
Flash when Events Captured tells the logger to flash the LED when it has
events stored.
Important Flash MUST be disabled when the logger is connected to a
Modem.
2007 ACR Systems Inc.
45
PowerWatch©
50 Hz and 60 Hz options select between 50Hz and 60Hz operation.
RealTime
Line Frequency shows the frequency between the Hot and Neutral Lines
Line Voltage shows the voltage between the Hot and Neutral Lines
Ground Voltage shows the voltage between the Neutral and Ground Lines
Logger Info
<#> Events Recorded shows how many events have been captured
From <date> shows when the logger started recording
To <date> shows when the logger stopped recording (the time you
contacted the VDR)
No Events Stored is self descriptive
Firmware Version shows the current version of firmware used in the logger
User Names
Site Description is a 30 character string which describes the logger
location. This string is used on the graphs.
File Name is the name of the saved site file.
Buttons
Default Setup sets the PowerWatch to the default settings specified in the
PWV.INI file.
Save as Default Setup saves the current settings to the PWV.INI file for
use as the default settings.
Save Setup and Clear Logger saves the current settings to the logger.
Important: Any events stored on the logger will be cleared.
See also:
Event Tab
Ó 2007, ACR Systems Inc.
5.1.3.3
Dynamic Data Exchange (DDE)
Dynamic Data Exchange (DDE)
PowerWatch can be used as a DDE source. The Site Report has a number of
fields to which links may be made.
To access these fields, you must specify the Application name (PWV), the
Window (PWVSite) and the field in which you are interested. For instance, to
get the current line voltage from PowerWatch to Excel, you would add the
following equation to an Excel Spreadsheet.
= PWV|PWVSite!RealVolt
To get the serial number, you would add the following equation
=PWV|PWVSite!Serial
2007 ACR Systems Inc.
PowerWatch Operating Overview
46
Here is a list of some of the fields you can access through DDE:
HNSurgeBox
- Surge Threshold between Hot and Neutral
HNSagBox
- Sag Threshold between Hot and Neutral
HNImpBox
- Impulse Threshold between Hot and
Neutral
NGSurgeBox
- Surge Threshold between Neutral and
Ground
NGImpBox
- Impulse Threshold between Neutral and
Ground
RealFreq
- Line frequency right now
RealVolt
- Line voltage right now
RealGnd
- Ground voltage right now
MinFreqBox
- Minimum Frequency Threshold
MaxFreqBox
- Maximum Frequency Threshold
ToDate
- Last recorded event date
ToTime
- Last recorded event time
FromDate
- Date logger started recording
FromTime
- Time logger started recording
Serial
- Serial number of logger.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
47
5.2
PowerWatch©
Displaying and Printing Events
Displaying and Printing Events
· Events Tab
Open Event
Impulses
Impulse Events
Sag Events
Surge Events
Outage Events
Frequency Events
Loss of Synchronization Events
Line Frequency Variations
· Viewing Events
Viewing Events as a Bar Graph (Quick Summary)
Viewing a Single Impulse as a Graph
Viewing Events as an Event Distribution Graph
Changing Graph Styles
· Printing Events
Ó 2007, ACR Systems Inc.
5.2.1
Events Tab
Events Tab
Having downloaded a VDR's events, and with the Events tab still open, you
can view and analyze the data that the VDR has gathered since it was last
cleared. A VDR can store 4,000 events.
2007 ACR Systems Inc.
PowerWatch Operating Overview
48
Event # Column
The Events column displays the number sequence of each event, with the
most recent events displayed first. By using the scroll bar on the right of the
window, all the events that the VDR has recorded can be viewed. The number
0 is given to an Open Event.
Start Time Column
The Start Time column displays the time that an event started. The resolution
of the time stamp in a VDR is eight seconds. Therefore, if an impulse occurred
once every second starting at 12:00:00, the first eight impulses would all be
reported to have the same time of 12:00:00. The next eight impulses would be
reported as having the same time of 12:00:08. Also, if identical information
was downloaded twice from a VDR, the two site reports could show a time
difference of eight seconds.
Event Column
The Event column displays the types of events that occurred during the
reporting period.
Impulse Events An Impulse Event is a transient voltage surge. The event
column will display the number of impulses that the VDR was able to count.
For instance, in the Event tab displayed above, event #8 is one impulse; event
#18 is made up of nine impulses.
Surge and Sag Events Surge and sag events are increases and decreases
in line voltage that are outside the thresholds for at least one full cycle. Surges
2007 ACR Systems Inc.
49
PowerWatch©
can occur on the hot-neutral lines or on the neutral-ground lines. Sags are
only measured on the hot-neutral lines.
Outage Events An Outage Event is a 0 voltage sag (for example, event #16
listed above).
High and Low Frequency Events Frequency events are recorded when the
frequency is outside the preset frequency thresholds.
Loss of Synchronization Excessive harmonics or noise on a power line
may cause severly distorted voltage waveforms. While not common, these
distorted waveforms could result in "extra" zero crossings on the AC line.
PowerWatch synchronizes itself to the consecutive positive and negative zero
crossings of the AC line (every 8.33 milliseconds). Should the voltage
waveform be so highly distorted that unexpected zero crossings are detected,
PowerWatch will report a loss of synchronization relative to the measured
voltage waveform.
Extreme Column
The Extreme column displays the maximum value measured during the event.
End Time/Duration/Degree Column
This column displays the duration of an event, or the time that the event
ended, or, in the case of a single impulse, the event's position on the sine
wave (in degrees).
Information is displayed according to the length of the event.
· Events of less than one second are displayed in number of cycles.
· Events of one to 119 seconds are displayed in seconds. Outages
up to 16 seconds are recorded in 0.5 cycle resolution, otherwise the
outage resolution is eight seconds.
· Events of between two minutes and 24 hours are displayed in
hours, minutes and seconds for example, 07:51:24 (7 hours, 51
minutes, and 24 seconds).
· Events that last longer than 24 hours display the end time (date and
time).
If an event was still in progress when data was downloaded from the VDR, the
event will be designated as an open event in this column. PowerWatch can
display one each of three open event types simultaneously. Open events are
assigned the number zero in the Event # column.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
PowerWatch Operating Overview
5.2.1.1
50
Open Event
Open Event
An event which has not yet terminated.
5.2.1.2
Impulses
Impulses
Impulses are transient voltage fluctuations (sometimes called spikes). They
can be positive or negative and can occur on the hot-neutral line or on the
neutral-ground line. Impulses typically have a duration far below one cycle
time and can be detected below microsecond.
PowerWatch will record any voltage deviation above the impulse limit and of
less than one cycle duration as an impulse event.
5.2.1.3
Impulse events
Impulse Events
Impulses are transient voltage fluctuations (sometimes called spikes), can be
positive or negative, and can occur on both the hot-neutral line and the
neutral-ground line. The voltage potential of an impulse can be quite large;
hundreds of volts is not uncommon. Impulses typically have a duration far
below one cycle time and can be detected below a microsecond. PowerWatch
will record any voltage deviation above the impulse threshold of less than one
cycle duration as an impulse.
PowerWatch can detect both positive and negative impulses down to one
microsecond in duration on both the H-N and N-G lines. If the voltage exceeds
the impulse deviation threshold within one half cycle, an impulse event will be
recorded. An impulse event can include one or more impulses occurring within
the same half cycle. The event column will display the number of impulses
that the PowerWatch was able to count.
An important point to note about a multiple impulse event is that the voltage
reading in the Extreme column will be the total voltage of any impulses that
occur more than 100 microseconds apart. When multiple impulses of different
polarity occur, their absolute values are added together. The degree (in the
fourth column) will be the position in the cycle of the first impulse. The angle of
neutral-ground impulses is referenced to the start of the hot-neutral sine wave.
If an impulse is less than one microsecond in length, PowerWatch will
measure the magnitude of the impulse but may be unable to determine the
polarity. In this case, PowerWatch will show the sign of the impulse as "+"
(firmware version 4 or greater).
2007 ACR Systems Inc.
51
PowerWatch©
See also:
Events
Frequency events
Sag events
Surge events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.2.1.4
Sag events
Sag Events
Sags are decreases in line voltage lasting for at least one cycle. Sags are only
measured on the hot-neutral lines. Typically, a sag will range from a few volts
to tens of volts below normal.
If the voltage drops below the sag threshold, a sag event will be recorded. If it
drops below 70V, the event will be recorded by PowerWatch as an outage.
See also:
Events
Frequency events
Impulse events
Surge events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.2.1.5
Surge events
Surge Events
Surges are increases in line voltage that last at least one full cycle. Surges
can occur on both the hot-neutral line or neutral-ground line.
Typically, surges are in the order of tens of volts and last from several cycles
to several seconds.
If the voltage exceeds the surge voltage threshold for longer than one cycle, a
surge event will be recorded.
See also:
2007 ACR Systems Inc.
PowerWatch Operating Overview
52
Events
Sag events
Frequency events
Impulse events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.2.1.6
Outage events
Outage Events
When PowerWatch records a sag of below 70Vrms for longer than a second it
displays the event as an outage. The VDR will go into self-powered mode
(battery) and will sample the voltage every eight seconds. As a result, the
shortest outage it will record will be eight seconds. When the power is
reapplied to PowerWatch, the VDR will not detect it immediately, but will wait
until the next eight-second sample before returning to the line powered
operational mode. This delay will prevent contact bounce being reported as an
event when PowerWatch is plugged into a standard electrical outlet.
Since PowerWatch's eight-second clock is not synchronized with outages, it
can sometimes report an outage as 16 seconds when in fact the outage only
lasted for slightly over one second. An example of when this would happen is
if a sag below 70Vrms occurred 6.9 seconds into an eight-second period. At
the 7.9-second point, PowerWatch would change to self powered mode and
report a minimum outage of eight seconds. If then, at the 8.1-second point,
power was restored, the VDR would not sample again until the 16-second
point.
See also:
Events
Impulse events
Sag events
Surge events
Frequency events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.2.1.7
Frequency events
Frequency Events
2007 ACR Systems Inc.
53
PowerWatch©
Frequency events are variations in frequency above or below the nominal
frequency (for example, 60Hz in North America and 50Hz in Europe).
Variations in frequency are typically a few cycles and can be from seconds to
minutes in duration.
If the frequency drops below the minimum threshold a low frequency event will
be recorded; if it exceeds the maximum threshold a high frequency event will
be recorded.
The factory default nominal frequency is 60Hz for 110V models and 50Hz for
220V models. However, PowerWatch can be user configured to record at
50Hz and 60Hz for either 110V or 240V models.
See also:
Events
Impulse events
Sag events
Surge events
Outage events
Loss of Synchronization events
Ó 2007, ACR Systems Inc.
5.2.1.8
Loss of Synchronization Event
Loss of Synchronization Event
Excessive harmonics or noise on a power line may cause severly distorted
voltage waveforms. While not common, these distorted waveforms could
result in "extra" zero crossings on the AC line.
2007 ACR Systems Inc.
PowerWatch Operating Overview
54
PowerWatch synchronizes itself to the consecutive positive and negative zero
crossings of the AC line (every 8.33 milliseconds). Should the voltage
waveform be so highly distorted that unexpected zero crossings are detected,
PowerWatch will report a loss of synchronization relative to the measured
voltage waveform. This Loss of Synchronization will be recorded as an event
until such time as:
· the zero crossing distortion ends; or
· the reported voltage drops below 70V (a detected outage). In this
situation, the Loss of Synchronization event will change to an
Outage event (while keeping the original start time and duration).
PowerWatch has a resolution of 8 seconds, so events shorter than this
duration will have a time stamp of "< 8 seconds".
See also:
Events
Impulse events
Sag events
Surge events
Outage events
Frequency events
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
55
5.2.1.9
PowerWatch©
Line Frequency Variations
Line frequency variations
Frequency variations are changes in frequency above or below the nominal
frequency (60Hz in North America, 50Hz in Europe, for example). If the
frequency drops below the minimum threshold a low frequency event will be
recorded; if it exceeds the maximum threshold a high frequency event will be
recorded.
Ó 2007, ACR Systems Inc.
5.2.2
Viewing Events
Viewing Events
·
·
·
·
Viewing Events as a Bar Graph (Quick Summary)
Viewing a Single Impulse as a Graph
Viewing Events as an Event Distribution Graph
Changing Graph Styles
Ó 2007, ACR Systems Inc.
5.2.2.1
Viewing Events as a Bar Graph (Quick Summary)
Bar Graph (Quick Summary)
2007 ACR Systems Inc.
PowerWatch Operating Overview
56
Quick Summary displays the number of surge, sag, impulse, and frequency
events as bars on a graph. Outages are included with sags .
The horizontal axis displays time; the vertical axis displays the number of
events that occurred in each time period. In the Quick Summary above, the
time periods are sorted by date.
Note that the thickness of a bar and its position in a time period is irrelevant;
the bar only displays the number of events and the time period they occurred
in.
Choosing Viewing Options
The Graph Setup dialog box gives you a number of viewing options.
1. To open this dialog box, choose Show Graph Setup from the Options
menu so that there is a check mark in front of it.
2. Then, choose Quick Summary from the View menu.
The Graph Setup dialog box will appear enabling you to make your display
choices.
3. Make your choices from the following options:
All Data or Selected Data - To display all relevant events, click All Data. To
display a block of events from the Events tab, select those events by dragging
the pointer through them to highlight.
Show Hot to Neutral Events - Check this box to display all hot to neutral
events.
2007 ACR Systems Inc.
57
PowerWatch©
Show Neutral to Ground Events - Check this box to display all neutral to
ground events.
Sort by Date or Sort into Equal Periods - If you want the horizontal axis
divided on a daily basis, click Sort by Date. If you want to divide the
horizontal axis into shorter or longer periods, click Sort into Equal Periods
and type the number of periods you want to display.
4. When you have finished choosing your options, click OK to close the dialog
box and to open the Quick Summary.
If more detailed analysis is needed, it may be better to export the file to a
spreadsheet or database for further manipulation.
A Quick Summary can be saved in either a bitmap (BMP) or metafile (WMF)
format. In most cases, a metafile format is preferred since it is smaller, is
easily scaled, and prints better. However, some applications (such as MSPAINT) can only handle the BMP format.
To Edit the graph, right-click anywhere in the graph to open the Graph
Control dialog box.
See also:
Printing events
Ó 2007, ACR Systems Inc.
5.2.2.2
Viewing a Single Impulse as a Graph
Single Impulse as a Graph
2007 ACR Systems Inc.
PowerWatch Operating Overview
58
A single impulse event between hot and neutral or neutral and ground can be
displayed as a graph, enabling you to see if the impulse is causing zero
crossings.
An impulse graph is produced using the amplitude, direction and position (in
degrees) of the event. The graphical representation is not intended to show
what the wave form looks like nor does it show the duration of the impulse.
To graph an impulse you must choose an event that contains only one
impulse; it is not possible to graph an event consisting of multiple impulses .
1. With the Site Report window open at the Events tab, double-click the
single-impulse event you want to graph.
(There are two other ways of opening an impulse graph: select the singleimpulse event you want to graph by clicking it, and then, either choose Single
Impulse...from the View menu. or click the View Single Impulse button on
the Toolbar.)
2. To open the dialog box of display options, right-click the mouse with the
pointer in the graph.
See also:
Impulse events
Printing events
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
59
5.2.2.3
PowerWatch©
Viewing Events as an Event Distribution Graph
Event Distribution Graph
The Event Distribution Graph plots the magnitude of the event against
duration on a logarithmic scale in order to determine the importance of the
data. For example, a single random event may not be as significant as a
cluster of recurring events.
This information can be interpreted using the CBEMA Curve found in
Appendix B, Power Quality Issues, in the PowerWatch Reference Guide.
With the Site Report window open at the Events tab, choose Event
Distribution Graph from the View menu (or click the Event Distribution button
on the Toolbar).
Since the impulses have a duration that is unknown, they are represented as
having a width of 10 microseconds.
Choosing Viewing Options
The Graph Setup dialog box gives you a number of viewing options.
To open the dialog box, choose Show Graph Setup from the Options menu
so that ther is a check mark in front of it.
Then, choose Event Distribution from the View menu.
The Graph Setup dialog box will appear enabling you to make you display
choices. An explanation of these choices is given in Displaying Events as a
2007 ACR Systems Inc.
PowerWatch Operating Overview
60
Bar Graph (above).
Ó 2007, ACR Systems Inc.
5.2.2.4
Graph Styles/Control Dialog Box
Graph Styles/Control Dialog Box
The Graph Control dialog box contains a number of edit features that enable
you to change the way a graph is displayed. These features include naming
and placing titles, using 3D effects, and saving a graph in different formats.
Open the Graph Control dialog box by right-clicking anywhere on a graph. For
explanations of the various features, click the Help button.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
61
5.2.3
PowerWatch©
Printing events
Printing Events
The PowerWatch program enables you to print the events that a VDR has
recorded.
Printing Events from the Events Tab
1. With the Events tab displayed, choose Print from the File menu (or click
the print button on the ToolBar).
2. Choose the option you want from the Print dialog box (printing all events,
printing one or more pages, or printing a number of events that have been
selected).
3. Click OK.
The events on the Events Tab will be printed using the font and spacing used
on the grid. It may be neccessary to adjust the font (using the Edit Font menu
item) and adjust the column width to desired values.
Printing a Graph
1. With a Quick Summary, an Impulse Graph, or an Event Distribution Graph
open, choose Print from the File menu (or click the print button on the
ToolBar).
2. Click Setup from the Print dialog box.
3. If a longer horizontal axis than vertical axis is desired, choose Landscape
orientation from the Print Setup dialog box.
4. Click OK.
5. Choose the options from the Print dialog box.
6. Click OK.
The size of the graph on the printed page is proportional to the size of the
graph window on the screen. You can increase the size by maximizing the
window. It is also possible to increase the size beyond the screen boundaries
by dragging the window.
When printing a Quick Summary or Event Distribution Graph with a color
printer, PowerWatch generates different colors to better distinguish event
types. If a color printer is not used, PowerWatch assigns patterns instead of
colors to different event types.
2007 ACR Systems Inc.
PowerWatch Operating Overview
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
62
63
5.3
PowerWatch©
Communicating with a Remote PowerWatch
Communicating with a Remote
PowerWatch
· Equipment needed
· Modem overview
· Configuring the remote station modem
Remote modem DIP switch settings (for configuration)
Remote modem setup string
Remote modem DIP switch settings (for operation)
· Configuring the computer station modem
Computer modem DIP switch settings
Computer modem setup string
Computer modem dial command and timeout
· Connecting the system and testing
Remote modem connection
· PhoneBook - Saving numbers and dialing a remote site
Ó 2007, ACR Systems Inc.
5.3.1
Modem, equipment needed
Modem, equipment needed
1. A telephone line to the remote site. Communication is limited to one
VDR per phone line - you cannot communicate with multiple VDRs
at a remote site over one phone line.
2. Two modems: one at your computer and one at the remote site.
These modems should respond to AT commands and must be
capable of transferring data at 9600 bps.
3. At least one standard modem cable. This cable connects an
external modem to your computer. (Even if your computer has an
internal modem you will need a modem cable for configuring the
remote modem.)
4. An LIC-101 Lite-Link interface cable at the remote site.
5. A 9- to 25-pin adapter. This connects with the Lite-Link interface
cable.
6. An MA-100 (a null modem adapter available from your
PowerWatch dealer). This connects the 9- to 25-pin adapter to the
2007 ACR Systems Inc.
PowerWatch Operating Overview
64
remote modem.
See also:
Modem overview
Remote modem connection
Ó 2007, ACR Systems Inc.
5.3.2
Modem overview
Modem Overview
Communication with a remote VDR is possible over a telephone line via two
modems: a modem connected to your computer and a modem connected to
the VDR at the remote site. Each modem must be configured before it can be
used for communication.
The configuration instructions we give apply to the USRobotics Sportster
14,400. If your modems are made by another company you will have to check
their manuals to get an equivalent setup string and/or DIP switch settings.
Setting up modem communication can sometimes be problematic; we have
explained the operation as simply as possible in three main steps:
NOTE: Configure the remote station modem before you configure the
computer station modem. The first step in remote modem configuration is:
A . Configuring the remote station modem
See the following three topics:
1. Remote modem DIP switch settings (for configuration)
2. Remote modem setup string
3. Remote modem DIP switch settings (for operation)
B. Configuring the computer station modem
See the following three topics:
1. Computer modem DIP switch settings
2. Computer modem setup string
3. Computer modem dial command
C. Connecting the system and testing
See the following two topics:
1. Connecting the remote modem
2. Dialing the remote site
2007 ACR Systems Inc.
65
PowerWatch©
Ó 2007, ACR Systems Inc.
5.3.3
Remote modem DIP switch settings (for configuration)
Remote modem DIP switch settings
(for configuration)
See also: Modem overview
It is not possible to configure the remote station modem at the remote site.
You must connect the remote station modem to your computer and configure
the remote modem at the computer station before installing it at the remote
site.
DIP switch settings are different for computer station and remote modems.
Because you are configuring the remote modem at the computer station you
must set its DIP switches to computer station settings for the configuring
operation. If your remote station modem has no DIP switches you can skip
this step.
1. Set the DIP switches to the computer station settings. If you have a US
Robotics modem set the DIP switches to the settings in the table below.
COMPUTER STATION MODEM DIP SWITCH SETTINGS (US ROBOTICS)
DIP Switch Number
PowerupMode
DIP
Switch Setting
1
Normal DTR operation
UP
2
Verbal result codes
UP
3
Result codes
enabled
DOWN
4
Echo offline commands
UP
5
Auto answer
disabled
DOWN
6
Normal CD operation
UP
7
Load user defaults
UP
8
AT command
recognition
DOWN
If you have a make of modem other than US Robotics check the manual to
see if the DIP switch settings are different for the modes listed in the table
above.
Next step:
Remote modem setup string
See also:
Remote modem DIP switch settings (for operation)
2007 ACR Systems Inc.
PowerWatch Operating Overview
66
Ó 2007, ACR Systems Inc.
5.3.4
Remote modem setup string
Remote modem setup string
Previous step:
Remote DIP switch settings (for configuration)
1. Connect the remote modem to your computer using a standard modem
cable.
2. Open the PowerWatch program and from the menu bar choose the COM
port that the modem is connected to.
The Modem dialog box will apear. Choose the Setup tab.
3. To choose a setup string, click the down arrow to the right of the Setup
String box. (A string is a series of commands.) The strings in this pulldown
menu are the default settings for US Robotics Sportster 14,400 modems.
The setup string for a remote US Robotics modem is:
AT&FE0Q1S0=1&C0&D0&H0&K0&M0&W.
Choose this string if you have a US Robotics modem. If you have another
model of modem check the modem's manual to see if you need to enter a
different setup string.
4. Click Set up Modem.
You will see a "Failed Setup String" message on the status bar at the bottom
of the window; this is normal. The modem response mode command Q1 tells
the modem not to respond to instructions.
5. To ensure that the setup string did work, change E0 to E1 and Q1 to Q0
temporarily, and send the string again (click Set up Modem).
If the modem understood the setup string the message that "Initialized modem
successfully" will be displayed on the status bar.
2007 ACR Systems Inc.
67
PowerWatch©
6. Change E1 back to E0, Q0 back to Q1 and send the setup string again.
(The other commands in this dialog box apply only to the computer station
modem.)
7. Disconnect the remote modem from your computer.
Next step:
Remote modem DIP switch settings (for operation)
Ó 2007, ACR Systems Inc.
5.3.5
Remote modem DIP switch settings (for operation)
Remote modem DIP switch settings
(for operation)
Previous step:
Choosing the remote modem setup string
When the modem is configured correctly you can change the DIP switch
settings to the remote settings.
Set the DIP switches to the remote settings. If you have a US Robotics
modem set the DIP switches to the settings in the table below.
REMOTE MODEM DIP SWITCH SETTINGS (US ROBOTICS)
DIP Switch Number
Powerup Mode
Switch Settings
1
Override DTR operation
2
Numeric result codes
3
Result codes disabled
4
Offline commands not echoed
5
Auto answer enabled
6
Normal CD operation
7
Load user defaults
8
AT command recognition
DIP
DOWN
DOWN
UP
DOWN
UP
UP
UP
DOWN
If you have a make of modem other than US Robotics, check to see if the DIP
switch settings are different for the powerup modes listed in the table above.
The modem is now ready to be installed at the remote site.
Next step:
Configuring the computer station modem
2007 ACR Systems Inc.
PowerWatch Operating Overview
68
Ó 2007, ACR Systems Inc.
5.3.6
Computer modem DIP switch settings
Computer modem DIP switch settings
Set the DIP switches to the computer station settings. If you have a US
Robotics modem, set the DIP switches to the settings in the table below. If
your computer station modem has no DIP switches you can skip this step.
COMPUTER STATION MODEM DIP SWITCH SETTINGS (US Robotics)
DIP Switch Number
Powerup Mode
DIP Switch
Setting
1
Use Normal DTR operation
UP
2
3
4
5
6
7
8
Use Verbal result codes
Enable Result codes
Echo local commands
Disable Auto answer
Use Normal CD operation
Load user defaults
Recognize AT commands
UP
DOWN
UP
DOWN
UP
UP
DOWN
If you have a make of modem other than US Robotics, check to see if the DIP
switch settings are different for the powerup modes listed in the table above.
Next step:
Computer modem setup string
See also:
Setting the dial command
Ó 2007, ACR Systems Inc.
5.3.7
Computer modem setup string
Computer modem setup string
Previous step:
Computer modem DIP switch settings
1. At your computer, using a standard modem cable, connect the computer
station modem to an available serial port on your computer. (This step is
unnecessary if you have an internal modem installed in your computer.)
2007 ACR Systems Inc.
69
PowerWatch©
2. Open the PowerWatch program and from the menu bar choose the COM
port that the modem is connected to.
The Modem dialog box will appear. Choose the Setup tab.
3. To choose a setup string click the down arrow to the right of the Setup
String box. The strings in this pulldown menu are the default settings for the
US Robotics Sportster 14,400 modem. The computer station setup string for a
US Robotics modem is:
AT&FV0&D2Q0E1&C1B1&B1&H1X0
Choose this string if you have a US Robotics modem. If you have another
model of modem check the modem's manual to see if you need to enter a
different setup string.
If the modem understood the setup string, the message "Initialized modem
successfully" will be displayed on the status bar.
Next step:
Computer modem dial command
Ó 2007, ACR Systems Inc.
5.3.8
Computer modem dial command & timeout
Computer modem dial command
Previous step:
Computer modem setup string
Setting the Dial command
The dial command is the string that commands the modem to initiate a dialing
operation. AT is the command prefix.
If your phone line has tone dial for a touch tone phone, leave the dial
command at ATDT. If your phone line has pulse dial for a rotary phone
2007 ACR Systems Inc.
PowerWatch Operating Overview
70
change this command to ATDP.
NOTE: If you must always switch to an outside line to dial, you can embed the
code here as well (for example, ATDT9W; the W after the number causes the
modem to wait for another dial tone).
Setting the Timeout
Timeout enables you to set the number of seconds that the PowerWatch
program will wait to connect with the remote station before hanging up.
Leave the default setting at forty-five seconds unless you are placing an
international call, in which case you may need to choose a longer timeout.
Next step:
Dialing a remote site
Ó 2007, ACR Systems Inc.
5.3.9
Remote modem connection
Remote modem connection
Before you install the remote modem at the remote station, you want to be
sure that you are able to communicate with it. To save yourself time and
trouble, we suggest that you set up your computer station and your remote
station close to each other on different phone lines (preferably in the same
building) to test their operation.
Connecting the Remote Modem
The remote station consists of a PowerWatch VDR, an LIC-100 Lite-Link
interface cable, a 9- to 25-pin adapter, an MA-100, and a modem.
1.
2.
3.
4.
5.
Connect the LIC-100 Lite-Link interface cable to the 9- to 25-pin adapter.
Connect the 9- to 25-pin adapter to the MA-100.
Connect the MA-100 to the modem.
Connect the modem to a phone jack.
Plug the wand into the VDR's optical port.
When you have connected all equipment and set up both modems, you are
ready to dial the remote site.
Next step:
Dialing the remote site
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
71
5.3.10
PowerWatch©
PhoneBook
PhoneBook (saving phone numbers &
dialing a remote site)
The PhoneBook function enables you to save phone numbers and to dial a
remote site. The PhoneBook is opened from the Edit menu.
Saving Phone Numbers
To open the PhoneBook, either No COM Port must be selected or the active
COM port must be connected to a modem.
When you have entered the remote site name and phone number, save them
by choosing Save from the File menu.
Dialing a Remote Site
1. From the Communicate menu choose the COM port that is connected to
the computer station modem to open the Modem dialog box.
2. Select the phone number from the pulldown list and click the Dial button.
See also;
Modem overview
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
Troubleshooting
SECTION 6 Troubleshooting
Overview
·
·
·
·
Lite-Link Interface Cable
Printers
Voltage Disturbance Recorder
Technical Support
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
72
73
6.1
PowerWatch©
Lite-Link Interface Cable
Lite-Link Interface Cable
Many manufacturers of PC software and hardware use serial (COM) port(s). It
is difficult to predict potential serial port conflicts. If the Lite-Link interface
cavle's wand tip is not flashing, ther are a few steps that can be taken in order
to potentially find the source of the problem.
· Make sure that the Lite-Link interface cable is securely plugged in. The
Lite-Link may appear to be properly connected but only be partially plugged
in.
· Try a different serial port. If the PC has more than one serial port, try
another port to see if the Lite-Linnk flashes.
· Determine if you have any other Windows programs using the serial
port. PC faxing programs or other programs that use the COM port can
cause conflicts during data transmission. To verify that no other programs
are running and causing comunication problems, shut down your computer
and restart if before you run the PowerWatch program.
· Verify that your serial port settings are correct. In Windows 3.1, use the
Microsoft Diagnostics program, MSD.EXE, to find out the number of
installed serial ports in you PC, and their settings. These settings should be
the same as those displayed in the advanced section of "Ports" in the
Windows 3.1 Control Panel. Exit Windows or restart the computer in MSDOS mode before running MSD. If an internal modem is used, MSD may
detect the modem's serial port. This serial port cannot be directly used with
the Lite-Link.
Windows 95 users can verify port settings using Device Manager. Device
Manager is found on the Task Bar by choosing Start, Settings, Control
Panel, Systems, and Device Manager.
Standard COM port settings
Port
COM1
COM2
COM3
COM4
I/O Address
3F8h
2F8h
3E8h
2E8h
IRQ
4
3
4
3
· Verify that your serial port is functioning properly. Use any standard
Windows communications program to ensure the port is functioning.
Examples include: ProComm, Windows 3.1 Terminal or Windows 95
Hyperterminal.
Exit all programs (including PowerWatch) and connect the Lite-Link to the
2007 ACR Systems Inc.
Troubleshooting
74
port. Run the communications software and set the local echo to "off" and
hardware flow control control to "none". When using Hyperterminal, choose a
direct connection to the port. Open the port with the communication software.
Any alphanumeric character typed on the keyboard should cause the Lite-Link
to flash, and the character to appear on the screen.
If the Lite-Link does not flash during typing, the Lite-Link may need repair.
If the Lite-Link flashes during typing, it should also work with PowerWatch
software. Exit the communications program, and re-start PowerWatch. If LiteLink does not flash when running PowerWatch, re-install PowerWatch
software.
· Check your mouse driver. Certain older or inferior drivers for mice,
trackballs, and laptop "pointers" are known to interfere with serial port
operation. If, after disabling your mouse driver, the Lite-Link functions
normally, try using a high quality mouse driver such as Logitech or
Microsoft.
· Try another computer. An alternative to serial port troubleshooting is to
use a different computer. Another computer with its serial ports set up
correctly will confirm that there is an incorrect set up or software/hardware
conflict with the original PC.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
75
6.2
PowerWatch©
Printers
Printers
· Verify that the printer is plugged in, turned on, and has paper.
· Verify that Windows is set up correctly. Windows uses its own printer
drivers. Set up is done through the Windows Control Panel. If you need
help, follow the instructions in the Windows 3.1 Guide under
Printers/Setup; in Windows 95, click Help, and choose Troubleshooting
Printers.
· Try printing from another program to eliminate the possibility of a hardware
conflict.
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
Troubleshooting
6.3
76
Voltage Disturbance Recorder
Voltage Disturbance Recorder
voltage readings can be different on various meters. A
· PowerWatch
PowerWatch VDR reads voltage in average RMS, while some
manufacturers' meters may calculate and display True RMS.
and/or time are not correct. The PowerWatch uses the PC's internal
· Date
clock to reference the time of the downloaded data. Set the PC's internal
clock to the current time. The Windows 3.1 User's Guide, under System
Time and Date, will explain this procedure; in Windows 95 click Help, time,
and changing your computer's time. Make sure that the time format is either
24-hour or AM/PM, not both.
time stamps are invalid after a prolonged period of time.
· ToPowerWatch
eliminate this issue, ensure that the PowerWatch VDR is cleared of data a
minimum of once every four years.
PowerWatchs have different impulse readings on the same circuit.
· Two
Locally generated impulses can carry relatively little power. One VDR can
absorb some of the energy leaving less for the next one in the series to
read.
records long periods of large NG surge. The VDR has
· PowerWatch
been plugged into a convenience outlet that has been wired with the hot and
neutral lines reversed.
does not record any data. The VDR does not record events
· PowerWatch
while communicating. Make sure that realtime display is stopped.
PowerWatch will record events in 8 to 16 seconds thereafter.
© ACR Systems Inc.
2007 ACR Systems Inc.
77
6.4
PowerWatch©
Technical Support
Technical Support
If you are experiencing problems with your PowerWatch system, please
contact:
ACR Systems Inc.
Unit 210-12960 84th Ave.
Surrey, B.C. V3W 1K7 Canada
Telephone: (604) 591-1128
Fax: (604) 591-2252
Toll Free Canada & U.S.: 1-800-663-7845
Website: www.acrsystems.com
E-mail: customerservice@acrsystems.com
Ó 2007, ACR Systems Inc.
2007 ACR Systems Inc.
Index
Index
-H-
-A-
Help Menu 30
About ACR Systems Inc. 1
About PowerWatch 5
About Window 30
ACR and the World Wide Web 3
-CCalibration Utility 28
Changing Default Threshold Settings 37
Choosing remote modem setup string 66
Hardware Warranty 10
-IImpulse Events 50
Impulse Graph 22
-LLine Frequency Events 55
Logger Info 39
Loss of Synchronization Events 53
COM Port Selection 34
-M-
Communicate Menu 25
Message Log 24
Computer modem dial command & timeout 69
Modem 63
Computer modem DIP switch settings 68
Computer modem setup string 68
equipment needed 63
Modem overview 64
Connecting the Lite-Link Interface Cable 33
Connecting the remote modem 70
-OOpening the Site Report Window 35
-D-
Operating Options 38
DDE 45
Options Menu 26
Default Threshold Settings 37
Outage Events 52
Default Threshold Settings Changing 37
Overwrite Oldest Events When Full 38
dial command 69
Dialing a remote site 71
-P-
DIP switch settings 68
PhoneBook 71
computer modem 68
Displaying and Printing Events 47
Dynamic Data Exchange 45
Printing Events 61
-RRealtime Readings 39
-E-
Remote modem connection 70
Edit Menu 20
Remote modem DIP switch settings (for configuration) 65
Event Distribution Graph 23
Remote modem DIP switch settings (for operation) 67
Events 36
Remote modem setup string 66
Printing 61
Events Tab 47
Exporting Files 21
Retrieving and Saving Events 41
-SSag Events 51
-F-
Saving Events 42
File Menu 19
Saving phone numbers 71
Flash When Data Available 38
Setup a VDR 40
Frequency Events 52
Setup string for computer modem 68
Setup string for remote modem 66
-G-
Single Impulse Graph 22
Graph Setup/Viewing Options 26
Site Description 38
Graph Styles/Control Dialog Box 60
Site Report Window 44
Software Disclaimer 12
Spikes 50
2007 ACR Systems Inc.
78
79
PowerWatch©
Starting the Program 34
Status tab 44
Stop Recording When Full 38
Surge Events 51
-TTechnical Support 77
Threshold settings 44
timeout 69
Troubleshooting 72
Lite-Link Interface Cable 73
Printers 75
Voltage Disturbance Recorder 76
-VView Menu 20
Viewing a Single Impulse as a Graph 57
Viewing Events as a Bar Graph 55
Viewing Events as an Event Distribution Graph 59
-WWarranty 10
Hardware Warranty 10
Software Disclaimer 12
Window Menu 29
2007 ACR Systems Inc.
